year in-home warranty

The Aero is a big fan with a big blade sweep. It is the only fan of this size in our range that can have a light kit installed.

These fans have a diameter of 1400mm and they also hang quite low from the ceiling compared to other fans in our range. The blades themselves form the housing over the DC motor which adds to it’s size. They are best suited to larger spaces in your home which are 25m² or larger.

PLU 75589: WHITE FAN

PLU 75603: DARK KOA FAN

We recommend installing these fans in rooms that have a ceiling height of 2.7m or greater. The base on this fan is able to tilt up to a maximum of 30° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 30° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 30° MOUNT ON PITCHED CEILINGS GREATER THAN 30° USING A WEDGE

• Multi function 6 speed remote (included) • PLU 75606:

F65/900mm matt white downrod • PLU 75604:

F65/900mm matt black downrod • PLU 75605:

F65/900mm dark koa downrod

LIGHT KIT SPECIFICATIONS • 18W LED 4000K • Colour rendering index: CRI > Ra 80 • Luminous fl ux: 1800 lm • Not dimmable • Lamp hours: 25,000

Diameter: 1400mm Ceiling Rose: 190mm Distance from ceiling: 370mm

10 year motor guarantee 3 year in-home warranty

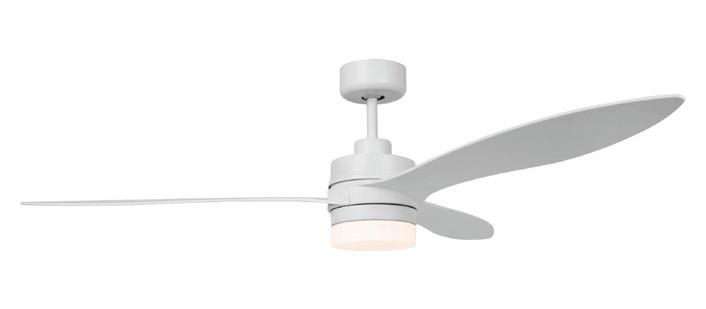

The Avoca is a contemporary take on traditional ceiling fans. All the elements are there from a traditional fan but they have been reshaped to be modern and work more effi ciently.

The Avoca has a 1300mm blade sweep and the curved ABS plastic blades have been designed to create the maximum amount of airfl ow. This fan design is quite deep but they can be used in rooms with a minimum of 2.5m high ceilings.

PLU 75610: WHITE FAN PLU 75613: WHITE FAN WITH LIGHT

PLU 75609: BLACK FAN PLU 75612: BLACK FAN WITH LIGHT

We recommend installing these fans in rooms that have a ceiling height of 2.5m or greater. The base on this fan is able to tilt up to a maximum of 14° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 14° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 14° MOUNT ON PITCHED CEILINGS GREATER THAN 14° USING A WEDGE

• Full function 6 speed remote (included) • PLU 72624: F33/900mm black downrod (with loom) • PLU 72625: F33/900mm white downrod (with loom) • PLU 75613: White 15w LED 4200K light kit • PLU 75612: Black 15w LED 4200K light kit

LIGHT KIT SPECIFICATIONS • 15W LED • Colour rendering index: CRI > Ra 80 • Luminous fl ux: 1500 lm • Colour temperature: 4200K • Not dimmable • Lamp hours: 25,000

Diameter: 1300mm Ceiling rose: 135mm Distance from ceiling: 420mm

WITH LIGHT Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 420mm

10 year motor guarantee 3 year in-home warranty

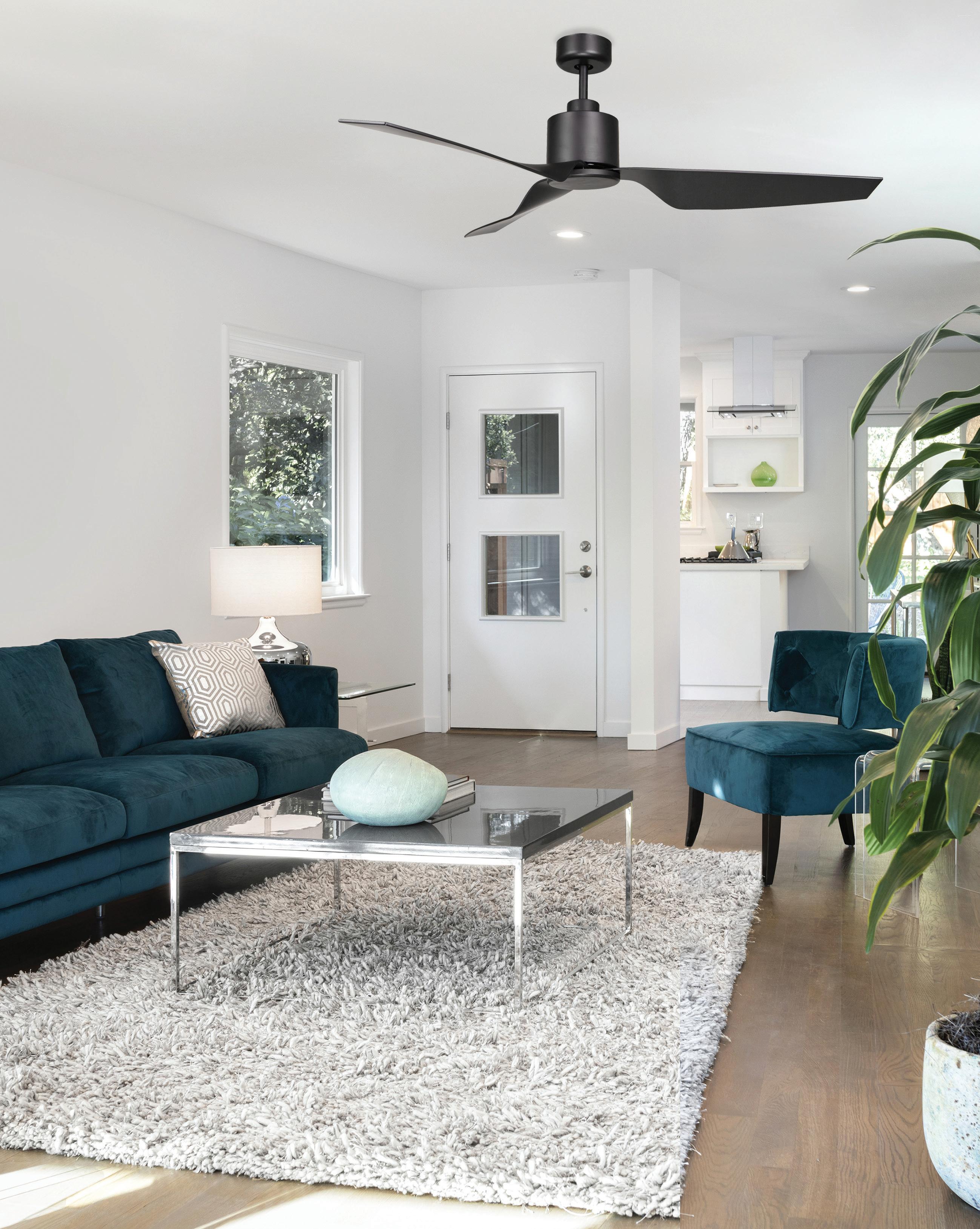

The Bali fan design has a unique feature where all three blades meet evenly at the bottom which helps give it one of the most modern and cleanest looks within our range.

These fans have a diameter of 1300mm and are best suited to average size spaces in your home like a lounge that is approximately 16m².

PLU 76002: WHITE FAN PLU 76005: WHITE FAN WITH LIGHT

PLU 76001: BLACK FAN

We recommend installing these fans in rooms that have a ceiling height of 2.4m or greater. The base on this fan is able to tilt up to a maximum of 20° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 20° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 20° MOUNT ON PITCHED CEILINGS GREATER THAN 20° USING A WEDGE

• Multi function 5 speed remote (included) • PLU 74256:

F69/900mm matt black downrod • PLU 74257: 69/900mm matt white downrod

LIGHT KIT SPECIFICATIONS • 18W LED • Colour rendering index: CRI > Ra 80 • Luminous fl ux: 1500 lm • Colour temperature: 4000K • Not dimmable • Lamp hours: 25,000

Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 300mm

WITH LIGHT Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 335mm

10 year motor guarantee 3 year in-home warranty

The Bronx features fi ve blades and has been designed to move the maximum amount of air.

These fans are available in two sizes. The .56 size has a diameter of 1400mm and is best suited to larger spaces in your home like a lounge/living room that is 25m².

The .40 size Bronx fans have a 1000mm diameter and we recommend them for smaller spaces like a bedroom that is around 16m².

PLU 75897: WHITE FAN

PLU 75898: BLACK FAN WITH DARK KOA BLADES

We recommend installing these fans in rooms that have a ceiling height of 2.7m or greater. The base on this fan cannot tilt so the type of ceiling it is ideally designed for is fl at.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

• Full function 8 speed remote (included) • PLU 75907:

F66/900mm white downrod comes with loom • PLU 75908:

F66/900mm dark koa downrod comes with loom

BRONX.56 Diameter: 1400mm Ceiling Rose: 190mm Distance from ceiling: 360mm

BRONX.40 Diameter: 1000mm Ceiling Rose: 170mm Distance from ceiling: 345mm

10 year motor guarantee 3 year in-home warranty

Simple and stylish is the perfect description of our Capri. The blades have an elegant propeller style design and all three meet seamlessly at the base of the fan.

These fans have a diameter of 1300mm and are best suited to medium sized spaces in your home that are approximately 16m² or larger.

PLU 76066: WHITE FAN PLU 76069: WHITE FAN WITH LIGHT

PLU 76068: BLACK FAN WITH DARK KOA BLADES

We recommend installing these fans in rooms that have a ceiling height of 2.4m or greater. The base on this fan is able to tilt up to a maximum of 14° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 14° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 14° MOUNT ON PITCHED CEILINGS GREATER THAN 14° USING A WEDGE

• Multi-function 5 speed remote (included) • PLU 74257:

F69/900mm matt white downrod (with loom) • PLU 74256:

F69/900mm matt black downrod (with loom)

LIGHT KIT SPECIFICATIONS • 18W AC LED • Luminous fl ux: 1500 lm • Colour temperature: 4000K • Not dimmable • Lamp hours: 25,000

Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 270mm

WITH LIGHT Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 340mm

10 year motor guarantee 3 year in-home warranty

Simple and modern is the perfect description of our Carrara. The blades have an elegant design and all three meet evenly at the base of the fan.

These fans have a diameter of 1300mm and are best suited to medium sized spaces in your home that are approximately 12m² – 16m².

PLU 7061: WHITE FAN

PLU 7062: BLACK FAN WITH DARK KOA BLADES

We recommend installing these fans in rooms that have a ceiling height of 2.4m or greater. The base on this fan is able to tilt up to a maximum of 18° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 18° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 18° MOUNT ON PITCHED CEILINGS GREATER THAN 18° USING A WEDGE

• Multi-function 5 speed remote (included) • PLU 74257: F69/900mm matt white downrod (with loom) • PLU 74256: F69/900mm matt black downrod (with loom)

Diameter: 1300mm Ceiling Rose: 145mm Distance from ceiling: 295mm

10 year motor guarantee 3 year in-home warranty

The Evolution is a fan with a unique feature. Supplied with four blades, you can easily change it to have only two or three depending on how much airflow you require from your fan.

These fans have a diameter of 1300mm and are best suited to average sized rooms in your home like bedrooms that are around 16m². It is supplied with 4 laminated wooden blades and can be configured as either a 2, 3 or 4 blade fan.

PLU 75033: WHITE FAN

PLU 73654: BLACK FAN

PLU 75034: BRUSHED CHROME FAN

We recommend installing these fans in rooms that have a ceiling height of 2.4m or greater. The base on this fan is able to tilt up to a maximum of 18° so can be mounted on sloped ceilings. If your ceiling is sloped greater than 18° you simply need to use a wedge when installing it.

MOUNT IN THE CENTRE OF GABLED/HIPPED ROOFS IDEAL FOR FLAT CEILINGS

CAN BE MOUNTED ON PITCHED OR SLOPED CEILINGS UP TO 18° MOUNT ON PITCHED CEILINGS GREATER THAN 18° USING A WEDGE

• Full function 6 speed remote (included) • PLU 73659:

F40/900mm white downrod (with loom) • PLU 72631:

F40/1800mm white downrod (with loom) • PLU 73660:

F40/900mm br. chrome downrod (with loom) • PLU 73661:

F40/900mm black downrod (with loom)

Diameter: 1300mm Ceiling Rose: 135mm Distance from ceiling: 285mm

10 year motor guarantee 3 year in-home warranty
