Available in more layouts than you can shake a stick at.
Miniature lights with a huge
amount of control.
Minimalist adjustable supports a 25° tilt from nadir in either direction. Wall wash is fixed at 15° for seamless consistency along hallways or corridors.
RECESSED ADJUSTABLE
RECESSED WALL WASH
RECESSED FIXED
Damp Location Listed 12°, 34°, 48° Beam Spreads 50° Arc Tilt 1.09" Aperture
Aluminum
Powder Coated
Body

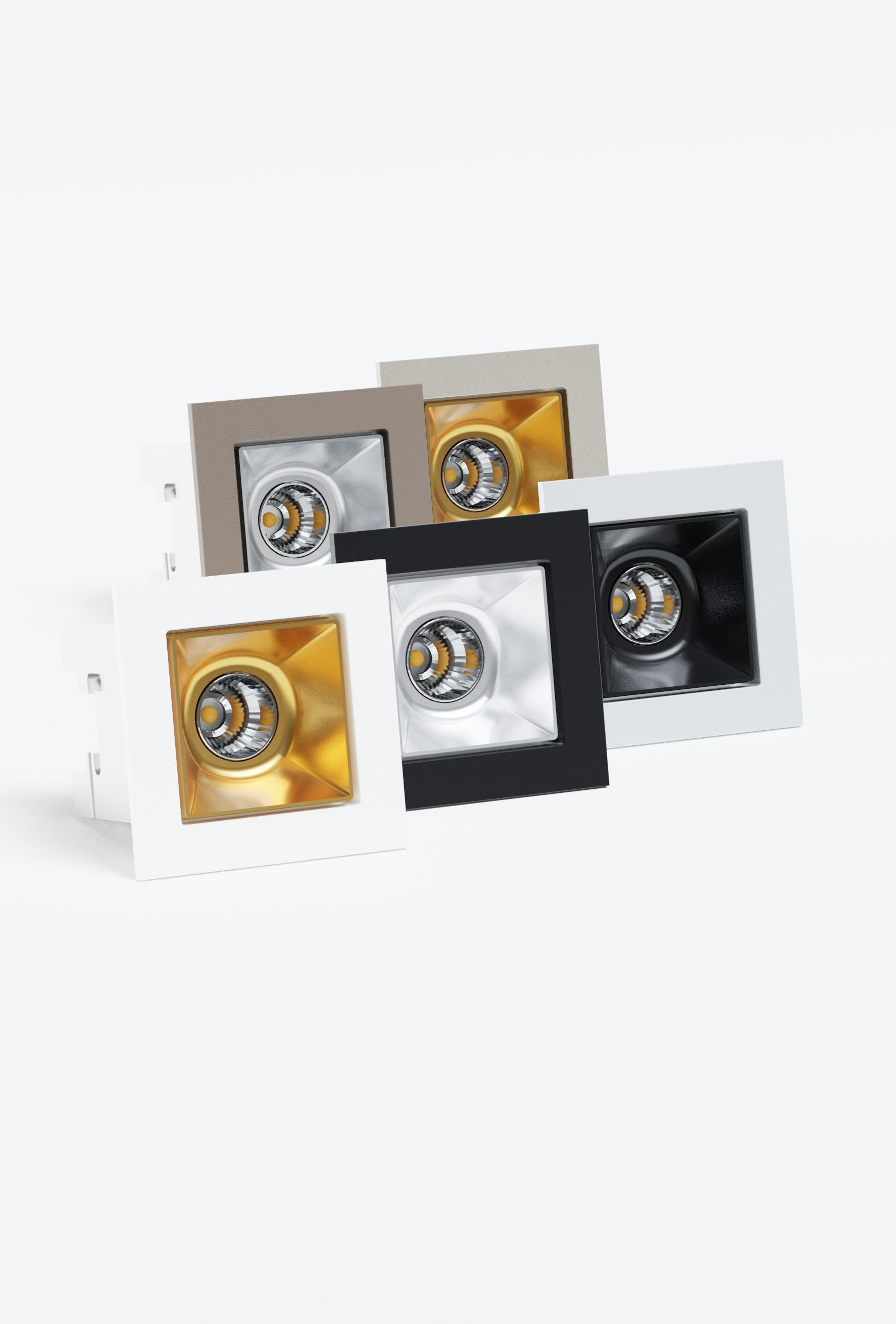

Pristine coats of paint.
In-house powder coated flange finishes, with custom colors available, ensures a quality shine that lasts. Satin coated interchangeable reflector finish options provide a perfect complement with virtually no glare (<3 UGR).
FLANGE FINISHES
* Custom colors available
REFLECTOR FINISHES
Black White Matte Silver Matte Nickel Bronze Black Specular White Satin Silver Satin Gold Satin* Image shown: Fixed Minimalist

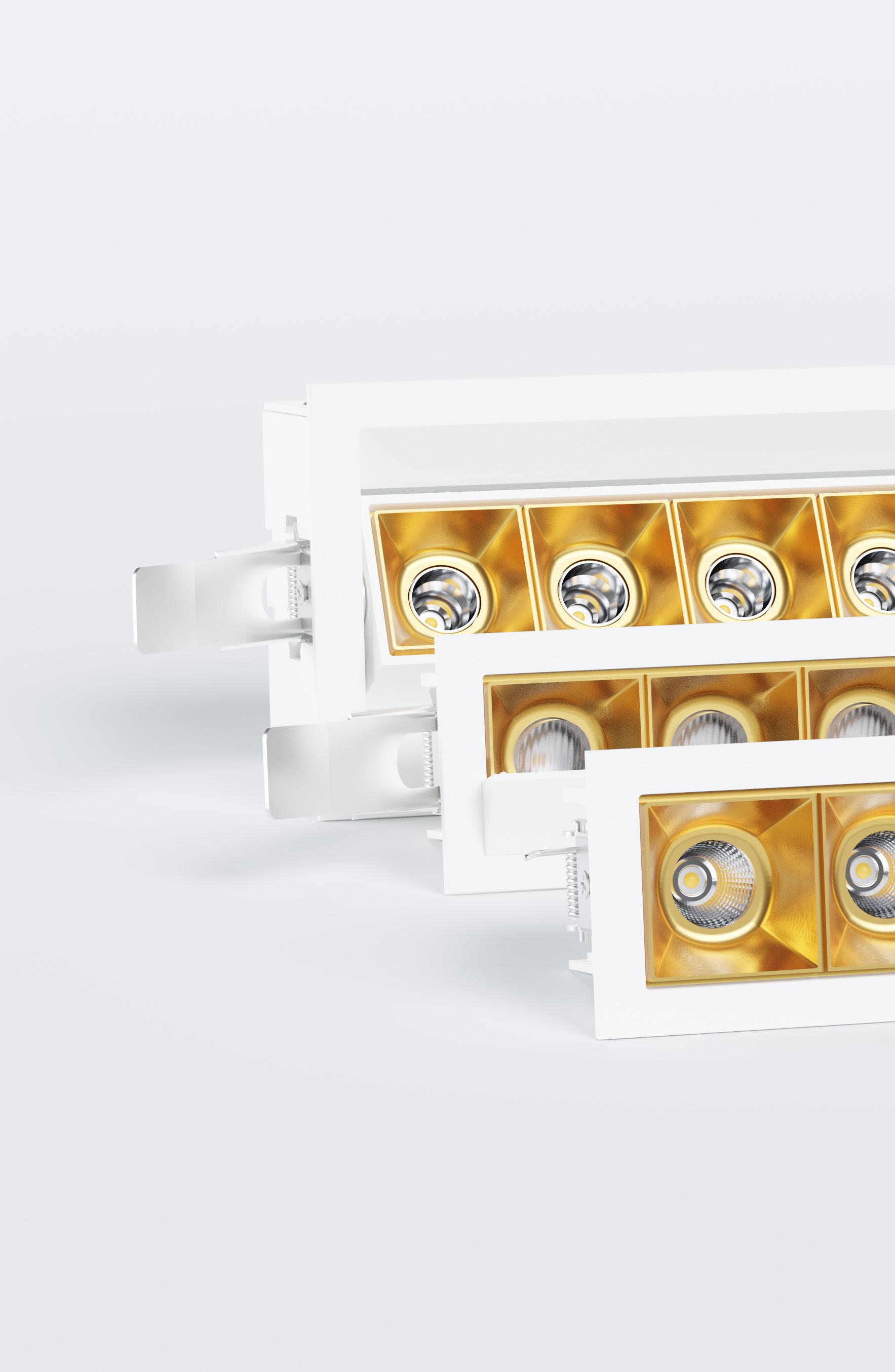

A lot of lighting options from a tiny source.
Each Minimalist LED Node outputs 180 lumens, providing consistent, accurate lighting with an L70 @ 50,000 hours. The anodized aluminum heat sink allows for strength and longevity in a lightweight form factor.
RECESSED FIXED
RECESSED ADJUSTABLE & TRIMLESS FIXED
RECESSED WALL WASH
* Images shown are actual size
Lumens
Color
180–2700
2700K–4000K Static CCT Up To 90 CRI
Accuracy Within 3 SDCM
1x1, 1x3, 1x5, 1x10, 1x15, 2x2, 3x3
1x3, 1x5, 1x10
1x1, 1x3, 1x5, 1x10, 1x15

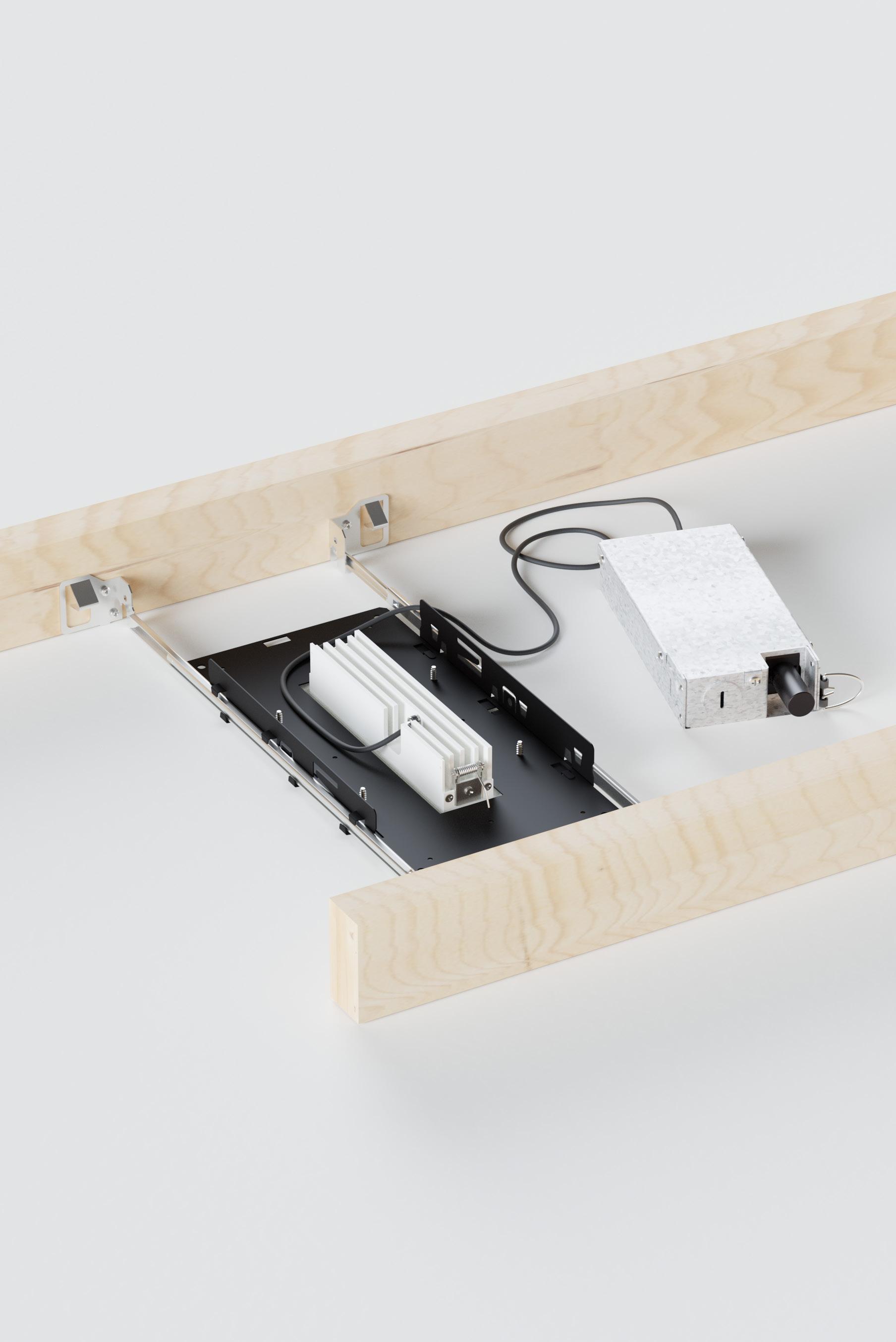

Sized for the smallest of applications.
Minimalist can be installed within plenum heights of only 2.5". Remote and remodel drivers support standard dimming protocals, available down to 1%. Optional baseplates ensure a sturday installation and allow for preconstruction placement, prior to fixture installation.
Remodel Driver Remote Driver 50,000 Hour L70 Estimate 5 YEAR WARRANTY LIMITED 5 Year Warranty Dimming Lutron Phase 100–1% Eldoled 0–10V 100–1% Lutron EcoSystem 100–1% ELV 100–10% 0–10V 100–10% 120V & 277V Available
* Image shown: 1x5 Fixed Minimalist + Remodel Driver + Baseplate

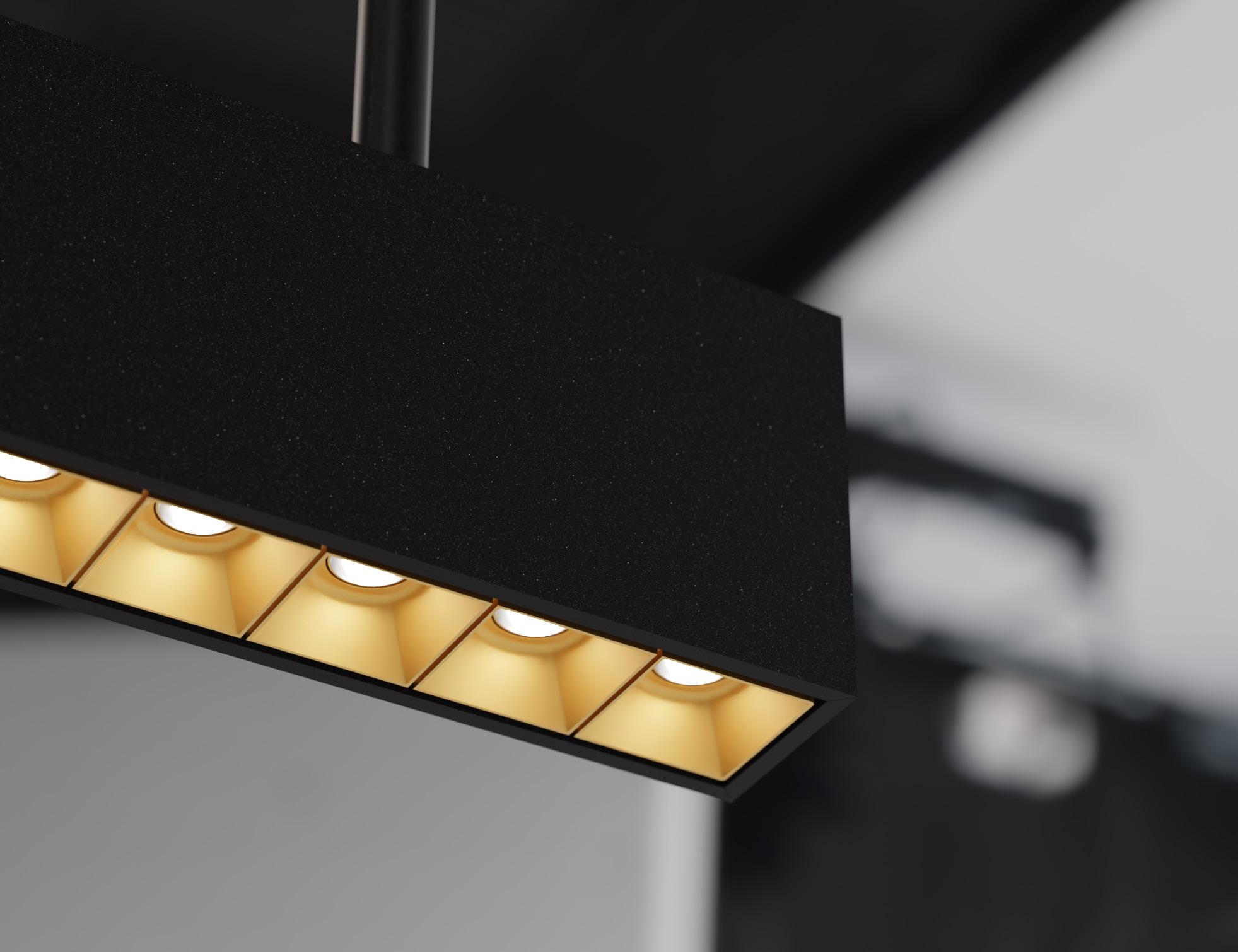

PENDANT
Available in Fixed Layouts 1x3, 1x5, 1x10

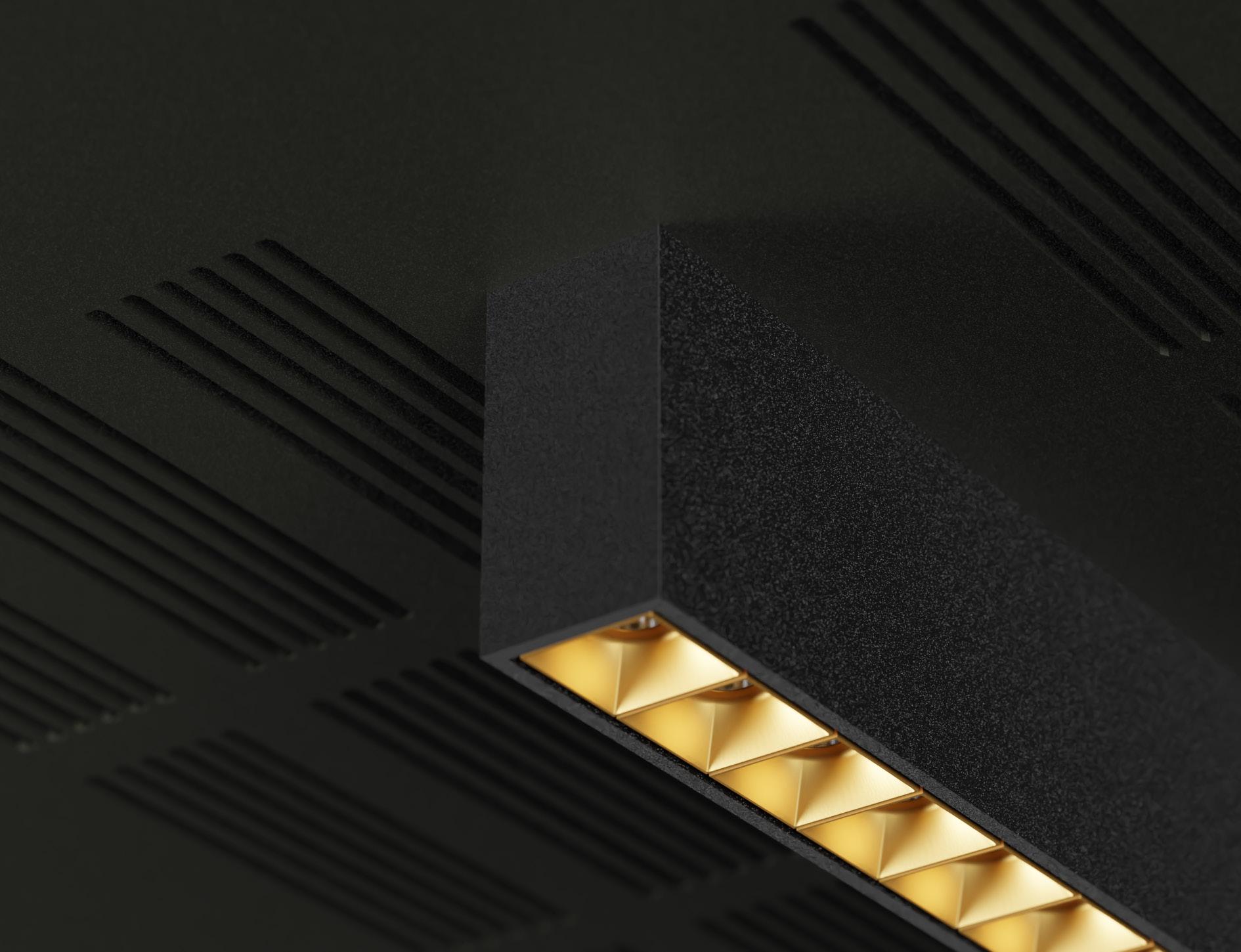

SURFACE
Available in Fixed Layouts 1x3, 1x5, 1x10, 2x2
lightheadedlighting.com/minimalist P. 604.464.5644 T. 1.800.464.9544 E. info@lightheadedlighting.com
