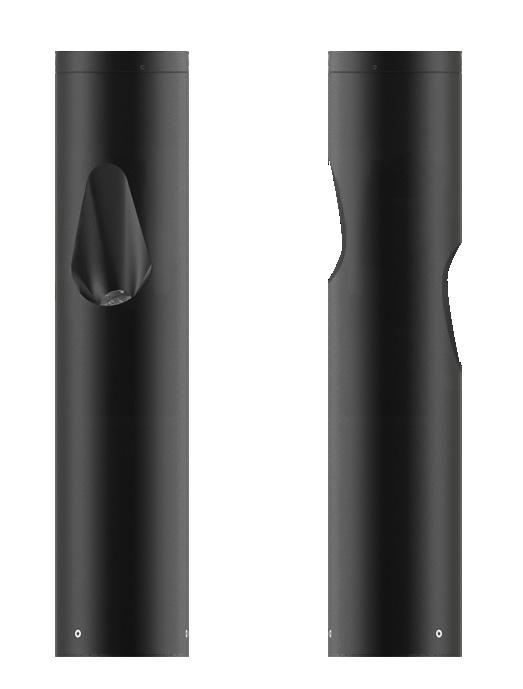

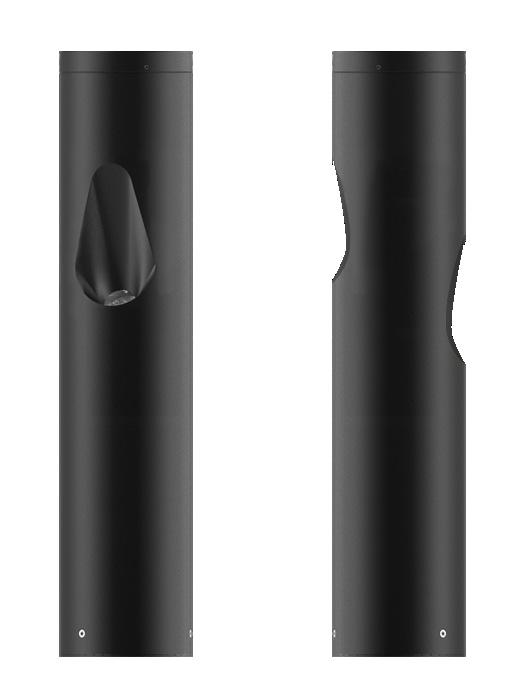

FREETOWN
Bollard
NEW products

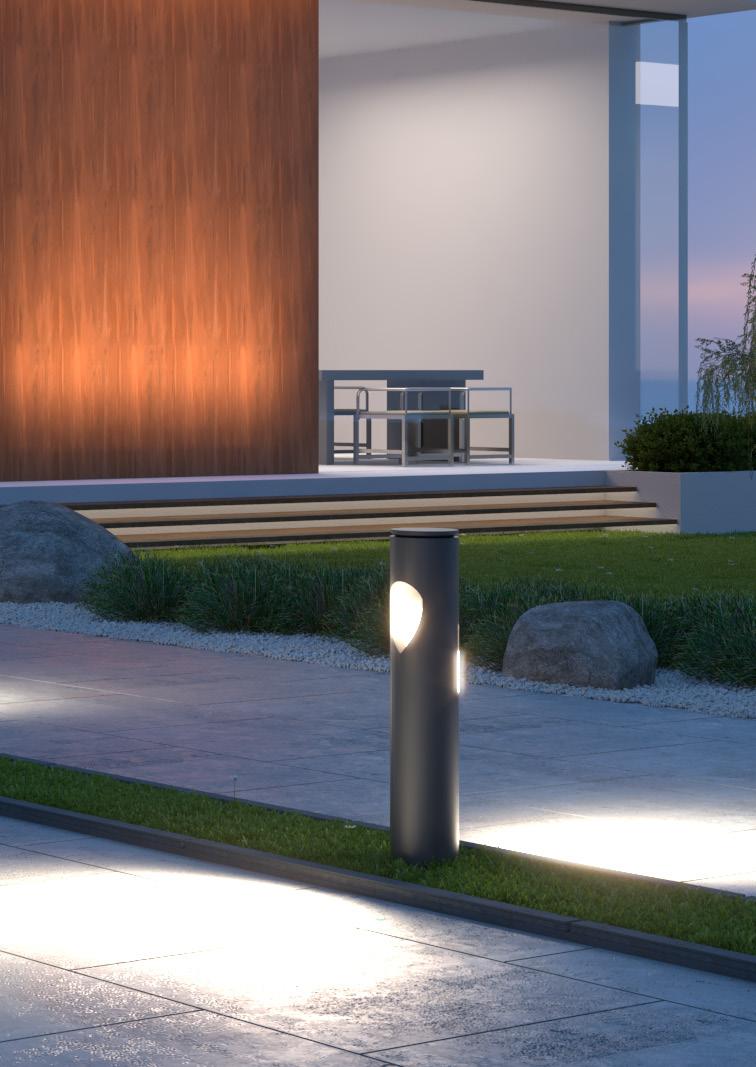

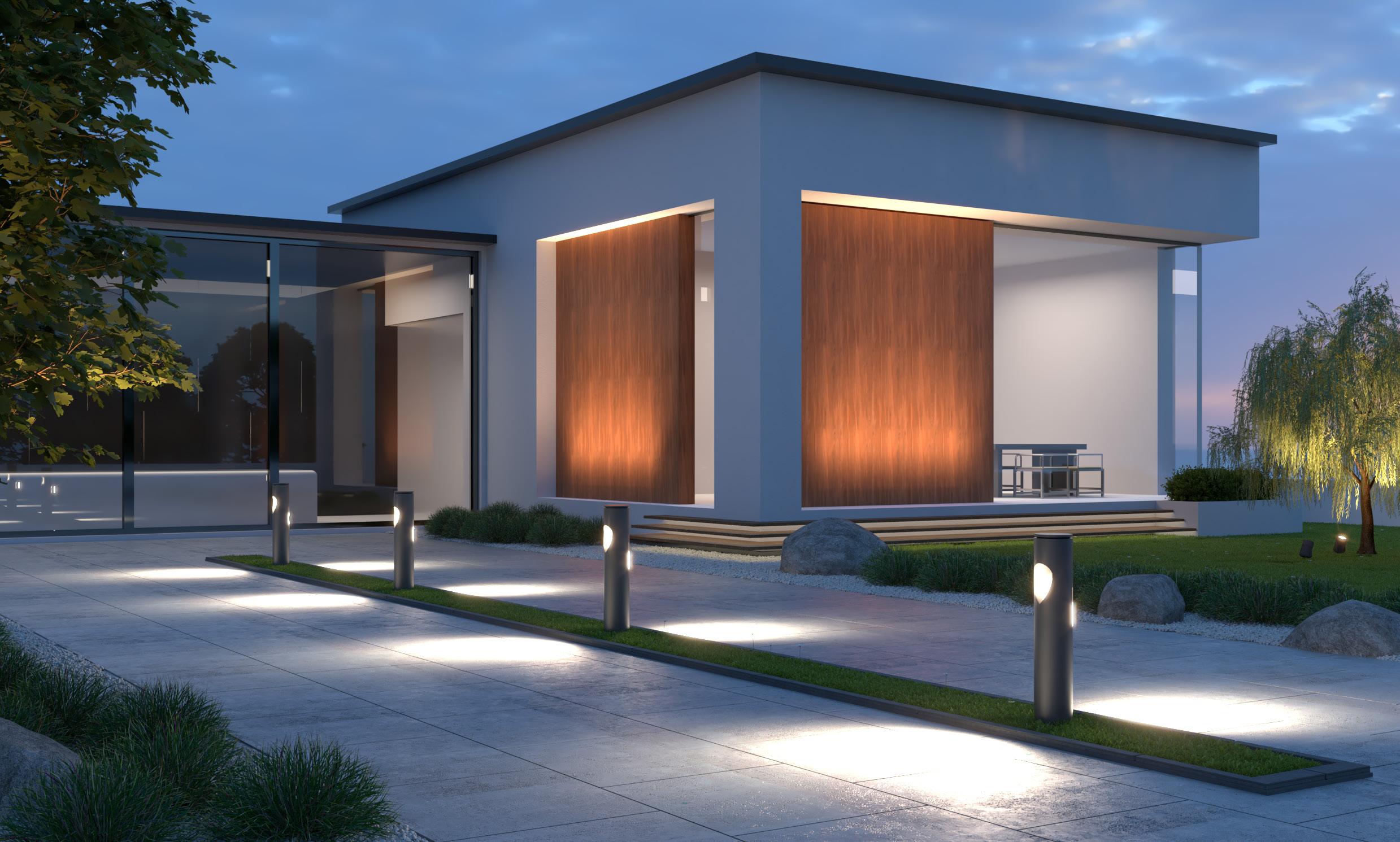

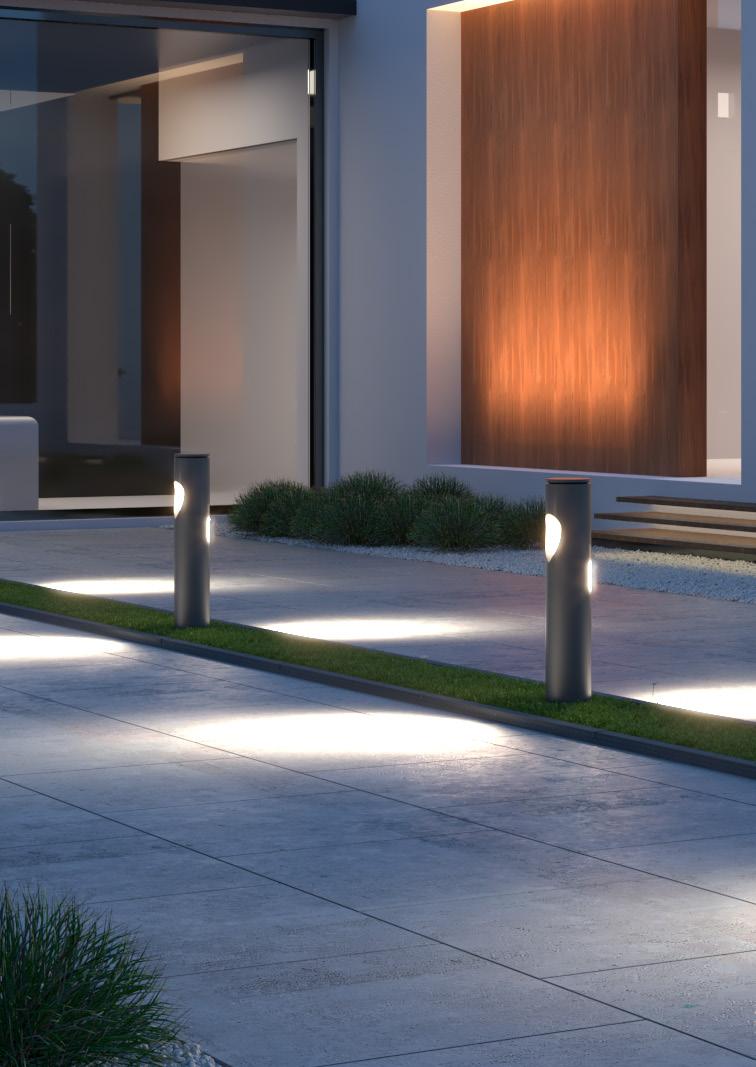

Modern urban lighting furniture. Impact resistant, way finding bollard in contemporary minimalist design. Glare free light distribution.
FREETOWNBollards
Luminaire colour code - 01 - 02 - 03 - 05 - 06 Black Dark Grey White Matt Silver Bronze RAL 9011 RAL 7043 RAL 9003 RAL 9006 RAL 6014 Special finishes upon request - SU01 - SU02 - SU03 - SU04 - SW01 - SW02 - SW03 Concrete Softscape Stone Corten Oak Walnut Pine Urban Urban Urban Urban Woodland Woodland Woodland
Luminaire structure
- Die-cast aluminium housing
Single cable
One
Stainless steel fasteners
Durable silicone rubber
High-efficiency
Clear toughened glass
Integral control
lens
Feature symbols
Light symbols M
2
-
entry -
IP68 connector supplied with 0.5 m of 3x1.0 sqmm outdoor cable -
in grade 316 -
gasket -
PMMA
-
-
gear

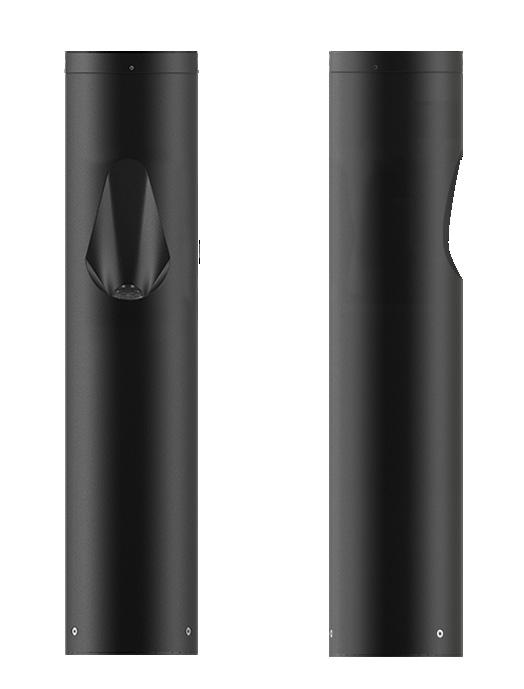

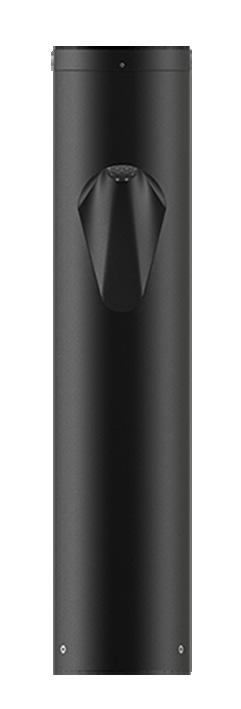

3 Product code guide FRE-10001 - 8040 - DI - 01 - A10391 CRI & CCT Luminaire colour Dim Type Accessory FREETOWN Bollards Colour Randering Index & Colour Temperature 8030 – 3000K CRI80 8040 – 4000K CRI80 Dimming Type ND – Non dimmable DI – 1-10V dimming DA – DALI dimming Luminaire colour 01 – Black 02 – Dark Grey 03 – White 05 – Matt Silver 06 – Bronze FREETOWN 1 FREETOWN 2 Product code Lamp Power Lumen EEC Weight Optic CRI & CCT Dimming type M Ø186 - 1000 mm - Down FREETOWN 1 FRE-10001 7 LED 12 W 1026 - 1080 lm A+ 8.2 kg 45° 8030 | 8040 ND | DI | DA Ø186 - 1000 mm - Down & Down FREETOWN 2 FRE-10011 2 x 7 LED 24 W 2052 - 2160 lm A+ 8.5 kg 45° 8030 | 8040 ND | DI | DA Ø186 - 1000 mm - Down & Up FREETOWN 3 FRE-10021 2 x 7 LED 24 W 2052 - 2160 lm A+ 8.5 kg 45° 8030 | 8040 ND | DI | DA Ø186 - 1000 mm - Up FREETOWN 4 FRE-10031 7 LED 12 W 1026 - 1080 lm A+ 8.2 kg 45° 8030 | 8040 ND | DI | DA Ø186 - 1000 mm - Up & Up FREETOWN 5 FRE-10041 2 x 7 LED 24 W 2052 - 2160 lm A+ 8.5 kg 45° 8030 | 8040 ND | DI | DA Anchor bolt A10391 FRE-10001 • FRE-10011 • FRE-10021 • FRE-10031 FRE-10041 Mounting detail ø10 ø85 186 77 202 1000 186 LWA-10001 652 LWAY 1 202 652 1000 202 452 Mounting detail ø10 ø85 186 77 186 LWA-10011 LWAY 2 202 652 1000 202 452 Mounting detail ø10 ø85 186 77 186 LWA-10011 LWAY 2 Mounting detail ø10 ø85 186 77 202 1000 186 LWA-10001 652 LWAY 1

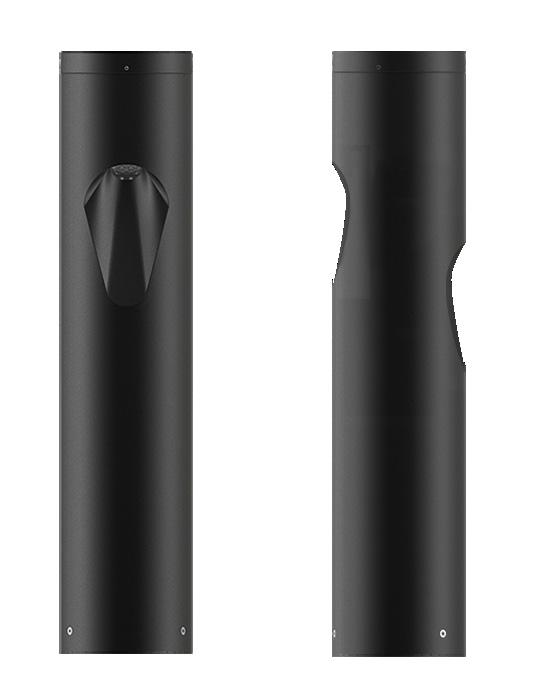

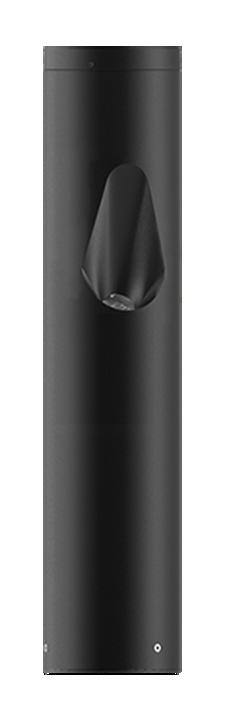

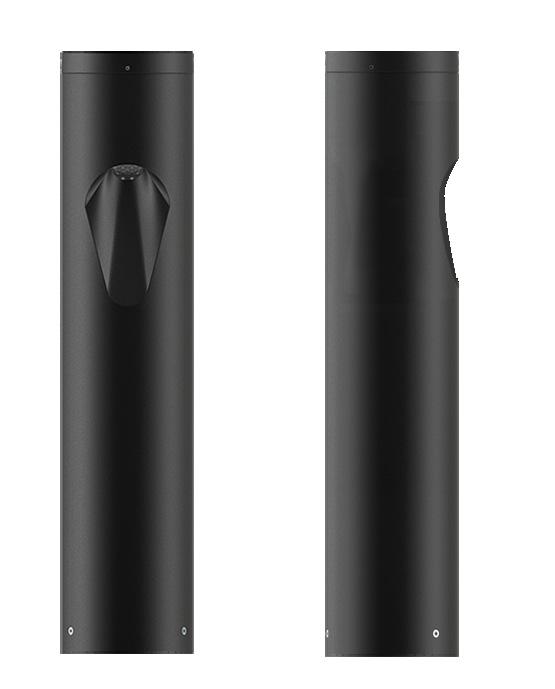

www.ligman.com/freetown FREETOWN Bollards FREETOWN 3 FREETOWN 4 FREETOWN 5 186 LWA-10021 202 452 1000 202 621 Mounting detail ø10 ø85 186 77 LWAY 3 186 202 452 1000 202 621 Mounting detail ø10 ø85 186 77 186 LWA-10031 202 621 1000 Mounting detail ø10 ø85 186 77 LWAY 4 186 LWA-10031 202 621 1000 Mounting detail ø10 ø85 186 77 LWAY 4 186 LWA-10041 202 484 1000 Mounting detail ø10 ø85 186 77 202 621 LWAY 5 186 LWA-10041 202 484 1000 Mounting detail ø10 ø85 186 77 202 621 LWAY 5
