| FOLIO ZERO GRID ZERO GRID FOR BIG LUMINOUS CEILINGS MAXIMUM SIZE: WALL _ 20000 x 4950 mm [65.61 x 16.24 ft] (see the specs) CEILING _ 10000 x 4950 mm [32.80 x 16.24 ft] (see the specs) BACKLITE WITH NICHIA PREMIUM QUALITY LEDS (see the specs)

| FOLIO ZERO GRID Index. click the point of the chapter you are interested in to go to the page WHAT’S ZERO ZERO FEATURES ZERO GRID NICHIA LED MODULES STRETCH FABRIC (FEATURE, REPLACEMENT AND CLEANING) SOUND-ABSORBING FABRIC SOUND-ABSORBING MAT ALUMINUM FINISHES ZERO GRID INSTALLATION PROJECTS

What’s Zero.

Zero is the lighting system born from the Folio experience. Zero GRID is the luminous aluminum frame that can cover large surfaces. Zero is the lighting system which, thanks to the tensioned diffuser fabric, neutral or printed, diffuses the light in a natural and uniform way. Zero creates soft shadows enhancing architecture and furnishings. The aluminum profiles that surround important surfaces without visible joining elements are Zero. Zero enhances the luminous homogeneity typical of Folio products.

| FOLIO ZERO GRID

back to the index

come

•

| FOLIO ZERO GRID

Zero features.

ACHIEVABLE IN BIG SIZE - FOR BIG LUMINOUS CEILINGS

EASY TO INSTALL

CUSTOMIZABLE WITH PRINTED FABRIC

CUSTOMIZABLE WITH MATERIAL COVERINGS

AVAILABLE IN CURVED SHAPES

SHAPEABLE WITH HOLES

AVAILABLE WITHOUT IRON ELEMENTS

come back to the index

IDEAL FOR MAKING CONTINUOUS CORNERS (CALANDRED)

ZERO BIG SIZE

The Zero system, composed of an aluminum frame, LED lighting system and stretch diffuser fabric (white, printed or with acoustic properties) can cover large surfaces, while maintaining the lighting qualities unchanged.

| FOLIO ZERO GRID come back to the index

ZERO WITH METAL COVER

The Zero system can be customized by adding metal covers, superimposed on the stretch diffuser fabric.

The homogeneous light of the Zero system enhances the roofing material, creating high-impact custom effects

| FOLIO ZERO GRID

ZERO WITH STRETCH FABRIC + METAL COVER

come back to the index

ZERO CURVED

Zero profiles can be curved to obtain round frames or rounded corners.

The minimum achievable curve radius is 400 mm [15.75 in].

The stretch fabric diffuser is shaped and stretched to homogeneously cover the entire curved surface.

MINIMUM

RADIUS 400 mm [15.75 in]

| FOLIO ZERO GRID

come back to the index

ZERO WITHOUT IRON ELEMENTS

Folio ZERO responds to different design needs.

Made in the total absence of ferrous elements, it can also be installed in areas used for Magnetic Resonance (MRI). The iron elements, normally used to join the aluminum profiles, have been replaced with brass details.

In this way Folio ZERO, unchanged in terms of aesthetics and lighting functionality, can also be installed in hospitals.

BRASS

| FOLIO ZERO GRID

DETAILS INSTEAD OF IRON ELEMENTS come back to the index

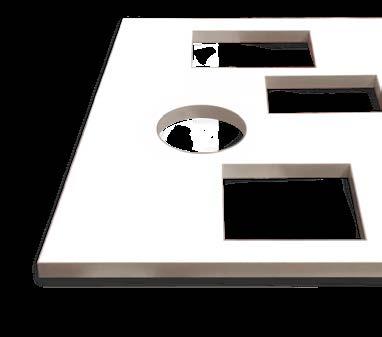

ZERO SHAPED WITH HOLES

Zero profiles can be shaped to obtain custom frames. The luminous surface of the Zero can be perforated with a circular or rectangular section keeping the lighting qualities of the product unchanged. The minimum diameter of the hole that can be made is 400 mm [15.75 in]. The rectangular holes have a minimum size of 150 x 150 mm].

HOLE MINIMUM DIAMETER

400 mm [15.75 in]

HOLE MINIMUM SIZE

150 x 150 mm [5.90 x 5.90 in]

| FOLIO ZERO GRID

come back to the index

ZERO THREE-DIMENSIONAL

Zero profiles can be used to create three-dimensional installations.

The volumes of the three-dimensional installations can include both Zero, Folio and Grid solutions.

Each face of the parallelepiped is composed of a Zero frame with its lighting system and stretch fabric. Each face can be managed separately from the other.

3D SHAPED

| FOLIO ZERO GRID

come back to the index

ZERO CALANDRED

Zero profiles can be used to create continuous corner.

The aluminum profiles of the Zero frame can be calendered, concave or convex to create bright corners without interruptions and visible joints.

| FOLIO ZERO GRID

ZERO + GRID

| FOLIO ZERO GRID

come back to the index

L Stretch fabric LED modules grid Aluminum profile

LED INFO

LED type: Input LED: Standard luminous flux output: Color rendering index (CRI): LED color temperature (CCT):

NICHIA 24 V DC 12 V DC (for RGB CCT) 3000 lm/m2 [280 lm/ft2] output after the fabric Custom lumen output available on request

Typical brightness:

Ra (R1 ~ R8) 90 3000 K 4000 K 5000 K 6500 K Tunable White RGB RGBW RGBTW Other CCT available on request 50/55 lm/module

| FOLIO ZERO GRID

come back to the index

ZERO + GRID

POWERFUL OPTILENS™

With all new OptiLens™ and groundbreaking energy efficiency. The LED module is IP66 and UL wet rated which makes it more robust and reliable even under wet weather.

OptiLens™ is a new technology that allows for an incredible 175° viewing angle.

POLAR DIAGRAM

| FOLIO ZERO GRID

come back to the index

ELECTRICAL SPECS.

Voltage: Driver - Power supplies: Standard consumption: Luminous efficacy:

24 V DC Class 2 (UL) Class III (IEC) AC/DC 24V 0,35 W/module Custom wattage available on request 157 lm/W for the whites

GENERAL SPECS.

| FOLIO ZERO GRID

come back to the index

Wide: IP rating: Warranty: Operating environment: System certifications: 175° beam angle UL Wet rated & IP66 - no separate enclosure is required 5 years limited warranty - 40°C to + 60°C UL Recognized (C-US) #E219167 UL Classified (C-US) #E229508 CE ROHS IP66 rated: for dry, damp or wet location

LED grid info.

FOLIO GRID LAYER

Lighting plate to provide uniform backlighting thanks to Nichia LED modules.

The GRID layer is prefored for the fixing system. The holes on the GRID layer to aid to fix it to the wall/ ceiling/ other structures (not provided by Folio).

POLAR DIAGRAM

| FOLIO ZERO GRID

come back to the index

ELECTRICAL SPECS.

Voltage: Driver - power supplies: Standard consumption: Luminous efficacy: Dimmability:

24 V DC AC/DC 24V 0,35 W/module 35 W/m2 [3,25 W/ft2] Custom wattage available on request 157 lm/W for the whites DALI, 0-10V, 1-10V, DMX

PHYSICAL SPECS.

Thickness: Materials: Sizes:

3 mm [0.11 in] + 10,76 mm [0.42 in] Aluminum + LED modules Custom size max 2000 mm [6.56 ft] max 3000 mm [9.84 ft]

GENERAL SPECS.

IP rating: Environment of use:

IP66 Indoor (outdoor available on request) About 50.000 hours 2 years On request On request

| FOLIO ZERO GRID

LED grid details.

Estimated LED lifespan: Warranty: 2D shaped option: Drillable: come back to the index

• LIGHT HOMOGENEITY GIVEN BY THE FOLIO LED MODULES

• LARGE SIZES

• DIFFERENT LARGE MODULES (SUITABLE FOR SHIPPING) WITH A SINGLE FABRIC

• ALL MODELS ARE SUITABLE FOR THE APPLICATION OF DIFFERENT TYPES OF FABRICS

| FOLIO ZERO GRID

come back to the index

Aluminum profile LED module Stretch fabric PVC profile H ZERO + GRID

ZERO + GRID

ZERO 55 max. size

CEILING mm 3000 x 2000H 9.84 x 6.56H ft

WALL mm 3000 x 2000H 9.84 x 6.56H ft

SUSPENDED mm 3000 x 2000H 9.84 x 6.56H ft

55 mm 2.16 in 80 mm 3.14 in 135 mm 5.31 in 105 mm 3.93 in

ZERO 80 max. size

CEILING mm 10000 x 4950H 32.08 x 16.24H ft WALL mm 20000 x 4950H 65.61 x 16.24H ft SUSPENDED mm 10000 x 4950H 32.08 x 16.24H ft

ZERO 100 max. size

CEILING mm 10000 x 4950H 32.08 x 16.24H ft WALL mm 20000 x 4950H 65.61 x 16.24H ft SUSPENDED mm 10000 x 4950H 32.08 x 16.24H ft

ZERO 135 max. size

CEILING mm 10000 x 4950H 32.08 x 16.24H ft WALL mm 20000 x 4950H 65.61 x 16.24H ft SUSPENDED mm 10000 x 4950H 32.08 x 16.24H ft

| FOLIO ZERO GRID

come back to the index

Stretch fabric.

The visible surface of the Zero system is that of stretched fabric, white or printed, with M1 / B1 certification. The perimeter of the stretch fabric is folded and firmly sewn to a PVC profile. To stretch the fabric, the perimeter is placed inside the aluminum frame. The fabric is 100% polyester, backlightable acrylic ideal for interior backlit prints. Zero can also mount in the same way sound-absorbing fabrics, white or printed, with or without mattress, depending on the acoustic needs.

| FOLIO ZERO GRID

come back to the index

| FOLIO ZERO GRID

PRINTED FABRIC SOUND-ABSORBING WHITE FABRIC PRINTED FABRIC WHITE FABRIC come back to the index

SOUND-ABSORBING

100% polyester stretch fabric

• BACKLIT WITH LEDS

• SUITABLE FOR THE REALIZATION OF LARGE STRETCH CEILING

Stretch fabric features.

• STRETCHABILITY (DIN EN 14704-1): WARP: 0.8% AND WEFT: 1.6%

• PRINTABLE SINGLE-SIDED STRETCH FABRIC (UV CURABLE, DIRECT SUBLIMATION, TRANSFER SUBLIMATION AND LATEX)

• CLASS REACTION TO FIRE B-S1, D0 - DIN EN 13501-1

• THICKNESS: 0,13 mm - 0,30 mm [0.005 in - 0.011 in]

• WEIGHT: 130 g/m2 - 170 g/m2 [12.07 g/ft2 - 15.79 g/ft2]

| FOLIO ZERO GRID

come back to the index

When the gasket sewn on the fabric is correctly inserted in the groove of the Zero/ Round aluminum profile, the stretch fabric is perfectly tensioned.

Stretch fabric replacement.

The tab sewn on the perimeter of the stretch fabric simplifies the disassembly operation. Just pull the tab to remove the flexible fabric from its seat.

The stretch fabric, white or printed, can be easily removed from the aluminum frame. This operation allows you to quickly replace the flexible fabric.

| FOLIO ZERO GRID

come back to the index

go to an external link

The fabrics must be cleaned following the instructions below

• IT IS POSSIBLE TO CLEAN THE FABRIC BY USING JUST A DRY, SOFT AND NON-ABRASIVE CLOTH

• DO NOT APPLY PRESSURE WHEN CLEANING

Fabric cleaning.

• BE CAREFUL NOT TO WRINKLE THE FABRIC

• DO NOT SPRAY OR POUR DIRECTLY ON THE FABRIC ANY TYPE OF CLEANING AGENTS

• DO NOT USE ALCOOL OR CHEMICAL AGENTS TO CLEAN THE FABRIC

• DO NOT IRON THE FABRIC

• DO NOT BLEACH THE FABRIC

• DO NOT WASH THE FABRIC IN THE WASHINGMACHINE

| FOLIO ZERO GRID

come back to the index

Fabric cleaning.

FABRIC TOOLS CLEANING SPEC.

STEP 1 STEP 1

100% POLYESTER

clean, dry, soft, nonabrasive cloth

clean the fabric gently. If the STEP 1 has not resolved the issue, please follow the next steps.

STEP 2 STEP 2

clean, damp, soft, non-abrasive cloth

Dampen a soft cloth using lukewarm water (68 F) with little chlorine-free liquid soap (neutral soap without any kind of chimical components) and clean the fabric gently.

STEP 3 STEP 3

clean, dry, soft, nonabrasive cloth Then using a clean dry soft cloth dry the fabric gently.

| FOLIO ZERO GRID come back to the index

Polyuretane coated 100% polyester fabric with acoustic properties

• FABRIC COATED ON THE BACK WITH POLYURETHANE

• BACKLIT WITH LEDS

Sound-absorbing fabric features.

• SUITABLE FOR THE REALIZATION OF LARGE ACOUSTIC STRETCH CEILING

• PRINTABLE SINGLE-SIDED SOUND-ABSORBING FABRIC (UV CURABLE AND LATEX)

• CLASS REACTION TO FIRE M1 Bs1d0

• PROVIDED WITH ACOUSTIC CERTIFICATE

• THICKNESS: 0,35 mm [0.013 in]

• WEIGHT: 150 g/m2 [13.93 g/ft2]

| FOLIO ZERO GRID

come back to the index

Acoustic properties.

0.40 alpha absorption c oefficien t frequency (Hz)

100 mm frame, fabric only 100 mm plenum ( = 0.50

100 mm frame, fabric with 50 mm fleece, plenum 50 mm ( = 0.70)

100 mm frame, fabric with 40 mm melamine, plenum 60 mm ( = 0.80) 50 mm frame, fabric with 10 mm fleece plenum 40 mm = 0.50)

0.20

AKUART - 60 mm frame ( = 0.85)

60 mm frame = 0.55)

WHITE SOUND-ABSORBING FABRIC ESTIMATED AVERAGE 0.5 200 0.00

| FOLIO ZERO GRID

come back to the index

PITP518-

0.60 0.80 1.00 1.20 1.40 250 315 400 500 6308 00 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000

Polyester sound-absorbing mat to enhance the sound-absorbing characteristics of the sound-absorbing fabric

• 100% POLYESTER

Sound-absorbing mat features.

• SUITABLE FOR THE REALIZATION OF ACOUSTIC STRETCH WALL AND CEILING

• CLASS REACTION TO FIRE M1

• TO BE COUPLED WITH THE SOUND-ABSORBING FABRIC TO INCREASE THE ACOUSTIC QUALITIES

• THICKNESS: 10 mm [0.39 in]

| FOLIO ZERO GRID

come back to the index

SOUND-ABSORBING MAT ESTIMATED AVERAGE 0.8

Acoustic properties.

0.70

0.60

0.50

0.90 0.00

côté fibreux côté aspect

0.80 400 0.18 0.18

0.40

0.20

Moyenne échantillons (côté fibreux)

500 0.22 0.24

0.30 alpha absorption c oefficien t tiers d’octave (Hz)

630 0.34 come back to the index

800 1000 1250 1600 2000 2500 3150 4000 5000 6300 8000 10000 0.36 0.55 0.58 0.70 0.69 0.64 0.64 0.69 0.72 0.78 0.81 0.88 0.36 0.40 0.55 0.62 0.73 0.74 0.70 0.73 0.74 0.79 0.85 0.85 0.89

| FOLIO ZERO GRID

Moyenne échantillons (côté aspect) 0.10
