HOIST RINGS Hoist Rings

Side-Pull Hoist Rings

A versatile style of hoist ring well suited for turning and flipping loads, as well as for top lifts. Extensively used in automotive stamping plants and injection molding operations for die changing.

• Re-designed load ring is more suitable for use with web slings.

• Self-aligns in the direction of the load.

• Rotates 360° under load.

• Forged high strength 4140 alloy steel.

• Designed for loading 90° from bolt axis.

• Meets manufacturing and design requirements of ASME-B30.26 and MIL-STD 209.

• Magnetic particle inspected per ASTM 1444.

• Each hoist ring is individually serialized.

• Black Oxide finish for corrosion resistance.

• Design Factor 5:1.

** It is recommended that these torques be used when installing hoist rings.

WARNING Do not exceed rated capacities. Be sure that sling tension does not exceed hoist ring capacity. Follow Instructions for Effect of Angle chart in HELP section of this catalog.

Plate Clamps

MODEL VL & VLC

Horizontal to Vertical - 180° rotation

• Turn a single steel plate from horizontal to vertical to horizontal through a 180° arc.

• Lock open / lock closed feature facilitates loading and unloading clamp while it protects grippers from damage and closes on material for a more secure lift.

• Working parts remain inside the body when the clamp is locked closed or locked open.

• Model VLC offers the same features as model VL except it locks closed only.

MODEL VL-U & VLC-U

Allows for Side Loading of the Lifting Shackle - 90°

• Both models rated lift capacity lowers as the angle of the pull increases (refer to Figure A).

• VL-U and VLC-U offer the same features as model VL except it locks closed only.

• Clamp requires operator to manually hold in "open" position when loading and unloading and locks closed onto material for a more secure lift.

Figure A

Plate Clamps

MODEL HL

Horizontal

• Serrated gripping cams.

• Available with smooth non-marring cams.

Vertical Capacity (tons) Part Number Plate Thickness A (in.) B (in.) C (in.) Max Height D (in.) E (in.) F (in.) G (in.) H (in.) J (in.) K (in.) L (in.) M (in.) Weight (lbs. per pair) 1/2 HL-0.5-A 0 - 1 4 6-1/8 6-1/2 1-1/4 2-5/8 3 2-1/8 1/2 1/2 3/8 7/8 10 1 HL-1.0-A 0 - 2-1/2 5 8 11 1-1/2 5 4 3 5/8 1/2 1/2 1-1/8 25 2 HL-2.0-A 0 - 2-1/2 5 8 11 1-1/2 5 4 3 5/8 5/8 1/2 1-1/8 28 3 HL-3.0-A 0 - 2-1/2 5 8-5/16 11-1/2 1-1/2 5 5 3-5/16 5/8 3/4 3/4 1-1/2 40 6 HL-6.0-A 0 - 2-1/2 5 8-5/16 11-1/2 1-1/2 5 5 3-5/16 5/8 3/4 3/4 1-1/2 43 8 HL-8.0-A 0 - 3 6-1/2 10-7/8 15 1-3/4 6-5/8 6 4-3/8 1-1/8 1 1 2 97 •

MODEL 300-S DRUM LIFTER

• Secure locking device.

• Easy handling of one drum.

Vertical only Max Height C

Max Width D Weight Clamp Orientation 3000 300S−01.50−A 22.50 3 X 6 25 22.50 25 Vertical only

Product Information

Quality Engineered Products

These products have been engineered and produced to the highest quality standards and meet or exceed applicable U.S. government standards including OSHA, ASME B30.20, B30.9 and B30.17. Proof-testing with certification is available upon request for a nominal charge. Custom devices can be designed to meet your lifting application needs (see end of Lifting Devices section).

Product Overview

Lifting Beams

Allow multiple pick points for balance and support. The top rigging adds stability to the lift. Available in nine standard styles.

Coil Lifters

Use to lift, manipulate and reposition coils. Requires minimum aisle space equal to lifter arm length. Available in two standard styles.

Beam/Girder Clamps

For use in lifting and positioning structural beams. Two styles may also be hung from load bearing beams to suspend hoists or other lifting devices.

Gantry Cranes

These portable cranes allow for the pick-up and transport of a load wherever you have a smooth and level floor. Available in either steel or aluminum and fixed or adjustable height.

Forklift Accessories

Three styles of booms and two hook devices provide added lifting capabilities to your forklift trucks.

Barrier Grabs

Scissor-style grab is the easy way to lift and move concrete road barriers. Auto-latch for hands-off operation.

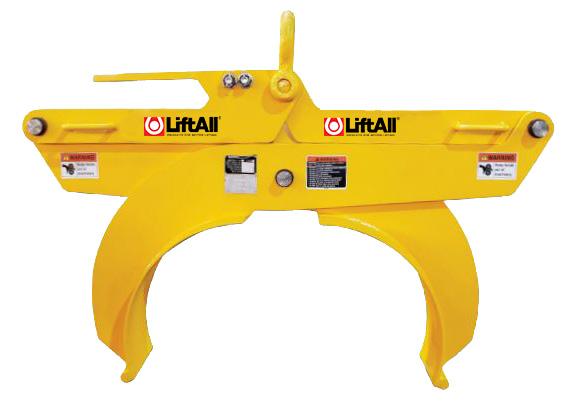

Pipe Grab

For lifting and positioning of steel, iron and concrete pipes.

Lifting Device Return Policy

• Items to be returned MUST BE UNUSED and in like-new condition.

Manhole Sleeve Lifter

The quick and easy way to place cast manhole sleeves. 2-leg and 3-leg configurations available.

• Contact Lift-All’s customer service department to obtain an RMA number; no returns will be accepted without it.

• The customer must prepay freight to the designated location.

• Request for return MUST be made within 30-days of the original shipment date (not receipt date).

• A restocking fee of 25% shall be charged for all authorized returns.

• Credit will be issued after receipt, inspection, and acceptance of the return.

• Custom (non-standard) items or modified items are non-returnable and non-refundable.
