813195-B21Datasheet
Overview
Planned for a vast range of configuration and deployment selection, the HPE ProLiant BL460c Gen9 Server Blade offers the flexibility to optimize your core IT applications with right-sized storage for the right workload for a lower TCO. All of this is deal with by HPE One View, the meet management platform that accelerates IT service delivery and enhance business performance. The HPE ProLiant BL460c Gen9 Server Blade813195B21now offers Intel® Xeon® E5-2600 v4 processors with up to 21% bin-to-bin performance gain over the previous generation, plus 2400 MT/s HPE DDR4 Smart Memory of providing up to 33% higher throughput. Additional support includes tiered storage controller options, 12 GB/s SAS, 20 Gb HPE Flexible LOMs, support for M.2, NVMe, and HPE ProLiant Persistent Memoryoptions.
ProductCode 813195-B21

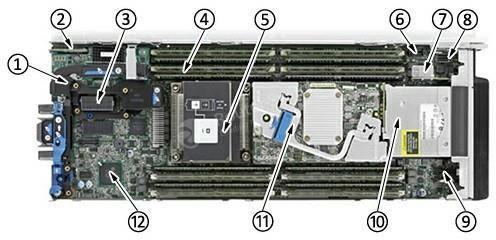

Note:
(1) Flexible LOM adapter
(2) Nand Flash & Micro SD
(3) Mezzanine Slots(x16PCI3.0)
(4) Sixteen(16)DDR4DIMMslots(8perprocessor)
(5) Upto two(2)Intel®Xeon®E5-2600v3orv4familyprocessors
(6) HPEBLc12WSmartStorageBatteryconnector
(7) USB3.0andTPM
(8) Embedded SATA Connector
(9) Solid State Device Connector
(10) Two hot-plug drive bays
(11) HPESmartArrayP244brControllerwith1GBFBWC
(12) ILO Management Engine
RecommendedElementsfortheHPE813195-B21
Product Number Model Description
726724-B21
819853-B21
819855-B21
819854-B21
819851-B21
726724-B21-EnterpriseMemoryforHPEServer HPE64GB(64GB)QuadRankx4DDR4-2133CAS-15-15-15LoadReducedMemoryKit
819853-B21-ProcessorsforHPEServer HPEBL460cGen9IntelXeonE5-2695v4(2.1GHz/18-core/45MB/120W)ProcessorKit
819855-B21-ProcessorsforHPEServer HPEBL460cGen9IntelXeonE5-2698v4(2.2GHz/20-core/50MB/135W)ProcessorKit
819854-B21-ProcessorsforHPEServer HPEBL460cGen9IntelXeonE5-2697v4(2.3GHz/18-core/45MB/145W)ProcessorKit
819851-B21-ProcessorsforHPEServer HPEBL460cGen9IntelXeonE5-2683v4(2.1GHz/16-core/40MB/120W)ProcessorKit
819852-B21 819852-B21-ProcessorsforHPEServer
Compareto Similar Items
ComparisonBetweenHPE813195-B21andHPE741064-B21. Product Code
Number
Specification
Processor
HPE813195-B21Specification
Intel®Xeon®E5-2650v4(12core,2.2GHz,30MB,105W)
Processor Speed 2.2GHz
Number of Processors 2
Processor Core Available 22
Processor Cache 30MBL3
Form Factor(Fully Configured)
Form Factor Chassis
Optical drive type
Expansions lots
Included hard drives
Memory type
Memory slots
8(c3000) 16(c7000)
Blade
None ship standard
(2)Mezzanine cards For detail descriptions reference the Quick Specs
None ship standard Supports up to (2)SFFSAS/SATA hot plug drives
1Rx4PC4-2400T-R
16DIMMslots
Memory maximum 2TB Using128GBDIMMs,plannedreleaseinJune2016
Memory standard 64GB(4x16GB)RDIMM
Network controller 10Gb536FLBFlexFabricAdapter2Portspercontroller
Power supply type
System fan features
Infrastructure management
Enclosure-based
Enclosure-based
iLOManagement(standard),IntelligentProvisioning(standard),iLOAdvancedforBlade System (optional),HP One View Adanced (optional), HP Insight Control (optional) Product
