Yau Tsim Mong Waterfront

Site Location

Hong Kong is located on the southern coast of China, bordering Guangdong Province to the north, the Pearl River Estuary and Macau to the west, and the South China Sea to the south. The project is located in the Jordan area in Yau Tsim Mong District. Yau Tsim Mong District is one of 18 districts of Hong Kong. It is located in the western part of the Kowloon Peninsula, the core urban area of Kowloon. The district has the second-highest population density of all districts. It was recorded the total population of Yau Tsim Mong District at 342,970.

Design Strategy

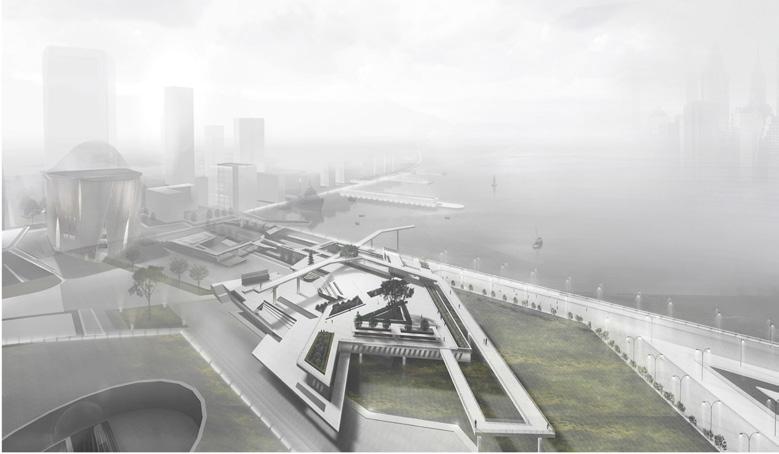

The plan is structured around a closed pedestrian network, which connects all the lots and creates small intimate places around water to gather with friends and colleagues, as well as larger open areas suitable for skateboarding, concerts, and outdoor markets, connected by a slow walking network. The project is an elevated landscape on and above the site, conceived with the purpose of helping surrounding residents realize the beauty of different perspectives and elevations of the same city they live in every day, and pay attention to trivial details around them that are usually neglected.

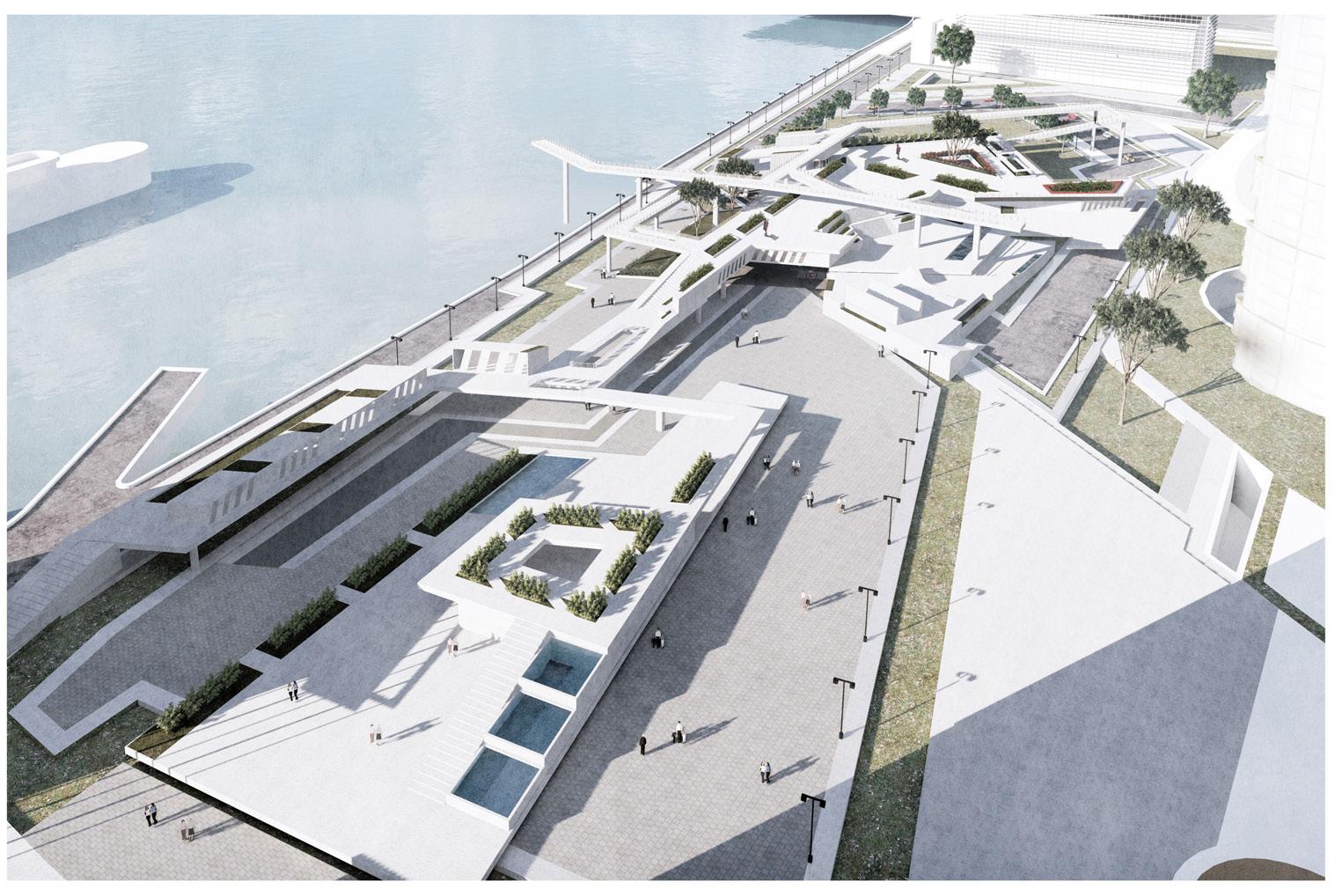

The project is designed to awaken the spirit of the place and make people aware of its nature. The spaces are built above the site and composed of four floors, each serving different functions but connected elaborately. They are built in various heights and shapes over an area of 414 square meters. The bottom space is on the ground and is composed of a parking lot, an open square, and an open-air mall. The open square can be used for morning exercise, public concerts, films, festivals, performances, and Chinese square dance

Floor Details

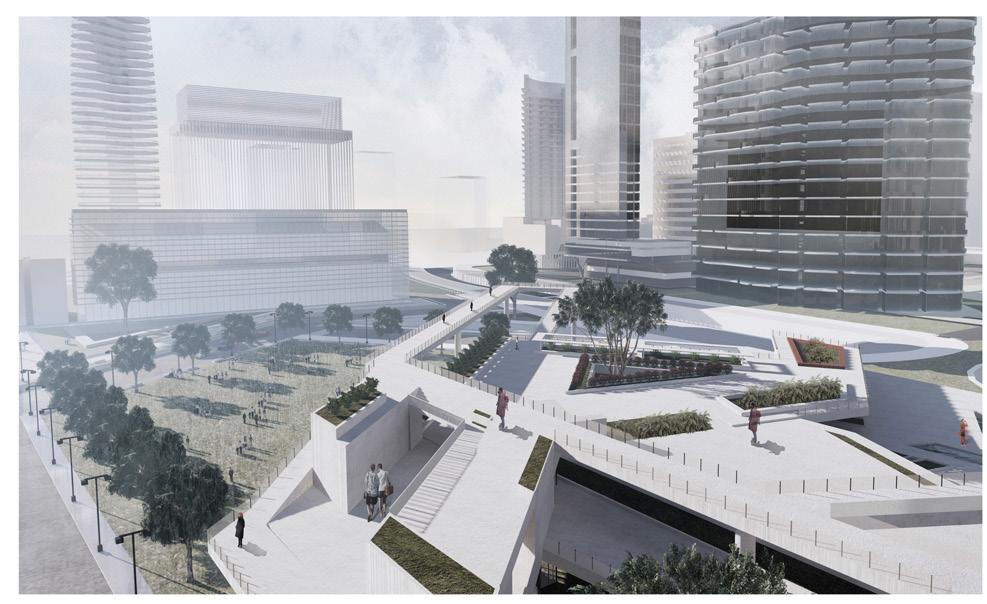

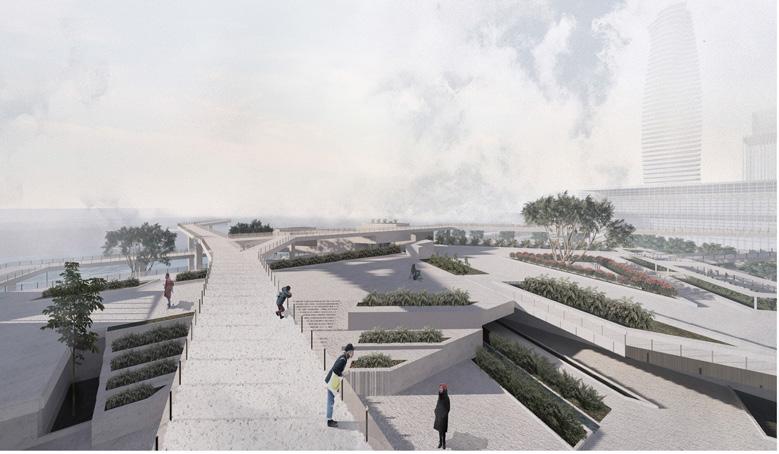

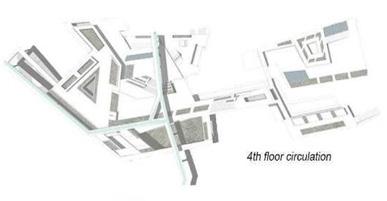

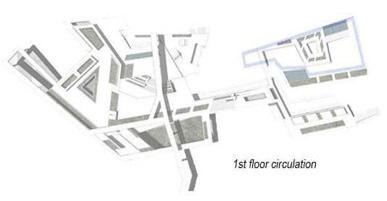

The central plaza is on the second floor. A stair connects the third floor and the plaza. Landscape retaining walls are designed on both sides of the stair to enhance the guidance and allow people to sit on them. They can sit at different heights to have different views of the place. The fourth floor is the highlight of the project, using elevations to create different views of the city and the sea. Part of the elevated viewing walkway floor is hollow, giving visitors a stronger sense of space in the environment. The circulation of the site is designed to be exploratory, engaging, and sensational. The paths are connected, but the elevations of the paths are different. Visitors can enjoy the same site but from various perspectives views.

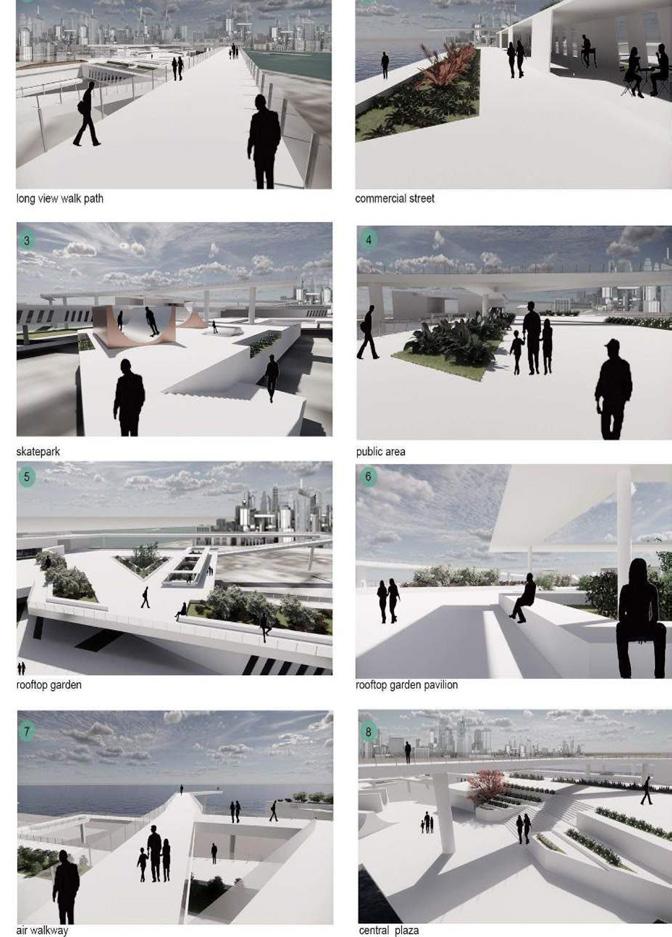

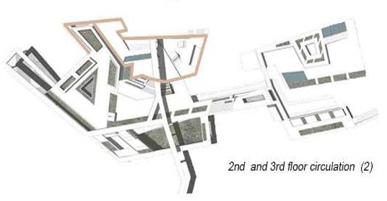

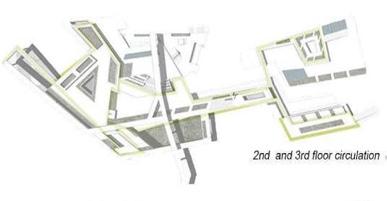

The second floor and third floors are closely combined. These two spaces are the main activity areas where visitors can walk, relax, and shop. This area’s theme is to create a leisure environment by combining buildings, landscapes, and plants.” Use plants as a link to connect buildings and landscapes.

The roofs of the main buildings are opened up, and tall trees can grow from the lower floor to the higher place connecting to spaces and merging into one. The second and third floors are designed for many functions such as relaxing, skateboarding, jogging, shopping, and cultural exhibition corridor.

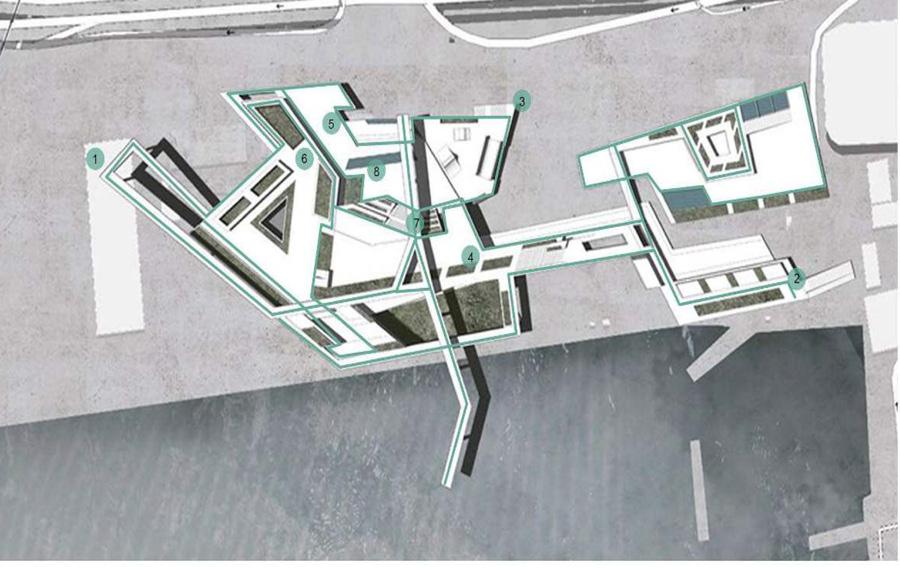

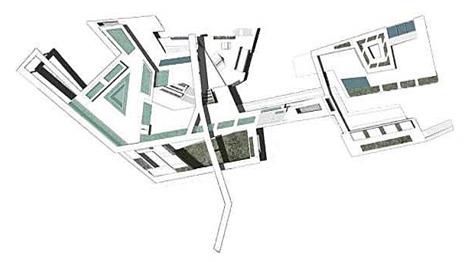

Plan Details

Plant Selection

Calamagrostis x acutiflora, Angelonia angustifolia, Brassica napusand, and Cerastium tomentosum require full sun and no foot traffic. They are perfect plants for green roof.

1. Hibiscus tiliaceus is an evergreen shrub or small tree native to tropical regions of Asia, where it is often found growing along coasts and in low moist areas. It has the typical flowers with large petals and a prominent central staminal column, which is a good nectar plant for butterflies. 2. Keteleeria fortune is a coniferous evergreen tree native to Hong Kong, which can provide green form all year round. 3. Camellia granthamiana has showy, large, white, single flowers, up to 7 inches wide, appear during early winter.

1.

× blakeana is the flower of the city. Their striking purplish-red flowers and fragrance can bring the sense of the place. 2.Calamagrostis × acutiflora grows in average, well-drained soil in full sun and is attractive to pollinators.

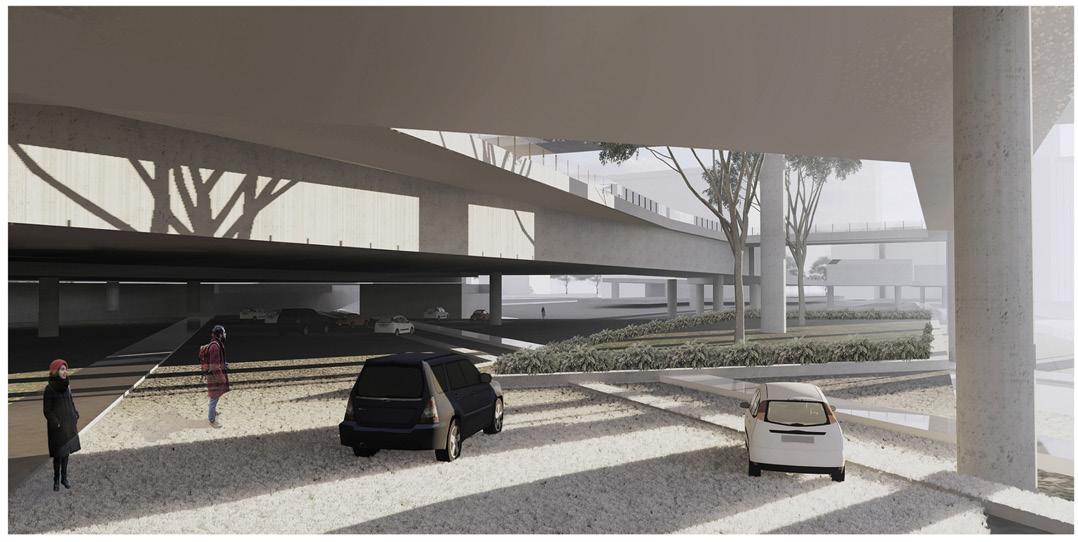

3. Ajuga reptans is a dense, fast-growing groundcover and wonderful ground cover in cool, shady areas where grass will not grow, which is a good choice for parking lots where sunlight is insufficient. 4.Dicranopteris pedate is a common fern in Hong Kong and can be placed in the parking lot. 5.Camellia crapnelliana is native to Hong Kong. It has showy flowers and red berk which brings winter interest.
