I am Lekhashree Sahoo, a fourth-year architecture student at Piloo Mody College of Architecture (PMCA), Cuttack, from Angul, Odisha. This internship portfolio is a documentation of my academic experience, design explorations, and developing understanding of architecture as a profession.
This portfolio features a sampling of academic projects that reflect my development in spatial awareness, abstract thinking, and visual expression. Each project signifies an advancement towards building my design voice — one that aims to find balance between innovation and empathy.
As I seek opportunities to apply my skills in a professional environment through an internship, I hope to learn from real-world practice and contribute meaningfully to the design process.
! Contact Detail
PH NO.- 8280459035
E-MAIL ADDRESS:- lekhashreesahoo@gmail.com
ADDRESS :- NTPC Kaniha, Angul, Odisha
PIN:-759147
EDUCATION
Bachelor of architecture
Piloo mody college of architecture
Senior secondary education
Dav public school , kaniha| 20-21
Secondary education
Dav public school, kaniha|18-19
SOFTWARE PROFICIENCY
2-D and 3-D modelling
Autodesk autocad
Trimble sketchup
Autodesk revit
Rayon
Presentation
Adobe photoshop
Adobe illustrator
Adobe indesign
Canva
Rendering
Origanisation
LANGUAGE
English, Hindi, Odia
D5 V-ray Enscape
Microsoft office
SKILLS AND INTEREST
Sketching
Model making
Sports
Photography
Teamwork and coordination
ACADEMICS
Residence- III sem
School- IV sem
Office Building- V sem
Mixed-Use High Rise- VI sem
Mall(cbd)- VII sem
Campus Planning- VIII sem
EXPERIENCES AND WORKSHOPS
Unfold 2.0 (2023- Participated)
Solar Decathalon India (2024-2nd Round)
Transparence (2024- Participated)
Archmello (2025- Honorable Mention)
Bim Workshop (2024)
Rhino Workshop (2024)
Rooh Redevelopment (2025)
Interior Workshop-Installation Of False Ceiling (2024)
I, Lekhashree Sahoo, a fourth-year Bachelor of Architecture student, hereby grant permission for the contents of this portfolio to be reviewed and considered by prospective architecture firms solely for the purpose of evaluating my qualifications for internship. All projects and materials included are either my original work or have been properly credited. I affirm that the information provided is accurate to the best of my knowledge and I submit my portfolio to apply for a 20-WEEK TRAINING as a part of my 9th semester curriculum.
lekhashree sahoo
SCHOOL ASSIGNMENT | DESIGN CASA DE REMO (2022)
Residence,South Goa,India
SCHOOL ASSIGNMENT | DESIGN KALINGA ENCLAVE (2024)
Mixed-use apartment,bbsr,odisha
ARCHMELLO | GROUP DESIGN CRIXA (2025)
School Design ,Morbi,Gujurat
SCHOOL ASSIGNMENT | TECHNICAL DRAWINGS (23-24)
Architectural Detailing And Working Drawing
05.

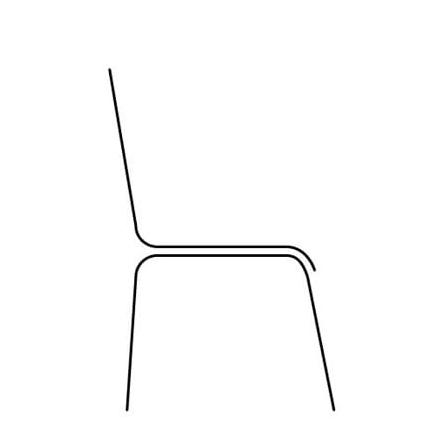

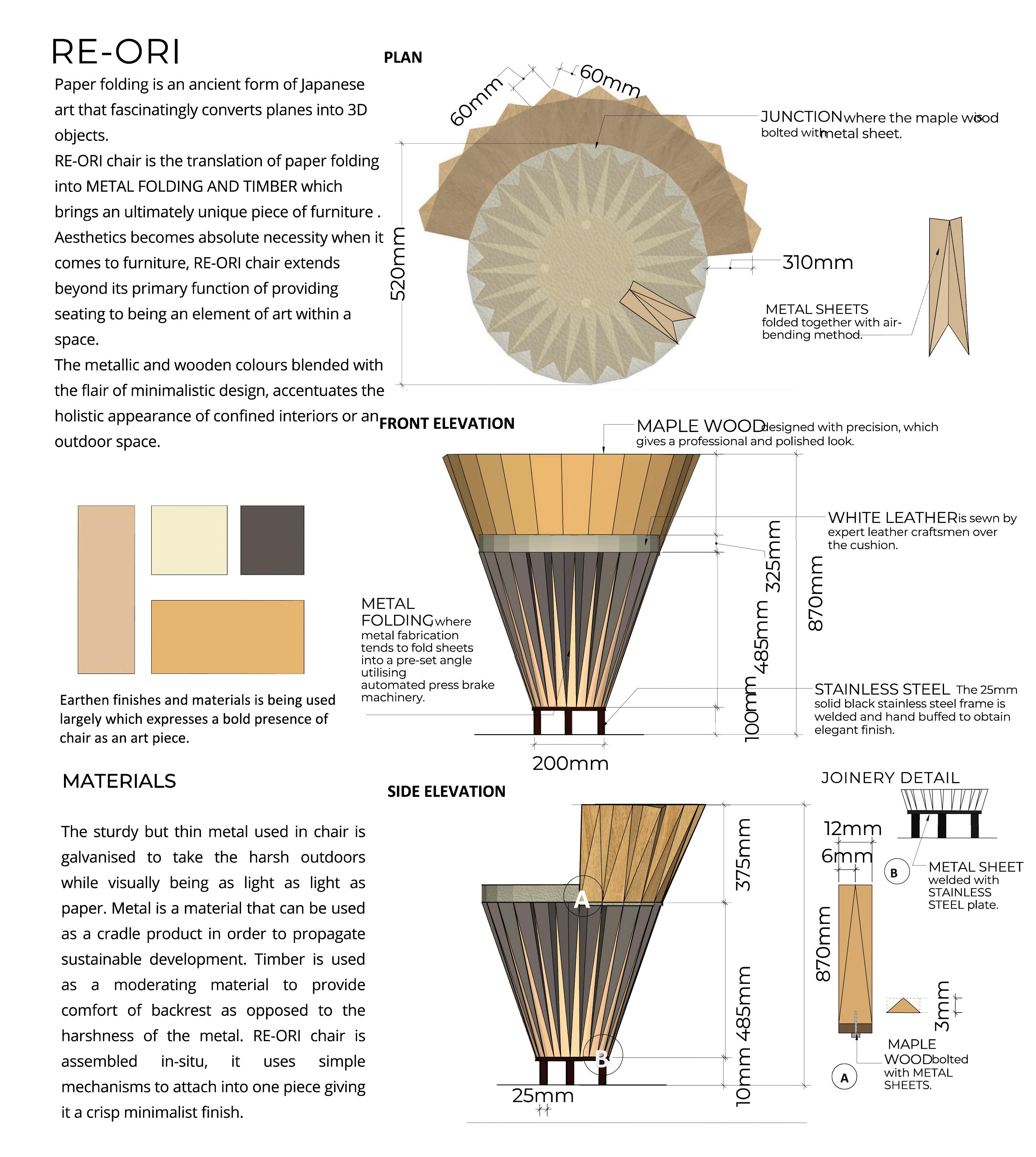

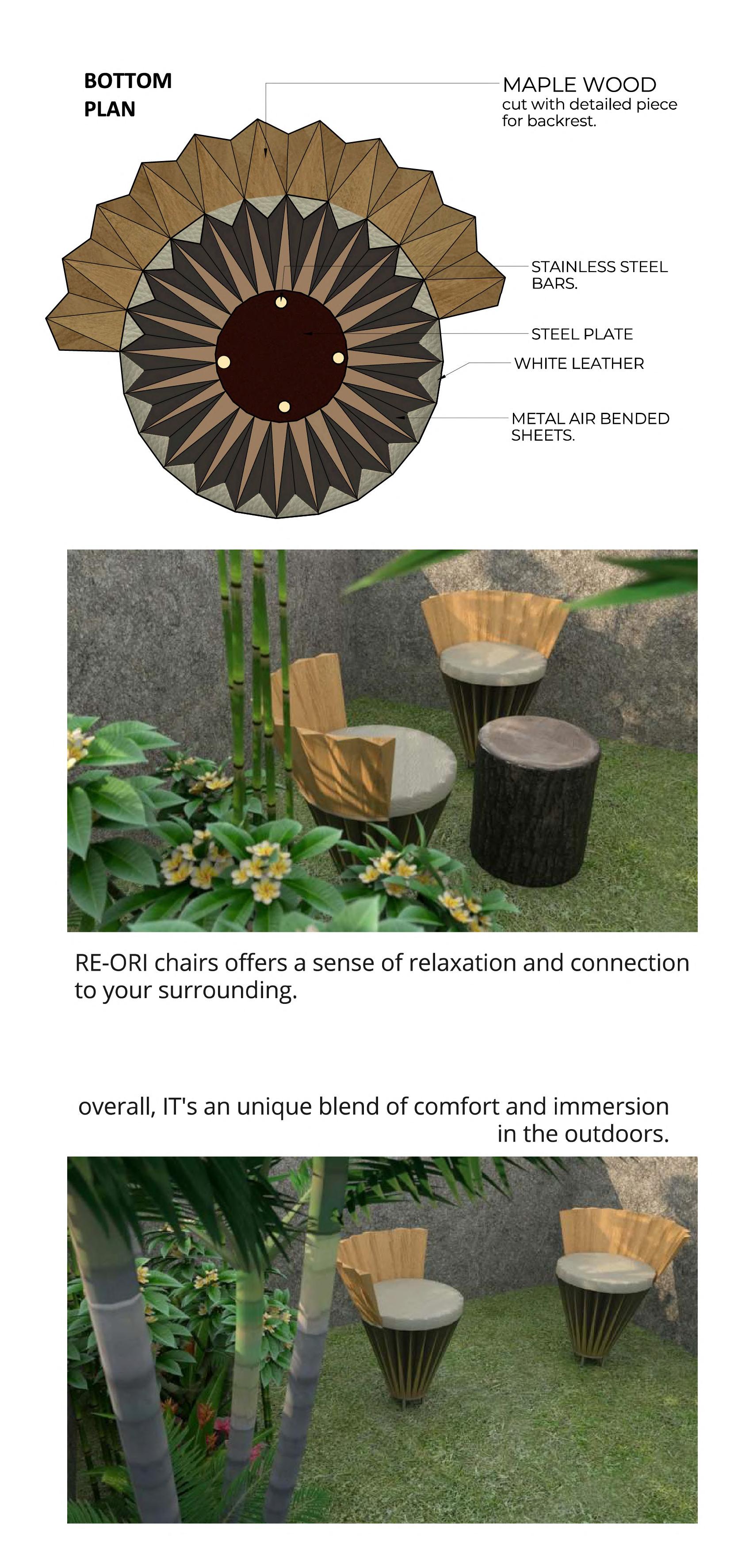

SCHOOL ASSIGNMENT | PRODUCT DESIGN (2024) Chair Design

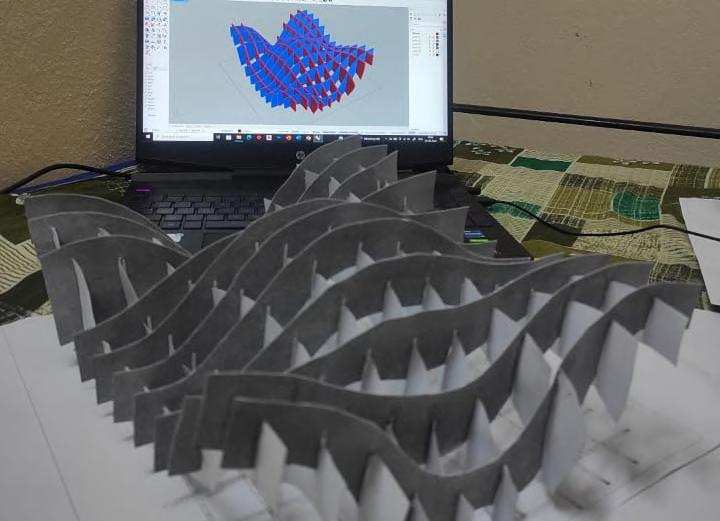

MISCELLANEOUS OTHER WORKS (2021-2024)

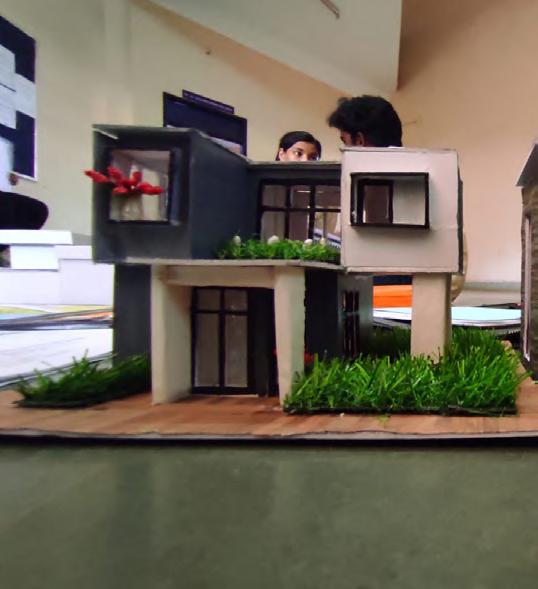

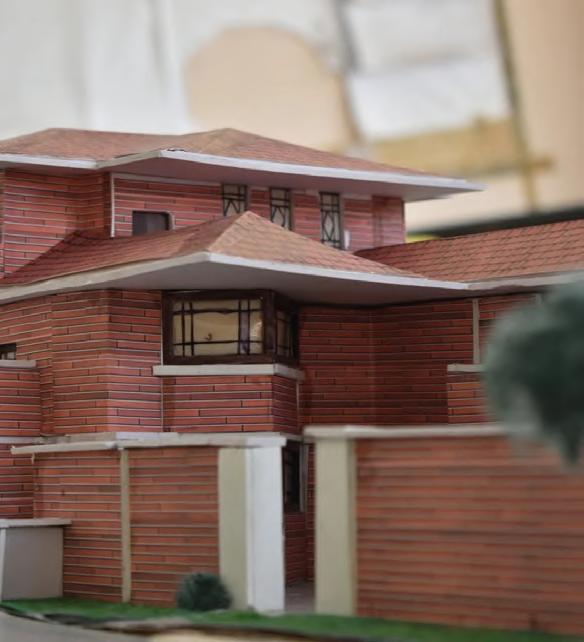

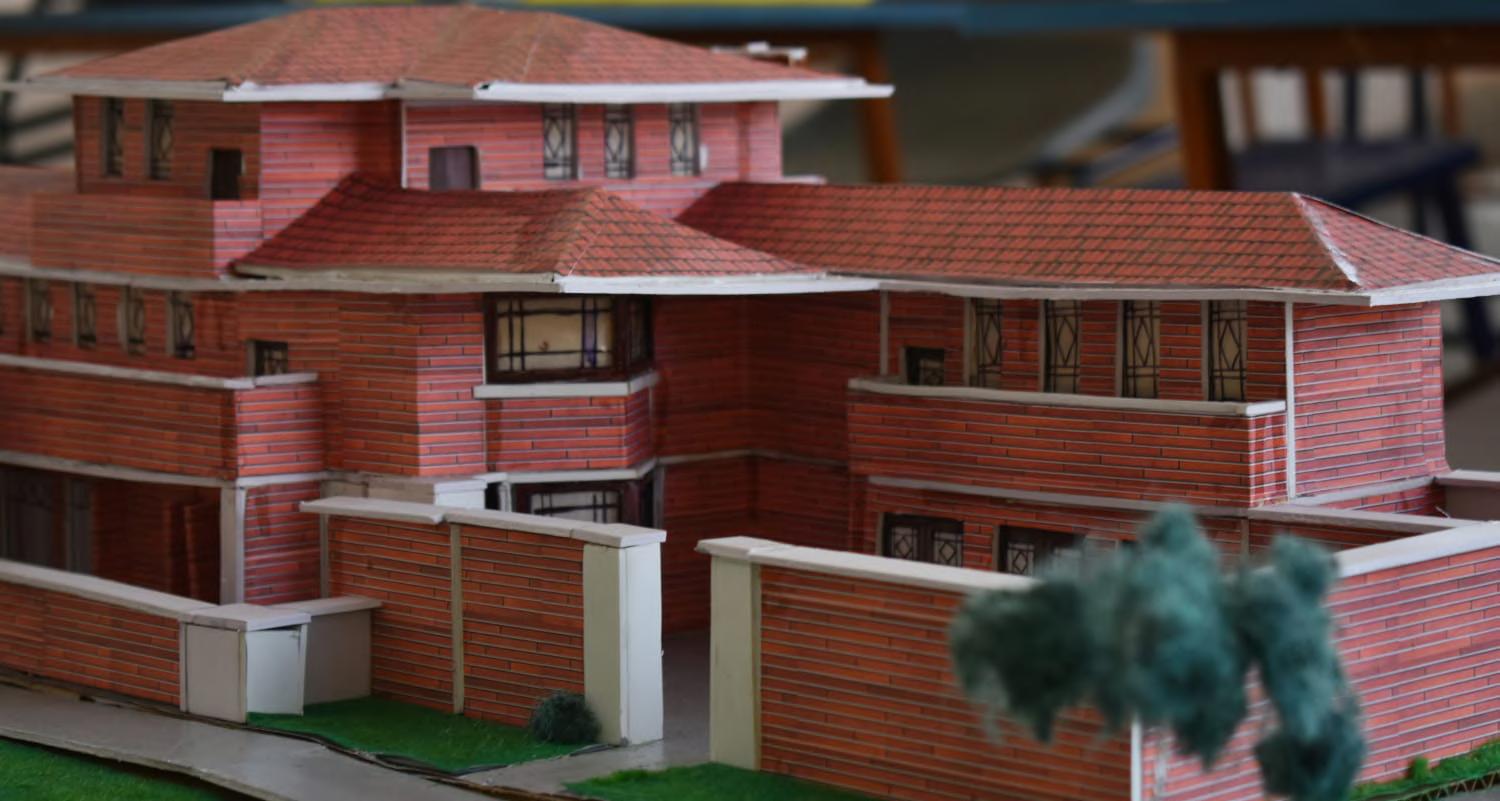

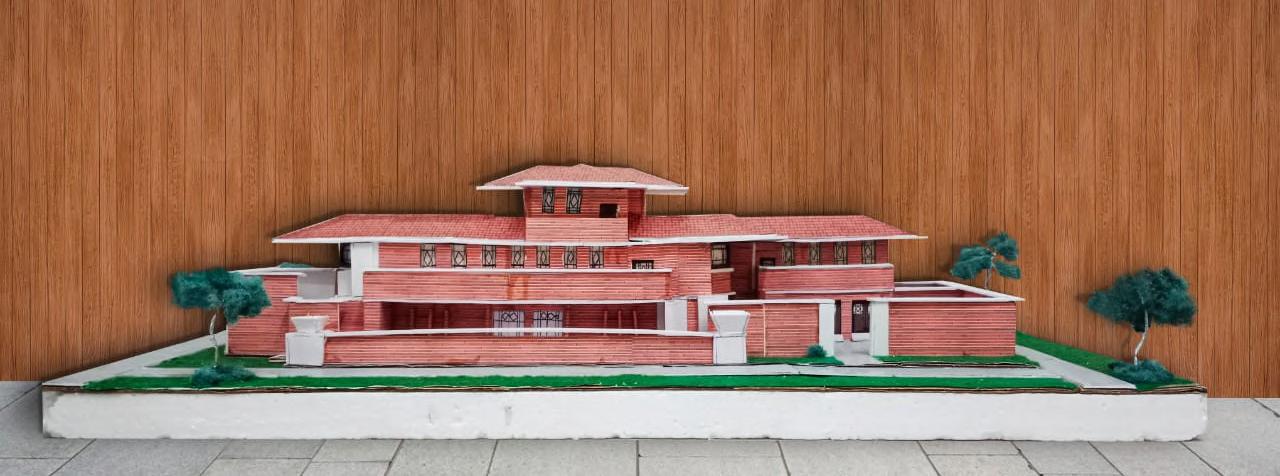

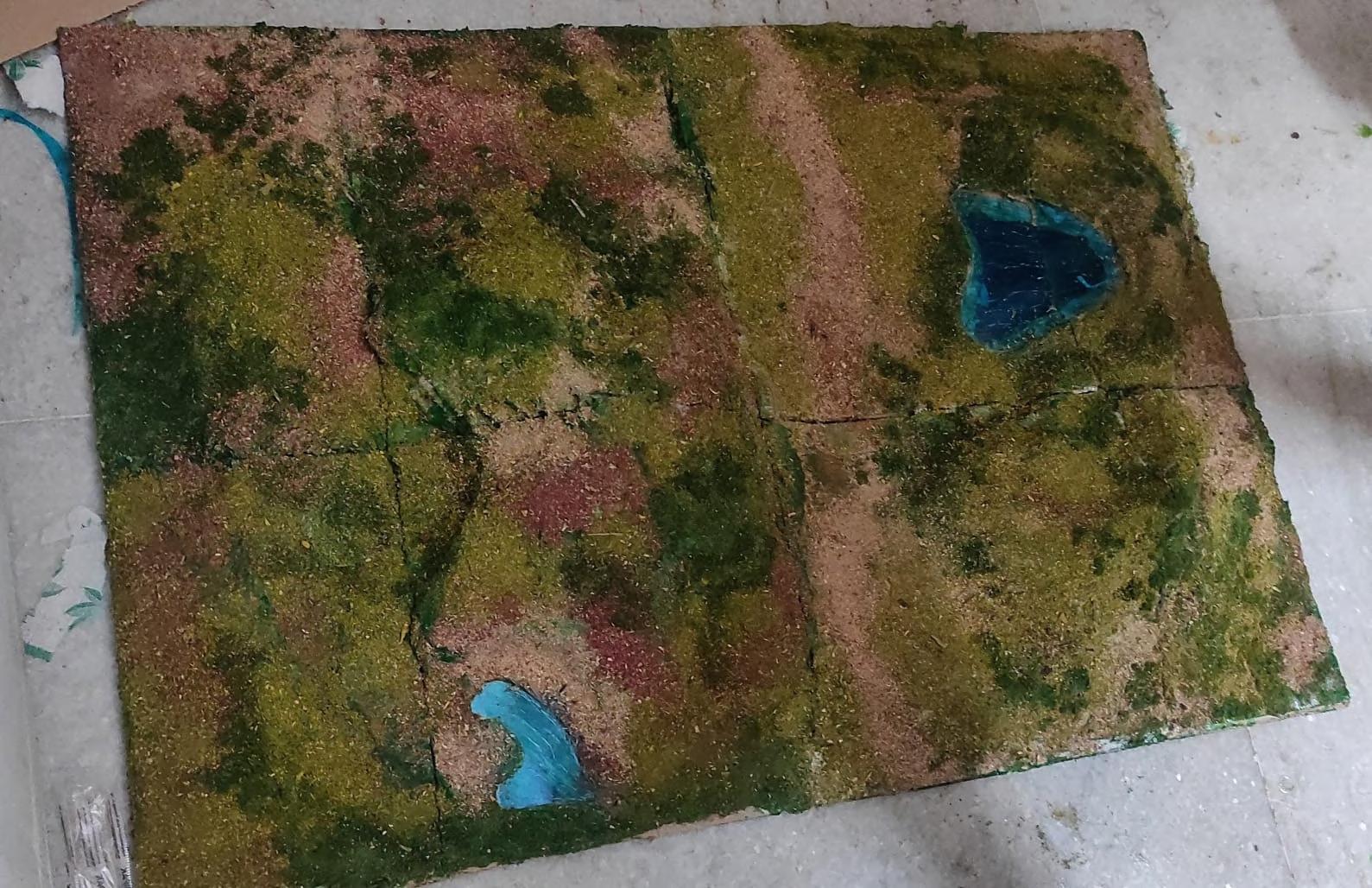

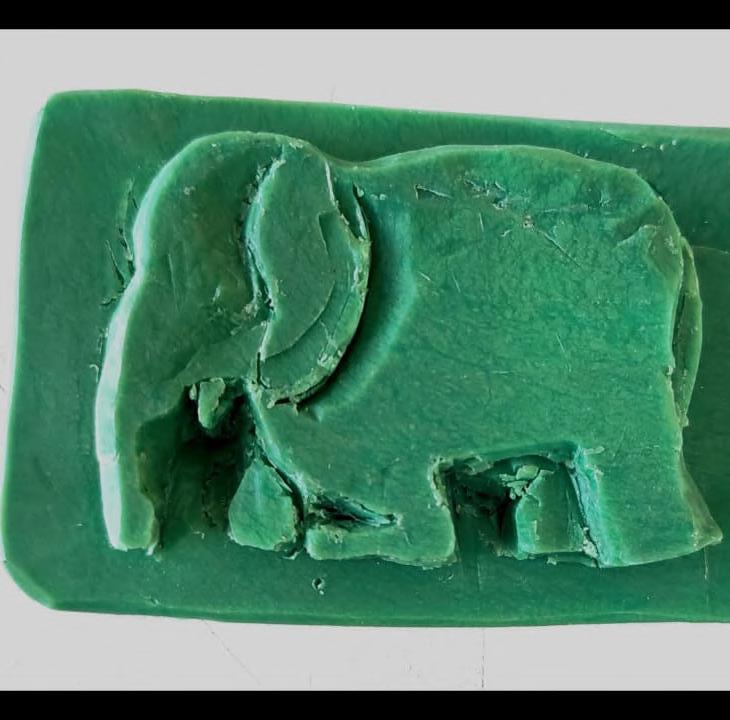

Sketching, Model making,Painting
remo de casa
3rd sem|individual work
Project Type- Residence
Location - South Goa, India

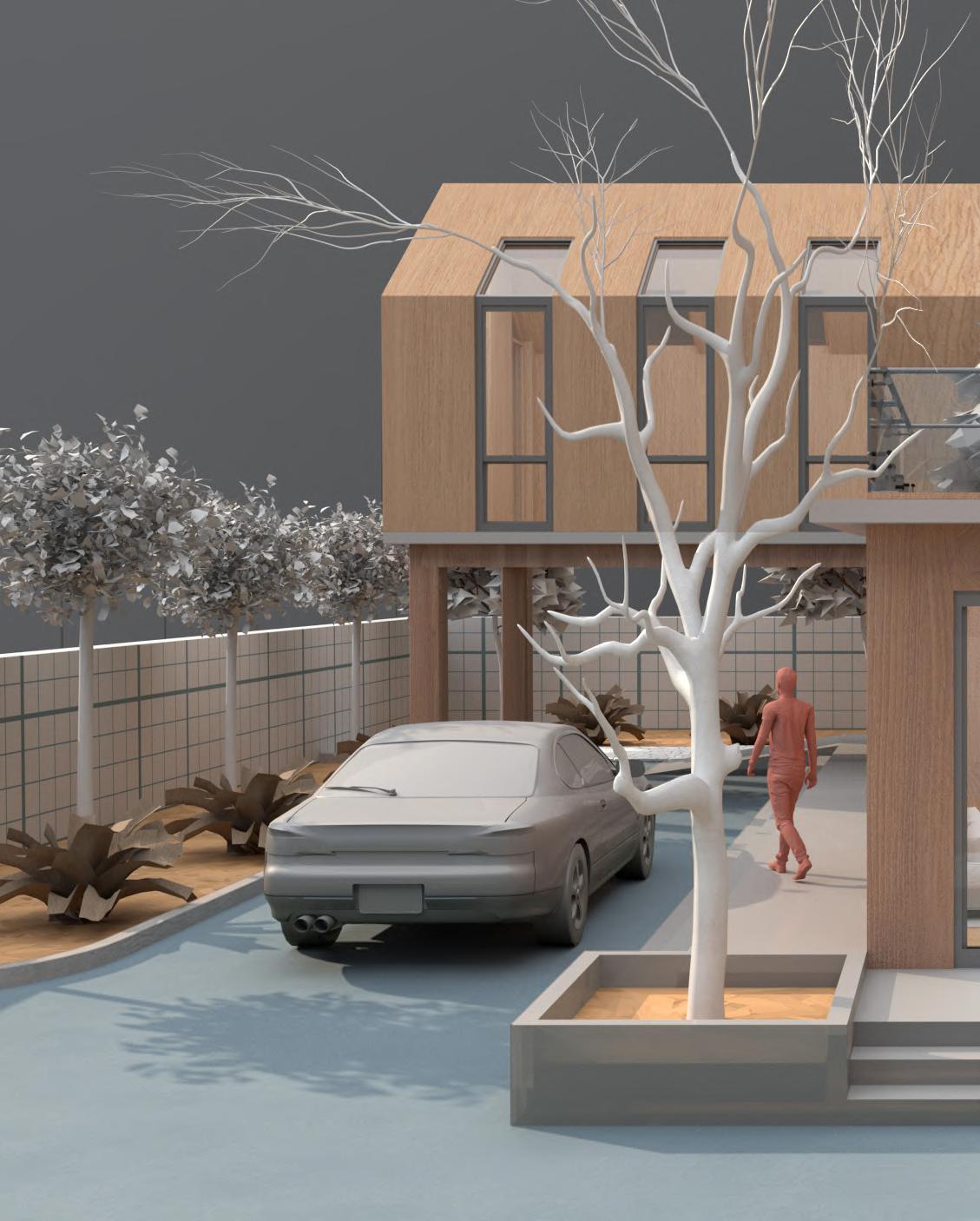

This design proposal considers the intersection of space and movement by a residence for a modern dancer in goa.The remo de casa features three well-appointed bedrooms, including master bedroom with direct access to swimming pool. A dedicated workspace ensures productivity at home, the living and dining areas are designed with double-height ceilings,creating a grand and open atmosphere.A sleek kitchen flows into a lounge space,ideal for family gatherings.An indoor sports room adds an active lifestyle elements.The outdoor accomodation include a balcony and yard, offering further leisure and green space.

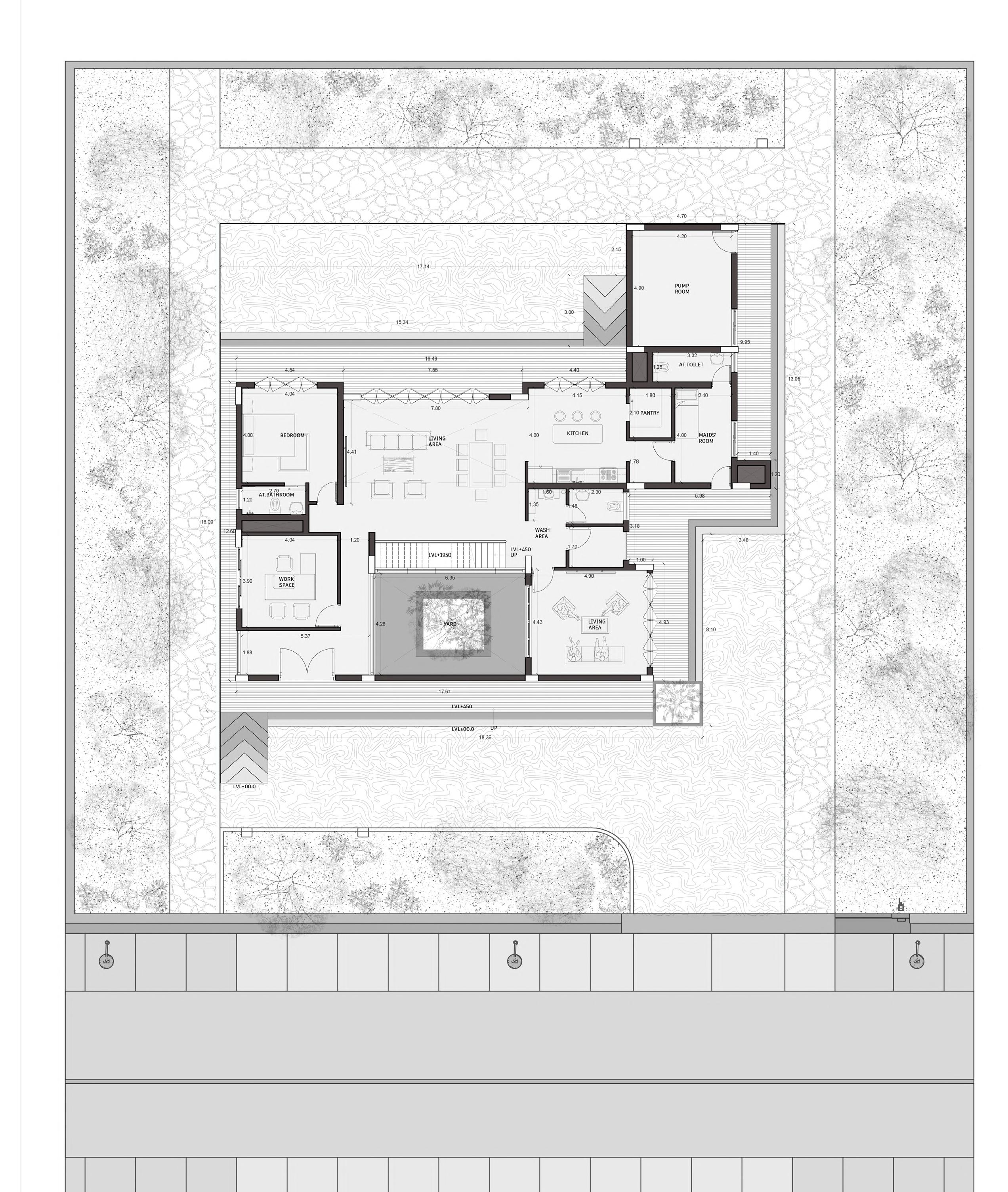

GROUND FLOOR PLAN :-
1.Living Area
2.Work Space
3.Double heighted Living Space with Dining Area.
4.Kitchen
5.Bedroom- 1
6.Maid’s room with Attached toilet
7.Wash Area
8.Pump room

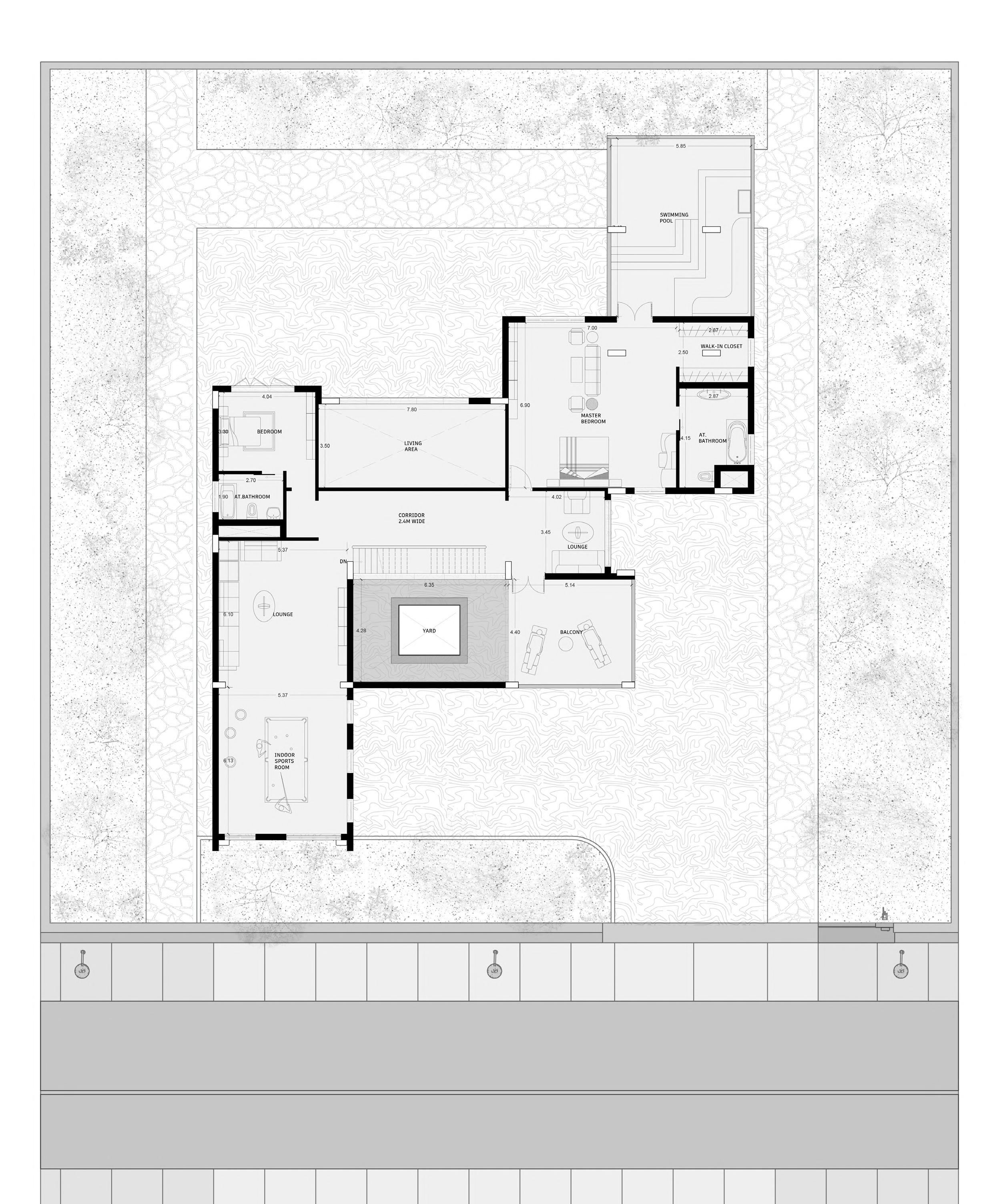

FIRST FLOOR PLAN :-
1.Lounge Area
2.Indoor Sports Room
3.Balcony
4.Bedroom-2
5.Master Bedroom
6.Swimming Pool
The living room has comfortable neutral-colored seating, a modern round coffee table, and soft lighting that brings out the elegant minimalism of the decor. There are fulllength glass sliding doors leading to a balcony with lush tropical vegetation, so lots of natural light can pour in. Modern accent lighting, up-to-date furniture, and a subdued color scheme further accentuate the airy, luxurious ambiance—ideal for coastal living in goa.

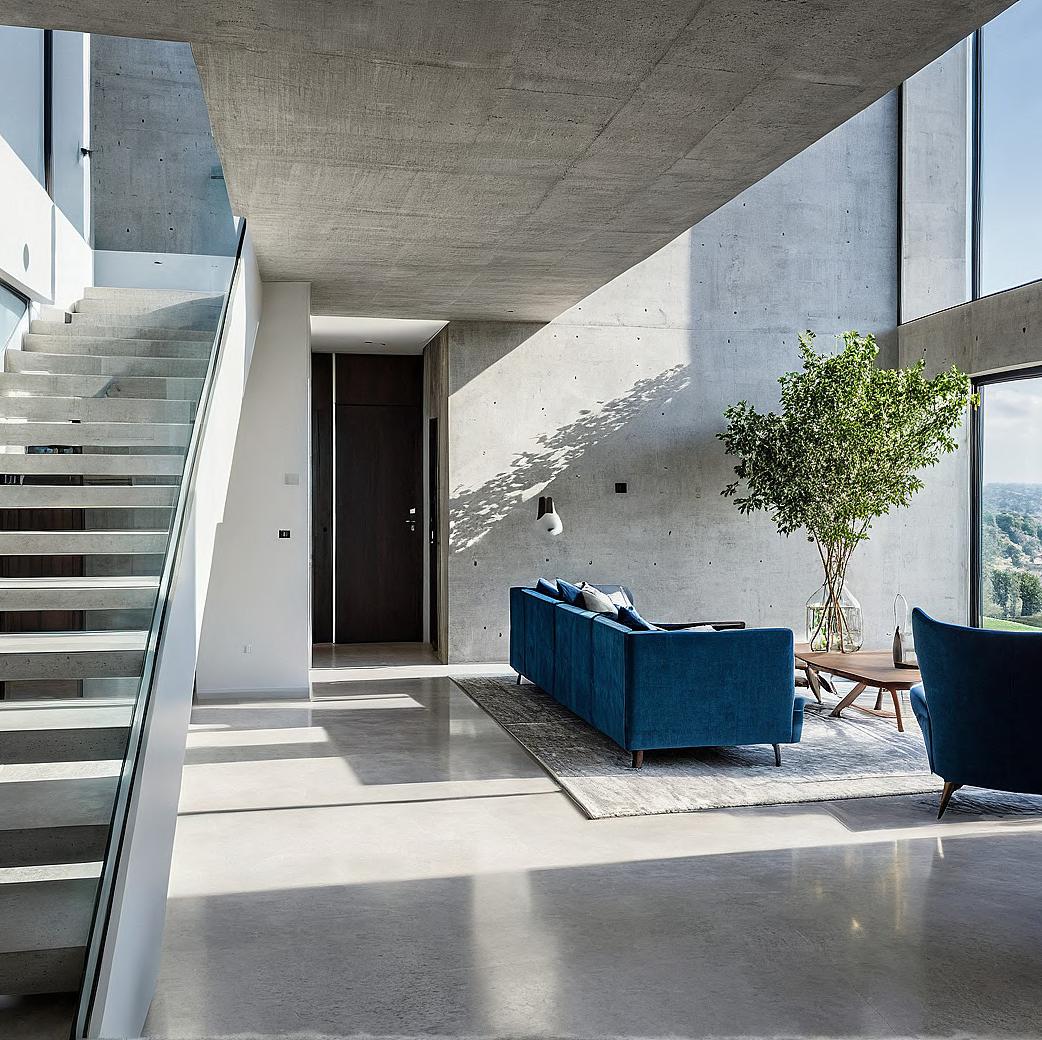

The space is characterized by raw concrete walls and ceilings, expansive floor-to-ceiling glass windows, and a minimalist floating staircase with thin railing. Natural light bathes the space, picking up on the rich textures and clean lines. Deep blue sofa and chic modern chairs provide a striking contrast to the neutral tones, and a potted tree adds a sense of organic warmth. The open design harmoniously links various spaces, forming an elegant but welcoming environment perfect for both dining & relaxing.

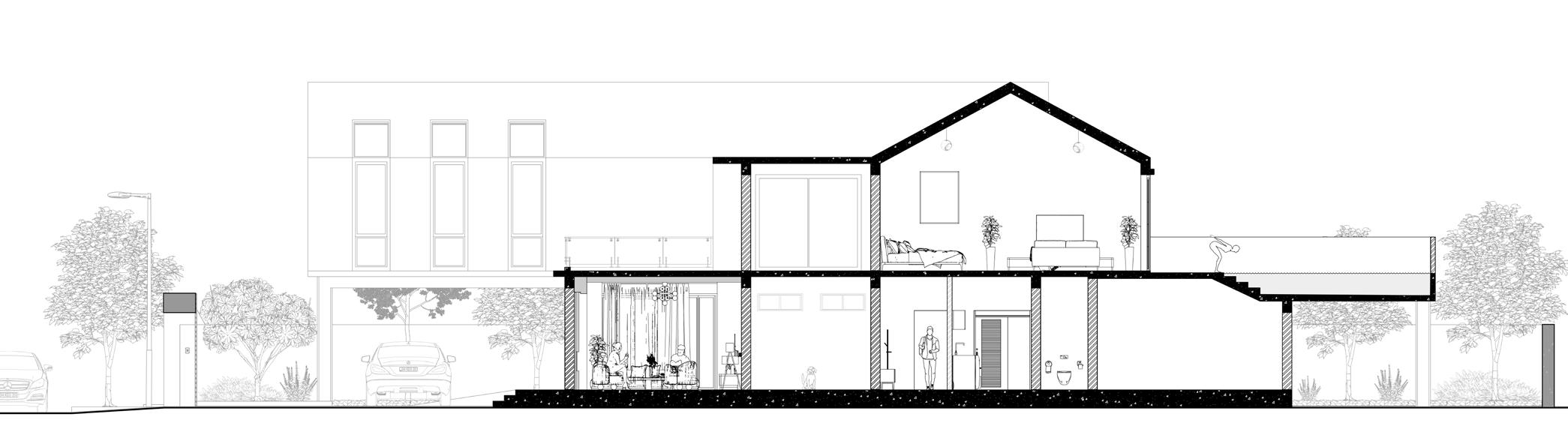

The section reflects a modern tropical home, thoughtfully adapte d to goa’s climate with open layouts, natural light, and integration with the outdoors.
kalinga enclave
6th sem|individual work
Project Type- High-rise
Location - Bhubaneshwar, Odisha

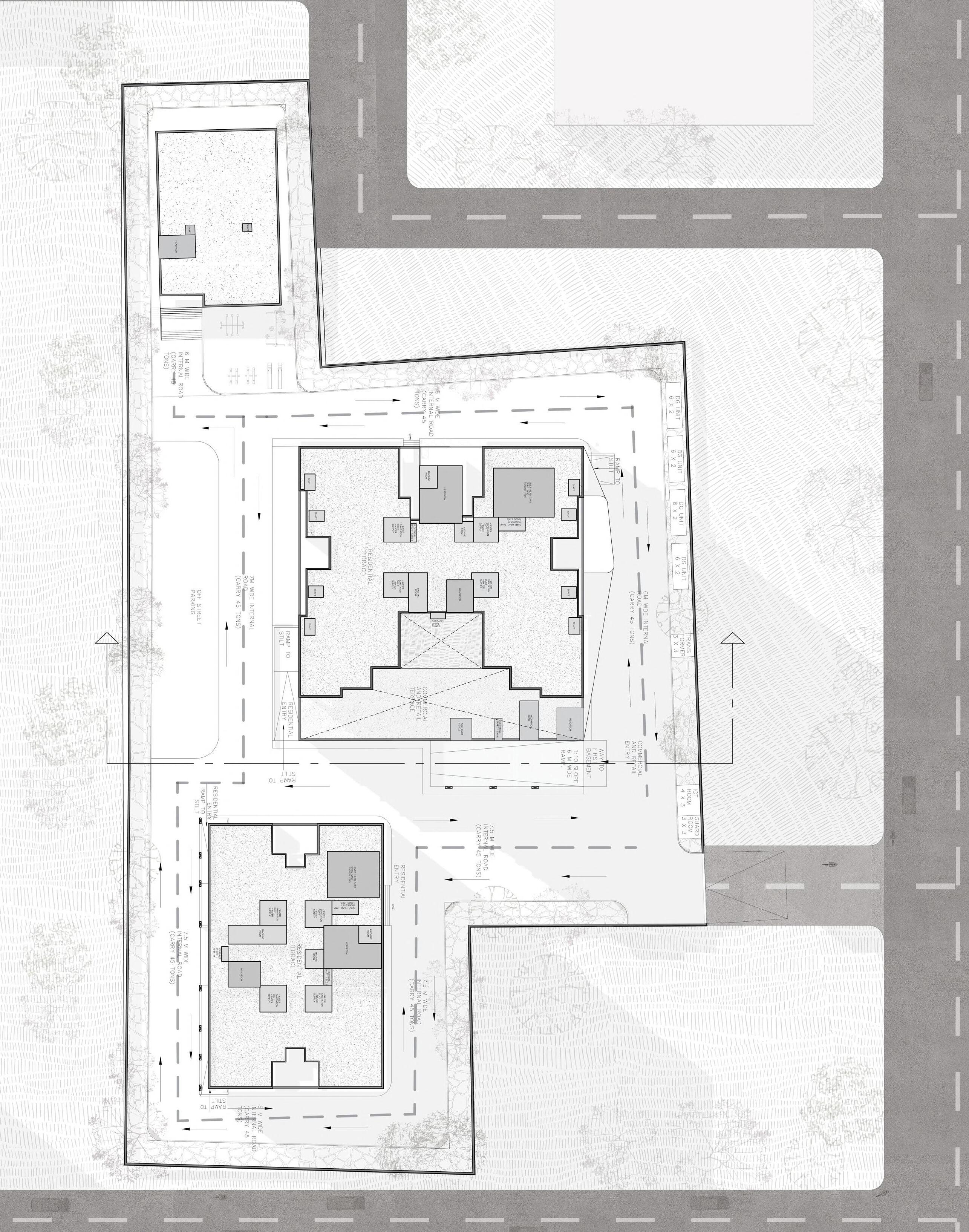

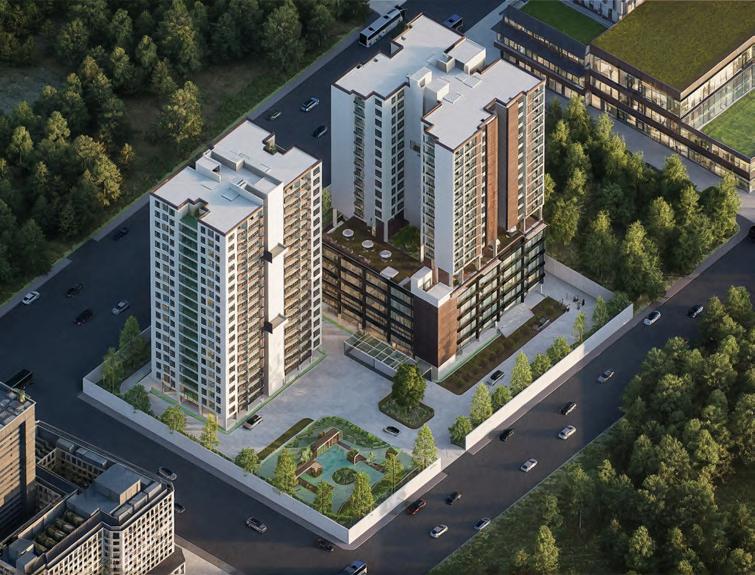

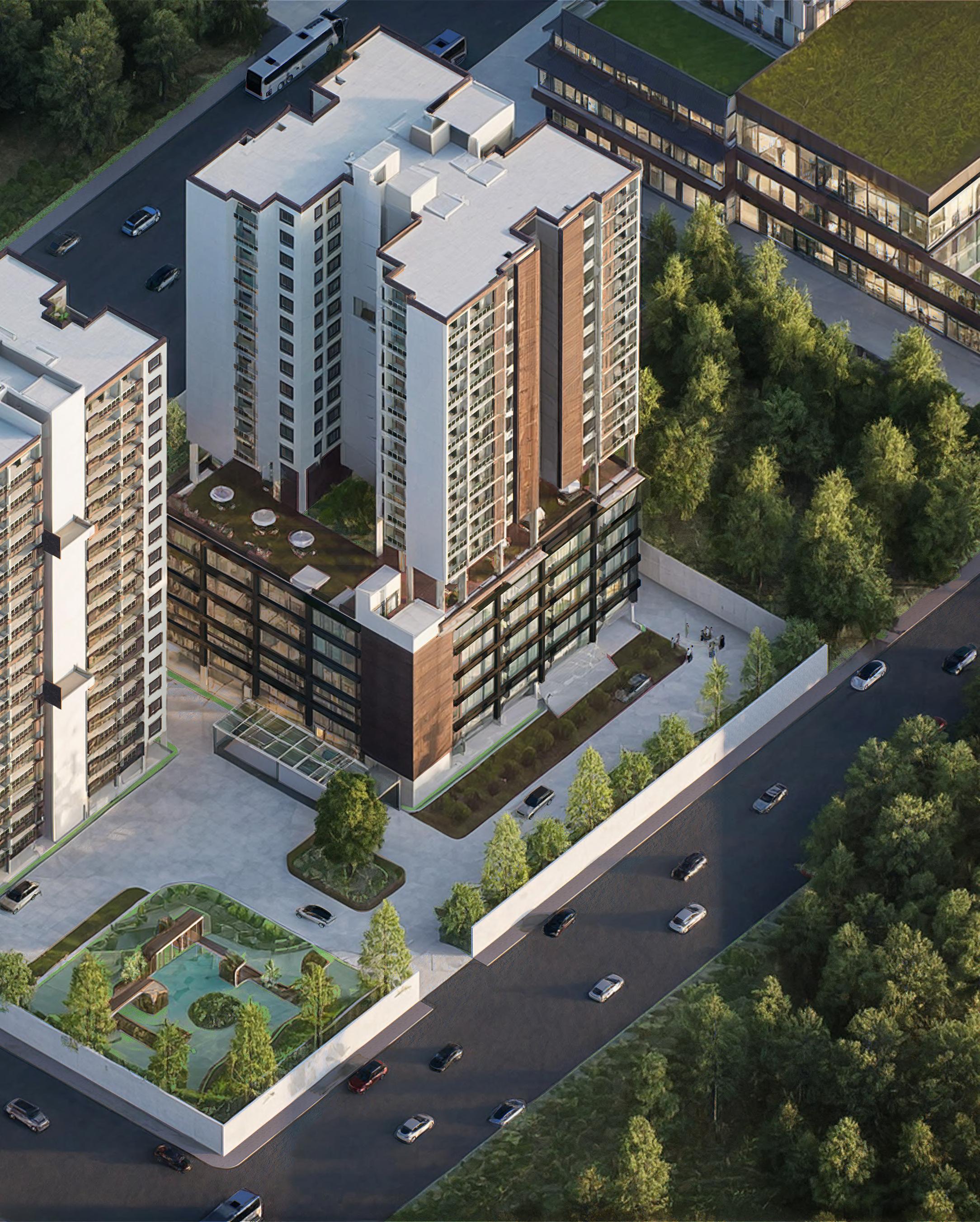

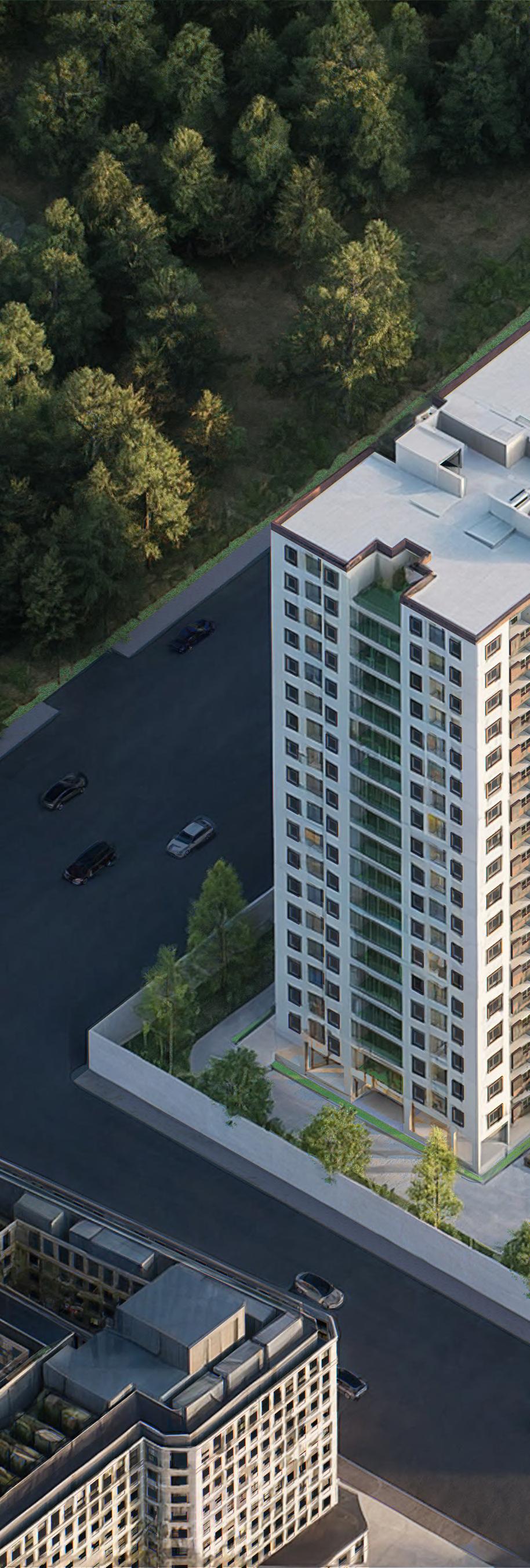

This mixed-use high-rise residential complex is intended to provide a modern urban way of life in the fast-growing city of bhubaneswar. By combining residential, commercial, and recreational activities within a single vertical building, the project responds to the growing need for space-saving, community-based development in the city’s emerging metropolitan landscape.

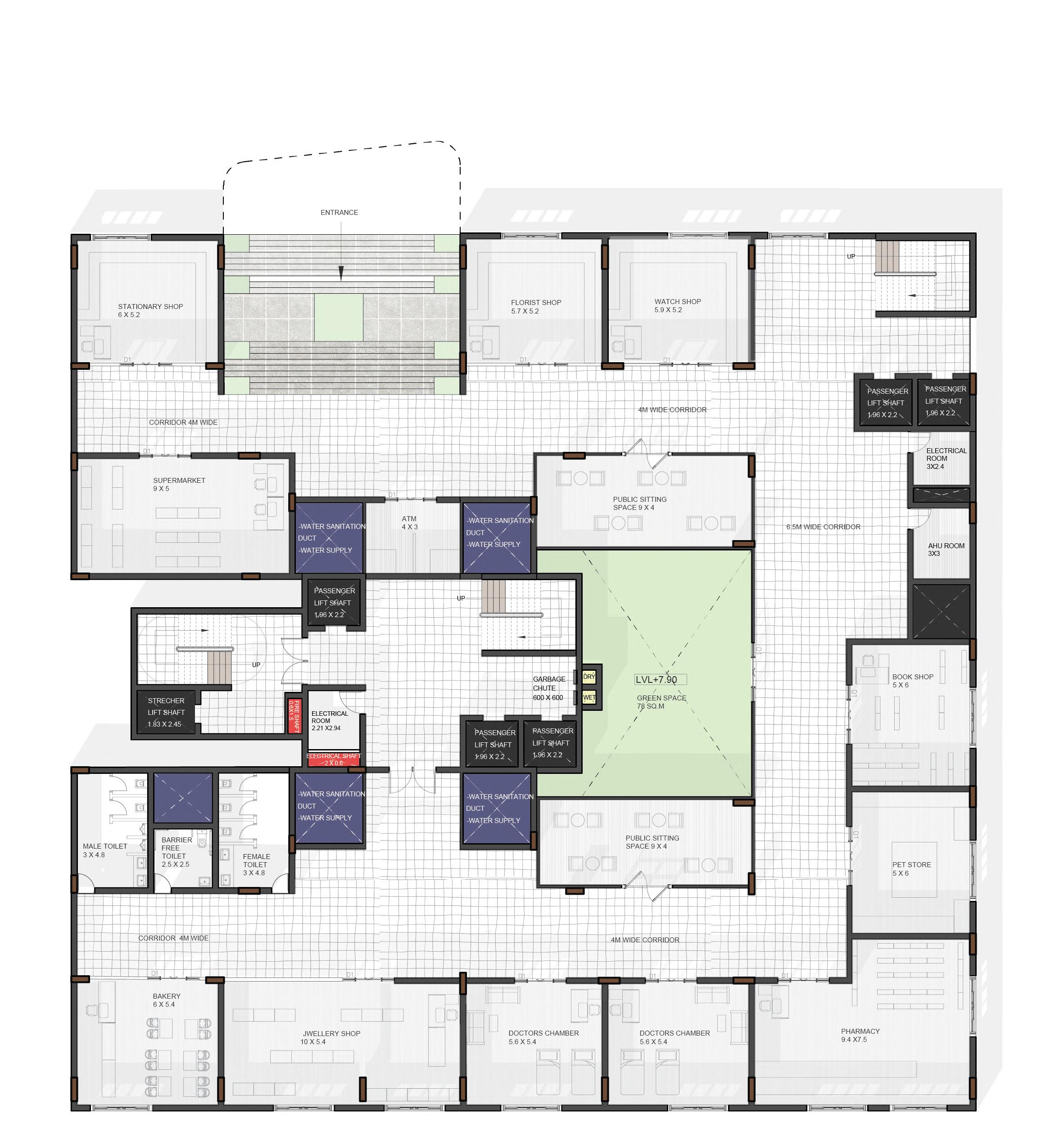

TYPICAL COMMERCIAL LAYOUT

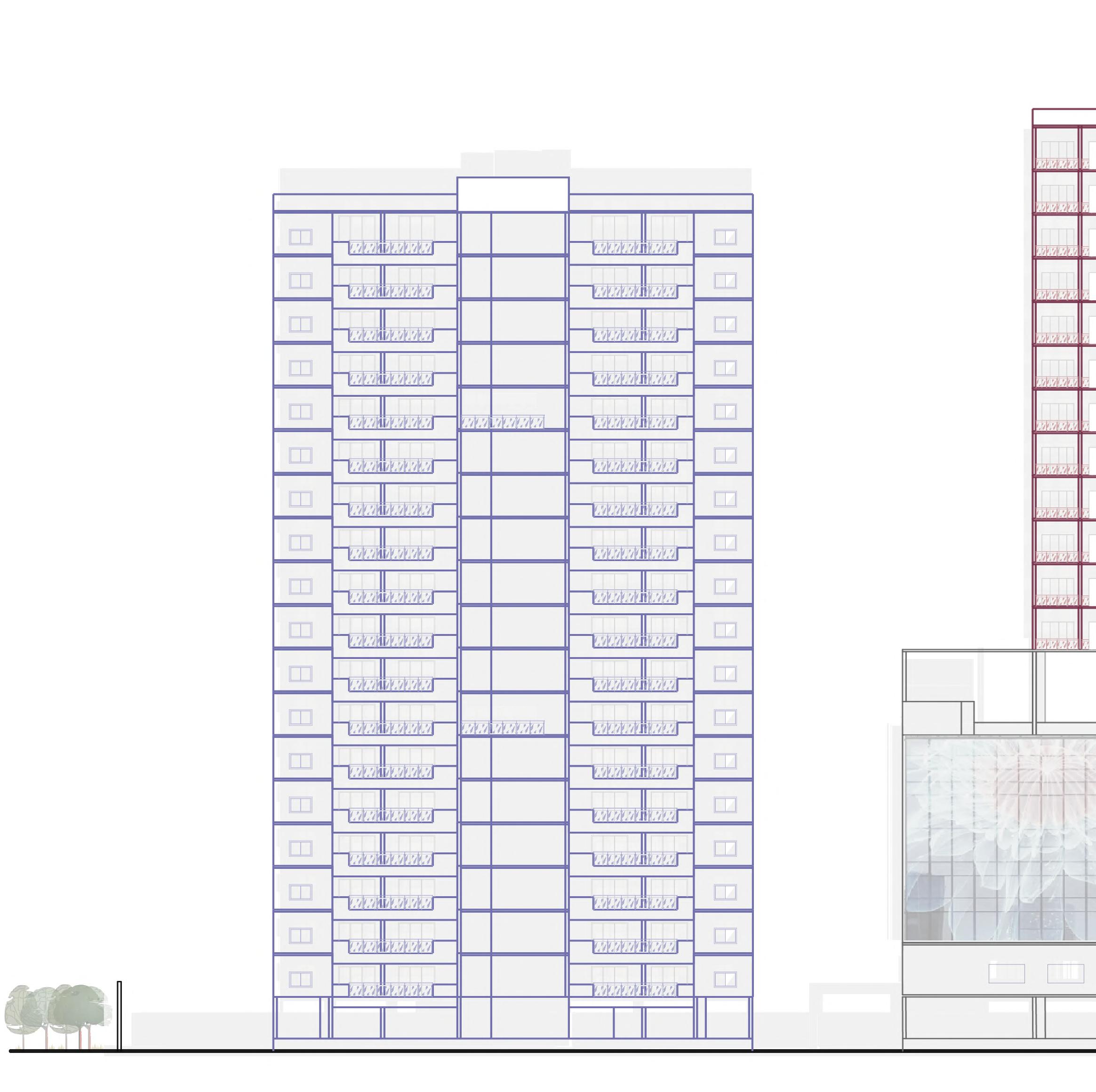

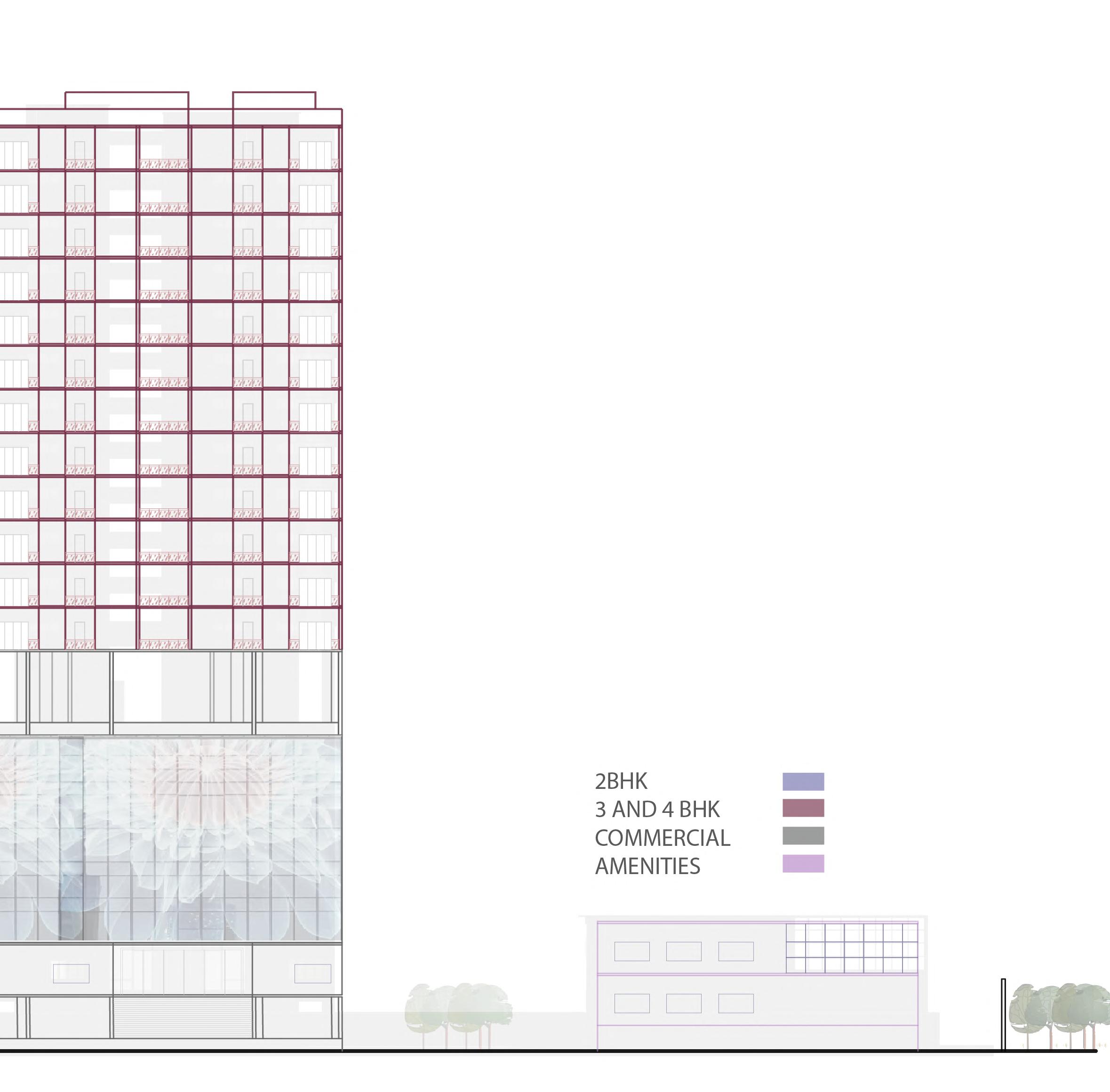

NORTH ELEVATION

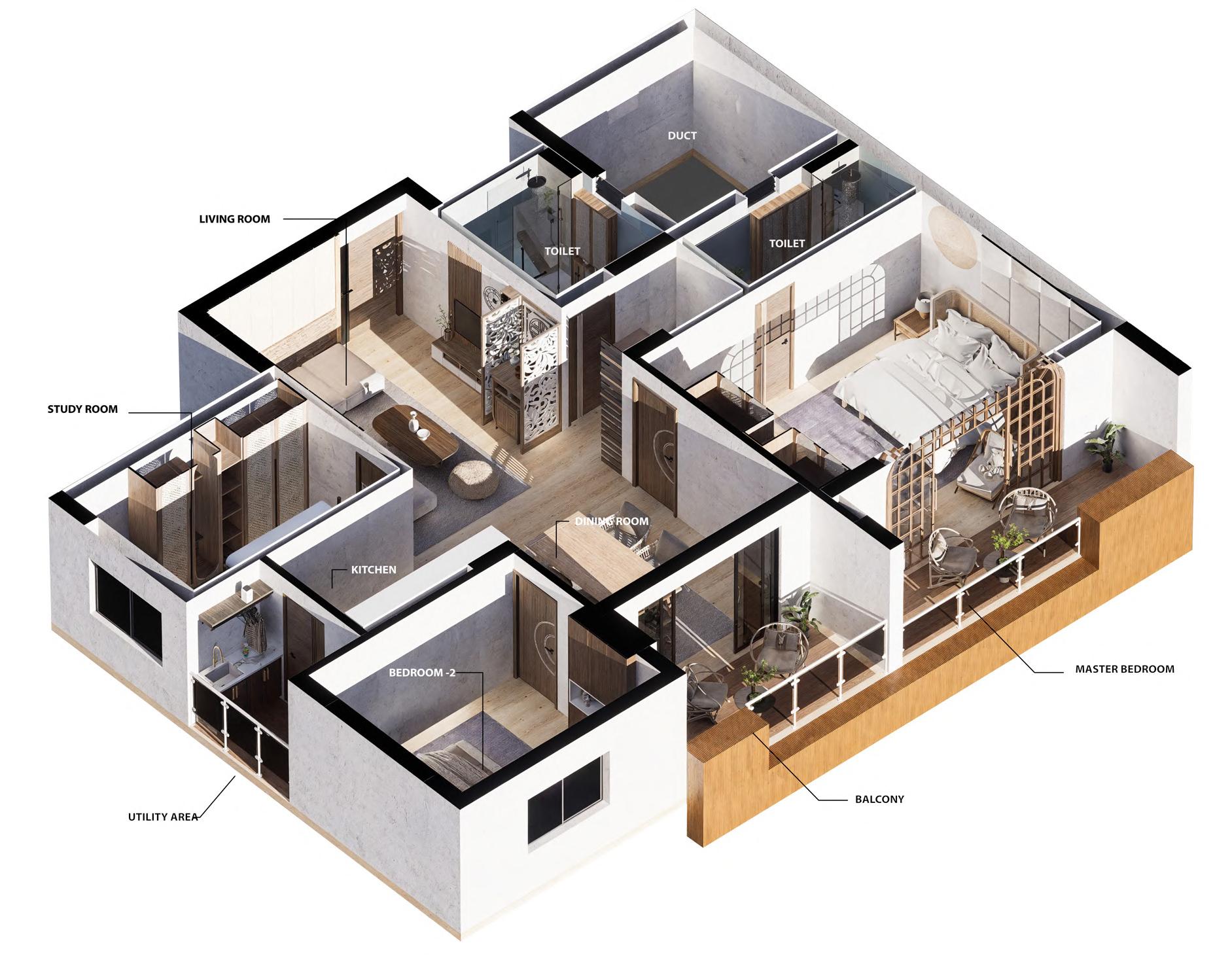

The structure featuress a symmetrical design with a central core , residential units on 4 sides. Each unit includes 2 bedrooms, a living area, kitchen, 2 bathrooms, well ventilated balconies and study room.This design is clean and functional, typical of contemporary residential architecture.
RESIDENTIAL UNITS:
2, 3, and 4 BHK configurations with balconies and cross-ventilation.
Commercial Spaces: Retail outlets, co-working zones, Terrace garden above the commercial zone.
PARKING & SERVICES:
24/7 security, CCTV surveillance, and building management systems.
Rainwater harvesting, solar panels, and solid waste management.
This structure is a contemporary mixed-use high-rise with commercial and residential purposes in a well-designed format. The ground floors are reserved for commercial use, which is most suitable for residents, offices, or showrooms catering to the locality and residents as well. Immediately above the commercial area, a nicely organized terrace garden is included, acting as a leisure and party zone. Straddling this rooftop garden, the building goes on to feature expansive 3 bhk and 4 bhk apartments tailored for comfortable family accommodation. These homes provide contemporary amenities such as several bedrooms, ventilated living and dining spaces, balconies, and numerous bathrooms.

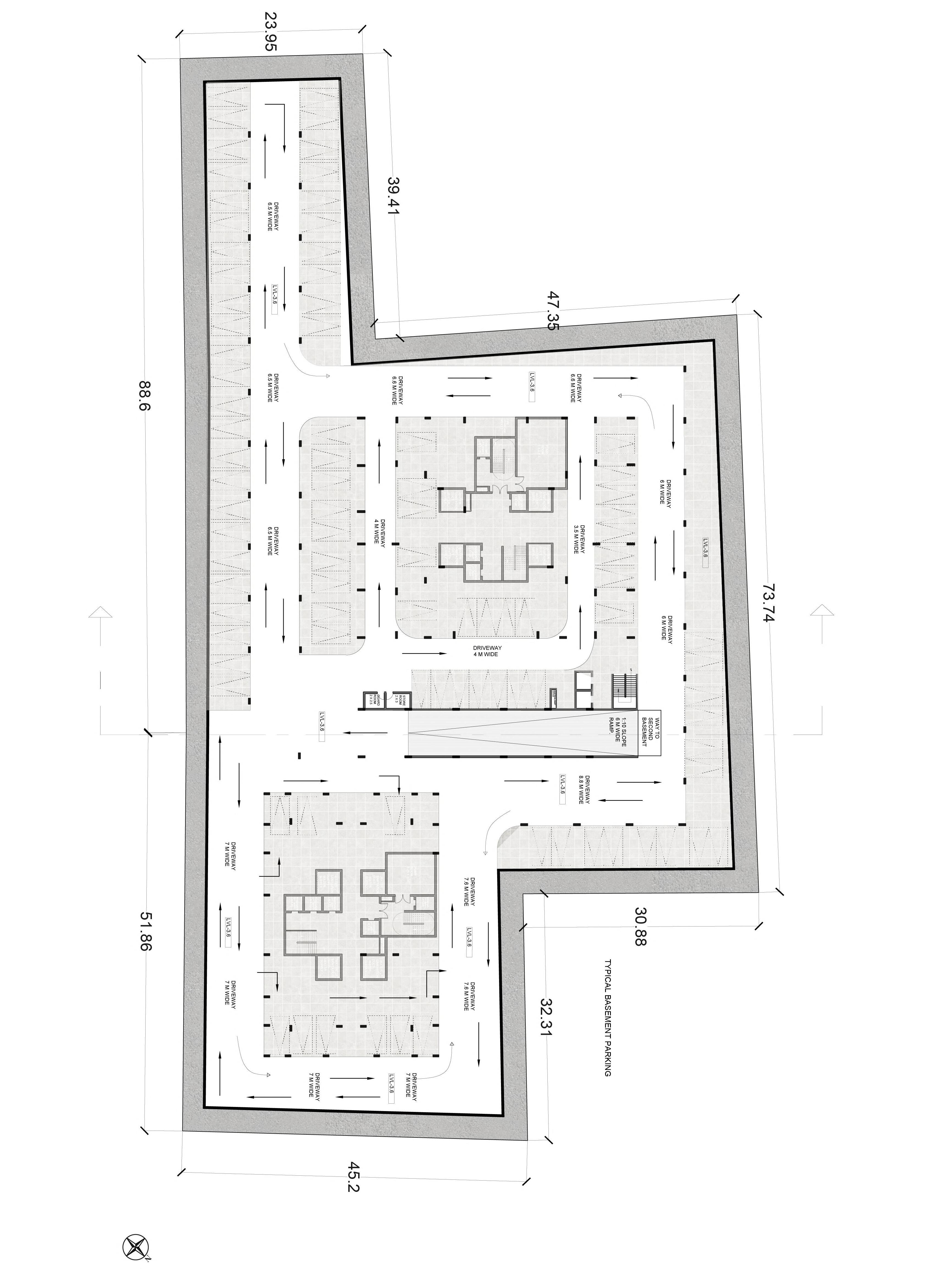

TYPICAL BASEMENT PARKING for the residents as well as the visitors.

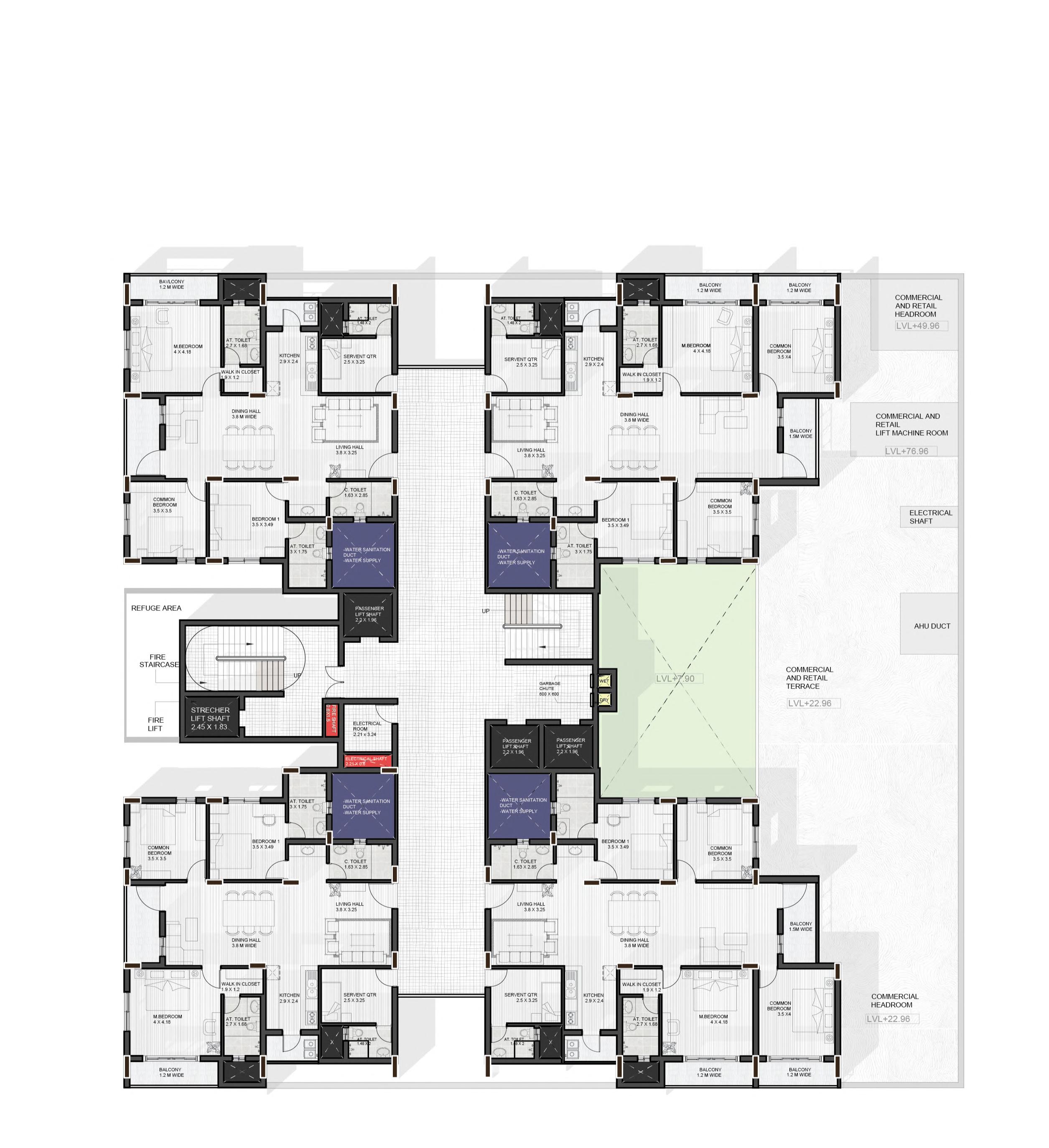

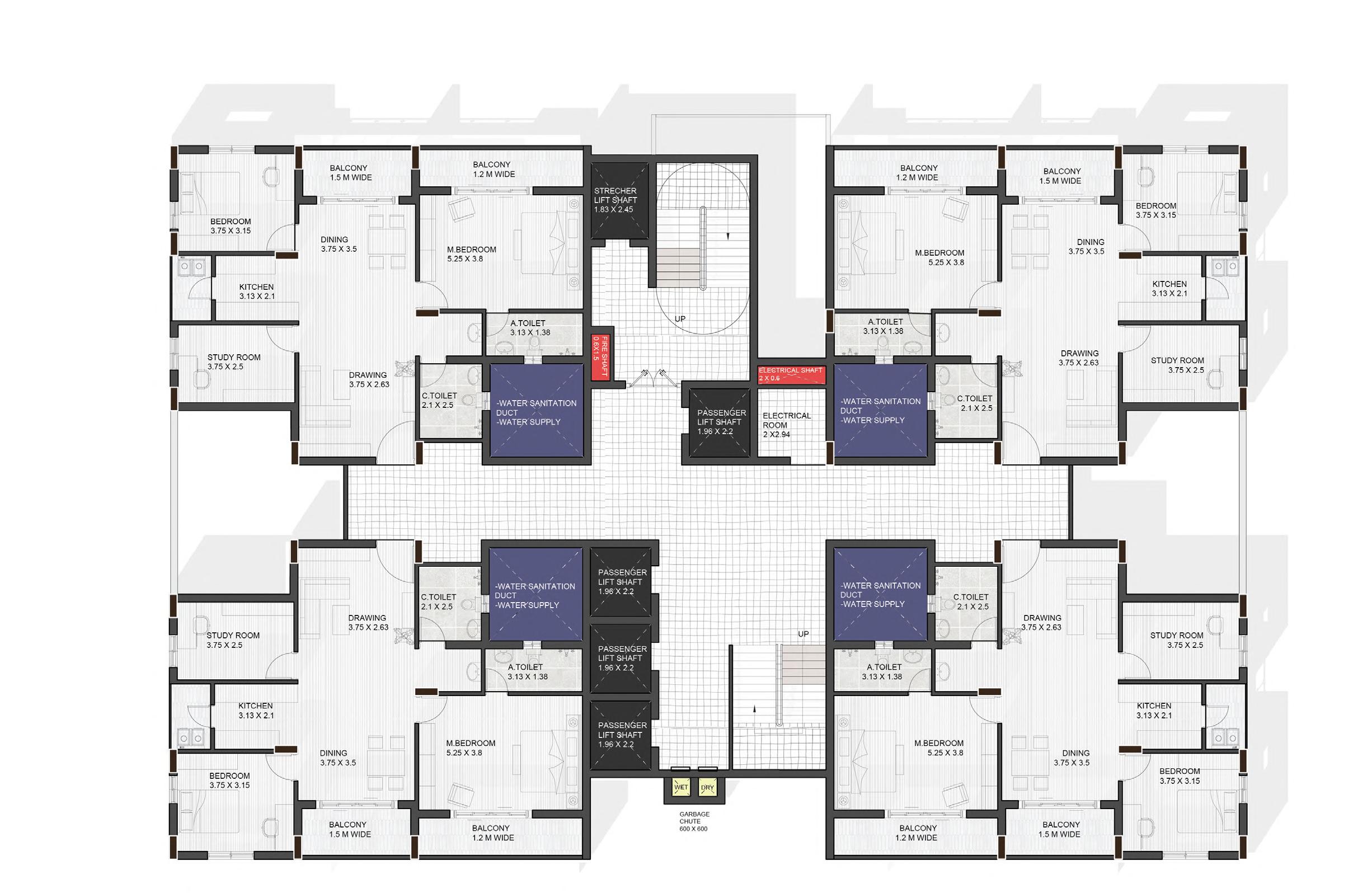

2-BHK CLUSTER with all required services such as fire staircase, sanitation duct, garbage chutes and electrical shafts.

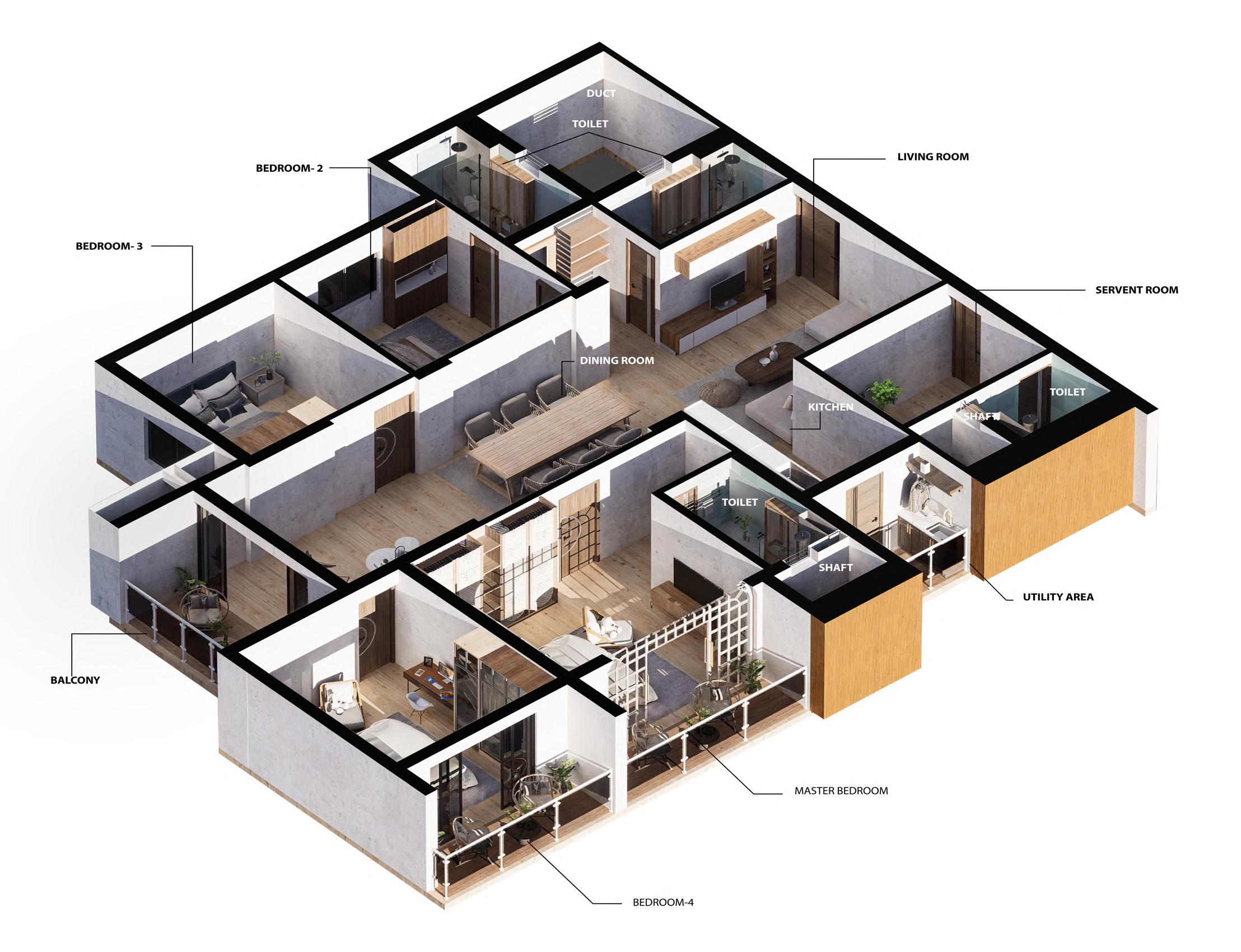

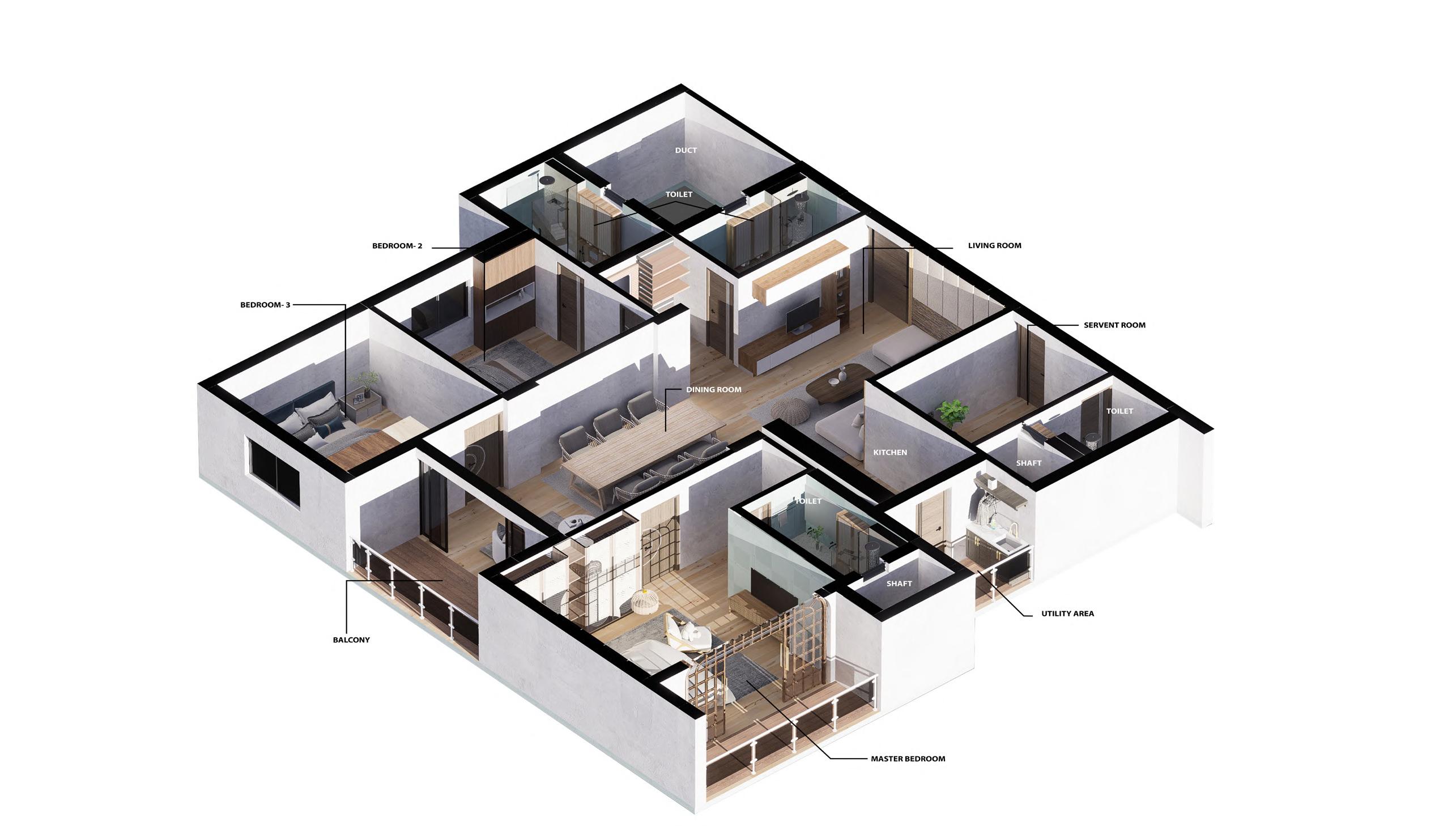

3-BHK and 4- BHK CLUSTER with all required services such as fire staircase, sanitation duct, garbage chutes and electrical shafts.
This is structured as two basement levels, linked through gentle ramps that allow easy vehicle movement. The basement levels are reserved mainly for car parking to accommodate sufficient space for residents and guests, which minimizes surface traffic. Aside from parking, the basement must contain key service and utility spaces like electrical rooms, water reservoirs, pump rooms, and maintenance spaces. The building is supported by a retaining wall system and a robust foundation system for the load of the residential and commercial floors above. The basement plan maximizes the use of space on the ground floor while ensuring the efficiency of the building.
Project Type- School design
Location - Morbi, Gujurat

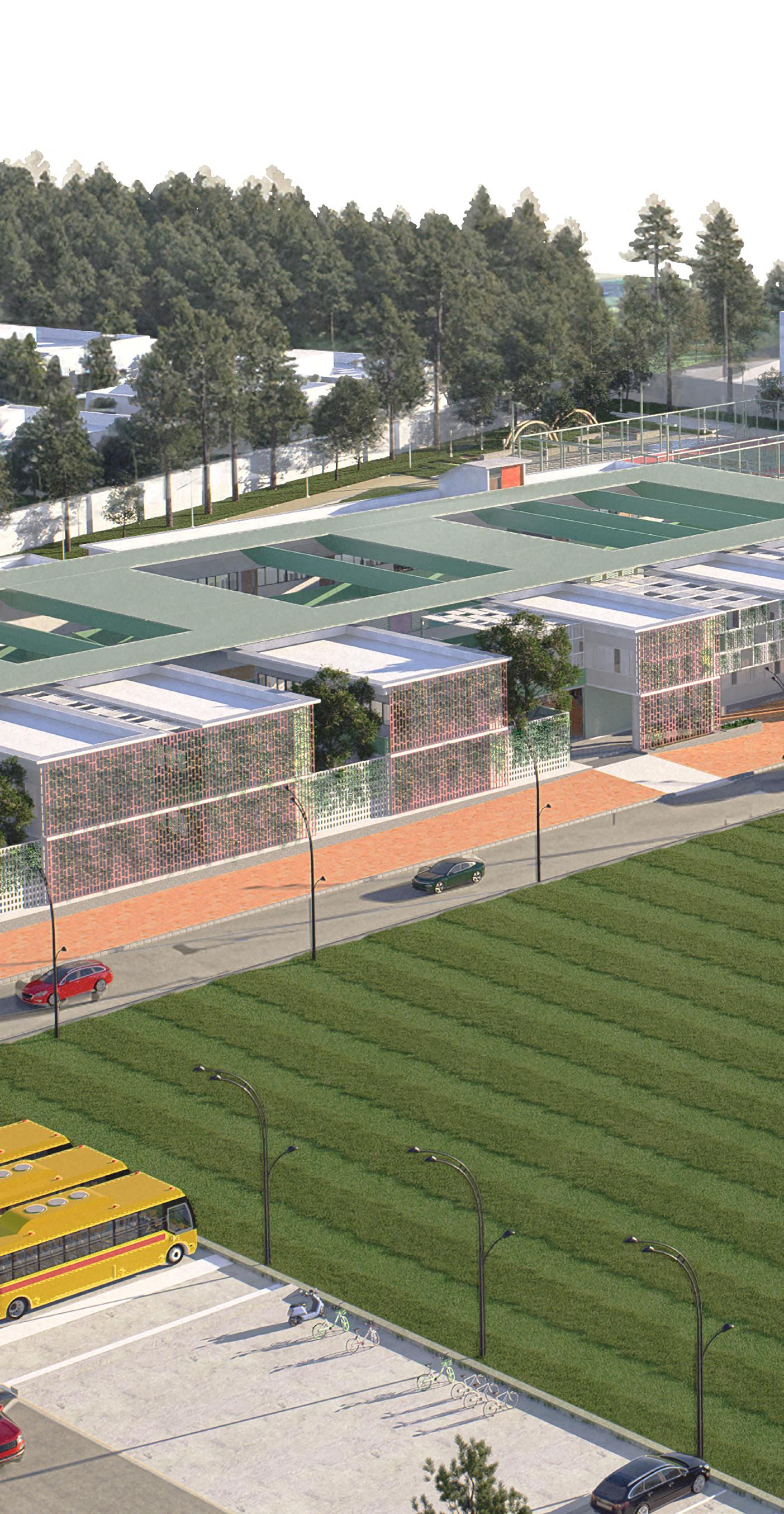

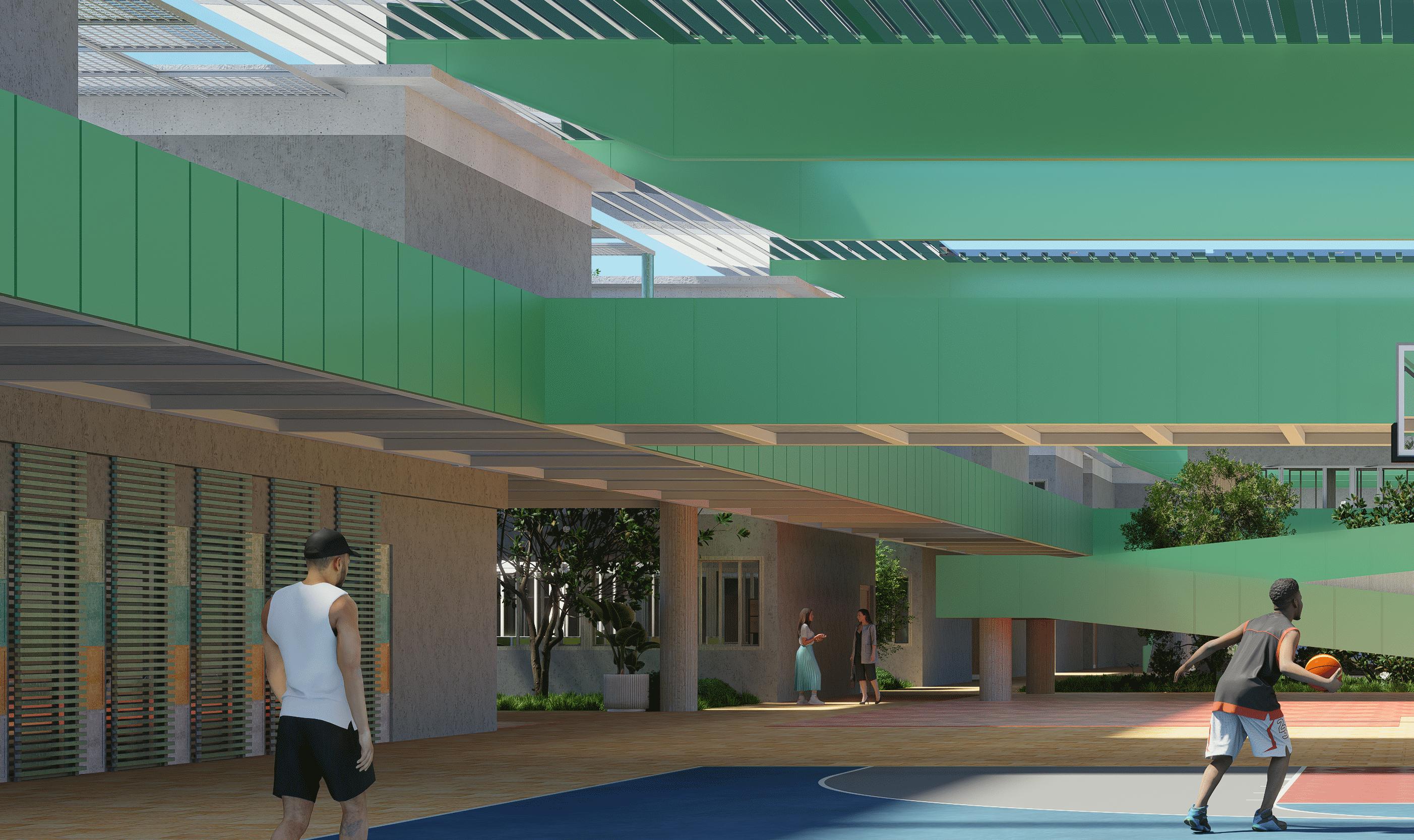

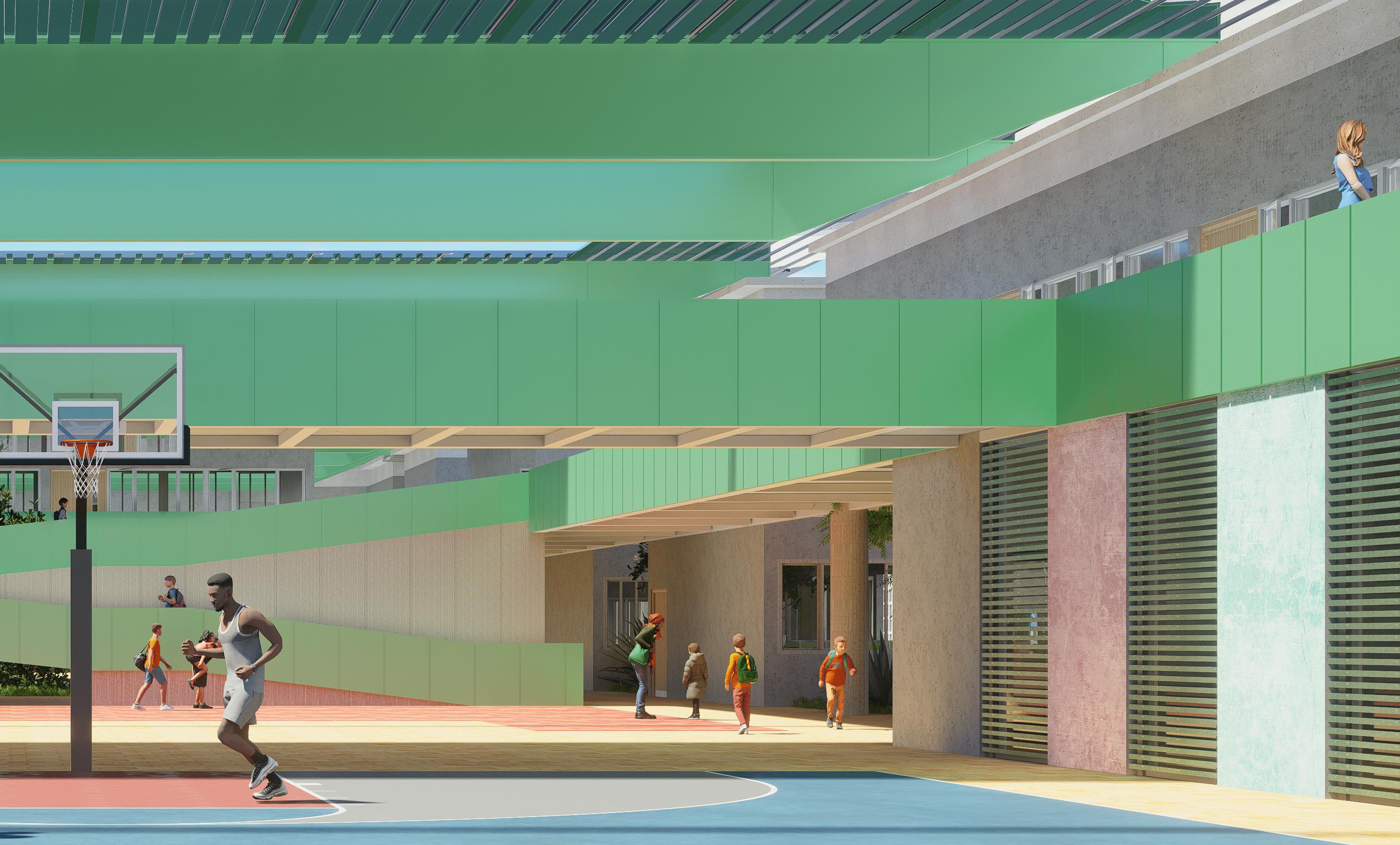

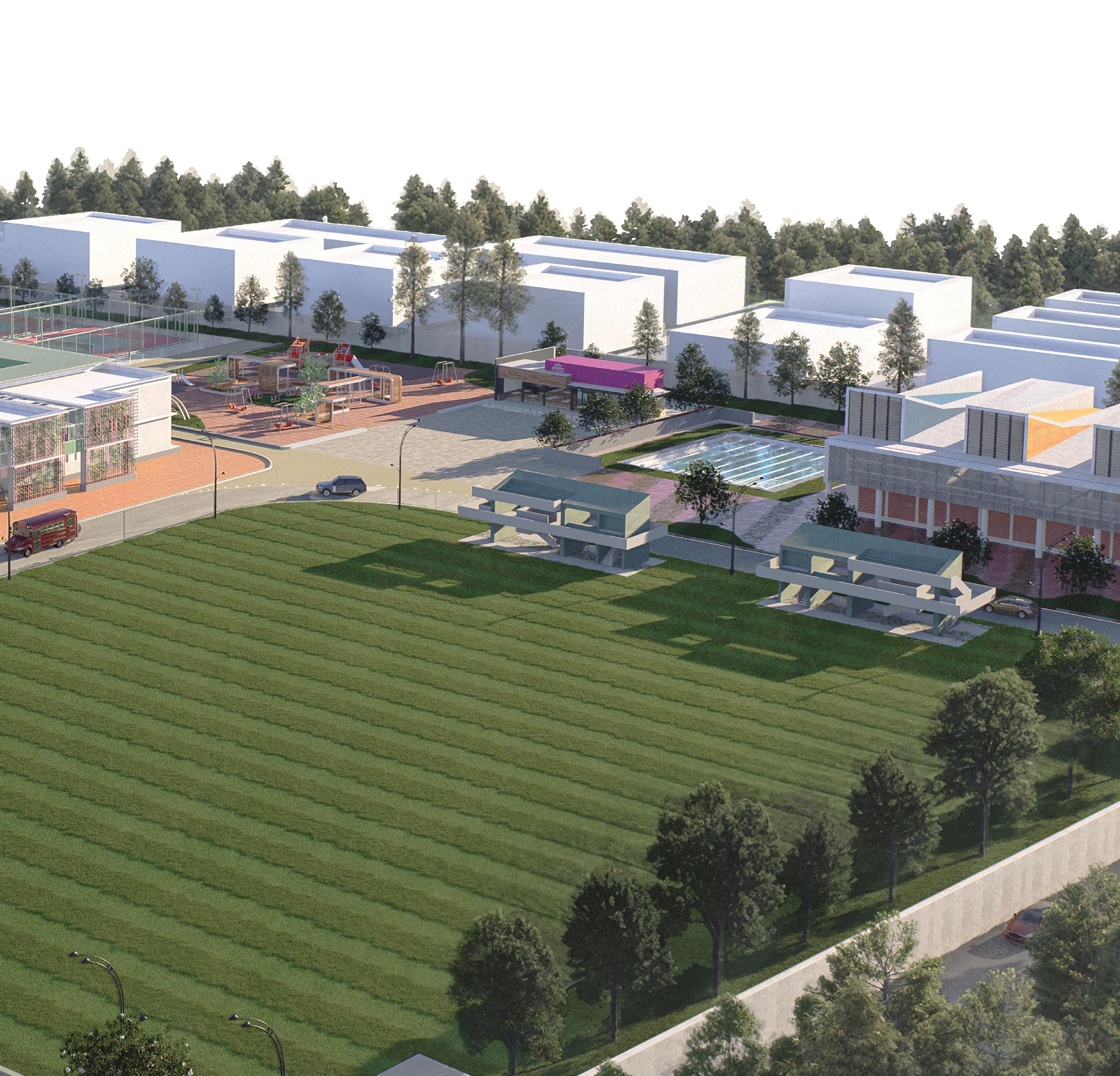

The “attendance – a school design challenge” was an architecture competition held by archmello, designing anew government school infrastructure in india. The contest site was in the outskirts of morbi, gujarat—a city famous as the ceramic capital of india, with a fast-developing Urban area. The layout is organised with clear zoning- academic block, sports block and recreational areas, ensuring smooth circulation.Here,academic block is being demonstrated.
CO-CURRICU-
LAR BLOCK

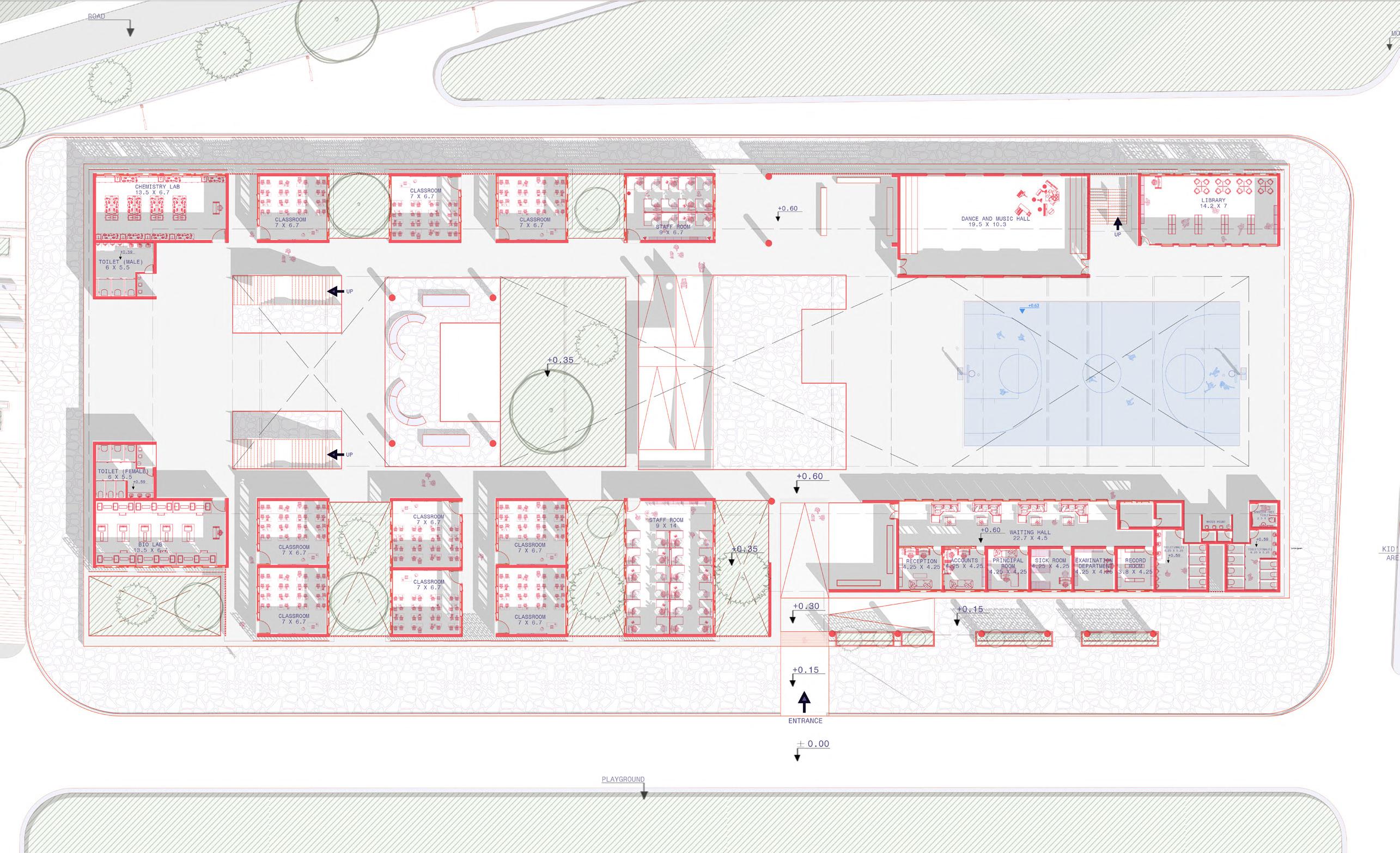

GROUND FLOOR PLAN
1.Admin block
2.Staff room
3.classrooms
4.BioLab
5.Library
6.Dance and Music room
7. Basketball court
8.Toilets and water points
9. Chemistry lab

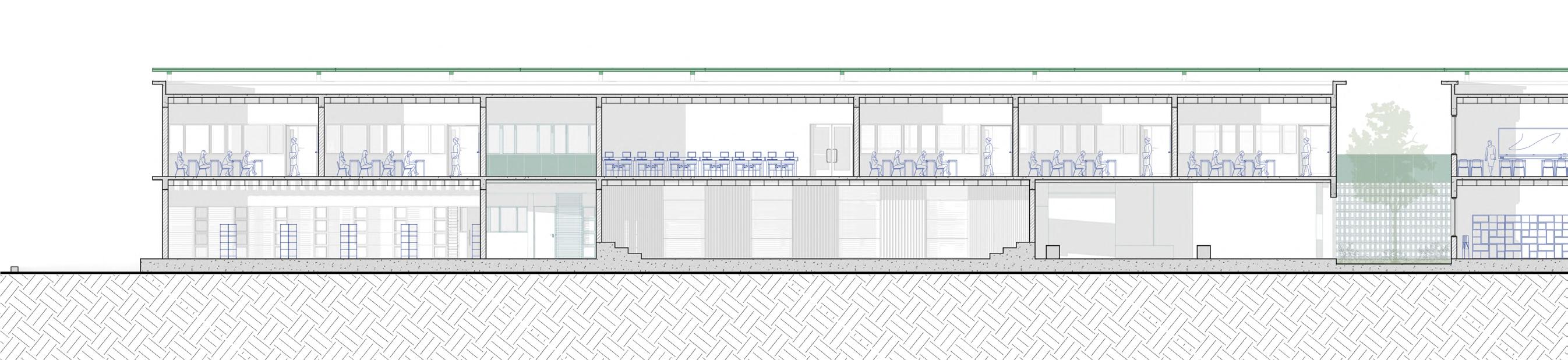

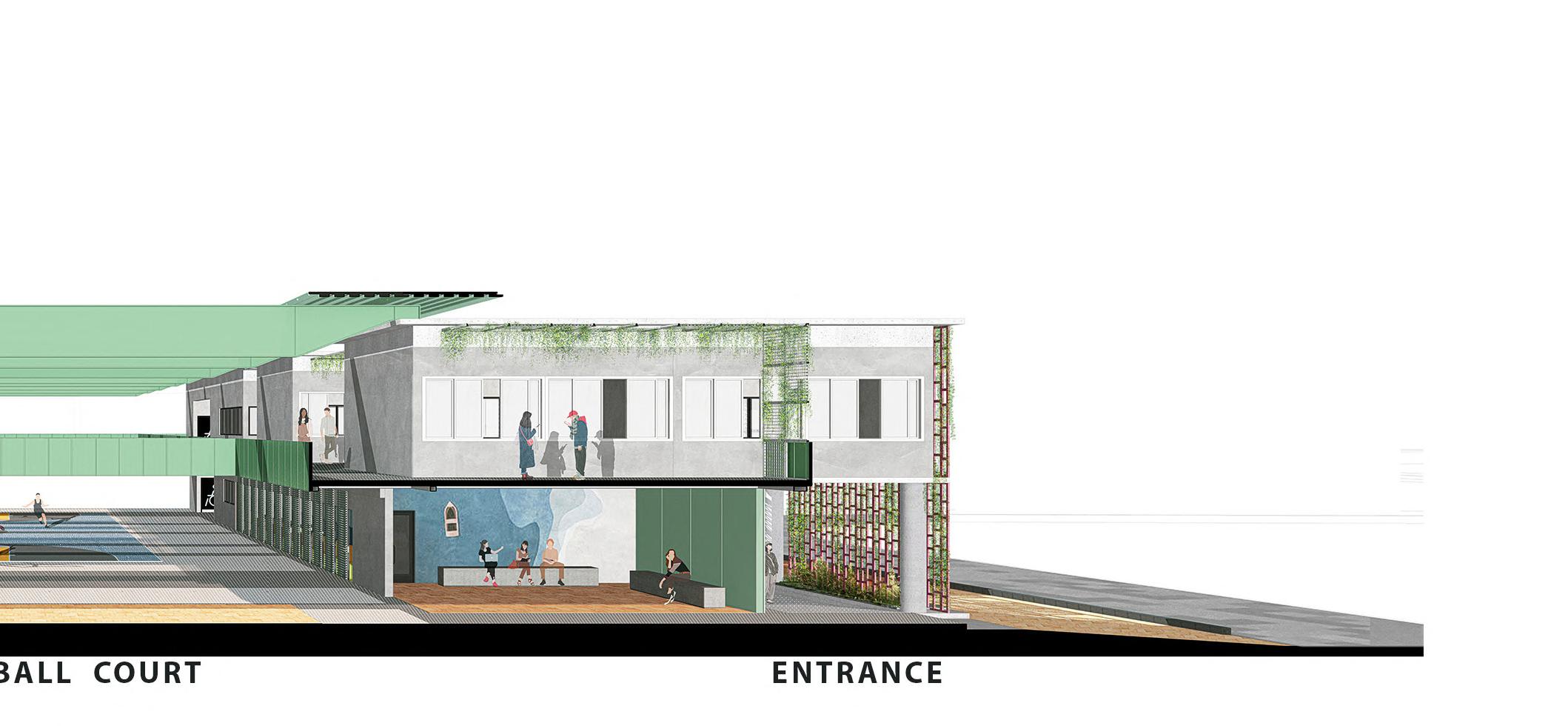

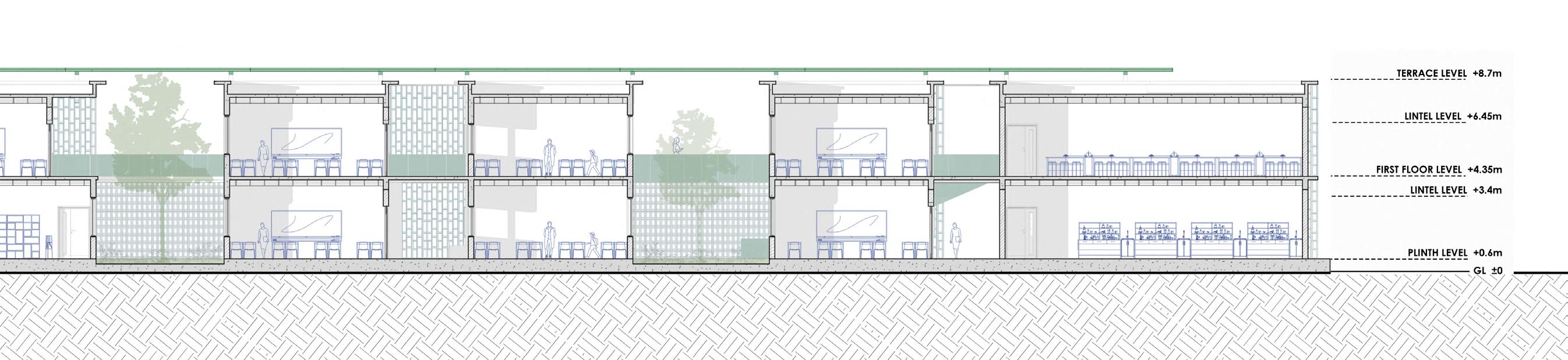

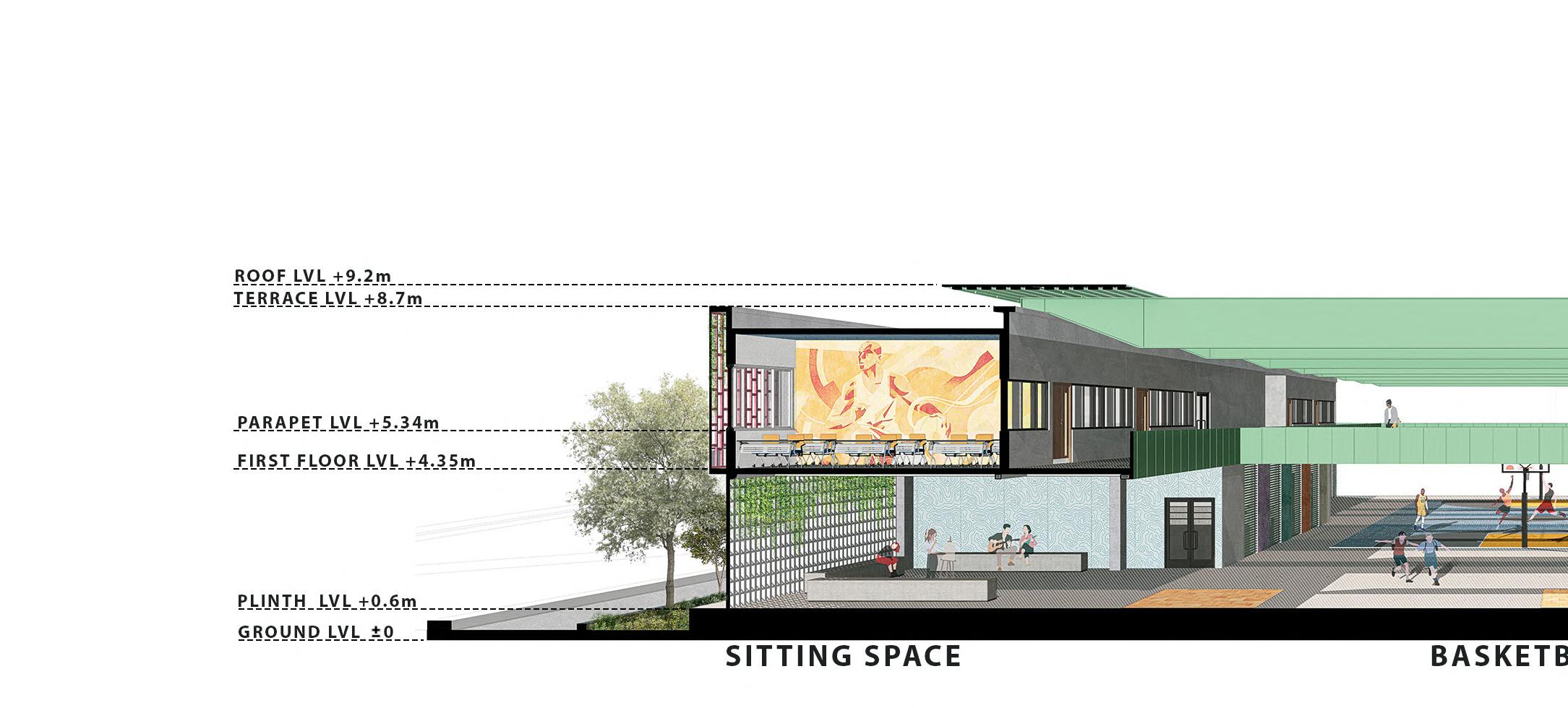

SECTION X-X’ showcasing different spaces of school

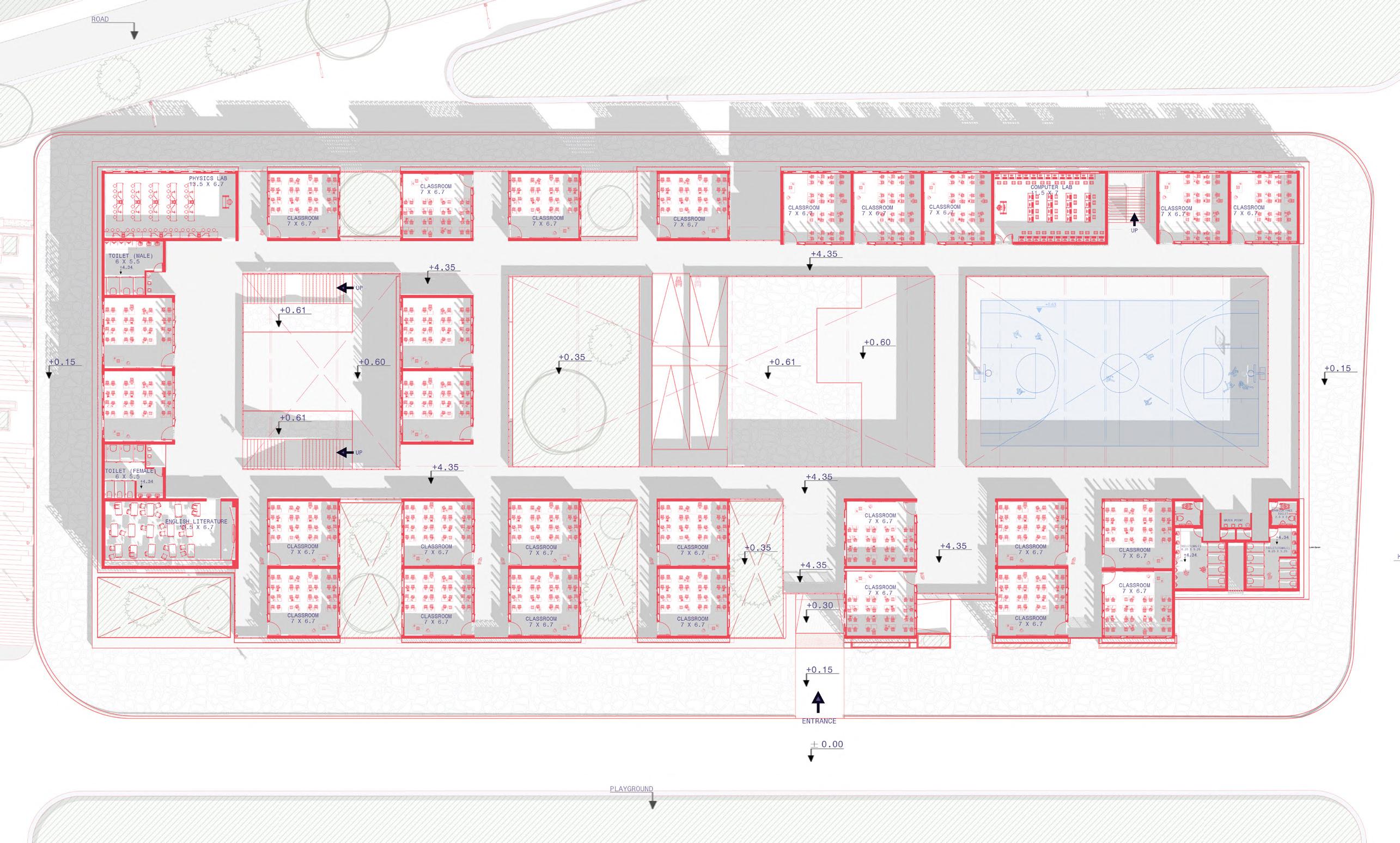

FIRST FLOOR PLAN
1.English literature room
2.Physics lab
3.Computer lab
4.Classrooms
5.Toilets

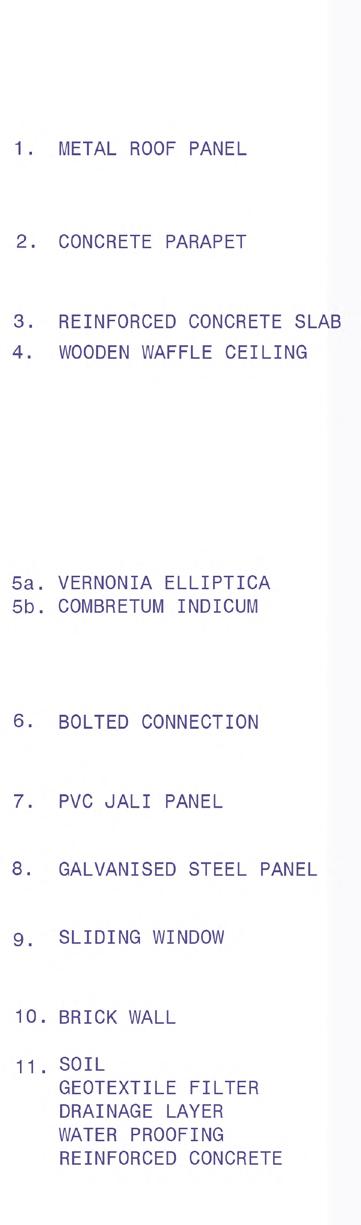

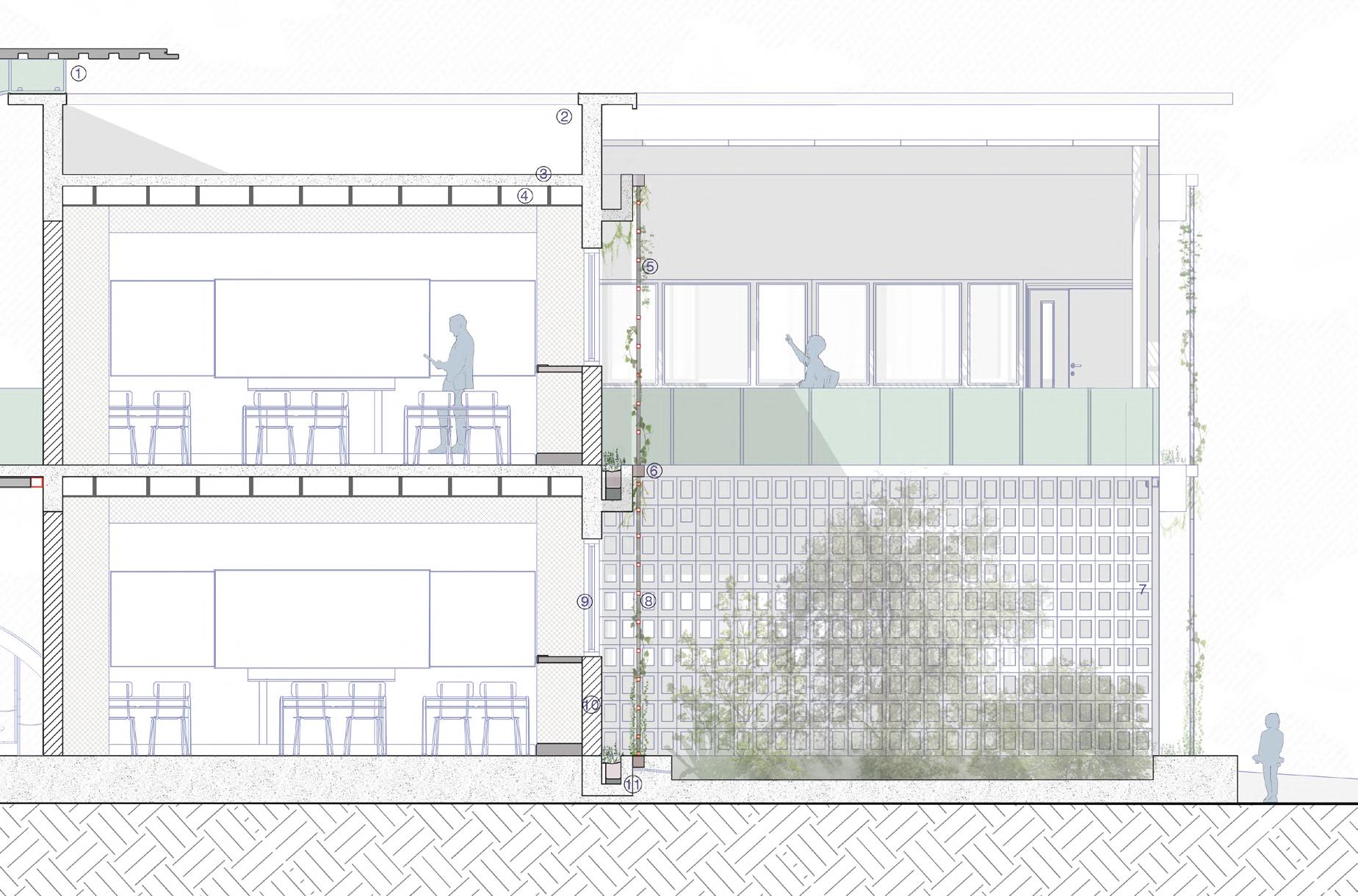

PART SECTION

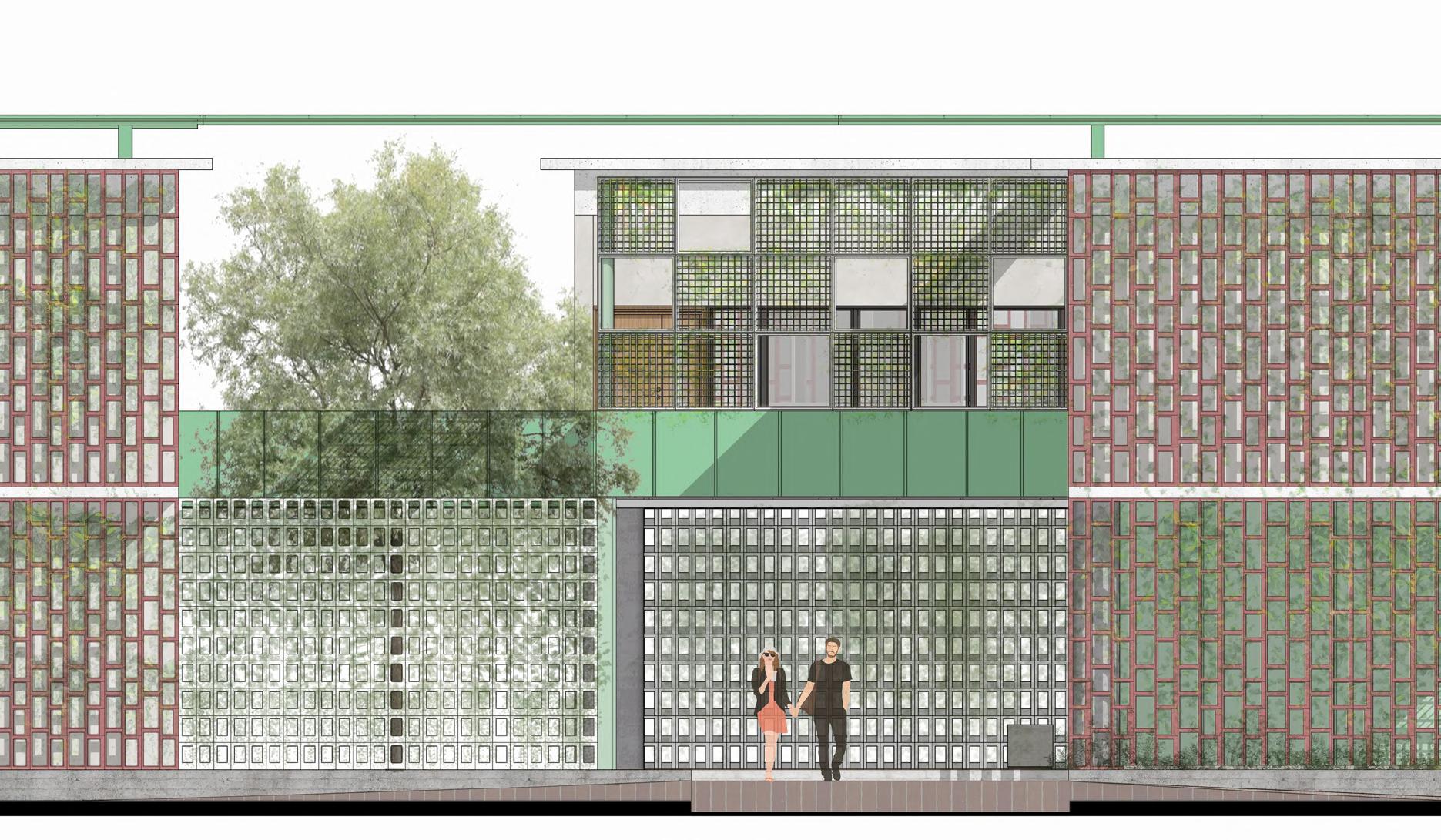

PART ELEVATION

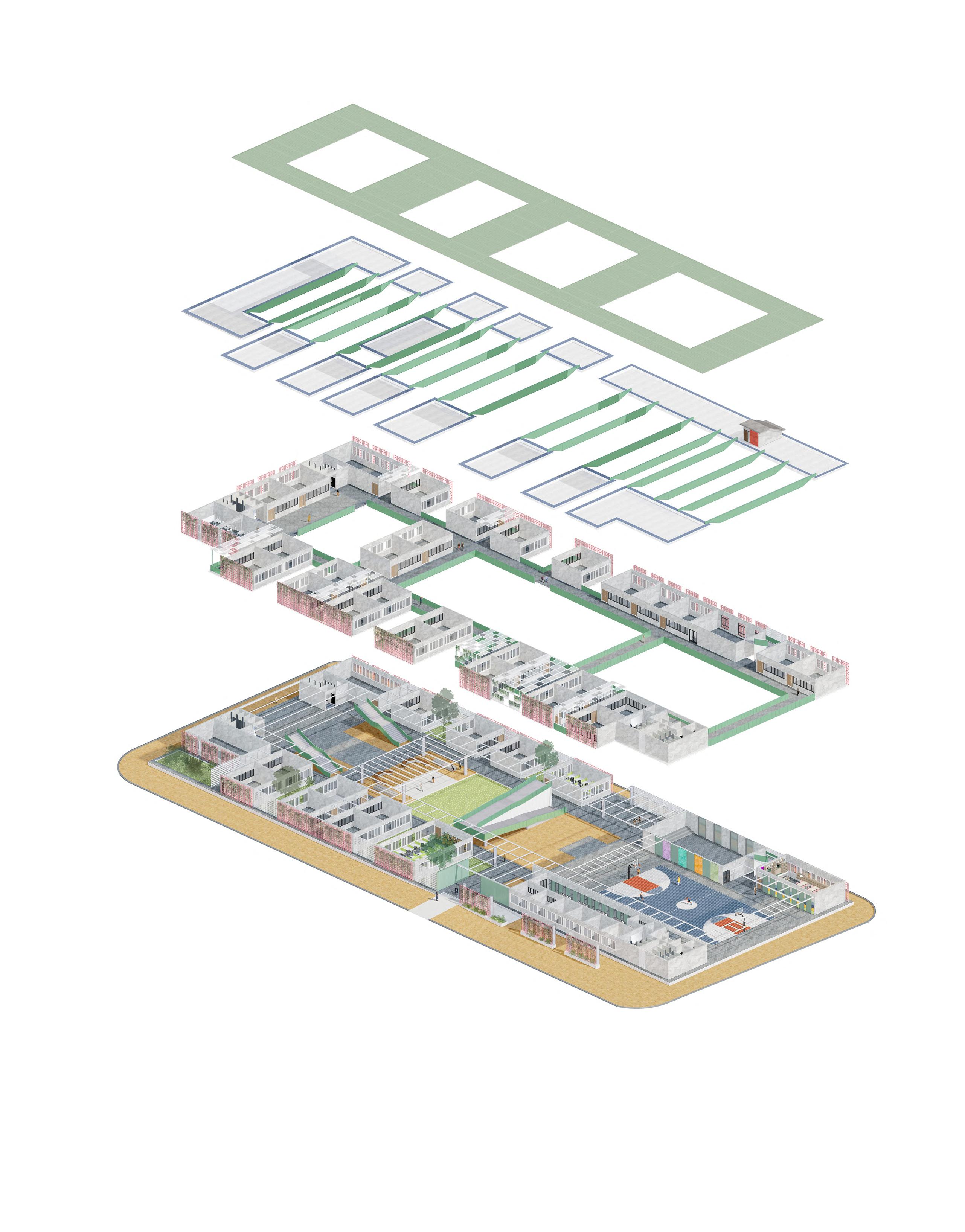

This exploded view shows the school building layer by layer, from the roof to the ground floor . It reveals the layout of classrooms, corridors, and open spaces on different floors. The ground level includes sports areas, assembly spaces, and greenery.
crixa
5-7th sem|individual work
WORKING DRAWING
ARCHITECTURAL DETAILING
Detailed, scaled and technical representation used in construction process.This shows technical proficiency and understanding of real-world architectural execution.
DETAIL AT F (scale- 1:10)
125 mm THK BRICK WALL 150 mm SKIRTING 20 mm THK MARBLE FINISH TILE 12 mm THK PLASTER
P.C.C(1:2:4)
MARBLE TILE,CONCRETE TILE FLOORING
DETAIL AT E (scale- 1:10)
DETAIL AT C (scale- 1:10)
50X50MM BOX SECTION BALUSTER OF S.S.
ROSETTE PLATE WELDED TO SUPPORT THE BALUSTER COMPACTED SAND FILLING 20MM THK GRANITE NOSING
DETAIL AT B (scale- 1:10)
DETAIL AT A (scale- 1:10)
75X40MM S.S. HAND RAIL
50X50MM BOX SECTION BALUSTER OF S.S.
10MM THK TOUGHENED GLASS TO BE CLADDED FROM BOTH SIDES
S.S./M.S. SCREWS WITH BOLT HEAD
6MM THK SPACING BETWEEN GLASS CLADDING
20MM THK GRANITE NOSING
ROSETTE PLATE WELDED TO SUPPORT THE BALUSTER
DETAIL AT
1:10)
DETAIL AT G (scale- 1:10)
PLANS WITH SCHEDULE OF
CARPET AREA=195 SQM TOTAL BUILT UP AREA=200 SQM
SECTIONAL
SECTIONAL PLAN
NORTH ELEVATION
TOILET PLAN
