THE ENVIRONMENT IS OUR COMMON CUSTOMER OUR GOAL IS THE HAPPINESS OF PEOPLE AND THE WELL-BEING OF NATURE IN A CLEAN AND SUSTAINABLE ENVIRONMENT It all started with a small metal workshop in Eastern Finland in 1945. The driving force was the desire to make new types of furniture - durable, easy to use and beautiful - outside, for everyone to use.

The design of City®, based on detailed studies and testing, successfully applied the principle of Scandinavian design, which can be summarized in the phrase “Form follows function”.

In 1990, Finbin City® was born, making the Finbin® brand an internationally renowned brand. The success of City® began from a big design competition organized by the City of Helsinki, which was won by designer Hannu Kähönen and his team. The aim of the competition was to create a litter bin that can be emptied as easily, efficiently and safely as possible.

In the early 2000s, we realized that new technology could not only help our customers, but also significantly reduce the carbon footprint of waste disposal.

In 2017, Finbin CitySolar® was launched, the most efficient solar-powered waste compactor on the market that has already conquered the major cities in the Nordic countries.

We would not have lasted since the middle of the last century without the understanding of our brilliant professionals that we can create something new thanks to our customers. Year after year, one customer stands out more and more from all our customers - the environment.

We now have better opportunities than ever before to work together preserving both human happiness and the well-being of nature for future generations.

Did you know that steel is the most recycled material in the world?

The main material in our products is steel. With over 75 years of expertise, we manufacture products designed to withstand the harsh weather conditions in the north. Sometimes even the most durable product comes to an end and then it is important that the material can be reused. Steel can be recycled and reused without compromising the features of the material.

Steel can be recycled over and over again without sacrificing its features.

2

In the world of the future, there is no waste, we only have materials.

Yrjö Ojanen, entrepreneur, Finbin

Yrjö Ojanen, the entrepreneur of Finbin puts into words our vision of a future world where all materials are collected and utilized as efficiently as possible. We want to contribute to promoting the collection and sorting of materials by creating products that make the process easy and effortless.

3

CITYSOLAR PRODUCT FAMILY SMA R CITY T

CITYSOLAR 6-9

CITYPACK 10-11

LITTER AND RECYCLING BINS

LITTER BINS

4

CITY® 12-15

ELLIPSE 16-18

PLAZA 20-21

RECYCLING BINS

BERMUDA 28-29

EDGE 30-31

Are you a designer?

ARCHIE 22-23

ROBOMAT 24-25

EKOCITY 26-27

ACCESSORIES

COMBI ashtray 19

OTHER ACCESSORIES 33

Download free data models of our products directly into your design from the following model libraries: prodlib.com and bimobject.com

SHELTERS

VIVA 44-61

MODUL 34-41

BENCHES AND TABLES

VARIO 62-67

KURU 80-83

BIN SHELTERS

BIN SHELTERS

U2

FRAME-LOCKING RACKS

70-71

CUBIQ

BICYCLE AND E-SCOOTER RACKS

72-75

TREO BICYCLE RACK

76-77

FIPO

BSAFE

76-77

78-79

BOLLARD, BICYCLE STANDS

BATTERY & CHARGING LOCKERS

MATERIALS AND MAINTENANCE

STANDARD COLOURS

MATERIALS

84-85

86-87

MAINTENANCE INSTRUCTIONS 88-89

SHELTERS AND BIKE PARKING

BIKE RACKS & CHARGING LOCKERS

RECYCLING 90 5

6

LITTER - AND RECYCLING BINS

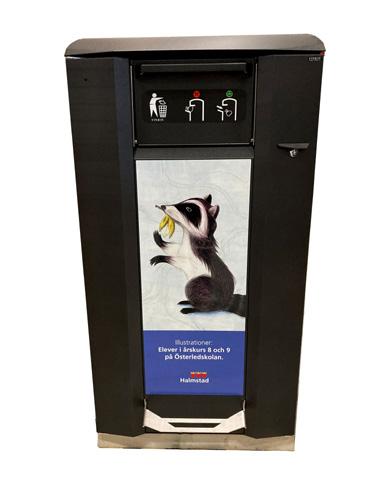

CITYSOLAR COMPACTING SMART WASTE BIN CitySolar operates 100% on solar energy and is made from durable, 90% recyclable materials. The product is designed with sustainability in mind.

The side panels, which can be replaced on-site, can be effortlessly swapped in under 10 minutes. This reduces vandalism-related costs and extends the product’s lifespan.

By optimizing waste collection with smart technology, CitySolar minimizes unnecessary collections, leading to significant savings. The compaction feature of CitySolar smart bins helps increase waste capacity to up to 2000 liters, thus reducing the required collection frequency. CitySolar is the only product on the market where the inner bin can easily be switched between 120/240/360 liters. The inner bin uses a standard 240/360-liter wheeled waste container.

Say goodbye to overflowing bins and switch to efficient, sustainable waste management with the CitySolar smart waste bin! When waste is compacted, containers aren’t full, which prevents attracting pests like rats. The foot-operated lid promotes hygiene.

Solar panel: min. 50 W Battery: min. 50 Ah

Panel replacement can be done on-site in under 10 minutes

DESIGN HENRI SYDÄNHEIMO

STANDARD COLOURS

ACCESSORIES

MEASUREMENTS (L,W,H)

CAPACITY

APERTURE

WEIGHT

MATERIALS

MATERIAL STRENGTH

960 x 780 x 1500 mm

even 2000 litres

length 380 mm

190 kg

Stainless steel and galvanized steel. The material’s corrosion classification is the highest, C5

multiple

Explore our extensive standard colour range on ages 82-83

Stickers

Ashtray

Other RAL colors

Anti-graffiti coating

We reserve the rights to make changes

REFERENCES - Oslo (Norway) - Tallinn (Estonia) - Stockholm (Sweden) - Solna (Sweden) - Nora (Sweden) - Helsinki (Finland) - Hanko (Finland) - Porvoo (Finland) - Turku (Finland) - Pays de l’Or (France) - Rouen (France) - Divers (France) - Hvar (Croatia) - Verona (Italy) - Skien kommune (Norway) - City of Düsseldorf (Germany) - Municipality of Berkovitsa (Bulgaria) - Lustica Bay (Montenegro)

7

10 REASONS TO CHOOSE CITYSOLAR Largest capacity Waste capacity up to 2,000 litres

Patented compaction system

No unreliable measurement results based on ultrasonic or laser technology. Patented fill level measurement technology.

100% solar-powered Designed and tested to work in Nordic light conditions.

NEW DESIGN!

3

The FinbinCare cloud service shows the bin’s fill level and other information in real time.

9

8

4

3-in-1 inner container Ability to change capacity from 120L, 240L or to 360L depending on preference or seasonal needs.

You can adjust the capacity by using a standard 240-liter waste bin as it is or by adding a 120-liter aluminum inner liner to the bin.

8

10

2

The patented compaction system allows you to maximise the use of the bin’s capacity.

No false readings

1

Real-time data in our cloud service

7

5

6

Cost-effective The biggest savings are gained when both the cost and the carbon footprint are considered.

Corrosion-resistant materials CitySolar is made of aluminium, SST, and unique galvannealed steel. The material choices improves the fire safety of the bin and the highest corrosion class C5 makes the bin resistant to corrosion.

Replaceable panels Field-replaceable panels, which can be swiftly changed in under 10 minutes. This feature radically minimizes the costs of vandalism and extends the product’s lifespan.

Safety and ergonomics The standard 240-litre container (EN-840) can be emptied mechanically, avoiding any risks related to manual emptying, e.g. back problems.

LITTER - AND RECYCLING BINS

HOW DOES IT WORK? Powerful compaction

Solar power

The patented compaction system has been designed to maximise the capacity of the bin. The system’s compaction power reaches up to 600 kg. The powerful compaction system provides a waste capacity of up to 2,000 litres.

CitySolar is powered by efficient solar panels, which fill batteries up with energy.

Accurate measurement system CitySolar’s patented measurement system is reliable and does not trigger false warnings. This ensures that the bin is only emptied when full.

Fill level information in our cloud service CitySolar reports fill level information to our cloud service. This enables just-in-time emptying to reduce costs.

Finbin Care cloud service Finbin® Care operates as a cloud-based service, making it accessible via an internet connection on a smartphone or a computer.

The service does not require any software installation. Finbin Care allows real-time monitoring of the fill level of CitySolar.

Fill level data to the cloud

CitySolar sends data on the fill level measured by the device, as well as the number of times the lid has been opened, to the cloud service.

Automatic maintenance request

The maintenance request is automatically sent to the responsible party based on the fill level set by the customer.

The map view provides an overview of the entire situation.

In addition to the fill level, the service allows viewing of the basic information and location of the devices on a map. Other street furniture can also be added to the service, allowing them to be displayed with their details in the consolidated map view.

9

NEW DESIGN!

10

LITTER - AND RECYCLING BINS

CITYPACK

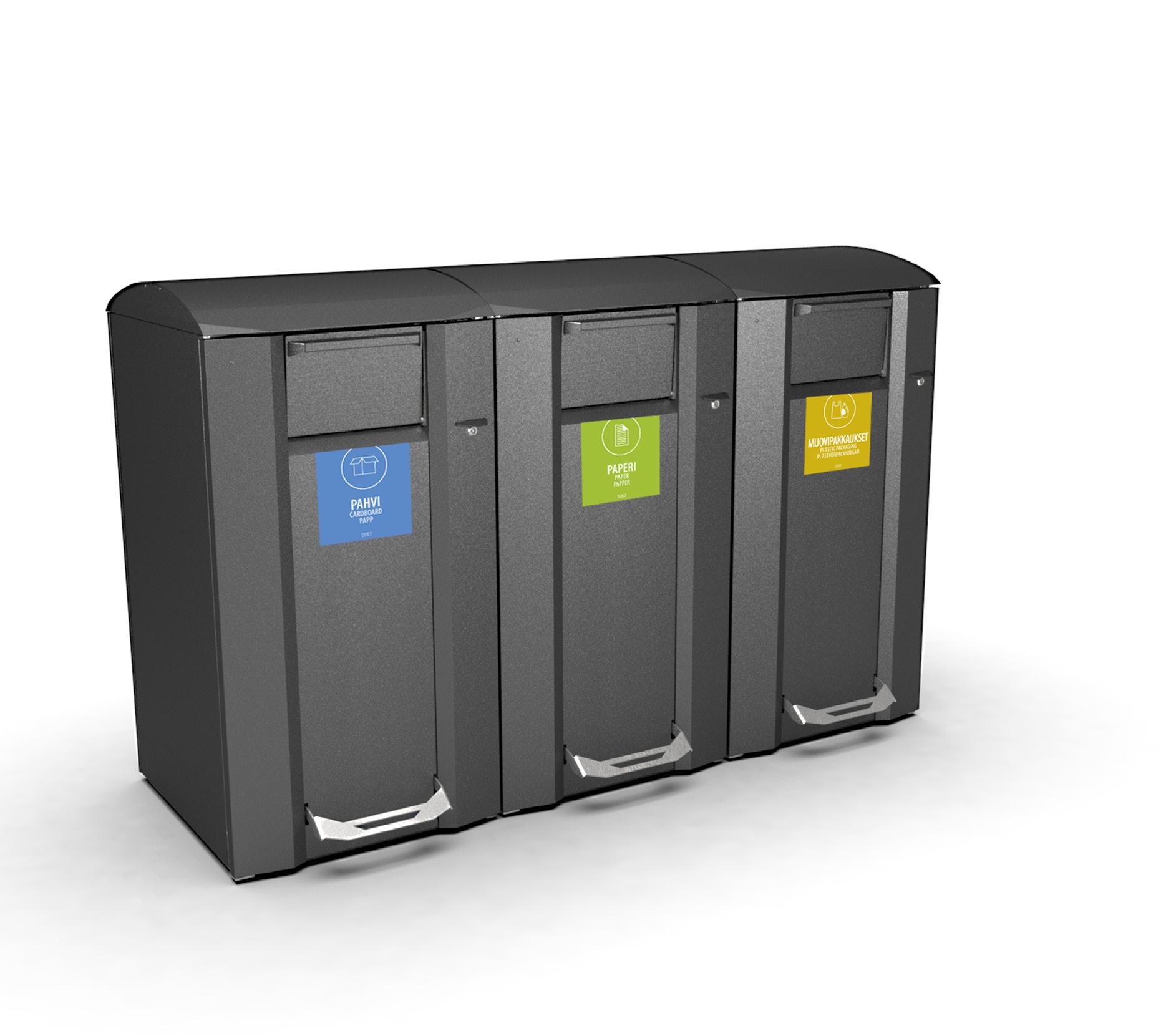

SPACIOUS WASTE BIN EXPANDS INTO A SORTING STATION

CityPack is ideal for streets and parks where large amounts of waste are collected, but compaction is not necessary. CityPack pairs well with the compacting CitySolar smart waste bin, as it matches CitySolar in appearance.

CityPack’s design can be customized to match the customer’s brand with color choices and decals.

FEATURES CityPack is made from durable materials—stainless steel and galvanized powder-coated steel. Optional accessories for CityPack include a deposit return tube, ashtray, or sorting openings for paper and bottles.

DESIGN HENRI SYDÄNHEIMO MEASUREMENTS (L,W,H)

CAPACITY

APERTURE

WEIGHT

MATERIALS

MATERIAL STRENGTH

960 x 790 x 1500 mm

240 L wheeled plastic container ( DIN EN 840 )

length 380 mm

140 kg

Powder-coated galvanized steel, stainless steel (SST)

multiple

STANDARD COLOURS

Explore our extensive standard colour range on ages 82-83

ACCESSORIES

Stickers

Sorting openings

Ashtray

Deposit return tube

Other RAL colors

We reserve the rights to make changes

A standard 240-liter waste container fits inside CityPack, making it very easy and ergonomic to empty. For 360-liter capacity, please inquire with our sales team.

CityPack is designed and manufactured in Finland.

Standardized inner container The inner container of CityPack and CitySolar is a standard 240-liter wheeled waste bin. This makes maintenance and emptying easier.

11

12

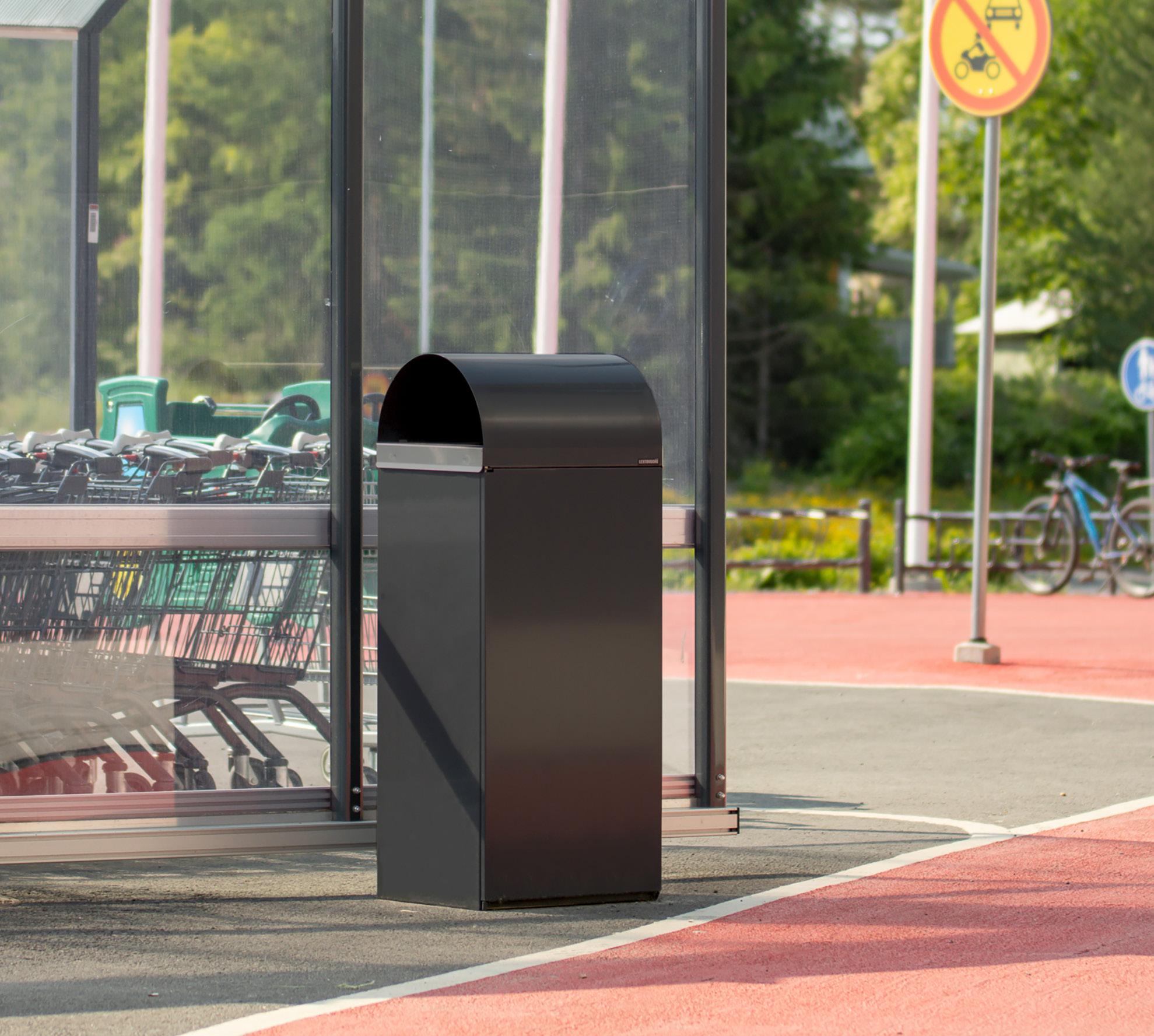

The authentic and original City® is manufactured in Finbin Lehtovuori’s factory in Finland.

AUTHENTIC AND ORIGINAL CLASSIC

The product design of City® in the 1990s was based on results of detailed surveys and tests. The design team, led by Hannu Kähönen, was tasked with creating a litter bin that could be emptied as easily, safely and efficiently as possible.

The City® litter bins have conquered the world since the 1990s, and have already been ordered in more than 40 countries. The design process also developed a sturdy product that resists vandalism and endures long-term mechanical strain.

The international demand for the City® Series grew quickly after winning a major design contest organised by the City of Helsinki in the 1990s.

The versatile City® Series comes with numerous accessories. City® bins can be found in the streets, parks, housing association yard areas, shopping centres, airports and indoor facilities of various urban environments worldwide. All City® litter bins are manufactured in Finland.

DESIGN HANNU KÄHÖNEN MEASUREMENTS (L,W,H) WITHOUT BASE

CAPACITY

APERTURE

WEIGHT

MATERIALS

MATERIAL STRENGTH

CITY® 30

315 x 315 x 580 mm

30 L

220 x 95 mm

14 kg

Powder coated galvanized steel and RST

2 mm

CITY® 60

400 x 400 x 700 mm

60 L

260 x 120 mm

27 kg

CITY® 100

400 x 400 x 868 mm

100 L

270 x 115 mm

34 kg

CITY® 140

460 x 460 x 890 mm

140 L

300 x 115 mm

39 kg

500 x 500 x 1130 mm (with base)

200 L

380 x 120 mm

44 kg

460 x 460 x 900 mm

140 L

364 x 130 mm

35 kg

NEW! CITY® 200

FEATURES City® litter bins are made from extremely sturdy and high-quality galvannealed structural steel or structural steel. The secure triangular lock is a standard accessory. Magnetic fastening is also available. The bins are powder-coated. In addition to the standard colour options, a wide range of special RAL colours is offered.

The surface of galvannealed coating is slightly rough.

Paint adheres better to a galvannealed surface than a galvanised surface. A painted galvannealed surface is very resistant to corrosion. Based on an official ISO 12944-6 test, the corrosion protection rating of City® litter bins’ material is C4.

Trouble with vandalism?

Sometimes locks on litter bins are broken to gain access to deposit bottles. We have solved this problem with a magnetic fastening which is available to replace the triangular lock of the City® products.

LITTER - AND RECYCLING BINS

CITY®

CITY® CASTLE

STANDARD COLOURS

RST

2 mm

Powder coated galvanized steel and RST

2 mm

Powder coated galvanized steel and RST

2 mm

Powder coated galvanized steel and RST Powder coated galvanized steel and RST

2 mm

Explore our extensive standard colour range on ages 82-83

Magnetic attachment

ACCESSORIES

2 mm

Powder coated galvanized steel and RST

Bird flap and hygiene hatch

Bottle and can recycling rack

Combi ashtray

Other RAL -colors

We reserve the rights to make changes 460

500

460

400

400

315

REFERENCES - City of Bilbao (Spain) - City of Malmö (Sweden) - English Garden (Munich, German) 900

960

1130

940

780

580

- Cities and municipalities across Finland

CITY CASTLE

CITY 200

CITY 140

CITY 100

CITY 60

CITY 30 13

CITY® fastening accessories Modul

In-ground metal base

Metal base

City 30®

City 60®

City 100®

City 140®

City 200®

City Castle® 14

integrated

Concrete base with sst surface

Concrete cone base for ground Ground post with fasteners post

Ground post (2 additional post fasteners required)

Post fasteners

Plate post

Wall mount

A ground post is available with or without fixed fasteners. In the latter case, you will also need two post fasteners. City® 60 can be fastened to a lamp post, ensuring that access to the service hatch is not obstructed.

A plate post is an excellent choice when you want to place a post bin indoors, for example. The plate post can be bolted onto the base.

Ground and plate post with integrated fasteners.

Use a handy wall mount to install a bin onto a wall. There are two wall mount sizes available. The right size is determined by the bin size.

There are three base options: light metal base, sturdy concrete base and metal inground base.

Metal base Cheaper and simple option: non-painted alu-zinc post + separate post fasteners

Already have a post? Then just get our post fasteners that come in many different sizes.

LITTER - AND RECYCLING BINS

All City® litter bins can be fitted with accessories for attaching them to a wall or post or mounting them into the ground.

Concrete base

Metal in-ground base Wall mount 15

Ellipse is designed and manufactured in Finland.

16

LITTER - AND RECYCLING BINS

ELLIPSE

AWARD-WINNING DESIGN

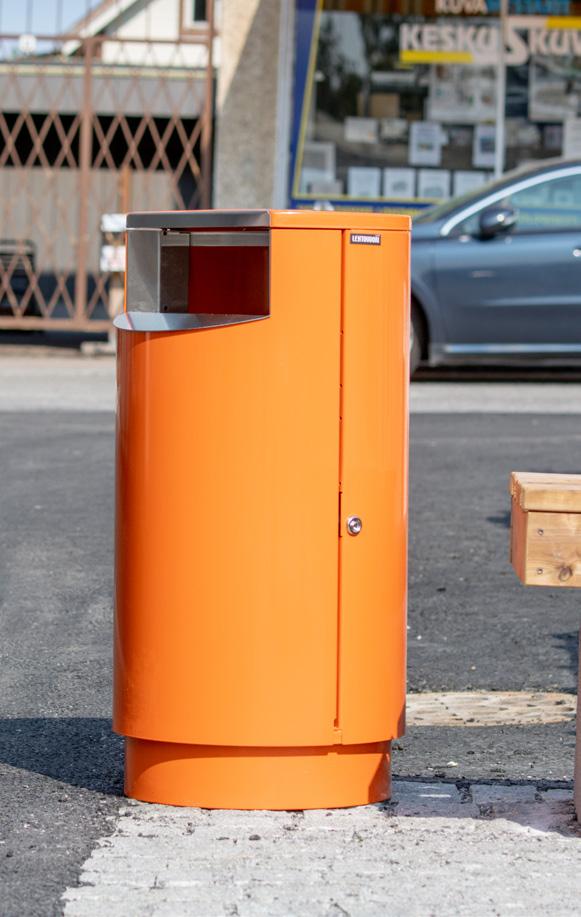

The award-winning Ellipse litter bin, designed by Max Bruun, is manufactured in Finland. Ellipse stays clean thanks to its sloped top.

DESIGN MAX BRUUN

The fill level of Ellipse is precisely dimensioned and the structure of the bin is durable and stable. The bin is easy to use and maintain. The design keeps birds and rain out of the inner container.

MEASUREMENTS (L,W,H)

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

ELLIPSE 60

350 x 450 x 700 mm With base 930mm

60 L Inner container 40 L

300 x 140 mm

25 kg

Powder-coated galvanised structural steel and sst

2 mm

ELLIPSE 100

350 x 450 x 900 mm With base 960mm

100 L Inner container 56 L

300 x 140 mm

31 kg

Powder-coated galvanised structural steel and sst

2 mm

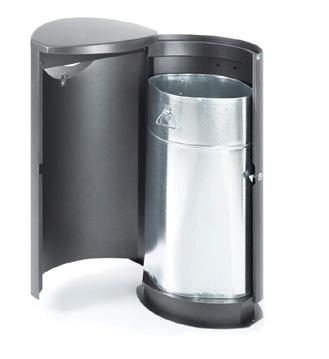

FEATURES The hinged door of Ellipse bins opens sideways, unfastening the top to facilitate emptying and maintenance.

STANDARD COLOURS

Ellipse bins are made of high-quality stainless steel and galvannealed powder-coated structural steel.

ACCESSORIES

RST

Explore our extensive standard colour range on ages 82-83

OTHER RAL COLOURS

Ellipse bins are the choice of various international facilities that appreciate creative details and high quality, such as hotels, metro stations, reception facilities, airports, government agencies, venues, railway stations and business premises.

We reserve all rights to changes.

450

450

350 REFERENCES – Dubai Metro (United Arab Emirates) – Manchester Metrolink (Great Britain) 960

700

– City of Amsterdam (Netherlands) – City of Amiens (France)

17

ELLIPSE fastening accessories Model

In-ground metal base

Metal base

Concrete base with sst surface

Concrete cone base for ground post

Ground post with fasteners

Ground post (2 additional post fasteners required)

Post fasteners

Ellipse 60

Ellipse 100 Included with the Ellipse 100 container

Design is our passion We know that good design can help influence people’s behaviour. An attractive product boosts recycling. Our Scandinavian design can be crystallised in the idea that form follows function. Our products are designed to be modern, functional, attractive and of a high quality.

Lehtovuori products are designed and manufactured in Finland.

18

Plate post

Wall mount

LITTER - AND RECYCLING BINS

AN ASHTRAY FOR A BIN, WALL, COMBI OR POST

COMBI ASHTRAY

STANDARD COLOURS

ACCESSORIES

DIMENSIONS (ø, H)

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

ø 120 x 490 mm

4.5 l

25 x 25 mm

2.6 kg

Powder-coated steel and sst EN1.4301

2 mm

SST

Post fasteners

Explore our extensive standard colour range on ages 82-83

Other RAL colours

We reserve all rights to changes.

More ashtrays available on our website finbin.fi

Ashley

The impressive and practical Combi ashtray is available in our standard colours. The bottom has a hinged emptying hatch with a triangular lock. Awall-mounting bar is provided and optional post fasteners can be purchased as an accessory. Combi material is stainless steel and it is also available in a powder-painted version.

Litter bin’s companion Combi is suitable as an accessory for City® product range.

19

20

Plaza is a stylish, sturdy and large outdoor litter bin. The exterior of the bin can be customised according to the customer’s brand colours. Plaza outdoor bin is suitable for public places with large traffic volumes, such as parks and city streets.

FEATURES The structure and the aperture of Plaza prevent vandalism as the surface of the bin is not easy to smudge. The fully open top aperture also fits large waste, such as food packages. The inner container is emptied by opening the sidehinged, locked door. It is recommended to use a refuse sack in the inner container.

Plaza can be anchored to solid ground with bolts or installed on a separate concrete base.

LITTER - AND RECYCLING BINS

PLAZA

EASE OF USE AND CAPACITY

DESIGN YRJÖ OJANEN

PLAZA

DIMENSIONS (L, W, H)

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

550 x 550 x 1150 mm

140 l

172 mm

25 kg

Powder-coated sst and galvanised steel

5 mm/2 mm

STANDARD COLOURS other RAL colours upon request

ACCESSORIES

SST

Explore our extensive standard colour range on ages 82-83

Combi ashtray

Recycling rack

Other RAL colours

We reserve all rights to changes.

PLAZA fastening accessories

Integrated metal Concrete base base (standard) with sst surface

Less smudging The grid structure of Plaza prevents sticker gluing and smudging.

21

22

Archie is a practical refuse sack holder that is suitable for indoor use for example, in kiosks, fast food restaurants and commercial centres.

SUPERMARKETS' PRACTICAL WORKHORSE DESIGN TIINA-LIISA AALTO

KAARI 150

DIMENSIONS (L, W, H)

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

390 x 480 x 1160 mm

100 l, bag collar 150 l waste bag

385 x 200 mm

19 kg

Powder-coated steel

1,25 mm

FEATURES The apertures on both sides, the hinged top and hinged door in the front, make it easy to use and empty Archie.

Archie is emptied by lifting one side of the hinged and curved top and opening the hinged door in the front in order to change the refuse sack.

STANDARD COLOURS

Explore our extensive standard colour range on ages 82-83

ACCESSORIES

Other RAL colours

Archie is a durable product, made from powder-coated steel, and it is manufactured in Finland.

Familiar for everyone Archie bins can be spotted in numerous stores and supermarkets across Finland.

23

LITTER - AND RECYCLING BINS

ARCHIE

24

ROBOMAT

STANDARD FURNITURE IN SERVICE STATIONS

The Robomat family includes a litter bin with or without a towel rack and an absorbent container.

Robomat endures demanding use, blends in well in the building fronts or service station fuel dispenser areas, and can be customised according to the company brand image.

FEATURES Robomat products withstand demanding use.

The material is powder-coated steel. Robomat products are free-standing, but they can be bolted to the base, if necessary.

Robomat products are manufactured in Finland.

DIMENSIONS (L, W, H)

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

ROBOMAT LITTER BIN

438 x 570 x 1200 mm

200 l

300 x 145 mm

45 kg

Powder-coated galvanised structural steel

1.25/2 mm

ROBOMAT LITTER BIN AND TOWEL RACK

438 x 570 x 1200 mm

200 l

300 x 145 mm

45 kg

ROBOMAT ABSORBENT CONTAINER without absorbent panel

438 x 570 x 1200 mm

STANDARD COLOURS other RAL colours upon request

ACCESSORIES

45 kg

Powder-coated galvanised structural steel

Powder-coated galvanised structural steel

1.25/2 mm

1.25/2 mm

Explore our extensive standard colour range on ages 82-83

Other RAL colours

We reserve all rights to changes.

The hinged front of the Robomat product opens to the side of the container. The absorption container panel is quickly available for the absorption of a liquid damage.

In case of damage The Robomat product family includes an absorbent container where the absorbent panel can be quickly accessed and protected from the weather.

25

LITTER - AND RECYCLING BINS

26

LITTER - AND RECYCLING BINS

MODERN RECYCLING SOLUTION FOR EKOCITY URBAN ENVIRONMENTS

EkoCity is a spacious recycling bin with a design focused on its sharp appearance and easy usability.

EkoCity bins can be combined into sorting stations where the bins can be placed side by side or back-to-back. The sorting can be guided with colors and labels.

EkoCity is best suited for urban environments, both in- and outdoors.

FEATURES

DESIGN HENRI SYDÄNHEIMO MEASUREMENTS (L,W,H) WITHOUT BASE

TOTAL CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL STRENGTH

EKOCITY 120

620/745 x 640 x 1090/1150 mm

120 L wheeled waste bin

250 x 250 mm

80 kg

Powder-coated galvanized steel, stainless steel

2 mm

EKOCITY 240

840/965 x 740 x 1149/1239 mm

240 L wheeled waste bin

300 x 200 mm

100 kg

The hatch of the EkoCity is placed on top of the bin. The hatch opens manually or hygienically with a foot pedal.

The standard 240 L waste bin with wheels is suitable as the inner bin of EkoCity. The design of the base has taken into consideration the easy mobility and maintenance of the inner bin.

STANDARD COLOURS

ACCESSORIES

Powder-coated galvanized steel, stainless steel

1-2 mm

Explore our extensive standard colour range on ages 82-83

Stickers

Other RAL-colours

In addition to the even floor, the 45-degree corners at the bottom allow the washing water to drain from the walls to the floor, where the water is easy to remove.

The material is high-quality powder-coated galvanized steel, aluminum, and stainless steel.

Standardized inner container The inner container of Ekocity sorting bins is a standard 120-liter or 240-liter wheeled waste bin.

This makes maintenance and emptying easier. Please note that the inner container is not included in the delivery. In Ekocity, you can use products from recommended manufacturers. Ask info@finbin.fi for more information.

27

28

LITTER - AND RECYCLING BINS

BERMUDA ELEGANT RECYCLING BIN FOR INDOORS

DESIGN YRJÖ OJANEN

The stylish Bermuda is specifically designed as an indoor recycling bin. The dual bin, triple bin and quad bin versions of Bermuda are suitable for recycling two, three or four different types of waste materials.

Bermuda is a safe litter bin thanks to its self-extinguishing structure. The design of the lid prevents the flow of oxygen and extinguishes the starting fire.

DIMENSIONS (L, W, H)

CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

BERMUDA 80

400 x 400 x 760 mm

80 l

200 x 200 mm

13 kg

Powder-coated steel and sst EN 1.4016

1.25 mm

BERMUDA DOUBLE

860 x 450 x 770 mm

2 x 100 l

200 x 200 mm 210 x 100 mm

29 kg

BERMUDA TRIPLA

1160 x 450 x 770 mm

3 x 100 l

200 x 200 mm 210 x 100 mm

42 kg

BERMUDA QUAD

1560 x 450 x 770 mm

4 x 100 l

200 x 200 mm 210 x 100 mm

57 kg

BERMUDA JUMBO

560 x 560 x 880 mm

200 l

300 x 300 mm

21 kg

FEATURES The materials of the high-quality, Finnish-made Bermuda are powder-coated galvanised structural steel and stainless steel.

A cover plate with a round aperture for bottles, which is fastened to the lid, is available as an accessory.

The innovative and stylish design of Bermuda makes the bin a popular choice around the world in locations where safe and high-quality waste sorting is required.

SST

STANDARD COLOUR

ACCESSORIES

Powder-coated steel and sst EN 1.4016

Powder-coated steel and sst EN 1.4016

Powder-coated steel and sst EN 1.4016

Powder-coated steel and sst EN 1.4016

1.25 mm

1.25 mm

1.25 mm

1.25 mm

Explore our extensive standard colour range on ages 82-83

Stickers with recycling instructions

Inner container

Sorting unit for bottles

We reserve all rights to changes.

450

450

450

400

560

REFERENCES Airports - Washington DC (USA)

CONICAL LID,

1560

860

1160

560

450

PROVIDING SELF-EXTINGUISHING FEATURE

- Islamabad (Pakistan) - Astana (Kazakhstan)

770

770

770

770

880

- Luton UK (GrandeBretagne)

29

30

The subtly stylish Finbin Edge indoor recycling bin is suitable for all indoor facilities and the modular recycling bins can be combined into a stylish waste collection point. The rectangular, streamlined design makes the Edge recycling bin well suited for office facilities, public spaces, hospitals, campuses, sports halls, exhibition facilities and convention centres, with variable recycling needs. Edge bins are also suitable for environments of a more classic style, such as museums.

LITTER - AND RECYCLING BINS

EDGE

EXTENDS INTO A SORTING STATION

DESIGN HENRI SYDÄNHEIMO

EDGE

DIMENSIONS (L, W, H)

CAPACITY

APERTURE

WEIGHT

MATERIAL

MATERIAL THICKNESS

380 x 380 x 780 mm

100 l

160 x 160 mm

15 kg

Powder-coated steel and sst EN 1.4016

1.25 mm

STANDARD COLOURS

Explore our extensive standard colour range on ages 82-83

ACCESSORIES

Stickers

FEATURES Different lid options with recycling instructions of the Edge 100 model have been designed to help users with the sorting of different waste materials. The options include lids for mixed waste (general waste), bottles, paper, biowaste and energy waste. The bins can be linked with connectors.

The Edge product line is made of high-quality stainless steel or powder-coated streel. Edge is designed and manufactured in Finbin’s factory in Finland.

Sorting unit

Inner container

Connectors for combining containers

Front door

Other RAL colours

We reserve all rights to changes.

W W W. F I N B I N . F I

Customise with stickers

REFERENCES - Tallinn Baltic Station (Estonia) - Tallink-Silja (Estonia)

W W W. F I N B I N . F I

We have a wide range of recycling stickers to add to containers.

- Institute Verbeeten (the Netherlands) - PLC Mega shopping centre (Lithuania) - Brittany Ferries (the English Channel) W W W. F I N B I N . F I

- Helsinki Airport (Vantaa, Finland) - Museum of Contemporary Art Kiasma (Helsinki, Finland)

Now also available with Edge 50/50 with two compartments. Ask for more details!

- Ratina Shopping Centre (Tampere,

31

BATTERY BOX Finbin’s steel battery recycling bin is a durable and practical solution for the proper disposal of used batteries. Made from high-quality steel, the collection bin ensures reliable performance while promoting responsible waste management.

The sturdy steel construction minimizes the risk of leaks or damage, providing a safe and secure option for battery disposal. Its sleek and compact design allows for easy integration into various environments, such as homes, offices, or public spaces. Clear markings and a user-friendly opening mechanism make it easy to use.

By choosing our steel battery recycling bin, you help minimize environmental impact by preventing harmful chemicals from entering the ecosystem.

Proper disposal of batteries through this bin helps ensure a cleaner and safer environment for everyone.

32

BATTERY BOX

DIMENSIONS (ø, H)

APERTURE

WEIGHT

MATERIAL

ø 267 x 420 mm

83 x 35 mm

3.5 kg

Powder-coated steel and sst EN1.4301

STANDARD COLOURS

Explore our extensive standard colour range on ages 82-83

ACCESSORIES

Other RAL colours

We reserve all rights to changes.

Our versatile accessory range for City® litter bins has been designed to meet the needs of our customers. The guards, flaps and hatches are compatible with all City® models, apart from City® Castle. Fasteners are available as accessories.

SINCE 1945

Bird guard

The bird guard prevents birds from accessing the bin and spreading rubbish around.

Combi ashtray

The ashtray is fixed to the bottom of the litter bin. The recycling rack can also be attached to a post or wall.

Hygiene flap

The hygiene flap is easy and hygienic to open using the handle at the edge of the flap.

Recycling rack

Doggy waste hatch + sticker

The hygienic dog waste hatch is ideal for bins used for disposing of dog doings.

Comes with a label.

The handy recycling rack for bottles and cans is attached to the side of a bin. Compatible with all City® products. Make sure the recycling rack is installed at the correct height to ensure easy collection. The recycling rack can also be attached to a post or wall.

Stickers with recycling instructions

A wide range of recycling stickers available for all waste components.

Magnetic attachment

City® trash bins can be equipped with a magnetic attachment, which makes emptying the bins easier and faster. It also reduces lock breakage related to bottle collection 33

LITTER - AND RECYCLING BINS

Accessories NO. 1 IN URBAN FURNISHING

MODUL BIN SHELTERS With Modul bin shelters it is easy to build clean and practical recycling points. The selection includes various Modul models to create different container combinations.

Designed and manufactured in Finland 34

Modul product family Model

Product number

Depth

Width

Height

Bin combinations

000716 Modul Solo 001065 Modul Solo, fireproof

1000 mm

940 mm

1660 mm

1 x max 370 L

Modul DUO

000720 Modul Duo 001072 Modul Duo, fireproof

1000 mm

1790 mm

1660 mm

2 x max 370 L

001079 Modul 001081 Modul, fireproof

1000 mm

1500 mm

1660 mm

2 x max 360 L or 1 x 660 L

Modul XL

001086 Modul XL 001088 Modul XL, fireproof

1000 mm

1990mm

1660 mm

3 x max. 360 L or 1 x 660 l + 1 x max. 240 l

Modul MAXI SINGLE

001102 Modul Maxi Single 001104 Modul Maxi Single, fireproof

1490 mm

1040 mm

1660 mm

1 x 660 l, the waste bin is positioned lenghtwise in the shelter

Modul MAXI

001092 Modul Maxi 001094 Modul Maxi, fireproof

1490 mm

1990 mm

1660 mm

2 x 660 l, the waste bin positioned lenghtwise in the shelter

Modul

BIN SHELTERS

Modul SOLO

35

Modul Maxi Single

36

Modul Maxi

Modul XL

Modul

Modul Solo

Modul Duo

MODUL SOLO bin shelter Powder coated marine grade aluminium steel + galvannealed steel

Mounting The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

1 x max. 370 l

Measurements • Length 1000 mm • Depth 940 mm • Height 1660 mm Standard colours Explore our extensive standard colour range on ages 82-83

BIN SHELTERS

Material

MODUL DUO bin shelter Material Powder coated marine grade aluminium steel + galvannealed steel

Mounting The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

Measurements • Length 1000 mm • Depth 1790 mm • Height 1660 mm

Standard colours Explore our wide range of colors on pages 112-113

2 x max. 370 l 37

Safe and stylish Modul bin stores make building a private or public waste collection point easy. By combining bin stores of various sizes, you can create an optimal solution for your space.

Thanks to the handy locking system, only those with a key can use the collection point. The sturdy structure keeps rodents away.

Modul products are made of marine grade aluminium which suits the changeable weather conditions of the North. The anticorrosive material is not damaged by road salt or residue of household waste.

The mounting base ensures easy installation without any need for earthwork.

The mounting base can also be placed on slightly uneven ground.

38

MODUL 1 bin shelter Material

Measurements

Powder coated marine grade aluminium steel + galvannealed steel

Mounting

tai

1 x 660 l

Standard colours

The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

Explore our extensive standard colour range on ages 82-83

BIN SHELTERS

2 x max. 360 l

• Depth 1000 mm • Width 1500mm • Hight 1660 mm

MODUL XL bin shelter Material Powder coated aluminium steel, Marine Grade + galvannealed steel

Mounting The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

Measurements • Depth 1000 mm • Width 1990 mm • Hight 1660 mm Standard colours Explore our extensive standard colour range on ages 82-83

3 x max. 360 l

tai

1 x 660 l + 1 x max. 240 l

39

MODUL FIRE SAFETY A fireproof bin store can be placed next to a building wall A fireproof version is available for every Modul bin store model. Fireproof bin stores can be placed right next to a building.

Fireproof Modul bin stores have been tested using a VTT Technical Research Centre of Finland Ltd.-developed test method (test report: VTT-S-4706-16).

According to the test, locked fireproof Modul bin stores can be placed right next to a building.

This allows flexible placement even in

smaller courtyards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration. The placement should be verified and approved by local building and fire authorities’ approval for the placement of the waste collection point.

FEATURES AND ACCESSORIES • Modul bin shelters can be formed into various units as required.

• The compact structure prevents rats from entering the container.

• The door can be equipped with a lockbody. The lockbody can be equipped with locks serialized by the housing association and the waste company. Also, it is iLoQ compatibility.

• The trash chute is equipped with gas springs.

• The door hinges allow the door to be raised if ice or snow • has accumulated in front of the door sill.

• High quality powder paint, various color options.

• A convenient mounting base reduces costs when the product can be installed without earthworks.

40

Modul eliminates rat problems!

Mounting base cuts the costs

MODUL MAXI SINGLE bin shelter Powder coated aluminium steel, Marine Grade + galvannealed steel

Mounting

1 x 660 l, the waste bin is placed lengthwise in the shelter

The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

Measurements • Length 1490 mm • Depth 1040 mm • Height 1660 mm Standard colours Explore our extensive standard colour range on ages 82-83

BIN SHELTERS

Material

MODUL MAXI bin shelter Material Powder coated aluminium steel, Marine Grade + galvannealed steel

Mounting The mounting base eliminates the need for earthworks and, due to its wide adjustment range, is also suitable for slightly uneven yards.

When choosing the location for the recycling point, the passageways for users and unloaders and the rescue route must be taken into consideration.

The placement should be verified and approved by local building and fire authorities.

Measurements • Length 1490 mm • Width 1990 mm • Height 1660 mm Standard colours Explore our extensive standard colour range on ages 82-83

2 x 660 l, the waste bin is

placed lengthwise in the shelter

41

Our shelters are suitable for northern conditions. The snow load capacity of our shelter structures can be adjusted according to the requirements of the location

42

Finbin shelters have a long tradition and come in wide range. All of them are designed and manufactured for long-term use.

The timeless and durable Finbin shelters are ideal for public environments, commercial properties, schools, residential areas, etc. The different size options, shapes and the wide range of colors offer almost limitless possibilities for furnishing the environment.

In addition to the standard product range, we also offer our customers customized solutions.

The customized solution can be a standard product adapted with certain colors to match the surroundings or architecture, or a completely new product that is specifically designed for a project and manufactured according to the customer’s requirements.

BIKE SHELTERS AND BIKE PARKING

DESIGNED AND MANUFACTURED IN FINLAND ZINC-BASED PRIMER PREVENTS CORROSION IN A MORE ENVIRONMENTALLY FRIENDLY WAY All our shelters are treated with a zinc-based primer before powder coating. This extends the product’s lifespan by protecting the material from corrosion. Compared to traditional hop-dip galvanizing, zinc-based priming zinc-based priming is a significantly more environmentally friendly option

The Finbin shelters represent Finnish design, where functionality meets practicality. The basis of the user-oriented design is to provide durable and safe products. A long life service has been sought in the design of the product and in the choice of the materials, and recyclable materials are used in the manufacture.

OUR SHELTERS ARE CE-MARKED The durability of the supporting structures and the quality of the manufacturing are very important factors in the shelter solutions. When purchasing a bicycle shelter, a bus stop shelter, or any other shelter type, it is important to ensure the supplier demonstrates compliance with the EN1090-1 construction product standard for conformity assessment of structural components.

The CE-marking in accordance with the EU Construction Products Regulation became mandatory for supporting steel structures on the 1 July 2014, which also applies to the supporting structures of the shelters. The CE marking indicates that the features of the manufactured product have been defined and verified in a consistent manner. The Finbin shelters are manufactured in accordance with the required EN 1090-1 construction product standard. As a proof of this, Finbin has been

granted a certificate of conformity for the internal quality control of the inspection company Dekra and the right to the CE marking of the shelters .

43

VIVA SHELTER SOLUTION

44

!

W NE

BIKE SHELTERS AND BIKE PARKING

YOU CHOOSE THE FEATURES WE IMPLEMENT THEM ViVa takes the modularity to the next level.

The function of a shelter is not just to provide a cover. It must also be suitable for the environment in terms of architecture, geography and weather conditions. The dimensions and functions of the shelter must be perfect.

Our designers wanted to offer customers a new type of shelter solution where the modularity of the features has been taken as far as possible.

As a result of the product development, Viva was created. This highly flexible shelter solution allows different elements to be combined and includes many features to help create the perfect shelter.

Select the required features and let our experts offer the right ViVashelter solution for your needs.

45

VIVA SHELTER SOLUTION ed

ble sid

dou gle or n i s e n 1. Comroboif modules.

1.3 m

2,6 m

3,9 m

5,2 m

6,5 m

7,8 m

9,1 m

10,4 m

11,7 m

2. Select other required features and their place together with our experts, e.g. lighting, foundation, posts, seats, etc.

3. We will offer you a customized ViVa shelter.

46

BIKE SHELTERS AND BIKE PARKING

SELECT THE REQUIRED FEATURES - AS A RESULT, THE PERFECT VIVA!

Modular

Single or double sided

Bench

Bicycle rack

Lighting

Green roof

Hammerglass®

Wood upholstery

Snow load

Rainwater control

In- or Onground mounting

Accessories

extra durable glass

Contact our experts!

Let’s design together the perfect ViVa shelter solution for your needs.

info@finbin.fi 47

VIVA SHELTERS

48

BIKE SHELTERS AND BIKE PARKING

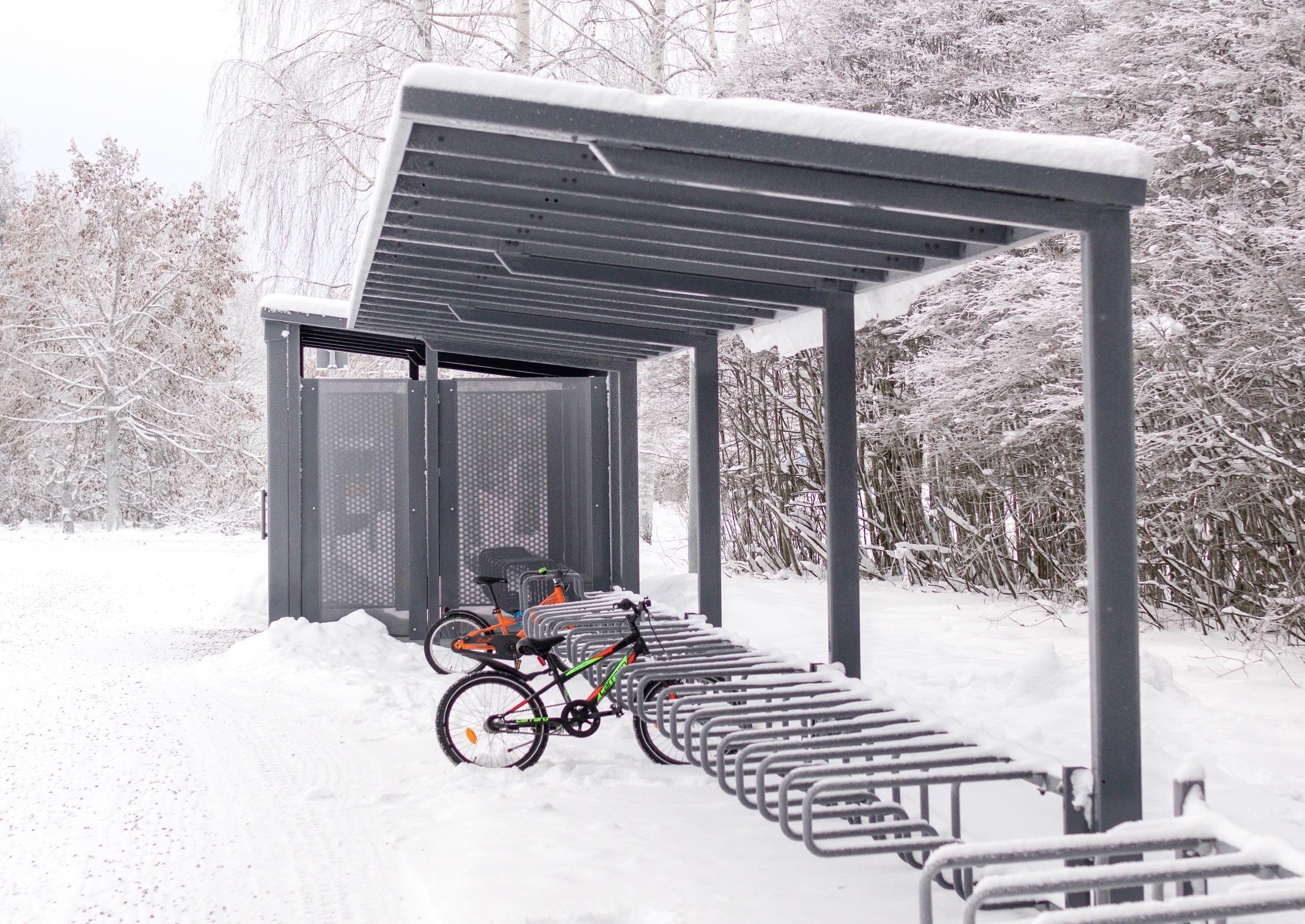

ViVa bicycle shelters A super stylish, space-saving bicycle shelter. Thanks to its linear design, the bicycle shelter is ideal for demanding locations that require easy passage and unobstructed visibility into the environment.

A green roof refreshes the urban environment Our shelters can be ordered with green roof readiness (the customer installs the desired green roof themselves) or pre-installed. In addition to the ViVa shelter solution, the green roof is available for Vario shelters.

49

Stylish and simple ViVa adapts to a wide range of environments

50

Finbin ViVa is designed and manufactured in Finland.

BIKE SHELTERS AND BIKE PARKING

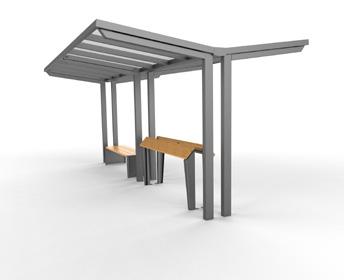

VIVA single sided

The simple design is suitable for many types of environments Material • •

Structure: Steel Roof: polycarbonate Surface treatment options

• •

Zinc primer + powder coating (C5 category corrosion class) Hot dip galvanized + powder coating (for coastal areas near the sea) Mounting

Shelters are delivered in parts for installation on concrete footing or concrete slabs. Also available for surface mounting. It is anchored to the grounds surface material with bolts or ground screws.

Measurements • Length (modular) 2600, 3900, 5200, 6500, 7800, 10 400 mm etc.

• Width 2000 mm • Height max. 2530 mm (from the ground) • Frame tubes 80x80 mm The module length is 1300 mm. You can have as long of a shelter as you like.

Standard colours Explore our extensive standard colour range on ages 82-83

51

BIKE SHELTERS AND BIKE PARKING

VIVA double sided

The airy and elegant shelter is suitable for even the most demanding environments Material • •

Structure: steel Roof: polycarbonate Surface treatment options

• •

Zinc primer + powder coating (C5 category corrosion class) Hot dip galvanized + powder coating (for coastal areas near the sea) Mounting

Shelters are delivered in parts for installation on concrete footing or concrete slabs. Also available for surface mounting. It is anchored to the grounds surface material with bolts or ground screws.

Measurements • Length 2600, 3900, 5200, 6500, 7800, 10 400 mm etc.

• Width 4080 mm • Height max. 2530 mm (from ground) • frame tubes 80x80 mm The module length is 1300 mm. You can have as long of a shelter as you like.

Standard colours Explore our extensive standard colour range on ages 82-83

52

53

BIKE SHELTERS AND BIKE PARKING

BIKE SHELTERS AND BIKE PARKING

VIVA BUS SHELTERS

54

BIKE SHELTERS AND BIKE PARKING

ViVa shelters are well suited for access parking, which can be implemented by combining different shelter types of the product family.

VIVA bus stop shelter The simply stylish ViVa bus stop shelter gives unobstructed visibility to traffic. The shelter can be equipped with a bench, notice board, litter bin and ashtray. The walls are made of tempered glass, and the ceiling is polycarbonate.

Also available as

Hammerglass® -polycarbonate plate, which is 300 times stronger than glass and almost unbreakable.

55

BIKE SHELTERS AND BIKE PARKING

ViVa can be customized according to the customer’s needs for example, by wood upholstery

Finbin ViVa is designed and manufactured in Finland.

56

VIVA bus stop shelter Material • •

Structure: Steel Roof: polycarbonate Surface treatment options

• •

BIKE SHELTERS AND BIKE PARKING

A modifiable and airy bus stop solution.

Measurements

• Length 2600, 3900, 5200, 6500, 7800, 10 400 mm etc.

• Depth 1550 mm • Height 2530 mm (from ground) • Frame tubes 80x80 mm

zinc primer + powder coating (C5 category corrosion class) Hot dip galvanized + powder coating (for coastal areas near the sea) Mounting

Shelters are delivered in parts for installation on concrete footing or concrete slabs. Also available for surface mounting. It is anchored to the grounds surface material with bolts or ground screws.

Standard colours Explore our extensive standard colour range on ages 82-83

57

58

BIKE SHELTERS AND BIKE PARKING

BIKE SHELTERS AND BIKE PARKING

BIKE SHEDS ARE GROWING IN POPULARITY Cycling has gained popularity as an eco-friendly and healthy mode of transportation, increasing the demand for safe and durable bicycle storage solutions. Finbin ViVa bike shed offers just that – stylish and modular storage solutions that meet today's needs.

The wall elements are designed with versatility in mind; the range includes perforated steel, solid steel, and wooden slats. This allows you to choose the style that best suits your location.

Modularity is central to Finbin’s bike shelter design, enabling customized storage solutions. The adjustable length ensures precise sizing based on the number of cyclists and site conditions. Recessed or surface-mounted posts offer installation flexibility, allowing the shelter to blend seamlessly into any environment.

Safety plays a central role; the lock system of the bike shelter can be customized to meet the client's needs. An optional LED lighting system adds practicality and safety, and colors can be matched to the facade, making the bike shelter a seamless part of the surroundings.

Bike racks are an essential part of the storage solution, and Finbin offers a variety of options, such as CubiQ, U2, and Treo bike racks. This ensures that every bike has its place, it is kept secure and organized.

Additionally, Finbin's bike shelters can be combined with the ViVa bike shed, creating an impressive and functional bike parking solution. Whether it's a residential area, office building, or public space, Finbin’s bike shelters are an excellent choice for cycling enthusiasts who value design, safety, and functionality.

59

BIKE SHELTERS AND BIKE PARKING

VIVA Bike shed The perfect cycling experience begins with secure storage.

Materials • Zinc-primed and powder-coated steel (C5-M corrosion class powder coating) • Polycarbonate roof • Walls: Vertical and horizontal slat and vertical paneling made of thermally treated pine, steel sheet (solid and perforated).

Mounting Delivered in parts for installation on concrete footing.

Measurements • Length: 2700, 4000, 5300, 6600, 7900, 9200 mm etc.

• Depth: 2600 mm • Height: 2530 mm (from surface)

Standard colours Explore our extensive standard colour range on ages 82-83

Surface Installation: Attachment with bolts to a reinforced concrete slab or reinforced concrete footing.

Surface Installation: Bolting through the surface layer into a reinforced concrete slab or reinforced concrete footing.

60

61

BIKE SHELTERS AND BIKE PARKING

BIKE SHELTERS AND BIKE PARKING

VARIO SHELTERS

62

BIKE SHELTERS AND BIKE PARKING

A look that combines the arches and angles of the Vario gives the shelter character

VARIO 1 AND 2 -bike shelter Vario is a flexible choice as a shelter for bicycle parking. The shelter can be equipped with different types of racks, 1- or 2-sided, and the width of the shelter section can be selected accordingly. Vario shelters can be equipped with a bench, litter bin and an ashtray. Long shelter assemblies can be built with shelter modules.

63

BIKE SHELTERS AND BIKE PARKING

Vario can be executed according to the customer’s needs for example equipped with side panels

This is a bespoke Vario 2 shelter for a special project.

If you have a need for a modification, please be in contact with our customer service

Finbin Vario is designed and manufactured in Finland 64

BIKE SHELTERS AND BIKE PARKING

VARIO 1 bike shelter Narrower shelter model for one-sided bike rack

Material • •

Structure: steel Roof: polycarbonate Surface treatment options

• •

Zinc primer + powder coating (C5 category corrosion class) Hot dip galvanized + powder coating (for coastal areas near the sea) Mounting

Shelters are delivered in parts for installation on concrete footing or concrete slabs. Also available for surface mounting. It is anchored to the grounds surface material with bolts or ground screws.

Measurements • • • •

Length 2000, 4000, 6000, 8000, 10 000, 12 000 and 16 000 mm + more sizes available Depth 2500 mm Height 2500 mm Frame tubes 80x80 mm

Standard colours Explore our extensive standard colour range on ages 82-83

65

BIKE SHELTERS AND BIKE PARKING

VARIO 2 bike shelter

The wide shelter protects the double-sided bike rack

Measurements

Material • •

Structure: Steel Roof: polycarbonate Surface treatment options

• •

Zinc primer + powder coating (C5 category corrosion class) Hot dip galvanized + powder coating (for coastal areas near the sea) Mounting

Shelters are delivered in parts for installation on concrete footing or concrete slabs. Also available for surface mounting. It is anchored to the grounds surface material with bolts or ground screws.

• • • •

Length 2000 mm, 4000, 6000, 8000, 10 000, 12 000 and 16 000 mm + more sizes available Depth 3600 mm Height 2500 mm Frame tubes 80x80 mm

Standard colours Explore our extensive standard colour range on ages 82-83

66

BIKE SHELTERS AND BIKE PARKING

Vario 2 combined with two-sided CubiQ Premium bike rack

67

BIKE RACKS

68

BIKE SHELTERS AND BIKE PARKING

Finbin’s bicycle racks have been a part of the Finnish streetscape since 1945.

BICYCLE RACKS

FRAME-LOCKING

We have been manufacturing bicycle racks since 1945. Our high-quality racks, tested in northern conditions, are durable, easy to use, and can be combined with our shelters. In our latest models, we have also taken into account the development of bicycles; the racks are sized to accommodate bikes with disc brakes and even the wide-tire Fatbikes.

The possibility for frame locking is an important part of secure bike parking, especially in locations with free access. Our selection includes both frame-locking arches that can be attached to bicycle racks, as well as ground-installed arches and bollards.

69

U2 FRAME-LOCKING RACKS

The arch-shaped frame-locking rack is a popular and versatile bike parking solution suitable for various environments 70

Measurement

Material Material and surface treatment • • • •

Stainless steel (SST) Hot-dip galvanized steel Hot-dip galvanized + powder-coated steel Zinc-primed + powder-coated steel (C5 corrosion class powder coating) Installation

To be embedded underground or surface-mounted with bolts to the foundation. Embedded rail pairs are also available to make the installation easier.

BIKE SHELTERS AND BIKE PARKING

U2, 1000 mm frame-locking rack • • •

Width 1000 mm Height 900 mm (for embedded version + 400 mm underground) • Frame diameter Ø60, 3 mm

Standard colours Explore our extensive standard colour range on ages 82-83

U2, 300 mm frame-locking rack Measurement

Material Material and surface treatment • • • •

Stainless steel (SST) Hot-dip galvanized steel Hot-dip galvanized + powder-coated steel Zinc-primed + powder-coated steel (C5 corrosion class powder coating) Installation

To be embedded underground or surface-mounted with bolts to the foundation. Embedded rail pairs are also available to make the installation easier.

• • •

Width 300 mm Height 900 mm (for embedded version + 400 mm underground) • Frame diameter Ø60, 3 mm

Standard colours Explore our extensive standard colour range on ages 82-83

71

BIKE SHELTERS AND BIKE PARKING

CUBIQ BICYCLE RACKS THE MOST DIVERSE BIKE RACK SOLUTION ON THE MARKET CubiQ Premium and Standard are truly modular bike rack models, where the distance between the arches can be freely adjusted by the customer, also after installation. There are one- and two-sided versions of both CubiQ models, and CubiQ can also be used to create long rows of bike racks. The three-step adjustment of the arches’ angle lets you point them left, right or to the centre. To make the choice a little easier, we offer three standard distances for the arches: 420, 500, 600 mm.

The CubiQ product family is fully compatible with our ViVa, Vario and Basic shelters.

The CubiQ Standard bike rack provides a frame lock solution for all public environments where the product is required to be easy, durable, and safe. It is also possible to combine the bike rack with the e-scooter rack of the same product family.

72

CUBIQ STANDARD bicycle rack Material • •

Steel Arches are made of high quality Magnelis steel Surface treatment options

•

Zinc primed + powder coating (C5 category corrosion class)

Mounting • • •

BIKE SHELTERS AND BIKE PARKING

Modular bike rack with three-step adjustment of the arches’ angle

Measurements Width: Various sizes Depth: single sided rack 760 mm double sided rack 1460 mm Height: 439 mm

Standard colours Explore our extensive standard colour range on ages 82-83

In-ground posts or a post to be anchored to a concrete cake On-ground posts Wall-mounting

CUBIQ PREMIUM bicycle rack Ease-of-use and design

Material • •

Steel Arches are made of high quality Magnelis steel

Measurements Width: Various sizes Depth: single sided rack 720 mm double sided rack 1380 mm Height: 615 mm

Surface treatment options •

Zinc primed + powder coating (C5 category corrosion class)

Mounting • • •

In-ground posts or a post to be anchored to a concrete cake On-ground posts Wall-mounting

Standard colours Explore our extensive standard colour range on ages 82-83

73

BIKE SHELTERS AND BIKE PARKING

CUBIQ E-SCOOTER RACK CubiQ is suitable for all types of bicycles, incl. fatbikes.

Developed together with architects, landscape designers and cyclist.

74

BIKE SHELTERS AND BIKE PARKING

CubiQ-E-Scooter rack can be combined with our shelters or with a bicycle rack.

CUBIQ E-SCOOTER E-SCOOTER RACK Keep the e-scooters organized

Material • • •

Steel Arches are made of high quality Magnelis steel “sandwich” construction with a rubber edge between to prevent damage to the e-scooters frame.

Surface treatment options

•

Zinc primed + powder coating (C5 category corrosion class)

Measurements • • •

Width: Various sizes Depth: 540 mm Height: 700 mm

Standard colours Explore our extensive standard colour range on ages 82-83

Mounting • • •

In-ground posts or a post to be anchored to a concrete cake On-ground posts Wall-mounting

Standard equipment includes a latch bar for locking a scooter.

75

FIPO TREO BICYCLE RACKS

76

FIPO bicycle rack bollard Material •

Steel/ RST (Stainless steel) Surface treatment options

• • •

Hot dip galvanized Hot dip galvanized + powder coating Zinc primed + powder coating (C5 category corrosion class)

BIKE SHELTERS AND BIKE PARKING

Works as a bollard or as a frame lock rack for two bicycles

Measurements • Depth 80 mm, flange 180 mm • Width 80 mm, flange 180 mm • Height 1000 mm

Standard colours Explore our extensive standard colour range on ages 82-83

Mounting Bolted to the surface, or mounted to the ground by placing the flange, e.g., under tiling. In-ground post also available.

TREO bicycle rack

a versatile rack for a wall, shelter or standing with two posts Material

•

Steel Surface treatment options

• •

Hot dip galvanized Hot dip galvanized + powder coating (C5 category corrosion class) Mounting

• Available with flange posts for surface mounting, in-ground posts for mounting in concrete or can be mounted to a wall or a shelter • Bicycle rack parts available in 1 or 2-sided• The bike rack parts are bolted to the flanges on the posts.

Measurements • Various dimensions according to bike places • Depth: 1-sided - 400 mm, 2-sided - 690 mm • Standard spacing between arches c/c 415 mm

Optional frame locking arch

Standard colours Explore our extensive standard colour range on ages 82-83

77

BIKE SHELTERS AND BIKE PARKING

BSAFE 4 / 9 battery locker BSAFE is designed for housing associations, businesses, and commercial properties that need a safe solution for storing e-bike batteries without charging capability. The battery cabinet enables centralized storage of e-bike batteries, thereby reducing the risk of battery fires in buildings. The locker is available in two different sizes: 9 compartments or 4 compartments. The 9-compartment locker is secured to the ground, for example, to concrete, while the 4-compartment locker can be mounted either on the wall or to the ground.

Material Powder-coated galvanized steel

Mounting Secured to the ground (separate base plate for mounting), with the option for wall mounting in the 4-compartment version.

Dimensions Width: 440 mm Depth: 365 mm Height: (4) 915 mm, (9) 1780 mm

Standard colours Explore our extensive standard colour range on ages 82-83

78

BIKE SHELTERS AND BIKE PARKING

BSAFE charge 9 charging locker BSAFE Charge is designed for institutions, businesses, regions, and municipalities that want to provide a safe charging solution for e-bike batteries. The charging cabinet helps our customers manage safety risks by centralizing the charging of e-bike batteries in one location, keeping the batteries out of indoor environments where the risk of fire is higher. The BSAFE Charge 9 charging cabinet features nine compartments with code locks and a service hatch. The cabinet is secured to the ground with bolts, for example, into concrete.

The BSAFE Charge 9 charging cabinet has an IP44 protection rating, which means it is not waterproof but prevents water from reaching electrical components and is resistant to dust and splashing water.

Material Powder-coated galvanized steel

Mounting Secured to the ground (separate base plate to facilitate mounting). Electrical installation must be carried out by a certified electrician.

Dimensions Width: 486 mm Depth: 390 mm Height: 1860 mm

Standard colours Explore our extensive standard colour range on ages 82-83

79

80

Kuru benches and tables are manufactured at Finbin’s factory in Finland.

KURU

The armrests can be freely positioned on both versions. The Kuru wooden table follows the design language of the benches, featuring a pine surface and steel legs. The steel parts of the Kuru series are zinc-primed and then powder-coated. Kuru combines user-friendliness, elegant design, and durable materials.

The Kuru bench with a backrest meets accessibility requirements and is also available with a higher seat height as a senior bench.

Our designer bench has found its way not only into outdoor spaces but also as a unique detail inside homes, offices, or public spaces.

KURU BENCH- with backrest and without backrest Measurements (l,d,h)

Standard colors

1800 X 525 X 900 mm (model with backrest)

Standard frame colors Explore our wide range of colors on pages 82-83

Seat height

Wooden part colors

490 mm senior model 550 mm

translucent oak

Armrest measurements (l,h)

thermally treated pine

55 x 170 mm. Note! Armrest is an optional accessory Materials

Wooden bench accessories

Frame: zinc-primed + powder-coated steel Wooden parts: pine / thermally treated pine

Armrest, additional color options, Senior version with higher seat height, open or closed legs—contact our customer service for more information.

Installation Free-standing (optional bolt attachment to the ground).

Kuru is now also available as a chair, with or without armrests.

Frame in RAL 9005 / wooden parts in translucent oak.

translucent pine

Kuru model with backrest, armrests, and open ends. Frame in RAL 9005 / wooden parts in translucent oak.

BENCHES AND TABLES

Designed and manufactured in Finland, the Kuru bench stands out from traditional wooden benches not only in style but also in accessibility. The steel frame seamlessly connects with the pine wood seat of the Kuru bench. The front edge of the armrest aligns with the seat edge, providing solid support when standing up. The Kuru product line has been designed in collaboration with furniture designers. The wooden benches in the series are also available without a backrest and armrests.

Kuru backless model with closed ends. Frame in RAL 9005 / wooden parts in translucent oak.

81

82

KURU TABLE

Measurements (l,d,h)

Standard colours

1800 x 690 x 715 mm

Standard frame colours Explore our wide range of colors on pages 82-83

Materials Wooden part colors translucent oak

translucent pine

thermally treated pine

BENCHES AND TABLES

Frame: painted steel (for indoor use) or zinc-primed + powder-coated steel (for outdoor use) Wooden parts: pine / thermally treated pine Installation Free-standing (optional bolt attachment to the base).

The image shows Kuru tables with both open and closed ends. Frame in RAL 9005 / wooden parts in translucent oak.

83

FINBIN STANDARD COLORS We listened to our customers’ needs and created a versatile standard color range that makes the design of urban furniture even more inspiring and easier.

The updated selection of standard colors offers a wide variety of hues, whether you are designing a modern urban landscape or a traditional city environment. You will always find the right color to complement your vision.

C5 Corrosion Class Powder Coating Our painted products are finished with C5 corrosion class powder coating, which is the highest durability classification. The powder coating has been tested according to the ISO 12944:2018 standard. The paint surface withstands heavy wear in both indoor and outdoor environments. If you require extremely high corrosion resistance, order the products both zinc-primed and powder-coated.

Zinc Primer Zinc primer combats corrosion and is a significantly more environmentally friendly option than traditional galvanizing. All our canopies are treated with zinc primer before powder coating.

84

RAL 1005 Honey Yellow

RAL 1013 Oyster White

RAL 1019 Grey Beige

RAL 1028 Melon Yellow

RAL 2008 Bright Red Orange

STRUCTURAL SURFACE

Finbin Black 1945 RAL 3012 Beige Red

RAL 3016 Coral Red

RAL 3020 Traffic Red

RAL 3027 Rasberry red

DB703 Textured Grey

RAL 5002 Ultramarine Blue

RAL 1015 Light Ivory Textured

RAL 5024 Pastel Blue

RAL 6005 Moss Green

RAL 6012 Black Green

RAL 6018 Yellow Green

RAL 6021 Pale Green

RAL 7002 Olive Grey

RAL 7012 Basalt Grey

RAL 7021 Black Grey

RAL 7024 Graphite Grey

RAL 8003 Clay Brown

RAL 8019 Grey Brown

RAL 8024 Beige Brown

RAL 9005 Jet Black

RAL 9006 White Aluminium

RAL 9010 Pure White

Translucent Oak

Translucent Pine

MATERIAL AND MAINTENANCE

COLOR OPTIONS FOR WOODS

Heattreated Pine

RAL 9011 Graphite Black

85

MATERIAL MATTERS Steel - The world’s most recycled material Steel is an extremely durable material that can be recycled almost endlessly. Its recyclability and long lifespan make steel an environmentally friendly choice. In Lehtovuori’s Finbin products, we use not only standard steel but also durable galvannealed-coated steel and structural steel.

86

Wood from certified forests

The majority of the wood used in our products comes from certified Finnish forests. Forest certification ensures that forests are managed responsibly and sustainably. Our primary wood material is pine.

Since 1945, Lehtovuori Finbin has been known for high quality.

This quality is built on meticulous design and manufacturing, along with carefully selected, top-quality materials available

Material maintenance and 100% recyclability Caring for the surface materials of our products extends their lifespan and reduces environmental impact. When the product reaches the end of its life cycle, you can promote circularity by recycling all of its materials.

MATERIAL AND MAINTENANCE

Warranty Finbin products come with a 24-month material and parts warranty.

Wood surfaces, locks, hinges, and gas springs have a 12-month warranty.

Ecological footprint Steel is the primary raw material in our products because it is the most recycled material in the world. Steel can be recycled almost endlessly without altering its properties. We are continuously working to reduce our ecological footprint.

We conserve natural resources We know that beautiful design can influence people’s behavior. An attractive product encourages recycling. All of Lehtovuori’s Finbin products are manufactured in our own factory in Ylöjärvi, Finland. A high-quality and durable product also conserves natural resources.

87

MAINTENANCE INSTRUCTIONS

METAL SURFACES

Cleaning metal surfaces

88

Stainless steel

With regular cleaning, metal surfaces are nearly everlasting. Powder-coated surfaces can be washed with water, while we recommend specialized cleaning sprays for stainless steel.

Even stainless steel can accumulate surface rust, which does not damage the deeper layers. Cleaning should avoid tools or abrasives made of iron or carbon steel.

All surfaces exposed to sea or road salt should be cleaned regularly to prevent corrosion.

Stainless steel can be cleaned with a designated cleaner (pH above 8).

Powder-coated metal surfaces Powder-coated metal surfaces are a durable solution, but they sometimes require repairs.

For touch-up painting of scratches that may occur during installation or use, we recommend an alkyd-based solvent paint, such as Teknos Teknolac Combi 50.

Scratches should be touched up as soon as possible after they appear. Any surface rust should be sanded off, and if needed, the base should be treated with a zinc primer to protect against corrosion.

Preparing wooden surfaces Before treatment

Oiling the wood Oil and Tools

The wooden surface to be oiled must be completely clean and dry. Remove dirt and any old, flaking oil by brushing, sanding, or using a scraper if needed.

Lehtovuori’s urban furniture wooden parts are treated with a water-based outdoor furniture oil. To achieve the best results, use a corresponding water-based oil.

Wash wooden surfaces with a designated cleaner and rinse thoroughly.

Allow to dry for at least 24 hours.

Use only clean and dry brushes or sponges for oiling.

Clean and dry wood absorbs oil well.

Treatment conditions Proper treatment conditions ensure a durable finish. The space where wood is treated should have a temperature above +5°C and relative humidity below 80%. Avoid direct sunlight.

Ensure good ventilation and always treat wood in a space free from airborne dust and dirt.

MATERIAL AND MAINTENANCE

WOODEN SURFACES

Oiling the Wood Apply the oil in thin layers with a brush or sponge.

Systematically treat one surface at a time to achieve the most even finish and prevent uneven build-up.

You can repeat the treatment if necessary, provided the wood surface is sufficiently dry. Wipe off any excess, unabsorbed oil with a clean, dry cloth.

Wood surfaces should be allowed to dry for at least 24 hours in a sufficiently dry and warm environment.

89

PRODUCT RECYCLING

Recycling metal parts - turning steel into new steel

Recycling wooden parts - turning wood into energy

Metal parts, such as all steel components, are almost endlessly recyclable. Recycled steel is used to produce new steel, which promotes a circular economy and reduces carbon emissions.

Treated wood (thermal treatment, paint, stain, lacquer) can be recycled as wood waste, which can be utilized for energy production either through burning or chipping.

You can recycle all metal parts as metal waste.

The recycling method for wooden parts depends on the surface treatment of the wood. Please check the latest recycling guidelines at your local waste station!

Recycling concrete - a growing trend

The concrete from concrete bases and foundations can be recycled as raw material for concrete production.

Crushed concrete can be used, for example, in the production of new concrete or in earthworks.

We say no to single-use consumption.

Our ideology is ’no waste, only raw materials.’ Our products and solutions help our customers reduce carbon emissions and promote a circular economy.

The long lifespan and recyclability of our products reduce environmental impact and support sustainable development.

The primary material of our products is steel, which is the most recycled material in the world

Offset carbon emissions We have offset our carbon emissions through the carbon sinks of Finnish forests, which enhance biodiversity.

90

MATERIAL AND MAINTENANCE

”Responsibility is actions”

91

finbin.fi info@finbin.fi +358 (0)3 7846 777

92

11/|2024 Copyright Lehtovuori Oy 2024. We reserve the right to make changes
