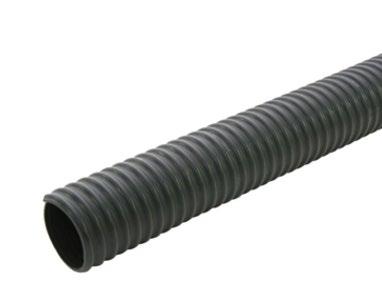

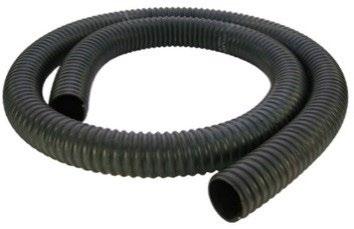

Series 3000 AR Abrasion Resistive Hose
Heavy-duty abrasion-resistant suction hose.
Static dissipating SBR with a rigid PVC helix.
• Static Dissipating – Surface resistivity Level: 109 Ohms/Square
• 1-1/2”, 2”, 2-1/2”, 3” & 4” – Length up to 100’
• Negative vacuum to -29.2” Hg
• Temperature range -40°F to 140°F.
• Minimum Bend Radius 4”
• Smooth bore, Corrugated cover.
• Raw ends slide over tools.
Part Number Diameter Extended Description
15-HO-3025 1-1/2" 25' Ft. Long Black AR static dissipating hose
15-HO-3050 1-1/2" 50' Ft. Long Black AR static dissipating hose
20-HO-3025 2" 25' Ft. Long Black AR static dissipating hose
20-HO-3050 2" 50' Ft. Long Black AR static dissipating hose
25-HO-3025 2-1/2" 25' Ft. Long Black AR static dissipating hose
25-HO-3050 2-1/2" 50' Ft. Long Black AR static dissipating hose
30-HO-3025 3" 25' Ft. Long Black AR static dissipating hose
30-HO-3050 3" 50' Ft. Long Black AR static dissipating hose
40-HO-3025 4" 25' Ft. Long Black AR static dissipating hose
40-HO-3050 4" 50' Ft. Long Black AR static dissipating hose
Series 3000
Service: Ideal for dry material handling such as crushed rock, sand, gravel, cement, powder, iron ore, grains and any other substance where high abrasion is a factor.
Temperature range: -40 °F to 140 °F.
Construction: Smooth bore. Black special abrasion resistant compound supported by a rigid PVC helix. Static dissipating. Corrugated cover.
Standard Package: Sizes 1 1/2" I.D. thru 8" I.D. only.

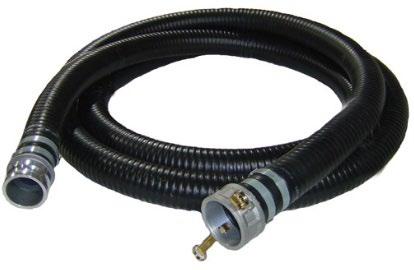

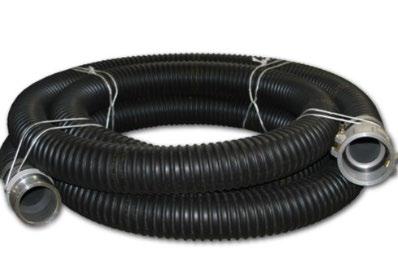

Standard Hose provided with plain ends, but can be supplied with Cam-Lock ends.
One of each per hose.
Add “-C” after part number to Specify cam lock ends.
Cam Lock C & E
