Legendary Vacuum System
From the archives of Legends Equipment

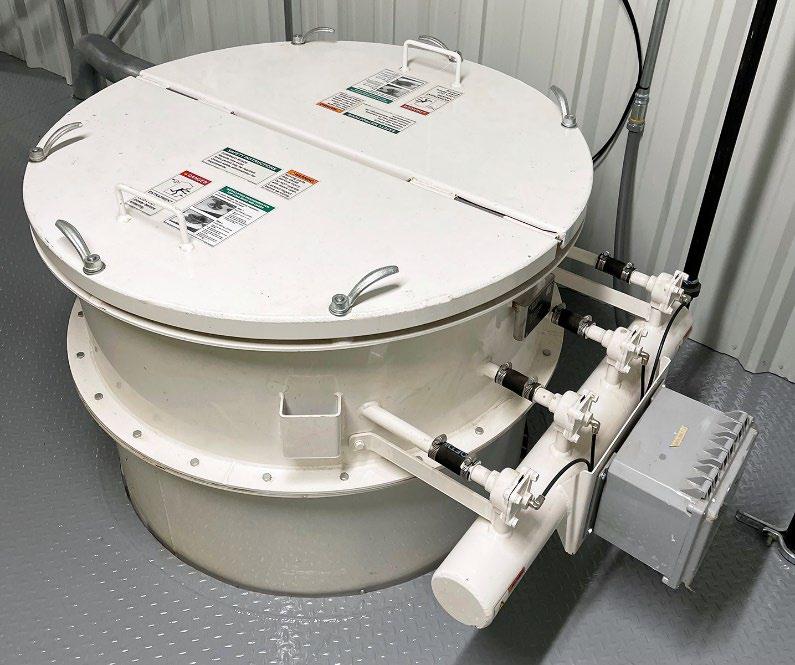

The Legends Solu�on: The Legends RR filter was u�lized for the filters unit because it offered top removal filter. This setup allowed the filter to fit by spanning two levels. The filter bags and all maintenance are handled from the clean side of the filter on the upper floor.
Advertisement
No confined space entry is required when changing the filters. Access to the �mer board, solenoids, and diaphragm valves is all conveniently accessible.
Explosion Protec�on: The filter was built with a sidemounted explosion relief panel that was ducted to the exterior.
An explosion panel burst sensor was supplied to indicate if the panel should rupture to shut down the system and alert the facility.
Dust Reclaim: The filter discharges through a chute to the rotary airlock mounted on the floor below.
Bolted access doors were added above and below the airlock should maintenance need to clear a blockage.
