mssdatasolutions.com.au MPO / MTP SOLUTIONS
The MSS Data Solutions Plug and Play MPO/MTP modular product set can be configured in a multitude of ways to best suit customer needs. Perfect for Data Centres and SAN Networks providing an extremely high-density architecture. Our robust and flexible BASE-12 product set offers seamless migration from 10 Gb/s to 40 and 100 Gb/s applications. The solution includes enclosures, cassettes and cable assemblies to provide a complete end-to-end fibre network in either low loss MPO or ultra-low loss MTP in both OM4 or OS2. All cable assemblies and cassettes are factory terminated and tested making deployment quick and easy and a time saving of up to 90% faster than traditional field terminations. MSS DATA SOLUTIONS PLUG & PLAY MPO/MTP FEATURES AND BENEFITS • High density saving real-estate in your Data Centre or Storage Area Network • Plug and play pre-terminated cable assemblies eliminate the need for field termination saving time and guaranteeing optical performance • Available in MPO or MTP (low loss and Ultra low loss connectors) • Single-mode (OS2) or laser-optimised multimode (OM4) APPLICATIONS • Data Centres • Storage Area networks • Advanced LANs • Building backbones and horizontal distribution • Fibre-to-the-desk
ENCLOSURE
ORDERING INFORMATION Description Part Number MPO/MTP 1RU FOBOT TO SUIT 4 CASSETTES 1RU-S-MTP MPO/MTP BLANK PANEL MTPBLANK SPECIFICATIONS Construction Material Black Powder Coated Steel Capacity Up to 4 Cassettes
Fibres in 1RU when
Fibre Cassettes) Inclusions Cable management accessories, 2 x cable glands,
brackets and screws Dimensions Enclosure 433 W x 258 D x 1RU H Enclosure with Cable Manager 433

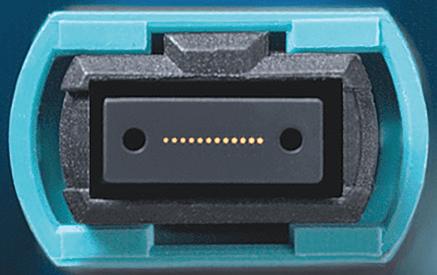

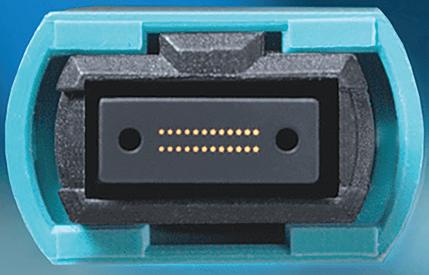

x 348 D x 1RU H Weight 3.85 KG inclusive of cable minder and internal cable management MPO/MTP CONNECTORS 12 Fibres 24 Fibres
This high-density enclosure is suitable for any of the MPO/MTP cassettes. Featuring 4 slot locations providing 48 - 96 fibre capacity in 1Rack Unit (RU) when fully populated. For smaller networks, you can make use of the blanking plate to keep costs down and grow your network when needed.
(96
using 24
19”mounting
W
MSS DATA SOLUTIONS PLUG & PLAY MPO/MTP

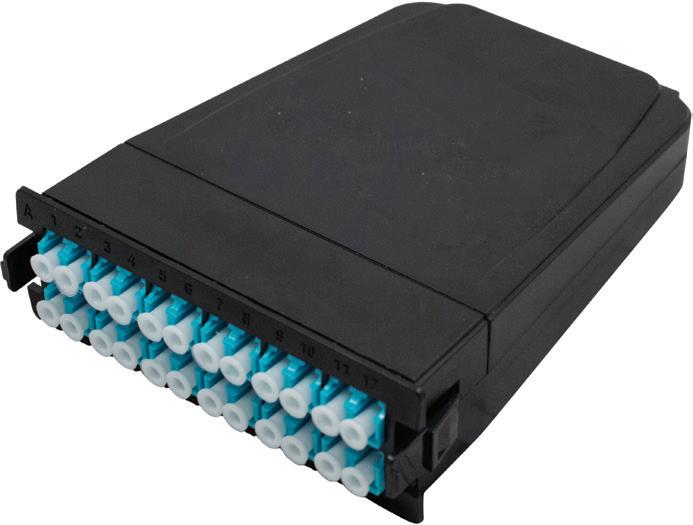

MPO/MTP CASSETTES
The Cassettes are available in either OS2 or OM4 and are configured to either 12 fibre or 24 fibre. The 24 fibre cassette can connect using 1 x 24 fibre trunk or 2 x 12 fibre trunks providing complete versatility. Using cable harnesses inside the cassette, the trunk cable is presented as either 12 or 24 LC connectors on the front. Method A polarity is used as a standard but other polarity methods are available upon request.
SPECIFICATIONS
Fibre Type OS2 / OM4
Number of Fibres 12 / 24
Connector Type MPO/MTP Male
Adapter Type LC
Adapter Colour Blue (OS2) / Aqua (OM4)
MAX Connector Insertion Loss MPO Low Loss (dB)
OS2 < 0.35 OM4 < 0.35
MIN Connector Return Loss MPO Low Loss (dB) OS2 > 60 OM4 > 20
MAX Connector Insertion Loss MTP Ultra Low Loss (dB) OS2 < 0.35 OM4 < 0.35
MIN Connector Return Loss MTP Ultra Low Loss (dB) OS2 > 60 OM4 > 20
MAX Connector Insertion Loss LC (dB)
MAX Connector Return Loss LC (dB)
OS2 < 0.3 OM4 < 0.3
OS2 > 50 OM4 < 35
ORDERING INFORMATION
Description
Part Number
MTP CASSETTE OM4 LCx24 to MTP 2x12 MTPCASOM4-LC-2X12
MTP CASSETTE OS2 LCx24 to MTP 2x12 MTPCASOS2-LC-2X12
MTP CASSETTE OM4 LCx24 to MTP 1x24 MTPCASOM4-LC-24
MTP CASSETTE OS2 LCx24 to MTP 1x24 MTPCASOS2-LC-24
MTP CASSETTE OM4 LCx12 to MTP 1x12 MTPCASOM4-LC-12
MTP CASSETTE OS2 LCx12 to MTP 1x12 MTPCASOS2-LC-12
MPO CASSETTE OM4 LCx24 to MPO 2x12 MPOCASOM4-LC-2X12
MPO CASSETTE OS2 LCx24 to MPO 2x12 MPOCASOS2-LC-2X12
MPO CASSETTE OM4 LCx24 to MPO 1x24 MPOCASOM4-LC-24
MPO CASSETTE OS2 LCx24 to MPO 1x24 MPOCASOS2-LC-24
MPO CASSETTE OM4 LCx12 to MPO 1x12 MPOCASOM4-LC-12
MPO CASSETTE OS2 LCx12 to MPO 1x12 MPOCASOS2-LC-12
POLARITY EXPLAINED
There
568
Type B: has the fibres reversed at each end so fibre 1 at one end is mated with fibre 12 at the opposite end and so on to fibre 12 at one end is mated with fibre 1 at the other end.

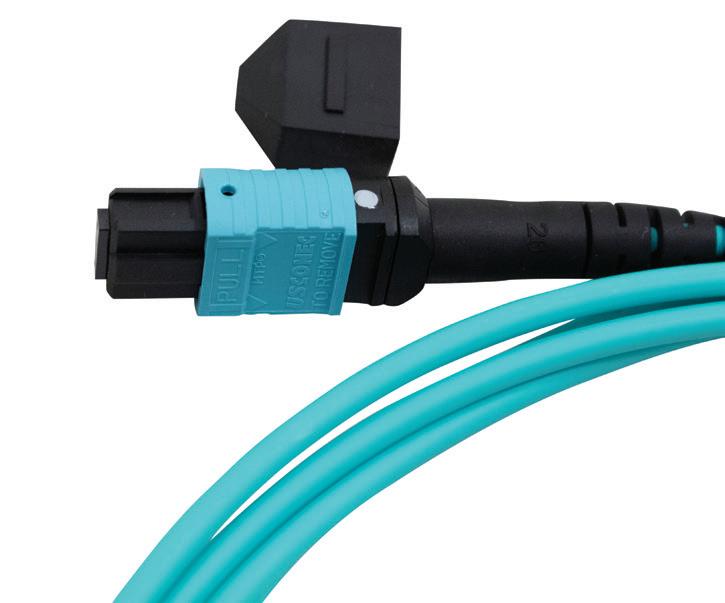

MPO/MTP CABLE ASSEMBLIES
These cable assemblies are factory terminated and tested ready for fast and easy installation. They are available in OS2 (Singlemode) and OM4 (Multimode). Made from 3mm Microcore cable, these assemblies improve cable management and save on valuable real-estate. Method A polarity is used as a standard but other polarity methods are available upon request. They are available in both 12 and 24 fibre counts.
ORDERING INFORMATION
Description
Part Number
MTP-MTP OM4 12 FIBRE 10M FEMALE MTPOM4-10
MTP-MTP OM4 12 FIBRE 15M FEMALE MTPOM4-15
MTP-MTP OS2 12 FIBRE 10M FEMALE MTPOS2-10
MTP-MTP OS2 12 FIBRE 15M FEMALE MTPOS2-15
MTP-MTP OM4 24 FIBRE 10M FEMALE MTP24OM4-10
MTP-MTP OM4 24 FIBRE 15M FEMALE MTP24OM4-15
MTP-MTP OS2 24 FIBRE 10M FEMALE MTP24OS2-10
MTP-MTP OS2 24 FIBRE 15M FEMALE MTP24OS2-15
MPO-MPO OM4 12 FIBRE 10M FEMALE MPO12OM4-10
MPO-MPO OM4 12 FIBRE 15M FEMALE MPO12OM4-15
MPO-MPO OS2 12 FIBRE 10M FEMALE MPO12OS2-10
MPO-MPO OS2 12 FIBRE 15M FEMALE MPO12OS2-15
MPO-MPO OM4 24 FIBRE 10M FEMALE MPO24OM4-10
MPO-MPO OM4 24 FIBRE 15M FEMALE MPO24OM4-15
MPO-MPO OS2 24 FIBRE 10M FEMALE MPO24OS2-10
MPO-MPO OS2 24 FIBRE 15M FEMALE MPO24OS2-15
SPECIFICATIONS Fibre Type OS2 or OM4 Fibre Capacity 12 / 24 Polarity Type A Connectors MPO, MTP Cable Diameter 3mm Insertion Loss Cable Assembly <0.35dB Adapter Colour Yellow (OS2) / Aqua (OM4)
polarities
standard. Method A, Method B, and Method C, and the corresponding cable assemblies are Type A, Type B and Type C.
are three
defined by the TIA
Type A: the most common and has the fibres in a straight through configuration with fibre 1 corresponding with fibre 1 at the other end and so on. 1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 Key Up Key Down TYPE
Type C: has fibres that are flipped as graphically shown below. Each adjacent pair of fibres at one end are flipped at the other end. As an example, fibre 1 on one end is shifted to fibre 2 at the other end and so on.
A (Straight)
1 2 3 4 5 6 7 8 9 10 11 12 12 11 10 9 8 7 6 5 4 3 2 1 Key Up Key Up TYPE
1 2 3 4 5 6 7 8 9 10 11 12 1 2 3 4 5 6 7 8 9 10 11 12 Key Up Key Down TYPE C (Pairs Flipped) Side A Side B 12 11 10 9 8 7 1 2 3 4 5 6 11 12 9 10 7 8 2 1 4 3 6 5 TYPE C (Pairs Flipped)
B (Reversed)
