Cable Preparation Tools

CABLE PREPARATION TOOLS Effective cable preparation, especially in cutting and stripping, is crucial for safe and secure electrical installations.

Cabac offers a reliable range of high-quality cable preparation tools, guaranteeing precise and consistent cutting and stripping performance.

133 122 | CABAC.COM.AU

CABLE CUTTERS AND CABLE KNIVES CABLE CUTTERS Part No.

Tool

Description

Cable

Description

Cable Diameter

Conductor Size

Remarks

K22

Cable Cutter General Purpose up to 22mm2

Annealed copper and aluminium conductor

ø 9.2mm

22mm2 (AWG #4)

Small cutter for installation work.

Length: 163mm. Weight: 200g

K40

Cable cutter general purpose up to 70mm2

Annealed copper and aluminium conductor

ø 14mm

70mm2

Excellent & popular cutter for installation work.

Length: 230mm. Weight: 340g

K50

Cable cutter parrot beak up to 120mm2

Annealed copper and aluminium conductor

ø 20mm

120mm2

General purpose cable cutter.

Length: 300mm. Weight: 0.7kg

K101/1

Cable cutter double action up to 185mm2

Annealed copper and aluminium conductor

ø 26mm

185mm2

General purpose double action cable cutter.

Length: 570mm. Weight 1.9kg

K101/2

Cable cutter double action up to 500mm2

Annealed copper and aluminium conductor

ø 40mm

500mm2

Cable cutter with extension handles. Length: 950mm.

Weight: 3.7kg

KME2

Cable cutter parrot beak up to 240mm2

Annealed copper and aluminium conductor

ø 25mm

240mm2

General purpose cable cutter.

Length: 610mm. Weight: 1.8kg

KME3

Cable cutter parrot beak up to 500mm2

Annealed copper and Aluminium conductor

ø 35mm

500mm2

General purpose cable cutter.

Length: 805mm. Weight: 2.5kg

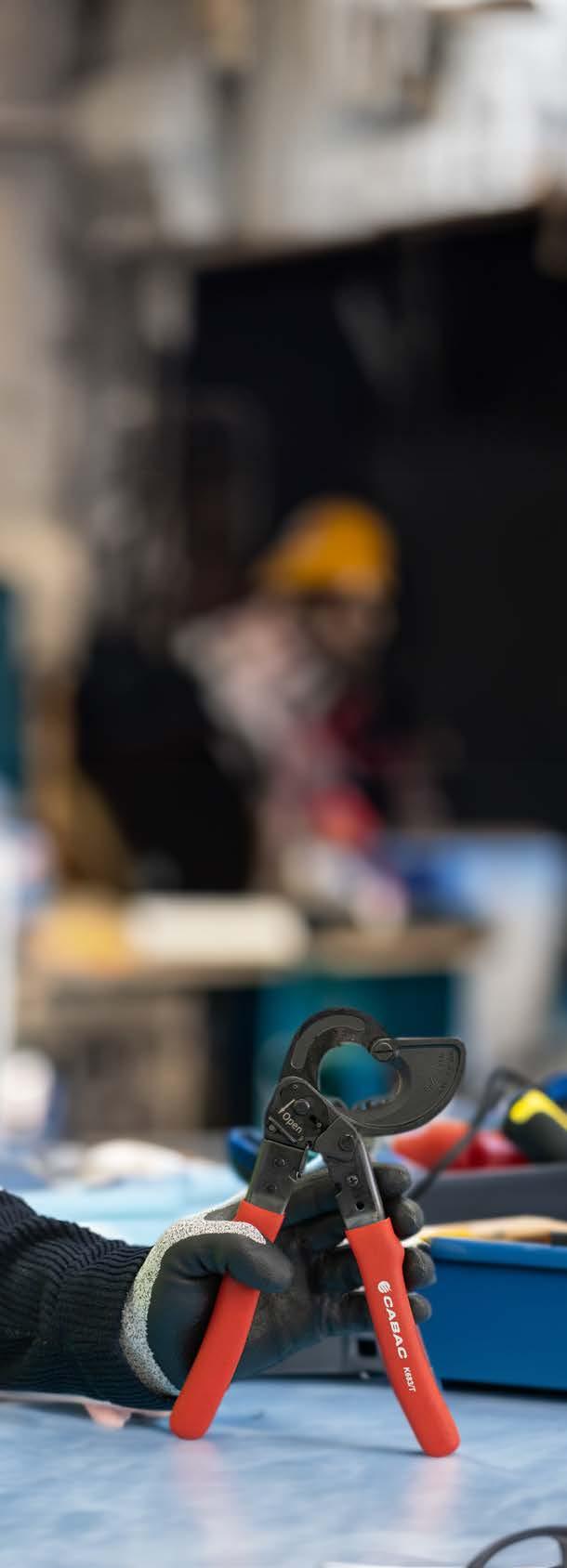

K683/T

Ratchet cable cutter up to 300mm2

ø 32mm

300mm2

K684/T

Ratchet cable cutter up to 400mm2

ø 52mm

400mm2

K686/T

Heavy Duty Ratchet Cable Cutter

ACSR, EHS guy wire, rebar and stainless steel tube

ø 35mm

720mm2

Ratchet action cable cutter.

Handles extend. Length: 400mm.

Weight: 3.3kg

K687/T

Heavy Duty Ratchet Cable Cutter

Armoured Copper and Aluminium cable

ø 70mm

4 x 120mm2

Ratchet action cable cutter.

Handles extend. Length: 420mm.

Weight: 3.7kg

Description

Cable Diameter

Wire Cutter

Conductor Size

Copper and Aluminium cables and cores Copper and Aluminium cables and cores

Ratchet action cable cutter.

Compact. Length: 260mm.

Weight: 680g Ratchet action cable cutter.

Compact. Large diameter.

Length:260mm. Weight: 820g

CABLE KNIVES Part No.

Tool

Description

Cable

Remarks

MSS-FP182

Hacking Knife - 115mm Blade

PILC and buried cables

-

-

-

Stainless steel tapered blade

MSS-TTK-1

Linesman Wooden Handle Pocket Knife

All cables

-

-

-

Folding pocket knife

KUS800

Cable Knife - 1000V VDE Straight Blade

All cables

-

-

-

Insulated straight blade

KUS900

Cable Knife - 1000V VDE Curved Blade

All cables

-

-

-

Insulated curved blade

KUS1000

Sheath Stripper - Heavy Duty 1000V VDE

Polymer cables

-

-

-

Shoe-type blade tip prevents conductor damage

133 122 | CABAC.COM.AU

STRIPPING TOOLS ELECTRICAL WIRE END STRIPPERS Part No.

Tool

Description

Cable

Description

Cable Diameter

Wire Conductor Cutter Size

Remarks

KFLEX2

Combination Cutter & Stripper 0.5-6mm2

Flexible and stranded PVC insulated wires and cables

ø 8-13mm

Yes

Lightweight flex flex ≤6mm2 and installation solid ≤4mm2 cable stripper

KUS1

Cable End Stripper 0.2-6.0mm2

Flexible and stranded PVC insulated wires

ø 2mm

Yes

0.2-6mm2

Easy to use, light installation wire stripper

KUS4

Cable End Stripper 1.0-3.2mm2

PVC insulated wires

No

1.0-3.2mm²

Installation wire stripper

KUS4A

Cable End Stripper 0.5-2.2mm2

PVC insulated wires

No

0.5-2.2mm2

Installation wire stripper

KUS10

Cable End Stripper 0.75-10.0mm2

Flat and round cables and electrical wires

ø 3mm

Yes

Flat Installation wire 0.75-4mm2 stripper for flat and Round round cable 2 0.5-16mm

KUSOLAR

Solar Cable Stripper 1.5-6.0mm2

Solar cable

ø 3mm

Yes

1.5-6mm2

Solar cables only with deep cut into the insulation

SWIVEL BLADE STRIPPERS AND CABLE OUTER SHEATH STRIPPERS Part No.

Tool

Description

Cable

Description

Cable Diameter

Wire Cutter

Conductor Size

Remarks

AM1

Swivel Blade Stripper 4.5-25mm OD

Polymer cables

ø 4.5-25mm

No

-

Standard swivel blade stripper

KAM1

Swivel Blade Stripper 8-28mm OD

Polymer cables

ø 8-28mm

No

-

Standard swivel blade stripper

KAM1/K

Swivel Blade Stripper with Knife 4-28mm OD

Polymer cables

ø 4-28mm

No

-

Standard swivel blade stripper with hook blade knife

KAM2

Swivel Blade Stripper 28-35mm OD

Polymer cables

ø 28-35mm

No

-

Medium sized swivel blade stripper

KAM3

Swivel Blade Stripper 35-50mm OD

Polymer cables

ø 35-50mm

No

-

Large swivel blade stripper

KAM4-28

Swivel Blade Stripper 4-28mm OD

Polymer cables

ø 4-28mm

No

0.5-6mm2

Standard swivel blade stripper retractable hook blade knife

KAM4-28M

Multifunction Cable Stripper 4-28mm OD

Polymer cables

ø 4-28mm

No

-

Standard swivel blade stripper with 0.5-6mm wire stripping

KMS-EX

Cable Sheath Stripper Heavy Duty

Polymer cables

ø ≤25mm

No

-

Power cable outer sheath stripper

MSS-DSTRIPPER

D Shape Sheath Stripper for UG Cable

Polymer cables

Large cable outer sheath

No

-

Power cable PVC sheath stripper

120030

Kabifix Cable Stripper - KS28

Polymer cables, fibre optic, large data and control cables

ø 6-28mm

No

-

Smaller cable sheath stripper

133 122 | CABAC.COM.AU

LV & MV TOOLS, DATA AND FIBRE OPTIC CABLE STRIPPERS CABLE PREPARATION TOOLS LV & MV Part No.

Tool

Description

Cable

Description

Cable size & Wire Conductor diameter Cutter Size

Remarks

No

Chamfers medium voltage primary XLPE insulation

11IC17240

UFS Primary Insulation Chamfer Set

MV XLPE primary insulation chamfer

ø 15-60mm

11ICAV6400

Stripper MV Semiconductor 16-41mm OD

Medium voltage XLPE cable semiconductor

ø 16-41mm semicon 0-2mm

No

-

11IC17230

Stripper XLPE IMS2 Universal 10-52mm OD

Medium Voltage XLPE prime insulation

ø 10-52mm

No

-

11IC17150

Stripper MV IMS1 Universal

MV, 11,22 & 33 kV prime insulation removal

11, 22, 33kV up to 240mm2

No

-

Removes medium voltage XLPE primary insulation

-

Suitable for removing primary insulation on XLPE and rubber cables

Cable Stripper for Rubber/XLPE Insulated Cable

BX30

XLPE and Rubber cable prime insulation removal

-

Cuts tracks in semiconductor in medium voltage cable. Blade depth is adjustable Excellent tool to remove medium voltage cable primary insulation

ø 15-30mm

No

Description

Cable Diameter

Wire Cutter

Conductor Size

Remarks

DATA CABLE STRIPPERS Part No.

Tool

Description

Cable

KDAT

Data Wire Stripper 3.2-9.5mm OD

Round data and comms cable

Data ø 3.2-9.5mm Copper ≤ 6mm2

Yes

-

Easy to use data cable stripper

KDAT1

Disposable UTP Stripper

Round data and comms cable

Data ø 5-6.2mm

No

-

Low cost, disposable data cable stripper

KOAX2

Coax 2 Blade Stripper RG58/59/6

RG58/59/6/62/6 Quad Shield/3, 4 and 5 Core

RG58/59/6

No

-

Coax cable stripper

KOAX3

Coax 3 Blade Stripper RG58/59/6

Strips RG6, RG58 and RG59

RG6/RG58/RG59

No

-

Coax cable stripper

42110DST-1

UTP Stripper & Punch Down Tool 110 Only

No

-

Low cost disposable UTP stripper with punch down tool

Wire Cutter

Conductor Size

Remarks

-

Strips the 250µm coating, 900µm buffer and outer jacket of 2mm and 3mm patch cords

UTP cable

Part No.

TSTRIP250/900/3MM

Tool

Description

Jacket Stripper - Tri-Hole

Cable

Description Suitable for use on 250µm, 900µm and 3mm jacket fibre

Cable Diameter

250µm -3mm

No

In support of our policy of continuous product improvement we reserve the right to change materials and specifications without notice. Drawings, where used, are not to scale. All dimensions are in millimeters and sizes given are approximate. Where possible, technical and safety data sheets are made available on the website. All products should be installed and used in accordance with manufacturer’s instructions provided. Warning: products may be the subject of registered designs and patents. Refer to website for terms and conditions on warranty.
