CABFLX Catalogue 2019

Flexible Conduit Systems Reliable Cable Protection x Liquid Tight Flexible Metallic Conduit & Fittings x Extra Flexible Metallic Conduit & Fittings x Pliable Conduit & Fittings x Non-Metallic Nylon Conduit & Fittings x Non-Metallic PVC Conduit & Fittings

cabac.co.nz/cabflx

Proudly distributed by

cabac.com.au/cabflx

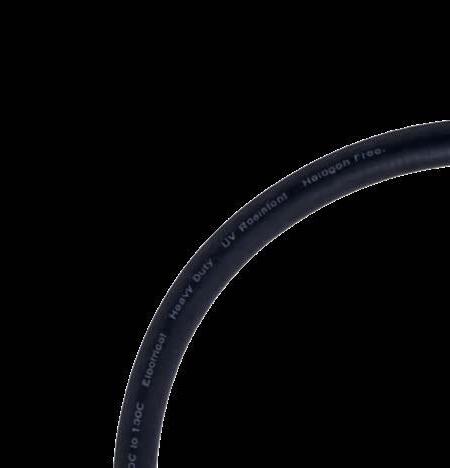

Liquid Tight Flexible Metallic Conduit General Purpose CLT Series JACKET: PVC

CORE: GAL STEEL

TEMP: -10° to +105°

UV STABILISED

Recommended Use

GREY

BLACK

NOMINAL SIZE

LENGTH

•

CLT16GR

CLT16BK

16mm

25m

CLT20BK-10

20mm

10m

CLT20BK

20mm

25m

CLT25BK-10

25mm

10m

CLT25BK

25mm

25m

CLT32BK-10

32mm

10m

CLT32GR

CLT32BK

32mm

25m

CLT40GR

CLT40BK

40mm

10m

CLT50GR

CLT50BK

50mm

10m

CLT63BK

63mm

10m

CLT80BK

80mm

10m

CLT100BK

100mm

10m

•

•

For standard electrical installations where flexibility and IP66 protection are required

CLT20GR

Common in HVAC, lighting, switchboards and general industrial wiring

CLT25GR

Cost-effective solution for most indoor/outdoor commercial jobs

Corrosion Resistant CSS Series JACKET: PVC

CORE: 304 SS

TEMP: -10° to +105°

UV STABILISED

Recommended Use

BLACK

NOMINAL SIZE

LENGTH

•

CSS16BK

16mm

25m

CSS20BK

20mm

25m

CSS25BK

25mm

25m

CSS32BK

32mm

25m

CSS40BK

40mm

10m

CSS50BK

50mm

10m

CSS63BK

63mm

10m

•

•

For harsh or corrosive environments such as coastal, chemical or washdown areas Ideal in food/bev, pharma, transport and wastewater treatment Long-term durability in chemically aggressive or hygiene-sensitive areas

High Temperature CETX Series JACKET: TPV

CORE: GAL STEEL

TEMP: -60° to +150°

UV STABILISED

Recommended Use

BLACK

NOMINAL SIZE

LENGTH

•

Electrical installations exposed to extreme heat or cold

CETX20

20mm

25m

•

Mining, furnace zones, heavy industry and outdoor infrastructure

CETX25

25mm

25m

CETX32

32mm

25m

•

Long-term durability in chemically aggressive or hygiene-sensitive areas

CETX40

40mm

10m

CETX50

50mm

10m

•

Halogen-free construction suitable for critical and enclosed environments

CETX63

63mm

10m

cabac.com.au/cabflx | cabac.co.nz/cabflx

Proudly distributed by

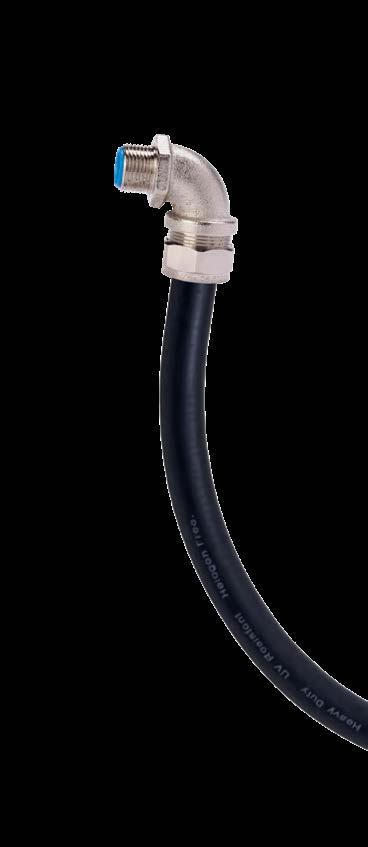

Liquid Tight Metallic Fittings Standard LTCM-B Series USE WITH: CLT, CSS, CETX, CNM

MATERIAL: NPB 90°

IP RATING: IP66

STRAIGHT

45°

NOM SIZE THREAD LOCKNUT

LTCM-B09

LTCM-B309 LTCM-B209

16mm

M16

LNB16N

LTCM-B10

LTCM-B30

LTCM-B20

16mm

M20

LNB16N

LTCM-B11

LTCM-B31

LTCM-B21

20mm

M20

LNB20N

LTCM-B12

LTCM-B32

LTCM-B22

25mm

M25

LNB25N

LTCM-B13

LTCM-B33

LTCM-B23

32mm

M32

LNB32N

LTCM-B14

LTCM-B34

LTCM-B24

40mm

M40

LNB40N

LTCM-B15

LTCM-B35

LTCM-B25

50mm

M50

LNB50N

LTCM-B16

LTCM-B36

LTCM-B26

63mm

M63

LNB63N

LTCNPT-18*

80mm

NPT 3”

Included

LTCNPT-19*

100mm

NPT 4”

Included

*Zinc Plated Alloy

Corrosion Resistant LTCM-S Series USE WITH: CLT, CSS, CETX, CNM

MATERIAL: 304 SS STRAIGHT

45°

90°

LTCM-S10

IP RATING: IP66 NOM SIZE THREAD LOCKNUT

LTCM-S20

16mm

M20

LNS16

LTCM-S11

LTCM-SS31

LTCM-S21

20mm

M20

LNS20

LTCM-S12

LTCM-SS32

LTCM-S22

25mm

M25

LNS25

LTCM-S13

LTCM-SS33

LTCM-S23

32mm

M32

LNS32

LTCM-S14

LTCM-SS34

LTCM-S24

40mm

M40

LNS40

LTCM-S15

LTCM-SS35

LTCM-S25

50mm

M50

LNS50

LTCM-S16

LTCM-SS36

LTCM-S26

63mm

M63

LNS63

Grounding Cone (Ferrule) USE WITH: CLT, CSS, CETX

MATERIAL: GAL STEEL

Recommended Use

METALLIC

•

Installed at cut conduit ends to eliminate sharp edge contact

LT-0F

16mm

•

Reduces risk of insulation damage during pull-in and service life

LT-1F

20mm

LT-2F

25mm

LT-3F

32mm

LT-4F

40mm

LT-5F

50mm

LT-6F

63mm

•

Grounding cone assists in maintaining electrical continuity between conduit and fitting

Proudly distributed by

NOMINAL SIZE

cabac.com.au/cabflx | cabac.co.nz/cabflx

Extra Flexible Metallic Conduit & Fittings Unjacketed (Naked) CEFU Series JACKET: NONE

CORE: GAL STEEL

TEMP: -20 to +250°

FLAME RESISTANT

Recommended Use

METALLIC

NOMINAL SIZE

LENGTH

•

CEFU16-25

16mm

25m

CEFU20-25

20mm

25m

CEFU25-25

25mm

25m

CEFU32-25

32mm

25m

CEFU40-10

40mm

10m

CEFU50-10

50mm

10m

•

•

For dry environments requiring maximum flexibility and high heat resistance Common in enclosures, control panels, machine interiors, and equipment wiring Unjacketed design offers greater flexibility and smaller bend radius

Jacketed - CVJC Series JACKET: PVC

CORE: GAL STEEL

TEMP: -20 to +70°

UV STABILISED

Recommended Use

BLACK

NOMINAL SIZE

LENGTH

•

CVJC16-25

16mm

25m

CVJC20-25

20mm

25m

CVJC25-25

25mm

25m

CVJC32-25

32mm

25m

CVJC40-10

40mm

10m

CVJC50-10

50mm

10m

•

•

For flexible installations requiring light-duty liquid and dust protection Used in HVAC systems, compressors and light-duty industrial setups UV-stabilised jacket for indoor and outdoor general-purpose use

Straight Fittings USE WITH: CEFU, CVJC

MATERIAL: NPB

IP RATING: CEFU: IP40, CVJC: IP54

FIXED

SWIVEL

NOMINAL SIZE

THREAD

LOCKNUT

VJCM-09

VJCM-B09

16mm

M16

LNB16N

16mm

M20

LNB16N

VJCM-10

cabac.com.au/cabflx | cabac.co.nz/cabflx

VJCM-11

VJCM-B11

20mm

M20

LNB20N

VJCM-12

VJCM-B12

25mm

M25

LNB25N

VJCM-13

VJCM-B13

32mm

M32

LNB32N

VJCM-14

VJCM-B14

40mm

M40

LNB40N

VJCM-15

VJCM-B15

50mm

M50

LNB50N

Proudly distributed by

Pliable Conduit & Fittings Cockatoo Proof SSP Series JACKET: NONE

CORE: SS304

TEMP: -60 to +200°

Recommended Use

METALLIC

•

•

•

For environments where mechanical protection, corrosion resistance and durability are critical Common in rail and industrial sites exposed to impact, heat or wildlife damage

FLAME RESISTANT

NOMINAL SIZE

LENGTH

SSP16

16mm

20m

SSP20

20mm

20m

SSP25

25mm

20m

SSP32

32mm

10m

SSP40

40mm

10m

Ideal for outdoor installations requiring high compression strength and cockatoo‑proof performance

Straight Fittings USE WITH: SSP

MATERIAL: NPB

IP RATING: IP68

Features

SILVER

NOMINAL SIZE

THREAD

LOCKNUT

•

IP68 rated for dust-tight and water ingress protection

CBM16

16mm

M16

LNB16N

•

Halogen-free materials for safer installations

CBM20

20mm

M20

LNB20N

CBM25

25mm

M25

LNB25N

•

Swivel male thread for fast, easy installation

CBM32

32mm

M32

LNB32N

CBM40

40mm

M40

LNB40N

Because Cockatoos Don’t Read Warning Labels.

They bite and chew through everything... but not this.

CABFLX Stainless Steel Pliable (SSP) Conduit is the ultimate defence against Australian wildlife, extreme temperatures and corrosion.

Proudly distributed by

cabac.com.au/cabflx | cabac.co.nz/cabflx

Non-Metallic Nylon Conduit & Fittings CF Series JACKET: NONE

CORE: PA6

TEMP: -40 to +115°

Recommended Use

BLACK

•

•

•

Installations requiring halogen free, low fire hazard performance in enclosed or public environments Rail, transport and infrastructure projects where flame retardant and anti-static properties are required Industrial equipment, machine tools and automotive applications exposed to vibration, oils and fuels

UV STABILISED

NOMINAL SIZE

LENGTH

CF016-B-50

16mm

50m

CF020-B-10

20mm

10m

CF020-B-50

20mm

50m

CF025-B-10

25mm

10m

CF025-B-50

25mm

50m

CF032-B-25

32mm

25m

CF040-B-10

40mm

10m

CF050-B-10

50mm

10m

Quick Connect Fittings USE WITH: CF

MATERIAL: PA6

IP RATING: IP66

STRAIGHT

90°

NOMINAL SIZE

THREAD

LOCKNUT

CFM1-16B

CFM2-16B

16mm

M16

Included

CFM1-20B

CFM2-20B

20mm

M20

Included

CFM1-25B

CFM2-25B

25mm

M25

Included

CFM1-32B

CFM2-32B

32mm

M32

Included

CFM1-40B

CFM2-40B

40mm

M40

Included

CFM1-50B

CFM2-50B

50mm

M50

Included

Switch with confidence.

Quickly match CABFLX to leading brands using our cross reference chart.

Availabe now on our website

cabac.com.au/cabflx | cabac.co.nz/cabflx

Proudly distributed by

Non-Metallic PVC Conduit & Fittings CNM Series - Smooth JACKET: NONE

CORE: PVC

TEMP: -20º to +80º C

Recommended Use

ORANGE

BLACK

•

Outdoor and UV exposed installations

CNM16OR-30

•

Food processing, mining and water treatment environments exposed to mild acids, alkalis and oils

•

UV STABALISED NOMINAL SIZE

LENGTH

CNM16BK-30

16mm

30m

CNM20OR-30

CNM20BK-30

20mm

30m

CNM25OR-30

CNM25BK-30

25mm

30m

CNM32OR-30

CNM32BK-30

32mm

30m

CNM40BK-10

40mm

10m

CNM50BK-10

50mm

10m

Machine wiring, airconditioning hook-ups and industrial installations requiring a smooth bore, high strength conduit system

Fittings - Fixed USE WITH: CNM

MATERIAL: PVC STRAIGHT

IP RATING: IP66 90°

LT16P

NOMINAL SIZE

THREAD

LOCKNUT

16mm

M16

Included

LT20P

LT920P

20mm

M20

Included

LT25P

LT925P

25mm

M25

Included

LT32P

LT932P

32mm

M32

Included

LT40P

LT940P

40mm

M40

Included

LT50P

LT950P

50mm

M50

Included

Conduit P Clamp USE WITH: ALL CONDUIT

MATERIAL: STEEL / PVC

Recommended Use

P CLAMP

NOMINAL SIZE

•

CFCM-16

16mm

CFCM-20

20mm

CFCM-25

25mm

CFCM-32

32mm

CFCM-40

40mm

CFCM-50

50mm

•

•

Securing flexible or liquid tight conduit to walls, panels and structural supports Mounting conduit on industrial equipment and machinery subject to vibration Indoor and outdoor installations requiring UV-resistant, mechanically secure fixing points

Proudly distributed by

cabac.com.au/cabflx | cabac.co.nz/cabflx

CABFLX Flexible Conduit Systems provide reliable cable protection across various industries, including machining centres, robotics, processing plants, water treatment, automotive, mining and rail.

Our products address key mechanical and environmental protection needs, offering solutions for extreme temperatures, UV exposure, corrosive environments and liquid-tight applications.

The CABFLX range includes flexible metallic and non-metallic conduits, along with the necessary fittings, fixings and accessories for quick and easy installation.

Prioritising safety and compliance, our conduits are tested to Australian and international standards, ensuring reliable performance. Whether for general wiring requirements or complex project needs, CABFLX has a flexible solution for you.
