AGAVE | ESPADÍN
AGAVE | ESPADÍN

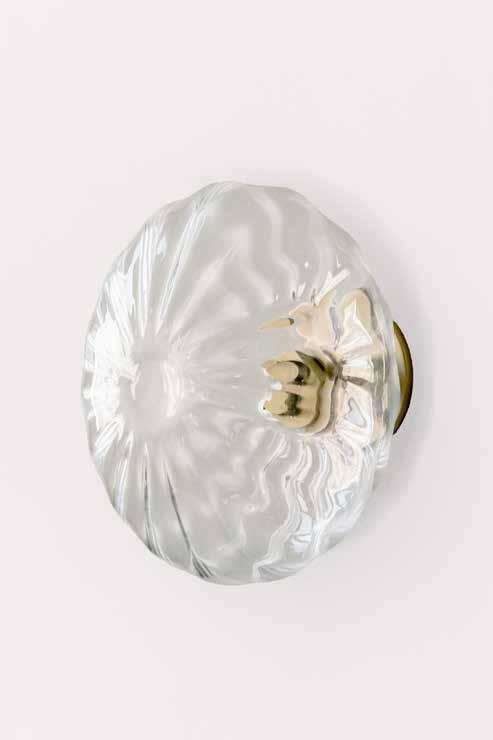

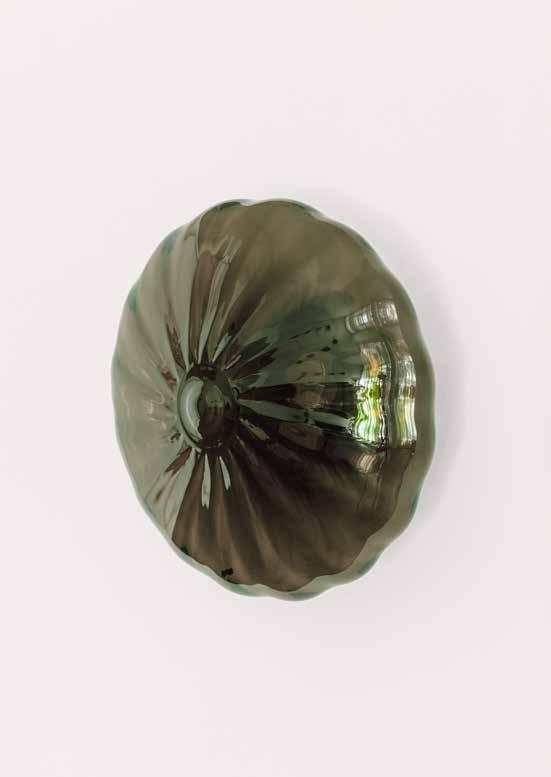

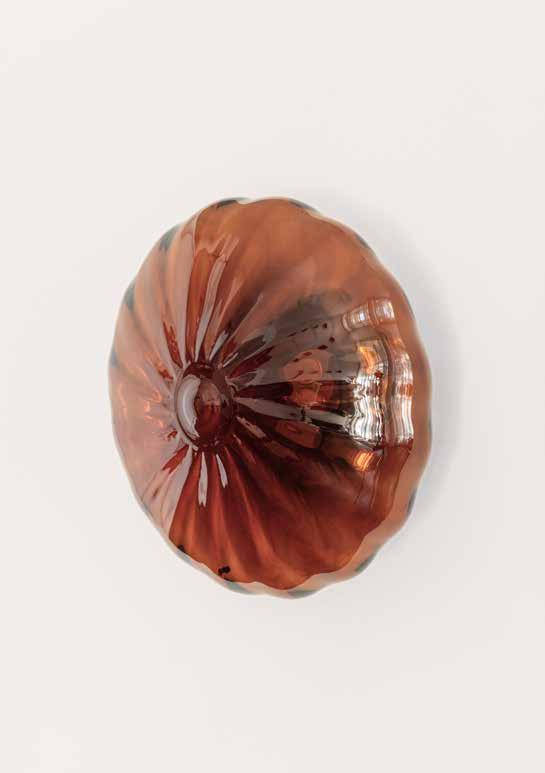

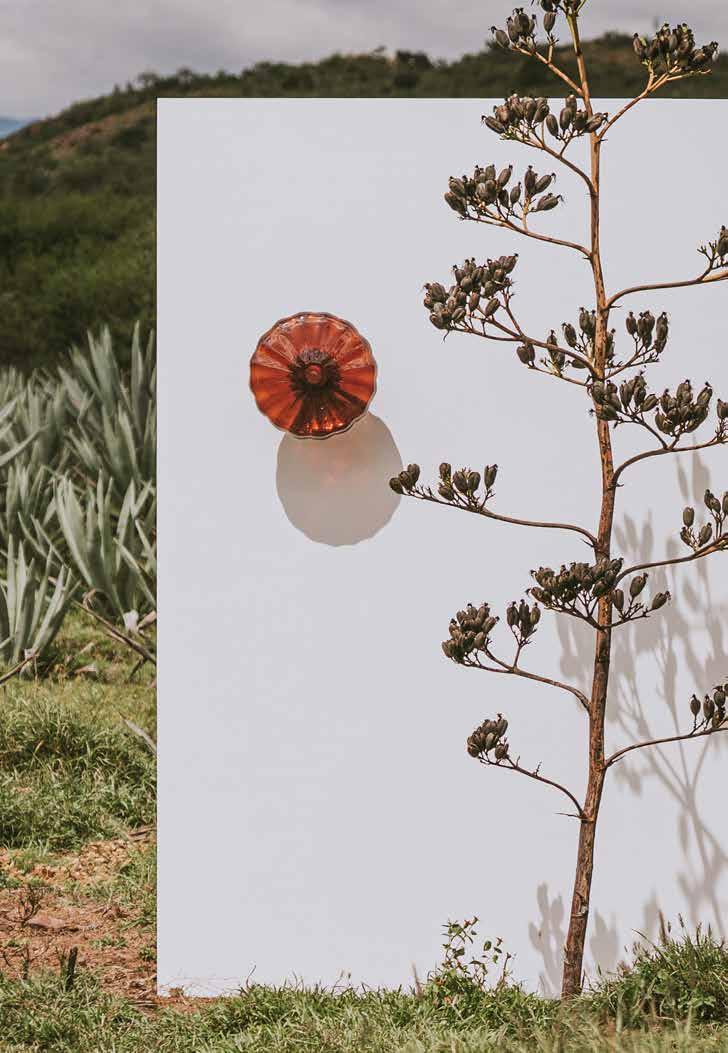

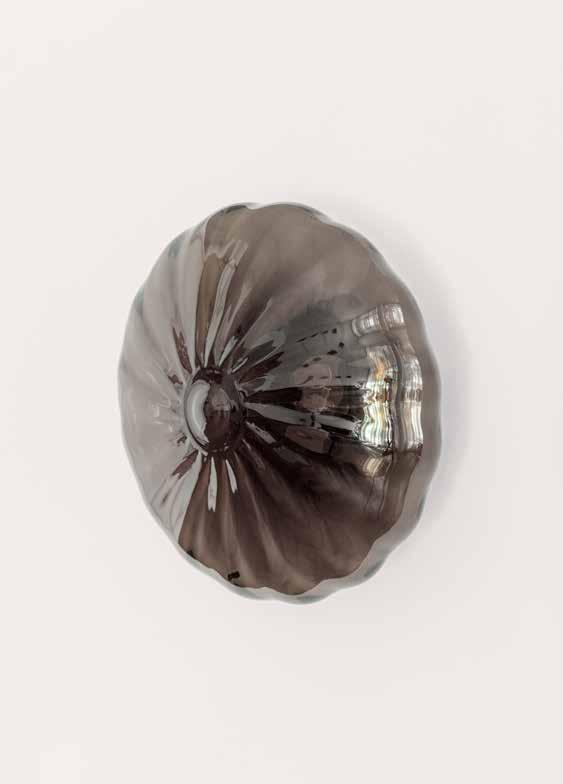

SCONCE
CLEAR
OBSIDIAN
COBRE
SIERRA
DIMENSIONS
BODY
11.5″ Ø x 7″ D
29cm Ø x 18cm D
CANOPY
5″ Ø x 1/2″ H
13cm Ø x 1cm H
GLASS
HARDWARE
Natural Brass [wax sealed]
Brushed Nickel, Oil Rubbed Bronze [additional cost]
LAMPING
Single Integrated LED CLEAR GLASS
9W | 50W equivalent
2700K | 641 Lumens | 90 CRI
COLORED GLASS
9W | 60W equivalent
3000K | 867 Lumens | 90 CRI
ERP Driver, Fully compatible dimming
120V: TRIAC/ELV/0-10V
220/240V: 1-10V ONLY
MOUNTING
CERTIFICATIONS
WEIGHT
Natural Brass Plate Universal wall mount; hardwired
UL-listed [120V] | Damp Rated
NOM certified
240V available upon request
~7 lbs / 3 kg

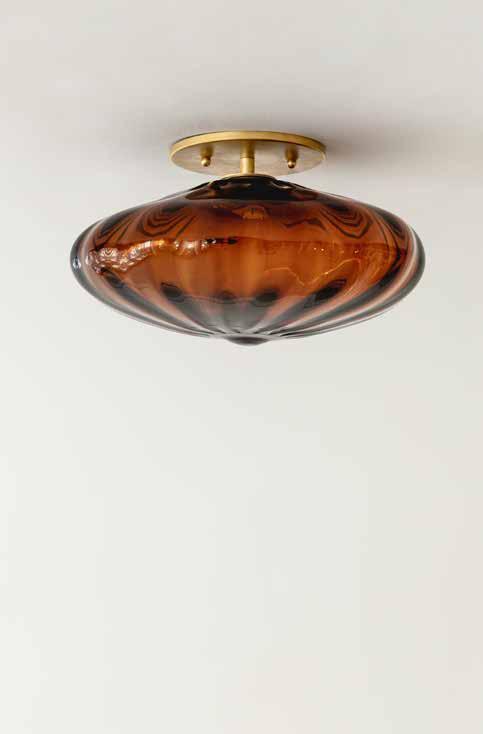

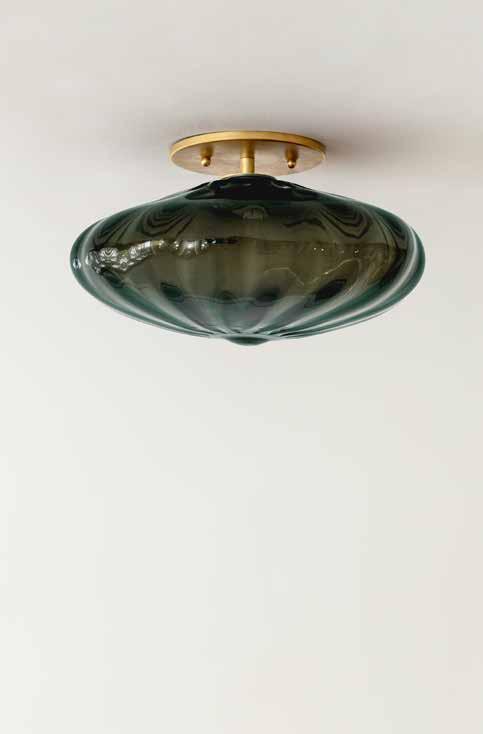

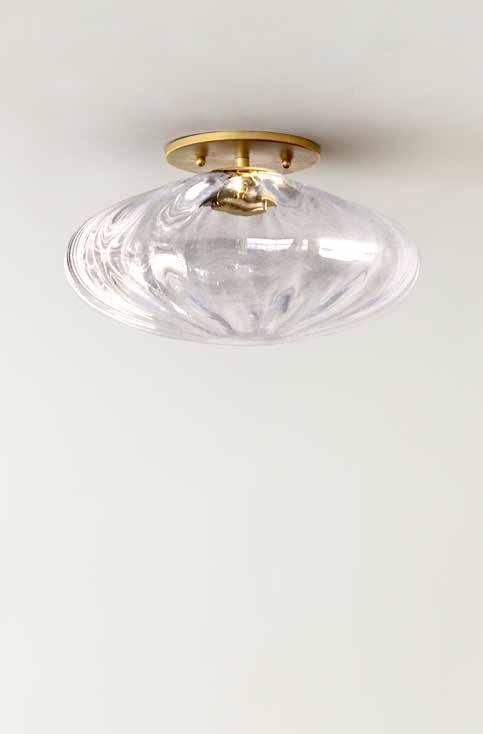

AGAVE | ESPADÍN FLUSH MOUNT
CLEAR
OBSIDIAN
COBRE
SIERRA
AGAVE
DIMENSIONS
BODY
11.5″ Ø x 7″ D
29cm Ø x 18cm D
CANOPY
5″ Ø x 1/2″ H
GLASS
13cm Ø x 1cm H Clear
HARDWARE
Natural Brass [wax sealed]
Brushed Nickel, Oil Rubbed Bronze [additional cost]
LAMPING
Single Integrated LED CLEAR GLASS
9W | 50W equivalent
2700K | 641 Lumens | 90 CRI
COLORED GLASS
9W | 60W equivalent
3000K | 867 Lumens | 90 CRI
ERP Driver, Fully compatible dimming
120V: TRIAC/ELV/0-10V
220/240V: 1-10V ONLY
MOUNTING
Natural Brass Plate
Universal ceiling mounted; hardwaired
CERTIFICATIONS
UL-listed [120V] | Damp Rated
NOM certified
240V available upon request
WEIGHT
~7 lbs / 3 kg

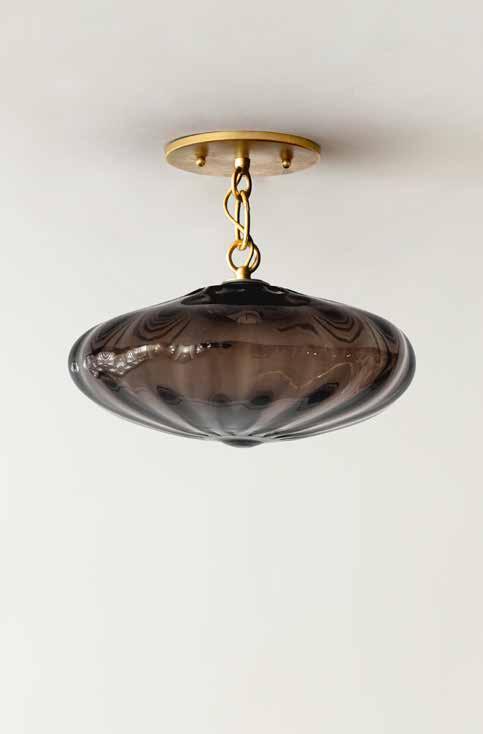

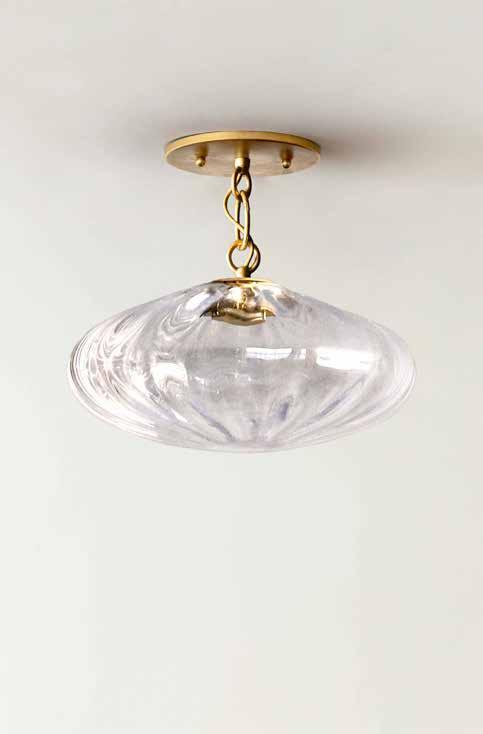

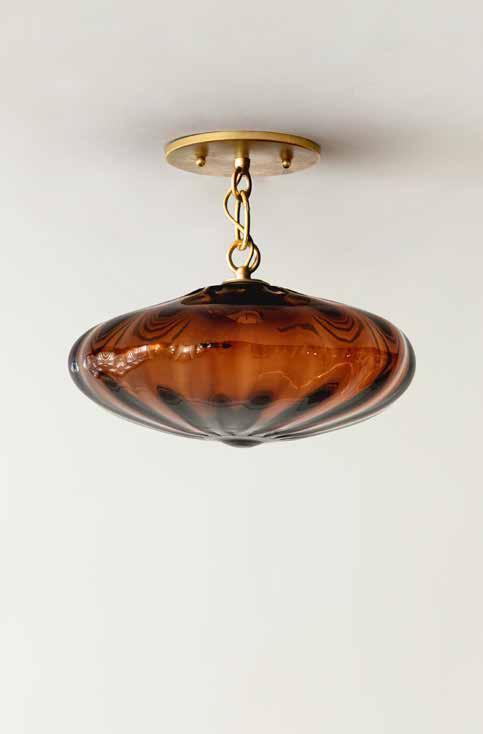

AGAVE | ESPADÍN SEMI FLUSH
CLEAR
OBSIDIAN
COBRE
SIERRA
AGAVE
DIMENSIONS
TOTAL
11.5″ Ø x 11″ H
29cm Ø x 28cm H
CANOPY
5″ Ø x 1/2″ H
GLASS
13cm Ø x 1cm H Clear Obsidian
HARDWARE
LAMPING
Natural Brass [wax sealed] Brushed Nickel, Oil Rubbed Bronze [additional cost]
Single Integrated LED CLEAR GLASS
9W | 50W equivalent
2700K | 641 Lumens | 90 CRI
COLORED GLASS
9W | 60W equivalent
3000K | 867 Lumens | 90 CRI
ERP Driver, Fully compatible dimming
120V: TRIAC/ELV/0-10V
220/240V: 1-10V ONLY
MOUNTING
CERTIFICATIONS
WEIGHT
Natural Brass Plate with Loops Universal ceiling mounted; hardwaired
UL-listed [120V] | Damp Rated
NOM certified
240V available upon request
~7 lbs / 3 kg
Cobre Sierra
