But How Do Semi-Truck Air Brakes Work?
First off, the air compressor pressurizes air and pumps it into the air reservoirs, storage tanks located beneath the semi-truck and when the operator applies the brakes the pushrod then moves the slack adjusters to apply the brakes.
The brake shoe lining contacts the drum, creating friction and pressure, which in turn slows the wheel, eventually bringing the semi-tuck to a stop.
The S-cam rotates back to its original position, causing the return springs to pull brake shoes away from the brake drum. This eliminates the friction and slowdown Ideally,effect.thethree-valved air brake system uses air to transfer pressure from the brake pedal to the brake line. They are exceptionally reliable because air is an unlimited source.
The air braking system is actuated when force is applied to the brake pedal.
Slack adjusters convert the pushrod force into a cam rotational force, which rotates the S-cam, causing the rollers to rise and push the brake shoes towards and against the drum lining.
Read on to learn how air brake systems work, their components, and additional relevant information.
If you’ve ever driven a car or any other motor vehicle, you know that the vehicle slows down and eventually stops when you push the brake pedal towards the floor.
YouAir-BrakesNeedThem,YouKnowThem,YouLOVE Them!
Advantages of air brakes: Air brakes are incredibly reliable. Air is everywhere; hydraulic fluid is not. Since air is unlimited, the three-valved air-powered brake system keeps operating, with minimal maintenance required.
Air brakes are certainly one of the most vital components of semi-trucks or, more formally, commercial motor vehicles.
The air brake system on semi-trucks uses compressed air to push the brake shoe lining into the drum creating friction that effectively slows the wheels.
Understanding how a semi-truck air brake system works
To continue rolling, the driver retracts their foot, releasing the brake pedal and allowing the delivered air to exhaust.
The chambers move the pushrod, forcing down a piston, which moves the slack adjusters.
When the driver steps on the brake pedal, the air from the reservoirs is supplied into the brake chambers through the valves.
Ever thought of how air slackens an 80,000-pound vehicle following a foot’s steady Welcomecommand?to the wonderful world of air brakes.
Air is freely available with unlimited supply: Unlike brake systems using hydraulics fluid, air brakes cannot run out of operating fluid. Minor leaks do not affect the air brake system. The compressed air can be used in other accessories as well: The compressed air in the braking system is not only useful in ensuring a reliable braking system but also used in other accessory applications like air horns and seat adjusters, where hydraulics are not appropriate. They offer a superior braking effect relative to other brakes.
Considering that these air-powered brakes are indispensable in keeping drivers and other road users safe, it is imperative to know how they work.
If you are wondering how your foot stops a 3,000-pound car traveling at high speeds, think of a scenario where the same foot stops a vehicle that can weigh 80,000 pounds.
Here is how the air-powered brake systems work.
How do the air brakes work on a semi-truck
Drivers are required to receive additional training and licensing to legally drive semi-trucks and other vehicles using an air brake system
It builds up and maintains the air pressure required to operate the brakes and other air-powered accessories. It pumps air into the air reservoirs and is driven by the vehicle’s engine – when the engine is running, so is the compressor.
Below the semi-truck exterior lies a number of components that ensure the vehicle slows down when the brake pedal is pressed down. Here are the exclusive parts of the air brake system.
Brake shoe and drum
As the name suggests, this is a governing device that controls the compression pressure of the air that’s pumped to the air reservoir. It stops the compressor from pumping air when air pressure rises to the cut-out level.
Return spring
This is a device used to remove moisture from the air coming from the atmosphere. It helps ward off possible condensation that could lead to brake failure.
Brake chambers Also known as brake cylinders, these are containers that house the slack adjuster that moves the diaphragm or cam-mechanism. Essentially, it converts the compressed air pressure into a mechanical force and movement.
They are costly!
Air compressor
This is the trigger that releases air from the storage tanks. It is a mechanism operated by the driver and actuates the brakes to stop the seme-truck.
As the name suggests, this is an S-shaped cam that separates the brake shoes from the brake drums.
Slack adjusters
This valve protects air reservoirs and rests of the system from becoming over-pressurized and bursting by evacuating the air from the system at 150 psi.
Air compressor governor
The triple valve helps ensure continuous release and building of pressure inside the brake lines and brake cylinder, depending on the brake pedal movement.
This is a compact yet strong spring that returns the brake shoes to an open position when the brake pedal is released.
This is a pressure-rated tank that stores compressed air.
Brake pedal (foot valve)
Operating vehicles using air brakes require special knowledge and skill
Components of an air brake system
Disadvantages of air brakes:
Drain valves
Safety valve
Air reservoir (storage tanks)
Brake valve or triple valve
Air dryer
A push rod (piston)
These are arms that connect the pushrod to the brake S-cam. They help adjust the distance between brake shoes.
Brake S-cam
These are valves in the air storage tanks that drain the air when the semi-truck isn’t in use.
This is a rod connecting the slack adjuster to the brake chamber.
oe is a pad with a lining that causes friction against the brake drum; therefore, initiating the air break. The lining helps promote consistency.
The air compression results in moisture that requires air dryers to remove. This could result in higher maintenance costs
HERE’S A LIST OF SOME GOOD REASONS TO DRINK COFFEE.
4. LOWERED RISK OF ALZHEIMER’S DISEASE
Those who consumed 6 or more cups per day had a 22% lower risk of diabetes. From the Archives of Internal Medicine. A recent review of research conducted by Harvard’s Dr. Frank Hu showed that the risk of type II diabetes decreases by 9% for each daily cup of coffee consumed. Decaf coffee decreased risk by 6% per cup.
10. COFFEE REDUCES COLORECTAL CANCER RISK. Even moderate consumption of coffee can reduce the odds of developing colorectal cancer by 26%. This protective benefit increases with more consumption.
8. COFFEE DRINKERS HAVE STRONGER DNA. A study published in the European Journal of Nutrition showed that coffee drinkers have DNA with stronger integrity since the white blood cells of coffee drinkers had far less instance of spontaneous DNA strand 9.breakage.LOWER RISK OF MULTIPLE SCLEROSIS. Recent research showed that at least 4 cups of coffee a day may help protect against the development and reoccurrence of MS. It is believed that the coffee prevents the neural inflammation that possibly leads to the disease developing.
COFFEE HAS BEEN UNFAIRLY DEMONIZED. THE TRUTH IS THAT IT’S ACTUALLY VERY HEALTHY.
5. REDUCES SUICIDE RISK AND DEPRESSION A 10-year study of 86,000 female nurses shows a reduced risk of suicide in the coffee drinkers. From the Archives of Internal Medicine. Another study conducted by the Harvard School of Public Health found that women who drink 4 or more cups of coffee were 20% less likely to suffer from depression.
3. LOWERED RISK OF TYPE 2 DIABETES
AFTER ALL, YOU MAY HAVE A CAFFEINE-HATER IN YOUR LIFE. YOU KNOW THE TYPE – THEY’RE ALWAYS TELLING YOU WHAT’S BAD FOR YOUR HEALTH.
MEMORIZE THIS LIST – SO THE NEXT TIME YOU ENCOUNTER YOUR FAVORITE COFFEE-HATER YOU CAN PULL OUT ONE OF THESE BABIES. WHILE YOU’RE AT IT, YOU CAN ADD THE WORDS “FROM A PEER-REVIEWED SCIENTIFIC JOURNAL” — THAT WILL REALLY GET YOUR PET COFFEE-HATER FROTHING AT THE MOUTH. Cream,NosugarPlease! Don't COFFEE!Fear#1STEWARTSCOLOMBIANBLEND#3CARIBOUCOFFEEMEDIUMROAST#4DUNKINDONUTSORIGINALBLEND#5CAMERON'SCOFFEEHIGHLANDERGROG BLENDDONUTCOFFEEWIDE-AWAKE#6CO.SHOP here are the six best rated coffee's on your supermarket shelves BlendSignatureBlue-HealerColectivo#2
6. PROTECTION AGAINST PARKINSON’S People with Parkinson’s disease are less likely to be smokers and coffee drinkers than their healthy siblings. Just make sure you don’t get lung cancer on the way. From the Archives of Neurology. Even newer research out of Sweden revealed that drinking coffee reduces the risk of Parkinson’s even when genetic factors come into play. Yet another study found that caffeine combined with EHT (a compound found in coffee beans) provided protective benefits to rats that were genetically predisposed to developing Parkinson’s.
There is considerable evidence that caffeine may protect against Alzheimer’s disease. From the European Journal of Neurology. A recent study also isolated the compounds in roasted coffee that may be responsible for preventing the build-up of the brain plaque believed to cause the disease.
Korean researchers found that study participants who consumed 3 to 5 cups of coffee a day were less likely to show the beginning signs of heart disease. Other dietary factors should also be noted as Koreans typically have a different diet than do Westerners. A more recent study conducted in Brazil found that those that consume at least three cups of coffee a day tend to develop less calcification in their coronary arteries.
1. INCREASE YOUR FIBER INTAKE A cup of brewed coffee represents a contribution of up to 1.8 grams of fiber of the recommended intake of 20-38 grams. From the Journal of Agricultural and Food Chemistry
2. PROTECTION AGAINST CIRRHOSIS OF THE LIVER Of course, you could just cut down .on the alcohol intake. From the Archives of Internal Medicine. Another more recent study also showed coffee’s liver protecting benefits. Yet another study showed that both coffee and decaffeinated coffee lowered the liver enzyme levels of coffee drinkers. This study was published in the Hepatology Journal.
7. COFFEE DRINKERS HAVE LESS RISK OF HEART DISEASE
The Yard Control program was previously updated to allow both certified yard employees and drivers to wear a UPS approved reflective vest while in the yard.DON’T
In the past, only Certified Yard employees were required to wear a reflective vest while working in the yard.

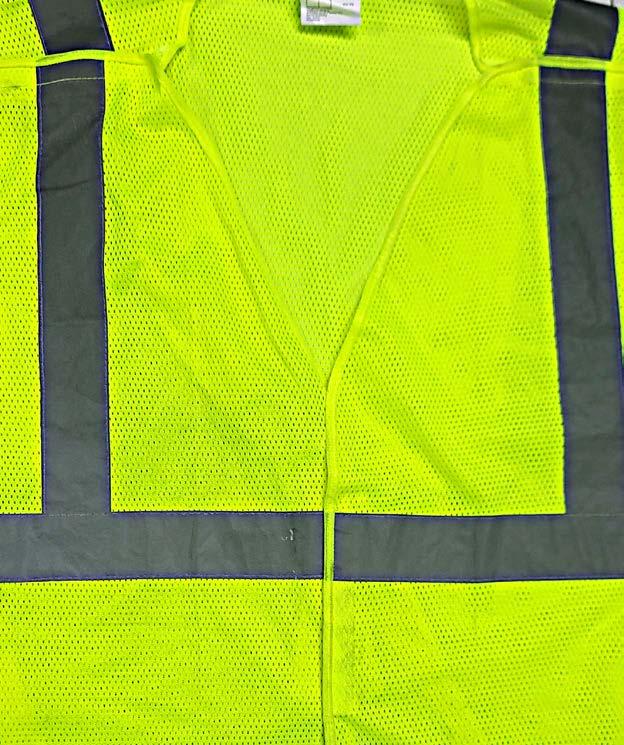

TO ONLY WEAR THE APPROVED UPS SAFETY VEST WHILE OPERATING IN THE YARD!
It is the requirement for all drivers, both package and feeder, to wear a UPS approved reflective vest while working in the yard as part of their normal job duties. Anytime a driver exits their vehicle or exits the facility to walk to their vehicle they will be required to wear a UPS APPROVED REFLECTIVE VEST.
The Yard Control program was previously updated to allow both certified yard employees and drivers to wear a UPS approved reflective vest while in the yard.
I WANTYOU!I WANTYOU!
In the past, only Certified Yard employees were required to wear a reflective vest while working in the yard.
It is the requirement for all drivers, both package and feeder, to wear a UPS approved reflective vest while working in the yard as part of their normal job duties. Anytime a driver exits their vehicle or exits the facility to walk to their vehicle they will be required to wear a UPS APPROVED REFLECTIVE VEST.
RISK DISCIPLINARY ACTION! Only wear the UPS Approved Vests and UPS Approved Belt Vests
•
FROM2009to2022:
• DO know your limits. Watch out for the “too ’s ” — too tired, too cold, too far from safety, too much sun, too much hard activity.
• Taking part in formal swimming lessons and water safety classes can reduce Academy of Pediatrics), CDC, NDPA and NIH Winifred Shelby, RN, BSN, CCM Occupational Health & Wellness Supervisor Contributing.
DO learn to swim. If you like to have a good time doing water activities, being a strong swimmer is a must.
• Alcohol contributes to more than 50% of all boating accidents. as many drowning incidents
In warm weather the water is a great place to stay cool and have fun. Please keep these tips in mind as you enjoy the water.
• DON ’T float where you can ’t swim. Keep checking to see if the water is too deep, or if you are too far away from the shore or the poolside.
• DO keep an eye on the weather. If you spot bad weather (dark clouds, lighting ), pack up and take the fun inside.
• DO stay alert to currents. They can change quickly! If you get caught in a strong current, DON ’T fight it. Swim parallel to the shore until you have passed through it. Near piers, jetties (lines of big rocks ), small dams, and docks, the current gets unpredictable and could knock you around. If you find it hard to move around, head to shore. Learn to recognize and watch for dangerous waves and signs of rip currents — water that is a weird color, really choppy, foamy, or filled with pieces of stuff.
• DON ’T dive into shallow water. If you don’t know how deep the water is, DON ’T dive.
• DON ’T mess around in the water. Pushing or dunking your friends can get easily out of hand.
Water Safety
• DO swim in supervised (watched ) areas only, and follow all signs and warnings.
• DO wear a life jacket when boating, jet skiing, water skiing, rafting, or fishing.
There have been 28,405 drownings in the U.S. 4,305 under the age of 4, Drowning is THE leading cause of death for children ages 1-5 • Drowning is the Second leading cause of unintentional ally over 345 fatal boating related drownings.
DO take a friend along. Even though you may be a good swimmer, you never know when mayyou need help. Having friends around is safer and just more fun!
•
4, 2,346 ages 5-12, 3,141 ages 13-19, 17,316 Adults. 20.2% in Pools, 26.9% in Lakes, 27.2% in Rivers, 10.7% in Oceans • unintentional injury-related death ages 1-14 • Annually over 3,500 fatal unintentional (non-boating related) drownings • Annuaccidents. • 80% of all drowning victims are male or boys • African American & Hispanic nationality account for more than 3 times reduce the risk of drowning by up to 88% Information obtained from: TPA (Total Programming Aquatics) , The AAP (American Safety IfIcythe water’s cold, a wetsuit can be your best friend. Wearing it will make you feel more comfortable, and you’ll keep your body temp from dropping to the danger Floaterszone. vs. PFDs Q: Can blow-up objects such as rafts work like life preservers? A: Nope. Although they float, they won’t do the trick. Did You Know? Water covers 80 percent of the Earth! IfLifelineyousee someone struggling in the water, go get help. You can also throw out a life preserver or other object that floats, BUT DO NOT JUMP IN YOURSELF! If you jump in without anyone else around, who will help save YOU if there is a problem? Last year (2021 ) alone there was 2,166 Drownings , 246 of them were children under 5 Drowning Statistics: Water Wisdom:
