A Touch of Class

By: Israr Ahmed Landscape Architect

The Gol Market located in a posh area of Islamabad is a popular venue for fast food and other restaurants. The building was in a poor shape because of multiple structural renovations. Moreover the site at the dead end was considered jinxed. The previous restaurant there, which closed down because of loss in business, strangely had all the good ingredients: nice parking lot, posh location and an open air frontfaced dining deck surrounded by lush old trees. The grapevine had it that the eatery before that also had to close down early because of bad business. Sobia Nazir, a leading fashion designer, determined and optimistic by nature, saw this as a great opportunity to create an unparalleled fine dining restaurant in Islamabad. DB Studios in joint venture with Treeline Designz was appointed to design the restaurant at this site. The pressing challenge for the designers was to transform this disorderly-jinxed building into a leading classy restaurant that would attract the elite of Islamabad. Studying the site thoroughly, the design team decided early to retain and build on the strong positive feature- the tropical environment created by

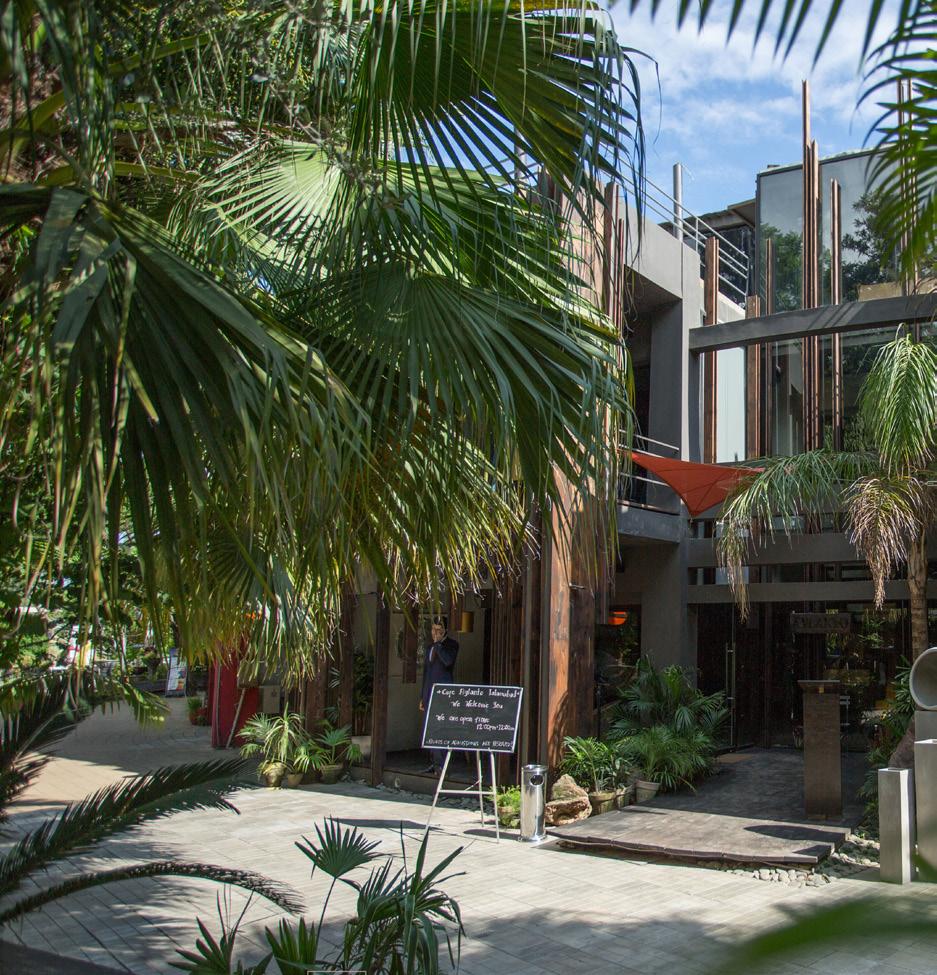

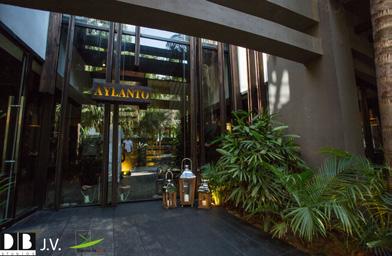

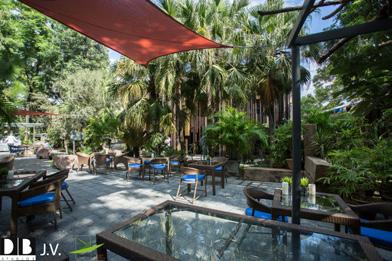

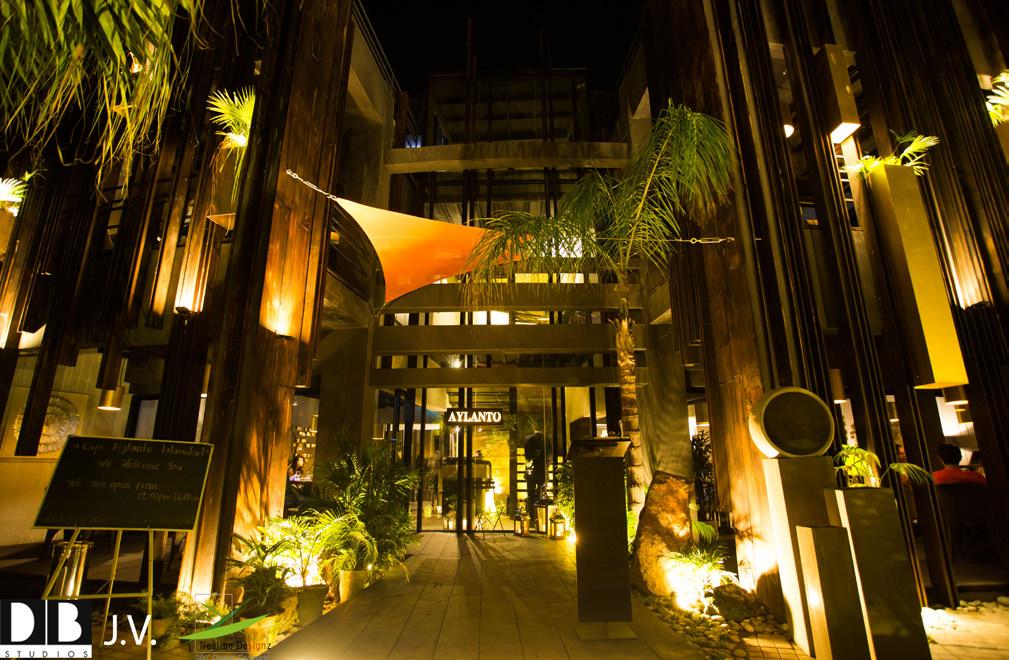

the mature palm and other trees. The entrance was consciously relocated away from the center, creating a winding passage for the approaching diners through a jungle like setting under existing trees. Leading right up to the entrance of the building, colored tensile fabrics were stretched to offer partial cover and much needed color in the outdoor dining area. Water features were dispersed throughout the deck to further enrich the outdoor dining experience. The main entrance of the restaurant was pushed back into a recess in the curved front of the building, while the tensile fabric cover extends right into this recess. Full height glass is used to make the restaurant interior, including the stairs to the first

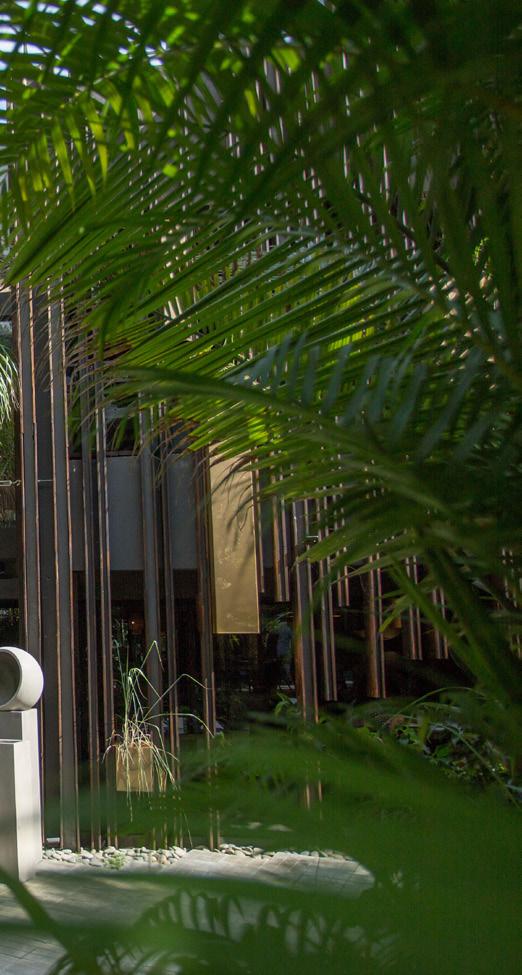

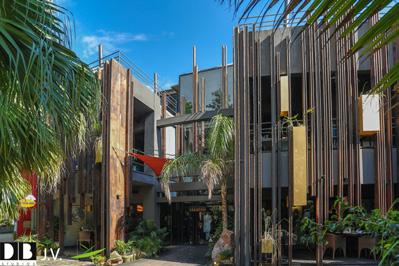

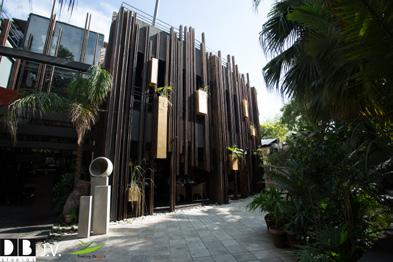

floor, visible from the street, attracting passers-by. The theme of wooden branches in the view from the street, is complimented by random vertical fins of metal and carbonized wood installed on the building’s face, interspersed randomly with pots / planters containing bushes and creepers. The façade is kept in dark, to highlight the impact of the fins and the view of the interior through the glass. Verandahs provide a partly outdoor ambience also, besides the dining spaces inside the restaurant. The walls and floors in the interior are made of minimally finished surfaces, while using shining brass lining embedded in the floor. This sheen of brass is also continued through tastefully picked decoratives to add class, achieving the desired balance of finished and unfinished. Additionally, glowing brass sheet is used as a backdrop to highlight the vertical circulation visible from the roadside. The fins of metal and carbonized wood, interspersed with planters, in the façade, are repeated in the interior as well to divide spaces and have maximum dining facility there. The feeling of

spaciousness in the interior is enhanced by using full height mirrors on some walls. Creating a fascinating balance of classy ambience with the tropical setting, the integration of themes in the exterior, the façade and the interior has shaped a very pleasant venue for the local elites who take pleasure in fine dining.

Project: Café Aylanto Client: Sobia Nazir Location: F-7 Islamabad, Pakistan Landscape: Israr Ahmed-Treeline Designz Architecture: Mohammad Saifullah Siddiqui-DB Studios Photography: Rafay Anwer Text: Hira Awais CONTACT: 00-92-300-8839900 EMAIL: treeline.designz@gmail.com FACEBOOK: https://www.facebook.com/Treeline.Designz

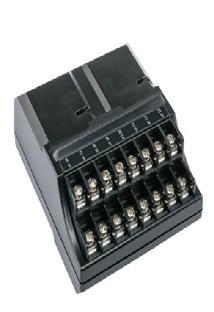

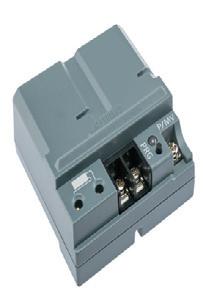

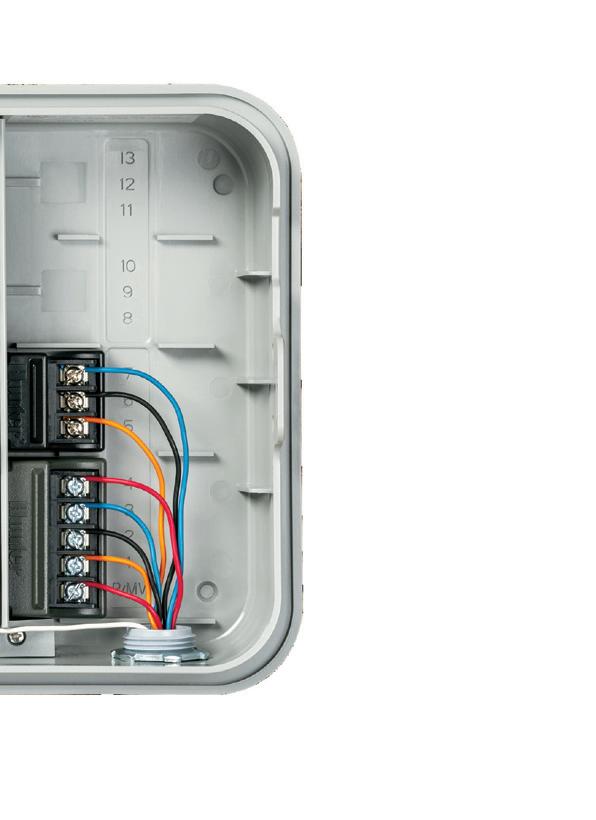

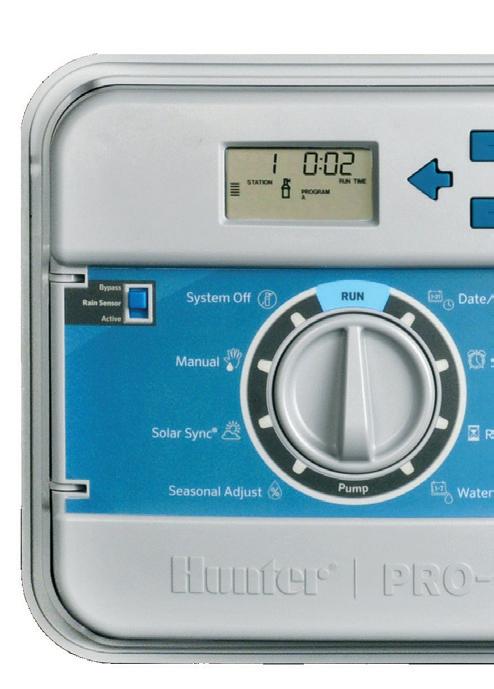

New plug-in modules increase conventional Pro-C station counts and enable two-wire or hybrid conventional/two-wire control with the revolutionary Hunter EZ Decoder System. The freedom and flexibility of more stations in more configurations keeps the trusted Pro-C an affordable and reliable solution for residential and light commercial projects. That's the power of innovation. Or enable two-wire for Get 23 conventional up to 32 stations with the PC-DM module stations with the PCM-1600 module
