IMPLEMENTATION OF A SAFERACK DEVICE TO SAFELY ACCESS TRUCK DUMP

Box

Initiative Led By The Gta Aggregates Team

For drivers, traditional methods of entering a dump box are a working at height (WAH) hazard. Some trailers have access ports on the front of the trailer. However, drivers still have to step across the battery box behind the cab. In the winter this maneuver is risky due to slippery conditions.

Furthermore, the current - and widely usedfixed inspection platforms, are not suitable for the range of tasks a driver needs to complete to ensure a safe delivery. For instance, drivers need to periodically enter the dump box of their trucks to perform various tasks, such as digging out material that gets stuck. In the winter months, they need to apply liquid calcium to the inside of their dump box to create a non-stick surface, allowing material to flow freely when dumping. Failing to do so also represents a tip over hazard.

The GTA Aggregates team tackled these concerns by developing a project that also improves the overall aggregates delivery process. In collaboration with the Dundas Quarry crew, they worked on finding an efficient solution, adapted to the site’s reality and delivery imperatives. The project started in September 2020 and was completed in December 2022.

TAKE

PPE FREE ZONE

CHECK

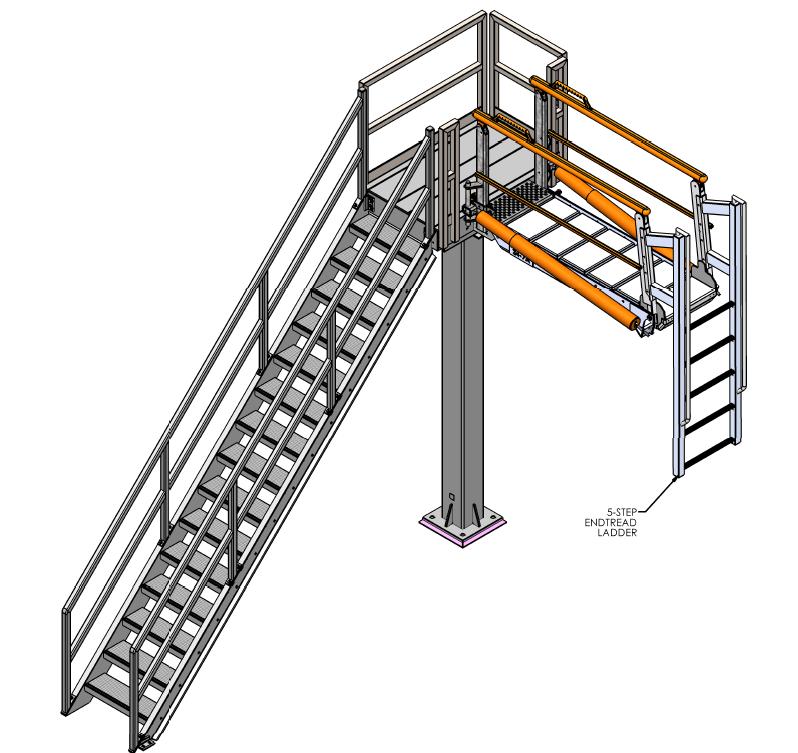

In collaboration with SafeRack, they developed a fixed device consisting of a stairway leading to a platform. Connected to the platform is a gangway plank that is manually deployed by the user. The gangway plank lowers and a ladder extends into the dump box. The user can then walk along the gangway plank from the platform and descend the ladder. The device uses a spring mechanism to assist the user to manually retract the gangway plank back into its resting position.

Kudos to the project team for leading this innovative initiative!
