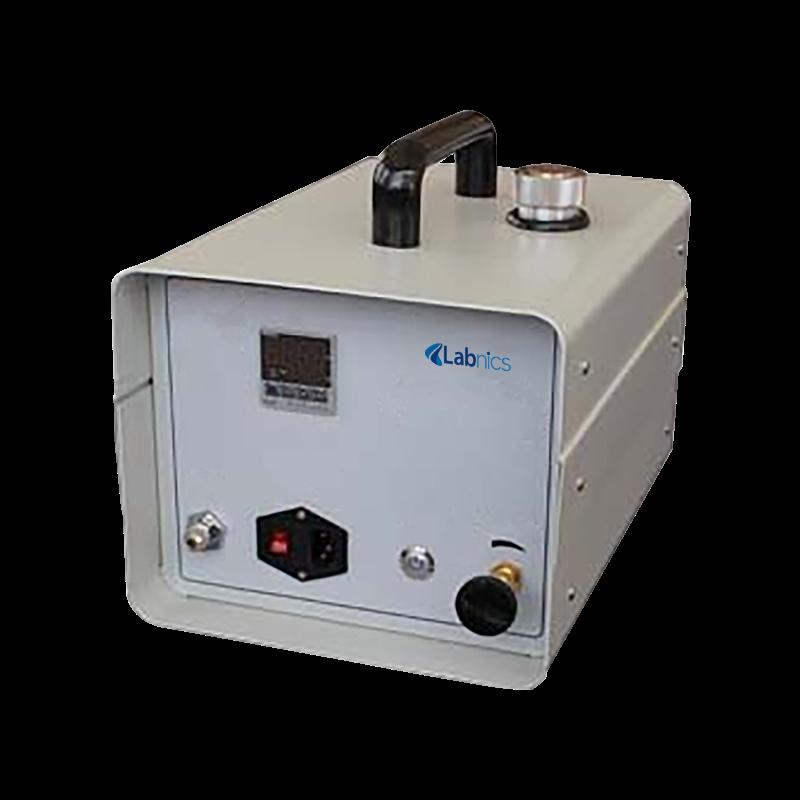

Aerosol Generator NASG-101
Overview
Aerosol Generator NASG-101 is a safe aerosol generator coupled with a photometer. The aerosol particles produced have a wide diameter and provide challenge particles to measure the efficiency of filtration systems. Features oil circuit protection supply system and heat exchange function. The unit has flow range of 1,500 to 65,000 CFM (42 to 1839.5 m3/min), requires compressed inert gas and is easy to operate and stable.
Specifications :
Available Flow Range
Occurrence Concentration
1,500 to 65,000 CFM (42 to 1839.5 m3/min)
10 …g/L: flow 65,000 CFM (about 1839.5 m3/min); 100 …g/L: flow 65,000 CFM (about 1839.5 m3/min)
Particle PAO, DOP and polydispersion occur
Occurrence Method Heating occurs
Compressed Gas
Nitrogen, Argon, Carbon dioxide or Helium (50 psi)
Power Supply AC 220 V to 240 V, 50/60 Hz Dimension 280 390
Features :
>Safest aerosol generator coupled with photometer
>Oil circuit protection system and heat exchange function
>Flow range of 1,500 to 65,000 cubic feet per minute (42 to 1839.5 m3/min)
>Produces particles with wide diameter as challenge particles
>Ideal for measuring the efficiency of filtration systems, HEPA filters performance
Applications :
Aerosol Generator is used to check the efficiency of filters as well as detect leakages in clean rooms, laminar flow table, biosafety cabinet, glove box, HEPA vacuum cleaner, HVAC system, HEPA filter, ULPA filter, negative pressure filter device and operating room.
