01 03 02 CONTENT
3D Modeling
05 04
01

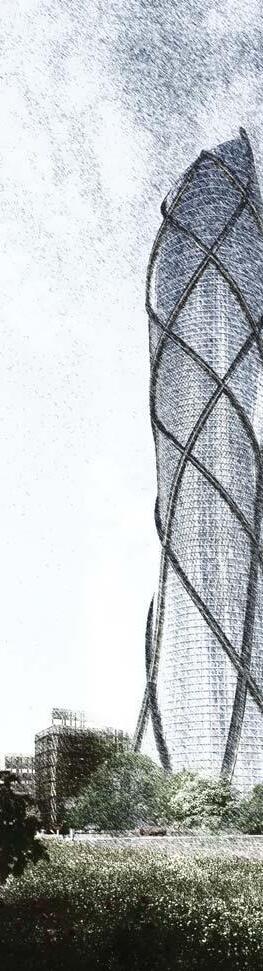

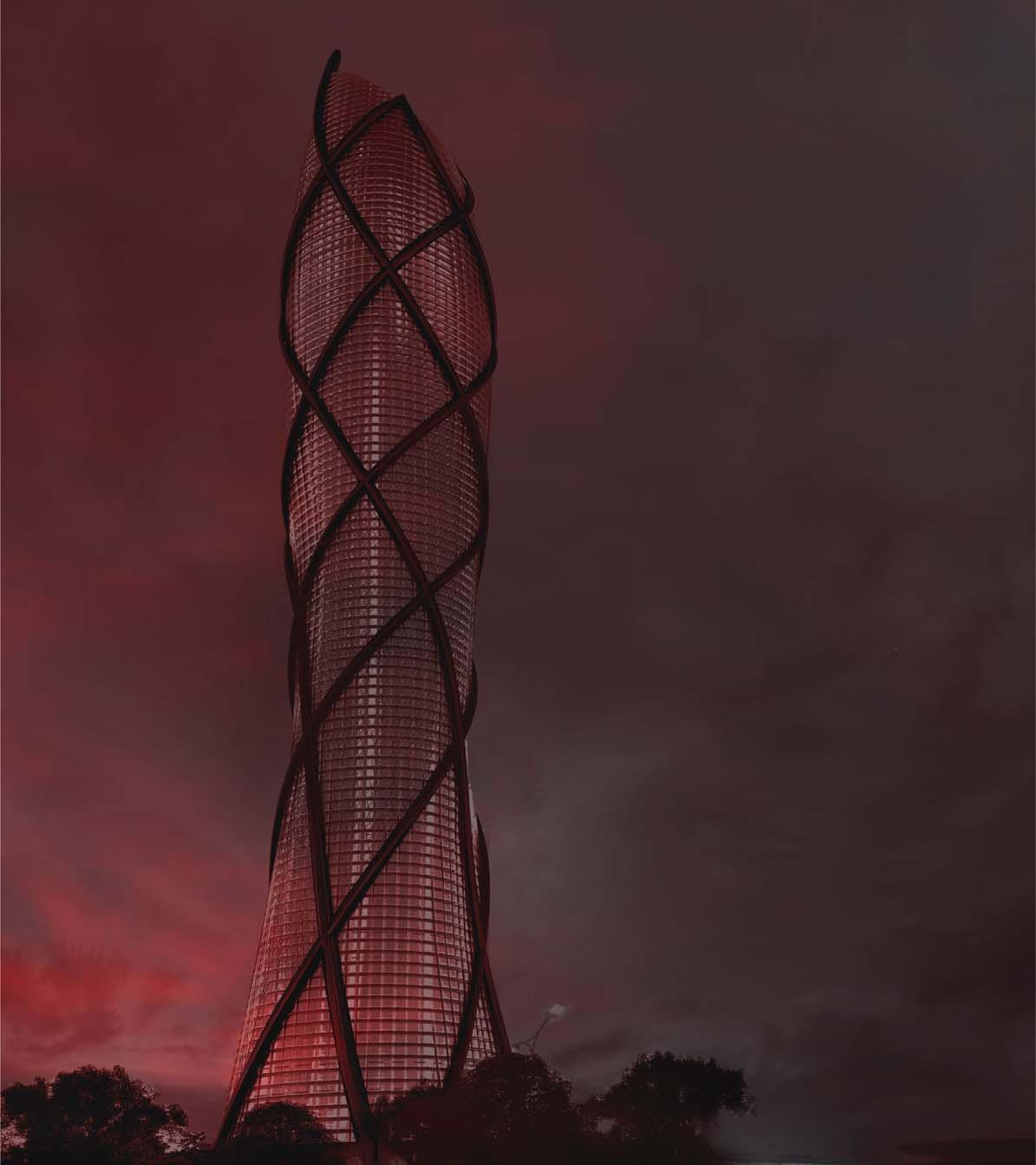

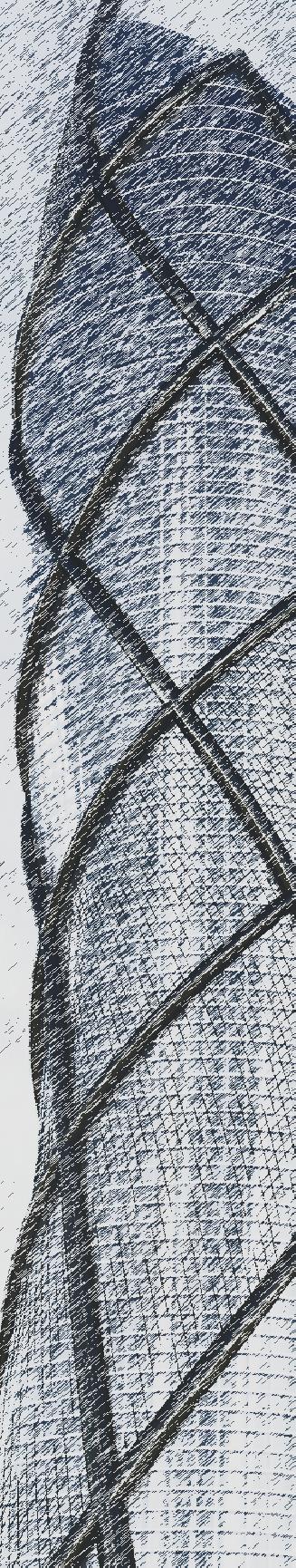

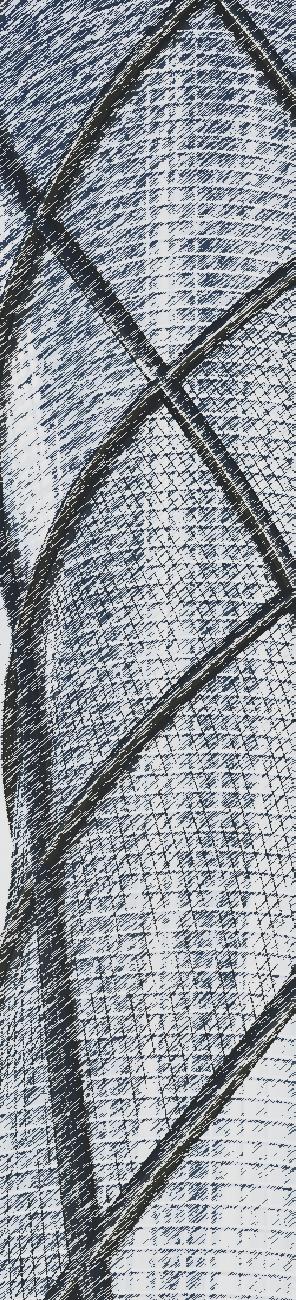

Tall Building
TYPE COMMERCIAL LOCATION
DHAKA, BANGLADESH
YEAR 2019
THE CONCEPT WAS TO DESIGN A SUSTAINABLE AND SAFE COMMERCIAL TOWER WHICH WILL NOT WILL BE A LANDMARK FOR THE AREA BUT ALSO HAVE A GRATIFYING USABILITY.

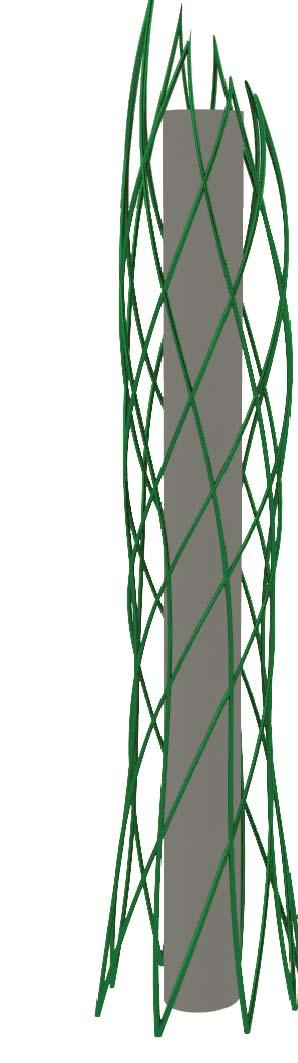

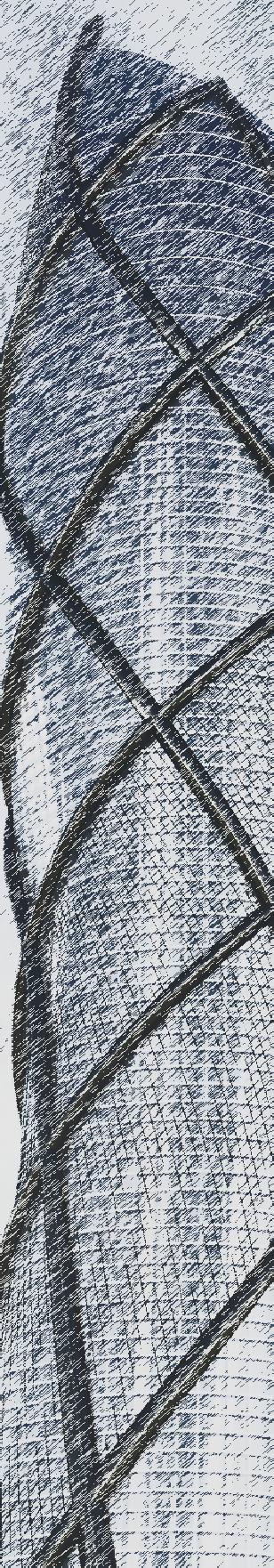

SLIGHT INCLINATION FOR REDUCE SOLAR HEAT GAIN, TWISTED TO REDUCE LATERAL WIND LOAD & CONSIDERING STRUCTURAL STABILITY
REGULAR FORM
CORNERS SOFTENED & TAPERED ON TOP
GROUND FLOOR PLAN
Up Up Up Up Dn DN Up Up Up Dn Up Up Up LEVEL +0’ LEVEL +4’-0” Lobby Reception Reception Cafe Waiting Bakery Security Office Waiting LEVEL +4’-0’’ LEVEL +0’
LEVEL 2 PLAN TYPICAL TRANSFER LOBBY TYPICAL FLOOR PLAN BASEMENT 2 PLAN Up Dn

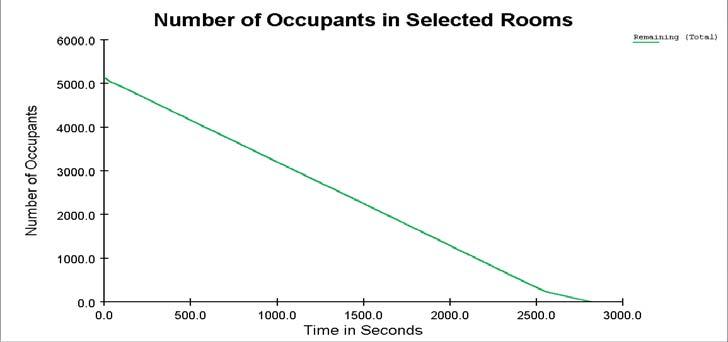

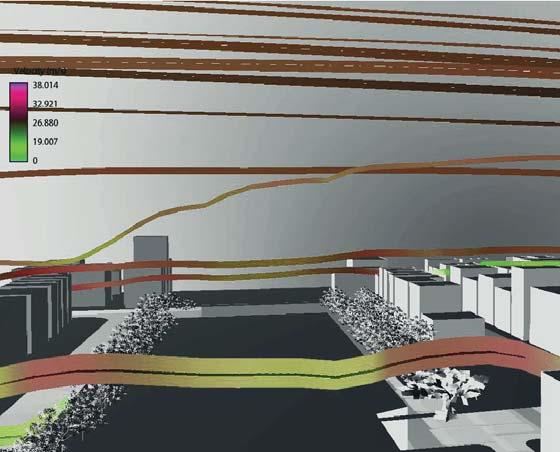

WIND PRESSURE ANALYSIS RADIATION ANALYSIS Drag Coefficient: 0.52Wind Pressure on Surface FIRE EVACUATION ANALYSIS Radiation Analysis Dhaka_Tejgaon kWh/m2 1057.96 < 952.16 <0.00 105.80 211.59 317.39 423.18 528.98 634.78 740.57 846.37 SOLAR RADIATION FOR THE FORM WITH SHADING : 860310.55 kWh/m2
SPEED:
GROUP 1: 2.5 ft/s
GROUP 2: 3 ft/s
GROUP 3: 3.9 ft/s
Checking Tunnel Effect
2

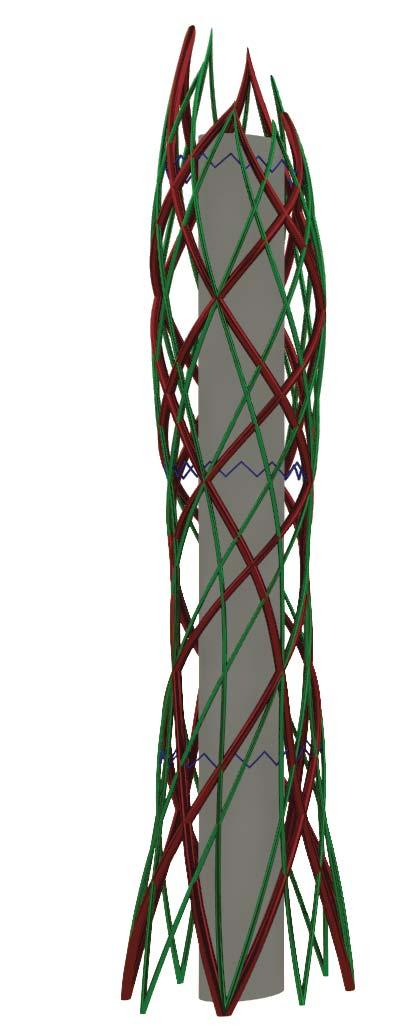

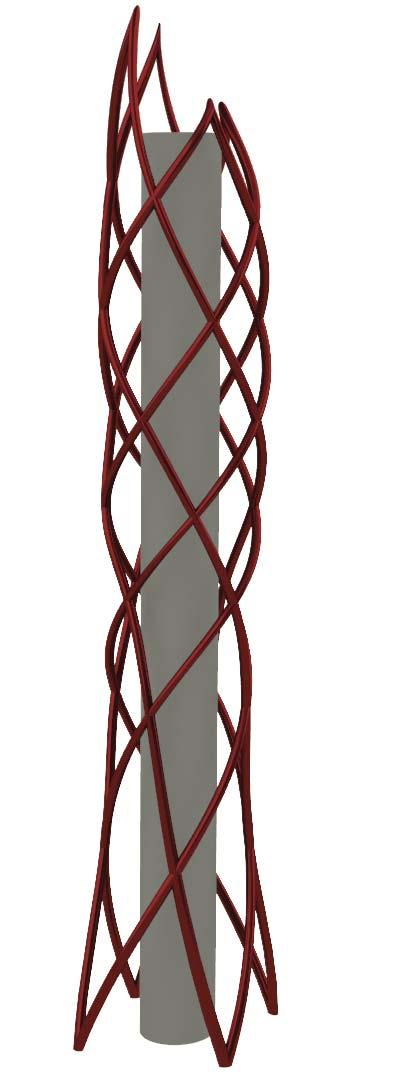

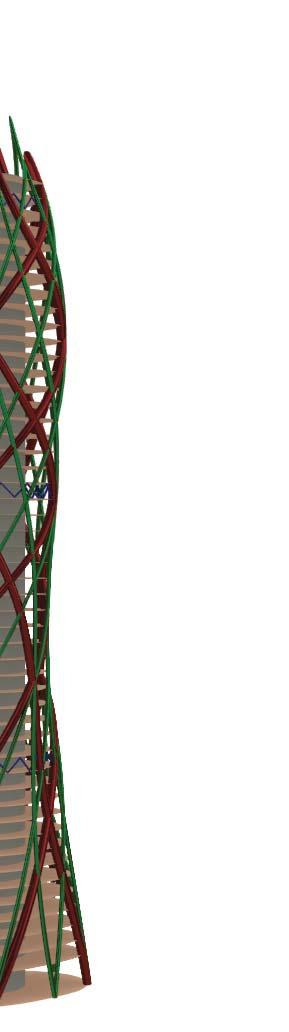

STRUCTURAL SYSTEM

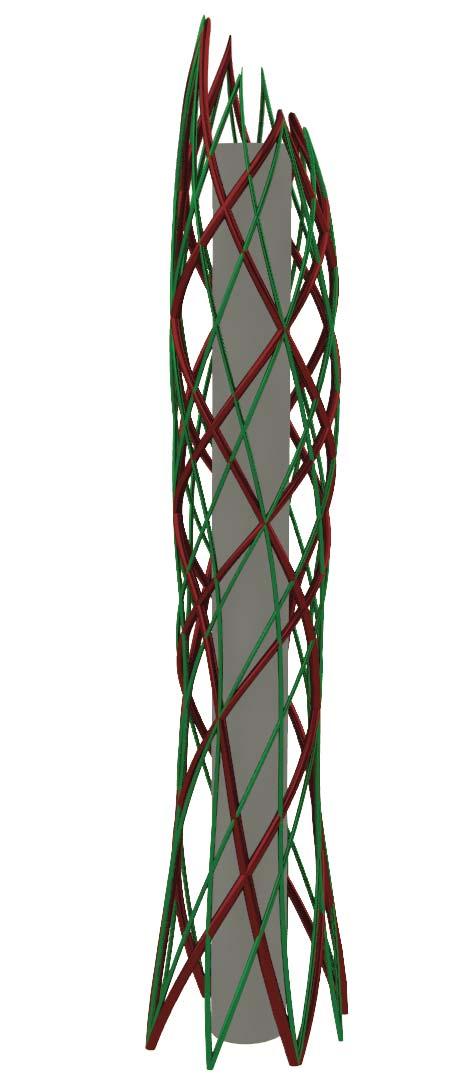

SUB BRACINGS BRACED FRAME SYSTEM
MEGA BRACINGS
RIGID CORE
MEGA BRACINGS
BRACED FRA
BRACED FRAME SYSTEM
BELT TRUSS
FLOOR PLATES ACTING AS TRUSS
SECTION FIG: SLAB DETAIL CONCRETE MORTAR FINISHED CEILING CONCRETE MORTAR STEELTRUSS INDUSTRIAL SHEET 25mm/ 600X600 CERAMIC HOMOGENEOUS TILES
AME SYSTEM

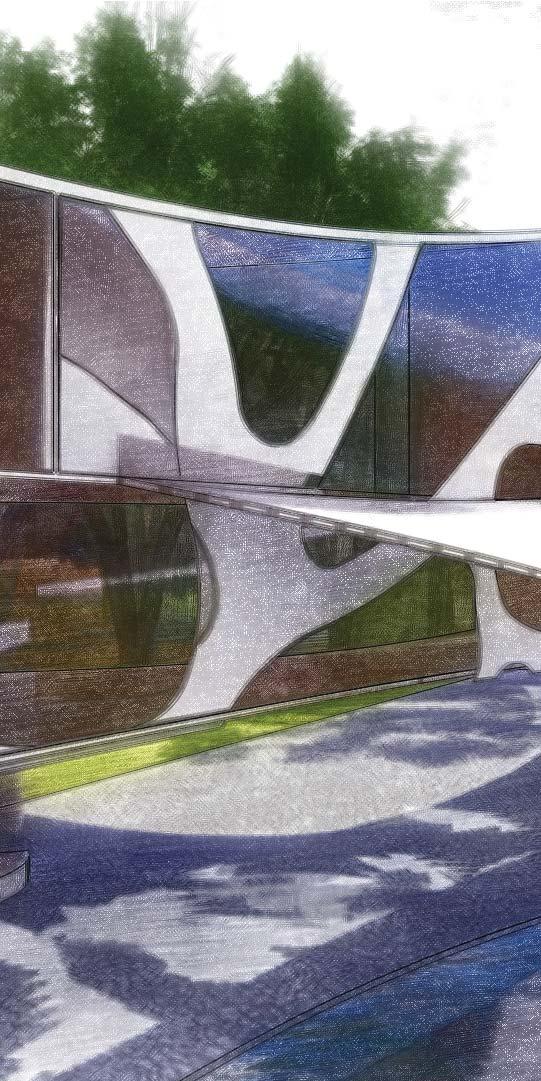

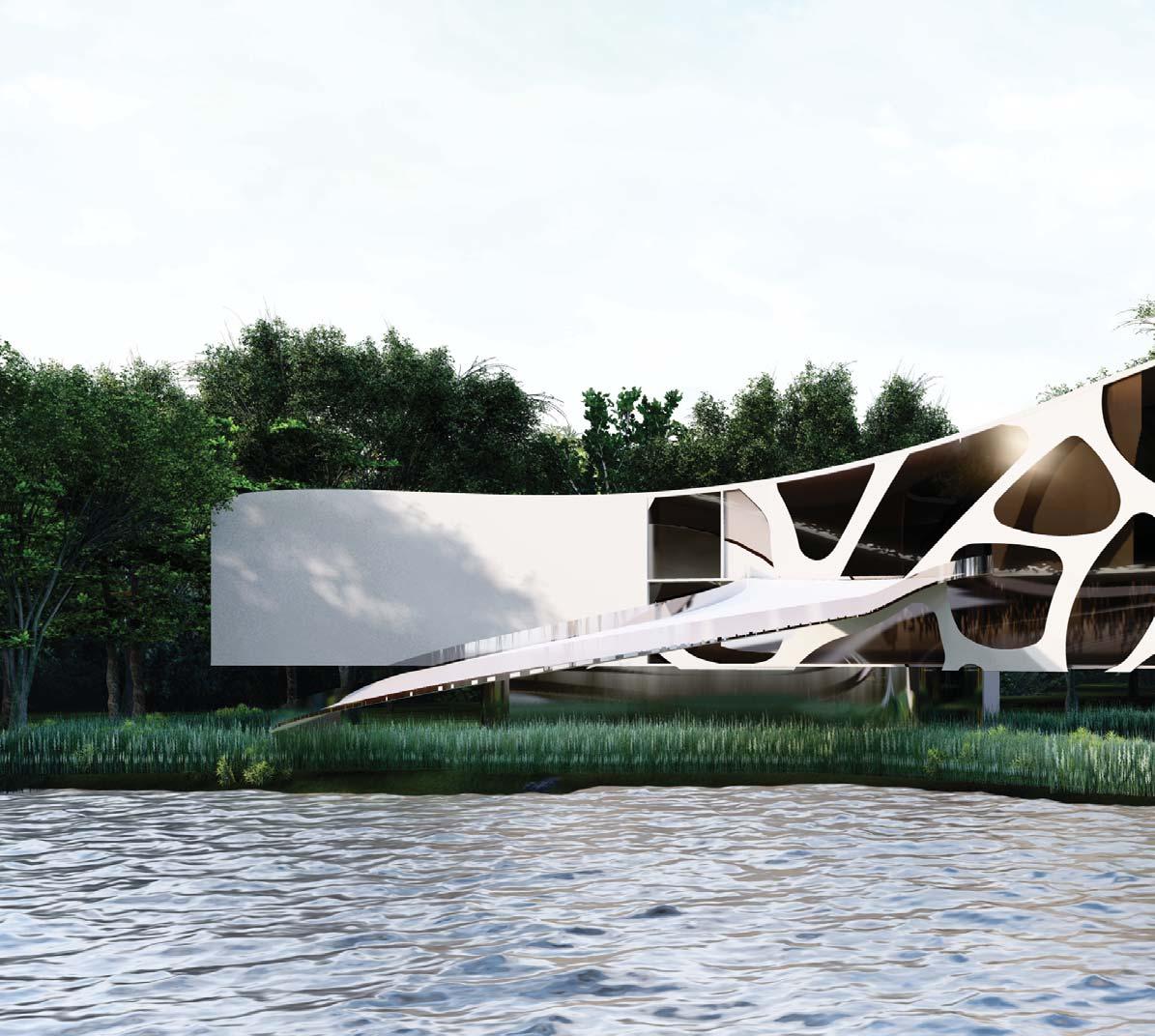

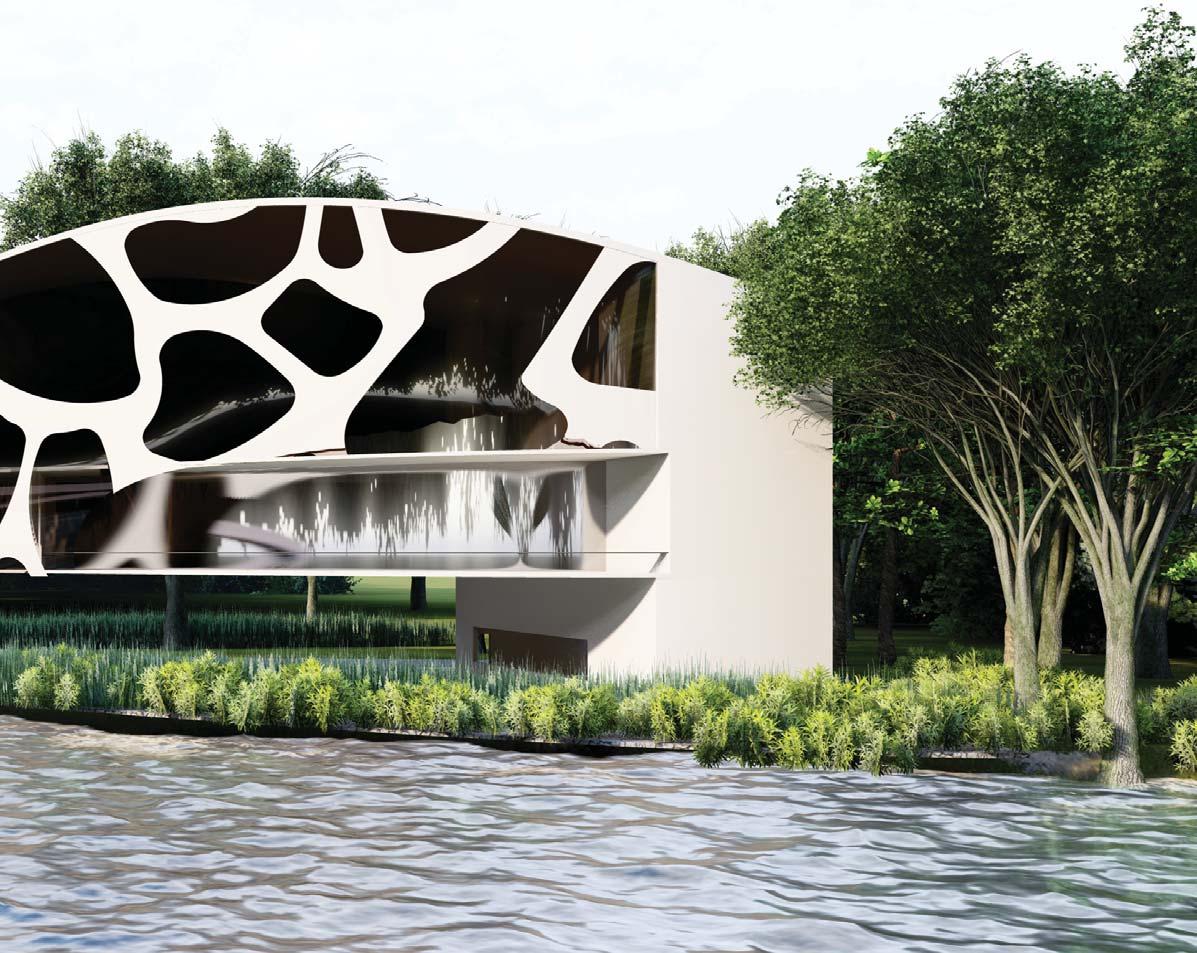

Cinema 02
TYPE COMMERCIAL LOCATION
DHAKA, BANGLADESH
YEAR 2018
THE OBJECTIVE WAS TO MAKE IT WELCOME FROM BOTH SIDES WHILE AL CINEMA HALLS PRIVATE BECAUSE PEOPLE PAY TO SEE MOVIES. AS CUSTO THE MOVIES, THE HALLS WERE DESIGNED TO BE MORE PRIVATE. THE NAT AND THE FUNCTIONS PROVIDED ON THE SITE INFLUENCED THE BUILDING AND EAST CURVES ARE PRODUCED BY THE LAKE AND THE DRIVEWAY, AN BOTTOM SLOPES ARE FORMED BY THE FILM HALLS.
SO MAKING THE OMERS PAY
FOR TURE OF THE SITE G FORM. THE WEST ND THE TOP AND
8am12pm Equinox 8am12pm Summer Solstice 8am12pm Winter Solstice
SHADOW STUDY
4pm 4pm
RAINFALL
EFFECTS 5’WATERLEVELDURINGSUMMER
0’’GROUND
4pm WIND FLOW DIAGRAM CLIMATE
&
2’/3’DURINGHEAVYRAINFALL
maximise

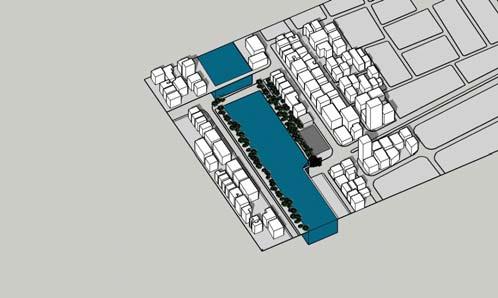

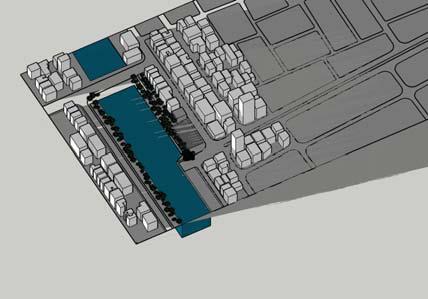

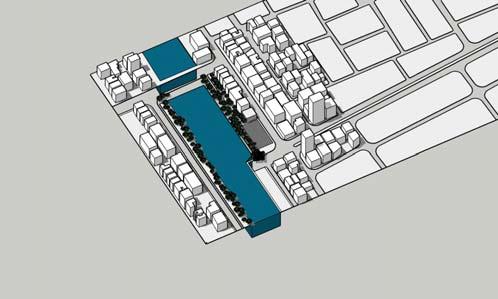

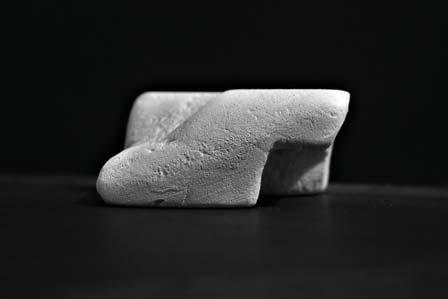

west Maximising the building surface on the south and east Preserving visual continuity FORM MORPHOLOGY 01 03 04 02 ITERATION 1 ITERATION 2 ITERATION 3
To
the view on the
NORTH ELEVATION
EAST ELEVATION
LAKE DROPOFF 0’-0” LOBBY +2’-0” WAITING +2’0” ADMIN OUTDOOR RESTAURANT +0’-0” ROAD NO. 20 RABINDRA SHARANI LA BAMBA A B B A PLAN AT 7’
HALL FOR 170 PEOPLE HALL FOR 250 PEOPLE FOOD COUNTER +32’-0” TICKET COUNTER +32’-0” VESTIBULE +32’-0” CONCERT HALL +32’-0” LOBBY +32’-0”
PLAN AT 30’

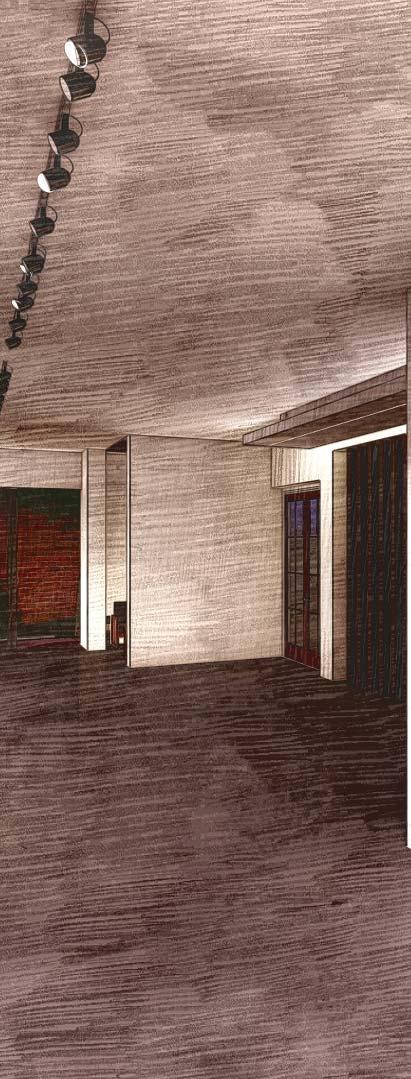

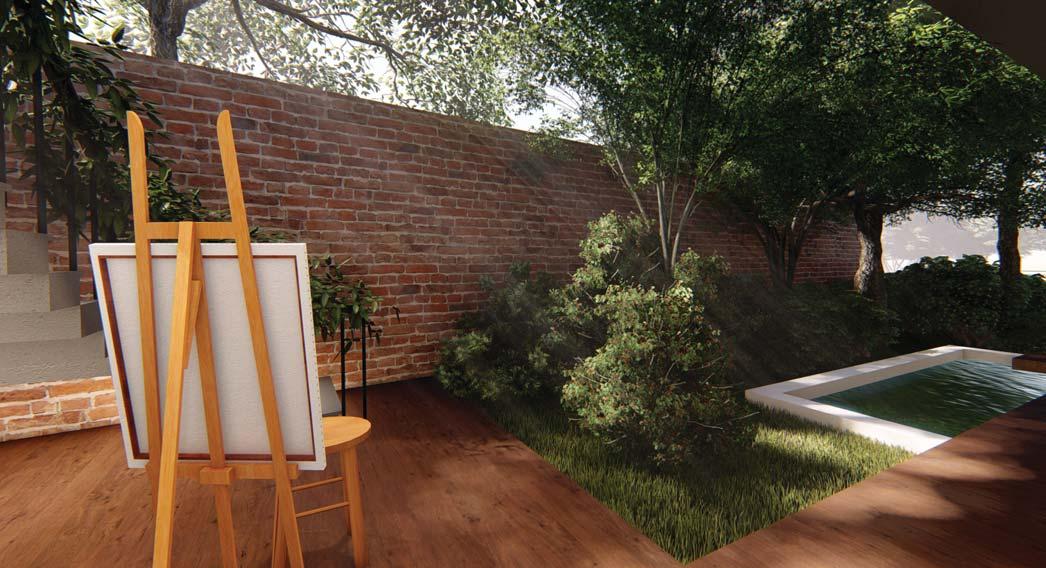

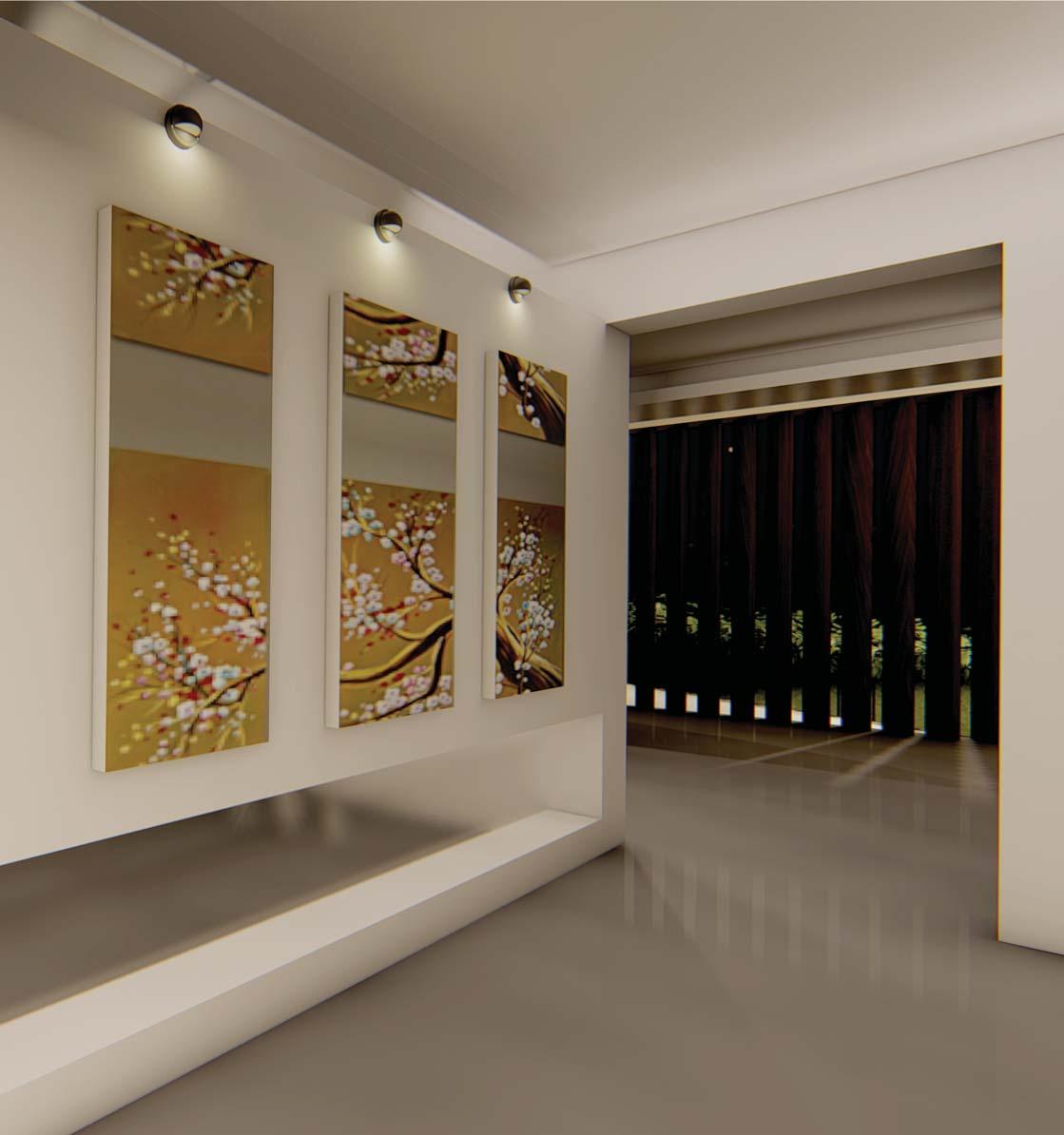

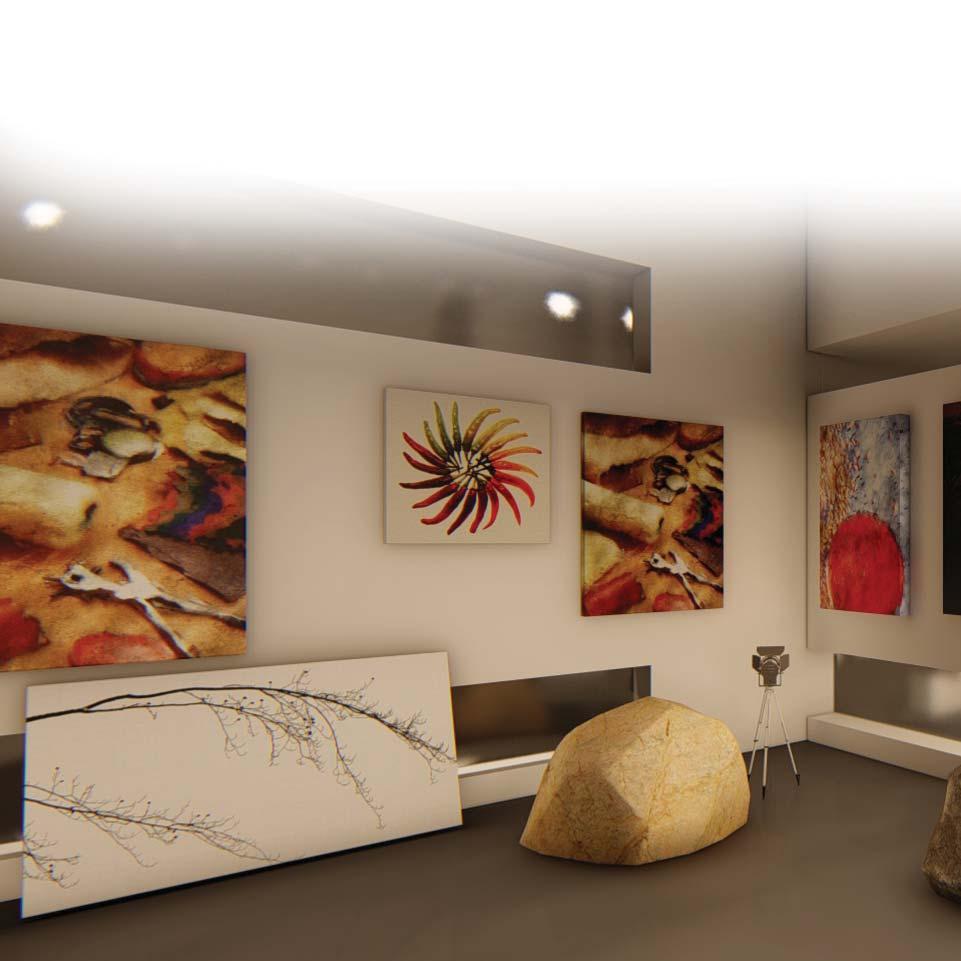

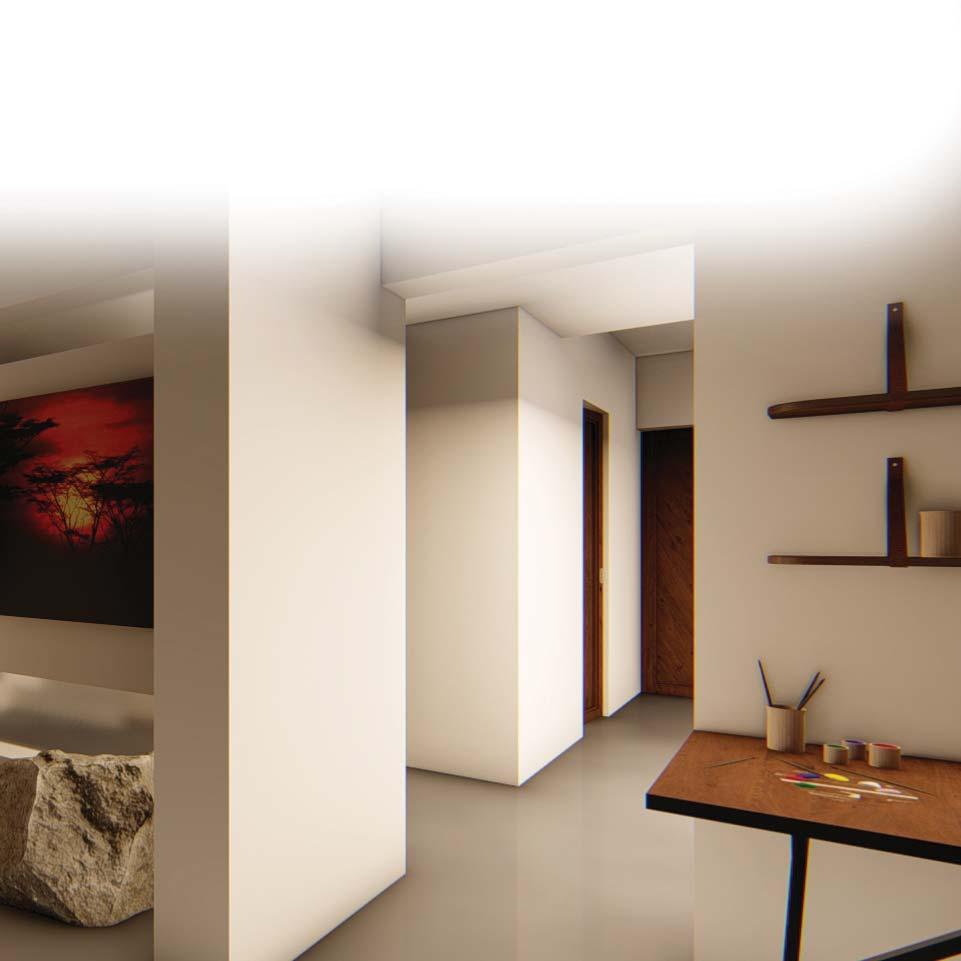

Art Studio 03
TYPE INTERIOR LOCATION
DHAKA, BANGLADESH
YEAR 2019
THE VISION WAS TO DESIGN A SPACE THAT WAS BOTH MODERN AND ENV CONSCIOUS. ONLY A FEW ENCLOSURES WAS USED TO CREATE TRANS COMPACT AREA, AND ONLY A LONG HANGING WALL SEPARATES THE PUB SECTIONS. EVERY SPACE SERVES AS BOTH A WALKING AND A STOPPIN PROMOTING CONNECTIONS AND INTERACTIONS.
VIRONMENTALLY PARENCY
IN THIS BLIC AND PRIVATE NG POINT WHILE

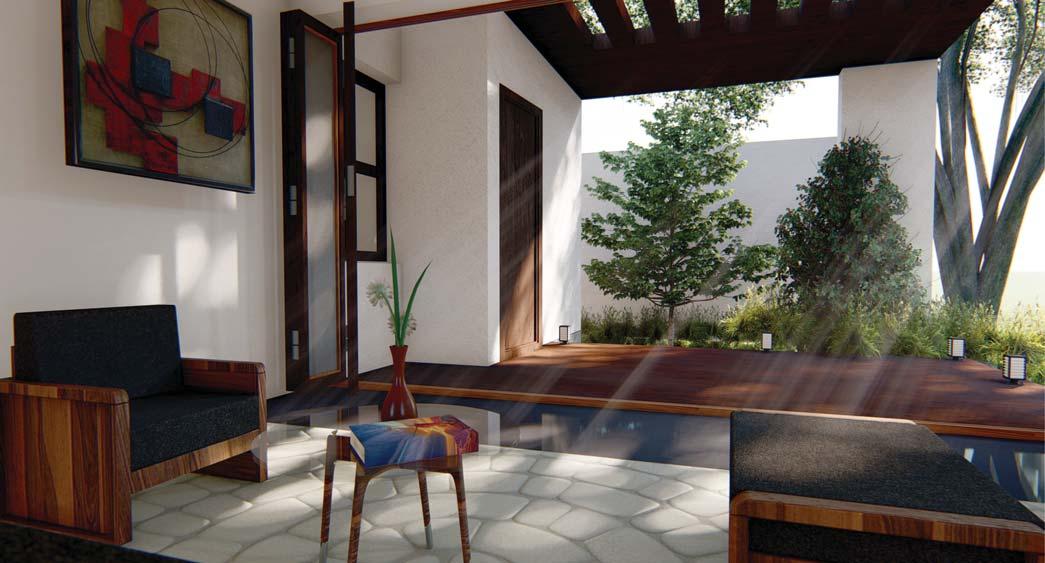

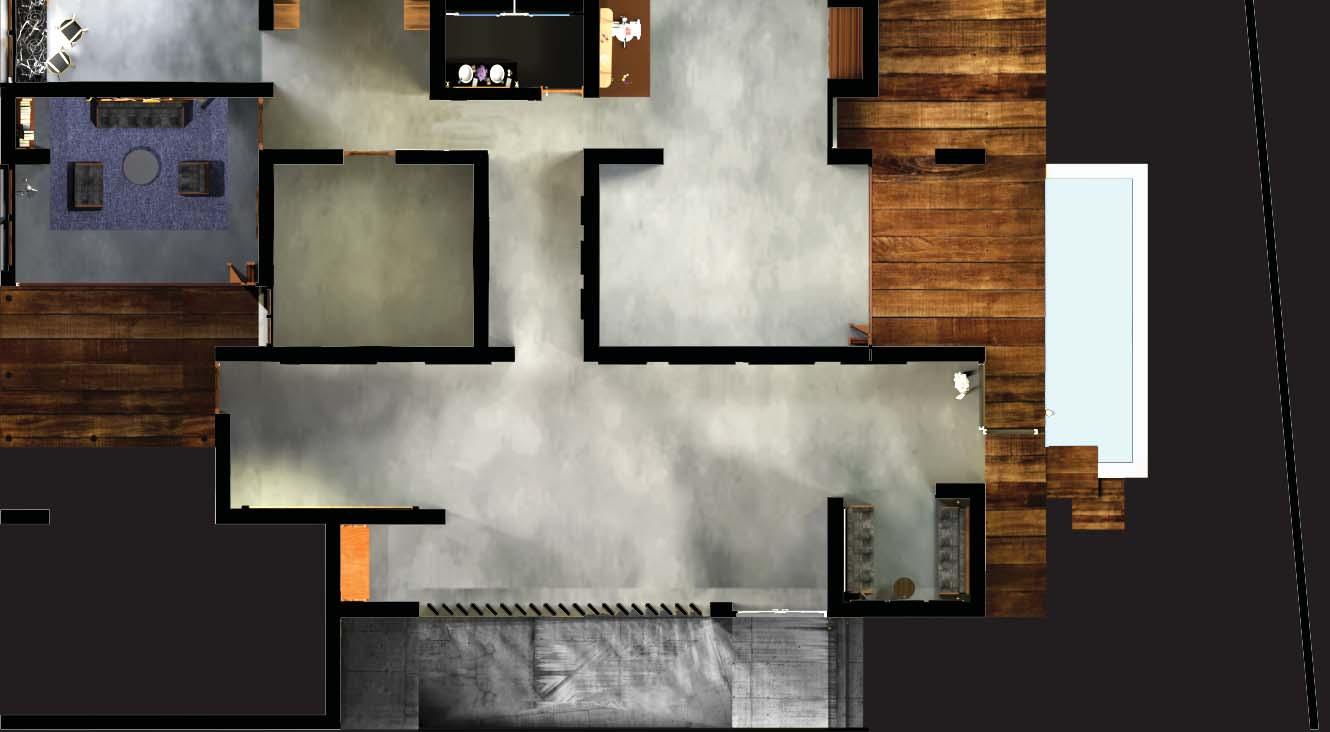

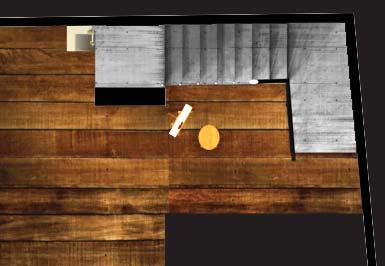

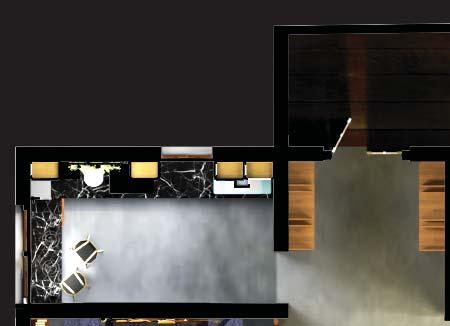

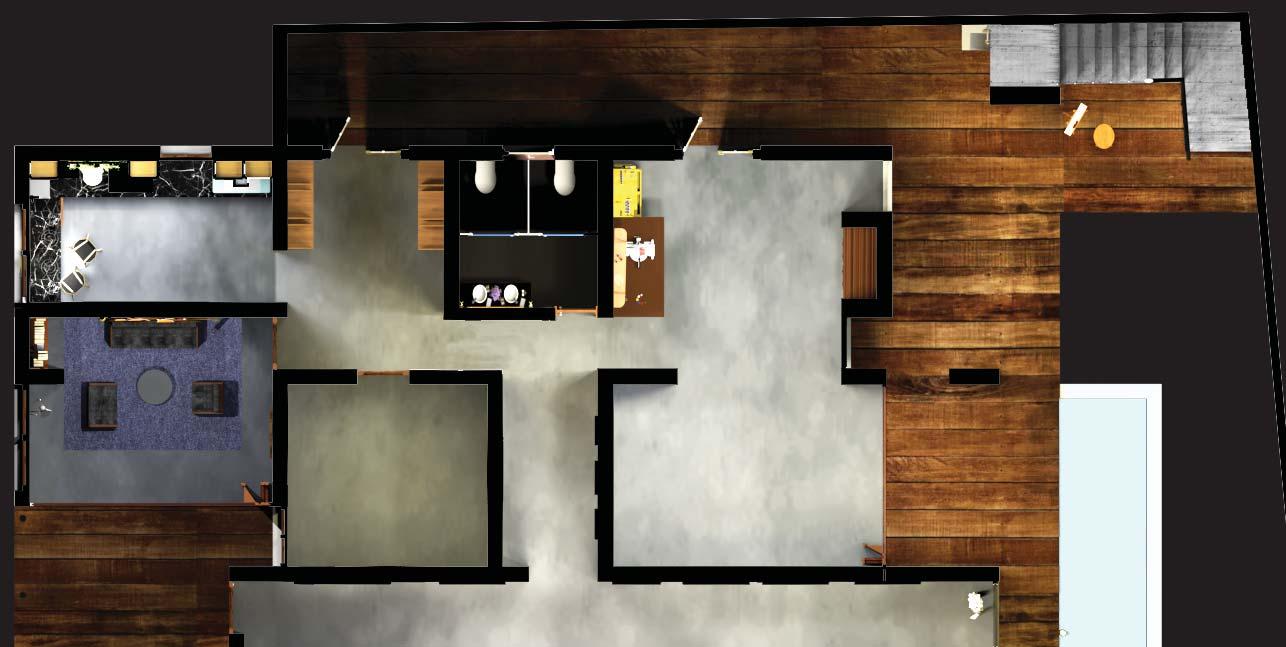

PLAN PLAN AT 3’ UP A C C B B D UP
MATERIALS Wooden Flooring Epoxy Flooring Concrete Carpet Casted Casted 10’x8’ Woolen Carpet 40”x8” Wallnut Wood Panels A D PLAN AT 15’ M A A D D B B DN

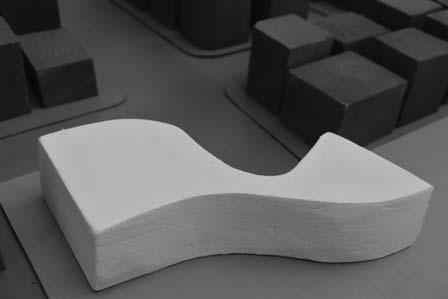

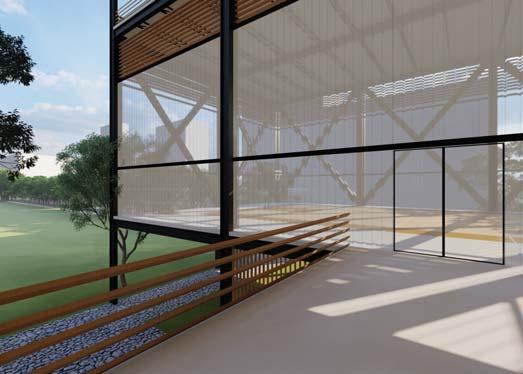

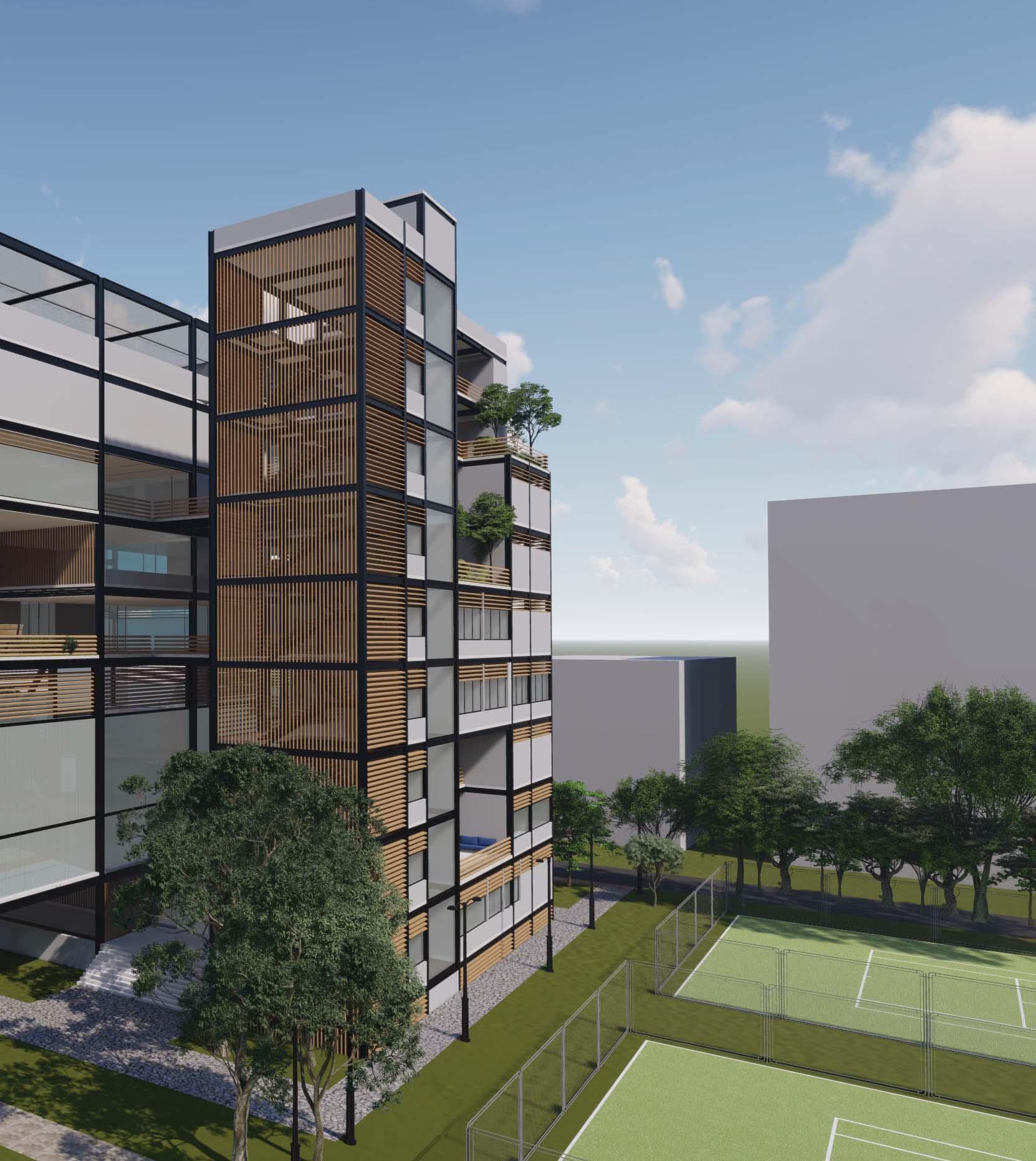

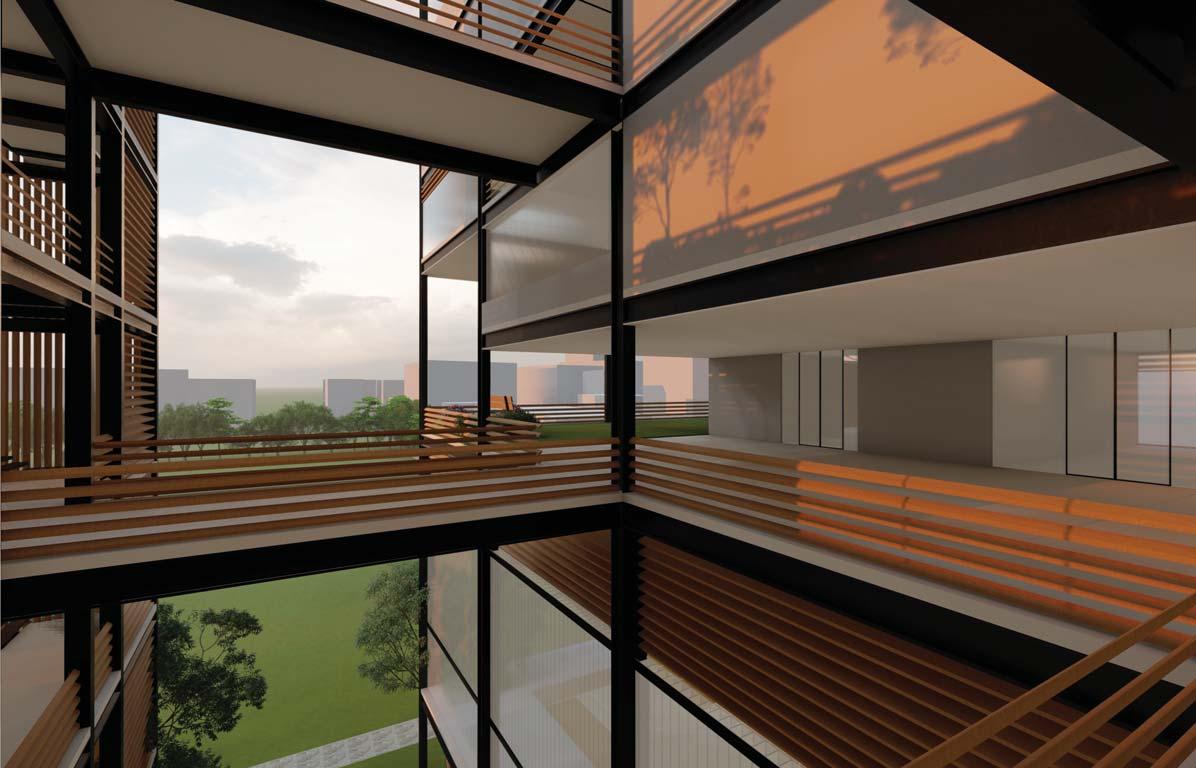

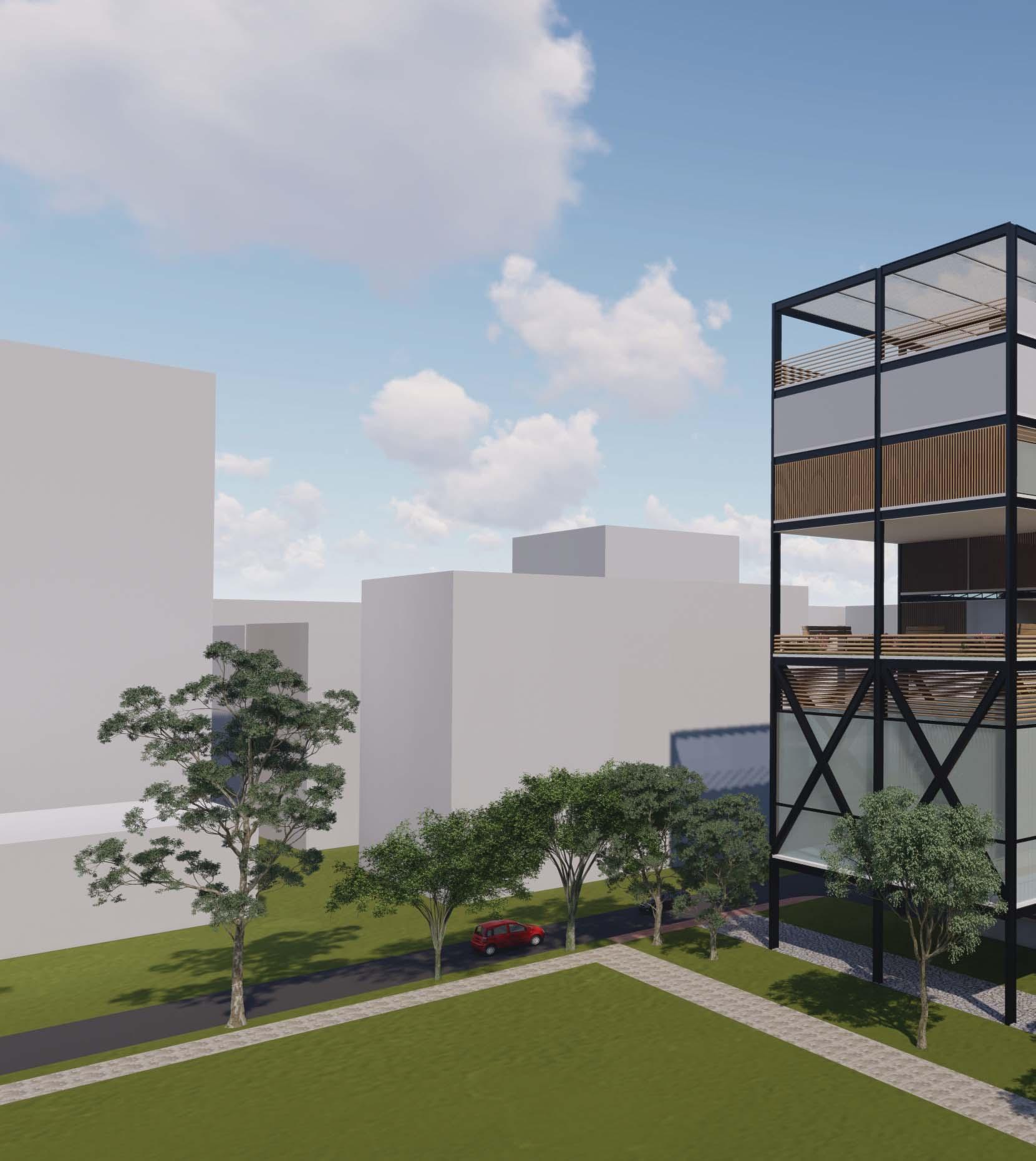

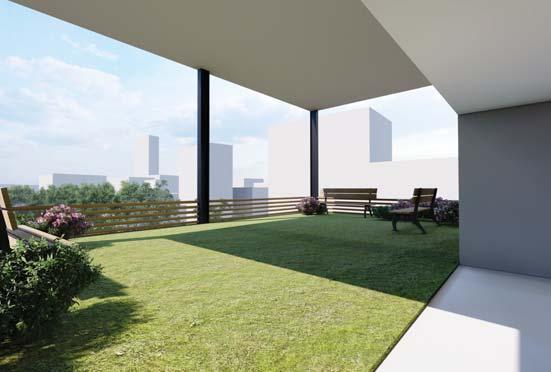

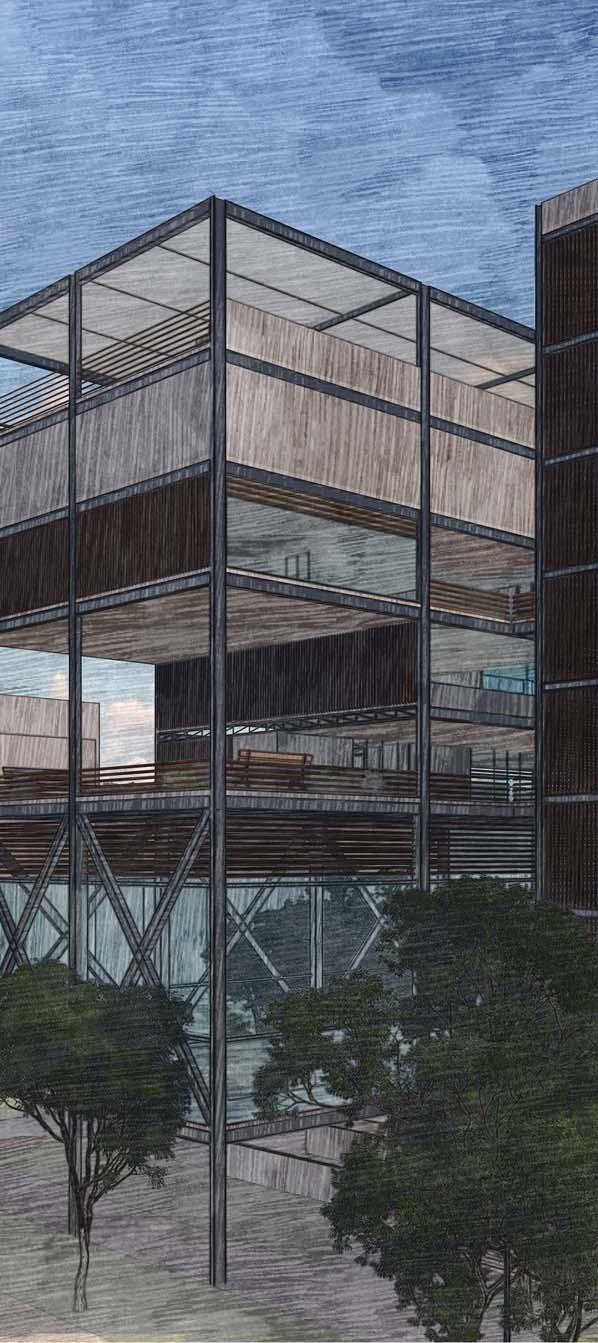

Sports Complex 04 0 mp 4 lex S Co ort

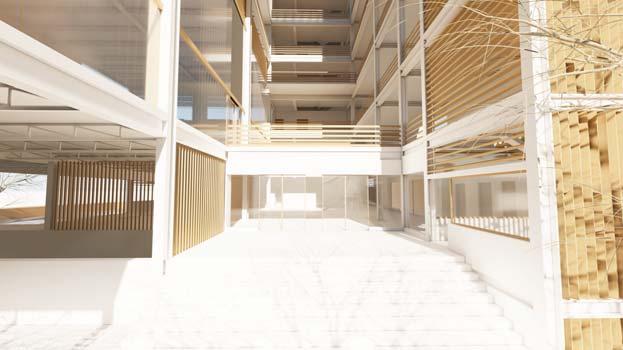

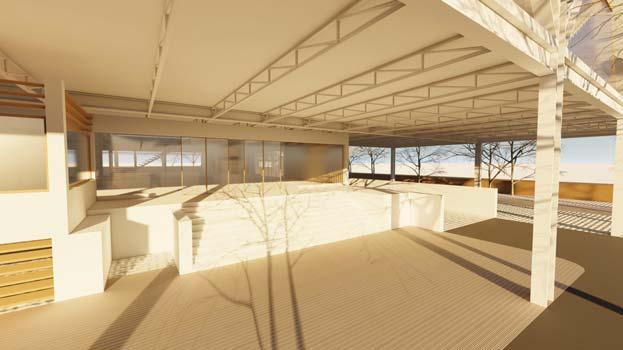

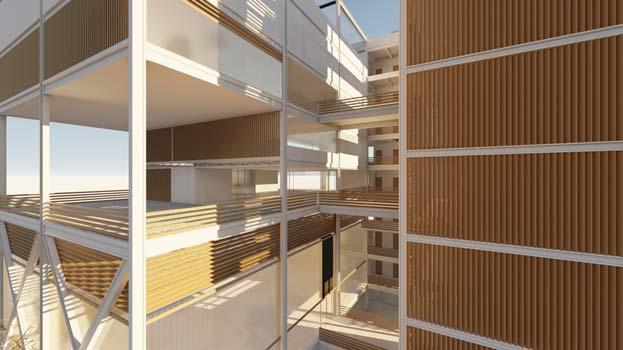

THE IDEAS WAS TO CREATE TRANSPARENCY AND OPENNESS IN THE GROUND FLOOR TO MAKE THE BUILDING MORE WELCOMING. ELEVATED GROUND PLANES CREATED SENSE OF CONNECTIVITY WITH THE SITE AND SURROUNDING FIELDS. CREATING VOIDS IN THE FORMS ALLOWS PROPER LIGHT AND VENTILATION.
DHAKA,
TYPE COMMERCIAL LOCATION
BANGLADESH YEAR 2021
ELEVATING GROUND PLANE
ELEVATING GROUND PLANES
CREATING VOIDS FOR BETTER WIND FLOW
Fig: Form Morphology
CREATING A VIEWING WINDOW TOWARDS THE FIELD
SHOP MACHINE ROOM RECEPTION & LOBBY LOUNGE SQUASH SAUNA YOGA GROUND FLOOR
FLOOR
FLOOR
Fig: Program Diagram
3RD
6TH
ELECTRICAL ROOM OFFICE ROOMS ELECTRICAL ROOM GUEST ROOMS ELECTRICAL ROOM MEETING ROOM TOILET GYM TOILET ELECTRICAL ROOM ELECTRICAL ROOM FIRST AID ELECTRICAL ROOM MULTIPURPOSE HALL LOUNGE GREEN TERRACE GREEN TERRACE ROCK CLIMBLING LOUNGE WORKSHOP LOCKERS KITCHEN CAFE BILLIARD BOARD GAMES TOILET MACHINE ROOM CLUB ROOMS 1ST FLOOR 4TH FLOOR 7TH FLOOR ELECTRICAL ROOM GREEN TERRACE TOILET GALLERY ROCK CLIMBLING TABLE TENNIS SQUASH SQUASH LOCKERS ELECTRICAL ROOM TOILET POOL AREA LOCKER & CHANGING ELECTRICAL ROOM 2ND FLOOR 5TH FLOOR 8TH FLOOR
+ G + 1 + G + 2 + 3 + 4 + 5 + 6 + 7 + 8 + R + SBB 10" 1'-6" 2" 6" 2" 10" 10" 3" 6" 1.5" 6'' 2'-6" 1'6" 6"

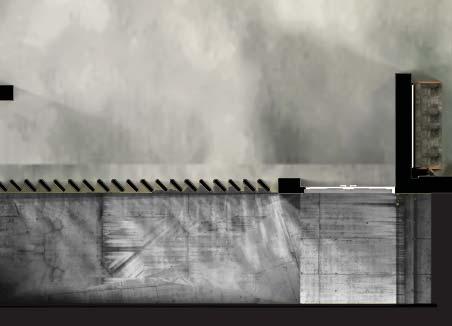

Fig: Slab Detail
+5' Ground Floor level +17' 1st Floor level +0' Ground level STORAGE ELECTRICAL ROOM +29' 2nd Floor level +41' 3rd Floor level +53' 4th Floor level +65' 5th Floor level +77' 6th Floor level +89' 7th Floor level +101' 8th Floor level +113' Roof Floor level +118'-6" SWIMMING POOL ROOF LEVEL -10' Basement 01 level -20' Basement 0 2 12' 12' 12' 12' 12' 12' 12' 12' 12' 2'-6" 17' 5' 36' 24' 12' 12' 12' 12' 12' 10' 10' 12' 10' 15' 123' 36' 24' 12' 12' 12' 5'-6" 3' 9'-7" LIGHTING ARRESTOR 7'-6" 17'-6" 73' 118'-6" 29'-3" 29'-7" 7'-8" 13' 10' 18'-3" DETAIL 3 DETAIL 1 DETAIL 5 DETAIL 2 DETAIL 4
Neighbourhood Park 05
DHAKA, BANGLADESH
YEAR 2018

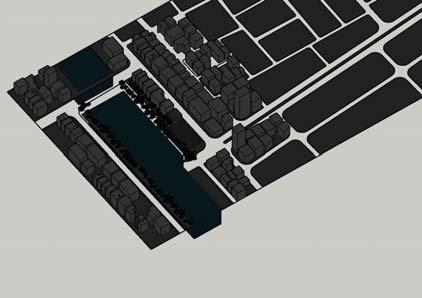

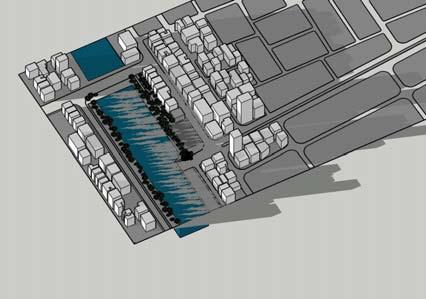

THE CONCEPT WAS TO MERGE THE SITE VISUALLY WITH THE GARDEN AN IMPRESSION OF THE SITE BEING A PART OF THE BOTANICAL GARDEN
SECURITY ISSUES AND BUILD A SENSE OF BELONGING TO THE RESIDENTS
TYPE URBAN LOCATION
T
CREATE AN
SOLVE THE S OF THE AREA.
ND
O

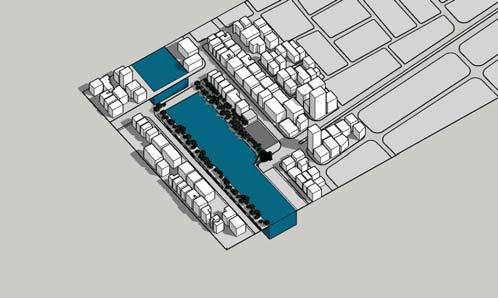

1.

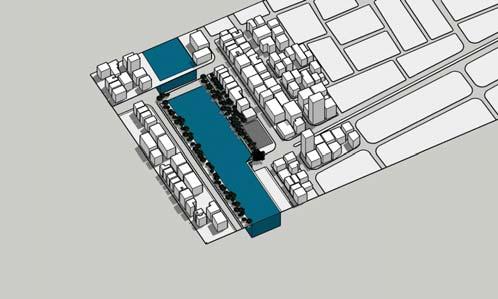

Mass on two edges of the site
2.
Smaller masses connected by the walkway
3.
Elevated walkway and masses underneath it
4.
Small and transparent masses around the site
+
5.
Undulated walkway creating different spacial qualities
Merging the landscape with the elevated walkway.
6.

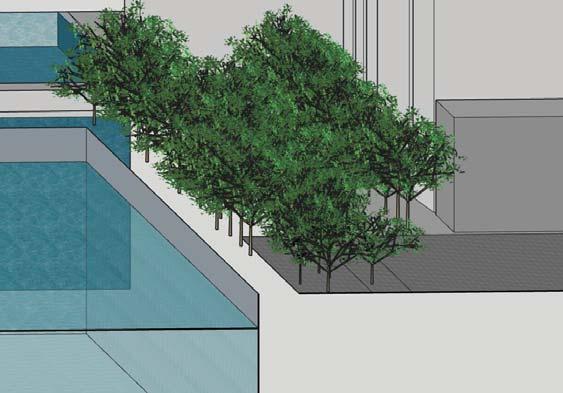

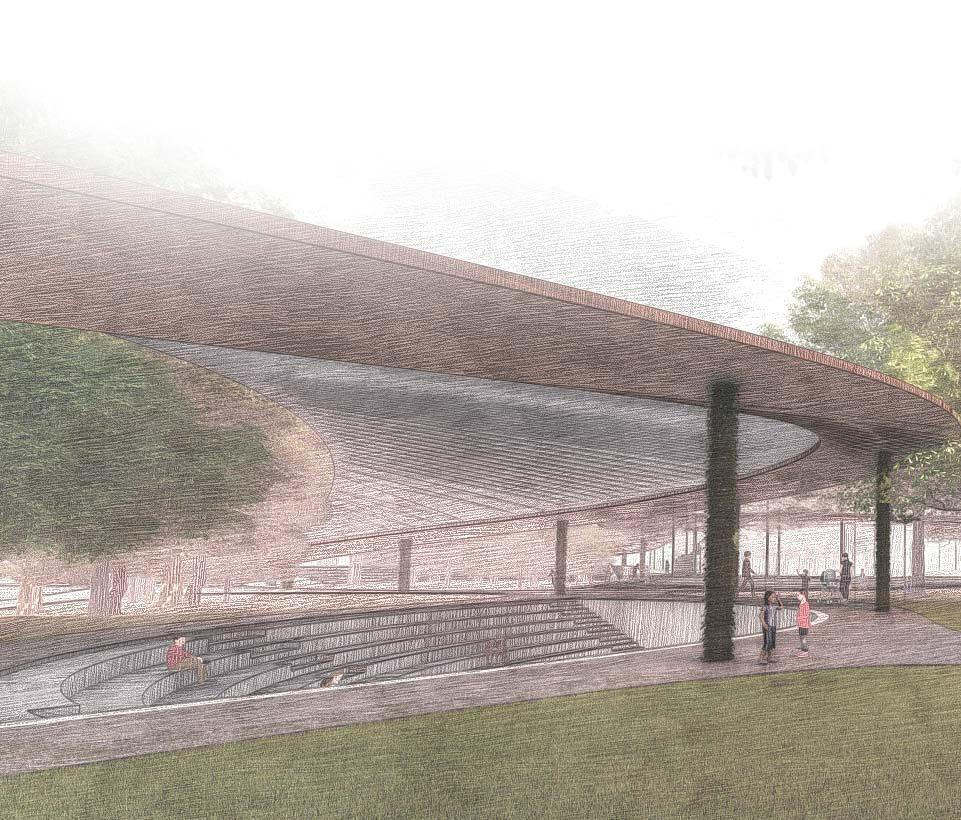

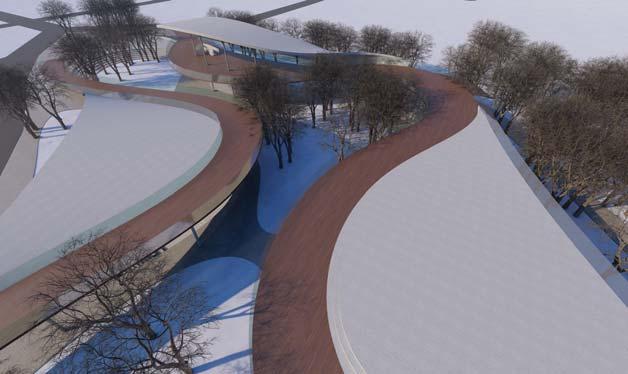

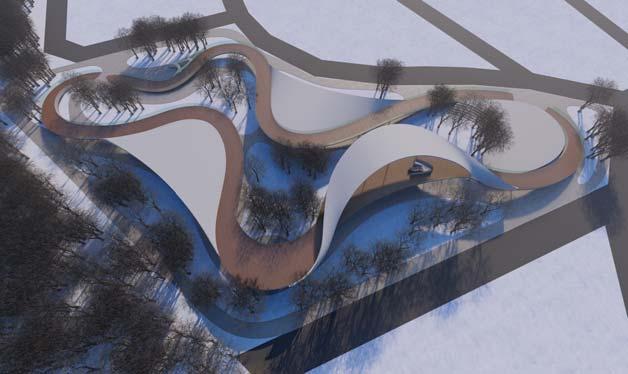

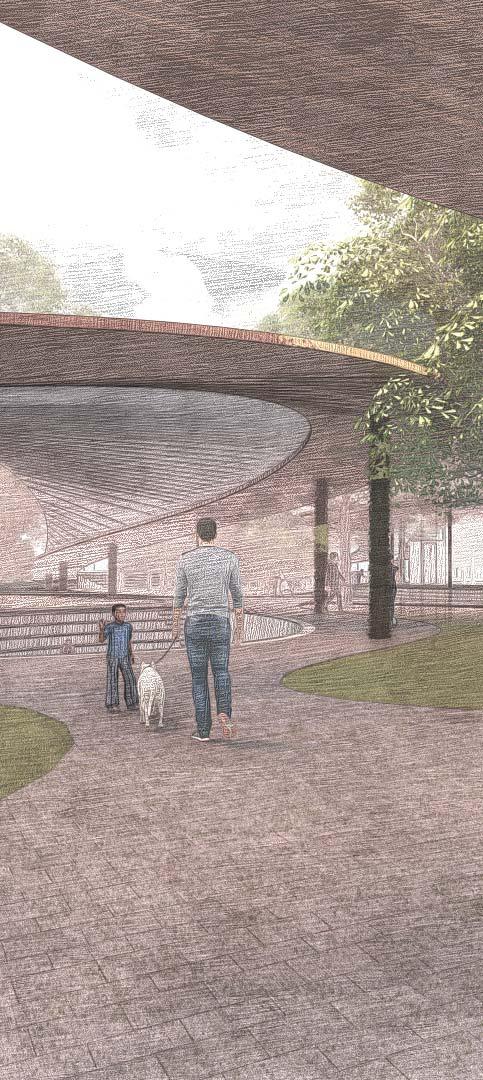

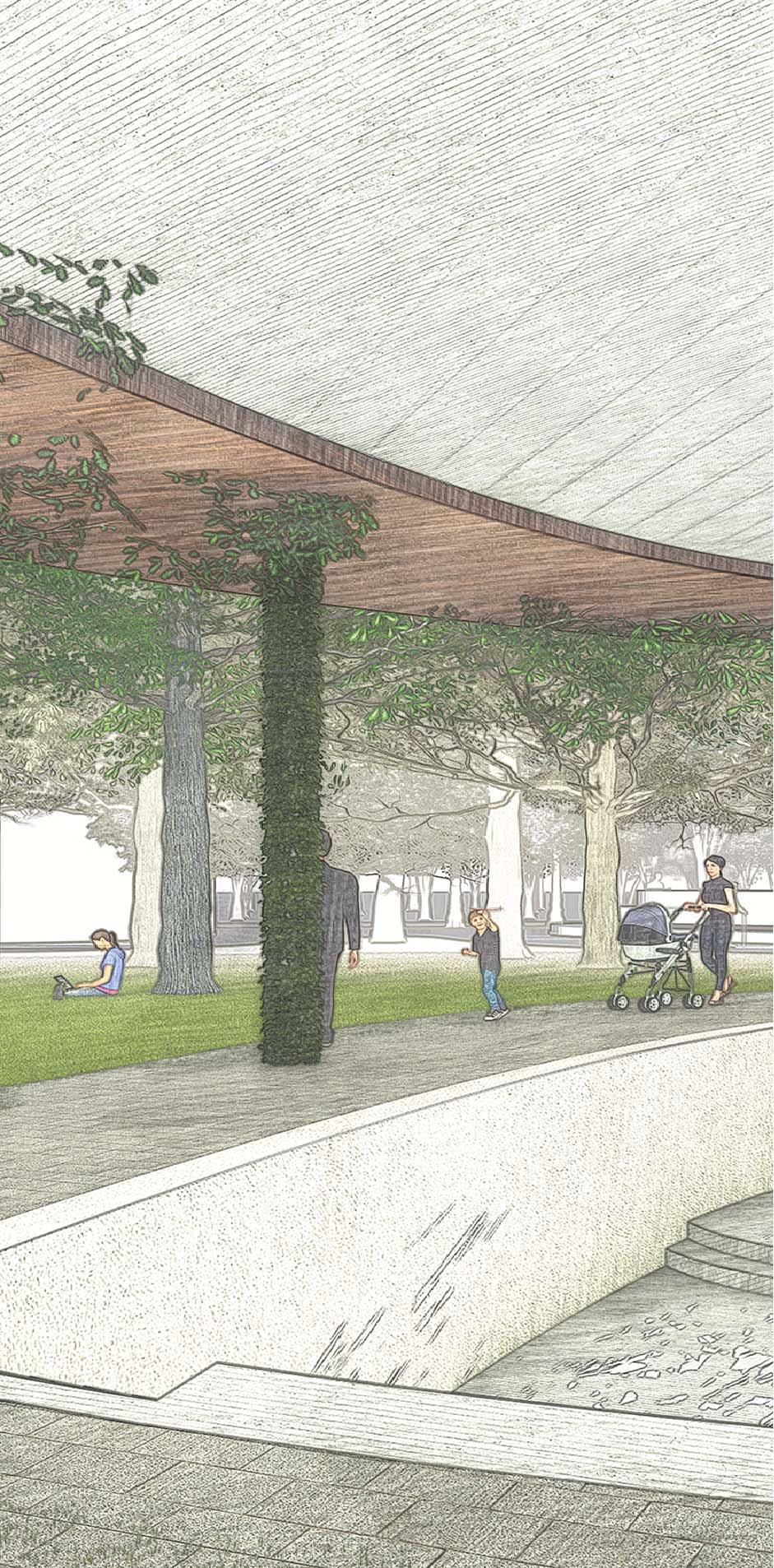

PERSPECTIVE VIEW
EXPLODED AXONOMETRIC DIAGRAM
Gallery Gym
Theatre
Entrance
Walking & Cycling Track Library
School
Open
Cafe
Entrance Public Toilet
Cultural
SECT WEST EL
TION
LEVATION

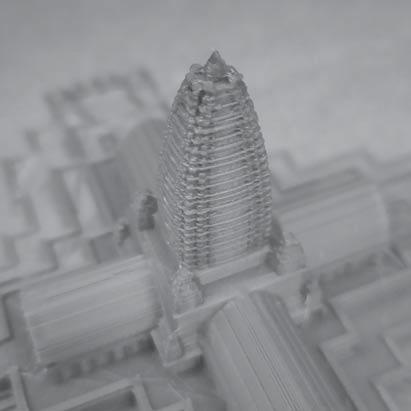

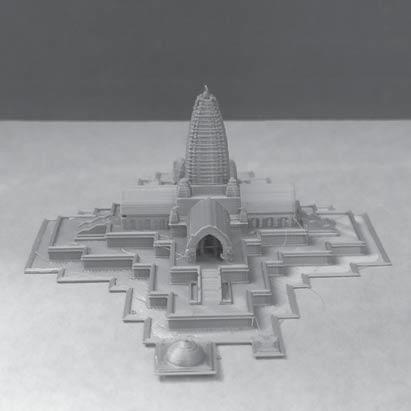

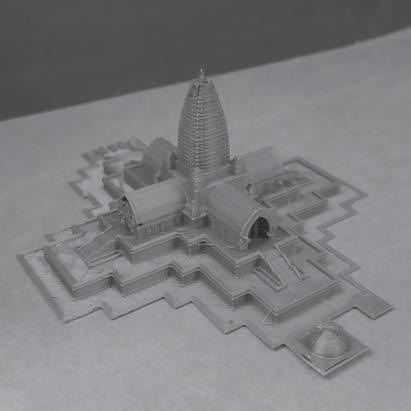

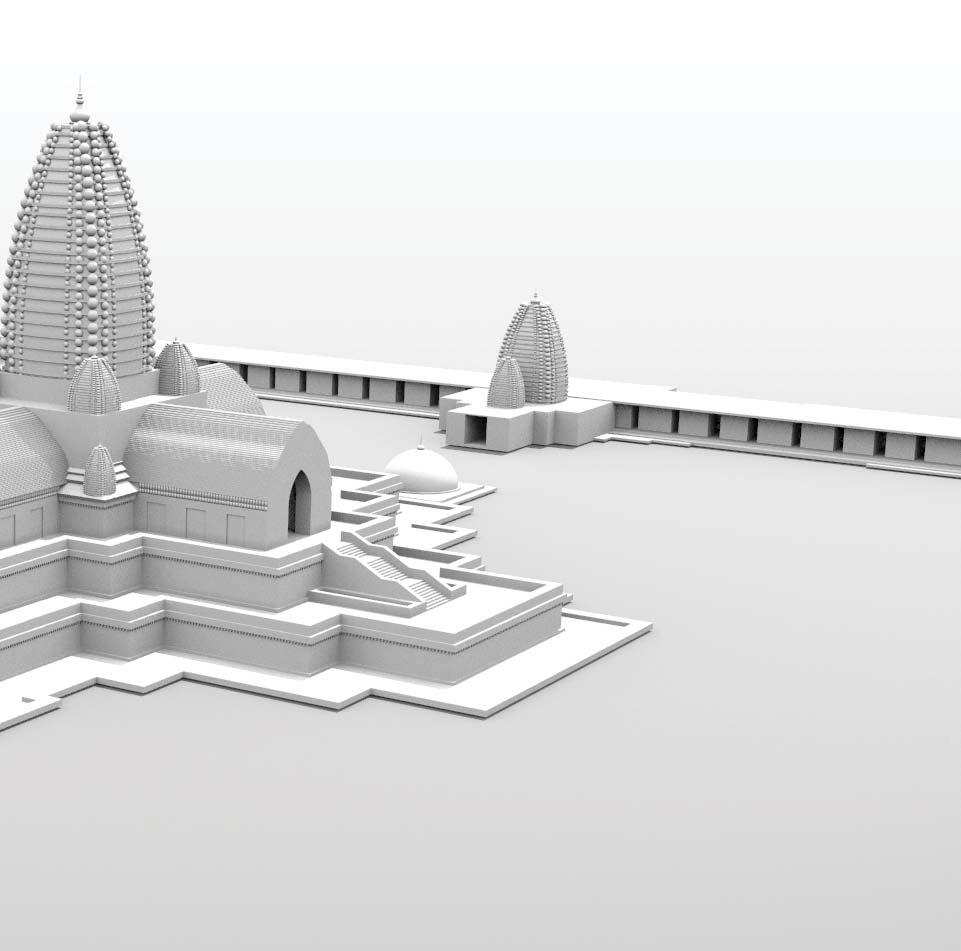

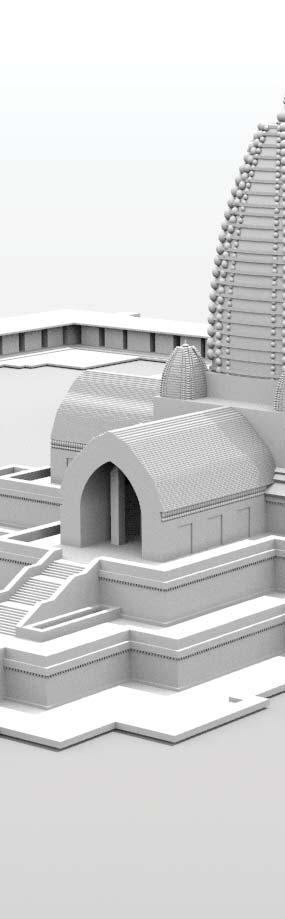

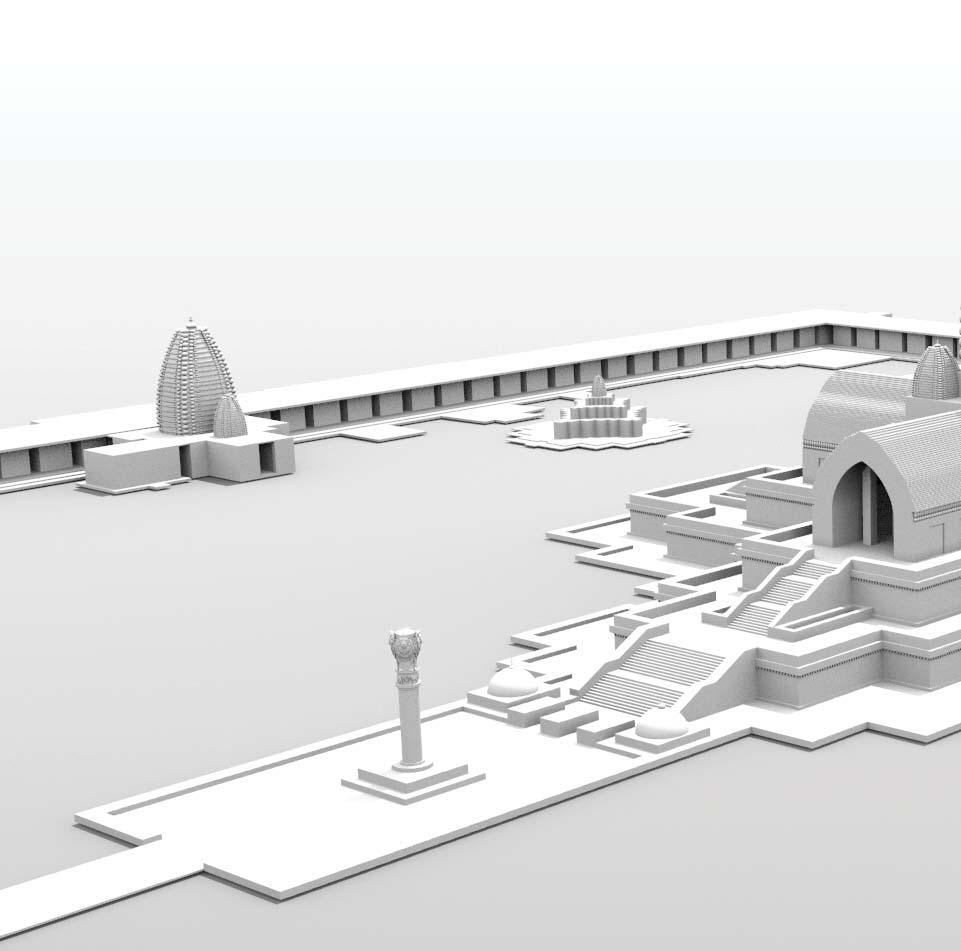

Virtual Reconstruction of Paharpur Buddhist Vihara
TYPE 3D MODELLING LOCATION BOGRA, BANGLADESH
YEAR 2021
Chaita Griha
Stair to Chaita Griha
Circumambulatory Path
Ashokan Pillar
Secti
Statue of Buddha
Chaita Griha
Circumambulatory Path
ional Perspective
