Macau, China
Bloomington, Indiana EXHIBITION
Bloomington, Indiana AXONOMETRIC
Indiana University in Bloomington Spring 2024 Bloomington, Indiana

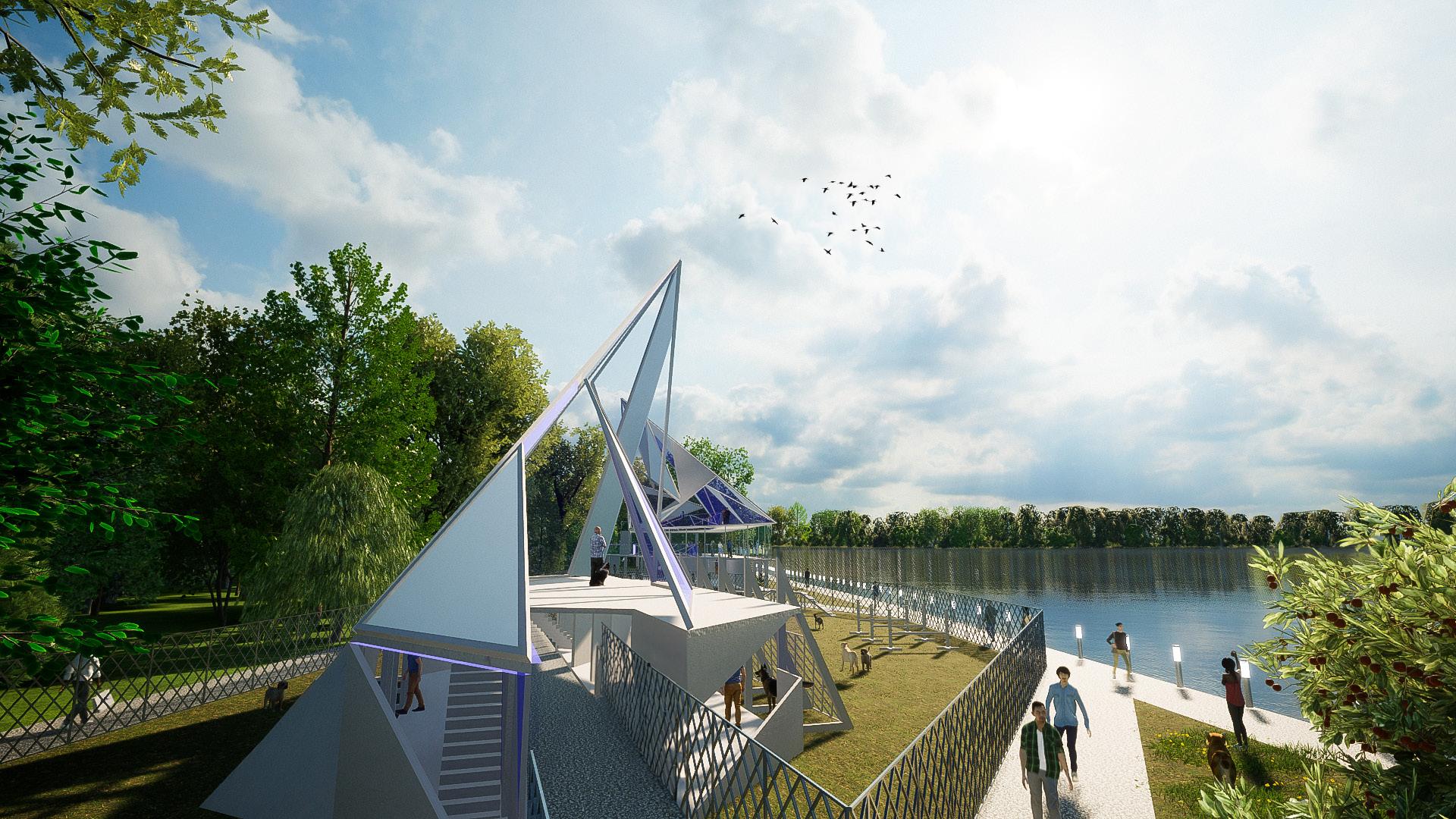

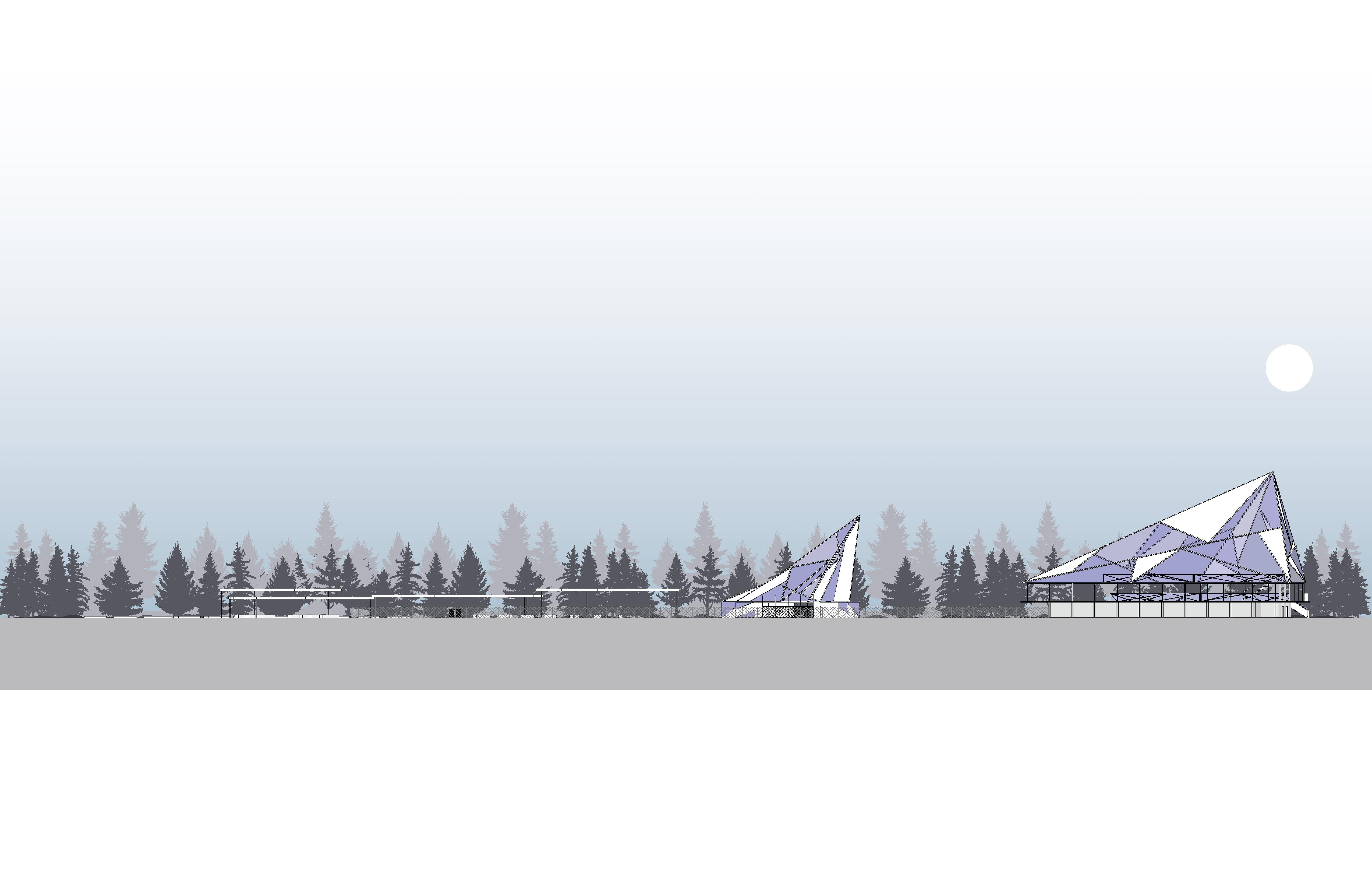

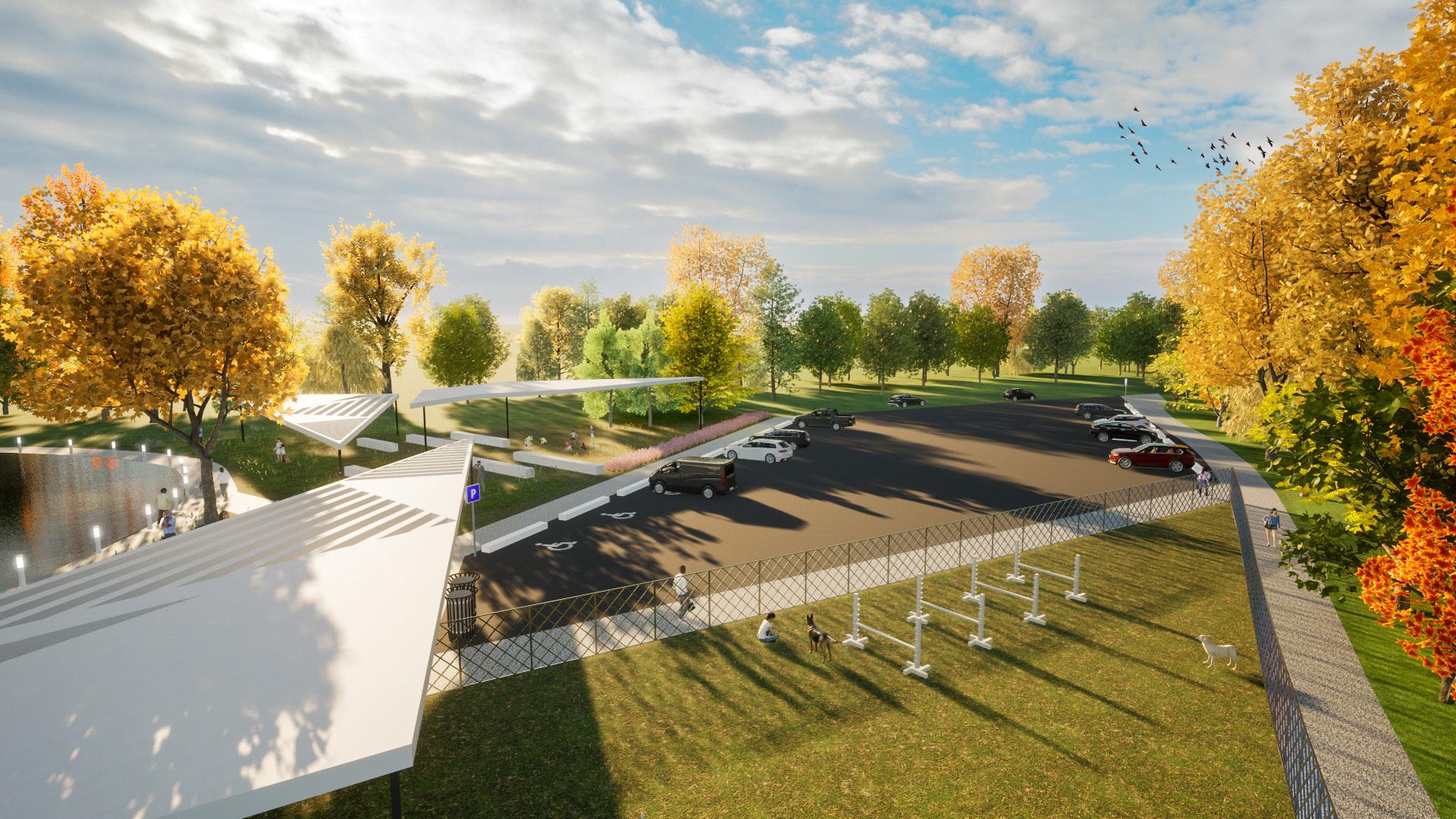

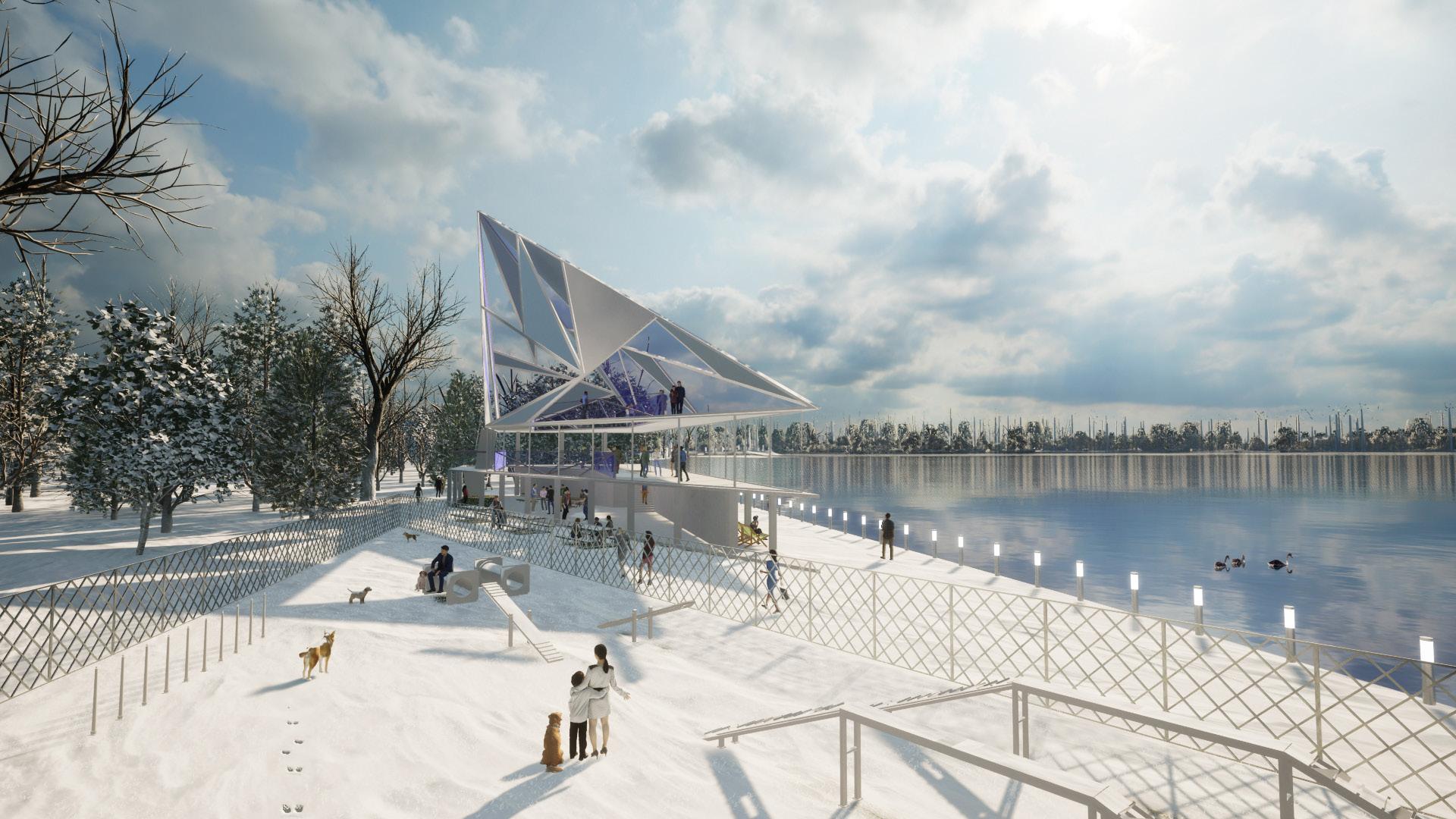

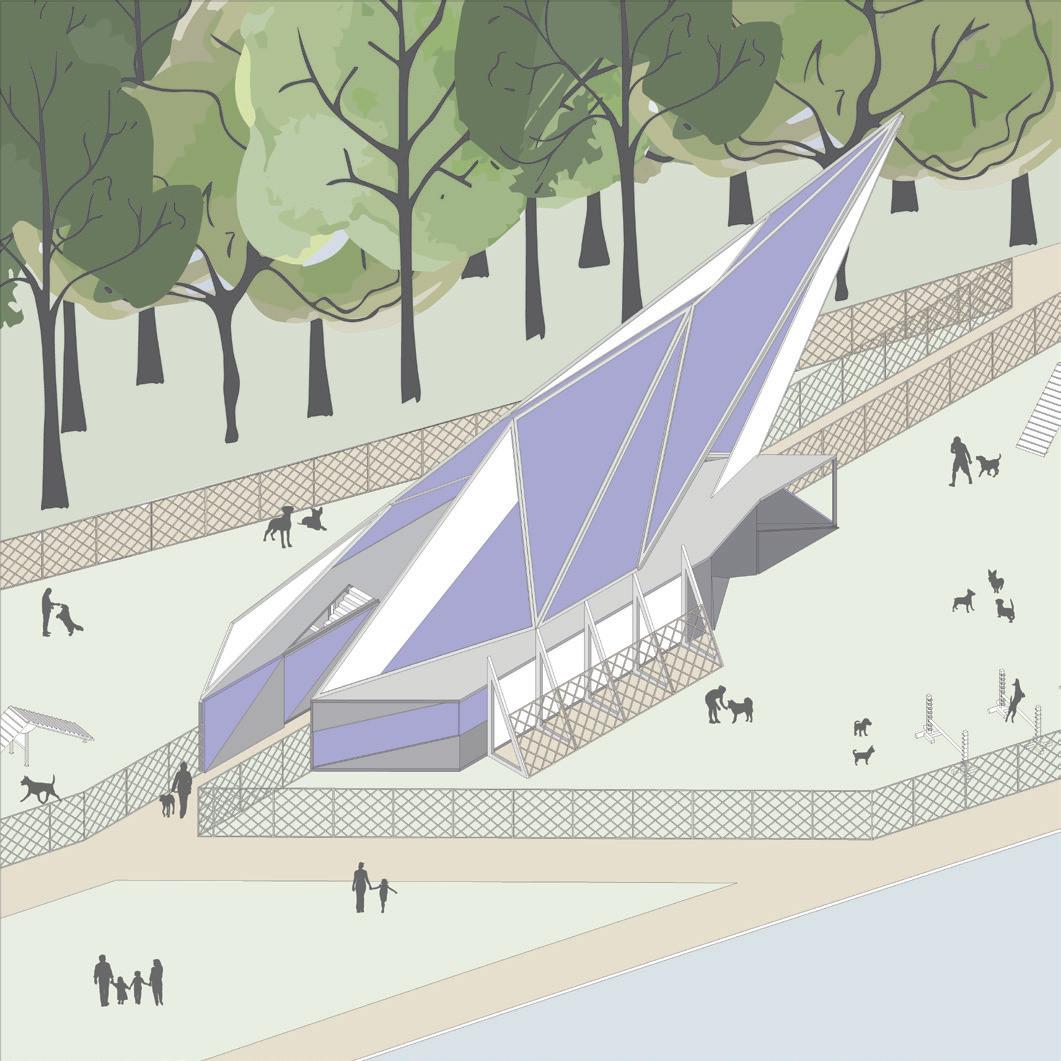

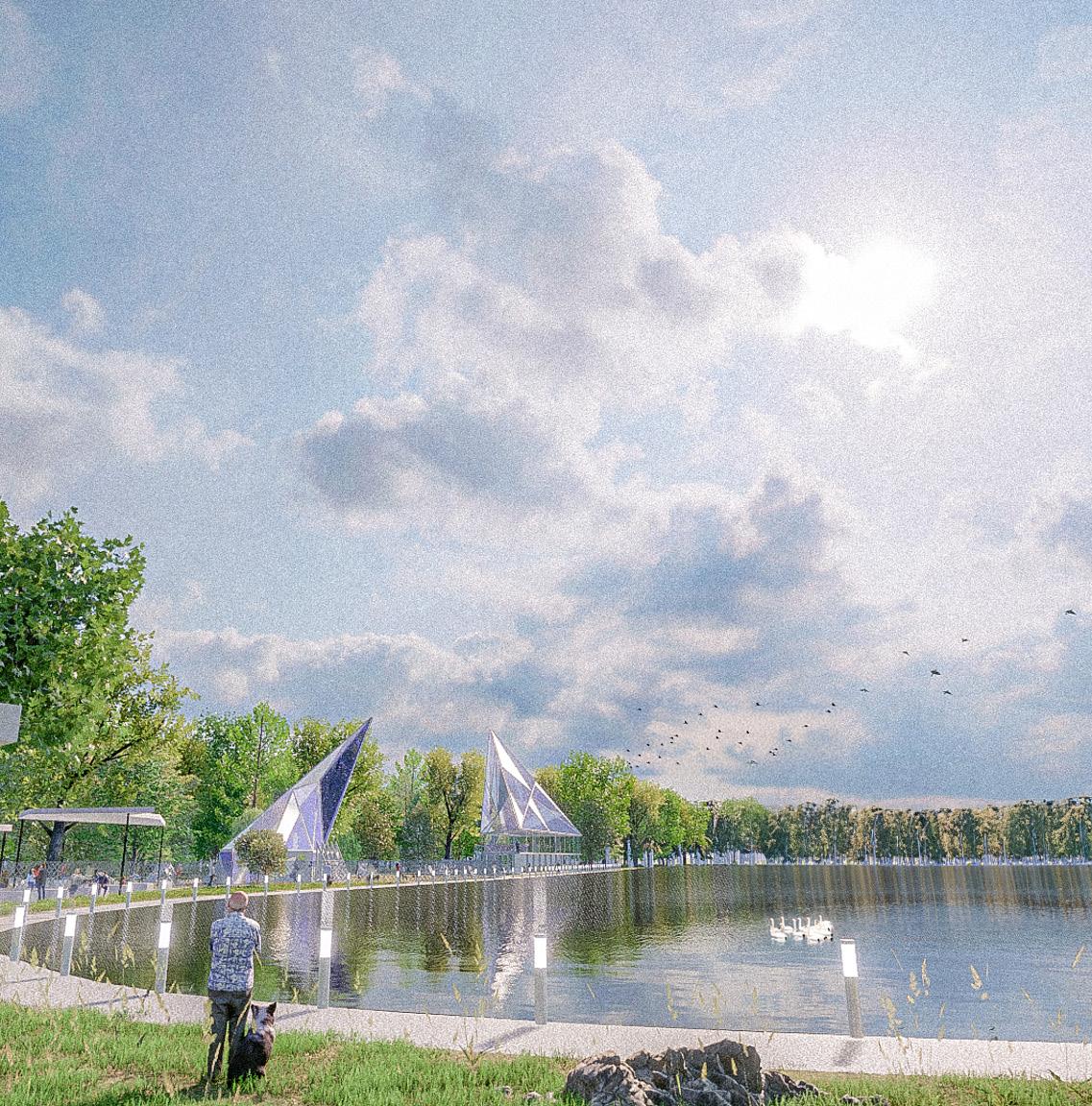

GRIFFY BARK PARK

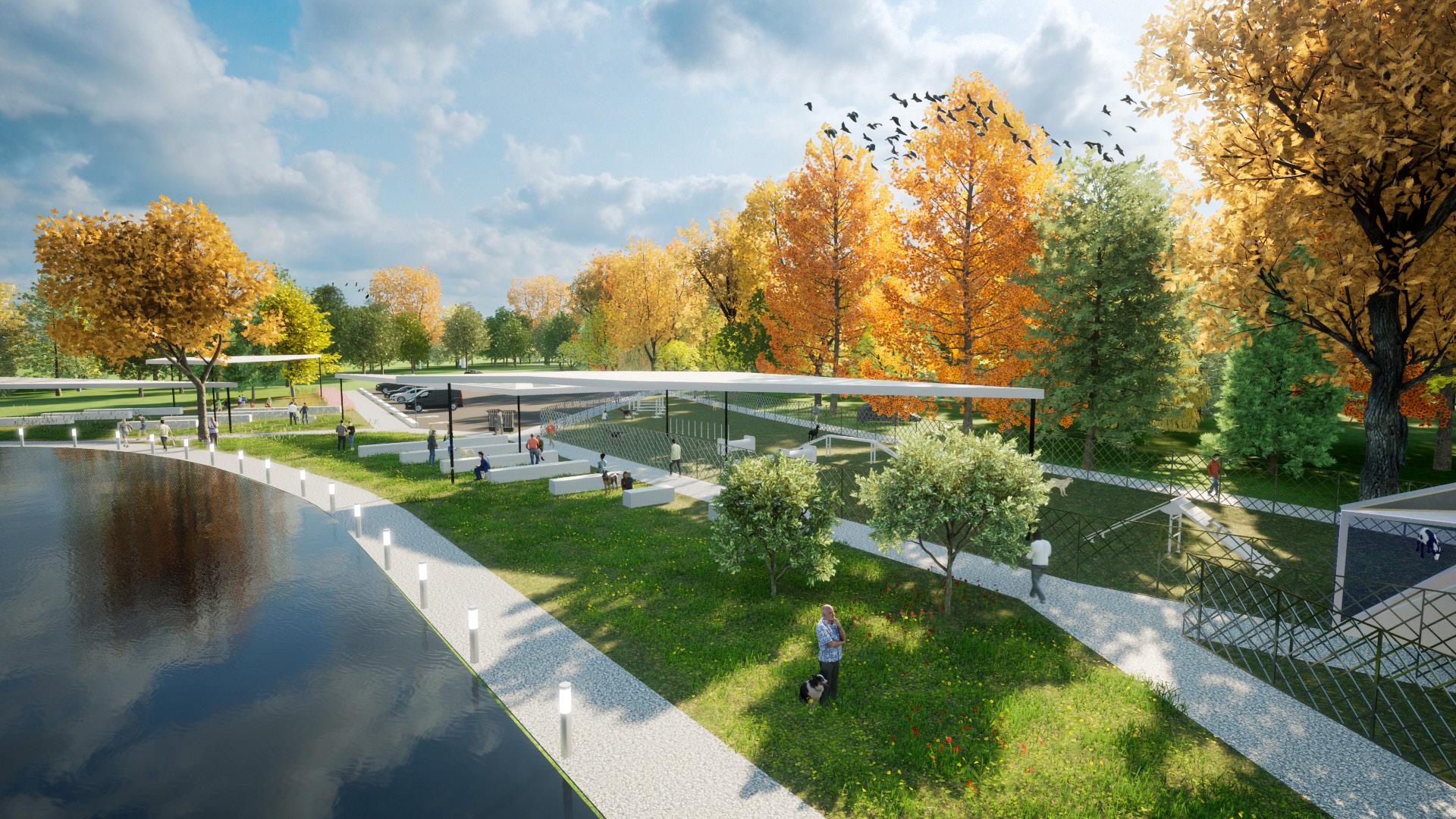

Step in to our vibrant community hub, where a remarkable metamorphisis has taken place. A former boat rental parking lot - into a dynamic and inclusive haven for dogs and their owners alike. Now, nestled within this once-utilitarian space, you’ll find Griffy Bark Park, a bustling and charming oasis at the heart of our neighborhood’s pet-friendly revolution. Here, the air is alive with the sounds of wagging tails and joyful barks, marking the pulse of our community. Griffy Bark Park is open to all, whether you stroll in accompanied by a furry friend or not. Divided into five distinct communities, each tailored to specific needs, there’s something here for everyone. Whether you are seeking a tranquil retreat, an energetic play area for your pet, or the opportunity to meet new people. It is more than just a park. it is where happiness is unleashed.
Mathematical construct that partitions a space into regions based on the closest distance to a specified set of points, serving as a powerful tool for spatial analysis and optimization.
VORONOI DIAGRAM

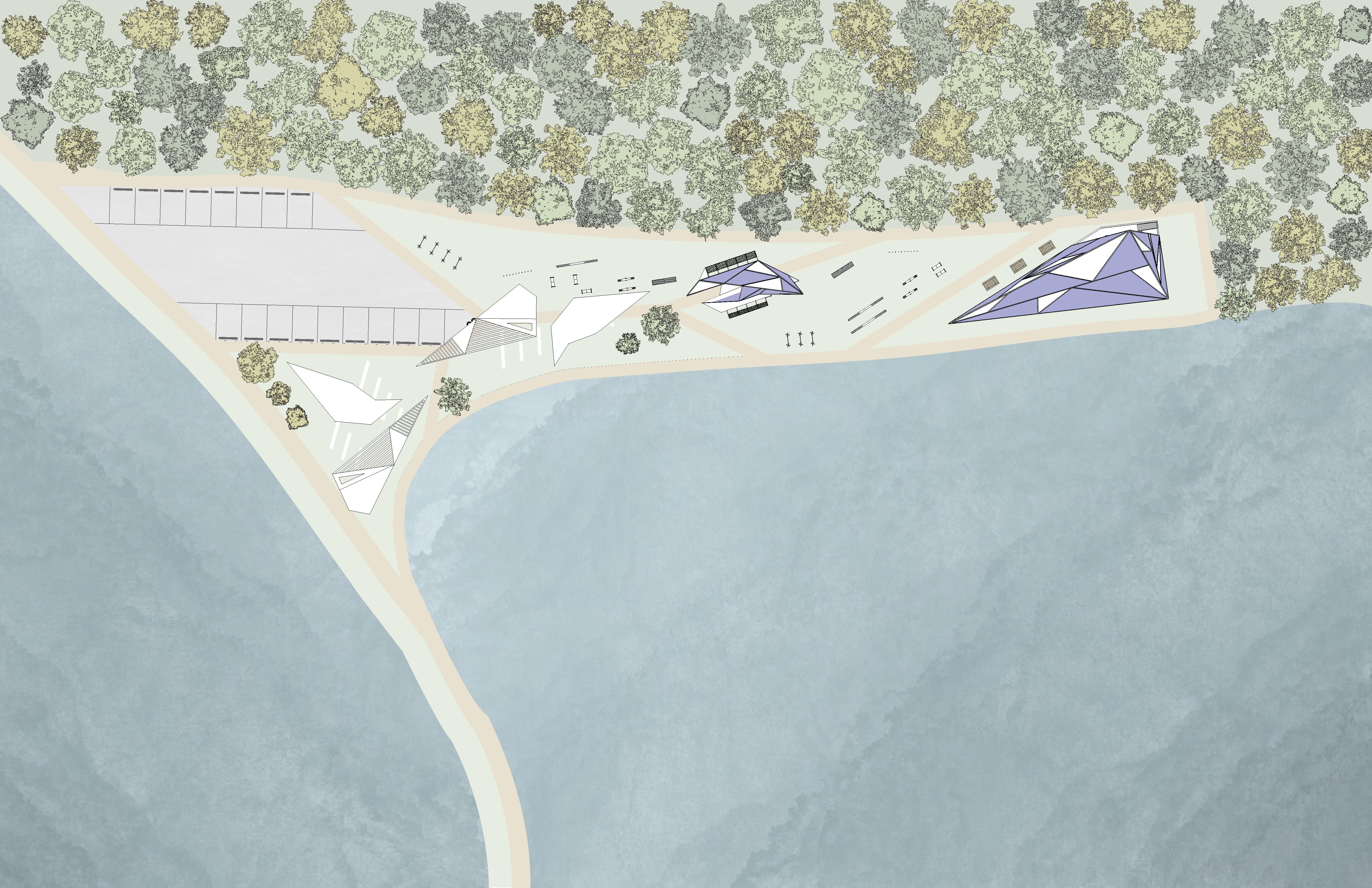

Partitioning designated areas for humans, big dogs, and small dogs. This ensures efficient spatial organization, optimizing the utilization of the park while enhancing safety and comfort for visitors and their pets. 4 5
LEGEND:
OPEN COMMUNITY 1
OPEN COMMUNITY 2
BIG DOG AREA
SMALL DOG AREA
HUMAN AREA

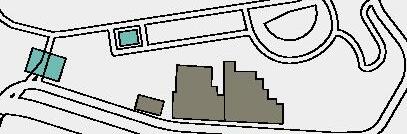

PARKING LOT

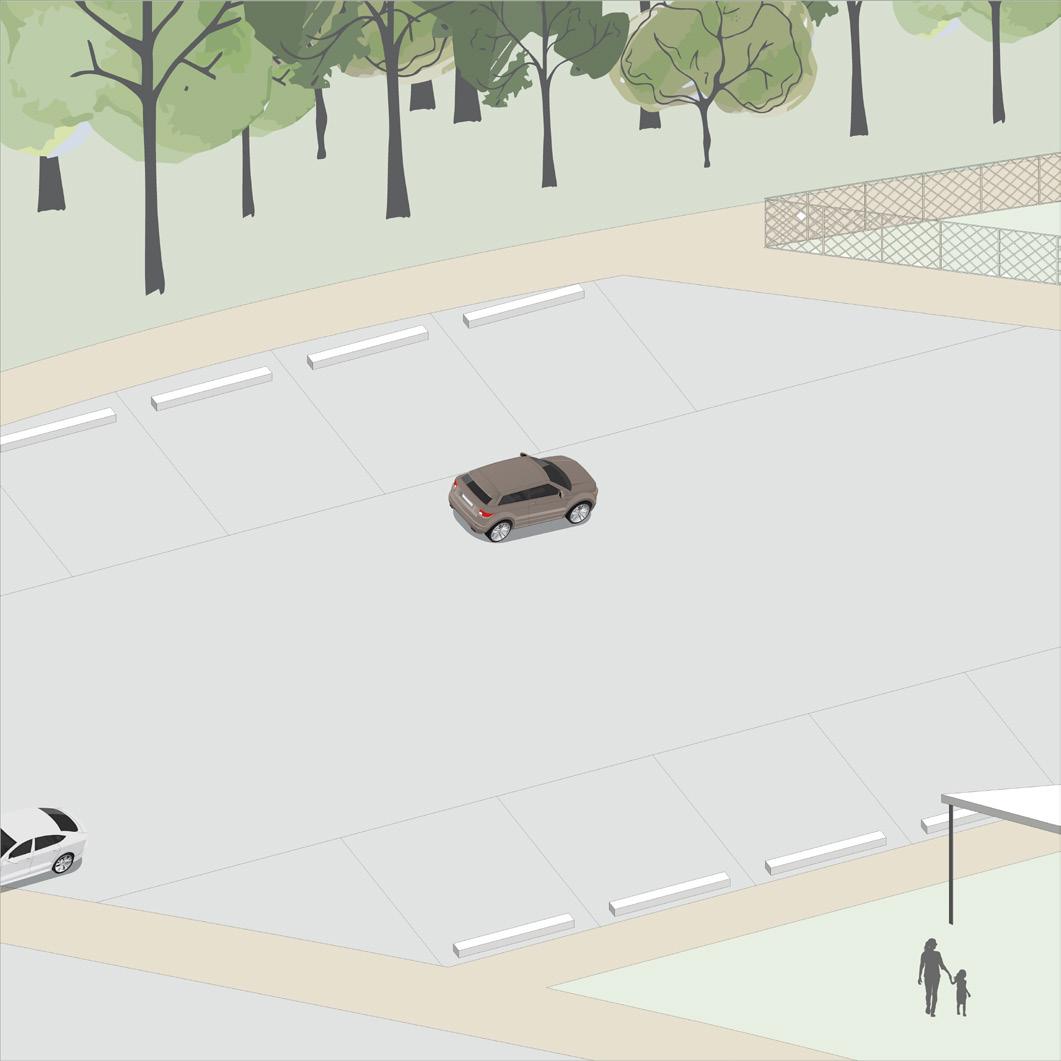

PARKING LOT OPEN COMMUNITY

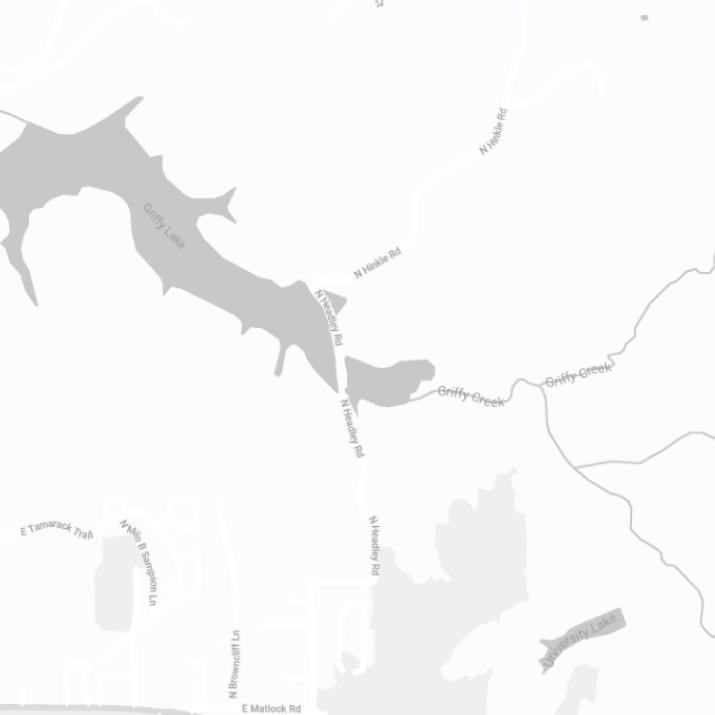

Walking, bicycling, and driving these are the main transportation used by residents who lives near by Griffy lake. Located at the entry of the Griffy Lake. The park provides 10 + 2 (ADA) = 12 free open parking lot for whoever visits the park.

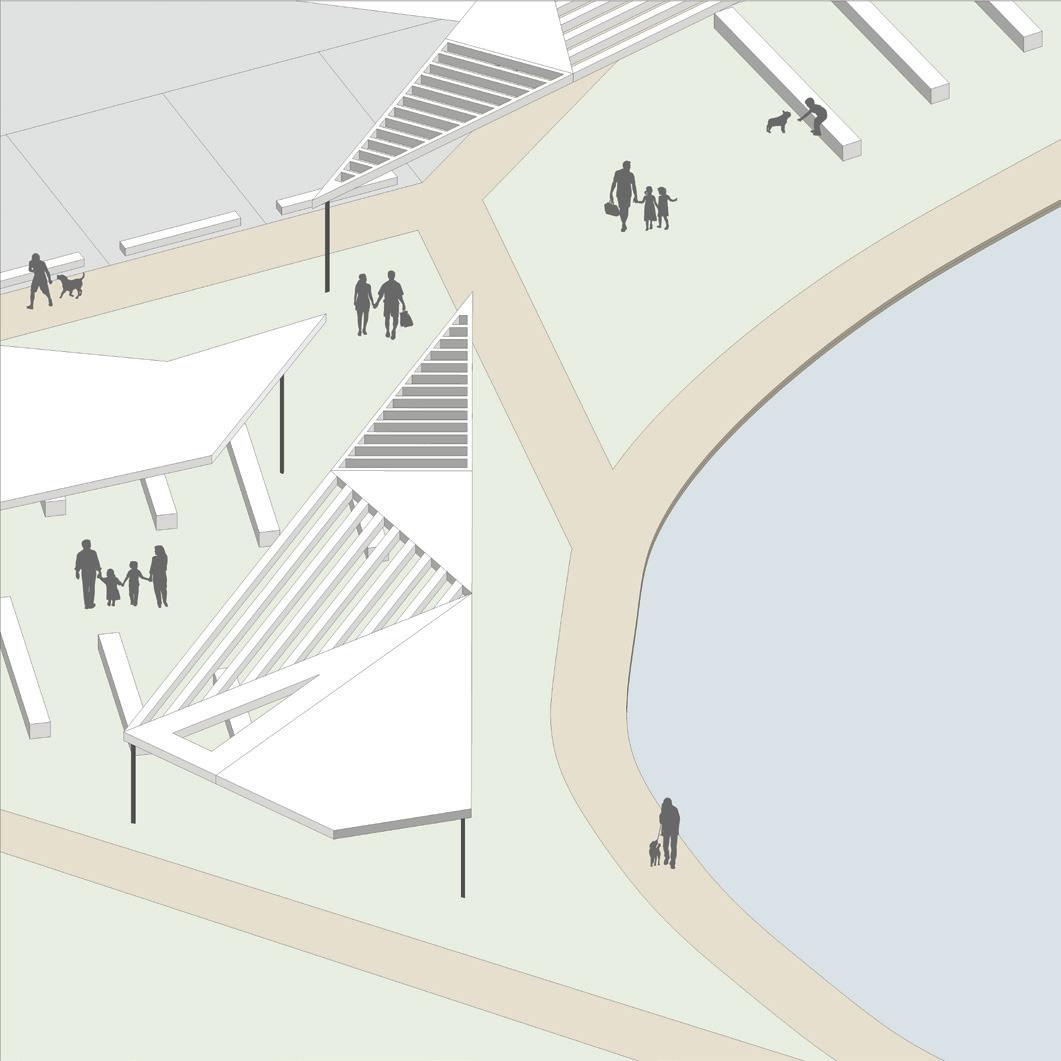

Bark-free open space that promotes harmonious and enjoyable environment for both dog and people. Space encourages social interaction among park visitors and their pets by creating designated places to sit and rest. Griffy Bark Park fosters a shared sense of belonging and camaraderie. This inclusive environment promotes active participation from both dogs and humans, facilitating communication and collaboration that enriches the overall community experience within the park.
DOG COMMUNITY
Dog community is divided into big dog and small dog community. The seperation prevents potential conflicts bewteen dogs of different sizes. Seperating territory depending on the dog size can create stress-free environment for dogs to socilize and play without risk of injury. Providing dedicated spaces tailored to the specific needs and behavior of size category can enhance the overall usability of the park.
HUMAN COMMUNITY
Designated space offers individuals a tranquil environment where they can relax, unwind, and engage in activities without the presence of dogs. Catered for those who may prefer a quieter setting or have concerns about interacting with pets. This area accommodate amenities such as seating areas, picnic spots, or recreational facilities, further enhancing the park’s multifunctional community space suitable for a diverse range of activities and preferences.

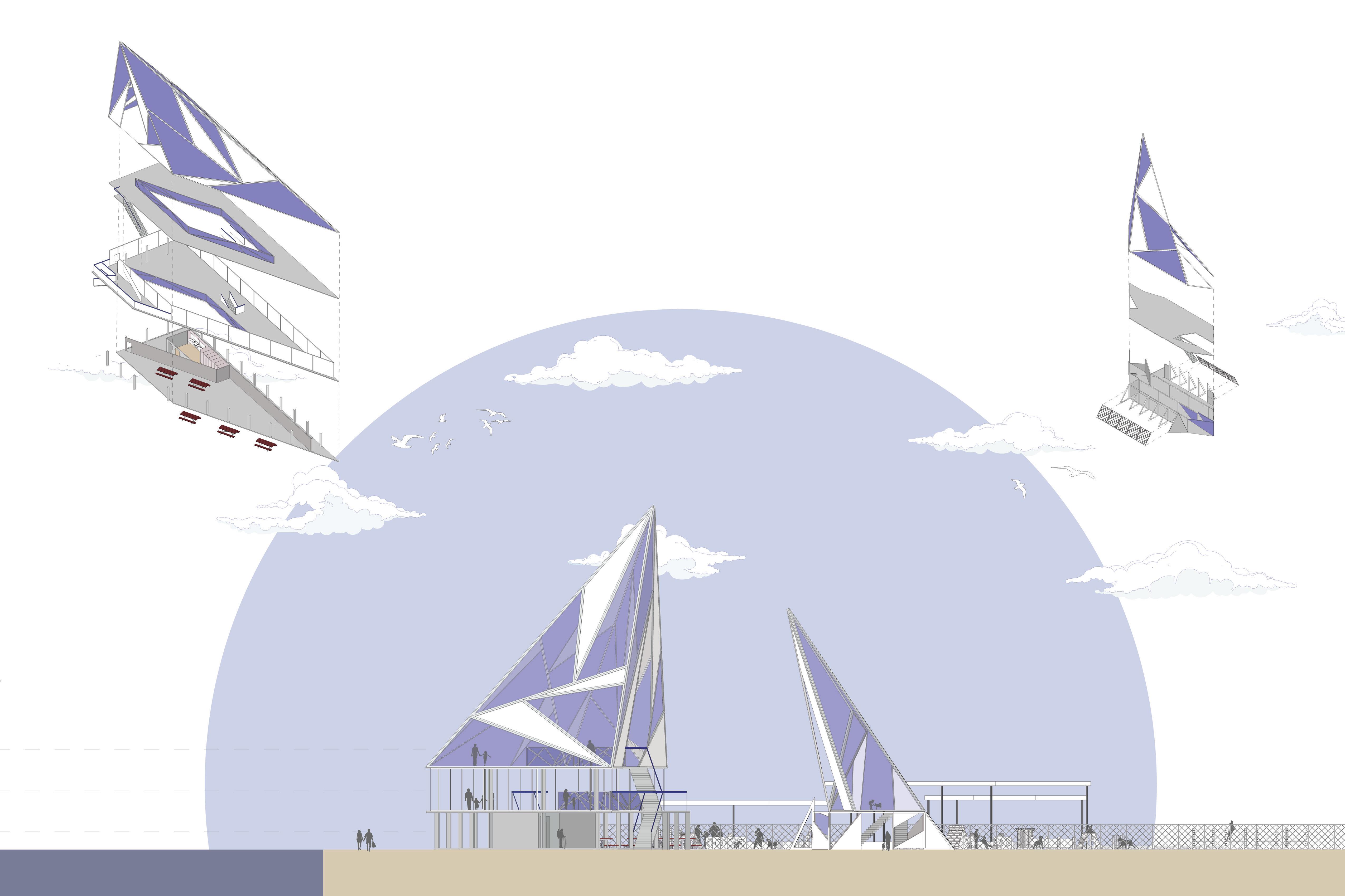

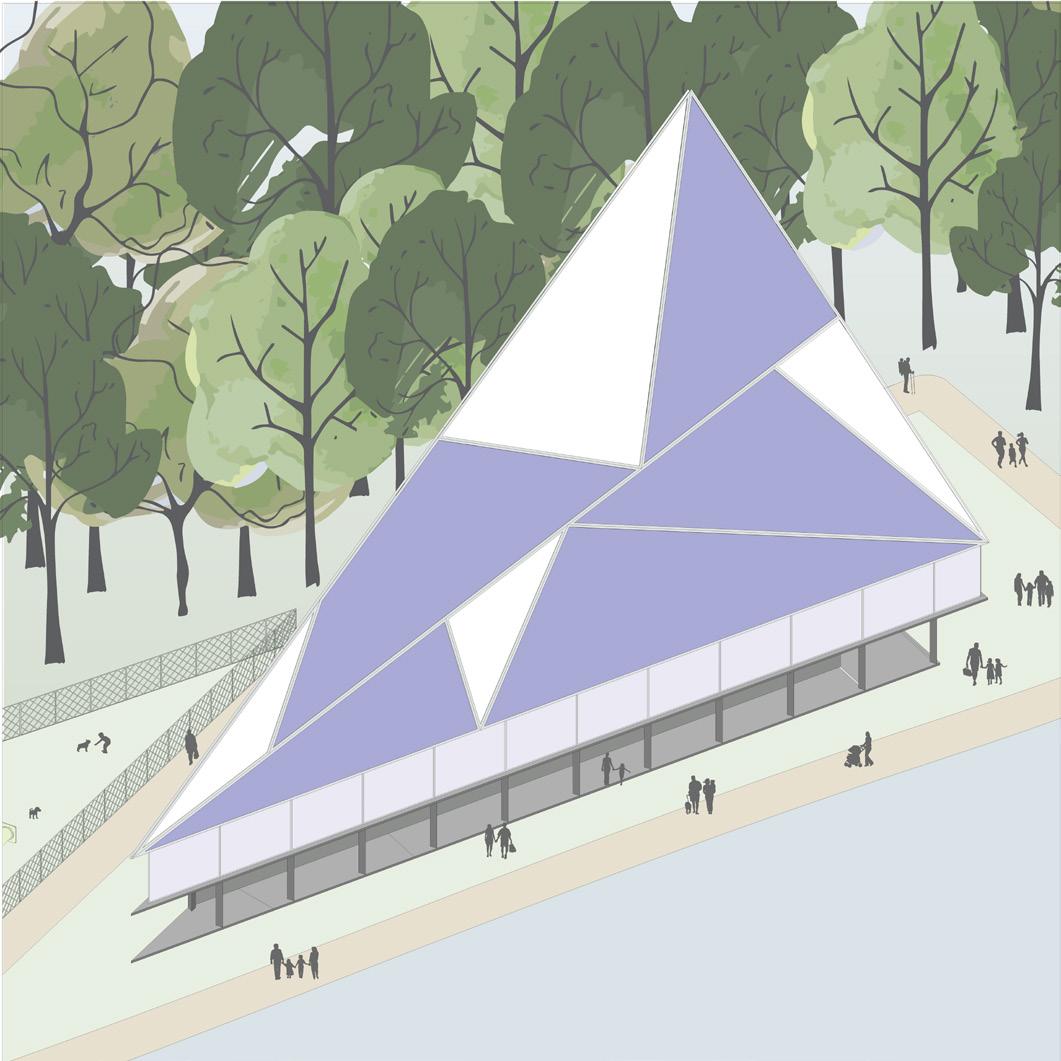

Human area is dedicated for humans only. Seperated away from the dog community this space focuses on providing comfortable social area with place to sit and rest for visitors. First floor is an open sitting area, wide open lake view with harmony of dogs and human community can be seen from this floor. Social area and relaxing area provides the whole view of the park.
Sitting Area Lake View
Bathroom
Social Area
Relaxing Area Roof
DOG COMMUNITY
Main waiting area is divided into two areas. Each sides are dedicated for difference sizes of dogs. Before dogs get to join the caged community. Each dog has to sit inside the cage to get ready to socialize with the dog others. While the cage is down it allows each dogs to smell and obeserve around inside the park and get used to the environment before they join the community.
Waiting Area
Relaxing Area Roof
SPRING
FALL
Indiana University in Bloomington Fall 2023
Macau, China

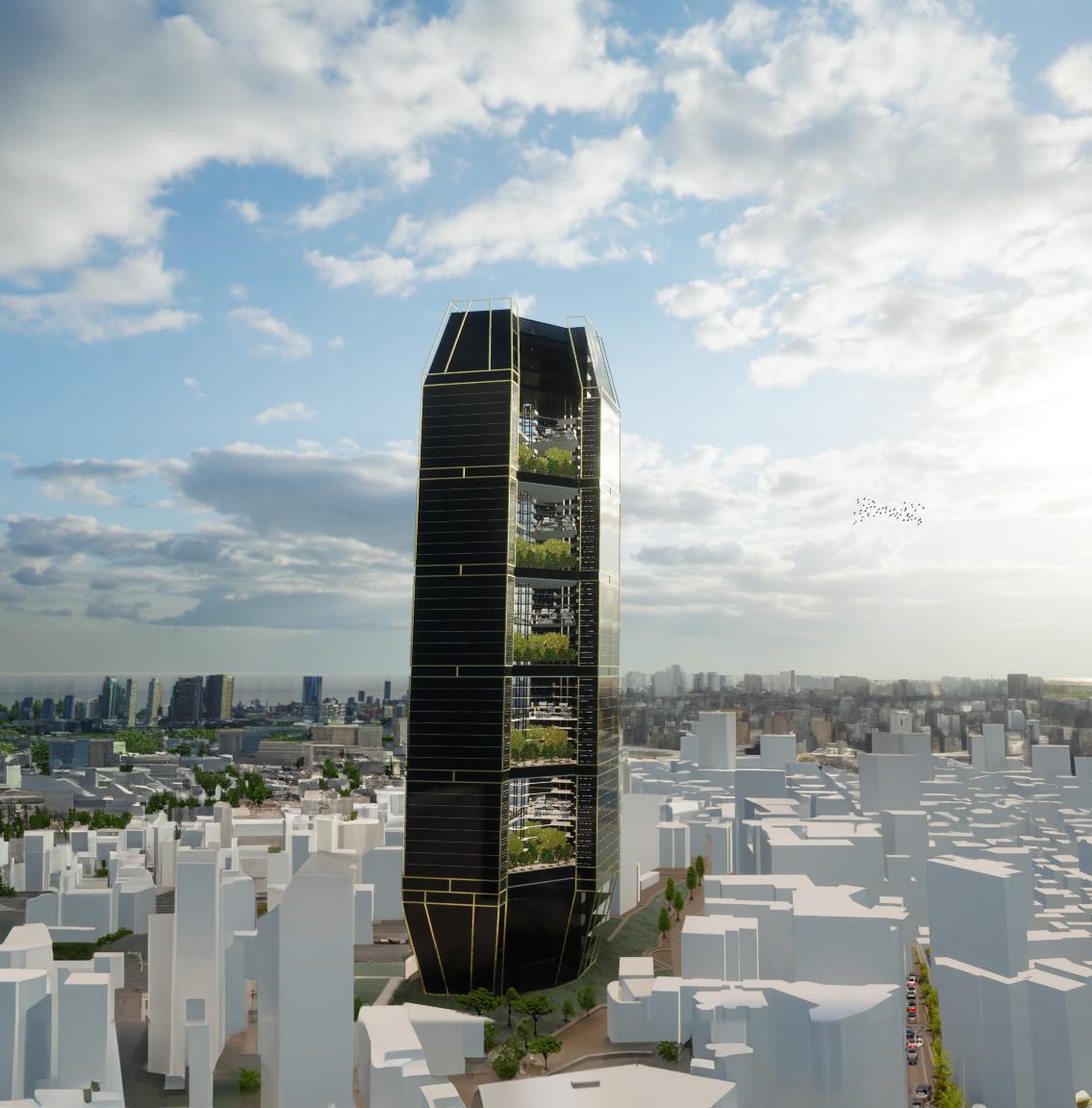

THE HIVE | MACAU
Monte Carlo of the East, Macau thrives predominantly on gambling and tourism, constituting over 50% of its economy. In a city where fortunes are won and lost with the turn of a card, “The Hive” deals a different hand — one of opportunity and empowerment. A visionary solution to Macau’s housing crisis and employment challenges. Nestled amidst the busy streets of Macau, “The Hive” stands tall as a beacon of innovation, offering high-rise living with unparalleled standards. Designed for local young adults, this prefabricated marvel combines affordability with spaciousness, addressing the pressing need for accessible housing. Comprising pods are interlocked to form a towering neighborhood, with sprawling green space in the center, “The Hive” redefines urban living. Beyond mere accommodation, this vibrant community integrates commercial and residential zones, fostering a dynamic environment where residents can live, work, and thrive.

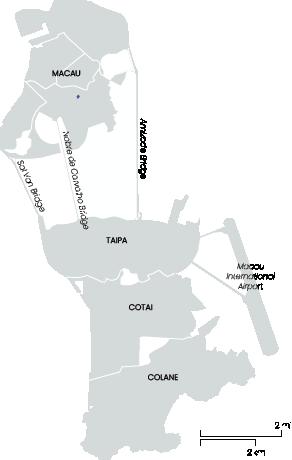

Reclaimed Island

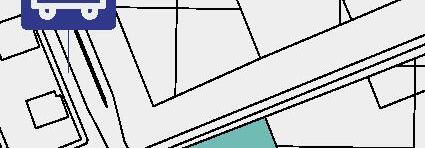

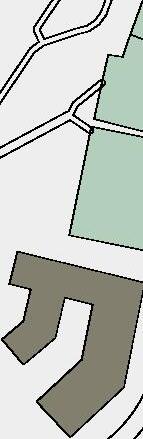

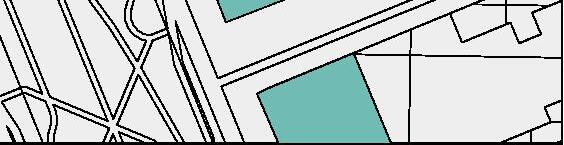

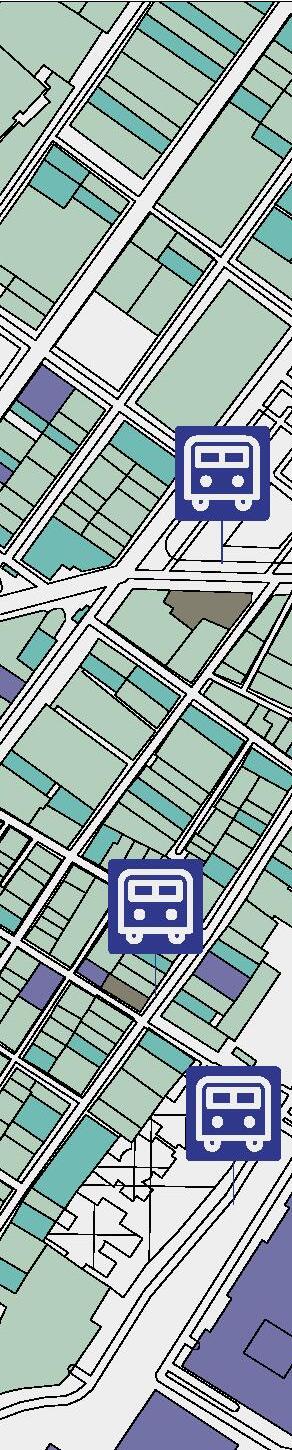

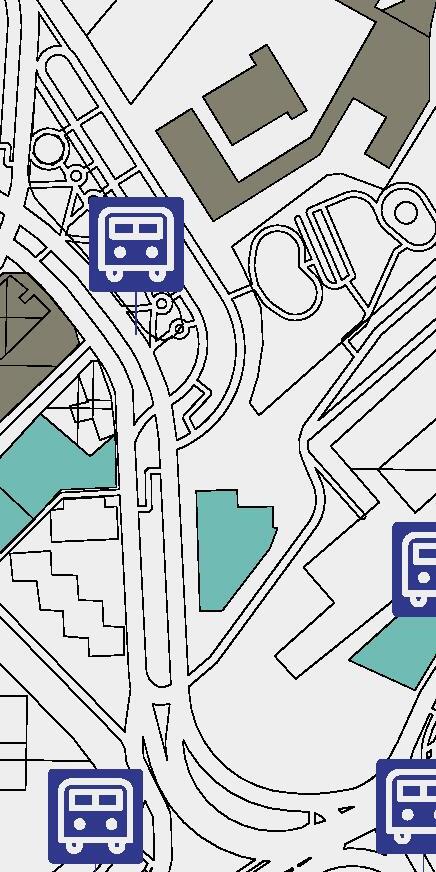

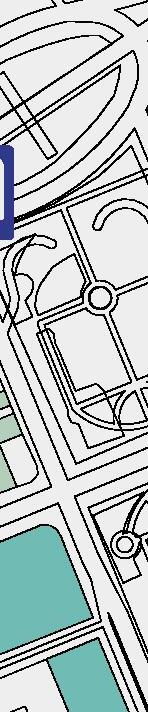

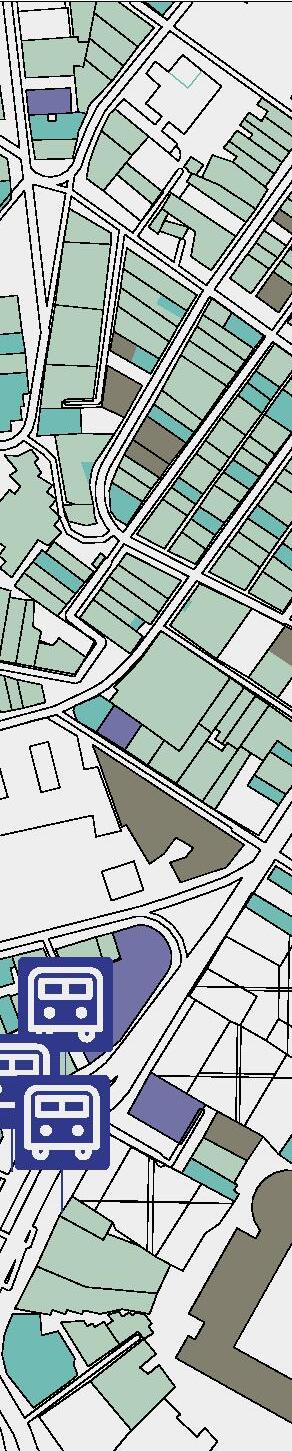

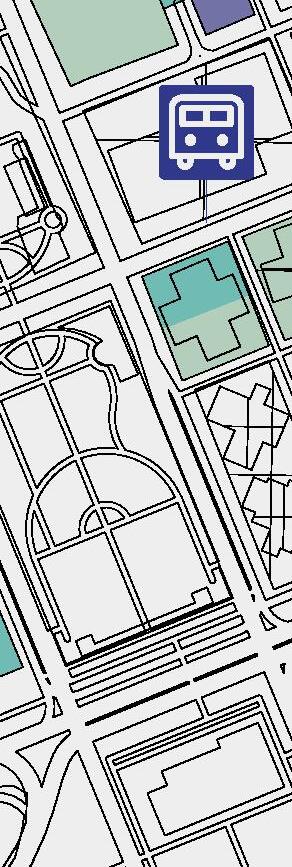

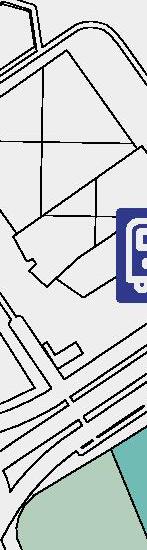

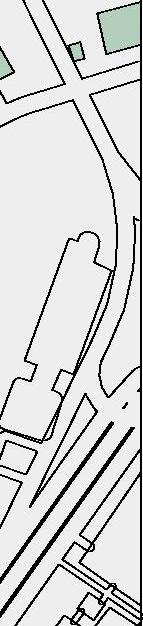

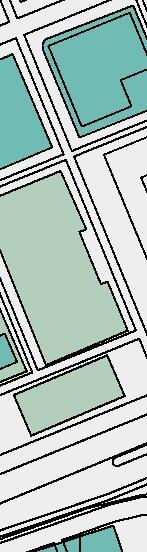

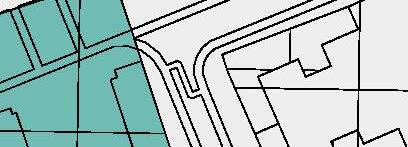

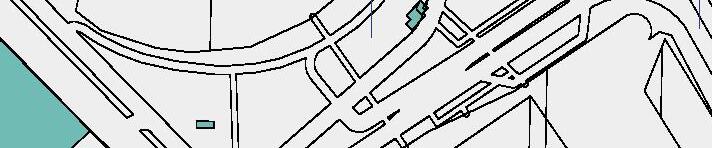

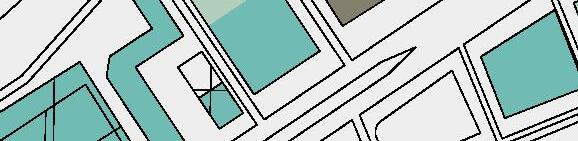

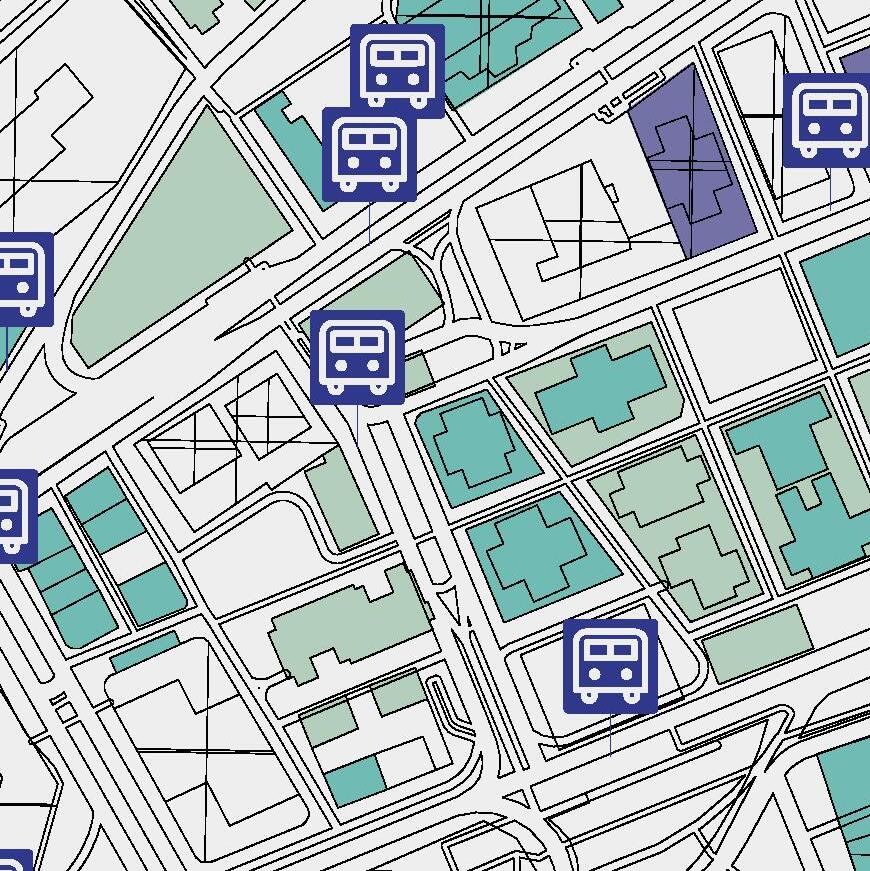

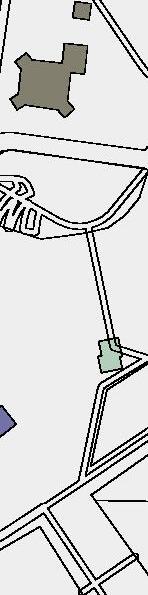

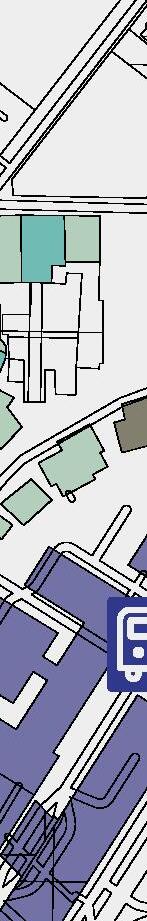

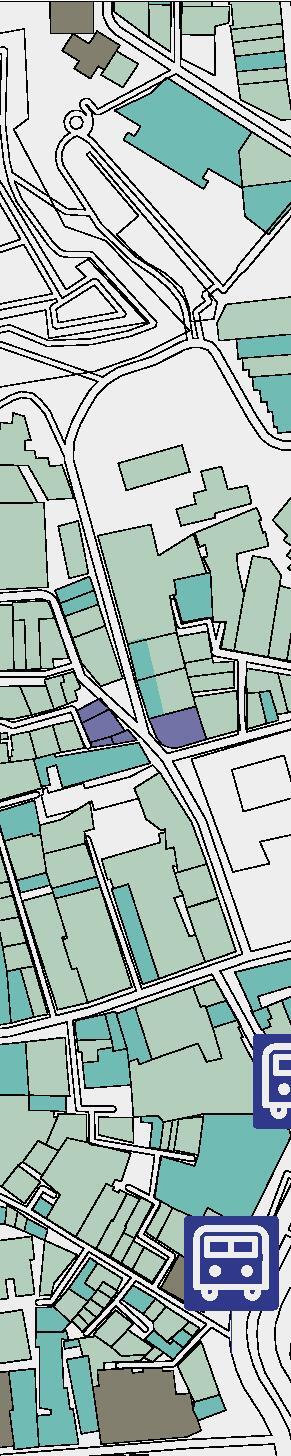

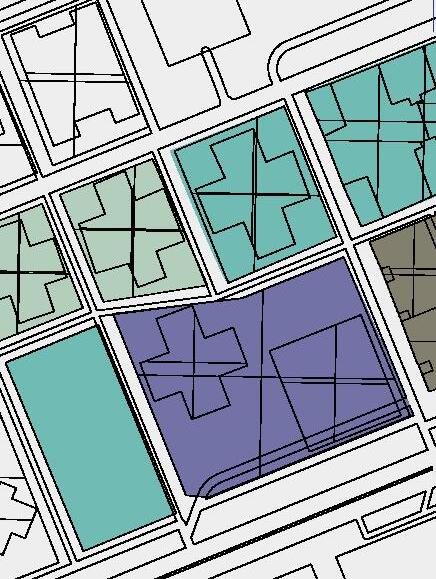

SITE PLAN

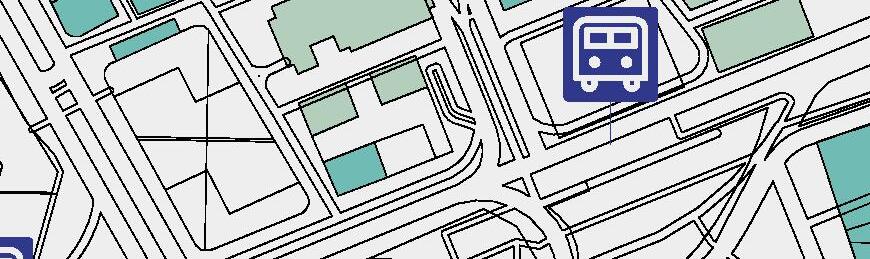

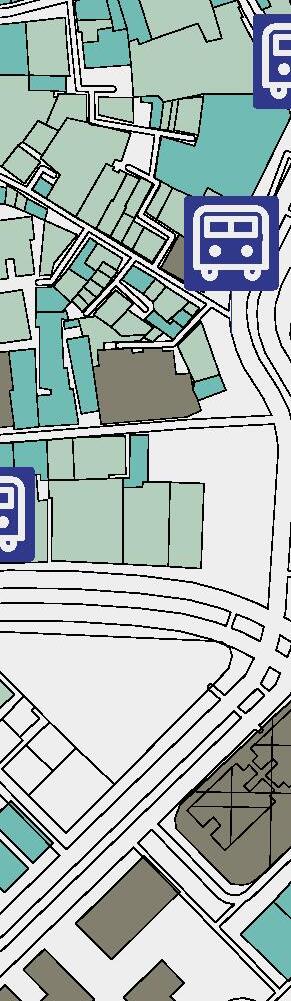

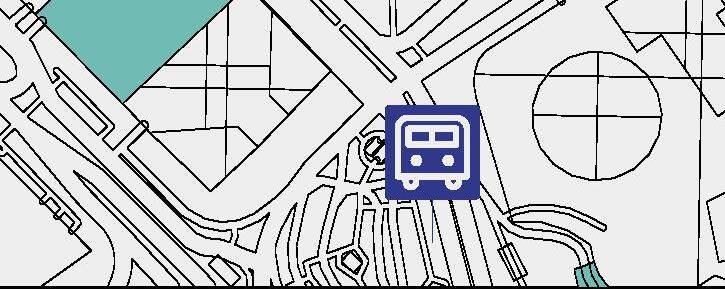

PUBLIC TRANSPORTATION
MARKET / FOOD PRODUCTION
RESIDENTIAL AREA
EDUCATION
HEALTH
FOOD STAND
Stand dedicated for store or grocery supply and daily life convenience. Each section of the neighborhood has distinct food stands catering to a variety of culinary preferences, ensuring residents have convenient access to fresh produce and household essentials.

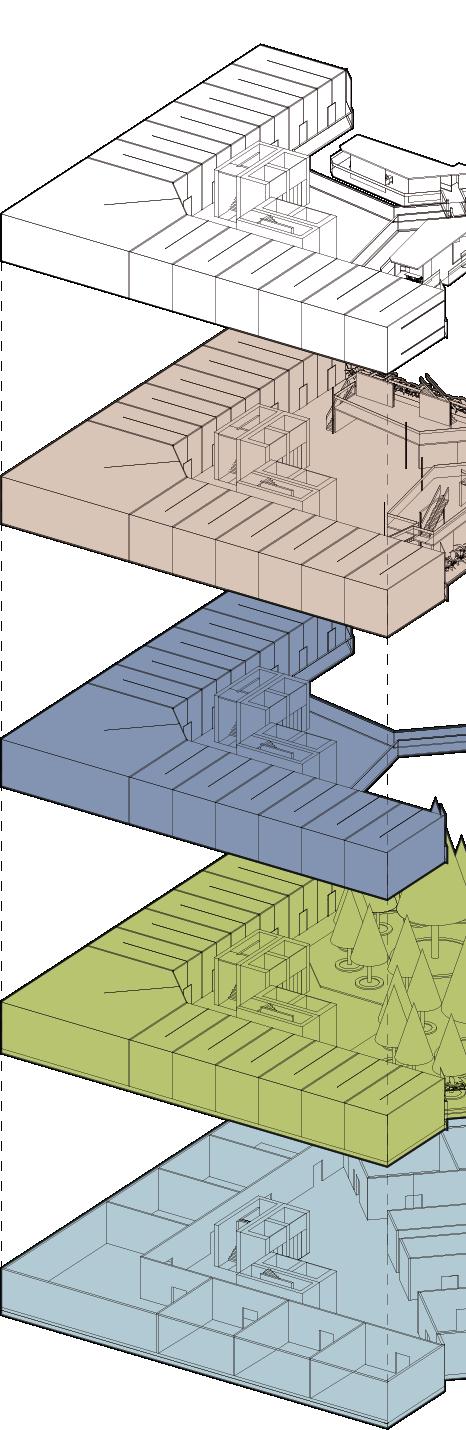

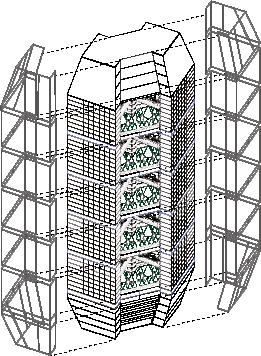

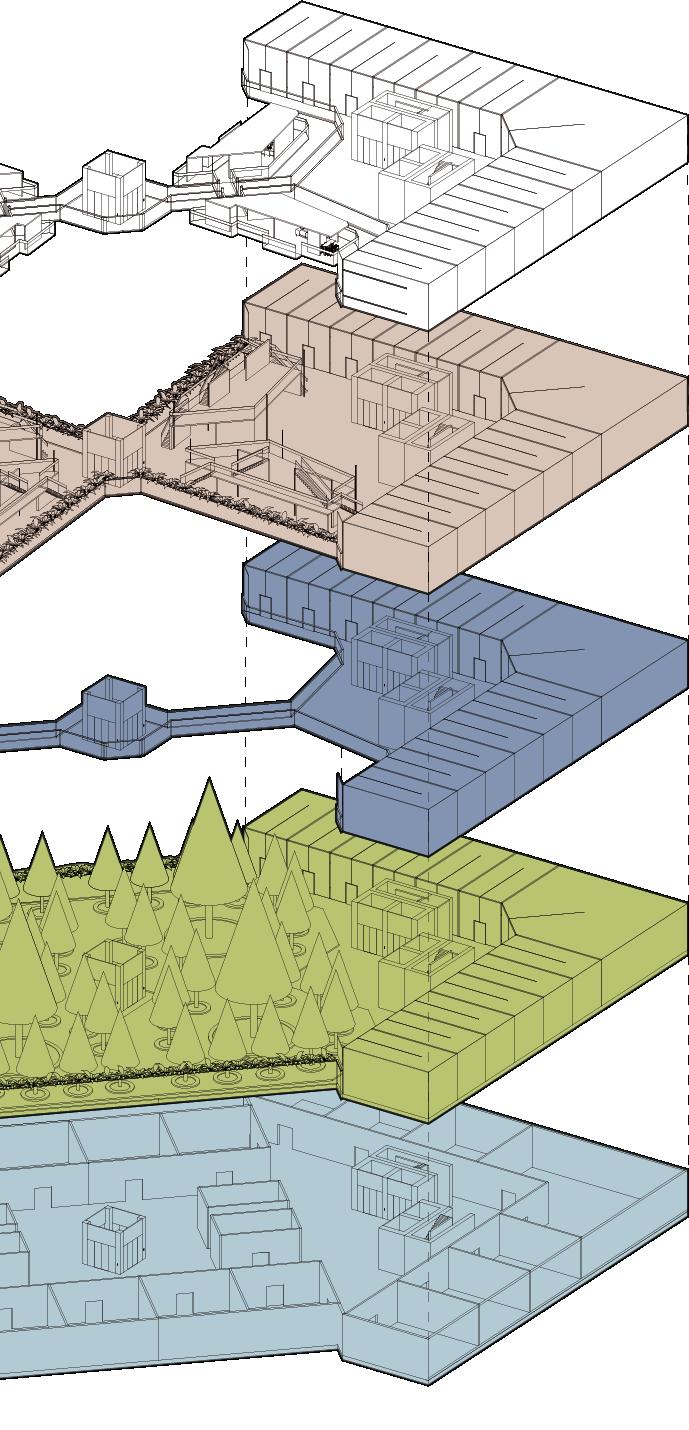

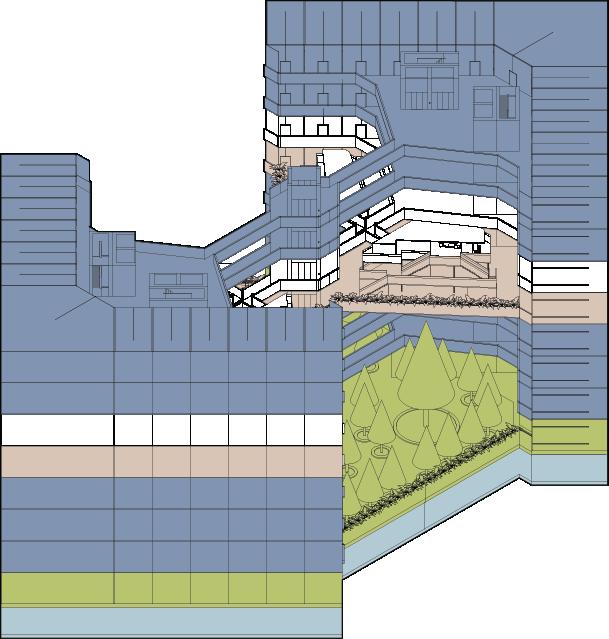

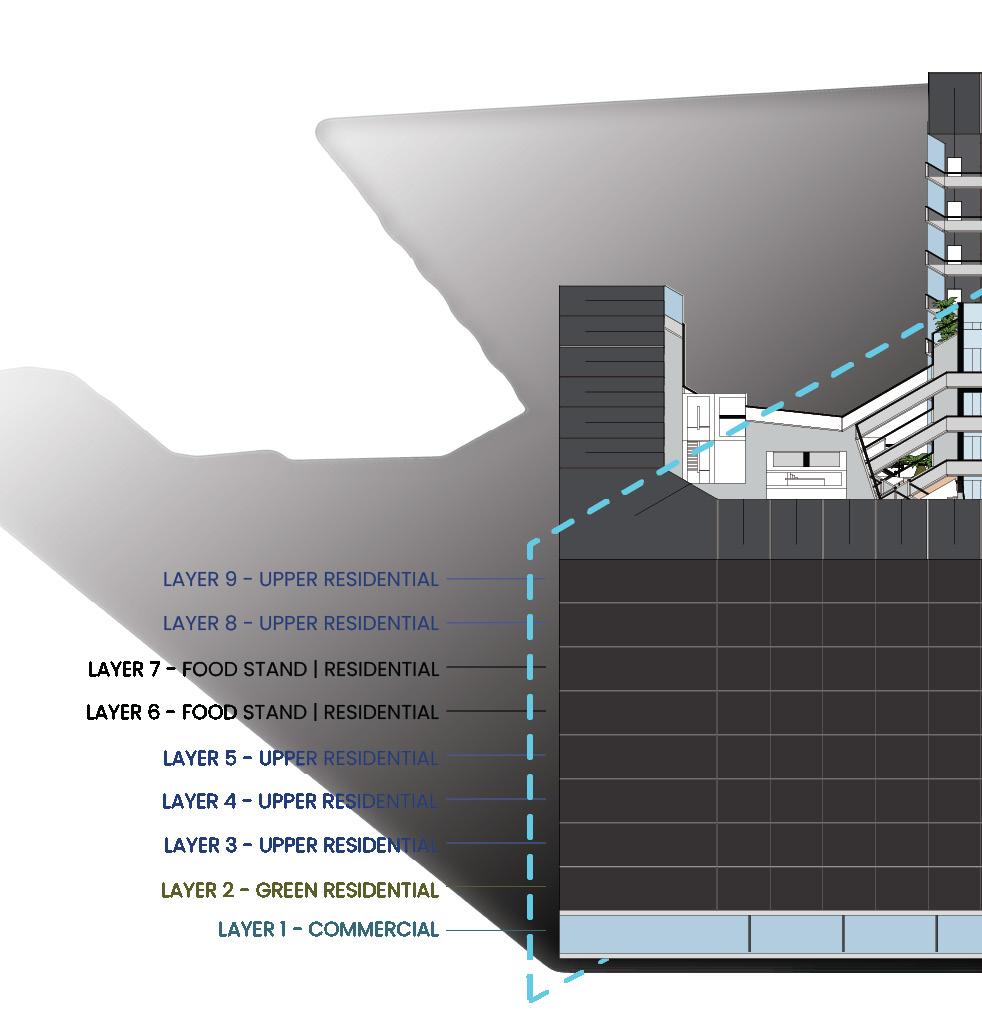

*This axonometric view represents layer composition of every residential sections.
Sections supported by structural skeletal frame for stability and weight distribution
RESIDENTIAL PLAN / FOOD STAND (2F)
Occupied with restaurant, convenience store, grocery store, and etc. Food stand that mainly provides meal to the residents.
RESIDENTIAL PLAN / FOOD STAND (1F)
Cafe, bakery, convenience store, grocery store, restaurant, etc. Residential layer with food stand located for fast food grab or access.
UPPER RESIDENTIAL PLAN
Upper layer devoted for residential plan. Placed between food stand - green area.

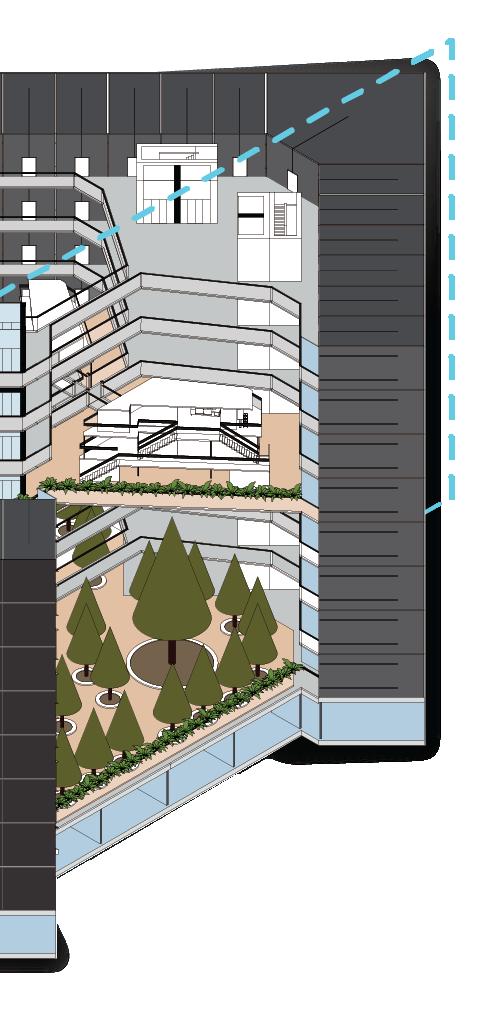

RESIDENTIAL PLAN / GREEN AREA
Heart of the Hive, public space that provides greenary to the whole neighboring section.
COMMERCIAL PLAN
Representation of every commercial plans in the Hive. This layer is used as retail stores and commercial space within the Hive.
Level 1
Level 2
Water tank
Battery
Balcony / Garden
Bedroom
Living Room
Bathroom Kitchen
Level 1 Battery
Bathroom Room
Laundry Room
Storage Room
Balcony / Garden Water tank
Level 2
Indiana University in Bloomington Fall 2022

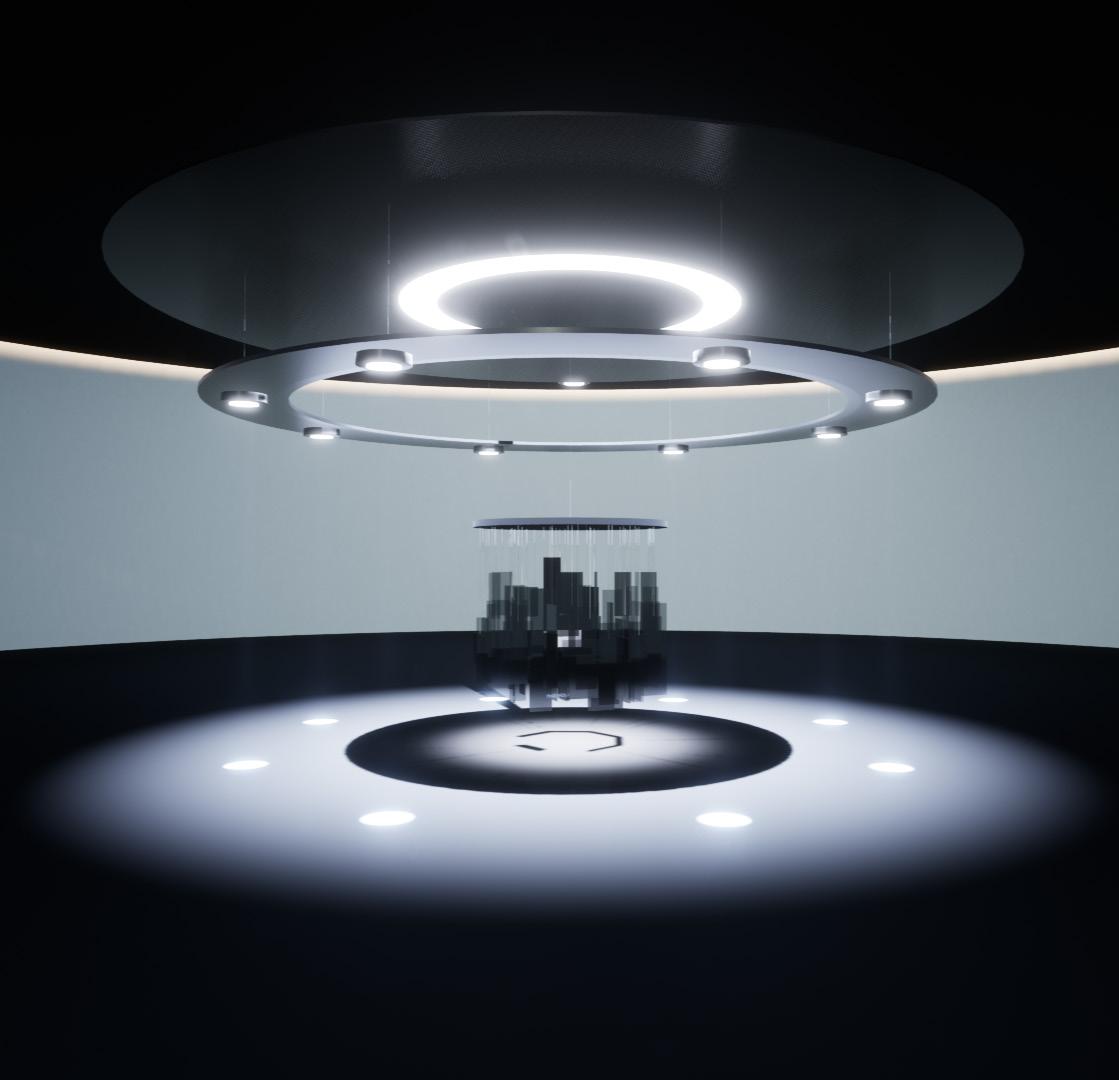

EXHIBITION RAIN
When it is gently raining outside, sometimes it can be hard to notice the rain streaks. Rain can be powerful enough to impair our visions, create traffic , and impact our environment in many different ways. As rain streak can be unnoticeable when they are weak but also have a prevalent effect on us. Just like pollution, we were inane and ignorant about nature in the past. We have destroyed our own environment to the point; where we now have to go out and seek for nature. In this exhibition, audience will be guided through the glass maze.
3’
0’
6’
9’
13’
OPACITY OF EACH FROSTED GLASS
TOP VIEW OF EXHIBITION
Circulation
Glass Panel
Glass Panel Above 7’
Axonometric Drawings
LAYER 3 | 100%
LAYER 2 | 70%
LAYER 1 | 20%
Layer 1 was designed to allow children below 14 years old to freely pass through the outer layer.
Darkness of each layer represents the pollution rate and visualizes how far we have strayed away from practicing sustainability.

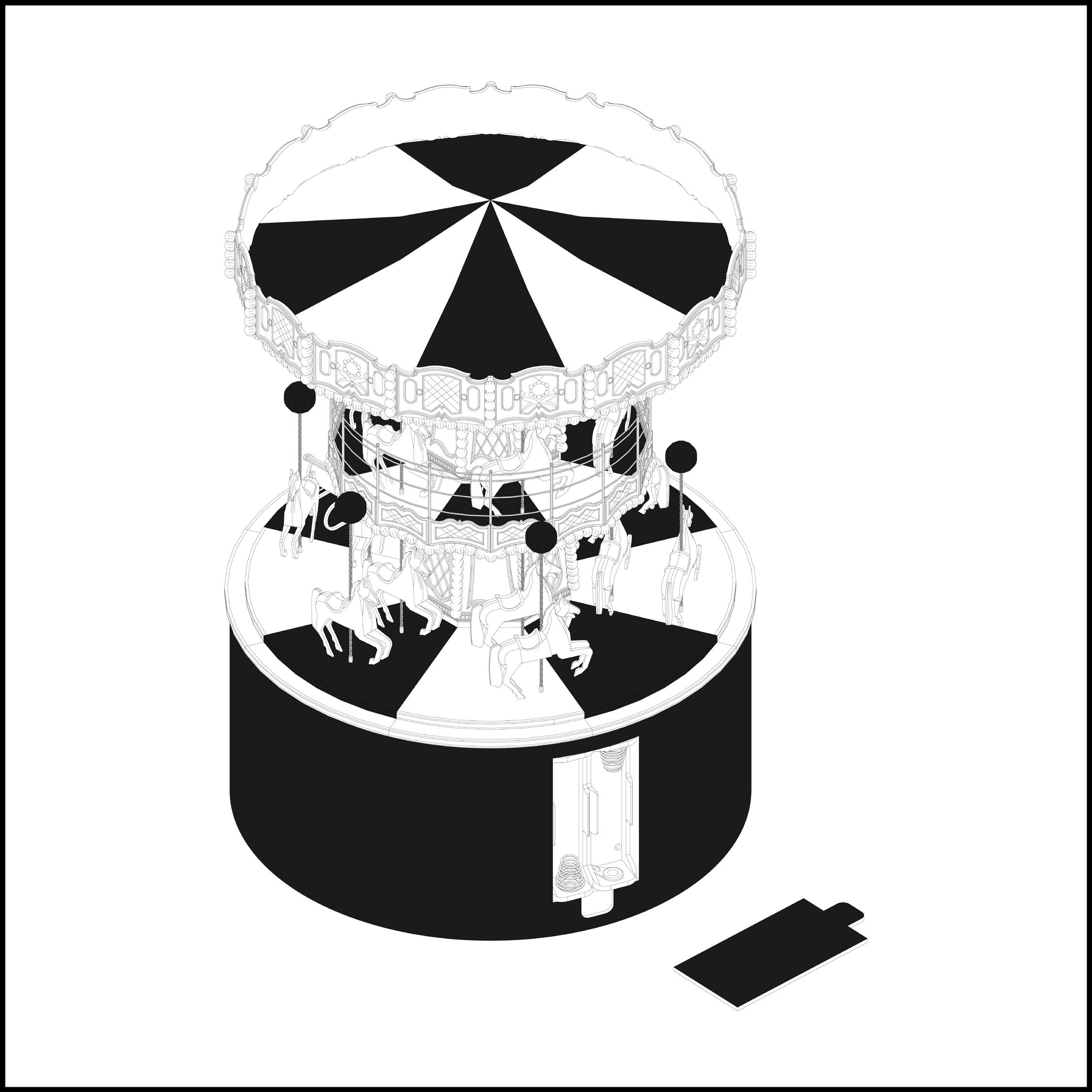

SADNESS | BATTERY
Can you live without your phone for a 3 days? Technological development brought digital entertainment into our lives. Internet, Smart Phones, and to the point creating a whole new reality of our own: Virtual Reality. Convenience and joy of the technology created over reliance on electronic entertainment for younger generations. Absence of outdoor play and the decline of genuine human interactions, we are already living in a digital world.
Indiana University in Bloomington Fall 2022
Exhibition Rain
AXONOMETRIC DRAWINGS
The following presented ‘axonometries‘ form a story of the degradation of natural environment resultant from our collective unawareness. Through the lense of the five primary emotions - sadness, fear, anger, disgust, and frustration - are explored to showcase the emotional experience of humanity’s role in the ongoing degradation of our planet.
FEAR | PERSPECTIVE
Unlike bees, hornets can sting mutiple times with precision. Hornet poison contains neurotoxins and histamine that can trigger severe allergic reactions in people. If the symptoms is severe it is mandatory to seek medical attention. Humans tend to associate emotion with obejcts. We provide meanings and defintion to things and associate with physical and emotional comfort provided in the situation.
ANGER | DEER FAMILY
When I was 12, my cousin used to own a deer farm in the forest. I made quick friends with the deer family as I was allowed to feed them ocasionally. Everytime I visited them I was able to feel the gesture of them opening up to me gradually. I learned that they are intelligent creatures that felt and communicate just like humans. After few years, trees were chopped down and the deer family never showed up again.
DISGUST | 5 MINUTE MEGA CRUNCH
Fat, crusty, and juicy. Full-sized cockroach with pickled centipede salad. Taste the mesmerizing juiciness of our organic vegitable fed roaches. Disgusted? Insects are being consumed by about two billion people around the globe. About a a quarter of the world population practices entomophagy (eating insects). As the global population exponentially grows every year, food scarcity has been worsening. Insect is known to be the alternative protein source as they contain 35% ~ 60% of their body weight.
FRUSTRATION | IDENTITY
Do you travel around the world a lot? Different places around the world uses different voltages and currents. Depending on the voltage if you want to charge your electronic devices, it is important to have a voltage convertor or even the chrager with the equivalent voltage. It is essential to have either of those items with you, when you are traveling to somewhere with different outlet.
Indiana University in Bloomington Fall 2022
Exhibition Rain
SPECULATIVE DESIGN

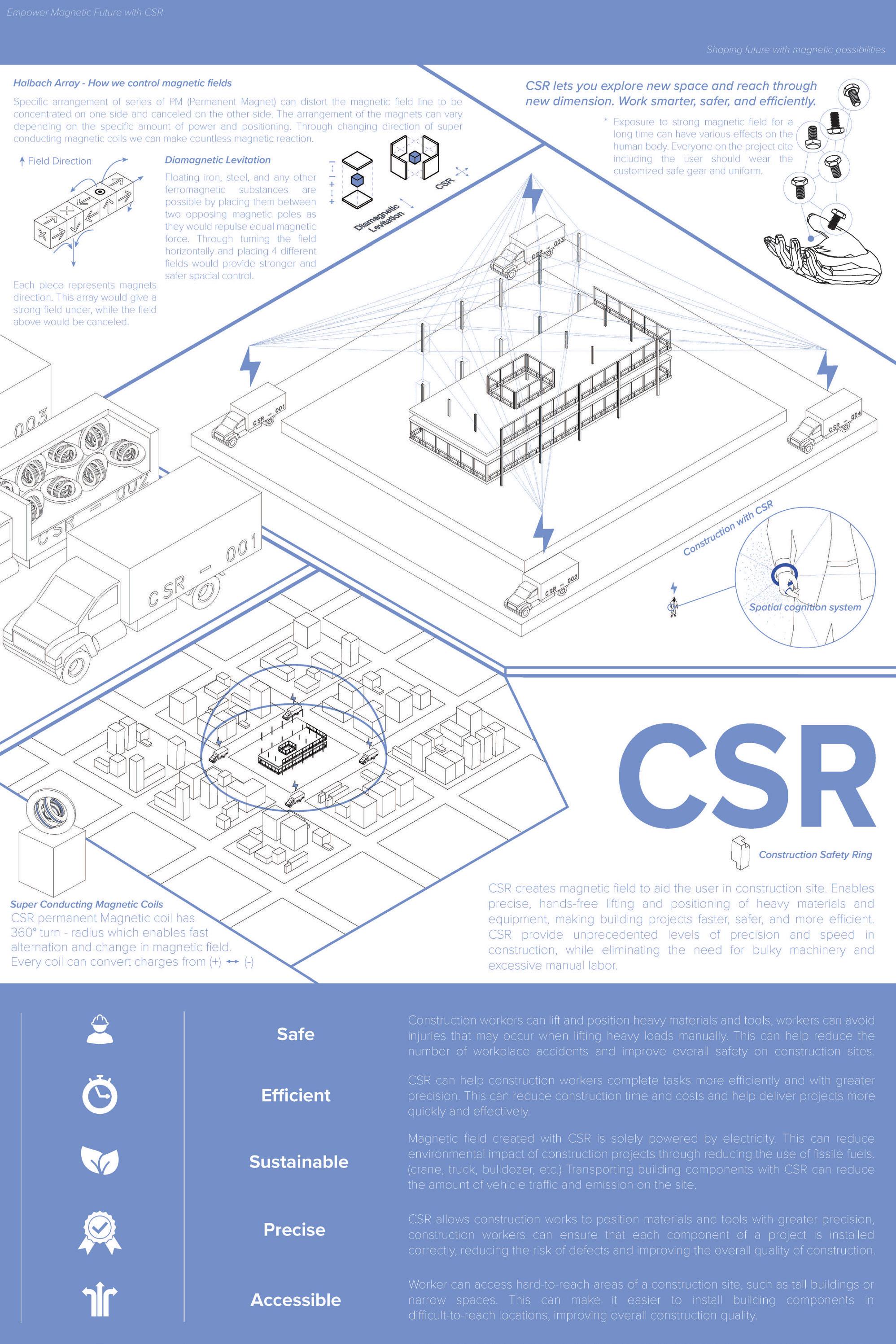

Speculative Design is an artistic approach that emphasizes new idea and solutions for the present that involves possible future scenarios. Construction Safety Ring (CSR) is a device designed to empower construction professionals in the seamless delivery and manipulation of substantial loads, effectively eliminating the need for physical exertion.
