KVH ONE Commercial Launch Kit

Satellite

Wi-Fi

Companion Systems

Cellular

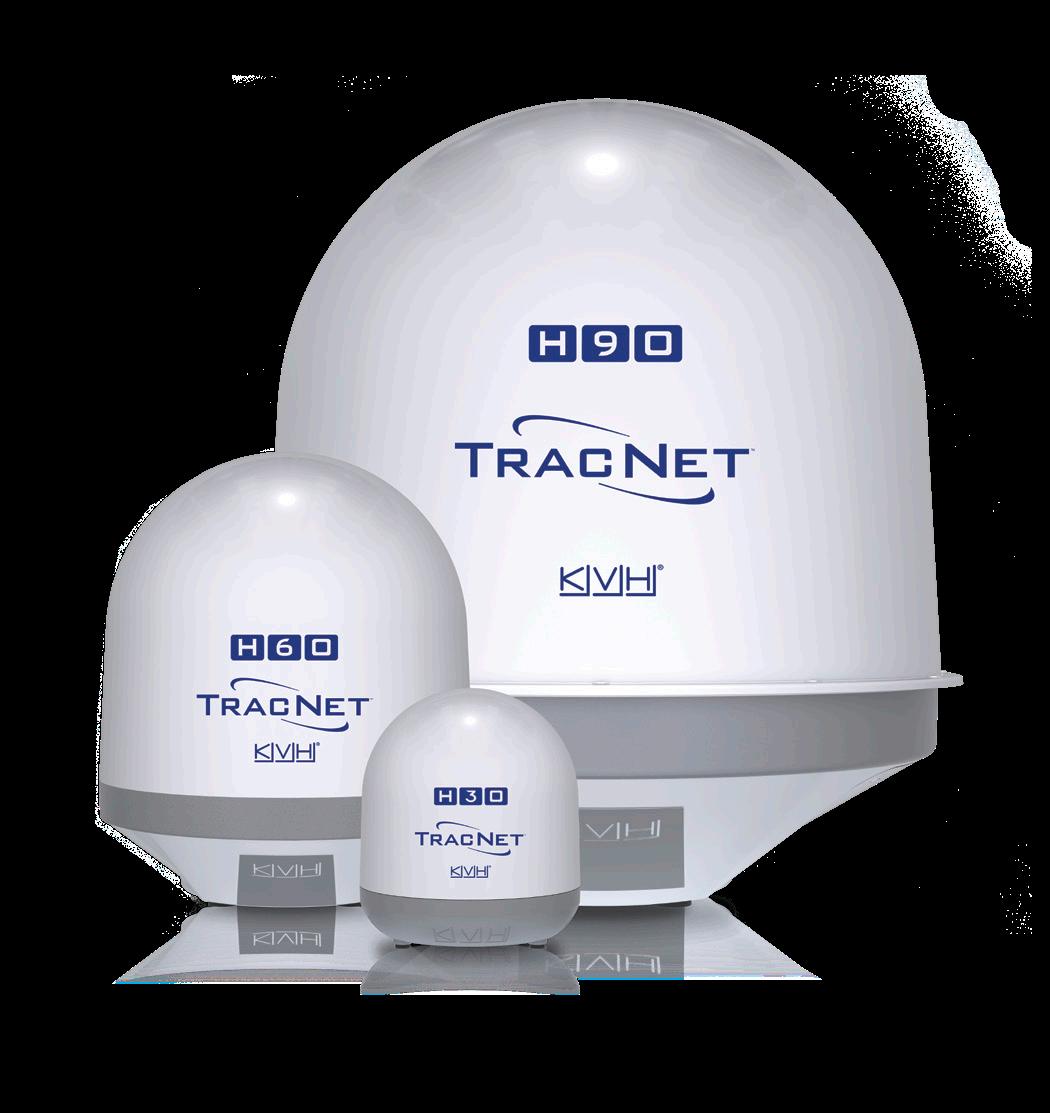

Intelligent hybrid connectivity TRACNET H30 / H60 / H90 TM

Commercial Maritime

One unified network. One smart terminal.

One exceptional experience.

At the dock: Wi-Fi

Automatically switches to port Wi-Fi

Cellular

Underway: Conveniently connects to cellular

Satellite

Offshore: Seamlessly switches to VSAT

Don’t think about how to connect, just feel confident that captains and crew can connect to whatever they need at any time.

Enjoy the fastest, most reliable connectivity at sea and in port with the KVH ONE® hybrid network and groundbreaking TracNet terminals. Each system includes integrated satellite, cellular, and Wi-Fi technology with intelligent, automatic network switching that will keep you connected to the best communication option at all times, in all sea states, and at any speed. It’s like having three antennas in one!

Captains can share proprietary files with the office on shore. Crew members can stream their favorite movies, and enjoy crystal-clear voice calls with family. Everyone on board can enjoy entertainment, news, sports, and social media. KVH ONE and TracNet delivers connectivity that takes your business to the next level with: KVH’s global Ku-band satellite network 5G/LTE cellular service in 150+ countries1 Compatibility with shore-based Wi-Fi Intelligent, automatic network switching based on service availability, costs, and the quality of data transfer Optional manual switching and use of user-supplied SIMs Flexible month-to-month contract terms with unlimited plan changes and suspensions Where available and compatible with the KVH- or user-supplied SIM cards and service

1

Access complete product specifications, airtime rates, coverage maps, and more at kvh.com/one

KVH Connectivity Solution Comparison Versatile and affordable connectivity options, from a VSAT-only solution to hybrid terminals with integrated VSAT, cellular, and Wi-Fi.

TracPhone V30 Automatic hybrid switching

N/A

Connectivity options

VSAT

Antenna diameter/ weight

37 cm (14.6") 10.6 kg (23.4 lbs)

BDU (belowdeck unit)

VSAT Hub (DC)

Max VSAT speed Mbps2 (down/up)

6/2 Mbps

Satellite channels Stabilization Supports user-supplied SIM card Easy installation

TracNet H30 NEW

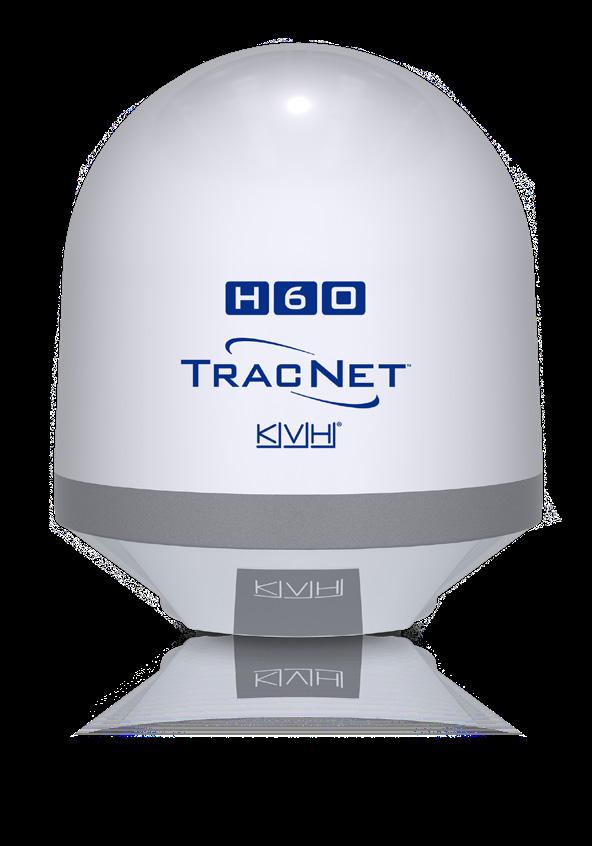

TracNet H60 NEW

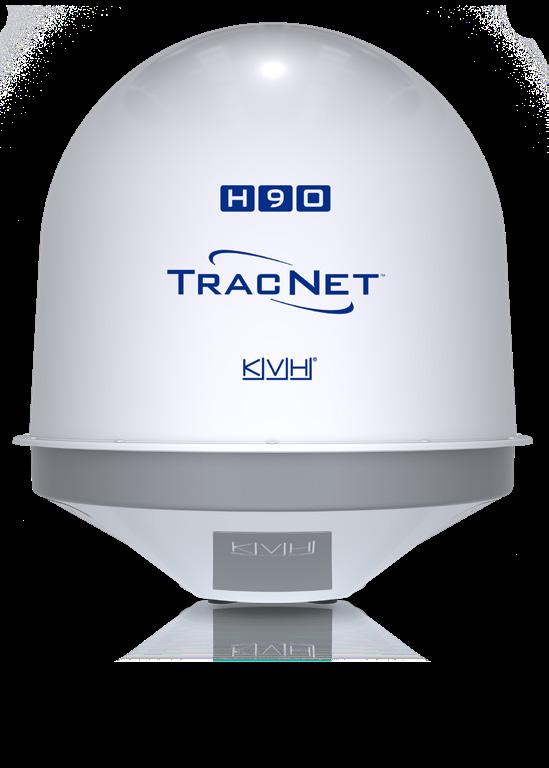

TracNet H90 NEW

Hybrid (VSAT, Cellular, Wi-Fi) 37 cm (14.6") 11.2 kg (24.6 lbs)

60 cm (23.6") 24.3 kg (53.6 lbs)

TracNet Hub (DC) or TracNet Hub+ (AC) 6/2 Mbps

10/3 Mbps

1 m (39.4") 86 kg (189 lbs) TracNet Hub+ (AC) 20/3 Mbps

Single (High-speed)

Dual (High-speed & Unlimited Use)

Two axis, stabilized skew

Three axis, stabilized skew

N/A Single cable install with DC power

Single cable install with DC and AC power belowdeck units (TracNet H90 available with AC power only)

(AC-DC converter available)

High-performance tracking

Digital IMUs and commercial-grade rotary joint for uninterrupted reception

Service & support

From system selection and design to installation, and support in commercial ports worldwide, KVH OneCareTM provides peace of mind for the life of your product

Available as AgilePlans® subscription

AgilePlans Regional

AgilePlans ONE

Cybersecurity

Integrated terminal and network security

Integrated terminal and network security; optional enterprise-level upgrade

KVH Link-compatible

N/A

Cloud-based email upgrade

N/A

Detailed technical specifications kvh.com/v30specs 2

kvh.com/h30specs

kvh.com/h60specs

kvh.com/h90specs

Data rates are Ku-band service speeds only and rate plan maximums and may vary in different regions and under different conditions.

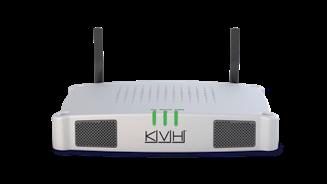

Belowdeck Units KVH’s streamlined belowdeck units are at the heart of every TracNet terminal. These tools create confidence through all-in-one system control and network management.

TracNet Hub 12V DC-powered

TracNet Hub+ AC-powered with touchscreen

with built-in Wi-Fi router, ethernet ports and VoIP line.

Shelf or bulkhead-mount.

interface, dual user-supplied SIM slots, built-in Wi-Fi router, ethernet ports, storage for KVH Link content and two VoIP lines. Rack-mount.

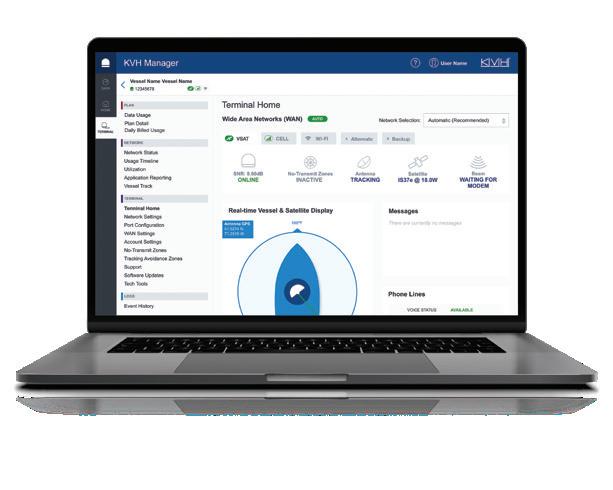

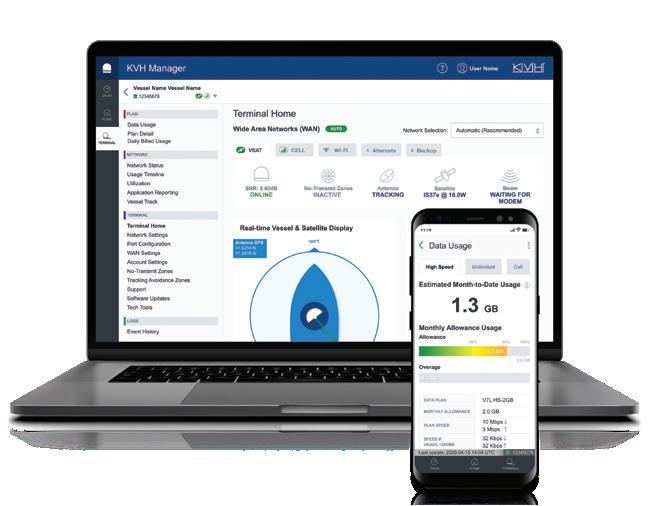

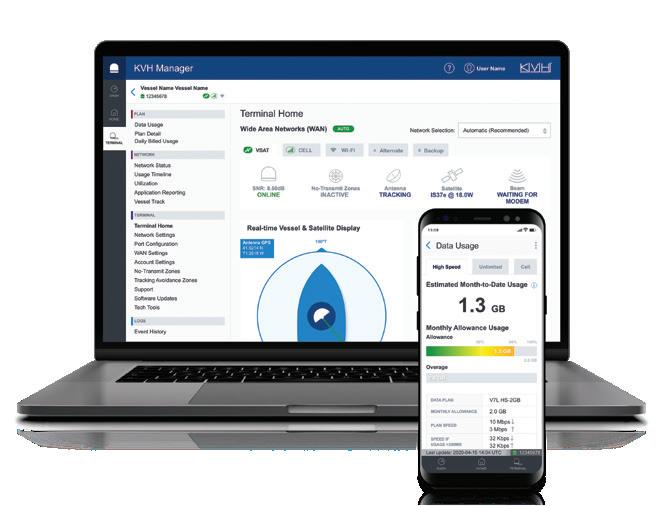

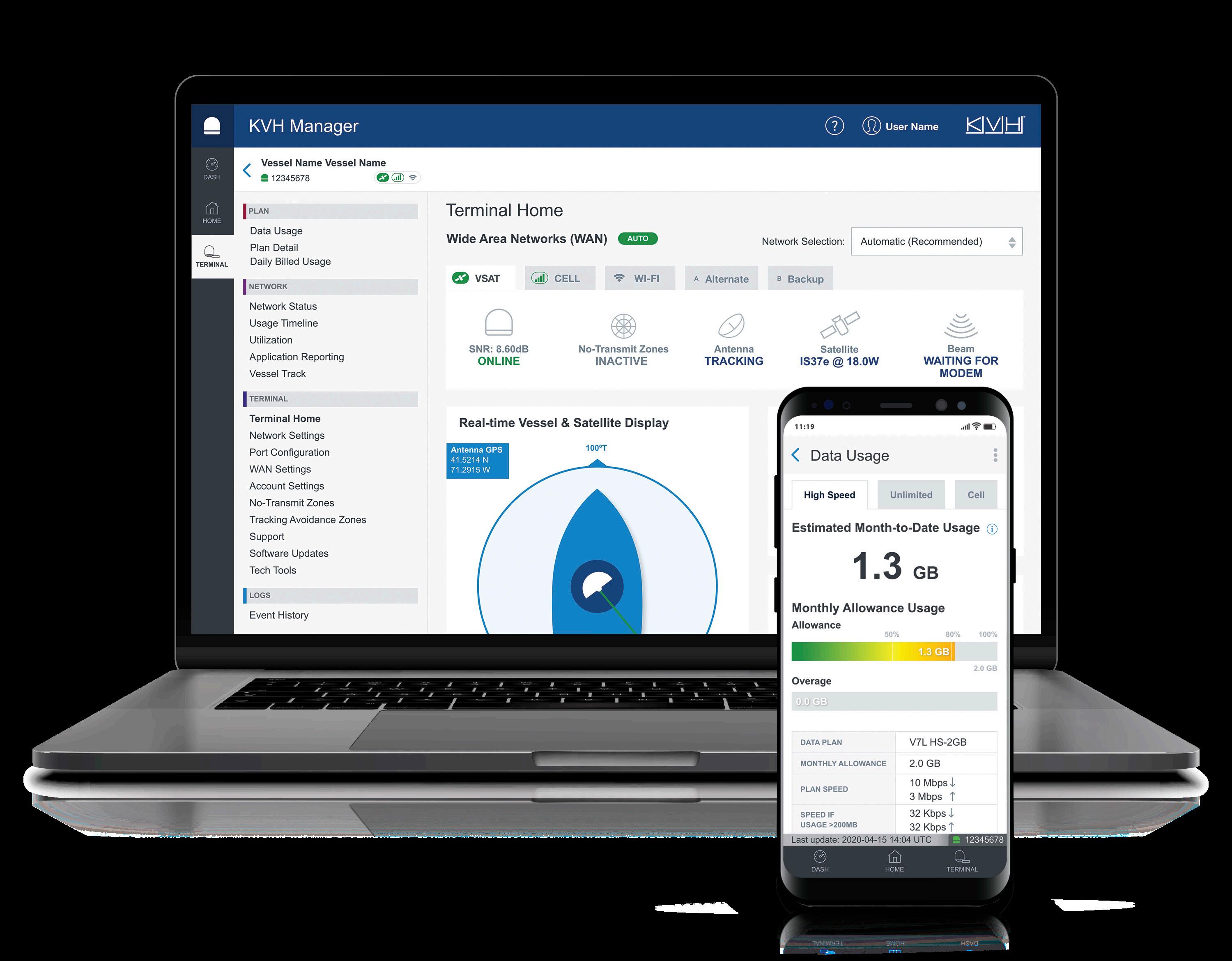

Hybrid Connectivity Without Complication KVH Manager delivers a powerful suite of mobile-responsive tools that provides valuable analytics, data usage control, and customizable interfaces. Monitor your usage in real time; choose to allow, restrict or block data usage in eleven different categories; and set up alerts to stay aware of your data usage.

Always visible indicator for active and available hybrid networks

Hybrid wide area network detail views

Easily toggle between automatic and manual network switching Suite of flexible network and vessel management tools

Automatic network switching selects based on service availability, costs, and the quality of data transfer

Powerful tools to customize and manage your TracNet terminal and onboard network configuration

Mobile-responsive view of all screens, including real-time data usage

TracNet terminals have integrated IoT proactive monitoring functionality that reports daily on 150+ vital health and performance parameters to optimize your system for the most reliable and effective experience

Enjoy comprehensive support for the life of your product with KVH OneCare support and service in commercial ports worldwide

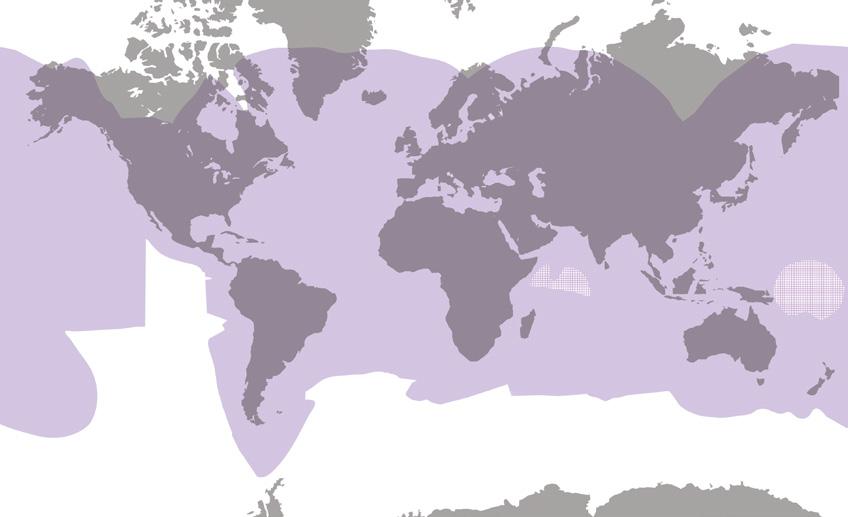

KVH ONE Hybrid Network Coverage* View up-to-date and terminal-specific coverage maps at kvh.com/tracnetmaps Global HTS Ku-band satellite network, with 294 million sq km (113 million sq miles) of coverage, powered by Intelsat Cellular support in 150+ countries as far as 32+ km (20+ miles) offshore

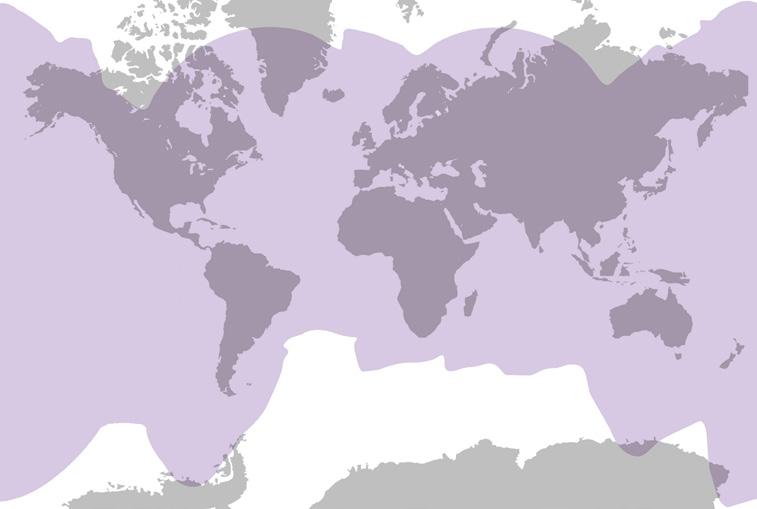

Global HTS Coverage

Cellular Coverage

Compatible with shore-based Wi-Fi networks

*Actual coverage and availability may vary. Data rates may also vary in different regions. KVH provides no guarantees of coverage or availability. For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

kvh.com/one World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com

©2023 KVH Industries, Inc. KVH, KVH ONE, TracNet, AgilePlans, KVH OneCare, and the unique light-colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc. All other trademarks are the property of their respective companies.

BR_KVHONE_TracNet_Commercial_0124

KVH ONE® SYSTEM SPECIFICATIONS

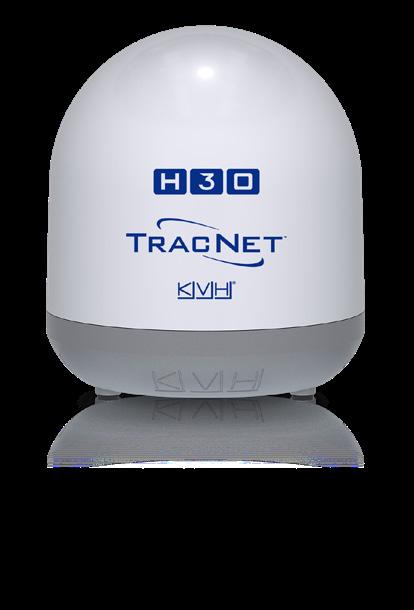

TracNet H30 ™

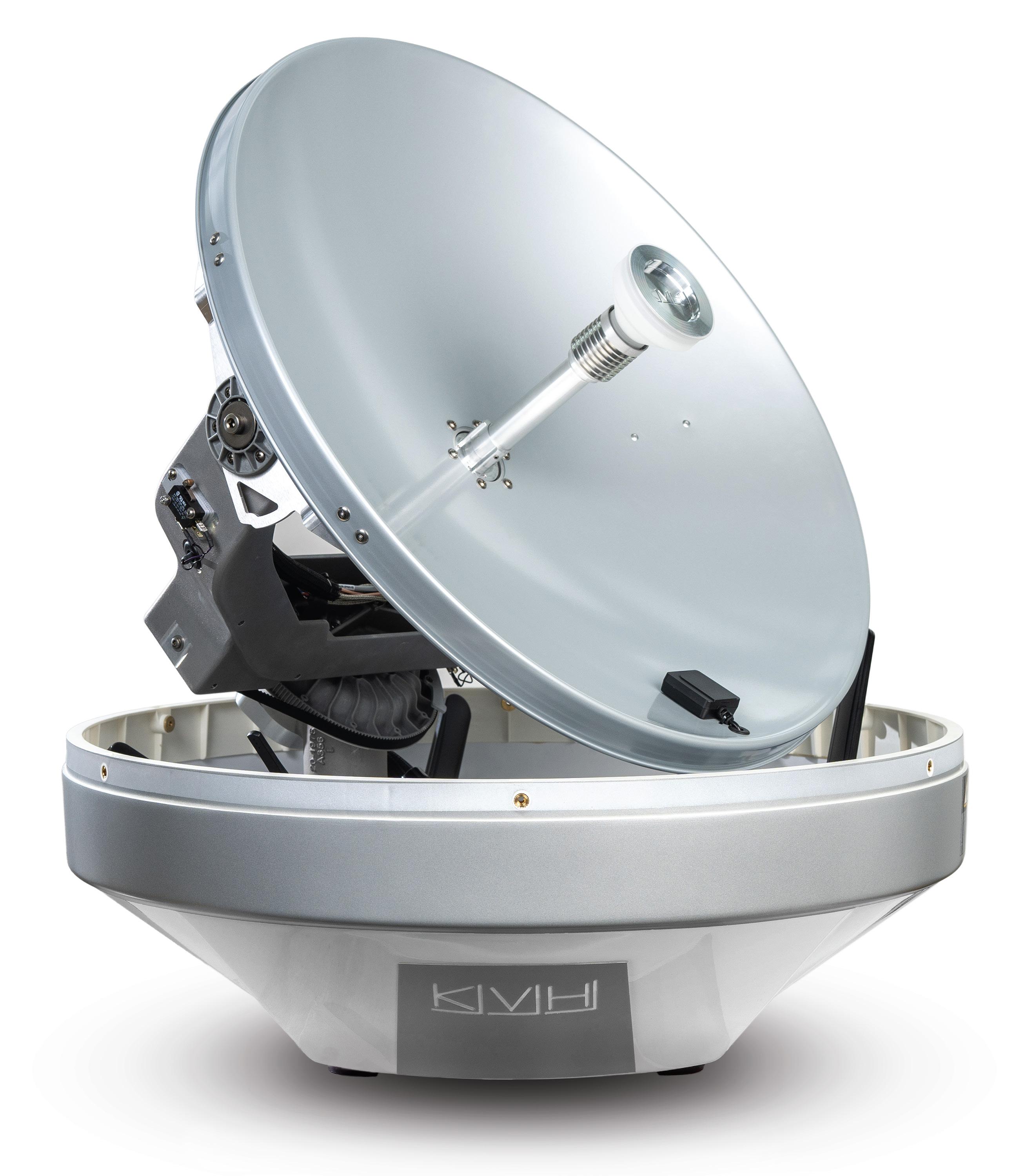

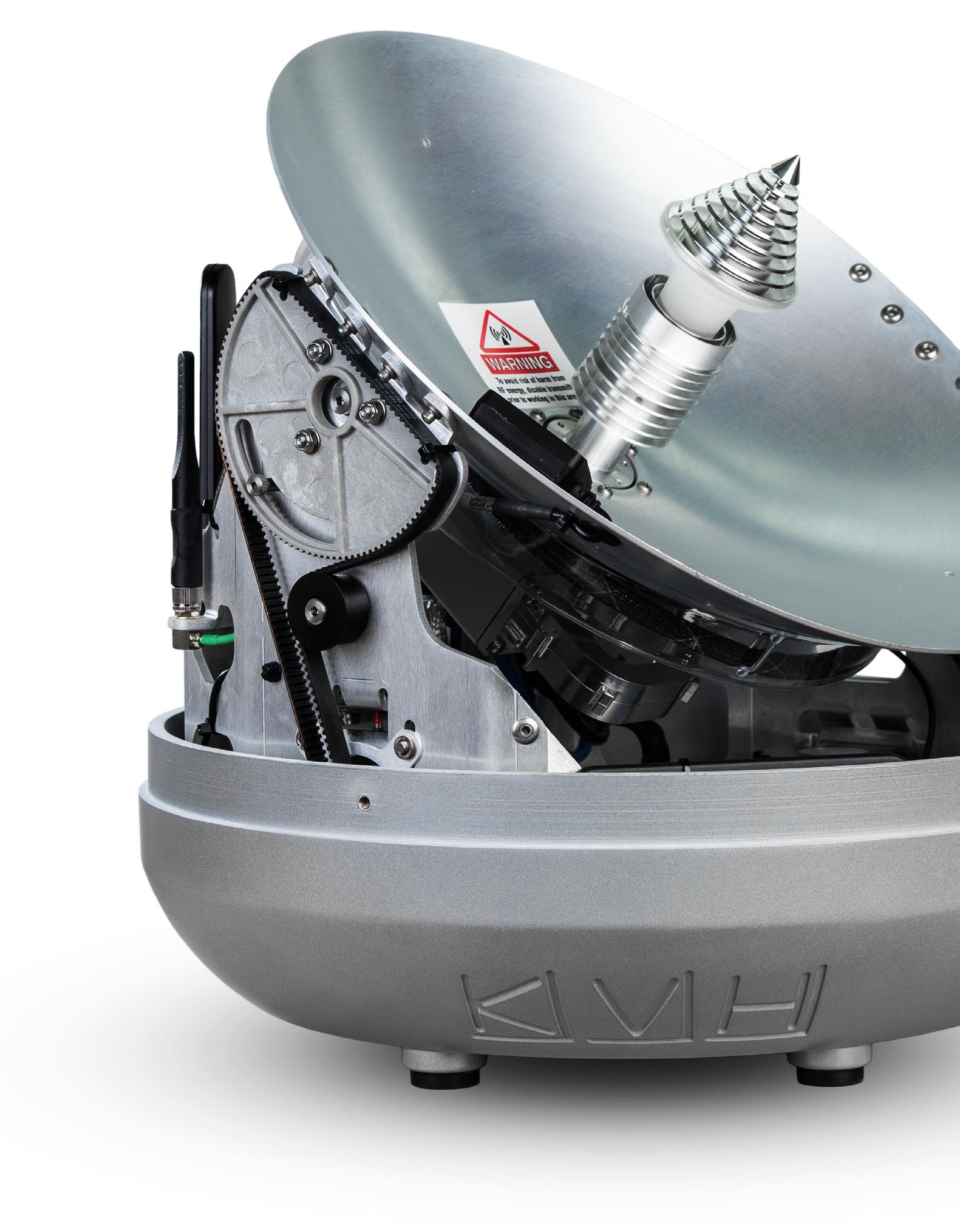

Ultra-compact & affordable 37 cm Hybrid VSAT, Cellular, and Wi-Fi Connectivity The ultra-compact TracNet H30 brings the versatility and affordability of hybrid connectivity to the smallest vessels while serving as a powerful backup on larger vessels. The 37 cm commercial-grade TracNet H30 is more than 50% lighter than competing 45 cm terminals and offers unmatched communications using the KVH ONE hybrid satellite, cellular, and Wi-Fi network with intelligent, automatic switching. The terminal also includes easy single-cable installation, a commercial-grade rotary joint for continuous azimuth rotation, and digital IMUs and advanced motor controllers for outstanding tracking even in rough seas or at high speeds.

1

High-speed VSAT service (as fast as 6/2 Mbps down/up) via KVH’s global, layered Ku-band HTS network, offering 294 million sq. km (113+ million sq. miles) of coverage

2

Ultra-high efficiency antenna using KVH’s RingFire™ design and groundbreaking dielectric rod feed for excellent reception even in bad weather

3

High-performance tracking with 2-axis pedestal design, stabilized skew, dual digital IMUs, and advanced motor controllers

4

Terrestrial Communications Module supporting integrated high-power cellular antennas with service in 150+ countries plus built-in high-gain Wi-Fi antennas for seamless switching to shore-based Wi-Fi networks

5

Commercial-grade rotary joint and single cable design for easy installation and uninterrupted azimuth rotation and tracking

1

2 4 3

Belowdeck Units KVH’s streamlined belowdeck units are at the heart of every TracNet terminal. These tools create confidence through all-in-one system control and network management.

TracNet Hub 10-30V DC-powered with built-in Wi-Fi router, user-supplied SIM slot, ethernet ports and VoIP line. Shelf or bulkhead-mount.

TracNet Hub+ AC-powered with touchscreen interface, user-supplied SIM slot, built-in Wi-Fi router, ethernet ports and two VoIP lines. Rack-mount.

5

TracNet H30 Hybrid Connectivity System System Specifications Service

System Options KVH Ku-band global HTS network; regional cellular services in 150+ countries; available shore-based Wi-Fi networks

Network

KVH OneCare™ Support Program

Available; see kvh.com/onecare for details Available; see “Optional Backup” on kvh.com/H30 for details

Antenna Type

Ku-band

Iridium Certus® Optional Backup

Service Coverage Area

Seamless worldwide regions

Terrestrial Communications Module – Cellular Specifications

Maximum Speed Download/Upload1

as fast as 6 Mbps/2 Mbps (down/up)

Band Support Regions

Abovedecks Equipment

5G

Antenna Dish Diameter

36.8 cm (14.5”)

Antenna Unit Dimensions/ Weight

39.4 cm D x 44.7 cm H (15.5” D x 17.6” H)/ 11.1 kg (24.6 lbs)

Elevation/Azimuth Range

7.7° to 75°/Unlimited rotation

Temperature

Operating: -30°C to 55°C (-22°F to 131°F); Survival: -35°C to 70°C (-31°F to 158°F)

Humidity/Salt Fog

IEC 60945; 40°C (104°F), 95% Humidity (noncondensing)

UMTS (3G)

Rain

Precipitation rate of 1.7mm/min, w/wind speeds up to 100 knots

5G

LTE (4G)

Antenna Unit Power

DC, provided by the TracNet Hub or Hub+

Hub to Antenna Unit Connection

Single coaxial cable, see kvh.com/tracnetcables or contact KVH Technical Support for detailed specifications

Belowdecks Equipment – TracNet Hub+

Global, except China Standards

3GPP Release 15 NSA/SA operation, Sub-6 GHz

MIMO

DL: Up to 4 x 4 MIMO UL: Up to 2 × 2 MIMO

Standards

DL Cat 20; UL Cat 18 LTE-FDD, LTE-TDD & LTE-LAA

MIMO

DL: Up to 4 ×4 MIMO

WDCMA

Data Rates (max)2 5G NR SA Sub-6Ghz

DL 4.2 Gbps; UL 450 Mbps

5G NR NSA Sub-6Ghz

DL 5.0 Gbps; UL 600 Mbps

LTE

LTE-A

DL 2.0 Gbps; UL 200 Mbps

UMTS

WCDMA

DL 42 Mbps; UL 5.76 Mbps

Terrestrial Communications Module – Wi-Fi Specifications Wi-Fi Standards

IEEE 802.11ac/a/b/g/n

Band Support

2.4 Ghz / 5 Ghz

Data Rate (max)3

802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: 300Mbps 802.11ac: 867Mbps

NMEA 2000, NMEA 0183 magnetic or true heading

MIMO

Up to 2 x 2 MIMO

Input Power

100-240 VAC, 50-60 Hz auto switching, 250W max

Security

WPA2, WPA3

Data Interfaces

4 Ethernet: IEEE 1000BASET-T 2 USB 3.0 Ports

Complete System

Voice Interfaces

2 RJ11 ports supporting single line VoIP service

Dimensions

48.3 cm l x 30.7 cm w x 4.5 cm h (19” x 12.1” x 1.75”); will fit in 1U slot

Weight

3.7 kg (8.3 lbs)

Temperature

Operating: -25°C to 55°C (5°F to 131°F); Survival: -15°C to 70°C (5°F to 158°F)

Heading Input

Certification

Complies with the essential requirements of Radio Equipment Directive 2014/53/EU, which includes the safety objectives set out in EN62368-1 and in EMC directive EN60945 NMEA 2000 Certified RoHS & REACH

System Warranty3

Comprehensive 2-year parts, 2-year labor warranty supported by KVH’s worldwide Certified Support Network (CSN) ; extended warranty up to 5 years available

Part Number

01-0432-11

Belowdecks Equipment – TracNet Hub Dimensions

23.6 cm x 20.5 cm x 4.4 cm (9.34" x 8.05" x 1.73")

Weight

1.4 kg (3 lbs) Operating: -15°C to 55°C (5°F to 131°F); Survival: -25°C to 70°C (5°F to 158°F) NMEA 2000, NMEA 0183 magnetic or true heading

Temperature Heading Input Input Power Data Interfaces Voice Interfaces

10-30 VDC, 125W max 4 Ethernet: Gigabit 1000BASE-T IEEE 802.3; 2.4/5GHz IEEE 802.11ac/a/b/g/n 2x2 MIMO Wi-Fi; 1 USB 3.0 Ports 1 RJ11 port for VoIP services

Meets requirements. Exceeds Inmarsat operational, survival, and shock specifications.

1 Published data speeds are maximum speeds and may vary in different regions and under different conditions.

2 Data rates theoretical only and actual value depends on network conditions. Data rates limited by 1 Gbps Ethernet LAN interface.

3 Unless subject to in-country regulations. Restrictions apply. Visit kvh.com/warranty for details.

1000

The map depicts KVH’s expectations for the HTS network’s coverage for the TracNet H30; actual coverage and availability may vary. Data rates may also vary in different regions. Go to www.kvh.com/tracnetmaps to view our global coverage maps for TracNet H30.

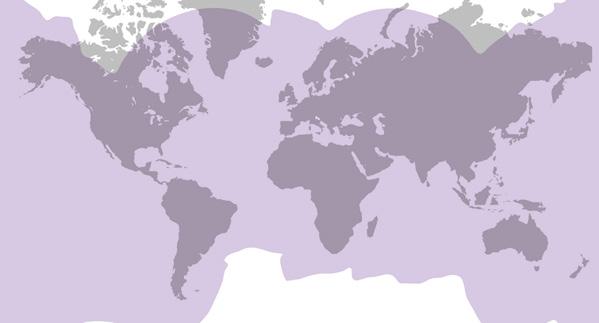

Ku-band Coverage

TracNet H30 has a 2-axis stabilized antenna pedestal design that does not provide coverage in areas where the satellite is directly overhead.

kvh.com World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

©2023-2024 KVH Industries, Inc. KVH, TracNet, KVH ONE, RingFire, KVH OneCare, and the unique light-colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc.

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com Specifications subject to change without notice.

All other trademarks are the property of their respective companies.

SS_TNH30_Comm_Leisure_Maritime_0124

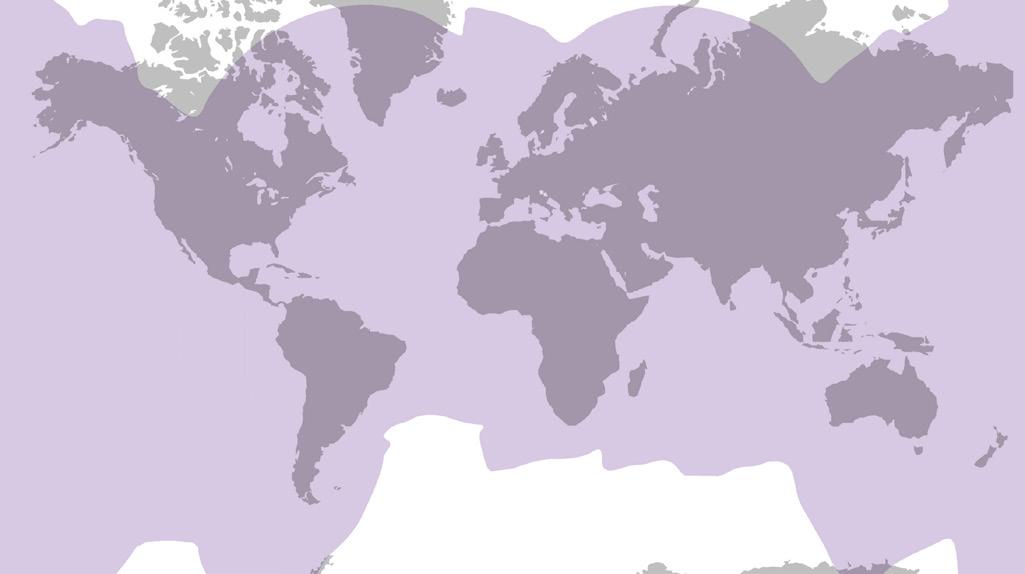

KVH Global, Layered Ku-band HTS Network Coverage

KVH Data Plans

KVH ONE 37 cm Terminals ®

Effective 1 October 2023

Available with: TracNet™ H30, TracPhone® V30 & V3hts

Delivering the power of global hybrid connectivity with: High-speed VSAT (as fast as 6/2 Mbps down/up) on KVH’s global HTS network 5G/LTE cellular connectivity as fast as 200 Mbps in 150+ countries1 Compatible with shore-based Wi-Fi networks Seamlessly managed with intelligent, automatic switching Month-to-month plans with no annual contract and flexible suspension policies

STEP 1: Select Your High-speed VSAT Rate Plan High-speed Shaped Plans

High-speed Metered Plans

High-speed fixed price with unlimited use

Lowest cost, affordable overage rates

If the monthly high-speed data allotment is consumed, the system will automatically shift to the unlimited use shaped data rate and reset to the high-speed data rate on the first day of the following month.

Simple, usage-based plans that offer the highest speeds and lowest costs with user-friendly tools for monitoring and controlling data usage.

Monthly Data Plans

$/month (USD)

Shaped Data Rates

High-speed Data/month

Monthly Data Plans

37cm-HS-200MB

32/32 Kbps

200 MB

37cm-M-200MB

200 MB

37cm-HS-500MB

64/32 Kbps

500 MB

37cm-M-500MB

500 MB

1 GB

37cm-M-1GB

2 GB

37cm-M-2GB

5 GB

37cm-M-5GB

5 GB

10 GB

37cm-M-10GB

10 GB

Contact KVH Sales for Pricing

37cm-HS-1GB 37cm-HS-2GB

High-speed Data Rates2

6/2 Mbps (down/up)

37cm-HS-5GB

128/64 Kbps

37cm-HS-10GB

$/month (USD)

Contact KVH Sales for Pricing

High-speed Data Rates2

6/2 Mbps (down/up)

High-speed Data/month

1 GB 2 GB

Overage Rates $/MB (USD)

Contact KVH Sales for Pricing

Plus Enhanced Voice Service

Plus Enhanced Voice Service

All phone calls to land or mobile lines worldwide only $0.59/minute!

All phone calls to land or mobile lines worldwide only $0.59/minute!

All Plans Offer: • VSAT speeds as fast as 6 Mbps/2 Mbps (down/up)2 • Unrestricted access to applications and protocols3

• Long distance phone service with simple, single price worldwide

• Unique Application Category Control tool to Allow, Restrict, or Block VSAT data usage in eleven application category groups to limit unintended data consumption

• Includes one phone line for Enhanced Voice Service with the option to add up to five virtual numbers for inbound local calling

• 100% transparency with easy-to-use alerts, system configuration tools, and data allocation controls via the secure KVH Manager suite of tools

• Flexible suspension policies • Month-to-month service with no annual contract for purchased equipment

STEP 2: Enjoy 2 Free Months of 5G Hybrid Service with TracNet H30 Every new TracNet H30 activation includes two free months of 5G hybrid service as fast as 200 Mbps! Discover the power, blazing speed, and affordability for TracNet with 5G and global VSAT. Then continue to enjoy the benefits for only $99/month after that.

STEP 3: Contact KVH Sales at sales@kvh.com for Pricing Requires TracNet H30; 5G and LTE-A cellular speeds where available and compatible with the KVH- or user-supplied SIM cards and service.

Published data speeds are maximum speeds and may vary in different regions and under different conditions.

3 Excludes BitTorrent and similar protocols.

1 2

KVH ONE 37 cm Terminals

KVH Data Plans

Enhanced Voice Service KVH’s Enhanced Voice Service is a managed solution optimized for satellite communications and fully integrated into KVH ONE global HTS network. Network voice prioritization assures that bandwidth is allocated to the telephone line to ensure a high-quality VoIP connection. With Enhanced Voice Service you will enjoy always-on voice connections and a great suite of convenient features and account management tools that you can access anywhere in the world!

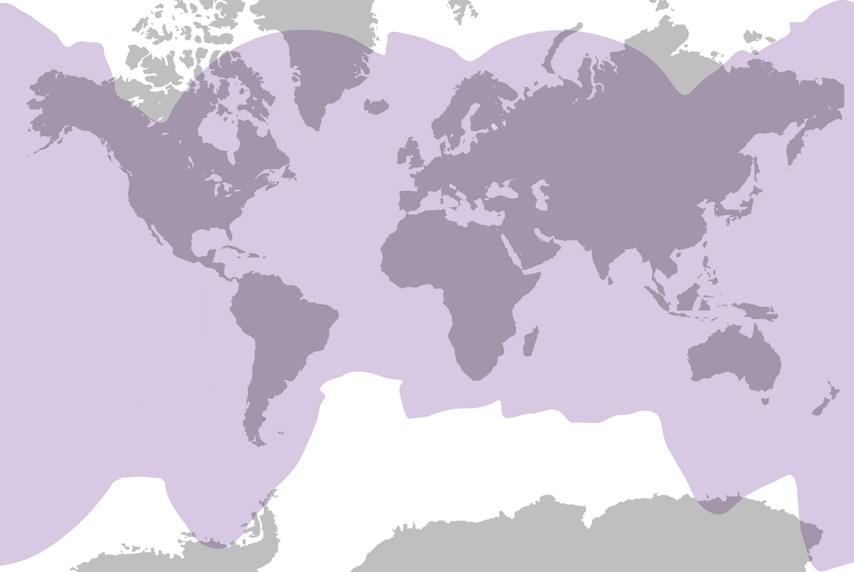

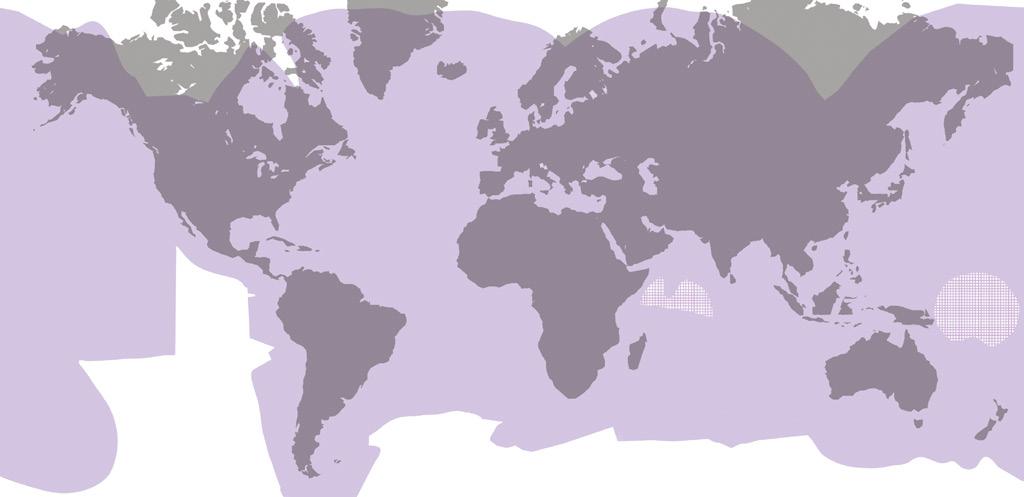

37 cm Global HTS Coverage*

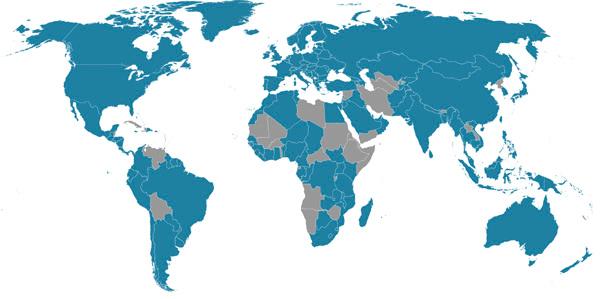

37 cm Cellular Coverage*

Ku-band Coverage TracNet H30 has a 2-axis stabilized antenna pedestal design that does not provide coverage in areas where the satellite is directly overhead.

*The map depicts expectations for the KVH ONE global HTS network’s coverage for the TracNet H30. For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Actual coverage and availability may vary. Data rates may also vary in different regions.

KVH provides no guarantees of satellite coverage or availability.

The KVH ONE cellular airtime plan is a monthly credit towards usage in all active destination zones. Usage is calculated and charged by the MB at each destination zone’s $/GB rate. The Tier 1 and Tier 2 zones are on (active) by default, while you have the option to activate the Tier 3 and Tier 4 zones. Visit kvh.com/lteglobalzones for details. *For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Blue indicates coverage. Actual coverage and availability may vary. Data rates may also vary in different regions. KVH provides no guarantees of cellular coverage or availability.

General Terms • All prices are in $USD and do not include any taxes or fees that may apply.

• All services and plans are subject to the KVH Master Services Agreement.

• HTS network published data rates are rate plan maximums and may vary in different regions and under different conditions. Service reception may be affected by environmental or operational conditions and its uninterrupted availability is not guaranteed.

• No annual contract for purchased equipment; rate plans are month-to-month, automatically renewing on a monthly basis. For leased terminal equipment, the contract term must be concurrent with, and extend to, the end of the lease period.

• VoIP-only Suspension Plan is offered at $50/month with no limitation on the number of months. May not be used as activation plan. Plan change fee does not apply.

• When not in use, cellular service may be suspended independently of the satellite service. A $9.99/month fee applies during suspended months.

• One voice line with a KVH-assigned phone number is provided at no charge and is carried via the global HTS network. A user-specified voice line phone number is $31/month.

• Virtual local phone numbers can be added for a monthly fee of $31 per number (5 max.) where available/subject to in-country regulations.

• Both incoming and outgoing calls are charged at $0.59/minute. A few select countries and satellite phone services are blocked. Contact KVH Airtime Services for special rates for these areas and services.

• Global Static IP Service is available for $30/month per IP address.

Visit kvh.com/staticip for details.

• BitTorrent and all such data-intensive applications and protocols will be blocked

by KVH.

• Subscribers are not permitted to use the global HTS service for BitTorrent and all such data-intensive applications and protocols will be blocked by KVH. • Subscribers are permitted to change HTS rate plans and switch between shaped and metered plans with certain restrictions. $100 fee applies for plan changes to lower priced plans (excluding VoIP-only Suspension Plan), except during the first 90 days of service to allow the subscriber to determine the plan most appropriate for their usage needs. For complete details on plan changes, “Airtime Rate Plan Change/Suspension Policies” at kvh.com/airtimeresources.

kvh.com/one World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com

©2023-2024 KVH Industries, Inc. KVH, KVH ONE, TracNet, TracPhone and the unique light colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc. All other trademarks are the property of their respective companies.

DS_KVH ONE_37cm Terminals_DataPlans_0124

KVH ONE® SYSTEM SPECIFICATIONS

TracNet H60 ™

Versatile, Compact 60 cm Hybrid VSAT, Cellular, & Wi-Fi Connectivity Stay connected worldwide with the versatile, 60 cm commercial-grade TracNet H60. As much as 42% lighter than competing systems, this compact digital antenna offers unmatched communications using hybrid satellite, cellular, and Wi-Fi connectivity with intelligent, automatic switching. The terminal also includes easy single-cable installation and a commercial-grade rotary joint for continuous azimuth rotation and tracking. Its three-axis pedestal design, stabilized skew, dual digital IMUs, and advanced motor controllers deliver high-performance tracking in all sea states.

1

High-speed VSAT service (as fast as 10/3 Mbps down/up) via KVH’s global, layered Ku-band HTS network, offering 294 million sq. km (113+ million sq. miles) of coverage

2

Tuned antenna paired with KVH’s exclusive RingFire™ technology ensures superior reception

3

Three-axis pedestal design with a fourth axis of automatic skew adjustment for outstanding tracking in all sea states

4

Terrestrial Communications Module supporting integrated high-power cellular antennas with service in 150+ countries plus built-in high-gain Wi-Fi antennas for seamless switching to shore-based Wi-Fi networks

5

Commercial-grade rotary joint and single cable design for easy installation and uninterrupted azimuth rotation and tracking

1

3

2

Belowdeck Units KVH’s streamlined belowdeck units are at the heart of every TracNet terminal. These tools create confidence through all-in-one system control and network management.

TracNet Hub 10-30V DC-powered with built-in Wi-Fi router, user-supplied SIM port, ethernet ports and VoIP line. Shelf or bulkhead-mount.

TracNet Hub+ AC-powered with touchscreen interface, user-supplied SIM slot, built-in Wi-Fi router, ethernet ports, two VoIP lines, content storage and access for the commercial maritime KVH Link content service.

Rack-mount.

4

5

TracNet H60 Hybrid Connectivity System System Specifications Service

System Options

Network

KVH Ku-band global HTS network; regional cellular services in 150+ countries; available shore-based Wi-Fi networks

Antenna Type

Ku-band

Service Coverage Area

Seamless Worldwide Regions

Maximum Speed Download/Upload1

10 Mbps/3 Mbps

KVH Link

Available for commercial applications. See kvh.com/link for details.

KVH OneCare™ Support Program

Available; see kvh.com/onecare for details

Iridium Certus® Optional Backup

Available; see “Optional Backup” on kvh.com/H60 for details

Terrestrial Communications Module – Cellular Specifications

Abovedecks Equipment

Band Support

Antenna Dish Diameter

60 cm (24”)

Regions

Antenna Unit Dimensions/ Weight

66.6 cm D x 79.2 cm h (26.2” D x 31.2” h)/ 24.3 kg (53.6 lbs)

5G

Elevation/Azimuth Range

-24˚ to 116˚ / commercial-grade rotary joint for unlimited azimuth rotation

Temperature

Operating: -30°C to 55°C (-22°F to 131°F); Survival: -35°C to 70°C (-31°F to 158°F)

Humidity

IEC 60945; 40°C (104°F), 95% Humidity (non-condensing)

Rain

Precipitation rate of 1.7mm/min, w/wind speeds up to 100 knots

Antenna Unit Power

DC, provided by the TracNet Hub or Hub+

Antenna Cable

100’ coax cable provided; supports cable runs up to 500’; see kvh.com/tracnetcables or contact KVH Technical Support for specifications

Remote Support

Integrated cellular radio for access by KVH Technical Support (requires SIM activation)

Terrestrial Communications Module – Wi-Fi Specifications

LTE (4G)

UMTS (3G)

Standards

3GPP Release 15 NSA/SA operation, Sub-6 GHz

MIMO

DL: Up to 4 x 4 MIMO UL: Up to 2 × 2 MIMO

Standards

DL Cat 20; UL Cat 18 LTE-FDD, LTE-TDD & LTE-LAA

MIMO

DL: Up to 4 ×4 MIMO

WDCMA

Data Rates (max)3 5G NR SA Sub-6Ghz

DL 4.2 Gbps; UL 450 Mbps

5G NR NSA Sub-6Ghz

DL 5.0 Gbps; UL 600 Mbps

LTE

LTE-A

DL 2.0 Gbps; UL 200 Mbps

UMTS

WCDMA

DL 42 Mbps; UL 5.76 Mbps

5G

Wi-Fi Standards

IEEE 802.11ac/a/b/g/n

Band Support

2.4 Ghz / 5 Ghz

Data Rate (max)3

802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: 300Mbps 802.11ac: 867Mbps

Dimensions

48.3 cm l x 30.7 cm w x 4.5 cm h (19” x 12.1” x 1.75”); will fit in 1U slot; rackmountable with optional mounting provisions2

Weight

3.7 kg (8.3 lbs)

Temperature

Operating: -25°C to 55°C (5°F to 131°F); Survival: -15°C to 70°C (5°F to 158°F)

MIMO

Up to 2 x 2 MIMO

Heading Input

NMEA 2000, NMEA 0183 magnetic or true heading

Security

WPA2, WPA3

Input Power

100-240 VAC, 50-60 Hz auto switching, 250W max

Complete System

Data Interfaces

4 Ethernet: IEEE 1000BASET-T 2 USB 3.0 Ports

Voice Interfaces

2 RJ11 ports for VoIP services

Certification

Complies with the essential requirements of Radio Equipment Directive 2014/53/EU, which includes the safety objectives set out in EN62368-1 and in EMC directive EN60945 NMEA 2000 Certified RoHS & REACH

System Warranty4

Comprehensive 2-year parts, 2-year labor warranty supported by KVH’s worldwide Certified Support Network (CSN); extended warranty up to 5 years available

Part Number

01-0436-11

Belowdecks Equipment – TracNet Hub Dimensions

23.6 cm x 20.5 cm x 4.4 cm (9.34" x 8.05" x 1.73")

Weight

1.4 kg (3 lbs)

Temperature

Operating: -15°C to 55°C (5°F to 131°F); Survival: -25°C to 70°C (5°F to 158°F)

Heading Input

NMEA 2000, NMEA 0183 magnetic or true heading

Input Power

10-30 VDC, 125W max

Data Interfaces

4 Ethernet: Gigabit 1000BASE-T IEEE 802.3; 2.4/5GHz IEEE 802.11ac/a/b/g/n 2x2 MIMO Wi-Fi; 2 USB 3.0 Ports

Voice Interfaces

1 RJ11 port for VoIP services

Meets requirements. Exceeds Inmarsat operational, survival, and shock specifications.

1 Published data speeds are maximum speeds and may vary in different regions and under different conditions.

2 Optional Belowdecks Mounting Case (Part Number 72-0368) available for vessels without a rack.

1000 3 Data rates theoretical only and actual value depends on network conditions. Data rates limited by 1 Gbps Ethernet LAN interface.

4 Unless subject to in-country regulations. Restrictions apply. Visit kvh.com/warranty for details.

KVH Global, Layered Ku-band HTS Network Coverage

TracNet 60 cm and 1 m System Coverage Map Coverage maps are representative and may change at any time. Data rates may also vary in different regions. For complete details, visit kvh.com/tracnetmaps and click on the KVH ONE coverage map. KVH provides no guarantees of satellite coverage or availability.

60 cm and 1 m

kvh.com World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

©2023-2024 KVH Industries, Inc. KVH, TracNet, KVH ONE, RingFire, KVH OneCare, myKVH, and the unique light-colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc.

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com Specifications subject to change without notice.

All other trademarks are the property of their respective companies.

SS_TNH60_Comm_Leisure_Maritime_0124

Belowdecks Equipment – TracNet Hub+

Global, except China

KVH Data Plans

KVH ONE 60 cm Terminals ®

Effective 1 October 2023

Available with: TracNet™ H60, TracPhone® V7hts, KVH OpenNet™ terminals (45 cm to 85 cm) With the TracNet H60, you enjoy the power of global hybrid connectivity with seamless automatic switching between high-speed VSAT, 5G/LTE cellular connectivity in 150+ countries1, and shore-based Wi-Fi. Plus, the same global VSAT data plans are available for TracPhone and OpenNet terminals. All plans are month-to-month, with no annual contract, and flexible suspension policies. Getting started is easy, follow these three simple steps!

STEP 1: Select Your High-speed (HS) VSAT Rate Plan

Save 10% on airtime when you subscribe to two active channels!

Choose between a high-speed plan with shaped rates and no overages, or a high-speed metered plan with affordable overages.

High-speed Shaped Plans

High-speed Metered Plans

High-speed fixed price with unlimited use

Lowest cost, affordable overage rates

If the monthly high-speed data allotment is consumed, the system will automatically shift to the unlimited use shaped data rate and reset to the high-speed data rate on the first day of the following month.

Simple, usage-based VSAT plans that offer the highest speeds and lowest costs with user-friendly tools for monitoring and controlling data usage.

Plan Name

$/month (USD)

High-speed Data/month

High-speed Data Rate2

Unlimited Use, Shaped Data Rates2

Plan Name

High-speed-ready; Upgrade to Active HS Service Available

HS-RDY3

60cm-HS-10GB

10 GB

60cm-M-10GB

60cm-HS-25GB

25 GB

HS-RDY3

60cm-HS-50GB 60cm-HS-100GB

$0

Contact KVH Sales for Pricing

50 GB 100 GB

128/64 Kbps (down/up)

10/3 Mbps (down/up)

60cm-M-100GB

60cm-HS-250GB

250 GB

60cm-M-250GB

60cm-HS-500GB

500 GB

60cm-M-500GB

STEP 2: Select Your Unlimited Use (UL) VSAT Rate Plan Get the security of unlimited airtime use4 at a fixed price with 60 cm terminal speed-based rate plans.

Plan Name

Overage Rates US$/MB

$0

High-speed-ready; Upgrade to Active HS Service Available

Contact KVH Sales for Pricing

Contact KVH Sales for Pricing

Download2

Upload2

60cm-M-25GB 60cm-M-50GB

256/128 Kbps (down/up)

$/month (USD)

$/month (USD)

UL-RDY3

$0

Unlimited use-ready; Upgrade to Active UL Service Available

60cm-UL-256/64

256 Kbps

64 Kbps

60cm-UL-512/128

512 Kbps

128 Kbps

1 Mbps

256 Kbps

1 Mbps

512 Kbps

2 Mbps

512 Kbps

60cm-UL-4/1

4 Mbps

1 Mbps

60cm-UL-8/2

8 Mbps

2 Mbps

60cm-UL-1/256 60cm-UL-1/512 60cm-UL-2/512

Contact KVH Sales for Pricing

STEP 3: Enjoy 2 Free Months of 5G Hybrid Service with TracNet H60 Every new TracNet H60 activation includes two free months of 5G hybrid service as fast as 200 Mbps! Discover the power, blazing speed, and affordability for TracNet with 5G and global VSAT. Then continue to enjoy the benefits for only $99/month after that.

STEP 4: Contact KVH Sales at sales@kvh.com for Pricing Requires TracNet H60; 5G and LTE-A cellular speeds where available and compatible with the KVH- or user-supplied SIM cards and service.

Published data speeds are maximum speeds and may vary in different regions and under different conditions.

Only available when subscribing to an active paid plan on the alternate channel.

4 Restrictions may be imposed on access to data-intensive applications and protocols.

1 2 3

KVH ONE 60 cm Terminals

KVH Data Plans

KVH’s 60 cm VSAT airtime plans include two VoIP phone lines for Enhanced Voice Service, with calls to land or mobile lines for as low as $0.05/minute (KVH OpenNet terminals will require a KVH MTA for KVH VoIP service)

60 cm Cellular Coverage*

60 cm Global HTS Coverage*

Ku-band Coverage

*The map depicts expectations for KVH’s global HTS network coverage for the TracNet H60. For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Actual coverage and availability may vary. Data rates may also vary in different regions.

KVH provides no guarantees of satellite coverage or availability.

The KVH ONE cellular airtime plan is a monthly credit towards usage in all active destination zones. Usage is calculated and charged by the MB at each destination zone’s $/GB rate. The Tier 1 and Tier 2 zones are on (active) by default, while you have the option to activate the Tier 3 and Tier 4 zones. Visit kvh.com/lteglobalzones for details.

*For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Blue indicates coverage. Actual coverage and availability may vary. Data rates may also vary in different regions. KVH provides no guarantees of cellular coverage or availability.

Flexible Tools to Manage Your Network and Data Unique Application Category Control tool to Allow, Restrict, or Block data usage in eleven application category groups to limit unintended data consumption.

100% transparency with easy-to-use alerts, system configuration tools, and data allocation controls via the secure myKVH™ portal’s suite of tools.

Looking for fleet pricing?

Contact KVH Sales for details: sales@kvh.com

General Terms • All prices are in $USD and do not include any taxes or fees that may apply.

• All services and plans are subject to the KVH Master Services Agreement.

• HTS network published data rates are rate plan maximums and may vary in different regions and under different conditions. Service reception may be affected by environmental or operational conditions and its uninterrupted availability is not guaranteed.

• No annual contract for purchased equipment; rate plans are month-to-month, automatically renewing on a monthly basis. For leased terminal equipment, the contract term must be concurrent with, and extend to, the end of the lease period.

• VoIP-only Suspension Plan is offered at $129/month with no limitation on number of months used. May not be used as activation plan. Plan change fee does not apply.

• Subscribers are permitted to change rate plans at any time; $100 fee applies for each downward plan change, except during the first 90 days of the initial contract to allow the subscriber to determine the plan most appropriate for their usage needs. For complete details, see “Airtime Rate Plan Change/Suspension Policies” at kvh.com/airtimeresources.

• KVH offers first voice line at no charge and second voice line at $31/month.

KVH-assigned voice line phone numbers for either line are provided at no charge.

User-specified voice line phone numbers for either line are $31/month.

• Virtual local phone numbers can be added for a monthly fee of $31 per number (5 max per voice line) where available/subject to in-country regulations.

• Outgoing calls and faxes are subject to long distance charges. See details on the “KVH Enhanced Voice Service Long Distance Rate Sheet” at kvh.com/airtimeresources.

• Global Static IP Service is available for $30/month per IP address. Visit kvh.com/staticip for details.

• BitTorrent and all such data-intensive applications and protocols will be blocked

by KVH.

kvh.com/one World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com

©2023-2024 KVH Industries, Inc. KVH, KVH ONE, TracNet, TracPhone, MyKVH, and the unique light colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc. All other trademarks are the property of their respective companies.

DS_KVH ONE_60cm Terminals_DataPlans_0124

KVH ONE® SYSTEM SPECIFICATIONS

TracNet H90 ™

Powerful, 1 m Hybrid VSAT, Cellular, & Wi-Fi Connectivity Enjoy a premium maritime communications experience with KVH’s 1 m commercial-grade TracNet H90 hybrid connectivity system.

Equipped with satellite, cellular, and Wi-Fi connectivity and intelligent, automatic switching, the TracNet H90 terminal also includes easy single-cable installation, a commercial-grade rotary joint for continuous azimuth rotation and tracking, and a design as much as 24% lighter than leading competing systems. Its three-axis pedestal design, stabilized skew, digital IMUs, and advanced motor controllers deliver high-performance tracking in all sea states.

1

High-speed VSAT coverage as fast as 20/3 Mbps (down/up) via KVH’s global, layered Ku-band HTS network, offering 294 million sq. km (113+ million sq. miles) of coverage

2

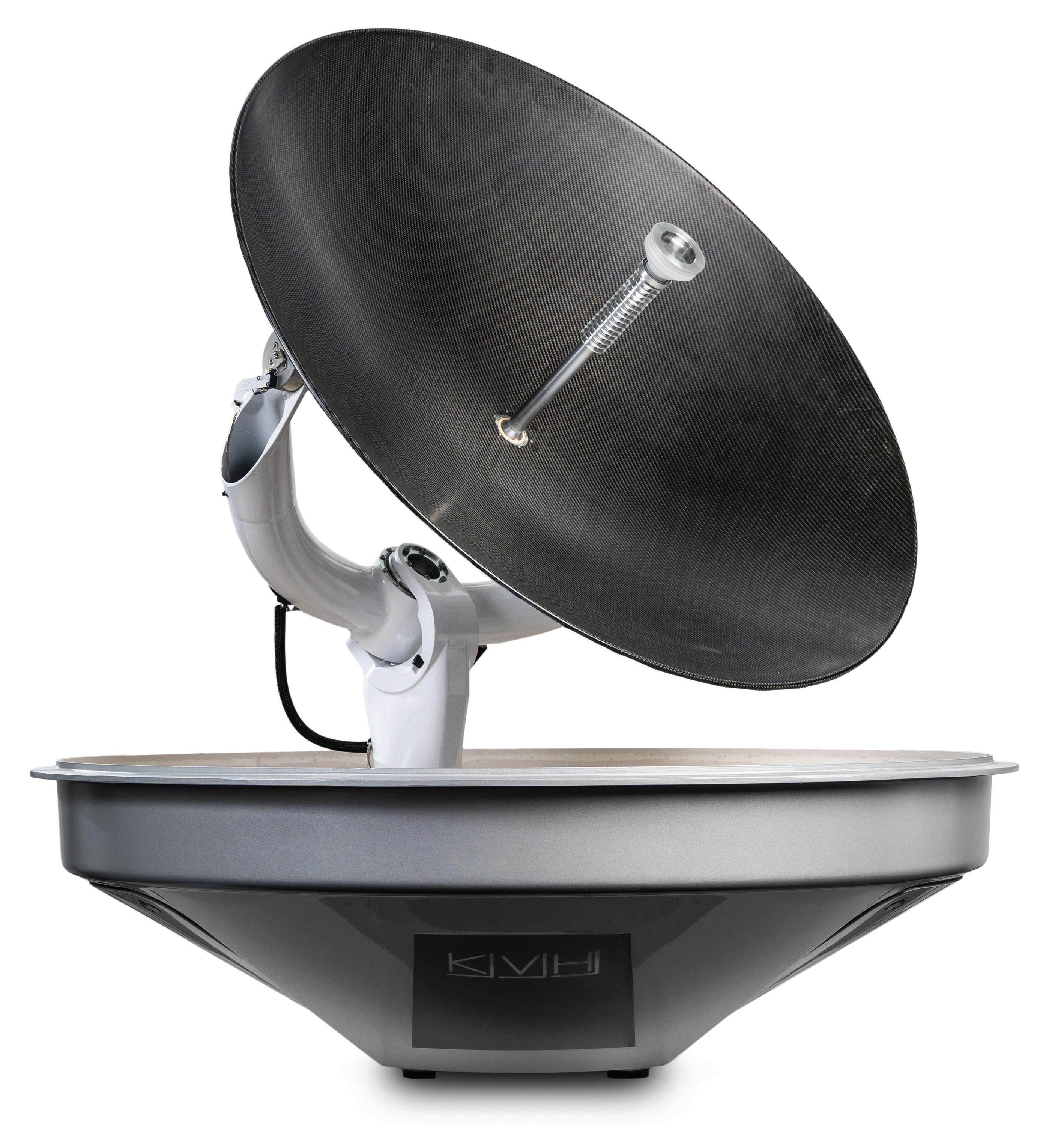

Highly tuned carbon fiber dish paired with KVH’s exclusive RingFire™ technology ensures superior reception

3

Three-axis pedestal design with a fourth axis of automatic skew adjustment seeks the optimal satellite in KVH’s HTS network and tracks satellites directly overhead at the equator and low on the horizon at polar latitudes

4

Terrestrial Communications Module supporting integrated high-power cellular antennas with service in 150+ countries plus built-in high-gain Wi-Fi antennas for seamless switching to shore-based Wi-Fi networks

5

Commercial-grade rotary joint and single cable design for easy installation and uninterrupted azimuth rotation and tracking

1

2

3

TracNet Hub+ The powerful 1U, AC-powered, rack-mountable TracNet Hub+ is packed with powerful features, including a versatile touchscreen user interface, intelligent hybrid network switching (satellite, cellular, Shore Wi-Fi), user-supplied SIM slot, built-in Wi-Fi router, ethernet ports, and two VoIP lines.

In addition, it provides content storage and access for the commercial maritime KVH Link content service.

4

5

TracNet H90 Hybrid Connectivity System System Specifications Service

Terrestrial Communications Module – Cellular Specifications

Network

KVH Ku-band global HTS network; regional cellular services in 150+ countries; available shore-based Wi-Fi networks

Antenna Type

Ku-band

Service Coverage Area

Seamless Worldwide Regions

Maximum Speed Download/Upload1

20 Mbps/3 Mbps

Band Support Regions 5G

LTE (4G)

Abovedecks Equipment Antenna Dish Diameter

1.1 m (42.5")

Antenna Unit Dimensions/ Weight

1.2 m D x 1.4 m h (48.8" D x 57.3" h)/ 86 kg (189 lbs)

UMTS (3G)

Elevation/Azimuth Range

-23° to 119°/commercial-grade rotary joint for unlimited azimuth rotation

5G

Temperature

Operating: -30°C to 55°C (-22°F to 131°F) Survival: -30°C to 70°C (-22°F to 158°F)

Global, except China Standards

3GPP Release 15 NSA/SA operation, Sub-6 GHz

MIMO

DL: Up to 4 x 4 MIMO UL: Up to 2 × 2 MIMO

Standards

DL Cat 20; UL Cat 18 LTE-FDD, LTE-TDD & LTE-LAA

MIMO

DL: Up to 4 ×4 MIMO

WDCMA

Data Rates (max)3 5G NR SA Sub-6Ghz

DL 4.2 Gbps; UL 450 Mbps

5G NR NSA Sub-6Ghz

DL 5.0 Gbps; UL 600 Mbps

LTE

LTE-A

DL 2.0 Gbps; UL 200 Mbps

WCDMA

DL 42 Mbps; UL 5.76 Mbps

Humidity

IEC 60945; 40°C (104°F), 95% Humidity (non-condensing)

UMTS

Rain

Precipitation rate of 1.7mm/min, w/wind speeds up to 100 knots

Wi-Fi Standards

IEEE 802.11ac/a/b/g/n

Band Support

2.4 Ghz / 5 Ghz

Terrestrial Communications Module – Wi-Fi Specifications

Antenna Unit Power

DC, provided by the TracNet Hub+

Antenna Cable

100’ coax cable provided; supports cable runs up to 500’; see kvh.com/tracnetcables or contact KVH Technical Support for specifications

Data Rate (max)3

802.11b: 11Mbps 802.11a/g: 54Mbps 802.11n: 300Mbps 802.11ac: 867Mbps

Remote Support

Integrated cellular radio for access by KVH Technical Support (requires SIM activation)

MIMO

Up to 2 x 2 MIMO

Security

WPA2, WPA3

Belowdecks Equipment – TracNet Hub+

Complete System

Dimensions

48.3 cm l x 30.7 cm w x 4.5 cm h (19” x 12.1” x 1.75”); will fit in 1U slot; rackmountable with optional mounting provisions2

Weight

3.7 kg (8.3 lbs)

Temperature

Operating: -25°C to 55°C (5°F to 131°F); Survival: -15°C to 70°C (5°F to 158°F)

Heading Input

NMEA 2000, NMEA 0183 magnetic or true heading

Input Power

100-240 VAC, 50-60 Hz auto switching, 300W max

Data Interfaces

4 Ethernet: IEEE 1000BASET-T 2 USB 3.0 Ports

Voice Interfaces

2 RJ11 ports for VoIP services

Certification

Complies with the essential requirements of Radio Equipment Directive 2014/53/EU, which includes the safety objectives set out in EN62368-1 and in EMC directive EN60945 NMEA 2000 Certified RoHS & REACH

System Warranty4

Comprehensive 2-year parts, 2-year labor warranty supported by KVH’s worldwide Certified Support Network (CSN); extended warranty up to 5 years available

Part Number

01-0441-11

System Options KVH Link

Available for commercial applications. See kvh.com/link for details

KVH OneCare™ Support Program

Available; see kvh.com/onecare for details

Iridium Certus® Optional Backup

Available; see “Optional Backup” on kvh.com/H90 for details

Meets FCC requirements. Exceeds Inmarsat operational, survival, and shock specifications.

1 Published data speeds are maximum speeds and may vary in different regions and under different conditions.

2 Optional Belowdecks Mounting Case (Part Number 72-0368) available for vessels without a rack.

1000 3 Data rates theoretical only and actual value depends on network conditions. Data rates limited by 1 Gbps Ethernet LAN interface.

4 Unless subject to in-country regulations. Restrictions apply. Visit kvh.com/warranty for details.

KVH Global, Layered Ku-band HTS Network Coverage

Coverage maps are representative and may change at any time. Data rates may also vary in different regions. For complete details, choose “TracNet” at kvh.com/tracnetmaps and click on the KVH ONE coverage map. KVH provides no guarantees of satellite coverage or availability.

60 cm and 1 m

kvh.com World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

©2023-2024 KVH Industries, Inc. KVH, TracNet, KVH ONE, RingFire, KVH OneCare, and the unique light-colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc.

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com Specifications subject to change without notice.

All other trademarks are the property of their respective companies

SS_TNH90_Comm_Leisure_Maritime_0124

TracNet 60 cm and 1 m System Coverage Map

KVH Data Plans

KVH ONE 1 m Terminals ®

Effective 1 October 2023

Available with: TracNet™ H90, TracPhone® V11hts, KVH OpenNet™ 1 m terminals With the TracNet H90, you enjoy the power of global hybrid connectivity with seamless automatic switching between high-speed VSAT, 5G/LTE cellular connectivity in 150+ countries1, and shore-based Wi-Fi. Plus, the same global VSAT data plans are available for 1 m TracPhone and OpenNet terminals. All plans are month-to-month, with no annual contract, and flexible suspension policies. Getting started is easy, follow these three simple steps!

STEP 1: Select Your High-speed (HS) VSAT Rate Plan

Save 10% on airtime when you subscribe to two active channels!

Choose between a high-speed plan with shaped rates and no overages, or a high-speed metered plan with affordable overages.

High-speed Shaped Plans

High-speed Metered Plans

High-speed fixed price with unlimited use

Lowest cost, affordable overage rates

If the monthly high-speed data allotment is consumed, the system will automatically shift to the unlimited use shaped data rate and reset to the high-speed data rate on the first day of the following month.

Simple, usage-based VSAT plans that offer the highest speeds and lowest costs with user-friendly tools for monitoring and controlling data usage.

Plan Name

$/month (USD)

High-speed Data/month

High-speed Data Rate2

Unlimited Use, Shaped Data Rates2

Plan Name

High-speed-ready; Upgrade to Active HS Service Available

HS-RDY3

1m-HS-10GB

10 GB

1m-M-10GB

1m-HS-25GB

25 GB

1m-M-25GB

HS-RDY3

1m-HS-50GB 1m-HS-100GB

$0

Contact KVH Sales for Pricing

50 GB 100 GB

20/3 Mbps (down/up)

256/64 Kbps (down/up)

1m-M-50GB 1m-M-100GB

1m-HS-250GB

250 GB

1m-M-250GB

1m-HS-500GB

500 GB

1m-M-500GB

STEP 2: Select Your Unlimited Use (UL) VSAT Rate Plan Get the security of unlimited airtime use4 at a fixed price with the 1 m terminal speed-based rate plans.

Plan Name

$/month (USD)

UL-RDY3

$0

$/month (USD)

Overage Rates US$/MB

$0

High-speed-ready; Upgrade to Active HS Service Available

Contact KVH Sales for Pricing

Contact KVH Sales for Pricing

Download2

Upload2

Unlimited use-ready; Upgrade to Active UL Service Available

1m-UL-256/64

256 Kbps

64 Kbps

1m-UL-512/128

512 Kbps

128 Kbps

1m-UL-1/256

1 Mbps

256 Kbps

1 Mbps

512 Kbps

2 Mbps

512 Kbps

1m-UL-4/1

4 Mbps

1 Mbps

1m-UL-8/2

8 Mbps

2 Mbps

1m-UL-1/512 1m-UL-2/512

Contact KVH Sales for Pricing

STEP 3: Enjoy 2 Free Months of 5G Hybrid Service with TracNet H90 Every new TracNet H90 activation includes two free months of 5G hybrid service as fast as 200 Mbps! Discover the power, blazing speed, and affordability for TracNet with 5G and global VSAT. Then continue to enjoy the benefits for only $99/month after that.

STEP 4: Contact KVH Sales at sales@kvh.com for Pricing Requires TracNet H90; 5G and LTE-A cellular speeds where available and compatible with the KVH- or user-supplied SIM cards and service.

Published data speeds are maximum speeds and may vary in different regions and under different conditions.

Only available when subscribing to an active paid plan on the alternate channel.

4 Restrictions may be imposed on access to data-intensive applications and protocols.

1 2 3

KVH ONE 1 m Terminals

KVH Data Plans

KVH’s 1 m VSAT airtime plans include two VoIP phone lines for Enhanced Voice Service, with calls to land or mobile lines for as low as $0.05/minute (KVH OpenNet terminals will require a KVH MTA for KVH VoIP service)

1 m Cellular Coverage*

1 m Global HTS Coverage*

Ku-band Coverage

*The map depicts expectations for KVH’s global HTS network coverage for the TracNet H90. For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Actual coverage and availability may vary. Data rates may also vary in different regions.

KVH provides no guarantees of satellite coverage or availability.

The KVH ONE cellular airtime plan is a monthly credit towards usage in all active destination zones. Usage is calculated and charged by the MB at each destination zone’s $/GB rate. The Tier 1 and Tier 2 zones are on (active) by default, while you have the option to activate the Tier 3 and Tier 4 zones. Visit kvh.com/lteglobalzones for details.

*For the most up-to-date coverage maps, visit kvh.com/tracnetmaps.

Blue indicates coverage. Actual coverage and availability may vary. Data rates may also vary in different regions. KVH provides no guarantees of cellular coverage or availability.

Flexible Tools to Manage Your Network and Data Unique Application Category Control tool to Allow, Restrict, or Block data usage in eleven application category groups to limit unintended data consumption.

100% transparency with easy-to-use alerts, system configuration tools, and data allocation controls via the secure myKVH™ portal’s suite of tools.

Looking for fleet pricing?

Contact KVH Sales for details: sales@kvh.com

General Terms • All prices are in $USD and do not include any taxes or fees that may apply.

• All services and plans are subject to the KVH Master Services Agreement.

• HTS network published data rates are rate plan maximums and may vary in different regions and under different conditions. Service reception may be affected by environmental or operational conditions and its uninterrupted availability is not guaranteed.

• KVH offers first voice line at no charge and second voice line at $31/month.

KVH-assigned voice line phone numbers for either line are provided at no charge.

User-specified voice line phone numbers for either line are $31/month.

• Virtual local phone numbers can be added for a monthly fee of $31 per number (5 max per voice line) where available/subject to in-country regulations.

• No annual contract for purchased equipment; rate plans are month-to-month, automatically renewing on a monthly basis. For leased terminal equipment, the contract term must be concurrent with, and extend to, the end of the lease period.

• Outgoing calls and faxes are subject to long distance charges. See details on the “KVH Enhanced Voice Service Long Distance Rate Sheet” at kvh.com/airtimeresources.

• VoIP-only Suspension Plan is offered at $129/month with no limitation on number of months used. May not be used as activation plan. Plan change fee does not apply.

• Global Static IP Service is available for $30/month per IP address. Visit kvh.com/staticip for details.

• Subscribers are permitted to change rate plans at any time; $100 fee applies for each downward plan change, except during the first 90 days of the initial contract to allow the subscriber to determine the plan most appropriate for their usage needs. For complete details, see “Airtime Rate Plan Change/Suspension Policies” at kvh.com/airtimeresources.

• BitTorrent and all such data-intensive applications and protocols will be blocked

by KVH.

kvh.com/one World Headquarters KVH Industries, Inc. · Middletown, RI U.S.A. +1.401.847.3327 · info@kvh.com

EMEA Headquarters KVH Industries A/S · Birkeroed, Denmark +45.45.160.180 · info@emea.kvh.com

Asia-Pacific Headquarters KVH Industries Pte Ltd. · Singapore +65.6513.0290 · info@apac.kvh.com

©2023-2024 KVH Industries, Inc. KVH, KVH ONE, TracNet, TracPhone, MyKVH, and the unique light colored dome with dark contrasting baseplate are trademarks of KVH Industries, Inc. All other trademarks are the property of their respective companies.

DS_KVH ONE_1m Terminals_DataPlans_0124
