ALL TRADES A JACK OF

Master Headlands

When the mowing units are activated for headland lift, an integrated belt boost automatically speeds up, to empty the belts before they are raised, leaving a clean and tidy headland. Furthermore the AutoStop is activated once belts are raised, automatically stopping them until mowing units are lowered again, keeping fuel consumption low.

Portus joystick

Portus Terminal – Easy Operation during Long Work Days

The Portus terminal provides handy and ergonomically friendly control that simplifies machine operation. With integrated joystick the Portus comes in a compact size, making it easy to place right next to the operator, so it is ergonomically well positioned for long days of operation. A small screen integrated into the joystick always keeps the tractor driver informed about the chosen operation.

When using one belt only, speed is reduced to avoid crop being placed too far across the middle.

Main functions, such as headland lift, adjustment of overlap and setting of ground pressure are easily operated by simply moving the joystick up and down. Portus can be used as separate terminal for non-ISOBUS tractors or in combination with the tractors ISOBUS terminal for easy and convenient operation.

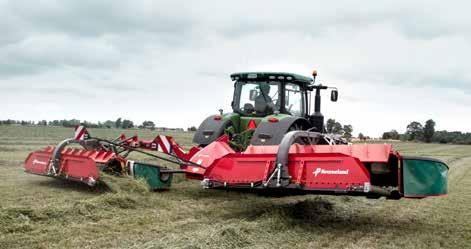

Ample clearance during headland lift. When belts are raised, they will automatically stop.

An integrated belt boost function automatically kicks in, to empty belts before raised.

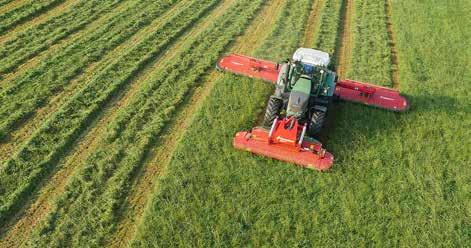

When mowing on flat and even terrain the mowing units are working with a minimum overlap to reach up to 10.2m effective mowing width.
