TRILO TRACK SYSTEM
TRILO TRACK SYSTEM
Elevate your space with the new Kuzco Lighting Trilo track system
– a sleek solution that effortlessly transitions from ceiling to wall, customizable in any configuration with easy track connectors. Experience lighting innovation, style, and adaptability in any space with the Trilo track system.
• 48V System
• Title 24 Compliant
• Easy to install on wall or ceiling
• Slim connectors
• 3’ and 6’ track sizes
• 20 decorative head and pendant options
ORDER YOUR TRILO TRACK SYSTEM
Decide the length and layout of the track and order the track and connectors. See page 6 - 7 for track options. 1.
2.
Choose the head/pendant and design the layout. See page 8 for track options.
Calculate the power wattage based on the heads/pendants chosen.
3.
Choose the proper power supply, remote driver or surface mount. See page 4 - 5 for options.
TRILO TRACK SYSTEM
POWER SUPPLY
The Trilo track system can be powered in several ways depending on the size and needs of your space. Each power supply includes the driver specified and any needed accessories for proper installation. Choose from any of the below options to power your Trilo system.
96W REMOTE DRIVER
TRR989096-BK-UNV-010
The Trilo remote driver power options include a fully enclosed 48V class 2 driver with compatible dimming (see specifications).
REMOTE DRIVER END FEED
The remote driver includes end feed with field cuttable 96” wire and conduit. Must be installed at end of the Trilo track system
REMOTE DRIVER / COVER
TRR989096-BK-UNV-010
TRR989096-WH-UNV-010
36W DRIVER + CENTER FEED CANOPY
TR989362-BK-UNV-010
Center Feed Canopy can be placed anywhere on the Trilo track with rail cutouts on either side of the circular body.
36W DRIVER + END FEED CANOPY
TR989361-BK-UNV-010
End Feed Canopies are placed at the end or beginning of your Trilo track system with a track rail cutout on one side.
SURFACE MOUNT POWER SUPPLY
SURFACE MOUNT CANOPY
TR989963-BK-UNV-010 / TR989603-BK-UNV-010
The Power Box Driver Cover can be placed at the end of the Trilo track system. This canopy covers a standard junction box and will house the driver for your system.
TR989361-BK
TR989361-BK-UNV-010
TR989361-WH
TR989361-WH-UNV-010
TR989362-BK
TR989362-BK-UNV-010
TR989362-WH
TR989362-WH-UNV-010
TR989603-BK
TR989603-BK-UNV-010
TR989603-WH
TR989603-WH-UNV-010
TR989963-BK
TR989963-BK-UNV-010
TR989963-WH
TR989963-WH-UNV-010
*Driver must fit into junction box, not compatible with pancake box.
30W Driver* + End Feed Canopy
30W Driver* + Center Feed Canopy
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
48W Driver + Surface Mount Canopy
72W Driver + Surface Mount Canopy
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
120V/TRIAC/ELV
120-277V/0-10V
TRT989100-WH / TRT989200-WH
TRT989100-BK / TRT989200-BK
TRILO TRACK SYSTEM
TRACK COMPONENTS

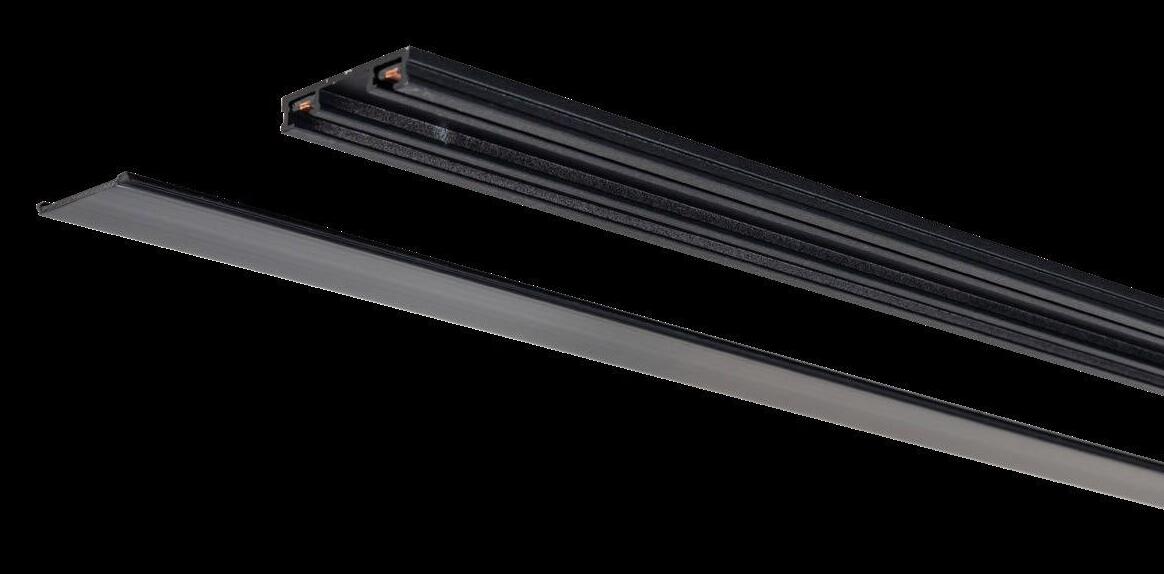

Trilo track rails are designed to be super-slim and as flush with your walls and ceiling as possible. Enjoy the slim, sleek track in any configuration using our easy to install 3' and 6' options. Each track includes a customizable cover that easily cuts to the needs of your system, providing a clean and modern look between track heads.
TRILO TRACK EASILY ATTACHES TO WALL OR CEILING WITH MOUNTING SCREWS
TRILO TRACK SYSTEM
CONNECTORS
Transform your space effortlessly with Trilo's seamless connectors. Our slim connectors make wall-to-wall, ceiling-to-ceiling, or ceiling-to-wall configurations easy to create. Attach your track rail with ease for a versatile, dynamic lighting system that suits the needs of your space.
TRC989910-BK
TRC989910-WH End Cap
TRC989011-BK TRC989011-WH
TRC989971-BK
TRC989971-WH Live Connector Isolated Connector
- BLACK
- WHITE
- BLACK
- WHITE
TRC989112-BK TRC989112-WH L Connector
TRC989123-BK TRC989123-WH T Connector
TRC989134-BK TRC989134-WH X Connector
TRC989022-BK TRC989022-WH Wall to Ceiling Connector
- WHITE
HOLO SHIFT
Introducing the Holo Shift track head for the Kuzco Trilo track system. Illuminate any space as the multi-cell design effortlessly rotates any direction. Available in two standard sizes, Holo Shift seamlessly fits into your Trilo track system configuration.
TRS69309-BK
TRS69309-WH
TRS69309-BK-4K
TRS69309-WH-4K
TRS69305-BK
TRS69305-WH
TRS69305-BK-4K
TRS69305-WH-4K
TRS69309-BK
TRS69309-WH
TRS69305-WH
TRS69305-BK
MULTI-CELL
Introducing the Holo track head for the Kuzco Trilo track system. This multi-cell design provides ample downwards illumination along any configuration of the Trilo track system. Available in two sizes to fit the needs of your space.
TRF39710-BK
TRF39710-WH
TRF39710-BK-4K
TRF39710-WH-4K
TRF39705-BK
TRF39705-WH
TRF39705-BK-4K
TRF39705-WH-4K
TRF39710-BK
TRF39710-WH
MODEL
JAREN
LINEAR LIGHT BAR

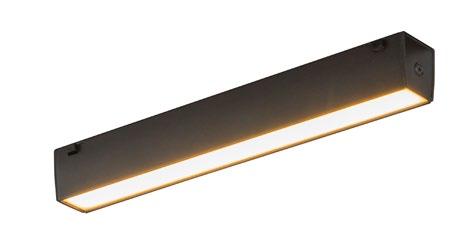

Introducing the Jaren track head for the Kuzco Trilo track system. This linear design provides ample downwards illumination on the ceiling or omni-directional illumination when used on the wall with the Trilo track system. Available in two sizes to fit the needs of your space.
TRF17415-BK
TRF17415-WH
TRF17415-BK-4K
TRF17415-WH-4K
TRF17410-BK
TRF17410-WH
TRF17410-BK-4K
TRF17410-WH-4K
TRF17415-BK
TRF17410-BK
TRF17410-WH
TRF17410-WH
JAREN
LIGHT BAR DETAIL
Introducing the Kyan track head for the Kuzco Trilo track system. Create stunning statements with this multi-cell linear pendant design that provides ample downwards illumination to your space. Connect Kyan anywhere along the Trilo track system to use. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRL29433-BG
TRL29433-BK
TRL29433-WH
TRL29433-BG-4K
TRL29433-BK-4K
TRL29433-WH-4K
TRL29422-BG
TRL29422-BK
TRL29422-WH
TRL29422-BG-4K
TRL29422-BK-4K
TRL29422-WH-4K
TRL29433-BK
TRL29422-BG
TRL29422-WH
MODEL COLOR TEMP WATTAGE VOLTAGE LUMEN CRI (RA) FINISH
MULTI CELL DETAIL
MIRA
Introducing the Mira track head for the Kuzco Trilo track system. Create ambiance with this elegant linear pendant design that provides ample downwards illumination to your space. Connect Mira anywhere along the Trilo track system to use. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRL28133-BG
TRL28133-BK
TRL28133-WH
TRL28133-BG-4K
TRL28133-BK-4K
TRL28133-WH-4K
TRL28122-BG
TRL28122-BK
TRL28122-WH
TRL28122-BG-4K
TRL28122-BK-4K
TRL28122-WH-4K
TRL28122-BK
TRL28122-BG
TRL28133-WH
LIGHT BAR DETAIL
PAOLO TRACK HEAD
Introducing the Paolo track head for the Kuzco Trilo track system. Illuminate the important features of a space using this adjustable, directional beam of light. Available in two sizes and finishes to fit the needs of your space.
TRS25925-BG
TRS25925-BK
TRS25925-WH
TRS25925-BG-4K
TRS25925-BK-4K
TRS25925-WH-4K
TRS25914-BG
TRS25914-BK
TRS25914-WH
TRS25914-BG-4K
TRS25914-BK-4K
TRS25914-WH-4K
560lm*
585lm*
575lm*
605lm*
- WHITE 90 ° HEAD ADJUSTMENT
TRS25914-BG
TRS25925-BG
TRS25914-BK
TRS25914-WH
TRS25925-BK
TRS25925-WH
MODEL
Introducing the Luiz track head for the Kuzco Trilo track system. Form meet function in this modern, triangular shade statement pendant. Connect Luiz anywhere along the Trilo track system to use. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP73915-BK
TRP73915-WH
TRP73915-BK-4K
TRP73915-WH-4K
TRP73915-BK
TRP73915-WH
REMUDA PENDANT
Introducing the Remuda track head for the Kuzco Trilo track system. Simplicity and modern lines make Remuda the perfect pendant in any configuration. Connect Remuda anywhere along the Trilo track system to use. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP71602-BG
TRP71602-BK
TRP71602-WH
TRP71602-BG-4K
TRP71602-BK-4K
TRP71602-WH-4K
TRP71602-BG
TRP71602-WH
TRP71602-BK
Introducing the Faria track head for the Kuzco Trilo track system. This minimal rounded pendant makes a statement when connected to our sleek system. Connect Faria anywhere along the Trilo track system to use. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP26903-WH
TRP26903-BG
TRP26903-BK
TRP26903-WH
TRP26903-BG-4K
TRP26903-BK-4K
TRP26903-WH-4K
TRP26903-BK
TRP26903-BG
FARIA DOUBLE
Introducing the Faria Double track head for the Kuzco Trilo track system. This minimal rounded pendant swings between two wires for a unique look when connected to our sleek system. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP27203-BG
TRP27203-BK
TRP27203-WH
TRP27203-BG-4K
TRP27203-BK-4K
TRP27203-WH-4K
TRP27203-BG
TRP27203-WH
TRP27203-BK
ELOA PENDANT
Introducing the Eloa track head for the Kuzco Trilo track system. This wine glass shaped pendant created modern sophistication in any Trilo track configuration. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP89703-BG
TRP89703-BK
TRP89703-WH
TRP89703-BG-4K
TRP89703-BK-4K
TRP89703-WH-4K
TRP89703-BK
TRP89703-WH
TRP89703-BG ELOA
Introducing the Monae track head for the Kuzco Trilo track system. This well-loved Kuzco signature split globe silhouette is now available as an accessory to the Trilo system. Each pendant comes with 120” of wire to adjust to the needs of your space.
TRP11707-BG
TRP11707-BK
TRP11707-WH
TRP11707-BG-4K
TRP11707-BK-4K
TRP11707-WH-4K
TRP11707-BK
TRP11707-BG
TRP11707-WH MONAE
