COMPANY PROFILE

HARD-WORKING KUBOTA TOOLS T O HELP YOU GET MORE DONE

For more than 50 years, Kubota has been your partner in pursuit of your property dreams.

As a do-it-yourselfer, you count on hard-working tools to help you get more done every day. And, like you, Kubota believes anything worth doing is worth doing right.

Whether you manage a two-acre yard or 2,000-acre ranch, hay field or construction site, our precision engineered orange equipment helps you conquer your goals one project at a time.

The entire Kubota product line – from utility vehicles and mowers, to tractors, hay tools and a full range of construction equipment – is quality built to keep you growing and improving your property, your business, and your community for years to come.

This brochure is a comprehensive look at our entire line and all the hardworking tools ready to help you get more done. Check out our recent innovations, new market entries, and products you likely already know well. We are constantly evolving to expand our products to better meet your needs for today and well into the future.

For more ideas to help you get more done, visit our website at KubotaUSA.com.

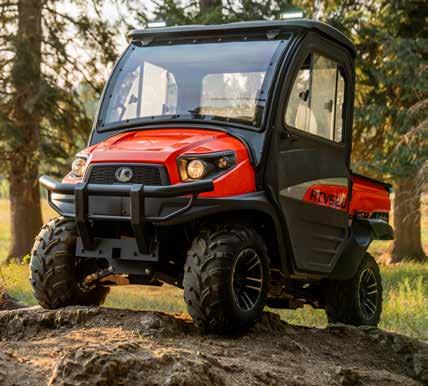

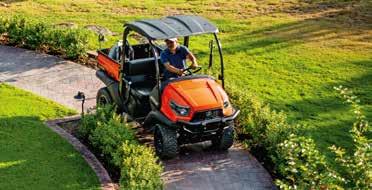

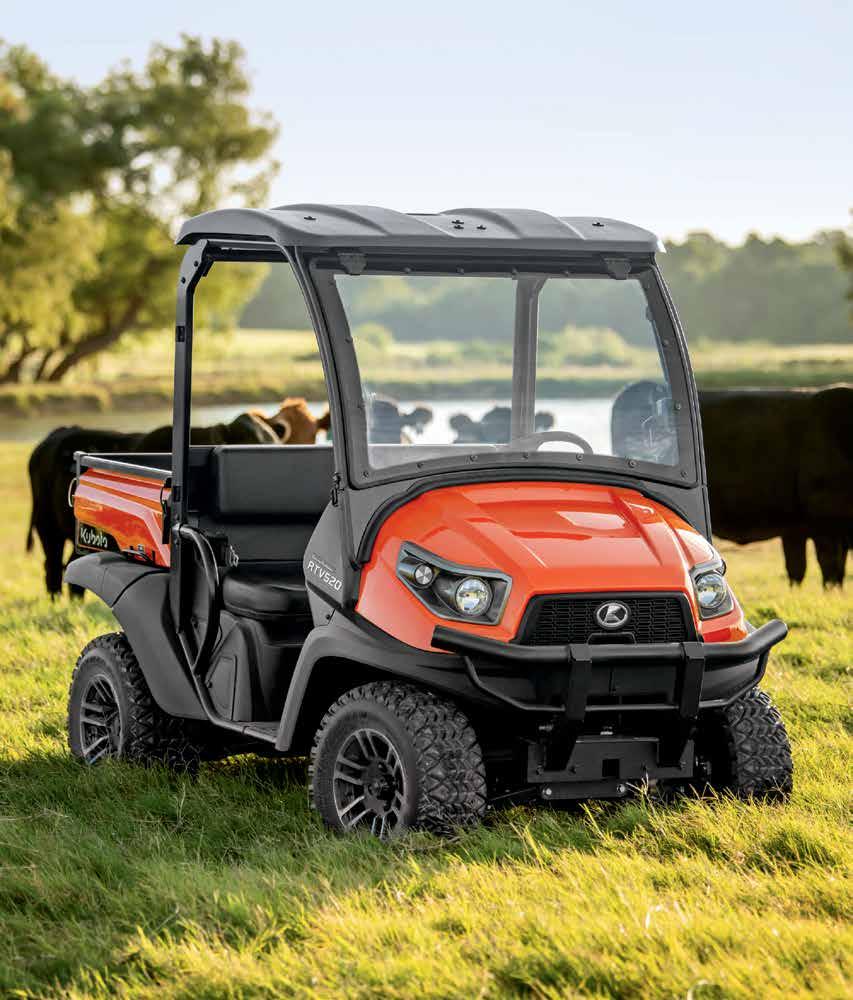

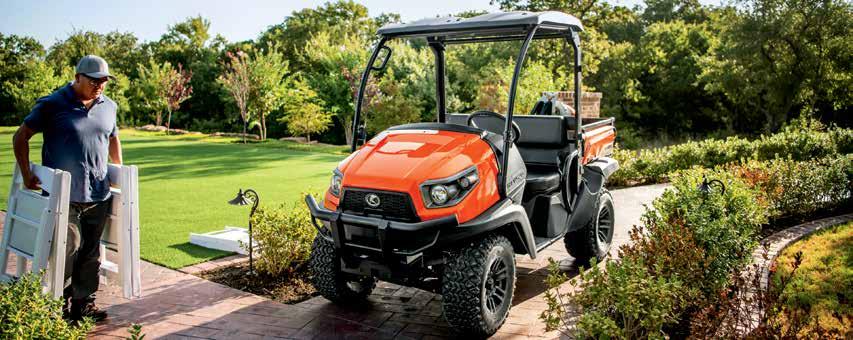

RTV520

Mighty

› Powerful Kubota Liquid-Cooled EFI Engine. A more powerful 2-cylinder engine provides increased horsepower, with quiet and reliable muscle for most jobs. Kubota built, the durable engine is liquidcooled to ensure consistent performance throughout the day. Electronic Fuel Injection (EFI) makes starting the engine in cold-weather easier, and provides instant power with greater throttle control

› Capable Towing Capacity. The reliable engine delivers capable towing capacity, made simple with a standard trailer hitch for greater versatility and an ability to attach trailers or pull-behind equipment. For those who refuse to compromise, the mighty RTV520 can tackle even the toughest jobs with its 1,168 lbs towing capacity

› Comfortable Seat Design. The stylish matte-black and contoured seats have been redesigned e better comfort during long rides

› Narrow Stance. The RTV520’s compact dimensions let you nimbly maneuver into and out of tight spaces with ease

› Tight Turning Radius. With a tight turning diameter of just 21.7 ft., the RTV520 can work in narrow sites where bigger utility vehicles can’t go

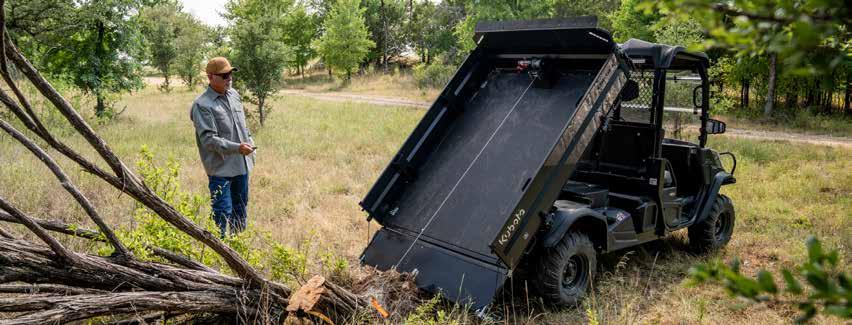

› Metal Cargo Bed. The RTV520 features a durable metal cargo bed offering years of durable use

› Radiator with Screen. The radiator which features a screen to maximize protection of the radiator. A window provides superior accessibility for cleaning and maintenance

RTV520

Capability. Agile Package.

RTV520

GENERAL PURPOSE DELUXE

Engine Type (Kubota) 2-cylinder, gasoline, water-cooled, EFI Horsepower (net)* 17.4 Transmission

Hydro Transmission (VHT Plus)

Brakes (front/rear) Dry disc brake

Ground Clearance (front/rear axle in.) 8.9" / 6.7"

ADDITIONAL IMPLEMENTS AND ACCESSORIES

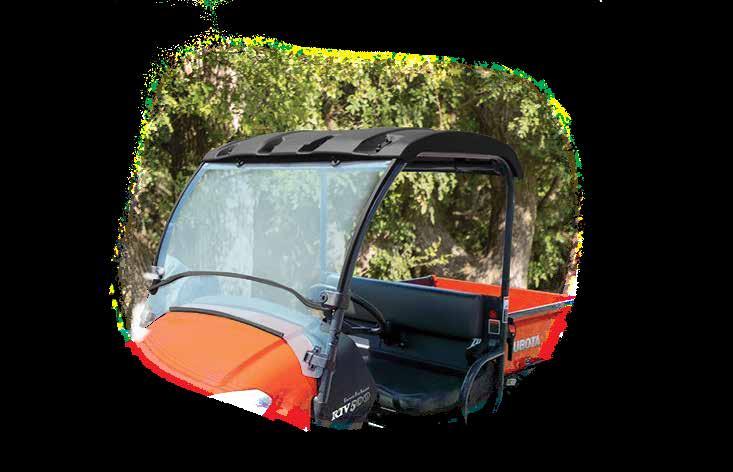

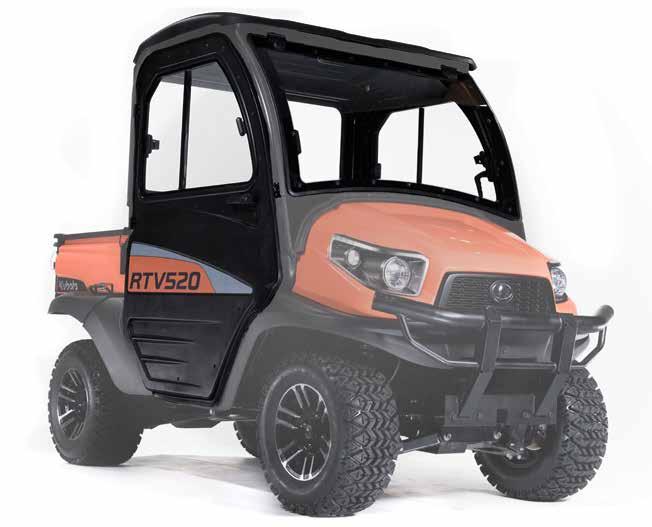

POLY CAB ENCLOSURE

Part No. 77700-11821

RTV520

Poly cab enclosure bundled all together to keep the operator and passenger out of the elements. Includes the following; Hard Cab Component Mounting Kit (77700-V4310A); Poly Windshield (77700-V4368); Plastic Canopy (77700-V4312); Acrylic Rear Panel (7770011822); Plastic Door Kit (77700-11823).

POLY CAB COMPACT MOUNTING KIT

Part No. 77700-V410A RTV520

Slotted design mounting kit for quicker installation; Included with Hard Cab Enclosure (77700-11821); Only one mounting kit required to install the Hard Cab Enclosure (77700-11821) components in any combination.

The following 4 Cab Components are available as part of the 77700-11821, and can also be purchased individually.

B

POLY WINDSHIELD

Part No. 77700-V4368

RTV520

C

D E

PLASTIC CANOPY

Part No. 77700-V4312

RTV520

Steel framed hard coated poly windshield featuring 30X more scratch resistance than typical acrylic windshields for longer lasting glare-free optics; Recommend adding Wiper Kit (77700-V4367); Requires Hard Cab Component Mounting Kit (77700-V4310A).

Steel reinforced plastic canopy to keep the operator and passenger out of the elements; Requires Hard Cab Component Mounting Kit (77700-V4310A).

ACRYLIC REAR PANEL

Part No. 77700-11822

RTV520

Steel framed acrylic rear panel to prevent wind, dust, and rain from entering into the operator’s area; Requires Hard Cab Component Mounting Kit (77700-V4310A).

PLASTIC DOOR KIT

Part No. 77700-11823

RTV520

Steel reinforced black plastic doors and sliding acrylic side windows; Requires Hard Cab Component Mounting Kit (77700-V4310A).

WIPER KIT

Part No. 77700-V4367

RTV520

Keep mud, rain, dust, and everyday grime off the front windshield; Compatible with Poly Windshield (77700-V4368) and (77700-V4365), and Hard Cab Enclosure (77700-11821); Not compatible with Upper Glass Windshield (K7311-99280).

FRONT HEAVY LOAD STRUT

Part No. K7311-99180

RTV520

Optional for Cab and V4308B Front Blade - not required; Distributes weight to stabilize loads located at the front of the RTV.

NON MODULAR CAB COMPONENT MOUNTING KIT

Part No. 77700-V4363

RTV520

Required to install Metal Canopy (77700-V4364) or Poly Windshield (77700-V4365).

CAB COMPONENTS

POLY WINDSHIELD

Part No. 77700-V4365 (V4365)

RTV520

Steel framed hard coated poly windshield featuring 30X more scratch resistance than the typical acrylic windshields; Superior scratch resistance for longer lasting glare-free optics; Recommend adding Wiper Kit (77700-V4367); Requires Non Modular Cab Component; Mounting Kit (77700-V4363).

METAL CANOPY

Part No. 77700-V4364 (V4364)

RTV520

Metal canopy to keep the operator and passenger out of the elements; Requires Non Modular Cab Component Mounting Kit (77700-V4363).

REAR CARGO SCREEN

Part No. K7311-99590

RTV520

Rear screen mounts directly to the ROPS and prevents objects from entering the operator area from behind; Comes in black; Not Compatible with Cab Enclosure (77700-11821) or Acrylic Rear Panel (77700-11822).

C1 A1

A1

UPPER GLASS WINDSHIELD

Part No. K7311-99280 (V4316)

RTV520

Upper glass windshield to provide a top front barrier from wind, dust, and rain; Superior scratch resistance for longer lasting glare-free optics.

LOWER POLY WINDSHIELD

Part No. K7311-99290 (V4315)

RTV520

Lower Poly windshield to provide a lower front barrier from wind, dust, and rain; Folds up to allow access to the bonnet; Recommend adding Upper Glass Windshield (K7311-99280) for complete full coverage.

PLASTIC CANOPY

Part No. K7311-99390 (V4321)

RTV520

Plastic canopy to keep the operator and passenger out of the elements; Plastic Canopy is not compatible with Modular Cab Systems (77700-11821) or Non-Modular Cab Components (77700-V4363).

WINCHES / GUARD / HITCH

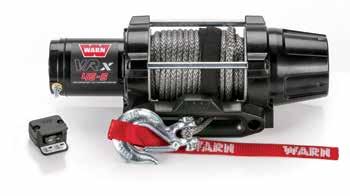

WARN VRX WINCH KIT (3,500 LB. STEEL CABLE)

Part No. 77700-11552

RTV520

IP68 waterproofing system standard; Redesigned & improved brake system and clutch system; Comes with winch remote for operation outside of cabin; Limited lifetime mechanical & 3 year electrical warranty; Requires K7311-97313 Winch Mounting Kit for RTV500 & RTV520

BLACK FRONT GRILL GUARD

Part No. K7321-99210

RTV520

With this stylish heavy duty grill guard, you can keep the front of the RTV520 protected while looking great; The Front Grill Guard comes in a stylish black color; Standard on all deluxe RTV520 trims.

2" TRAILER HITCH BALL MOUNT

Part No. 77700-V4349

RTV520

SAE Class II approved; Max Tongue/Towing 350/3500 lbs; Glass black finish; Trailer ball not included.

CAB ACCESSORIES

BACKUP BEEPER

Part No. K7321-99640

RTV520

The Backup Beeper creates audible alarm when machine is placed in reverse; Includes everything you need in order to hook up the Backup Beeper to your RTV520.

ELITE SERIES MIRROR

TRIFECTA KIT

Part No. 77700-13836

RTV520

Rechargeable LED dome light; Provides flexibility with a breakaway design that mounts on both the driver and passenger sides of the RTV; Includes built-in vibration isolation and 3-way mirror head adjustment.

HEADREST STAY KIT

Part No. K7311-99580

RTV520

Sold individually; Required to install Headrest (K7421-99550); Comes in black.

CAB ACCESSORIES

SIDE MIRROR

ROPS Part No. 77700-V4358

CAB Part No. 77700-V5059

RTV520

Increases operator visibility; Shatter resistant tempered convex mirror with an impact-resistant housing; Sold individually.

HEADREST

Part No. K7421-99550

RTV520

Provides head support; Sold individually; Requires Headrest Stay Kit (Black – K7311-99580); Comes in black.

SPEEDOMETER

Part No. K7311-99650

RTV520

Displays speeds up to 30 mph (50 km/h); The Speedometer is sold individually.

ELITE SERIES UTV GRAB HANDLE

Part No. 77700-13834

RTV520

Built with high-grade, tough nylon for maximum durability; Has a comfortable design for secure and ergonomic handling; Fold-away feature: Allows for flush mounting with the roof when not in use.

STORAGE / SNOW REMOVAL

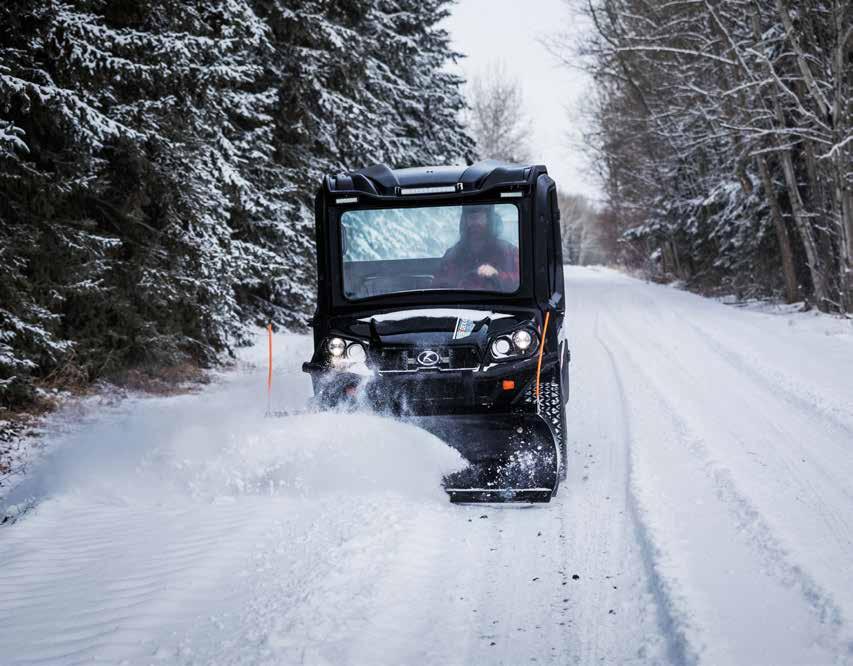

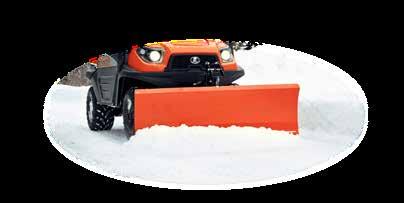

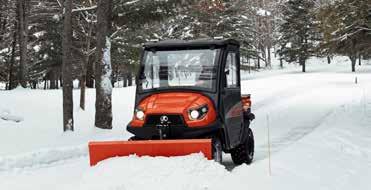

60" FRONT BLADE

Part No. V4308B

RTV520

60” wide (straight) snow blade with trip spring; 52” plow width @ 30° max angle; Electric lift with manual angle adjustment; Includes adjustable skid shoes and dedicated hitch; Not compatible with 2" Trailer Hitch Ball Mount (77700-V4349); Now compatible with the Electric Angle Kit (V4303).

FRONT ACCESSORY BOX

Part No. K7321-99560

RTV520

Mounts under the hood to hold small items securely; Not Compatible with Cab Heater Kit.

GLOVE BOX KIT

Part No. K7321-99570

RTV520

Increase your storage space for small items; Mounts under dash on driver's side; Not compatible with Cab Heater Kit.

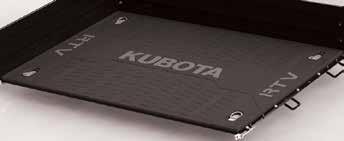

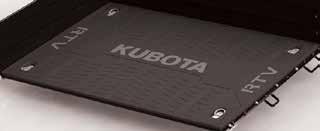

CARGO BOX MAT

Part No. K7211-99200

RTV520

Durable, polyurethane cargo box pad designed to protect all types of cargo; The Cargo Box Mat is sold individually.

ELECTRIC ANGLE KIT

Part No. V4303

RTV520

Converts a manual angle blade to an electric angle blade making snow removal even easier.

CUTTING EDGE

Standard Part No. V4305

Heavy Duty Part No. V4306

RTV520

Standard Cutting Edge is a replacement for the 60” Front Blade;

Upgraded cutting edge constructed of heavy duty mild carbon steel; Cutting edge is reversible for extended wear; Requires 60” Front Blade.

HEATER KIT

Part No. 77700-V4314

RTV520

3 vents; 2-speed Lo/High fan settings; 20,000 BTU capacity; Utilizes engine coolant to heat the cab; Not compatible with Front Accessory Box or Glove Box.

SNOW DEFLECTOR

Part No. V4307

RTV520

Rubber deflector mounted to the top of the 60" Front Blade to reduce the throw of snow and debris from the front blade; Requires 60” Front Blade.

TIRES & WHEELS

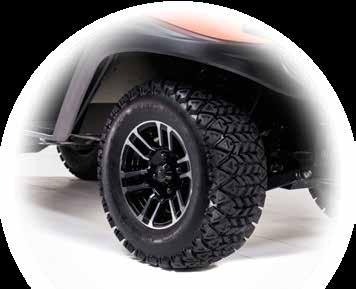

ATV ALLOY FRONT TIRE & WHEEL ASSEMBLY

Left Part No. K7321-99850

Right Part No. K7321-99860

RTV520

Includes 1 OEM tire and alloy wheel;

Front Assembly – 24 x 9 - 12 6-ply tire;

ATV tread design are directional (left or right)

ATV ALLOY REAR TIRE & WHEEL ASSEMBLY

Left Part No. K7321-99870

Right Part No. K7321-99880

RTV520

Includes 1 OEM tire and alloy wheel;

Rear Assembly – 24 x 11 - 12 6-ply tire;

ATV tread design are directional (left or right)

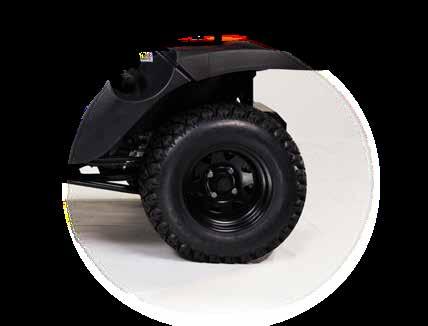

HDWS STEEL TIRE & WHEEL ASSEMBLY

Front Part No. K7321-19310

Rear Part No. K7321-19410

RTV520

Includes 1 OEM tire and steel wheel; Front Assembly Measurements - 24 x 9 - 12 6-ply tire; Rear Assembly Measurements - 24 x 11 - 12 6-ply tire; HDWS tread design are non-directional.

HDWS ALLOY TIRE & WHEEL ASSEMBLY

Front Part No. K7321-99800

Rear Part No. K7321-99810

RTV520

Includes 1 OEM tire and alloy wheel; Front Assembly Measurements – 24 x 9 - 12 6-ply tire;

Rear Assembly Measurements – 24 x 11 - 12 6-ply tire; HDWS tread design are non-directional.

ATV STEEL FRONT TIRE & WHEEL ASSEMBLY

Left Part No. K7321-19110

Right Part No. K7321-19160

RTV520

Includes 1 OEM tire and steel wheel;

Front Assembly – 24 x 9 - 12 6-ply tire;

ATV tread design are directional (left or right)

ATV STEEL REAR TIRE & WHEEL ASSEMBLY

Left Part No. K7321-19210

Right Part No. K7321-19260

RTV520

Includes 1 OEM tire and alloy wheel;

Rear Assembly – 24 x 11 - 12 6-ply tire;

ATV tread design are directional (left or right)

LIGHTS

STROBE LIGHT KIT

Part No. 77700-V4318

RTV520

Strobe light with rubber base and polycarbonate lens; On/off toggle switch included; Not compatible with Plastic Canopy (K7311-99390); Requires Plastic Canopy (77700-V4312) or Hard Cab Enclosure (77700-11821).

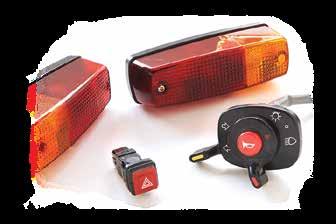

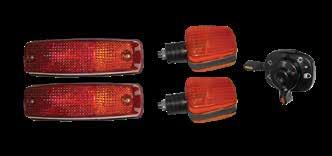

TURN SIGNAL / HAZARD LIGHT KIT

Part No. K7321-99610

RTV520

Turn Signal/Hazard Light Kit includes two front hazard/indicator lamps and two rear combination hazard/indicator/tail lamp assemblies; This kit is not compatible with Poly Windshield (77700-V4365), Poly Windshield (77700-V4368), or Hard Cab Enclosure (77700-11821).

LED WORK LIGHT KITS

Front (2) Part No. 77700-11933

Rear (1) Part No. 77700-11934

RTV520

Six high intensity LEDs; Ideal for off-road driving only; Measured lumen: 1,000 lm; Multivolt 10-30V DC; Mounting: upright or flush; Front Dimensions: 1.8" W x 6.3" H x 2.5" D; Rear Dimensions: 2.4" W x 7.7" H x 1.8" D.

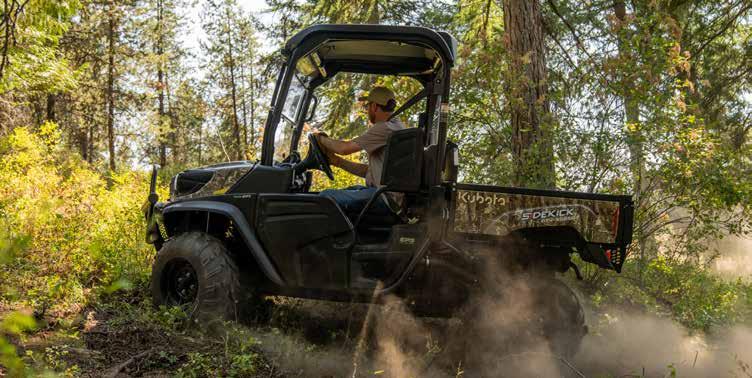

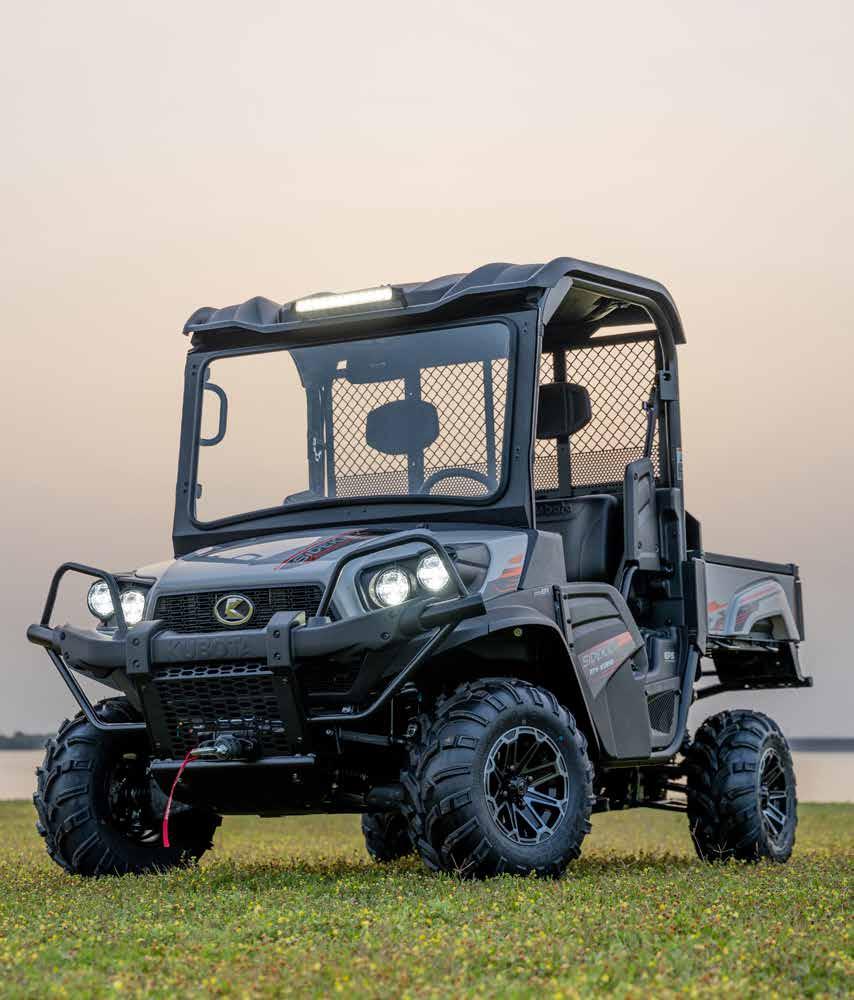

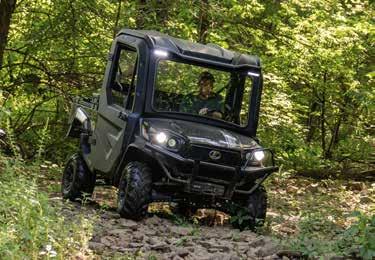

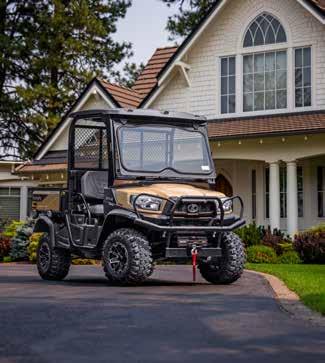

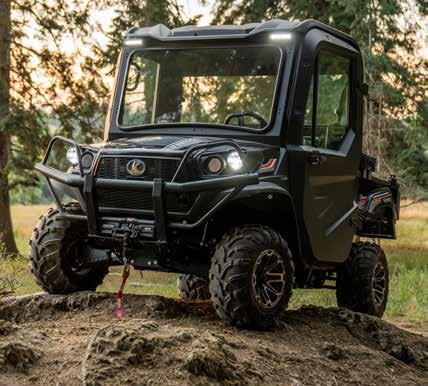

SIDEKICK

The gas-powered, large chassis Sidekick is where Durability Meets Speed

› The Sidekick is built upon the robust, heavyduty platform to provide proven durability and performance

› Electronic Fuel Injection (EFI) and a powerful 54 HP gasoline, water-cooled engine provide plenty of torque, astonishingly quick acceleration, and high transport speed (up to 40 mph)

› Idle Speed Control (ISC) ensures stable power

› The Continuously Variable Transmission with centrifugal clutch (CVT-Plus) provides fast acceleration, smooth operation, and controlled braking with engine-assisted deceleration

› The cogged belt on the CVT-Plus is kept tight for minimal slippage and excellent durability, fully shielded to help keep out dust and water, and cooled with a large fan for even greater longevity

› Kubota Sidekick’s standard 45A Electronic Power Steering (EPS) delivers light steering at low speeds and firm control at high speeds. Designed for stability and precision, EPS adapts to heavy cabin loads, cargo, or snow blade attachments—ensuring confident handling and protection against oversteering at any speedEven when fully loaded, the Sidekick won’t bottom out front and rear adjustable independent suspension delivers a smooth ride with plenty of clearance

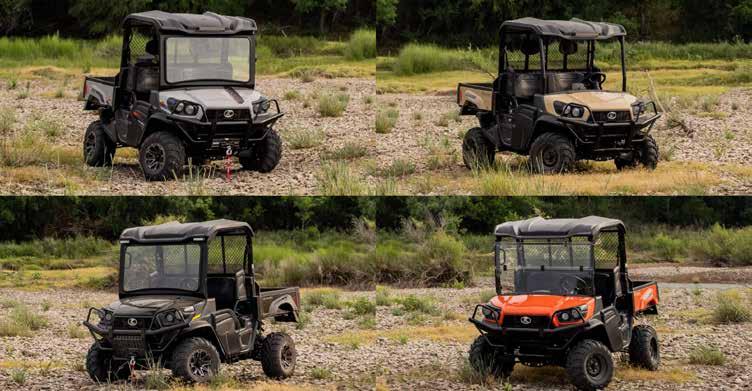

› The aggressive style is offered in five distinct colors, including the Special Edition Stone Gray Model, which comes with alloy wheels, spray-on bed liner, and visually distinct design and graphics to signify being “ready for anything”

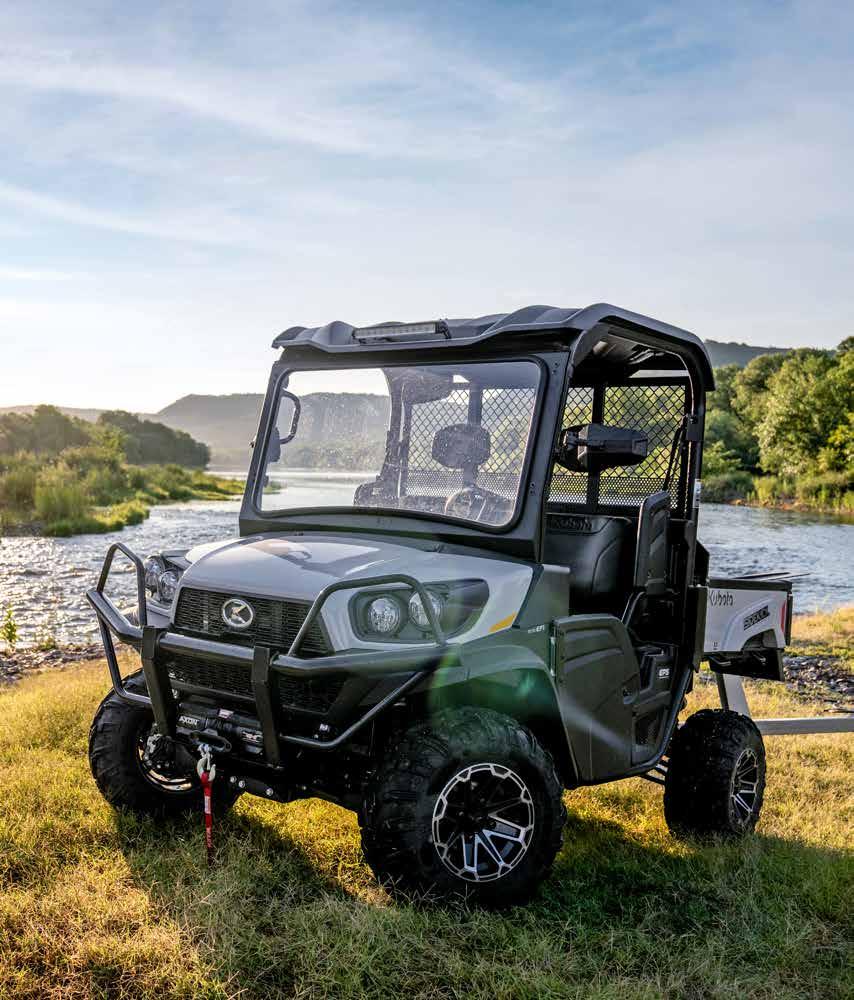

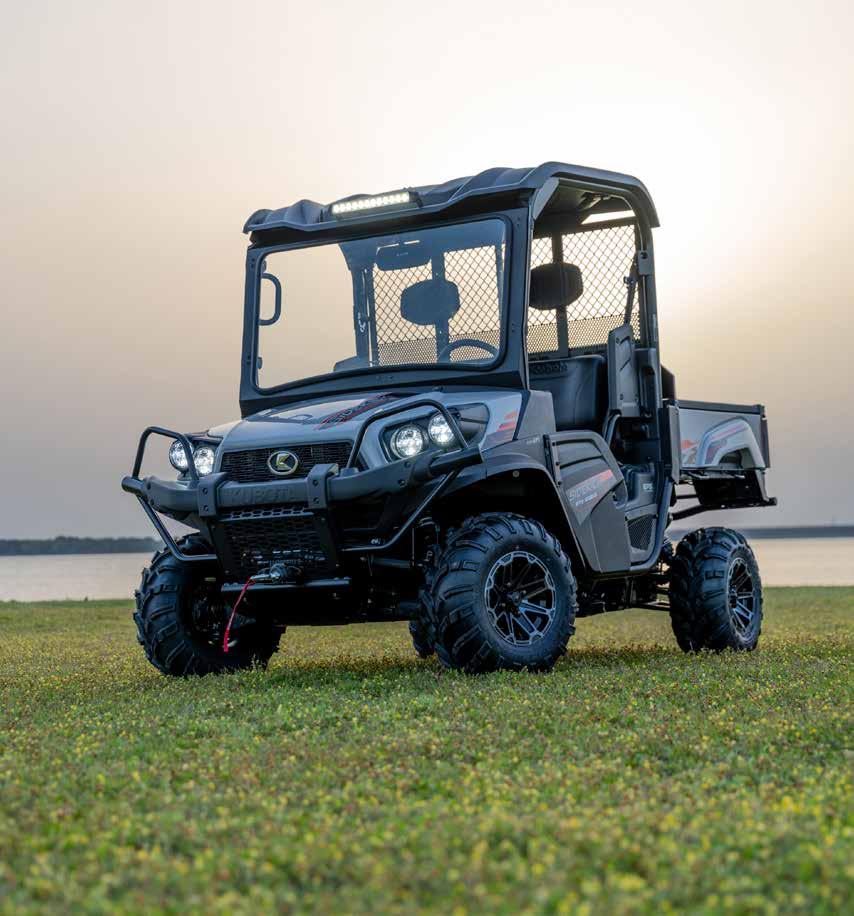

Shown with optional accessories

SIDEKICK

(Kubota)

(gross)*

4-cycle, Gas, DOHC

(CVT with centrifugal clutch)

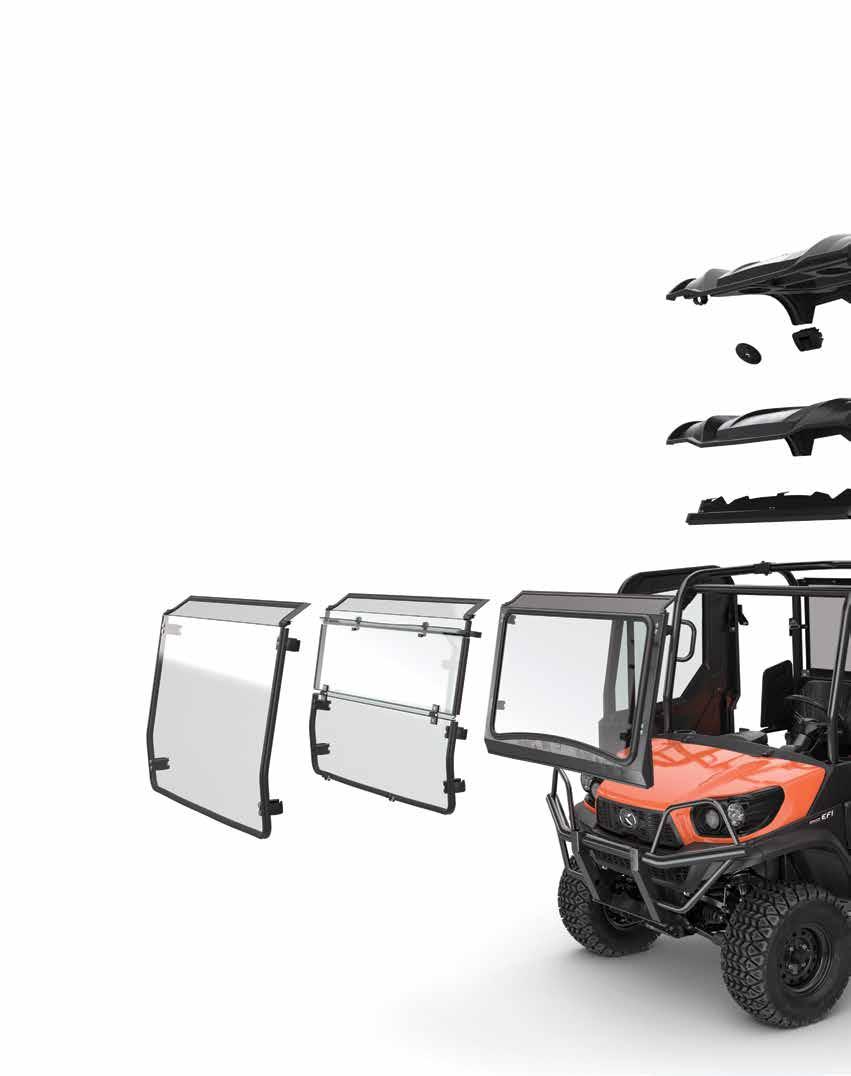

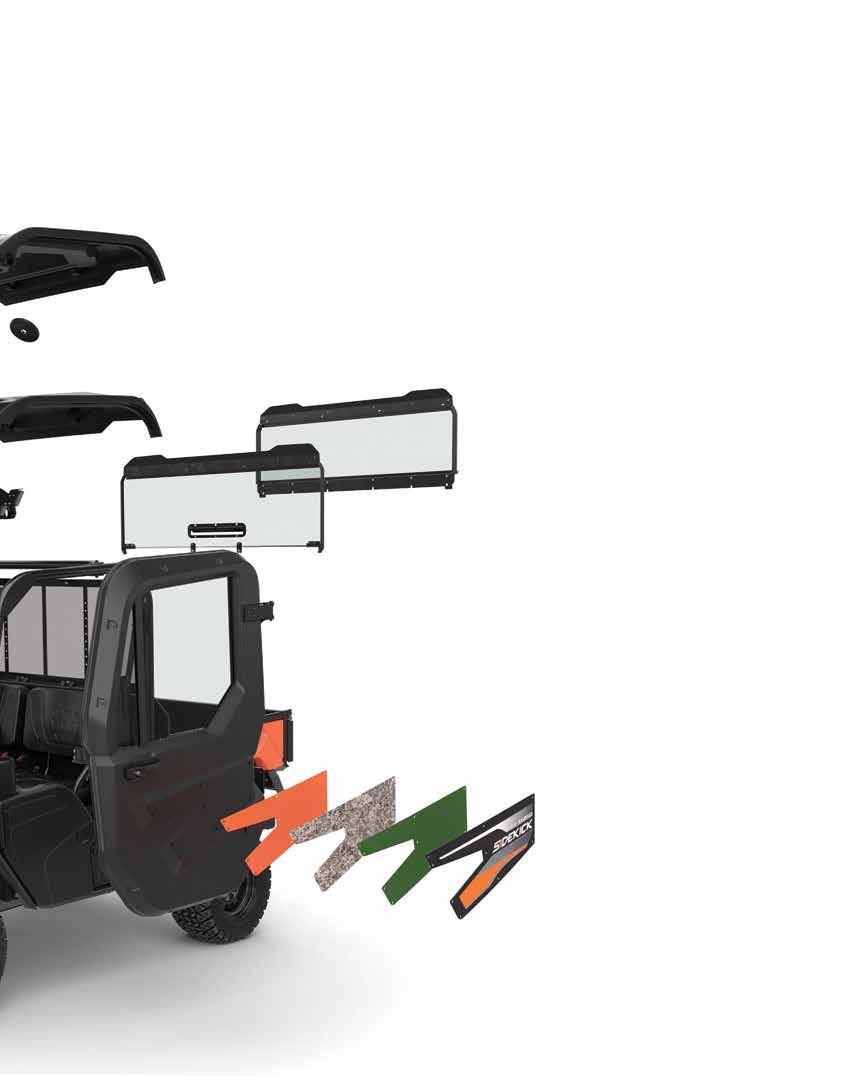

CAB COMPONENTS

SIDEKICK

POLY WINDSHIELD

Part No. 77700-VP0804A

Fixed hard coated poly windshield to provide a front barrier from wind, dust, and rain;

Includes 4 quick clamps preinstalled for a quick and easy install.

POLY FLIP WINDSHIELD

Part No. 77700-VP0805A

Flip hard coated poly windshield to provide a front barrier from wind, dust, and rain;

Includes 4 quick clamps preinstalled for a quick and easy install.

GLASS WINDSHIELD

Part No. 77700-VP0802

Fixed laminated glass windshield to provide a front barrier from wind, dust, and rain;

Includes 4 quick clamps preinstalled for a quick and easy install; Recommend adding Wiper Kit and Washer Kit.

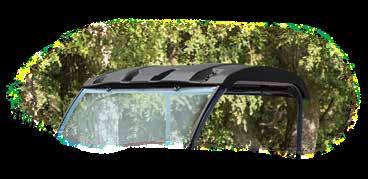

PREMIUM ROOF

Part No. 77700-VP0801A

Twin sheet vacuum formed black plastic roof with plug & play connections for electrical accessories and the Premium Audio System; Keep the operator and passenger out of the elements.

PREMIUM AUDIO SYSTEM

Part No. 77700-VP0897

Custom fit for Premium Roof sold separately; Includes Jensen AM/FM/WB/USB Mini Bluetooth® Stereo; Not compatible with the Sport Roof; Requires Accessory Wiring Harness.

SPORT ROOF

Part No. 77700-VP0800A

Single sheet vacuum formed black plastic roof; Keep the operator and passenger out of the elements.

SPORT ROOF SEAL PANEL KIT

Part No. 77700-VP807

Not compatible with Premium Roof; Required when using Heater Kit.

WIPER KIT

Part No. 77700-VP0817

Sidekick

Includes a single wiper to keep the glass windshield clear from dust and rain;

Compatible only with Glass Windshield; Requires Accessory Wiring Harness.

WASHER KIT

Part No. 77700-VP0818

Sidekick

Upgrade the wiper kit with a washer kit to help keep the glass windshield clear; Compatible only with Glass Windshield; Requires Wiper Kit and Accessory Wiring Harness.

Windshield

ANTENNA

Part No. K7711-63160

Optional antenna for the Premium Audio System for AM/FM.

POLY REAR PANEL

Part No. K7711-63160

Poly rear panel to prevent wind, dust, and rain from entering into the operator's area;

Features a louver vent to allow airflow through the cabin.

GLASS REAR PANEL

Part No. 77700-VP0803

Glass rear panel to prevent wind, dust, and rain from entering into the operator's area.

Poly Rear Panel

SIDE MIRROR KIT

CAB Part No. 77700-VP0815

ROPS Part No. 77700-V4358

Increases operator visibility; Cab mirrors sold in a pair (left & right); ROPS mirror sold individually.

UNDERHOOD SEAL KIT

Part No. 77700-VP0808

Required when using Heater Kit to create a fully sealed cab.

HEATER KIT

Part No. 77700-V5247

Add an integrated heater with an in-dash adjustable temperature; Requires an Underhood Seal Kit for a fully sealed cab; Requires a Sport Roof Seal Panel Kit when used with a Sport Roof.

2" ROPS QUICK CLAMP

Part No. 77700-VP0819A

Quick and easy ROPS clamp to attach an assortment of RTV accessories; Sold individually.

DOOR INSERT KITS

Orange Part No. 77700-VP0820

Camo Part No. 77700-VP0821

Green Part No. 77700-VP0822

Black Part No. 77700-VP0823

Add matching accent door panels to match the body color of the hood and rear cargo bed panels.

DOOR SET

Part No. 77700-VP0810A

Rear hinged thermoformed doors with steel frame for increased rigidity; Large roll down glass windows; Features a storage pocket with an integrated bottle holder; Requires Front Heavy Duty Strut Kit when installing an enclosed cab or front implement.

Glass Rear Panel

Door Insert Kits

Door Set

LIGHTS

Switches for the lighting accessories below are included with their respective mounting kit.

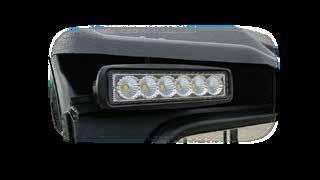

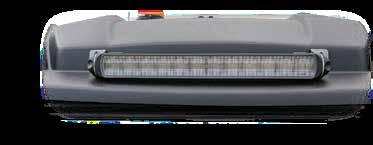

6" LED WORKLIGHT

Part No. 77700-VP0892

Sidekick

Equipped with 6 LEDs and produces 1,000 lumens; Quick connector for easy install; Sold individually;

Requires Front or Rear Worklight Mounting Kit;

Requires Sport Roof Worklight support;

Two 2” ROPS Quick Clamps required for dual ROPS install.

ROTATING BEACON

Part No. 77700-08687

Sidekick

Features a magnetic base; 195 flashes per minute;

Requires Strobe Mounting Kit and Accessory Wiring Harness;

Requires one 2” ROPS Quick Clamps when installed onto the ROPS.

13.5" LED LIGHT BAR

Part No. 77700-VP0891

Sidekick

Features a low and high setting equipped with 12 LEDs capable of producing 2,200 lumens (High setting);

Requires Light Bar Mounting Kit; Requires two 2” ROPS Quick Clamps when installed onto the ROPS.

STROBE

LIGHT

Part No. 77700-08686

Sidekick

LED strobe light features a magnetic base; 70 flashes per minute; 11 flash patterns; Requires Strobe Mounting Kit and Accessory Wiring Harness; Requires one 2” ROPS Quick Clamps when installed onto the ROPS.

Powering any of the 4 lights above will require a switch panel and accessory wiring harness. Add a ROPS wiring harness to add plug & play connections to a ROPS or Sport Roof configuration.

SWITCH PANEL

Part No. 77700-10732

Sidekick

Centralized accessory switches into one convenient location

Required for 13.5” LED Light Bar, 6” LED Worklights , Strobe Light or Rotating Beacon , Wiper Kit , and Washer Kit.

ROPS

WIRING HARNESS

Part No. 77700-V0882

Sidekick

Includes plug & play connections for 13.5" LED Light Bar (77700-VP0891) and two front 6" LED Worklights (77700-VP0892); Requires Accessory Wiring Harness (77700-V0881A).

ACCESSORY WIRING HARNESS

Part No. 77700-V0881A

Sidekick

Main harness to provide power to the Premium Roof or ROPS; Wiring Harness Includes plug & play connections for a rear 6" LED;

Worklight, Strobe Light or Rotating Beacon, Wiper Kit, and Washer Kit;

Need more lights? Check out these additional lighting kits, which include everything necessary to light the way to cross over to more.

LED HEADLIGHT

Part No. K7811-99680

Sidekick

Add an optional 2nd set LED headlight to give the machine that unique quad LED look; Support both "bright" and "dim" which are controlled using the standard headlamp switch.

FRONT WORKLIGHT KIT

Part No. K7811-99650

Sidekick

Add optional front worklights to the Sidekick front guard; Sold in a pair (left &right); Requires Sidekick Front Guard (K7811-97200).

REVERSE ALARM

Part No. K7811-99640

Sidekick

Alert the surrounding people when operating the machine in reverse.

Includes one reverse alarm and mounting hardware for easy installation.

TURN SIGNAL / HAZARD LIGHT KIT

Part No. K7811-99610

Sidekick

Enhance visibility and safety with this light kit which includes two front hazard/indicator lamps, two rear combination hazard/indicator/tail lamp assemblies, mounting hardware, switches and wiring harness that are required for easy installation.

CAB ACCESSORIES

INTERIOR REARVIEW MIRROR

Part No. 77700-VP0892

Sidekick

Convex wide mirror and mounts to the ROPS; Easy to install on a ROPS or Cab.

SOFT GRIP HANDLE

Part No. 77700-V0834

Sidekick

Steel handle wrapped with a rubber grip; Kubota branded heavy duty velcro strap; Easy to install and remove

PREMIUM SIDE MIRROR

Part No. 77700-10706

Sidekick

Enhanced field of view; Dual axis breakaway; Three-way adjustment; Adjustable blindspot mirror; Anti-vibration technology; ROPS mounted on either side; Easily return mirror to your preset position each time.

ELITE SERIES MIRROR TRIFECTA KIT

Part No. 77700-13836

Sidekick

HEADREST

Part No. K7811-99550

Sidekick

Provides extra head support with a stylish design; Sold individually; Requires Headrest Stay Kit.

HEADREST STAY KIT

Part No. K7591-99540

Sidekick

Sold individually; Required to install Headrest.

PREMIUM ROOF RADIO & SPEAKER KIT

Part No. 77700-VP0897

Sidekick

Custom fit for RTV Premium Roof, roof sold separately; Audio systems offers AM/FM/ USB/AUX inputs; Includes two speakers; Not compatible with Sport Roof; Requires Acc. Wiring Harness; AM/FM/WB/USB Mini Bluetooth® Stereo.

ELITE SERIES UTV GRAB HANDLE

Part No. 77700-13834

Sidekick

Built with high-grade, tough nylon for maximum durability; Has a comfortable design for secure and ergonomic handling; Fold-away feature: Allows for flush mounting with the roof when not in use.

WINCHES / BED LIFT

WARN VRX WINCHES

3,500 lb. Part No. 77700-11552

4,500 lb. Part No. 77700-11554

Sidekick

IP68 waterproofing system; Redesigned & improved braking system; Manual clutch for improved durability & sealing; The 3,500 lb. comes in a steel cable while the 4,500 lb. comes in a synthetic rope;

Limited lifetime mechanical & 3 year electrical warranty; Dash-mounted switch and remote; Fits 2-seater units only.

WARN AXON WINCHES

3,500 lb. Part No. 77700-11556

4,500 lb. Part No. 77700-11558

Sidekick

IP68 waterproofing system; Redesigned & improved braking system; Manual clutch for improved durability & sealing; The 3,500 lb. comes in a steel cable while the 4,500 lb. comes in a synthetic rope;

Limited lifetime mechanical & 3 year electrical warranty; Dash-mounted switch and remote; Fits 2-seater units only.

ELECTRIC OVER HYDRAULIC BED LIFT

Part No. K7811-99670

Sidekick

Convert a manual bed lift to an electric over hydraulic bed lift;

Increase your productivity and upgrade to our electric over hydraulic bed lift. This kit includes one electric hydraulic actuator, mounting hardware and neccessary switches for installation.

GUARDS

REAR BUMPER

Part No. K7811-99250

Sidekick

Upgrade the visual appearance while guarding the cargo bed; Includes Tail Lamp Guards.

PLASTIC BUMPER

Part No. K7811-99220

Sidekick

Upgrade the visual appearance of the front bumper with this plastic bumper.

FRONT UNDER GUARD

Part No. K7811-99240

Sidekick

Upgrade the visual appearance while guarding the front underside.

BUSH GUARD

Part No. K7811-99230

Sidekick

Upgrade the visual appearance while guarding the front.

SIDEKICK FRONT GUARD

Part No. K7811-97200

Sidekick

Replacement RTV-XG850

Sidekick front guard; Standard on all models except for the general purpose model; Additional parts required: hardware not included.

TAIL LAMP GUARD

Part No. K7811-99660

Sidekick

Upgrade the visual appearance while protecting the tail lamps; Sold in a pair (left & right).

A-ARM GUARD

Front Part No. K7811-99150

Rear Part No. K7811-99160

Sidekick

Metal guards to guard against debris; Sold in a pair (left & right).

MUD GUARD

Front Part No. K7591-99520

Rear Part No. K7811-99510

Sidekick

Add a visual appeal while guarding against debris and mud; Sold in a pair (left & right).

CARGO / STORAGE

DELUXE RTV

CARGO BOX

Part No. 77700-08760

Sidekick

RTV Bed Box, 4.5 cu. ft. locking storage designed by Kubota engineers; Easy lift covers gives access to both sides; Removable, sliding tool trays; Requires four KAS Clamps and one Mounting Bracket (ordered separately);

CARGO CLAMP

Part No. K7811-99560

Sidekick

Drill-less cargo bed clamp with interchangeable rubber inserts; Sold in a pair.

RTV RUBBER CARGO

BED MAT

Part No. 77700-V0830

Sidekick

Rubber compression molded rubber with integrated Kubota branding; Protects the cargo bed from scratches and scuff marks; Prevent objects from sliding around the cargo bed.

BED EXTENDER

Part No. K7811-99570

Sidekick

Drill-less design and can be positioned along the length of the cargo bed; Can be positioned to extend or divide the cargo bed capacity.

CARGO BED RAIL

Part No. K7811-99590

Sidekick

Increase cargo bed capacity; Sold in a pair (left & right); Not compatible with Deluxe RTV Cargo Box.

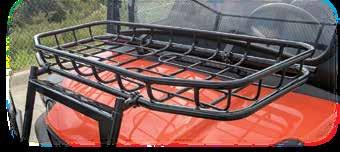

RACK OVER HOOD

Part No. 77700-V0831

Sidekick

Mounts to the front guard to add storage over the front hood; Designed to be removed quickly without tools; Can be pivoted to access the components under the front hood;

Not compatible with Plastic Bumper.

SNOW REMOVAL

72" GENERAL DUTY FRONT BLADE

Part No. V5008

Sidekick

72" wide general purpose snow blade with 19” moldboard height and 12 gauge moldboard thickness; 64.5” plow width @ 30° max angle; Electric lift with manual angle adjustment; Requires Front Heavy Duty Strut Kit and General Purpose Front Guard (Black – K7591-97900).

TIRES & WHEELS

GREEN TIRE & ALLOY WHEEL ASSEMBLY

ATV Left Part No. K7811-99850

ATV Right Part No. K7811-99860

HDWS Part No. K7811-99800

Sidekick

Includes 1 OEM tire and alloy wheel, 25x10-12 6-ply tire; ATV tread design are directional (left or right); HDWS tread design are non-directional; Requires Alloy Wheel Hardware Kit (black - K7591-99140) or (silver - K7591-99170)

BLACK TIRE & ALLOY WHEEL ASSEMBLY

ATV Left Part No. K7591-99850 (ARTV5212L)

ATV Right Part No. K7591-99860 (ARTV5212R)

HDWS Part No. K7591-99800 (ARTV5214)

Sidekick

SILVER TIRE & ALLOY WHEEL ASSEMBLY

ATV Left Part No. K7591-99830 (ARTV5211L)

ATV Right Part No. K7591-99840 (ARTV5211R)

HDWS Part No. K7591-99790 (ARTV5213)

Sidekick

HDWS TIRE & WHEEL ASSEMBLY

Part No. K7811-19410

Sidekick

Includes 1 OEM tire and steel wheel; 25x10-12 6 ply tire; HDWS tread design are non-directional.

ATV TIRE & WHEEL ASSEMBLY

Left Part No. K7811-19210

Right Part No. K7811-19260

Sidekick

Includes 1 OEM tire and steel wheel; 25x10-12 6 ply tire; ATV tread design are directional (left or right).

RTV PACKAGES

RTV520 CROSSROADS X CREW HUNTSMEN

Scan here for Huntsmen details Complete Cab Kit ..........................................................

Scan here for Crossroads details

Work Light Front LED Kit (2)

Work Light Rear LED Kit (1)

(Multi)

Guard CV Joint (2) Front Kit

Guard CV Joint (2) Rear Kit

Guard Tail Lamp Kit

K7591-99150

K7591-99160

K7591-99660

VRX 35 Steel Cable Winch Kit 77700-11553

SIDEKICK MARKSMAN

SIDEKICK FRONTIER

Sport Roof ..............................................................

Poly Flip Windshield

Side Mirrors (2)

Kit Front Work Light Supplemental

ROPS Wire Harness

Accessory Wire Harness

Work Light 6"

Kit Front Work Light Installation

Kit Rear Work Light Installation

VRX 35 Wire Rope Kubota

Tail Lamp Guard

77700-VP0800A

77700-VP0805

77700-V4358

77700-V0890

77700-V0882

77700-V0881A

77700-VP0892

77700-VP0893

77700-VP0894

77700-11552

K7811-99660

A-Arm Guard Front........................................................

A-Arm Guard Rear

Under Guard

Bush Guard

K7811-99150

K7811-99160

K7811-99240

K7811-99230

Premium Roof with Wiring Harness .......................

Glass Windshield

Rear Panel Glass

Door Set

Under Hood Seal Kit .................................................

Accessory Wire Harness

Work Light 6"

Kit Front Work Light Installation

Kit Rear Work Light Installation

Winch Kit Axon 45-S Kubota OE

Deluxe RTV Cargo Box

77700-VP0801A

77700-VP0802

77700-VP0803

77700-VP0810A

77700-VP0808

77700-V0881A

77700-VP0892

77700-VP0893

77700-VP0894

77700-11558

77700-08760

Kit Cargo Box Installation............................................

Kit Cargo Clamp

Bed Extender

77700-V0838

K7811-99560

K7811-99570

Scan here for Frontier details

MAINTENANCE

BREAK IN HOURS

Air Cleaner Element: Inspect & Clean as Needed

Engine Oil: Change - Sidekick Only

Pre Cleaner Element: Inspect & Clean as Needed - 520 Only

Carbon Canister Air Filter: Inspect & Clean as Needed520 & Sidekick California Model Only

Fuel Filter Element: Inspect & Clean as Needed

Brake Pads & Fluid: Inspect & Clean as Needed

General Lubrication: All Fittings, Pivots, Linkages & Cables, Etc.

Engine Oil & Filter: Change - 20 Hour Interval for Sidekick, Recommended 0W-40 Engine Oil for Sidekick

Transmission Oil Filters: Change

Wheel Fastener Torque: Inspect

Tire Wear: Inspect

CVT Belt: Inspect - Sidekick Only

Brake Pads & Fluid: Inspect & Clean as Needed

General Lubrication: All Fittings, Pivots, Linkages & Cables, Etc.Every 50

Air Cleaner Element: Replace

Engine Oil & Filter: Change

Pre Cleaner Element: Inspect & Clean as Needed - 520 Only

Transmission Oil Filters: Replace

Hydraulic Tank Oil: Change

Carbon Canister Air Filter: Inspect & Clean as Needed - 520 & Sidekick California Model Only

Fuel Filter Element: Inspect & Clean as Needed

Brake Pads & Fluid: Inspect & Clean as Needed

General Lubrication: All Fittings, Pivots, Linkages & Cables, Etc.

*Break In period is 50 hours

300 HOURS

Air Cleaner Element: Inspect & Clean as Needed

Engine Oil: Change - Sidekick Only, Recommended 0W-40 Engine Oil for Sidekick

Pre Cleaner Element: Inspect & Clean as Needed - 520 Only

Carbon Canister Air Filter: Inspect & Clean as Needed - 520 & Sidekick California Model Only

Fuel Filter Element: Inspect & Clean as Needed

Brake Pads & Fluid: Inspect & Clean as Needed

General Lubrication: All Fittings, Pivots, Linkages & Cables, Etc.

400 HOURS

Air Cleaner Element: Inspect & Clean as Needed

Engine Oil & Filter: Change

Pre Cleaner Element: Inspect & Clean as Needed - 520 Only

Transmission Oil Filters & Fluid: Replace

Hydraulic Tank Oil: Change

Cab Air Filter: Inspect & Clean as Needed - X CAB

Front Knuckle Case Oil: Change - X CAB

Front Axle Case Oil: Change

Carbon Canister Air Filter: Inspect & Clean as Needed - 520 & Sidekick California Model Only

Fuel Filter Element: Inspect & Clean as Needed

Brake Pads & Fluid: Inspect & Clean as Needed

General Lubrication: All Fittings, Pivots, Linkages & Cables, Etc.

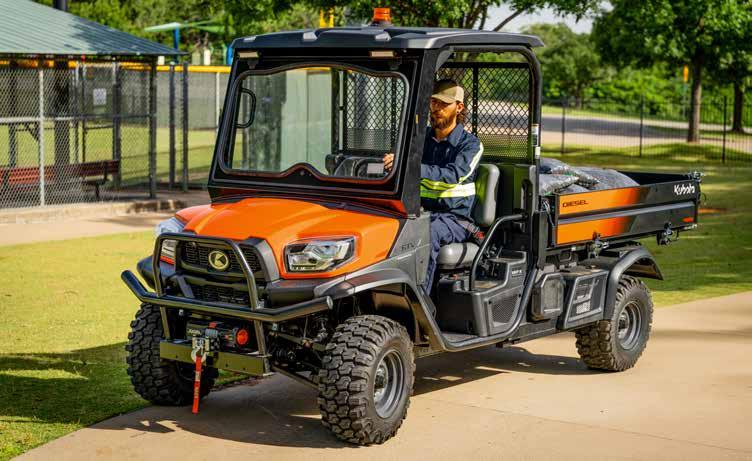

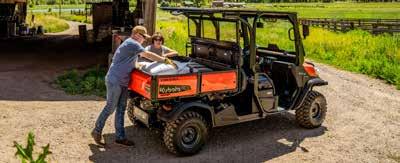

RTV-X

Whether you’re hauling half a ton of cargo on the job site or feeding livestock out in the pastures, the smooth-riding, hardcharging RTV-X gets it done.

› VHT-X (Variable Hydraulic Transmission) - Kubota’s VHT-X provides exceptional performance on various terrain with smooth and powerful acceleration. Lowspeed driving is made exceptional through smooth throttle control, great traction and maneuverability with or without loads

› Dynamic Brakes - One of the major benefits of the VHT-X transmission is the dynamic braking, which slows the vehicle down when you remove your foot from the throttle. It also provides drivers a sense of confidence as they travel down slopes. The ability to utilize one pedal operation creates a great experience, for both novice and experienced drivers alike providing a heightened sense of security

› Towing Capacity - Standard two-inch hitch receivers are located at the front and back. The back receiver lets you tow up to 1,300 lbs.* of gear. (*See owner’s manual for detail.)

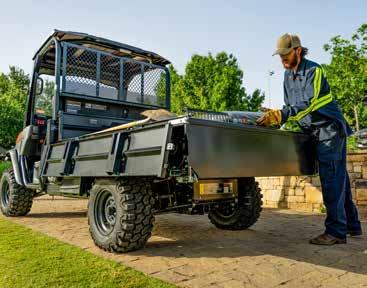

› ProKonvert™ Cargo Bed Optional - When you have a job to get done, being able to easily load and unload the cargo bed is critical. The innovative bed design allows you to open from either side, or the rearespecially useful for easily loading items in the back of the bed

RTV-X

Alloy Wheels

Basic does not offer alloy wheels, only steel wheels. Only the standard and premium lines. (Orange, Camo) Available (Desert Sand) Standard

* Manufacturer estimate; ** SAE J1995; *** Realtree® AP Camouflage is a registered trademark of Jordan Outdoor Enterprises, Ltd. Visit KubotaUSA.com for a full listing of accessories and attachments.

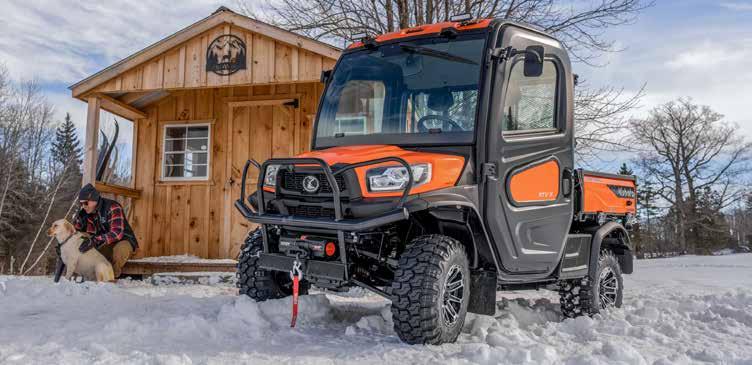

RTV-X CAB

Experience luxurious driving comfort with the factory-installed, climate-controlled cab.

› RTV-X CAB features a premium grand cab that is built around a unibody chassis frame. The quiet, rattle-free environment and standard, factory installed A/C, heat, and defrost ensure that you’ll ride in comfort year round

› The RTV-X CAB boasts 23.3-horsepower* Kubota diesel engine for demanding jobs that require plenty of power

› 1,300 lbs. towing capacity with standard front and rear two-inch hitch receivers at the front and back

› Up to 15.2 cubic feet of cargo heavy-duty steel cargo box can carry up to a half-ton (1,102 lbs.) of tools, firewood, gear, supplies, and whatever you need to haul from here to there and back again

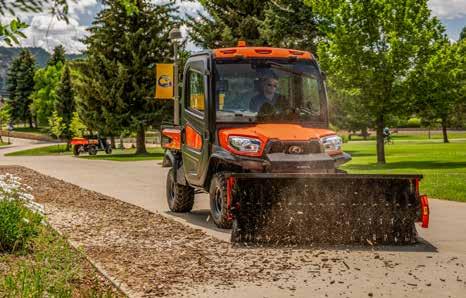

› Front PTO attachment options take your RTV-X CAB to a higher level of versatility and performance

› LED Headlights - For the jobs that begin well-before the sun rises and continue on long-after the sun sets, the LED headlights not only look cool, they illuminate the way so you can stay focused on the job at hand

› Front and rear independent suspension ensures an exceptional ride, and extra duty IRS (Independent Rear Suspension) sets a standard for durability

› ProKonvertTM Cargo Bed Optional - When you have a job to get done, being able to easily load and unload the cargo bed is critical. The innovative bed design allows you to open from either side, or the rear - especially useful for easily loading items in the back of the bed

› Flatbed Conversion - For customers loading bulky or awkwardly shaped materials, or having to load the bed with another piece of equipment, customers can easily convert the cargo bed into a flatbed without the use of any tools. A shining example of capability re-imagined

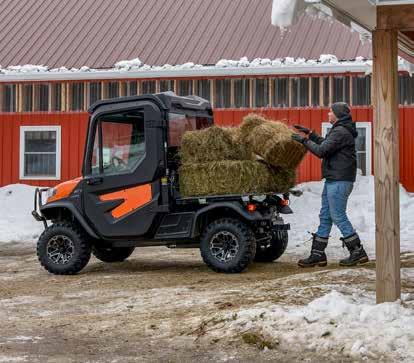

RTV-X CAB

From spacious cargo capacity to generous seating for up to four adults, this utility workhorse gives you the best possible performance and comfort across a wide range of jobs.

› K-vertible Cargo Transformation System two- and four-passenger configuration in less than a minute

› Powerful Kubota 3-cylinder, liquid-cooled, 4-cycle, 23.3-horsepower* diesel engine

› Exclusive Kubota 2-range VHT-X (Variable Hydraulic Transmission)

› Top speed of 25 mph and 1,300 lbs. towing capacity

› Quick, responsive hydrostatic power steering

› ROPS meets both OSHA and SAE requirements for both front and back row seats provides cleaner look and easier cargo loading

› 20% larger, clog-resistant radiator for simpler maintenance and improved performance

› Wet disc brakes for smooth, consistent braking and excellent durability

› Independent front and independent rear suspensions and a long wheelbase deliver a smooth, stable ride

› Standard 19.1 cu. ft. / 9.9 cu. ft. (two-seat/fourseat configurations) cargo bed with hydraulic lift capability in either configuration (up to 1,102 lbs. capacity)

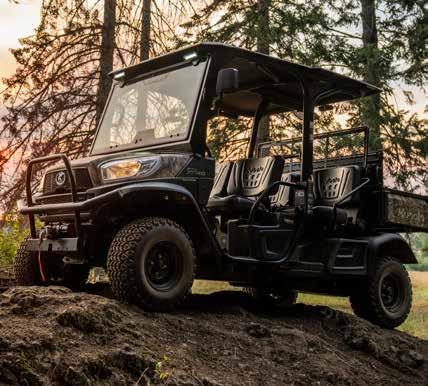

RTV-X CREW

* SAE J1995; ** Realtree® AP Camouflage is a registered trademark of Jordan Outdoor Enterprises, Ltd. Visit KubotaUSA.com for a full listing of accessories and attachments.

The RTV-X LONG BED delivers the capability, power, and performance needed to get the job done right.

› Full Steel Frame/CV Joint Guards - The high-rigidity steel frame isolates the occupants from noise, vibrations, and harshness. With structural strength that few in the industry can match, this durable frame can take years of punishment from heavy loads and rough terrain*. (*See owner’s manual for details)

› VHT-X (Variable Hydraulic Transmission) - Kubota’s revised VHT-X transmission delivers smooth, powerful acceleration and outstanding performance across varied terrain. Exceptional low-speed control, traction, and maneuverability—whether loaded or unloaded—make it ideal for demanding tasks

› Wet Disc Brakes - The RTV-X LONG BED uses multidisc wet brakes which provide long brake life. You’ll also feel more secure, especially when traveling down long inclines, knowing that dynamic braking is helping to provide additional braking power and greater driving control

› Standard ProkonvertTM Cargo Bed - It’s not enough to get you there and back. You need to get your stuff there and back, as well. This heavy-duty 6ft steel cargo bed can do that for you, carrying more than a half-ton (1212 lbs.) of tools, firewood, gear, supplies...whatever you need to haul from here to there and back again

› Standard Hydraulic Dump Bed - Unload sand, gravel, turf, or nearly anything else with ease using the RTV-X LONG BED’S impressive 26.1 cu. ft. cargo capacity. What once required significant effort and time can now be dumped effortlessly in seconds— thanks to the powerful hydraulic system

RTV-X LONG BED

CAB COMPONENTS

RTV-X SERIES

POLY WINDSHIELD

Part No. 77700-VC5023

RTV-X, X900, X1120, X1130, X CREW

Steel framed, hard coated poly windshield to provide a front barrier from wind, dust, and rain; Features latches to allow airflow through the cabin; Compatible with Wiper Kit.

TEMPERED GLASS WINDSHIELD (AS2)

Part No. 77700-VC5025

RTV-X, X900, X1130, X CREW

Steel framed, tempered glass windshield to provide a front barrier from wind, dust, and rain; Designed to crumble into small granular chunks instead of sharp jagged shards; Features latches to allow airflow through the cabin; Compatible with Wiper Kit.

POLY WINDSHIELD

Clear Part No.

K7591-99290

Tinted Part No.

K7591-99260

RTV-X, X900, X1120

Alternative, crack-resistant poly windshield for a windshield & canopy configuration only; Not compatible with Wiper Kit (77700-VC5030); Compatible only with Plastic Canopy.

LAMINATED

GLASS WINDSHIELD (AS1)

Part No. 77700-VC5020

RTV-X, X900, X1120, X1130, X CREW

Steel framed, laminated glass windshield to provide a front barrier from wind, dust, and rain; Designed to hold together when shattered - not into large pieces; Features latches to allow airflow through the cabin; Compatible with Wiper Kit.

WIPER KIT

Part No. 77700-VC5030

RTV-X, X900, X1120, X1130, X CREW

Includes a single 16" wiper to keep glass & poly windshields clear from dust and rain; Compatible only with Poly Windshield, Laminated Glass Windshield, & Tempered Glass Windshield.

ACRYLIC WINDSHIELD

Clear Part No.

77700-V5027

Tinted Part No. 77700-V5028

RTV-X, X900, X1120, X1130, X CREW

Alternative, crack-resistant poly windshield for a windshield & canopy configuration only; Not compatible with Plastic Canopy & Wiper Kit.

METAL FOPS CANOPY

Black Part No. 77700-VC5000

Black (X CREW Only) Part No. 77700-VC5044

Orange Part No. 77700-VC5001

RTV-X, X900, X1120, X1130

Metal canopies are FOPS certified to provide additional protection while keeping the operator and passenger out of the elements;

Not compatible with Poly Windshield (Clear – K7591-99290) or (Tinted – K7591-99260).

PLASTIC CANOPY

Black Part No. 77700-VC5011

Black (X CREW Only) Part No. 77700-VC5043

RTV-X, X900, X1120, X1130

Plastic canopy to keep the operator and passenger out of the elements;

Not compatible with Poly Windshield (Clear – K7591-99290) or (Tinted – K7591-99260).

BLACK PLASTIC CANOPY

Part No. K7591-99390

RTV-X, X900, X1120, X1130

Alternative plastic canopy for those who want a windshield and canopy configuration only;

Compatible only with Poly Windshield (Clear – K7591-99290) or (Tinted – K7591-99260).

GLASS REAR PANEL

Part No. 77700-VC5040

RTV-X, X900, X1120, X1130

Steel framed, glass rear panel to prevent wind, dust, and rain from entering into the operator’s area.

REAR SCREEN

Gray Part No. K7711-99280

Black Part No. K7731-99280

X CAB

Optional rear screen mounts to the X CAB’s ROPS structure acting as a barrier between the bed and rear window

CAB COMPONENTS

METAL DOOR SET

Black Part No. 77700-VC5090

Orange Part No. 77700-VC5091

RTV-X, X900, X1120, X1130

Steel doors with upper sliding window and a pocket window; Heavy duty hinges allow for doors to be removed and stored; Requires Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit.

VINYL DOOR SET

Part No. 77700-VC5095

RTV-X, X900, X1120, X1130

Includes clear vinyl windows that can be zipped and rolled up; Heavy duty hinges allow for doors to be removed and stored; Requires Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit.

4 METAL DOOR SET WITH REAR PANEL

Part No. 77700-VC5045A

X CREW

4 steel doors with upper sliding window and pocket window; Has a rear panel to fully enclose in a two row configuration when combined with a compatible canopy and windshield; Heavy duty hinges allow for doors to be removed and stored.

MID-PANEL

Steel Part No. 77700-VC5046

Vinyl Part No. 77700-VC5047

X CREW

Add optional mid-panel to completely enclose the front row; Steel option includes a sliding window; Requires 4 Metal Door Set with Rear Panel.

HEATER KIT

Part No. 77700-VC5083A

RTV-X, X900, X1120, X1130, X CREW

Add a cab heater with vents to stay warm during cold winters; Requires Wire Harness (Multiple – 77700-VC5080) or (Single – 77700-VC5081).

FRONT HEAVY DUTY SPRING KIT

Part No. K7591-99190

RTV-X, X900, X1120, X CAB & X CREW Standard

Reuse the front struts and upgrade the front springs to heavy duty springs;

Required with an enclosed cab and/or front implement.

CAB

SIDE MIRROR KIT

CAB Part No.

77700-VC5076

ROPS Part No.

77700-V4358

RTV-X, X900, X1120, X1130, X CREW

ROPS

Increases operator visibility; Cab mirrors sold in a pair (left & right); ROPS mirror sold individually.

PREMIUM SIDE MIRROR

Part No. 77700-10706

RTV-X, X900, X1120, X1130, X CREW

SIDE MIRROR

Part No. 77700-V5059 X CAB

Shatter resistant tempered convex glass for increased durability; Impact resistant ABS housing for lasting durability; Ball socket joint provides easy adjustment and wide range view; Sold individually.

INTERIOR REARVIEW MIRROR

Part No. 77700-V4266

RTV-X, X900, X1120, X1130, X CREW

Mount an interior rearview mirror onto the ROPS for added visibility.

Enhanced field of view with dual axis breakaway; Three-way adjustment, including blindspot mirror; Anti-vibration technology; ROPS mounted and fits left or right side; Easily return mirror to a preset position if it breaks away.

ELITE SERIES MIRROR TRIFECTA KIT

Part No. 77700-13836

RTV-X, X1130, X CREW

INTERIOR REARVIEW MIRROR

Part No. 77700-VP0816

RTV-X, X900, X1120, X1130, X CREW

Convex wide mirror and mounts to the ROPS; Easy to install on a ROPS or Cab.

CAB ACCESSORIES

SUN VISOR KIT

Part No. K7731-99270 X CAB

Match the interior of the X CAB with sun visors to block the sun; Sold in a pair (left & right).

GLOVE BOX COVER KIT

Part No. K7591-99570

Basic RTV-X, X900, X1120, X1130, X CREW

Upgrade to a covered glove box to keep items away from the elements.

HEADREST

Gray Part No.

K7501-99550

Black Part No.

K7421-99550

RTV-X, X900, X CAB

Black comes in X1120 only; Sold individually; Requires Headrest Stay Kit (Gray – K7591-99530) or (Black – K7591-99540).

HEADREST STAY KIT

Gray Part No.

K7591-99530

Black Part No.

K7591-99540

Required to install headrest (Gray – K7501-99550) or (Black – K7421-99550); Sold individually

RTV-X, X900, X1120, X1130

BACKUP ALARM KIT

Part No. K7591-99640

RTV-X, X900, X CAB, X1120, X1130, X CREW

Alert the surrounding people when operating in reverse;

HAND THROTTLE KIT

D902 Part No.

K7591-99450

D1105 Part No.

K7421-99450

RTV-X, X CAB, X1120

Hold engine speed at a constant RPM regardless of vehicle speed; Made for either D902 engine or the D1105 engine; The D902 fits only the X900.

SHORT DIN RADIO

Part No. 77700-13485

X CAB

180 watts max power (45W x 4)

100 watts RMS (25W x 4);

Bluetooth® streaming audio, AM/ FM with 30 presets, and hands-free calling; Water and UV resistant; USB port for device charging; Toggle switch between day and night display.

HD SHORT DIN RADIO

Part No. 77700-13484

X CAB

HD Short Din Radio USB/AM/FM/ WX/BT/PA;

Bluetooth® streaming audio only; Water and UV resistant front panel (IPX5);

WB/AM/FM tuner with 30 presets; Rear USB port for device charging;

2-wire power with non-volatile memory and clock support; Includes KUB1 9-Pin Adapter

ELITE SERIES UTV GRAB HANDLE

Part No. 77700-13834

RTV-X, X1130, X CREW

Built with high-grade, tough nylon for maximum durability; Has a comfortable design for secure and ergonomic handling; Fold-away feature: Allows for flush mounting with the roof when not in use.

WINCHES / BED LIFT / HITCH

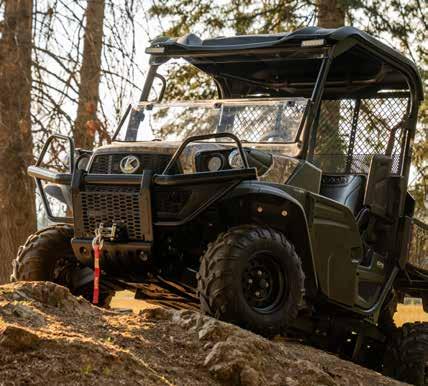

WARN WINCHES

RTV-X, X900, X CAB, X1120

SIZE PART NO.

VRX 3,500 77700-11552

VRX 4,500 77700-11554

AXON 3,500 77700-11556

AXON 4,500 77700-11558

IP68 waterproofing system; Redesigned & improved braking system;

Manual clutch for improved durability & sealing;

The 3,500 lb. comes in a steel cable while the 4,500 lb. comes in a synthetic rope;

Limited lifetime mechanical & 3 year electrical warranty; Dash-mounted switch and remote.

HYDRAULIC BED LIFT

Part No. K7591-99320

RTV-X, X900 (Worksite & Camo), X1120 (Worksite & Camo), X CAB, X CREW

A hydraulic dump bed enables swift and effortless unloading of materials with just a simple lever, significantly cutting down on time and minimizing the physical strain associated with manual unloading.

WARN WINCHES X1130, X CREW

SIZE PART NO.

VRX 3,500 77700-11553

VRX 4,500 77700-11555

AXON 3,500 77700-11557

AXON 4,500 77700-11559

IP68 waterproofing system; Redesigned & improved braking system;

Manual clutch for improved durability & sealing;

The 3,500 lb. comes in a steel cable while the 4,500 lb. comes in a synthetic rope;

Limited lifetime mechanical & 3 year electrical warranty; Dash-mounted switch and remote.

2" TRAILER HITCH BALL MOUNT

Part No. 77700-V5200

RTV-X, X900, X1120, X CAB, X CREW

Towing is easy with this 2" Trailer Ball Mount Kit (does not include hitch ball);

2" Trailer Ball Mount Kit crafted from high-grade steel, providing exceptional strength and durability for UTV use

WARN BUMP STOPS

Black Part No. 77700-13832

Orange Part No. 77700-13833

Winch, rope, hook, and fairlead have an extended longevity; Bump stops are designed for winch ropes that are 1/4 inch or smaller, making them perfectly suited for winches such as the WARN AXON or VRX, which are compatible with Kubota RTVs.

GUARDS

BASIC

FRONT GUARD

Gray Part No.

K7591-97200 (X900 only)

Black Part No.

K7591-97900

X900, X1120

Replacement basic front guard; The basic front guard plays a crucial role in minimizing the need for expensive repairs and bodywork resulting from collisions.

PREMIUM FRONT GUARD

Gray Item No.

K7421-97200

Black Part No.

K7421-97900

X1120, X CAB, X CREW

Replacement premium front guard;

The premuim front guard provides the RTVs front end against potential damage from collisions, brush, and debris, which helps avoid expensive repairs.

CV JOINT GUARD

Front Part No. K7591-99150

Rear Part No. K7591-99160

X900, X1120, X CAB, X CREW

Help protect your front CV Joint from rocks and stumps with this CV Joint Guard; Reduce potential damage to the rear CV Joint with this CV Joint Guard.

STANDARD

FRONT GUARD

Gray Part No.

K7591-97210 (X900 only)

Black Part No.

K7591-97910

X900, X1120, X CREW

TAIL

LAMP GUARD KIT

Part No. K7591-99660

RTV-X, X900, X1120, X CAB, X1130, X CREW

Replacement standard front guard;

Engineered to protect the front of the RTV, this design addresses the heightened risk of damage encountered in challenging terrains or congested areas.

Protect your tail light from damaging debris by installing this Tail Lamp Guard Kit;

The Tail Lamp Guard Kit will help avoid expensive repairs.

MUD

GUARD

Front Part No.

K7591-99520

Rear Part No.

K7591-99510

RTV-X, X900, X CAB, X1120, X1130, X CREW

Cut down on flying mud by installing this Mud Guard Kit; Decrease mud spatter off the rear wheels with this Mud Guard Kit.

CARGO / STORAGE

2 CARGO CLAMPS

Part No. K7811-99560

RTV-X (Standard Bed), X900, X1120, X CAB, X CREW

Drill-less cargo bed clamp with interchangeable rubber inserts; The 2 Cargo Clamps are sold in a pair.

CARGO

BED SEAL KIT

Part No. 77700-11096

RTV-X, X900, X1100-C, X1120, X CAB

Perfectly sized plate fills the gap; Ideal for protection against debris falling the engine bay below the cargo bed;

Not compatible with RTV-X and X CAB ProKonvert cargo bed.

RTV RUBBER CARGO BED MAT

Part No. 77700-V0830

X900, X CAB, X1120

Compression molded rubber with Kubota branding; Protects the cargo bed from scratches and scuff marks, and from objects sliding around; Not compatible with RTV-X and X CAB ProKonvert cargo bed.

PLASTIC BED LINER

Part No. K7591-99580

X900, X CAB, X1120

Prevent bed dents and dings with this high-quality plastic bed liner.

DELUXE RTV CARGO BOX

Part No. 77700-08760

RTV-X (Standard Bed), X900, X1120, X CAB, X CREW

CARGO ACCESSORIES

STORAGE BOX

Part No. K7921-99560

X1130

Designed to mount underneath the cargo bed; Includes 2 plastic lockable storage boxes (one for each side).

CARGO WINCH

Part No. K7921-99580

X1130

Comes with a wireless winch controller; The cargo winch has a 750lb maximum capacity.

CARGO PANEL LIGHT

Part No. K7921-99570

X1130

Two 6" LED lights and a rubber debris guard; Kit does not require any drilling.

EXTENDED TAILGATE

Part No. K7921-99590

X1130

Allows the tailgate to rest against the ground when the bed is fully raised; Folds out of the way when not in use.

LIGHTS / HARNESSES

2 FRONT LED WORK LIGHT KIT

Part No. 77700-VC5050

RTV-X, X900, X1120, X1130, X CREW

Six high intensity LEDs on each light;

Illuminated, high quality rocker switch;

Sold in a pair (left & right); Only compatible with the "VC" cab components;

Requires Wire Harness

DOME LIGHT

Part No. 77700-VC5053

RTV-X, X900, X1120, X1130, X CREW

Built-in on/off rocker switch; Bright 1-watt LED light; Adjustable 40-degree swivel and spin; Convenient for pre-dawn or working late into the night; Only compatible with the "VC" cab components; Requires Wire Harness.

4-WAY STROBE-TYPE FLASHERS

Part No. 77700-VC5057A

RTV-X, X900, X1120, X1130, X CREW

Black and weatherproof housing for indoor or outdoor use; 18 different flash patterns to choose from;

Only compatible with the "VC" cab components; Requires Wire Harness.

REAR LED WORKLIGHT KIT

Part No. 77700-VC5051A

RTV-X, X900, X1120, X1130, X CREW

Six high intensity LEDs on each light;

Illuminated, high quality rocker switch;

Sold individually; Only compatible with the "VC" cab components;

Requires a Wire Harness and one canopy or rear panel option.

STROBE LIGHT

Part No. 77700-VC5056

Part No. 77700-VC5058 (X CAB only)

RTV-X, X900, X1120, X1130, X CREW

Amber beacon features 70 FPM pulse, 8 flash patterns; Illuminated, high quality rocker switch;

Only compatible with the "VC" cab components; Requires Wire Harness; Mounting bracket is included.

SWITCH PANEL

Part No. 77700-10732

RTV-X, X900, X1120, X1130, X CREW

Centralized accessory switches into one convenient location; Required for 13.5" LED Light Bar, 6" LED Worklights, Strobe Light or Rotating Beacon, Wiper Kit, and Washer Kit.

WIRE HARNESS - SINGLE

Part No. 77700-VC5081

RTV-X, X900, X1120, X1130, X CREW

For single electrical accessory or light;

In-line fuse for circuit protection; Automotive relay included.

LIGHTS / ENGINE

HALOGEN FRONT WORK LIGHTS

Part No. K7591-99620

Part No. K7731-99620 (X CAB only)

X900, X1120

Kit includes 2 work lights; For X CAB, the lights mount to the top with everything necessary for installation; For X900 and X1120, lights mount to the ROPS or Plastic Canopy (K7591-99390) with everything necessary for installation.

HAZARD LIGHT KIT MODEL PART NO.

X900, X1120, X1130

X CAB

RTV-X, X CREW

K7591-99610

K7731-99610

K7741-99610

K7121-99610

Add safety to your machine with the Hazard Light Kit; The Hazard Light Kit includes two front hazard/indicator lamps and two rear combination hazard lights; Fits a wide range of Kubota RTV machines.

BLOCK HEATER

Part No. 77700-07942

(X900 only)

Part No. 70000-73595

RTV-X, X1120, X CAB, X1130, X CREW

Makes starting in cold climates less demanding on the engine; Add a Block Heater in extreme cold temperatures to aid in the running of your machine.

HALOGEN REAR WORK LIGHTS

Part No. K7591-99630

Part No. K7731-99630 (X CAB only)

X900, X1120

Kit includes 1 work light; For X CAB, the lights mount to the top with everything for installation;

For X900 and X1120, lights mount to the ROPS or Plastic Canopy (K7591-99390) with everything necessary for installation.

STROBE LIGHT MOUNTING BRACKET

Part No. 77700-V4284

RTV-X, X CAB

Sturdy 10GA cold-rolled steel for secure mounting; Durable UV-resistant powder paint for long lasting durability.

EXTENDED OIL DIPSTICK

D902 Part No.

K7591-99810 (V5202)

D1105 Part No.

K7621-99810 (V5204A)

RTV-X, X900, X1120, X1130, X CREW

LED WORK LIGHT KITS

Front Part No. 77700-11811

Rear Part No. 77700-11812

X CAB

Check oil regularly and precisely without having to raise the dump bed;

The D902 Engine option (K7591-99810) works for only the X900.

Six high intensity LEDs and ideal for off-road driving only; Measured lumen is 1,000 lm, and has a multivolt 10-30V DC;

Mounting: upright or flush;

Dimensions: 1.8"W x 6.3"H x 2.5"D 2.4"W x 7.7"H x 1.8"D (flush).

SNOW REMOVAL

72" GENERAL DUTY FRONT BLADE

Part No. V5008*

RTV-X, X900, X CAB, X1120, X1130, X CREW

General purpose snow blade with 19” moldboard height and 12 gauge moldboard thickness; 64.5” plow width at 30° max angle; Electric lift with manual angle adjustment; Recommend optional Hydraulic Angle Kit to convert to hydraulic angle.

72" XTRA DUTY FRONT BLADE

Part No. V5060*

RTV-X, X900, X CAB, X1120, X1130, X CREW

Heavy duty snow blade with 23.5” moldboard height and 12 gauge moldboard thickness; 64.5" plow width at 30° max angle; Self contained electro-hydraulics for lift and angle adjustment;

72" COMMERCIAL STRAIGHT BLADE

Part No. V5290*

RTV-X, X900, X CAB, X1120, X1130, X CREW

Commercial snow blade with 21.75" height and 10 gauge moldboard thickness and 62.4" plow width at 30° max angle; Hydraulic lift with down pressure, float, and adjustable blade trip springs;

Recommend optional Markers; Requires Front Quick Hitch, Electro-Hydraulic Valve Kit, or Auxiliary Hydraulic Pump.

72" V-PLOW BLADE

Part No. V5291*

RTV-X, X900, X CAB, X1120, X1130, X CREW

19 1/8" height at center, 20 1/2" at ends, and 3/8" thickness; 66" V position width and 59” scoop position width; Hydraulic lift and angle adjustment with built-in relief valves to protect against impact and trip cutting edges; Recommend optional Markers and Curb Guards; Requires Front Quick Hitch, Electro-Hydraulic Valve Kit, Auxiliary Hydraulic Pump.

60" ROTARY BROOM

Part No. V5260*

RTV-X, X900, X CAB, X1120, X1130, X CREW

Rotary broom with 18" diameter poly brushes; 50 1/2" width at 25° max angle; Reversible rotation and hydraulic lift and angle adjustment; Recommend optional Markers; Requires Front Quick Hitch, Electro-Hydraulic Valve Kit, Auxiliary Hydraulic Pump, Hydraulic Oil Cooler, and Hand Throttle Kit.

FRONT QUICK HITCH

Part No. V5289

RTV-X, X900, X CAB, X1120, X1130

HYDRAULIC ANGLE KIT

Part No. V5007

RTV-X, X900, X CAB, X1120, X1130, X CREW

Required quick hitch system designed for 72" Commercial Straight Blade (V5290), 72" V-Plow Blade (V5291), and 60" Rotary Broom (V5260) for easy implement changes.

FRONT

GUARD ADAPTER KIT

Part No. 77700-V5255

RTV-X, X900, X CAB, X1120, X1130

Optional hydraulic angle kit to upgrade 72” General Duty Front Blade to hydraulic angle adjustment; Requires Auxiliary Hydraulic Pump and Auxiliary Hydraulic Valve: One Valve or Two Valve.

AUXILIARY HYDRAULIC PUMP

MODEL PART NO.

X900 V5271

RTV-X, X CAB, X1120 V5272

X1130, X CREW V5262

Required for Hydraulic Angle Kit (V5007), hydraulic powered implements, and aftermarket implements; V5271 is only compatible with a D902 engine; V5272 and V5262 are only compatible with the D1105 engine.

HYDRAULIC OIL COOLER

Part No. V5240

RTV-X, X900, X CAB, X1120

Optional front guard adapter for Front Quick Hitch (V5289) to reinstall front guard when front quick hitch implements are put away for the season.

TWO FUNCTION

ELECTRO-HYDRAULIC VALVE KIT

Part No. V5232A

RTV-X, X900, X CAB, X1120

HAND THROTTLE KIT

Part No. V5245

RTV-X, X900, X1120, X1130, X CREW

Required for 72" Commercial Straight Blade (V5290), 72" V-Plow Blade (V5291), and 60" Rotary Broom (V5260).

AUXILIARY HYDRAULIC PUMP MODEL

RTV-X, X900, X CAB, X1120 V5273

X1130, X CREW V5263

RTV-X, X900, X CAB, X1120 V5274

THREE FUNCTION

ELECTRO-HYDRAULIC VALVE KIT

Part No. V5233

RTV-X, X900, X CAB, X1120

Required for 60: Rotary Broom (V5260).

HYDRAULIC COUPLER OUTLET

Part No. V5276

RTV-X, X900, X CAB, X1120, X1130, X CREW

Required for 60" Rotary Broom (V5260).

MARKERS

Part No. V5250

X900, X1120, X CAB

Stationary applications only, optional coupler to power aftermarket implements; Cannot be used to power hydraulic motor applications.

CURB GUARDS FOR V-BLADE

Part No. V5256

X900, X CAB, X1120

Required for Hydraulic Angle Kit (V5007) and aftermarket implements; V5273 is a one valve kit; V5263 is a two valve kit; V5274 is a one valve kit.

Required for 72" Commercial Straight Blade (V5290), 72" V-Plow Blade (V5291), and 60" Rotary Broom (V5260).

Optional markers to increase visibility for 72" Commercial Straight Blade (V5290), 72" V-Plow Blade (V5291), or 60" Rotary Broom (V5260).

Optional curb guards to protect the corners of 72” V-Plow Blade (V5291) from incidental curb damage.

SNOW REMOVAL: K-CONNECT

78" STRAIGHT BLADE

Part No. V5294A

RTV-X, X CAB, X1120, X1130, X CREW

78” wide K-connect snow; 68" plow width at 30° max angle; Hydraulic lift with down pressure and float; Hydraulic angle adjustment with two spring trip protection; New curvature allows for rolling of snow and includes markers and skid shoes standard; Requires 4 Point K-Connect and Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit (not required for X CAB, X CREW, or X1130); Compatible with PTO Drive K-Connect.

78" V-BLADE

Part No. V5295A

RTV-X, X CAB, X1120, X1130, X CREW

78" wide K-connect V-blade (straight) with moldboard height 20" at center, 25 3/4" at ends; 69 1/2" V position width and 66” scoop position width; Hydraulic lift with down pressure and float; Hydraulic angle adjustment with built-in relief valves to protect against impact; New curvature allows for rolling of snow and includes markers and skid shoes standard; Requires 4 Point K-Connect and Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit (not required on X CAB, X1130, or X CREW).

FRONT GUARD ADAPTER KIT

Part No. 77700-V5278

RTV-X, X CAB, X1120, X1130, X CREW

Optional front guard adapter for 4 Point K-Connect (V5293) to reinstall front guard when front K-Connect implements are put away for the season.

PLASTIC CUTTING EDGE

Part No. V5284

RTV-X, X CAB, X1120, X1130, X CREW

Optional plastic cutting edge for 78” V-Blade (V5295A).

4 POINT K-CONNECT

Part No. V5293B

RTV-X, X CAB, X1120, X1130, X CREW

4 point quick hitch system with a power unit to provide an independent 3 function hydraulic system; Used to quick attached 78" Straight Blade (V5294A) or 78” V-Blade (V5295A).

4 POINT UPGRADE KIT

Part No. V5298

RTV-X, X CAB, X1120, X1130, X CREW

Add a brush bar and 2 rectangular LED worklights to the 4 Point K-Connect (V5293); Requires 4 Point K-Connect (V5293).

RUBBER CUTTING EDGE

Part No. V5287

RTV-X, X CAB, X1120, X1130, X CREW

Optional rubber cutting edge for 78" Straight Blade (V5294A).

PLASTIC CUTTING EDGE

Part No. V5288

RTV-X, X CAB, X1120, X1130, X CREW

Optional plastic cutting edge for 78" Straight Blade (V5294A).

CURB GUARDS

Part No. V5281

RTV-X, X CAB, X1120, X1130, X CREW

Optional curb guards to protect the corners of 78" Straight Blade (V5294A) and 78” V-Blade (V5295A) from incidental curb damage.

SKID SHOES

Part No. V5285

RTV-X, X CAB, X1120, X1130, X CREW

Replacement skid shoes for 78" Straight Blade (V5294A) and 78" V-Blade (V5295A).

PTO DRIVE IMPLEMENTS

50/50 POLY & STEEL BRUSH KIT

Part No. V5269

RTV-X, X CAB, X1120

Optional 24" diameter 50/50 poly and steel brush kit for 66" Rotary Broom (V5266).

66" ROTARY BROOM

Part No. V5266

RTV-X, X CAB, X1120

66" wide PTO driven rotary broom with 24" diameter poly brushes; 59 1/2” width at 25° max angle; Hydraulic lift and angle adjustment with 8 1/2° oscillation; Floating wheels and markers standard; Requires 4 Point K-Connect, PTO Drive K-Connect, and Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit.

66" COMMERCIAL SNOWBLOWER

Part No. V5296

RTV-X, X CAB, X1120

66" wide PTO driven 2-stage commercial snowblower with hydraulic chute rotation and deflection; 16” fan with 4 blades; Skid shoes and drift cutters are standard; Requires 4 Point K-Connect, PTO Drive K-Connect, and Front Heavy Duty Strut Kit or Front Heavy Duty Spring Kit.

DEBRIS BLOWER

Part No. V5279

RTV-X, X CAB, X1120

Generates over 214 mph of velocity, with 225° of hydraulically driven nozzle rotation with a standard parking stand included; Estimated 30-minute installation time, so you can swap out snow removal implements and prepare for warmer weather; Requires 4 Point Hitch, PTO Kit, and Hand Throttle Kit; NOT compatible with 4 Point Hitch and PTO Kit.

PTO DRIVE K-CONNECT

Part No. V5299B

RTV-X, X CAB, X1120

Used in conjunction with 4 Point K-Connect to operate 66" Rotary Broom or 66" Commercial Snowblower; For RTV-X1120, requires Water Pump Pulley (16241-74250) and Engine Fan Belt (1E270-97010); Requires 4 Point K-Connect (V5293).

PLASTIC CUTTING EDGE WITH

SKID SHOES

Part No. V5297

RTV-X, X CAB, X1120

Optional plastic cutting edge and skid shoes for 66" Commercial Snowblower(V5296).

SPRAYERS

RTV BED MOUNTED SPRAYER

Part No. V5292A

RTV-X, X CAB

68-gallon tank capacity and 3.3 GPM;

Two 0.3 GPM nozzles with spray wand and nozzle bracket; Water ON/OFF valve; Works with Broom Dust Suppression Kit and Rear Boom Sprayer Kit

60 GALLON RTV SPOT SPRAYER

Part No. 77700-12145

RTV-X, X CAB

60 PSI gauge and 5.0 GPM demand pump with RTV clamps; Polyethylene tank and 25' hose with spray gun; Pistol grip handgun sprays up to 25' vertical and 35' horizontal; 5" fill lid with tether and 8' wiring harness with battery clips; Add a Boom for additional coverage.

40 GAL RTV SPRAYER WITH HITCH MOUNT BOOM

Part No. 77700-08964

RTV-X, X CAB

3 nozzle boomless spray pattern has 140" (11.6') coverage; Chemically resistant polyethylene tank; 2.2 GPM pump and 60 PSI gauge; Deluxe 18" sprayer wand and adjustable relief valve.

25 GALLON SPRAYER

Part No. 77700-08963

RTV-X, X CAB

3 nozzle boomless spray pattern has 140" (11.6') coverage; Chemically resistant polyethylene tank; 2.2 GPM pump and 60 PSI gauge; Deluxe 18" sprayer wand and adjustable relief valve.

SPRAYER BOOM

Part No. 77700-09601

RTV-X, X CAB

Sprayer boom for Kubota 40 gallon sprayer; Compatible with many other sprayers.

REAR BOOM SPRAYER KIT

Part No. V4494A

RTV-X, X CAB

Optional boom sprayer nozzle for use with RTV Bed Mounted Sprayer; Boom pivot to mount nozzles; Three-way valve; Three nozzles; 15' spray width.

SPREADERS

ROCK SALT SPREADER

Part No. V5002-A

RTV-X, X900, X CAB

Ideal for winter applications with 3 cubic feet capacity (240 lbs) and spreading width up to 25 ft; 59 1/2” width at 25° max angle;

Electric powered motor and transmission controlled by a variable speed weatherproof controller; Heavy duty poly hopper construction; Top screen and fitted cover included.

TAILGATE SPREADER

Part No. V5003-A

RTV-X, X900, X CAB, X1120

Ideal for year round use with 3 cubic feet capacity (240 lbs) and spreading width up to 20 ft; Easy-to-calibrate for various materials (e.g. seed, fertilizer, bagged ice melt, and more);

Electric powered motor and transmission controlled by a variable speed weatherproof controller; Heavy duty poly hopper construction; Top screen and fitted cover included.

CARGO BOX SPREADER

Part No. V5005

RTV-X, X900, X CAB, X1120

11 cubic feet capacity (800 lbs) and spreading width up to 30 ft;

Electric powered motor and transmission with a dual controller for independent material and spread width control; Heavy duty poly hopper construction; Top screen, fitted cover, and heavy duty vibrator included.

FLOW CONTROL TUBE

Part No. V4407

RTV-X, X900, X CAB, X1120

Optional stainless adjustable flow regulator helps prevent leaking issues when handling fine pellet and flake materials; Requires Cargo Box Spreader (V5005).

36" DROP SPREADER

Part No. V5004

RTV-X, X900, X CAB, X1120

Ideal for precise snow and ice management applications; 6 cubic foot (480 lb) material capacity and 36" drop pattern; Electric powered motor and vibrator with cab mounted digital, variable speed controller; Features a gateless design to help improve material efficiency and reduce turf damage; Heavy duty poly hopper construction; Top Screen and Molded Hopper Cover included.

SPREADING MATERIALS

Bagged Rock Salt

Bagged Ice Melters

TIRES & WHEELS

HDWS TIRE & WHEEL ASSEMBLY

Part No. K7591-19312

X900, X CAB, X1120, X CREW

Includes 1 OEM tire and steel wheel; 25x10-12 6 ply tire; HDWS tread design are non-directional.

ATV TIRE & WHEEL ASSEMBLY

Left Part No. K7591-19112

Right Part No. K7591-19162

X900, X CAB, X1120, X CREW

Includes 1 OEM tire and steel wheel; 25x10-12 6 ply tire; ATV tread design are directional (left or right).

TURF TIRE & WHEEL ASSEMBLY

Part No. K7591-19613

X900, X CAB, X1120

Includes 1 OEM tire and steel wheel; 25x12-12 6 ply tire; TURF tread design are non-directional.

BLACK TIRE & ALLOY WHEEL ASSEMBLY

ATV Left Part No. K7591-99850

ATV Right Part No. K7591-99860

HDWS Part No. K7591-99800

X900, X CAB, X1120, X CREW

Includes 1 OEM tire and alloy wheel; 25x10-12 6-ply tire; ATV tread design are directional (left or right); HDWS tread design are non-directional; Requires Alloy Wheel Hardware Kit (black - K7591-99140).

SILVER TIRE & ALLOY WHEEL ASSEMBLY

ATV Left Part No. K7591-99830

ATV Right Part No. K7591-99840

HDWS Part No. K7591-99790

X900, X CAB, X1120, X CREW

HDMP TIRE ASSEMBLY

Alloy Part No. K7121-19820

Steel Part No. K7121-19300

RTV-X, X CAB, X CREW

More aggressive tread design for off-road applications; Designed for longer-lasting wear, especially for paved road conditions.

RTV ACCESSORIES

CARGO NET

Part No. 77700-08978

Heavy duty adjustable plastic hooks prevent scratching; 34" x 34" — stretches to 60" x 60"; Finger holes in hooks for safety and easy hook up; Weather resistant; Fits most UTV/RTV Bed Boxes.

FIRE EXTINGUISHER MOUNT

Part No. 77700-10709

Adjustable clamps secure most fire extinguishers up to 3.5";

Universal design mounts to round tube up to 2.25"; Patented low-profile mounting; Fire extinguisher not included.

SHOCKSTRAP® LOAD-ABSORBING RATCHET STRAPS

9' Part No. 77700-10680

18' Part No. 77700-10681

Superior shock absorption keeps tension on the strap; Backup Safety Strap included; Chemical and moisture resistant; Rust-resistant hooks and buckle; Flexible soft loop.

RTV TOW STRAP

Part No. 77700-08977

1-1/4" X 12' tow strap with loops and shackle; 5,000 lbs. break strength; Forged shackle; Reinforced attachment loops.

WORK GEAR BAG

Part No. 77700-10694

Made from heavy duty ballistic nylon; Includes strap kit to attach to your RopsRackPack® and buckles for attaching to your Ultimate Rack; Gear Bag is 18" x 4" x 11".

ELITE SERIES UTV PHONE MOUNT

Part No. 77700-13835

Easily switch between portrait and landscape modes; Crafted from high-quality nylon; Features a secure, over-molded grip for comfortable handling and dependable attachment.

PORTABLE BLUETOOTH SPEAKER & MOUNTING CLAMPS

Part No. 77700-12846

20W portable speaker with 57mm driver; Built-in equalizer for mode adjustment and built-in microphone; Impact-proof & water-resistant ABS body with rubber coating & IPX6 rating; Nylon composite clamps, fast and easy attachment/removal; Clamps fit roll bars 1.625" to 2" diameter.

KUBOTA SERVICES

KUBOTA GENUINE PARTS

Kubota provides customers parts support, parts, and manuals through Kubota’s national dealer network. We support our dealers with four large warehouses located strategically throughout the United States.

Kubota Genuine Parts is a full line of O.E.M. and maintenance parts designed and engineered to original factory specifications to keep your Kubota equipment operating at peak performance.

KUBOTA ORANGE PROTECTION PROGRAM®

The Kubota Orange Protection Program gives you the opportunity to extend your coverage, without interruption, by one or two years. You can purchase your warranty extension through your Kubota dealer any time before the expiration of the regular Kubota Limited Warranty.1

BENEFITS AT A GLANCE

› Comprehensive coverage

› Protects your investment

› Provides peace of mind

› Reliability of genuine Kubota parts

› Extends both the Basic and applicable Power Train coverage

› Administered by Kubota Tractor Corporation

› Sold and serviced by your authorized Kubota Extended Warranty dealer

› Financing available, if purchased at the same time as your tractor

› No deductibles

› Fully transferable

FOR MORE INFORMATION: VISIT YOUR LOCAL KUBOTA DEALER OR CALL 888-398-9782

KUBOTA CREDIT CORPORATION, U.S.A.

KUBOTA-BACKED, NO DEDUCTIBLE EXTENDED WARRANTY SOLUTION

Since 1982, Kubota has extended a wide range of financing alternatives to customers through Kubota Credit Corporations, U.S.A. (KCC). KCC offers competitive interest rates, flexible down payments, monthly and seasonal payment terms, and a Kubota-sponsored property damage insurance program. Kubota dealers can tailor a variety of finance programs2 to meet the specific requirements of their customers.

FOR MORE INFORMATION, VISIT YOUR LOCAL KUBOTA DEALER OR WWW.KUBOTACREDITUSA.COM

1 - Orange Protection is available in Florida for Commercial Customers only.

2 - Subject to credit approval through Kubota Credit Corporation, U.S.A.

KTAC INSURANCE AGENCY

Created specifically for Kubota customers, KTAC Insurance is a Kubota-endorsed physical damage insurance program providing “all risk” protection.*

BENEFITS AT A GLANCE

› Coverage against flood, wind, infestation, upset and collision, falling objects, theft, fire, vandalism, and more

› In-transit and off-property protection

› Low $250 deductible

› Convenient payment options

› Transportation reimbursement

KCC customers also receive original sales price protection (including taxes and fees)** for the first 60 months of the finance agreement.

› For more information, contact a KTAC representative at 800-348-5802 or visit www.Ktacinsuranceagency.com.

* See policy for details

KUBOTA LEASING

In this credit-tight economy, leasing is critical to getting the Kubota equipment your business needs to grow. With the new Kubota Leasing program, commercial customers have access to flexible leasing that makes the full Kubota product line more affordable.

PROGRAM HIGHLIGHTS INCLUDE:

› Affordable monthly payments

› Fast, easy application process

› Application only required up to $150,000

› Same-day credit decisions with complete information

› Transactions starting at $3,000 and up

› 24-, 36-, 48- or 60-month terms

› Flexible structures to match your cash flow and budget

Download the myKubota app

and see all compatible attachments for your unit

Find Kubota performance matched implements & attachments to go along with your unit directly in the myKubota app. y

Scan to download now

**This is a summary of the Kubota-Endorsed Property Damage Insurance Program. This information is descriptive only and is not intended to be a solicitation or an offer to sell any insurance product or service, nor is the information a complete description of all of the terms, conditions and exclusions applicable. Actual coverage is subject to the language of the policy issued. This policy is underwritten by Ohio Indemnity Company. Kubota Tractor Corporation reserves the right to change the stated specifications without notice. This brochure is for descriptive purposes only and reasonable efforts were used to set forth the contained information; some items shown may be optional and some products shown may not be available at all dealerships. Kubota disclaims all representations and warranties, express or implied, or any liability from the use of this brochure. For complete warranty, safety and product information, consult your local Kubota dealer and the operator’s manual. Power (HP/KW) and other specifications are based on various standards or recommended practices. For your safety, Kubota strongly recommends the use of a Rollover Protective Structure (ROPS) and seat belt in almost all applications. This brochure is intended for the United States and US territories only. For information regarding Kubota products or services outside these areas, see Kubota Corporation’s global web site. Kubota does not provide parts, warranty or service for any Product which is re-sold or retailed in any country other than the country for which the Product(s) were designed or manufactured.
