TOP SECRET
Technische Änderungen ohne weitere Information vorbehalten.
Für Irrtümer und Druckfehler keine Haftung. Stand: August 2024
Specifications are subject to change without notice. For errors, technical mistakes and misprints no liability is assumed. Stand: August 2024

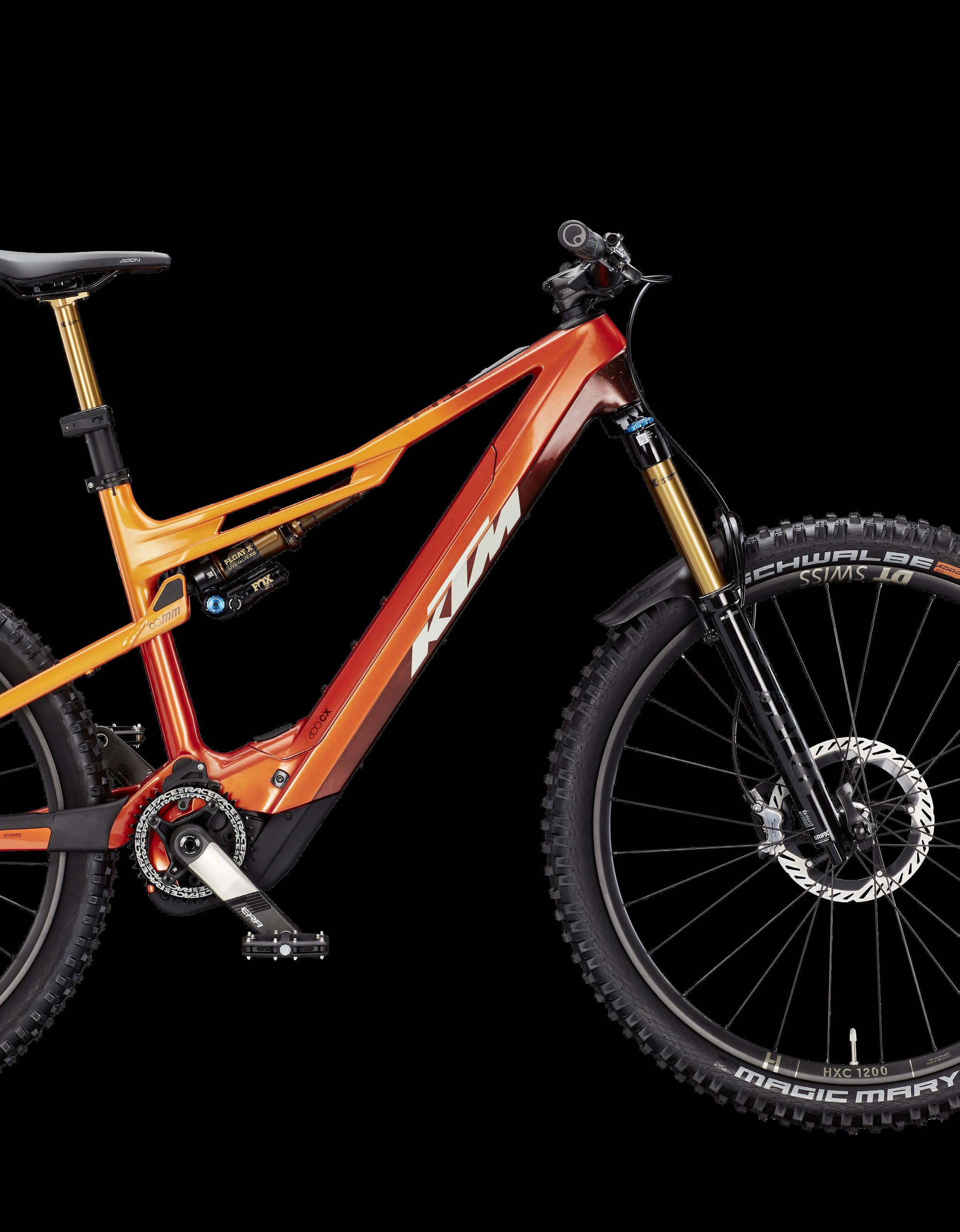

E-FULLY
MACINA PROWLER EXONIC
Macina Prowler Dimmix Perf. Carbon SLL-E 170mm
UDH; PT800 Bosch BDU38 / M-5230
FOX 38 Float 29" Factory e-bike 180mm 15x110
FOX DHX Factory 250x75
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
GPS MODULE
R.DERAILL.
SHIFTLEV. CRANKSET CHAINRING SPROCKET CHAIN BRAKE ROTOR
WHEEL F
WHEEL R
Bosch ConnectModule for BDU38YY
SRAM XX Eagle Transmission 12speed
SRAM POD Ultimate AXS Controller
SRAM XX T-Type E-MTB 165 mm ISIS
SRAM E-MTB 36T XX EAGLE T-TYPE D-Mount
SRAM XX T-Type XS-1297 / 10-52
SRAM XX Eagle T-Type 12s
Magura MT7 4-Piston
Magura MDR-P CL 203 / MDR-P CL 180
DT Swiss HXC 1200 SPLINE CL 110/15TA / 622x30TSS
DT Swiss HXC 1200 SPLINE CL 148/12TA 584x30TSS
Schwalbe Magic Mary Evo SuperTrail TLE 65-622
Schwalbe Big Betty Evo SuperGravity TLE 65-584
Ergon GE10
KTM Prime Trail35 Carbon rizer20 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Fizik Terra Aidon X3 SAlloy
RockShox Reverb AXS wireless
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VP-539 nylon 24,9 kg (without pedals)
MACINA PROWLER PRESTIGE
Macina Prowler Dimmix Perf. Carbon SLL-E 170mm
UDH; PT800 Bosch BDU38 / M-5230
FOX 38 Float 29" Factory e-bike 180mm 15x110
FOX DHX2 PerformanceElite 2-Pos 250x75
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
R.DERAILL. SHIFTLEV. CRANKSET
CHAINRING SPROCKET CHAIN BRAKE ROTOR
WHEEL F
WHEEL R
SRAM GX Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
KTM E-Trail2 ISIS 160mm Q12
SRAM T-TYPE Eagle 36T Direct Mount
SRAM T-Type Eagle XS-1270 10-52T
SRAM GX Eagle T-Type 12s
Shimano Saint M820 / M820 4-Piston
Shimano CL800 CL 203 freeza
CL800 CL 180 freeza
KTM E-Team Trail 29 CL 110/15TA
622x30TC made by DT Swiss
KTM E-Team Trail 27 CL 148/12TA
584x30TC made by DT Swiss
TIRE F
Schwalbe Magic Mary Evo SuperTrail TLE 65-622
Schwalbe Big Betty Evo SuperGravity TLE 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit Fizik Terra Aidon X3 SAlloy
Eightpins H01 Hydraulic -6X-S
MTB-Pedal flat VP-539 nylon 25,8 kg (without pedals)
MACINA PROWLER
Macina Prowler Dimmix Perf. Carbon SLL-E 170mm
UDH; PT800 Bosch BDU38 / M-5230
FOX 38 Float 29" Rhythm e-bike 180mm 15x110
FOX Float X Performance 2Pos 250x75
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano Deore XT M8100-12 SGS shadow+
Shimano Deore M6100-12
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
KTM E-Trail2 ISIS 160mm Q12
Chainring FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
Maxxis Minion DHF 3C-MaxxTerra
NEXO+/TR 63-622
Maxxis Minion DHR || 3C,MAxxTerra
NEXO+/ TR 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short
Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VPE-527 alloy
25,8 kg (without pedals)
MACINA KAPOHO EXONIC
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
FOX 36 Float 29" Factory e-bike 160mm 15x110
FOX Float X NEO Factory 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano XTR Di2 M9260-11 LG shadow+
Shimano CL900 CL 203 freeza CL900 CL 180 freeza
DT Swiss HXC 1200 SPLINE CL 110/15TA 622x30TSS DT Swiss HXC 1200 SPLINE CL 148/12TA 584x30TSS
MTB-Pedal flat VP-539 nylon 23,8 kg (without pedals) TIRE F
Schwalbe Magic Mary Evo SuperTrail TLE 65-622
Schwalbe Hans Dampf Evo Super Gravity 65-584
Ergon GE10
KTM Prime Trail35 Carbon rizer20 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Fizik Terra Aidon X3 SAlloy
FOX Transfer NEO Factory 34.9 wireless
KTM Team Light CL-FJ21 - 38,1mm x 15
MACINA KAPOHO PRESTIGE
SRAM GX TRANSMISSION
BOSCH PT-CX8P4 MM REAR 160
CONNECT MODULE
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
FOX 36 Float 29" Factory e-bike 160mm 15x110
FOX Float X Factory 2Pos 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
GPS MODULE
R.DERAILL.
SHIFTLEV. CRANKSET CHAINRING SPROCKET CHAIN BRAKE ROTOR
WHEEL F WHEEL R
Bosch ConnectModule for BDU38YY
SRAM GX Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
KTM E-Trail2 ISIS 160mm Q12
SRAM T-TYPE Eagle 36T Direct Mount
SRAM T-Type Eagle XS-1270 10-52T
SRAM GX Eagle T-Type 12s
Shimano Deore XT M8100 / M8120 4-Piston
Shimano CL900 CL 203 freeza
CL900 CL 180 freeza
Mavic E-Deemax 29 CL 110/15TA 622x30TC
Mavic E-Deemax 27 CL 148/12TA 622x30TC
MTB-Pedal flat VP-539 nylon 25,2 kg (without pedals) TIRE F TIRE R GRIP BAR STEM HEADSET SADDLE SEATPOST SEATCLAMP PEDAL WEIGHT
Schwalbe Magic Mary Evo SuperTrail TLE 65-622
Schwalbe Hans Dampf Evo Super Gravity 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit Fizik Terra Aidon X3 SAlloy
FOX Transfer Factory 34.9 internal
KTM Team Light CL-FJ21 - 38,1mm x 15
MACINA KAPOHO PRIME L
SHIMANO DEORE XT 1×12
BOSCH PT-CX8K4 MM REAR 160
BOSCH CONNECT MODULE
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
FOX 36 Float 29" Performance e-bike
160mm 15x110
FOX Float X Performance 2Pos 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano Deore XT M8100-12 SGS shadow+
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore XT M8100-12
KTM E-Trail ISIS 160mm Q16
Chainring FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Shimano Deore XT M8100 / M8120 4-Piston
Shimano MT800 CL 203 freeza
EM810 CL 180 magnet
KTM Line - DT Swiss 370 CL 28H 110/15TA
Ambrosio E30 Trail 28H 622x30TC
DT Champion 2.0 black
KTM Line - DT Swiss 370 CL 28H 148/12 TA
Ambrosio E35 Trail 28H 584x35TC
DT Champion 2.0 black
Maxxis Minion DHF 3C-MaxxTerra
EXO/TR 63-622
25,4 kg (without pedals) TIRE F
Maxxis Minion DHR II 3C-MaxxTerra
EXO/TR 70-584
Ergon GA20
KTM Team II Trail35 rizer25 800mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VPE-527 alloy
Litemove SC-150 150Lux side
LIGHT F LIGHT R WEIGHT
Supernova TL3Z
FRESH ORANGE MATT (BLACK)
MACINA KAPOHO MASTER ABS
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
FOX 36 Float 29" Performance e-bike 160mm 15x110
FOX Float X Performance 2Pos 250x70
Bosch PERFORMANCE CX BDU3840 - 25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1
(X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Bosch ABS Pro control unit Magura
SAGE GREEN (BLACK+ORANGE)
1250007103 43cm / M
1250007108 48cm / L
1250007113 53cm / XL
R.DERAILL.
SHIFTLEV. CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE ROTOR
WHEEL F
WHEEL R
TRP RD-M8000E 12speed
TRP Switch SL-M8000E
ABS SPACER PM
DISCBRAKE 11x13.5 WT:3mm
FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Magura Gustav Pro ABS 4-Piston
Magura MDR-S 2.5mm 6bolt 203
MDR-S 2.5mm 6bolt 203
KTM Line - DT Swiss 370 CL 32H 110/15TA
Ambrosio E30 Trail 28H 622x30TC
DT Alpine II 2.34 black
KTM Line - DT Swiss 370 CL 32H 148/12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F
TIRE R
GRIP BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Maxxis Minion DHF 3C-MaxxTerra
NEXO+/TR 63-622
Maxxis Minion DHR || 3C,MAxxTerra
NEXO+/ TR 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35 Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VPE-527 alloy
26,2 kg (without pedals)
MACINA KAPOHO MASTER
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
FOX 36 Float 29" Performance e-bike 160mm 15x110
FOX Float X Performance 2Pos 250x70
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PURION 400 Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A Bosch ConnectModule for BDU38YY
R.DERAILL. SHIFTLEV. CRANKSET CHAINRING SPROCKET CHAIN
BRAKE ROTOR
WHEEL F
WHEEL R
TRP RD-M8000E 12speed
TRP Switch SL-M8000E
KTM E-Trail2 ISIS 160mm Q12
Chainring FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Magura MT5 4-Piston
Magura MDR-P CL 203 / MDR-P CL 180
KTM Line - DT Swiss 370 CL 28H 110/15TA
Ambrosio E30 Trail 28H 622x30TC
DT Alpine II 2.34 black
KTM Line - DT Swiss 370 CL 28H 148/12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F
TIRE R
GRIP BAR STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Maxxis Minion DHF 3C-MaxxTerra
NEXO+/TR 63-622
Maxxis Minion DHR || 3C,MAxxTerra
NEXO+/ TR 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VPE-527 alloy 25,3 kg (without pedals)
MARS BLACK MATT (ORANGE)
MACINA KAPOHO
Macina Kapoho Dimmix Perf. Carbon SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5240
RockShox Psylo Silver RC 29" 160mm 15x110
FOX Float X Performance 2Pos 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano Deore XT M8100-12 SGS shadow+
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore M6100-12
KTM E-Trail2 ISIS 160mm Q12
Chainring FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
Maxxis Minion DHF 3C-MaxxTerra
NEXO+/TR 63-622
Maxxis Minion DHR || 3C,MAxxTerra
NEXO+/ TR 65-584
Ergon GE10
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 38,1mm x 15
MTB-Pedal flat VPE-527 alloy 25,9 kg (without pedals)
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
Maxxis Minion DHR || 3C,MAxxTerra
KTM Team II Trail35 rizer25 800mm
OLIVE PEARL (GREY)
MACINA KAPOHO
Macina Kapoho Dimmix Alloy 6061 SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5260
FOX 36 Float 29" Rhythm e-bike 160mm 15x110
FOX Float X Performance 2Pos 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano Deore XT M8100-12 SGS shadow+
SHIFTLEV. CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore M6100-12
KTM E-Trail2 ISIS 160mm Q12 Chainring FSA steel 36T
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Tektro HD-M750 / E730 4-Piston
Tektro TR-45 2.3mm CL 203
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F TIRE R GRIP BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Continental Kryptotal F TL 60-622
Continental Kryptotal R TL 65-584
Ergon GA20
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco GND Supercomfort
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy
27,4 kg (without pedals)
MACINA KAPOHO 8973
Macina Kapoho Dimmix Alloy 6061 SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5260
RockShox 35 Silver TK 29" 160mm 15x110 taper
Suntour Tri-Air 3CR 250x70
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
SRAM SX Eagle 12speed
SRAM SX Eagle singleClick
KTM E-Trail ISIS 160mm Q16
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
SRAM X-Sync 2 Eagle 36T Direct Mount
SRAM SX Eagle PG-1210 / 11-50
SRAM NX Eagle 12s
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 203 / EM600 CL 180 magnet
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ambrosio E35 Trail 32H 584x35TC
DT Alpine II 2.34 black
TIRE F
TIRE R GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
LIGHT F
LIGHT R
WEIGHT
Schwalbe Nobby Nic Perf. Folding 65-622
Schwalbe Nobby Nic Perf. Folding 70-584
Ergon GA20
KTM Comp Trail35 rizer15 780mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Italia Model-X Flow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy
Litemove SC-150 150Lux side
Supernova TL3Z
27,7 kg (without pedals)
MACINA KAPOHO
Macina Kapoho Dimmix Alloy 6061 SLL-E 160mm
UDH PT800 Bosch BDU38 / M-5260
RockShox Psylo Silver RC 29" 160mm 15x110
Suntour TRIAIR2 3CR 250x70
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES U6000-11/10 LG shadow+
SHIFTLEV. CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano CUES U6000-10
KTM E-Trail2 ISIS 160mm Q12
Chainring FSA steel 36T
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F
Continental Kryptotal F TL 60-622
Continental Kryptotal R TL 65-584
Ergon GA20
KTM Comp Trail35 rizer15 780mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy 27,5 kg (without pedals)
OXYGEN GREEN (GREY+BLACK)
FRESH ORANGE (BLACK)
SHIMANO
MACINA LYCAN
DEORE XT LG
Macina Lycan Alloy 6061 SLL-E 140mm
UDH PT800 Bosch BDU38 / M-5290
FOX 34 Float 29" Rhythm e-bike 140mm 15x110
FOX Float Rhythm 2Pos 230x65
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch Mini Remote Flatbar
Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
CHARGER
GPS MODULE
R.DERAILL.
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
KTM E-Trail2 ISIS 170mm Q12
Chainring FSA steel 36T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT5 4-Piston
Magura MDR-P CL 203 / MDR-P CL 180
Mavic E-Crossride 29 CL 110x15 TA 622x30TSS
Mavic E-Crossride 29 148x12TA 622x30TSS
TIRE F
R
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Schwalbe Wicked Will Perf. 65-622
Schwalbe Wicked Will Perf. 65-622
Ergon GE10
KTM Comp Trail35 rizer15 780mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Ground Short Open Fit Narrow
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy
25,8 kg (without pedals)
SHIMANO
Comp II dropper internal 34.9 T:150
Team Light CL-FJ21 - 39,0mm x 12
SHARK BLUE MATT (WHITE)
SHIMANO
MACINA LYCAN 773
Macina Lycan 27.5" Alloy 6061 SLL-E 140mm
PT750 Bosch Gen.4 / M-2296
Suntour XCR 34 Air 27.5" LOR 140mm
15x110 taper
RockShox Deluxe Select 230x62.5
Bosch PERFORMANCE CX BDU3740 25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 750Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Deore M5120-11/10 SGS shadow+
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore M4100-10
KTM E-Trail ISIS 170mm Q16
Chainring FSA steel 36T
Shimano Deore M4100-10 / 11-46
KMC e10 EPT e-bike
Shimano MT401 / MT420 4-Piston
Shimano RT30 CL 203 / EM300 CL 180 magnet
KTM Line - Shimano MT410B CL 32H 110-15TA
Ambrosio E30 Trail 32H 584x30TC
DT Champion 2.0 black
KTM Line - Shimano MT400B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F TIRE R GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
LIGHT F
LIGHT R
WEIGHT
Schwalbe Nobby Nic Perf. Folding 65-584
Schwalbe Nobby Nic Perf. Folding 65-584
KTM Comp Lock
KTM Comp Trail35 rizer15 760mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp dropper internal 30.9 T:150
KTM Line JD-SC140A - 35,0mm
MTB-Pedal flat VPE-527 alloy
Litemove SC-150 150Lux side
Supernova TL3Z 26,4 kg (without pedals)
MACINA CHACANA 891 LFC
Macina Chacana Alloy 6061 SLL-E 125mm UDH
PT800 Bosch BDU38 / M-5290
FOX 34 Float 29" AWL e-bike 130mm 15x110
FOX Float Rhythm 2Pos 230x57,5
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote
Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
R.DERAILL.
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F
TIRE R
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8 FSA steel 36T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano Deore M6100 / M6120 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
Mavic E-Crossride 29 CL 110x15 TA 622x30TSS
Mavic E-Crossride 29 148x12TA / 622x30TSS
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F LIGHT R FENDER
KICKSTAND WEIGHT
Ergon GA30
KTM Comp Trail35 rizer15 760mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Ergon SM10 E-Mountain
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy
KTM Racktime Alumee
Litemove AE-200 170-200Lux HighBeam
Supernova TL3Z
Racktime Alu 72mm B&M Supernova
KTM 28" adjustable MY2025
28,9 kg (without pedals)
OXYGEN GREEN (BLACK)
MACINA CHACANA 892 LFC
Macina Chacana Alloy 6061 SLL-E 125mm UDH
PT800 Bosch BDU38 / M-5290
Suntour XCR34X Air 29" 2CR 130mm taper
FOX Float Rhythm 2Pos 230x57,5
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote
Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
OLIVE PEARL (BLACK+ORANGE)
1250031100 38cm / S
1250031103 43cm / M
1250031108 48cm / L
1250031113 53cm / XL
1250031117 57cm / XXL
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F TIRE R
Shimano CUES U6000-11 display
KTM E-Team2 ISIS 170mm Q8
FSA steel 36T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano Deore M6100 / M6120 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
Mavic E-Crossride 29 CL 110x15 TA 622x30TSS Mavic E-Crossride 29 148x12TA / 622x30TSS
Schwalbe Johnny Watts Perf. DD RaceGuard
60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
FENDER
KICKSTAND
WEIGHT
Ergon GA30
KTM Comp Trail35 rizer15 760mm
KTM Team Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Lookin Athletic Evo
KTM Comp II dropper internal 34.9 T:150
KTM Team Light CL-FJ21 - 39,0mm x 12
MTB-Pedal flat VPE-527 alloy
Racktime Alumee rails (plattform option)
Litemove SE-150 150Lux down
Racktime Alu 72mm B&M Xeltec
KTM 28" adjustable MY2025 28,4 kg (without pedals)
SHIMANO CUES

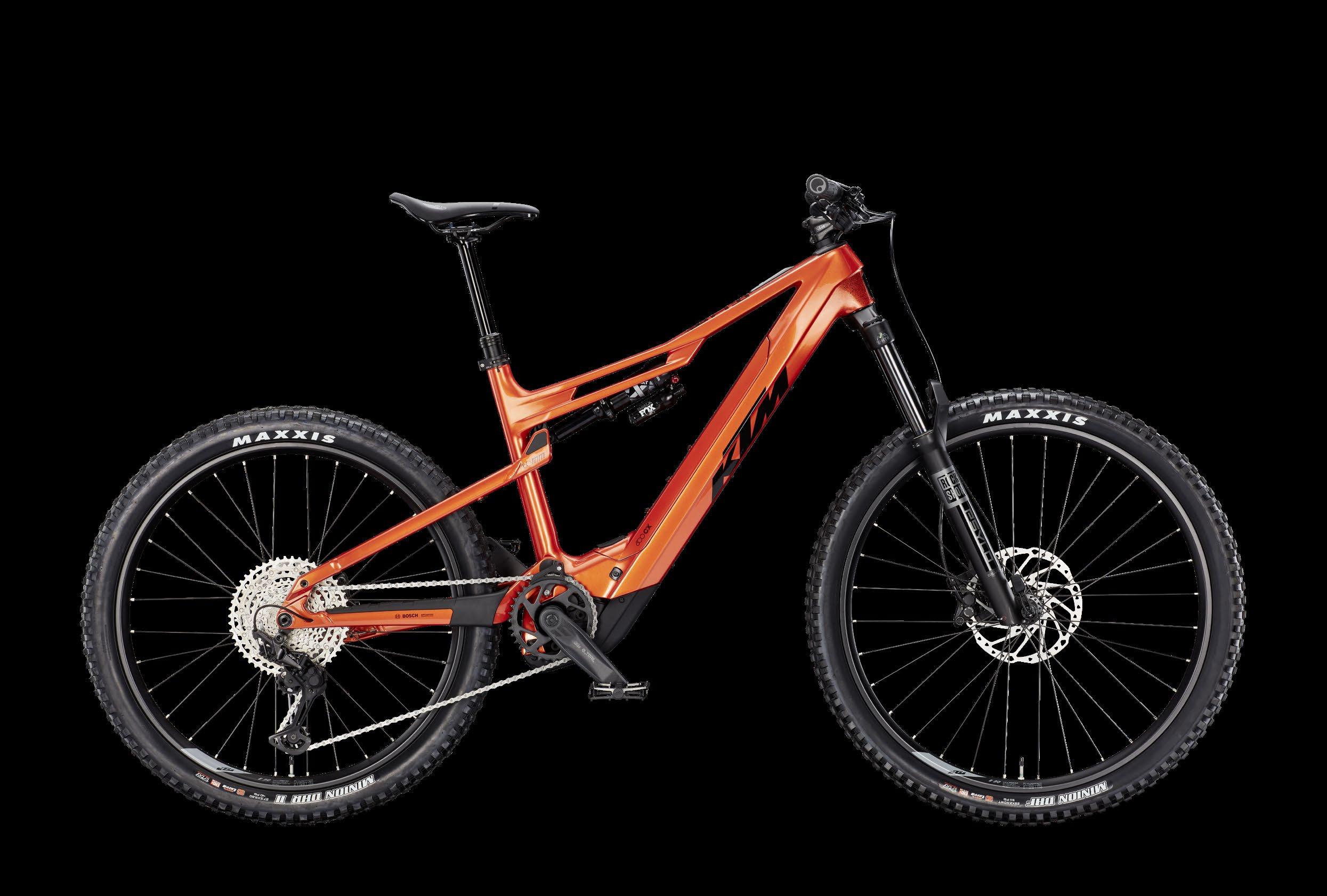

MACINA SCARP SX EXONIC
Macina Scarp 29" Premium Carbon SLL-E 140mm
UDH CPT400 Bosch BDU31 / M-4830
FOX 34 Float 29" Factory 140mm 15x110
FOX Float Factory 2-Pos 230x60
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch Mini Remote Flatbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Standard Charger 4A
SRAM XX Eagle Transmission 12speed
SHIFTLEV.
CRANKSET
CHAINRING SPROCKET CHAIN BRAKE ROTOR
WHEEL F
SRAM POD Rocker AXS Controller
SRAM XX T-Type E-MTB 170 mm ISIS
SRAM E-MTB 34T XX EAGLE T-TYPE D-Mount
SRAM XX T-Type XS-1297 / 10-52
SRAM XX Eagle T-Type 12s
Shimano XTR M9100 / M9120 4-Piston
Shimano CL900 CL 203 freeza
CL900 CL 180 freeza
DT Swiss HXC 1200 SPLINE LS 29 CL 100/15TA / 622x30TSS
WHEEL R Schwalbe Wicked Will Evo SuperGround TLE 62-622
DT Swiss HXC 1200 SPLINE LS 29 CL 148/12TA 622x30TSS
Schwalbe Wicked Will Evo SuperGround TLE 62-622 ESI Chunky silicone
FRESH ORANGE (DARK CHROME)
MACINA
SRAM GX TRANSMISSION 1×12
BOSCH CPT-SX4P4
PREMIUM CARBON
Macina Scarp 29" Premium Carbon SLL-E 140mm
UDH CPT400 Bosch BDU31 / M-4830
FOX 34SC Float 29" Factory 140mm 15x110
FOX Float Factory 2-Pos 230x60
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
R.DERAILL.
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
SRAM GX Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 34T Direct Mount
SRAM GX T-Type XS-1275 / 10-52
SRAM GX Eagle T-Type 12s
TIRE F
TIRE R GRIP
Schwalbe Wicked Will Evo
SuperGround TLE 62-622
Schwalbe Wicked Will Evo
SuperGround TLE 62-622
ESI Chunky silicone
KTM Prime II flat Carbon 780mm
Bosch Mini Remote Flatbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Standard Charger 4A
VELVET PETROL MATT (BLACK+GOLD)
1250041103 43cm / M
1250041108 48cm / L
1250041113 53cm / XL
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore XT M8100 / M8120 4-Piston
Shimano CL800 CL 203 freeza
CL800 CL 180 freeza
KTM E-Prime Trail 29 CL 110/15 TA
622x30TSS made by DT Swi
KTM E-Prime Trail 29 CL 148/12TA
622x30TSS made by DT Swiss
SADDLE
SEATPOST
SEATCLAMP
PEDAL
FSA NS MTB -10° ICR
FSA ACR drop/in 1.5" internal
Fizik Terra Aidon X3 SAlloy
FOX Transfer Factory 30.9 internal
KTM Team Light CL-FJ21 - 34,9mm
WEIGHT CATEGORY
MTB-Pedal flat VP-539 nylon 17,5 kg (without pedals)
MACINA SCARP SX MASTER
CPT-SX4P4
PREMIUM CARBON
Macina Scarp 29" Premium Carbon SLL-E 140mm
UDH CPT400 Bosch BDU31 / M-4830
FOX 34 Float 29" Performance 140mm 15x110
FOX Float Performance 2Pos 230x60
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch Mini Remote Flatbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Standard Charger 4A
BURNT ORANGE MATT (DARK ORANGE)
1250042103 43cm / M
1250042108 48cm / L
1250042113 53cm / XL
R.DERAILL. SHIFTLEV. CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 34T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT5 4-Piston
Magura MDR-P CL 203 / MDR-P CL 180
KTM E-Comp Trail 29 CL 110/15TA / 622x30TC made by DT Swiss
KTM E-Comp Trail 29 CL 148/12TA 622x30TC made by DT Swiss
Maxxis Forekaster EXO/TR 3C
MaxxTerra 62-622
Maxxis Forekaster EXO/TR 3C
MaxxTerra 62-622
ESI Chunky silicone
KTM Team II flat 9° 780mm
FSA NS MTB -10° ICR FSA ACR drop/in 1.5" internal
Selle Royal SRX
KTM Comp dropper internal 30.9 T:150 KTM Team Light CL-FJ21 - 34,9mm
MTB-Pedal flat VP-539 nylon 18,8 kg (without pedals)
SHIMANO
MACINA SCARP SX ELITE
DEORE XT LG
Macina Scarp 29" Premium Carbon SLL-E 140mm
UDH CPT400 Bosch BDU31 / M-5840
RockShox Recon Gold RL 29" 140mm 15x110
RockShox Deluxe Select+ 230x60
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
PREMIUM CARBON
Bosch Mini Remote Flatbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 34T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 203 / RT64 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
DT Alpine II 2.34 black
WEIGHT
Maxxis Forekaster EXO/TR 3C
MaxxTerra 62-622
Maxxis Forekaster EXO/TR 3C
MaxxTerra 62-622
ESI Chunky silicone
KTM Team II flat 9° 780mm
FSA NS MTB -10° ICR FSA ACR drop/in 1.5" internal
Selle Royal SRX
KTM Comp dropper internal 30.9 T:150
KTM Team Light CL-FJ21 - 34,9mm
MTB-Pedal flat VP-539 nylon 19,8 kg (without pedals)
FLAMING
SHIMANO
E-HARDTAIL

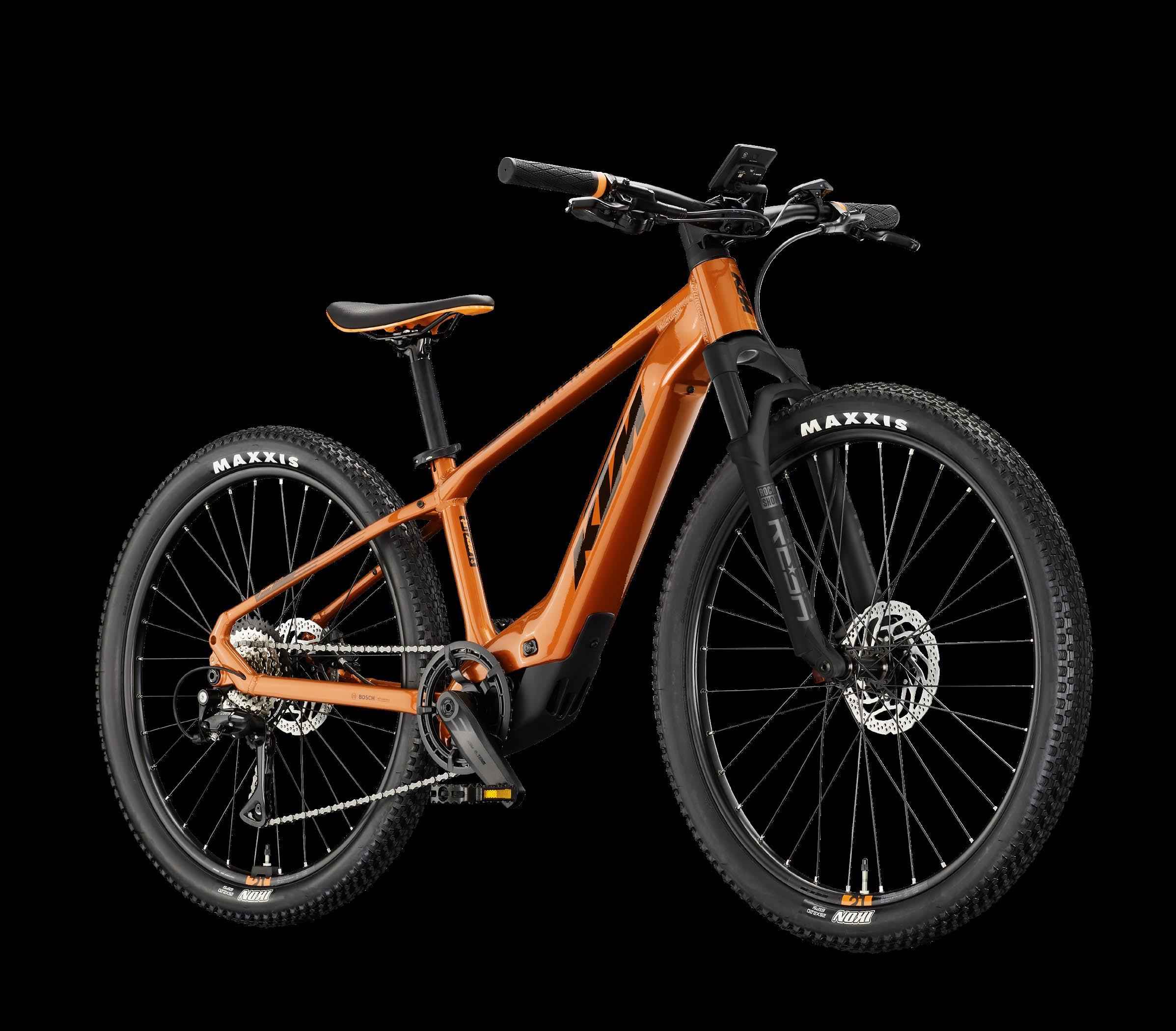

MACINA TEAM 891
TRP A12 1×12
BOSCH CONNECT MODULE
Macina MTB 29" Alloy 6061
UDH PT800 Bosch BDU38 / M-5700 FOX 34 Float 29" AWL e-bike 120mm 15x110
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY TRP RD-M8000E 12speed
SHIFTLEV. CRANKSET
CHAINRING SPROCKET CHAIN BRAKE
ROTOR
WHEEL F
WHEEL R
TRP Switch SL-M8000E
KTM E-Team2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Shimano Deore M6100 / M6120 4-Piston
Shimano RT64 CL 180 / RT64 CL 180
KTM Line - DT Swiss 370 CL 28H 110/15TA
Ambrosio E30 Trail 28H 622x30TC
DT Champion 2.0 black
KTM Line - DT Swiss 370 CL 28H 148/12 TA
Ambrosio E30 Trail 28H 622x30TC
DT Champion 2.0 black
TIRE F TIRE R GRIP BAR STEM HEADSET SADDLE SEATPOST SEATCLAMP PEDAL
WEIGHT
Maxxis Rekon EXO/TR 62-622
Maxxis Rekon EXO/TR 62-622
Ergon GE10
KTM Team II flat 2X 720mm
KTM Comp +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Ergon SM10 E-Mountain
KTM Comp dropper internal 30.9 T:100
KTM Team Light CL-FJ21 - 34,9mm
MTB-Pedal VP-195E alloy 23,9 kg (without pedals)
OXYGEN GREEN (BLACK)
MACINA TEAM
Macina MTB 29" Alloy 6061
UDH PT800 Bosch BDU38 / M-5700
Suntour XCR 34 Air 29" LOR 120mm 15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
SHIFTLEV. CRANKSET
CHAINRING
SPROCKET CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Di2 EN605 wireless
KTM E-Comp2 ISIS 170mm Q8 FSA steel 38T with chainguard
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Tektro HD-M535 4-Piston
Tektro TR-17 2.3mm 6bolt 203
TR-17 2.3mm 6bolt 180
KTM Line - DT Swiss 370 6B 32H 110/15TA
Ryde Andra29 32H 622x29C
DT Alpine II 2.34 black
KTM Line - DT Swiss 370 6B 32H 148/12, Ryde Andra29 32H 622x29C
DT Alpine II 2.34 black
WEIGHT
Schwalbe Smart Sam Plus Perf. GreenGuard 60-622
Schwalbe Smart Sam Plus Perf. GreenGuard 60-622
Ergon GE10
Ergotec low rizer 740mm
Ergotec Sepia XL 100mm
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Viaggio HRC
bySchulz G.2 ST suspension 30.9/350
KTM Team Light CL-FJ21 - 34,9mm MTB-Pedal flat VPE-527 alloy 26,5 kg (without pedals)
MACINA TEAM 892 LFC ABS
SHIMANO CUES 1×11
BOSCH CONNECT MODULE
Macina MTB 29" Alloy 6061 UDH PT800 Bosch
BDU38 / M-5700
FOX 34 Float 29" AWL e-bike 100mm 15x110
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
HYBRID CARRIER
CHAINRING
SPROCKET
CHAIN
BRAKE
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Bosch ABS control unit Magura
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Magura MT C ABS 4-Piston
Magura MDR-C CL 203 / MDR-C CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. DD RaceGuard
60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard
60-622 Reflex
GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
KICKSTAND
WEIGHT
Ergon GP1 Evo
KTM Comp rizer15 700mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Athletic Evo
KTM Comp dropper internal 30.9 T:100
KTM Team Light CL-FJ21 - 34,9mm
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SE-150 150Lux down
Racktime Alu 72mm B&M Xeltec
KTM 28" adjustable MY2025 28,2 kg (without pedals)
MACINA TEAM 892 LFC
Macina MTB 29" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5700
Suntour XCR34X Air 29" 2CR 100mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
SPROCKET
CHAIN
BRAKE
ROTOR WHEEL F
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
KICKSTAND WEIGHT
Ergon GP1 Evo
KTM Comp rizer15 700mm
KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Lookin Athletic Evo
KTM Comp dropper internal 30.9 T:100
KTM Team Light CL-FJ21 - 34,9mm MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SE-150 150Lux down
Racktime Alu 72mm B&M Xeltec
KTM 28" adjustable MY2025 27,8 kg (without pedals)
STEEL BLUE MATT (BLACK)
MACINA TEAM 892
SHIMANO CUES 1×10
Macina MTB 29" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5700
RockShox Recon Silver RL 29" 120mm
15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
CRANKSET CHAINRING
SPROCKET
CHAIN
BRAKE ROTOR
WHEEL F
WHEEL R
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 622x30TC
DT Alpine II 2.34 black
TIRE F TIRE R GRIP BAR
STEM HEADSET SADDLE
SEATPOST
SEATCLAMP PEDAL WEIGHT
Schwalbe Wicked Will Perf. 62-622
Schwalbe Wicked Will Perf. 62-622
Ergon GA20
KTM Comp flat 2X 720mm
KTM Comp +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 30.9/400
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 24,2 kg (without pedals)
MACINA TEAM 892 GLORIOUS
Macina MTB 29" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5700
RockShox Recon Silver RL 29" 120mm
15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
CRANKSET CHAINRING
SPROCKET
CHAIN
BRAKE ROTOR
WHEEL F
WHEEL R
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 622x30TC
DT Alpine II 2.34 black
TIRE F TIRE R GRIP BAR
STEM HEADSET SADDLE
SEATPOST
SEATCLAMP PEDAL WEIGHT
Schwalbe Wicked Will Perf. 62-622
Schwalbe Wicked Will Perf. 62-622
Ergon GA20
KTM Comp flat 2X 720mm
KTM Comp +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Hybrid
KTM Comp 30.9/400
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 24,2 kg (without pedals)
MACINA TEAM 872
SHIMANO CUES 1×10
Macina MTB 27.5" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5710
RockShox Recon Silver RL 27,5"
100mm 15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 584x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 584x30TC
DT Alpine II 2.34 black
TIRE F
TIRE R GRIP
BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL WEIGHT
Schwalbe Wicked Will Perf. 65-584
Schwalbe Wicked Will Perf. 65-584
Ergon GA20
KTM Comp rizer15 700mm
KTM Comp +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 30.9/350
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 23,9 kg (without pedals)
MACINA TEAM
Macina MTB 29" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5700
RockShox Recon Silver RL 29" 120mm
15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
CRANKSET CHAINRING SPROCKET CHAIN
BRAKE ROTOR
WHEEL F
WHEEL R
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180
TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio E30 Trail 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio E30 Trail 32H 622x30TC
DT Alpine II 2.34 black
Wicked Will Perf. 62-622
Schwalbe Wicked Will Perf. 62-622
Ergon GA20
KTM Comp flat 2X 720mm
KTM Comp +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Hybrid
KTM Comp 30.9/400
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 24,2 kg (without pedals)
Schwalbe
MACINA TEAM 893
SHIMANO CUES 1×9
Macina MTB 29" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5700
Suntour XCM 34 coil 29" NLO 120mm
15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
CATEGORY
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano CUES U4000-9 display
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 38T with Chainguard
Shimano LG300-9 / 11-46
KMC e500 LG e-bike
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT Alpine II 2.34 black
TIRE F
R
Schwalbe Smart Sam Perf. 60-622
Schwalbe Smart Sam Perf. 60-622
KTM Comp Lock
KTM Comp flat 2X 720mm
KTM Comp 7°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 30.9/400
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 24,8 kg (without pedals)
DIAMOND BLACK MATT
MACINA TEAM
SHIMANO CUES 1×9
BOSCH PT-CX8P2
CATEGORY E3 3
Macina MTB 27.5" Alloy 6061 UDH
PT800 Bosch BDU38 / M-5710
RockShox Recon Silver RL 27,5" 100mm 15x110 taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
R.DERAILL.
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano CUES U4000-9 display
KTM E-Comp2 ISIS 170mm Q8
FSA steel 38T with chainguard
Shimano LG300-9 / 11-46
KMC e500 LG e-bike
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 584x30C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival30 32H 584x30C
DT Alpine II 2.34 black
TIRE F
TIRE R
GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Schwalbe Smart Sam Perf. 65-584
Schwalbe Smart Sam Perf. 65-584
KTM Comp Lock
KTM Comp rizer15 700mm
KTM Comp 7°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 30.9/350
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy 24,4 kg (without pedals)
DIAMOND BLACK MATT (GREY+ORANGE)
MACINA RIDE
(591)
Macina MTB 29" Alloy 6061
UC-PP500Wh Bosch Gen.3 / M-9680
Macina MTB 27.5" Alloy 6061; UC-PP500Wh
Bosch Gen.3 / M-9690
Suntour XCM34 NLO DS29 100
Suntour XCM coil 27.5" HLO 100mm
Bosch PERFORMANCE Gen.3
25km/h / 65Nm
Bosch Purion LCD Display
Bosch PowerPACK 500Wh
ABUS standard battery lock (long key)
Bosch Compact Charger 2A
Shimano Alivio M3100-9 SGS shadow
Shimano Alivio M3100-9 display
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F (591)
WHEEL R (591)
WHEEL F (571)
WHEEL R (571)
KTM E-LINE BNI 170mm Q16
FSA steel 38T with Chainguard
Shimano HG201-9 / 11-36
Shimano E6070-9 e-bike
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 180
KTM Line - Shimano Acera M3050 CL 32H 100-5QR
Ryde Rival23 32H 622x23C, DT Champion 2.0 silver
KTM Line - Shimano QC400 CL 32H 135-5QR
Ryde Rival23 32H 622x23C, DT Alpine II 2.34 black
KTM Line - Shimano Acera M3050 CL 32H 100-5QR
Ryde Rival23 32H 584x23C, DT Champion 2.0 silver
KTM Line - Shimano QC400 CL 32H 135-5QR,
Ryde Rival23 32H 584x23C, DT Alpine II 2.34 black
TIRE F (591)
TIRE R (591)
TIRE F (571)
TIRE R (571)
KTM Comp Lock
KTM Comp rizer15 700mm
KTM Comp 7°
Ritchey OE Zero Logic 1.1/8" KTM Line Sport KTM Comp 30.9/400
KTM Line JD-SC99 - 34,9mm
PEDAL
LIGHT F LIGHT R WEIGHT (591)
WEIGHT (571)
MTB-Pedal C280DU alloy
B&M Briq-S 60Lux
Supernova TL3Z
22,3 kg (without pedals)
21,9 kg (without pedals)
MACINA
MACINA RACE
Macina MTB 29" Alloy 6061
UDH CPT400 Bosch BDU31 / M-4810
RockShox Judy Gold RL 29" 100mm 15x110 taper
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES Di2 U8050-11 SGS shadow
R.DERAILL.
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 34T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano M4100 / MT420 4-Piston
Shimano RT64 CL 180 / RT64 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
DT Alpine II 2.34 black
WEIGHT
Ergon GE10
KTM Team II rizer15 720mm
KTM +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Team II 27.2/400 KTM Team Light CL-FJ21 - 31,8mm MTB-Pedal flat VPE-527 alloy 19,1 kg (without pedals)
Rekon
Rekon
MACINA
Macina MTB 29" Alloy 6061 UDH CPT400
Bosch BDU31 / M-4810
Suntour X1 32 AIR 29" LOR 100mm taper
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch PURION 200 Display & Remote
HYBRID CARRIER CATEGORY
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
Shimano CUES U4000-9 display
CRANKSET
KTM E-Team2 ISIS 170mm Q8
1250071103 43cm / M
1250071108 48cm / L
1250071113 53cm / XL
KTM aluminium 34T Direct Mount
Shimano LG400-9 / 11-46
KMC e500 LG e-bike
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
DT Alpine II 2.34 black
Schwalbe Smart Sam Perf. 57-622 Reflex
Schwalbe Smart Sam Perf. 57-622 Reflex
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
KICKSTAND
WEIGHT
KTM Comp Ergo Lock
KTM Team II rizer15 720mm
KTM +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Athletic Gel
KTM Team II 27.2/400
KTM Team Light CL-FJ21 - 31,8mm
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SE-150 150Lux down
AXA Juno
SKS EVO AL 65mm 28" rear
Hebie 28" adjustable 21,8 kg (without pedals)
MOONLITE MEADOW (GREY+BLACK)
MACINA RACE SX 20
SHIMANO CUES 1×9
BOSCH CPT-SX4P2
CATEGORY E3 3
Macina MTB 29" Alloy 6061
UDH CPT400 Bosch BDU31 / M-4810
Suntour X1 32 AIR 29" LOR 100mm taper
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano CUES U4000-9 display
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 34T Direct Mount
Shimano LG400-9 / 11-46
KMC e500 LG e-bike
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
DT Alpine II 2.34 black
TIRE F
TIRE R GRIP BAR STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Schwalbe Smart Sam Perf .57-622
Schwalbe Smart Sam Perf .57-622
KTM Comp Lock
KTM Team II rizer15 720mm
KTM +7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Team II 27.2/400
KTM Team Light CL-FJ21 - 31,8mm
MTB-Pedal flat VPE-527 alloy
20,2 kg (without pedals)
MACHINE GREY MATT (FRESH ORANGE)
1250072103 43cm / M
1250072108 48cm / L
1250072113 53cm / XL
MACINA AERA FS PRIME LFC
HYBRID CARRIER PREMIUM CARBON
Macina Aera Performance Carbon
VPP100mm UDH PT800 Bosch BDU38 / T-5880
FOX 34 Float 29" AWL e-bike 100mm 15x110
Suntour EDGE-EVO 2CR 190x45
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
BOSCH CONNECT MODULE
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8 FSA steel 38T with chainguard
Shimano LG400-11 / 11-50
CHAI KMC e11 SPORT EPT /132 w/LINK
Shimano CUES U8000 / U8020 4-Piston
Shimano RT64 CL 203 / EM600 CL 180 magnet
Mavic E-Crossride 29 CL 110x15 TA 622x30TSS
Mavic E-Crossride 29 148x12TA / 622x30TSS
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
GRIP BAR STEM HEADSET SADDLE SEATPOST
PEDAL CARRIER
LIGHT F FENDER KICKSTAND WEIGHT
Ergon GP1 Evo
KTM Team II rizer15 720mm
KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady Evo KTM Comp II dropper internal travel adjust.30.9 T:150
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove AE-200 170-200Lux HighBeam
Racktime Alu FS 72mm 29" B&M Xeltec KTM 28" adjustable MY2025 28,3 kg (without pedals)
MACINA AERA FS ELITE LFC
Macina Aera Performance Carbon
VPP100mm UDH PT800 Bosch BDU38 / T-5880
Suntour XCR34X Air 29" 2CR 100mm taper
Suntour EDGE-EVO 2CR 190x45
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1
(X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
FSA steel 38T with chainguard
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT30 CL 203 / EM300 CL 180 magnet
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. DD RaceGuard
60-622 Reflex
Schwalbe Johnny Watts Perf. DD RaceGuard 60-622 Reflex
Ergon GP1 Evo
KTM Team II rizer15 720mm
Racktime Alu FS 72mm 29" B&M Xeltec KTM 28" adjustable MY2025 28,8 kg (without pedals) GRIP
KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady Evo
KTM Line II dropper 30.9 T:150 KTM Line JD-SC140A - 35,0mm
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SEC-150 150Lux with CT1 connector
MACINA AERA 871 LFC ABS
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
FOX 34 Float 27,5" AWL e-bike 100mm 15x110
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
HYBRID CARRIER
BOSCH CONNECT MODULE
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch Connect Module for BDU38YY
Bosch ABS control unit Magura
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
CRANKSET
CHAINRING
SPROCKET
KTM E-Team2 ISIS 170mm Q8
Chainring FSA steel 38T with Chainguard
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT C ABS 4-Piston
Magura MDR-C CL 203 / MDR-C CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 584x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival30 32H 584x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. Folding DD
65-584 Reflex
Schwalbe Johnny Watts Perf. Folding DD
65-584 Reflex
GRIP
Ergon GP1 Evo
KTM Comp rizer15 680mm KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady Evo
KTM Team dropper internal travel adjust. 30.9 T:175
PEDAL CARRIER
LIGHT F
LIGHT R KICKSTAND WEIGHT
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SEC-150 150Lux with CT1 connector
Racktime Alu 72mm B&M Xeltec KTM 28" adjustable MY2025 28,5 kg (without pedals)
STEEL BLUE (BLACK)
MACINA AERA FS
871 LFC
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940 FOX 34 Float 27,5" AWL e-bike 100mm 15x110
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless KTM E-Team2 ISIS 170mm Q8
CHAINRING SPROCKET
CHAIN BRAKE
ROTOR WHEEL
Chainring FSA steel 38T with Chainguard
Shimano LG400-11 / 11-50 KMC e11 Sport EPT e-bike
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT64 CL 180 / RT64 CL 180
Mavic E-Speedcity 27 CL 110x15TA 622x30TSS
Mavic E-Speedcity 27 CL 135x5QR 622x25TSS
Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
LIGHT F
Ergon GP1 Evo KTM Team II rizer15 680mm KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton Selle Royal Lookin Lady Evo KTM Team dropper internal travel adjust. 30.9 T:175 MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove AE-130 90-130Lux HighBeam Racktime Alu 72mm B&M Xeltec KTM 28" adjustable MY2025 27,2 kg (without pedals)
MACINA AERA 872 LFC
SHIMANO CUES 1×10
HYBRID CARRIER
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour XCR34X Air 27,5" 2CR 80mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
ROTOR WHEEL
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 38T with Chainguard
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 584x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival30 32H 584x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. Folding DD
65-584 Reflex
Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
LIGHT F
LIGHT R KICKSTAND WEIGHT
Ergon GP1 Evo KTM Comp rizer15 680mm KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton Selle Royal Lookin Lady Evo KTM Team dropper internal travel adjust. 30.9 T:175
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SEC-150 150Lux with CT1 connector
Racktime Alu 72mm B&M Xeltec KTM 28" adjustable MY2025 27,8 kg (without pedals)
Macina MTB 26" Alloy 6061
UDH CPT400 Bosch BDU31 / M-4050
RockShox Judy Gold RL 26" 80mm
Bosch PERFORMANCE SX BDU3145
25km/h / 55Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch CompactTUBE 400Wh
Bosch Compact Charger 2A
Shimano Acera M3020-8 SGS
Shimano Altus M315-8 display
KTM E-Team2 ISIS 152mm Q8
KTM aluminium 38T Direct Mount
Shimano HG400-8 / 11-40
Shimano HG40-7/8
Maxxis Ikon wire 57-559 SPROCKET
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 160 / RT30 CL 160
KTM Line - Shimano TC500 CL 32H 100-15TA
Ryde Rival21 32H 559x21TC
DT champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Ryde Rival21 32H 559x21TC
DT Alpine II 2.34 black
Maxxis Ikon wire 57-559
SADDLE
SEATPOST
SEATCLAMP
PEDAL
SYS. WEIGHT
KTM Comp Lock
16,9 kg (without pedals) GRIP
KTM Comp low rizer 640mm
KTM Team MTB 0°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 27.2/300
KTM Line JD-SC99 - 31,8mm
MTB-Pedal C280DU alloy
88 kg (permissible total weight)
WEIGHT
MACINA MINI ME SX 24
Macina MTB 24" Alloy 6061
UDH CPT400 Bosch BDU31 / M-4040
Suntour XCR 34 Air 24" LOR 80mm 15x110 taper
Bosch PERFORMANCE SX BDU3145
20km/h / 55Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Shimano HG400-8 / 11-40
Shimano HG40-7/8
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 28H 110-15TA
Ryde Rival21 28H 507x21TC
Bosch CompactTUBE 400Wh
Bosch Compact Charger 2A
Shimano Acera M3020-8 SGS
Shimano Altus M315-8 display
KTM E-Team2 ISIS 135mm Q0
KTM aluminium 38T Direct Mount
DT champion 2.0 black
KTM Line - Shimano TC500 CL 28H 142-12TA
DT Alpine II 2.34 black
Maxxis Rekon fold 57-507 SPROCKET
Ryde Rival21 28H 507x21TC
Maxxis Rekon fold 57-507
SADDLE
SEATPOST
SEATCLAMP
PEDAL
SYS. WEIGHT
KTM Comp Lock
16,8 kg (without pedals) GRIP
KTM Comp low rizer 640mm
KTM Team MTB 0°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Kid
KTM Comp 27.2/300
KTM Line JD-SC99 - 31,8mm
Pedal VP-225 Kids
68 kg (permissible total weight)
WEIGHT CATEGORY
E-OFFROAD
MACINA CROSS CX 810 LFC
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
RockShox Paragon Gold RL Air 65mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
CRANKSET
KTM E-Team ISIS 170mm Q16
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Chainring FSA steel 42T with chainguard
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT64 CL 180 / EM600 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
TIRE F
Schwalbe
Ergon GP30
KTM Team low rizer 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Athletic 3D
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy
KTM 28" adjustable 23,9 kg (without pedals)
Schwalbe Smart Sam Perf. 47-622 Reflex
Smart Sam Perf. 47-622 Reflex
OXYGEN GREEN MATT (BLACK)
OXYGEN GREEN MATT (BLACK)
MACINA CROSS CX 810
SHIMANO DEORE XT LG 1×11
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour XCR34X Air 27,5" 2CR 80mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 38T with Chainguard
SPROCKET
CHAIN
BRAKE
ROTOR
Shimano LG400-10 / 11-48
KMC e500 LG e-bike
Tektro HD-M535 4-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 584x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival30 32H 584x30C
DT Alpine II 2.34 black
Schwalbe Johnny Watts Perf. Folding DD
65-584 Reflex
Schwalbe Johnny Watts Perf. Folding DD 65-584 Reflex
R
Racktime Alu 72mm B&M Xeltec KTM 28" adjustable MY2025 27,8 kg (without pedals) GRIP
Ergon GP1 Evo KTM Comp rizer15 680mm KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady Evo KTM Team dropper internal travel adjust. 30.9 T:175
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
Litemove SEC-150 150Lux with CT1 connector
MACINA CROSS
CX 820 LFC
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NX1 coil LO 63mm
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Race ISIS 170mm Q2
Chainring FSA steel 42T with chainguard
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / EM300 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
Schwalbe Smart Sam Perf
44-622 RT Addix Reflex
Schwalbe Smart Sam Perf
44-622 RT Addix Reflex
Ergon GP30
KTM Comp low rizer 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Essenza Athletic
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy
Racktime Alumee (snap-it 2.0)
B&M Myc 50Lux
Racktime Alu 52mm B&M Xeltec
KTM 28" adjustable 25,9 kg (without pedals)
MACINA CROSS CX 820
SHIMANO
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NX1 coil LO 63mm
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Race ISIS 170mm Q2
CHAINRING SPROCKET
Chainring FSA steel 42T with chainguard
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / EM300 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
Schwalbe Smart Sam SBC K-Guard 47-622 Reflex
Schwalbe Smart Sam SBC K-Guard 47-622 Reflex
KTM Comp Ergo Lock
KTM Comp low rizer 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Essenza Athletic
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy
KTM 28" adjustable 24,7 kg (without pedals)
MACINA
BATTERY
BATT.LOCK
CHARGER
R.DERAILL.
SHIFTLEV.
Bosch PowerTUBE 625Wh horizontal
ABUS integrated battery lock IT3 (X-Plus key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano Acera M3020-8 SGS
Shimano Altus M315-8 display
WHEEL F
WHEEL R
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
KICKSTAND WEIGHT
KTM Comp 17°
KTM Team Trekking 1.1/8"-1.5" angle limit
Selle Royal Essenza Athletic
KTM Comp 30.9/300
KTM Line CL-KE06E-CV - 34,9mm
MTB-Pedal VP-195E alloy
KTM 28" adjustable 24,9 kg (without pedals)
DIAMOND BLACK MATT (SILVER)
MACINA CROSS
Macina Trekking Onroad Alloy
6061 PT800 Bosch BDU38 / T-5940
Suntour NX1 coil LO 63mm
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 600Wh
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano Acera M3020-8 SGS
Shimano Altus M315-8 display
KTM E-Race ISIS 170mm Q2
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F
FSA steel 42T w/o Megatooth with chainguard
Shimano HG400-8 / 11-40
Shimano HG40-8
Shimano MT200 / MT200 2-Piston
Shimano RT30 CL 180 / EM300 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
Schwalbe Smart Sam SBC K-Guard 47-622 Reflex
Schwalbe Smart Sam SBC K-Guard 47-622 Reflex
KTM Comp Ergo Lock
KTM Comp low rizer 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Essenza Athletic KTM Line Elegance suspension 30.9/300 KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy
KTM 28" adjustable 23,3 kg kg (without pedals)
MACINA
SHIMANO CUES 1×10
BOSCH CPT-SX4P2
CATEGORY
Macina Trekking Offroad Premium Carbon
UDH CPT400 Bosch BDU31 / T-4100
Suntour NRX32-E Air LOR 63mm
15AH2x100 taper
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U6000-11/10 LG shadow+
H 60cm
SHIFTLEV.
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano CUES U6000-10 display
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 42T Direct Mount
Shimano LG400-10 / 11-48
Shimano LG500
BRL DISC SHIM MT402/MT410 PM/LF900
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500 CL 32H 100-15TA
Black Jack Ready25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Black Jack Ready25 32H 622x25TC
DT Alpine II 2.34 black
F
Schwalbe G-One Bite Evo TLE 45-622
Schwalbe G-One Bite Evo TLE 45-622
ERGON GS1
KTM Team II low rizer 640mm
KTM Line +20° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Man Gel
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
KTM TEAM cross alloy ballfree
KICKSTAND WEIGHT
Hebie 28" adjustable 17,2 kg (without pedals)
PREMIUM CARBON
MACINA CROSS SX 20
SHIMANO CUES 1×9
BOSCH CPT-SX4P2
CATEGORY
Macina Trekking Onroad Alloy 6061
CPT400 Bosch BDU31 / T-4110
Suntour NCX32-D Air LO 63mm 1 1/8
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
Shimano CUES U4000-9 display
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 42T Direct Mount
Shimano LG400-9 / 11-46
Shimano LG500
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano Deore M5100 CL 32H 100-5QR
Black Jack Ready25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Black Jack Ready25 32H 622x25TC
DT Alpine II 2.34 black
KICKSTAND
Schwalbe G-One Bite Evo TLE 45-622
Schwalbe G-One Bite Evo TLE 45-622
ERGON GS1
KTM Team II low rizer 640mm
KTM Line +20° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Man Gel
KTM Team II 27.2/350
KTM Line JD-SC99 - 31,8mm
KTM TEAM cross alloy ballfree
Hebie 28" adjustable
WEIGHT
19,2 kg (without pedals) TIRE F
MOONLITE MEADOW (ORANGE)
MOONLITE MEADOW (ORANGE)
E-ONROAD
MACINA
SHIMANO DEORE XT LG
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour Mobie34 Air 29" 2CR 80mm 15QLC taper
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ABS control unit Magura
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
KTM E-Team ISIS 170mm Q16
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
R
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT C ABS 4-Piston
Magura MDR-C CL 180 / MDR-C CL 180
KTM Line - Shimano Deore M6010 CL 32H 100-15TA
Ryde Rival30 32L 622x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival30 32L 622x30C
DT Alpine II 2.34 black
Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex
Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergon GP1 SD
Ergotec Lady Town 630mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady 3D
KTM Line dropper + suspension 30.9 T:100
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM light 60 (snap-it 1.0)
B&M IQ-XS 100-150Lux HighBeam
B&M Dart brex
SKS A69R PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable 28,5 kg (without pedals)
MACINA GRAN 810 ABS 27
SHIMANO DEORE XT LG
BOSCH
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour Mobie34 Air 27,5" 2CR 80mm
15QLC taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ABS control unit Magura
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F TIRE R
KTM E-Team ISIS 170mm Q16
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT C ABS 4-Piston
Magura MDR-C CL 180 / MDR-C CL 180
KTM Line - Shimano Deore M6010 CL 32H 100-15TA
Ryde Rival30 32H 584x30C
DT Champion 2.0 black
KTM Line - Shimano UR600 CL 32H 135-5QR
Ryde Rival30 32H 584x30C
DT Alpine II 2.34 black
Schwalbe Al Grounder Perf. 60-584 RT Addix
Schwalbe Al Grounder Perf. 60-584 RT Addix
GRIP
BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergon GP1 SD
Ergotec Lady Town 630mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady 3D
KTM Line dropper + suspension 30.9 T:100
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM light (snap-it 1.0)
B&M IQ-XS 100-150Lux HighBeam
B&M Dart brex
SKS A69R PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable 28,1 kg (without pedals)
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour XCR32 ATB Air 29" LOR 80mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8
Chainring FSA steel 42T
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F WHEEL
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Tektro TKD-139 / HD-E730 4-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
KTM Line - Shimano Deore M5100 CL 32H 100-5QR
Ryde Rival30 32L 622x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ryde Rival30 32L 622x30C
DT Alpine II 2.34 black
Schwalbe Al Ground Perf. RaceGuard
60-622 Reflex
Schwalbe Al Ground Perf. RaceGuard
60-622 Reflex
LIGHT F LIGHT R FENDER
CHAINGUARD KICKSTAND WEIGHT
Ergon GP1 Evo
Ergotec Lady Town 630mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man
KTM Line dropper + suspension 30.9 T:100
KTM Line JD-SC99 - 34,9mm
Ergotec EP-2 pedal
KTM light 60 (snap-it 2.0 + monkeyload) childseat+Spange
B&M IQ-XS 100-150Lux HighBeam
B&M Dart brex
SKS A69R PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable MY2025 28,1 kg (without pedals)
OLIVE PEARL (BLACK)
OLIVE PEARL (BLACK)
HYBRID CARRIER KID
MACINA GRAN 820
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour XCM 32 ATB coil 29" NLO 80mm taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote
SIZE SPLIT
Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Deore M4120-10 SGS shadow
Shimano Deore M4100-10 display
KTM E-RACE ISIS 170mm Q2
CHAINRING
SPROCKET CHAIN BRAKE
FSA steel 42T Direct Mount
Shimano Deore M4100-10 / 11-42
KMC e10 EPT e-bike
Tektro HD-T390 / E390 2-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival30 32L 622x30C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival30 32L 622x30C
DT Alpine II 2.34 black
Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex
Schwalbe Al Ground Perf. RaceGuard 60-622 Reflex
Ergon GP1 SD
BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergotec Lady Town 630mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin 3D
KTM Line dropper + suspension 30.9 T:100
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM light 60 (snap-it 1.0)
B&M Myc 50Lux
B&M Toplight 2C
SKS A69R PET Trek 28" rear
KTM type 9 for Bosch BDU38
KTM 28" adjustable 28,1 kg (without pedals)
MACINA
FS
PREMIUM CARBON
BOSCH CONNECT MODULE
SHIMANO CUES Di2
Macina Style Performance Carbon
VPP100mm UDH PT800 Bosch BDU38 / T-5880
Suntour X1 32 AIR 29" LOR 100mm taper
Suntour EDGE-EVO 2CR 190x45
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
OTA
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key)
SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8
PNUM #MOTOR CHAINRING
Shimano LG400-11 / 11-50
Shimano LG500
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT64 CL 180 / EM600 CL 180 magnet
KTM Line - Shimano TC500B CL 32H 110-15TA
Ambrosio Sport 25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC600B CL 32H 148-12TA
Ambrosio Sport 25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe Green Marathon Perf. GreenGuard 50-622
Schwalbe Green Marathon Perf. GreenGuard 50-622
GRIP BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP PEDAL
CARRIER
LIGHT F
LIGHT R FENDER
KICKSTAND
WEIGHT
Ergon GP30
KTM Team II rizer15 720mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Lady Evo KTM Line II dropper 30.9 T:150 KTM Line JD-SC140A - 35,0mm
MTB-Pedal flat VPE-527 alloy
Racktime Alumee
(snap-it 2.0 + monkeyload) +Spange
B&M IQ-XM 120-170Lux HighBeam
B&M Dart brex
SKS A65R PET Trek 29" rear
KTM 28" adjustable MY2025
29,2 kg (without pedals)
STEEL BLUE MATT (BLACK GLOSSY)
HYBRID CARRIER
MACINA STYLE 810
BOSCH CONNECT MODULE
CUES Di2 1×11
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX32-E Air LO 63mm 15QLC Al 1 1/8
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless KTM E-Team2 ISIS 170mm Q8
CHAINRING
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano CUES U8000 / U8020 4-Piston
Shimano RT64 CL 180 / RT64 CL 160
DT Swiss HU 1900 CL 100/15TA / 622x25C
R
DT Swiss HU 1900 CL 135/5QR / 622x25C
Schwalbe Green Marathon Perf. GreenGuard 50-622
Schwalbe Green Marathon Perf. GreenGuard 50-622
Ergon GP30
KTM Line rizer20 640mm
KTM Line adjust. 0-60° ICR
D 56cm 1250150503 US 43cm 1250150506 US 46cm 1250150511 US 51cm
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man
Suntour SP17-NCX suspension 30.9/350
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M IQ-XM 120-170Lux HighBeam
B&M Dart brex
SKS A55K PET Trek 28" rear KTM type 9 for Bosch Gen.4 KTM 28" adjustable MY2025 27,1 kg (without pedals)
STEEL
STEEL
HYBRID CARRIER KID
MACINA
SHIMANO DEORE XT LG
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour Mobie34 Air 29" 2CR 80mm 15QLC taper
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ABS control unit Magura
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
KTM E-Team ISIS 170mm Q16
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Magura MT C ABS 4-Piston
Magura MDR-C CL 180 / MDR-C CL 180
KTM Line - Shimano Deore M6010 CL 32H 100-15TA
Ambrosio Sport 25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ambrosio Sport 25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe Energizer Plus Perf. GreenGuard
50-622 Reflex
Schwalbe Energizer Plus Perf. GreenGuard
50-622 Reflex
Ergon GP30
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
KICKSTAND
WEIGHT
KTM Line rizer20 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man 3D
Suntour SP17-NCX suspension 30.9/350
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM tour (snap-it 1.0)
B&M IQ-XS 100-150Lux HighBeam
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable 28,6 kg (without pedals)
DEW SILVER MATT (BLACK)
MACINA STYLE 820 XL
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX32-D coil LO 63mm (Heavy Duty) 1 1/8
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Comp2 ISIS 170mm Q8
1250152106 H 46cm
1250152111 H 51cm
1250152116 H 56cm
1250152123 H 63cm
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Tektro TKD-139 / HD-E730 4-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 180
KTM Line - Shimano Deore M5100 CL 36H 100-5QR
Ryde Andra29 36H 622x29C
DT Alpine II 2.34 black
KTM Line - Shimano Deore M5100 CL 36H 135-5QR
Ryde Andra29 36H 622x29C
DT Alpine II 2.34 black
Schwalbe Marathon E-Plus Perf.
DualGuard 50-622 Reflex
Schwalbe Marathon E-Plus Perf.
DualGuard 50-622 Reflex
GRIP BAR
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergon GP1 Evo
Ergotec Lady Town 630mm
Ergotec Sepia 50 XL 110mm
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Viaggio HRC bySchulz G.2 ST suspension 30.9/350 KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M IQ-XS 80Lux
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable MY2025
28,8 kg (without pedals)
DIAMOND BLACK MATT (GREY)
DIAMOND BLACK MATT (GREY)
DIAMOND
HYBRID CARRIER KID
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX32-D Air LO 63mm 1 1/8
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Tektro TKD-139 / HD-E730 4-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
KTM Line - Shimano Deore M5100 CL 32H 100-5QR
Ambrosio Sport 25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ambrosio Sport 25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe Energizer Plus Perf. GreenGuard
50-622 Reflex
Schwalbe Energizer Plus Perf. GreenGuard
50-622 Reflex
Ergon GP30
KTM Line rizer20 640mm
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man
Suntour SP17-NCX suspension 30.9/350
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M IQ-XS 80Lux
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4 KTM 28" adjustable MY2025 27,9 kg (without pedals)
MACINA STYLE
SHIMANO CUES
BOSCH
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX32-D coil LO 63mm 1 1/8
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 42T
KTM Line rizer20 640mm SPROCKET CHAIN
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano Deore M5100 CL 32H 100-5QR
Ambrosio Sport 25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
Ambrosio Sport 25 32H 622x25TC
DT Alpine II 2.34 black
Continental E-Contact Plus 50-622
Continental E-Contact Plus 50-622
Ergon GP30
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man
Suntour SP17-NCX suspension 30.9/350
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M Briq-S 60Lux
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4 KTM 28" adjustable MY2025 27,9 kg (without pedals)
HYBRID CARRIER KID
MACINA TOUR CX 810
SRAM GX AXS
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX-E Air LO 63mm 15QLC 1 1/8
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
SRAM GX Eagle AXS 12speed
SRAM GX Eagle AXS Controller
KTM E-Team ISIS 170mm Q16
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F WHEEL
SRAM X-Sync 2 Eagle 38T Direct Mount
SRAM NX Eagle PG-1230 / 11-50
SRAM NX Eagle 12s
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT64 CL 180 / EM600 CL 160 magnet
DT Swiss HU 1900 CL 100/15TA / 622x25C
DT Swiss HU 1900 CL 135/5QR / 622x25C
Schwalbe G-One Overland Evo SuperGround 50-622
Schwalbe G-One Overland Evo SuperGround 50-622
Ergon GP30
KTM Team low rizer 640mm
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Essenza Man
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM light (snap-it 1.0)
KTM 28" adjustable 25,5 kg (without pedals) STEM HEADSET
B&M IQ-XM 120-170Lux HighBeam
B&M Dart brex
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4
MACINA TOUR
SHIMANO DEORE XT LG
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX32-D Air LO 63mm 1 1/8
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch KIOX 300 TFT Display
Bosch PowerTUBE 800Wh horizontal ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Deore XT M8130-11 LG shadow+
Shimano Deore XT M8130-11 LG
KTM E-Team ISIS 170mm Q16
Chainring FSA steel 42T
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT64 CL 180 / EM600 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M5100 CL 32H 135-5QR
DT Alpine II 2.34 black
RaceGuard 47-622 Reflex SPROCKET CHAIN
Ryde Rival Sport 32H 622x25C
Schwalbe Marathon Mondial Perf.
RaceGuard 47-622 Reflex
Schwalbe Marathon Mondial Perf.
GRIP BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergon GP30
KTM Line low rizer 640mm
KTM Line adjust. 0-60° ICR Acros headsetcover OD62 Phyton
Selle Royal Essenza Man KTM Line Elegance suspension 30.9/300 KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip KTM light (snap-it 1.0)
B&M IQ-XS 100-150Lux HighBeam
B&M Toplight 2C
SKS A55K PET Trek 28" rear KTM type 9 for Bosch Gen.4 KTM 28" adjustable 26,3 kg (without pedals)
MACINA TOUR CX 830
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NX1 coil LO 63mm
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch PURION 200 Display & Remote
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Deore M4120-10 SGS shadow
Shimano Deore M4100-10 display
KTM E-Race ISIS 170mm Q2
Chainring FSA steel 42T
Shimano Deore M4100-10 / 11-42
KMC e10 EPT e-bike
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT30 CL 180 / EM300 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
Schwalbe Smart Sam SBC K-Guard
47-622 Reflex
Schwalbe Smart Sam SBC K-Guard
47-622 Reflex
Ergon GP1 SD
KTM Comp low rizer 640mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Essenza Athletic
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
MTB-Pedal VP-195E alloy
KTM light (snap-it 1.0)
B&M Myc 50Lux
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable
25,9 kg (without pedals)
MACINA TOUR
SHIMANO CUES
BOSCH
Macina Trekking Onroad Alloy 6061
PT800 Bosch BDU38 / T-5940
Suntour NCX-D Air LO 63mm 1 1/8
Bosch PERFORMANCE CX BDU3840 25km/h / 85Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch PowerTUBE 600Wh
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Race ISIS 170mm Q2
Chainring FSA steel 42T
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT402 (3-F) / MT420 4-Piston
Shimano RT30 CL 180 / EM300 CL 160 magnet
KTM Line - Shimano Deore M6000 CL 32H 100-5QR
Ryde Rival Sport 32H 622x25C
DT Champion 2.0 black
KTM Line - Shimano Deore M6000 CL 32H 135-5QR
Ryde Rival Sport 32H 622x25C
DT Alpine II 2.34 black
Schwalbe Marathon Mondial Perf.
RaceGuard 47-622 Reflex
Schwalbe Marathon Mondial Perf.
RaceGuard 47-622 Reflex
GRIP
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
Ergon GP30
KTM Line low rizer 640mm
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Essenza Man
KTM Line Elegance suspension 30.9/300
KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip
KTM light (snap-it 1.0)
B&M Myc 50Lux
B&M Toplight 2C
SKS A55K PET Trek 28" rear
KTM type 9 for Bosch Gen.4
KTM 28" adjustable 25,3 kg (without pedals)
STEEL
STEEL BLUE
MACINA SPORT SX PRIME
Macina Trekking On Premium Carbon
UDH CPT400 Bosch BDU31/T4100
FOX 32 Float TC Factory 50mm FIT4
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
CRANKSET
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F
FSA KFX CK-9011/IS 170mm
KTM aluminium 42T Direct Mount
SRAM GX T-Type XS-1275 / 10-52
SRAM GX Eagle T-Type 12s
Magura MTI 2-Piston
Magura MDR-P CL 180 / MDR-P CL 180
DT HEC 1400 DB35 CL 100/12TA|622x22TC TLR
DT HEC 1400 DB35 CL 142/12TA|622x22TC XD TLR
Schwalbe G-One Overland 45-622
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
Acros headsetcover OD56 Phyton
Selle Royal Explora Man Gel
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
Trekking-Pedal VP-616 anti-slip
Racktime Alumee (snap-it 2.0)
Bosch Standard Charger 4A
SRAM X0 Eagle Transmission 12speed
SRAM POD AXS Controller
TIRE R
GRIP
BAR
STEM
Schwalbe G-One Overland 45-622
Ergon GE10 Evo ergonomic
KTM Team low rizer 640mm internal
KTM Line +20° ICR
CHAINGUARD
KICKSTAND
WEIGHT
Litemove AE-200 170-200Lux HighBeam AXA Juno Signal
SKS EVO AL 55mm 28" rear
Horn Catena 22 44T
Hebie 28" adjustable 16,7 kg (without pedals)
MACINA SPORT SX ELITE
Macina Trekking Onroad Premium Carbon
UDH CPT400 Bosch BDU31 / T-4100
Suntour NRX32-E Air LOR 63mm
15AH2x100 taper
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F
TIRE R GRIP
KTM aluminium 42T Direct Mount
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
BRL DISC SHIM MT402/MT410 PM
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500 CL 32H 100-15TA
Black Jack Ready25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Black Jack Ready25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe G-One Overland 45-622
Schwalbe G-One Overland 45-622
ERGON GS1
BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Team II low rizer 640mm
KTM Line +20° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Man Gel
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
Trekking-Pedal VP-616 anti-slip
Racktime Alumee (snap-it 2.0 + monkeyload) +Spange
Litemove SE-150 150Lux down
AXA Juno
SKS EVO AL 55mm 28" rear
Horn Catena 22 44T
Hebie 28" adjustable
18,6 kg (without pedals)
SHIMANO
VELVET PETROL MATT (BLACK)
VELVET PETROL MATT (BLACK)
VELVET PETROL MATT (BLACK)
MACINA
Macina Trekking Onroad Alloy 6061
CPT400 Bosch BDU31 / T-4110
Suntour NRX32-E Air LOR 63mm
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES Di2 U8050-11 SGS shadow
Shimano Di2 EN605 wireless
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 42T Direct Mount
SPROCKET CHAIN
Shimano LG400-11 / 11-50
KMC e11 Sport EPT e-bike
BRL DISC SHIM MT402/MT410 PM
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500 CL 32H 100-15TA
Black Jack Ready25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Black Jack Ready25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe G-One Overland 45-622
Schwalbe G-One Overland 45-622
ERGON GS1
KTM Team II low rizer 640mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line +20° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Man Gel KTM Team II 27.2/350
KTM Line JD-SC99 - 31,8mm
Trekking-Pedal VP-616 anti-slip KTM light 42 (snap-it 2.0 + monkeyload) +Spange
Litemove SE-150 150Lux down
AXA Juno
SKS EVO AL 55mm 28" rear Horn Catena 22 44T Hebie 28" adjustable 20,7 kg (without pedals)
BURNT ORANGE MATT (BLACK)
BURNT ORANGE MATT (BLACK)
BURNT ORANGE MATT (BLACK)
MACINA SPORT SX 20
Macina Trekking Onroad Alloy 6061
CPT400 Bosch BDU31 / T-4110
Suntour NCX32-D Air LO 63mm 1 1/8
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch PURION 200 Display & Remote
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U6000-11/10 LG shadow+
Shimano CUES U6000-10 display
KTM E-Team2 ISIS 170mm Q8
KTM aluminium 42T Direct Mount
STEEL BLUE MATT (BLACK)
1250178106 H 46cm
1250178111 H 51cm
1250178116 H 56cm
1250178120 H 60cm
BRAKE
ROTOR WHEEL F
R
Shimano LG400-10 / 11-48
Shimano LG500
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano Deore M5100 CL 32H 100-5QR
Black Jack Ready25 32H 622x25TC
DT Champion 2.0 black
KTM Line - Shimano TC500 CL 32H 142-12TA
Black Jack Ready25 32H 622x25TC
DT Alpine II 2.34 black
Schwalbe G-One Overland 45-622
Schwalbe G-One Overland 45-622
ERGON GS1
KTM Team II low rizer 640mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R FENDER
CHAINGUARD
KICKSTAND WEIGHT
KTM Line +20° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Explora Man Gel
KTM Team II 27.2/350
KTM Line JD-SC99 - 31,8mm
Trekking-Pedal VP-616 anti-slip KTM light 42 (snap-it 2.0 + monkeyload) +Spange
Litemove RX-E50 50Lux down
AXA Juno
SKS EVO AL 55mm 28" rear
Horn Catena 22 44T
Hebie 28" adjustable 20,9 kg (without pedals)
SHIMANO CUES 1×10
STEEL BLUE MATT (BLACK)
STEEL BLUE MATT (BLACK)
HYBRID CARRIER
E-CITY
MACINA CITY 810 BELT
Macina City Alloy 6061Belt
PT800 Bosch BDU38 / T-5970
Suntour NCX32-E Air LO 63mm 15QLC Al 1 1/8
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch KIOX 500 TFT Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Bosch ConnectModule for BDU38YY
Enviolo Automatiq Cliq Pro Controller
KTM E-Team2 ISIS 170mm Q8
Gates CDX
Gates CDX
Gates drive-belt CDX
Magura MT C 2-Piston
Magura MDR-C 6B 180 / MDR-C 6B 160 magnet
KTM Line - Shimano Deore M6000 CL 36H 100-5QR
Ryde Rival Sport 36H 622x25C
DT Champion 2.0 black
KTM Line - Enviolo TR-380% 36H
Ryde Rival Sport 36H 622x25C
DT Alpine II 2.34 black
Continental E-Contact Plus 50-622
Continental E-Contact Plus 50-622
Ergon GP1 Evo
KTM Line Noirette Plus 660mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line adjust. 0-60° ICR
Acros headsetcover OD62 Phyton
Selle Royal Lookin Man
Suntour SP17-NCX suspension 30.9/350 KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M IQ-XS 100-150Lux HighBeam
B&M Dart brex
SKS B55 CAB City 28" rear
KTM type 10 (BELT) for Bosch BDU38
KTM 28" adjustable MY2025 28,9 kg (without pedals)
MACINA CITY 820 XL
Macina City Alloy 6061
PT800 Bosch BDU38 / T-5960
Suntour NCX32-D coil LO 63mm
(Heavy Duty) 1 1/8
Bosch PERFORMANCE CX BDU3840
25km/h / 85Nm
Bosch LED remote / Bosch INTUVIA LCD Display
Bosch PowerTUBE 800Wh horizontal
ABUS integrated battery lock IT1 (X-Plus key) SMART SYSTEM
Bosch Standard Charger 4A
Shimano Nexus 5 Revoshifter
KTM E-Comp2 ISIS 170mm Q8
Chainring FSA steel 38T
Esjot 30T
KMC Z1eHX
Tektro HD-T390 / E390 2-Piston
Tektro TR-45 2.3mm CL 180 / TR-45 2.3mm CL 160
KTM Line - Shimano Deore M5100 CL 36H 100-5QR
Ryde Andra29 36H 622x29C
DT Alpine II 2.34 black
KTM Line - Shimano Nexus 5 Disc CL 36H 135-10
Ryde Andra29 36H 622x29C
DT Alpine II 2.34 black
Schwalbe Marathon E-Plus Perf.
DualGuard 50-622 Reflex
Schwalbe Marathon E-Plus Perf.
DualGuard 50-622 Reflex
Ergon GP1 short
Ergotec Lady Town 630mm
LIGHT F LIGHT R
CHAINGUARD
KICKSTAND
WEIGHT
Ergotec Sepia 50 XL 90mm Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal Viaggio URC
bySchulz G.2 ST suspension 30.9/350 KTM Line JD-SC99 - 34,9mm
Trekking-Pedal VP-616 anti-slip KTM tour (snap-it 2.0 + monkeyload) childseat+Spange
B&M Briq-S 60Lux
B&M Toplight 2C
SKS B55 CAB City 28" rear
KTM type 9 for Bosch Gen.4 KTM 28" adjustable MY2025 29,7 kg (without pedals)
BLACK LAVA MATT (GREY)
E-GRAVEL
MACINA GRAVELATOR SX PRIME
Macina Gravelator Premium Carbon
UDH CPT400 Bosch BDU31 / R-4310
X-Strada Gravel Perf. Carbon w/mountings F16
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch Mini Remote Dropbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Standard Charger 4A
R.DERAILL. SHIFTLEV. CRANKSET
CHAINRING SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
57cm / L
59cm / XL
SRAM GX Eagle Transmission 12speed
SRAM Rival eTap AXS HRD
KTM E-Race ISIS 170mm Q2
KTM aluminium 46T Direct Mount
SRAM GX T-Type XS-1275 / 10-52
SRAM GX Eagle T-Type 12s
SRAM Rival eTap AXS HRD
SRAM Paceline CL 160 / Paceline CL 160
Mavic Allroad SL 29 CL 100/12TA 622x25TSS
Mavic Allroad SL 29 CL 142/12TA 622x25TSS
TIRE F TIRE R GRIP BAR STEM HEADSET SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
Continental Terra Speed TL 45-622 ProTection
Continental Terra Speed TL 45-622 ProTection
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Fizik Terra Argo X3
KTM Team II 27.2/350
KTM seatclamp R43X0
KTM TEAM cross alloy ballfree 14,3 kg (without pedals)
TERRA (GOLDEN DUST+PETROL)
MACINA
Macina Gravelator Alloy 6061
CPT400 Bosch BDU31 / R-4350
X-Strada Gravel Perf. Carbon w/mountings F14
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch Mini Remote Dropbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
R.DERAILL. SHIFTLEV. CRANKSET CHAINRING SPROCKET CHAIN
BRAKE ROTOR WHEEL F WHEEL R
Shimano GRX RX822-12 GS shadow+
Shimano GRX RX610
KTM E-Race ISIS 170mm Q2
KTM aluminium 46T Direct Mount
Shimano SLX M7100-12 / 10-45
Shimano M6100-12
Shimano GRX RX610
Shimano RT64 CL 160 / RT64 CL 160
Swiss GR 1600 SPLINE CL 100/12TA
TIRE F TIRE R GRIP
BAR
STEM HEADSET SADDLE SEATPOST
SEATCLAMP PEDAL WEIGHT 1250236109 49cm / XS 1250236112 52cm / S 1250236115 55cm / M 1250236117 57cm / L
1250236119 59cm / XL
Schwalbe G-One Bite Perf RaceGuard 45-622
Schwalbe G-One Bite Perf RaceGuard 45-622
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
KTM TEAM cross alloy ballfree 15,9 kg (without pedals)
FRESH ORANGE (DARK ORANGE)
MACINA GRAVELATOR SX 20
SHIMANO CUES 1×10
BOSCH CPT-SX4R2
Macina Gravelator Alloy 6061
CPT400 Bosch BDU31 / R-4350
X-Strada Gravel Perf. Carbon w/mountings F14
Bosch PERFORMANCE SX BDU3144 25km/h / 55Nm
Bosch Mini Remote Dropbar
Bosch CompactTUBE 400Wh ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U6000-11/10 LG shadow+
SHIFTLEV. CRANKSET
CHAINRING SPROCKET CHAIN
BRAKE
ROTOR
WHEEL F WHEEL R TIRE F
Shimano CUES U6030 / U6030 2-Piston
KTM E-Race ISIS 170mm Q2
KTM aluminium 46T Direct Mount
Shimano LG400-10 / 11-48
Shimano LG500
Shimano CUES BL-U6030 / U6030 2-Piston
Shimano RT30 CL 180 / RT30 CL 180
Mavic Allroad 1 29 CL 100x12TA / 622x25TSS
Mavic Allroad 1 DISC CL 142/12 TA 622x25TSS
Schwalbe G-One Bite Perf.
RaceGuard TLE 40-622
TIRE R
GRIP BAR STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL WEIGHT
Schwalbe G-One Bite Perf. RaceGuard TLE 40-622
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
KTM TEAM cross alloy ballfree
16,7 kg (without pedals)
OXYGEN GREEN (FRESH ORANGE)
MACINA URBANATOR SX
SHIMANO CUES 1×9
BOSCH CPT-SX4R2
Macina Urbanator Alloy 6061
CPT400 Bosch BDU31 / R-4350
X-Strada Gravel Perf. Carbon w/mountings F14
Bosch PERFORMANCE SX BDU3144
25km/h / 55Nm
Bosch Mini Remote Flatbar
Bosch CompactTUBE 400Wh
ABUS integrated battery lock IT2 (T82 key) SMART SYSTEM
Bosch Compact Charger 2A
Shimano CUES U4000-9 LG shadow
Shimano CUES U4000-9 display
KTM E-Race ISIS 170mm Q2
CHAINRING
SPROCKET
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
TIRE F TIRE R
KTM aluminium 42T Direct Mount
Shimano LG400-9 / 11-41
Shimano LG500
Tektro HD-R280
Tektro TR-35 CL 160 / TR-35 CL 160
"KTM Line - Shimano TC500 CL 32H 100-12TA, Black Jack Ready25 32H 622x25TC, DT Champion 2.0 black"
"KTM Line - Shimano TC500 CL 32H 142-12TA, Black Jack Ready25 32H 622x25TC, DT Alpine II 2.34 black"
Continental Contact Speed 42-622 Reflex Continental Contact Speed 42-622 Reflex
GRIP
BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
FENDER
KICKSTAND
WEIGHT
Herrmans Nucore Tour Wave
KTM Team II flat 2X 680mm
KTM Line +20° ICR
Acros headsetcover OD56 Phyton
Selle San Marco Regal Short
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
KTM TEAM cross alloy ballfree
KTM Micro Rack (snap-it 2.0)
Supernova Mini2 100Lux
Supernova TL3Z
FEND Racktime DM760/B52/L1208 RE (TL3Z)
KTM 28" adjustable MY2025 flatmount
18,3 kg (without pedals)
OLIVE PEARL MATT (BLACK+AMBER)
MTB-FULLY
SCARP EXONIC
SCARP 29" Premium Carbon SLL110mm
UDH / M-4920
RockShox SID SL Ultimate 29" 110mm 15x110
RockShox SID Luxe Ultimate
FlightAttendant 210x50
SRAM XX SL Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
SRAM XX SL T-Type Carbon
DUB 34T Powermeter
SRAM DUB pressfit MTB ceramic
WHEEL F
WHEEL R
TRANSPARENT
SRAM XX SL T-Type XS-1299 / 10-52
SRAM XX Eagle SL T-Type 12s
Trickstuff Dächle UL 6B 160
622x30TSS made by Pancho SPROCKET CHAIN BRAKE ROTOR
Trickstuff Piccola C22 2-Piston
Dächle UL 6B 160
KTM Exonic CC 29 CL 110/15TA
622x30TSS made by Pancho
KTM Exonic CC 29 6B 148/12TA
Schwalbe Racing Ray Evo
SuperRace TLE 57-622
Schwalbe Racing Ralph Evo
SuperRace TLE 57-622
ESI Chunky silicone
FSA KFX SIC Carbon 65x780mm
FSA ACR drop/in 1.5" internal
Selle Italia SLR Boost Superflow 3D Carbon
RockShox Reverb AXS wireless
KTM Prime Carbon CLT14 - 34,9mm 10,2 kg (without pedals)
SCARP PRIME
SCARP 29" Premium Carbon SLL100mm
UDH / M-4920
RockShox SID SL Ultimate 29"
100mm 3-P remote
RockShox SID Luxe Ultimate 3-P remote 210x47,5
SRAM XX SL Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
SRAM XX SL T-Type Carbon DUB 34T
SRAM DUB pressfit MTB
SRAM GX T-Type XS-1275 / 10-52
SRAM GX T-Type 12s
Shimano Deore XT M8100 / M8100 2-Piston
Shimano CL800 CL 160 freeza
CL800 CL 160 freeza
622x30TSS made by DT KTM Prime Carbon Trail 29 CL 148/12TA
622x30TSS made by DT
Schwalbe Racing Ray Evo SuperRace TLE 57-622
Schwalbe Racing Ralph Evo SuperRace TLE 57-622
KTM Prime II flat Carbon 720mm
KTM Prime II -6°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Aspide Short Open Fit Narrow
KTM Prime II Carbon flex 30.9/400
KTM Team Light CL-FJ21 - 34,9mm
10,5 kg (without pedals)
SCARP MASTER
CRANKSET
Shimano Deore XT M8120-12 34T
BOTTOM BR.
SPROCKET CHAIN
Shimano MT800 pressfit MTB
Shimano Deore XT M8100-12 / 10-51
Shimano M8100-12
Schwalbe Racing Ray Evo SuperRace TLE 57-622
Schwalbe RICK XC PRO EVO SuperRace TLE 57-622
CARBON (ORANGE+BLACK SAND)
KTM Team Light CL-FJ21 - 34,9mm 11,2 kg (without pedals)
SEATCLAMP WEIGHT
SCARP ELITE
SCARP 29" Premium Carbon
6061 SLL100mm / M-0916
FOX 32 Float 29" Rhythm 100mm remote 15x110
Shimano Deore M6100-12 / 10-51
SPROCKET CHAIN
BRAKE
ROTOR
TIRE F
Maxxis Rekon Race EXO/TR 57-622
FOX Float DPS PerformanceElite remote 190x37.5
Shimano Deore XT M8100-12 SGS shadow+
Shimano Deore M6100-12
Shimano Deore XT M8120-12 34T
Shimano MT800 pressfit MTB
WHEEL F
WHEEL R
Shimano M6100-12
Shimano Deore XT M8100 / M8100 2-Piston
Shimano RT64 CL 180 / RT64 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT champion 2.0 black
TIRE R
GRIP
BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
WEIGHT
Maxxis Rekon Race EXO/TR 57-622
KTM Team silicone
KTM Team II flat 2X 720mm
KTM Team II 7°
KTM Team drop/in 1.1/8"-1.5"
Selle Royal SRX
KTM Team II 30.9/400
KTM Team Light CL-FJ21 - 34,9mm 13,2 kg (without pedals)
CARBON MATT (ORANGE+GREY)
1240324100 38cm / S
1240324103 43cm / M
1240324108 48cm / L
1240324113 53cm / XL
SCARP MT EXONIC
SCARP 29" Premium Carbon SLL120mm UDH / M-4920
FOX 34SC Float 29" Factory 120mm 15x110
FOX Float Factory 2-P remote 210x55
SRAM XX SL Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
SRAM XX SL T-Type Carbon DUB 34T
SRAM DUB pressfit MTB
SRAM XX SL T-Type XS-1299 / 10-52
SRAM XX Eagle SL T-Type 12s
Shimano XTR M9100 / M9100 2-Piston
Shimano CL900 CL 160 freeza / CL900 CL 160 freeza
Mavic Crossmax Ultimate 29 CL 110/15TA 622x30TSS
Mavic Crossmax Ultimate 29 CL 148/12TA 622x30TC XD
Schwalbe Racing Ray Evo SuperRace TLE 60-622
Schwalbe Racing Ralph Evo SuperRace TLE 60-622
ESI Chunky silicone FSA KFX SIC Carbon 65x780mm
TRANSPARENT ORANGE ON CARBON (ORANGE)
1250310100 38cm / S
1250310103 43cm / M
1250310108 48cm / L 1250310113 53cm / XL
SCARP MT PRIME
SCARP 29" Premium Carbon SLL120mm
UDH / M-4920
FOX 34SC Float 29" Factory 120mm 15x110
FOX Float SL Factory 3PTL 210x55
SRAM XX SL Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
SRAM XX SL T-Type Carbon DUB 34T
SRAM DUB pressfit MTB
SRAM GX T-Type XS-1275 / 10-52
SRAM GX T-Type 12s
Shimano Deore XT M8100 / M8100 2-Piston
Shimano CL800 CL 160 freeza
CL800 CL 160 freeza
KTM Prime Carbon Trail 29 CL 110/15TA
622x30TSS made by DT
KTM Prime Carbon Trail 29 CL 148/12TA
622x30TSS made by DT
Schwalbe Racing Ray Evo SuperRace TLE 60-622
1250311100 38cm / S
1250311103 43cm / M
1250311108 48cm / L
1250311113 53cm / XL
Schwalbe Racing Ralph Evo SuperRace TLE 60-622
ESI Chunky silicone
KTM Prime II flat Carbon 740mm
KTM Prime II -6°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Aspide Short Open Fit Narrow
KTM Prime II Carbon flex 30.9/400 KTM Team Light CL-FJ21 - 34,9mm 10,5 kg (without pedals)
VELVET PETROL MATT (BLACK+GOLD)
SCARP MT MASTER
SCARP 29" Premium Carbon SLL120mm
UDH / M-4920
FOX 34SC Float 29" Performance 120mm 15x110
FOX Float SL Perf-Elite 3PTL 210x55
SRAM X0 Eagle Transmission 12speed
SRAM POD Rocker AXS Controller
SRAM GX T-Type DUB wide 32T
SRAM DUB pressfit MTB wide
ROTOR
WHEEL F
WHEEL R TIRE F
SRAM GX T-Type XS-1275 / 10-52
SRAM GX T-Type 12s
Shimano Deore XT M8100 / M8100 2-Piston
Shimano CL800 CL 160 freeza / CL800 CL 160 freeza
Mavic Crosstrail XL 29 CL 110/15TA
622x30TSS
Mavic Crosstrail XL 29 CL 148/12TA
622x30TSS XD
Maxxis Forekaster EXO/TR 3C MaxxTerra 62-622
Maxxis Rekon EXO/TR
MaxxTerra 62-622
ESI Chunky silicone
KTM Team II flat 2X 740mm
KTM Team II 7°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Aspide Short Open Fit Narrow
KTM Comp dropper internal 30.9
KTM Team Light CL-FJ21 - 34,9mm 11,2 kg (without pedals)
SCARP MT ELITE
SCARP 29" Premium Carbon-Alloy
SLL120mm UDH / M-4910
FOX 34 Float 29" Rhythm 120mm 15x110
FOX Float SL Perf-Elite 3PTL 210x55
SRAM S1000 Eagle Transmission 12speed
SRAM POD AXS Controller
SRAM S1000 T-Type DUB wide 32T
SRAM DUB pressfit MTB wide
SRAM T-Type Eagle XS-1270 10-52T
SRAM GX T-Type 12s
F
WHEEL R
Shimano Deore M6100 / M6100 2-Piston
Shimano RT64 CL 180 / RT64 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
Maxxis Forekaster EXO/TR 3C
MaxxTerra 62-622
1250313100 38cm / S
1250313103 43cm / M
1250313108 48cm / L
1250313113 53cm / XL
Maxxis Rekon EXO/TR
MaxxTerra 62-622
KTM Team silicone
KTM Team II flat 2X 740mm
KTM Team II 7°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Aspide Short Open Fit Narrow
KTM Comp dropper internal 30.9
KTM Team Light CL-FJ21 - 34,9mm
13,9 kg (without pedals)
GOLDEN DUST MATT (BLACK)
SCARP MT PRO
SCARP 29" Premium Carbon-Alloy
SLL120mm UDH / M-4910
RockShox Recon Silver RL 29"
120mm 2-P remote
Suntour EDGE-EVO R-2CR remote 210x55
ROTOR
WHEEL F
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Shimano Deore M6120-12 32T
Shimano MT500 pressfit MTB
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Maxxis Rekon 62-622
WHEEL R
DT Champion 2.0 black SPROCKET
Shimano M4100 / MT410 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Black Jack Ready30 32H 622x30TC
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Black Jack Ready30 32H 622x30TC
Maxxis Rekon 62-622
KTM Team silicone
KTM Team II flat 2X 740mm
KTM Team II 7°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Comp dropper internal 30.9 KTM Team Light CL-FJ21 - 34,9mm 14,9 kg (without pedals)
FRESH ORANGE (BLACK)
SCARP MT
SCARP 29" Alloy 6061 tripplebutted
SLL120mm UDH / M-4900
RockShox Recon Silver RL 29"
120mm 2-P remote
Suntour EDGE-EVO R-2CR remote 210x55
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Shimano MT512-12 32T
Shimano MT500 pressfit MTB
Shimano Deore M6100-12 / 10-51
1250317100 38cm / S
1250317103 43cm / M
1250317108 48cm / L 1250317113 53cm / XL
Shimano M6100-12
F
WHEEL R
TIRE F
DT Champion 2.0 black CHAIN
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
TIRE R
SEATPOST
SEATCLAMP
WEIGHT
Schwalbe Tough Tom K-Guard 60-622
Schwalbe Tough Tom K-Guard 60-622
KTM Comp Lock
KTM Team II flat 2X 740mm
KTM Team II 7°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp dropper internal 30.9
KTM Team Light CL-FJ21 - 34,9mm
15,9 kg (without pedals)
EPIC GREY MATT (BLACK)
SCARP LT
SCARP 29" Alloy 6061 tripplebutted
SLL140mm UDH / M-4890
FOX 36 Float 29" Rhythm 140mm 2-P remote
FOX Float PerformanceElite 2-P remote 230x65
SRAM GX Eagle Transmission 12speed
SRAM POD AXS Controller
SRAM GX T-Type DUB wide 32T
BOTTOM BR. SPROCKET CHAIN BRAKE
ROTOR
WHEEL F
WHEEL R
SRAM DUB pressfit MTB wide
SRAM GX T-Type XS-1275 / 10-52
SRAM GX T-Type 12s
SRAM DB8 4-Piston
SRAM Centerline CL 200 / Centerline CL 180
KTM Comp Trail 29 CL 110/15TA
622x30TC made by DT Swiss
KTM Comp Trail 29 CL 148/12TA
622x30TC made by DT Swiss
1250320100 38cm / S
1250320103 43cm / M
1250320108 48cm / L 1250320113 53cm / XL
Maxxis Rekon EXO/TR 62-622
Maxxis Rekon EXO/TR 62-622
Ergon GE10 Evo ergonomic
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Aspide Short Open Fit Narrow
KTM Comp dropper internal 30.9
KTM Team Light CL-FJ21 - 34,9mm 14,9 kg (without pedals)
BURNT ORANGE (BLACK)
SCARP LT
SCARP 29" Alloy 6061 tripplebutted
SLL140mm UDH / M-4890
RockShox Recon Gold RL 29" 140mm 15x110
RockShox Deluxe Select+ 230x65
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Shimano MT512-12 32T
Shimano MT500 pressfit MTB
Shimano Deore M6100-12 / 10-51
CHAIN
BRAKE
ROTOR
WHEEL F
WHEEL R
Shimano M6100-12
Shimano M4100 / MT420 4-Piston
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival30 32H 622x30C
DT Champion 2.0 black
1250321100 38cm / S
1250321103 43cm / M
1250321108 48cm / L
1250321113 53cm / XL
TIRE F
TIRE R
GRIP
BAR
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
WEIGHT
Maxxis Rekon EXO/TR 62-622
Maxxis Rekon EXO/TR 62-622
KTM Comp Lock
KTM Team II Trail35 rizer25 800mm
KTM Team II Trail35
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Comp dropper internal 30.9
KTM Team Light CL-FJ21 - 34,9mm
15,6 kg (without pedals)
JUNGLE (BLACK)
SCARP MT EXONIC FRAMEKIT
SCARP 29" Premium Carbon SLL120mm
UDH / M-4920
FOX 34K SC 29 FACT. 120 orange (blk std) KBx110
2-PTU 910-31-502 MY24, 1.5T/44 FIT4
FOX 2 POS DUAL Fork & Shock
I-SpecEV MY24 NR: 820-07-165
FOX FLOAT FACTORY 2-PTU E-E 210, C=22.2x8
P=22.2x8 REV Scarp MT Exonic 25, orange std KTM Grommet Set
HEADSET
FSA NO.55R ACR upper blk/blk glsy,1.5" ACR/45°(KTM) w/o bott. bearing, w/oTH-894-1 STARNUT PRIME AERO 25.4MM w/o top cap for UP, w/o screw for 1 1/8" Steerer Acros base-plate 1.5" block schwarz 51.02.028R2-120
586002301100 38cm / S
586002301103 43cm / M
586002301108 48cm / L
586002301113 53cm / XL
586002403100 38cm / S
586002403103 43cm / M
586002403108 48cm / L
586002403113 53cm / XL
586002599100 38cm / S
586002599103 43cm / M
586002599108 48cm / L
586002599113 53cm / XL
CLAMP REAR AXLE
PROTECTOR HANGER ACCESORIES
CLT14 /34.9 UD matt finish
D: 34.9 mm KTM PRIME Carbon, Saso KTM LIGHT TA 148 M12x1.0 rear SRAM UDH only blk ano, L174mm alloy 7075, w/o lever silicon protector FC-223 universal derailleur hanger UDH M12x1.0 KTM Carbon Grease
BURNT ORANGE (BLACK)
CRYSTAL FRESH ORANGE (WHITE)
SCARP EXONIC FRAMEKIT
SCARP 29" Premium Carbon SLL110mm
UDH / M-4920
RS SID SL ULT. FA29 DA110 blue (wht std) ST15x110
AXS 00.4020.882.000 MY24, 1.5T/44
RS SID LUXE ULTIM. AXS E-E 210
S:22.2x8 B:22.2x8 FA Scarp Exonic 25, black std KTM Grommet Set
TRANSPARENT BLUE ON CARBON (WHITE)
586002607100 38cm / S
586002607103 43cm / M
586002607108 48cm / L
586002607113 53cm / XL
HEADSET
STARNUT
BASE PLATE
CLAMP
FSA NO.55R ACR upper blk/blk glsy 1.5"/ACR/45°(KTM)
w/o bott. bearing, w/oTH-894-1 Acros AS bearing cup ZS56 black 51.02.109
Acros base-plate 1.5" block schwarz 51.02.028R2-120
CLT14 /34.9 UD matt finish
D: 34.9 mm KTM PRIME Carbon, Saso
REAR AXLE
PROTECTOR HANGER
ACCESORIES
KTM LIGHT TA 148 M12x1.0 rear SRAM UDH only blk ano, L174mm alloy 7075, w/o lever silicon protector FC-223 universal derailleur hanger UDH M12x1.0 KTM Carbon Grease
SCARP LT 291 FRAMEKIT
FRAME FORK
REM.LEVER
SHOCK
SCARP 29" Alloy 6061 tripplebutted FOX 36A 29 RHYTHM 140 blk (stealthCM) Q15x110
2-PTU 910-26-816 MY24, 1.5T/44 GRIP
FOX 2 POS DUAL Fork & Shock
MMX MY22 NR: 820-07-161
FOX FLOAT P-ELITE 2-PTU E-E 230
C=22.2x8 P=22.2x8 REV Scarp LT 291 25, stealth CM
GROMMET HEADSET
STARNUT
BASE PLATE
KTM Grommet Set KTM Headset 1 1/8"- 1 1/8/1.5"
STARNUT-SYSTEM TK-SCF-3 black 1 1/8" 50% matt/blk Logo TC KTM TEAM, black alloy-screw
KTM SPACER-KONISCH 5MM black matt 35>32mm Al6061, ATR-28.6-5-KTM
CLAMP REAR AXLE
HANGER
ACCESORIES
FJ21-1 /34.9 anodized-black, D: 34.9mm Al6066
KTM COMP TA 148 M12x1.0 rear SRAM UDH only blk ano, L173mm alloy 6061, w/lever universal derailleur hanger UDH M12x1.0
KTM Carbon Grease
BURNT ORANGE (BLACK)
586002210100 38cm / S
586002210103 43cm / M
586002210108 48cm / L
586002210113 53cm / XL
MTB-HARDTAIL
MYROON MASTER
Myroon 29" Premium Carbon UDH / M-2876 FOX 32SC Float 29" Performance 100mm remote 15x110
Shimano Deore XT M8100-12 SGS shadow+
Shimano Deore XT M8100-12
WHEEL F
Shimano Deore XT M8100-12 34T
Shimano MT800 pressfit MTB
Shimano Deore XT M8100-12 / 10-51
Shimano M8100-12
KTM Team silicone
Shimano Deore XT M8100 / M8100 2-Piston
Shimano CL800 CL 160 freeza
CL800 CL 160 freeza
Maxxis Rekon Race EXO/TR 57-622 CHAIN BRAKE ROTOR
Mavic Crossmax 29 CL 110x15TA / 622x25TC
Mavic Crossmax 29 CL 148x12TA / 622x25TC
Maxxis Rekon Race EXO/TR 57-622
R
GRIP BAR STEM HEADSET SADDLE SEATPOST SEATCLAMP WEIGHT
KTM Team flat 2X 720mm
KTM Team MTB 7°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco Shortfit Open Fit Wide
KTM Team 27.2/400
KTM Team Light CL-FJ21 - 31,8mm 10,4 kg (without pedals)
CARBON
SHIMANO
MYROON ELITE
Myroon 29" Performance Carbon UDH M-2866
FOX 32 Float 29" Rhythm 100mm remote 15x110
Shimano Deore XT M8100-12 SGS shadow+
Shimano Deore M6100-12
Shimano Deore M6100-12 32T
Shimano MT500 pressfit MTB
Shimano Deore M6100-12 / 10-51
F
R
Shimano M6100-12
Shimano SLX M7100 / M7100 2-Piston
Shimano RT54 CL 180 / RT54 CL 160
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival26 32H 622x26C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival26 32H 622x26C
DT Champion 2.0 black
Maxxis Rekon Race EXO/TR 57-622
Maxxis Rekon Race EXO/TR 57-622
KTM Team silicone
KTM Team flat 2X 720mm
KTM Team MTB 7°
Acros AICR internal 1.1/8"-1.5" angle limit
Selle San Marco RND Manganes Rails KTM Team 27.2/400
KTM Team Light CL-FJ21 - 31,8mm 11,6 kg (without pedals)
BURNT ORANGE (BLACK)
SHIMANO DEORE XT 1×12
MYROON
Myroon 29" Performance Carbon UDH M-2866
RockShox Judy Silver TK 29" 100mm remote 15x110 taper
Shimano Deore M6100-12 SGS shadow+ Shimano Deore M6100-12
Shimano MT511-12 32T Shimano MT500 pressfit MTB
Shimano Deore M6100-12 / 10-51
Shimano M6100-12
Shimano MT201 / MT200 2-Piston
Shimano RT30 CL 180 / RT30 CL 180
KTM Line - Shimano TC500B CL 32H 110-15TA
Ryde Rival26 32H 622x26C
DT Champion 2.0 black
KTM Line - Shimano TC500B CL 32H 148-12TA
Ryde Rival26 32H 622x26C
DT Champion 2.0 black
SHIMANO DEORE 1×12
MYROON COMP
29" Myroon Performance Carbon M-2866
RockShox JUDY-SILVER-AIR-TK-RL-LB 100mm
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Shimano FC-MT511 / 32T w/ BB
Shimano M6100-12 / 10-51
Shimano M6100-12
Shimano MT201 / MT200 2-Piston
F
R
Shimano RT30 CL 180 / RT30 CL 160
KTM Line - Shimano CUES TC500 CL 32H 110 TA
29" AlexRims DP25, Pillar 2.0 INOX, black KTM Line - Shimano CUES TC500 CL 32H 148 TA
29" AlexRims DP25, Pillar 2.0 INOX, black
Maxxis Rekon Race EXO 57-622
Maxxis Rekon Race EXO 57-622
KTM Comp MTB
2250358100 38cm / S
2250358103 43cm / M
2250358108 48cm / L
2250358113 53cm / XL
BAR STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
WEIGHT
KTM Comp Riser 12 720/740mm
KTM Comp 7°
KTM Team drop/in 1.1/8"-1.5"
KTM Race
KTM Comp 27.2/300/350/400
KTM Team Bolt type
KTM Comp MTB BF 12,9 kg (without pedals)
BLACK MATT
(ORANGE+BLACK GLOSSY)
SHIMANO DEORE 1×12
ROAD
REVELATOR ALTO EXONIC
FRAME FORK
R.DERAILL.
Revelator Alto Nano-Premium Carbon R-4910
Revelator Alto Nano-Premium Carbon F15
Shimano Dura Ace Di2 R9250-12 shadow
Shimano Dura Ace Di2 R9250-2
F.DERAILL.
SHIFTLEV.
CRANKSET
BOTTOM BR.
Shimano Dura Ace Di2 R9270
Shimano Dura Ace R9200-12 52-36
Shimano BB92-41B pressfit Road
SPROCKET CHAIN
BRAKE
ROTOR
WHEEL F WHEEL R
TRANSPARENT (ORANGE)
1240450109 49cm / XS 1240450112 52cm / S 1240450115 55cm / M 1240450117 57cm / L 1240450119 59cm / XL
Shimano Dura Ace R9200-12 / 11-30
Shimano M9100-12
Shimano Dura Ace Di2 R9270
Shimano CL900 CL 140 freeza
CL900 CL 140 freeza
DT ARC 1100 DB38 CL 100/12TA | 622x20TC TLR DT ARC 1100 DB38 CL 142/12TA | 622x20TC ASLS11 TLR
TIRE F
TIRE R
GRIP
BAR
HEADSET
SADDLE
SEATPOST
SEATCLAMP
WEIGHT
G-Prix
KTM tape
FSA METRON 5D ACR Road Carbon
FSA ACR drop/in 1.5" internal Fizik Antares Vento Carbon
KTM ProLink zero Carbon aero/400
KTM seatclamp R3920
6,6 kg (without pedals)
REVELATOR
ALTO MASTER
R.DERAILL.
Revelator Alto Premium Carbon / R-3920
Shimano M8100-12
TIRE R
Revelator Alto Premium Carbon F15
Shimano Ultegra Di2 R8150-12 shadow
Shimano Ultegra Di2 R8150-2
Shimano Ultegra Di2 R8170
Shimano Ultegra R8100-12 50-34
BOTTOM BR. SPROCKET
Shimano BB72-41B pressfit Road
Shimano Ultegra R8101-12 / 11-30 FRAME
Shimano Ultegra Di2 R8170
Shimano CL800 CL 160 freeza CL800 CL 140 freeza
Mavic Cosmic SL 32 Carbon Disc 100/12TA
622x21TC TLR
Mavic Cosmic SL 32 Carbon Disc 142/12TA
622x21TC HG TLR
Schwalbe Pro One V-Guard Evo TLE 28-622
SADDLE
SEATPOST
SEATCLAMP
WEIGHT
KTM tape
FSA Energy Compact Road
FSA NS Road -6° ACR
FSA ACR drop/in 1.5" internal Fizik Antares Vento Sallo
KTM ProLink zero Carbon aero/400
KTM seatclamp R3920
7,7 kg (without pedals)
Schwalbe Pro One V-Guard Evo TLE 28-622
REVELATOR ALTO ELITE
FRAME
FORK
R.DERAILL.
Revelator Alto Premium Carbon / R-3920
Revelator Alto Premium Carbon F15
Shimano 105 Di2 R7150-12 shadow
Shimano 105 Di2 R7150-2
F.DERAILL.
SHIFTLEV.
CRANKSET
BOTTOM BR.
Shimano 105 Di2 R7170
Shimano 105 R7100-12 50-34
Shimano BB72-41B pressfit Road
F
Shimano 105 R7101-12 / 11-34
Shimano M6100-12
Shimano 105 Di2 R7170
Shimano CL800 CL 160 freeza / CL800 CL 140 freeza
Mavic KSYRIUM S DISC CL 100/12TA 622x19TC
Mavic KSYRIUM S DISC CL 142/12TA 622x19TC
Schwalbe One Perf. RaceGuard TLE 28-622
Schwalbe One Perf. RaceGuard TLE 28-622
HEADSET
SADDLE
SEATPOST
SEATCLAMP
WEIGHT
8,2 kg (without pedals) GRIP
Energy Compact Road
NS SMR-II -10°
ACR drop/in 1.5" internal
Selle Royal SRX
KTM CompLink zero Alloy aero/350
KTM seatclamp R3920
(BLACK) OXYGEN
(BLACK)
GRAVEL
X-STRADA PRIME
BOTTOM BR.
X-Strada Gravel Premium Carbon / R-2987
X-Strada Gravel Perf. Carbon w/mountings F14
SRAM Rival XPLR eTap AXS 12speed
SRAM Rival eTap AXS HRD
SRAM Rival 1 DUB wide 42T
SRAM DUB pressfit Road wide
SRAM Rival XPLR XG-1251 / 10-44
SRAM Rival flat 12s
SRAM Rival eTap AXS HRD
SRAM Paceline CL 160 / Paceline CL 160
Mavic Allroad SL Carbon Disc 100x12TA 622x25TSS TLR
Mavic Allroad SL Carbon Disc 142/12TA 622x25TSS XDR TLR
Continental Terra Speed 40-622
Continental Terra Speed 40-622
SEATCLAMP
WEIGHT
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Fizik Terra Argo X3
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm 8,6 kg (without pedals)
X-STRADA MASTER
FRAME
R.DERAILL.
X-Strada Gravel Premium Carbon / R-2987
X-Strada Gravel Perf. Carbon w/mountings F14
SRAM Rival XPLR eTap AXS 12speed
SRAM Rival eTap AXS HRD
SRAM Rival 1 DUB wide 42T
BOTTOM BR. SPROCKET
SRAM DUB pressfit Road wide
SRAM Rival XPLR XG-1251 / 10-44
SRAM Rival flat 12s
CHAIN
SRAM Apex eTap AXS HRD
SRAM Paceline CL 160 / Paceline CL 160
Mavic Allroad SL Carbon Disc 100x12TA 622x25TSS TLR
Mavic Allroad SL Carbon Disc 142/12TA 622x25TSS XDR TLR
Continental Terra Speed 40-622
Continental Terra Speed 40-622
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit Fizik Terra Argo X3
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
8,9 kg (without pedals)
X-STRADA
FRAME FORK
R.DERAILL.
SHIFTLEV.
CRANKSET
BOTTOM BR.
SPROCKET
CHAIN
X-Strada Gravel Premium Carbon / R-2987
X-Strada Elite Perf. Carbon w/mountings F14
Shimano GRX RX822-12 SGS shadow+
Shimano GRX RX820 / RX820 2-Piston
Shimano GRX RX610-12 40T
Shimano RS500 pressfit Road
Shimano SLX M7100-12 / 10-45
Shimano M6100-12
Shimano GRX RX820
Shimano RT64 CL 160 / RT64 CL 160
Mavic Allroad S Disc CL 100/12TA 622x25TSS TLR
Mavic Allroad S Disc CL 142/12TA 622x25TSS MS TLR Continental Terra Speed 40-622 Continental Terra Speed 40-622
SEATCLAMP WEIGHT
KTM tape
KTM Team Gravel 16°
KTM Team Road -7° ICR
Acros AICR internal 1.1/8"-1.5" angle limit
Selle Royal SRX
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm 9,1 kg (without pedals)
X-STRADA 15 PRO
R.DERAILL.
X-Strada Gravel AL6061tb / R-2097
SRAM Centerline CL 160 / Centerline CL 160
BOTTOM
SRAM Apex 1 HRD FRAME
X-Strada 15Pro Perf. Carbon w/mountings F14
SRAM Apex Eagle 12speed
SRAM Apex 1 HRD
SRAM Apex 1 DUB wide 40STL
SRAM DUB pressfit Road wide
SRAM NX Eagle PG-1230 / 11-50
SRAM NX Eagle 12s
KTM Line - Shimano RS470 CL 32H 100-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
KTM Line - Shimano RS470 CL 32H 142-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
Schwalbe G-One Bite Perf. RaceGuard TLE 40-622
40-622
KTM tape
KTM Team Gravel 16°
KTM Team II Road -8°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Team II 27.2/350
KTM Team Light CL-FJ21 - 31,8mm 10,5 kg (without pedals)
Schwalbe G-One Bite Perf. RaceGuard TLE
ALU BRUSH MATT (BLACK+GREEN)
X-STRADA LFC
FRAME FORK
R.DERAILL.
F.DERAILL.
SHIFTLEV. CRANKSET
BOTTOM
X-Strada Gravel AL6061tb / R-2090
X-Strada LFC Perf. Carbon w/mountings F14
Shimano GRX RX400-10 shadow+
Shimano GRX RX400-2
Shimano GRX RX400
Shimano GRX RX600-10 46-30
Shimano RS500 pressfit Road
Shimano HG50-10 / 11-36
Shimano HG54-10
Shimano GRX RX400
Shimano RT30 CL 160 / RT30 CL 160
KTM Line - Shimano RS470 CL 32H 100-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
KTM Line - Shimano RS470 CL 32H 142-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
Schwalbe G-One Bite Perf. RaceGuard TLE 40-622
Schwalbe G-One Bite Perf. RaceGuard
TLE 40-622
LIGHT F
LIGHT R FENDER
KICKSTAND
WEIGHT
KTM tape
KTM Comp II Road 440mm
KTM Team II Road -8°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 27.2/350
KTM Team Light CL-FJ21 - 31,8mm
Tubus Vega Evo
B&M Ixon Core 50Lux
B&M Toplight 2C permanent
SKS EVO AL Gravel 45mm 28" rear KTM 28" adjustable 12,6 kg (without pedals)
X-STRADA
R.DERAILL.
X-Strada Gravel AL6061tb / R-2090
X-Strada 20 Perf. Carbon w/mountings F14
Shimano GRX RX400-10 shadow+
Shimano GRX RX400-2
Shimano GRX RX400
Shimano GRX RX600-10 46-30
BOTTOM
Shimano RS500 pressfit Road
Shimano HG50-10 / 11-36
Shimano HG54-10
Shimano GRX RX400
Shimano RT30 CL 160 / RT30 CL 160
KTM Line - Shimano RS470 CL 32H 100-12TA Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
KTM Line - Shimano RS470 CL 32H 142-12TA Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
Schwalbe G-One Bite Perf. RaceGuard TLE 40-622
40-622
KTM tape
KTM Comp II Road 440mm
KTM Team II Road -8° Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 27.2/350
KTM Team Light CL-FJ21 - 31,8mm 10,9 kg (without pedals)
Schwalbe G-One Bite Perf. RaceGuard TLE
OLIVE GREY MATT (BLACK+LEMON)
X-STRADA 20 FIT
BOTTOM
X-Strada Gravel AL6061tb / R-2097
X-Strada 20 Perf. Carbon w/mountings F14
Shimano GRX RX400-10 shadow+
Shimano GRX RX400-2
Shimano Tiagra SL-4700
Shimano GRX RX600-10 46-30
Shimano RS500 pressfit Road
Shimano HG50-10 / 11-36
Shimano HG54-10
Shimano MT201 / UR300 2-Piston
1240481109 49cm / XS
1240481112 52cm / S
1240481115 55cm / M
1240481117 57cm / L
1240481119 59cm / XL
Shimano RT30 CL 180 / RT30 CL 180
KTM Line - Shimano RS470 CL 32H 100-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
KTM Line - Shimano RS470 CL 32H 142-12TA
Black Jack Ready23 ASY 32H 622x23TC
DT champion 2.0 black
Schwalbe G-One Bite Perf.
RaceGuard TLE 40-622
SEATCLAMP WEIGHT
Schwalbe G-One Bite Perf.
RaceGuard TLE 40-622
KTM Comp Ergo Lock
KTM Comp low rizer 640mm
KTM Team II 7°
Acros AICR internal 1.1/8"-1.5" angle limit
KTM Line Sport
KTM Comp 27.2/350
KTM Team Light CL-FJ21 - 31,8mm 10,5 kg (without pedals)
OLIVE GREY MATT (BLACK+LEMON)
ONROAD
28" Alloy 6061 ONROAD DISC TB / T-3550-M
Suntour SF17 NCX-E-AIR LO DS 700C 63mm
Shimano Cues RD-U8020-SGS shadow+
Shimano Cues FD-U8010 TS
Shimano U8000-11IR w/OGD
Shimano U8000 / 46-32T w/ CG
Shimano BB-MT800
Shimano LG400-11 / 11-45
Shimano LG500
Shimano CUES U8000 / U8000 2-Piston
Shimano RT64 CL 180 / RT64 CL 160
KTM Line - Shimano DH-UR700-3D CL 32H 100 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 double butted INOX, black
KTM Line - Shimano UR600 CL 32H 135 QR KTM 28" Casual 32H; 622x19
Richman 2.0 double butted INOX, black
Schwalbe MARATHON RACER Perf RaceGuard 40-622
Schwalbe MARATHON RACER Perf RaceGuard 40-622
Ergon GP30 w/ bar end
KTM Comp Riser 15 640mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND
WEIGHT
KTM Comp 17°
Ritchey OE Zero Logic 1.1/8"
Selle Royal Lookin Moderate Man
KTM Team 27.2/300/350
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
B&M LTC IQ-XS 80
AXA Juno Steady
Horn Catena A08 48T
Hebie 0662 X6
14,8 kg (without pedals)
LIFE TOUR
28" Alloy 6061 ONROAD BELT TB / T-9790-M
Suntour SF18K NCX-E-AIR-LO-DS 63mm
Shimano Alfine 11 display
Gates Carbon Drive S150 46T
Shimano BB-UN300
CARBON DRIVE CT1122XSE / 22
Gates drive-belt 118T CDN
Shimano MT402 (3-F) / MT410 2-Piston
Shimano RT54 CL 180 / RT54 CL 160
F
R
F
R
KTM Line - Shimano DH-S501 CL 32H 100 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 double butted INOX, black KTM
Line - Shimano SG-S7001-11 CL 32H 135 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 double butted INOX, black
Schwalbe MARATHON RACER Perf RaceGuard 40-622
Schwalbe MARATHON RACER Perf RaceGuard 40-622
KTM Comp Ergo Multi
KTM Line Riser 15 640mm
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
KICKSTAND
WEIGHT
KTM Line 17°
KTM Team Trekking 1.1/8"-1.5" angle limit
Selle Royal Essenza Moderate
KTM Comp 27.2/300/350
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
B&M LUMOTEC MYC 50 N plus
AXA Juno Steady
KTM 28" adjustable 15,4 kg (without pedals)
SHIMANO ALFINE BELT 1×11
MACHINE GREY MATT (SILVER+BLUE)
MACHINE GREY MATT (SILVER+BLUE)
28" Alloy 6061 ONROAD BELT TB / T-9790-M
Suntour SF18K NCX-E-AIR-LO-DS 63mm
Shimano Nexus C6000-8 Revoshifter display
Gates Carbon Drive S150 46T
Shimano BB-UN300
CARBON DRIVE CT1122XSE / 22
Gates drive-belt 118T CDN
Shimano MT201 / MT200 2-Piston
Shimano RT10 CL 160 / RT10 CL 160
KTM Line - Shimano DH-3D37 CL 36H 100 QR
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
KTM Line - Shimano SG-C6001-8 36H 135 QR Disc
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
Schwalbe MARATHON GreenGuard TwinSkin 40-622
Schwalbe MARATHON GreenGuard TwinSkin 40-622
KTM Line Urban Gel
KTM Line Riser 20 640mm
Line 17°
KTM Team Trekking 1.1/8"-1.5" angle limit
Selle Royal Explora Eco Moderate Man KTM Comp 27.2/300/350
KTM Line clamp QR - 31.8 KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
AXA Entry Dynamo45 Steady Switch
AXA Juno Steady KTM 28" adjustable 16,3 kg (without pedals)
LIFE FORCE
28" Alloy 6061 ONROAD DISC / T-3540-M
Suntour SF22 NX1-COIL LO DS 700C 63mm
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Prowheel CHARM-FD04SG 38T w/KTM Logo
Shimano BB-MT501-B
Shimano M6100-12 / 10-51
Shimano M6100-12
Shimano MT200 / MT200 2-Piston
Shimano RT10 CL 160 / RT10 CL 160
KTM Line - Shimano DH-3D37 CL 32H 100 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 INOX, black
KTM Line - Shimano QC500 CL 32H 135 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 INOX, black
Schwalbe MARATHON GreenGuard TwinSkin 40-622
Schwalbe MARATHON GreenGuard TwinSkin 40-622
KTM Comp Ergo Lock
KTM Line Riser 20 640mm
SADDLE
SEATPOST
SEATCLAMP PEDAL
CARRIER
LIGHT F LIGHT R
CHAINGUARD
KICKSTAND WEIGHT
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
KTM 28" adjustable 16,4 kg (without pedals) STEM
Racktime light KTM (snapit 2.0)
B&M LUMOTEC IQ Avy 40 N plus
AXA Juno Steady
SKS Chainblade 38T
28" Alloy 6061 ONROAD DISC / T-3540-M rigid A-PRO DISC 82016
Shimano Deore M6100-12 SGS shadow+
Shimano Deore M6100-12
Prowheel CHARM-FD04SG 38T w/KTM Logo
Shimano BB-MT501-B
Shimano M6100-12 / 10-51
Shimano M6100-12
Shimano MT200 / MT200 2-Piston
Shimano RT10 CL 160 / RT10 CL 160
F
KTM Line - Shimano DH-3D37 CL 32H 100 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 INOX, black
KTM Line - Shimano QC500 CL 32H 135 QR
KTM 28" Casual 32H; 622x19
Richman 2.0 INOX, black
Schwalbe MARATHON GreenGuard TwinSkin 40-623
Schwalbe MARATHON GreenGuard TwinSkin 40-623
KTM Comp Ergo Lock
KTM Line Riser 20 640mm
STEM HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line 17°
Ritchey OE Zero Logic
1.1/8"
Selle Royal Essenza Moderate
KTM Line 27.2/300/350
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
B&M LUMOTEC IQ Avy 40 N plus
AXA Juno Steady
SKS Chainblade 38T
KTM 28" adjustable 14,9 kg (without pedals)
LIFE SPACE
28" Alloy 6061 ONROAD DISC / T-3540-M
Suntour SF20 NEX HLO DS 700C 63mm
Shimano Cues RD-U3020-SGS shadow
Shimano Cues FD-U4000 TS
Shimano U4000-9R w/ OGD
Shimano U4010 / 46-30T w/ BB (MT500) w/ CG
Shimano LG300-9 / 11-36
Shimano LG500
Tektro HD-T275 2-piston
Shimano RT10 CL 160 / RT10 CL 160
KTM Line - Shimano DH-3D37 CL 36H 100 QR
KTM 28" Casual 36H; 622x19
Richman 2.0 INOX, silver
KTM Line - Shimano QC300 CL 36H 135 QR
KTM 28" Casual 36H; 622x19
Richman 2.0 INOX, silver
Schwalbe MARATHON GreenGuard TwinSkin 40-622
Schwalbe MARATHON GreenGuard TwinSkin 40-622
KTM Comp Ergo Lock
KTM Line Riser 20 640mm
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND
KTM 28" adjustable 17,2 kg (without pedals) STEM HEADSET
KTM Line Compact adjust Ritchey OE Zero Logic 1.1/8"
Selle Royal Explora Eco Moderate Man KTM Line 27.2/300/350
KTM Line clamp QR - 31.8
KTM Line Onroad rubber BF
Racktime light KTM (snapit 2.0)
AXA Entry Dynamo45 Steady Switch
AXA Juno Steady
SKS Chainblade 46/48T
WEIGHT
URBAN
28" Alloy 6061 URBAN / T-9630
rigid A-PRO DISC 97901047001
Shimano Alfine 11 display
Gates Carbon Drive S150 46T
Shimano BB-UN26
CARBON DRIVE CT1122XSE / 22
Gates drive-belt 118T CDN
Shimano MT200 / MT200 2-Piston
Shimano RT10 CL 160 / RT10 CL 160
KTM Line - Shimano DH-3D37 CL 36H NT
Shimano DH-S501 CL 36H QR
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
KTM Line - Shimano SG-S7001-11 CL 36H NT
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
Vittoria Randonneur 42-622 Reflex
Vittoria Randonneur 42-622 Reflex
KTM Line Urban Gel
KTM Black Line Riser 17 630mm
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
KICKSTAND
WEIGHT
Line 7°
Ritchey OE Zero Logic 1.1/8"
KTM Comp Hybrid
KTM Line Tour 27.2/300/350
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
Trelock Bike-i VEO LS 233
AXA Juno Steady
Massload CL-KA36 24-28"
15,4 kg (without pedals)
OPAL
CHESTER
FRAME
28" Alloy 6061 CHESTER / T-8640
rigid A-PRO DISC 97901047001
Shimano Nexus C6000-8 Revoshifter display
Prowheel ZEPHYR-FD04SA / 42T
Shimano BB-UN101
Shimano SM-GEAR / 19
KMC Z1
Shimano MT200 / MT200 2-Piston
Shimano RT10 CL 160 / RT10 CL 160
KTM Line - Shimano DH-3D37 CL 36H NT
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
KTM Line - Shimano SG-C6001-8 CL 36H NT
KTM 28" City 36H; 622x19
Richman 2.0 INOX, black
Vittoria Randonneur 42-622 Reflex
Vittoria Randonneur 42-622 Reflex
KTM Line Urban Gel
KTM Black Line Riser 17 630mm
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
KICKSTAND WEIGHT
KTM Line 7°
Ritchey OE Zero Logic 1.1/8"
KTM Comp Hybrid
KTM Line 27.2/300
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
Trelock Bike-i VEO LS 233
AXA Juno Steady
Massload CL-KA36 24-28"
15,4 kg (without pedals)
IGUAN (BLACK)
IGUAN (BLACK)
CITY LINE 28
FRAME
FORK
SHIFTLEV.
CRANKSET
BOTTOM BR.
SPROCKET
CHAIN
BRAKE
28" Alloy 6061 CITY LINE / C-7690
Suntour SF14 M3010 P 700C 50mm
Shimano Nexus C3000-7 display
Lasco RCF4138F17 38T
Shimano BB-UN101
Shimano SM-GEAR / 19
KMC Z1
Tektro CL330 / 855AL V-Brake
KTM Line - Shimano DH-C3000-3 36H NT, silver
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
KTM Line - Shimano SG-C3001-7 36H NT Coaster Brake
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
Vittoria Randonneur 42-622 Reflex
Vittoria Randonneur 42-622 Reflex
KTM Line Urban Gel
KTM Line Riser 70 BS 50° 600mm
KTM Line Riser 35°
2240603503 W 43cm
2240603506 W 46cm
2240603511 W 51cm
2240603516 W 56cm
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F LIGHT R
CHAINGUARD
KICKSTAND WEIGHT
Ritchey OE Zero Logic 1.1/8"
Selle Royal City
KTM Line 27.2/300
KTM Line clamp QR - 31.8
KTM Comp Onroad SB
Racktime light KTM (snapit 2.0)
Trelock Basic LS 102 LED
AXA Juno Steady
Herrmans Slyde 38T
Massload CL-KA36 24-28"
17,2 kg (without pedals)
BURNT ORANGE (BLACK)
CITY FUN 28
FRAME FORK
SHIFTLEV.
CRANKSET
BOTTOM BR.
SPROCKET
CHAIN
BRAKE
28" Alloy 6061 CITY FUN / C-7070 rigid CITY FUN
Shimano Nexus 3S42E-3 Revoshifter display
Lasco RCF4138F17 38T
Shimano BB-UN101
Shimano SM-GEAR / 19
KMC Z1
Tektro CL330 / 855AL V-Brake
KTM Line - Shimano DH-C3000-3 36H NT, silver
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
KTM Line - Shimano SG-3C41 36H NT Coaster Brake
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
Vittoria Randonneur 42-622 Reflex
Vittoria Randonneur 42-622 Reflex
KTM Line Urban Gel
KTM Line Riser 70 BS 50° 580mm
KTM Line 25.4
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line 1.1/8"
Selle Royal City
KTM Line 27.2/300
KTM Line clamp QR - 31.8
KTM Line Onroad BF
Standwell SW-CS051S
Trelock Basic LS 102 LED
Trelock Duo Flat LS 613
Herrmans Slyde 38T
Massload CL-KA36 24-28"
15,1 kg (without pedals)
(BLACK+ORANGE)
2240604503 W 43cm
2240604506 W 46cm 2240604511 W 51cm
CHAMPAGNE MATT
CITY FUN 26
FRAME FORK
SHIFTLEV.
CRANKSET
BOTTOM BR.
SPROCKET
CHAIN
BRAKE
26" Alloy 6061 CITY FUN / C-7020 rigid CITY FUN
Shimano Nexus 3S42E-3 Revoshifter display
Lasco RCF4138F17 38T
Shimano BB-UN101
Shimano SM-GEAR / 19
KMC Z1
Tektro CL330 / 855AL V-Brake
KTM Line - Shimano DH-C3000-3 36H NT, silver
KTM 26" City 36H; 559x19
Richman 2.0 INOX, silver
KTM Line - Shimano SG-3C41 36H NT Coaster Brake
KTM 26" City 36H; 559x19
Richman 2.0 INOX, silver
Vittoria Randonneur 47-559 Reflex
Vittoria Randonneur 47-559 Reflex
KTM Line Urban Gel
KTM Line Riser 70 BS 50° 580mm
KTM Line 25.4
HEADSET
SADDLE
SEATPOST
SEATCLAMP
PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND
WEIGHT
KTM Line 1.1/8"
Selle Royal City
KTM Line 27.2/300
KTM Line clamp QR - 31.8
KTM Line Onroad BF
Standwell SW-CS051S
Trelock Basic LS 102 LED
Trelock Duo Flat LS 613
Herrmans Slyde 38T
Massload CL-KA36 24-28" 15,1 kg (without pedals)
TOURELLA
FRAME FORK
SHIFTLEV.
CRANKSET
BOTTOM BR. SPROCKET
CHAIN
BRAKE
28" Alloy 6061 CITY TOURELLA/DELUXE LADY C-7500
rigid TOURELLA
Shimano Nexus C3000-7 display
Lasco RCF4138F17 38T
Shimano BB-UN101
Shimano SM-GEAR / 19
KMC Z1
Tektro CL330 / 855AL V-Brake
KTM Line - Shimano DH-C3000-3 36H NT, silver
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
KTM Line - Shimano SG-C3001-7 36H NT Coaster Brake
KTM 28" City 36H; 622x19
Richman 2.0 INOX, silver
Schwalbe Fat Frank K-Guard TwinSkin 50-622 RT
Schwalbe Fat Frank K-Guard TwinSkin 50-622 RT
KTM Line City Grip, brown
KTM Line Riser 70 BS 50° 580mm
STEM
HEADSET
SADDLE
SEATPOST
SEATCLAMP PEDAL
CARRIER
LIGHT F
LIGHT R
CHAINGUARD
KICKSTAND WEIGHT
KTM Line adjust. 25.4 KTM Line 1.1/8"
Selle Royal Ondina, brown
KTM Line 27.2/300
KTM Line clamp QR - 31.8
KTM Comp Onroad SB Racktime EP-1088
AXA 606 Auto
AXA Juno Steady Horn Catena A09 38T
Massload CL-KA36 24-28" 15,9 kg (without pedals)
PINE (BLACK)
CHROME LEMON MATT (BLACK)
FRAME SIZE
KIDS / YOUTH KINDER / JUGEND
Note: This chart provides you only a rough indication!
Achtung: Diese Tabelle dient nur zur ungefähren Bestimmung!
2018 Macina Fun 9 5i-P51
2020 Macina Tour 510
2022 Macina Aera 671 LFC
2024 Macina Gran 610
