ORGANISATION

VISIBILITY

ACCESS CONTROL

ASSET MANAGEMENT

AUTOMATION

ADVANCED TOOL AND ASSET MANAGEMENT

MANAGE TOOLS AND ASSETS FOR INCREASED READINESS AND COMPLIANCE IN REAL TIME

• Increase accountability with solutions that deliver organisation, visibility, access control, tool crib management and more

• Mobile tool control solutions ensure you have the right tools at the point of use

CUSTOM ENGINEERED SOLUTIONS

• Track tools and users across your facility for compliance management and increase technician and equipment safety

• Increase available footprint with tool control solutions for multiple users

WE CONFIGURE TOOL AND ASSET MANAGEMENT SOLUTIONS THAT ACCOMMODATE YOUR WORKFLOWS AND TOOL CONTROL PROCESSES

• Leverage industry and tool control experts for best practices and insight

• Design optimal solutions for your specific workflows and environments

• Broad range of tool control solutions and CAD design to apply preferred tool layouts

• Consistently apply your own tool control policies across all points of use

POWERED BY ONE-OF-A-KIND TECHNOLOGY

ACCESS AND TRACK TOOLS AT THE SPEED OF WORK ACROSS THE FACILITY WITH L5 CONNECT SOFTWARE

• Gain access to industry leading and patented technologies that eliminate disruptions to work

• Control tools and assets across the facility via single interface

• Easily track tools that require serialisation, calibration and repair

• Achieve higher productivity with intuitive user experience with visual and audio cues

OPTIMISED FACILITY PERFORMANCE

LEVERAGE INSIGHTS TO ENHANCE PRODUCTIVITY VIA OPTIMISED PROCESSES

• Strengthen performance via powerful, flexible operational insights

• Understand asset usage and inventory gaps to enhance your Lean journey

• Continually tune operational performance through direct access to industry experts and best practices

ORGANISATION

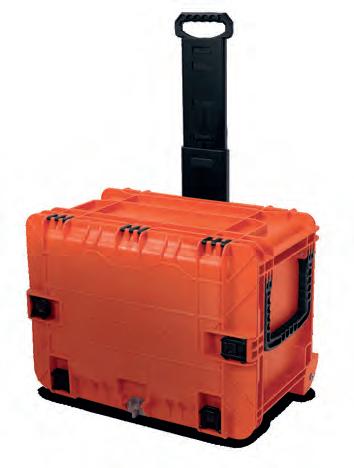

Proper organisation allows your team to find what they are looking for, while keeping tools safe. Snap-on can provide a complete tool audit to help you determine the best tool storage product to meet your needs. We even offer mobile solutions - allowing you to take your tools where you need them.

VISIBILITY

Having a clear view of the tools you use enhances productivity in your workplace. Making tools easier to see reduces tool selection time and increases accountability for their return.

ACCESS CONTROL

Effective tool control requires that your teams have access to just the tools they need, when and where they need them. Proprietary software manages access at the individual user level, allowing either stand-alone or networked control.

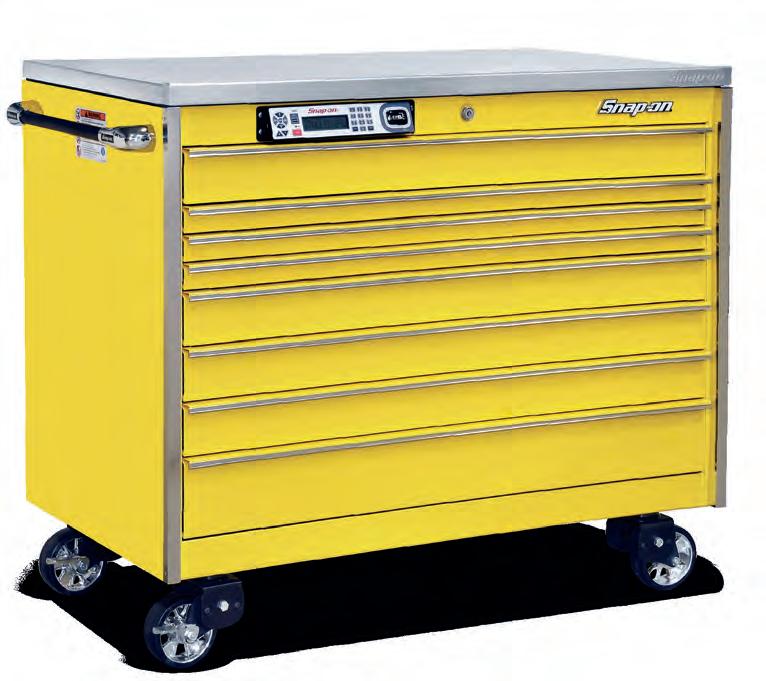

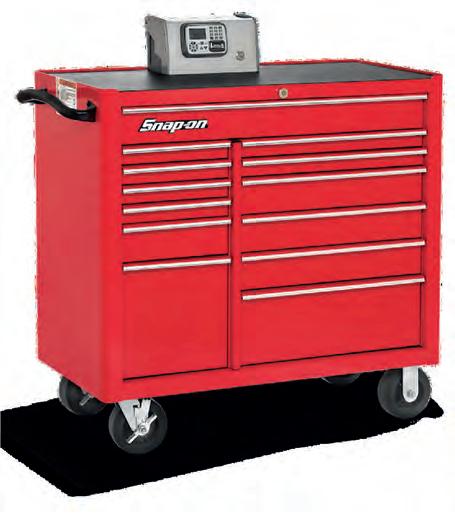

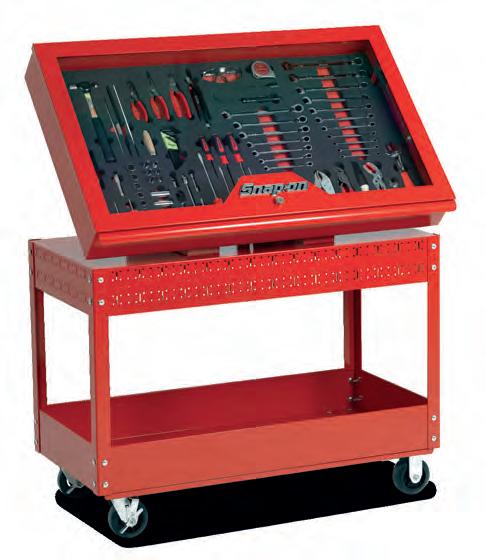

ALPHA BOX

Alpha Box™ is a proven tool control solution that delivers access control with upgrade potential to an automated tool control box. This box features keyless entry with employee badges for secure tool control management. The CADdeveloped tool control foam in each drawer provides superior organization and quick visual control.

Learn more about Access Control

Learn more about

Control

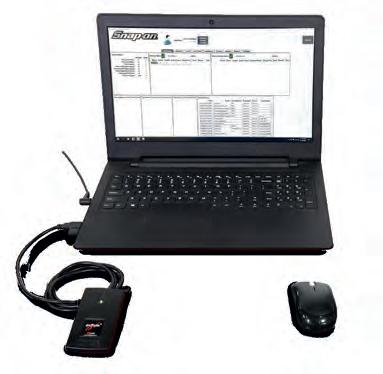

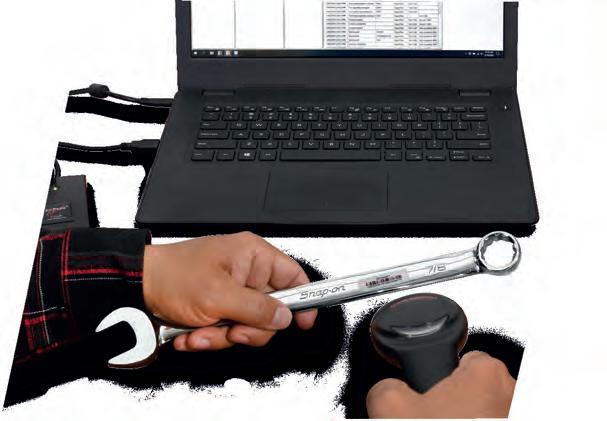

ASSET MANAGEMENT

Snap-on’s True-Crib software is simple, intuitive and easy to operate. It provides faster, more accurate check in and out of assets in your tool crib while providing comprehensive analysis, reporting and tracking for your tool crib. Being able to accurately account for tools, equipment and consumables, at all times, is important in maintaining productivity and ensuring jobs are completed as scheduled.

• Talking software eliminates the need to repeatedly look at the computer screen between bar code scans

• Fastest, most accurate way to check tools in and out

• Asset management and tracking

• Provides audible and visual verification of items and function

• Easy to use, smart and secure

• Summarises activities on exit

• Compiles comprehensive reports

• Multiple or single crib support

• Interface with customers applications

• Software support and updates

TOOL MANAGEMENT ACCESSORIES

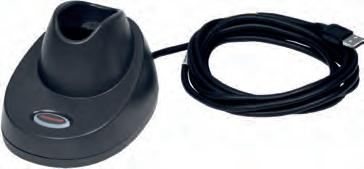

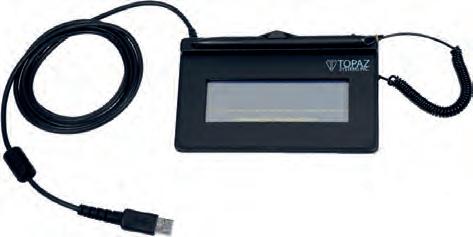

The Snap-on Level5 Tool Control System offers tool management accessories like Scanning Equipment, Signature Pads, Printers and More to accommodate your workflows and tool control processes.

AUTOMATION

When critical industry processes and concerns require the elimination of FOD and FME problems, the solution is to minimize human error. Let your Snap-on ATC boxes and lockers handle the control and tracking automatically.

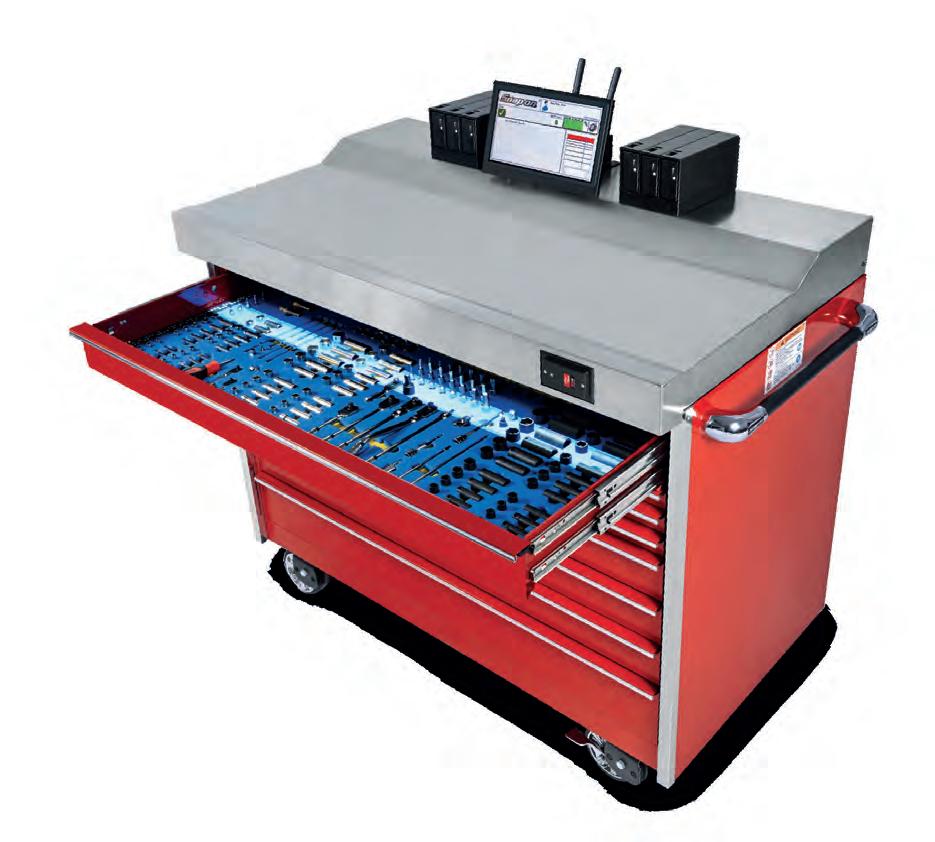

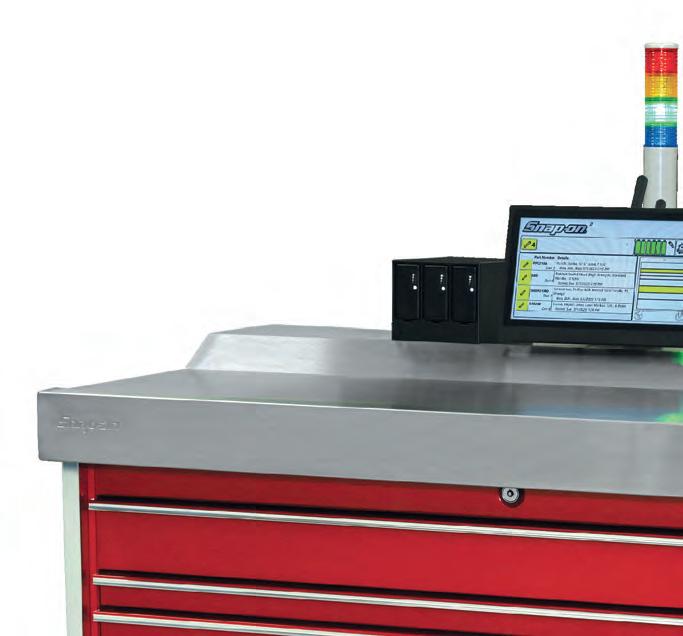

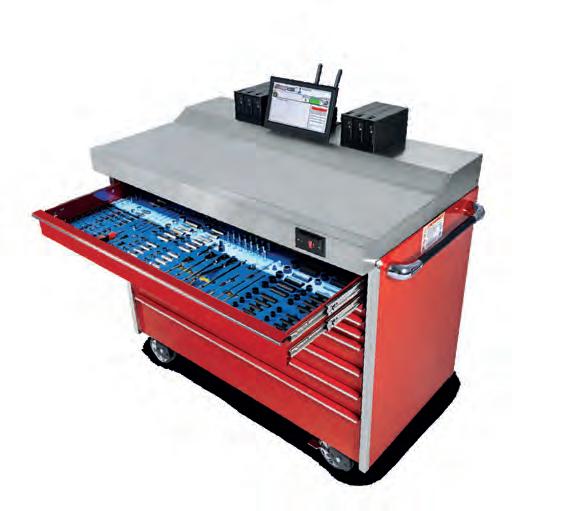

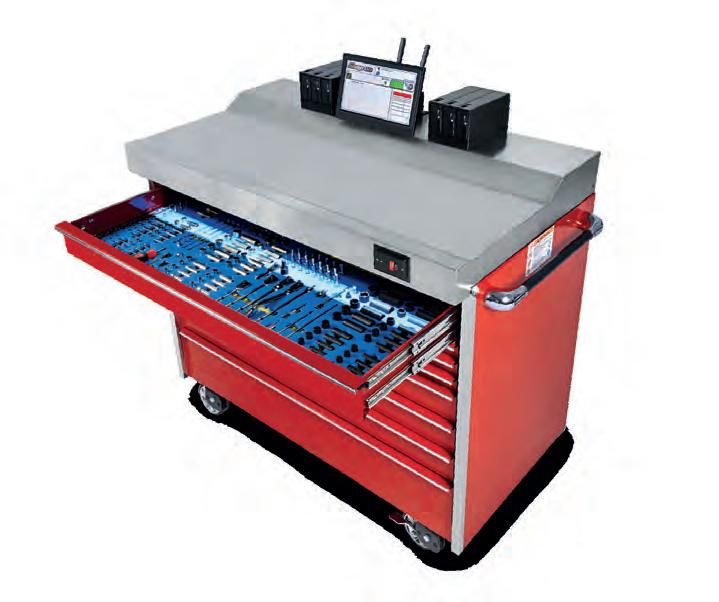

ATC BOX

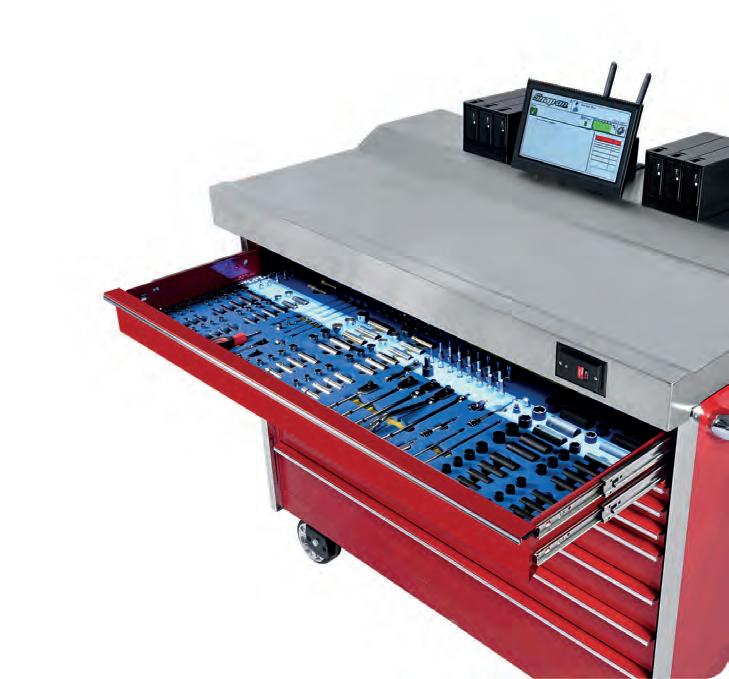

With advanced digital imaging technology and proprietary software, Level 5 Automated Tool Control System® (ATC) scans the tool drawer and records which tools are removed and replaced in real time. You know where everything is at all times without your techs being slowed down for a second. The system alerts you when tools are broken or need calibration, so you can address it right away.

• No individual scanning required

• No RFID tags to install

• No limitations on tool size – if it fits in the drawer, it works

ZoomID™

Optional ZoomID™ gives you the ability to track serialised, certified and calibrated assets.

ATC LEASING PROGRAM

ASK YOUR SNAP-ON INDUSTRIAL REPRESENTATIVE FOR DETAILS.

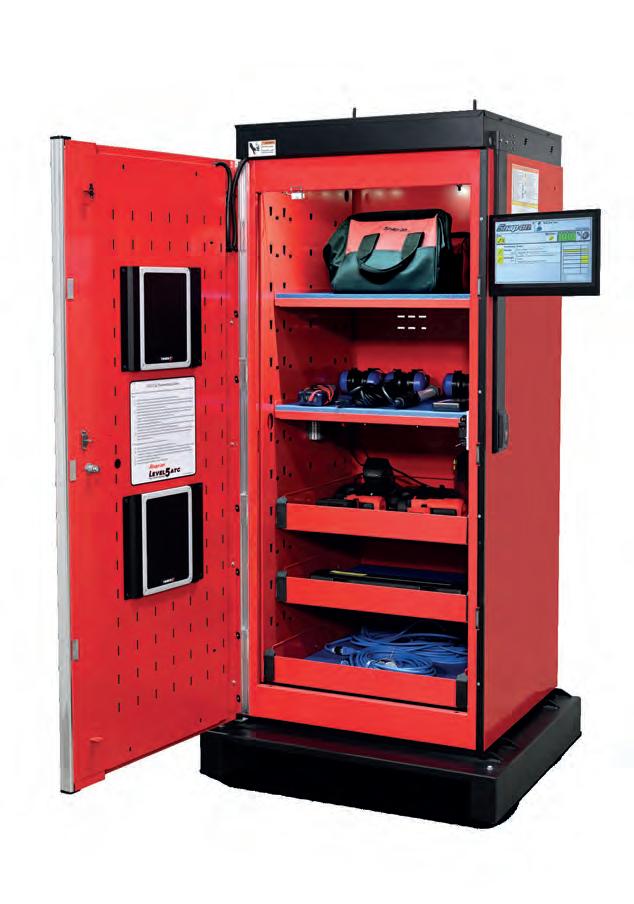

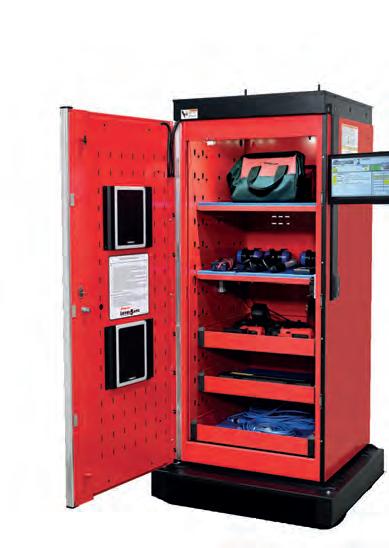

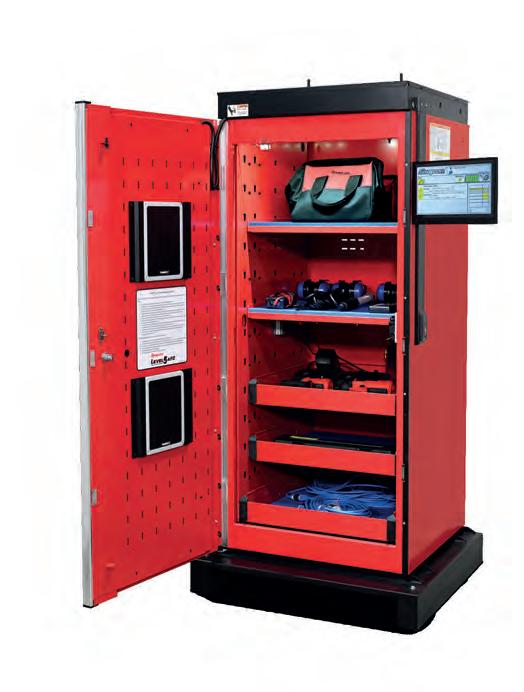

ATC LOCKER

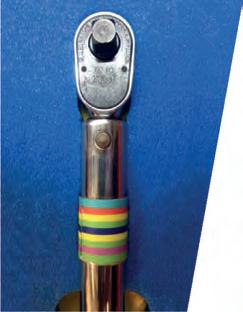

Track bulky or irregularly shaped items like extension cords, tools kitted in plastic or fabric carrying cases, personal protective equipment and more with the latest RFID technology. You can also track serialised items like torque wrenches, multimeters or micrometers. And with power on the inside, you can conveniently recharge power tools while securely storing them.

FastFlag™

Optional FastFlag™ system adds status display lights for added visibility in larger facilities.

ADVANCED SELF SERVICE INVENTORY TRACKING EXPERIENCE

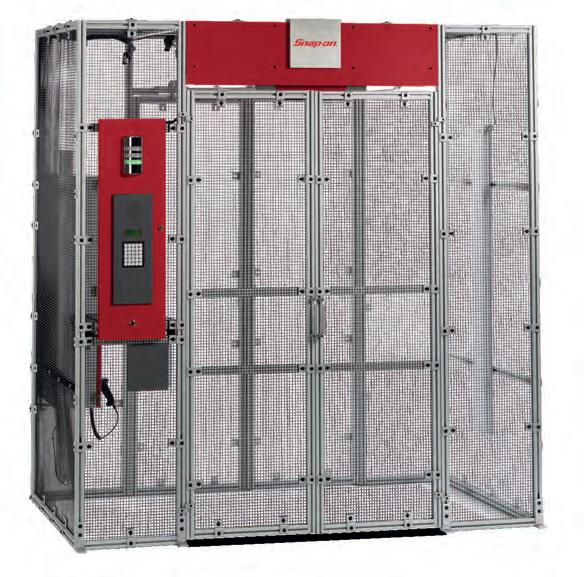

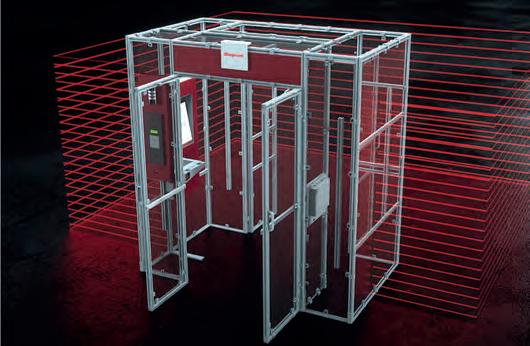

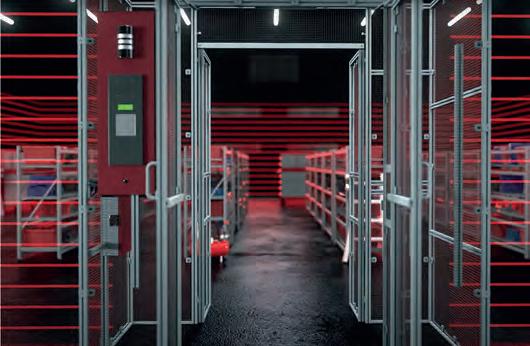

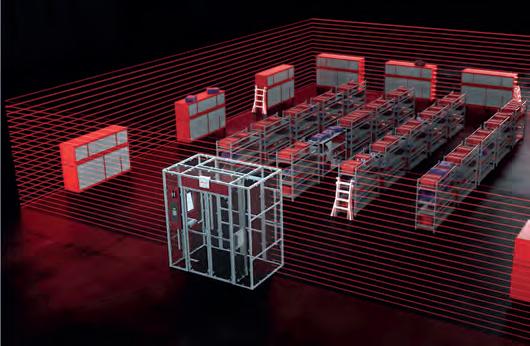

ATC PORTAL

PROVIDES A SECURE, ACCURATE, AND FLEXIBLE SELF-SERVICE INVENTORY TRACKING EXPERIENCE

A turnkey system of radio frequency identification readers (RFID) placed at a choke point to track movement of RFID tags in and out of a controlled area.

The portal is the perfect solution for applications where a high number of items need to be issued or where there are many large or bulky items and a great choice for smaller store rooms and cribs.

It’s excellent for high traffic cribs because multiple employees can “shop” simultaneously which eliminates long lines at the tool crib.

vend and track an unlimited number of items at all different types, sizes and shapes with ease using the Snap-on Portal.

as checking in and checking out. The system tracks the issue and return of different types, sizes and shapes

Utilizing RFID technology, the portal can control an unlimited number of inventory items through an automated gateway

Easily installed in any pre-existing tool crib or storage area providing control of your inventory

Easy

of items.

CUSTOMISABLE ASSET TRACKING

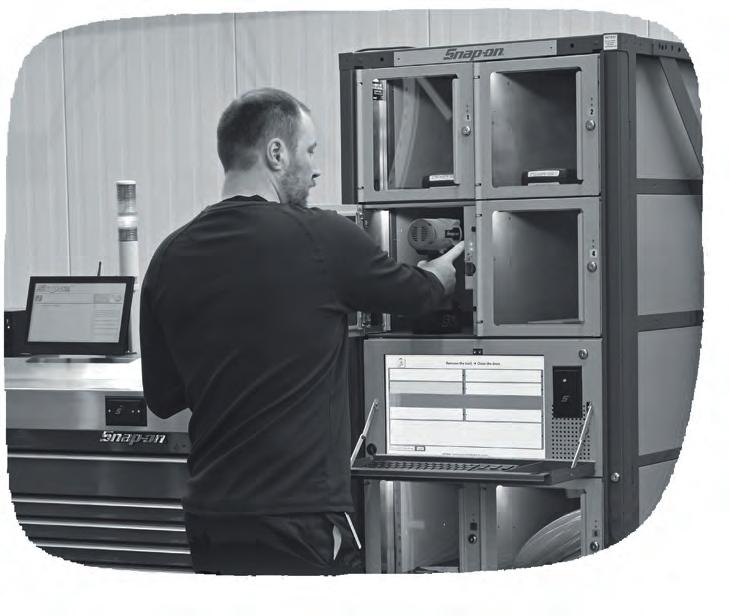

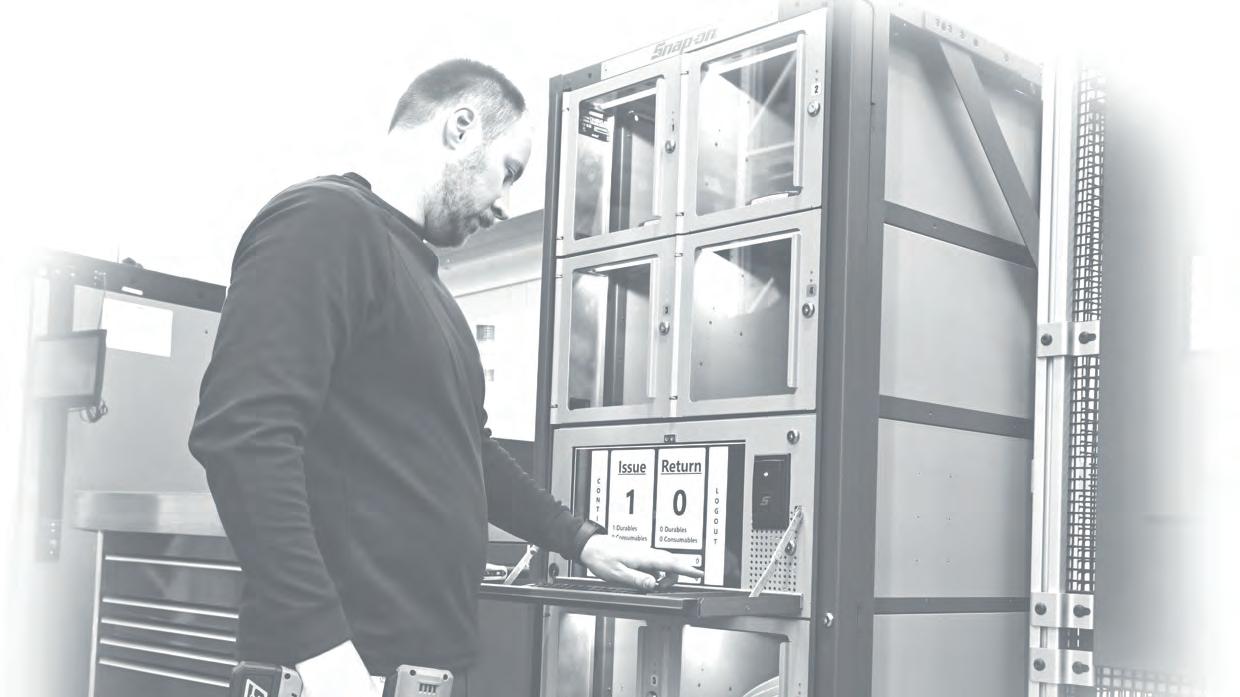

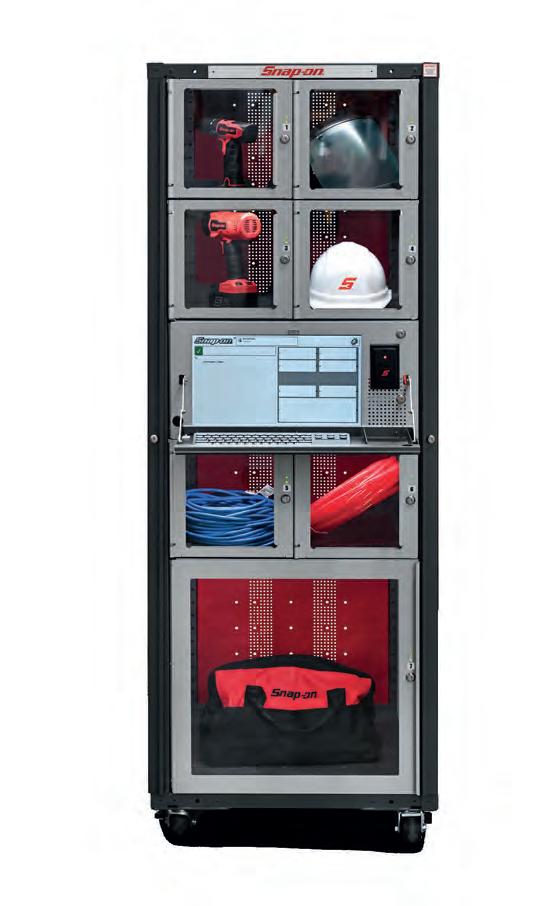

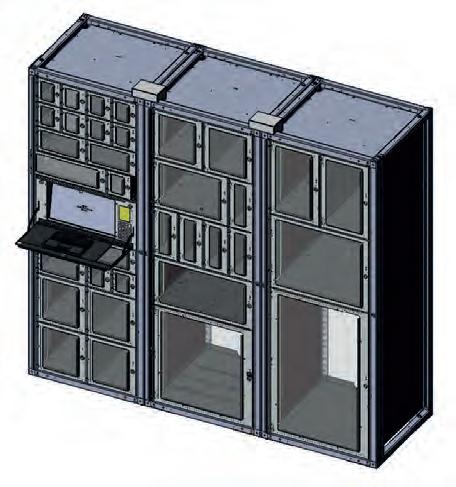

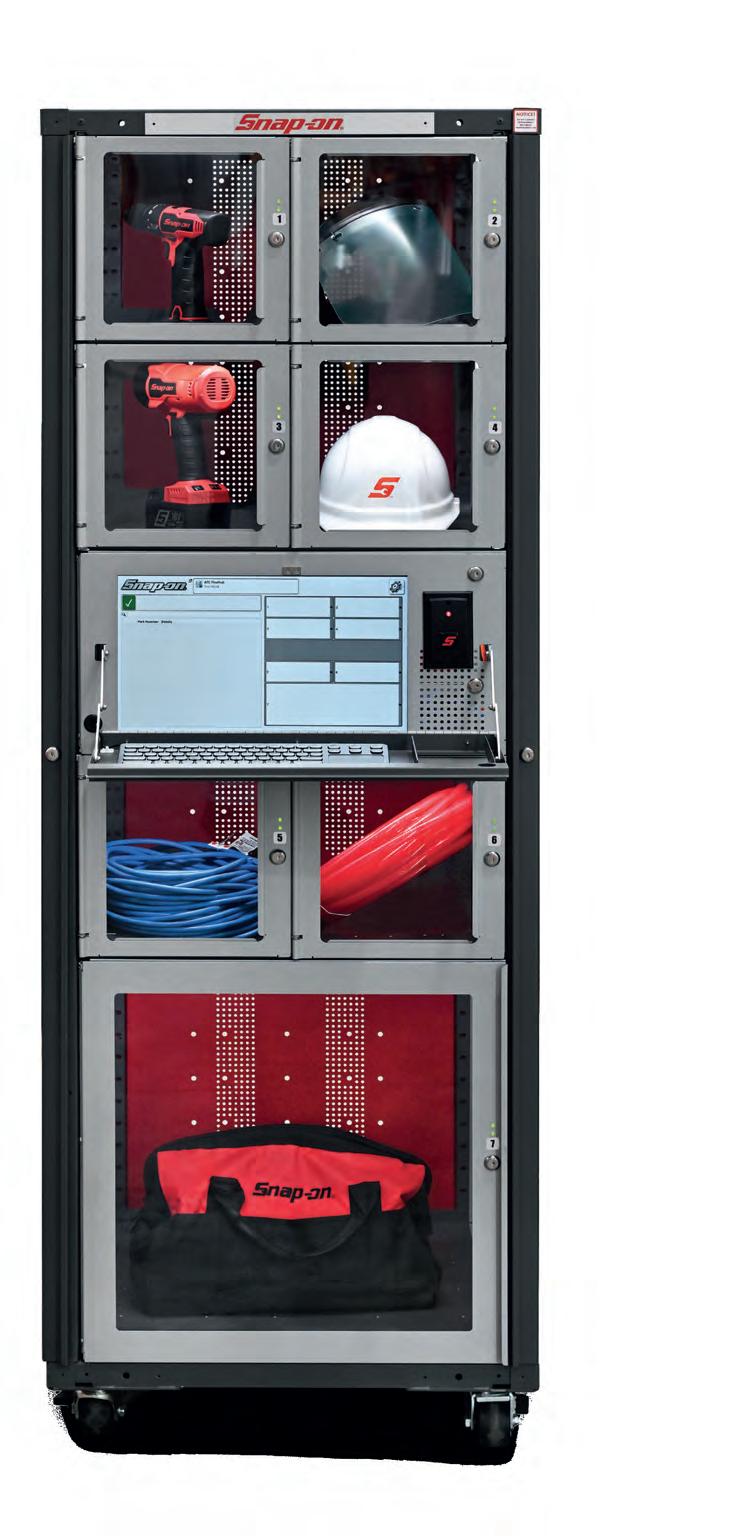

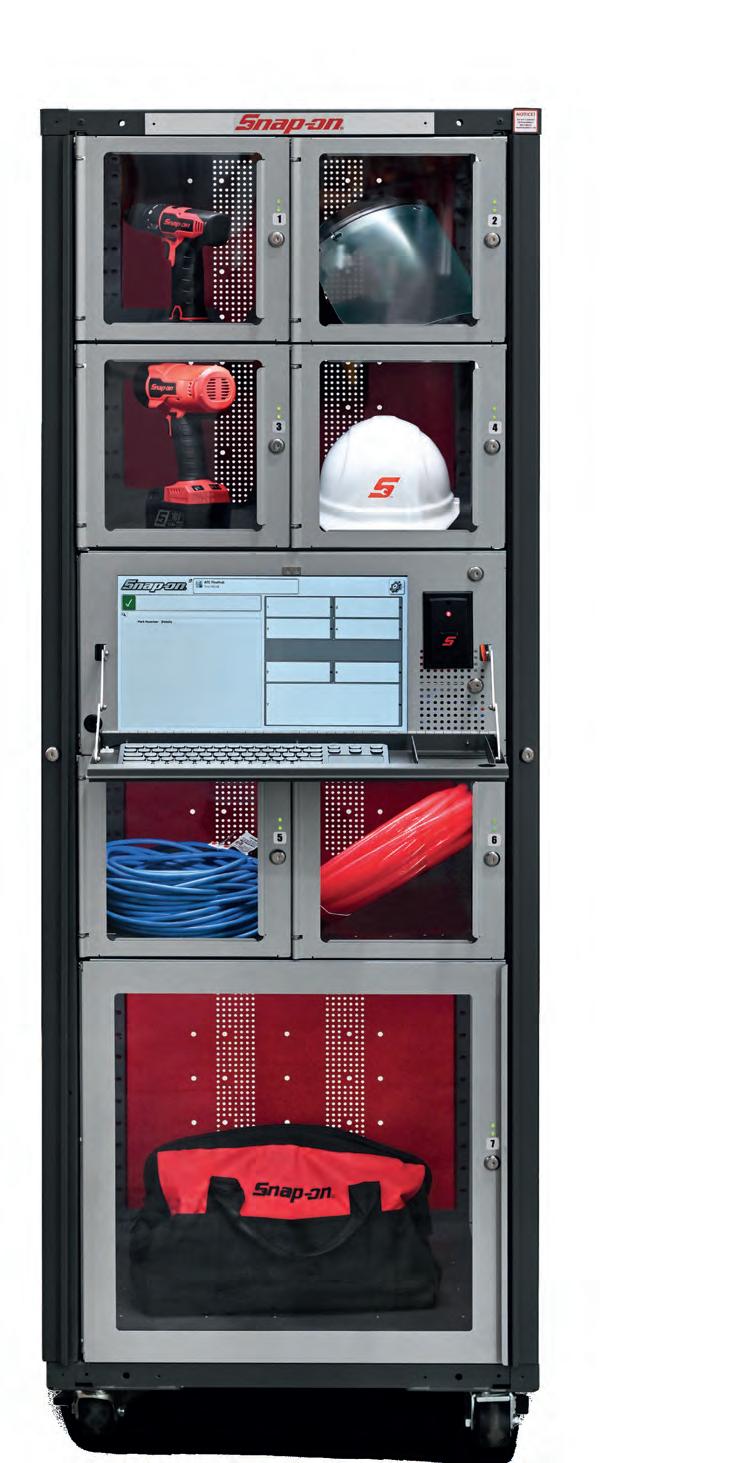

NEW ATC FLEXHUB™

A CUSTOMISABLE ASSET LOCKER SYSTEM FOR ITEMS SUCH AS POWER TOOLS, GAUGES, EQUIPMENT OR ANY ASSET THAT NEEDS TO BE TRACKED

Gain access to industry leading and patented technologies that eliminate disruptions to work. Easily track tools that require serialisation, calibration and repair. Achieve higher productivity with intuitive user experience with visual and audio cues. Customise to your tool control requirements with ease.

L5 CONNECT™ INTEGRATED DEVICE

Control tools and assets across the facility via single interface. Seamlessly move tools from one connected device to another. Customisable and efficient audit mode available.

INTELLIGENT AND EASY TO USE

See-through windows with bright LED lighting allow the user to quickly identify the items they want and issue them through an intuitive touchscreen user interface. Multistate LED status lights quickly identify which items are out on the floor as well as the status of the items that are inside the lockers. Efficiently check tools in and out of the locker. Work at the speed of work. Assets are accessible 24-7 without adding staff.

RACK-MOUNTED MODULAR DESIGN

The rack-mounted approach gives the user the flexibility to custom configure the locker layout to their specific needs. A multitude of module sizes maximize the efficiency for the given footprint and control a wide range of items. As storage needs change the modular design allows the user to easily swap out modules.

POWER CHARGING

The ATC FlexHub is also available with optional 230/240V power outlets within each module so battery operated tools and equipment can be charged while in the locker.

SPECIFICATIONS

• Material: Sturdy steel construction and powder coated

• High resolution 19” touchscreen

• Enclosed dimensions: 27.75” W X 75” H x 25.5”D

• Power: 100-240VAC– 50/60HZ, 15A/7.5A MAX

• Configuration: modular

Locker modules are available in 6” high increments with a standard 24” depth and a wide variety of widths and power (optional) to provide the most efficient customised solution. Connect multiple frames together utilising 1 controller box.

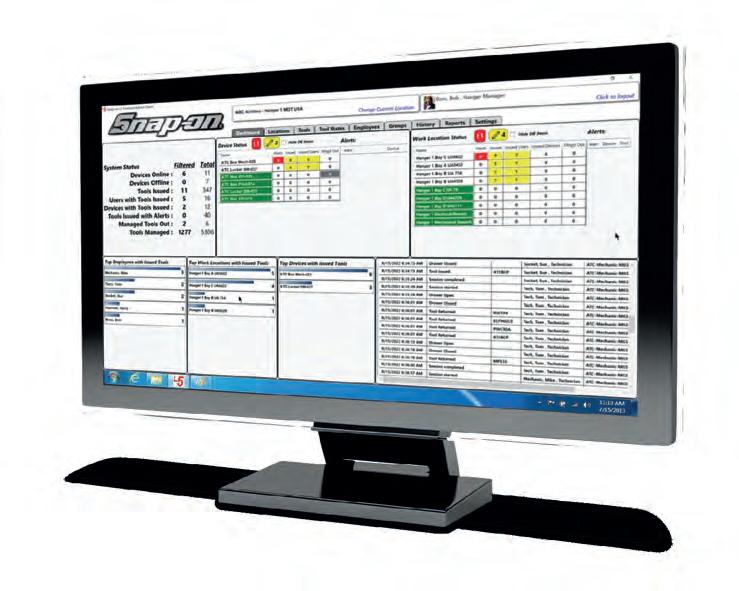

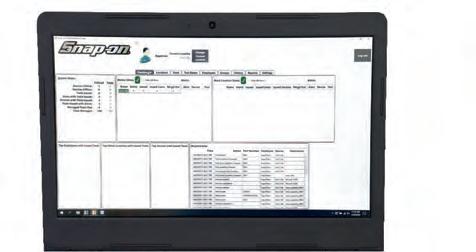

L5 CONNECT SOFTWARE

BUILT BETTER. BROADER ACCOUNTABILITY. MORE FLEXIBILITY. SOUND SECURITY.

Gain access to industry leading and patented technologies that eliminate disruptions to work. Control tools and assets across the facility via single interface. Easily track tools that require serialisation, calibration and repair. Achieve higher productivity with intuitive user experience with visual and audio cues. Customise to your tool control requirements with ease.

ENHANCE ACCOUNTABILITY

with integrated data analysis tools and audit capabilities. View all assets in a focal point dashboard with customisable layout.

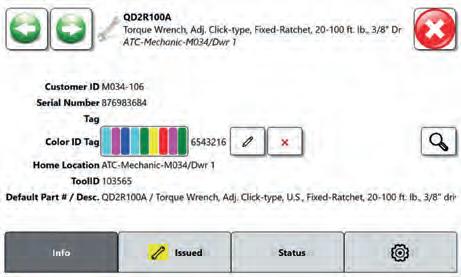

TRACK TOOLS THAT NEED SERIALISATION, CALIBRATION AND REPAIR

Leverage L5 Connect to automate tracking and alerts for calibrated tools.

L5 CONNECT SOFTWARE: CONTROL

TOOLS AND ASSETS

ACROSS THE FACILITY IN A SINGLE INTERFACE.

ACCOUNTABILITY AND USER PRODUCTIVITY

POINT OF USE

NEW ATC FLEXHUB™

POINT OF USE ATC Box

CUSTOMIZATION TO MATCH YOUR WORKFLOW

CONFIGURE SYSTEM STRUCTURE TO ACCOMMODATE YOUR WORKFLOW

Apply your own tool control policies and make changes on the fly

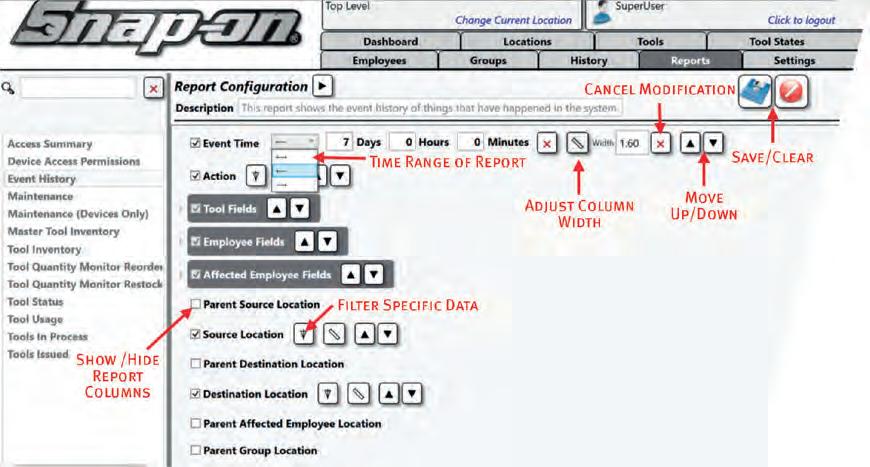

CUSTOMISE BUILT-IN REPORTS TO SUIT YOUR NEEDS

• Customise reports on the fly

• Save, schedule and export reports in multiple formats

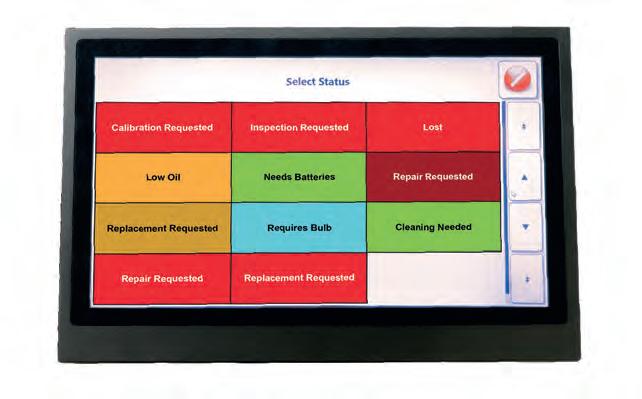

IMPLEMENT RELEVANT STATUS MONITORING AND NOTIFICATIONS

• Create custom alerts relevant to your location

• Send signals from the toolbox to management

• Email and text messaging alerts

EXISTING CUSTOMERS CAN UPGRADE TO L5CONNECT FREE OF CHARGE

*subject to devices meeting minimum standard hardware and operating system requirements*

ROBUST SECURITY AND SEAMLESS INTEGRATION

LEVERAGE UPGRADED SECURITY ENHANCEMENTS

• L5 Connect architecture is robust with enhanced encryption and communication algorithms.

INTERFACE WITH YOUR SYSTEMS VIA ADVANCED API

• Integrate with customer service ERP system

• Manage employee access, change work locations, generate work orders, maintain maintenance records.

CUSTOM ENGINEERED SOLUTIONS FOR ALL INDUSTRIES AND APPLICATIONS

Snap-on can configure tool and asset management solutions that accommodate your workflows and tool control processes. We leverage industry and tool control experts for best practices and insight and design optimal solutions for your specific workflows and environments.

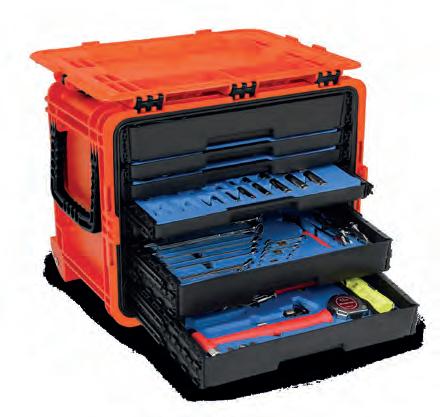

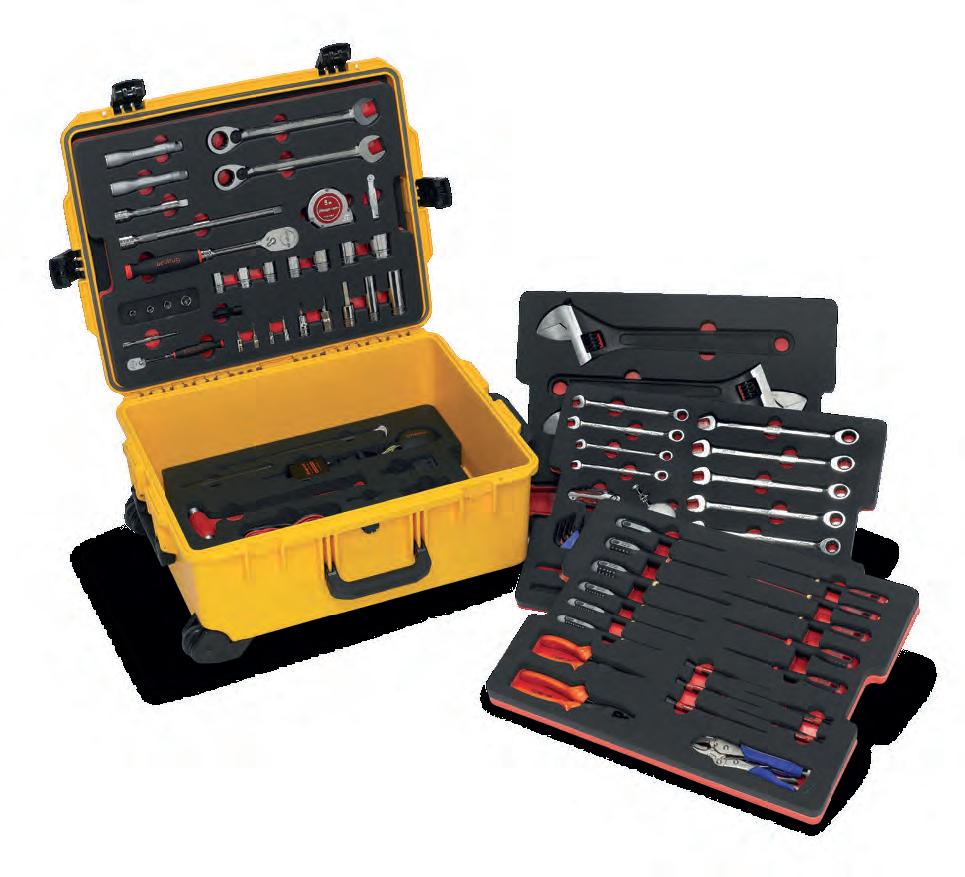

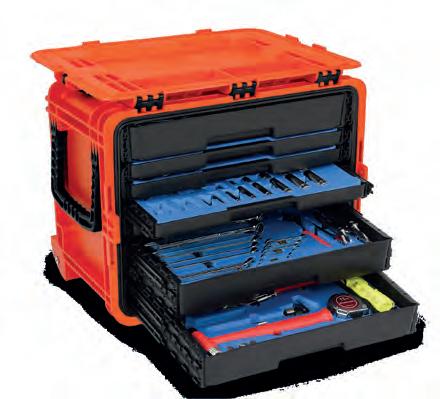

CUSTOM KITTING SOLUTIONS

No matter how big or small the application, Snap-on’s robust, flexible and scalable capabilities enable us to create a versatile range of kitting solutions – from stationary, mobile and transportable sets and much more. We supply kits for everything from servicing copy machines, to maintaining and repairing tanks, helicopters, oil rigs and jumbo jets. Standard or custom, large or small – from our state of the art kitting center, Snap-on does it all.

SNAP-ON SOLUTIONEERS understand how work is done across different industries and applications. They draw on their knowledge of tool control practices to help create optimal tool and asset control solution for your organisation.

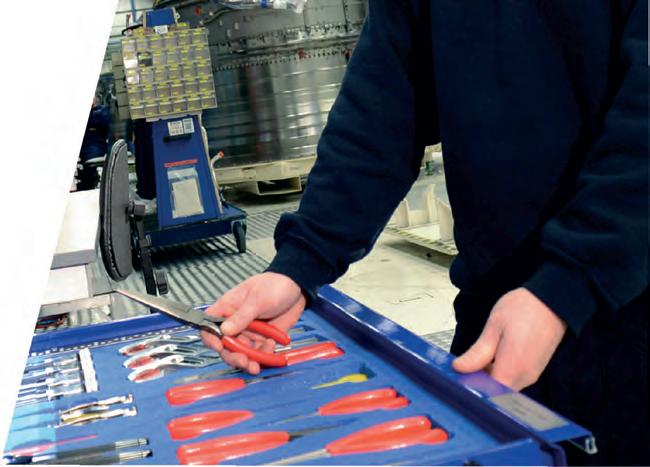

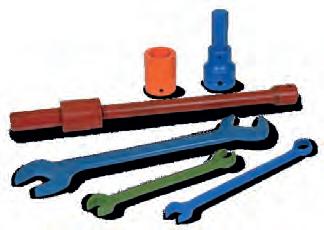

Snap-on has tons of options for organising tools: bags, shadow boards, foam inserts for portable cases, custom CAD designed, lasercut foam layouts for tool box drawers and more.

We have in-house laser tool engraving capabilities to match your identification system – whether you’re looking for etching for a specific kit, or serially marked tools.

Need a tool that requires additional sourcing beyond our standard offerings? No problem. We can do the sourcing for you, and integrate the components into your kit.

Many satisfied customers have seen the productivity benefits of our Level 5 storage solutions.

The Level 5 Tool Control System is unprecedented in our industry, combining real-time asset readiness and compliance, tool access and custom workflow configurations, harnessed with insight-enhancing intelligence that optimizes facility performance. Operating at the speed of work is exactly how Level 5 was designed to work.
