THE NEW TAP

Progettazione Digitale: 3D CAD Advanced WITH A TWIST
Animal Design WS 2022/23 | Katharina Schwab

HOP is a tap with the certain twist to it. It differs from other taps in its shape and functions. The handling of conventional taps, as we all know it, is being reinterpreted. Now you can simply change the temperature with a twist of the front part. The initial shape and fuction is inspired specifically by the ears of a bunny. Through many alterations and modifications, I shifted these interesting aspects from the animal world into a modern design setting. A simple, yet clever new definition of a tap with the help of nature.

HOP è un rubinetto con un certo twist. Si differenzia dagli altri rubinetti per la forma e le funzioni. La gestione dei rubinetti tradizionali, così come la conosciamo tutti, viene reinterpretata. Ora è possibile cambiare la temperatura semplicemente ruotando la parte anteriore. La forma e il funzionamento iniziali si ispirano specificamente alle orecchie di un coniglietto. Attraverso numerose alterazioni e modifiche, ho trasferito questi interessanti aspetti del mondo animale in un contesto di design moderno. Una nuova definizione semplice ma intelligente di rubinetto con l’aiuto della natura.

Progettazione Digitale: 3D CAD Advanced Animal Design WS 2022/23 | EN
IT
Katharina Schwab

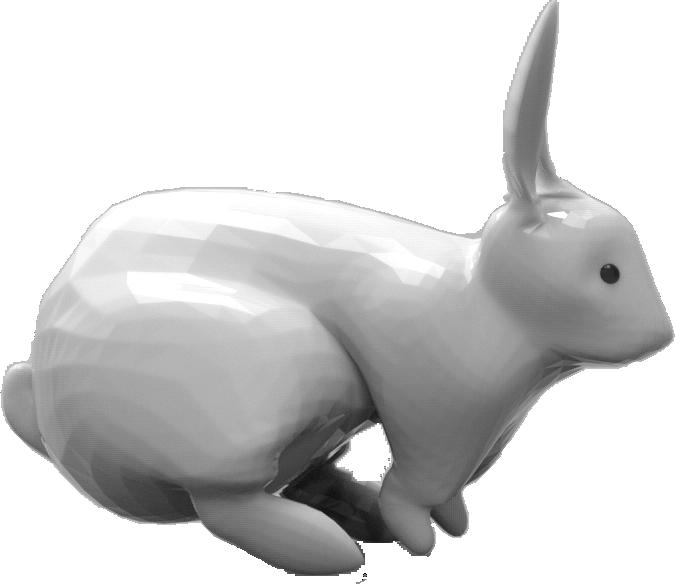

I started out by thoroughly researching about bunnies and rabbits and got surprised by plenty of their abilities and habits. Some of the most fascinating facts were their never stopping growing teeth and the following act of gnawing to keep them short, how they beat the ground with their back feet when they feel threathened and their rotatable ears, which are able to turn 180 degrees to listen carefully to their surroundings and possible predators. Many ideas arised after further thinking about these special abilities and in the end, I decided to go with the ears.

I started out by thoroughly researching about bunnies and rabbits and got surprised by plenty of their abilities and habits. Some of the most fascinating facts were their never stopping growing teeth and the following act of gnawing to keep them short, how they beat the ground with their back feet when they feel threathened and their rotatable ears, which are able to turn 180 degrees to listen carefully to their surroundings and possible predators. Many ideas arised after further thinking about these special abilities and in the end, I decided to go with the ears.

Progettazione Digitale: 3D CAD Advanced Animal Design WS 2022/23 | Katharina Schwab EN
IT

The formal transformation of the ear was challenging as I wanted to keep the overall shape. The tap has an organic shape and a opening similar to the inner ear part.

The formal transformation of the ear was challenging as I wanted to keep the overall shape. The tap has an organic shape and a opening similar to the inner ear part.

Progettazione Digitale: 3D CAD Advanced Animal Design WS 2022/23 |
EN
Katharina Schwab
IT

Progettazione Digitale: 3D CAD Advanced Animal Design

touchpad for water flow intensity

Spout Main Body

divider between hot and cold water inside

Screw threads

Solenoid flow restriction valve

electricity cables for motion sensor and touchpad

control box

cold water supply

power adapter + cable

hot water supply

WS 2022/23 | Katharina Schwab

underside of sink

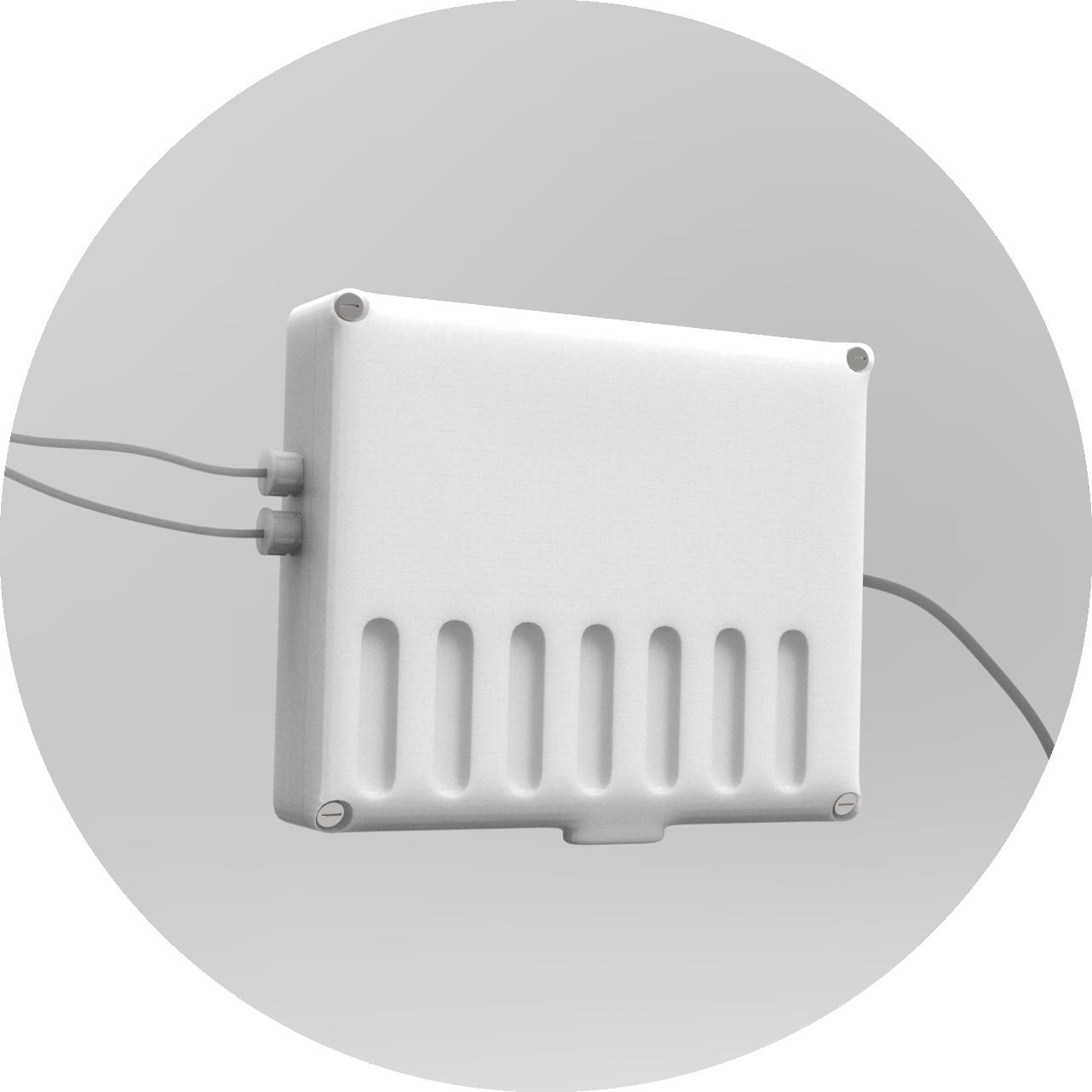

control box responsible for electricity parts ( motion sensor and touchpad) power adapter connected to control box

motion sensor for turning water on/off hollow spout with two open side channels as opening

Progettazione Digitale: 3D CAD Advanced Animal Design WS 2022/23 |
Katharina Schwab
Progettazione Digitale: 3D CAD Advanced Animal Design WS 2022/23 | Katharina
Schwab

Progettazione Digitale: 3D CAD Advanced Animal Design

EN

The key part of this design, is the spout of the tap. Not only does it embody the ear rotating function from bunnies, it is also deeply connected to its user interface. By turning the spout up to 180 degrees, the temperature will change because of the mixed ratio of the cold and hot water supply. The opening for the water to flow out is special too since there are two long openings on the inside of the hole. This enables an elegant and playful experience while washing hands.

IT

La parte fondamentale di questo design è il beccuccio del rubinetto. Non solo incarna la funzione di rotazione delle orecchie dei coniglietti, ma è anche profondamente connessa alla sua interfaccia utente. Ruotando l’erogatore fino a 180 gradi, la temperatura cambia grazie al rapporto misto tra acqua fredda e calda. Anche l’apertura per la fuoriuscita dell’acqua è speciale, in quanto presenta due lunghe aperture all’interno del foro. Ciò consente un’esperienza elegante e giocosa durante il lavaggio delle mani.

Stainless steel with chrome polishing
WS 2022/23 | Katharina Schwab
black glass plastic steel

Progettazione Digitale: 3D CAD Advanced Animal Design

90 ° 90 °
WS 2022/23 | Katharina Schwab
