EXPRESSO DEUTSCHLAND GMBH & CO. KG –YOUR PARTNER FOR TRANSPORT SOLUTIONS
For over 70 years, we have been assisting people all over the world with solutions for handling valuable and heavy goods. In close cooperation with our customers, we develop individual professional products for industry and trade. Our high-quality manual transport equipment, motorised transport systems, and handling solutions close the gap between lifting by hand and moving by forklift truck. They increase the efficiency of work processes as they facilitate, simplify and accelerate. In the process, human health is a central theme in the development of every product.
With our product innovations, we increase the ergonomics and efficiency of work equipment and thus improve the conditions for keeping people healthy at work. In the process, environmental aspects are consistently included all considerations. We continually optimise energy and raw material use according to ecological criteria in order to sustainably protect the environment.n.
EXPRESSO – YOU CAN HANDLE IT
QUALITY BY UNIQUE DESIGN
MAKING SURE THAT EVERYTHING RUNS SMOOTHLY –OUR

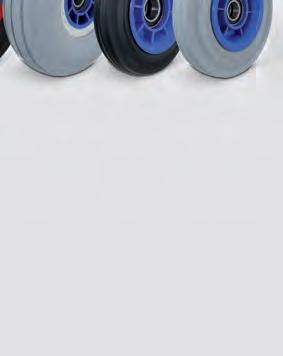

QUALITY WHEELS

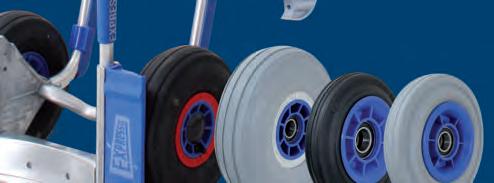

We offer you the optimum quality wheel for every floor condition and every purpose. Choose from different wheels with equal diameter – they are generally interchangeable! The last two digits of the hand truck type number usually indicate the wheel number. The carcass structure of pneumatic wheels ensures maximum load capacity with minimum rolling resistance. All wheels are odourless and equipped with two water- and dust-proof grooved ball bearings.
PROVEN FOR DECADES
The pneumatic wheel No. 21 with radial tread has been popular with our customers all over the world since the 1960s. It features an unsurpassed, high-quality carcass structure that ensures maximum load capacity.
The AIRLEX wheel No. 25 commenced its success story in 1998 as the “unflattable wheel”. Especially in the beverage industry, this wheel with radial tread makes a significant contribution to economic efficiency, because it boasts a five time longer service life due to its material properties – it is made of polyurethane and contains thousands of microcellular air bubbles. Both wheel types offer minimum rolling resistance, very good shock absorption on uneven floors and are enormously directionally stable.
NOW YOU GET TO CHOOSE
Which wheel do you prefer on your custom EXPRESSO hand truck. Please see our wheel variants on the right. We are also happy to advise you!

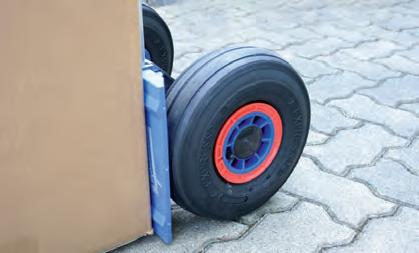

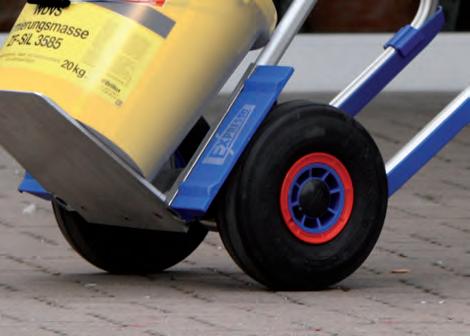

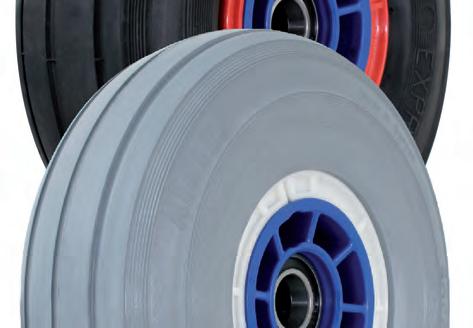

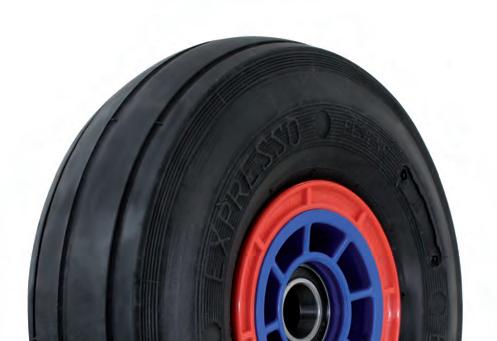

NO. 21 – THE PNEUMATIC WHEEL
The epitome of convenient, professional transport for decades

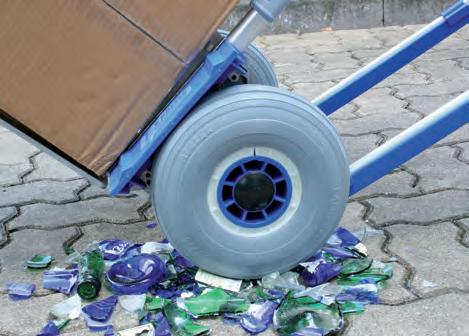

NO. 25 – THE UNFLATTABLE WHEEL
The AIRLEX wheel: proven since 1998 and preferred in the beverage industry
EXLAN WHEEL RIM
One-piece, with two water- and dust-proof grooved ball bearings, tool-free fitting, the tyres are fitted on the rim and secured with the circlip.
NO.
NO. 21 – Ø 260 MM
24 – Ø 260 MM
Pneumatic wheel with radial tread, minimum rolling resistance, even on uneven floors very good shock absorption
NO. 22 – Ø 260 MM
Pneumatic wheel with lug tread, low rolling resistance, even on uneven floors very good shock absorption
Heavy-duty pneumatic wheel with radial tread, reinforced, minimum rolling resistance, very good shock absorption even on uneven floors
matic
NO. 42 – Ø 200 MM
Airelastic flat tread, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, light grey, non-marking even on the most delicate floors
NO. 25 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, light grey, non-marking, radial tread, very good shock absorption, low rolling resistance, very long service life
NO. 71 – Ø 175 MM
Airelastic flat tread, light grey, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, non-marking even on delicate floors
NO. 45 – Ø 200 MM
Airelastic flat tread, non-marking and unflattable, made of high-quality polyurethane, good elasticity and very good shock absorption, wide rolling surface, quiet running, maintenance-free
n m p e g w q m
NO. 05 – Ø 160 MM
Smooth-running flat tread, good elasticity, quiet running, low rolling resistance
g q ro
NO. 26 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, black, radial tread, very good shock absorption, low rolling resistance, very long service life
A fo b ve a lo re ve se
NO. 76 – Ø 200 MM
Smooth-running flat tread, high elasticity, quiet running, very low rolling resistance

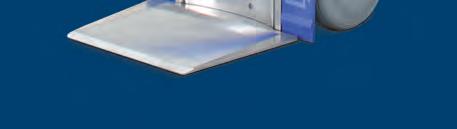

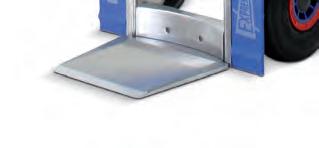

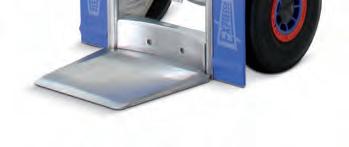

SPADE FOOTPLATES
PROFILED, PRECISION-MILLED FOOTPLATES
The perfect quality footplate for every application – choose your favourite. The tightly profiled, precision-milled spade footplate made of a special alloy prevents the loads from laterally sliding. The slightly bevelled front facilitates sliding under the load. The concave back of the shovel provides safe support for round goods, such as barrels or rolls. On request, we can also deliver all spade footplates foldable at no extra charge!
No. 7 with support feet
8 without support feet
PRECISION-MILLED, TIGHTLY PROFILED SPADE FOOTPLATES

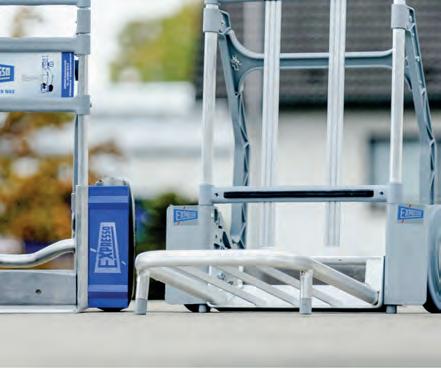

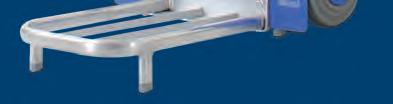

TUBULAR SHOVELS
TUBULAR SHOVELS FOR CARDBOARD BOXES, CRATES, BASKETS
EXPRESSO tubular shovels are used on mail & parcel distribution hand trucks in a wide range of industries, such as service providers, in the food and froozen goods sector. Cartons, crates and baskets are ideally transported with folding tubular shovels in various lengths and widths. Particularly wide variations are used to move very bulky cartons. The supporting feet protect sensitive materials against damage, moisture and dirt and the optimised tilt angle secures the goods in the parking position.
TYPE 1011 525
425 x 220 mm
TYPE 1011 172
425 x 280 mm
TYPE 1011 525 + 1341 / + 1343
430 x 350 / 430 x 510 mm
TYPE 1011 172 + 1348 430 x 450 mm
TYPE 1011 177 + 1340
605 x 500 mm
TYPE 1021 172 430 x 350 mm
TYPE 1011 525 03
x 220 mm
TYPE 1011 174
x 280 mm
TYPE 1011 525 03 + 134301 / +134102 550 x 500 / 550 x 370 mm
TYPE 1031 172
x 350 mm
TYPE 1011 177
x 280 mm
TYPE 1031 172 + 1349
x 550 mm

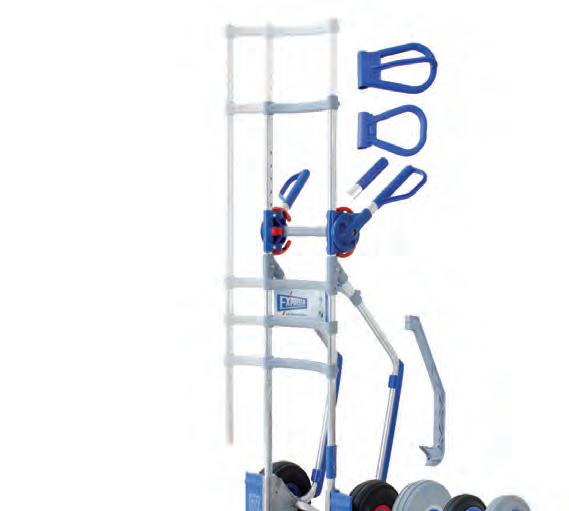

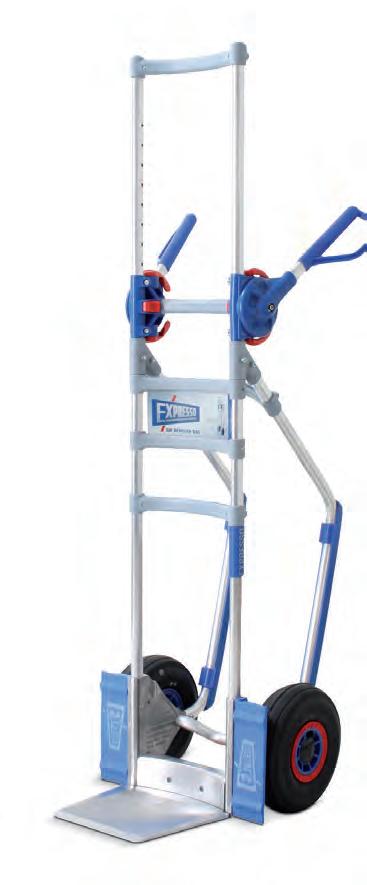

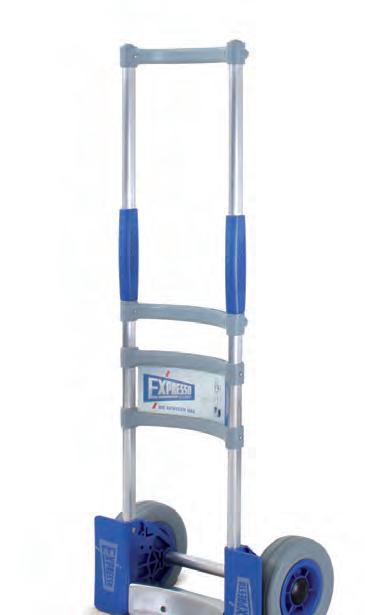

INDIVIDUALITY THANKS TO THE MODULAR SYSTEM
NOT CONVENTIONAL – INDIVIDUAL!
Not one hand truck for all purposes – your logistics requirements determine the appearance and features of your professional piece of equipment. Since 1967 the EXPRESSO modular philosophy has offered unlimited possibilities for configuring application and user-oriented transport solutions.
OVER 2,000 HAND TRUCKS FROM THE MODULAR ALUMINIUM SYSTEM – IN STOCK
The vast selection of high-quality components, such as different heights, footplates, wheels, skids and handles, creates the conditions for individual, application-oriented hand transport equipment. Because rigid equipment designs limit the application possibilities and cause high costs for maintenance and service. And if a wearing part needs to be replaced – not a problem! Each individual component is also available as a spare part.
IN-FOCUS OVERVIEW
The in-focus provides an at-a-glance overview of the most important technical data for the
FAVOURITES
All EXPRESSO hand trucks can be equipped with the proven advertising panel. Protect your property and promote your company by customising one side with your logo/lettering for an additional charge.

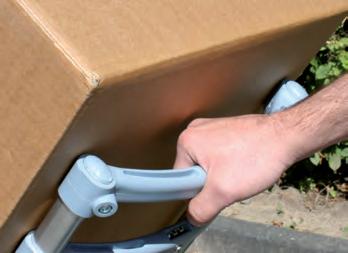

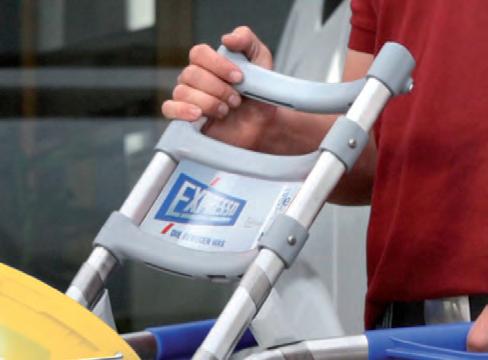

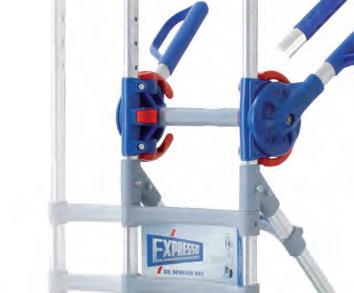

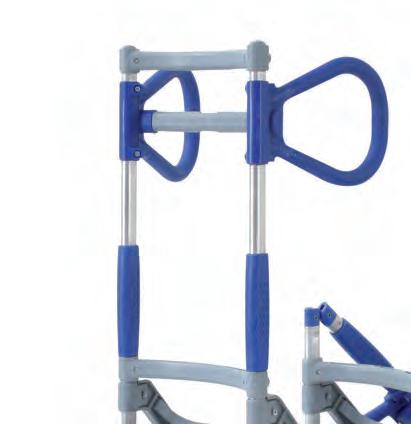

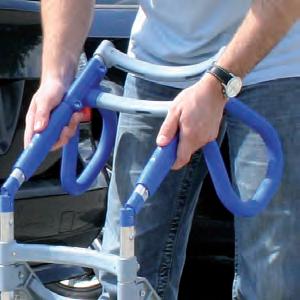

HAND PROTECTION

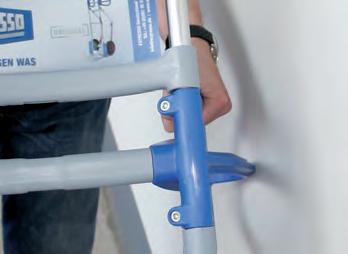

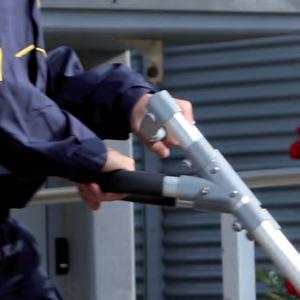

In addition to particular safety aspects, the CLICK4 handle provides the prerequisites for a flexible, controlled transport in an ergonomic posture.
Proven for over 25 years: the hand guards of the ergonomic dog-ear handles made of EXLAN plastic protect the hands from injury.

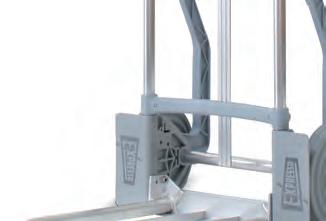

ANGLED SKIDS
The angled skids with integrated wear indicator enable the practical and safe transport of crates up and down stairs.

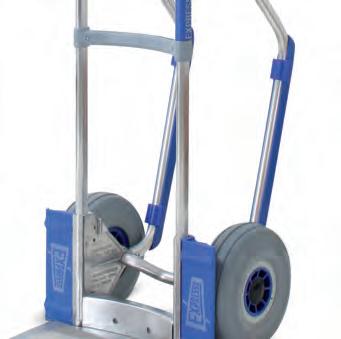

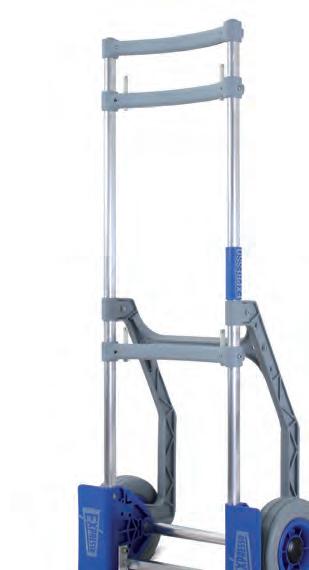

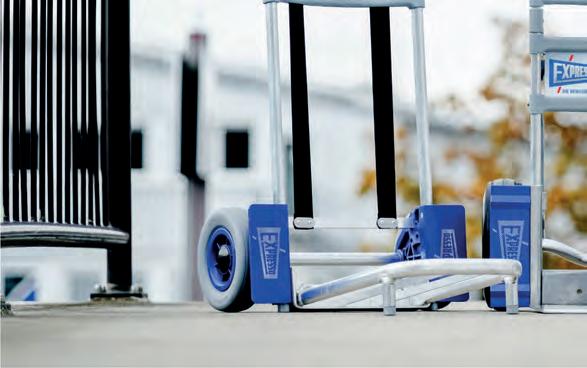

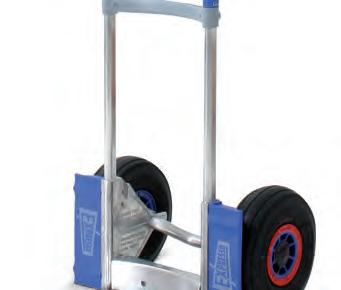

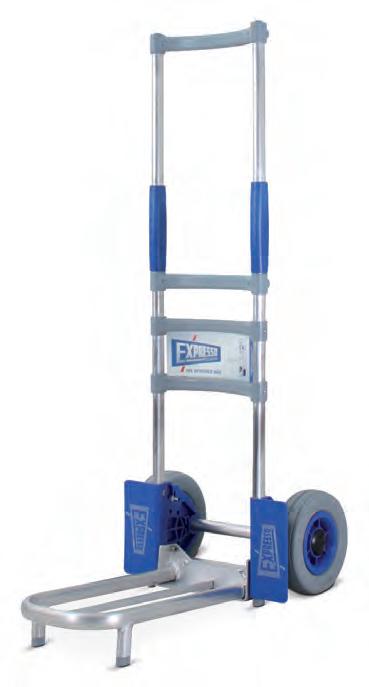

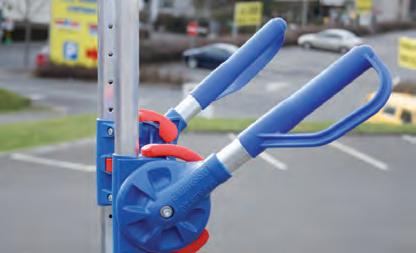

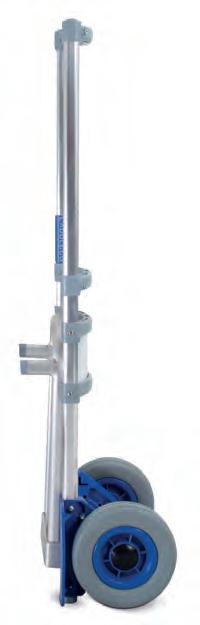

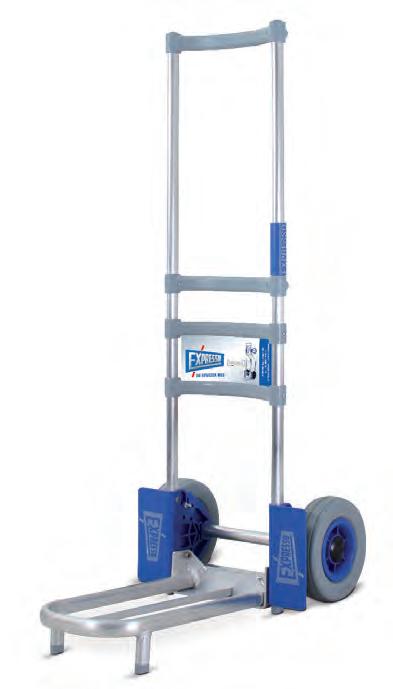

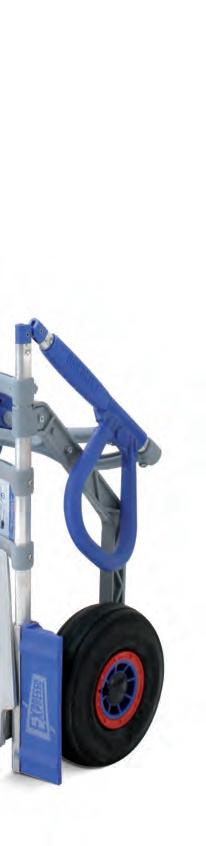

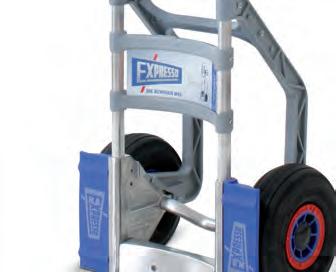

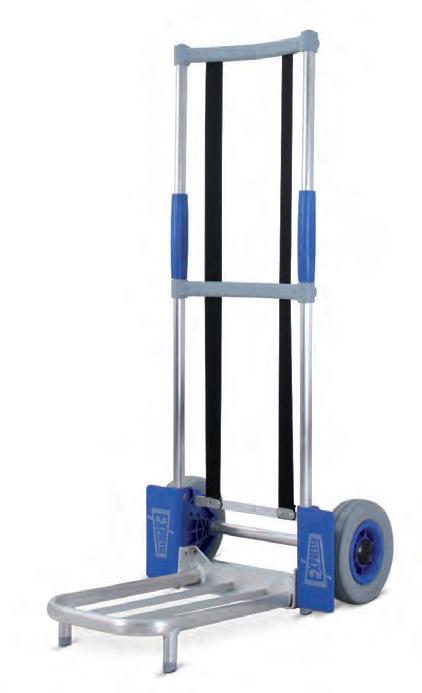

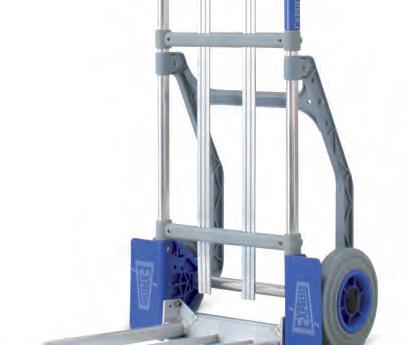

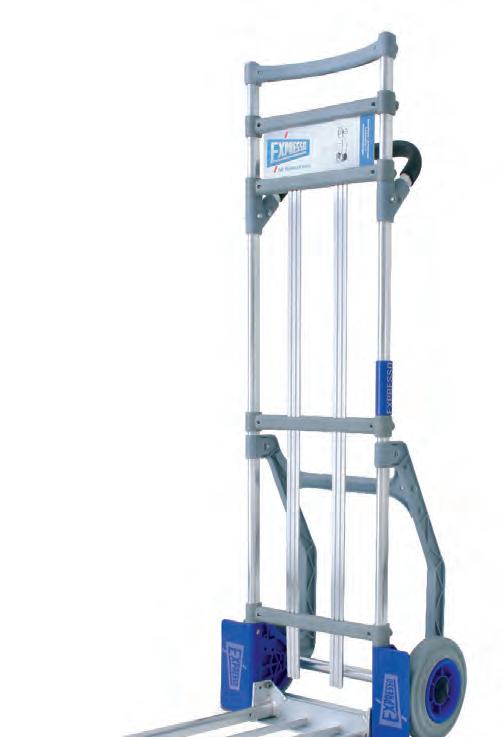

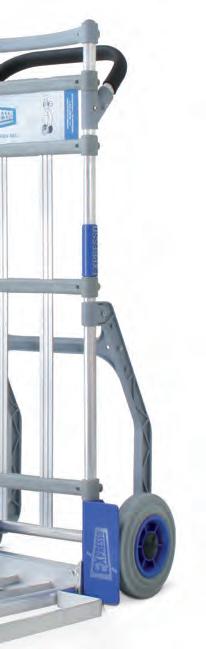

FOLDING HAND TRUCKS
The folding mechanism of the folding EXPRESSO truck is especially secured by hand-friendly EXLAN sliding sleeves.
FOLDING HAND TRUCKS

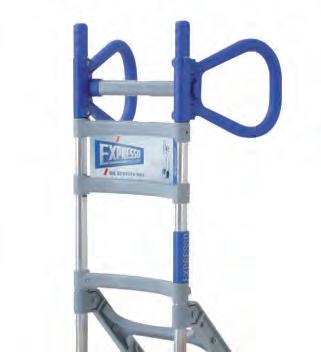

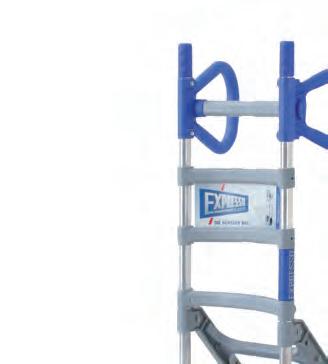

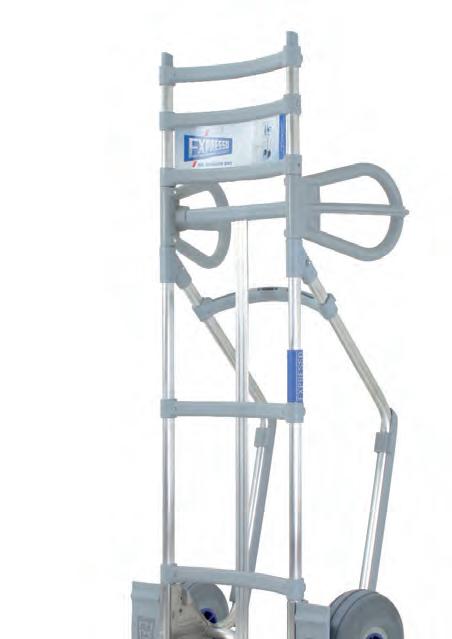

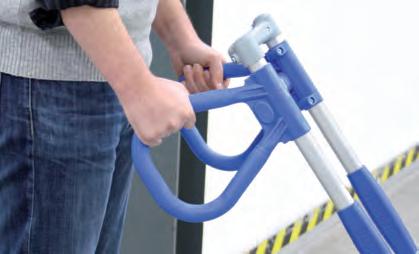

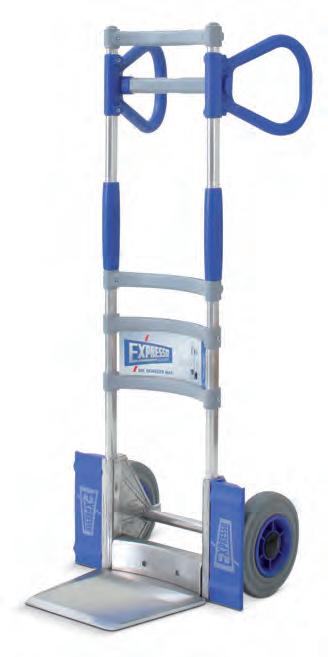

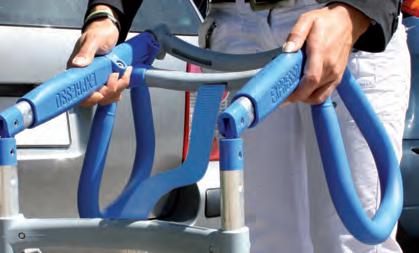

DOG-EAR HANDLE
The closed dog-ear handle allows different gripping positions and therefore a constantly upright posture when traversing with the centre of gravity.

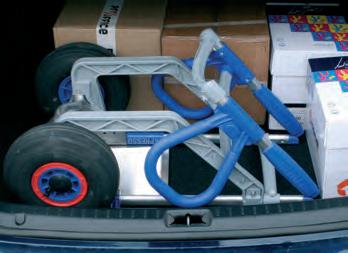

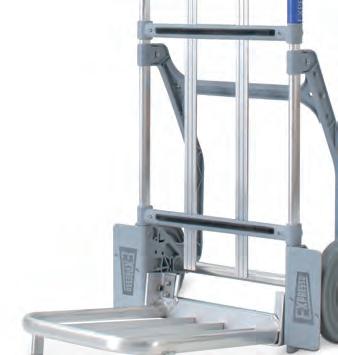

SPACE-SAVING
Thanks to the folding spade and the folding strut, this EXPRESSO equipment can be stowed away particularly space-efficiently in passenger cars and vans.

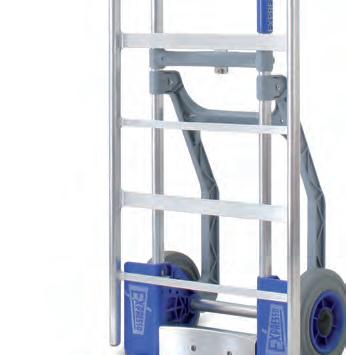

FLEXIBLE CENTRE STRUTS
Folding hand trucks can also be equipped with centre struts. These are then fitted with flexible clamping rubber in the upper section.
FOLDING HAND TRUCKS

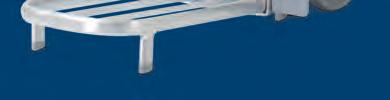

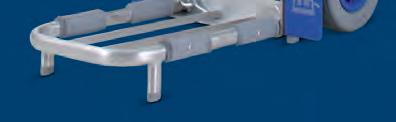

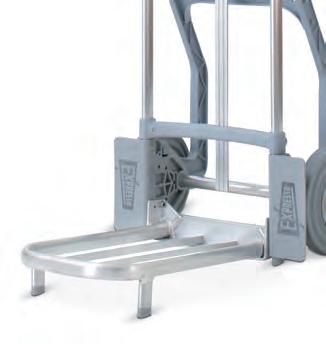

All tubular shovels are equipped with supporting feet. These protect your load against damage, moisture and dirt.

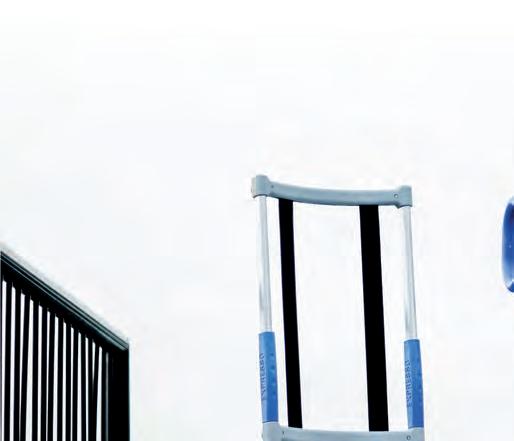

DEEP-FROZEN FOOD AND CONVENIENCE PRODUCTS TRUCKS

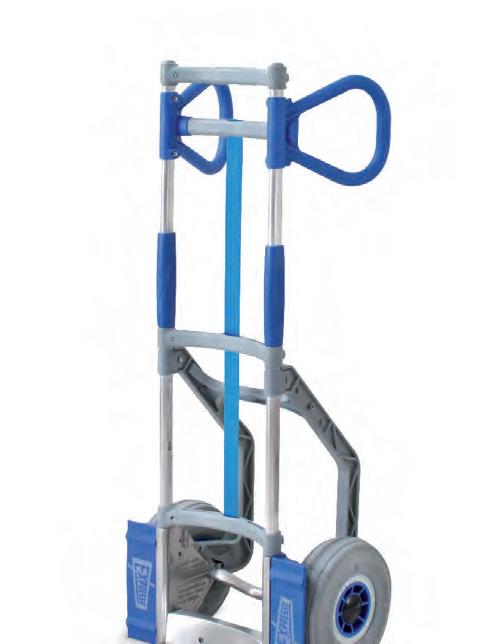

STRAP
Thanks to the strap and the supporting skids, the deep-frozen food and convenience products truck can be pulled up and lowered comfortably and safely over the steps of the refrigerated lorry.

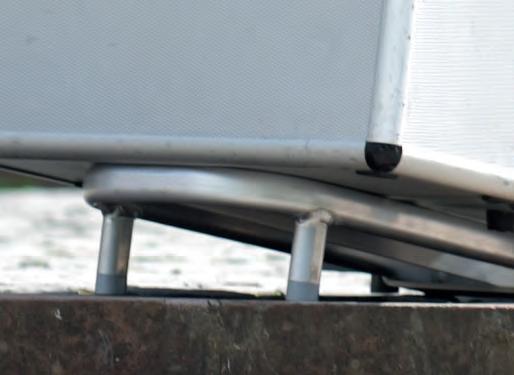

SUPPORTING SKIDS
More safety when delivering: The supporting skids facilitate the traversing of obstacles, e.g. curbs, ledges and smaller steps.

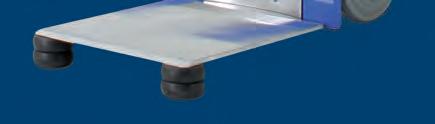

SUPPORT FEET
The special support feet on the precision spades prevent contamination and damage to sensitive goods and protect against moisture.
VEHICLE HAND TRUCKS
The centre struts prevent little parcels from sliding through. They can be easily retrofitted to many EXPRESSO hand trucks. An overview of our accessories can be found on the back pages of the brochure.
VEHICLE HAND TRUCKS

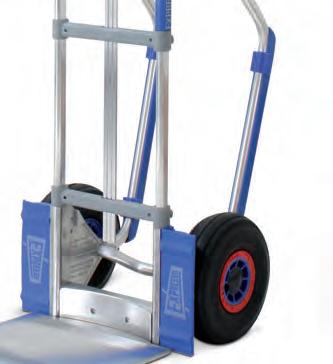

CURVED AXLE
The continuously curved shape of the axle facilitates tilting even with heavy loads and prevents the foot from slipping.

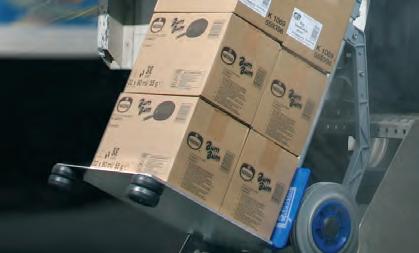

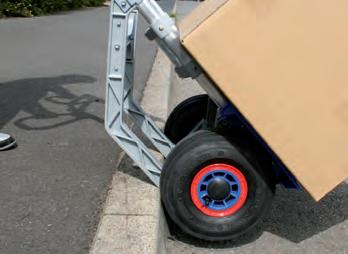

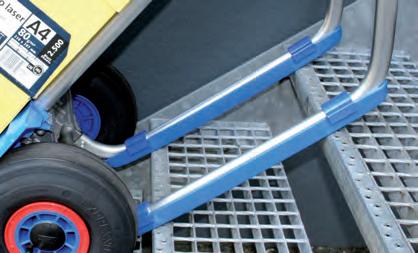

SUPPORTING SKID

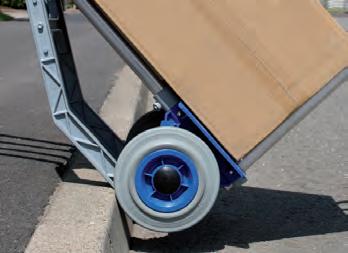

The small supporting skids help overcome curbs and steps. This has advantages in terms of safety when delivering in cities.

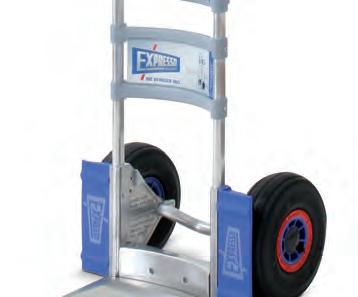

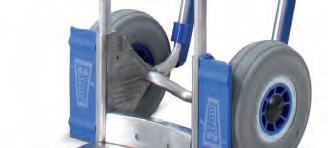

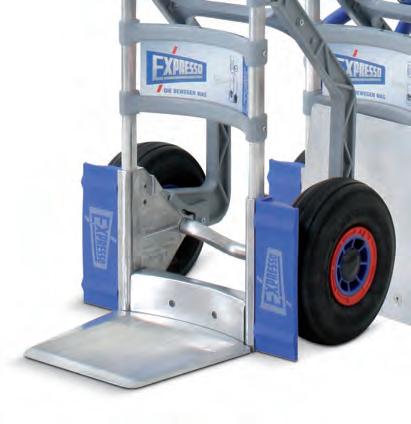

WHEEL GUARD
The blue wheel guards made of EXLAN plastic prevent contamination and damage to delicate goods.

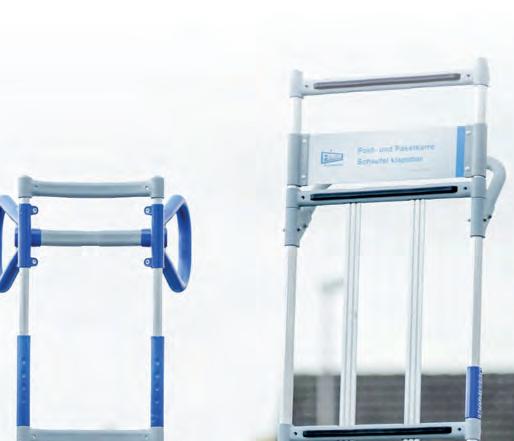

MAIL AND PARCEL HAND TRUCKS

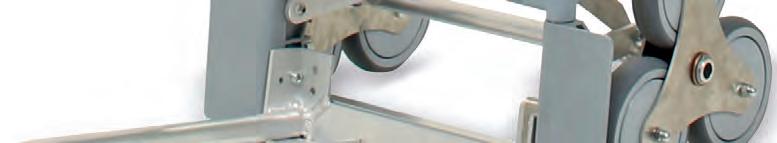

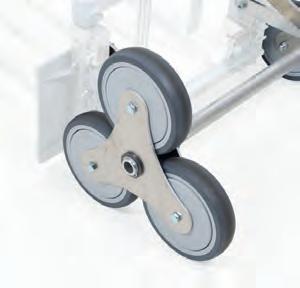

Unbeatable: Type 823 280 1155 with 3-wheel mechanism for controlled climbing of steps, including cross members with integrated anti-slip stripes.
CENTRE STRUT
The additional centre struts of the hand trucks prevent smaller parcels from sliding through. That’s not only useful but also safe.
MAIL AND PARCEL HAND TRUCKS

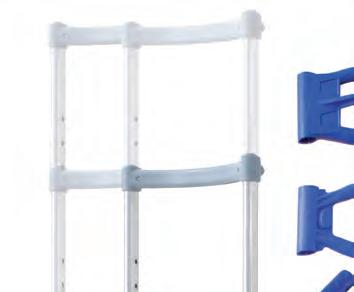

STRAIGHT CROSSMEMBERS
All hand trucks are also available with straight cross members. Packages, crates and cartons therefore have even better support on the upright, for safe transportation.
NET
Smaller mail deliveries can be stored in the hookin net and are quickly ready to hand thanks to the practical attachment on the back.
MAIL AND PARCEL HAND TRUCKS
The distribution of flyers and newspapers must be smooth and fast. A space-saving and handy companion therefore is an important aid. On request, we can deliver all spade footplates foldable – at no extra charge.
MAIL AND PARCEL HAND TRUCKS

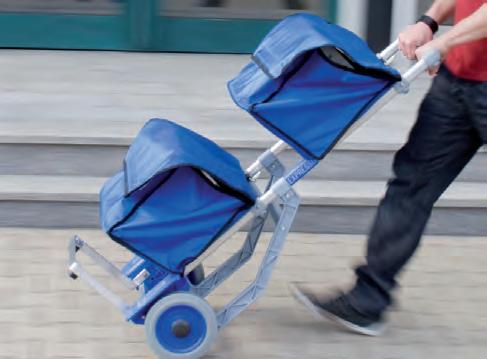

ACCESSORY BAGS
The accessory bags Type 01012 made of heavy-duty plastic fabric make the distribution of flyers and newspapers easier and more convenient.
INDIVIDUAL ACCESSORIES

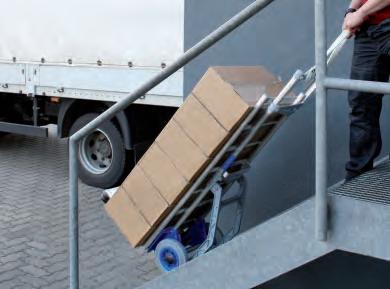

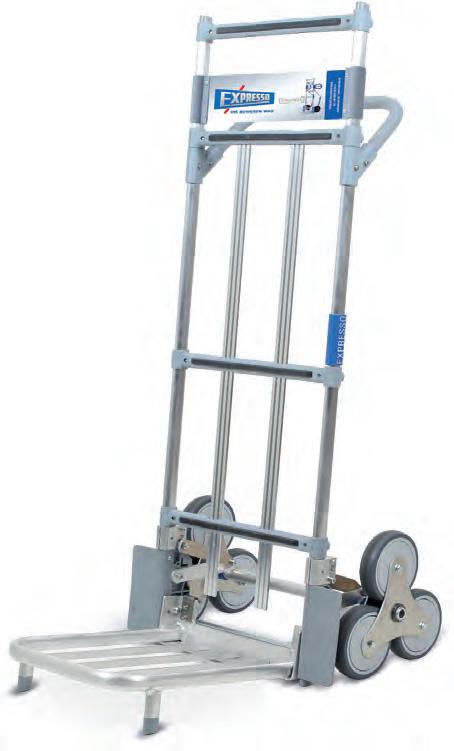

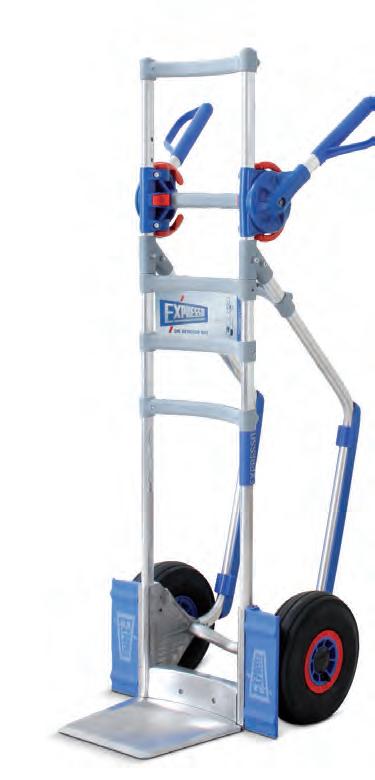

Transport equipment by professionals for professionals: The light, folding hand trucks with individual accessories are indispensable companions for service staff.

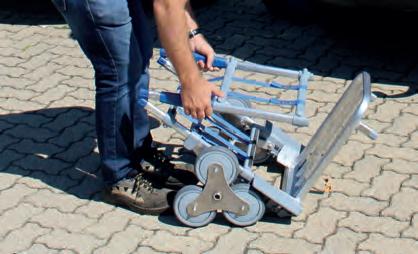

FOLDING MECHANISM
The stair climber can be collapsed to save space and is therefore ideal for transport in passenger cars. Safety sleeves made of high-quality special plastic (EXLAN) secure the folding mechanism on the uprights.

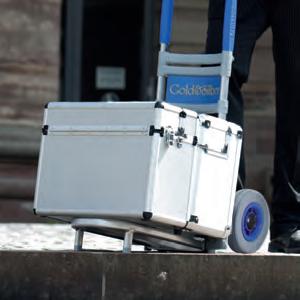

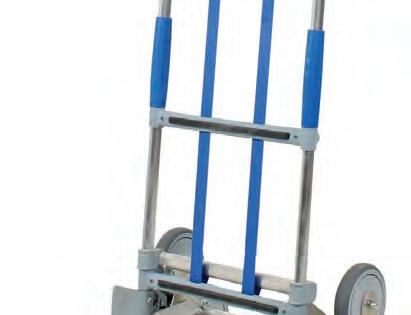

BAGGAGE HAND TRUCKS
The folding baggage hand truck Type 201 277 45 is small and manoeuvrable and can therefore be stowed away particularly space-efficient in the foyer or entrance area.
BAGGAGE HAND TRUCKS

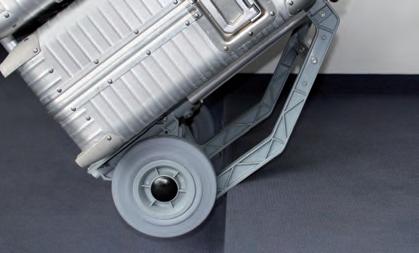

SUPPORTING SKIDS
DThe grey supporting skids facilitate the traversing of stairs and smaller steps and thus secure your guests’ sensitive baggage.

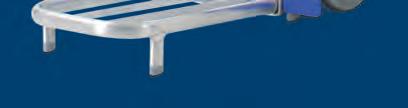

SUPPORT FEET

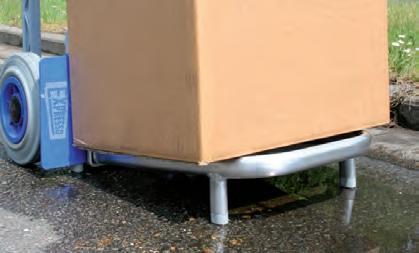

The support feet of the folding tubular shovels protect your load against damage, moisture and dirt.

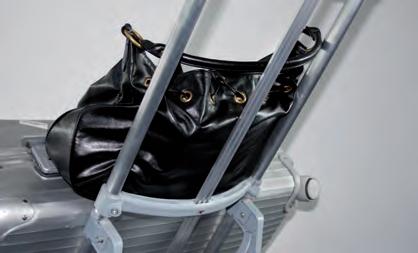

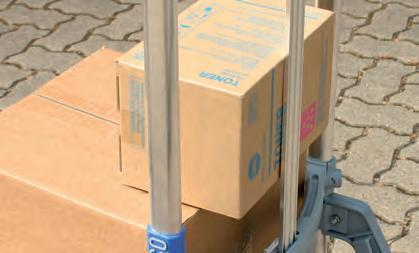

CENTRE STRUTS
The baggage hand trucks are light and versatile. Centre struts prevent little pieces of baggage from sliding through.
PARCEL AND SERVICE HAND TRUCKS
The bow-shaped handle with a hand-friendly, anti-slip plastic coating allows many different ergonomic gripping positions.
PARCEL AND SERVICE HAND TRUCKS
SHOVEL EXTENSION
The type 1340 shovel extension (see page 24) increases the loading volume many times over.
CROSSMEMBERS
The upper, glass-fibre reinforced crossmember serves as a handle, for example, for the safe transport of the goods over stairs. The curved shape protects the hands from injury caused by the load.
SUPPORT FEET
The support feet of the folding tubular shovels protect your delicate load against damage, moisture and dirt.
ACCESSORIES

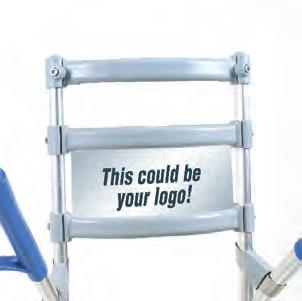

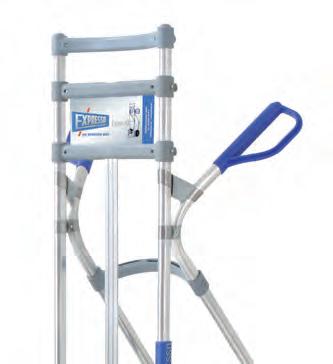

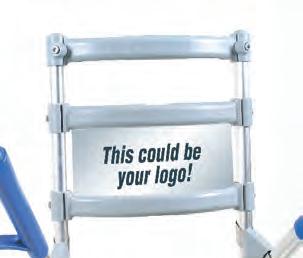

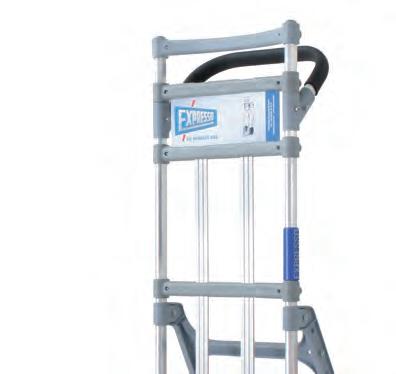

ADVERTISING AND LABELING PANELCENTRE STRUT

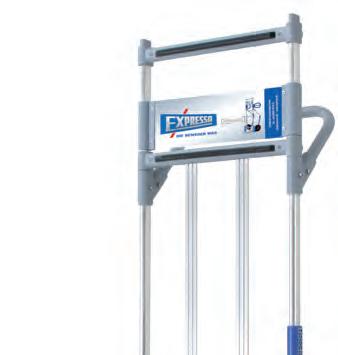

All EXPRESSO hand trucks can be equipped with the proven EXPRESSO advertising panel. One side can be customised with your logo/lettering for an additional charge. Your hand trucks already in use can be retrofitted for a fee.
Type 108001* for hand trucks with 440 mm axle width
Type 108203* for hand trucks with 510 mm axle width
Type 1083* for hand trucks with 530 mm axle width
(*Type no. + G for hand trucks with straight crossmembers)

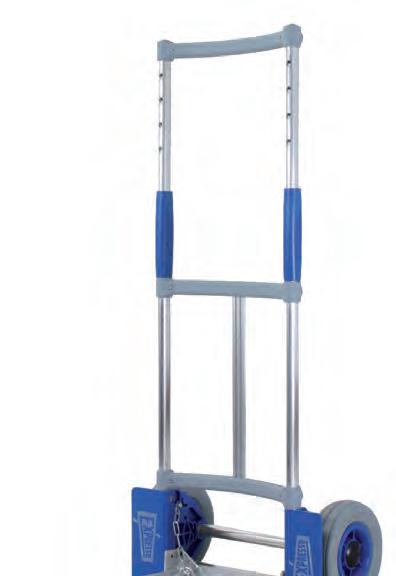

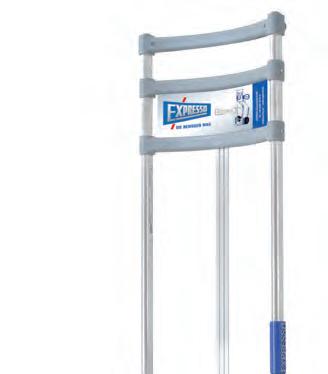

UPRIGHT EXTENSION
Extendable up to 400 mm, for the transport of particularly high loads for hand trucks with an axle width of 405 mm and 440 mm. The load capacity of the extended, upright section is reduced to 30 kg. The upper crossmember cannot be used as a handle!
Type 1093 for folding hand trucks
Type 1193 for hand trucks
Prevents small parcels from sliding through
Type 1190* for hand trucks with safety handles
Type 1191* for folding hand truck Type 2 851 ...
Type 1196* for hand trucks with dog-ear handles and CLICK4 handle design
Type 1194* Webbing strap for folding hand trucks (see fig. right)
(*Type no. + G for hand trucks with straight crossmembers)

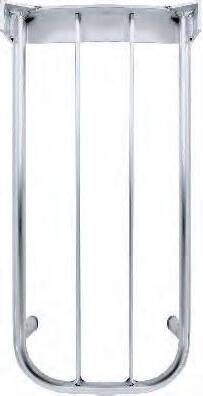

LOAD AREA EXTENSION 1
Allows the transport of wide, bulky goods and increases the loading capacity
Type 131001 (W x H: 440 x 1,100 mm) for hand truck Type 5 230 42
LOAD AREA EXTENSION 2
For increasing the contact area and safe transport of very wide goods (W x H: 480 x 1,000 mm)
Type 119702 for all hand trucks with a minimum height of 1,300 mm

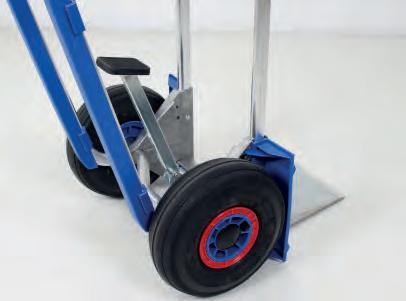

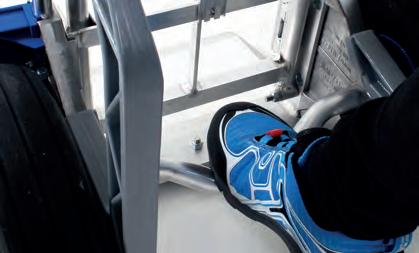

FOLDING TILTING AID (PEDAL)
Facilitates the exhausting tilting processes by 30 %
Type 117305 for all hand trucks with curved shovel backs (not possible for folding shovels)
SIDE RETAINER BRACKET
Adjustable in three stages to widths 410 mm, 550 mm and 610 mm (internal dimension) for the safe transport of bulky, voluminous goods (e.g. dual stacks); ideal for service trucks with varying loads
Type 1220 (150 mm length) for all hand trucks
Type 1220400 (400 mm length) for all hand trucks
Type 1455 (440 mm length) for hand trucks with an axle width of 530 mm
ACCESSORIES

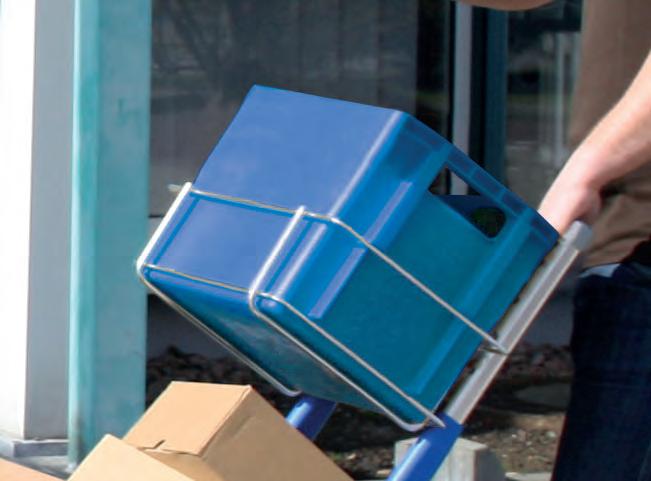

TILTING AID AND RETAINER CLIP
Adjustable, hooks into the cross member, prevents the load from moving when tilting the hand truck, keeps the load on the upright, for safe transportation of e.g. appliances
Type 1179 for all multi-purpose hand trucks with dog-ear handles with hand guards
Type 117902 for all hand trucks with 440 mm axle width and a height of 1,300 mm
Type 117903 for all hand trucks with 510 mm axle width and a height of 1,300 mm

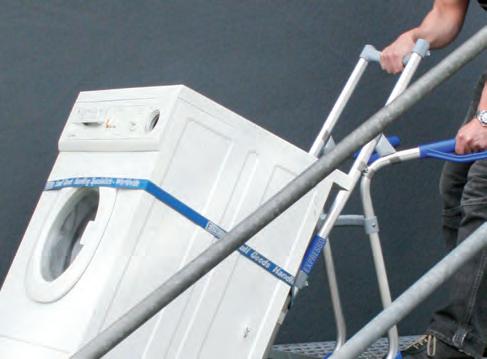

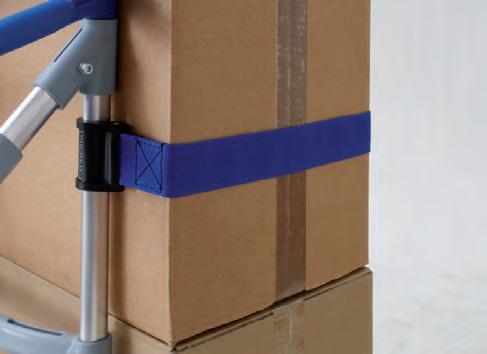

CLIPFIX LASHING STRAP
For the securing of bulky goods on hand trucks, for clipping onto the upright
Type 0 155 1500 (strap length 1,500 mm)
Type 0 155 2500 (strap length 2,500 mm)
Type 0 155 3500 (strap length 3,500 mm)

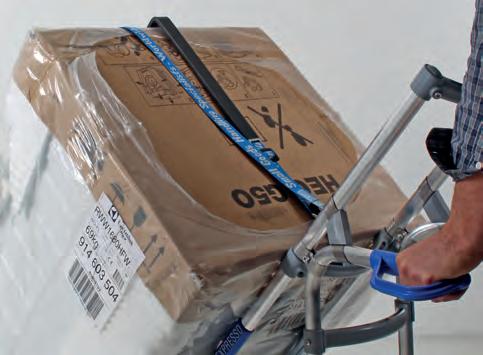

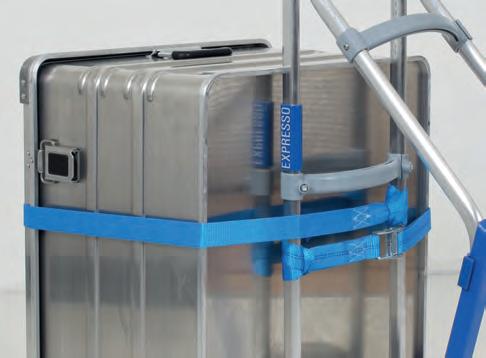

HEAVY-DUTY LASHING STRAP
Two-piece, with clamping lock for fastening and securing loads on hand trucks, load capacity up to 75 kg
Type 0 156 3700 (total strap length 3,700 mm)
With ratchet lock for fastening and securing loads on hand trucks
Type 0 155 250 (strap length 2,500 mm)
Type 0 155 350 (strap length 3,500 mm)
LASHING STRAP
CARRYING FRAME
Carrying frame for easy transport of heavy goods up and down stairs with two persons – the different type numbers refer to the respective axle widths of the hand truck type.
Type 1172 for 440 mm axle width
Type 1176 for 600 mm axle width
Type 1178 for 510 mm axle width
WIRE BASKET
Weather-resistant, since it is made of electrolytically galvanized steel – ideal for plastic crates
Type 090 for mail and parcel trucks Type 851 276 4502 (see p. 21)
Internal dimension: (W x H) 465 x 265 mm

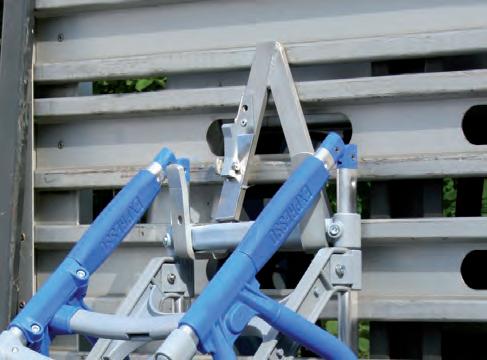

ALUMINIUM STOWING HANGER
With automatic locking –ideal for vans, warehouses and garages
Type 1166
MAIL / BROCHURE DELIVERY BAG
Made from durable plastic weave for the delivery of letters, advertising and brochure materials
Type 01012 for mail and parcel trucks Type 821 274 45 (see p. 21)
External dimensions: (L x W x H) 240 x 420 x 300 mm
EXPRESSO SPARE PARTS
Our devices are subjected to strict quality controls. However, if a wearing part needs to be replaced, please make use of our spare parts service. Thus the transport equipment is always in perfect condition and its service life increases many times over. Order forms with all individual parts listed are available for many hand trucks of our product range. Simply place your order by e-mail, fax or telephone.

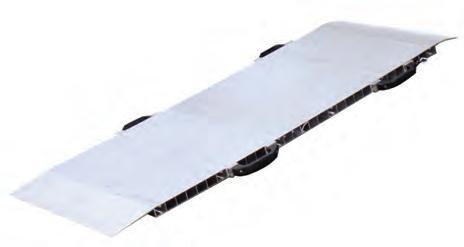

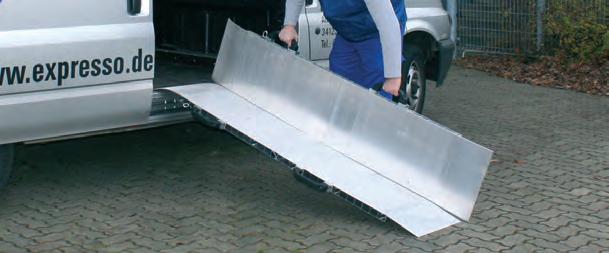

FOLDABLE LOADING RAMPS
TYPE N 8 772 44
Since it can be divided and folded up, the loading ramp Type N 8 772 44 can be easily transported in the vehicle. It is thus available for loading procedures at all times.

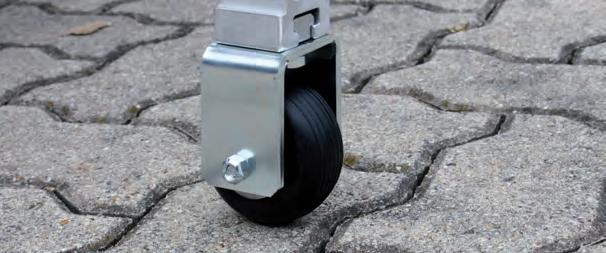

SMOOTH RUNNING WHEEL
Smooth running wheel Type 1067 as attachement to transport the foldable loading ramp ergonomically to the place of use. Saves time and constributes to the health of the employees.
EXPRESSO PRODUCT VARIETY
PRODUCT RANGES
MANUAL TRANSPORT EQUIPMENT
Here you will find intelligent products that will facilitate your manual work and make handling and moving processes safer, gentler and more efficient. This includes Hand trucks, pallet trucks, four-wheel trolleys and baggage cart systems
POWERED TRANSPORT SYSTEMS
In this area you will find motorised solutions used for lifting, handling and transporting goods of all kinds. lift2move and BalanceLift systems
SAFETY AND LOADING TECHNOLOGY
Our diverse range will offer you everything in the field of loading technology that enables, simplifies and increases the safety of loading and unloading vehicles. Here you will find both products for carrying in vehicles and solutions bound to buildings. Ramp safety and loading equipment
SMART RETAIL SMARTFAMILY
With our Smart Retail solutions, you can optimise business processes and improve customer service and customer satisfaction. SmartShopper
