EXPRESSO DEUTSCHLAND GMBH & CO. KG –YOUR
PARTNER FOR TRANSPORT SOLUTIONS
For over 70 years, we have been assisting people all over the world with solutions for handling valuable and heavy goods. In close cooperation with our customers, we develop individual professional products for industry and trade. Our high-quality manual transport equipment, motorised transport systems, and handling solutions close the gap between lifting by hand and moving by forklift truck. They increase the efficiency of work processes as they facilitate, simplify and accelerate. In the process, human health is a central theme in the development of every product.
With our product innovations, we increase the ergonomics and efficiency of work equipment and thus improve the conditions for keeping people healthy at work. In the process, environmental aspects are consistently included all considerations. We continually optimise energy and raw material use according to ecological criteria in order to sustainably protect the environment.n.
EXPRESSO
– YOU CAN HANDLE IT
WE ARE AWARD WINNERS.
QUALITY BY UNIQUE DESIGN

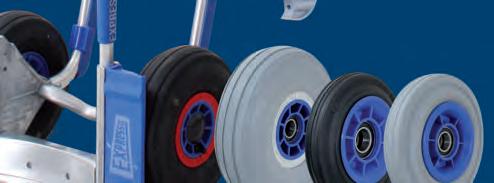

MAKING SURE THAT EVERYTHING RUNS SMOOTHLY –OUR
QUALITY WHEELS
We offer you the optimum quality wheel for every floor condition and every purpose. Choose from different wheels with equal diameter – they are generally interchangeable! The last two digits of the hand truck type number usually indicate the wheel number. The carcass structure of pneumatic wheels ensures maximum load capacity with minimum rolling resistance. All wheels are odourless and equipped with two water- and dust-proof grooved ball bearings.
PROVEN FOR DECADES
The pneumatic wheel No. 21 with radial tread has been popular with our customers all over the world since the 1960s. It features an unsurpassed, high-quality carcass structure that ensures maximum load capacity.
The AIRLEX wheel No. 25 commenced its success story in 1998 as the “unflattable wheel”. Especially in the beverage industry, this wheel with radial tread makes a significant contribution to economic efficiency, because it boasts a five time longer service life due to its material properties – it is made of polyurethane and contains thousands of microcellular air bubbles. Both wheel types offer minimum rolling resistance, very good shock absorption on uneven floors and are enormously directionally stable.

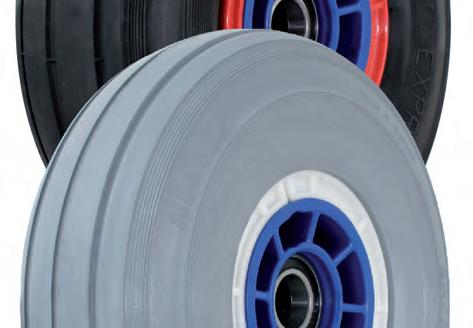

NOW YOU GET TO CHOOSE
Which wheel do you prefer on your custom EXPRESSO hand truck. Please see our wheel variants on the right. We are also happy to advise you!

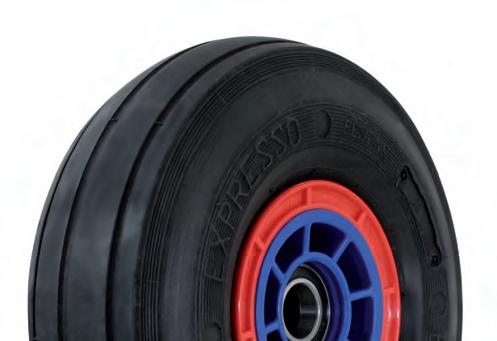

NR. 21 – THE PNEUMATIC WHEEL
The epitome of convenient, professional transport for decades

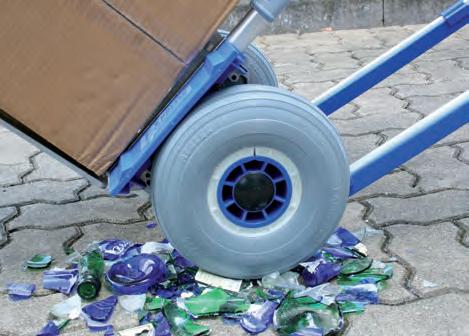

NR. 25 – THE UNFLATTABLE WHEEL
The AIRLEX wheel: proven since 1998 and preferred in the beverage industry
EXLAN WHEEL RIM
One-piece, with two water- and dust-proof grooved ball bearings, tool-free fitting, the tyres are fitted on the rim and secured with the circlip.
NO. 21 – Ø 260 MM
NO. 24 – Ø 260 MM
Pneumatic wheel with radial tread, minimum rolling resistance, even on uneven floors very good shock absorption
Heavy-duty pneumatic wheel with radial tread, reinforced, minimum rolling resistance, very good shock absorption even on uneven floors
matic
NO. 42 – Ø 200 MM
Airelastic flat tread, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, light grey, non-marking even on the most delicate floors
NO. 22 – Ø 260 MM
Pneumatic wheel with lug tread, low rolling resistance, even on uneven floors very good shock absorption
NO. 25 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, light grey, non-marking, radial tread, very good shock absorption, low rolling resistance, very long service life
NO.
71 – Ø 175 MM
Airelastic flat tread, light grey, two-component wheel with high elasticity, quiet and smooth running, good shock absorption, non-marking even on delicate floors
NO. 45 – Ø 200 MM
Airelastic flat tread, non-marking and unflattable, made of high-quality polyurethane, good elasticity and very good shock absorption, wide rolling surface, quiet running, maintenance-free
n m p e g w q m
NO. 05 – Ø 160 MM
Smooth-running flat tread, good elasticity, quiet running, low rolling resistance
g q ro
NO. 26 – Ø 260 MM
AIRLEX, no flat wheel risk, foamed polyurethane, black, radial tread, very good shock absorption, low rolling resistance, very long service life
A fo b ve a lo re ve se
NO. 76 – Ø 200 MM
Smooth-running flat tread, high elasticity, quiet running, very low rolling resistance

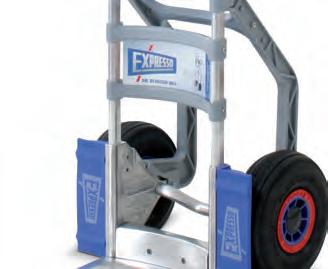

QUALITY BY UNIQUE DESIGN

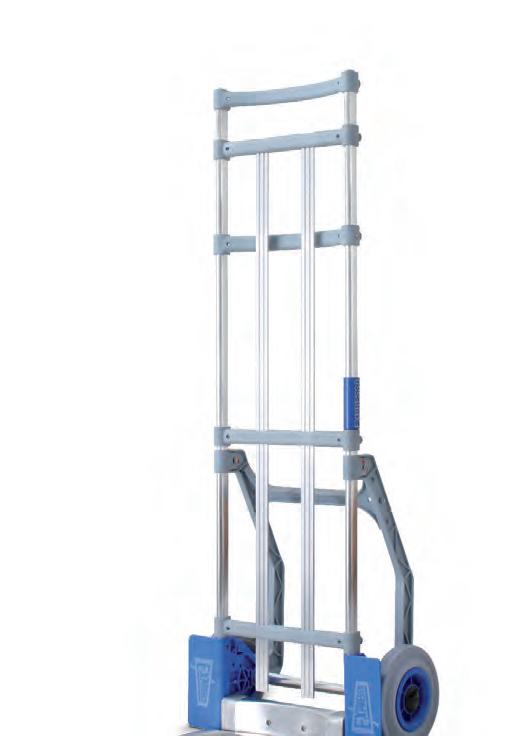

HIGH-QUALITY GLASS-FIBRE REINFORCED CROSS MEMBERS
High safety standard due to form-locked connecting element to the frame made of special alloy. The top crossmember serves as a handle, e.g. for transport over stairs.
ELLIPTIC ALUMINIUM PIPE FROM HIGH-TENSILE SPECIAL ALLOY
Frame made of elliptic aluminium pipe from high-tensile special alloy for top stability and load capacity in the main load area –50 % lighter than steel.
ACCURATELY FITTING, CONSISTENTLY PROTECTED SAFETY CONNECTIONS
Consistently and stably secured structure in the main load area through glass-fibre reinforced angle joints or double stainless steel clamps.
SLIDING SKIDS WITH WEAR INDICATOR MADE
OF EXLAN PLASTIC
For the protection of the angled aluminium skids and gentle traversing of stairs. The integrated red core indicates the skid’s degree of wear; quick exchange by clamp system.
CONTINUOUSLY CURVED AXLE
The curved shape facilitates tilting even with heavy loads and prevents the foot from slipping. The curved axle is fitted as standard on all wheels with a diameter of 260 mm.

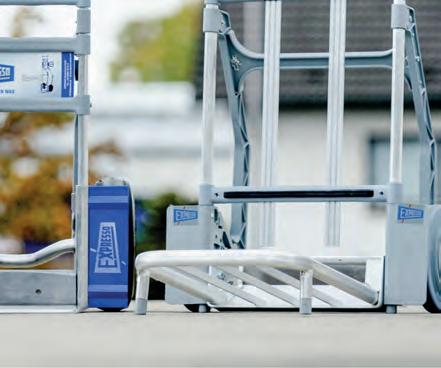

SPADE FOOTPLATES
PROFILED, PRECISION-MILLED FOOTPLATES
The perfect quality footplate for every application – choose your favourite. The tightly profiled, precision-milled spade footplate made of a special alloy prevents the loads from laterally sliding. The slightly bevelled front facilitates sliding under the load. The concave back of the shovel provides safe support for round goods, such as barrels or rolls. On request, we can also deliver all spade footplates foldable at no extra charge!
NO. 5
x 305 mm
6
x 340 mm
9
NO. 7 / NR. 8
400 x 350 mm
No. 7 with support feet No. 8 without support feet
SPECIAL FOOTPLATE NO. 1011428
200 x 500 mm
For the transport of dual stack beverage crates, see p. 14
NO. 10
SPECIAL FOOTPLATE NO. 1011425
200 x 200 mm
For the transport of dual stack beverage crates with retainer, see p. 13
SPECIAL FOOTPLATE NO. 1011520
90 x 380 mm

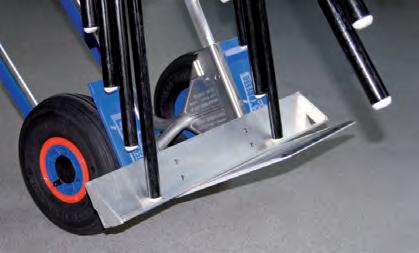

For the transport of round goods, see p. 18

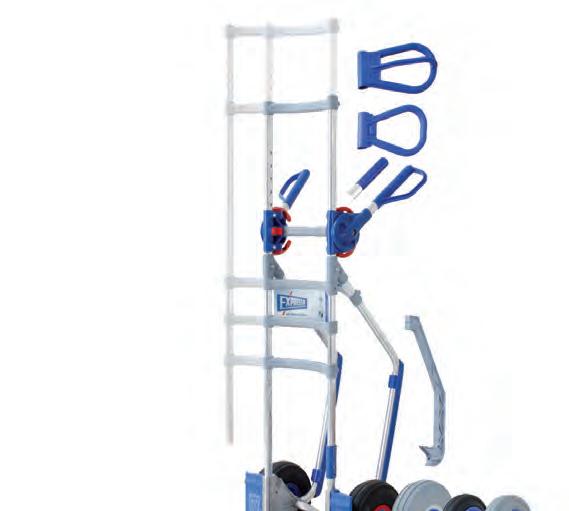

INDIVIDUALITY THANKS TO THE MODULAR SYSTEM
NOT CONVENTIONAL – INDIVIDUAL!
Not one hand truck for all purposes – your logistics requirements determine the appearance and features of your professional piece of equipment. Since 1967 the EXPRESSO modular philosophy has offered unlimited possibilities for configuring application and user-oriented transport solutions.
OVER 2,000 HAND TRUCKS FROM THE MODULAR ALUMINIUM SYSTEM – IN STOCK
The vast selection of high-quality components, such as different heights, footplates, wheels, skids and handles, creates the conditions for individual, application-oriented hand transport equipment. Because rigid equipment designs limit the application possibilities and cause high costs for maintenance and service. And if a wearing part needs to be replaced – not a problem! Each individual component is also available as a spare part.
IN-FOCUS OVERVIEW
LOAD CAPACITY, WIDTH AND HEIGHT OR HEIGHT WHEN FOLDED
The in-focus provides an at-a-glance overview of the most important technical data for the different hand trucks

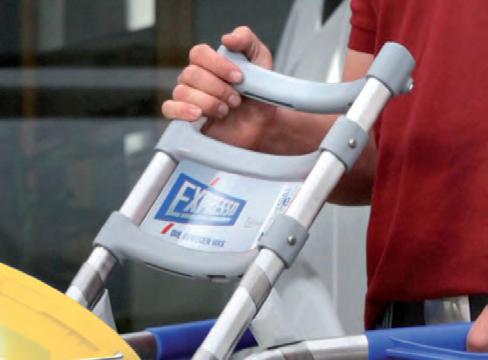

FAVOURITES
All EXPRESSO hand trucks can be equipped with the proven advertising panel. Protect your property and promote your company by customising one side with your logo/lettering for an additional charge.

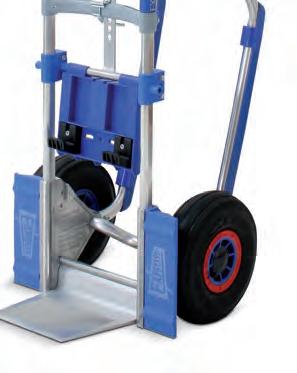

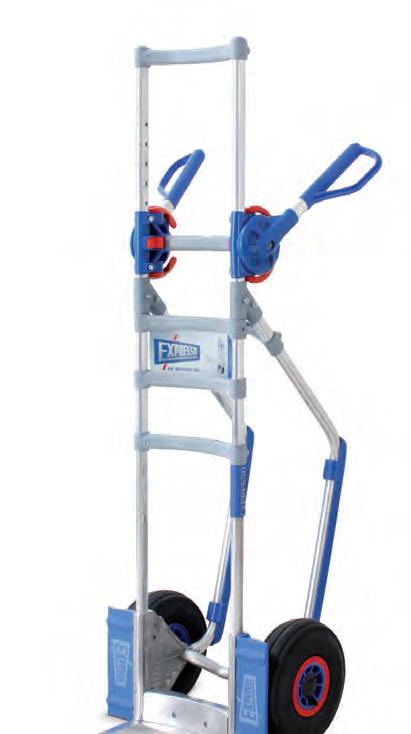

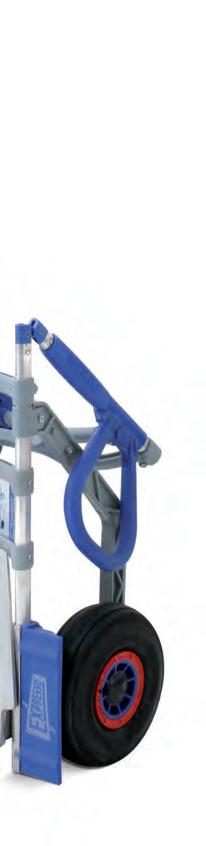

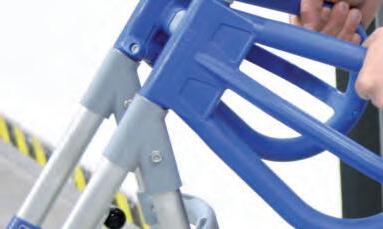

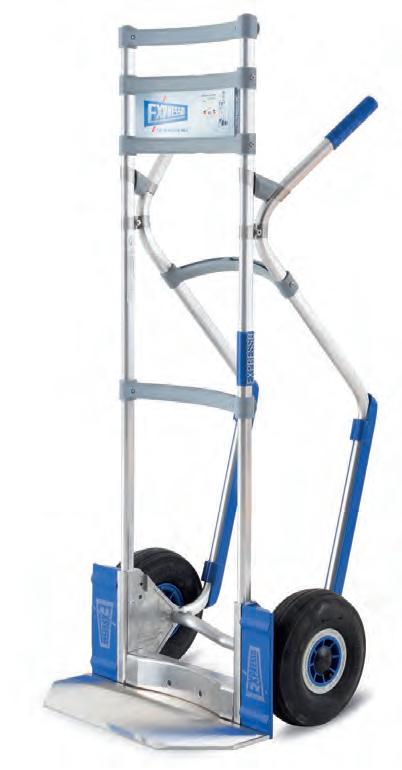

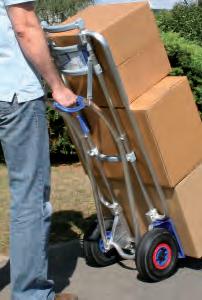

FOLDING HAND TRUCKS

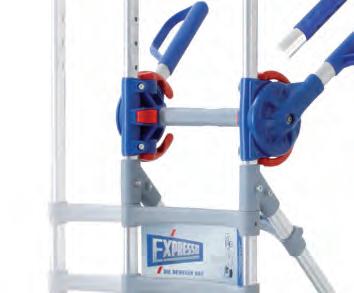

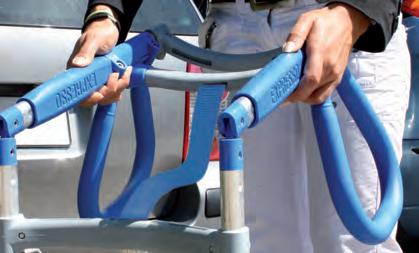

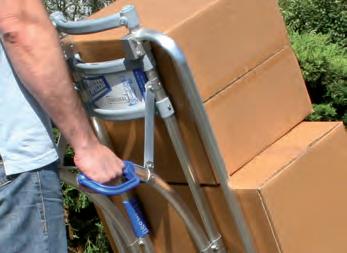

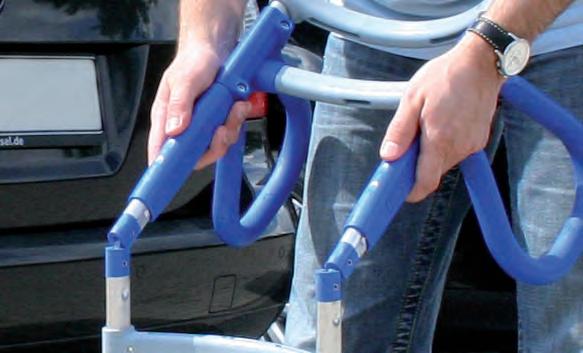

HAND-FRIENDLY

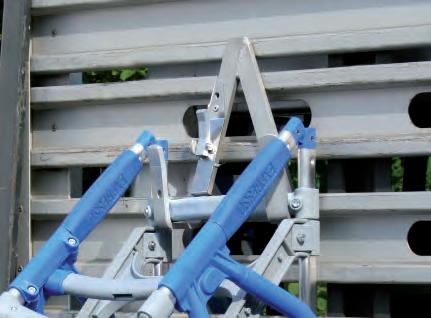

The folding mechanism of the folding EXPRESSO trucks is especially secured by hand-friendly EXLAN sliding sleeves.

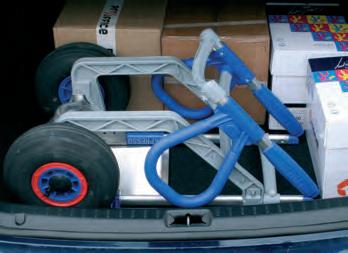

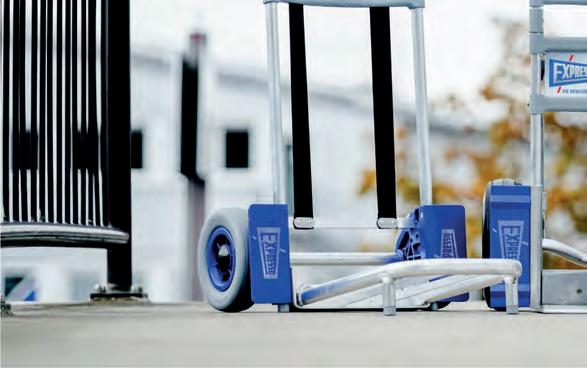

SPACE-SAVING
Thanks to the folding spade and the folding strut, this EXPRESSO equipment can be stowed away particularly space-efficiently in passenger cars and vans.

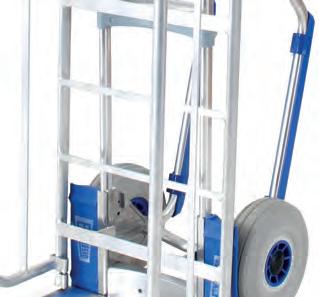

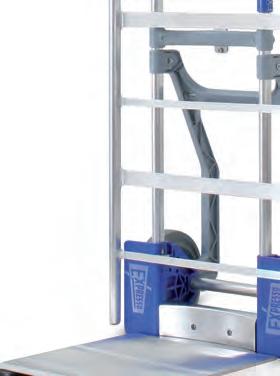

FLEXIBLE CENTRE STRUTS
Folding hand trucks can also be equipped with centre struts. These are then fitted with flexible clamping rubber in the upper section.

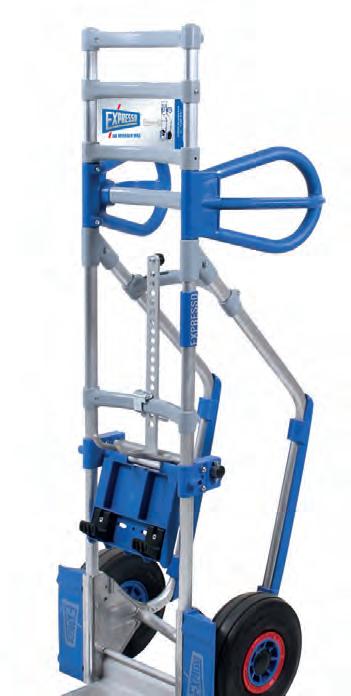

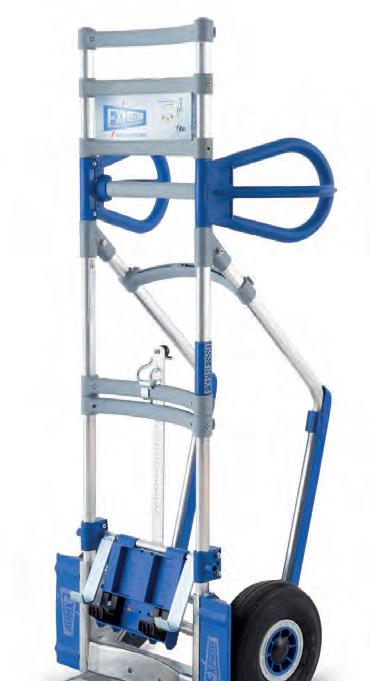

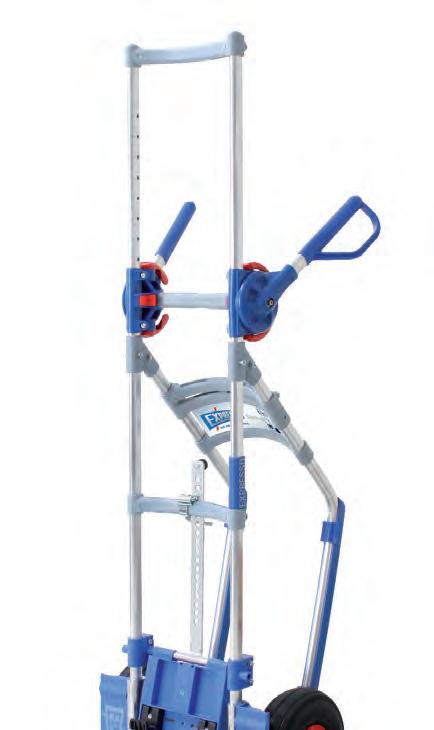

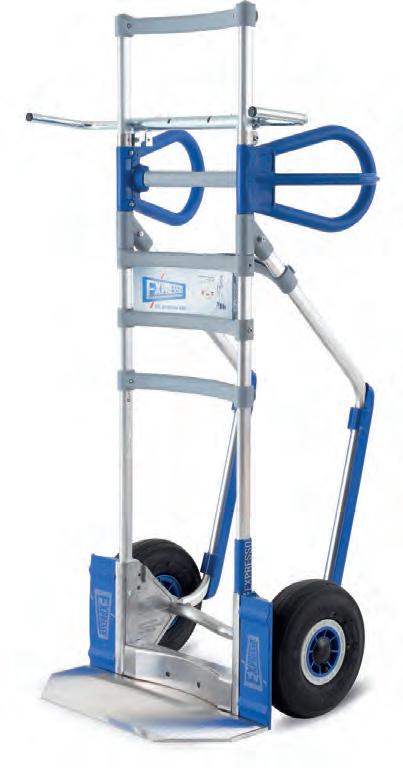

THE ADJUSTABLE RETAINER
The adjustable retainer is used to accommodate different crates of beverages. To use retainer, the spade is folded back.
BEVERAGE HAND TRUCKS WITH ADJUSTABLE RETAINER

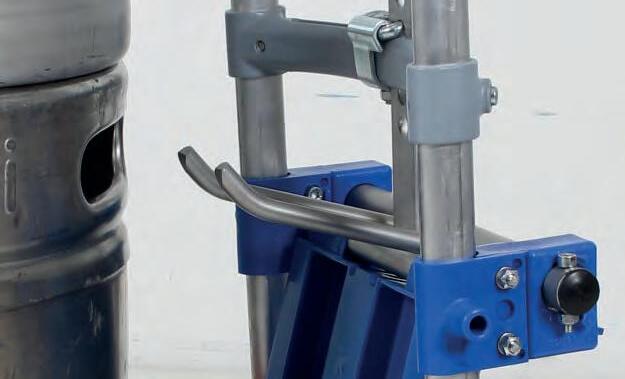

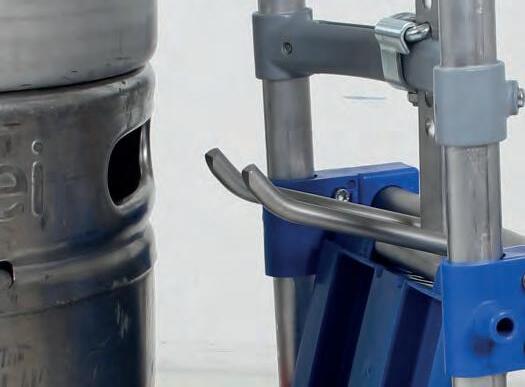

KEG HOOK
The KEG hook type 1046 enables the transport of KEG barrels of different sizes and thus facilitates the logistics of such round goods.

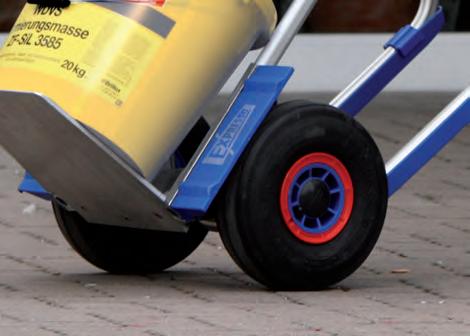

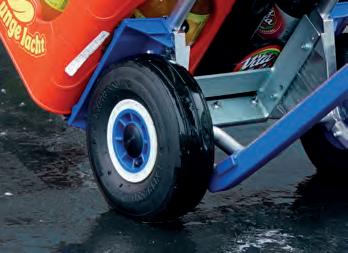

HEAVY-DUTY WHEEL
The reinforced heavy-duty pneumatic wheel no. 24 offers minimum rolling resistance and very good shock absorption, even on uneven floors. Frequently used on hand trucks that transport dual stacks of beverage crates.
LOADING AREA EXTENSION
The loading area extension Type 119702 increases the contact area and even allows, in combination with the wider load hook Type 5 200 24, the safe transport of dual stacks.

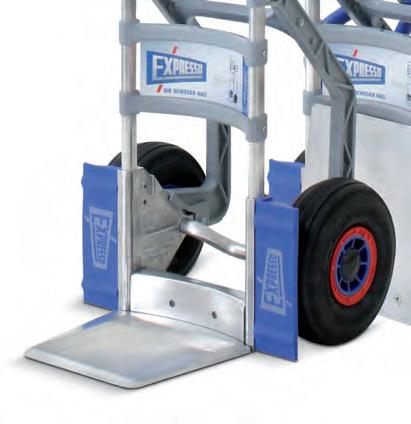

BEVERAGE AND DUAL STACK HAND TRUCKS
Industry-speci fi c detail: The special spade with angled corners is ideal for loading and unloading two stacks of beverage crates with the hand truck.

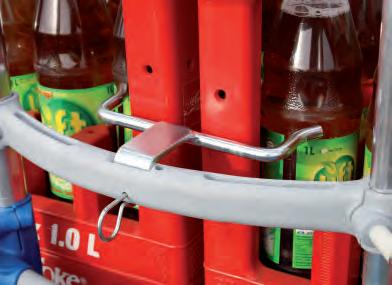

LIMITING BRACKET
The folding limiting bracket Type 1220 secures the dual stack during transport and manoeuvring. It has three settings to be able to handle different types of crates.
BEVERAGE HAND TRUCKS WITH SPECIAL ATTACHMENT

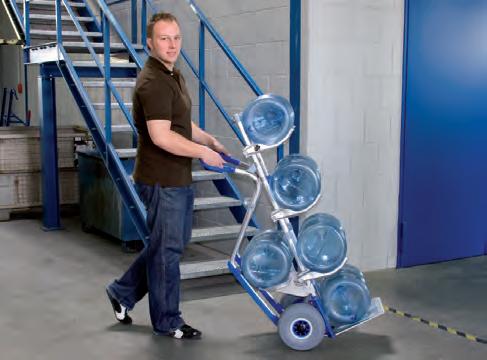

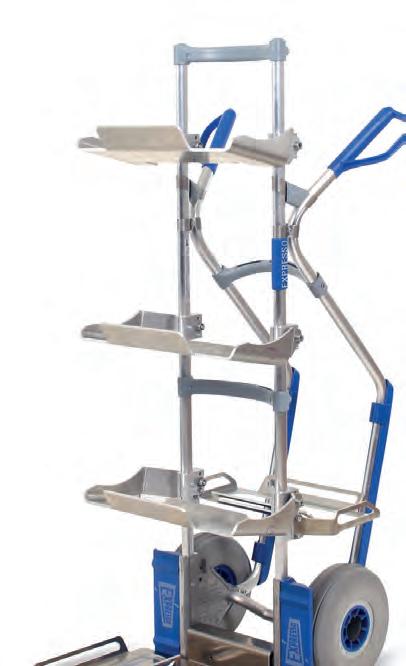

WATER BOTTLE ATTACHMENT
The water bottle truck can transport up to six gallons of water (18.9 litres). We differentiate between the attachment Type 1228 for five water gallons and Type 1229 for six water gallons.
LOADING AREA EXTENSION
The loading area extension Type 119702 increases the contact area and raises the level of safety when transporting wide goods.

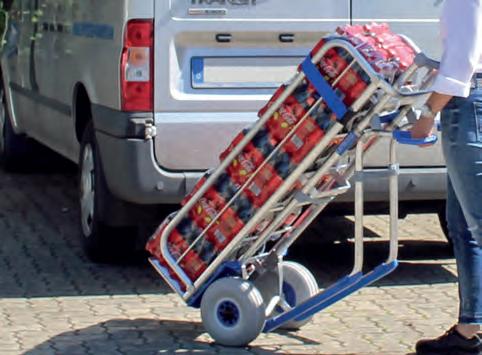

PET ATTACHMENT
This attachment increases the loading volume and also prevents the cargo from slipping sideways by means of the folding edges.
DEEP-FROZEN FOOD AND CONVENIENCE PRODUCTS TRUCKS
The special support feet on the precision spades prevent contamination and damage to sensitive goods and protect against moisture.
DEEP-FROZEN FOOD AND CONVENIENCE PRODUCTS TRUCKS

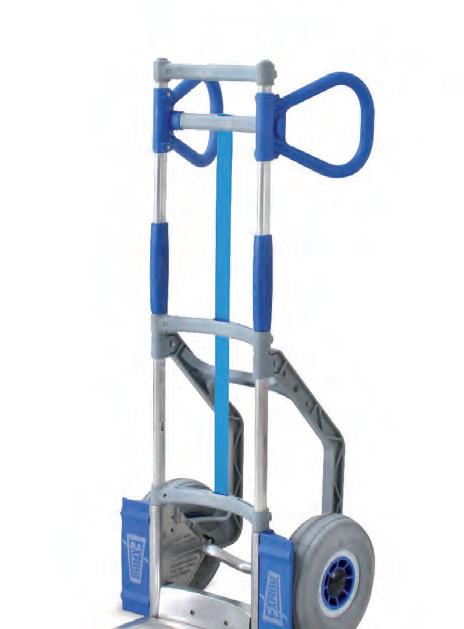

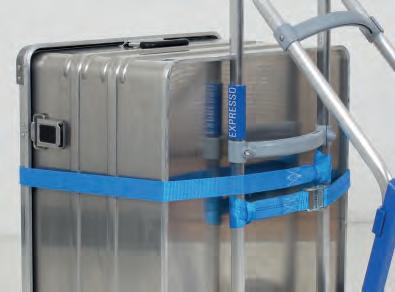

STRAP
Thanks to the strap and the supporting skids, the deep-frozen food and convenience products truck can be pulled up and lowered comfortably and safely over the steps of the refrigerated lorry.

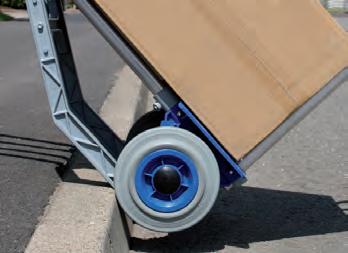

SUPPORTING SKIDS
More safety when delivering: The supporting skids facilitate the traversing of obstacles, e.g. curbs, ledges and smaller steps.

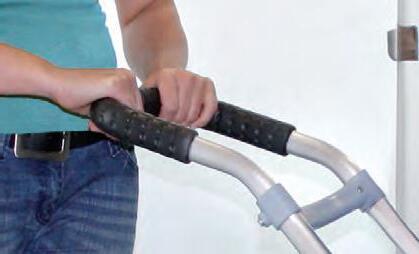

ROUND HANDLEBAR
The practical round bar offers many gripping positions and has a hand-friendly, non-slip plastic coating.

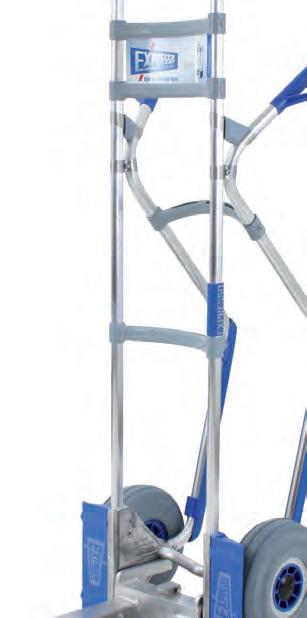

WAREHOUSE HAND TRUCKS

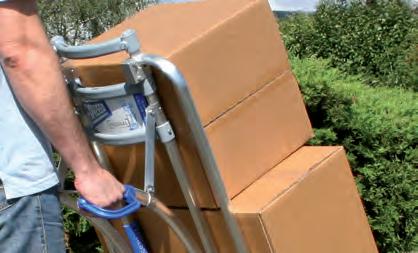

The high-pile trucks are available in heights up to 2,000 mm and with special dimensions. They are perfectly suited for transport tasks in warehouses without staircase connection.
WAREHOUSE HAND TRUCKS

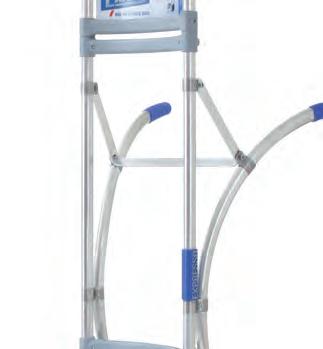

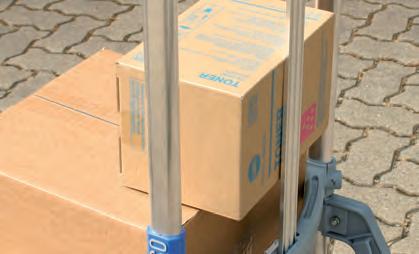

CENTRE STRUT
The additional centre struts of the hand trucks prevent smaller parcels from sliding through. That’s not only useful but also safe.

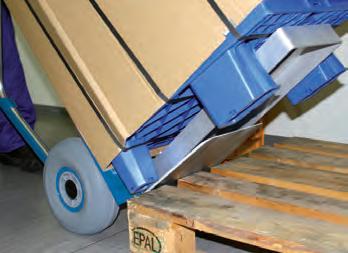

PALLET FORK

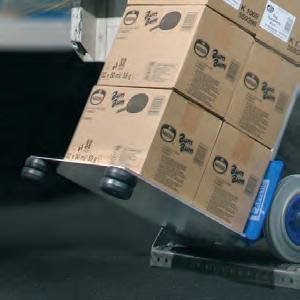

The pallet fork makes it possible to easily transport quarter pallets with a hand truck and place them on a Euro pallet without any effort.
WAREHOUSE TRUCKS
The warehouse trucks are characterised by their curved handle design. This enables easy tilting and moving of heavily laden hand trucks.

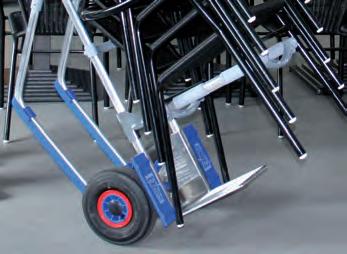

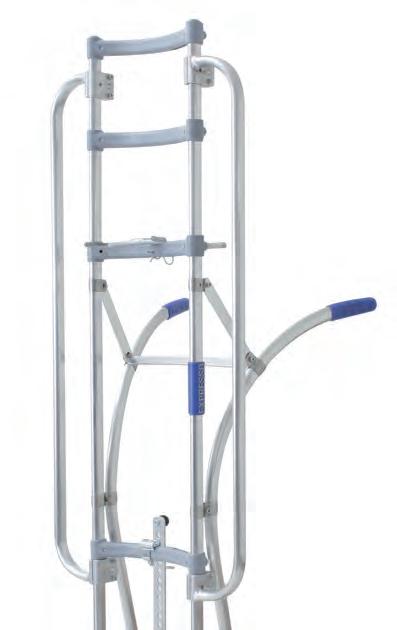

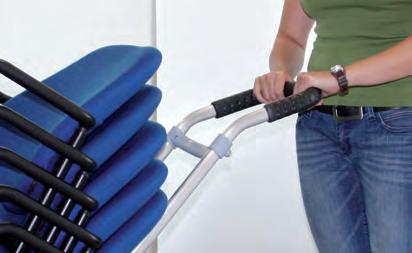

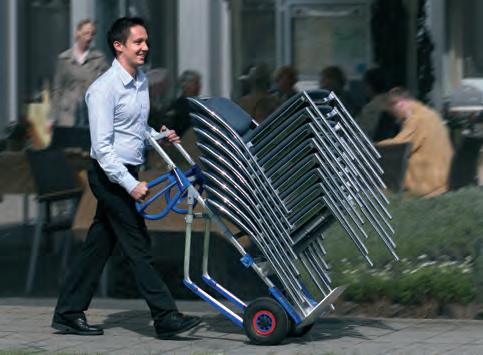

CHAIR TRANSPORT HAND TRUCKS
The height-adjustable chair attachment Type 1044 enables the efficient transport of different kinds of chairs. When not in use, it is folded up and hooked in.
CHAIR TRANSPORT HAND TRUCKS
WITH ROUND FRAME
The handy round frame has a hand-friendly, non-slip plastic coating. It provides support when moving the truck with heavy chairs. (p. 22)
CLIP-ON
The mobile, clip-on chair attachment Type 1144 is easy to use and assembly-free. Without the chair attachment, the hand truck is the perfect all-rounder.
HOOK-IN
Simple device for moving stacked chairs: the transport rail is hooked onto the shovel back and is therefore easy to attach.

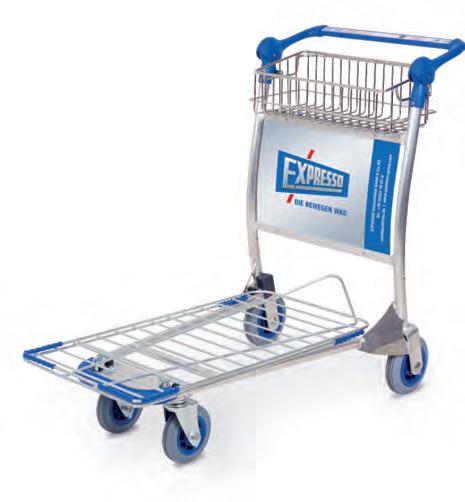

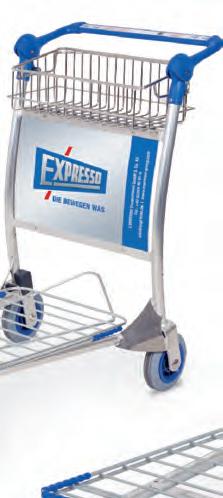

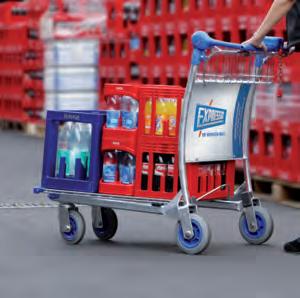

SELF-SERVICE TROLLEYS
The EXPRESSO self-service trolleys in lightweight design are available in two sizes for two or three crates in a row, are weatherproof and equipped with automatic parking brakes as standard.
Equip your self-service trolleys with coin boxes Type 087 to keep your sales room and the outdoor area tidy.
SPACE SAVING
The self-service trolleys can be nested into each other and thus save a lot of space in the salesroom or car park. Compatible with all trolleys built from 2004 onwards.
2 swivel and 2 fixed castors (Airelastik, non-marking)

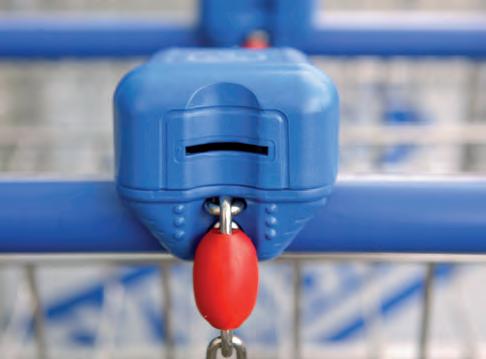

COIN BOX

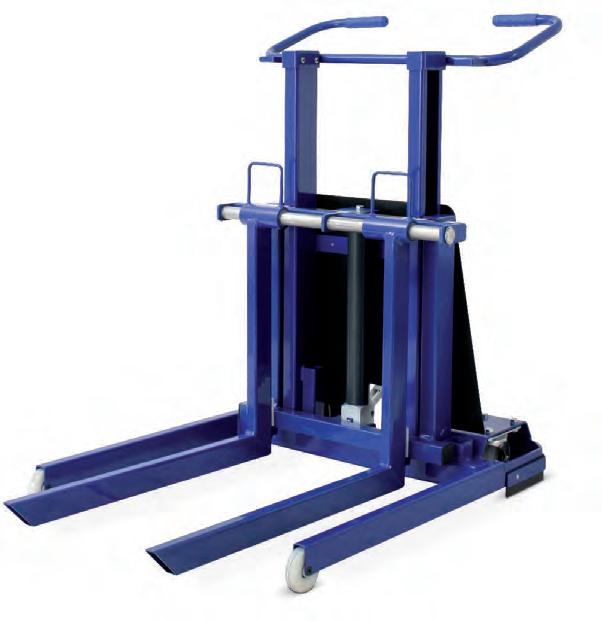

COMBINATION PALLET LIFTER

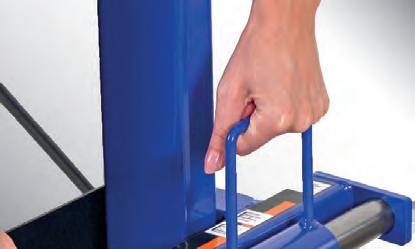

HANDLES
Adjust the fork spacing quickly and easily through the handles directly on the fork –without having to bend down.
FOOT PEDAL
Lift and lower your quarter, half CHEP or Euro pallet comfortably by foot pedal.

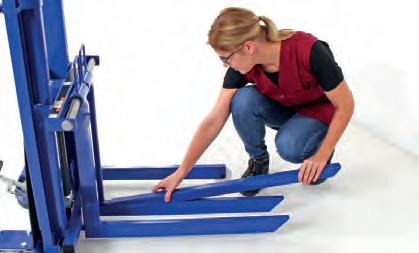

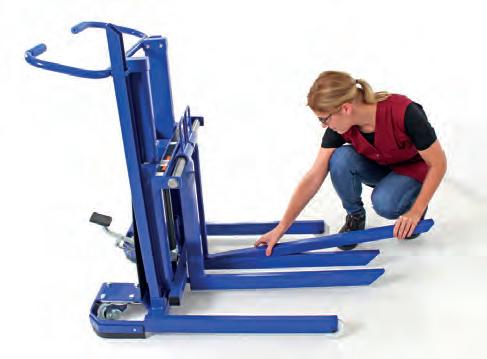

EXTENSION FORKS
The extension elements Type 1171 offer a total length of 910 mm for loading and can be carried space-efficiently directly at the combination pallet lifter.
FOR EURO, HALF AND QUARTER PALLETS
The fork length is suitable for transporting quarter and half CHEP pallets and for picking packs from roller containers. For the transport of Euro pallets, we recommend the use of our extension forks (Type 1171).
ACCESSORIES

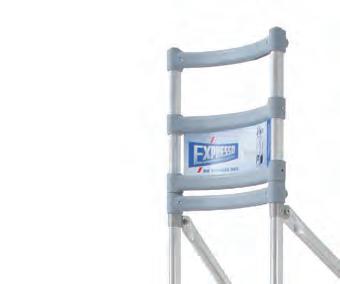

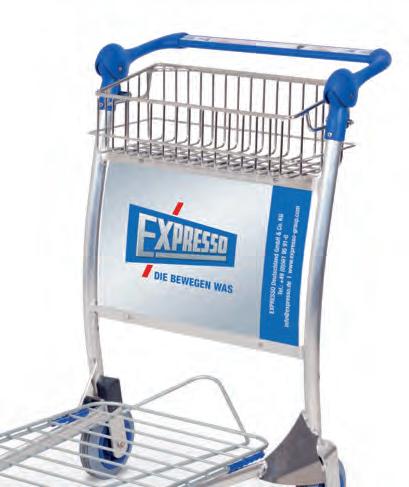

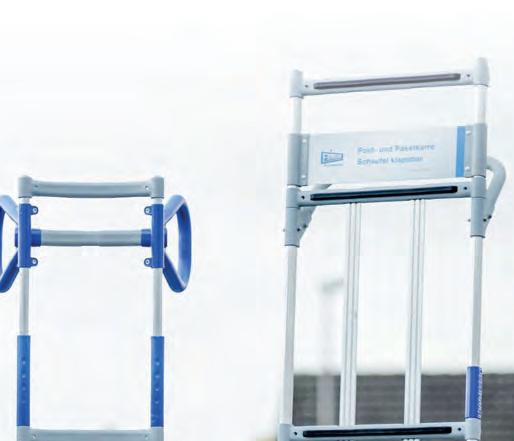

ADVERTISING AND LABELING PANEL
All EXPRESSO hand trucks can be equipped with the proven EXPRESSO advertising panel. One side can be customised with your logo/lettering for an additional charge. Your hand trucks already in use can be retrofitted for a fee.
Type 108001* for hand trucks with 440 mm axle width
Type 108203* for hand trucks with 510 mm axle width
Type 1083* for hand trucks with 530 mm axle width
(*Type
UPRIGHT EXTENSION
Extendable up to 400 mm, for the transport of particularly high loads for hand trucks with an axle width of 405 mm and 440 mm. The load capacity of the extended, upright section is reduced to 30 kg. The upper crossmember cannot be used as a handle!
Type 1093 for folding hand trucks
Type 1193 for hand trucks
CENTRE STRUT
Prevents small parcels from sliding through
Type 1190* for hand trucks with safety handles
Type 1191* for folding hand truck Type 2 851 ...
Type 1196* for hand trucks with dog-ear handles and CLICK4 handle design
Type 1194* Webbing strap for folding hand trucks (see fig. right)
(*Type no. + G for hand trucks with straight crossmembers)
SMALL PALLET
L x W: 335 x 485 mm, made of wood, facilitates and accelerates the loading process when the goods to be transported are piled on it; the load does not lie directly on dirty floors, for example.
Type 0 13 18 for all hand trucks with spade No. 1
LOAD AREA EXTENSION 1 + 2
For increasing the contact area and safe transport of very wide and bulky goods
Type 131001 (W x H: 440 x 1,100 mm) for hand truck Type 5 230 42
Type 119702 (W x H: 480 x 1,000 mm) for all hand trucks with a minimum height of 1,300 mm
SIDE RETAINER BRACKET
Adjustable in three stages to widths 410 mm, 550 mm and 610 mm (internal dimension) for the safe transport of bulky, voluminous goods (e.g. dual stacks); ideal for service trucks with varying loads
Type 1220 (150 mm length) for all hand trucks
Type 1220400 (400 mm length) for all hand trucks
Type 1455 (440 mm length) for hand trucks with an axle width of 530 mm

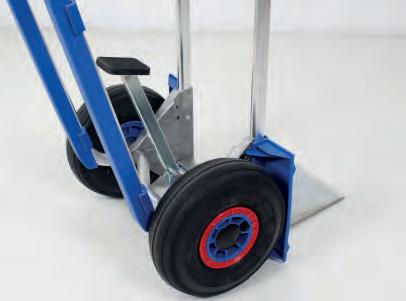

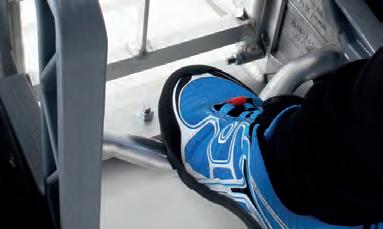

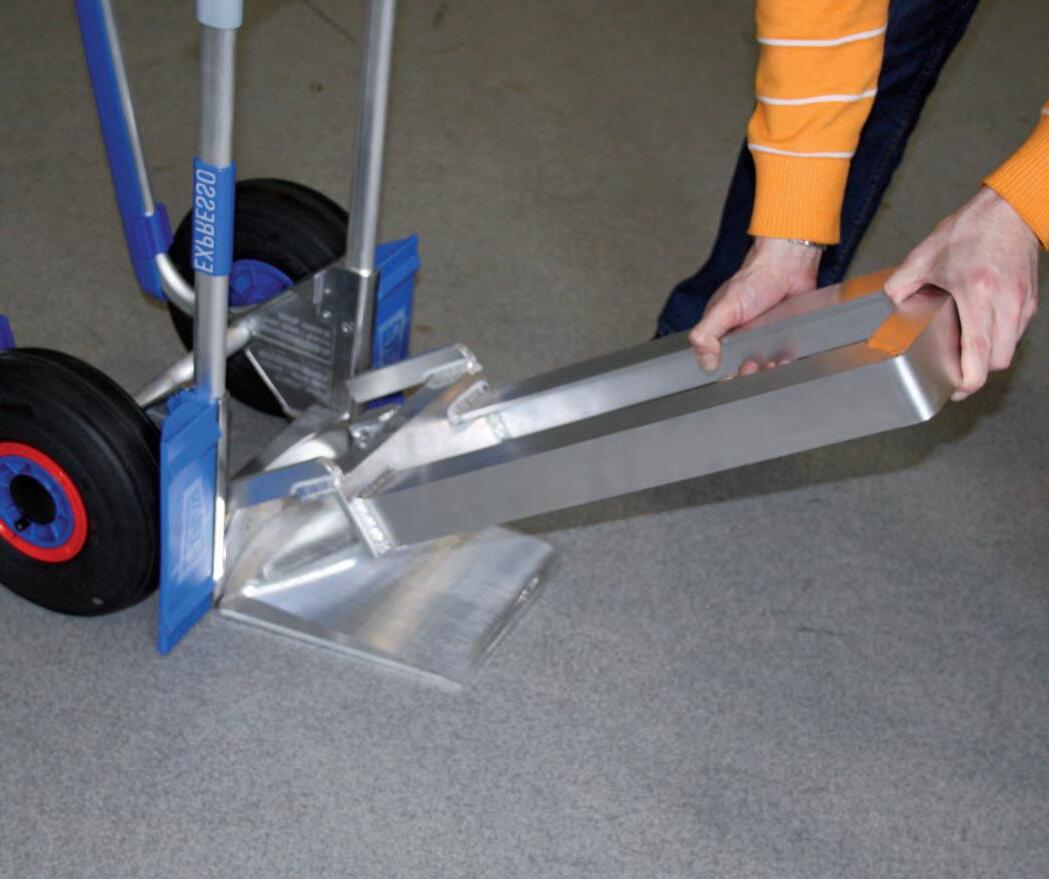

FOLDING TILTING AID (PEDAL)
Facilitates the exhausting tilting processes by 30 %
Type 117305 for all hand trucks with curved shovel backs (not possible for folding shovels)
SPACER FOR DUAL STACKS
Holds dual stacks of creates and boxes in the optimum position
Type 1023 for hand trucks with 440 mm axle width
Type 1225 for hand trucks with 510 mm axle width
ACCESSORIES

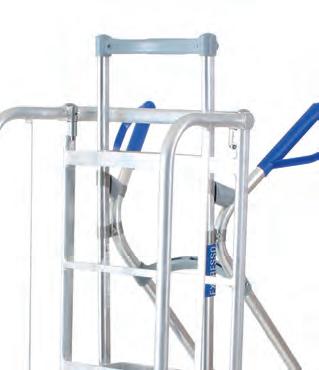

ATTACHMENT FOR PET PACKS
Increased loading volume for effective transport – the folding side frames also prevent the bulky goods from sliding laterally
Type 1311 for all hand trucks with a minimum height of 1,300 mm (W x H: 500 x 1,150 mm)
Type 131103* for hand truck Type 2 0110 25 (W x H: 410 x 1,150 mm)
*Retrofitting only possible following minor adjustment, cannot be used with straight crossmembers
QUARTER PALLET FORK
For the easy and ergonomic transport of quarter pallets. Thanks to the integrated hook, it can simply be attached to the lower crossmember and carried on the aluminium hand truck at any time.
Type 1421 for hand trucks with 440 mm axle width

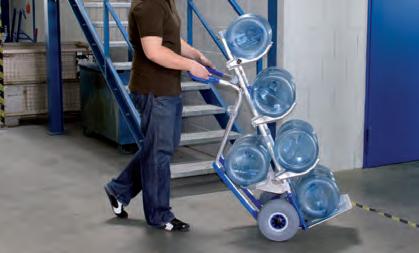

WATER BOTTLE CARRIER
For the most effective and convenient transport of up to six water bottles – the individually folding carrying attachments (load capacity 30 kg each) allow mixed loading.
Type 1228* for the transport of up to five bottles
Type 1229* for the transport of up to six bottles
Type 1228N as retrofit package
Type 1229N as retrofit package

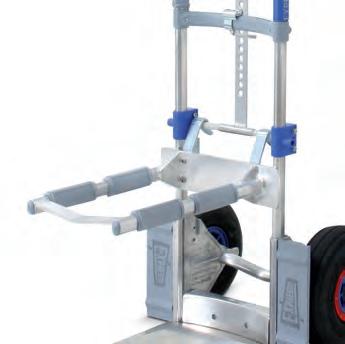

HOOK FOR KEG BARRELS
For the securing of KEG barrels, height-adjustable by means of punch rod
Type 1046 for all hand trucks with 440 mm axle width in combination with spade no. 2, can be folded

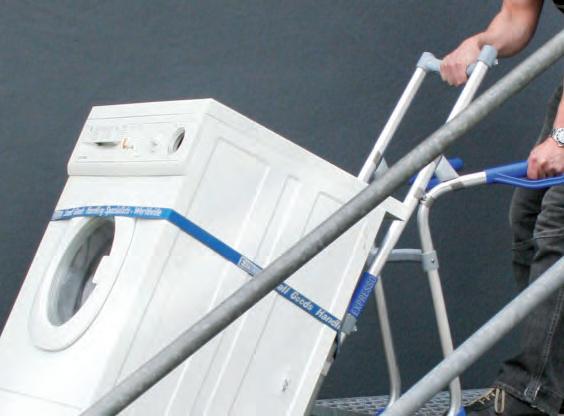

CLIPFIX LASHING STRAP
For the securing of bulky goods on hand trucks, for clipping onto the upright
Type 0 155 1500 (strap length 1,500 mm)
Type 0 155 2500 (strap length 2,500 mm)
Type 0 155 3500 (strap length 3,500 mm)
HEAVY-DUTY LASHING STRAP
Two-piece, with clamping lock for fastening and securing loads on hand trucks, load capacity up to 75 kg
Type 0 156 3700 (total strap length 3,700 mm)
LASHING STRAP
With ratchet lock for fastening and securing loads on hand trucks
Type 0 155 250 (strap length 2,500 mm)
Type 0 155 350 (strap length 3,500 mm)
ALUMINIUM STOWING HANGER
With automatic locking –ideal for vans, warehouses and garages
Type 1166
ACCESSORIES
COIN BOX AND STARTING CHAIN
Tidy up your parking lot or shop spaces
Type 087 Coin box for self-service trolleys
Type 901908006 Starting chain (1,000 mm)
CHAIR LOADING FRAMES
For the efficient transport of different types of stacked chairs (maximum of 10)
Type 1044 height-adjustable by means of punch rod for an axle width of 440 mm
Type 1144 can be clipped to the upright for an axle width of 440 mm
Type 1029 clips onto shovel back for an axle width of 440 mm

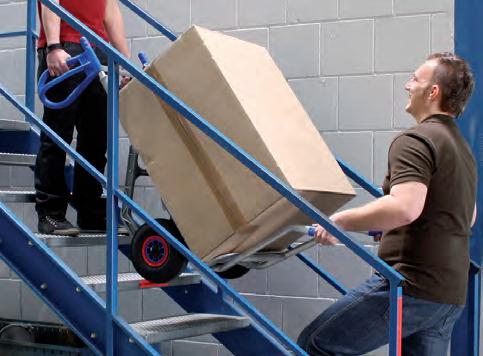

CARRYING FRAME
Carrying frame for easy transport of heavy goods up and down stairs with two persons – the different type numbers refer to the respective axle widths of the hand truck type.
Type 1172 for 440 mm axle width
Type 1176 for 600 mm axle width
Type 1178 for 510 mm axle width
FORK EXTENSION FOR COMBINATION PALLET LIFTER
Provide a total length of 910 mm for loading and enable the lifting of half, quarter and Euro pallets up to a maximum of 150 kg

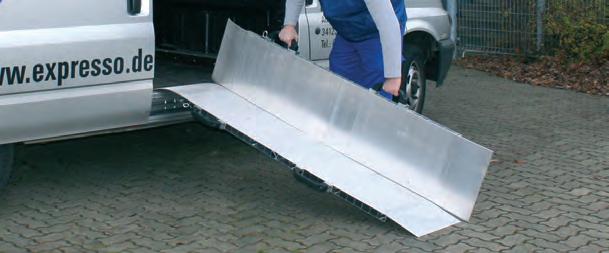

FOLDABLE LOADING RAMPS
TYPE N 8 772 44
Since it can be divided and folded up, the loading ramp Type N 8 772 44 can be easily transported in the vehicle. It is thus available for loading procedures at all times.

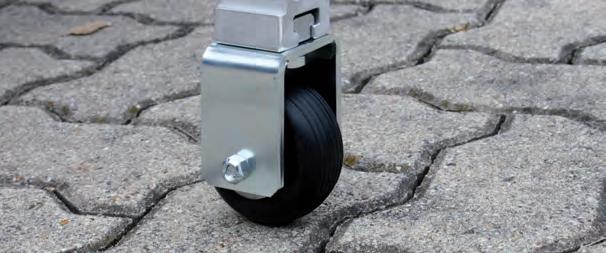

SMOOTH RUNNING WHEEL
Smooth running wheel Type 1067 as attachement to transport the foldable loading ramp ergonomically to the place of use. Saves time and constributes to the health of the employees.
Type N 8 772 44
N 8 772 20
EXPRESSO SPARE PARTS
Our devices are subjected to strict quality controls. However, if a wearing part needs to be replaced, please make use of our spare parts service. Thus the transport equipment is always in perfect condition and its service life increases many times over. Order forms with all individual parts listed are available for many hand trucks of our product range. Simply place your order by e-mail, fax or telephone.
