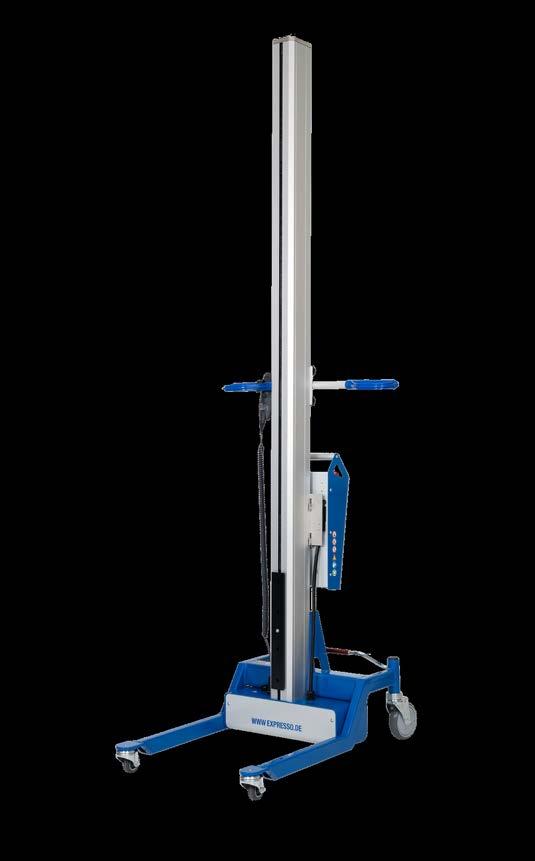

LIFT2MOVE SELECTIVE 125 / 200
ADVANTAGES & FEATURES
Lifting mechanism with low-maintenance spindle drive
Available in 2 sizes (125/200)
Safe handling guaranteed by sensor-controlled safety system
Height-adjustable push bar
Two-speed remote control as standard preset to: 100% / 50% lifting and lowering speed POWERPACK battery pack that can be changed without tools
Central brake bar (brake fixed, locking in direction of travel, freewheeling wheels) 10 load supports available (see right side)
TECHNICAL DATA
SELECTIVE 125
LOAD HANDLING ATTACHMENTS
Stainless steel mandrel – Type 300 551 724 1
Suitable for lifting reels and rolls in their core.
Length: 500 mm
Diameter: 60 mm
Lowermost loading height: 80 mm
Payload: 80 kg (distributed load)
Fork for C-KLT
Mounting fork for C-KLT 6428 in its lateral groove
Width: 300 mm
Length: 455 mm
Payload: max. 100 kg on the load hook
Lifting height: The crate can be picked up standing on the floor + Lifting distance of the lift
Stainless steel V-block
Removable from or mountable to platform, freely rotating (360°), for roll handling
Dimensions (LxW): 300 x 340 mm Payload: 100 kg (with platform)
Big
Dimensions (LxW): 400 x 600 mm Payload: max. 100 kg (distributed load) Roll manipulator – Type 300
Swivelling 3‘‘ (76 mm) pick-up mandrel with 90° rotation function, in the load centre of gravity for picking up rolls up to 70 kg with inner core
platform with three support rollers At lowermost lifting height, the upper edge of the platform is approx. 150 mm off the ground
Dimensions (LxW): L = 400 x 600 mm Payload: max. 100 kg (distributed load)
Folding fork for Schäfer crates
Stainless steel fork with self-tightening jaws for picking up Schäfer crates and wire baskets Width: 300 mm Length: 455 mm
Lifting
