COMMERCIAL CINEMA PRODUCT CATALOGUE 2025 - 2026

1

Australian Made All Krix Commercial Cinema speakers are proudly made with passion in Adelaide, South Australia. Since 1974, Adelaide has been the home of Krix’s head office and production facilities, where all engineering, research and development, manufacturing, assembly, testing, warehousing, and logistics take place.

2

Contents Experience sound ........................................................................................................................................................................... 4 Why choose Krix? .......................................................................................................................................................................... 6 Krix auditorium packages ................................................................................................................... 8 Auditorium S ................................................................................................................................................................... 10 Auditorium M ................................................................................................................................................................. 11 Auditorium L .................................................................................................................................................................... 12 Auditorium XL .................................................................................................................................................................. 13 Krix Kaptivate packages ..................................................................................................................... 14 Advanced Surround Format ........................................................................................................................................ 16 Full-dimensional Audio ................................................................................................................................................. 17 Technology ....................................................................................................................................................................................... 18 Screen speakers ................................................................................................................................. 20 4-way screen speakers ................................................................................................................................................ 22 3-way screen speakers ................................................................................................................................................ 24 2-way screen speakers ................................................................................................................................................ 26 Screen subwoofers ....................................................................................................................................................... 28 Surround subwoofers ....................................................................................................................................................29 Surrounds ........................................................................................................................................................................ 30 Service and support ....................................................................................................................................................................... 32

Built from experience Founded in 1974, Krix has grown from a local speaker manufacturer to a globally respected cinema audio brand.

In the 1980s and 90s, founder Scott Krix and his team were deeply involved in designing and installing speaker systems in cinema complexes throughout Australia. Their passion for sound quality and hands-on approach quickly established Krix as a trusted name in the cinema industry worldwide.

Today, Krix speakers are installed in over 4,500 cinemas across more than 40 countries, trusted by integrators, cinema chains and AV consultants for their performance, reliability, and support.

The choice for cinema sound For cinema owners, integrators, distributors, and AV specifiers seeking powerful, immersive, and reliable sound systems, Krix delivers world-class loudspeakers engineered and manufactured in Australia with over 50 years of innovation.

Experience sound

‘From the first speaker Scott Krix ever sold to the powerful systems installed in thousands of cinemas today, one thing has never changed — our belief that sound should be more than heard. It should be experienced.’

4

5

Why choose Krix?

Unparalleled sound quality Smooth frequency response, low distortion, and class-leading consistent SPL. Immersive horn technology Proprietary constant directivity horns deliver precision coverage and clarity.

Advanced bass engineering High-output low-frequency drivers for focused, powerful impact.

Customisable solutions Tailored speaker sizes, configurations, and performance specs.

Flexible configurations 2-way, 3-way, and 4-way screen speaker systems.

LED screen compatible Above and below screen options for LED and shallow-depth cinemas.

Rapid lead times All speakers are designed, engineered and manufactured in Australia.

Reliable and scalable Engineered for long-term durability with global technical support.

Smart and sustainable Energy-efficient, locally sourced, built to reduce waste.

6

Engineered for performance Krix speakers are crafted for those who demand more from cinema sound: Cabinet construction Built from high-grade Forest Stewardship Council® Medium-Density Fibreboard with Krix’s proprietary X-bracing to eliminate resonance and standing waves.

Horn technology True constant directivity horns developed using Finite Element Analysis for low distortion, high efficiency, and wide, consistent coverage.

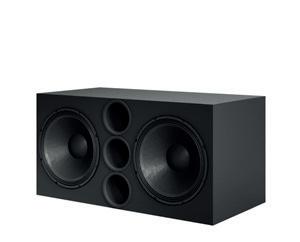

Bass and subwoofers Designed for extreme SPLs with minimal compression and pinpoint control.

Rigorous testing Every speaker is tested in-house using advanced acoustic measurement tools to ensure consistency and excellence.

Custom solutions, rapidly delivered No two cinemas are the same. Krix offers customisation options to suit: Room shape and size Seating layout and acoustic treatment SPL requirements and amp matching Visual or architectural constraints Our in-house design and manufacturing capability means we can turn around tailored solutions fast, helping you meet project deadlines without compromise.

7

Krix auditorium packages Every cinema is unique. That’s why Krix has developed a series of recommended Auditorium Packages to help simplify system design while maintaining flexibility. Each package represents a scalable starting point for a Krixpowered auditorium, optimised by room size and speaker configuration.

Krix’s philosophy of cinema design is rooted in the understanding that every space is different. Factors like room shape, seating layout, acoustic treatment, air conditioning, walkways and lighting all impact performance.

These packages are designed to work as-is or be interchanged with alternative Krix models depending on: •

Installation constraints

•

Desired SPL and headroom

•

Power handling and sensitivity

•

Budget and visual requirements

Krix cinema systems are a smart investment for any size theatre, delivering powerful, precision sound that creates an unforgettable cinematic experience for every guest.

8

9

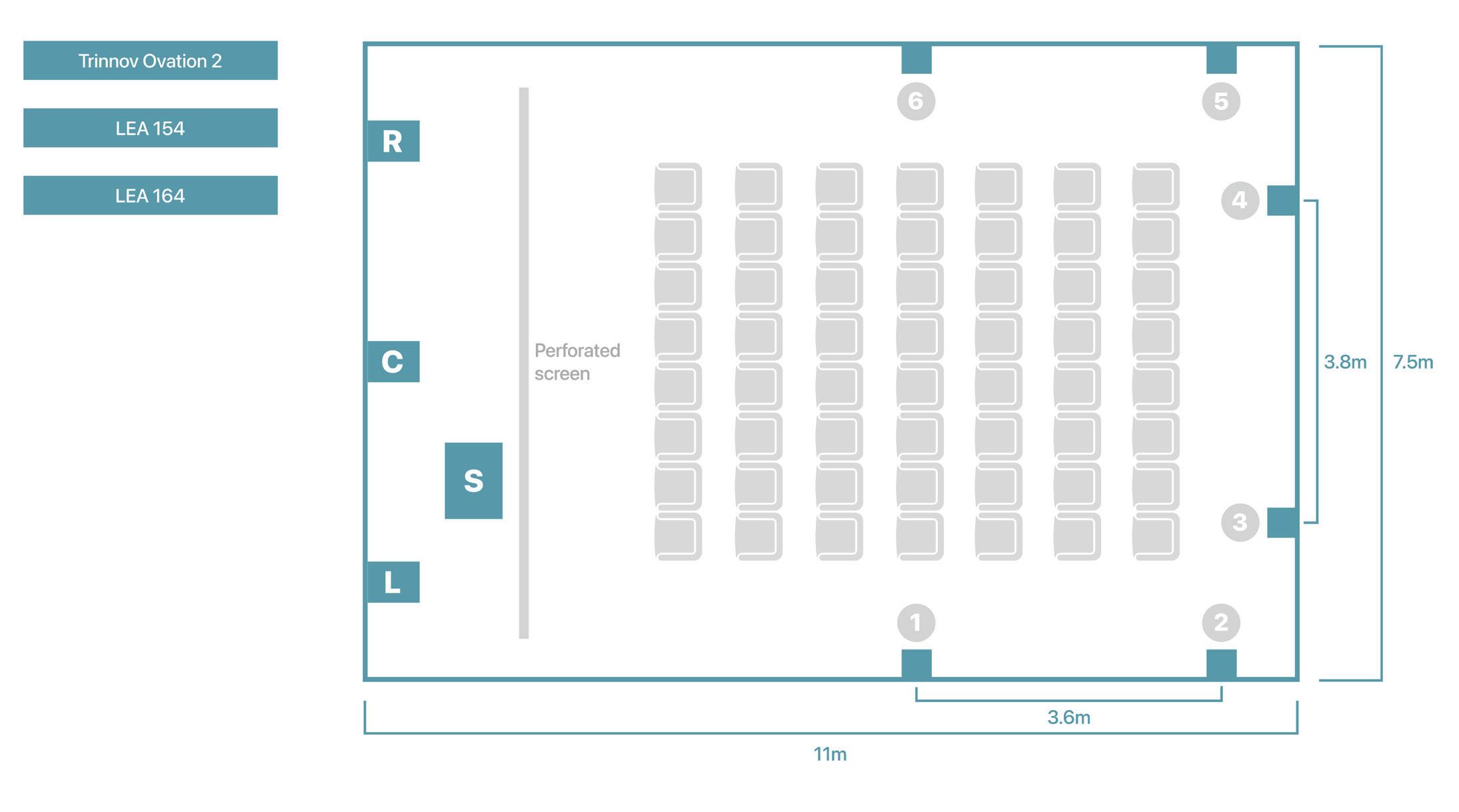

Auditorium S Approximate dimensions: 11m long x 7.5m wide (36ft long x 25ft wide).

R

L System components

Power amplifier

LCR

KX-5205 x3

Subwoofer

KX-4605 x1

Surrounds 1-6

KX-1102 x6

LEA 154

Processor LCR

Trinnov

Ovation 2 (16 in/16 out)

Subwoofer LEA 164

Surrounds

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

10

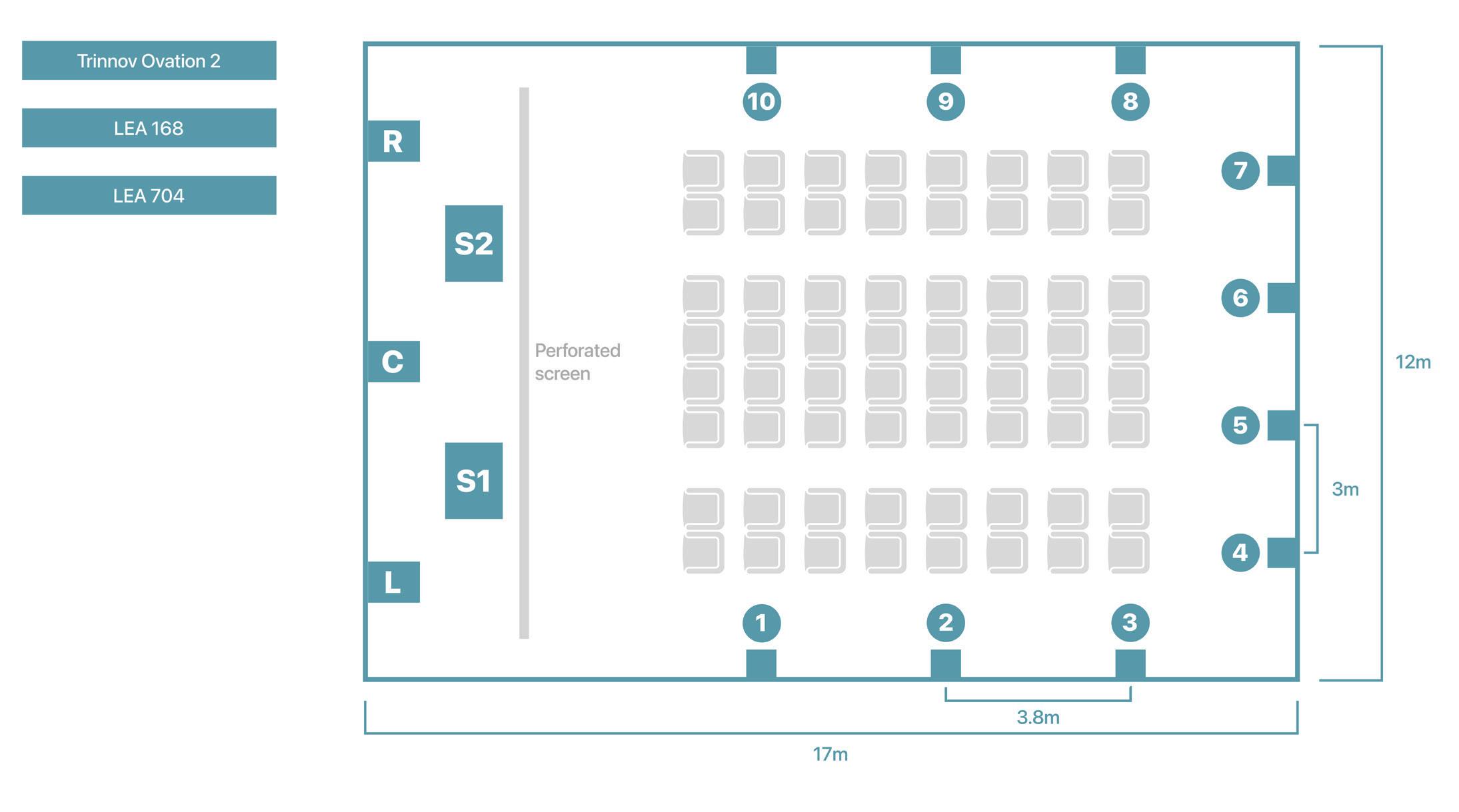

Auditorium M Approximate dimensions: 17m long x 12m wide (56ft long x 39ft wide).

R

L System components

Power amplifier

LCR

KX-5255 x3

Subwoofers

KX-4605 x2

Surrounds 1-10

KX-1102 x10

LEA 168

Processor Surrounds

Trinnov

Ovation 2 (16 in/16 out)

Sub 1 LEA 704

LCR Sub 2

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

11

Auditorium L Approximate dimensions: 21m long x 15m wide (69ft long x 49ft wide).

R

L System components

Power amplifier

Processor

LCR

KX-5255 x3

LEA 168

Surrounds

Subwoofers

KX-4605 x2

LEA 702

Subwoofers

Surrounds 1-12

KX-1102 x12

LEA 704

LCR

Trinnov

Ovation 2 (16 in/16 out)

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

12

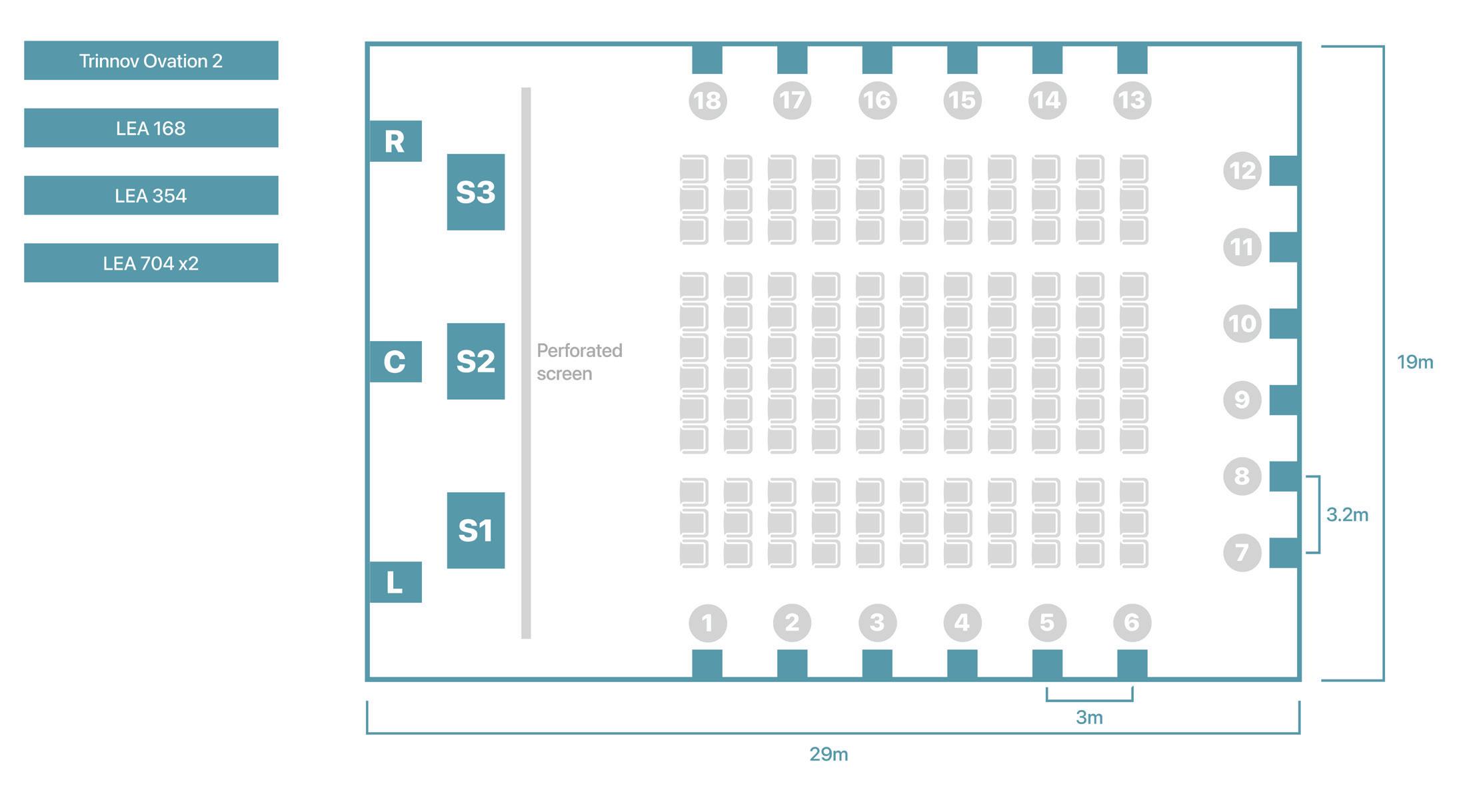

Auditorium XL Approximate dimensions: 29m long x 19m wide (95ft long x 62ft wide).

R

L System components

Power amplifier

Processor

LCR

KX-5285 x3

LEA 168

Surrounds 1-10, 12-18

Subwoofers

KX-4605 x3

LEA 354

Surrounds 8-11

Surrounds 1-18

KX-1102 x18

Trinnov

Ovation 2 (16 in/16 out)

L HF, R HF LEA 704

Subs 1-3 C HF

LEA 704

LCR LF

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

13

14

Kaptivate cinema system Kaptivate is an advanced cinema audio system developed by Krix in collaboration with Trinnov Audio. It combines Krix’s bespoke loudspeakers with Trinnov’s renowned Ovation processor for ultimate immersive audio.

•

Krix speakers and subwoofers for complete surround and sub-bass immersion

•

Trinnov Ovation Processor for phase correction, time alignment and equalisation

•

Reproduces frequencies from 16Hz to 18kHz across the entire auditorium

Available exclusively for premium cinema installations, Kaptivate sets a new benchmark in clarity, detail and cinematic presence.

15

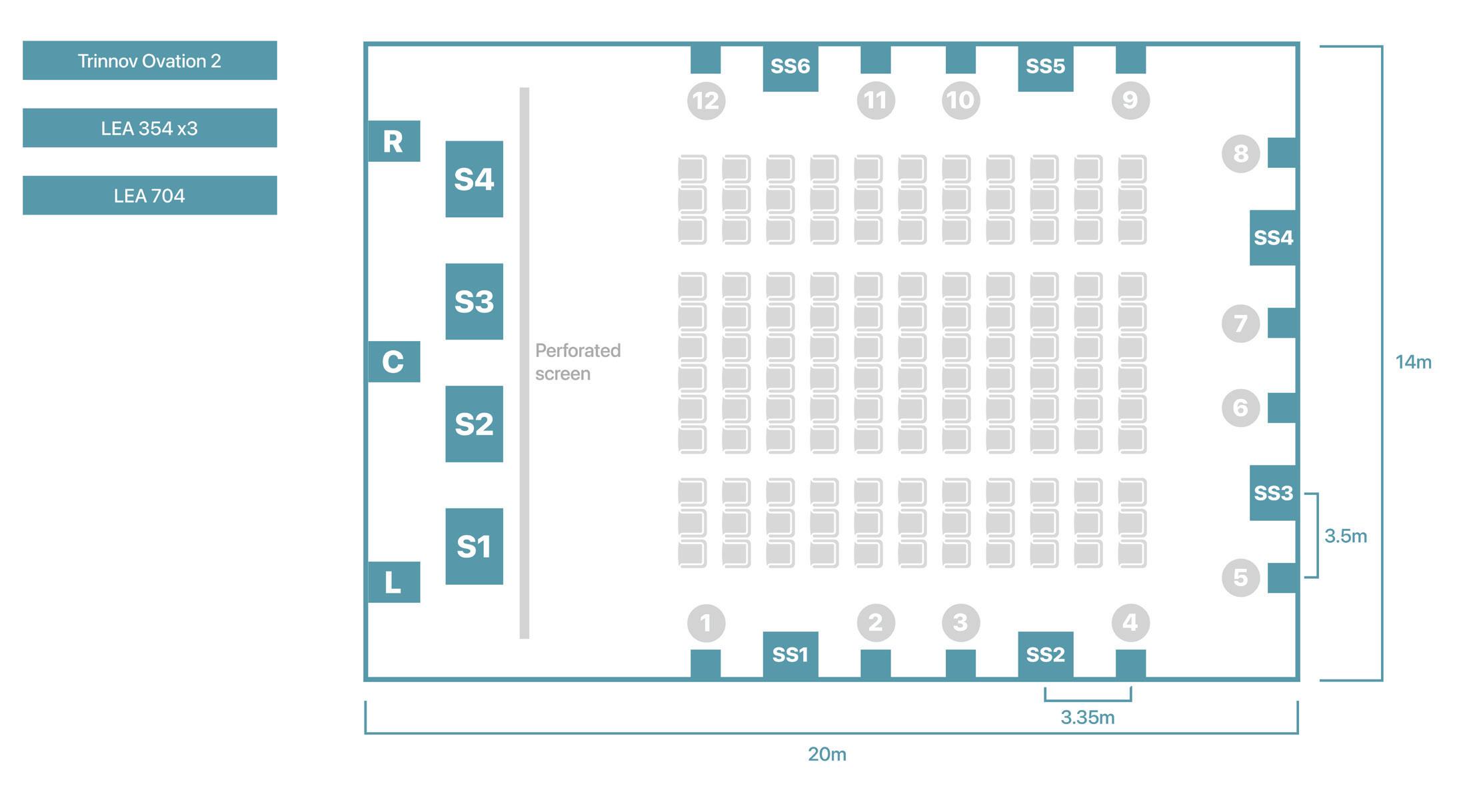

Advanced Surround Format Approximate dimensions: 20m long x 14m wide (67ft long x 46ft wide).

SPL 105/115/102/102 Min 3dB amp headroom. Min 3dB speaker headroom.

R

L System components

Power amplifier

Processor

LCR

KX-5946 x3

LEA 354

L&R surrounds

Subwoofers 1-4

KX-4605 x4

LEA 354

L&R side surround subs

Surround subs 1-6

KX-4610.S x6

LEA 354

Subs 1-4 (LFE)

Surrounds 1-12

KX-1870 x12

LEA 704

Rear L&R surrounds

Trinnov

Ovation 2 (16 in/24 out)

Rear L&R surround subs

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

16

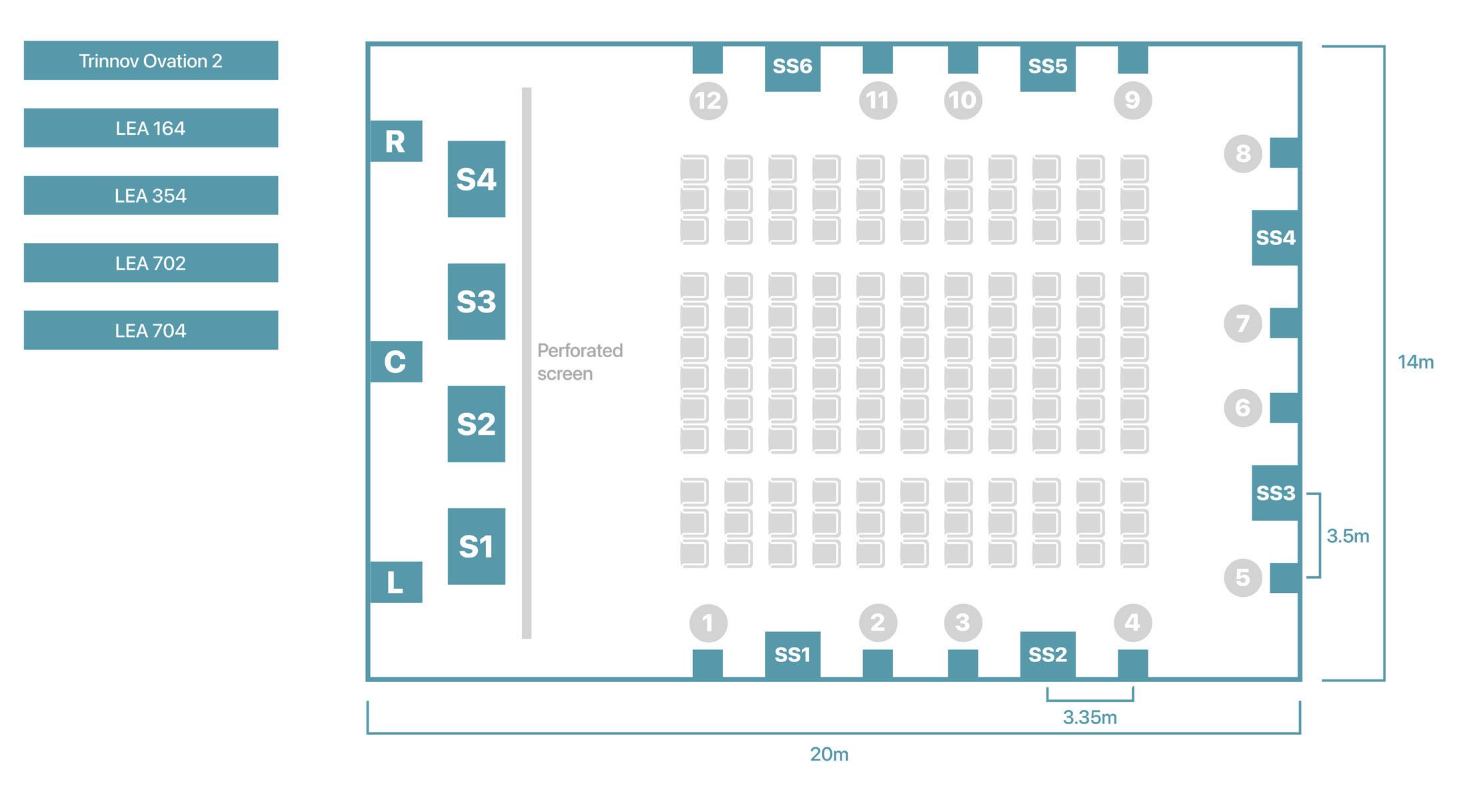

Full-dimentional Audio Approximate dimensions: 20m long x 14m wide (67ft long x 46ft wide).

SPL 103/113/100/100 Min 3dB amp headroom. Min 3dB speaker headroom.

R

L System components

Power amplifier

Processor

LCR

KX-5920 x3

LEA 164

L&R side surround subs

Subwoofers 1-4

KX-4605 x4

LEA 354

Side surrounds

Surround subs 1-6

KX-4010.S x6

LEA 702

Subs 1-4 (LFE)

Surrounds 1-12

KX-1102 x12

LEA 704

Rear subs

Trinnov

Ovation 2 (16 in/24 out)

Rear surrounds

Every cinema space is different – we will work closely with you to ensure the package meets your exact requirements. All Krix speakers are timbre-matched for seamless integration, with flexible options to add, substitute, or expand your surround and subwoofer configurations using any speaker in the Krix range.

17

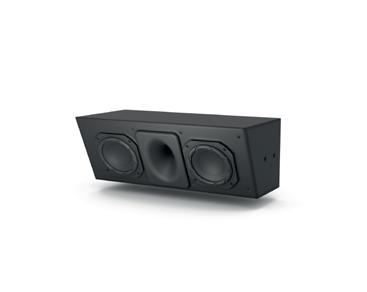

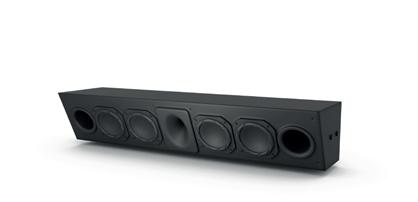

Technology LED Screen ready technology As LED screen technology becomes increasingly adopted in premium cinema environments, it introduces a new set of acoustic challenges for integrators and cinema owners alike. Unlike traditional perforated projection screens, LED displays are solid, non-transparent surfaces - removing the option to place speakers directly behind the screen. This shift requires a reimagining of speaker placement and design to maintain precise sound alignment with on-screen visuals.

Krix has developed purpose-built loudspeaker solutions to address these demands, ensuring no compromise in sound quality, spatial coherence, or cinematic impact.

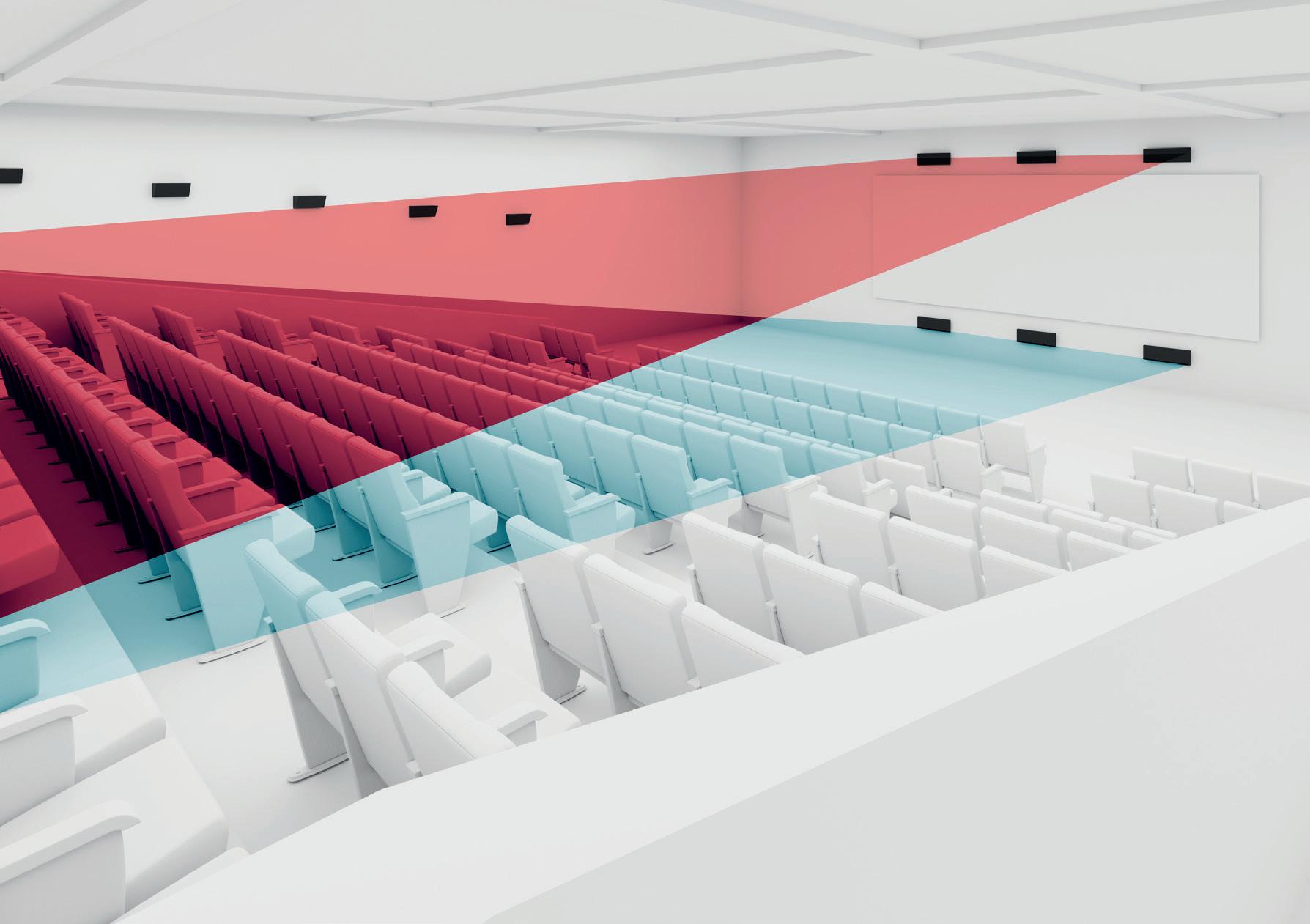

Optimised for above and below screen use Designed specifically for use in LED screen cinemas, the Krix KX-5720 offers a slim, tapered form factor ideal for above-screen placement. Its 3-way system features patented constant directivity horn technology, ensuring smooth, even coverage and exceptional dialogue intelligibility across the entire seating area. Whether mounted above or below the screen, the KX-5720 delivers precise localisation, high output, and incredibly low distortion - restoring the immersive sound alignment often lost with solid screens.

18

•

True 3-way configuration with dedicated 6 inch neodymium midrange horn for vocal clarity

•

High-efficiency bass driver with proprietary Krix ‘X Bracing’ system for reduced resonance

•

Uniform directivity and frequency response across the audience

•

Compact 625mm high enclosure with tilt bracket for installation flexibility

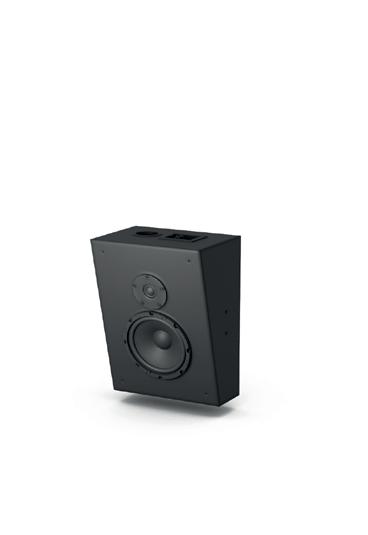

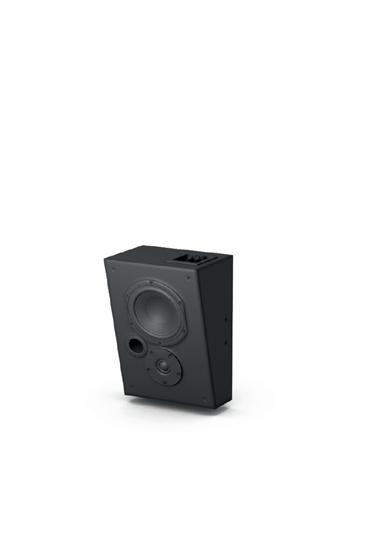

Immersive overhead sound for 3D audio formats To complement the screen systems, the Krix KX-1061 and KX-1062 ceiling surround speaker offers high output and precise coverage for immersive audio formats. Its shallow profile and adjustable pan/tilt bracket make it ideal for LED cinemas where space and projection paths are limited. Engineered with high-performance neodymium drivers, it delivers consistent SPL and coverage where it matters most - overhead.

19

Screen systems Krix screen speakers are engineered for clarity, consistency, and complete immersion - whether you’re outfitting an intimate theatre or a flagship multiplex. From 2-way to advanced 4-way systems, Krix delivers the performance, precision, and power today’s cinemas demand.

•

Purpose-built for traditional surround formats

•

High-efficiency, low-distortion components for accurate sound reproduction

•

Patented constant directivity horns for consistent audience coverage

•

Options to suit any room size or configuration

Our unique in-house engineering allows for fine-tuned acoustic loading, superior dialogue intelligibility, and seamless integration with Krix subwoofers and surround systems.

20

21

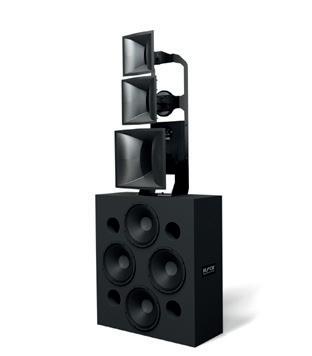

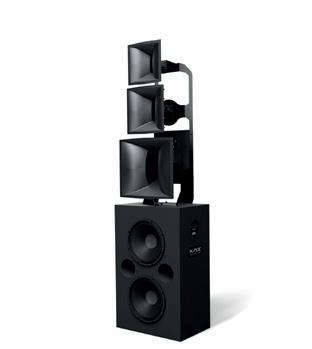

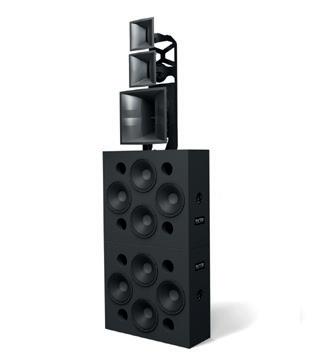

4-way screen speakers

KX-5996

KX-5976

KX-5974

KX-5972

80 meters (263 feet)

54 metres (177 feet)

40 metres (131 feet)

28 meters (92 feet)

System options

Tri-amplified passive crossover or Full quad-amplified

Tri-amplified passive crossover or Full quad-amplified

Tri-amplified passive crossover or Quad-amplified

Tri-amplified passive crossover or Quad-amplified

Frequency range

32 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

Nominal dispersions

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

Horn / Waveguide

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

Ultra-high frequency transducers

1 x 44 mm (1¾ inch) aluminium voice coil

1 x 44 mm (1¾ inch) aluminium voice coil

1 x 44 mm (1¾ inch) aluminium voice coil

1 x 44 mm (1¾ inch) aluminium voice coil

High frequency transducers

1 x 100mm (4 inch) aluminium voice coil

1 x 100mm (4 inch) aluminium voice coil

1 x 100mm (4 inch) aluminium voice coil

1 x 100mm (4 inch) aluminium voice coil

Mid frequency transducers

2 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

2 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

2 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

2 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

Low frequency transducers

8 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

8 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

8 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

8 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

Dimensions (HWD)

3600 x 1200 x 460 mm 141¾ x 47¼ x 18 inches

2533 x 1070 x 460 mm 99 ¾ x 42 x 18 inches

2533 x 850 x 460 mm 100 x 33½ x 18 inches

2393 x 670 x 460 mm 94¼ x 26½ x 18 inches

274 kg 603 lbs

163 kg 359 lbs

139 kg 306 lbs

112 kg 251 lbs

Recommended max depth

Weight

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

22

23

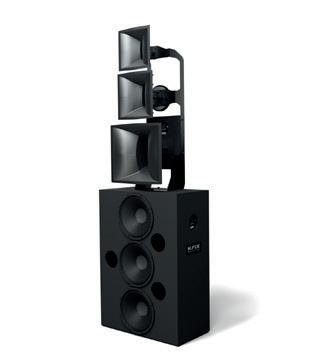

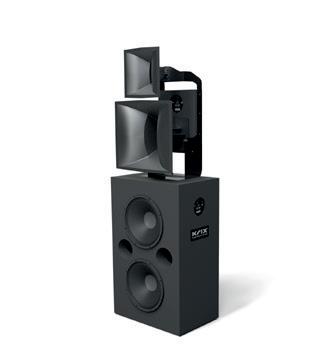

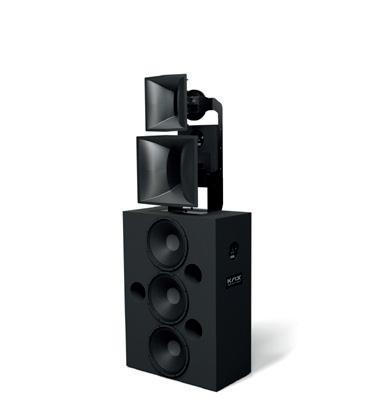

3-way screen speakers

KX-5954

KX-5946

KX-5920

KX-5910

54 meters (177 feet)

40 meters (131 feet)

28 meters (92 feet)

13 meters (43 feet)

System options

Bi-amplified passive crossover or Tri-amplified passive crossover

Bi-amplified passive crossover or Tri-amplified passive crossover

Bi-amplified passive crossover or Tri-amplified passive crossover

Bi-amplified passive crossover or Tri-amplified passive crossover

Frequency range

32 – 16,000 Hz (-6 dB)

32 – 16,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

Nominal dispersions

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

Horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

High frequency transducers

1 x 100mm (4 inch) compression driver, aluminium voice coil

1 x 100mm (4 inch) compression driver, aluminium voice coil

1 x 44mm (1¾ inch) compression driver, aluminium voice coil

1 x 44mm (1¾ inch) compression driver, aluminium voice coil

Mid frequency transducers

1 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

1 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

1 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

1 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

Low frequency transducers

4 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

3 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

2 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

1 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

2170 x 1070 x 460 mm 85 ½ x 42 x 18 inches

2171 x 850 x 460 mm 85 ½ x 33 x 18 inches

1972 x 660 x 460 mm 77 ½ x 26 x 18 inches

1662 x 565 x 460 mm 65 ½ x 22 ¼ x 18 inches

150 kg 330 lbs

115 kg 254 lbs

88 kg 194 lbs

68 kg 150 lbs

Recommended max depth

Dimensions (HWD)

Weight

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

24

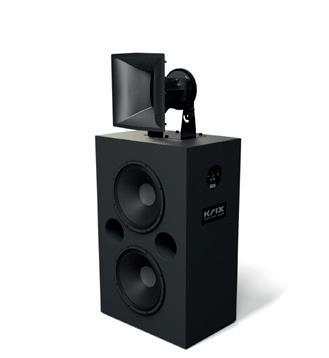

KX-5620

KX-5610

KX-5720

18 meters (59 feet)

13 meters (43 feet)

28 meters (92 feet)

Bi-amplified passive crossover

Bi-amplified passive crossover

Bi-amplified passive crossover

40 – 19,000 Hz (-6 dB)

40 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

1 x 35mm (1.4 inch) compression driver

1 x 35mm (1.4 inch) compression driver

1 x 44mm (1¾ inch) compression driver, aluminium voice coil

1 x 152 mm (6 inch) paper cone drivers, 38 mm (1 ½inch) voice coil

1 x 152 mm (6 inch) paper cone drivers, 38 mm (1 ½inch) voice coil

1 x 152 mm (6 inch) paper cone drivers, 44 mm (1¾ inch) voice coil

2 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

1 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

2 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

1757 x 590 x 360 mm 69 ¼ x 23 ¼ x 14 ¼ inches

1427 x 570 x 338 mm 56 ¼ 22 ½ x 13 ¾ inches

625 x 12100 x 463 mm 24 ½ x 476 ¼ x 18 ¼ inches

63 kg 139 lbs

43 kg 95 lbs

88 kg 194 lbs

25

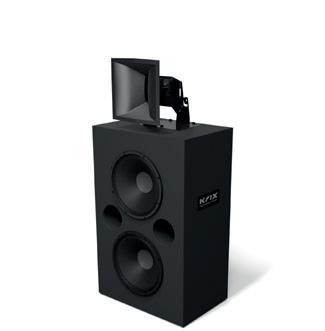

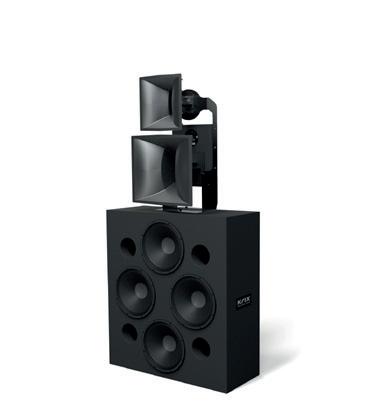

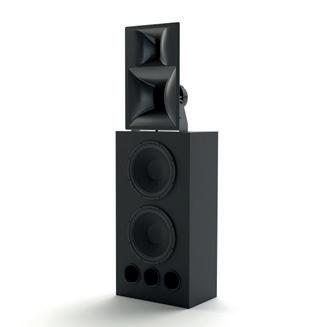

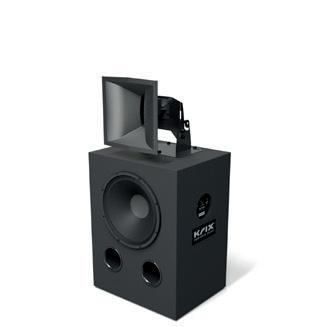

2-way screen speakers

KX-5285

KX-5275

KX-5255

KX-5205

Recommended max depth

34 meters (111 feet)

23 meters (75 feet)

23 meters (75 feet)

11 meters (36 feet)

System options

Bi-amplified

Mono-amplified passive crossover or Bi-amplified

Mono-amplified passive crossover or Bi-amplified

Mono-amplified passive crossover or Bi-amplified

Frequency range

32 – 16,000 Hz (-6 dB)

32 – 16,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

32 – 19,000 Hz (-6 dB)

Nominal dispersions

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

90° horizontal, 40° vertical

Horn / Waveguide

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

90° x 40° constant directivity horn

High frequency transducers

1 x 100mm (4 inch) compression driver, aluminium voice coil

1 x 100mm (4 inch) compression driver, aluminium voice coil

1 x 44mm (1¾ inch) compression driver, aluminium voice coil

1 x 35mm (1.4 inch) compression driver

Low frequency transducers

3 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

2 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

2 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

1 x 380 mm (15 inch) paper cone driver, 75 mm (3 inch) copper voice coil

Dimensions (HWD)

1646 x 850 x 460 mm 64 ½ x 33 ½ x 18 inches

1506 x 670 x 460 mm 59 ¼ x 26 ¼ x 18 inches

1450 x 670 x 460 mm 57 x 26 ¼ x 18 inches

1140 x 565 x 460 mm 45 x 22 ¼ x 18 inches

94 kg 207 lbs

67 kg 148 lbs

64 kg 141 lbs

44 kg 97 lbs

Weight

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

26

KX-1062 15 meters (49 feet) Pass mono-amplified passive

60 - 20,000 Hz (-6 dB)

90° horizontal, 100° vertical

N/A 1 x 44 mm (1¾ inch) aluminium voice coil 4 x 165 mm (6.5 inch) long throw paper cone driver with 44 mm (1¾ inch) voice coil 220 x 1140 x 2293 mm 8 ¾ x 45 x 11 ½ inches 22kg 48 lbs

27

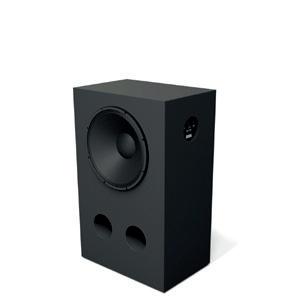

Screen subwoofers Deliver deep impactful bass with Krix subwoofers, where low-frequency definition and high SPL capability take centre stage.

• •

Powerful drivers engineered for exceptional bass performance.

Available in various models to suit any cinema size.

KX-4610

KX-4610 (slim)

KX-4010

KX-4605

System options

Passive

Passive

Passive

Passive

Frequency range

25 - 200 Hz

25 - 200 Hz

25 - 200 Hz

28 – 200 Hz

106dB

106dB

100dB

106dB

Transducers

2 x 455mm (18 inch) paper cone bass driver, 100mm (4 inch) coil

2 x 455mm (18 inch) paper cone bass driver, 100mm (4 inch) coil

1 x 455mm (18 inch) paper cone bass driver, 100mm (4 inch) coil

2 x 455mm (18 inch) paper cone bass driver, 75mm (3 inch) coil

Dimensions (HWD)

1200 x 675 x 685 mm 47 ¼ x 26 ½ x 27 inches

1200 x 1070 x 470 mm 47 ¼ x 42 x 18 ½ inches

1060 x 660 x 470 mm 41 ¾ x 26 ½ x 18 ½ inches

600 x 1200 x 600 mm 26 ½ x 47 ¼ x 27 inches

90 kg 198 lbs

90 kg 198 lbs

60 kg 132 lbs

86 kg 190 lbs

Sensitivity (2.83V / 1m half space)

Weight

All screen subwoofer enclosures: Vented B4 alignment tuned to 32 Hz, Krix proprietary ‘X bracing’, optimally damped with polyester fibre, MDF black vinyl finish.

All screen subwoofer terminals: Krix proprietary, high current binding posts featuring an 8mm hole to accept large diameter cable. High visibility polarity indicators.

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

28

Surround subwoofers Extend the impact beyond the screen with Krix surround subwoofers. Delivering tight, controlled low-frequency effects that add depth and realism to every corner of the cinema.

KX-4290

KX-4240

KX-4210

KX-4205

System options

Passive

Passive

Passive

Passive

Frequency range

35 - 200 Hz

35 - 200 Hz

35 - 200 Hz

35 - 200 Hz

112dB

109dB

106dB

100dB

4 x 380 mm (15 inch) paper cone driver, 75 mm copper voice coils

3 x 380 mm (15 inch) paper cone driver, 75 mm copper voice coils

2 x 380 mm (15 inch) paper cone driver, 75 mm copper voice coils

1 x 380 mm (15 inch) paper cone driver, 75 mm copper voice coils

1200 x 1070 x 460 mm 47 ¼ x 42 x 18 inches

1200 x 850 x 460 mm 47 ¼ x 33 ½ x 18 inches

1060 x 660 x 460 mm 41 ¾ x 26 x 18 inches

750 x 565 x 460 mm 29 ½ x 22 ¼ x 18 inches

105 kg 231 lbs

85 kg 187 lbs

52 kg 114.5 lbs

37 kg 81.5 lbs

Sensitivity (2.83V / 1m half space) Transducers

Dimensions (HWD)

Weight

All surround subwoofer enclosures: Vented B4 alignment tuned to 36 Hz, Krix proprietary ‘X bracing’, optimally damped with polyester fibre, MDF black vinyl finish.

All surround subwoofer terminals: Krix proprietary, high current binding posts featuring an 8mm hole to accept large diameter cable. High visibility polarity indicators.

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

29

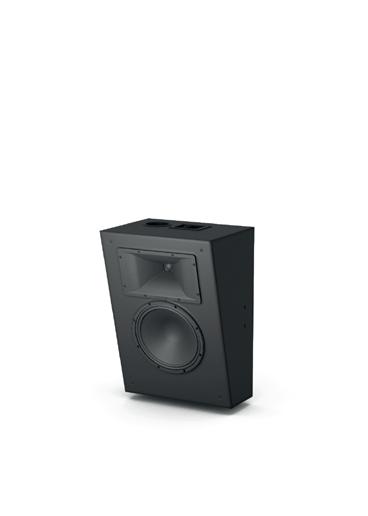

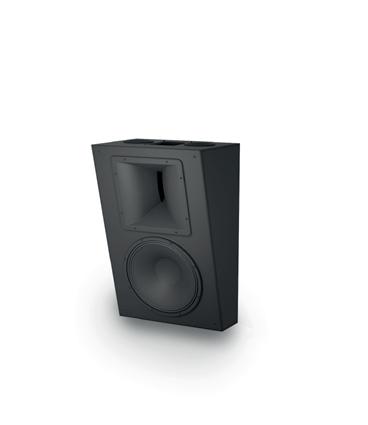

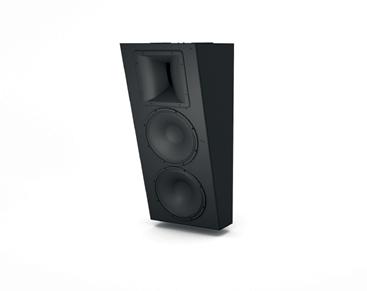

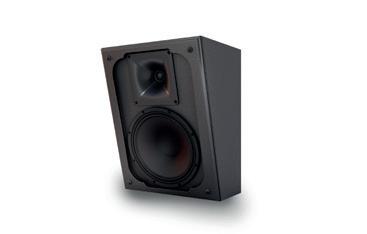

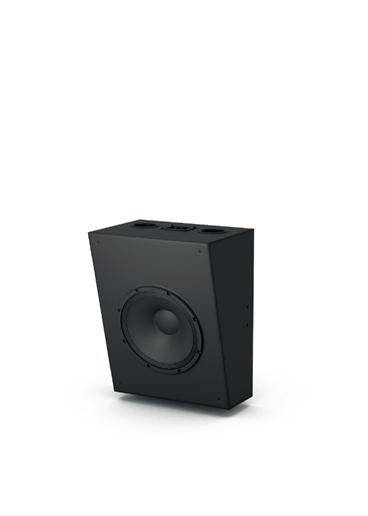

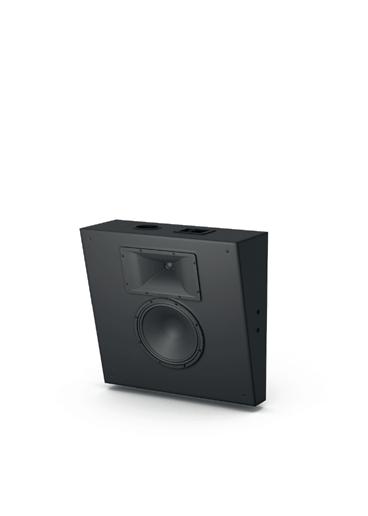

Surrounds Feel the action from all sides with directionally optimised surround sound speakers. Designed for coverage and clarity, our surrounds transform any space into an audio wonderland.

• Wide dispersion for full audience engagement.

• Compact designs for seamless installation in any layout.

KX-1061

KX-1102

KX-1155

KX-1152

KX-1570 & KX-1570.F

Recommended max width

40 meters (131 feet)

22 meters (72 feet)

87 meters (285 feet)

55 meters (180 feet)

43 meters (141 feet)

System options

Passive

Passive

Passive

Passive

Passive

Frequency range

60 – 20,000 Hz

50 - 20,000 Hz

48 - 19,000 Hz

48 - 19,000 Hz

50 - 18,000Hz

Nominal dispersion

90° horizontal, 100° vertical

100° horizontal, 100° vertical

100° horizontal, 40° vertical

100° horizontal, 80° vertical

115° horizontal, 115° vertical

Horn / Waveguide

N/A

N/A

90° x 40° constant directivity horn

90° x 40° constant directivity horn

N/A

Sensitivity

97dB

95dB

103dB

99dB

99dB

Baffle angle

25°

15°

15°

15°

15° F = 0°

High frequency transducers

1 x 44mm (1¾ inch) compression driver, aluminium voice coil

1 x 26 mm (1 inch) doped fabric dome tweeter

1 x 35mm (1.4 inch) compression driver

1 x 35mm (1.4 inch) compression driver

1 x 45 mm (1.75 inch) co-axially mounted compression driver

Low frequency transducers

2 x 165 mm (6.5 inch) paper cone driver with 44 mm voice coil

1 x 250 mm (10 inch) paper cone driver with 50 mm (2 inch) voice coil

2 x 380 mm (15 inch) paper cone driver with 75 mm (3 inch) voice coil

1 x 380 mm (15 inch) paper cone driver with 75 mm (3 inch) voice coil

1 x 300 mm (12 inch) paper cone driver with 63.5 mm (2.5 inch) voice coil

Dimensions (HWD)

1200 x 1070 x 460 mm 47 ¼ x 42 x 18 inches

456 x 350 x 281 mm 18 x 13 ¾ x 11 inches

750 x 565 x 460 mm 29 ½ x 22 ¼ x 18 inches

800 x 520 x 385 mm 31.5 x 20.5 x 15.2 inches

560 x 430 x 355 mm 22 x 17 x 13 ¼ inches

105 kg 231 lbs

15 kg 33 lbs

37 kg 81.5 lbs

28 kg 62 lbs

18kg 40 lbs

(2.83V / 1m half space)

Weight

Brackets available, customed designed to suit Krix surround speakers.

All Krix mounting brackets are made from high quality steel components. They offer oustanding rigidity and strength, ensuring a consistent and hassle-free installation every time.

30

KX-1870 & KX-1870.F

KX-1875

KX-1470

KX-1840

27 meters (89 feet)

27 meters (89 feet)

14 meters (46 feet)

10 meters (33 feet)

Passive

Passive

Passive

Passive

50 - 20,000Hz

50 - 20,000Hz

50 - 20,000Hz

50 - 20,000Hz

100° horizontal, 85° vertical

100° horizontal, 85° vertical

100° horizontal, 40° vertical

100° horizontal, 80° vertical

Constant directivity waveguide

Constant directivity waveguide

N/A

N/A

97dB

97dB

92dB

90dB

15° F = 0°

15°

15°

15°

1 x 28 mm (1 inch) doped fabric dome coupled to a constant directivity waveguide

1 x 28 mm (1 inch) doped fabric dome coupled to a constant directivity waveguide

1 x 28 mm (1 inch) doped fabric dome tweeter

1 x 28 mm (1 inch) doped fabric dome tweeter

1 x 250 mm (10 inch) paper cone driver with 50 mm (2 inch) copper voice coil

1 x 250 mm (10 inch) paper cone driver with 50 mm (2 inch) copper voice coil

1 x 205 mm (8 inch) paper cone driver with 38 mm (1.5 inch) voice coil

1 x 165 mm (6.5 inch) polypropylene cone driver with 33 mm (0.10 inch) voice coil

560x 390 x 320 mm 22 x 15 ½ x 12 ½ inches

570 x 560 x 240 mm 22 ½ x 22 x 9 ½ inches

460 x 338 x 265 mm 18 x 13 ¼ x 10 ½ inches

375 x 26 x 205 mm 15 x 10 ¼ x 8 inches

15 kg 33 lbs

15 kg 33 lbs

13kg 29 lbs

7kg 15 lbs

All specifications are in accordance with the AES2-2012 standard. Due to continued development, specifications may change without notice.

31

Service and support Short production lead times Krix controls every stage of manufacturing — from design and testing to final shipping — enabling fast turnarounds and scheduling of urgent orders. Standard lead times range from 2–6 weeks, with small orders often dispatched in under 2 weeks. Stock can also be held for frequent customers based on forecasted demand.

Cinema design support Krix will recommend the ideal speaker models and amplifier requirements based on your space and performance goals. Simply provide your room dimensions and we’ll take care of the rest — including 5.1, 7.1, and DARDT calculations, optimised for your install conditions and budget.

Customised solutions Unique spaces call for unique solutions. With a responsive R&D team and full in-house capabilities, Krix can develop made-to-order products on short timelines to suit your specific needs and installations.

Quality control and testing Every Krix speaker is tested in our custom-built anechoic chamber, ensuring strict tolerances and consistent performance.

Tests include frequency response, 11th harmonic distortion, impedance, phase, and more — guaranteeing that each speaker meets the rigorous demands of cinema environments.

32

Premium components All drivers are designed to Krix specifications and built to the highest standards by world-renowned suppliers. Each is thoroughly tested before leaving the factory.

International freight support All goods are packed for air or sea freight with full documentation including packing lists, commercial invoices, and COO/CDO forms. Krix can coordinate both LCL and FCL freight, using our forwarders or yours, to ensure hasslefree logistics.

Environmentally responsible Krix implements sustainable practices including solar power, recycled materials, low-waste production, and sustainably grown veneers — reducing our environmental footprint while delivering high-performance products.

Contact the Krix Commercial Team info@krix.com +61 8 8384 3433 14 Chapman Road, Hackham SA 5163, Australia www.krix.com

33

krix.com 34
