Intergenerational Public Space Design at Düzce Hope Homes Anatasia | Enrico | Ismail | Krishna | Shantanu | Trevor

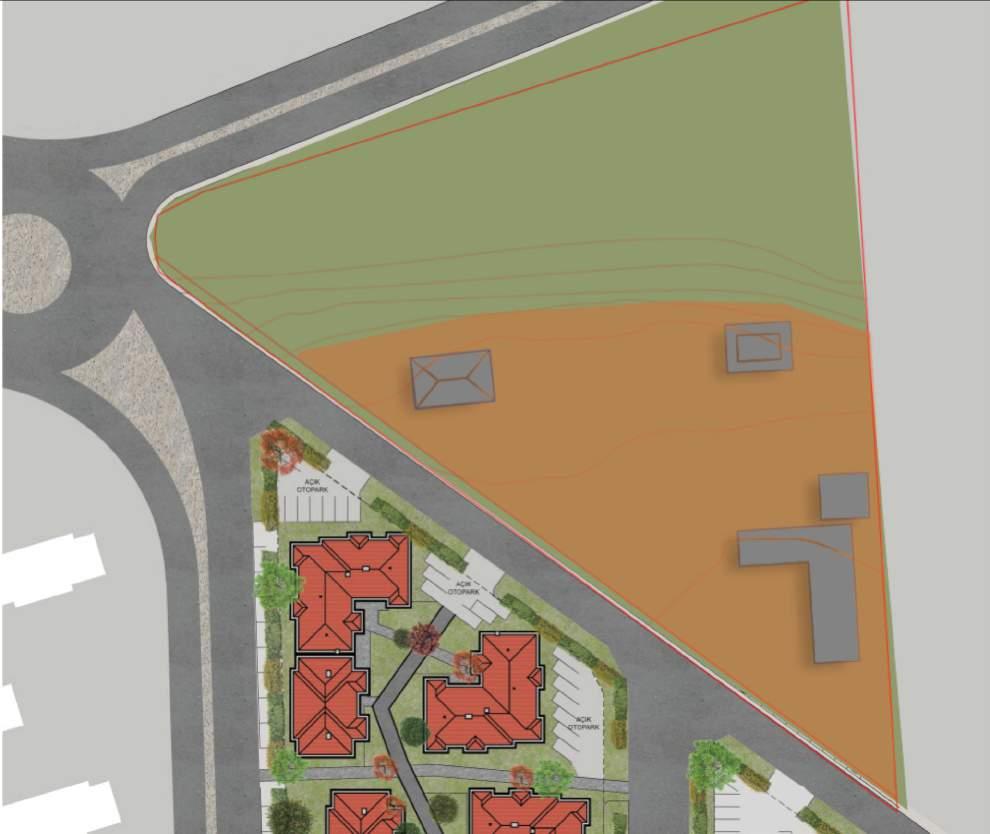

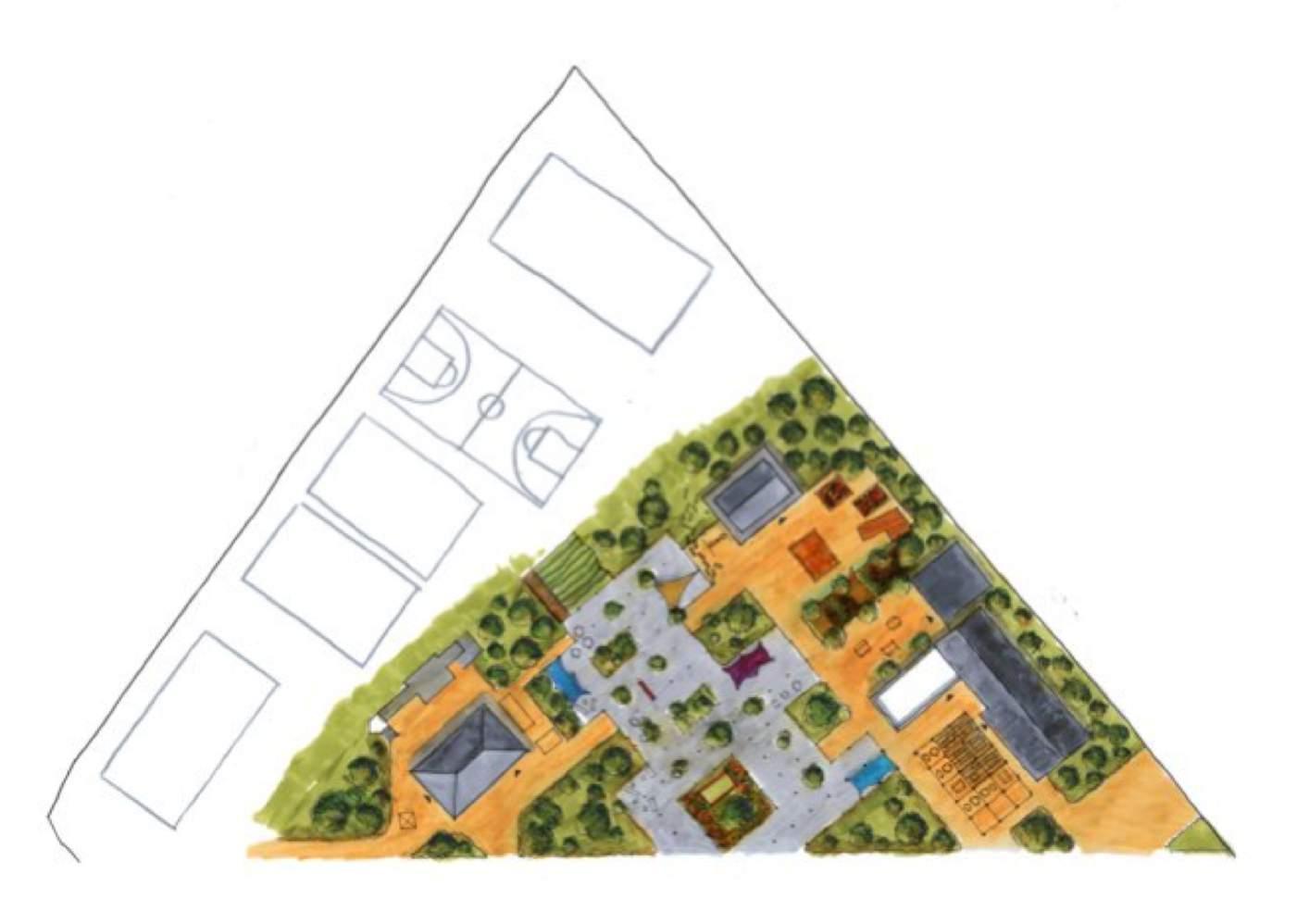

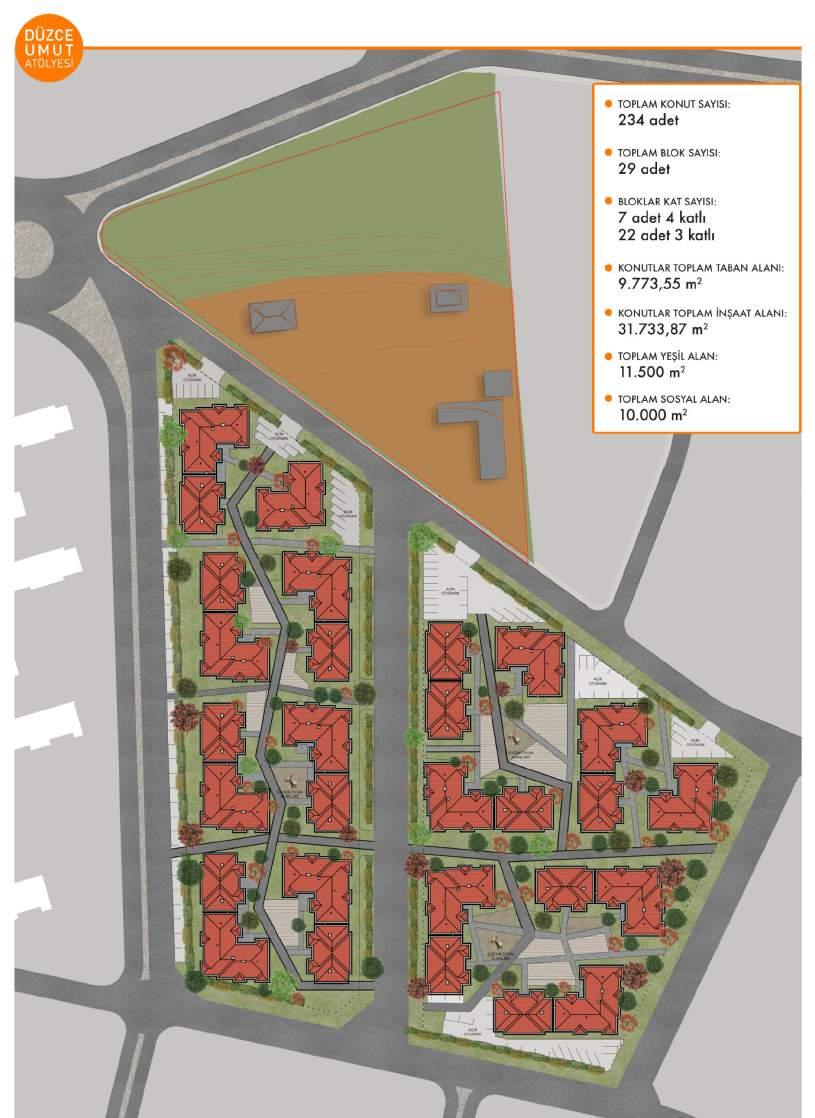

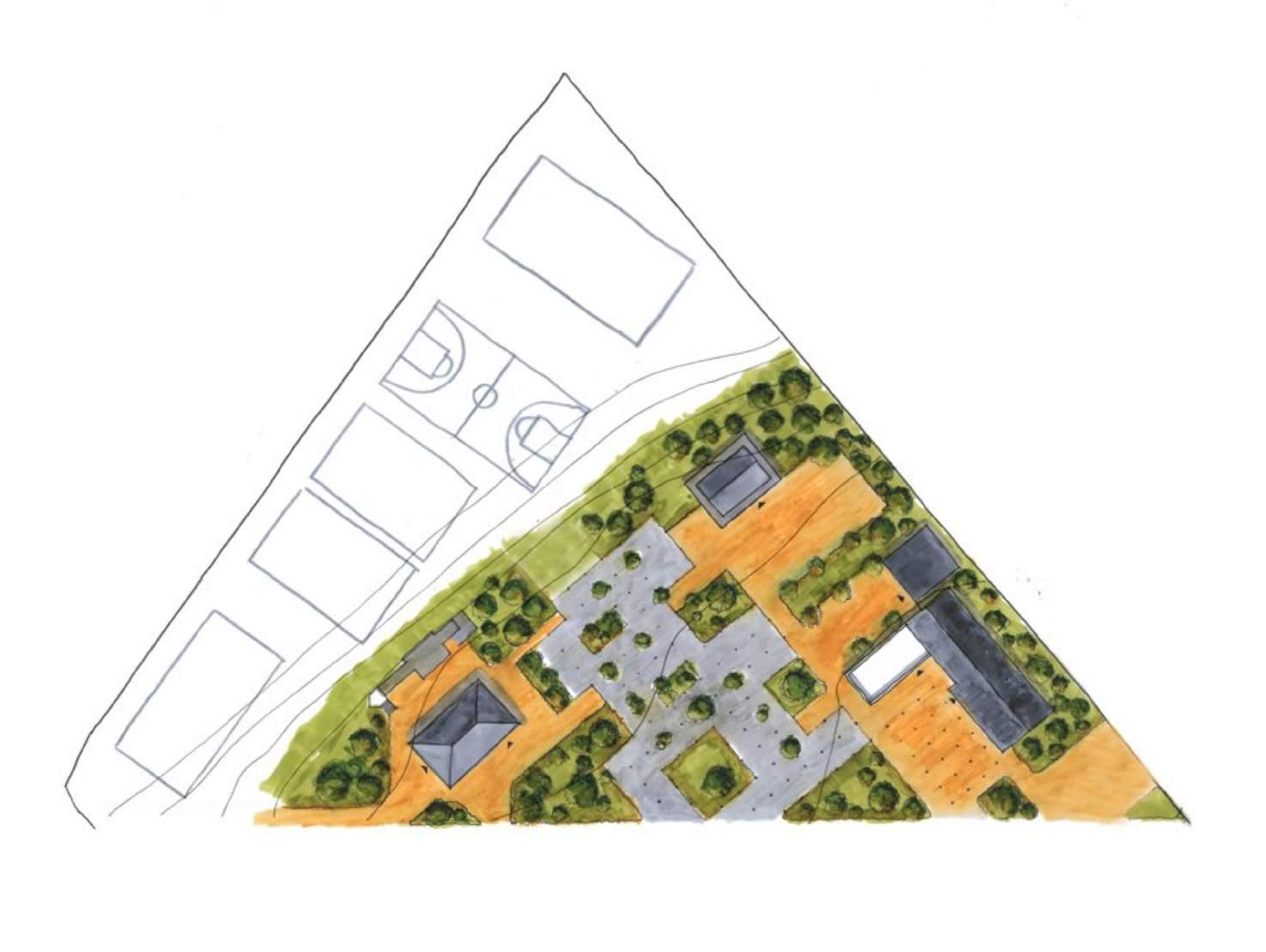

Site Plan

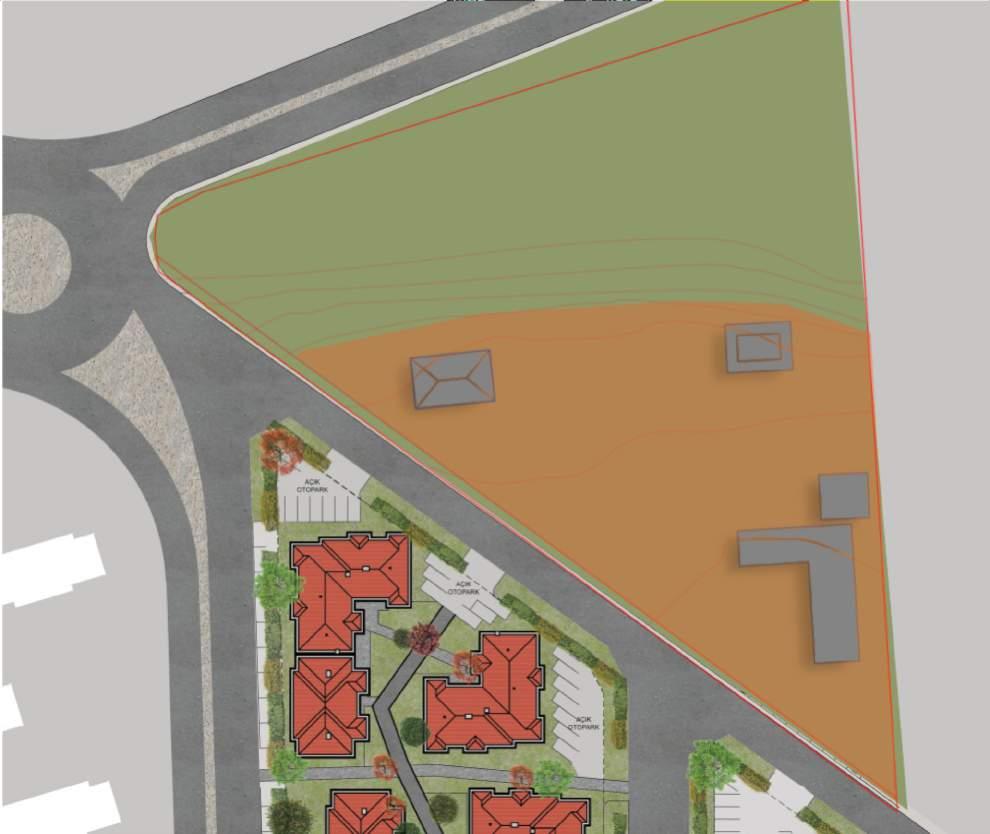

Mahalle Design, Duzce Hope Homes
Project Site
2
Project Site
3 1
1. Masjid 2.Kindergarten 3. Community Oven 4. Social Center 2 3 4
Mahalle Design, Duzce Hope Homes
Design Brief
Mahalle Design, Duzce Hope Homes
4
Inter-generational park that would co-habit different users
The Duzce Hope Identity Earthquake Survivors
5
Mahalle Design, Duzce Hope Homes
fig:1
The Duzce Hope Identity
Earthquake Survivors History of Activism
Mahalle Design, Duzce Hope Homes
fig:2
6
The Duzce Hope Identity
Earthquake Survivors History of Activism Agricultural legacy and strong connection with earth
Mahalle Design, Duzce Hope Homes
7
fig:3
The Duzce Hope Identity

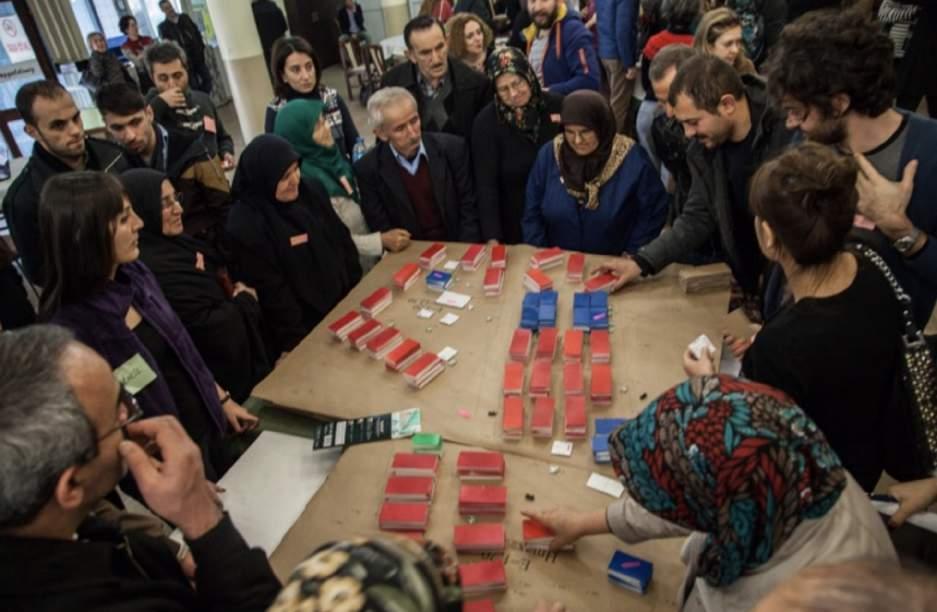

Earthquake Survivors History of Activism Agricultural legacy and strong connection with earth Right to Participation
Mahalle Design, Duzce Hope Homes
8
fig:4
Earthquake Survivors History of Activism Agricultural legacy and strong connection with earth R ight to Participation Ekmek Bread
The Duzce Hope Identity fig:5
Mahalle Design, Duzce Hope Homes
9
10 Our intent for the Mahalle Design is to:
Intent Reflect Community Values Foster Social Integration Be Ecologically Sensible Be Affordable Promote Income Generation Be Flexible
Design, Duzce Hope Homes
Design
Mahalle
11 Memorial Space Ceremony/ Gathering Space Playground for Kids Tea/Food Karts & Shopping Kiosks Ekmek Bread Bakery Cafeteria Vegetable Gardens Gardens Design Spaces Mahalle Design
Design, Duzce Hope Homes
Mahalle

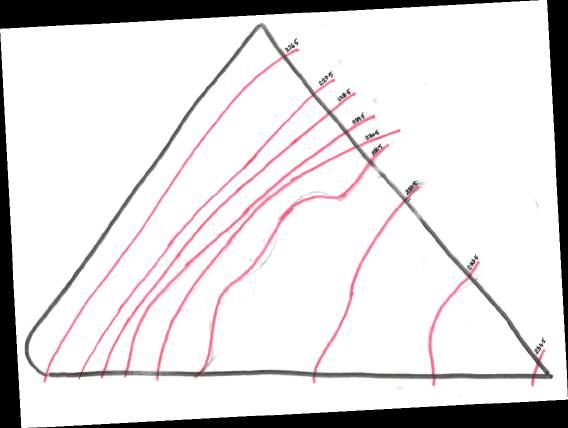

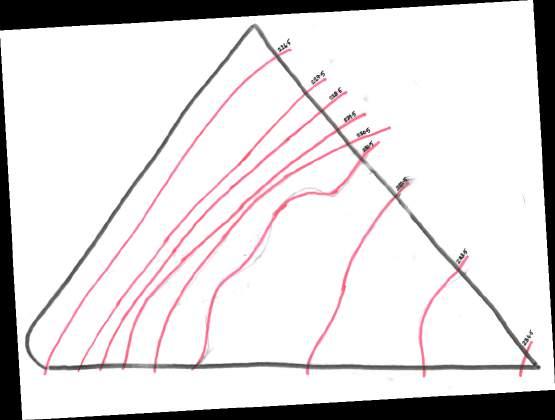

Topography
Mahalle Design, Duzce Hope Homes

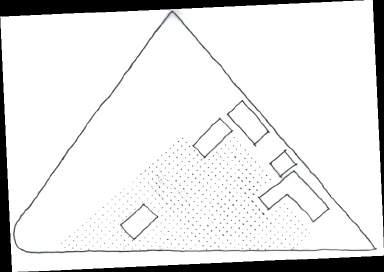

Parameters Spatial Zoning
Community planned structures Future Designed Structures
A hierarchy of public, semi- public and private space applied for spatial configuration within the site.
12

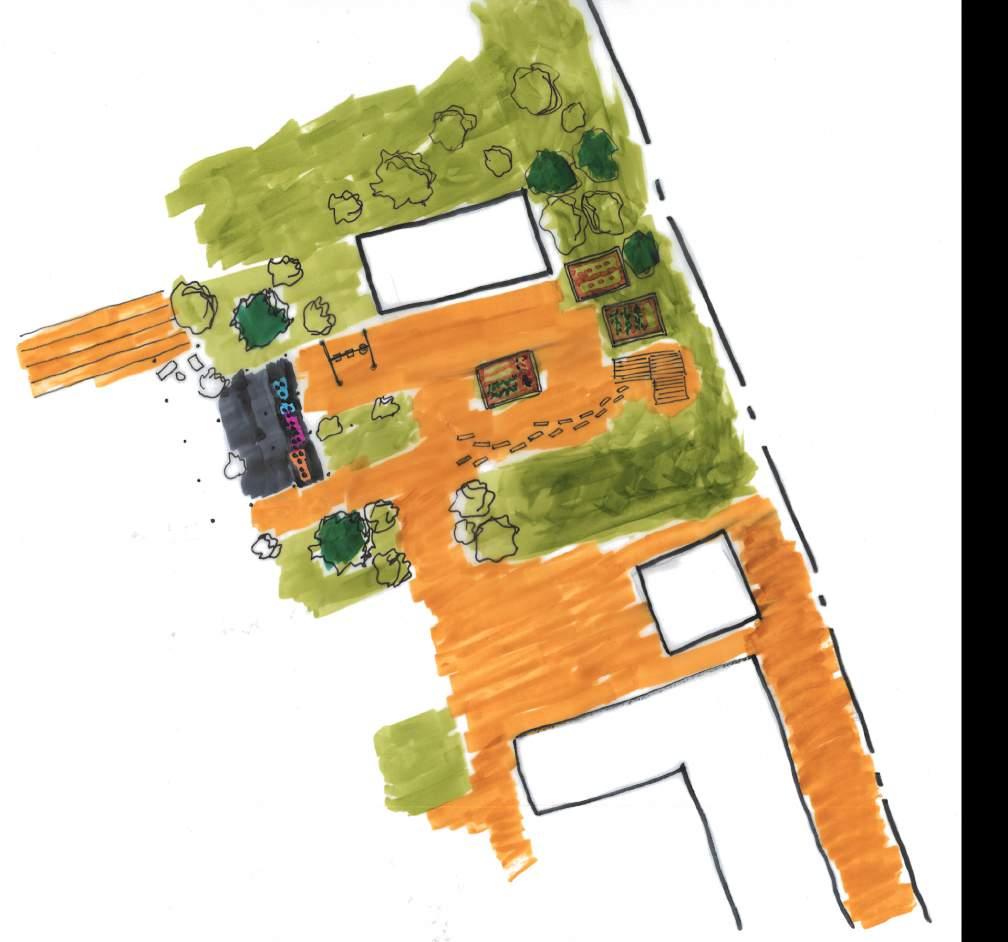

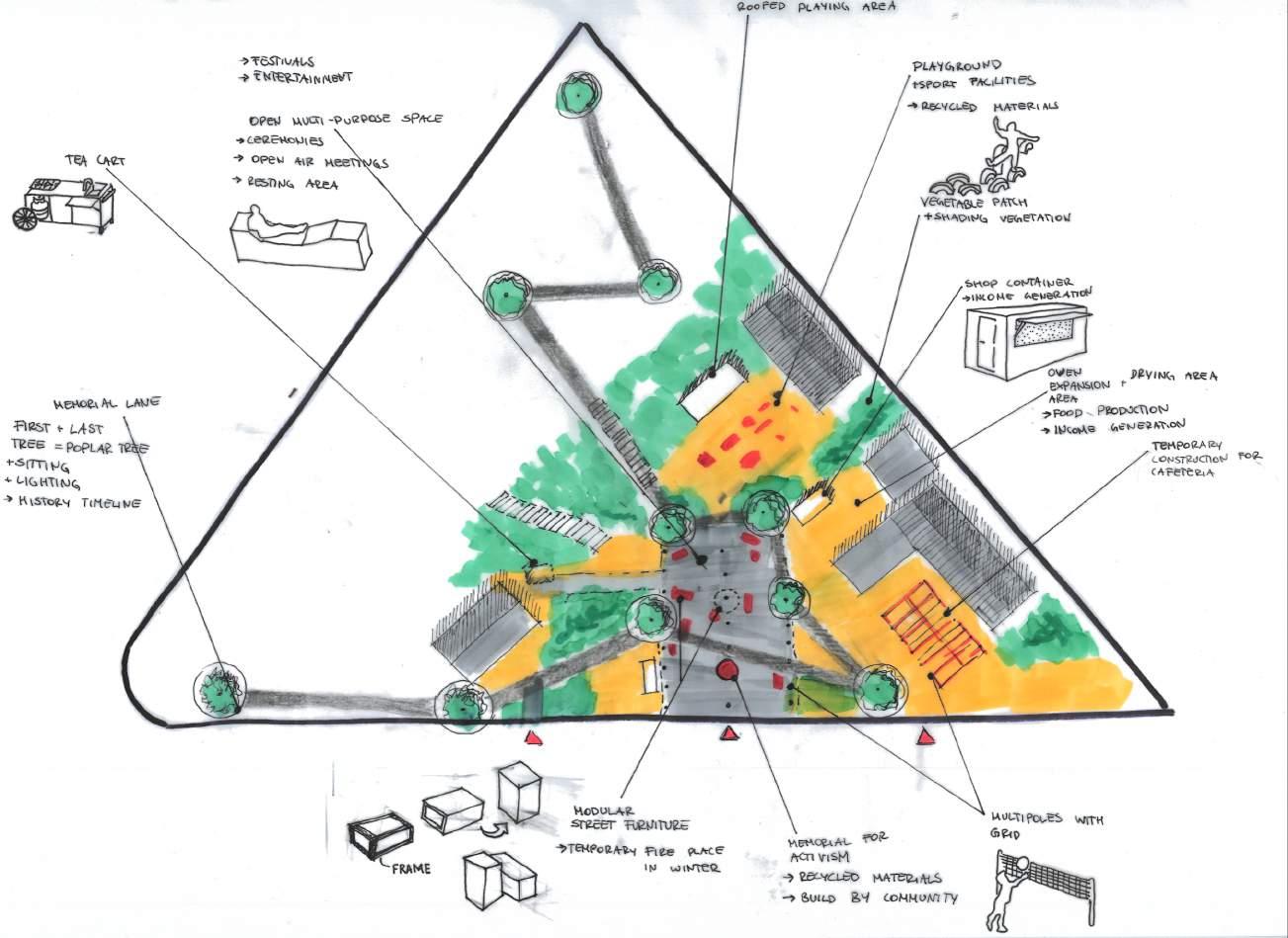

Initial Concept Design
Mahalle Design, Duzce Hope Homes
13
Design Refinement

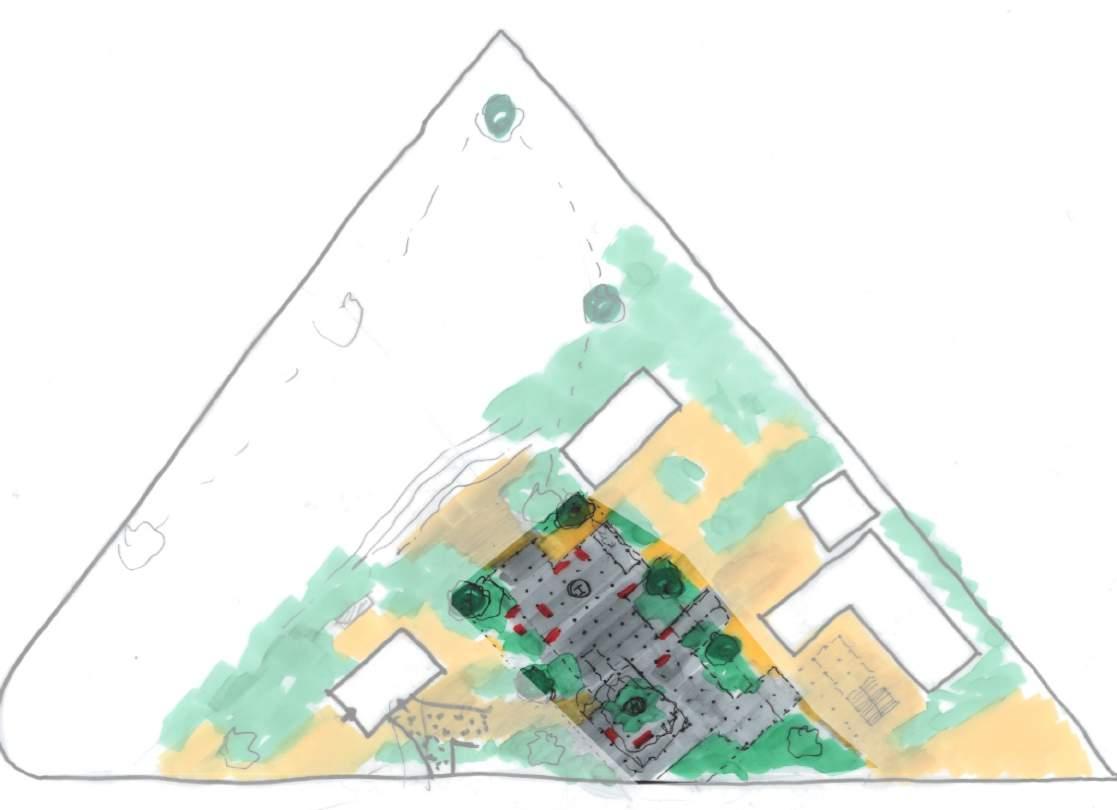

The Memorial is the focal element. Milestone trees help define the Mahalle and its connection to other built and unbuilt spaces.
Mahalle Design, Duzce Hope Homes

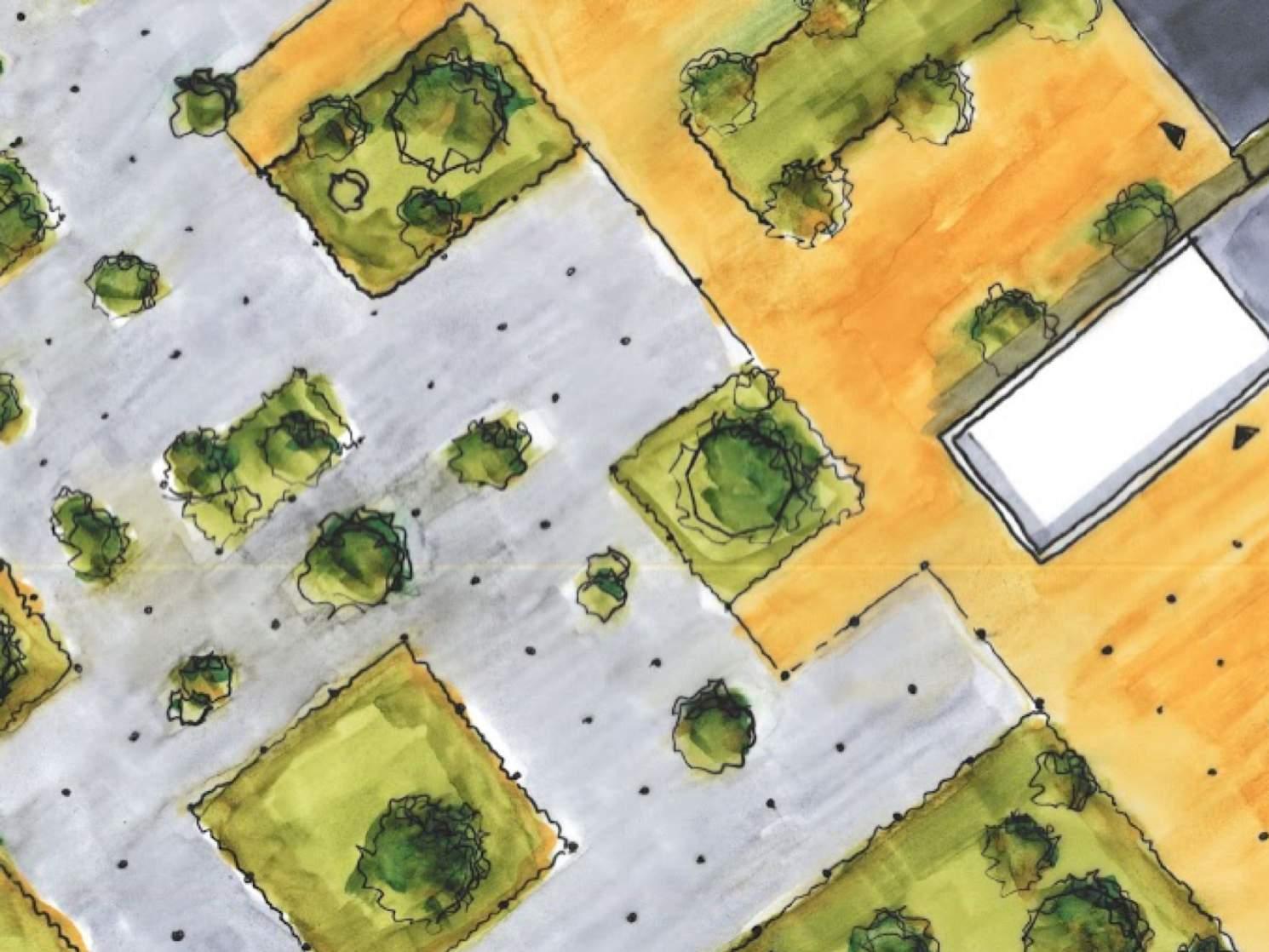

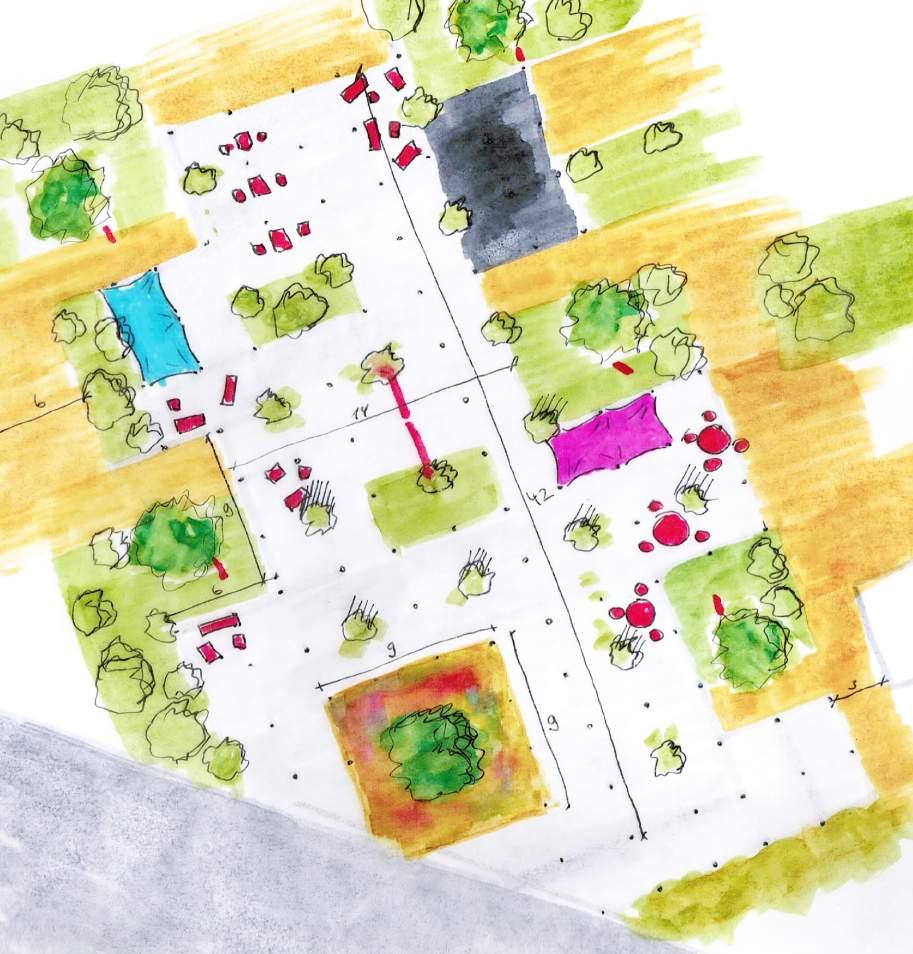

Spatial configuration through the application of a grid
14
Reminiscing Milestones
Mahalle Design, Duzce Hope Homes
15

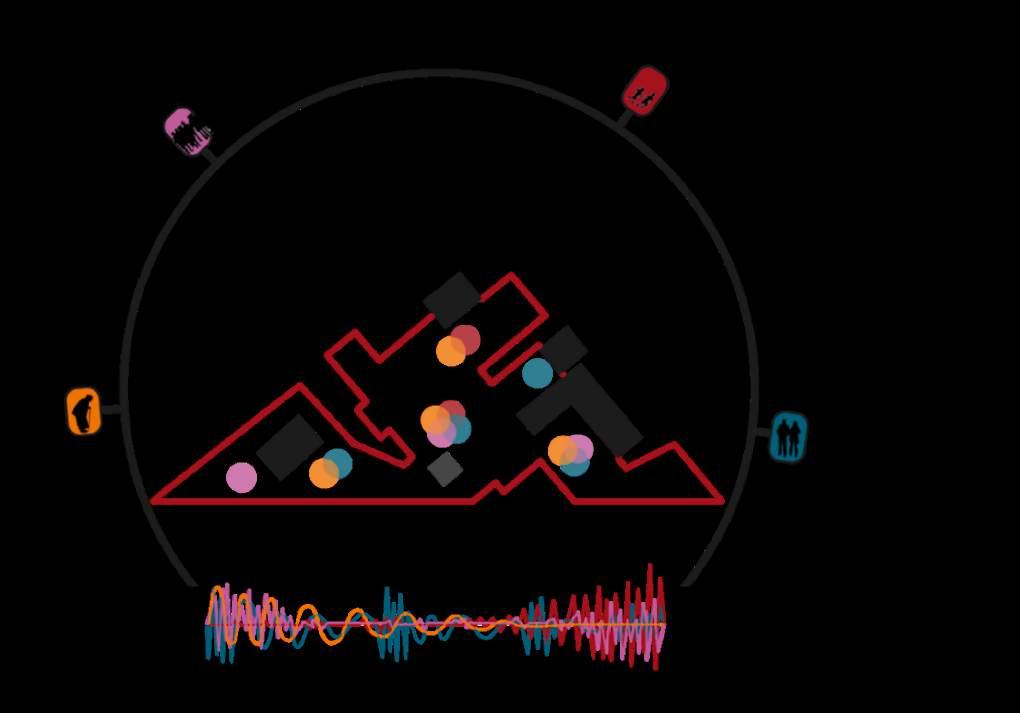

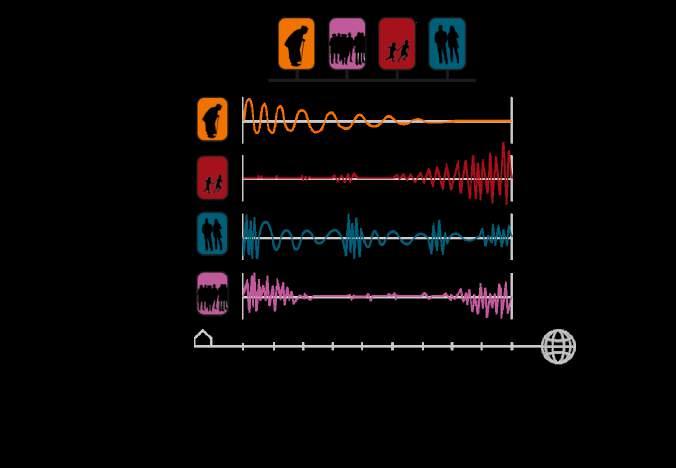

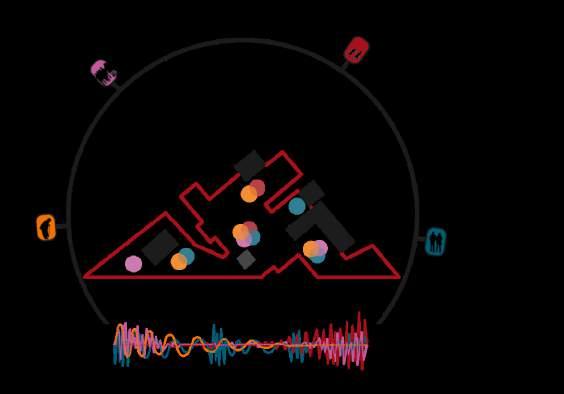

Spatio Temporal User-behavior Patterns
Mahalle Design, Duzce Hope Homes
16

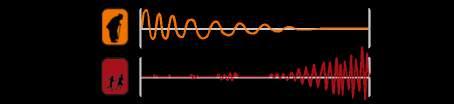

Spatio Temporal User-behavior Patterns
Mahalle Design, Duzce Hope Homes
17
Master Plan Context Master Plan Phase 1 18 Mahalle Design, Duzce Hope Homes 1 2 3 4 5 6 7 1. Outdoor Cafeteria 2. Parking Space 3. Social Center 4. Community Oven 5. Kids Playground 6. Kindergarten 7. Masjid 8. Vegetable Garden Memorial Milestone Tree 8

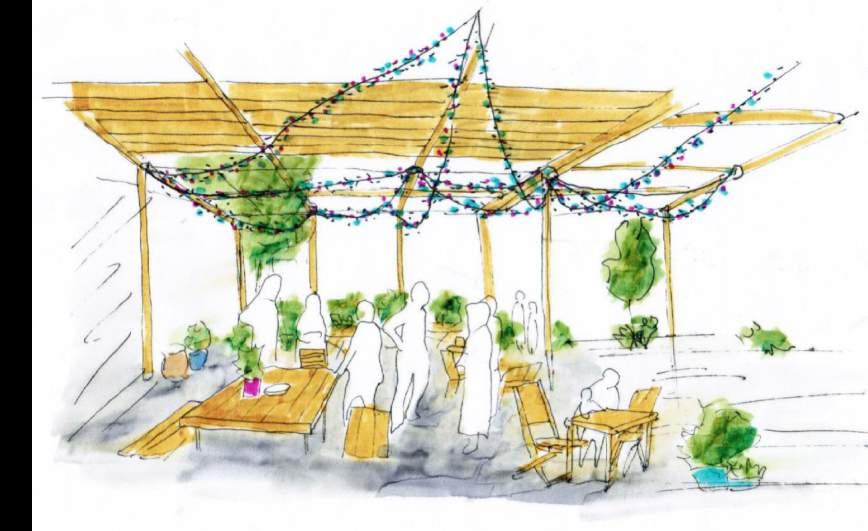

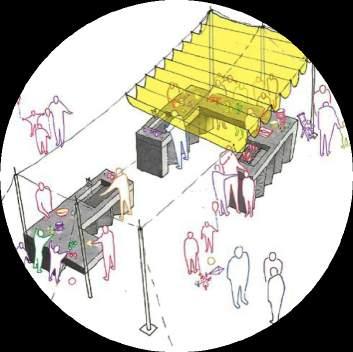

Master Plan Context Master Plan Phase 2 19 Mahalle Design, Duzce Hope Homes 1. Steps 2. Sandbox 3. Childrens Garden Patch 4. Outdoor Eating Area 5. Moveable Shade Infrastructure 6. Common furniture 7. Kiosk Shop 8. Tea Cart 1 2 3 4 6 5 7 8
A place in the Shade
20 Detail
20
Location
Mahalle Design, Duzce Hope Homes
Mahalle Space
21
Detail Location

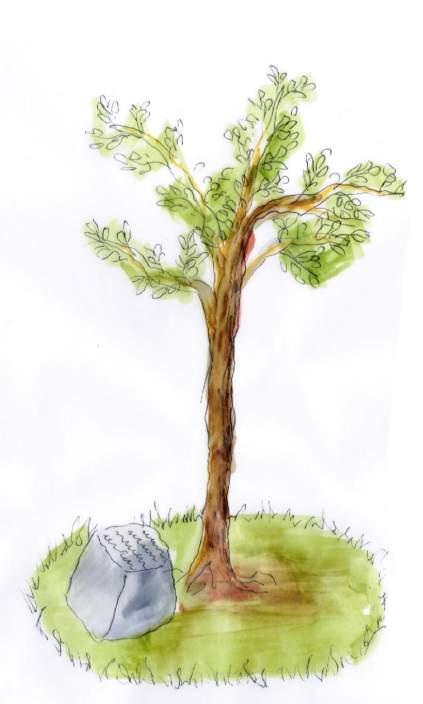

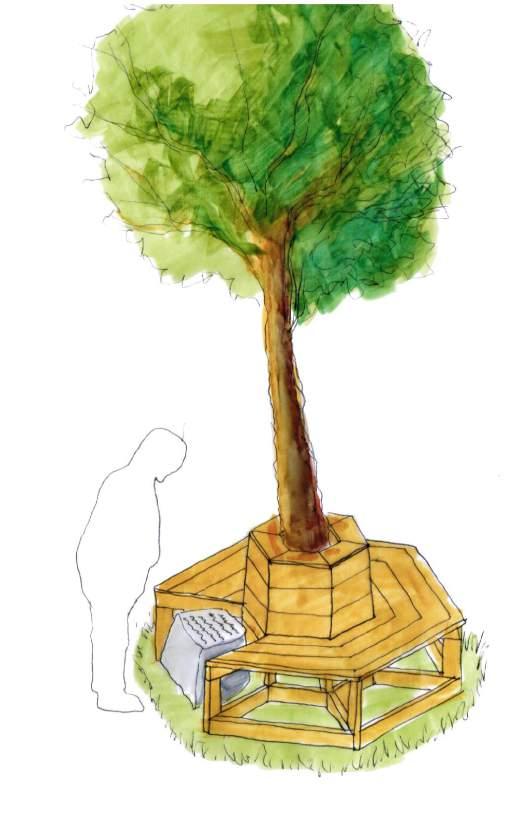

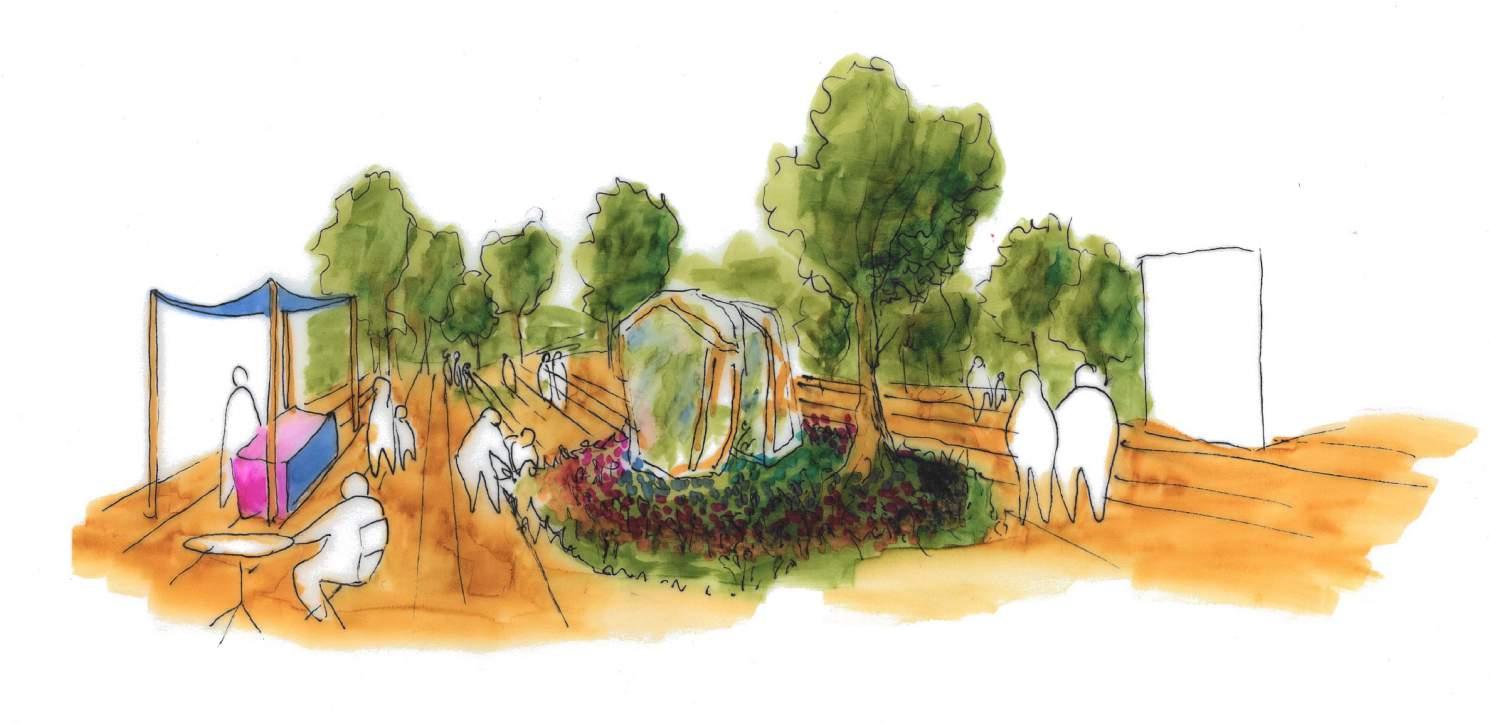

Mahalle Design, Duzce Hope Homes Memorial Milestone Tree 1 Information Board
Central Memorial
Mahalle Design, Duzce Hope Homes
22
Detail Location

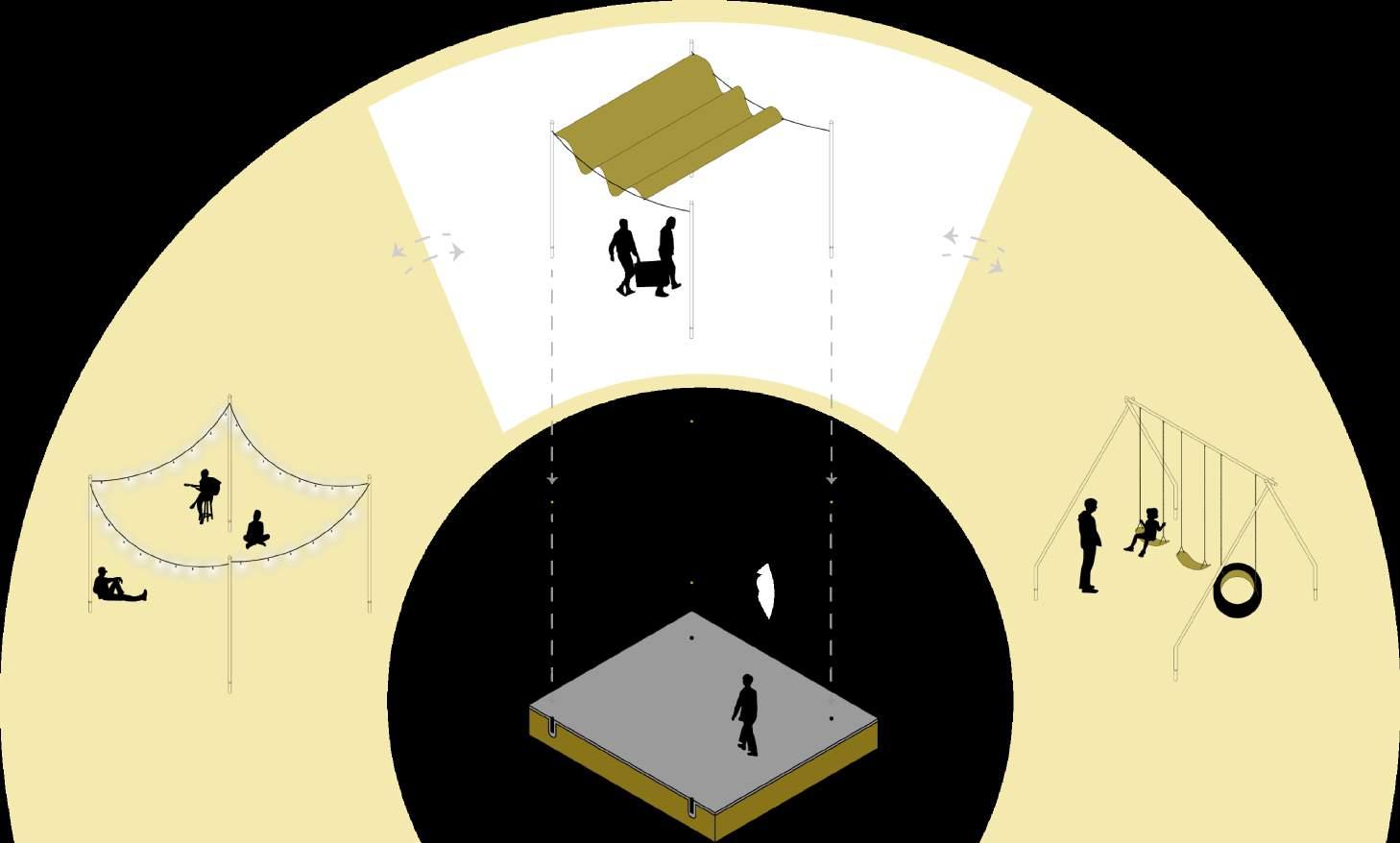

23 Integrated Grid System Grid Functions Operable Cloth shade Wired Light Network Plug -in swing set 0.25m pole inset Rubber Puncture Cap Rammed Pavement Plug in / out exchange Plug in / out exchange
Mahalle Design, Duzce Hope Homes
Detail Location

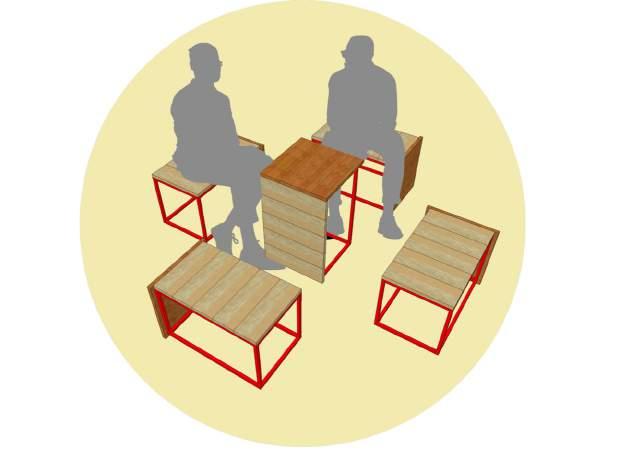

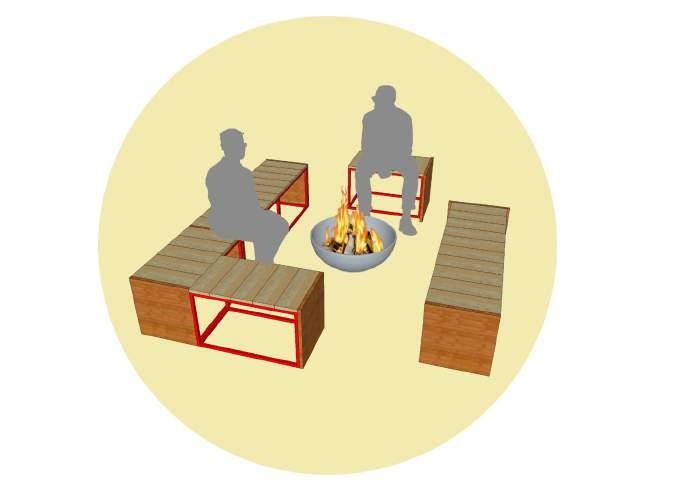

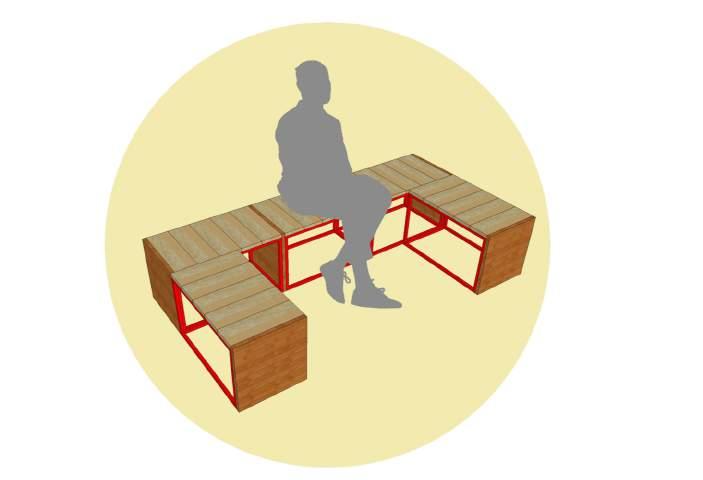

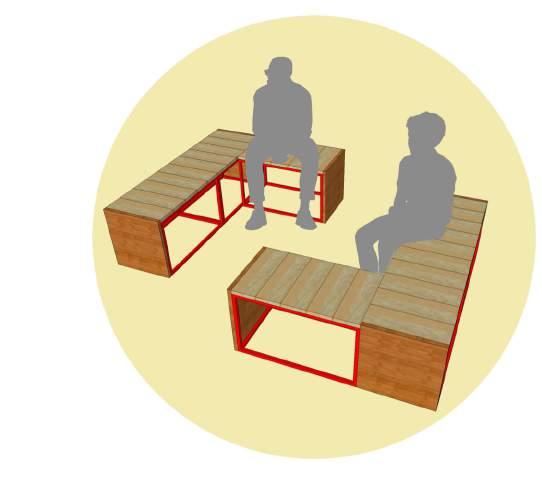

Seating Furniture Flexible layout and use
Mahalle Design, Duzce Hope Homes
24 Detail
Location

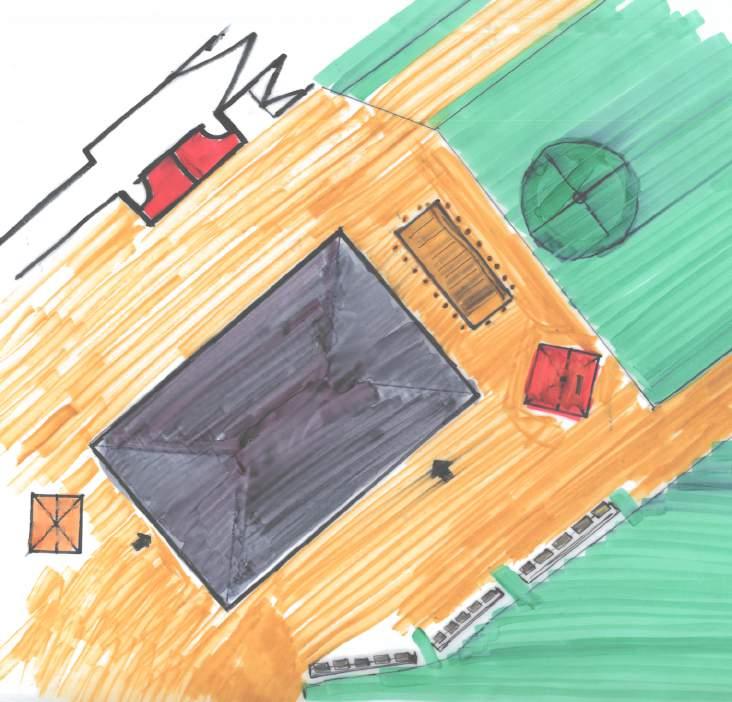

25 Detail Location Mahalle Design, Duzce Hope Homes Masjid 1 2 3 1. Masjid 2. Tea Stall 3. Kiosk shop 4. Benches 5. Toilet 6. Open Air Table 4 5 6 fig:6 fig:7 fig:8
Kindergarten
26
Detail Location Mahalle Design, Duzce Hope Homes

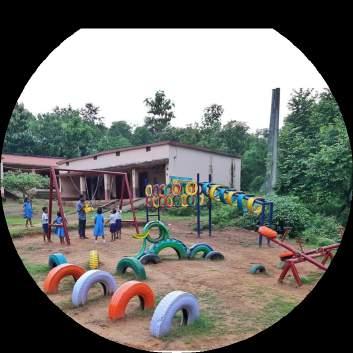

1 2 3 1. Kindergarten 2. Upcycled Playscapes 3. Chalkable Surface
fig:10
fig:9

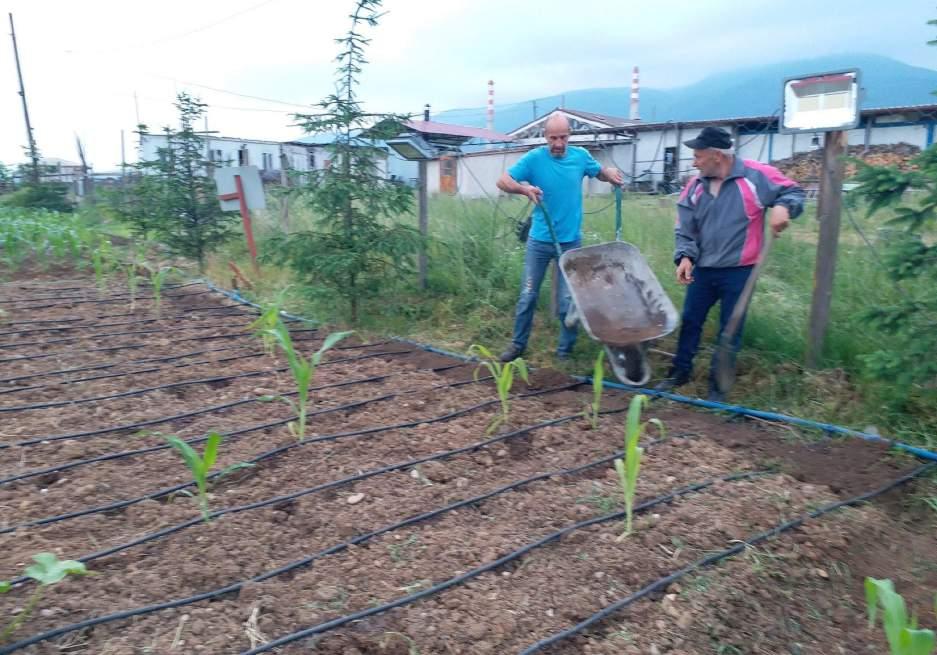

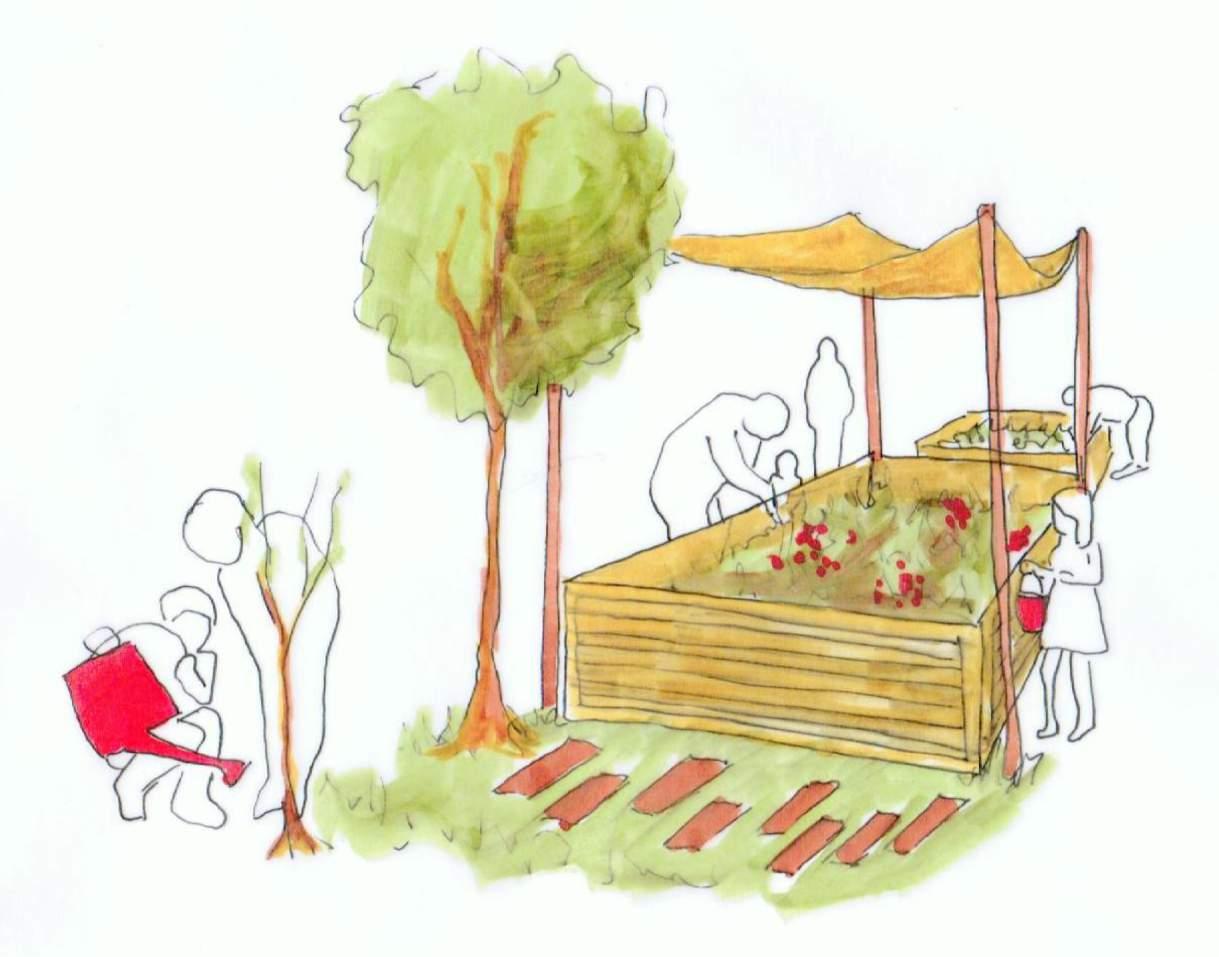

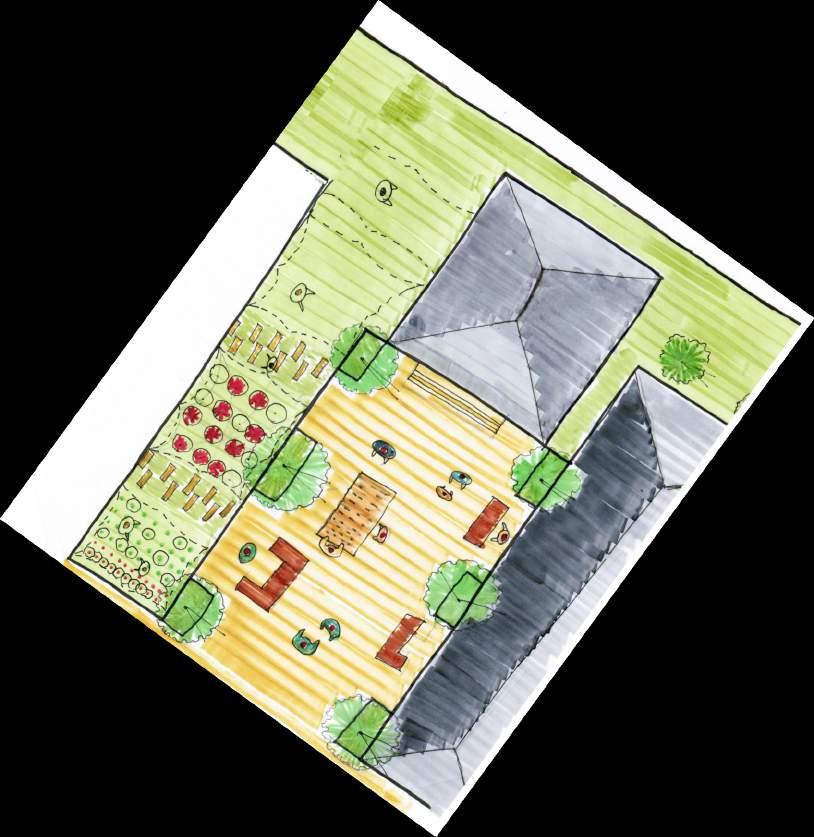

Detail Location 27 Mahalle Design, Duzce Hope Homes 1. Oven 2. Vegetable Garden 3. Spill over area 4. Future Expansion 5. Social Center Community Oven 1 2 3 4 5 fig:11
The Garden Collective
Mahalle Design, Duzce Hope Homes
28 Detail
Location 28
Cafeteria
Mahalle Design, Duzce Hope Homes
29
2 1
Location 3
Detail

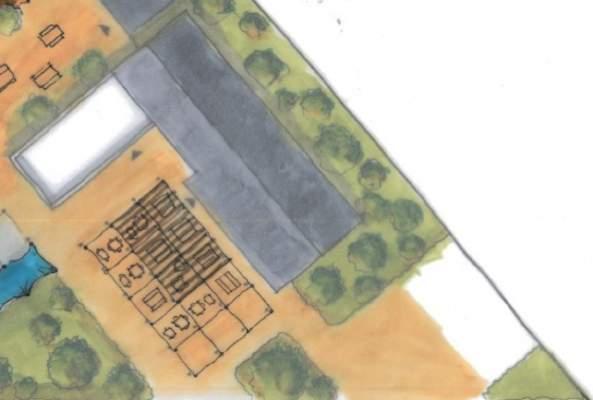

1. Social Center 2. Parking 3. Cafeteria

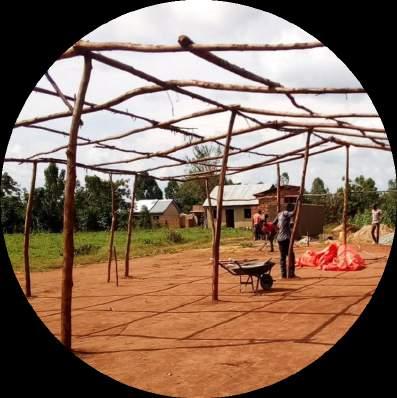

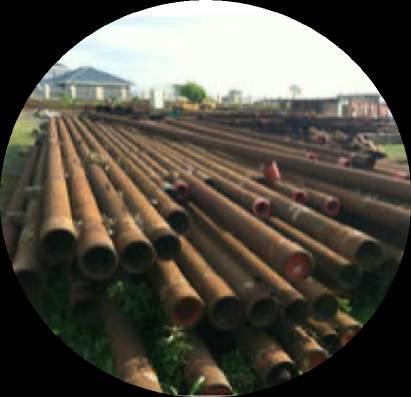

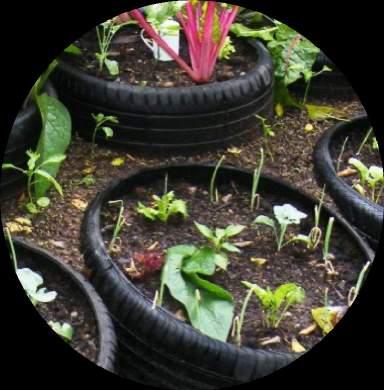

30 Materials 1 2 3 4 5 6 1. Compacted Earth 2. Metal Poles 3. Upcycled Planter boxes 4. Temporary Wooden Structures 5. Broken Tile Flooring Mahalle Design, Duzce Hope Homes fig:16 fig:17 fig:18 fig:19 fig:20
