kreon trace brochure

ARCHITECTURAL LINEAR AND COVE LIGHTING

kreon trace

kreon

lini

kreon

2

trace

Explore the kreon trace collection and discover how linear lighting can elevate your next project.

lini 10

3

kreon

4

trace

5

kreon

Light as a deliberate mark

In architecture, a trace is never accidental.

It is the result of intent, a line that follows structure, reveals proportion, and clarifies space without asserting itself. kreon trace introduces a new interpretation of linear lighting: not as a visible fixture, but as a subtle architectural presence.

Linear lighting is often defined by its form.

By profiles, dimensions and mounting details. kreon trace shifts the focus away from the object and toward its effect.

It is conceived as a controlled line of light that follows architecture, reinforces geometry and quietly shapes perception.

The luminaire recedes.

The architecture remains.

6

trace

7

kreon

Reduced to its essential role Like all kreon systems, kreon trace is reduced to what matters most: - precise light distribution - clean integration - calm visual output Every detail is designed to support spatial clarity rather than visual noise.

Light appears exactly where it is needed and nowhere else.

A system that follows architecture kreon trace is developed as a coherent system, not a collection of parts.

It adapts to architectural intent through continuous linear runs, direct and indirect light distributions, integration into ceilings, walls and coves Instead of forcing solutions, kreon trace follows the logic of the space, allowing light to be aligned with edges, planes and transitions offering unparalleled visual impact.

8

trace

lini 10

9

kreon

10

trace

11

kreon

Light that defines without describing kreon trace does not decorate. It does not frame itself. It operates quietly in the background, defining limits, directions and hierarchies, often perceived only subconsciously. The result is light that supports architecture instead of competing with it.

trace by kreon With trace, kreon continues its pursuit of lighting that disappears into architecture.

A line of light reduced to its essence.

A deliberate mark that clarifies space.

An architectural trace, nothing more, nothing less.

12

trace

lini 10

13

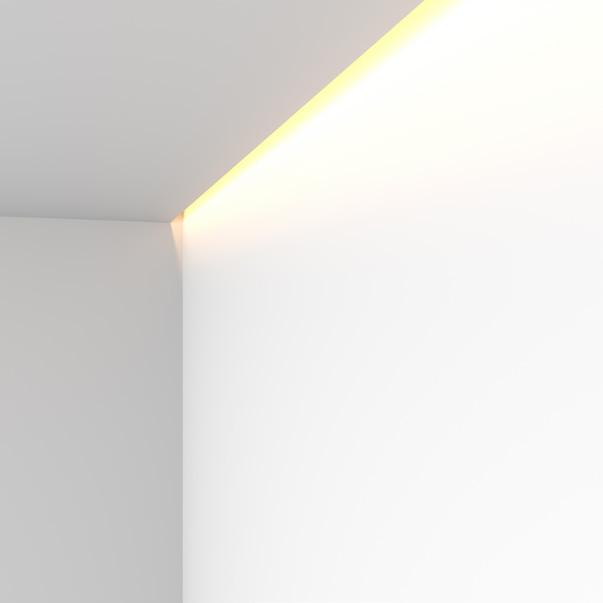

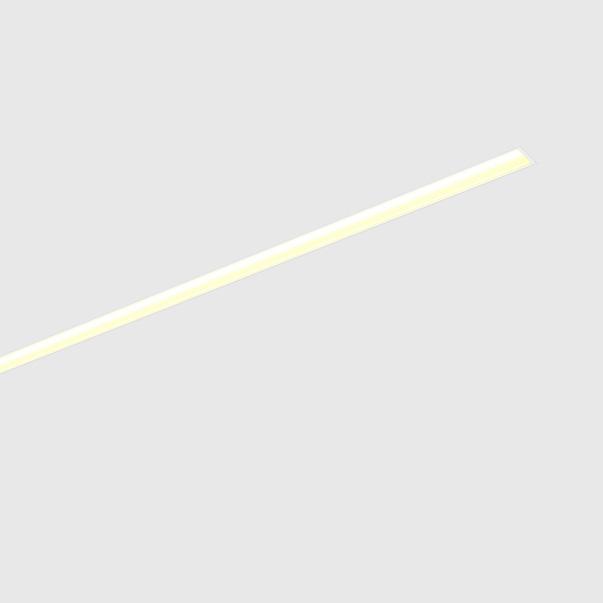

kreon kreon trace recessed A fully integrated, seamless solution for minimal architectural presence.

- flush, continuous line of light - custom‑made lengths, LED strip and end caps included - no on-site soldering - opal white diffuser - spackle flange on front -or backside of the panel

14

trace

profiles

trace recessed profile, spackle flange front side height: 16mm

42

13

trace recessed profile, spackle flange back side

3

height: 14mm

13 16

visual

13

1

56

diffused ambient light 13

CCT

2400K, 2700K, 3000K

CRI

min. 95 (R9: +78)

output/m @3000K

> 1700 lm/m (source)

efficacy @3000K

> 160 lm/W (source)

source power

11W/m

16

IP classification 20

15

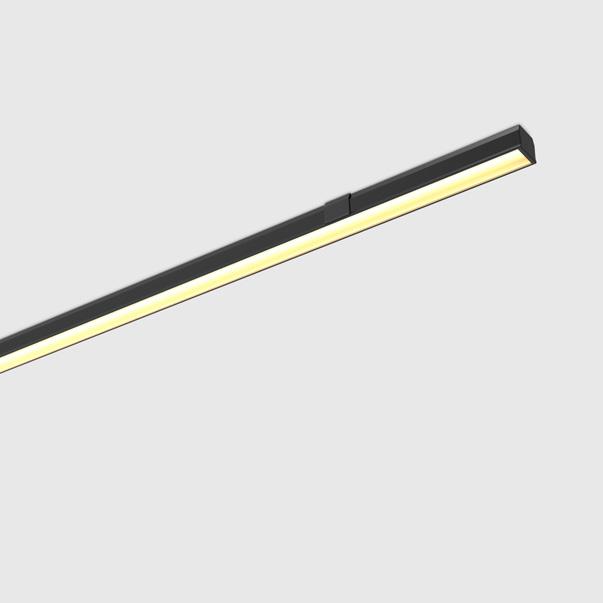

kreon kreon trace surface mounted A versatile profile combining clarity with material choice.

- surface mounted installation

- custom‑made lengths, LED strip and end caps included - no on-site soldering - finishes: painted black - painted white - natural anodized grey

Visual control, even when switched off - opal white diffuser

- translucent black diffuser

The optional black diffuser ensures that, when the light is switched off, the light‑emitting surface appears black rather than white, allowing the profile to blend into darker architectural elements.

16

trace

profile

trace surface profile height: 14mm

PROFILE COLOURS white 16

black

DIFFUSER COLOURS opal white translucent black

visual

diffused ambient light

CCT

2400K, 2700K, 3000K

CRI

min. 95 (R9: +78)

output/m @3000K

> 1700 lm/m (source)

efficacy @3000K

> 160 lm/W (source)

source power

11W/m

IP classification 20

17

14

natrual anodized 12

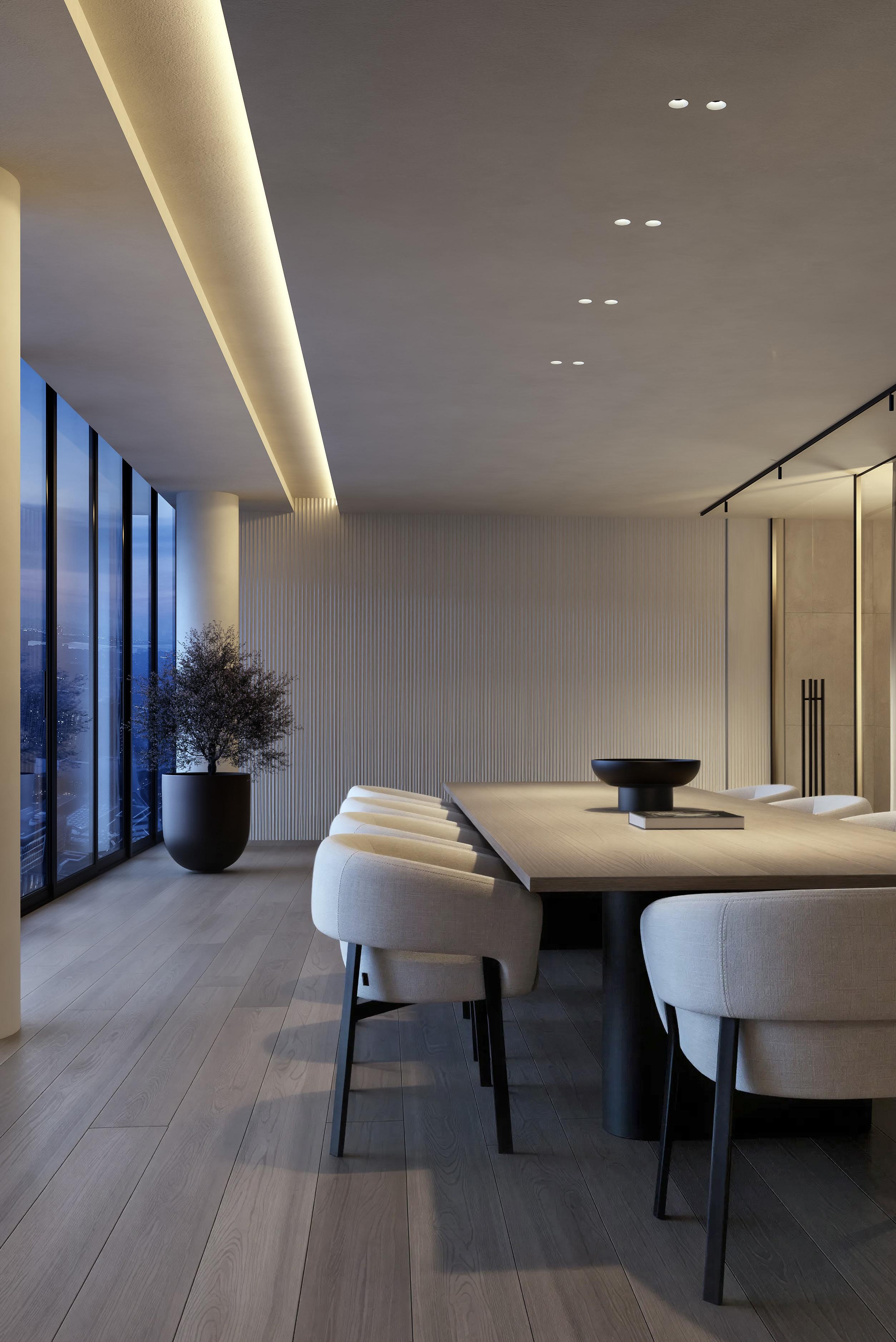

kreon kreon trace cove A refined solution for controlled indirect lighting.

- 45° tilted emission

- custom‑made lengths, LED strip and end caps included - no on-site soldering - opal white diffuser

18

trace

profile

trace 45° cove profile

12

20

height: 20mm

20

visual

diffused ambient light

CCT

2400K, 2700K, 3000K

CRI

min. 95 (R9: +78)

output/m @3000K

> 1700 lm/m (source)

efficacy @3000K

> 160 lm/W (source)

source power

11W/m

IP classification 20

19

kreon

20

trace CONFIGURE YOUR KREON TRACE type

colour

CCT / CRI -

KR974

-

00

1

9524

DIFB

kreon trace surface mounted

white

2400K, CRI95+

diffuse white

10*

2

9527

DIFW*

kreon trace recessed

black

2700K, CRI95+

diffuse black

3

9530

natural anodized

3000K, CRI95+

10**

kreon trace 45° cove

* * only available in white * * only available in alu silver

* * only available for trace surface

CONFIGURATION EXAMPLE: KR974 00 1 - 9524 - DIFW

Remarks - minimal cutting length: in steps of 6,25mm - minimal ordering lenght: 300mm - shipment length: 2300mm (3000mm packaging included)

■ Optional accessories Power supply 24V

Controller

diffuser

KR772174

40W

KR772176

60W

KR774032

push-dim, 0/1-10V

KR774036

DALI

KR774039

Casambi 3

21

offices kreon HQ Industrieweg-Noord 1152 3660 Oudsbergen Belgium T +32 89 81 97 80 belgium@kreon.com www.kreon.com kreon Austria austria@kreon.com kreon China / The Belgian House Changle Road Lane 672, No. 33, Building No. 5, Jingan, Shanghai China T +86 183 1711 3541 china@kreon.com kreon France 5, rue d’Aboukir 75002 Paris France T +33 1 44 50 53 54 france@kreon.com kreon Germany Brühler Straße 11-13 50968 Cologne Germany T +49 221 937 22 0 germany@kreon.com kreon Italy Via V. Forcella 5 20144 Milano Italy T +39 02 89 42 08 46 italy@kreon.com

kreon Middle East & India Dubai Airport Free Zone Area (DAFZA) West Wing 6 Office 6 WA 634 P.O. Box 293889 Dubai United Arab Emirates T +971 56 705 2522 middle.east@kreon.com kreon Inc. North America & Canada 20 Murray Hill Parkway Suite #180 East Rutherford NJ 07073 United States of America +1 (201) 298-44 48 usa@kreon.com kreon Poland T +48 504 788 355 poland@kreon.com kreon Scandinavia T +31 (0)6 52 39 16 80 scandinavia@kreon.com kreon South East Asia singapore@kreon.com kreon Spain & Portugal Ángel Guimera 7-9 local C Barcelona 08017 Spain T +34 600 462 551 spain@kreon.com

22

kreon Switzerland Neufeldweg 6 5103 Möriken Switzerland T +41 61 316 74 01 switzerland@kreon.com kreon The Netherlands Danzigerbocht 39 1013 AM Amsterdam The Netherlands T +31 (0)6 52 391 680 the.netherlands@kreon.com kreon Turkey Sehit Murat Demirli Cad. Resadiye Yolu 76 Alemdag-Ümraniye 34794 Istanbul Turkey T +90 216 430 86 00 proje@kreon.com.tr kreon UK 67 Maltings Place 169 Tower Bridge Road London SE1 3LJ United Kingdom T +44 (0)20 7740 2112 uk@kreon.com

23

One system. Multiple applications.

Across all profiles, stark trace offers: - Custom‑made lengths - Minimal linear geometry - Consistent architectural language - Designed for visual calm, on and off For technical documentation, drawings and configuration options, please contact kreon.
