kreon holon 60
kreon holon is a range of surface mounted, track mounted and pendant cylindrical downlights characterised by its compact form and deep set LED position, providing a subtle feeling of light without a possible uncomfortable visual perception. The range uses a variety of LED modules and is available in three diameters to suit spatial requirements. With a choice of fixed or directional units, kreon holon can provide a discreet yet functional solution to general or accent lighting within architecture. Finished in black for a dramatic contrast or pure white.
kreon holon directional is a spotlight with a rotational adjustment of 360º and an angular adjustment of 90º, which when combined with the choice of spot, flood, wide flood, darklight or wide darklight reflector, provides a versatile general or accent lighting tool. kreon holon directional can be surface mounted or used on a 48V and 230V track system.
kreon holon fixed can be surface mounted or suspended and is the perfect solution for general or accent lighting and features a spot, flood or wide flood reflector set above the black or white internal louvre. Use kreon holon fixed to create pools or accents of light.
2 1 kreon holon 60 kreon.com/holon catalogue 3
2 4 6 5 3 1

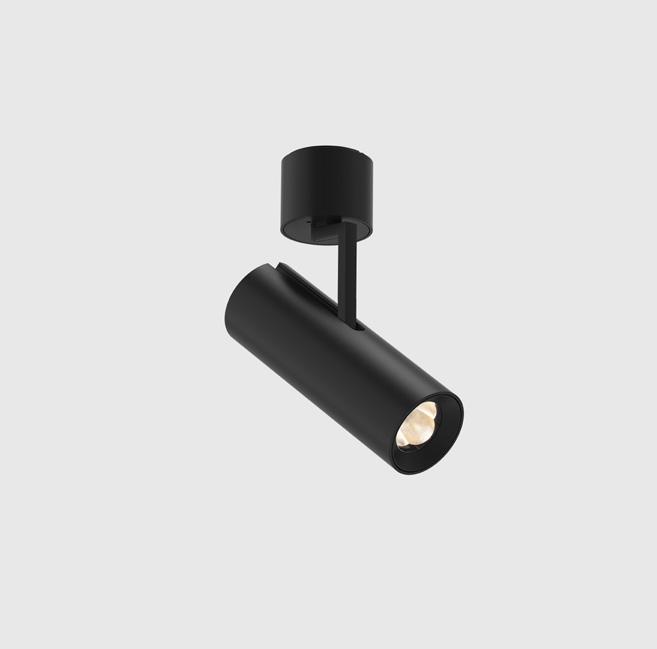

1. holon 60 directional, surface mounted, low louvre, black
2. holon 60 directional, recessed mounted, deep recessed louvre, white-black
3. holon 60 fixed, low louvre, surface mounted, black
4. holon 60 pendant, deep recessed louvre, black
5. holon 60 directional on 48V track, low louvre, white
kreon.com/holon 3 Project private residence Location London, United Kingdom kreon holon 60
6. holon 60 wallwasher on 230V track, white
kreon holon 60
directional surface mounted, low louvre
directional surface mounted, deep recessed louvre
6 5 185 241 50 Ø65 360°/90°
holon 60 directional, surface mounted catalogue 3 kreon.com/holon CRI
1 LED SSP & SP CRI90 2700K/3000K/4000K 230V
808lm CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 230V 11,9W 1211lm CRI95 2700K/3000K/4000K 1090lm 2 LED SSP & SP CRI90 2700K/3000K/4000K 230V 10,2W 788lm CRI95 2700K/3000K/4000K 709lm FL CRI90 2700K/3000K/4000K 230V 11,9W 1146lm CRI95 2700K/3000K/4000K 1031lm REMARKS ➊ Dali-2,
◐ white luminaire
black louvre IP40 Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot (18°) SP Spot (33°) FL Flood (54°) WFL Wide flood (69°) SW ON/OFF DD DALI dimming ➊ holon 60
Gear: incl. ⏚ ○ KR962461 1 ● ● ● ● ● ● ● ● ● ● ● ● ● KR962462 1 ● ● ● ● ● ● ● ● ● ● ● ● holon 60
Gear: incl. ⏚ ○ KR962161 ➁ ● ● ● ● ● ● ● ● ● ● ● ● KR962162 ➁ ● ● ● ● ● ● ● ● ● ● ● ◐ KR962165 ➁ ● ● ● ● ● ● ● ● ● ● ●
CCT Voltage Wattage Fixture lumen
10,2W
push dimming
with
60 directional, recessed mounted
holon 60 directional recessed mounted, low louvre G
holon 60 directional recessed mounted, deep recessed louvre
KR707164 Plasterkit, trimless finish, for holon 60 directional recessed mounted, 1 83mm KR707161 Plasterkit concrete, trimless finish, for holon 60 directional recessed mounted
747464 LED Driver, 300mA, ON/OFF, 16W ➊
KR747562 LED Driver, 300mA, 1-10V, 15W ➊
KR747666 LED Driver, 300mA, DALI, 16W ➊
KR772209 LED Driver, 300mA, Casambi, 16W ➊
Driver 500mA for FL & WFL KR772024 LED Driver, 500mA, ON/OFF, 20W ➊
KR772220 LED Driver, 500mA, 1-10V, Push-dim, 20W ➊
KR772223 LED Driver, 500mA, DALI, 20W ➊
KR772229 LED Driver, 500mA, Casambi, 27W ➊
CCT Wattage Drive current Fixture lumen
Plenum height needs to be 150mm to push driver trough
◐ white luminaire with black
8 7 185 41 Ø65 230 360°/90° catalogue 3 kreon.com/holon kreon holon 60 holon
CRI
➀ LED SSP & SP CRI90
CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 18,5W 500mA 1616lm CRI95 2700K/3000K/4000K 1454lm ➁ LED SSP & SP CRI90 2700K/3000K/4000K 10,2W 300mA 788lm CRI95 2700K/3000K/4000K 709lm FL CRI90 2700K/3000K/4000K 18,5W 500mA 1523lm CRI95 2700K/3000K/4000K 1370lm REMARKS
plasterkit
louvre IP40 ■ Required accessories Plasterkit
■ Optional accessories Driver
SSP
SP
2700K/3000K/4000K 10,2W 300mA 808lm
➊
300mA for
&
KR
Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot (18°) SP Spot (33°) FL Flood (54°) WFL Wide flood (69°) Required accessories Optional accessories
ear: excl. 4 ○ KR962371 1 ● ● ● ● ● ● ● ● ● ● ■ ■ ● KR962372 1 ● ● ● ● ● ● ● ● ● ● ■ ■
Gear: excl. 4 ○ KR962271 ➁ ● ● ● ● ● ● ● ● ● ■ ■ ● KR962272 ➁ ● ● ● ● ● ● ● ● ● ■ ■ ◐ KR962275 ➁ ● ● ● ● ● ● ● ● ● ■ ■ Plasterkit concrete Plasterkit
fixed surface mounted, low louvre
fixed surface mounted, low louvre
fixed surface mounted, deep recessed louvre
10 9 134 50 Ø65 188 kreon holon 60 holon 60 fixed catalogue 3 kreon.com/holon CRI CCT Voltage Wattage Drive current Fixture lumen 1 LED SSP & SP CRI90 2700K/3000K/4000K 230V 10,2W 808lm CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 230V 11,9W 1211lm CRI95 2700K/3000K/4000K 1090lm 2 LED SSP & SP CRI90 2700K/3000K/4000K 10,2W 300mA 808lm CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 18,5W 500mA 1616lm CRI95 2700K/3000K/4000K 1454lm ➂ LED SSP & SP CRI90 2700K/3000K/4000K 10,2W 300mA 788lm CRI95 2700K/3000K/4000K 709lm FL& WFL CRI90 2700K/3000K/4000K 18,5W 500mA 1523lm CRI95 2700K/3000K/4000K 1370lm REMARKS ◐ white luminaire with black louvre IP40 Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot (18°) SP Spot (33°) FL Flood (54°) WFL Wide flood (69°) SW ON/OFF DD DALI dimming Optional accessories holon 60
Gear: incl. ⏚ ○ KR962861 1 ● ● ● ● ● ● ● ● ● ● ● ● ● KR962862 1 ● ● ● ● ● ● ● ● ● ● ● ● holon 60
Gear: excl. 4 ○ KR962761 ➁ ● ● ● ● ● ● ● ● ● ● ■ ● KR962762 ➁ ● ● ● ● ● ● ● ● ● ● ■ holon 60
Gear: excl. 4 ○ KR962661 ➂ ● ● ● ● ● ● ● ● ● ■ ● KR962662 ➂ ● ● ● ● ● ● ● ● ● ■ ◐ KR962665 ➂ ● ● ● ● ● ● ● ● ● ■ ■ Optional accessories Driver 300mA for SSP & SP KR747464 LED Driver, 300mA, ON/OFF, 16W KR747562 LED Driver, 300mA, 1-10V, 15W KR747666 LED Driver, 300mA, DALI, 16W KR772209 LED Driver, 300mA, Casambi, 16W Driver 500mA for FL & WFL KR772024 LED Driver, 500mA, ON/OFF, 20W KR772220 LED Driver, 500mA, 1-10V, Push-dim, 20W KR772223 LED Driver, 500mA, DALI, 20W KR772229 LED Driver, 500mA, Casambi,
27W
kreon holon 60
12 11 185 Ø65 3000
holon 60 pendant catalogue 3 kreon.com/holon REMARKS ◐ white luminaire with black louvre IP40 Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot SP Spot FL Flood WFL Wide flood SW ON/OFF DD DALI dimming Required accessories Optional accessories holon 60 pendant, low louvre Gear: incl. ⏚ ○ KR962851 1 ● ● ● ● ● ● ● ● ● ● ● ● ■ ■ ● KR962852 1 ● ● ● ● ● ● ● ● ● ● ● ● ■ ■ holon 60 pendant, low louvre Gear: excl. 4 ○ KR962751 ➁ ● ● ● ● ● ● ● ● ● ● ■ ■ ● KR962752 ➁ ● ● ● ● ● ● ● ● ● ● ■ ■ holon 60 pendant, deep recessed louvre Gear: excl. 4 ○ KR962651 ➂ ● ● ● ● ● ● ● ● ● ■ ■ ● KR962652 ➂ ● ● ● ● ● ● ● ● ● ■ ■ ◐ KR962655 ➂ ● ● ● ● ● ● ● ● ● ■ ■ CRI CCT Voltage Wattage Drive current Fixture lumen 1 LED SSP & SP CRI90 2700K/3000K/4000K 230V 10,2W 808lm CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 230V 11,9W 1211lm CRI95 2700K/3000K/4000K 1090lm 2 LED SSP & SP CRI90 2700K/3000K/4000K 10,2W 300mA 808lm CRI95 2700K/3000K/4000K 727lm FL& WFL CRI90 2700K/3000K/4000K 18,5W 500mA 1616lm CRI95 2700K/3000K/4000K 1454lm ➂ LED SSP & SP CRI90 2700K/3000K/4000K 10,2W 300mA 788lm CRI95 2700K/3000K/4000K 709lm FL& WFL CRI90 2700K/3000K/4000K 18,5W 500mA 1523lm CRI95 2700K/3000K/4000K 1370lm
■ Required accessories Recessed mounting TBD
Installation box KR791211-LV Low voltage connection box Ø65x52mm, white, for holon 60 pendant gear excl. ➋
KR791212-LV Low voltage connection box Ø65x52mm, black, for holon 60 pendant gear excl. ➋
KR791211-HV High voltage connection box Ø65x52mm, white, for holon 60 pendant gear incl. ➌
KR791212-HV High voltage connection box Ø65x52mm, black, for holon 60 pendant gear incl. ➌
■ Optional accessories
Driver 300mA for SSP & SP
Driver 500mA for FL & WFL
KR747464 LED Driver, 300mA, ON/OFF, 16W ➊
KR747562 LED Driver, 300mA, 1-10V, 15W ➊
KR747666 LED Driver, 300mA, DALI, 16W ➊
KR772209 LED Driver, 300mA, Casambi, 16W ➊
KR772024 LED Driver, 500mA, ON/OFF, 20W ➊
KR772220 LED Driver, 500mA, 1-10V, Push-dim, 20W ➊
KR772223 LED Driver, 500mA, DALI, 20W ➊
KR772229 LED Driver, 500mA, Casambi, 27W ➊
REMARKS
➊ Plenum height needs to be 150mm to push driver trough plasterkit.
➋ Box does not contain driver. Install driver on remote.
➌ Suitable for 230V connection.
14 13
catalogue 3 kreon.com/holon
kreon holon 60
installation recessed mounted surface mounted connection box
kreon holon 60
holon 60 directional on-track, 48V
holon 60 directional, on-track 48Vdc, low louvre
holon 60 directional, on-track 48Vdc, deep recessed louvre
holon 60 directional, on-track 230Vdc (eutrac), low louvre
60 directional, on-track 230Vdc (eutrac), deep recessed louvre
holon 60 directional on-track, 230V, SW (eutrac & onetrack)
60 directional, on-track 230Vdc (onetrack), low louvre
60 directional, on-track 230Vdc (onetrack), deep recessed louvre
holon 60 directional on-track, 230V, DD (eutrac)
holon 60 directional on-track, 230V, DD (onetrack)
REMARKS
16 15 185 18 Ø65 177 360°/90° 185 28 360°/90° Ø65 325 185 28 360°/90° Ø65 300 185 28 360°/90° Ø65 350
catalogue 3 kreon.com/holon
◐
louvre IP40 Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot SP Spot FL Flood WFL Wide flood SW ON/OFF VD 1-10V dimming DD DALI dimming
white luminaire with black
Gear: incl. 4 ○ KR962771 1 ● ● ● ● ● ● ● ● ● ● ● ● ● ● KR962772 1 ● ● ● ● ● ● ● ● ● ● ● ● ●
Gear: incl. 4 ○ KR962671 ➁ ● ● ● ● ● ● ● ● ● ● ● ● ● KR962672 ➁ ● ● ● ● ● ● ● ● ● ● ● ● ◐ KR962675 ➁ ● ● ● ● ● ● ● ● ● ● ● ●
Gear: incl. ⏚ ○ KR962971 ➂ ● ● ● ● ● ● ● ● ● ● ● ● ● KR962972 ➂ ● ● ● ● ● ● ● ● ● ● ● ● holon
Gear: incl. ⏚ ○ KR962871 ➃ ● ● ● ● ● ● ● ● ● ● ● ● KR962872 ➃ ● ● ● ● ● ● ● ● ● ● ● ◐ KR962875 ➃ ● ● ● ● ● ● ● ● ● ● ● holon
Gear: incl. ⏚ ○ KR962981 ➂ ● ● ● ● ● ● ● ● ● ● ● ● ● KR962982 ➂ ● ● ● ● ● ● ● ● ● ● ● ● holon
Gear: incl. ⏚ ○ KR962881 ➃ ● ● ● ● ● ● ● ● ● ● ● ● KR962882 ➃ ● ● ● ● ● ● ● ● ● ● ● ◐ KR962885 ➃ ● ● ● ● ● ● ● ● ● ● ● CRI CCT Voltage Wattage Fixture lumen ➀ LED SSP & SP CRI90 2700K/3000K/4000K 48V 13W 808lm CRI95 2700K/3000K/4000K 48V 727lm FL& WFL CRI90 2700K/3000K/4000K 48V 21W 1616lm CRI95 2700K/3000K/4000K 48V 1454lm ➁ LED SSP & SP CRI90 2700K/3000K/4000K 48V 13W 788lm CRI95 2700K/3000K/4000K 48V 709lm FL CRI90 2700K/3000K/4000K 48V 21W 1523lm CRI95 2700K/3000K/4000K 48V 1370lm ➂ LED SSP & SP CRI90 2700K/3000K/4000K 230V 13W 808lm CRI95 2700K/3000K/4000K 230V 727lm FL& WFL CRI90 2700K/3000K/4000K 230V 21W 1616lm CRI95 2700K/3000K/4000K 230V 1454lm ➃ LED SSP & SP CRI90 2700K/3000K/4000K 230V 13W 788lm CRI95 2700K/3000K/4000K 230V 709lm FL CRI90 2700K/3000K/4000K 230V 21W 1523lm CRI95 2700K/3000K/4000K 230V 1370lm
kreon holon 60
holon 60 fixed on-track, 48V
holon 60 fixed, on-track 48Vdc, low louvre
holon 60 fixed, on-track 48Vdc, deep recessed louvre
60 wallwasher, on-track 48Vdc
60 fixed, on-track 230Vdc (onetrack), low louvre
holon 60 fixed on-track, 230V, SW (onetrack)
60 fixed, on-track 230Vdc (onetrack), deep recessed louvre
60 wallwasher, on-track 230Vdc (onetrack)
holon 60 fixed on-track, 230V, DD (onetrack)
18 17 18 177 Ø65 90 28 300 Ø65 90 28 350 Ø65 90
catalogue 3 kreon.com/holon REMARKS ◐ white luminaire with black louvre IP40 Colour KR-code Light sources 9027 2700K, CRI90+ 9030 3000K, CRI90+ 9040 4000K, CRI90+ 9527 2700K, CRI95+ 9530 3000K, CRI95+ 9540 4000K, CRI95+ SSP Superspot SP Spot FL Flood WFL Wide flood SW ON/OFF VD 1-10V dimming DD DALI dimming
Gear: incl. 4 ○ KR962081 1 ● ● ● ● ● ● ● ● ● ● ● ● ● ● KR962082 1 ● ● ● ● ● ● ● ● ● ● ● ● ●
Gear: incl. 4 ○ KR962281 ➁ ● ● ● ● ● ● ● ● ● ● ● ● ● KR962282 ➁ ● ● ● ● ● ● ● ● ● ● ● ● ◐ KR962285 ➁ ● ● ● ● ● ● ● ● ● ● ● ●
Gear: incl. 4 ○ KR962181 ➂ ● ● ● ● ● ● ● ● ● ● KR962182 ➂ ● ● ● ● ● ● ● ● ●
Gear: incl. ⏚ ○ KR962381 ➃ ● ● ● ● ● ● ● ● ● ● ● ● ● KR962382 ➃ ● ● ● ● ● ● ● ● ● ● ● ● holon
Gear: incl. ⏚ ○ KR962581 ➄ ● ● ● ● ● ● ● ● ● ● ● ● KR962582 ➄ ● ● ● ● ● ● ● ● ● ● ● ◐ KR962585 ➄ ● ● ● ● ● ● ● ● ● ● ● holon
Gear: incl. ⏚ ○ KR962481 ➅ ● ● ● ● ● ● ● ● ● KR962482 ➅ ● ● ● ● ● ● ● ● CRI CCT Voltage Wattage Fixture lumen ➀ LED SSP & SP CRI90 2700K/3000K/4000K 48V 13W 727lm CRI95 2700K/3000K/4000K 48V 654lm FL& WFL CRI90 2700K/3000K/4000K 48V 21W 1470lm CRI95 2700K/3000K/4000K 48V 1323lm ➁ LED SSP & SP CRI90 2700K/3000K/4000K 48V 13W 687lm CRI95 2700K/3000K/4000K 48V 618lm FL CRI90 2700K/3000K/4000K 48V 21W 1382lm CRI95 2700K/3000K/4000K 48V 1244lm ➂ LED WW CRI90 2700K/3000K/4000K 48V 13W 710lm CRI95 2700K/3000K/4000K 48V 639lm ➃ LED SSP & SP CRI90 2700K/3000K/4000K 230V 13W 727lm CRI95 2700K/3000K/4000K 230V 654lm FL& WFL CRI90 2700K/3000K/4000K 230V 21W 1470lm CRI95 2700K/3000K/4000K 230V 1323lm ➄ LED SSP & SP CRI90 2700K/3000K/4000K 230V 13W 687lm CRI95 2700K/3000K/4000K 230V 618lm FL CRI90 2700K/3000K/4000K 230V 21W 1382lm CRI95 2700K/3000K/4000K 230V 1244lm ➅ LED WW CRI90 2700K/3000K/4000K 230V 13W 710lm CRI95 2700K/3000K/4000K 230V 639lm
holon
holon
Project Private villa Location Shanghai, China
