RIDGE® & RIDGE® CREW Kawasaki Accessories Catalog

Page 1


GENUINE ACCESSORIES

AUDIO / Pages (4-5)

Interactive Displays, Audio Kits, Audio Upgrades

CAMERAS / Pages (6-7)

Front and Rear View Cameras

CAB ACCESSORIES / Pages (8-11)

Powered Doors, Rear Panels, Heater, Soft Upper Door Set

WINDSHIELDS / Pages (12-13)

Windshields, Wiper/Washer Kit

ROOF ACCESSORIES / Pages (14)

Premium Roof Liner

GENUINE ACCESSORY PACKAGES / Pages (26-27)

Lighting, Entertainment, Protection, Utility

MIRRORS / Pages (15)

Side Mirror Set, Rear View Mirrors

PROTECTION / Pages (16-17)

Brush Guard, A-Arm Guards, Bumper, Nerf Bar Set, Skid Plate Set

WINCHES & PLOW / Pages (18-21)

Winch Kits, Plow Actuator, Plow Mount Bracket, Plow Push Frame, Plow Blade

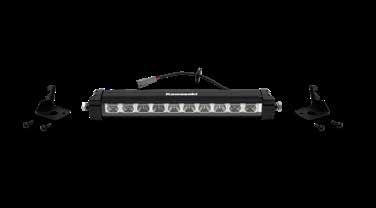

LIGHTING / Pages (22)

LED Light Bars, Installation Kits

CARGO ACCESSORIES / Pages (23-25)

Rack, Box, Bed Lift, Beeper, Horn, Mounts, Hitch Components, Storage Cover

AUDIO

INTERACTIVE DISPLAY AND MOUNT KIT

7 Touchscreen LCD • Wireless Apple CarPlay and Android Auto • Bluetooth® for audio streaming and microphone for hands-free calling • USB-A, USB-C, and AUX input • FM Tuner • Five Languages (English, Japanese, French, Spanish,German) • Two camera ready (with cameras and camera extension harnesses)• 6 ready to use switch knockouts • 6-channel preamp outputs

• 8-band Equalizer with 7 presets • IP67 dust and water resistant rated

• Internal RGB Lighting Controller with 4-pin output • Video Input • GPS and Radio Antenna • Installation of Front View Camera (99994-1809) and Rear View Camera (99994-1808) requires RIDGE® Camera Wire Extension Harness (99994-1726) or RIDGE® CREW Camera Wire Extension Kit (99993-2338), sold separately • To add audio capabilities to the Interactive Display the RIDGE® Interactive Display Audio Kit (99994-1780) or RIDGE® CREW Interactive Display Audio Kit (99994-2245) must be purchased, sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

Display and Mount Kit

INTERACTIVE DISPLAY AUDIO KIT

Audio visor with four 75 watt 6.5 speakers • Internal Amplifier has four separate channels allowing for complete fader and balance control when used with Interactive Display and Mount Kit (99994-1779), required, sold separately

• Storage Bin • Rear speaker output to connect the RIDGE® Audio Upgrade Kit - Stage 2 (99994-1778) or RIDGE® CREW Audio Upgrade Kit - Stage 2 (999942183)

Additional Speakers Features: 4 6.5-Inch Coaxial Speakers • Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies • High Impact Composite Enclosure • Ultra-compact design takes up minimal space • LIFE SHIELD IP/UV Rated • Fully enclosed for protection from the elements • Integrated Class-D Amplifier • Full Range Class D amplifier was designed to pair perfectly with the visor audio system’s coaxial speakers for clean high-quality performance RIDGE® (24+)

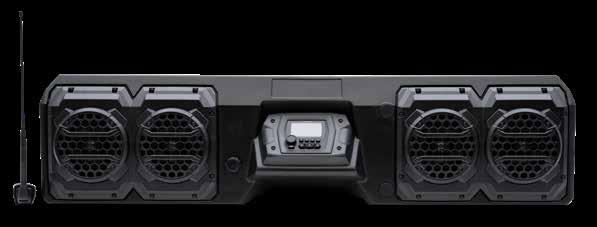

STAGE 1 VISOR AUDIO SYSTEM WITH BUILT-IN SOURCE UNIT

AUDIO VISOR STAGE 1 KAWASAKI TUNED AUDIO SYSTEM delivers great sound • Designed and engineered for the Kawasaki RIDGE® side x side

Additional Stereo Features

High Contrast 160-Watt LED Source Unit • Full color high contrast water resistant LED source unit • AM/FM, Bluetooth® with Apple iPod/iPhone control with a built-in eight-band equalizer Additional Speakers Features:4 6.5-Inch Coaxial Speakers • Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies • High Impact Composite Enclosure • Ultra-compact design takes up minimal space • LIFE SHIELD IP/UV Rated • Fully enclosed for protectionfrom the elements • Integrated Class-D Amplifier • Full Range Class D amplifier was designed to pair perfectly with the visor audio system’s coaxial speakers for clean high-quality performance • Rear speaker output to connect the RIDGE® Audio Upgrade Kit - Stage 2 (99994-1778) or RIDGE® CREW Audio Upgrade Kit - Stage 2 (99994-2183)

RIDGE® + RIDGE® CREW SIDE X SIDE AUDIO

Additional Speakers Features:

4 6.5-Inch Coaxial Speakers • Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies • High Impact Composite Enclosure • Ultra-compact design takes up minimal space • LIFE SHIELD IP/UV Rated • Fully enclosed for protection from the elements • Integrated Class-D Amplifier • Full Range Class D amplifier was designed to pair perfectly with the visor audio system’s coaxial speakers for clean high-quality performance

RIDGE® (24+)

RIDGE® Stage 1 Visor Audio System with Built-In Source Unit ..................................................99994-1777

RIDGE® CREW (25+)

RIDGE® CREW Stage 1 Visor Audio System with Built-In Source Unit ................................................ 99994-2244

AUDIO UPGRADE KIT STAGE 2

AUDIOACCESSOR

Upgrade the base audio system with additional speakers and amplifier

• Integrates with Factory Garmin Audio or requires separately sold accessories for RIDGE®: RIDGE® Stage 1 Visor Audio System with Built-In Source Unit (99994-1777), or Interactive Display and Mount Kit (99994-1779) with RIDGE® Interactive Display Audio Kit (99994-1780) or for RIDGE® CREW: RIDGE® CREW Stage 1 Visor Audio System with Built-In Source Unit (99994-2244), or Interactive Display and Mount Kit (99994-1779) with RIDGE® Interactive Display Audio Kit (99994-2245) • Audio Upgrade Kit Stage 2 includes two 6.5 speakers,10 subwoofer, and amplifier • Designed and engineered for the Kawasaki RIDGE® side x side • Two Roof Mounted 6.5-Inch Coaxial Speakers

• Composite construction midrange for deep and accurate midbass • 0.75-inch titanium dome tweeter for crystal clear-high frequencies • Single voice coil longthrow high output 10 Inch Subwoofer • High Impact Composite Enclosure

• Ultra compact design takes up minimal space • High efficiency full range Class D • 200 watt 1channel amplifier was designed to pair perfectly with the audio system upgrade• LIFE SHIELD IP/UV Rated Components • Fully enclosed for protection from the elements • Required accessories for RIDGE®: RIDGE® Stage 1 Visor Audio System with Built-In Source Unit (99994-1777), or Interactive Display and Mount Kit (99994-1779) with RIDGE® Interactive Display Audio Kit (99994-1780) or required accessories for RIDGE® CREW: RIDGE® CREW Stage 1 Visor Audio System with Built-In Source Unit (99994-2244), or Interactive Display and Mount Kit (99994-1779) with RIDGE® Interactive Display Audio Kit (99994-2245), sold separately

RIDGE® (24+)

RIDGE® Audio Upgrade Kit - Stage 2 ............................. 99994-1778

RIDGE® CREW (25+)

RIDGE® CREW Audio Upgrade Kit - Stage 2 99994-2183

CAMERAS

FRONT VIEW CAMERA

Add additional trail visibility to the RIDGE® side x side with the Front View Camera • High quality image resolution • Digital camera with 1/3 CMOS low temperature sensor • 30 fps for clear image quality and smooth motion • Seamless integration with the RIDGE® Limited side x side, Kawasaki Interactive Display and Mount Kit (99994-1779) required for all other RIDGE® side x side applications • Wide angle front camera for technical trail viewing (front camera features wide angle to show front of the tire patch area to aid in tire placement for technical trails) - FRONT CAMERA ONLY • Kawasaki Interactive Display and Mount Kit (99994-1779), sold separately • Front View Camera standard on RIDGE® Limited side x side models • If installing with Interactive Display and Mount Kit (99994-1779) • Requires Camera Wire Harness Extension Kit for RIDGE® (99994-1726) or RIDGE® CREW (99994-2338) sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

REAR VIEW CAMERA

Add additional trail visibility to your RIDGE® side x side with the Rear View Camera • High quality image resolution • Digital camera with 1/3 CMOS low temperature sensor • 30 fps for clear image quality and smooth motion

• If installing with Interactive Display and Mount Kit (99994-1779)

• Requires Camera Wire Harness Extension Kit for RIDGE® (99994-1726) or RIDGE® CREW (99994-2338) sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

View

RIDGE® CAMERA WIRE HARNESS EXTENSION KIT

The Camera Wire Extension Kit is required for installation of the Front View Camera (99994-1809) and Rear View Camera (99994-1808) with Kawasaki Interactive Display and Mount Kit (99994-1779), sold separately

RIDGE® (24+)

Camera Wire Harness Extension Kit. 99994-1726

RIDGE® CREW (25+)

RIDGE® CREW Camera Wire Harness Extension Kit .... 99994-2338

CAMERAS

RIDGE® + RIDGE CREW® SIDE X SIDE CAMERAS

CAB ACCESSORIES

POWERED DOOR SET

Creates comfortable full hard cab enclosure when used with any Rear Panel and any Full Windshield • 31.75mm (1.25˝) square steel frame allows for convenient installation and removal after initial installation • Injection molded plastic • Inner and outer door handles • Black lower door skin with white Kawasaki logo • OEM quality • Powered, fully retractable, tempered glass windows • Colored decals not included

Towable on open trailers when used in combination with any full windshield (Flip-Up Windshield Glass must be in the closed position) and any Rear Panel • Vehicle must be positioned in the forward facing direction, Powered Door Set must be closed RIDGE® (24+) Powered Door Set

Rear Panel Towing Instructions:

Towable on open trailers when used in combination with any full windshield (Flip-Up Windshield Glass must be in the closed position) and the Soft Upper Door Set or Powered Door Set • Vehicle must be positioned in the forward facing direction when towing • Remove for towing on an open trailer

KQR™ REAR PANEL, GLASS

Creates a full cab enclosure when used with the Soft Upper Door Set (999941773) or Powered Door Set (99994-1772) and any Full Windshield • Tempered glass helps provide good visibility and helps prevent dust intrusion • Printed gradient border adds style for a custom look • Can be installed or removed without tools after initial installation • Tools required for initial installation

RIDGE® (24+)

KQR™ Rear Panel, Glass

99994-1770

KQR™ REAR PANEL, POLYCARBONATE

Creates a full cab enclosure when used with the Powered Door Set (99994-1772) or Soft Upper Door Set (99994-1773) and any Full Windshield • Durable, optical grade, hard coated polycarbonate helps provide good visibility and prevent dust intrusion • Screen printed border • Can be installed or removed without tools after initial installation • Tools required for initial installation

RIDGE® (24+)

KQR™ Rear Panel, Polycarbonate .................................. 99994-1769

+ RIDGE CREW® SIDE X SIDE CAB

KQR™ REAR PANEL, GLASS SLIDER

Creates a full cab enclosure when used with the Soft Upper Door Set (999941773) or Powered Door Set (99994-1772) and any Full Windshield • Tempered glass helps provide good visibility and helps prevent dust intrusion • Slider helps provide additional cab ventilation • Can be installed or removed without tools after initial installation • Tools required for initial installation

RIDGE® (24+)

KQR™ Rear Panel, Glass Slider

99994-1771

HEATER/DEFROSTER

This fully integrated system dramatically improves in-cabin comfort during those cold mornings and long winters • Utilizes the heat generated from your engine’s liquid cooling system • Recirculates air throughout the cabin by two lower vents and four upper vents • The system also features four windshield defroster vents to eliminate condensation or clear frost from your windshield • Highly efficient blow molded ducting • 4-speed blower • 18,000 BTU • Adjustable temperature • Selectable vent choices • Complement the Heater/Defroster (99994-1775) with Kawasaki Genuine Accessory windshields, doors, and rear panels

RIDGE® (24+) / RIDGE® CREW(25+)

Heater/Defroster ...............................................................

99994-1775

CAB ACCESSORIES

SOFT UPPER DOOR SET

Exterior EVA all weather material offers dependable protection, high grade appearance and touch • Conveniently installs atop the lower stock doors with integrated frame mounting locations featuring removal and installation without tools • Weather tight bulb seals firmly attach to powder coated steel tubing frame sealing against the profiled ROPS keeping occupants free from exposure to the elements • Full YKK zippered double polished clear UV resistant vinyl windows optimized for increased light and visibility • Zip-up or roll up for increased airflow • Adjustable features to deliver a peak premium performance • Creates a full enclosure when combined with the KQR™ Polycarbonate Rear Panel (99994-1769), KQR™ Glass Rear Panel (99994-1770), or KQR™ Glass Slider Rear Panel (99994-1771) and one of four windshields: KQR™ Fixed Windshield Glass (99994-1761), Flip-Up Windshield Glass (99994-1762), KQR™ Fixed Windshield Polycarbonate (99994-1763) or KQR™ Vented Fixed Windshield Polycarbonate (99994-1764)

Towable on open trailers when used in combination with any full windshield (Flip-Up Windshield Glass must be in the closed position) and KQR™ Polycarbonate Rear Panel, KQR™ Glass Rear Panel, or KQR™ Glass Slider Rear Panel • Vehicle must be positioned in the forward facing direction, Soft Upper Door Set must be closed RIDGE® (24+)

Soft Upper Door Set

RIDGE® + RIDGE CREW® SIDE X SIDE CAB

SOFT CAB

SORIES

WINDSHIELDS

FLIP-UP WINDSHIELD, GLASS

Three-position Flip-Up Windshield, Glass provides the option for a sealed windshield with the ability to flip up to let just the right amount of air into the cabin • Closed and vented positions allow occupants to limit air flow when driving while the fully open position provides maximum airflow while stopped

• Printed gradient border adds style • Made from DOT approved AS1 safety glass

• Installation requires drilling

• Can be used with any combination of soft or hard doors, rear panels, and roofs offered by Kawasaki • Compatible with Windshield Wiper/Washer Kit (99994-1774)

RIDGE® (24+) / RIDGE® CREW (25+)

Flip-Up Windshield, Glass

99994-1762

FIXED WINDSHIELD, GLASS

The Fixed Windshield, Glass features a rimless, three dimensional, curved design

• Helps provide protection from wind and debris for improved in-cabin comfort • Made from DOT approved AS1 safety glass • Printed gradient border

• Can be used with any combination of soft or hard doors, rear panels, and roofs offered by Kawasaki • Compatible with Windshield Wiper/Washer Kit (999941774)

RIDGE® (24+) / RIDGE® CREW (25+)

Fixed Windshield, Glass ................................................... 99994-1983

KQR™ FIXED WINDSHIELD, POLYCARBONATE

Hard coated optical grade polycarbonate windshield material helps provide protection from the elements • Can be installed or removed without tools

• Use with any combination of soft or hard doors, rear panels, and roofs offered by Kawasaki

RIDGE® (24+) / RIDGE® CREW (25+) KQR™ Fixed Windshield, Polycarbonate ........................ 99994-1763

Windshield Towing Instructions:

Vehicle must be positioned in the forward facing direction when towed on open trailers

KQR™ VENTED FIXED WINDSHIELD, POLYCARBONATE

Hard coated optical grade polycarbonate windshield material helps provide protection from the elements • Includes venting for additional cabin air flow

• Can be installed or removed without tools • Use with any combination of soft or hard doors, rear panels, and roofs offered by Kawasaki

RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ Vented Fixed Windshield, Polycarbonate .......... 99994-1764

WINDSHIELD WIPER/WASHER KIT

2 speed wiper features 483mm (19˝) silicon flex blade • Silicon blade aids in use with polycarbonate windshield • 135° sweep • Washer features custom formed 1.89 liter (½ gallon) plastic container and pumps fluid to an adjustable nozzle • Wiper removes fluid and residue • Use on KQR™ Fixed Windshield, Glass (99994-1781) or Flip-Up Windshield, Glass (99994-1762) • Not compatible with KQR™ Fixed Windshield, Polycarbonate (99994-1763) or KQR™ Vented Fixed Windshield, Polycarbonate (99994-1764)

RIDGE® (24+) / RIDGE® CREW (25+) Windshield Wiper/Washer Kit

KQR™ HALF WINDSHIELD, POLYCARBONATE

The KQR™ Half Windshield deflects direct wind blasts while maintaining comfortable air-flow throughout • Made from hard coated optical grade polycarbonate • Screen printed for a custom look

RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ Half Windshield, Polycarbonate

99994-1765

MIRRORS

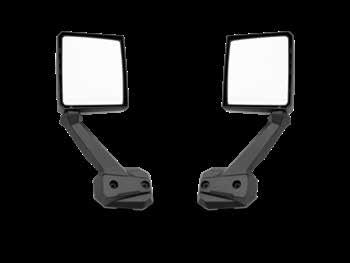

PREMIUM SIDE MIRROR SET

Horizontal shatter-resistant mirror sits in glass filled nylon housing, cast aluminum arms • Convex mirror surface increases the driver’s field of view

• Adjustable for driver height • An enclosed floating mirror mount helps adjust and protect the mirror within its housing • Mirrors attach directly to vehicle door hinge bracket

RIDGE® (24+) / RIDGE® CREW (25+)

Premium Side Mirror Set

RIDGE® + RIDGE CREW® SIDE X SIDE MIRRORS

REAR VIEW MIRROR

3D curved glass provides increased field of view • Textured black powder coating • Cast aluminum mounting • 273mm (10 ¾˝) L x 89mm (3 ½˝) H

RIDGE® (24+) / RIDGE® CREW (25+)

Rear View Mirror ............................................................... 99994-1794

MIR RORS

LIGHTED WIDE ANGLE REAR VIEW MIRROR

3D curved glass provides increased field of view • Push button, removable LED light under mirror offers additional in-cabin light • Textured black powder coating • Cast aluminum mounting • 445.8mm (18˝) L x 78.7mm (3 1/10˝) H

RIDGE® (24+) / RIDGE® CREW (25+) Lighted Wide Angle Rear View Mirror 99994-1800

PROTECTION

BRUSH GUARD

Protect your RIDGE® side x side with confidence with a premium front brush guard

• The integrated mounting provision on the stock front bumper facilitates installation

• Provides protection without sacrificing the headlights’ effectiveness

• Skillfully designed to work with other Kawasaki Genuine Accessories (each offered separately) such as a winch, plow system, and auxiliary lighting

• Constructed from steel tubing that has been stamped, profiled, and finished with a black textured powder-coating for enduring style and durability

RIDGE® (24+) / RIDGE® CREW (25+)

A-ARM GUARD SET, FRONT

REAR BUMPER

Invest in a high-quality rear bumper to safeguard your RIDGE® side x side

• Efficient installation made possible by the chassis’ inbuilt mounting provisions

• Provides protection that preserves rear clearance and tilting cargo bed functionality

• Style-contoured steel that has been finished with a textured black powder-coating for long-lasting durability and appearance

RIDGE® (24+) / RIDGE® CREW (25+)

A-ARM GUARD SET, REAR

1/4˝

RIDGE®

NERF BAR SET

Help protect your side x side with these tubular steel Nerf Bars • Textured powder coating matches vehicle styling • Helps provide additional vehicle side protection • Bolt on design includes all mounting hardware

RIDGE® (24+)

Nerf Bar Set........................................................................99994-1790

RIDGE® CREW (25+)

Nerf Bar Set........................................................................ 99994-2187

SKID PLATE SET

Help protect your drivetrain and chassis with a durable three-piece HMW (HighMolecular Weight) Kawasaki Genuine Skid Plate Set • Constructed of 6.35mm (1/4˝) thick HMW these skid plates help provide additional protection to your investment’s under body • Designed to replace OEM guards

RIDGE® (24+)

RIDGE® CREW (25+)

Skid Plate Set

Skid Plate Set ....................................................................

PRO TECTION ACCES SORIES

RIDGE® CREW Skid Plate Set
RIDGE® Skid Plate Set

WINCHES & PLOW

WARN® VRX™ 45-S POWERSPORT WINCH KIT

Specifically designed for the RIDGE for a clean OEM grade installation

• Includes: WARN® VRX 45-S Powersport Winch, OEM grade mount and an OEM wiring • VRX™ 45-S includes 50’ of lightweight, ¼” synthetic rope, cast aluminum hawse fairlead, and zinc-plated hook • Huge 4,500 lb. capacity available for the hardest-working UTVs • OEM grade waterproof contactor

• Load-holding brake • Durable all-metal construction • Clutch design based on legendary WARN® 4WD hub lock • Complete waterproof sealing helps keep the elements out • Semi-gloss back powder-coated finish and stainless steel fasteners help resist corrosion • Smoother and more reliable all-metal threestage planetary gear train • Dash-mounted rocker control switch and corded remote • Limited lifetime warranty (mechanical), 3 year warranty (electrical)

• Large Roller Fairlead (39184-0740) recommended with plow usage

RIDGE® (24+) / RIDGE® CREW (25+)

RIDGE® WARN® VRX™ 45-S

WARN® VRX™ 45 POWERSPORT WINCH KIT

Specifically designed for the RIDGE for a clean OEM grade installation

• Includes: WARN VRX 45 Powersport Winch, OEM grade mount and an OEM wiring • VRX™ 45 includes 50’ of durable ¼” steel rope, roller fairlead, and zincplated hook

• Huge 4,500 lb. capacity available for the hardest-working UTVs

• OEM grade waterproof contactor

• Load-holding brake

• Durable all-metal construction

• Clutch design based on legendary WARN 4WD hub lock

• Complete waterproof sealing helps keep the elements out

• Semi-gloss back powder-coated finish and stainless steel fasteners help resist corrosion

• Smoother and more reliable all-metal three-stage planetary gear train

• Dash-mounted rocker control switch and corded remote

• Limited lifetime warranty (mechanical), 3 year warranty (electrical) North America provided by

WARN® • Large Roller Fairlead (39184-0740) recommended with plow usage

RIDGE® (24+) / RIDGE® CREW (25+)

RIDGE® WARN® VRX™ 45

Powersport Winch Kit

99994-1781-45

WARN® AXON™ 45-S POWERSPORT WINCH KIT

Specifically designed for the RIDGE for a clean OEM grade installation

• Includes: WARN AXON 45-S Powersport Winch, OEM grade mount and an OEM wiring • AXON™ 45-S includes 50’ of lightweight, ¼” synthetic rope, cast aluminum hawse fairlead, and zinc-plated hook • Huge 4,500 lb. capacity available for the hardest-working UTVs • OEM grade waterproof contactor • Load-holding brake • Durable all-metal construction • Clutch design based on legendary WARN® 4WD hub lock • Complete waterproof sealing helps keep the elements out • Semi-gloss back powder-coated finish and stainless steel fasteners help resist corrosion • Smoother and more reliable all-metal threestage planetary gear train • Dash-mounted rocker control switch and corded remote • Limited lifetime warranty (mechanical), 3 year warranty (electrical)

• Large Roller Fairlead (39184-0740) recommended with plow usage

RIDGE® (24+) / RIDGE® CREW (25+)

RIDGE® WARN® AXON™ 45-S

Winch Kit

WARN® AXON™ 45 POWERSPORT WINCH KIT

Specifically designed for the RIDGE for a clean OEM grade installation

• Includes: WARN AXON 45 Powersport Winch, OEM grade mount and an OEM wiring • AXON™ 45 includes 50’ of durable ¼” steel rope, roller fairlead, and zinc-plated hook • Huge 4,500 lb. capacity available for the hardest-working UTVs • OEM grade waterproof contactor • Load-holding brake • Durable allmetal construction • Clutch design based on legendary WARN 4WD hub lock

• Complete waterproof sealing helps keep the elements out • Semi-gloss back powder-coated finish and stainless steel fasteners help resist corrosion

• Smoother and more reliable all-metal three-stage planetary gear train

• Dash-mounted rocker control switch and corded remote • Limited lifetime warranty (mechanical), 3 year warranty (electrical) North America provided by WARN® • Large Roller Fairlead (39184-0740) recommended with plow usage

RIDGE® (24+) / RIDGE® CREW (25+)

RIDGE® WARN® AXON™ 45

Powersport Winch Kit

RIDGE® + RIDGE CREW® SIDE X SIDE WINCHES & PLOW

WINCHES & PLOW

* Plow Actuator visual representation - actual accessory may vary.

PLOW ACTUATOR

Adjust left and right plow angle from inside the cab using the Plow Actuator (99994-1803) • Uses KYB™ electric over hydraulic actuator • Compatible with both WARN® VRX™ and WARN® AXON™ winches • Self contained hydraulic system, no hoses, no reservoir to fill or top off, no bleeding process

RIDGE® (24+) / RIDGE® CREW (25+)

Plow Actuator....................................................................

PLOW PUSH FRAME

Features an extra wide design, a forward trip system, and an interlocked rotating base plate • Designed for strength, durability, and impact resistance • 5-point adjustment system (30º, 15º, 0º, -15º, -30º) offers a solution for a wide range of plowing scenarios

RIDGE® (24+) / RIDGE® CREW (25+)

Plow Push Frame ...............................................................99994-1796

PLOW MOUNT BRACKET

3-step rapid connection system featuring a self-locating pin allows you to remove the Plow Blade and Plow Push Frame without tools • Mount is located at the front of the vehicle

RIDGE® (24+) / RIDGE® CREW (25+)

Plow Mount Bracket ..........................................................

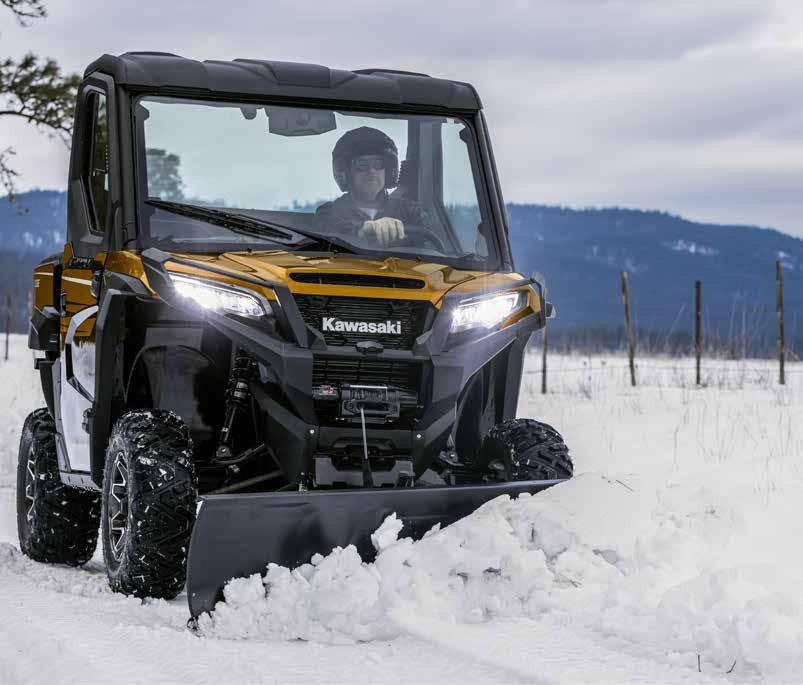

PLOW BLADE

Made from thick 12-gauge steel with heavy-duty ribbing and a center cross member for added rigidity • Boxed design adds extra support • Special low friction powder coated finish helps keep material from sticking to the blade • 1,829mm (72˝) width allows you to move a large amount of material at one time • Plow System installation requires use of a Kawasaki Genuine Accessory Winch Kit

RIDGE® (24+) / RIDGE® CREW (25+)

Plow Blade, 72˝ ................................................................. 99994-1206

Increase the capabilities of your RIDGE® side x side by adding a Kawasaki Genuine Accessory Plow. Designed specifically for your RIDGE® side x side, this plow features a rapid connection system. With this system, you can plow away unwanted material, disconnect the plow and free your RIDGE® side x side for other applications.

For a complete kit, order the following items:

Plow Mount Bracket (99994-1797)

Plow Push Frame (99994-1796) Plow Blade (99994-1206) Plow Actuator (99994-1803)

And your choice of winch kit (includes winch, mount, and wiring):

WARN® VRX™ 45-S Powersport Winch Kit (99994-1781-45S)

WARN® VRX™ 45 Powersport Winch Kit (99994-1781-45)

WARN® AXON™ 45-S Powersport Winch Kit (99994-1801-45S)

WARN® AXON™ 45 Powersport Winch Kit (99994-1801-45)

Note: Winch Kit required for raising and lowering the Plow Blade.

RIDGE® + RIDGE CREW® SIDE X SIDE WINCHES & PLOW
WARN®, the WARN logo, GO PREPARED and THE RED HOOK STRAP are registered trademarks of Warn Industries, Inc. AXON™ and VRX™ are trademarks of Warn Industries, Inc.

LIGHTING

LED DOME LIGHT

LED Dome Light illuminates the interior of your vehicle’s cabin

• Battery operated design allows for a quick, wireless installation • Black light housing • Battery CR2450

RIDGE® (24+) / RIDGE® CREW (25+)

LED Dome Light .................................................................

KAF080-035

ROOF MOUNT LED LIGHT BAR

Work or play, some things need to get done after the sun goes down

• 50˝ Light bar features two light settings - select either low with K-glow logo or full brightness • Combination flood/spot light • 8 flood light reflectors and 24 spot beam reflectors • UV-resistant polycarbonate lens • Includes mounting hardware • 12V DC Input • Requires LED Light Bar Installation Kit (99994-1785) sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

Roof Mount LED Light Bar ................................................ 99994-1784

ROOF MOUNT LED LIGHT BAR INSTALLATION KIT

Installation Kit for Roof Mount LED Light Bar (99994-1784) brackets clamp onto profiled ROPS using existing hardware • Textured black powder coating for long lasting finish quality

• Roof Mount LED Light Bar Installation Kit includes switch, wire harness and mounting hardware

RIDGE® (24+) / RIDGE® CREW (25+)

Roof Mount LED Light Bar Installation Kit .................... 99994-1785 KAWASAKI RIDGE® SIDE X SIDE LIGHTING

light bar • 4 flood light reflectors and 6 spot beam reflectors for a total of 10 LED lights • Combination flood/spot light • UV-resistant polycarbonate lens • 12V DC Input • Requires Front Bumper LED Light Bar Installation Kit (99994-1787) for mounting, sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

Front Bumper LED Light Bar ............................................

FRONT BUMPER LED LIGHT BAR INSTALLATION KIT

Installation Kit for Front Bumper LED Light Bar (99994-1179), sold separately

• Front Bumper LED Light Bar Installation Kit includes switch, wire harness, and all mounting hardware

RIDGE® (24+) / RIDGE® CREW (25+)

Front Bumper LED Light Bar Installation Kit ................

+ RIDGE CREW® SIDE X SIDE CARGO

KQR

When on the trail or at the job site, additional storage for essential tools and equipment is important • Add additional easy access storage to your RIDGE® side x side with the KQR™ Cargo Bed Multi-Purpose Rack • Can be mounted in multiple cargo bed locations with NEW KQR™ Mounts • Pre-drilled for RotopaX™ mounts • Durable black powder coated steel construction • Multiple tie-down points • Cargo area dimensions 1224mm (48 1/8˝) L x 418mm (16 1/2˝) W x 280mm (11˝) H • Requires Qty (4) Cargo Bed KQR™ Mounts (99994-1782), sold separately

RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ Cargo Bed Multi-Purpose Rack

KQR™ CARGO BED STORAGE BOX

99994-1804

Add lockable, sealed storage within your vehicle’s cargo bed • KQR™ Cargo Box attaches in multiple cargo bed locations with NEW KQR™ mounts • Can also mount to KQR Cargo Bed Rack (99994-1804) sold separately • Ample internal storage space for transporting tools, equipment, straps, tie-downs, emergency kits, trail snacks, etc… • Multiple bungee cord attachment points around lid perimeter • KQR™ Cargo Box outer dimensions 1194mm (47˝) L x 330mm (13˝) W x 381mm (15˝) H • Capacity approximately 110 liters • Material: Molded LDPE black plastic • Requires two Cargo Bed KQR™ Mounts (99994-1782) sold separately

CARGO CARGOACCES SORIES

RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ Cargo Bed Storage Box

99994-1783

RIDGE®

CARGO ACCESSORIES

RIDGE® (24+) Cargo Bed Lift ................................................................... 99994-1802

RIDGE® CREW (25+) Cargo Bed Lift ................................................................... 99994-2189

BACK-UP BEEPER

Whether on the job site or the farm, a Back-Up Beeper is a useful addition to alert others that your vehicle is reversing • Emits 97db • Black with glass filled nylon housing RIDGE® (24+) / RIDGE® CREW (25+) Back-Up Beeper................................................................ 99994-1805

HORN

Install a horn to alert others of your presence while on the job site or the trail • Mounts externally to vehicle frame • Includes wire harness and switch RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ MOUNT

Required for quick-mounting the KQR™ Cargo Bed Storage Box (99994-1783) and KQR™ Cargo Bed Multi-Purpose Rack (99994-1804) to the vehicle bed

• One hand toolless operation • Mounts are sold individually • Refer to each KQR™ accessory for the quantity of mounts required

RIDGE® (24+) / RIDGE® CREW (25+)

KQR™ Mount

TOWABLE STORAGE COVER

99994-1782

Help protect your vehicle during storage and transportation with this Towable Storage Cover • Durable black polyester fabric • Undercarriage and rear straps to help prevent removal during transport • UV resistant to prevent fading

• Features silk screened Kawasaki and RIDGE® logos for an O.E.M. appearance

RIDGE® (24+)

Towable Storage Cover ....................................................

99994-1806

HITCH COMPONENTS

Heavy duty 51mm (2˝) steel Hitch Drawbar with welded gusset • Hitch Pin and clip included with Hitch Drawbar and also sold separately • 48mm (1 7/8˝) Hitch Ball with 19mm (3/4˝) diameter shank, and 51mm (2˝) Hitch Ball with 19mm (3/4˝) diameter available • When using Hitch Balls with a 19mm (3/4˝) shank, a Reducer Bushing (TRL36A) is required

RIDGE® (24+) / RIDGE® CREW (25+) 2˝ Hitch Drawbar, 4˝ Drop

Chrome Hitch Ball, 2˝...............................................................

Hitch Pin, 5/8˝

Reducer Bushing

RIDGE® CREW (25+)

Towable Storage Cover 99994-2190

RIDGE® CREW Towable Storage Cover
RIDGE® Towable Storage Cover

LIGHTING PACKAGE

The RIDGE® side x side Lighting Package includes the following

• Roof Mount LED Lightbar (99994-1784)

• Roof Mount LED Installation Kit (99994-1785)

• Front Bumper LED Lightbar (99994-1179)

• Front Bumper LED Lightbar Installation. Kit (99994-1787)

RIDGE® (25+) / RIDGE® CREW (25+)

ACCESSORIES PACKAGES LIGHTING

ENTERTAINMENT PACKAGE

The RIDGE® side x side Entertainment Package includes the following accessories:

• RIDGE® Stage 1 Visor Audio System with Built-In Source Unit (99994-1777)

• RIDGE® Audio Upgrade Kit - Stage 2 (99994-1778)

• Rear View Camera (99994-1808)

• Front View Camera (99994-1809)

RIDGE® (25+)

ENTERTAINMENT PACKAGE

The RIDGE® CREW Entertainment Package includes the following accessories:

• RIDGE® CREW Stage 1 Visor Audio System with Built-In Source Unit (99994-2244)

ENTERTAINMENT

• RIDGE® CREW Audio Upgrade Kit - Stage 2 (99993-2183)

• Rear View camera (99994-1808)

• Front View camera (99994-1809)

• RIDGE® CREW Camera Wire Harness Extension Kit (99994-2338)

RIDGE® CREW (25+)

Audio Visor Stage 1
Front View Camera Audio Upgrade Kit Stage 2 Rear View Camera Front Bumper LED Lightbar / Front Bumper LED Lightbar Installation Kit
Lightbar

PROTECTION PACKAGE

The RIDGE® side x side Protection Package includes the following accessories:

• Brush Guard (99994-2094)

• Rear Bumper (99994-1789)

• Nerf Bars Set (99994-1790)

• A-Arm Guards Set, Front (99994-1791)

• A-Arm Guards Set, Rear (99994-1792)

• Skid Plate Set (99994-1793)

RIDGE ® (24+)

The RIDGE® CREW Protection Package contains the following accessories:

• Brush Guard (99994-2094)

• Rear Bumper (99994-1789)

• Nerf Bar Set (99994-2187)

• A-Arm Guard Set, Front (99994-1791)

• A-Arm Guard Set, Rear (99994-1792)

• Skid Plate Set (99994-2188)

RIDGE® CREW (25+)

UTILITY PACKAGE

The RIDGE® side x side Utility Package includes the following accessories:

• Premium Side Mirror Set (99994-1795)

• Lighted Wide Angle Rear View Mirror (99994-1800)

• KQR™ Cargo Bed Multi-Purpose Rack (99994-1804)

• KQR™ Mount (99994-1782) (x4)

• 2˝ Chrome Hitch Ball (KAF136)

• Reducer Bushing (TLR36A)

• 2˝ Hitch Draw Bar (TX750-015)

RIDGE® (25+) / RIDGE® CREW (25+)

Package

UTILITY

Rear Bumper
A-Arm Guards Set, Front Skid Plate Set Brush Guard Nerf Bar Set
A-Arm Guards Set, Rear
KQR™ Cargo Bed Multi-Purpose Rack
Premium Side Mirror Set Lighted Wide Angle Rear View Mirror
2” Chrome Hitch Ball, Reducer Bushing, 2” Hitch Draw Bar

Kawasaki Motors Corp., U.S.A.

Manufacturer’s suggested retail prices shown. Prices, product and specifications are subject to change without notice or liability. Availability is subject to production, stocking and demand. www.kawasaki.com/accessories

P/N: K926RDG-ACC

All trademarks, registered trademarks, logos, and copyrights are the property of their respective owners.

SCAN FOR ALL RIDGE® SIDE X SIDE ACCESSORIES

SCAN FOR ALL RIDGE® CREW SIDE X SIDE ACCESSORIES

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
