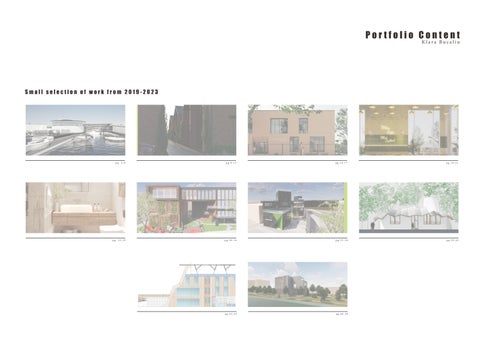

Portfolio Content Klara Bucaliu

Small selection of work from 2019-2023

pg. 2-8

pg.9-13

pg.14-17

pg.18-21

pg. 22-29

pg.30-34

pg.35-38

pg.39-42

pg.43-45

pg.46-49

N a t u r e ’s A r t i s t r y

NOAM Date of Start Feb 2022 Completion Course Work Organizer University of Reading SIte Selected Built Area Typology

Par, Cornwall 2715 sq.m Seaweed Factory

If 9% of the world’s oceans is covered by seaweed farms, it would equal all of the greenhouse gases produced in one year. (More then 50 gigatons). Seaweed is photosynthetic and it grows fast (up to a meter per day). The project aims to connect the concept of seaweed with man made machinery. Nature inspired regenerative mechanism is the main focus of the design, where Nori process is manifested by the design form itself. The machinery will be connected to each other in a flowing way. Combining the concept of the machinery being the skin of the design together with the concept of the kelp, I came up with a shape that resembles the structure of a kelp; the area where the cultivation of the seed takes place, would resemble the New Growing Blade and the area of the processing of the seaweed resembles the Holdfast. The design’s shape stimulates a circular movement as the cycle of life, it begins in the seed and then returns to its origin.

Par Athletics track Man Made Structures

Regenerative architecture is considered to be the practice of engaging the natural world as the medium or the generator of architecture. Hence, shapes are inspired by natural forms. Therefore a different approach needs to be studied to design the factory. My interest lays in trimming the actual machinery in a more innovative way that would be more engaging for the visitors. Involving massive scale machniery with exxagerated process stages and creative forms, inspired by Heath Robinson.

Blade Parks Burrow’s Center Biscovery Nursery and Infant’s Academy

New growing Blade Stipe

Holdfast

Railway Line Highway Arterial and Local Roads

Site E x pl orat ion

My aim is to create new alterations of the original machinery, and create new curvatures, include wheels, different massive scale shapes and immitate kitchen utilities, exxagerating the process for aesthetic purposes. The expression of the machines is the skin of the building design. By studying and examining the kelp shape, the shape of the structure resembeled the kelp’s form. The concept of the form responds and utilizes the living and the natural systems of the site.

C oncept

Pl ans

First Floor

Ground Floor

Site Plan

Scale 1:150

0. Laboratory 1. Reception 2. In-built hatchery 3. Twine hangs down from ropes 4. Transportation to the boats 5. Lockers for visitors 6. Washing the kelp area 7. Drying the kelp area 8. Oven installation 9. Chopping/ milling machine 10. Storage 11. Museum 12. Bridge 13. Seaweed rock pools installation 14. WC 15. Breakout room 16. Office area 17. Meeting room

18. Restaurant 19. Kitchen 20. WC 21. Solar Panels 22. WC 23. Conference room 24. Auditorium

PRODUCED BY AN AUTODESK STUDENT VERSION

Construction C01

C02

C03

C04

1:50 S e c t i on PRODUCED BY AN AUTODESK STUDENT VERSION

Emphasi zing by Mater i a l

External Brick Wall rendered external lining

Green Roof with Zinc cladding

SKylight CLT roof structure build up with zinc cladding

Timber Cladding

Curtain wall with with metallic joints.

A Lively Contrast

SOL Date of Start Completion Organizer SIte Selected Built Area Typology

Oct 2022 Ongoing StudioArch

Dhermi, Albania 824 sq.m Rental Villas

The project is located at one of the most desired destinations in the whole of Albanian Riviera, Dhermi. The aim of the project is to provide a high quality of living in contemporary architecture, focused on a modern space that offers all the facilities for a family on vacation. The twin villas can accomodate up to 4 people, with a master bedroom designed in the loft area, a built in library in the stairs and a small minimal kitchen.

Ground Floor

Loft

Pl an + Axonomet r i c Vi e ws

Inte r ior D e s ig n and St r ate g y

The challenge to design a villa with a limited space of 5x6m, calls the need to provide efficient furniture and smart planning choices. Integrating a loft to accomodate the master bedroom in order to allow for more privacy between the two bedrooms, was an inevitable solution. Accent wood furniture is used in the kitchen and the dining area to emulate the minimalistic and modern interior design. Besides the furniture in the kitchen, a textured accent wall sawn white oak driftwood, resembling Scandinavian interior designs. The clean lines and grooving in the texture help evoke a contemporary vibe.The next challenge was storage in the villa, which was solved by integrating the built in closet under the stairs.The bathroom is designed with a walk-in shower to elevate the design.

Proj e c t Pl an

\ D e m o k r a c i a P r i m a r y S c h o o l a n d K i n d e r g a r t e n’

Date of Start Completion Organizer SIte Selected Typology

Aug 2021 Ongoing StudioArch

Valiasi i Ri, Albania Learning

“Demokracia” Primary School and Kindergarten is an existing facility located in Valias which will be subject to reconstruction. he kindergarden is a two-storey building that we face at the entrance of the property. The kindergarden consists of a simple cuboid volume, with windows that alternate from floor to floor imitating a chessboard in their manner of distribution. The facade of the main building has a simple architecture with windows that extend to the floor-ceiling height equidistant from each other, with concrete shading that extends up to 50 cm outside the perimeter of the facade.

2A 1500

800 300

122

276

650

109

248

180

109 193

180

465 ± 0.00

Dhome gjumi 47 m²

784

110

41 24

607 370

1643

165

210

380

298

158

110

140

62 38

150

210

200

360

300 170

189

24 38

567

745

± 0.00

1135

383

240

828

± 0.00

Parahyrje 19 m²

300

380

Holl multifunksional 81 m²

338

365

1090

DD 770

Depo teknike 13 m²

30 30

150

142

165

422

-0.15 -0.30

770

249

150

+1.05

565

158

150

50 24

2416

58 100

150

24 128

595

128

362

161

181

536

Garderobe 5 m²

205

248

203

607

75 75

102

229

276 480

Klase 4-5 vjec 45 m²

224

Tualet 7 m² ± 0.00

205

185

16 85

123

175

636

122 536

114

123

238

276

430 260

368

209 368

400 24

1643

43 24

607

634

Tualet 7 m²

Dhome gjumi 47 m²

16 102

685 685

± 0.00

Garderobe 5 m²

203

180

152

16 100

460

270

480

Klase 3-4 vjec 45 m²

107

248

210

± 0.00

661

536

370

161

Kuzhine 22 m²

113

183

60 24

50 24

113

134

100

165

368

595

1624

134

428

209

± 0.00

237

354

265

180

168 800

470

416 650

1500

Pl an Vi e w

Tiles 1cm Concrete Layer 15 cm Thermal Insulation 5cm Thermal Insulation 10 cm Sandwich Panel 40 cm Enclosed Air-Layer 15 cm Rendered Layer 2cm Brick Load-Bearing Wall 20 cm Inner Rendered Layer 2cm 260

Drop Ceiling Plaster Cast

+3.50 m

Drop Ceiling plaster Cast

+0.15 m

+2.93 m

Tiles 1cm Thermal Insulation 5cm Sandwich Panel Loadbearing 40cm

260

+3.65 m

+6.58 m

275

+6.25 m

+7.00 m

+7.57 m

+7.27 m

33 42 27 30

+7.57 m

+0.33 m

-350 KATI -1

E c t i on+ E le vat i on

Coffee Shop

Date of Start Completion Organizer SIte Selected Typology

Dec 2022 Ongoing StudioArch

Pazari i Ri, Tirane IN Business Interior

The project consits of creating a space for a coffe shop in a new building that would attract the individuals living in the area and even create a spot of attraction for everyone living in the city. The design of the caffe is modern and integrated a lot of greenery to make the space more appealing.

The space of the caffe is small therefore there is limited space for seating so I integrated long furniture installment that would be used for a big group or used seperately when desired. I also coorporated a long table attached to the curtain wall where individuals can bring their laptop or devices and use it as a quiet working space with a view from the outside. there is a small storage space, aesthetic bathrooms and a long multi-fiunctional bar that has every facility possible that a coffee shop needs.

Pl an Vi e w + E le vat i on

Axonome t r i c Vi e w

Apar tment

Date of Start Completion Organizer SIte Selected Typology

Mar 2023 Ongoing StudioArch

Pazari i Ri, Tirane Living

The project consits of a refurbishment and extension of an old office site transformed into a living structure for a family of 3. The client wanted to change almost everything in the apartment, including the size of the rooms, materials of the walls and floor as well as keep the cost as low as possible. The windows are the only element preserved in the apartment. There were multiple versions that I went through until the final desired outcome.

Pl an Vi e w O pt ion 1

This is the first version that I came up for the design of the apartment. In this version I had demolished 80% of his existential walls and added a private bathroom in the master bedroom. In the children’s room, I have placed two beds considering that in the future the couple might want to extend his family and the structure to still be functional and effective to their needs. The design of the apartment is simple and modern. The structure of the existing apartment had a very spacious balcony therefore, I made use of the space and created an outdoor environment where they can invite guests over and enjoy a barbecue.

Pl an Vi e w O pt ion 2

In the final result of the design, the client chose to minimise the cost of the refurbishment by choosing not to demolish the existential walls and by using the exact measurements of the existing rooms, therefore the initial plan had to be redone to accomodate the clients needs. These are the final rendered results that are being followed by the construction team working on the project.

D a n c e S Tu d i o a n d B u i l d i n g C o m p l e x

ENCORE Date of Start Feb 2021 Completion Course Work Organizer University of Reading SIte Selected Typology

Reading, UK Dance Studio and Building Complex

The project aims to incorporate the concept of a living space for dancers next to their dance studio. All the coorporate offices and a performance scene is also attached in the building installments designed as twin towers, separating the personal private spaces with the areas open to the puublic. The landscape design welcomes everyone to engage with the installments whether it is people who live in the town or individuals that came to watch a play. The incorporated wooden slat facade lifts the entire exterior of the buildings as well as offers a solution to privacy, climate control and shade from the sun. Elongated curtain walls regulate the interior temperature and reduce the overall energy cost as well as increase the natural light by being placed in strategic sides of the building.

Site Ana lysis

+13.40 40

+13.00

+9.90

PRODUCED BY AN AUTODESK STUDENT VERSION +6.70

+4.73

+3.50

±0.00

PRODUCED BY AN AUTODESK STUDENT VERSION

1023.0487

`E le vat i ons and C onc ept

PRODUCED BY AN AUTODESK STUDENT VERSION

+13.40

PRODUCED BY AN AUTODESK STUDENT VERSION

15mm 15mm

300 mm

38 mm 170 mm

200 mm

300 mm

200 mm Designated space for ventilation

25M Rebar

Thick Steel Plate 25M Rebar 10M Ties 3500 mm

Decorative Inner Render 25M Rebar through and welded to the steel plate

Reinforced Concrete

2nd Stage Concrete Casting

Bubble Void Cage Modules

Weld

Bubble Void d=170 mm

Weld 38 mm Thick Steel Plate

Slab Bottom Longitudinal Reinforcement

Slab Bottom Transverse Reinforcement d=170 mm

190 mm

1st Stage Concrete Casting

250 mm 30 mm

20 mm

300 mm

17.4735

Polystyrene Board Insulation

PRODUCED BY AN AUTODESK STUDENT VERSION Polystyrene Board Insulation

Stucco

Curtain Wall System

Vertical Section Tapping screw DIN ISO EPDM gasket for transom Glazing support Tapping screw DIN T-joint for Transom

Transom Backer Rod Metallic Gasket Pressure Plate Cover Cap Transom

PRODUCED BY AN AUTODESK STUDENT VERSION

Joint Detail - Transom system

PRODUCED BY AN AUTODESK STUDENT VERSION

C onst r uc t i on D et ai ls

Theatre Practice Space and Building Complex

PA L E O Date of Start Feb 2020 Completion Course Work Organizer University of Reading SIte Selected Typology

Reading, UK Theatre practice space and Building Complex

Situated in the heart of Reading, The Central Club Reading is one of the few locations in town which is close to every facility, a great space to provide for commercial and development growth. Being bounded with a historical mural that has a special significance to the black community of the town, the site is without a doubt one of the most important locations in Reading, therefore any new changes in the structure of the existing building must be carefully thought and studied to align to the area and add new values for the community. The aim of my project is to manifest a new spirit to the area, in respect to the historical aspect, using new innovative materials, and construction methods. The concept of dwelling will be further investigated and studied based on the user groups’ needs and preferences. With Reading theater being the client, a space dedicated to the theater practice is required.

C oncept D esi g n

St rateg y and Pl an Vie w s

M a g g i e ’s C e n t e r S t u d y

Date of Start Feb 2021 Completion Course Work Organizer University of Reading SIte Selected Typology

Dunde, Scotland Maggie’s Center

This project belongs to my Construction and Technology Module, where I had to carefully analyse the technical structure and materials used in Maggie’s Center in Dundee, Scotland. There is also a detailed section of the structure looking at the technique, the wall layers and the function that each material has in the insulation, load-bearing or on the aesthetic.

S e c t ion

C onst r uc t i on D et ai ls

Two-storey white rendered masonry structure with elliptical tower and timber pitched roof at multiple angles, clad in stainless steel. Externally, the roof is enveloped in folded metal; the inspiration of the folds of a dutch hat worn by a girl in a Vermeer painting. The completed site includes earthwork mounds and a labyrinth designed by landscape designer Arabella Lennox-Boyd as well as signature artwork by sculptor Antony Gormley.

It has four principal, interlocking spaces, one on arrival, a second to the left with a kitchen, a third - an easy sitting area - and the fourth, a library on two levels. The curves and folds of the interior timber structure envelop visitors, with spaces organized around the central social area of the kitchen table. The use of plentiful natural timber, for the roof structures, internally exposed, here provides an elegant construction, echoing the communal areas below.

C onst r uc t i on D et ai ls

Harbour Facility Building

PA R L O R Date of Start Oct 2021 Completion Course Work Organizer University of Reading SIte Selected Typology

Par, Cornwall Harbour Facility Building

The project aims to provide facilities for the sailors, investors, workers of the harbours as well as citizens of the town, Par. It is divided by two buidlings, one to facilitate all the needs of the main supervisor of the harbour. The function of the second building would be to accomodate a fish market, infirmary, workshop, a meeting room and bathrooms. It is designed to be a mix between private and oublic spaces, a space as efficiently designed and arranged in a very limited space.

PRODUCED BY AN AUTODESK STUDENT VERSION

S e c t i ons+ E le vat ion

PRODUCED BY AN AUTODESK STUDENT VERSION

1:50 Short Section Phase Two located in the roof Construction of the structure which is then Space Use converted and distributed around the building. SU01 Fish Market C01 Floor to Ceiling Window Build up: SU02 Infirmary 150mm Double Glazed Window Wall SU03 Corridor linking the harbour wall and the 50mm Hermetically Sealed entrance Steel and Aluminum Chambered Profile SU04 Meeting Room Structure S01 560mm CLT Support Frame with steel Pins S02 500mm Columns S03 300mm CLT Support Slabs with Ground Source Heat pipes SU04 7mmx3000mm Timber Battens for the facade Environmental E01 Storage 10mm Foam Insulation to seal the temperature in the freezer room E02 Heating EC is used for the infirmary and the meeting room together with the heat pipes. EC is used during summer season to cool down the temperature as well. E02 Energy Solar energy is collected from the solar panel

C02 Second Floor Build up: 100mm CLT 15mm Ground Source Heat Pipes 300mmx300mm Timber Battens 100mm Earthwool Roll Insulation 10mm Builders Membrane 45mm Cross Laminated Timber C03 Structure Walls 40mm Laminated Clad 80mm Ventilation Gap 10mm Builders Membrane 15mm Earthwool Roll Insulation 10mm Vapor Lazer 40mm Internal Timber Clad

1:50 Long Section Phase Two

Structure S01 560mm CLT Support Frame with steel Pins S02 500mm Columns S03 300mm CLT Support Slabs with Ground Source Heat pipes SU04 500mmx300mm Arched Weight Bearing Columns assembled with a tenon and mortise Joint (inspired by the Chinese timber frame; duogong.) Environmental E01 Storage 10mm Foam Insulation to seal the temperature in the freezer room E02 Heating To ensure a warm temperature in the infirmary and the meeting room, together with the ground source heating pipes an EC system is used. EC equipped with a multi split system in order to avoid the compressor in the facade and to link the two EC in the meeting room with only one compressor.

PRODUCED BY AN AUTODESK STUDENT VERSION

Space Use SU01 Fish Market SU02 Workshop (takes up the height of two floors) SU03 Infirmary SU04 Meeting Room SU05 Bathroom Su06 Staircase

Construction C01 Floor to Ceiling Window Build up: 150mm Double Glazed Window Wall 50mm Hermetically Sealed Steel and Aluminum Chambered Profile C02 Second Floor Build up: 100mm CLT 15mm Ground Source Heat Pipes 300mmx300mm Timber Battens 100mm Earthwool Roll Insulation 10mm Builders Membrane 45mm Cross Laminated Timber C03 Wall Build up 40mm Laminated Timber 15mmx15mm Builders Membrane 100mm Earthwool Roll Insulation 40mm Laminated Timber C04 Structure Walls 40mm Laminated Clad 80mm Ventilation Gap 10mm Builders Membrane 15mm Earthwool Roll Insulation 10mm Vapor Lazer 40mm Internal Timber Clad C05 Freezer Room Walls 100mm Foam Insulation 3mm Radiant Barrier Insulation Compressor and Condenser Installed

E03 Energy Solar energy is collected from the solar panel located in the roof of the structure which is then converted and distributed around the building.

SU01 SU01

430

300

PRODUCED BY AN AUTODESK STUDENT VERSION

300

1350

260

+3.15 363

310

51.9194

+3.15

100

250

835

150

50 40 60 60 601550

1350

310

120

3450

1:200 STUDENT VERSION PRODUCED BYFirst AN floor AUTODESK 3517 3000

517

150

3012.9009

600

+6.15

170

835

250

150

HILADORA

50 40 60 60 601550

HILADORA

150

122

155

150

517

772

3537

Second floor 1:200

430

+9.15

170

100

600

610

51.9194

+6.15

198

PRODUCED BY AN AUTODESK STUDENT VERSION

411

430

+6.15

PRODUCED BY AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION

430

300

259

198

50 40 50 90

90 50

190

2500

100

PRODUCED BY AN AUTODESK STUDENT VERSION

Pl an Vi e ws

3000 1350

PRODUCED BY AN AUTODESK STUDENT VERSION PRODUCED BY AN AUTODESK STUDENT VERSION

PRODUCED BY AN AUTODESK STUDENT VERSION

The design of this space will be in harmony with the nature surrounding the site. In conclusion, the design of the new building will significantly contribute to the area in all aspects, from the visual upgrade of the harbour to the easy accesible facilities that were lacking in the area. The design will create a welcoming environment which will stimulate a ”flow” of movement for everyone.

Ground Floor 1:200

Boat Center

ORION Date of Start Feb 2020 Completion Course Work Organizer University of Reading SIte Selected Typology

Reading, UK Boat Center

This project is one of my first works in my university, which I also completed online as it was during the covid online lectures. The aim of the project was to create a center where tourists and individuals that lived in the town could come and talk to professionals about renting boats as well as check out the small museum installation inside the building. The structure had coorporate offices, meeting rooms, a small cafe as well as the museum/gallery to inform visitors of the history of sailing in the river and how it all started. The structure is made of concrete and curtain walls, the stairs are one of the interesting ideals that I wanted to incorporate in the building to make the space feel bigger as well as to make use of the view from the river for the users of the building to feel more connected to the site. Since I was in my elementary stages of rendering, the 3D maquette model that I created clearly showed how the stategic location of the building was aligned with the location chosen for the site.

C oncept + Ma qu ette

Considering the location of the site, I found inspiration by buildings that incorporated curtain walls to appreciate the environemnt and nature surrounding the structures. I wanted a simple cuboid puzzle like facade that played around with concrete and glass.

The 3D maquette illustrates how the building is located in a dock ithat branches from the town connnecting the river with the busy streets of the town. For the model I used cardboard of different colors and other materials found in my home as there was no access to shops due to covid. It was interesting and creative way for me to understand textures, and material durabilities.

Pl an Vi e ws
