Discover unmatched quality, enhanced efficiency, endless possibilities!

KW-LC Pump to deliver optimal performance for a range of applications.

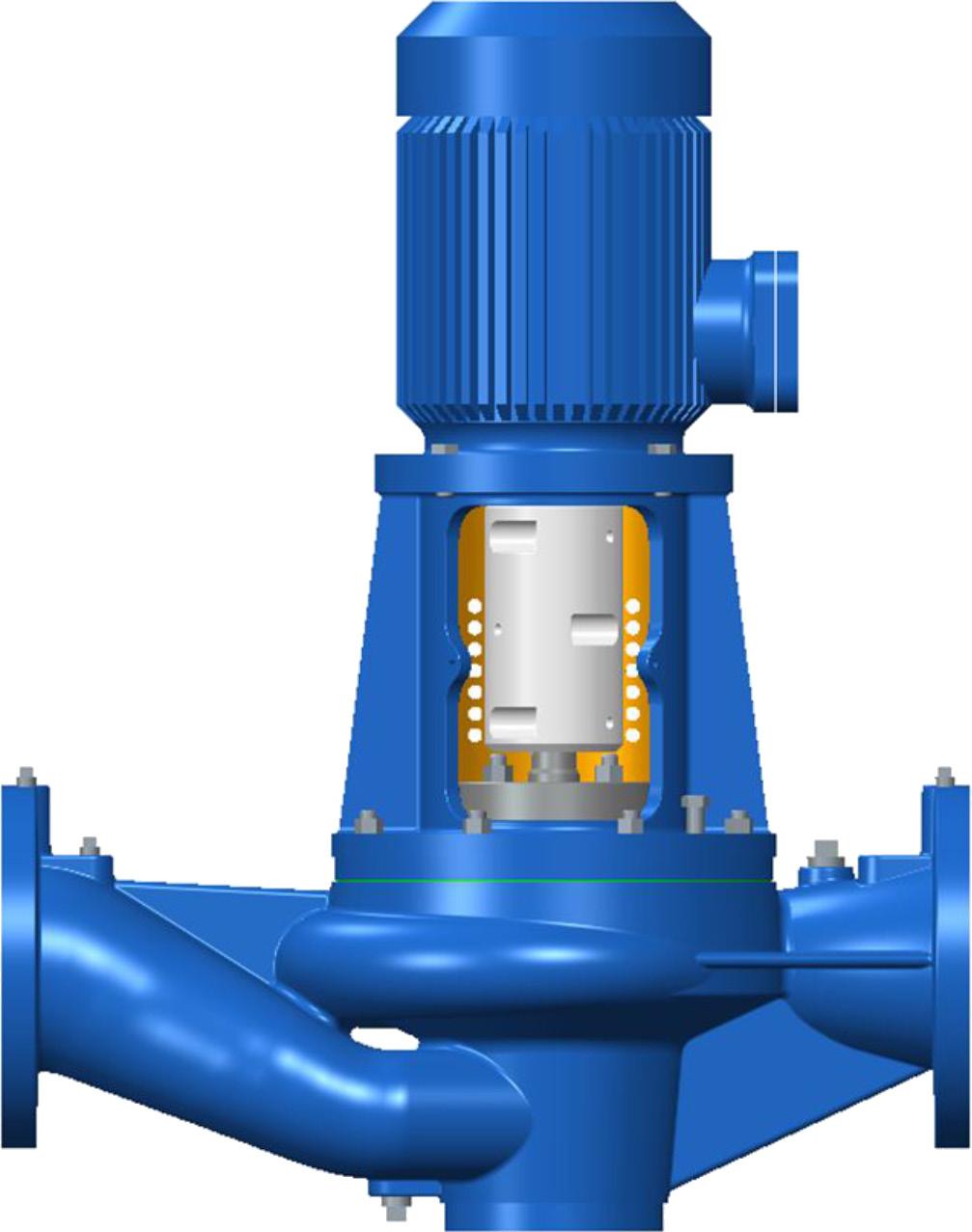

Kirloskar Brothers Limited (KBL) has launched the Vertical Inline Long-Coupled "KW-LC" Pumps, expanding their ever-growing portfolio in the Heating, Ventilation and Air-Conditioning (HVAC) segment. The KW-LC pump is a space-saving, vertical, long-coupled design that simplifies piping and has a compact structure.

Ms. Rama Kirloskar, Joint Managing Director of KBL and Managing Director of Kirloskar Ebara Pumps Limited (KEPL), said, "The primary target group includes builders and HVAC OEMs. The KW-LC pump has a competitive edge over other products in the market, and the pump is ideal for installation in malls, high-rises,

KW-LC

airports, metro stations, hotels, hospitals, and commercial spaces in emerging metro cities across India." The KW-LC pump is an ideal solution for a wide range of applications such as water supply, HVAC, hot water up to 90°C, drinking water, and cooling water applications. It has a delivery size of up to 200 mm, a discharge capacity of up to 550 m3/hr (150 LPS), a total head of up to 52 metres, and a maximum working pressure of 16 bar. The pump's design is focused on high efficiency, a wide range of interchangeability, and complete reliability. The KW-LC pump features an enclosed, dynamically balanced impeller, which ensures smooth operation.

The Minimum Efficiency Index (MEI) exceeds 0.7 in accordance with the Euro design norms. The pump includes a mechanical seal as a standard scope of supply, which can be removed for maintenance or replaced without disturbing the motor or piping. With the launch of the KW-LC pump, KBL has demonstrated its commitment to innovation and expanded its portfolio of products.

The KW-LC pump's design and features offer several advantages over existing products and meet the evolving demands of the market. With this advent in technology, KBL remains a leader in the pump industry, providing reliable and efficient solutions to their customers for many decades.

Operating Range

Delivery Size : Upto 200 mm

Discharge Capacity (Q) : 550 m3/hr (150 LPS)

Total Head : 52 Meters

Speed (Nominal) : 1450 RPM at 50 Hz

Working Pressure : 16 bar

Suction Pressure : 12 bar, subject to maximum working pressure is 16 bar

Temperature : Maximum upto 90°C

Material of Construction

Casing : Cast Iron (CI IS 210 - FG 260)

Impeller : Stainless Steel (SS ASTM 351-351M-CF8M)

Shaft : Stainless Steel (ASTM A276 Type 410)

Motor : TEFC , IP55, IE2/IE3/IE4
