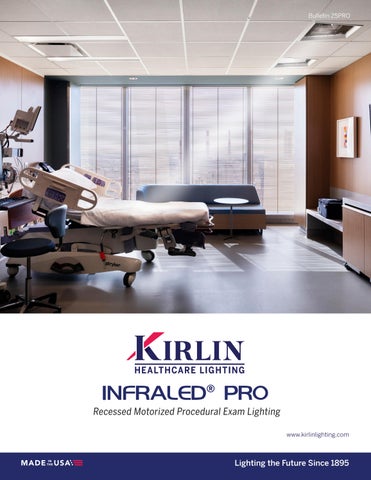

INFRALED® PRO Series Overview

Bulletin 25PRO

Recessed Motorized Procedural Exam Lighting www.kirlinlighting.com

Lighting the Future Since 1895

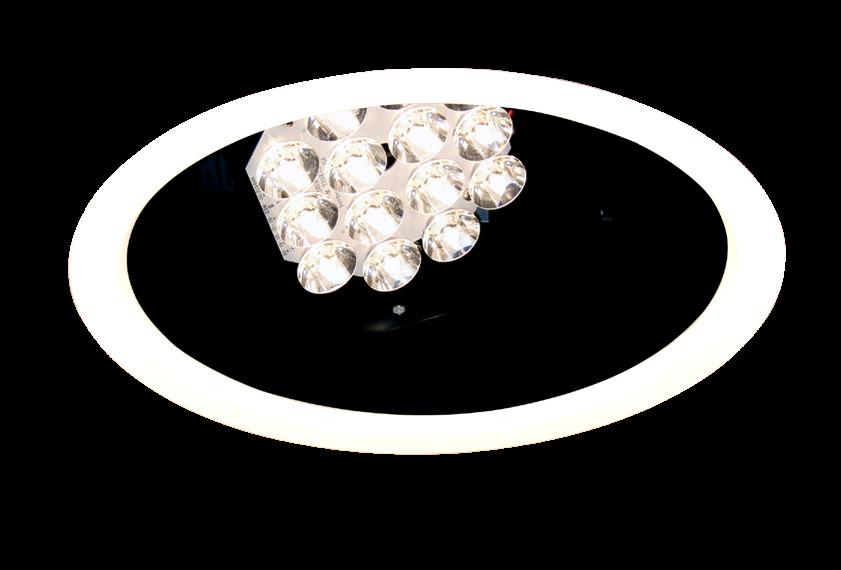

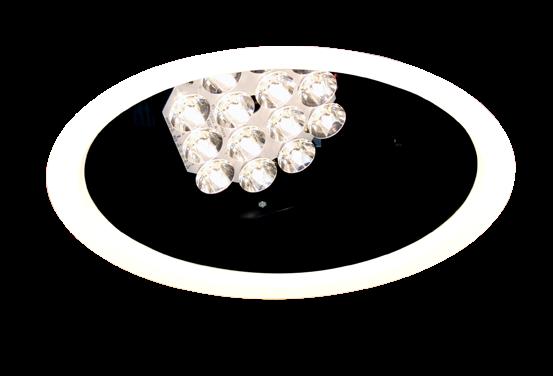

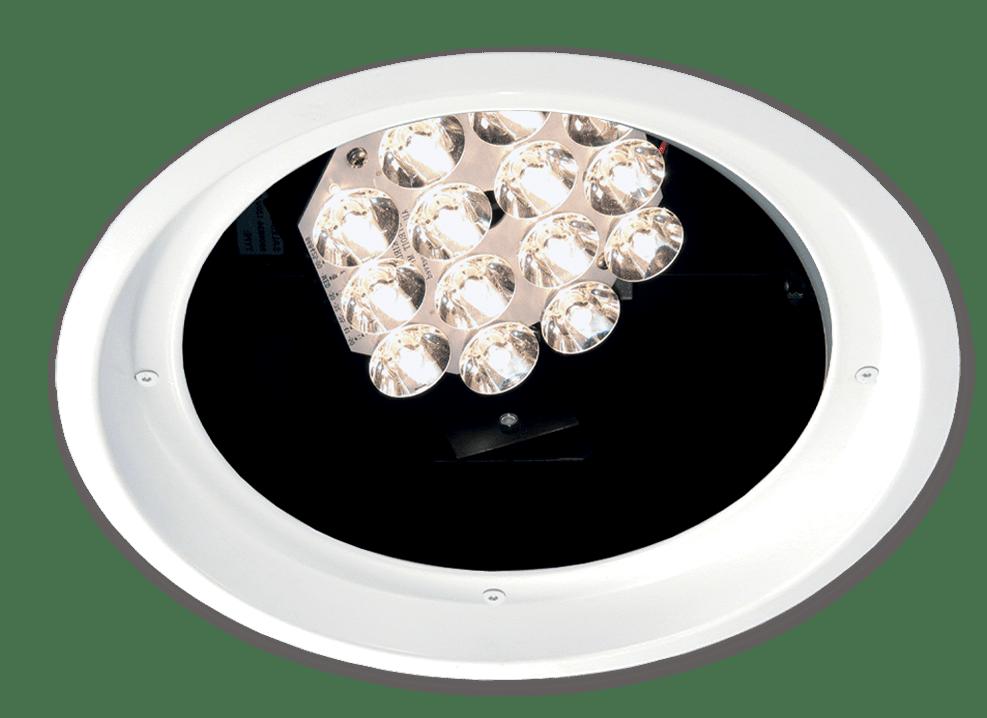

Recessed motorized exam lighting Precision Without Compromise INFRALED® PRO is Kirlin’s fully recessed, remote-aimable procedural exam lighting system designed for demanding medical environments. Engineered to support today’s healthcare professionals, it offers clinicians easy, in-room control of both intensity and beam direction.

Built specifically for healthcare needs, INFRALED® PRO features: • IP66 sealed construction for infection control • BioGard™ antimicrobial finish • Exceptional color rendering with 95+ CRI • Adjustable by wall panel and remote control • Designed and manufactured in Detroit

Used in

Labor & Delivery Rooms

22

Neonatal Intensive Care Units

Intensive Care Units

Emergency Departments

Operating Rooms

Cardiac Catheterization Laboratories

For additional details, see submittals at www.kirlinlighting.com.

33

Quick Reference Guide

4

Model

Max Tilt

Aperture Size

Lux on Task

Common Use Cases

PRO 25

25°

9"

27,000

NICU, ICU, Patient Rooms, ED

PRO 35

35°

12"

44,000

ICU, ED, General Exam

PRO 35V

35°

12"

44,000

Behavioral Health, ED

PRO 45

45°

19"

44,000

Cardiac Cath Lab, Hybrid OR

PRO 60

60°

17”

50,000+

Labor & Delivery, Hybrid OR

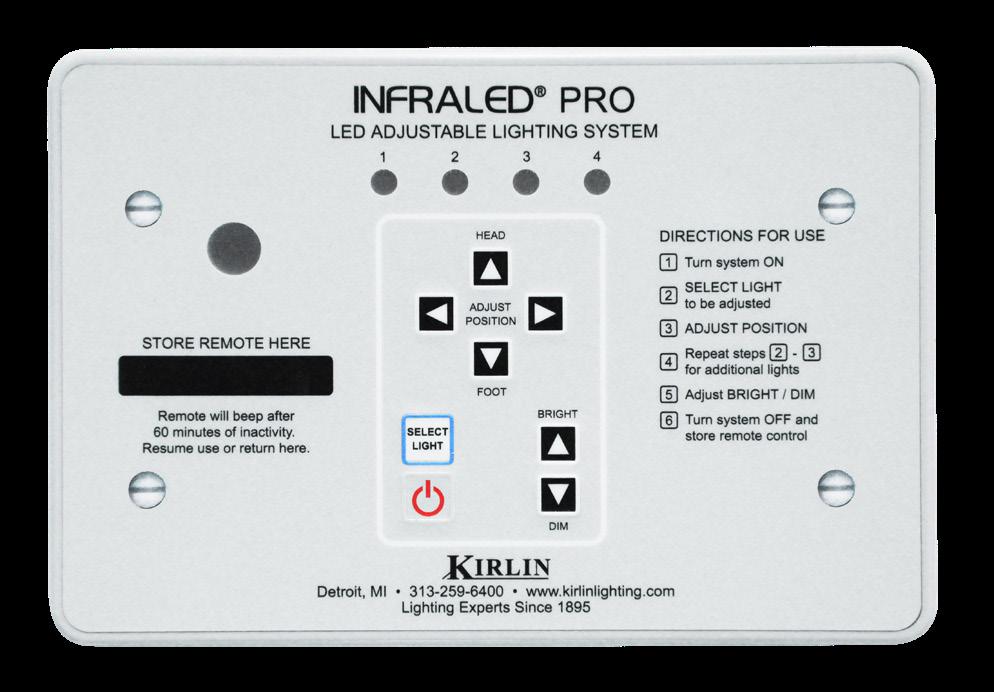

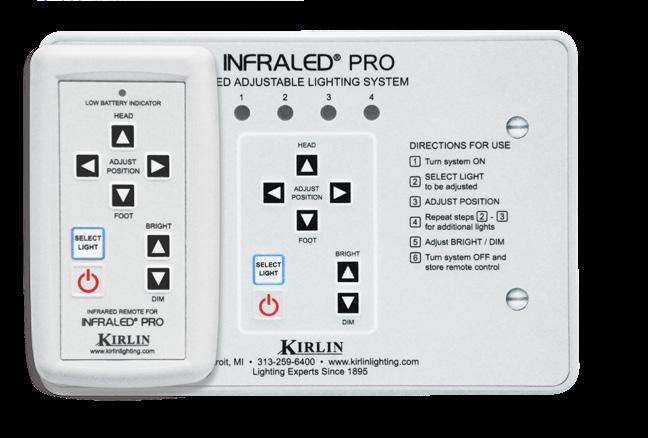

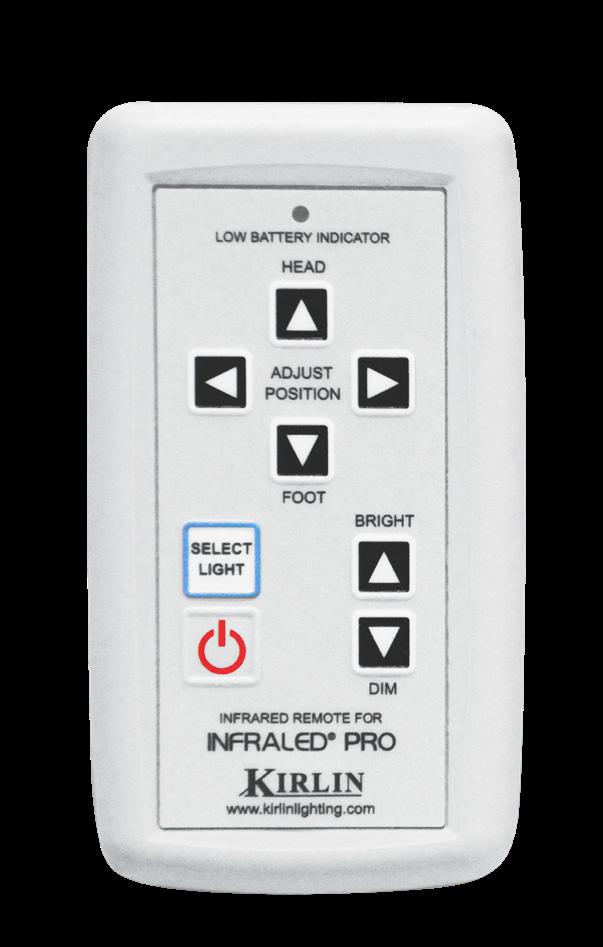

How It Works Motorized precision at the push of a button INFRALED® PRO gives clinicians complete lighting control, no drift, no physical contact required. Use the intuitive wall panel or wireless remote to: • Select individual fixtures (up to 4) • Blue LED indicator identifies active luminaire • Aim direction with smooth, silent tilt/rotate • Adjust intensity from full output to 1% dim

Clinical Benefits:

Up to 50,000 lux on task from a recessed fixture

60° beam tilt available – the industry’s highest tilt

Seamless adjustments during exams, delivery, or procedures

Boosts red/blue rendering for diagnostics with a COI of 2.7

For additional details, see submittals at www.kirlinlighting.com.

5

6

PRO 60

PRO 25

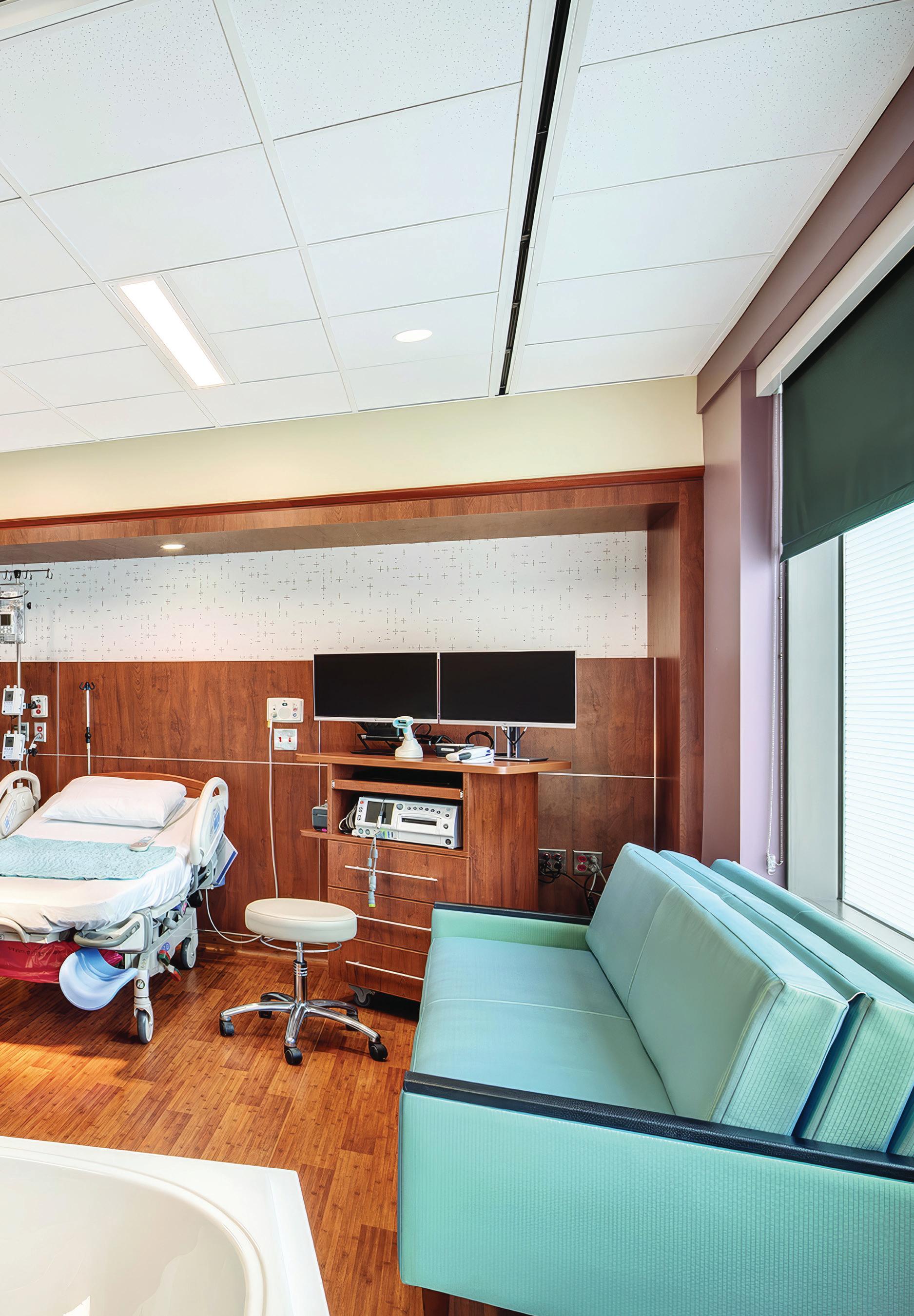

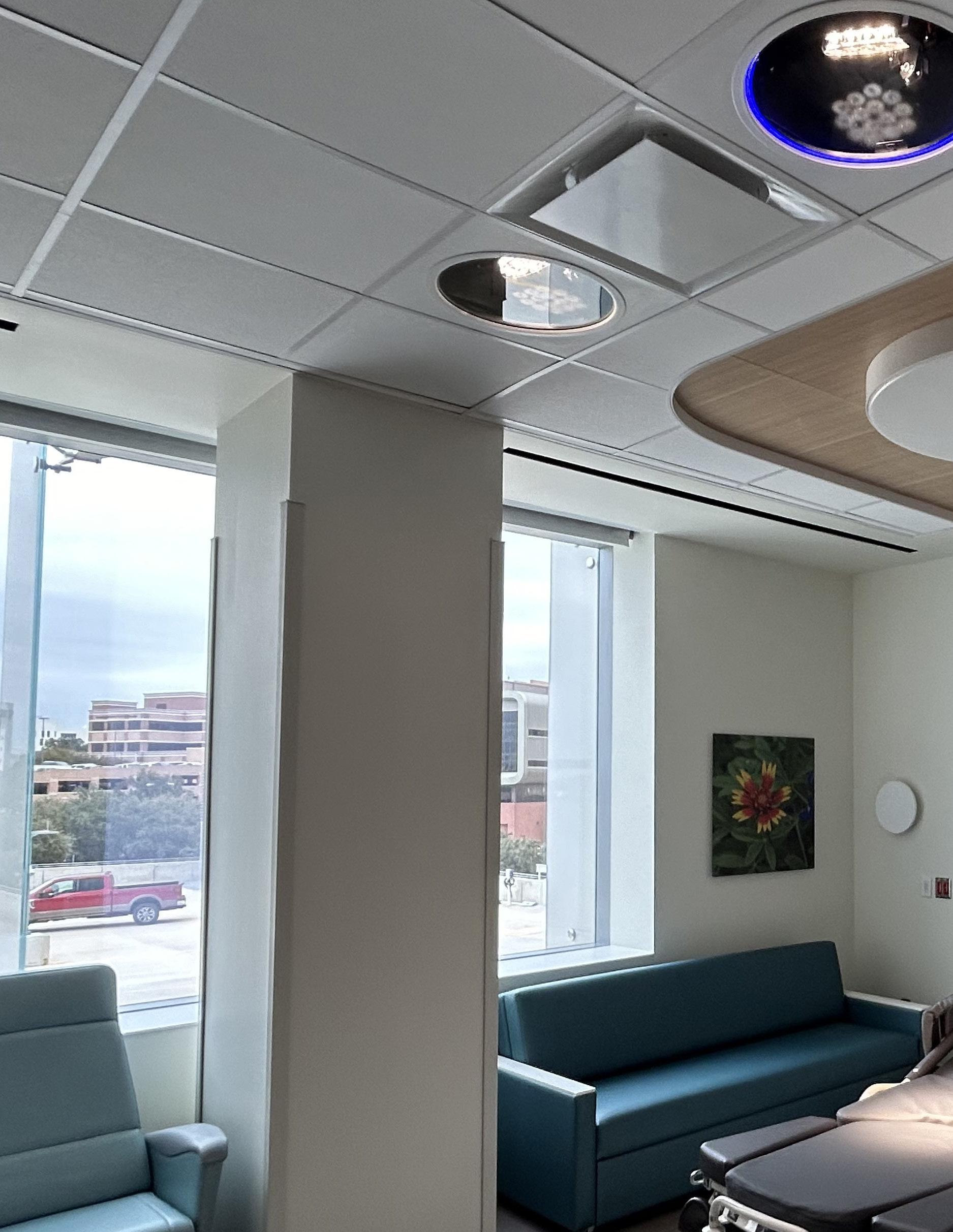

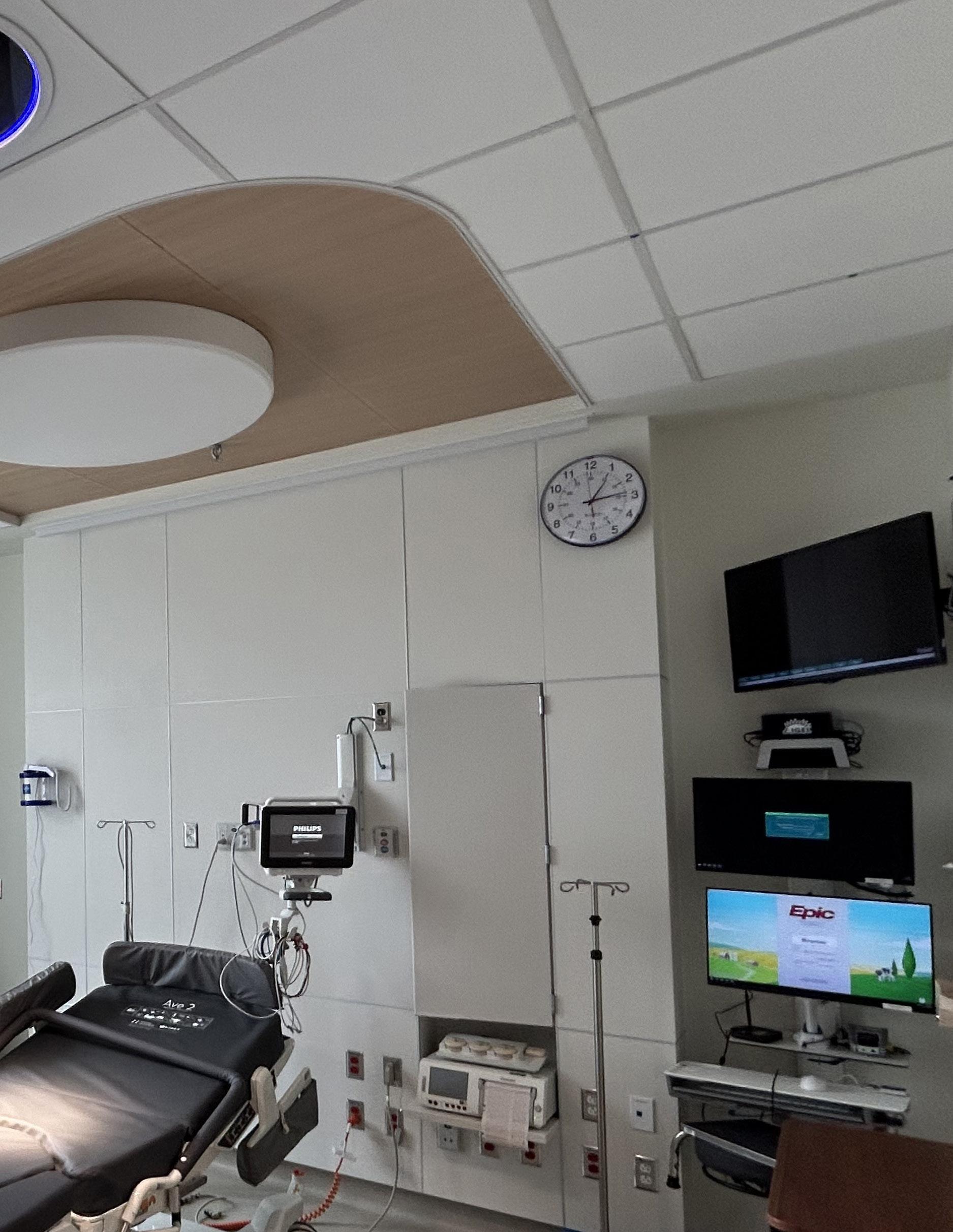

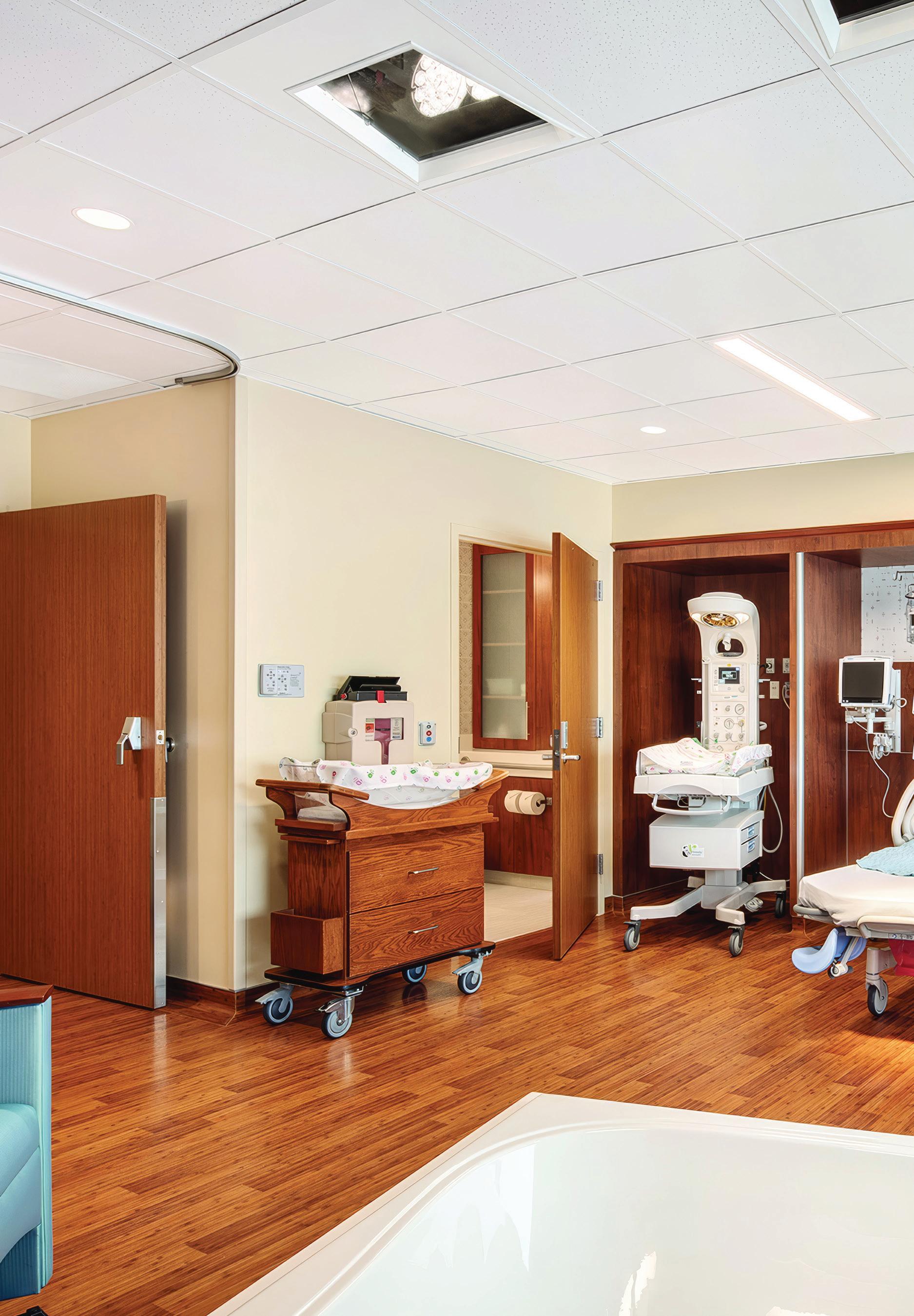

Labor & Delivery Illuminate every moment of childbirth In Labor & Delivery suites, INFRALED® PRO creates a clean, patient-centered environment with high-performance lighting that supports medical staff from labor to recovery.

Recommended Models: PRO 60 and PRO 25 •P RO 60 delivers a 60° optical path into the birthing canal — 64% deeper than competing fixtures — enhancing visibility during delivery and postpartum care.

•P RO 25 provides lower output exam lighting with full dimming for newborn safety and comfort.

Key Benefits:

No ceiling clutter or swinging arms — lights are fully recessed

Intuitive remote and wall control for aim and intensity

Continuous dimming to 1% for patient comfort and clinician preference

High color fidelity (95+ CRI) supports visual diagnosis

Easy to clean; sealed for infection control

For additional details, see submittals at www.kirlinlighting.com.

7

PRO 25

PRO 35

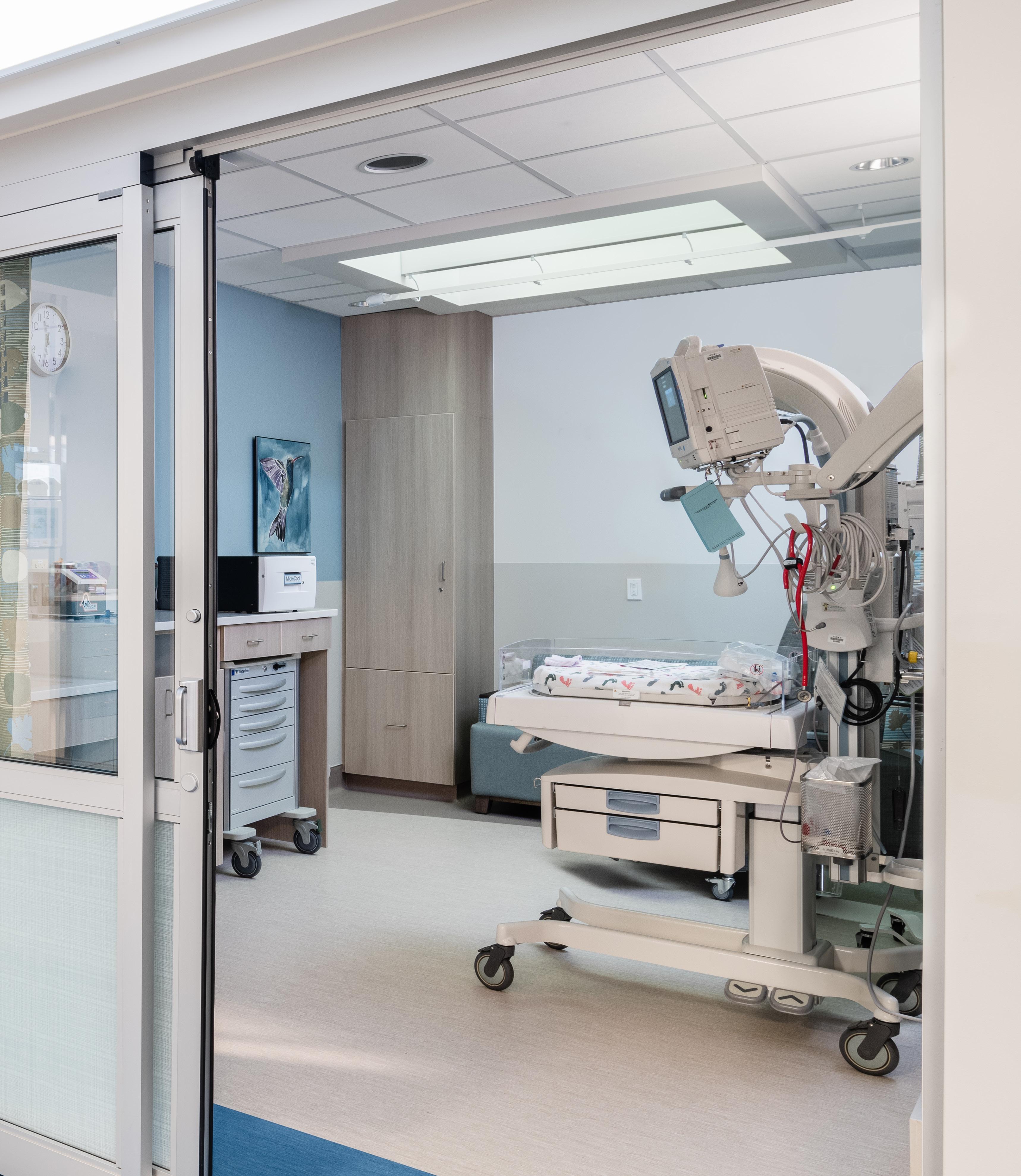

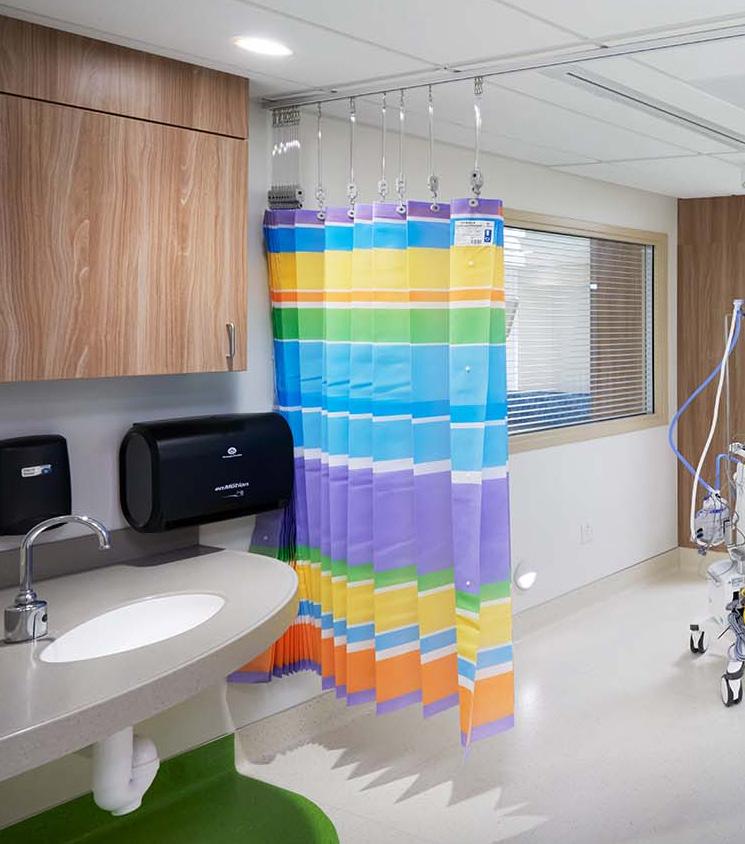

NICU Designed with the smallest patients in mind In Neonatal Intensive Care Units, lighting needs to balance performance with extreme sensitivity. INFRALED® PRO offers quiet, targeted illumination for the tiniest patients.

Recommended Models: PRO 25 and PRO 35 •P RO 25 offers lower-intensity, fully aimable light for delicate observation and care.

•P RO 35 delivers up to 44,000 lux for procedures, even in rooms with higher ceilings.

NICU Highlights:

Aimable LED head with smooth motion

8

360° rotation and tilt up to 35°

Dimmable to 1% to protect sensitive infant vision

IP66 sealed, BioGard finish for infection prevention

Simple remote and wall-based control

For additional details, see submittals at www.kirlinlighting.com.

9

PRO 35

PRO 25

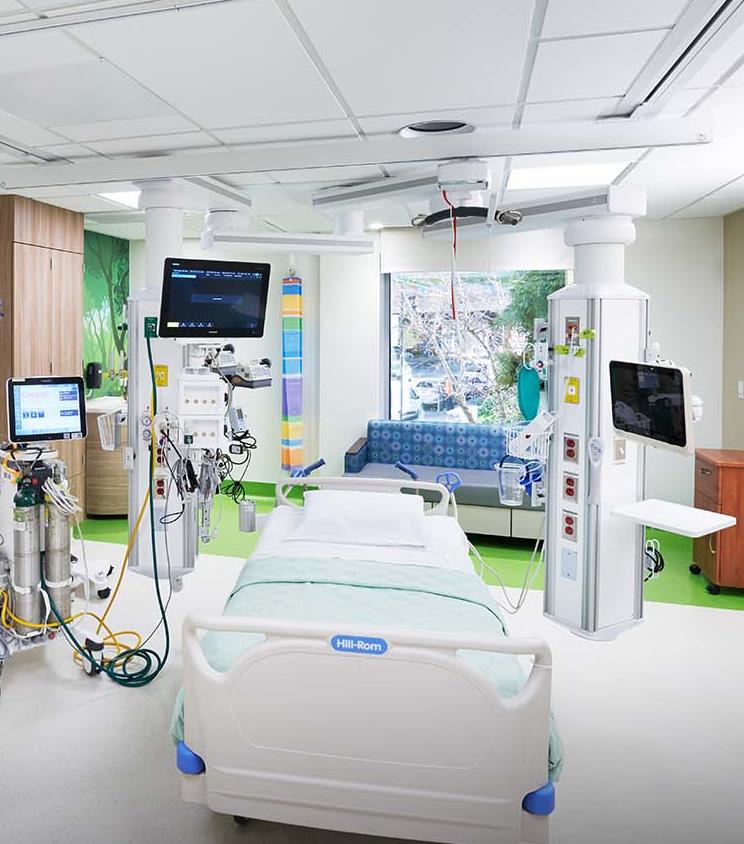

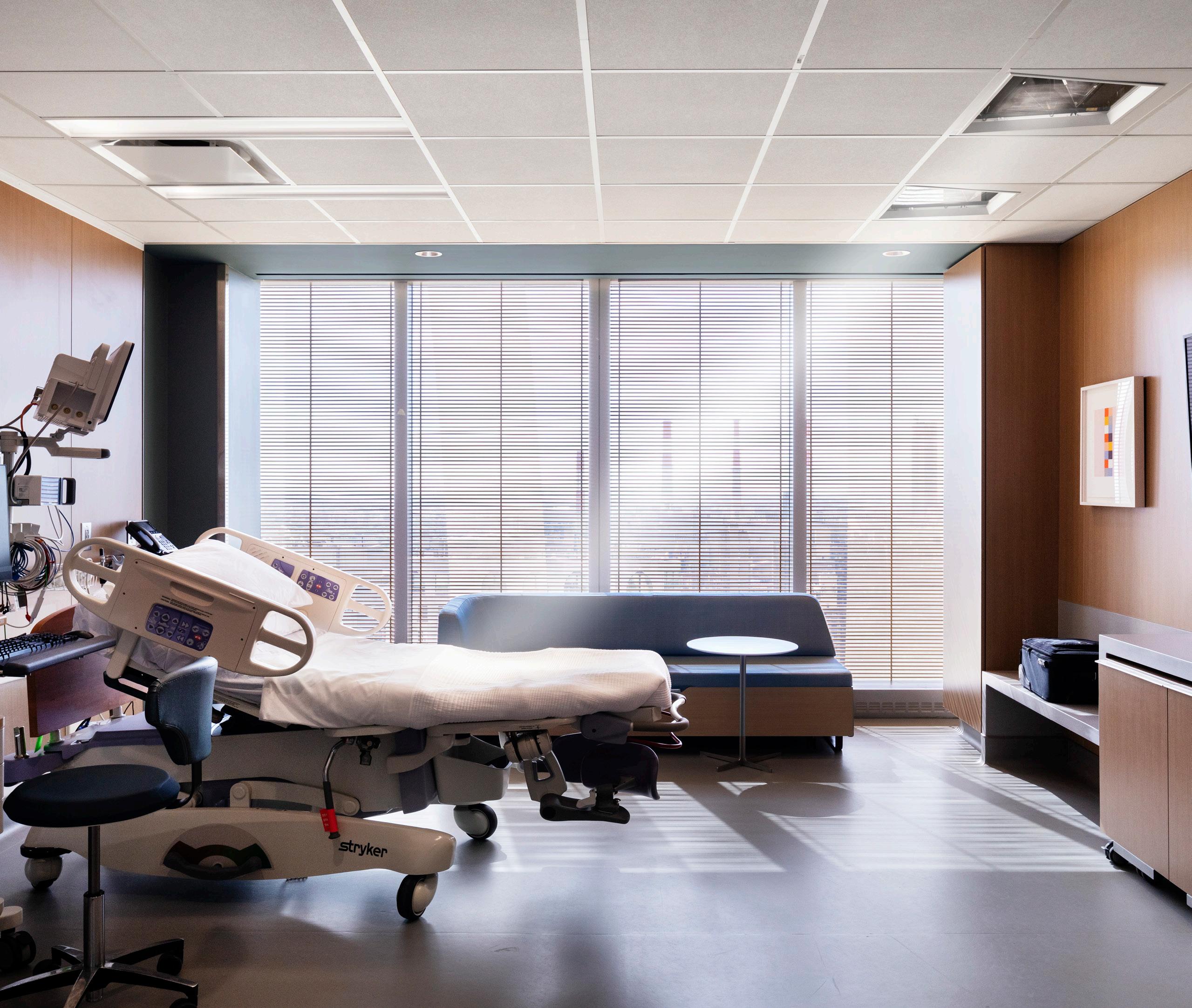

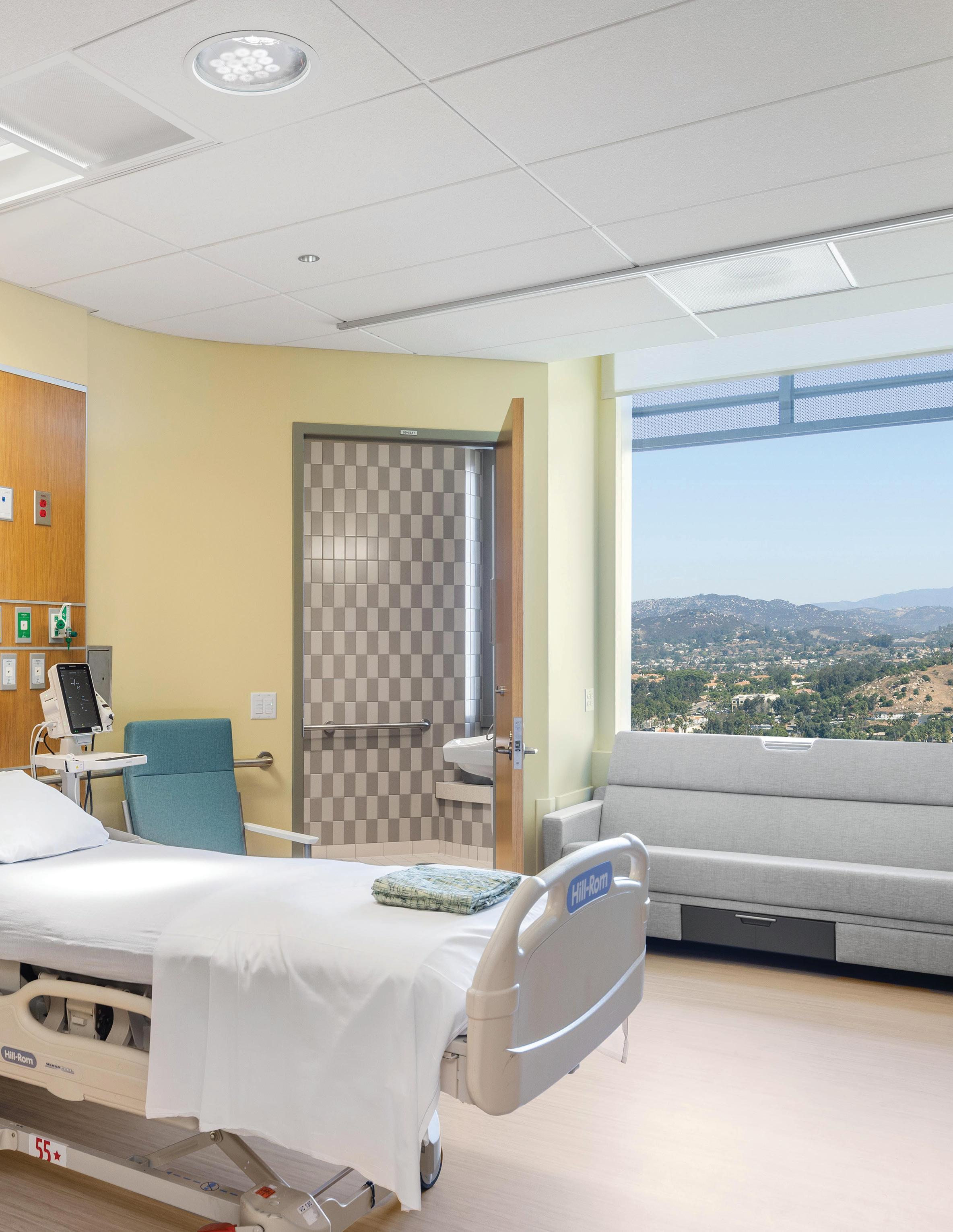

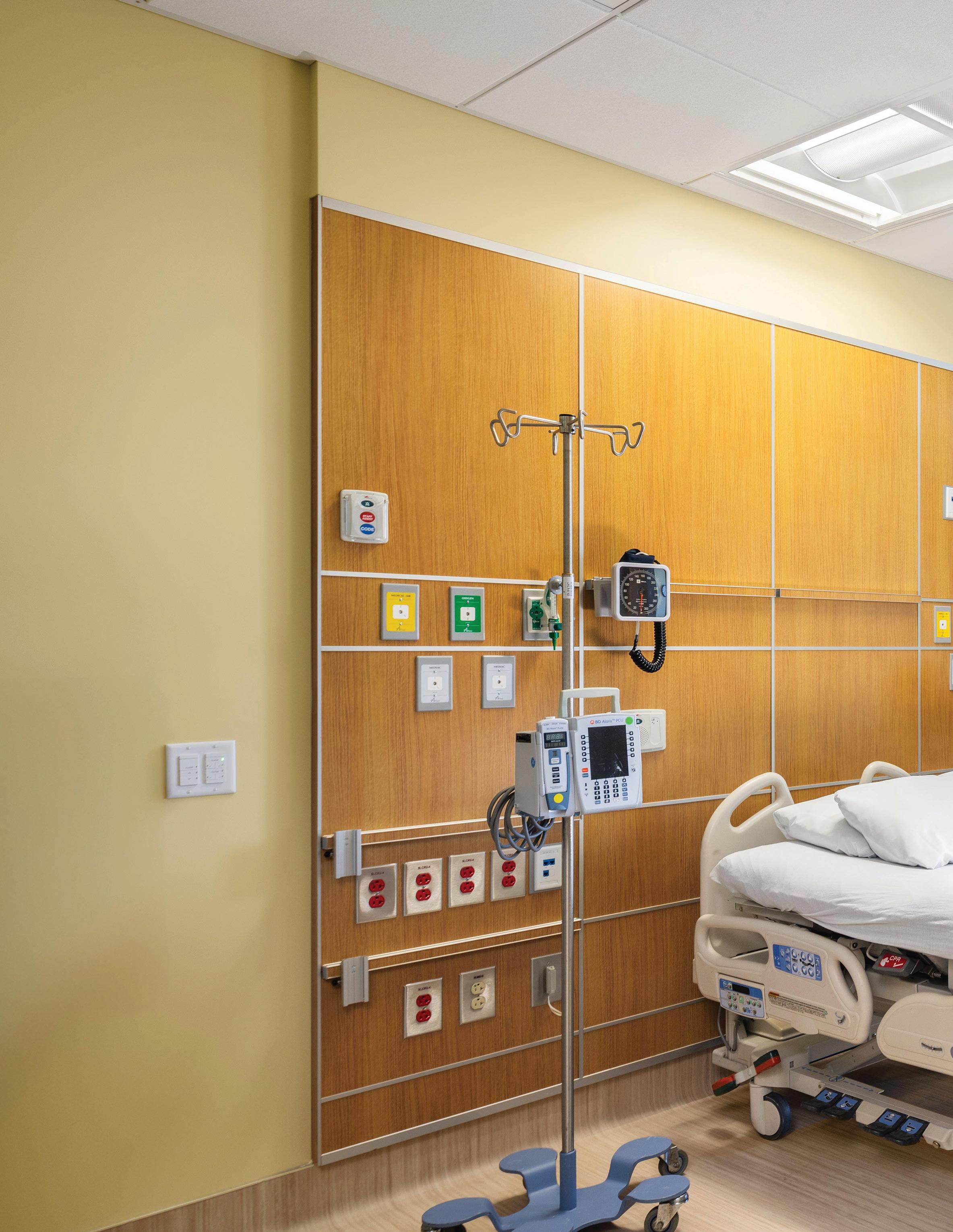

ICU & Patient Room Flexible light for constant care Patient rooms and ICUs demand lighting that’s quiet, precise, and easily adjustable when needed. INFRALED® PRO delivers it, without adding visual equipment clutter or disrupting patients.

Recommended Models: PRO 35 and PRO 25 •P RO 35 provides high-intensity (44,000 lux) task lighting for procedures or assessments.

•P RO 25 suits patient observation and lower light needs.

Why PRO in ICU/Patient Rooms:

Discrete recessed profile preserves room aesthetics 10

Supports both clinical exams and in-room procedures

95+ CRI enhances color rendering for accurate care

Remote control and wall panel work seamlessly together

For additional details, see submittals at www.kirlinlighting.com.

11

PRO 45

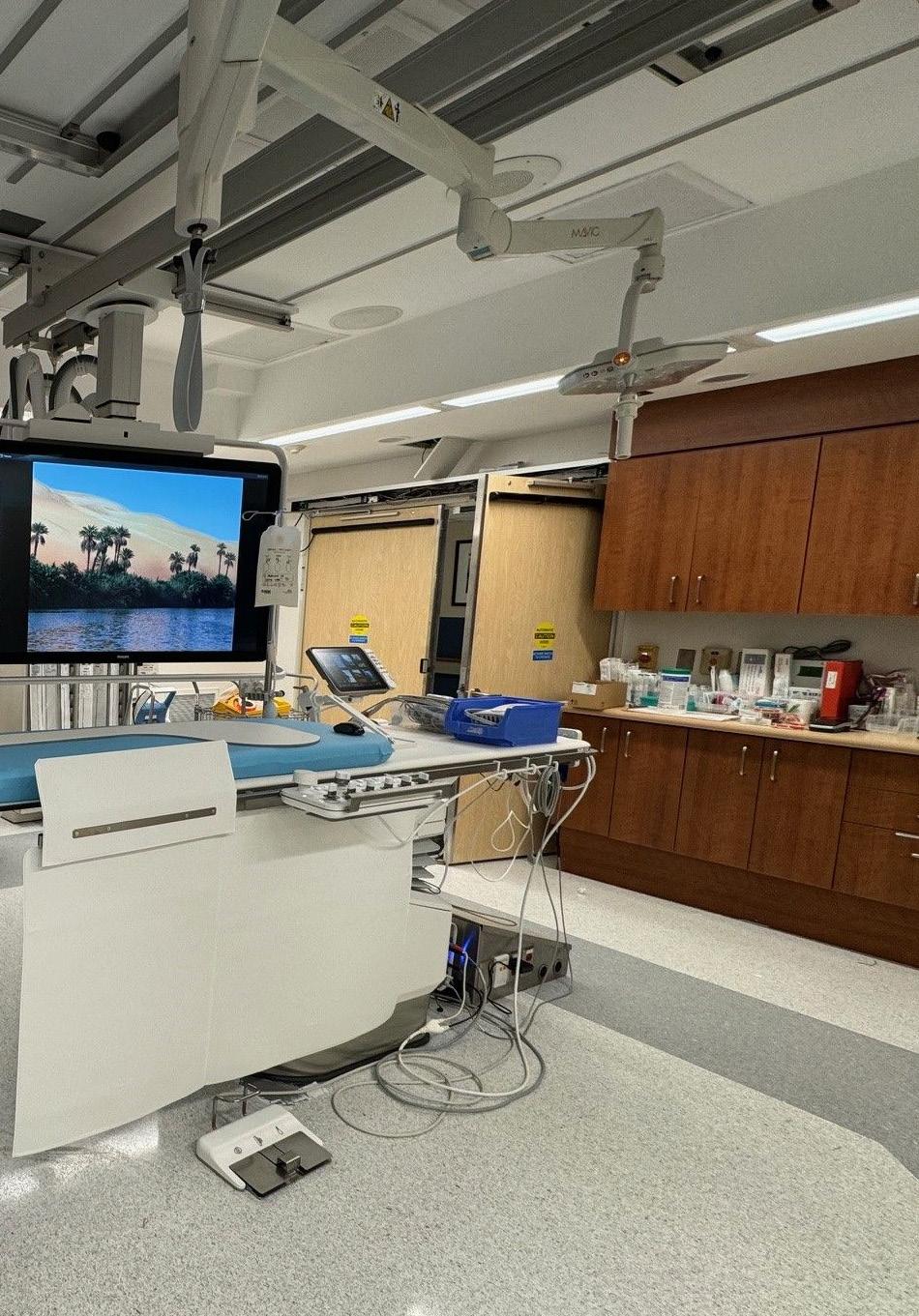

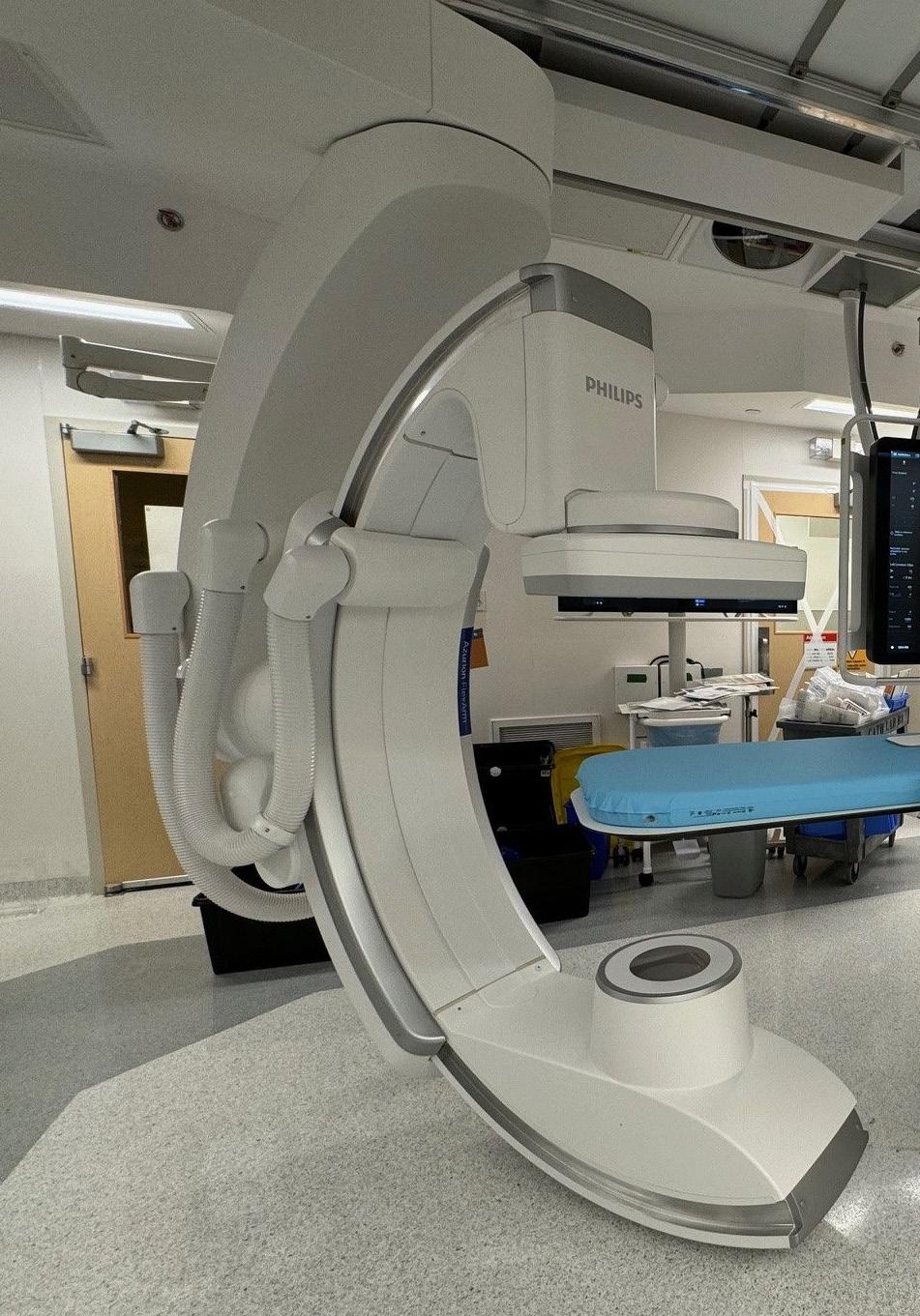

Cardiac Cath Lab Shadow-free support in cath labs For cardiac procedures where precision is paramount, INFRALED® PRO reduces shadows, clears ceiling obstructions, and brings powerful, adjustable light exactly where it’s needed.

Recommended Model: PRO 45 • 45° tilt delivers broad, shadow-reducing light for CCU procedures, while preserving ceiling space for imaging equipment

Clinical Advantages:

Aim with confidence — individual light control allows for multiple exam light locations

12

4 fixtures controlled with a single remote and wall controller

Easy-to-clean construction promotes sterility

Crisp light with 95+ CRI for vascular and cardiac care

For additional details, see submittals at www.kirlinlighting.com.

13

14

PRO 45

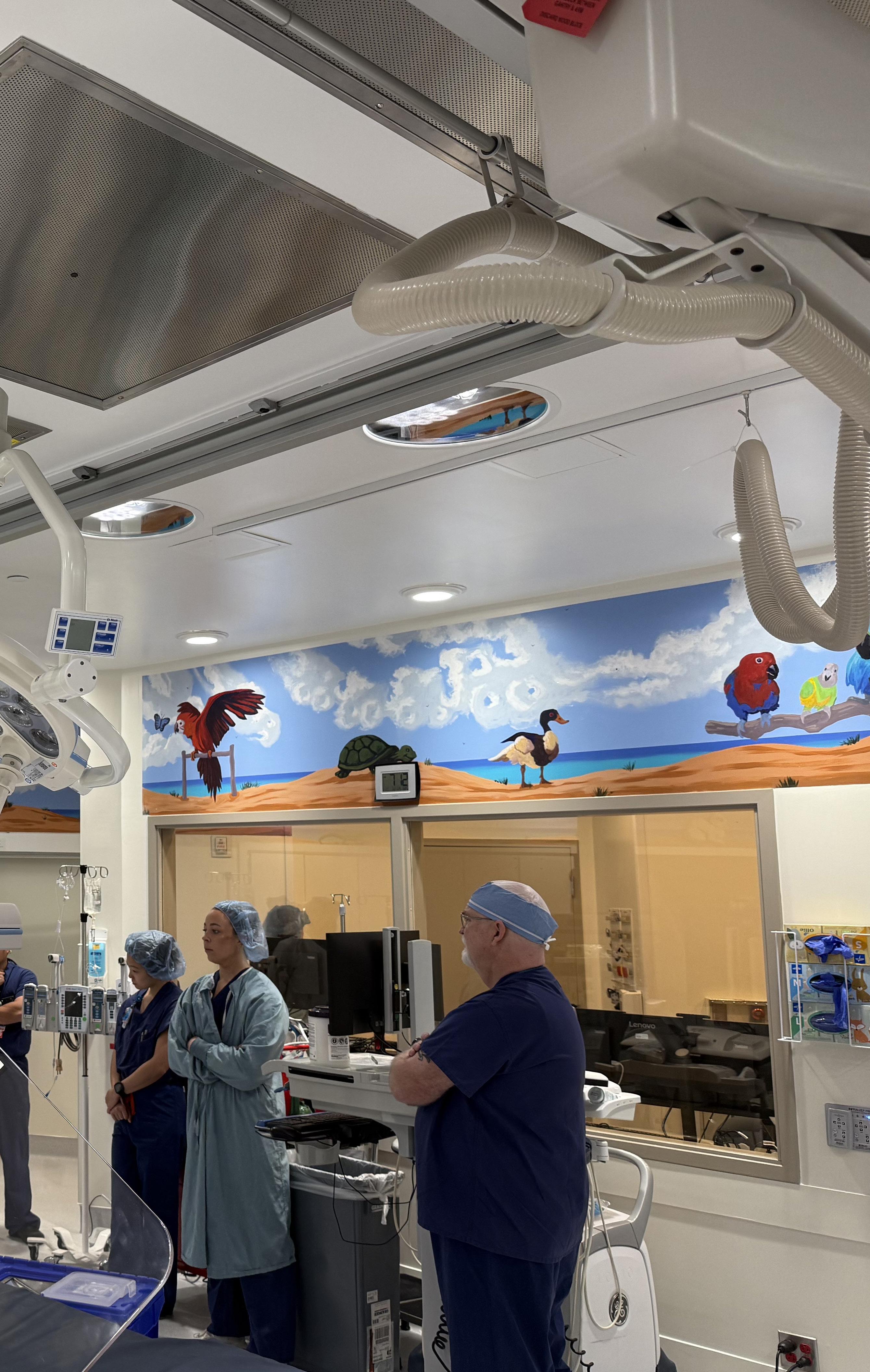

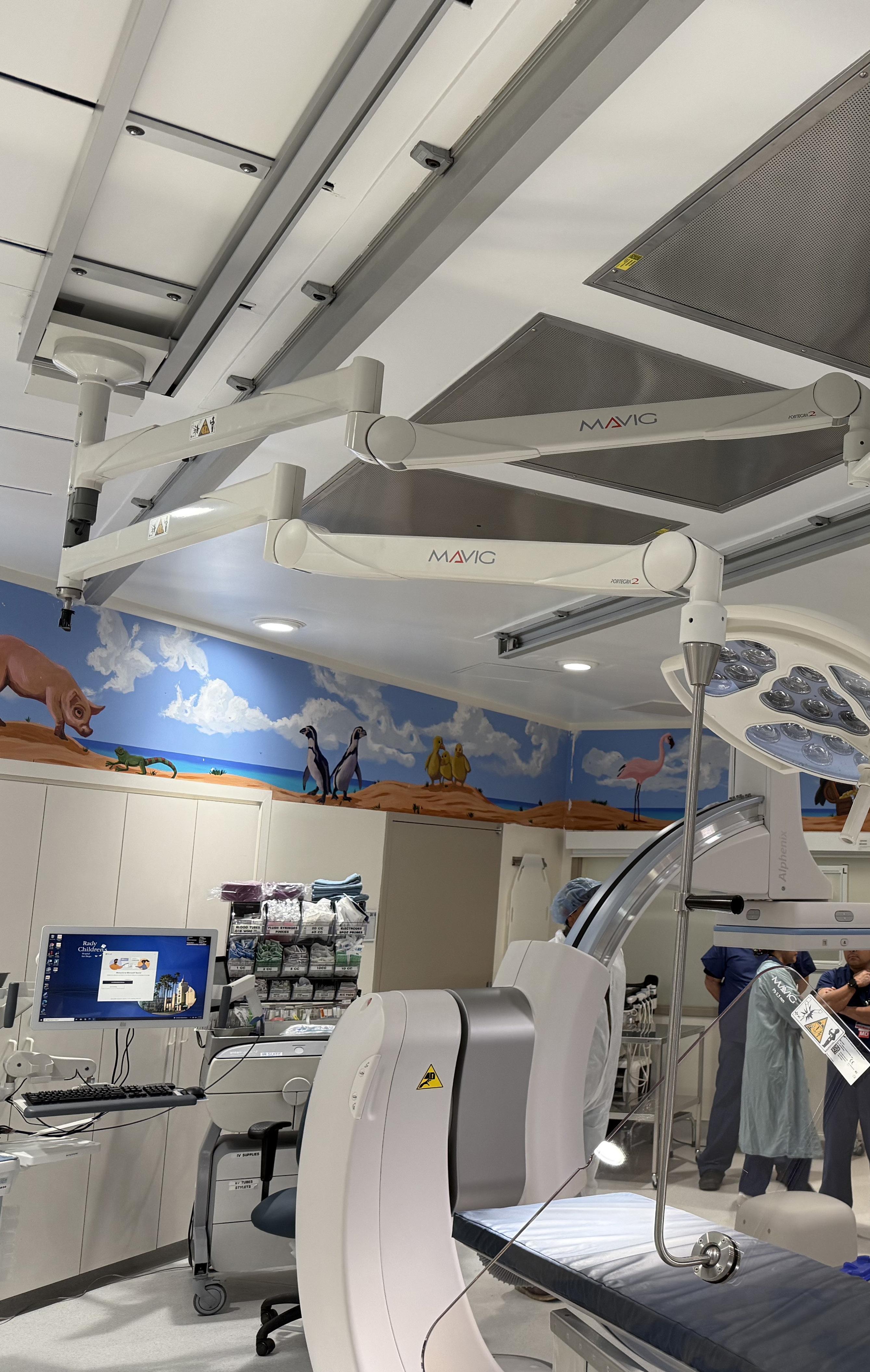

Hybrid Operating Room Built for complex, high-stakes procedures In hybrid ORs, INFRALED® PRO delivers powerful light, flexible aiming, and a clutter-free ceiling. PRO is ideal for teams that need space, speed, and sterile control.

Recommended Model: PRO 45 •P RO 45: High-output recessed fixture with 360° rotation for flexible targeted procedural lighting

OR Performance Highlights:

Seamless wall/ remote controls let staff adjust without going in and out of the sterile field

Eliminates boom arm shadows and overhead obstructions

High-output light reduces shadows during imaging and surgery

Safe, sealed, lowmaintenance design

For additional details, see submittals at www.kirlinlighting.com.

15

PRO 35

PRO 35V

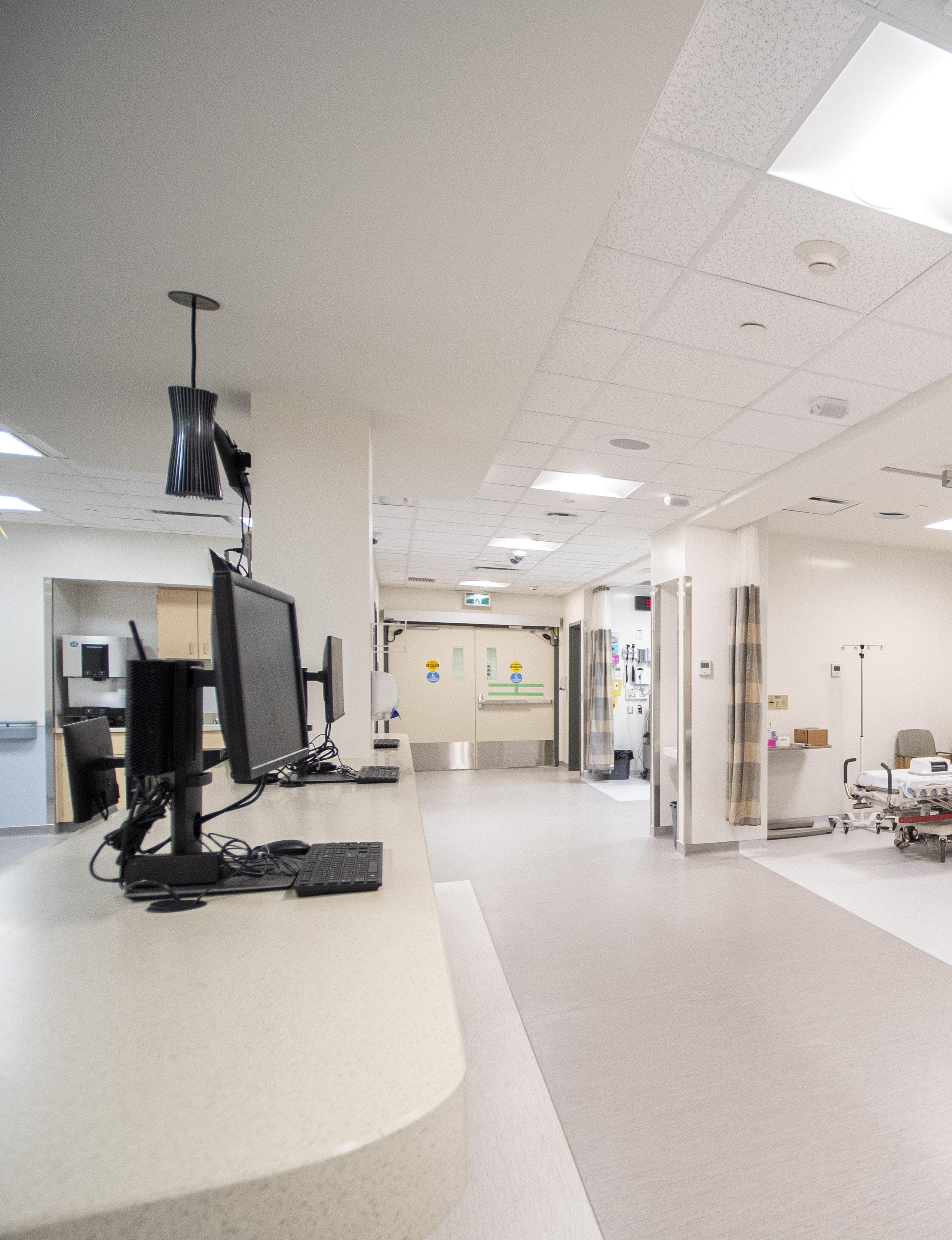

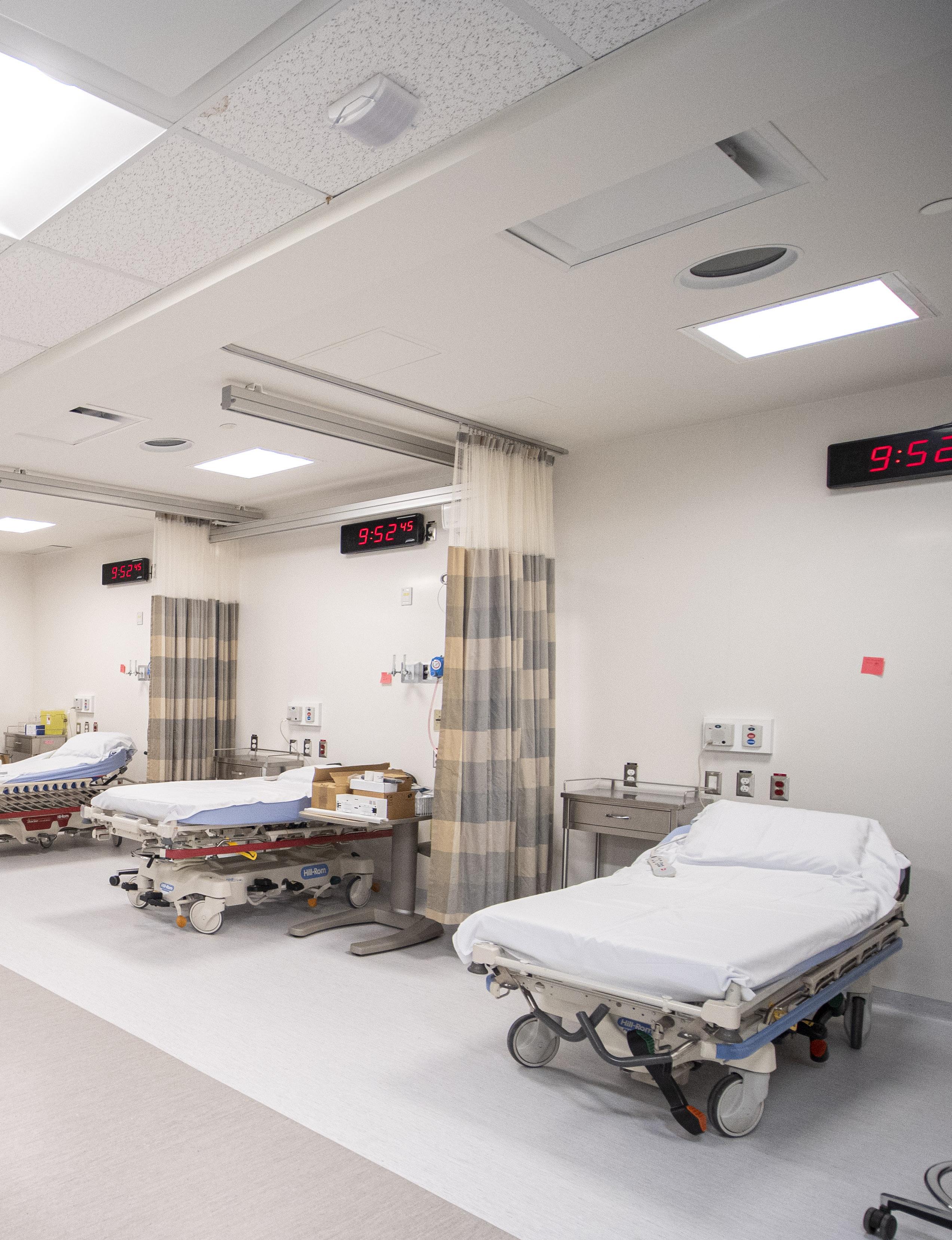

Emergency Room Always available, always adjustable ERs demand fast, reliable lighting for everything from quick triage to trauma response. INFRALED® PRO is built to perform under pressure, with aimable, powerful light that adapts as quickly as your team does.

Recommended Models: PRO 35 and PRO 35V •P RO 35 delivers focused 44,000 lux illumination for procedures •P RO 35V adds IK10 ligature/vandal resistance for behavioral health applications

Top ER Features:

Intuitive controls save time in critical situations

16

Flexible aiming without ceiling arms or delay

IK10-rated PRO 35V available for high-risk settings

Designed for durability in busy spaces

Infection control and safety built in

For additional details, see submittals at www.kirlinlighting.com.

17

ORDERING & RESOURCES Ready to Specify? We’re Ready to Help.

Scan the QR to access online resources

INFRALED® PRO features:

Declare Label

IP66 rated sealed construction

BioGard™ antimicrobial finish

95+ CRI

Remote and wall control system

IES Files

REVIT Families

Photometry and Layout Guidance

Resources Available:

Spec Sheets

18

Mounting Diagrams

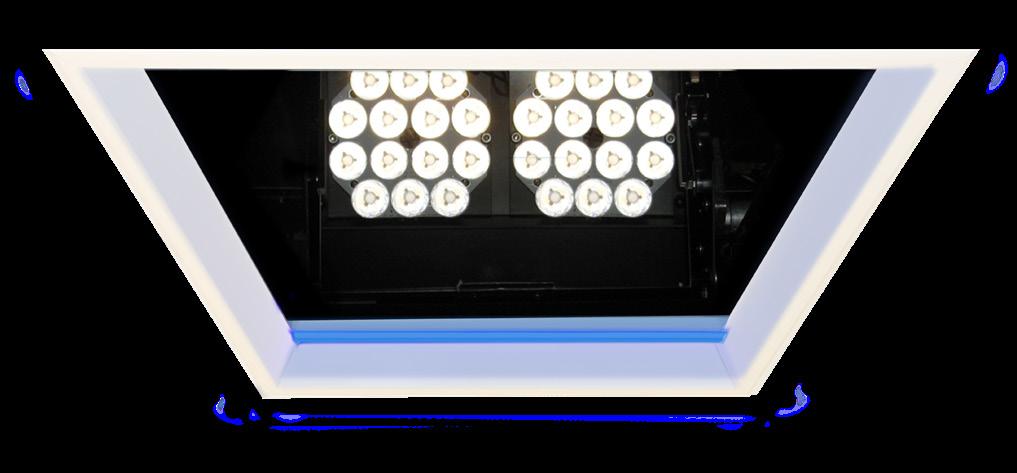

PRO 60 • 50,000 lux on task (pair) • High-angle exam light with 60º tilt for Child birth & Surgery • Fully recessed, inconspicuous light and convenient controls • 60º aiming illuminates birth canal for early resolution of childbirth challenges • High light levels with dimming ensure visual acuity while maintaining patient comfort

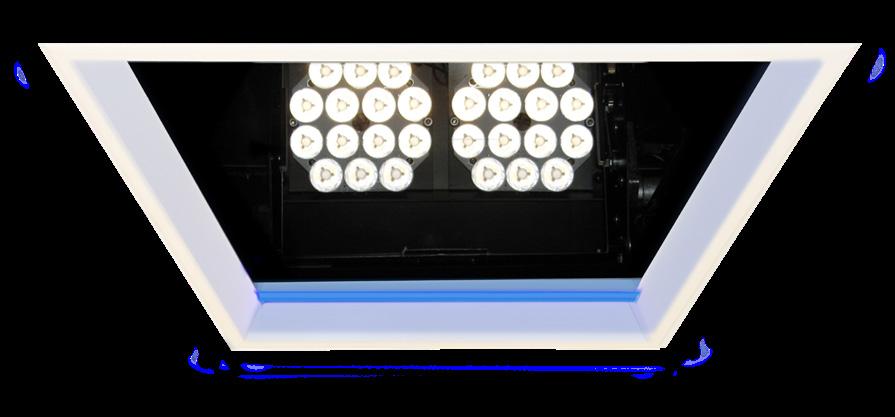

PRO 45 • 44,000 lux on task • 19" exam light with 45º tilt for OR, Hybrid OR, & Cath Lab • 360º rotation and maximum 45º angle of illumination • Recessed exam lights provide needed space for equipment • High intensity light up to 44,000 lux on task for critical procedures

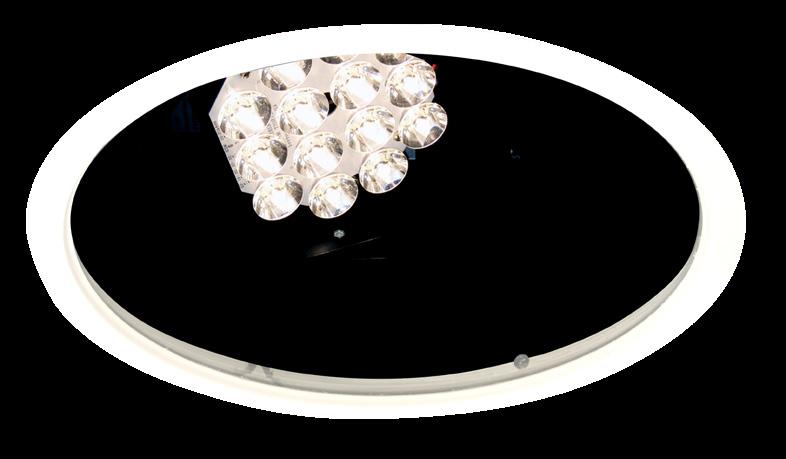

PRO 35/PRO 35V • 44,000 lux on task • 12" exam light with 35º tilt for ICU, Patient Room and ED • 35º angle ensures shadow-free light on task in every configuration • Blue LED indicator highlights selected luminaire • IK10-rated vandal/ligature resistant version (PRO 35V) available for high risk patients and Behavioral Health settings

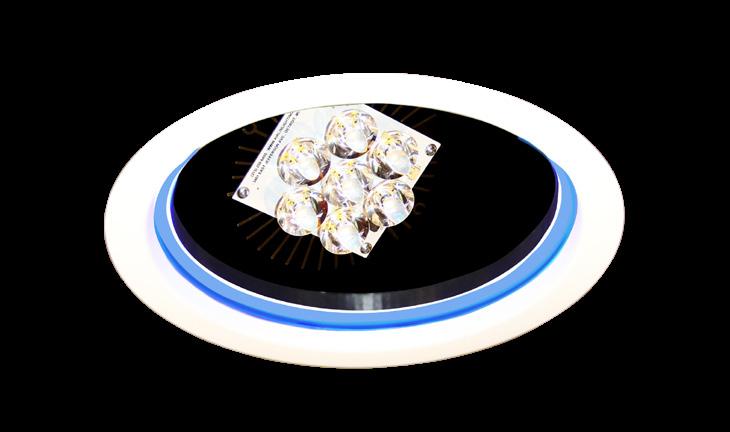

PRO 25 • 27,000 lux on task • 9" exam light with 25º tilt for NICU, ICU, & Patient Room • Aimable and dimmable LED lighthead designed to protect newborn’s sensitive vision • Recessed lights provide clear space and maximize sterility

For additional details, see submittals at www.kirlinlighting.com.
