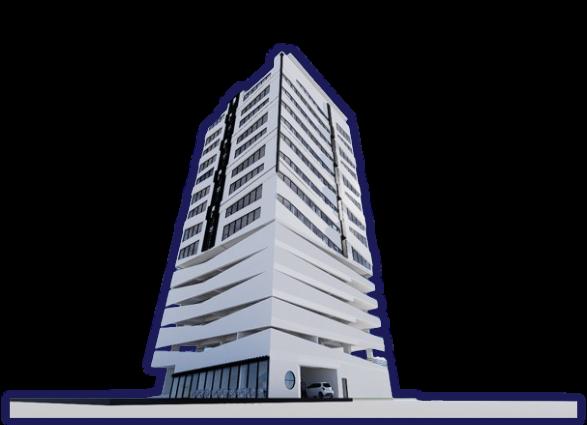

PSYQUE TOWER
THE OBJECTIVE OF THIS DESIGN CLASS IS TO TRAIN THE STUDENT IN OPTIMIZING THE SPATIAL DISTRIBUTION OF A MIXED-USE TOWER, WHICH INCLUDES A BISTRO ON THE FIRST LEVEL, SIX LEVELS OF PARKING AND EIGHT LEVELS OF APARTMENTS, MAINTAINING A LUXURIOUS AND REFINED DESIGN IN A MINIMAL SPACE CHALLENGES INCLUDE MEETING RESTRICTIONS SUCH AS THE MAXIMUM ALLOWED HEIGHT AND THE IMPOSSIBILITY OF BUILDING UNDERGROUND, WHICH INVOLVES THE INCLUSION OF A PARKING STRUCTURE WITHIN THE TOWER. IN ADDITION, THEY WILL FACE THE ADDITIONAL CHALLENGE OF WORKING ON A REDUCED TERRAIN.
Ki K I - A R Q
CONTEXTS: UNDERSTANDING THE LOCATION
C O N T E N T T O P I C S
MARKET
SPACE DISTRIBUTION EXPLORING
ARCHITECTURE AND CITY CONSTRUCTIVE VISION LIVE THE SPACE 04 06 10 20 26 30 34
EXPLORING
ANALYSIS
CONTEXTS: SITUATING ARCHITECTURE
31HORASY18MIN
4HORASY40MIN .
3HORASY50MIN .
11HORASY35MIN
8HORASY2MIN.
EXPLORING CONTEXTS:
UNDERSTANDING THE LOCATION
1 0 H O R A S Y 1 5 M I N

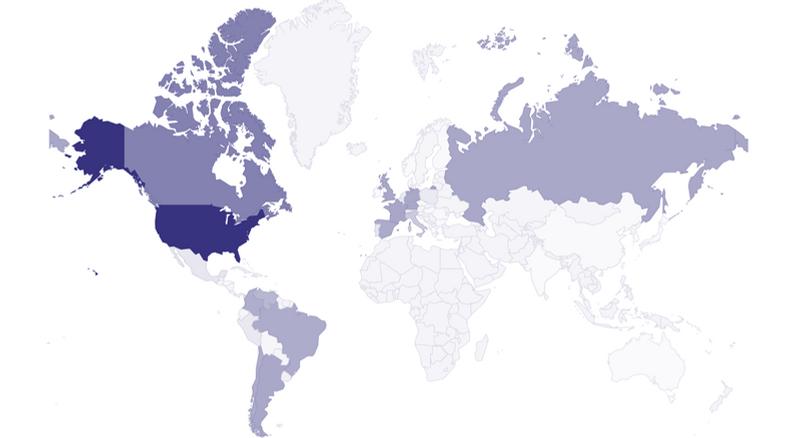

DatosMacroyMinisterio deTurismo(2020). 2,335 Aprox. 904 Aprox. 2.335 Aprox. 221 Aprox. 219 Aprox 218 Aprox LLEGADAS AL PAIS ANUALES:

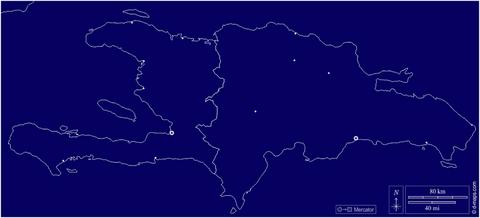

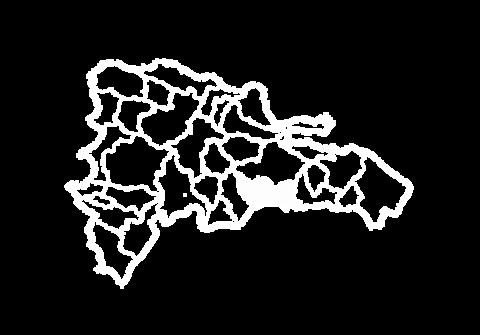

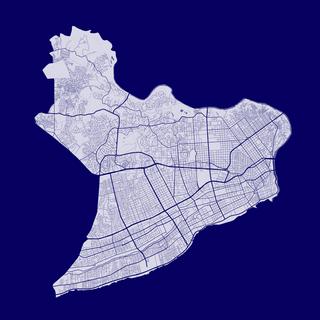

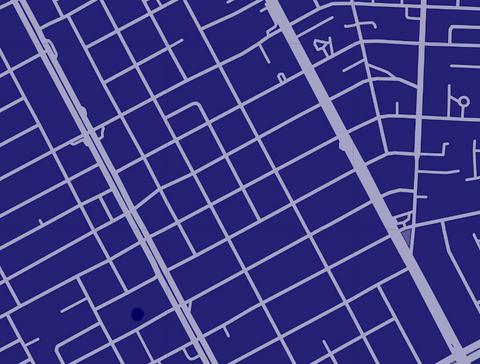

M E MLS EL CARIBE DOMINICAN REPUBLIC SANTO DOMINGO NATIONAL DISTRICT PIANTINI SECTOR AV. WINSTON CHURCHILL ACROPOLIS BLUE MALL PSYQUE TOWER

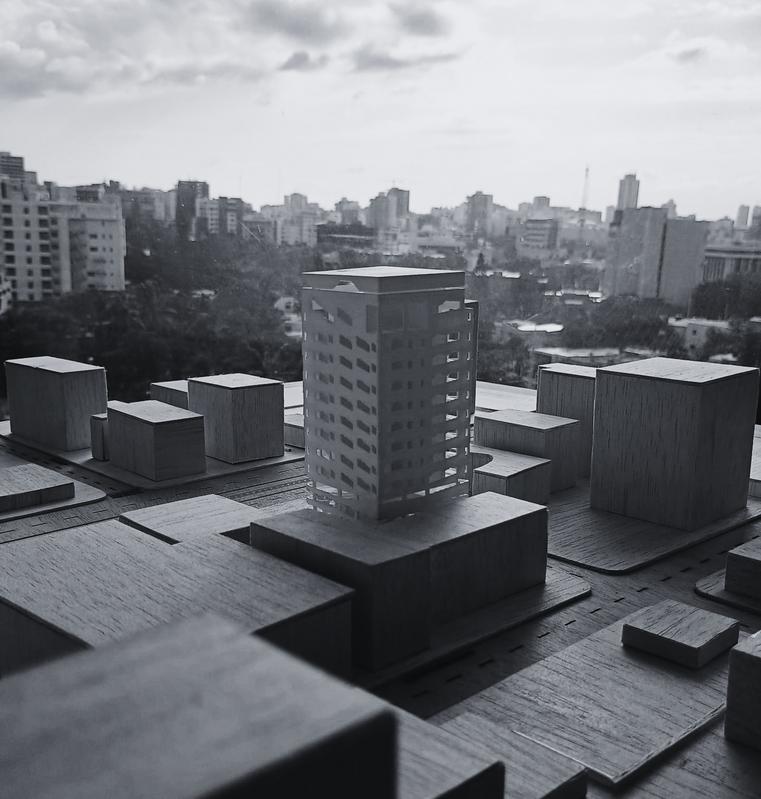

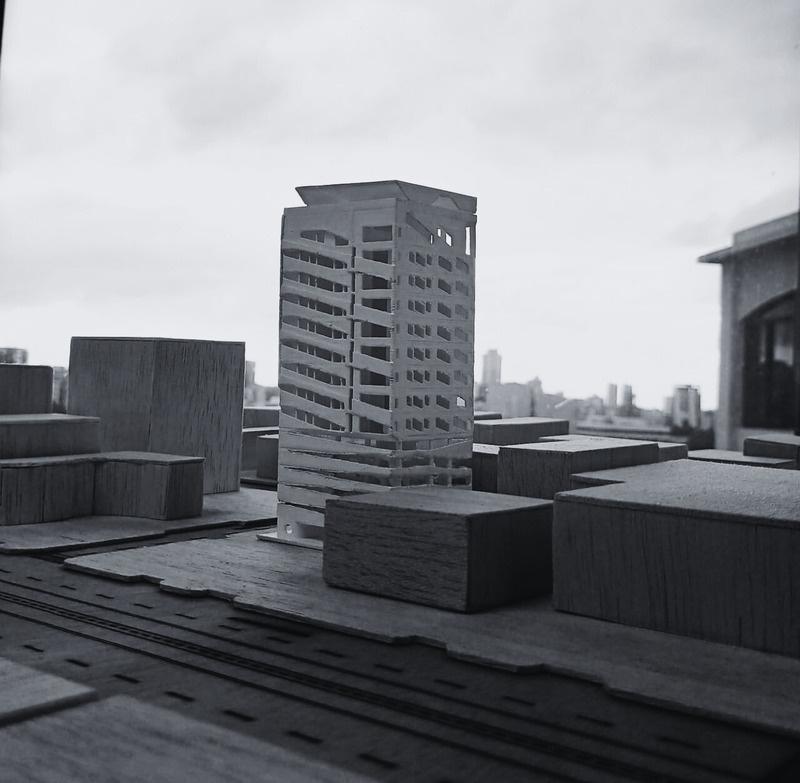

EXPLORING CONTEXTS: UNDERSTANDING THE LOCATION

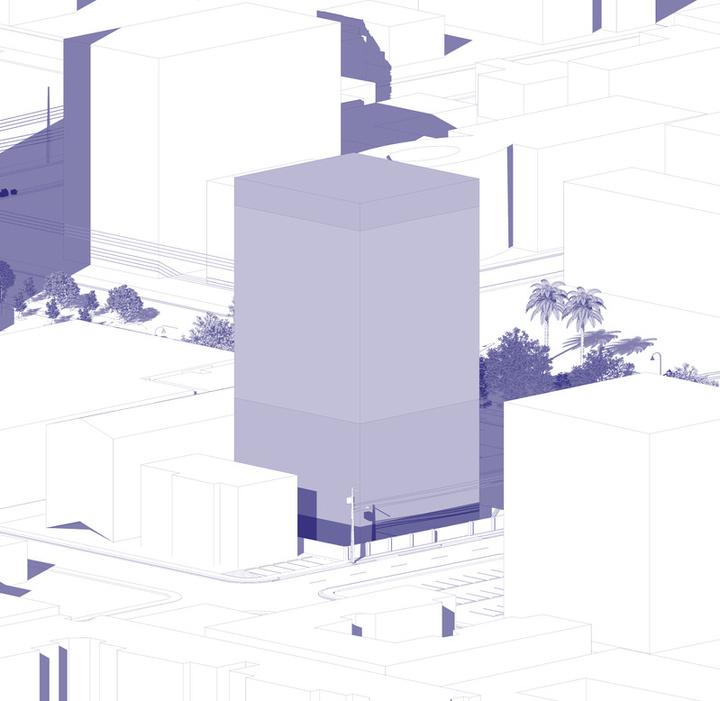

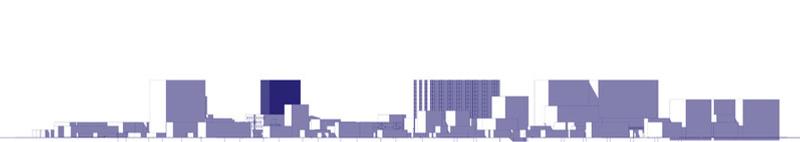

PSYQUE TOWER
61 m

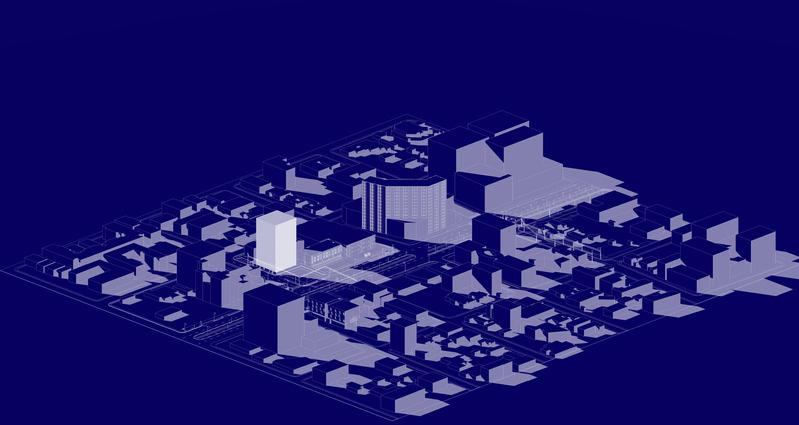

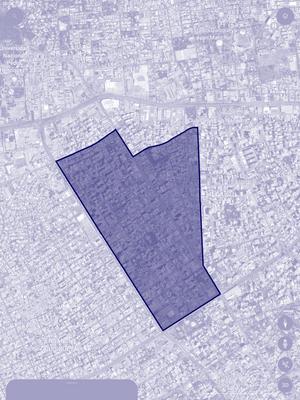

WHEN YOU LISTEN TO PIANTINI, IT GIVES YOU THE ASSURANCE THAT YOU WILL BE IN THE HEART OF THE POLÍGONO CENTRAL, WHERE YOU CAN LOCATE EXCLUSIVE HIGH-PROFILE CORPORATE AND COMMERCIAL PROPERTIES SUCH AS:
ACROPOLIS
ACROPOLIS CENTER
BLUE MALL
HABITAT PARK
CORPORATE 2015 AND 2010
ROBERTO PASTORIZA TOWER
100m 36,981 m³ CONSTRUCTIONEXPLORING CONTEXTS: MARKET ANALYSIS
244 3 3-4 USD$ 1,313.28 USD$ 320,440.91 130 2 2 USD$ 1,253.96 USD$ 309,134.74 80 1 2 USD$ 959.37 USD$ 219,369.95
M2 HAB PARQUEOS AMENIDADES PRECIO POR M2 PRECIO TOTAL A B C -ÁREA INFANTIL/DE JUEGO -PISCINA -GYM -BAR -CINE -TERRAZ A DESTECHADA -JACUZZI -BALCÓN -MULTIUSOS
TIPOLOGÍA
EXPLORING CONTEXTS: MARKET ANALYSIS
205 3 4 USD$ 1,313.28 USD$ 269,222.4 166 2 2 USD$ 1,253.96 USD$ 208,157.36 120 1 2 USD$ 959.37 USD$ 115,124.41
TIPOLOGÍA M2 HAB PARQUEOS AMENIDADES PRECIO POR M2 PRECIO TOTAL A B C -GYM -CINE -TERRAZ A DESTECHADA -BALCÓN -MULTIUSOS -AREA DE YOGA Y MEDITACION -AREA DE ZUMBA AMENIDADES Y METRAJE SELECCIONADO
SPACE DISTRIBUTION / CITY
THE INCLUSION OF RETAIL ON THE FIRST FLOOR OF A LUXURY APARTMENT BUILDING CAN BENEFIT BOTH RESIDENTS AND THE SURROUNDING COMMUNITY BY PROVIDING CONVENIENCE, DIVERSITY OF OPTIONS, ADDED VALUE, ECONOMIC STIMULUS AND A VIBRANT URBAN ENVIRONMENT THIS CAN HELP CREATE A HIGH-QUALITY RESIDENTIAL ENVIRONMENT THAT ATTRACTS PEOPLE SEEKING A LUXURIOUS, URBAN LIFESTYLE. FURTHERMORE, TAKING INTO ACCOUNT THE IMMEDIATE COMMERCIAL ENVIRONMENT THAT SURROUNDS US, THE BUSINESS ON THE FIRST FLOOR SERVES AS A MEANS OF TRANSITION BETWEEN THE EXTERNAL AND INTERNAL USES OF THE BUILDING

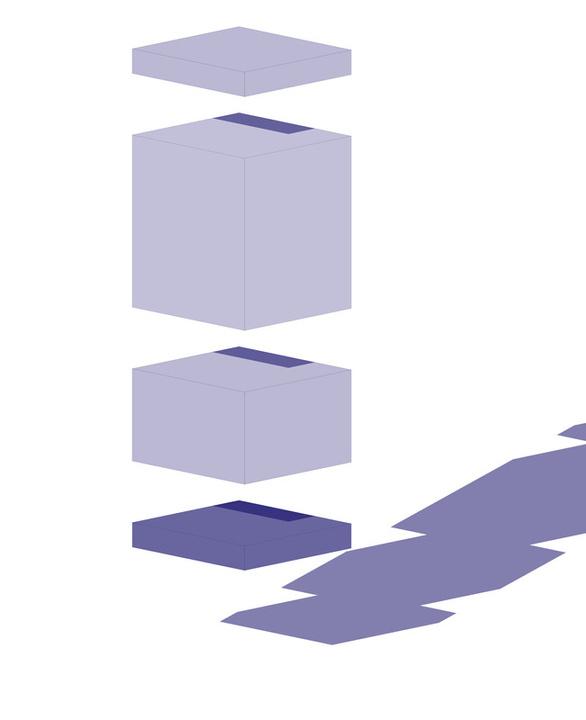

3-bedroom apartments (205 m²)
2-bedroom apartments (166 m²)
1 bedroom apartments (120 m²)
Parking and amenities
Bistro and services

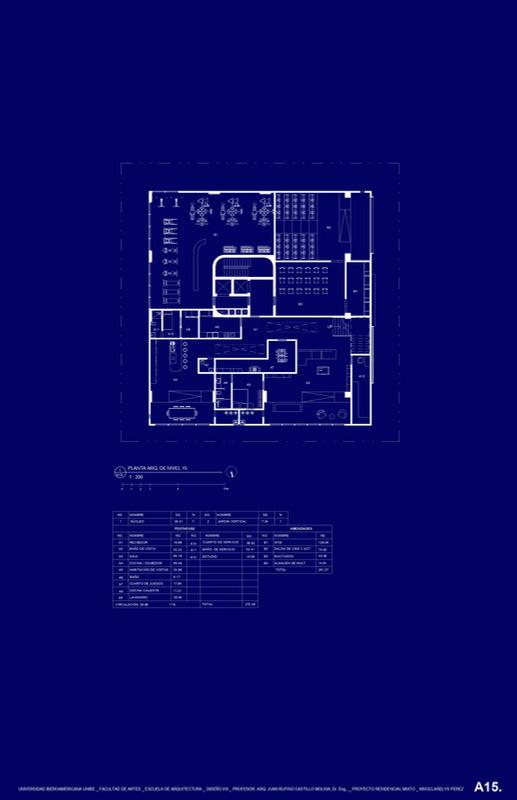

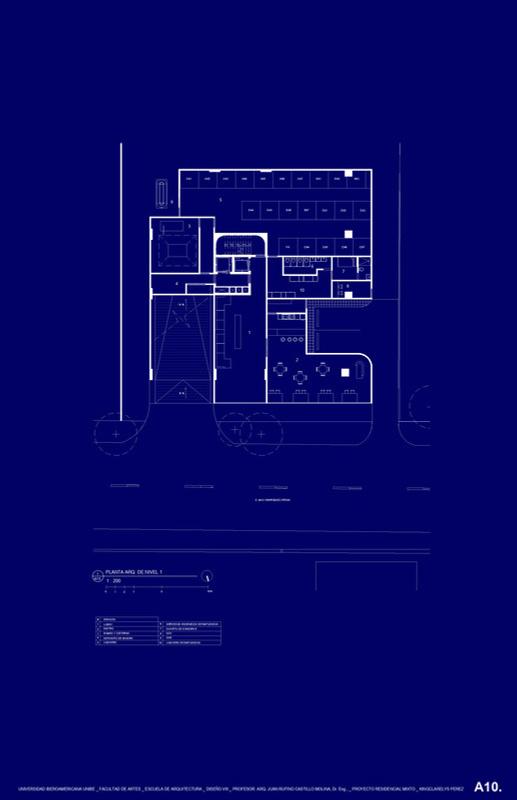

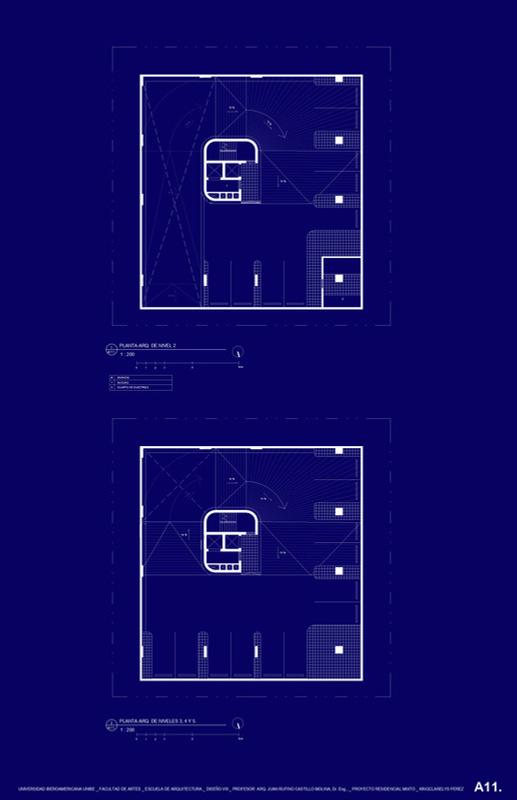

L 1 L 2L 6 L 7L 1 5 L 1 6
L 1 7 Rooftop / Amenities
1 2 3 4 5 6 7 8 9 10

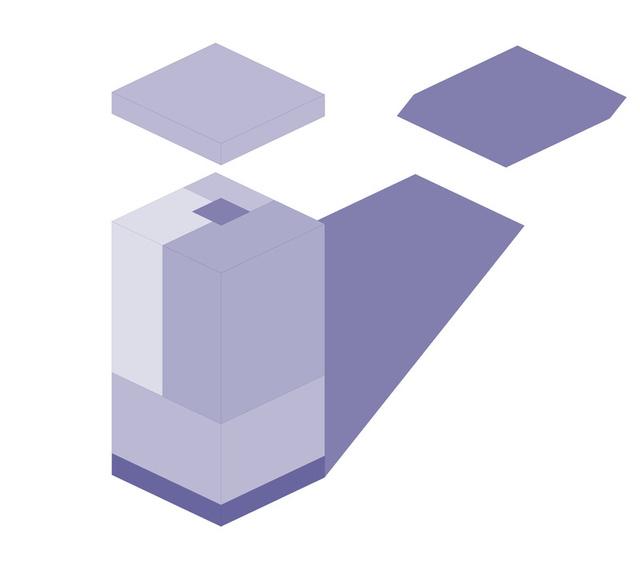

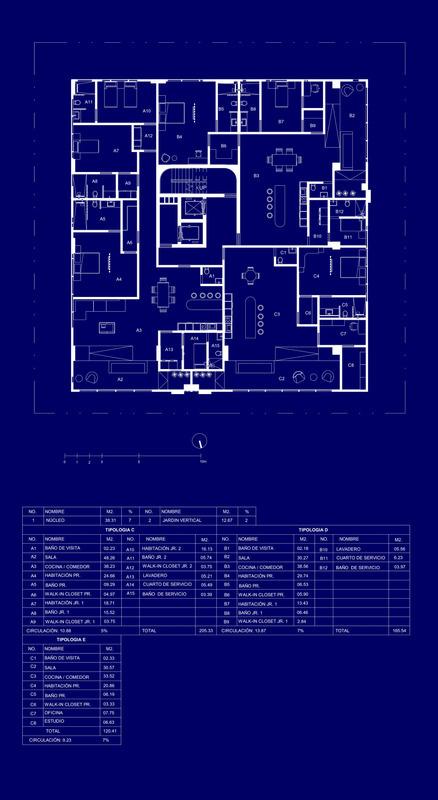

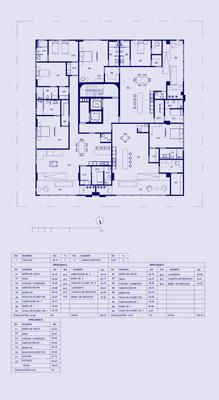

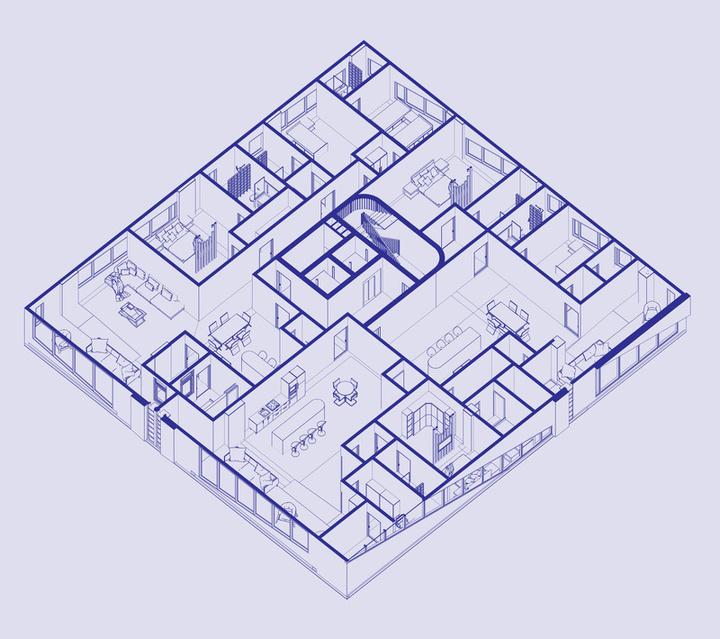

APARTMENT TYPES
THREE BEDROOM APARTMENT WITH SPACE FOR 5-6 PEOPLE
ONE BEDROOM APARTMENT WITH SPACE FOR 2 PEOPLE
A B C
APARTMENT TYPE FLOOR
PARKING FLOORS

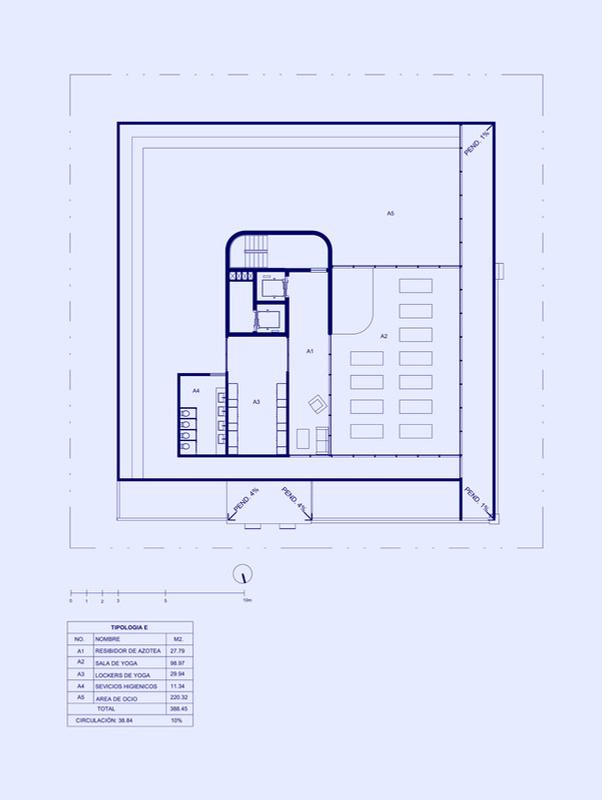

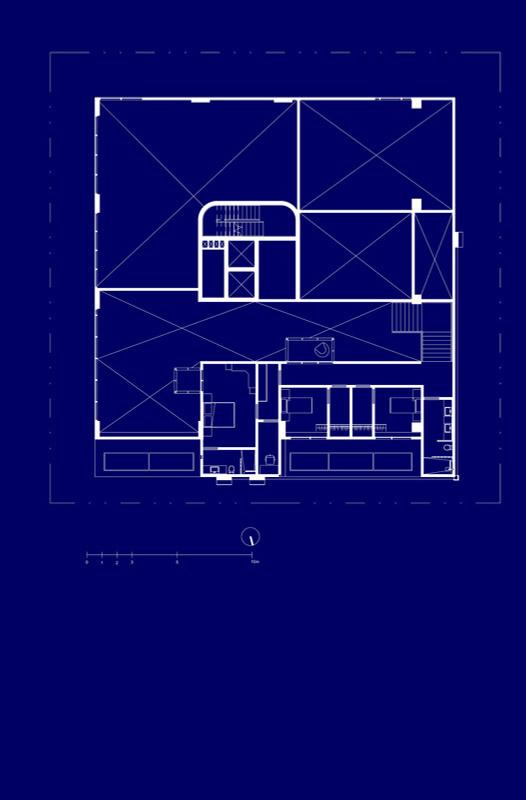

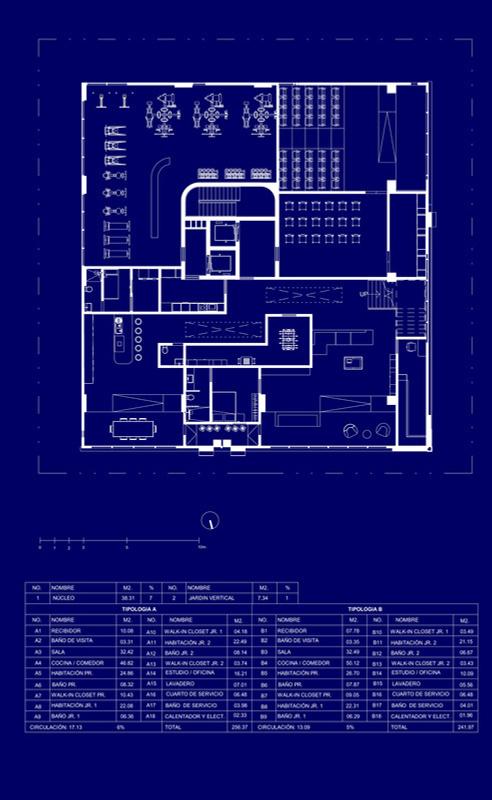

PENTHOUSE / AMENITIES FLOOR A1 A2 A4 A3 A12 A7 A5 A6 A8 A9 A10 A11 B1 B2 B3 B4 AMENITIES FLOOR PENTHOUSE
PENTHOUSE PENTHOUSE
SECOND FLOOR OF
ROOF / AMENITIES FLOOR

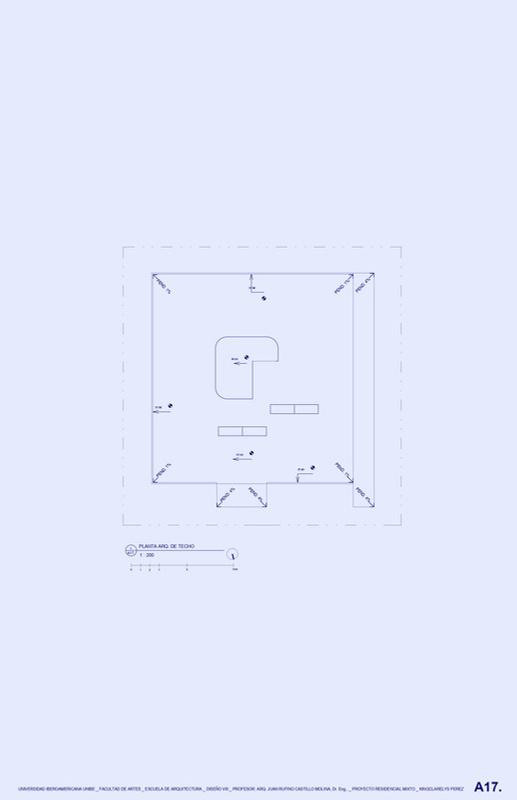

ROOF PLANT

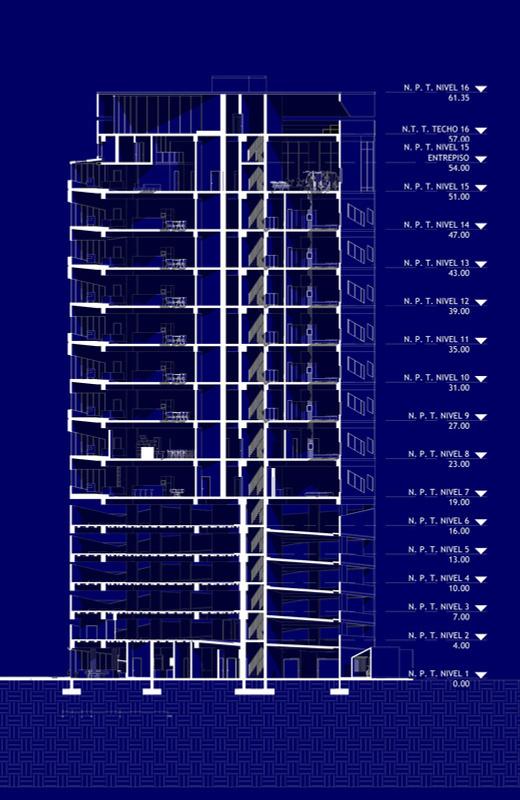

SECTION FROM NORTH TO SOUTH FACADE

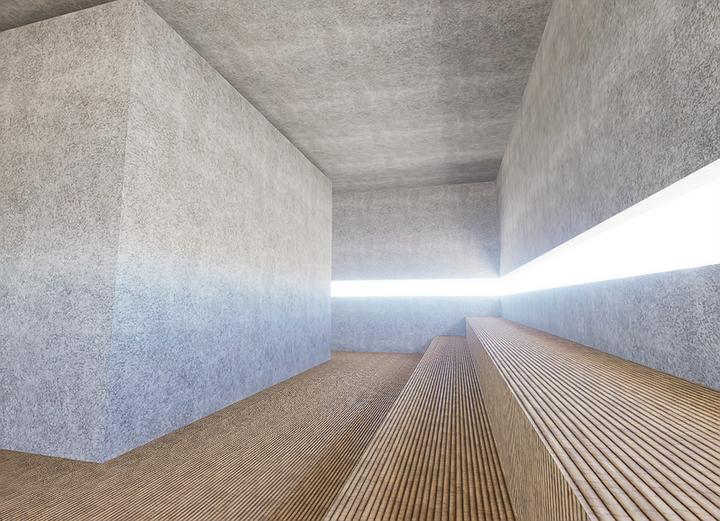

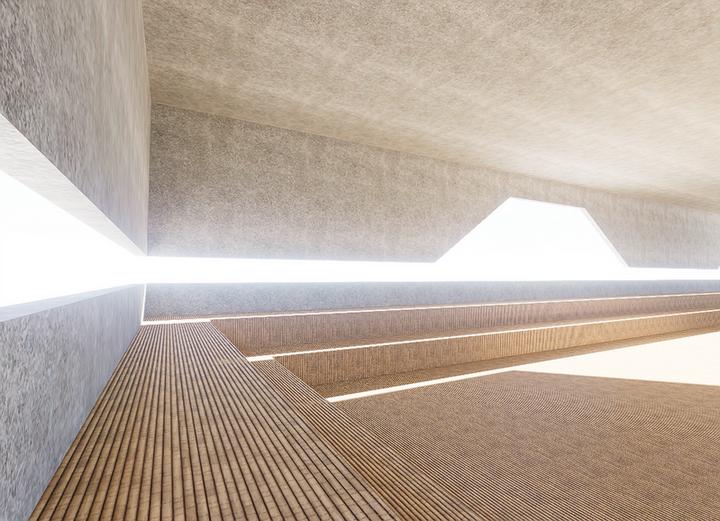

EXPLORING CONTEXTS: SITUATING ARCHITECTURE
IN THE COURSE OF CARRYING OUT A CONSIDERABLE PORTION OF OUR DAILY ACTIVITIES, WHICH TAKE PLACE MOSTLY IN CLOSED ENVIRONMENTS, THE SPACES WE FREQUENT PLAY AN EXTREMELY SIGNIFICANT ROLE IN TERMS OF OUR PERCEPTION, SIGNIFICANTLY INFLUENCING OUR PSYCHOLOGICAL BEHAVIOR THE DISCIPLINE KNOWN AS ENVIRONMENTAL PSYCHOLOGY OR SPACE PSYCHOLOGY EMERGES AS A DIRECT CONSEQUENCE OF THE INTERACTION BETWEEN INDIVIDUALS AND THE ENVIRONMENTS THEY INHABIT FACTORS SUCH AS LIGHTING, COLOR PALETTE, SPATIAL LAYOUT, DIMENSIONS, PROPORTIONS, ACOUSTICS AND MATERIALS COME INTO CONTACT WITH THE SUBJECT
THROUGH THEIR SENSES, GENERATING A DIVERSE RANGE OF EMOTIONS AND EXPERIENCES IN THEM.
IN SPACE, PRIVACY IS CONCEIVED AS A MEANS OF COMFORT, BUT ALSO THE AMPLITUDE OF THE SPACE WITH THE HUMAN SCALE WHICH LEADS US TO THE POSITIONING DICTATED BY THE BARRIERS OF THE ENVIRONMENT THE DIRECTION OF THE SUN WITH RESPECT TO NATURAL VENTILATION INLETS, CLIMATE CHANGES AND THE SOUNDS THAT WE HEAR OR NOT, AFFECT OUR PSYCHE, THEREFORE AFFECTING OUR CONSCIOUS OR UNCONSCIOUS HUMAN CAPABILITIES.
EXPLORING CONTEXTS: SITUATING ARCHITECTURE
EXPLORING CONTEXTS: SITUATING ARCHITECTURE

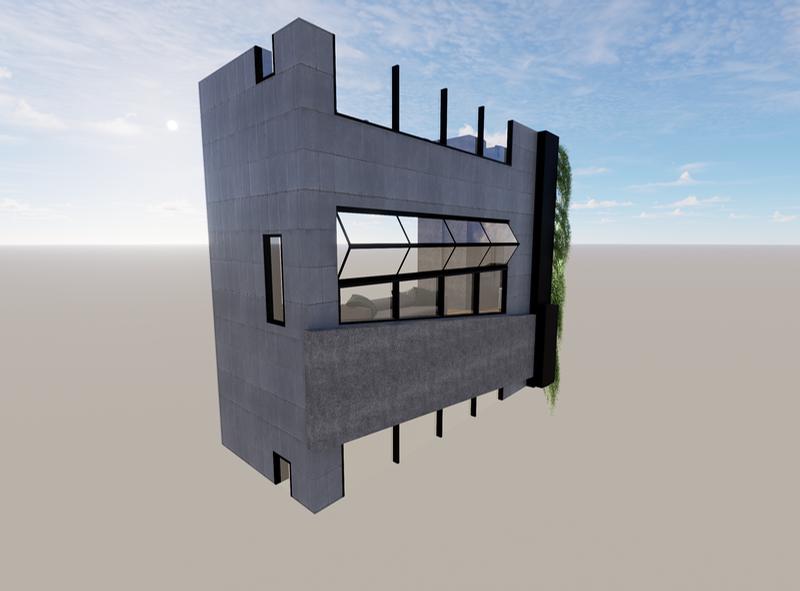

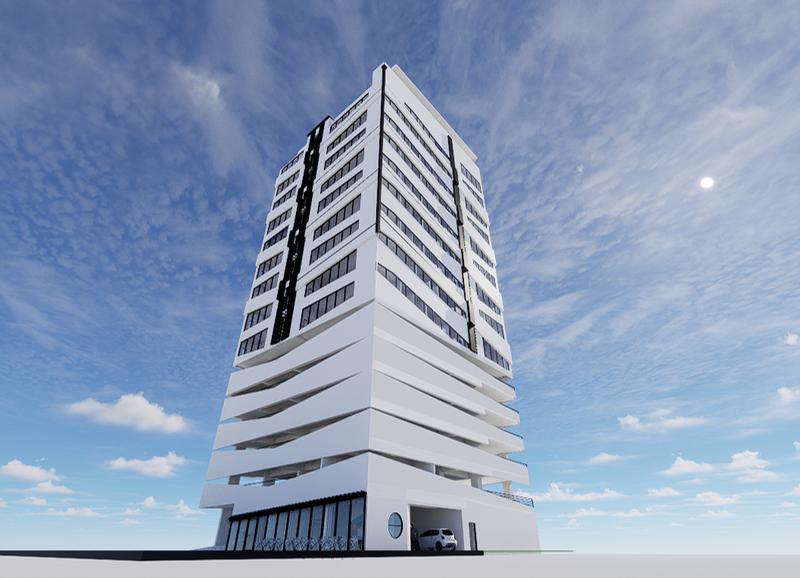

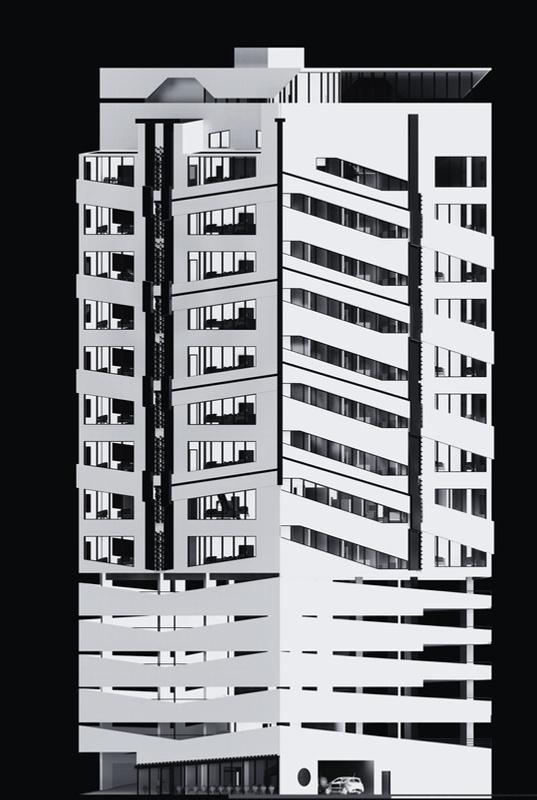

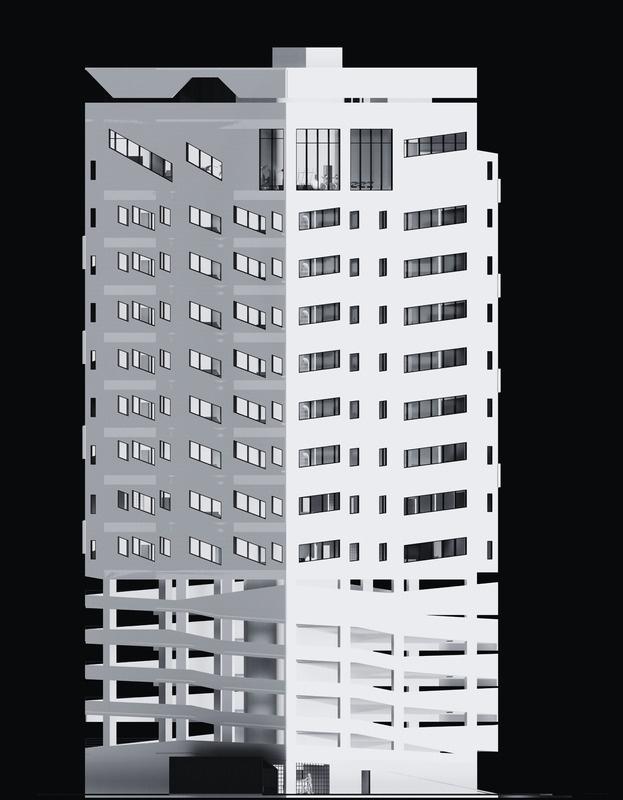

ARCHITECTURE N O R T H W E S T F A C A D E

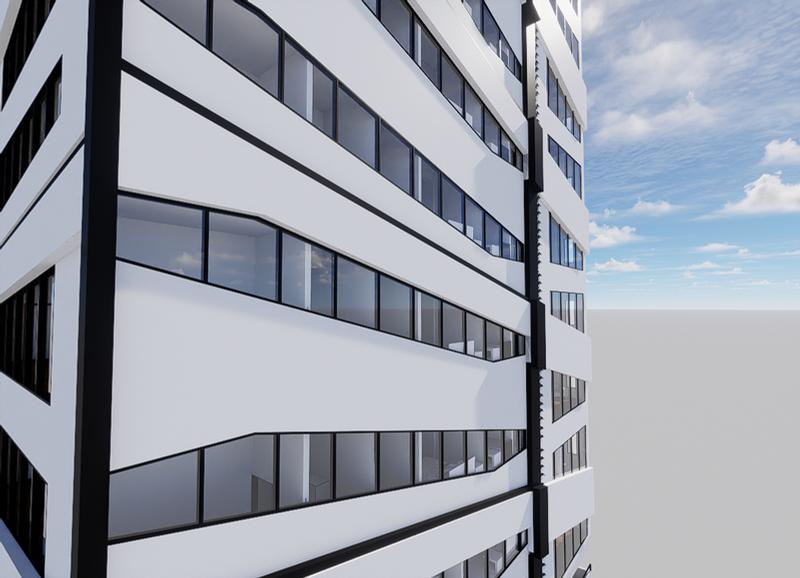

ARCHITECTURE S O U T H E A S T F A C A D E

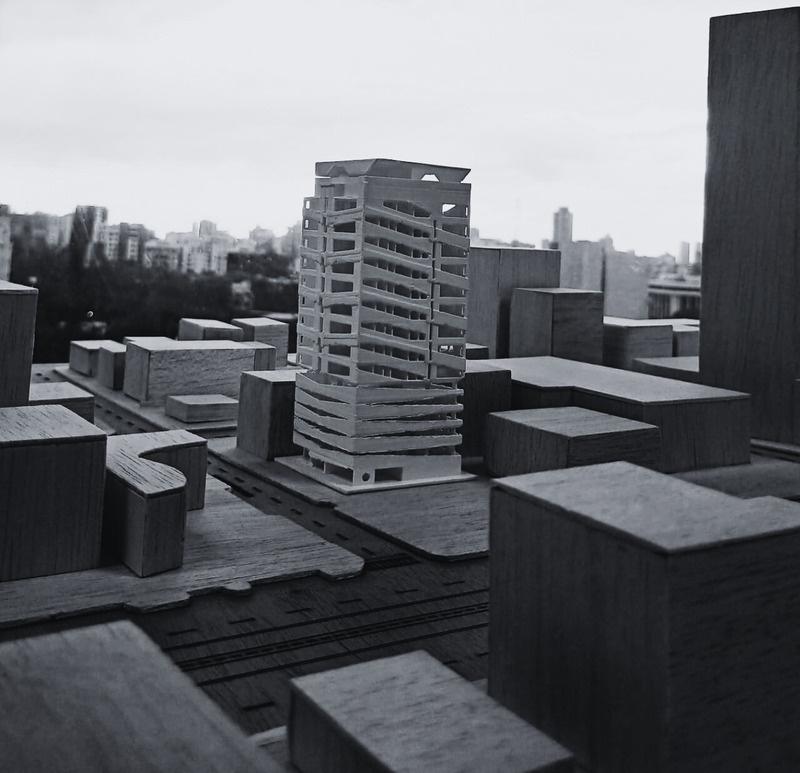

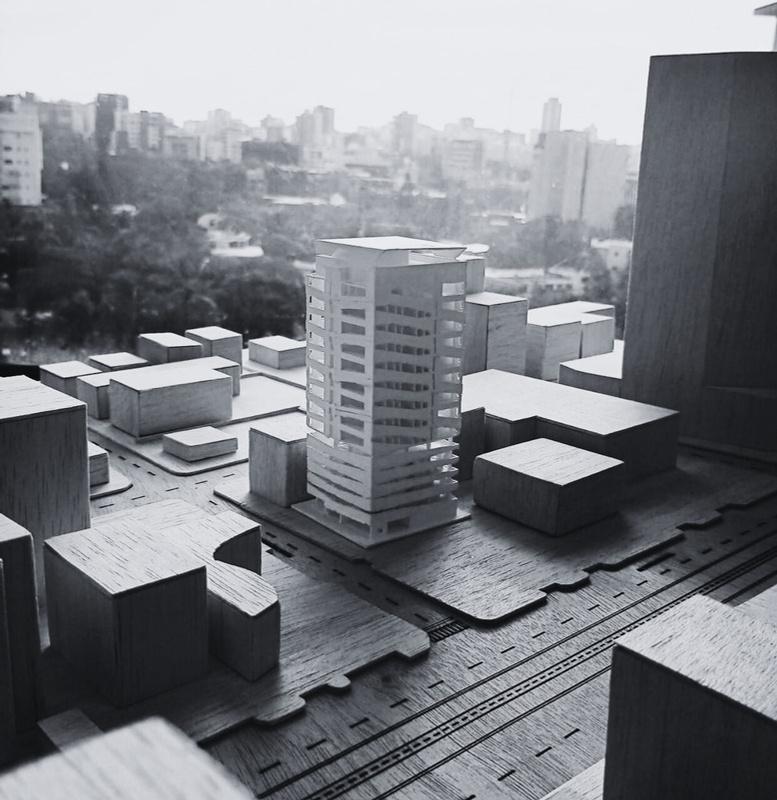

ARCHITECTURE AND CITY

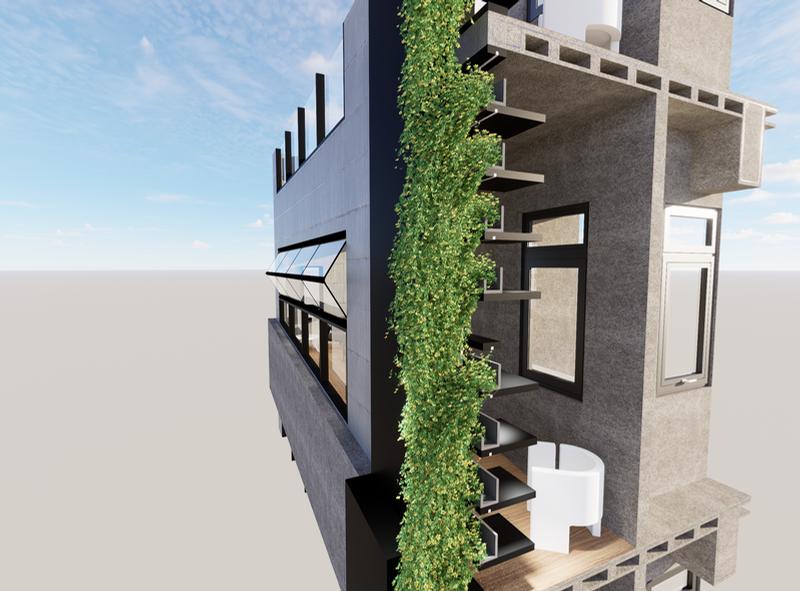

1 2 5 3 4 1 2 5 3 4 1 2 5 3 4 1 2 5 3 4 MODALIDAD 1 MODALIDAD 4 MODALIDAD 2 MODALIDAD 3 C O N S T R U C T I V E V I S I O N
THESE CONDUITS HAVE THE CAPACITY TO SUPPLY AND DISPERSE A VOLUME OF 60 LITERS OF RAINWATER THROUGHOUT THE COMPLEX SYSTEM OF GREEN AREAS
THE PLANTERS HAVE A LAYOUT THAT ORIENTS THE VEGETATION TOWARDS THE OUTSIDE, PROVIDING A VISUAL APPEAL THAT ENHANCES THE GREEN PRESENCE IN THE SURROUNDING ENVIRONMENT
VENTANA REGULADORA TERMIGA SISTEMA ESTRUCTURAL DE LOSA
LEYENDA:
VIGA 30X20CM DENTRO MONOLITICA 1
VIGUETILLA 10X20 CM CON SEPARACION DE 30CM 2
AISLANTE DE PISO 3
VIGA 40X80CM MONOLITICA 4
1 3 CONDUCTOS DISTRIBUCION DE AGUA PLUVIAL MACETEROS DELANTEROS
5 1 SISTEMA DE RIEGO POR APARTAMENTO 4 LEYENDA: ENTRADA DE AGUA DE DISTRIBUIDOR CONDUCTOS DE DISTRIBUICION VERTICAL CONDUCTOS DE ROCIADORES ROCIADORES DE BAJA DIFUSION 1 2 3 4

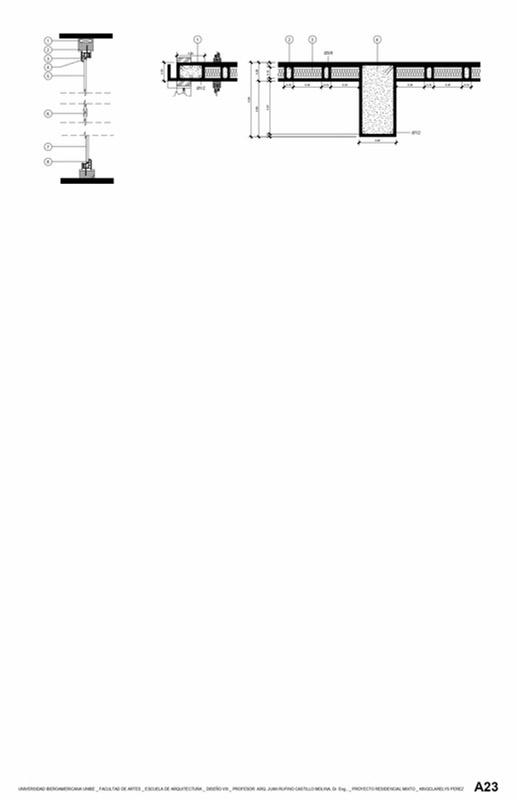

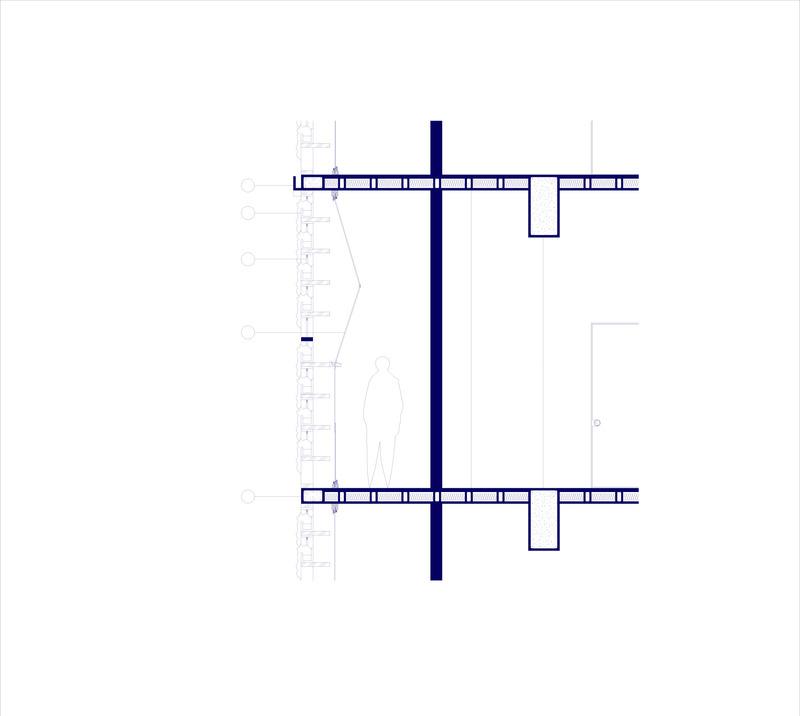

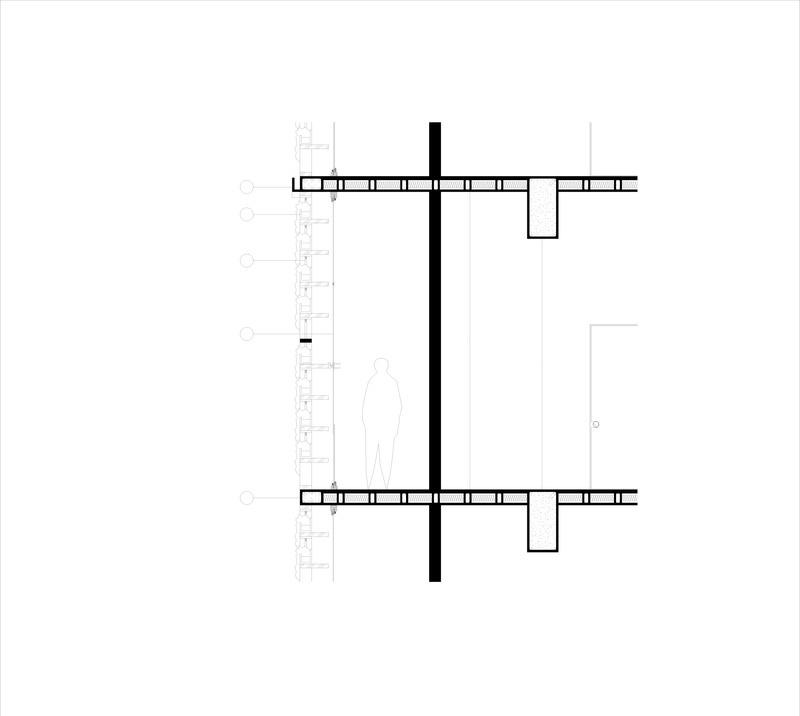

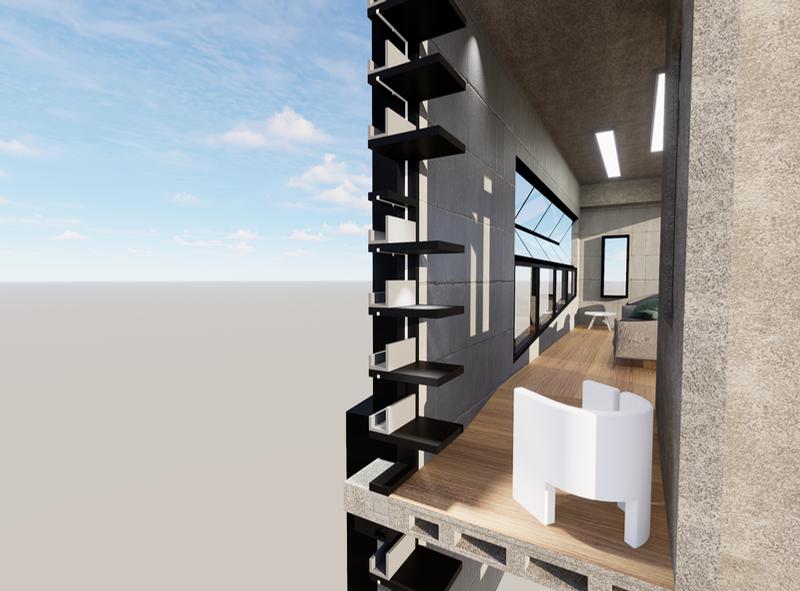

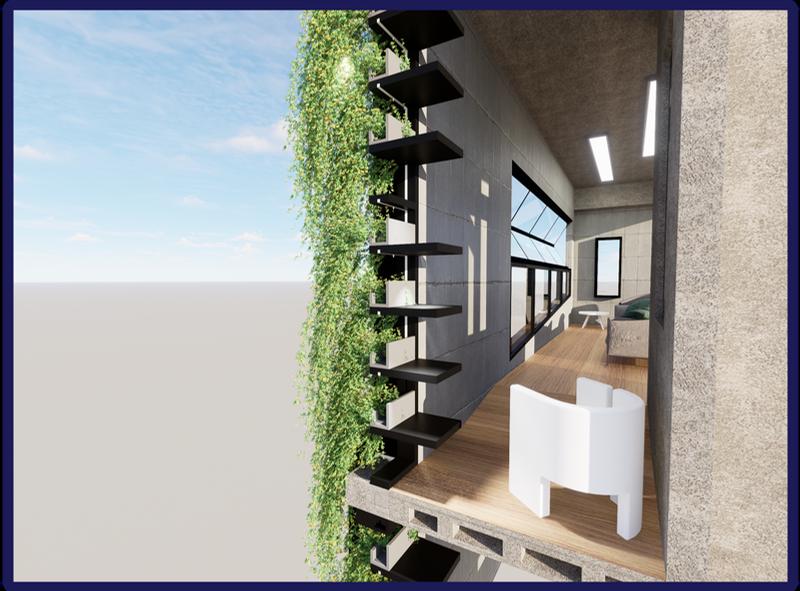

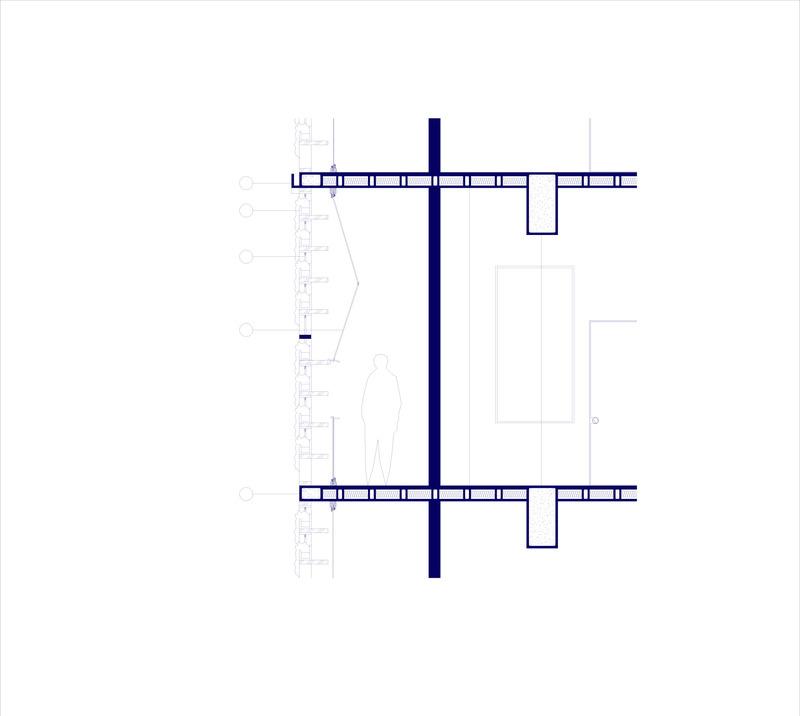

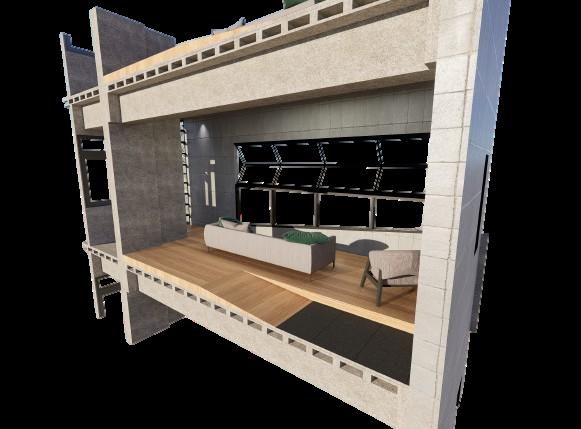

DETALLLE DE BALCON Y FACHADA
LEYENDA:
MARCO DE VENTANA MOVIL 1
VIDRO TEMPLADO 2
CODO DE VENTANA 3
MARCO DE VENTANA INFERIOR 4
1 2 3 4

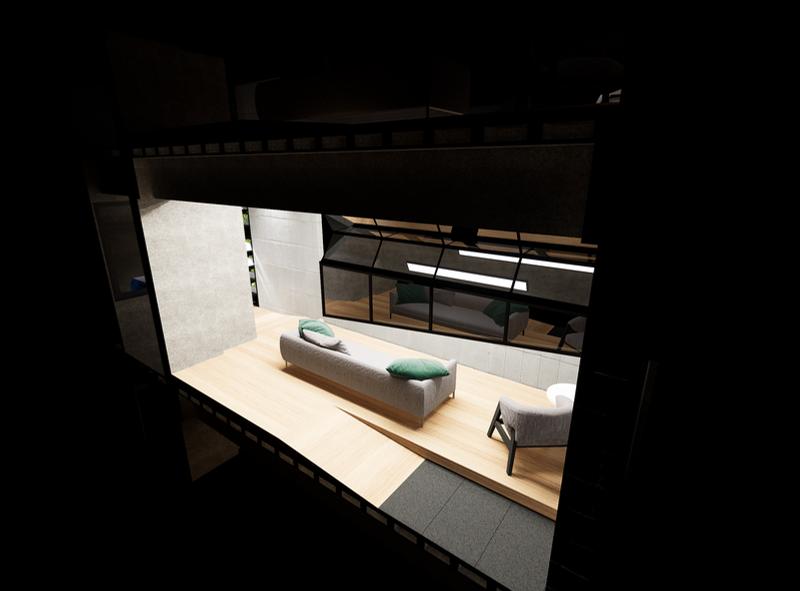

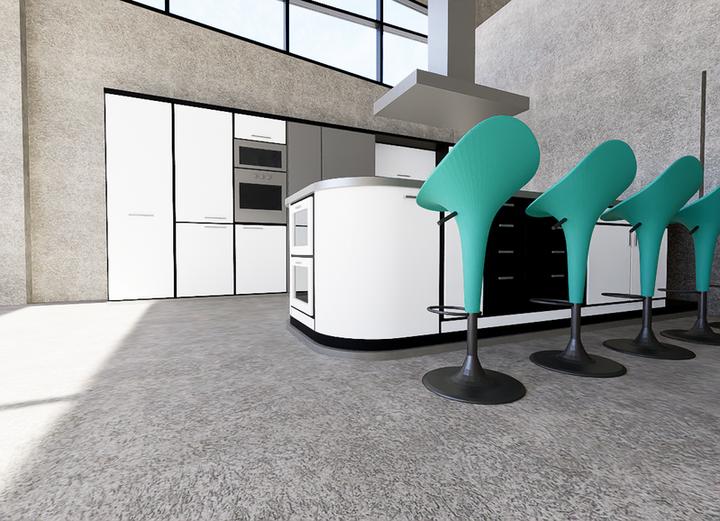

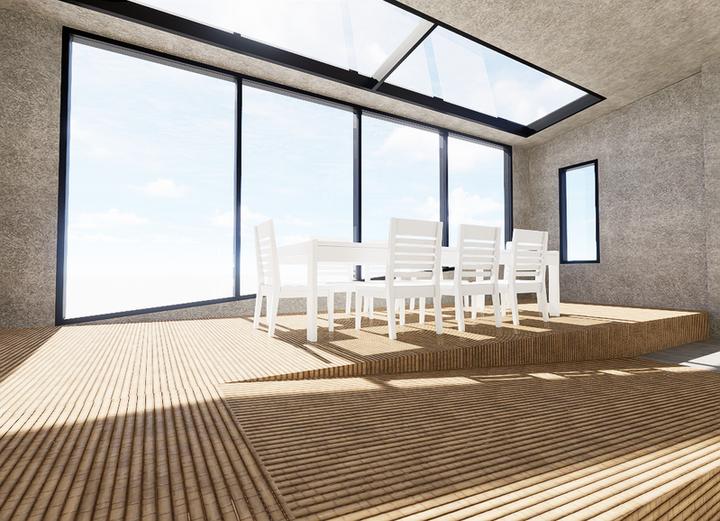

LIVE THE SPACE
