LATTICEWORK AIR PURIFICATION

H2O PHOTOCATA PHOTOCATALYISIS S

CO2

POLLUTANTS BACTERIA VIRUSES

UV

RAY S

NATURAL VENTILATION

AIR FLOW

LIGHTING EFFECT

2

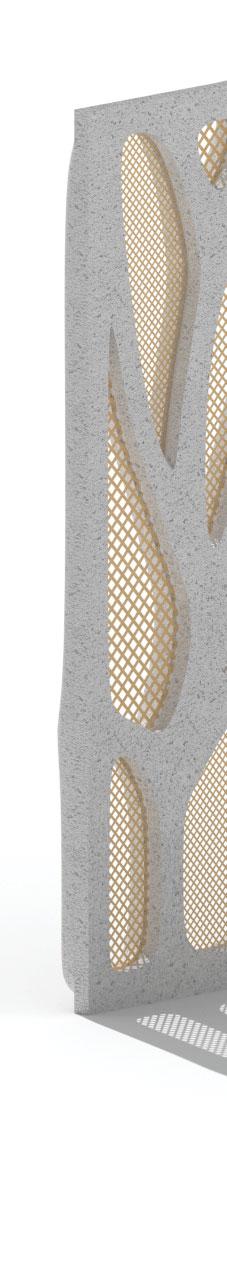

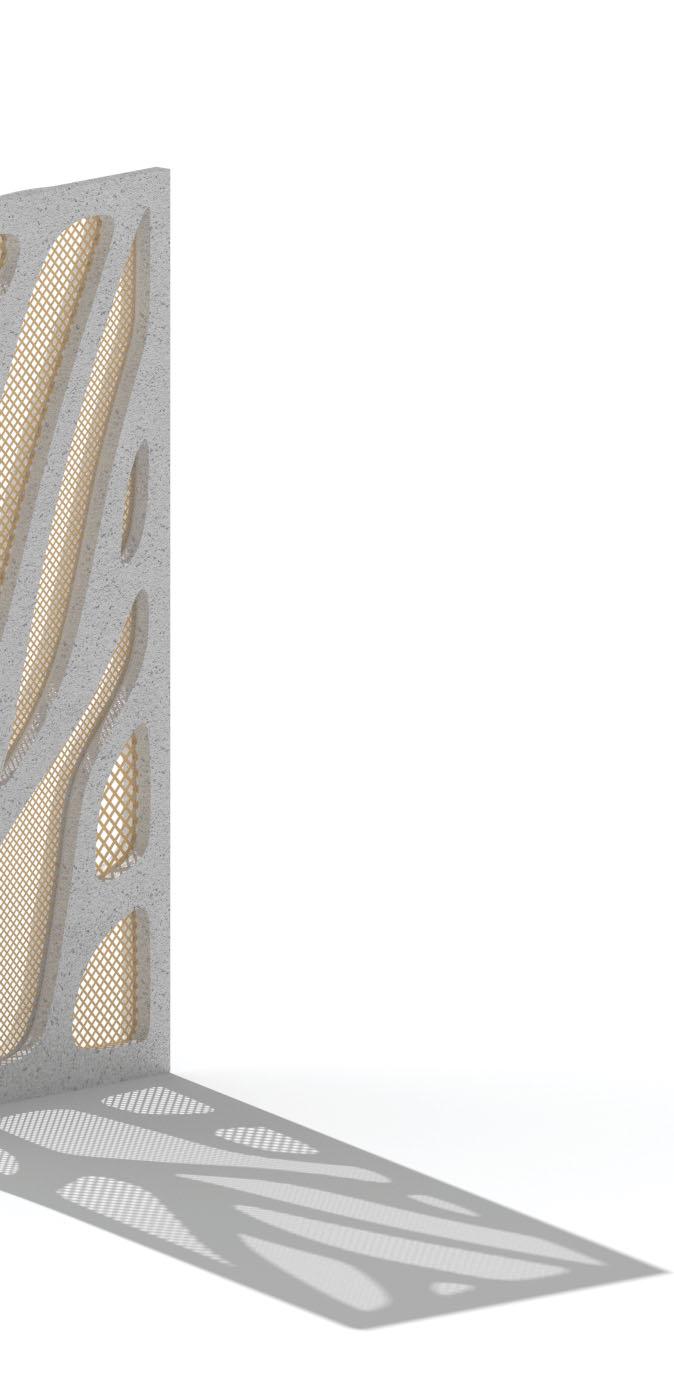

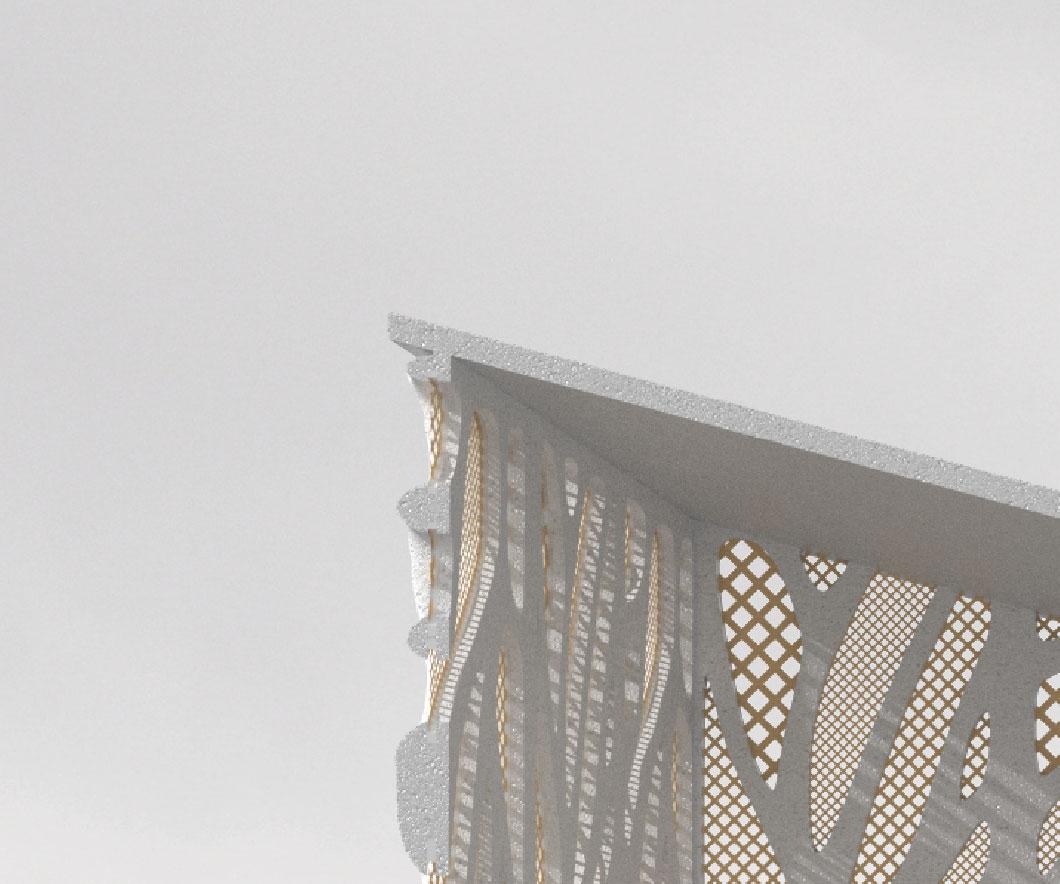

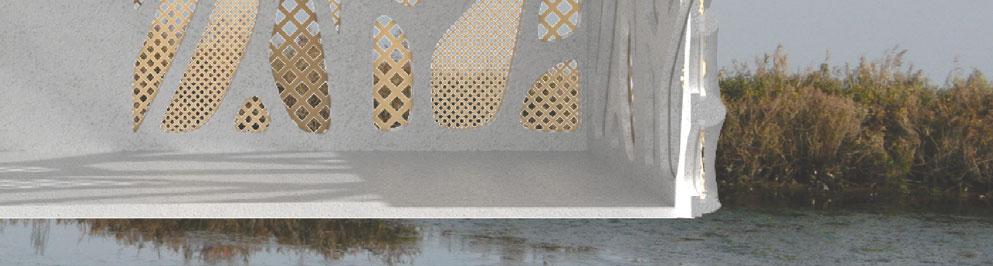

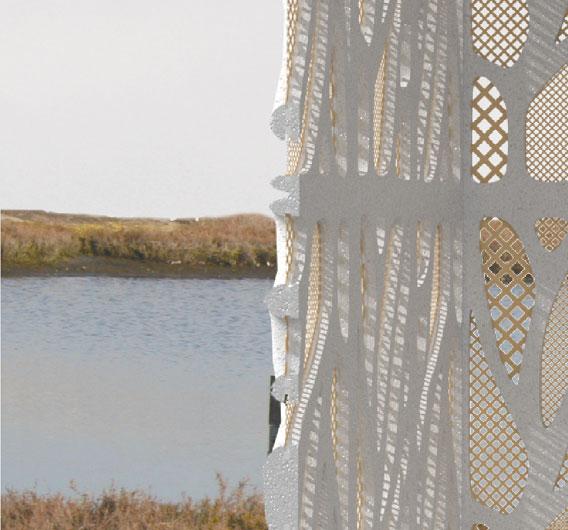

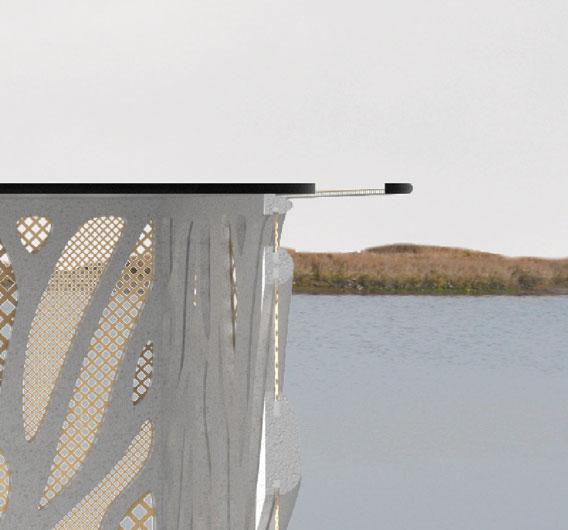

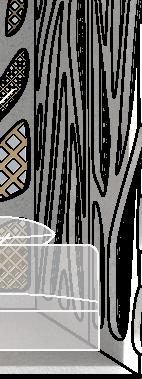

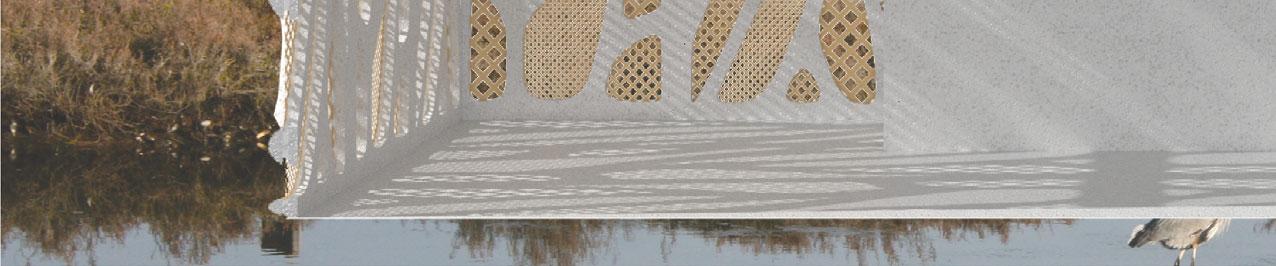

The object of this project was to create a performative panel in a local wetland ecology. My panel uses high tech and low tech methods (titanium dioxide-infused concrete and reeds) to provide natural ventilation, purify the air, and create light and shadow effects.

CONCRETE

BOLSA CHICA ALUMINUM FRAME GLASS LAYER FOR PROTECTION FROM THE ELEMENTS EXCLUSIVE TO THE BEDROOM PANELS

REEDS

GLASS

ASSEMBLY DETAIL SECTION

CONCRETE LINKS INSIDE AND OUTSIDE, HOUSES THE ALUMINUM FRAME FOR THE GLASS PANELS 4

FT

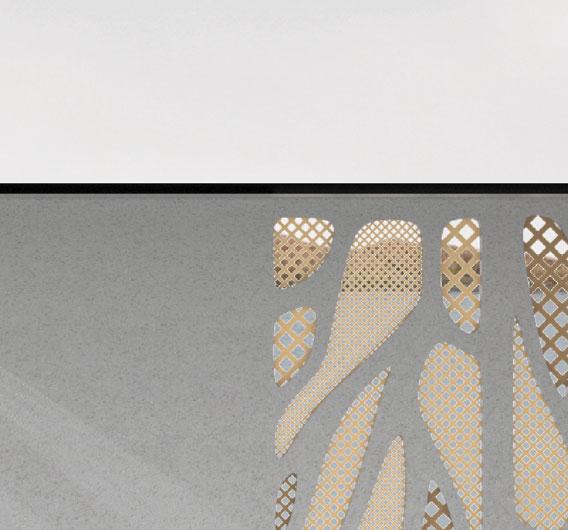

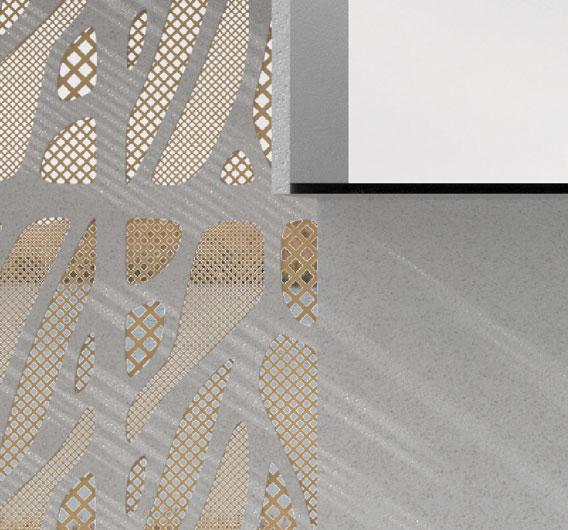

REED SCREENS FACILITATE LIGHTING EFFECTS AND TEMPERATURE REGULATION BY NATURAL VENTILATION

8 FT

CONCRETE WITH TITANIUM DIOXIDE FOR AIR PURIFICATION PROPERTIES, HOUSES THE ALUMINUM FRAME FOR THE REEDS

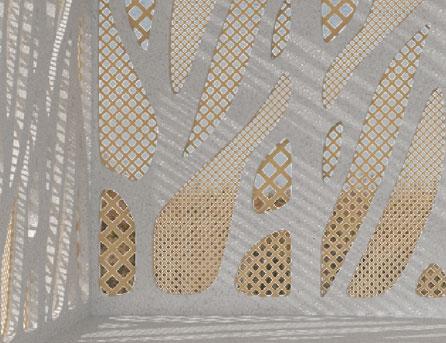

LOW DENSITY REED PATTERN

DESIGN INFLUENCED

BY RIVER DELTAS

MID DENSITY REED PATTERN

TITANIUM DIOXIDE IN CONCRETE • titanium dioxide is a photocatalyst, destoys harmful pollutants, allergens, and bacteria under UV light • pigment dyes concrete white • self cleaning properties keep surface white over time

HIGH DENSITY REED PATTERN

PANEL EXPLODED AXON

3

CONCRETE BACK WALL REFLECTS LIGHT INTO THE STUDIO

ADDITIONAL CONCRETE BLOCK FOR SPACING DETAIL PANEL CONNECTIONS

CONCRETE NC DOOR PANEL AN

STRUCTURE AXON

4

STRUCTURE SECTION PERSPECTIVE

5

FALL 2023

URBAN RAINFOREST MAIN WALKWAY

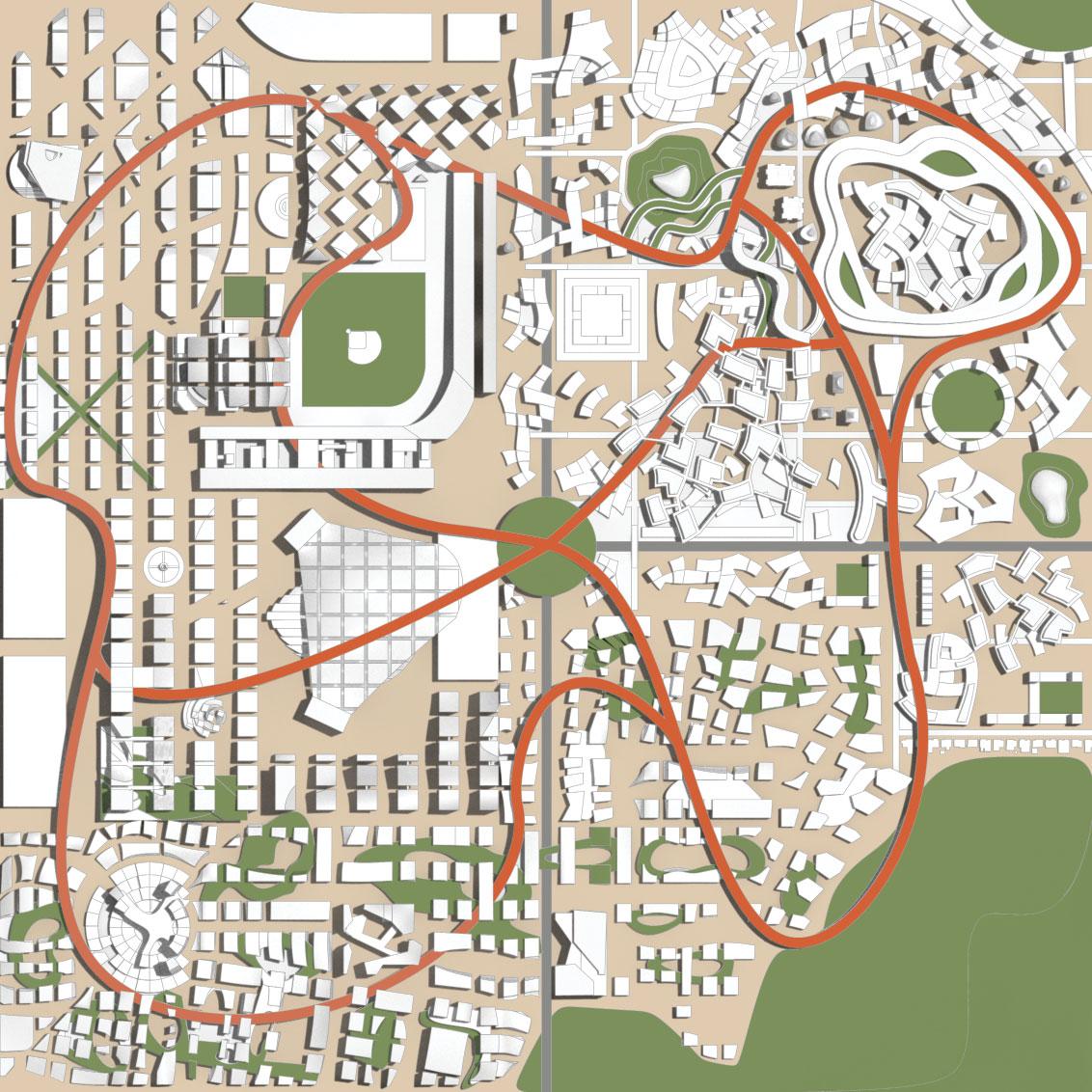

PROPOSAL PLAN

SITE PLAN TODAY

6

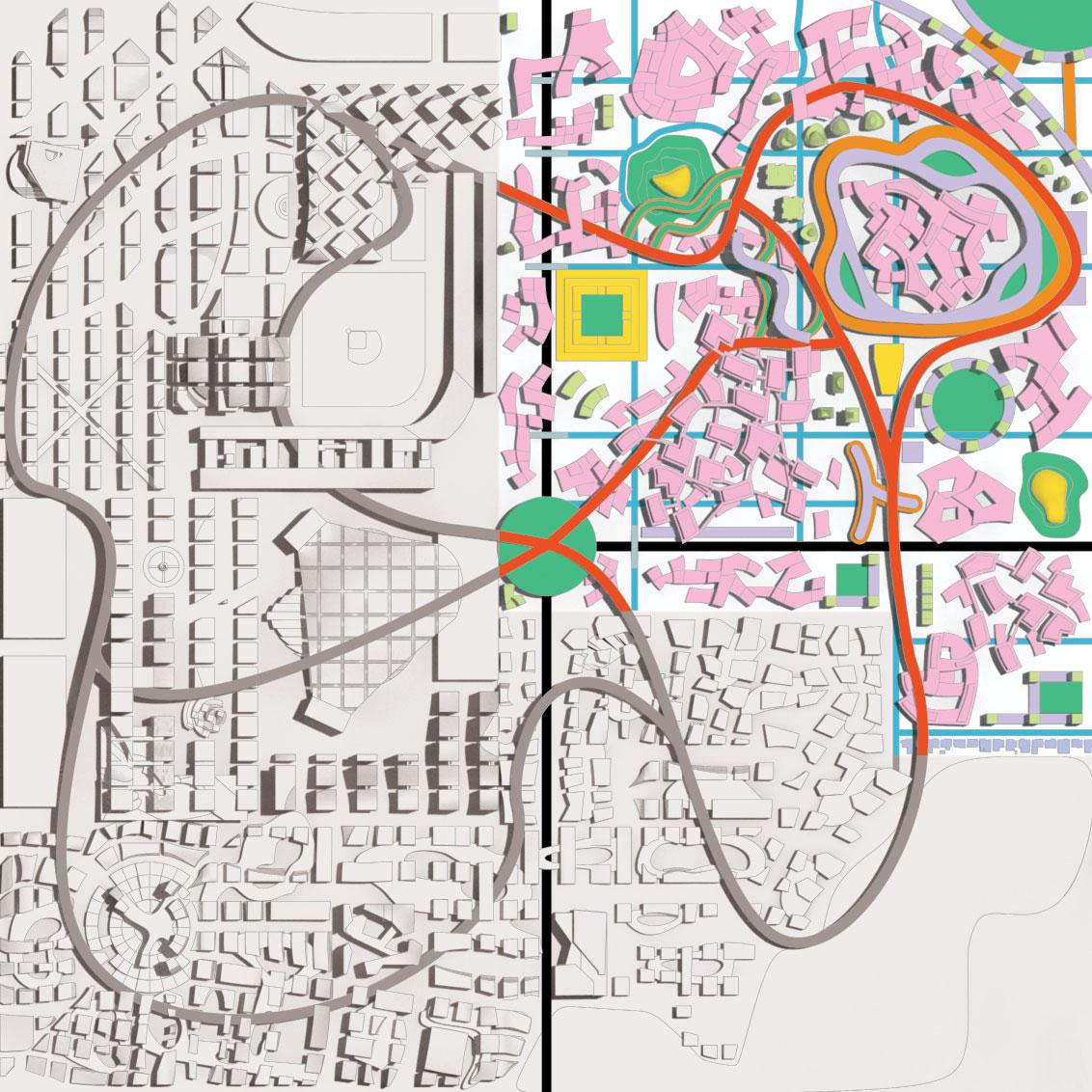

ECOLOGY PROPOSAL The project brief had us examine an ecology as defined by Reyner Banham in his 1971 book on the city of Los Angeles — Surfurbia, Foothills, Plains of Id, or Autopia — and imagine it in the superfuture. The site analysis and square mile proposal was done in a small group, then divided into individual sector proposals.

ELEVATED PATHS

VEHICLE ROADS

BIKE PATHS

PEDESTRIAN PATHS

ECOLOGY PLAN

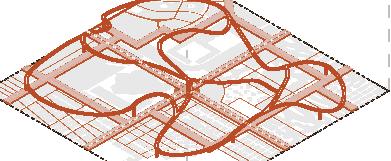

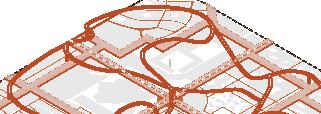

CIRCULATION

SUBURBAN MONOTONY

URBAN HEAT ISLAND EFFECT

LACK OF ACCESSIBLE GREEN SPACE

FUTURE NEED FOR FUNCTIONAL HIGH DENSITY

BUILDING DIVERSITY

100 ACRES OF PARK LAND & GREEN WALKING PATHS

HIERARCHY OF WALKWAYS

ROOF USE

DIVERSITY OF HEIGHT

Made with Josh Hunsucker and Chloe Romano

7

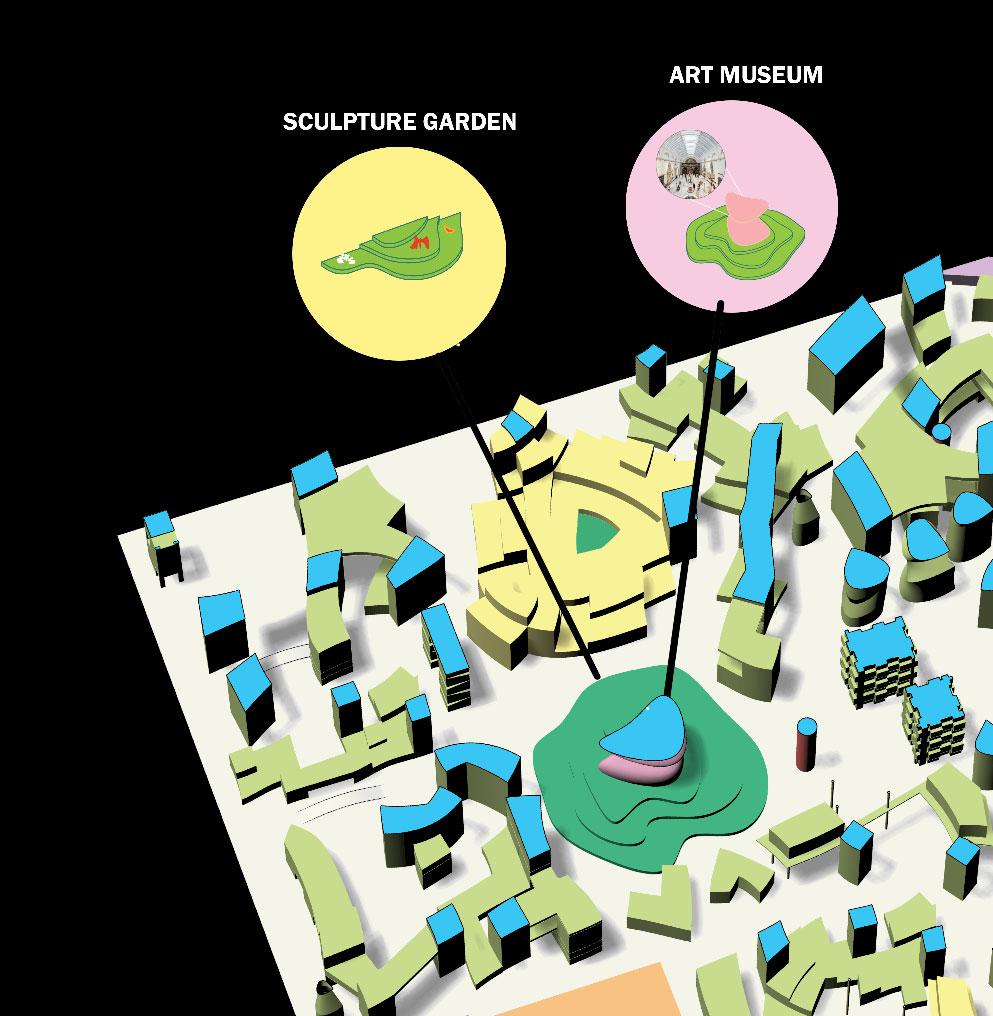

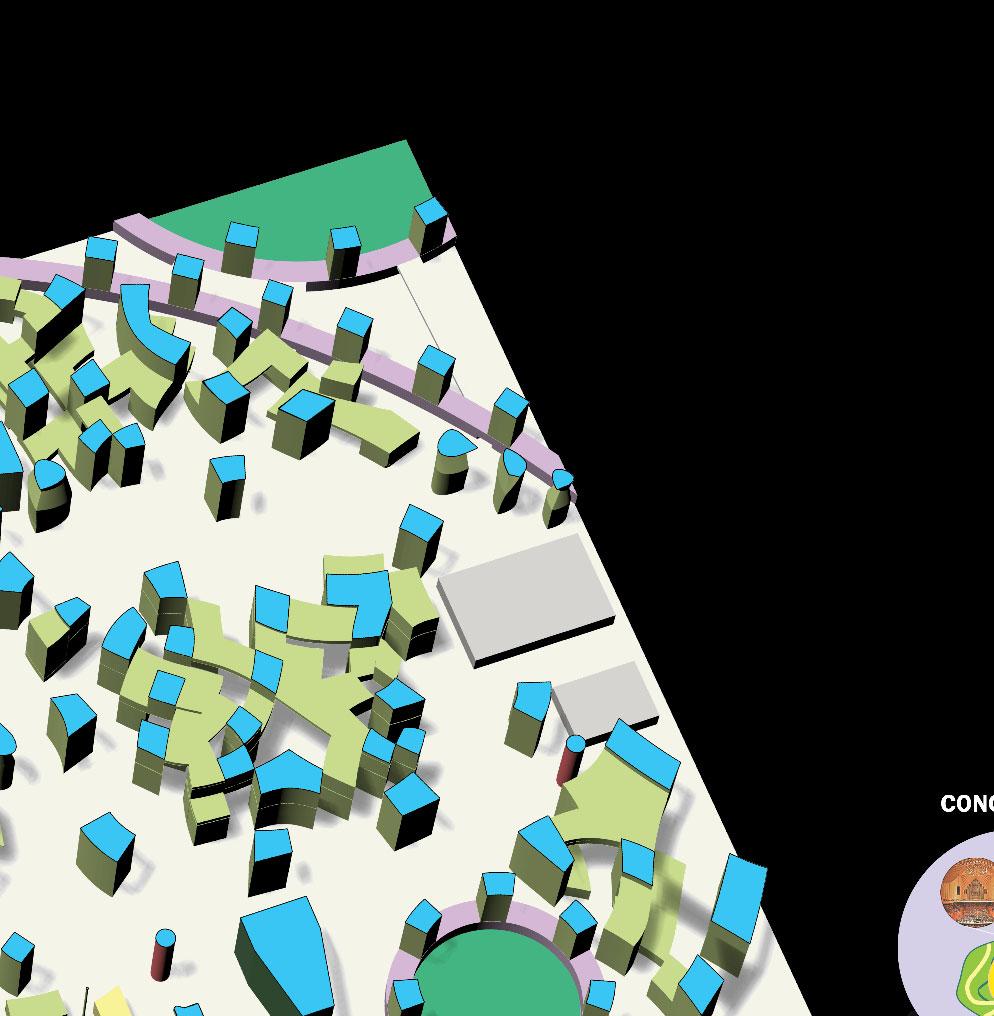

SECTOR PROPOSAL

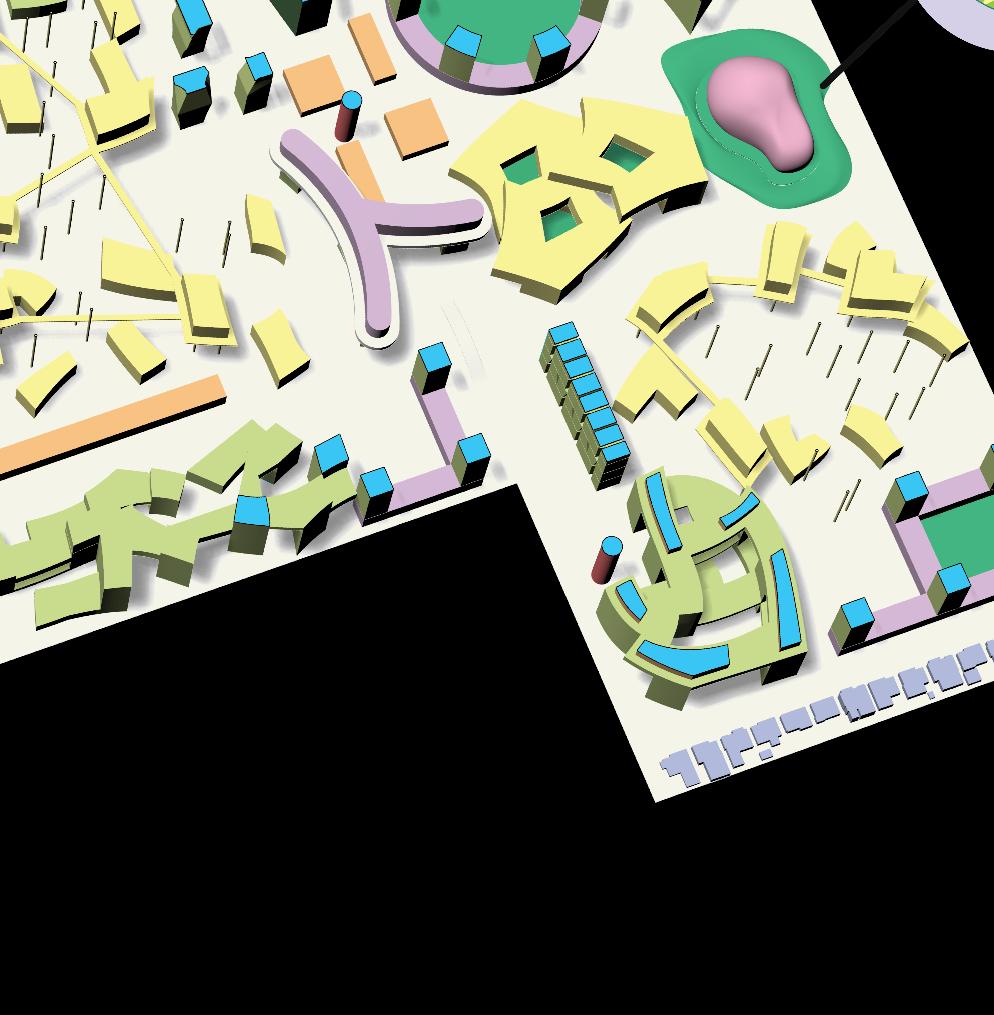

SECTOR PLAN

8

UPPER LEVEL PLAN

The term “urban jungle” is associated with a city’s reputation as a chaotic and harrowing place. Densifying the Plains of Id has the potential to urbanize the region to the point of dystopia. The Urban Rainforest aims to maintain a sense of friendliness while densifying significantly.

9

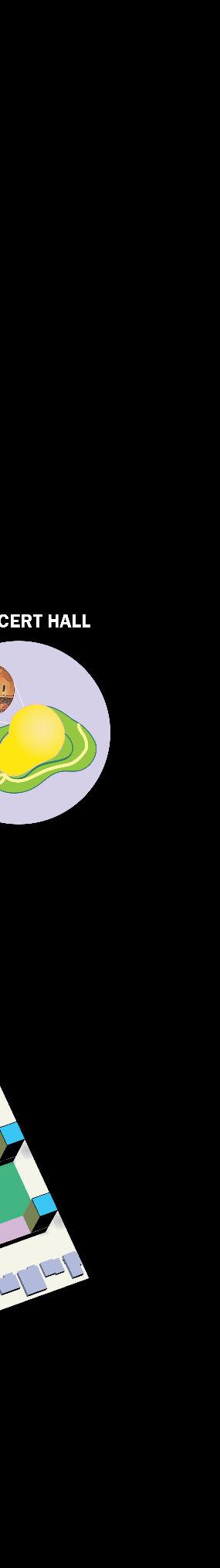

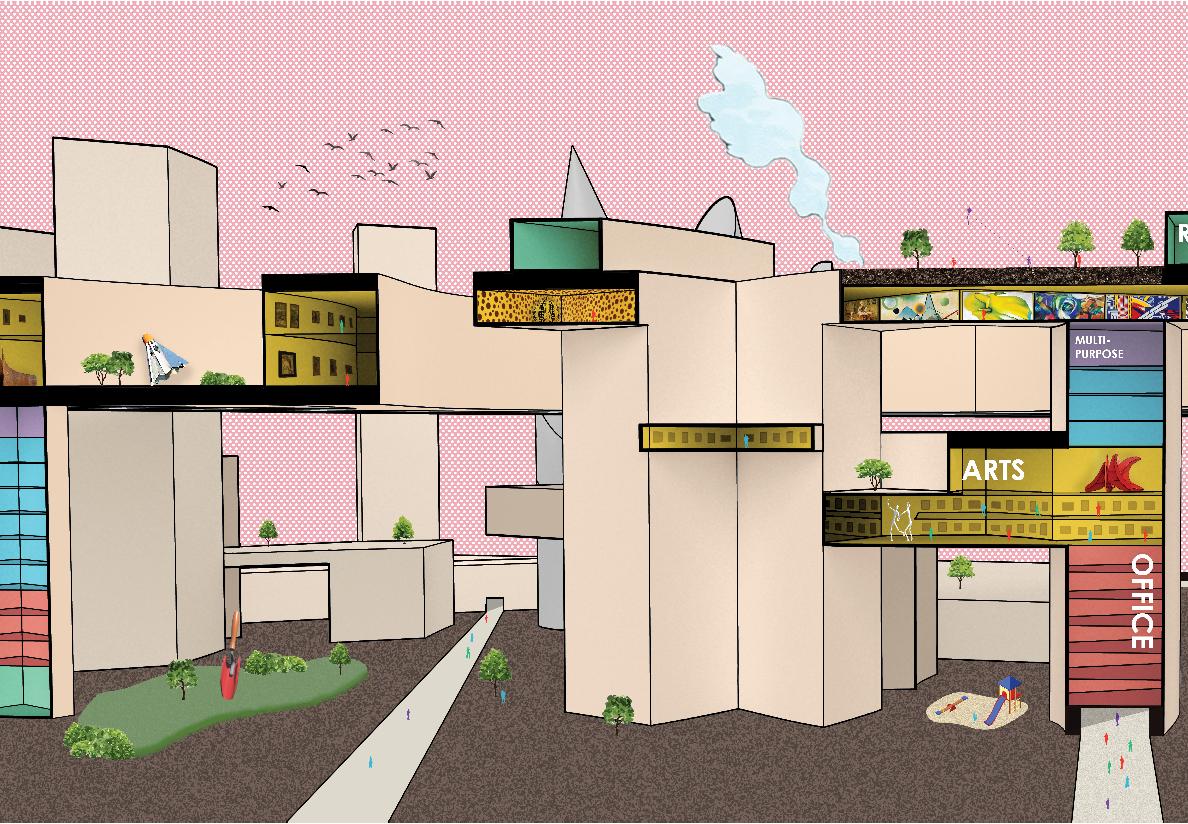

MULTI-USE COMPLEX PROGRAMMING

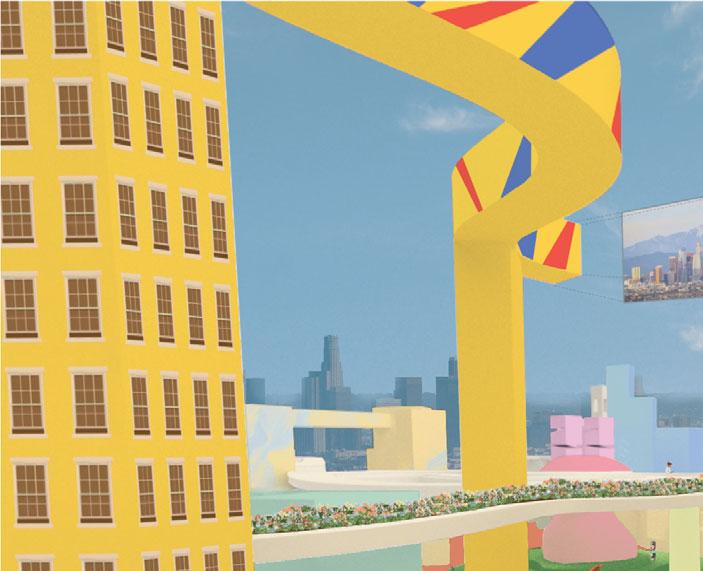

HEART OF THE CITY

10

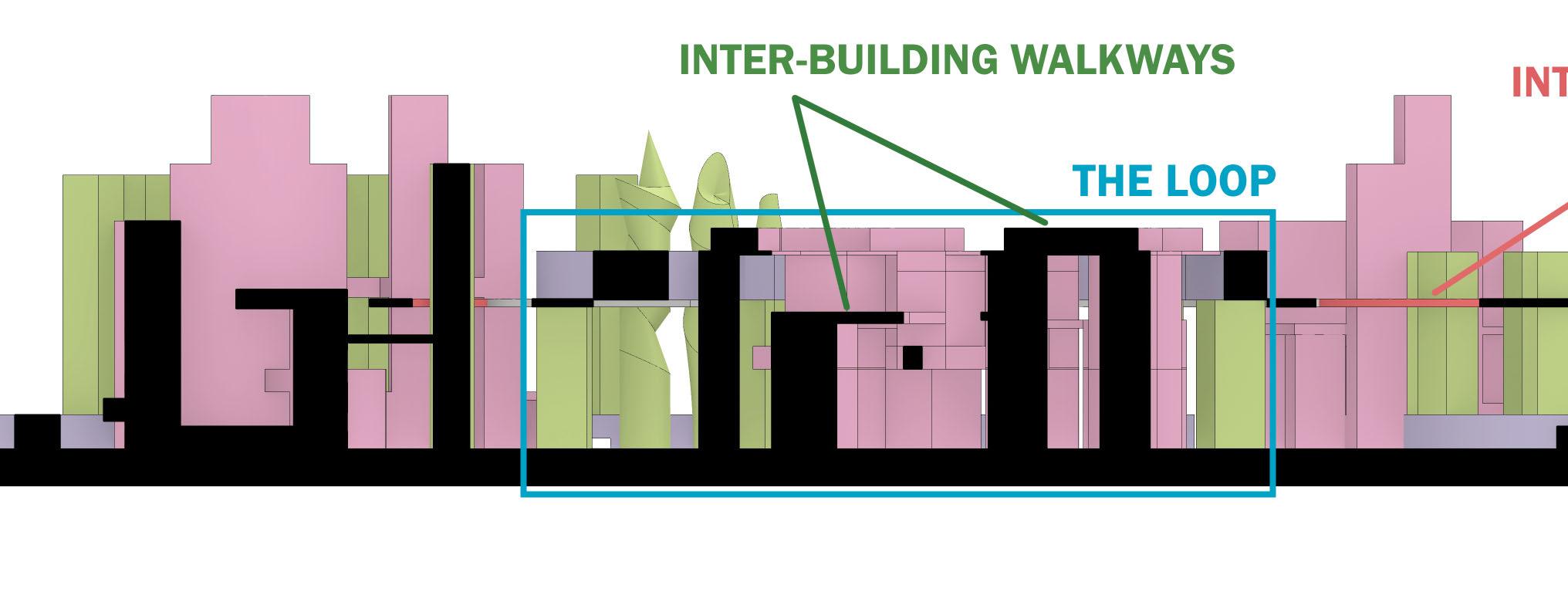

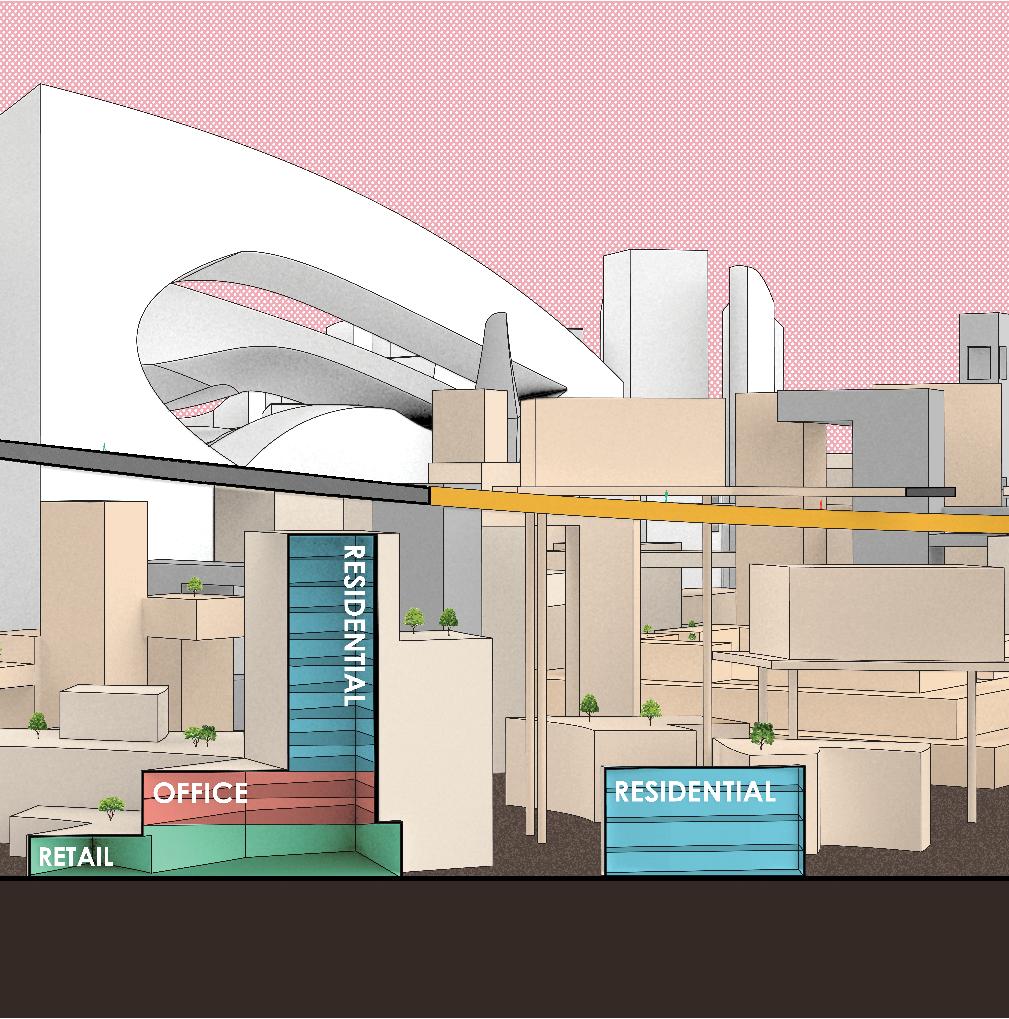

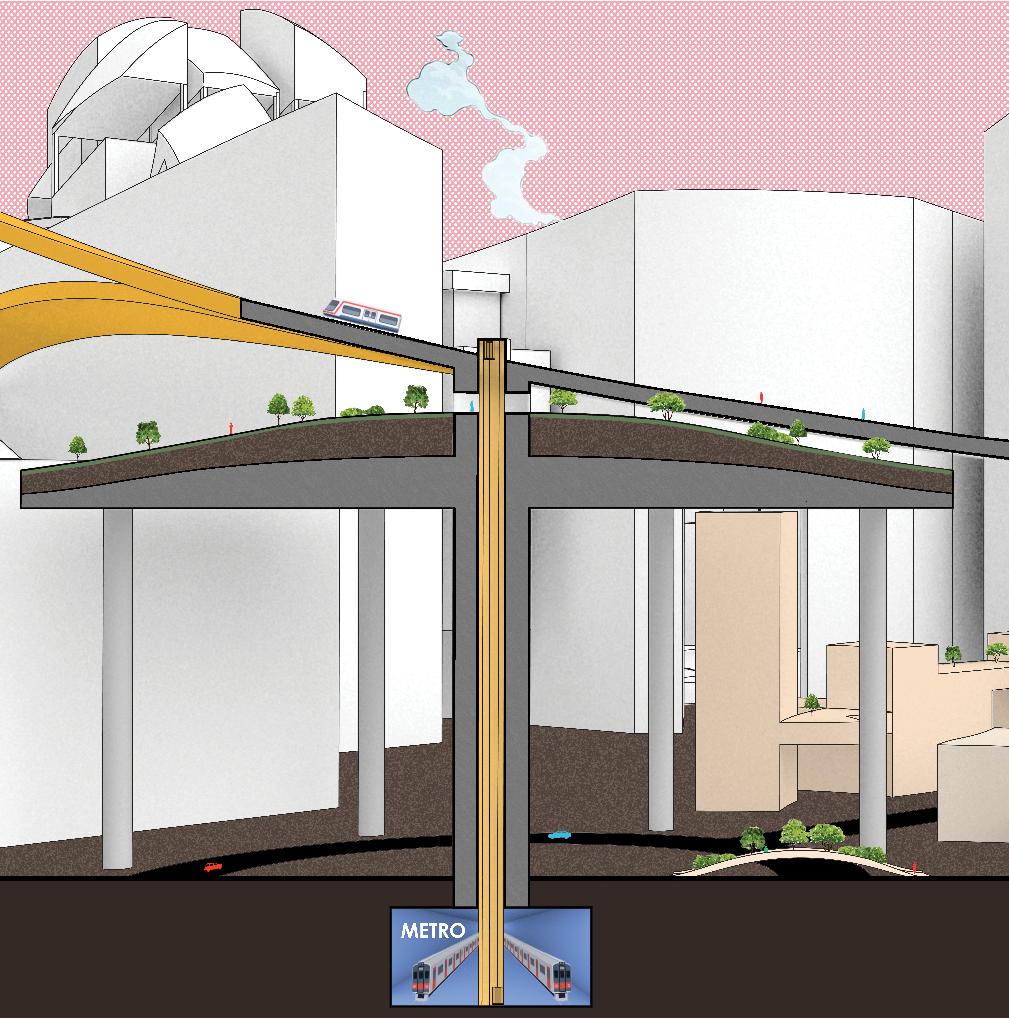

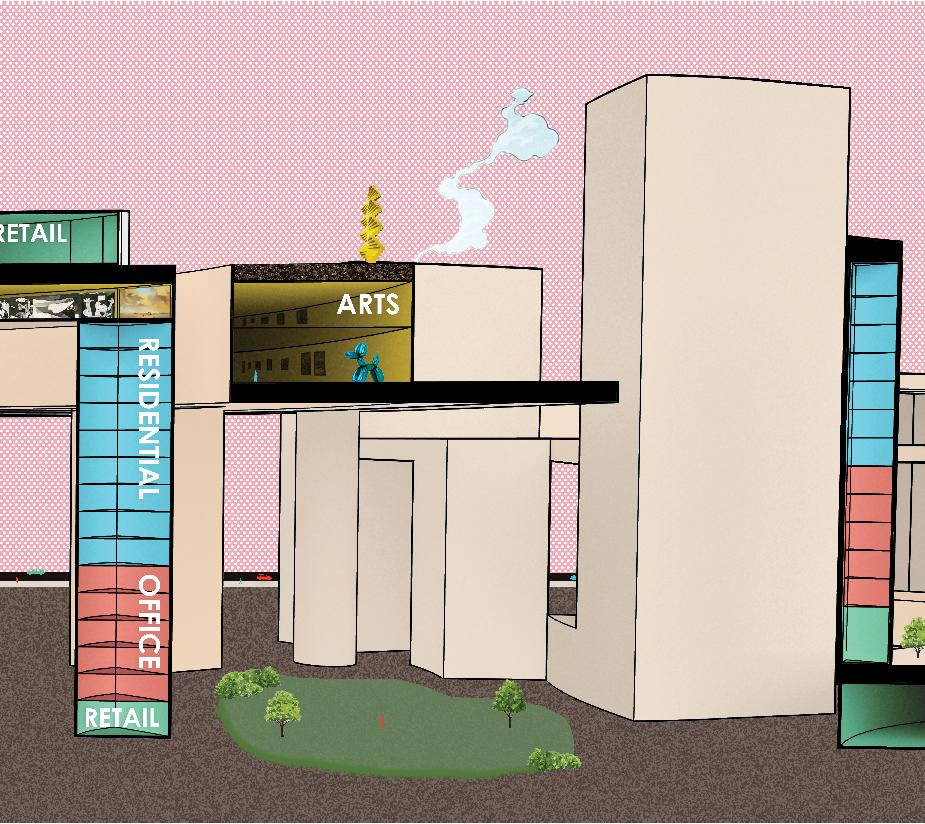

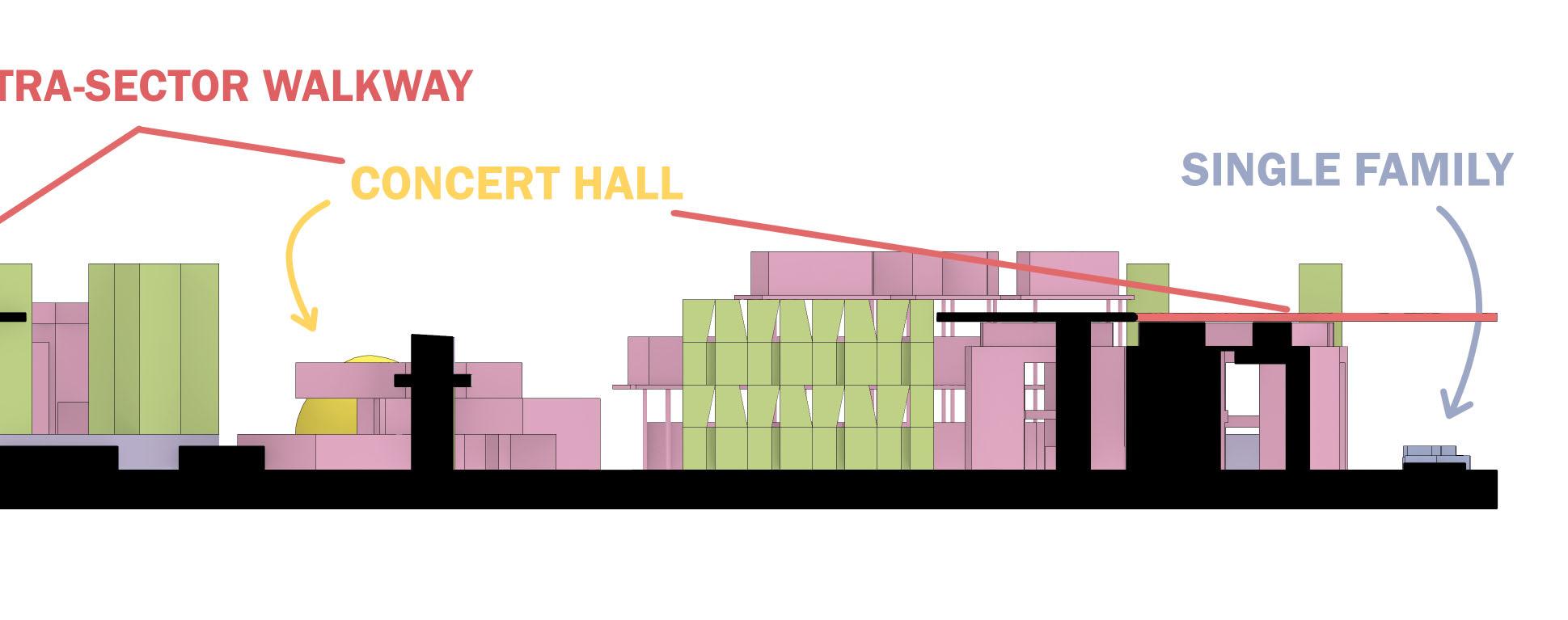

OVERALL SECTION

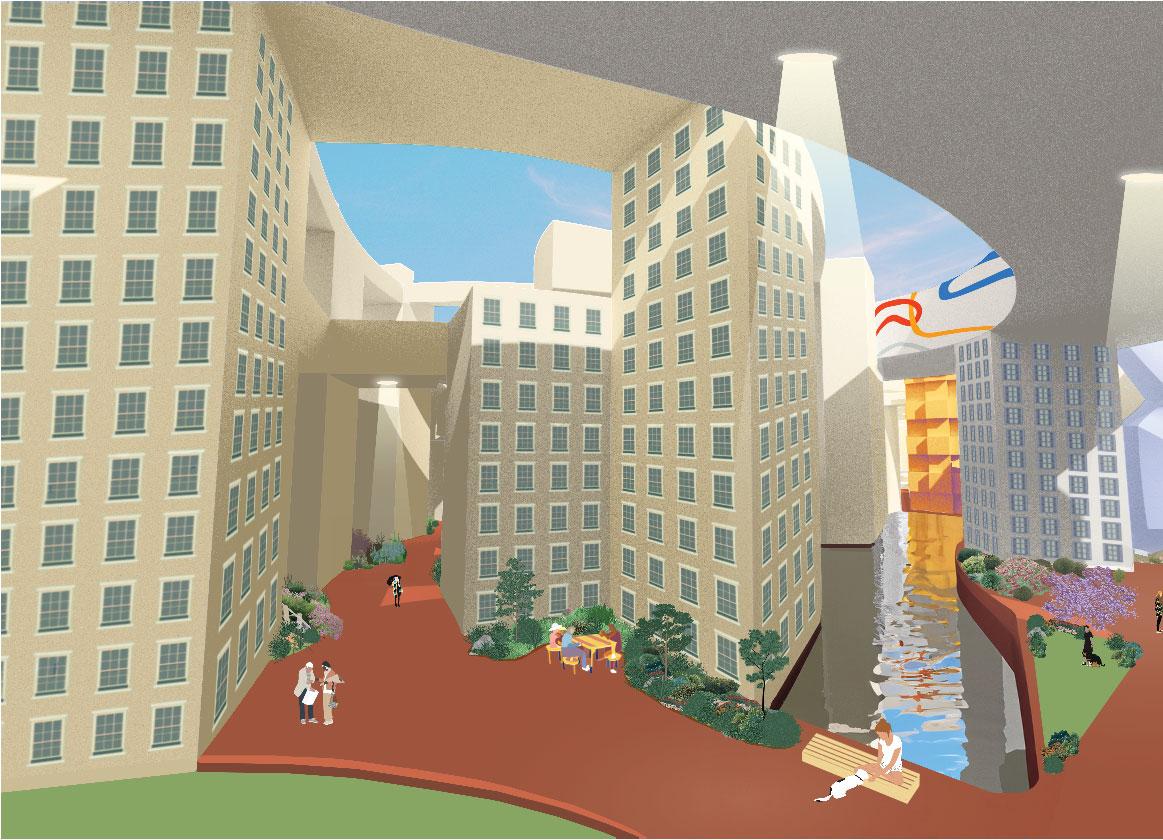

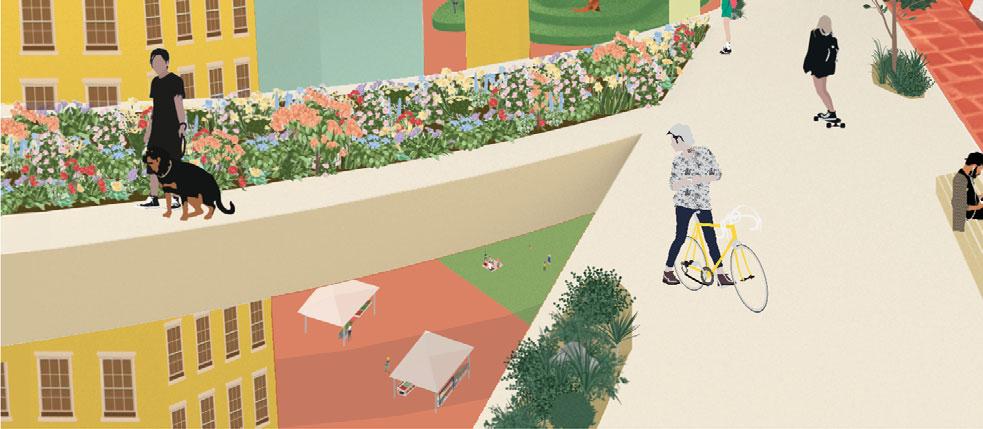

MAIN WALKWAY

UNDER THE WALKWAY

11

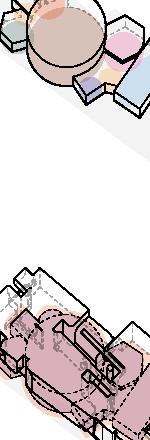

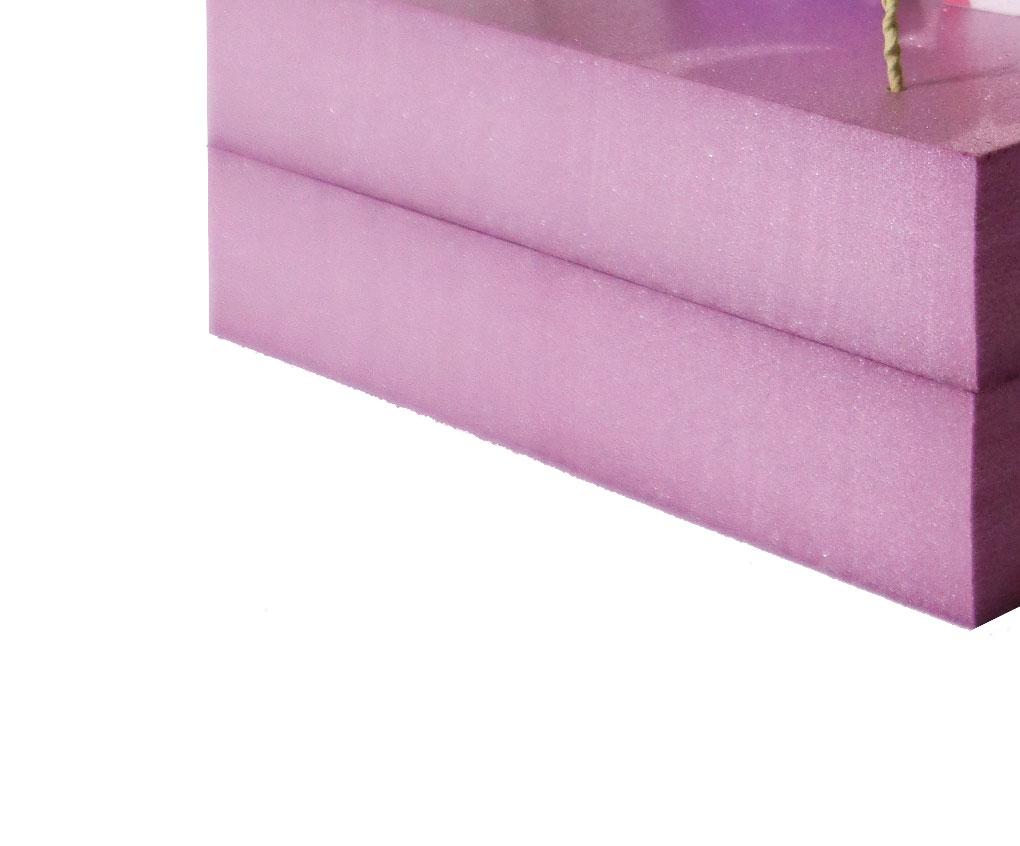

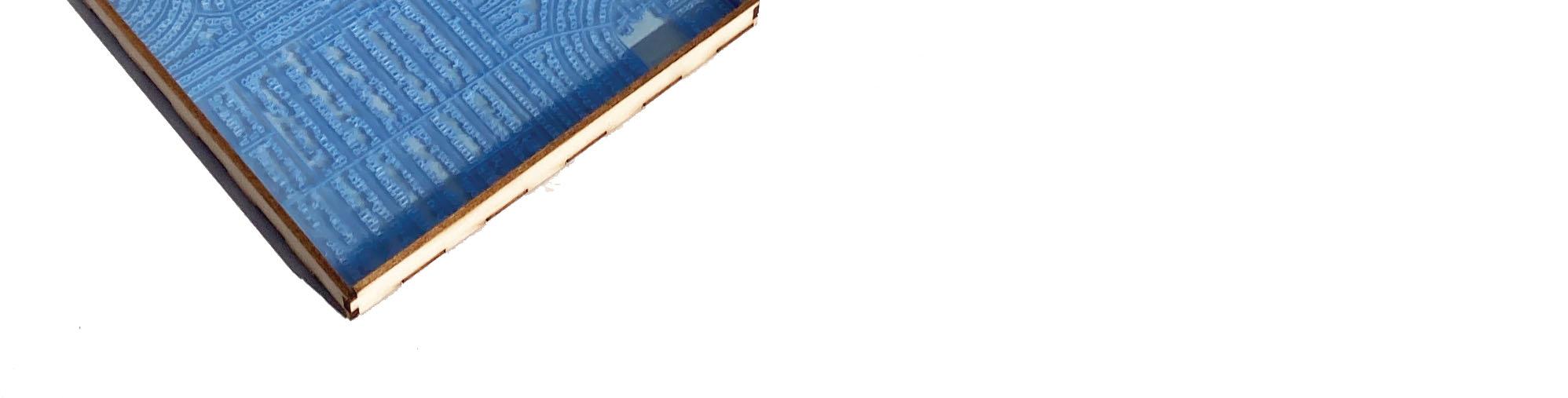

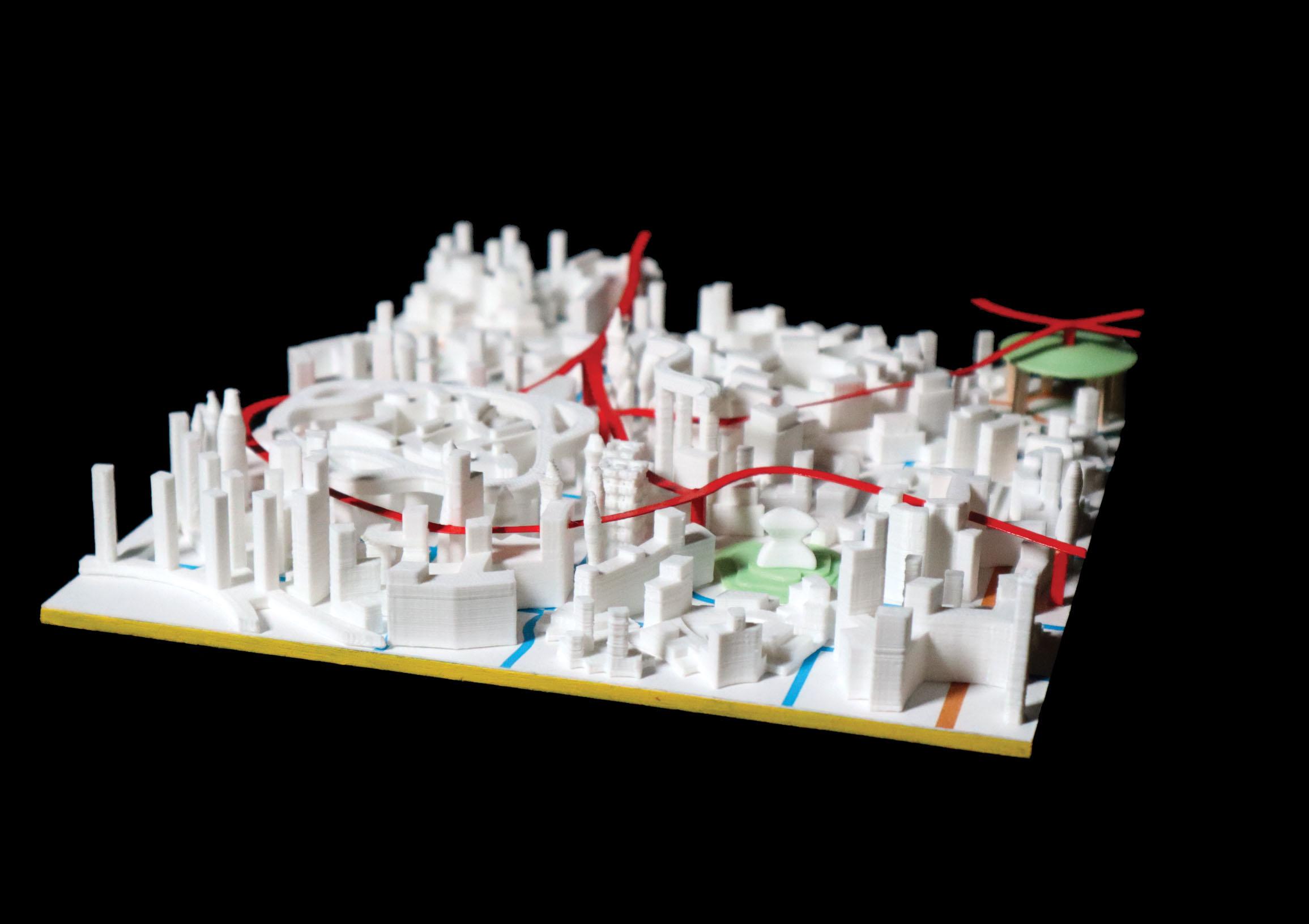

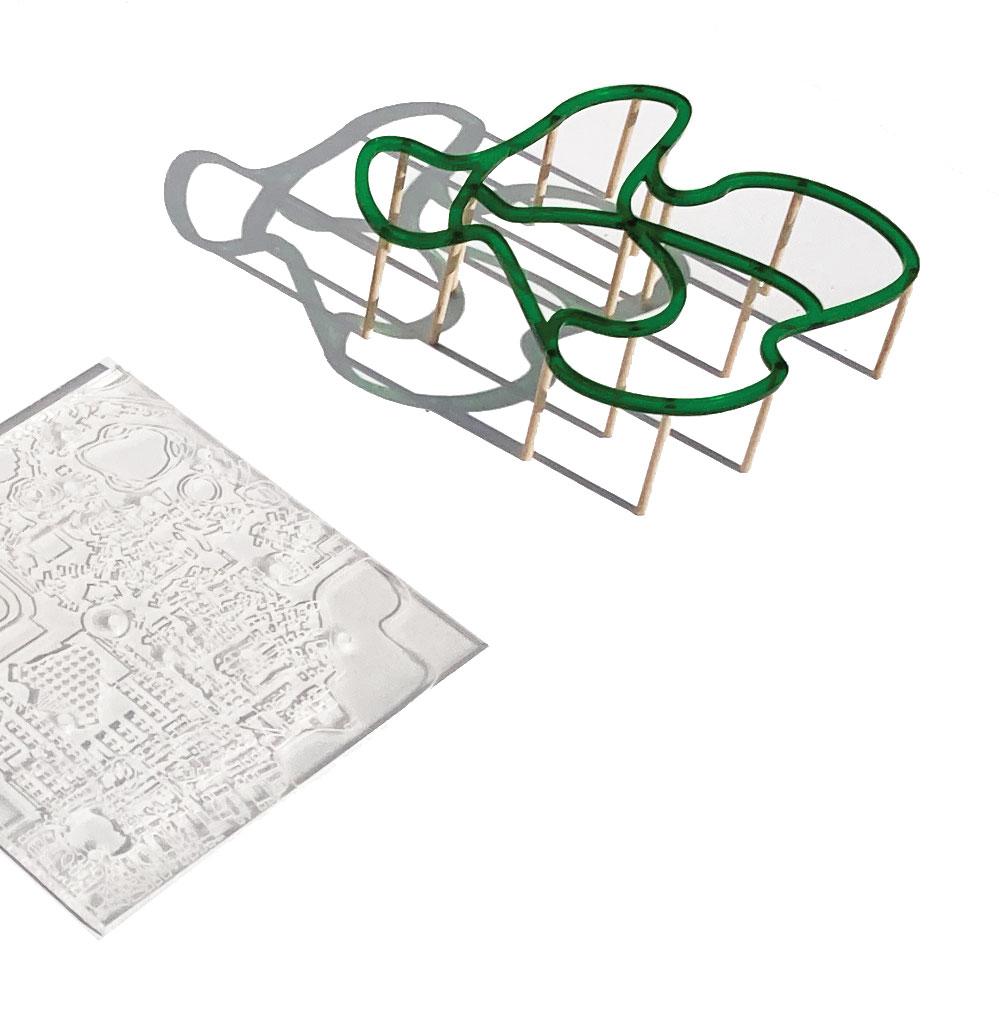

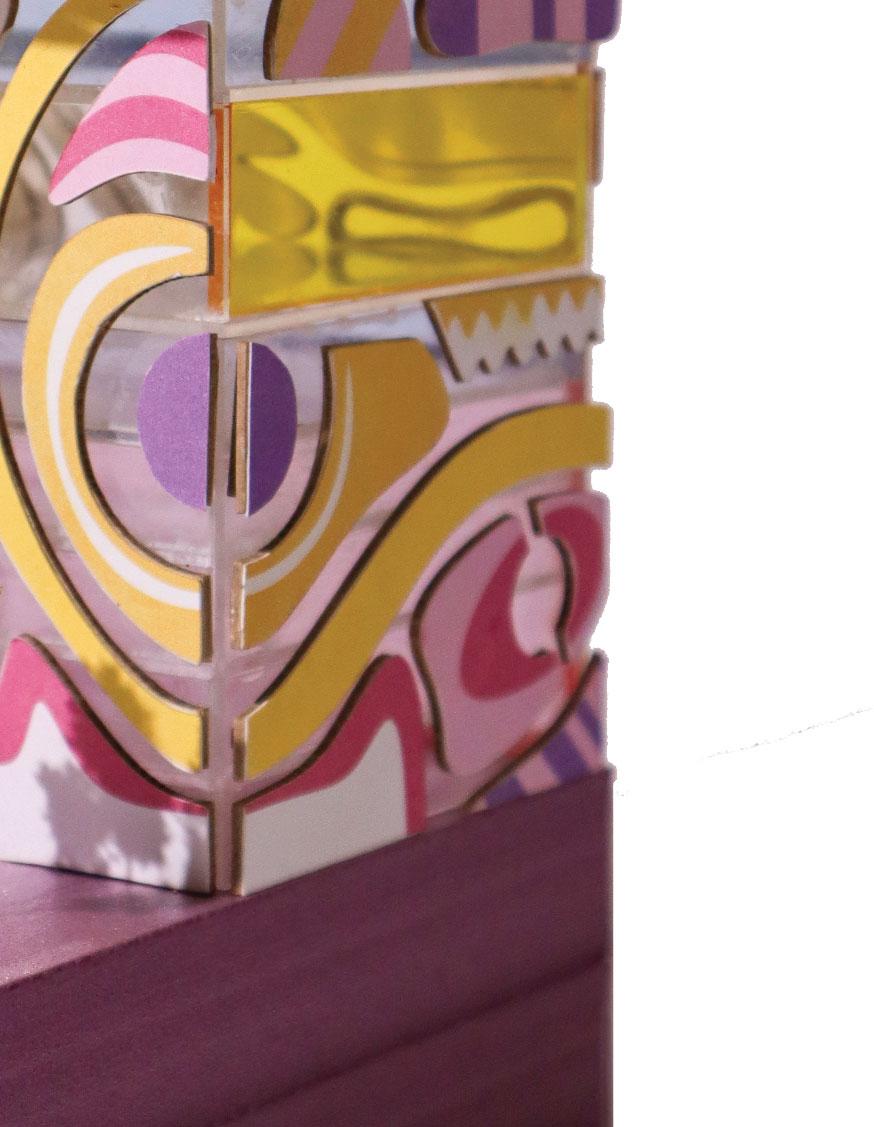

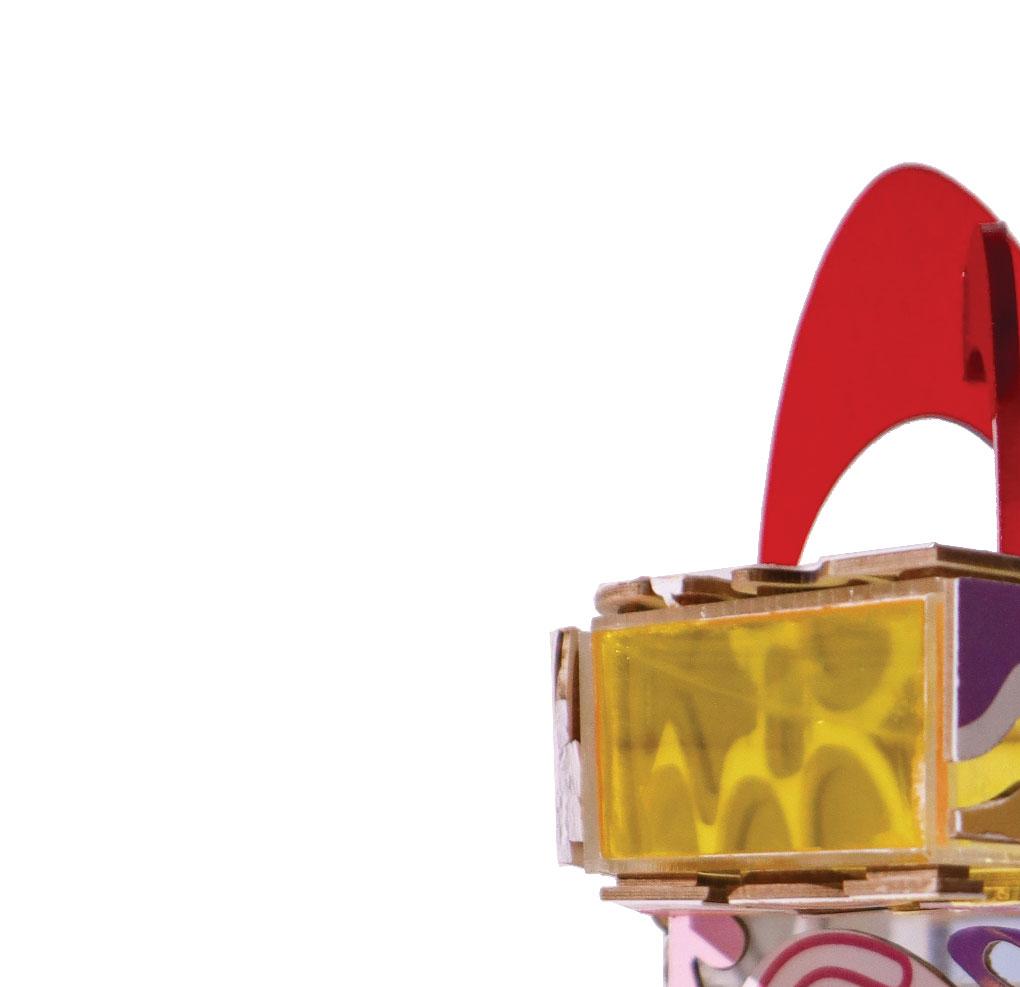

CHUNK MODEL

12

SPRING 2023

BRANCH LIBRARY

13

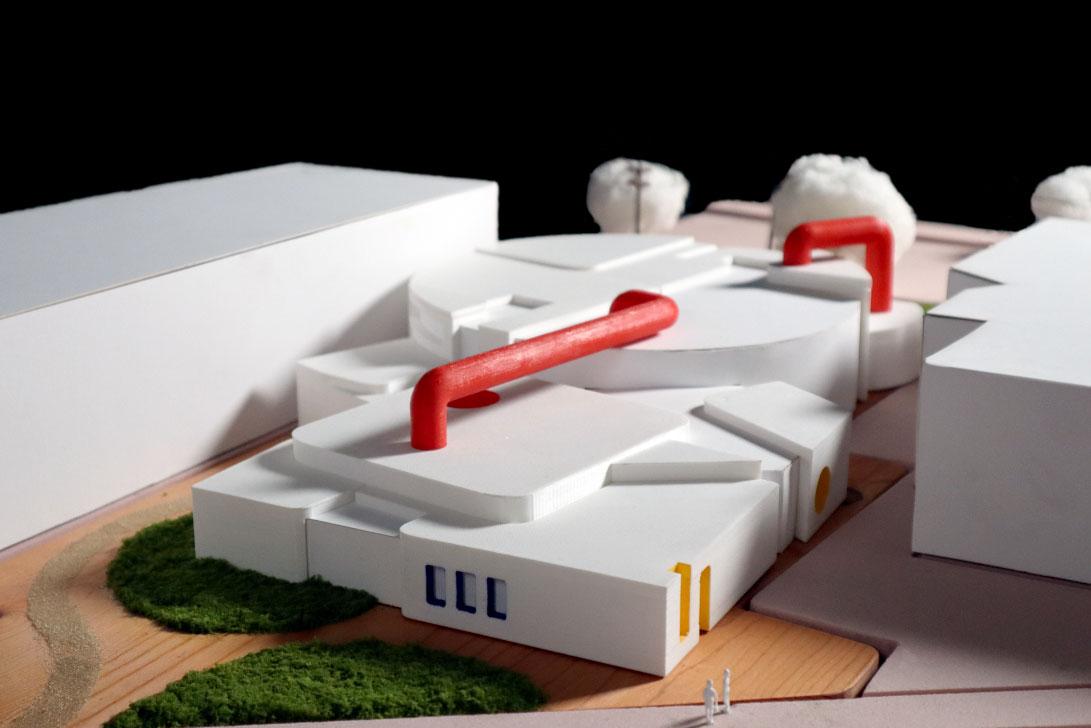

The brief demanded the design of a branch library based on site study and a “wildcard program”.

Features of the project include use of Grasshopper for shelled facade generation and a “playful industrial” style to match the fabrication lab and children’s maker space.

Landscaping

Fab Lab

Lobby Classrooms Bathroom

Bookstacks

Reading Room

Children’s Area Lobby

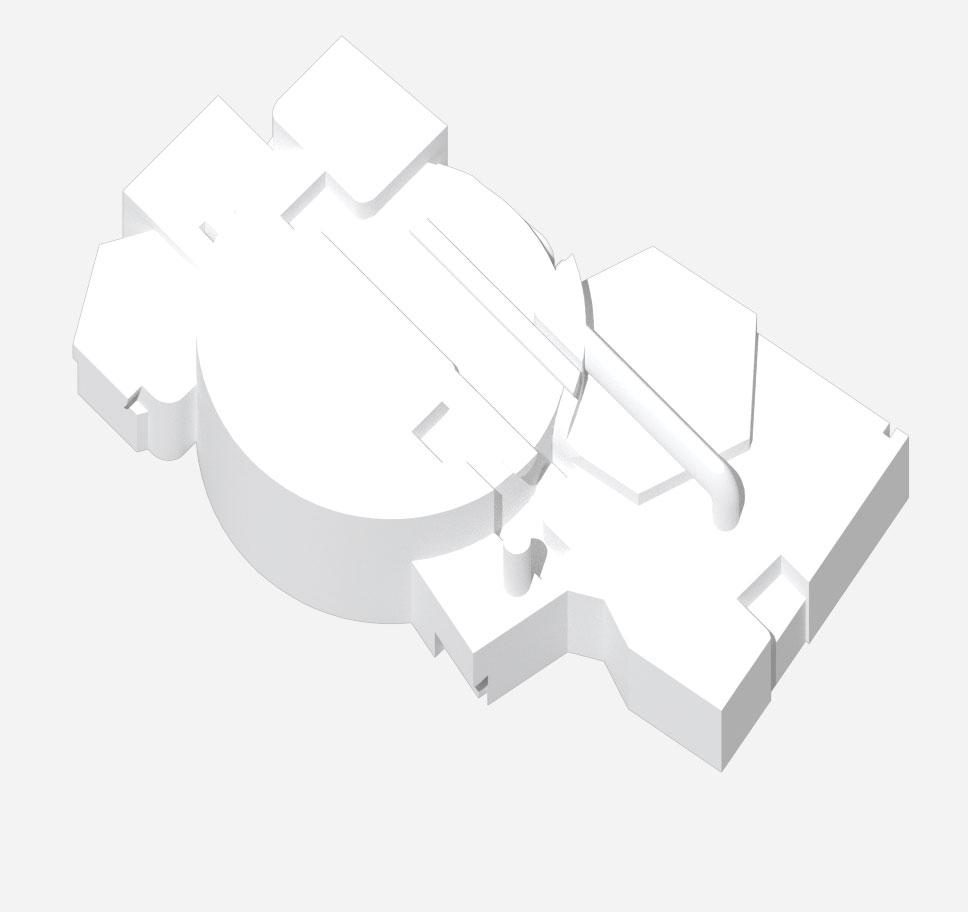

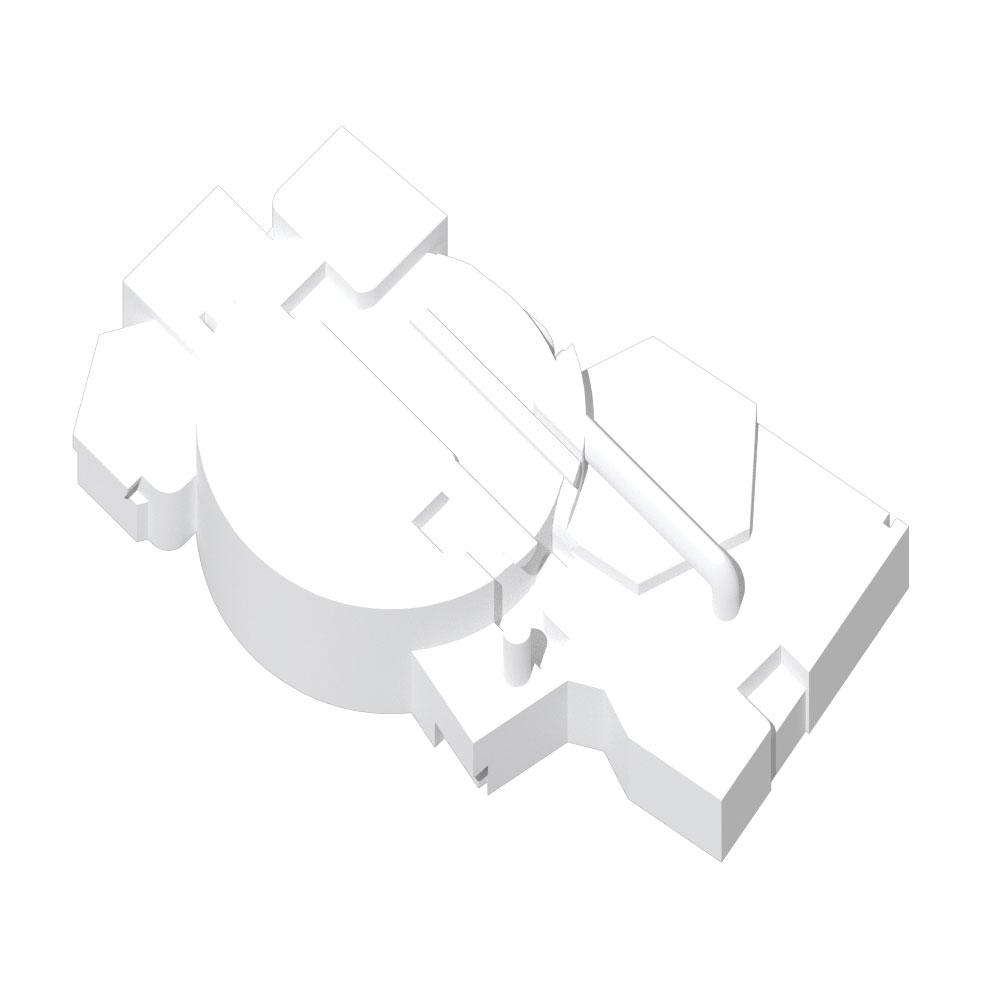

GRASSHOPPER MASSING STUDY Patio

PARTI DIAGRAM

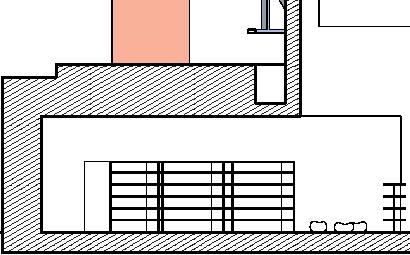

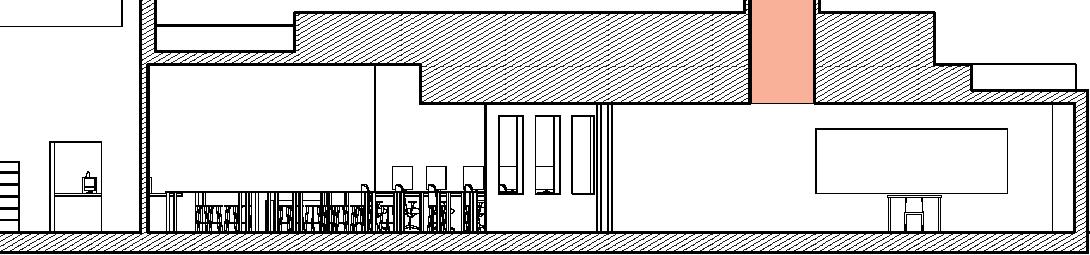

SECTION

14

A’

B

B’

ROOF SITE PLAN A

ROOF PLAN

A

B

A’

A

Laser cutter

B

3D printers

C

Work tables

D

Sewing machines

E

LEGO storage

F

Self checkout kiosks

FAB LAB

A

C

B

B’ D CHILDREN’S LIBRARY RECEPTION

F

BOOKSTACKS

CHILDREN’S MAKER SPACE READING AREA

E

GROUND FLOOR PLAN

A

GROUND PLAN

15
