SDeG (Sujit Nair Design Group) was founded in 2007 and is currently involved in projects of varied types and scales. The practice is interested in the many possibilities that emerge from complex urban flows and shifts in culture, politics, socio-economic patterns, belief systems and capital, resulting in an Architecture of wide-ranging circumstances. By aiming to be consistently experimental and switching tactics swiftly, design can be liberated from predetermined and preservationist notions – SDeG believes in an architecture of overlapping attitudes, technologies and tecniques, that respond to fluid project situations and contemporary urban transformations.

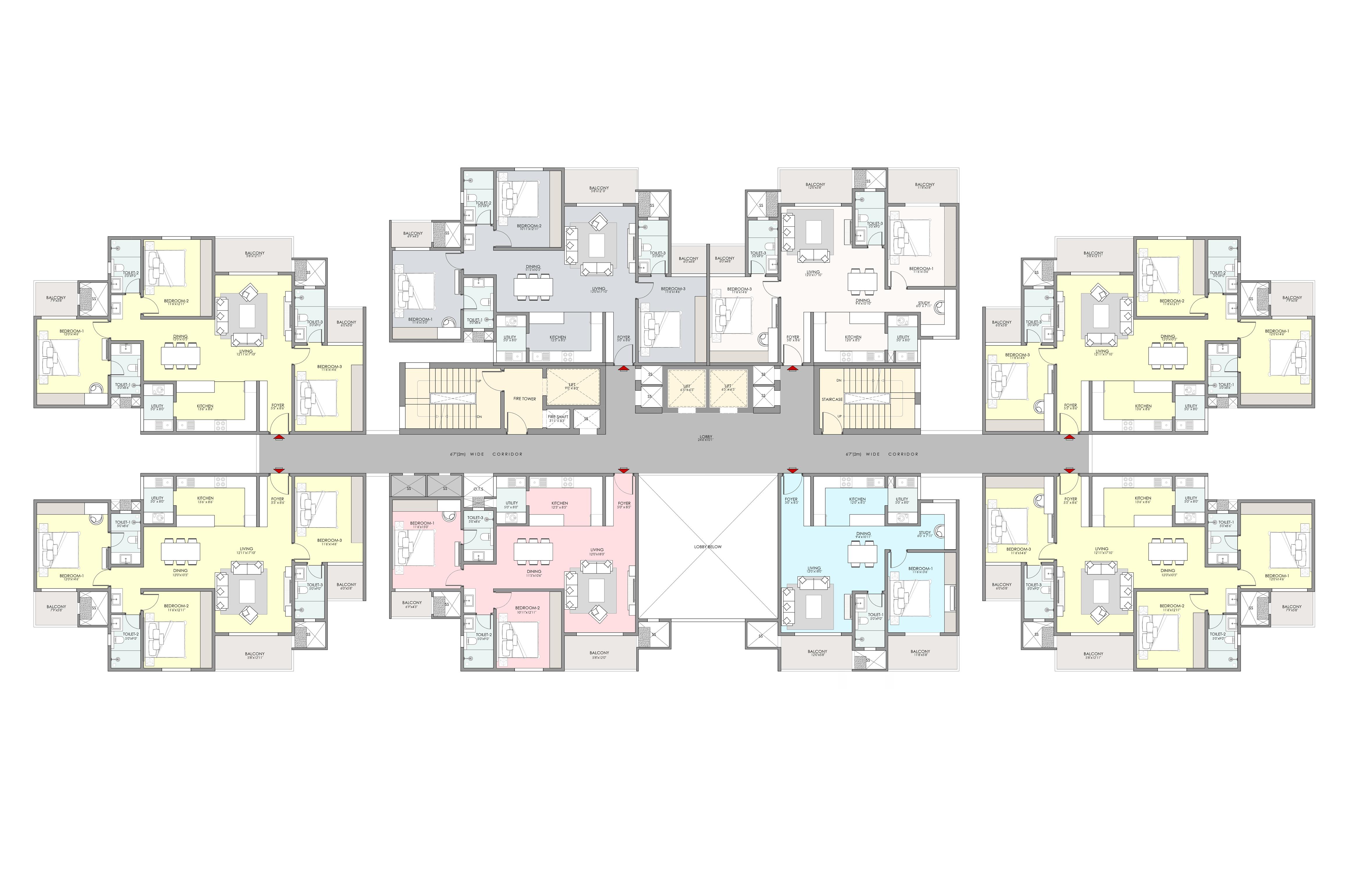

- ARCHITECTURAL DETAIL

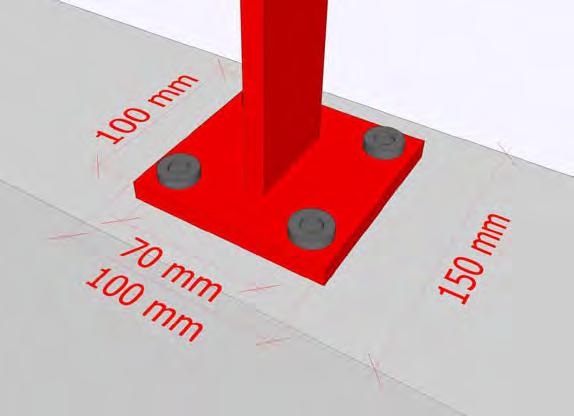

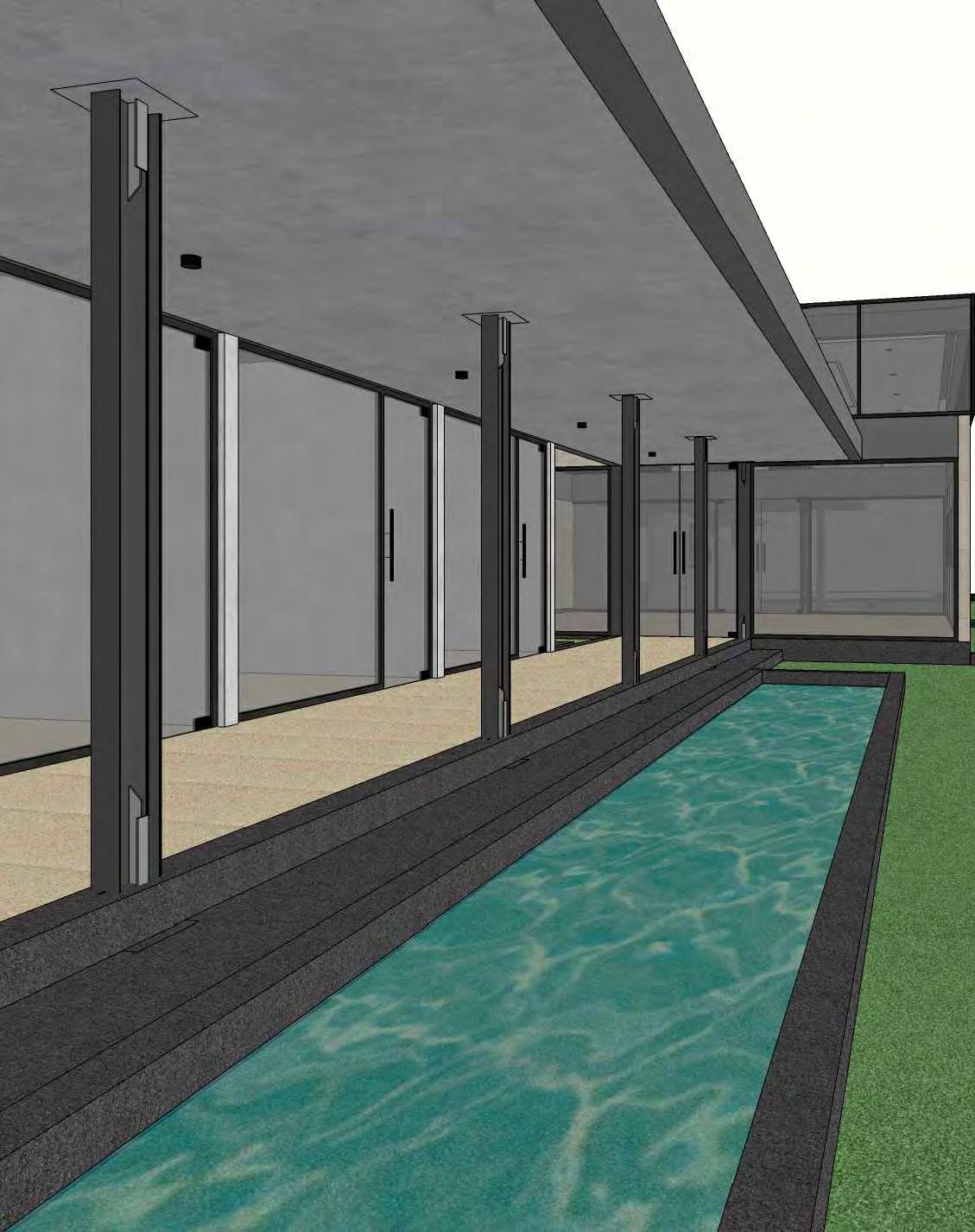

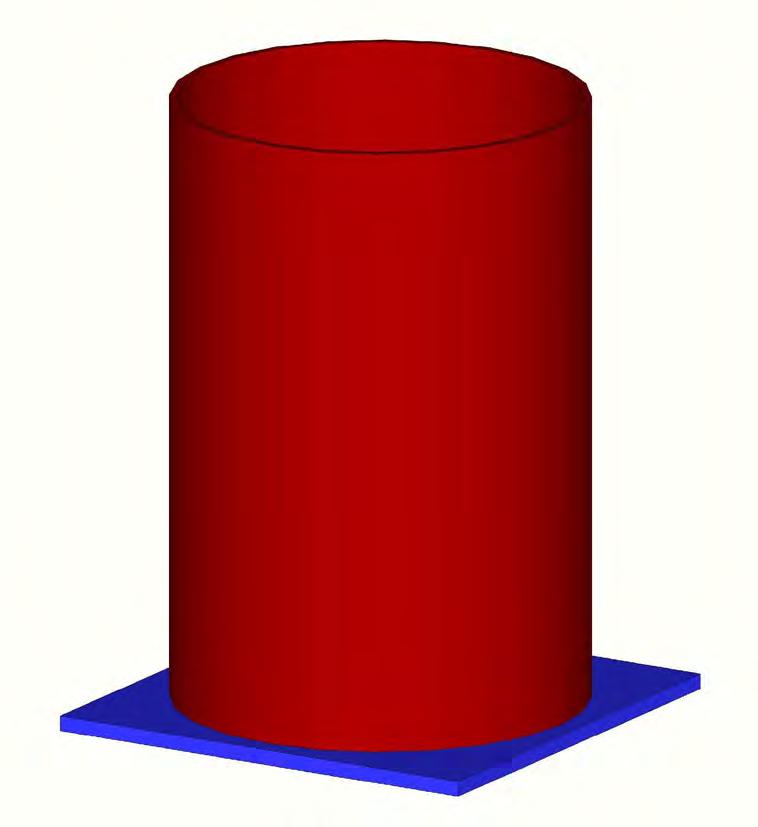

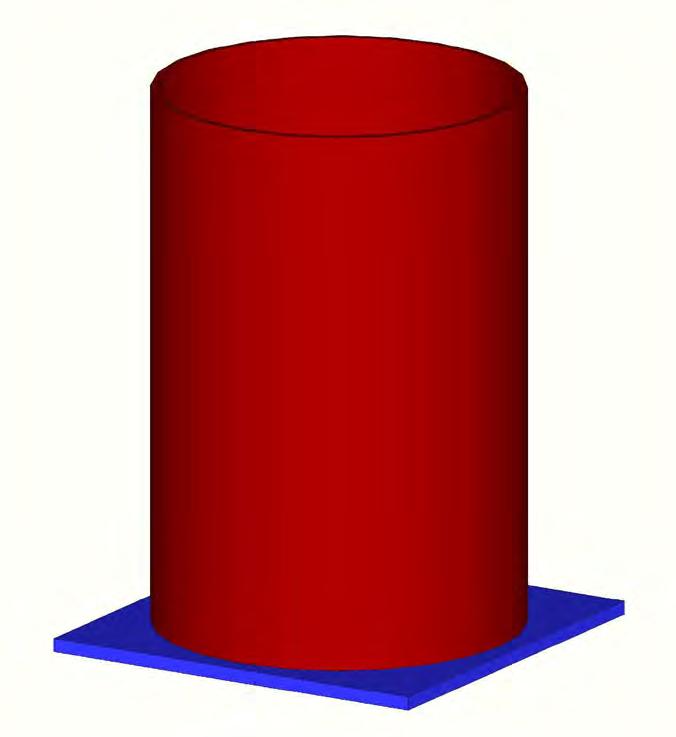

- METAL COLUMN DETAIL

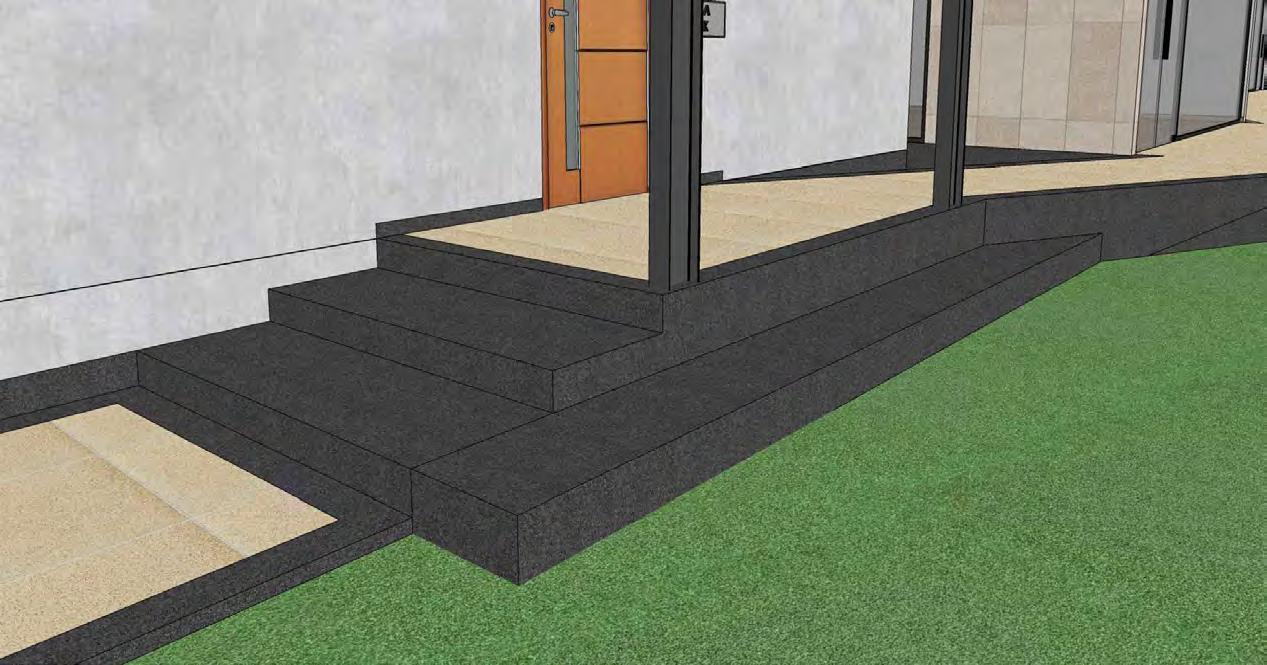

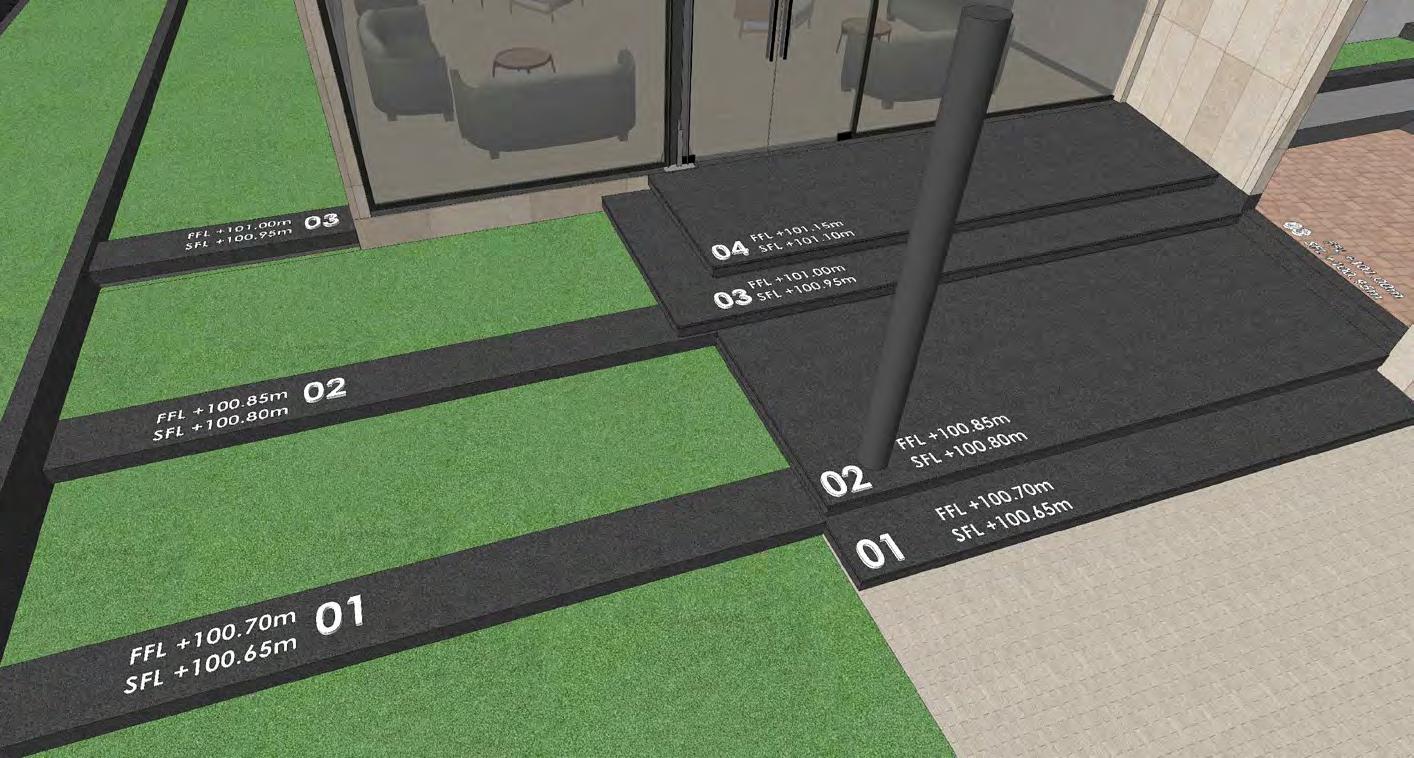

- ENTRANCE STEP DETAIL

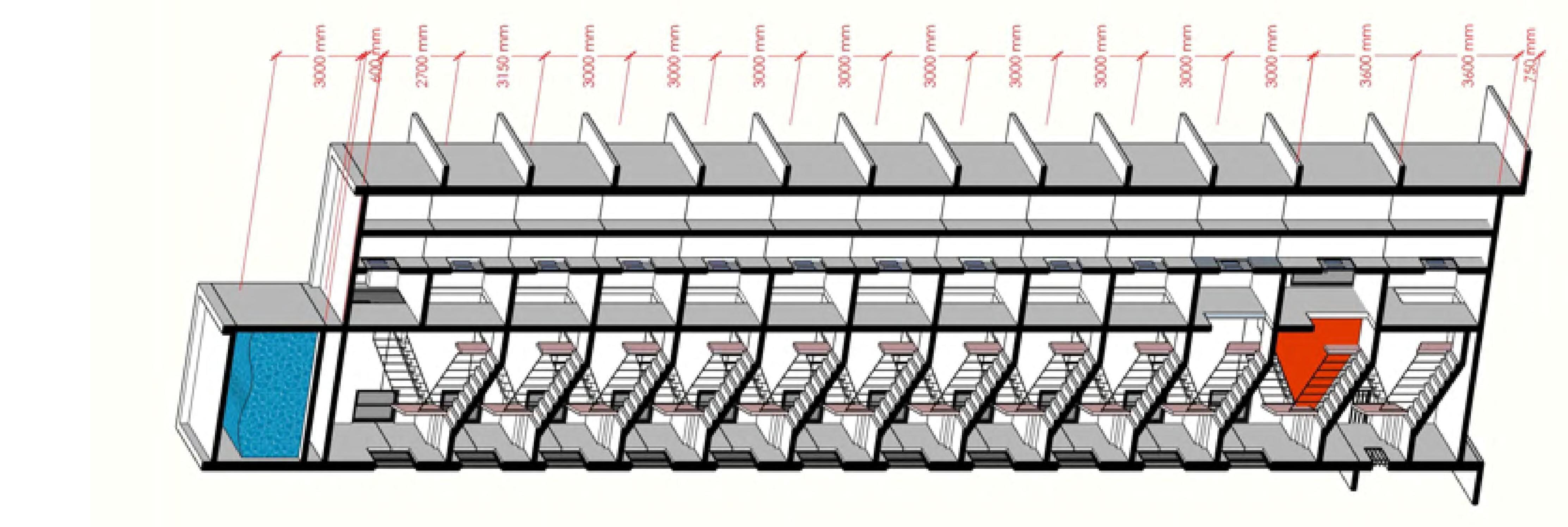

- INTERNAL STEP DETAIL

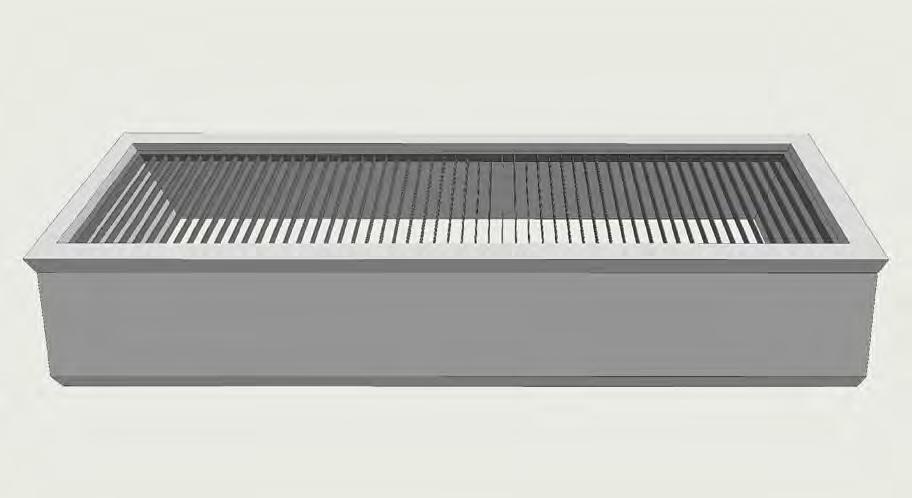

- KOI POND DETAIL
- CANOPY DETAIL

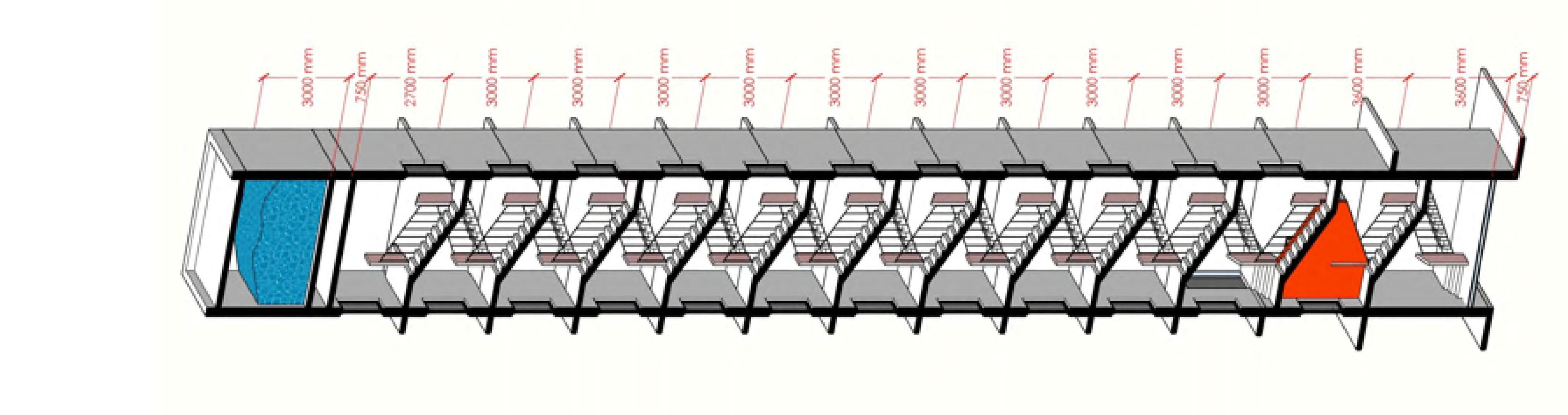

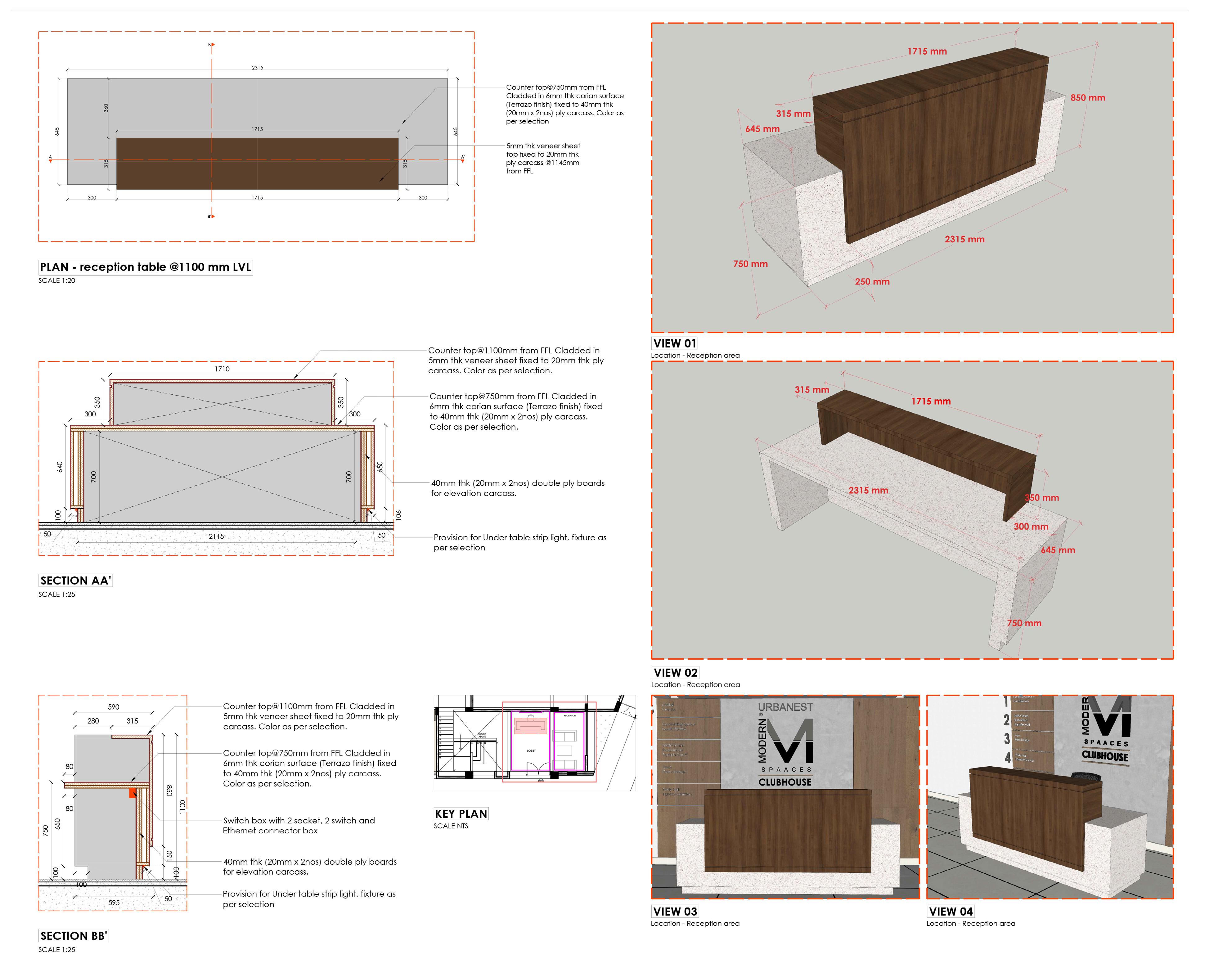

- FABRICATION SET
- RAILING FABRICATION TERRACE
- PERGOLA DETAIL
- TOILET DETAIL
- PLUMBING AND TILING DRAWING
- FINISHES DETAIL
- WALL FINISHES
- FLOOR FINISHES

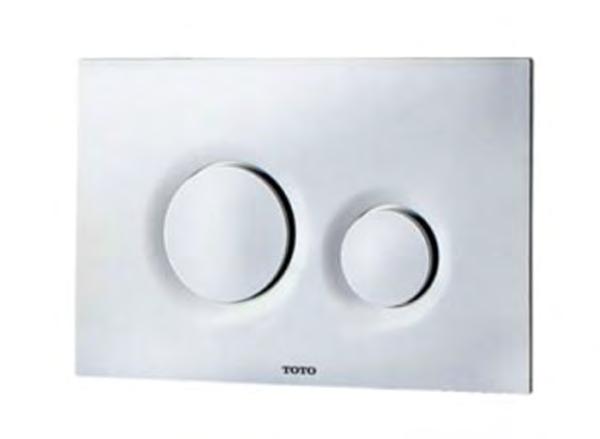

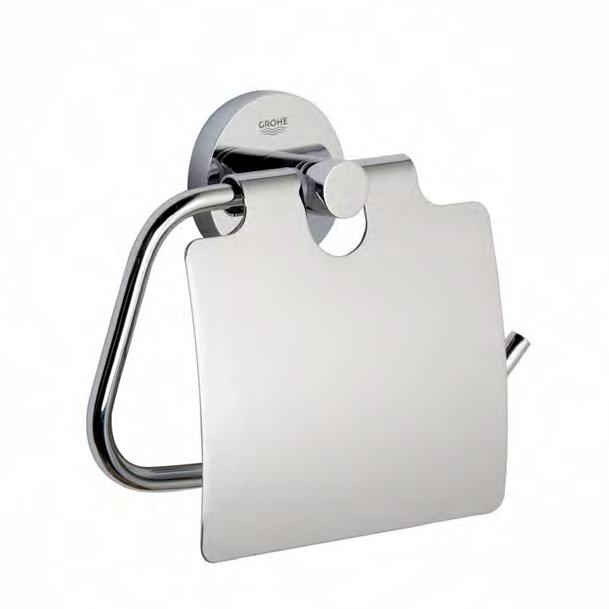

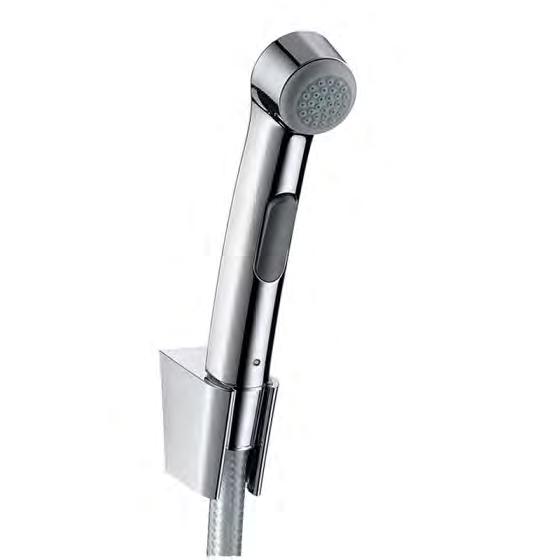

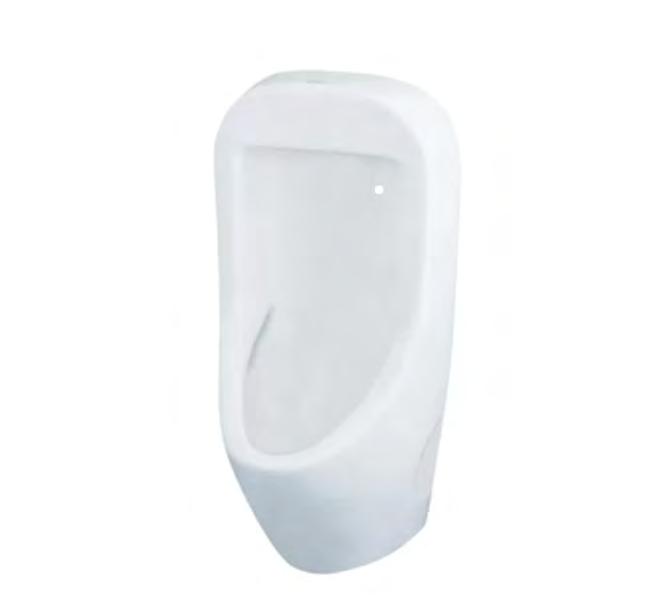

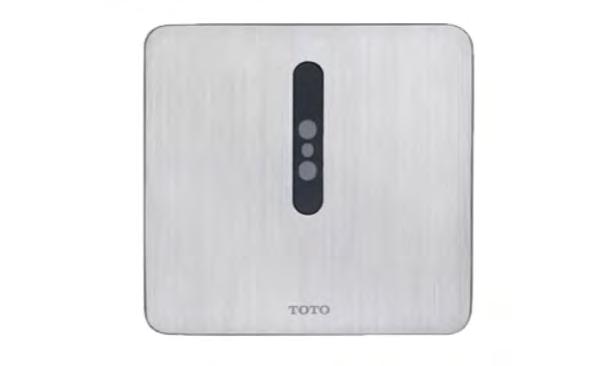

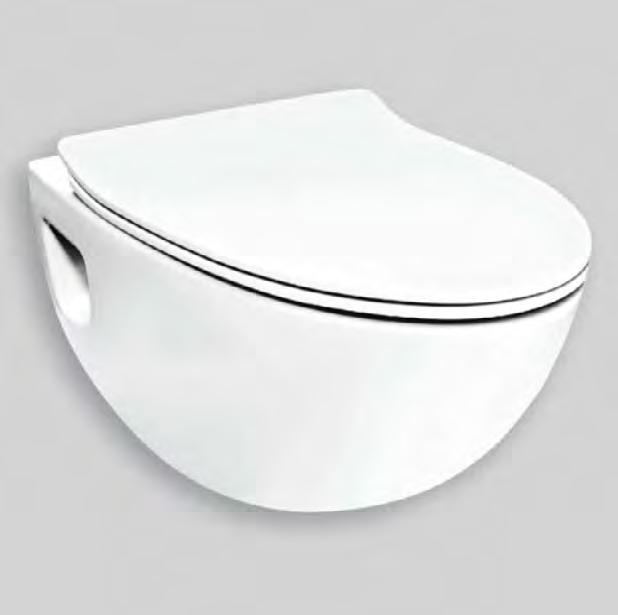

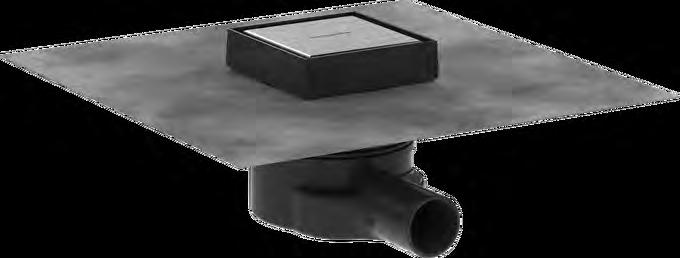

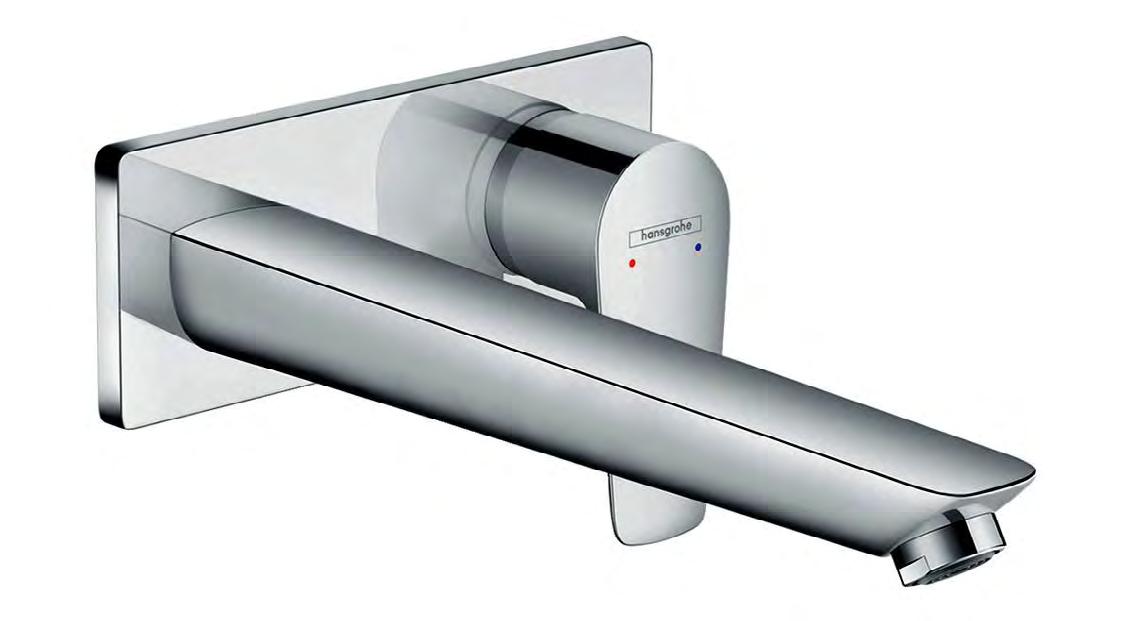

- PLUMBING FIXTURES
plate as per Structural consultant (fixed at top)
Nos of Ø16
SCALE 1:15

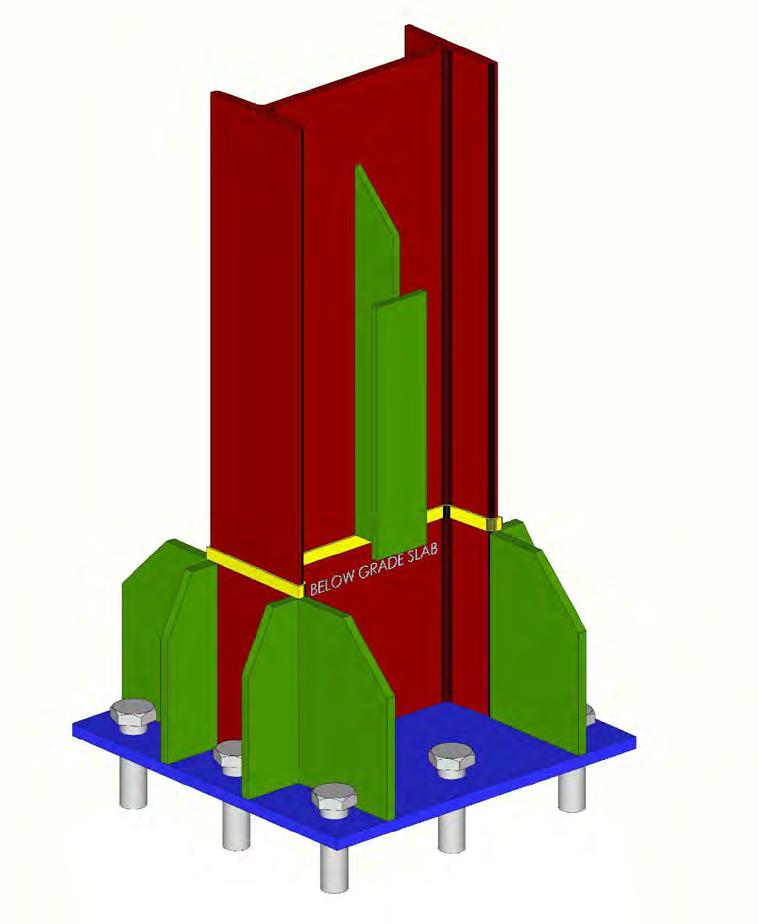

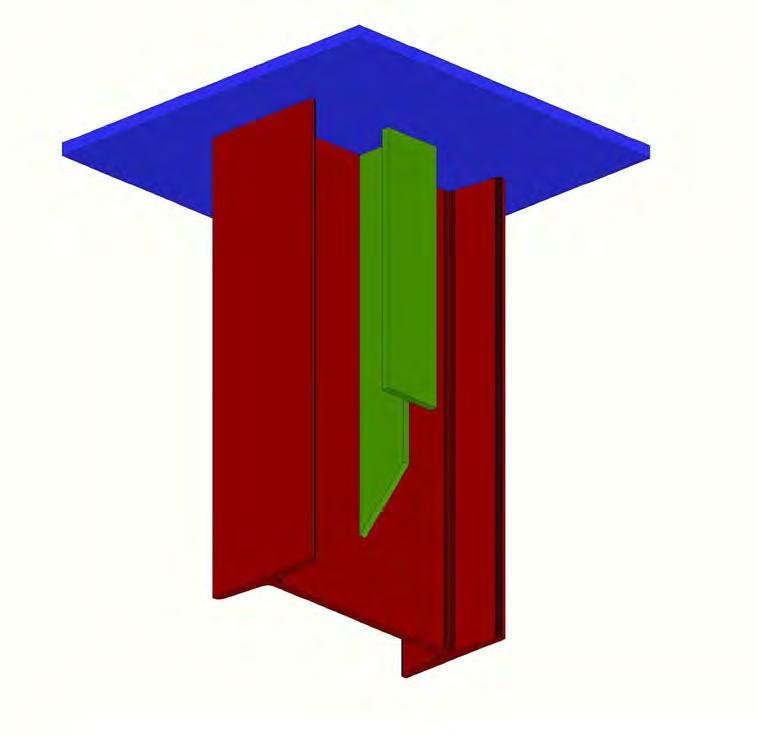

Base plate size-300x300x12mm thk (bottom) Base plate size-450x450x12mm

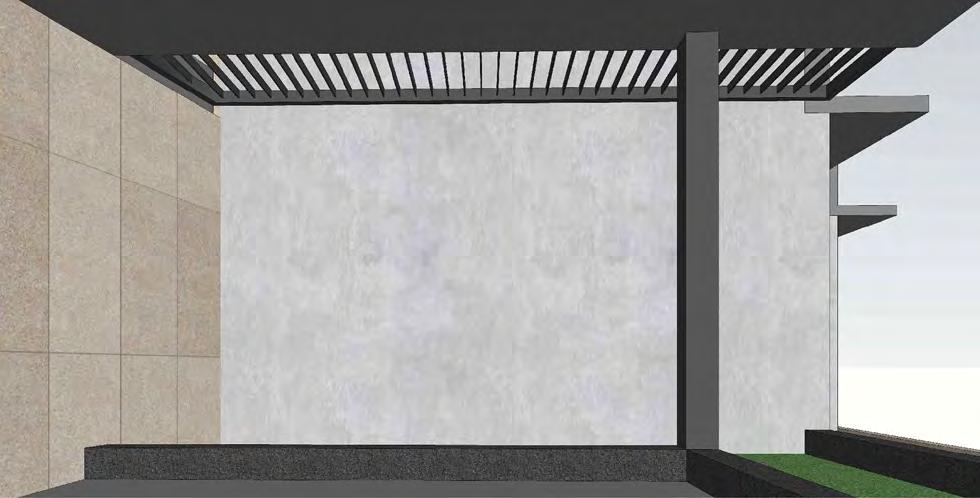

Asian Paints Grey Matter Color Code - 8304 (Slab)
Asian Paints Whispering Smoke with texture Color Code - 8308 (Wall)
Option 01- Everest Colour clad Cement Board Ash Grey

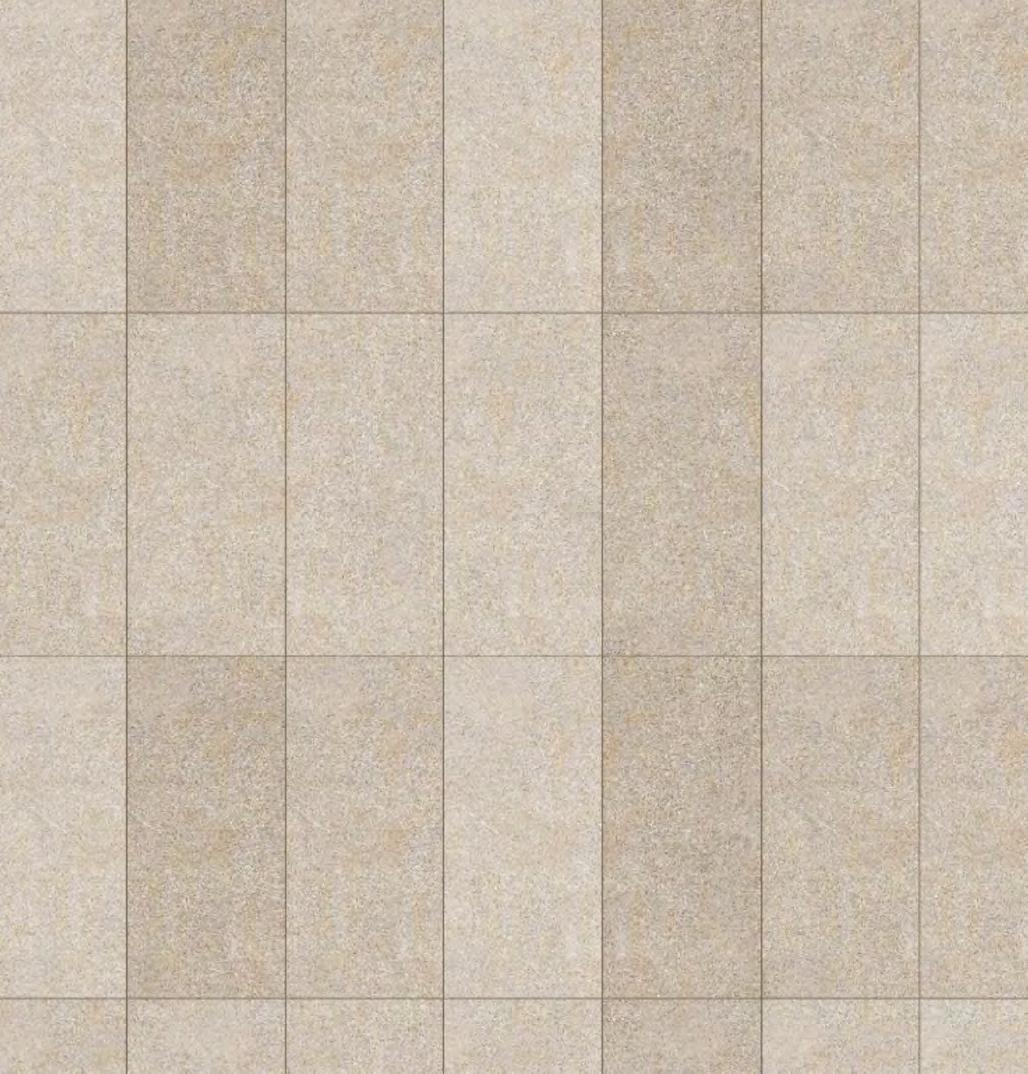

Option 02- Simpolo Tile Limestone

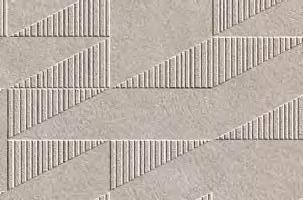

Option 03- Kalesinterflex Tile Uptown Light
Asian Paints
Grey Matter
Color Code - 8304 (Slab)
Asian Paints
Whispering Smoke with texture
Color Code - 8308 (Wall)
Option 01- Everest Colour clad Cement Board Ash Grey
Option 02- Simpolo Tile Limestone
Option 03- Kalesinterflex Tile Uptown Light

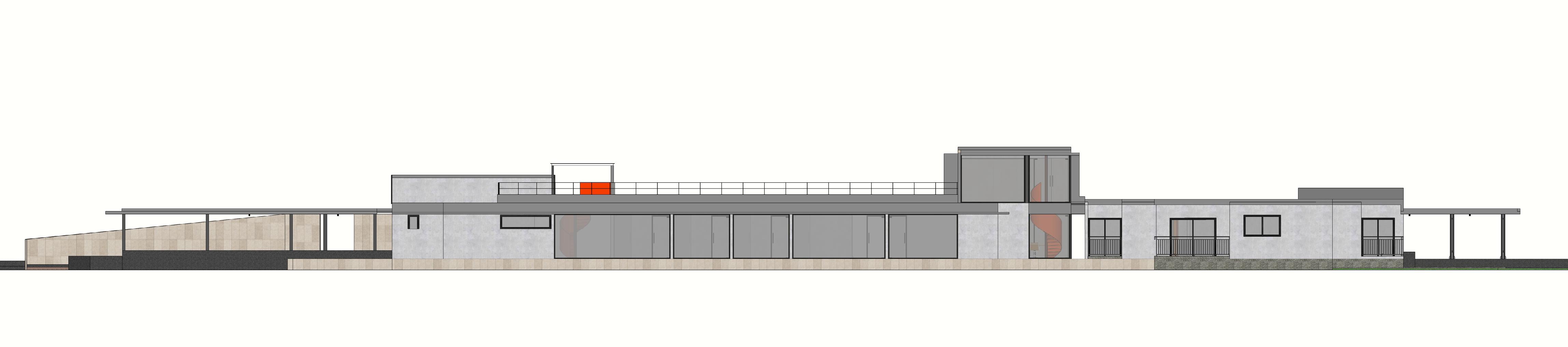

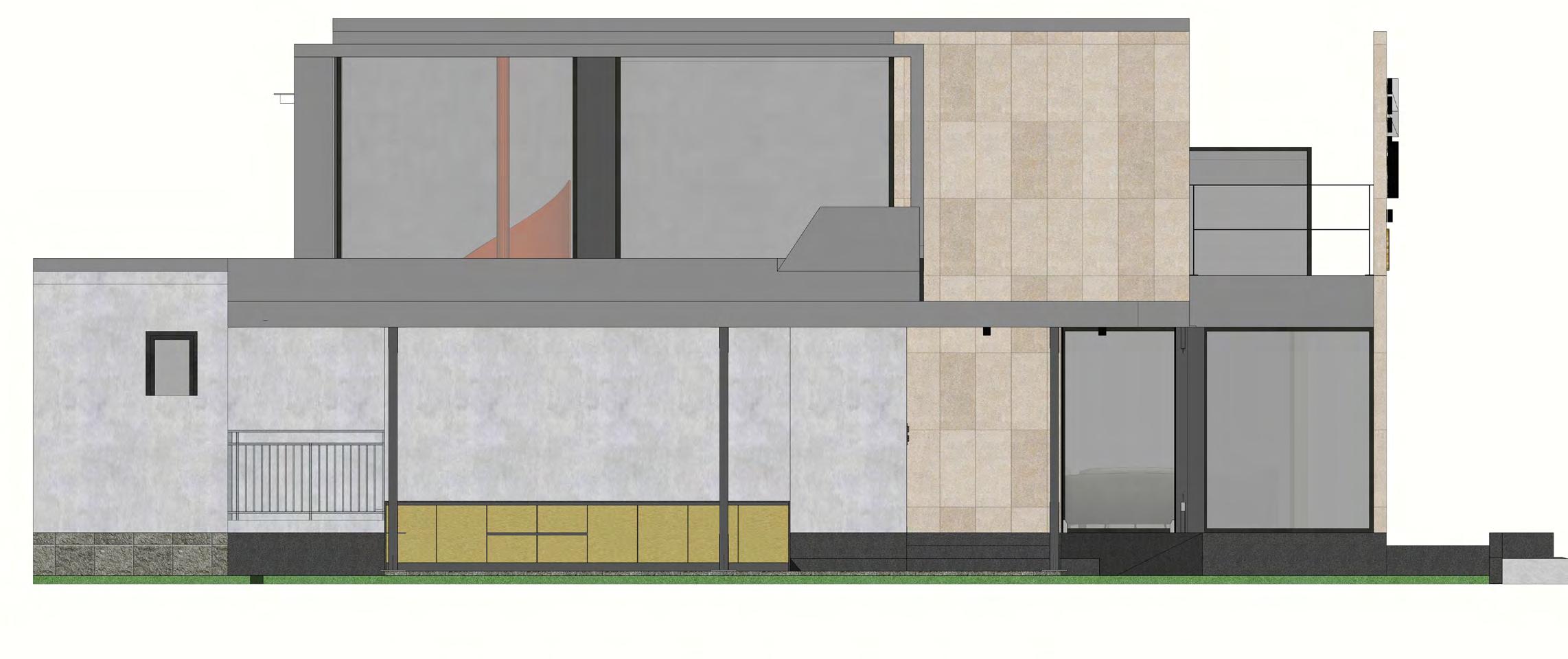

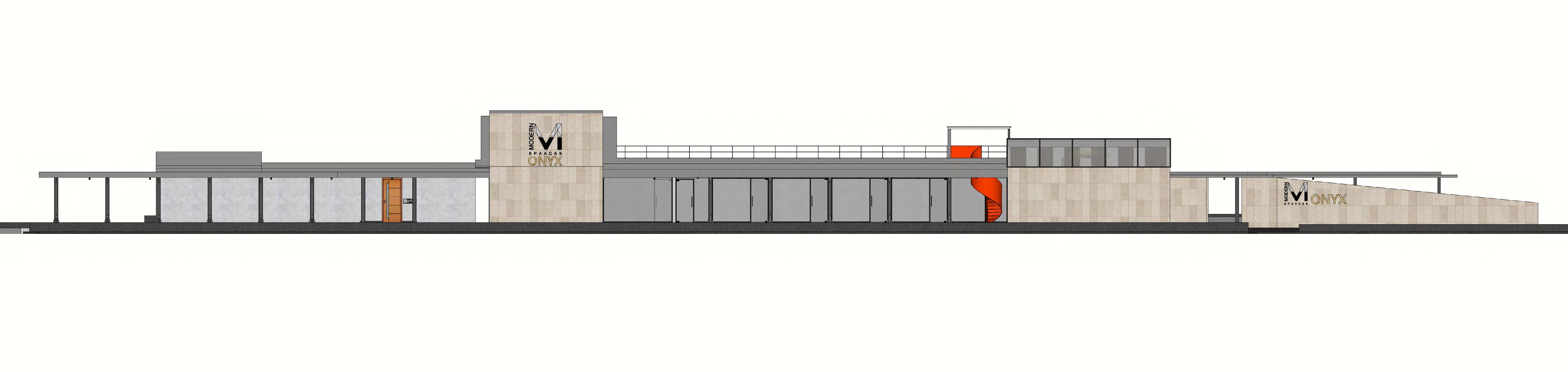

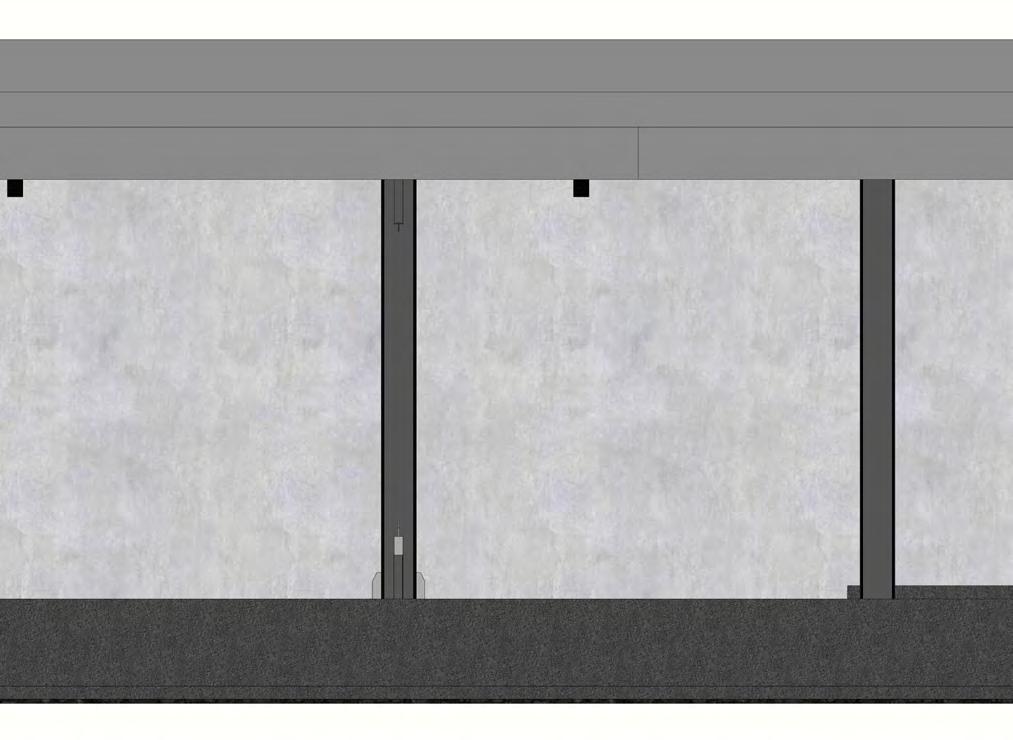

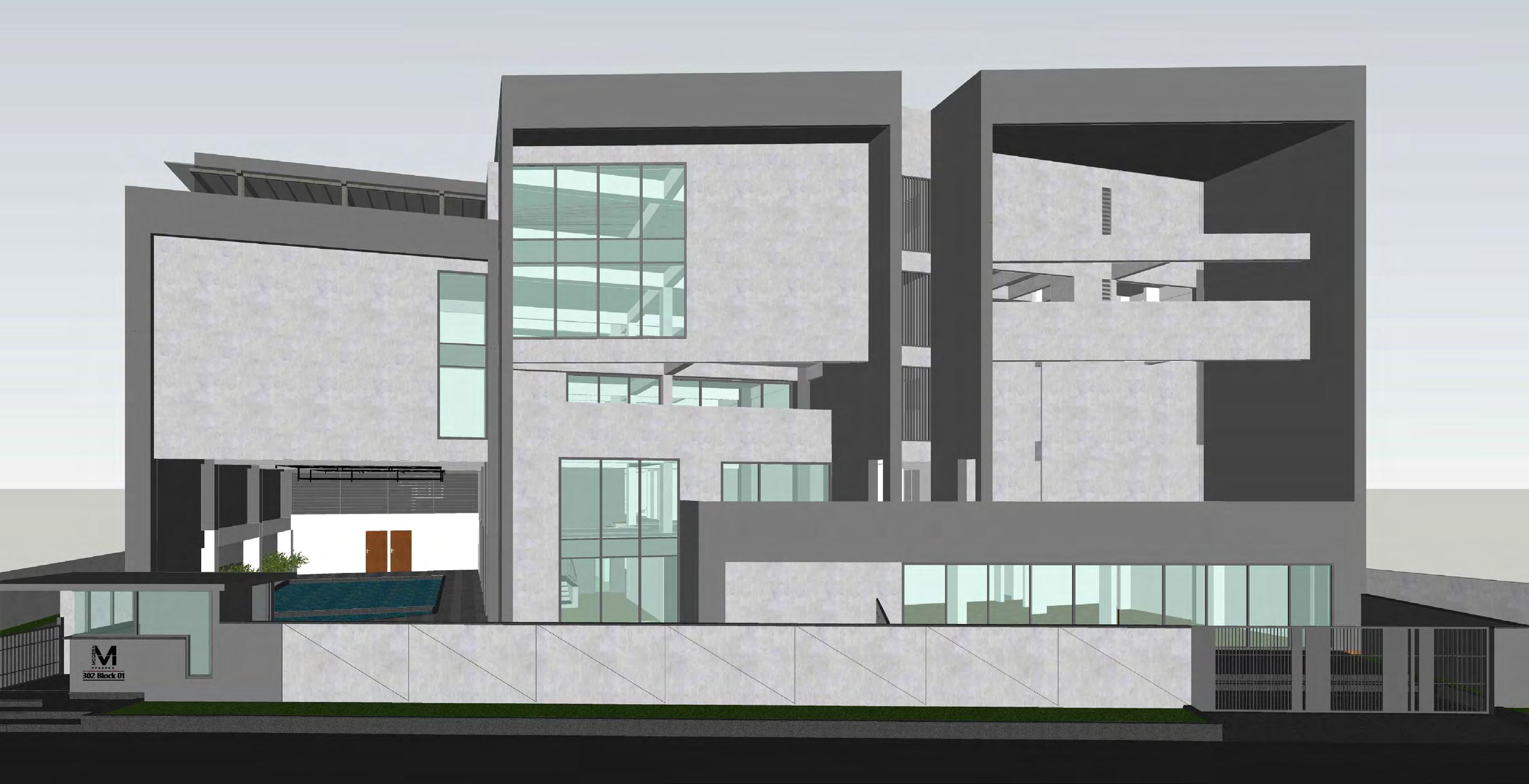

ELEVATION 02
ELEVATION 04

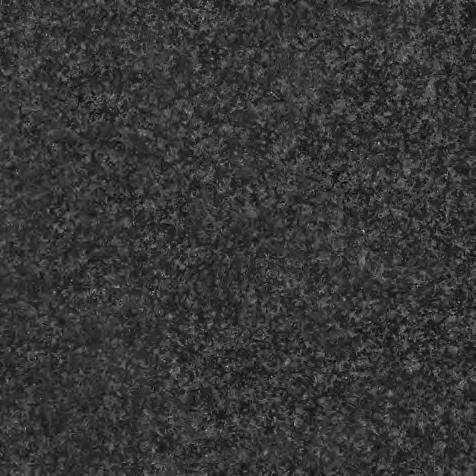

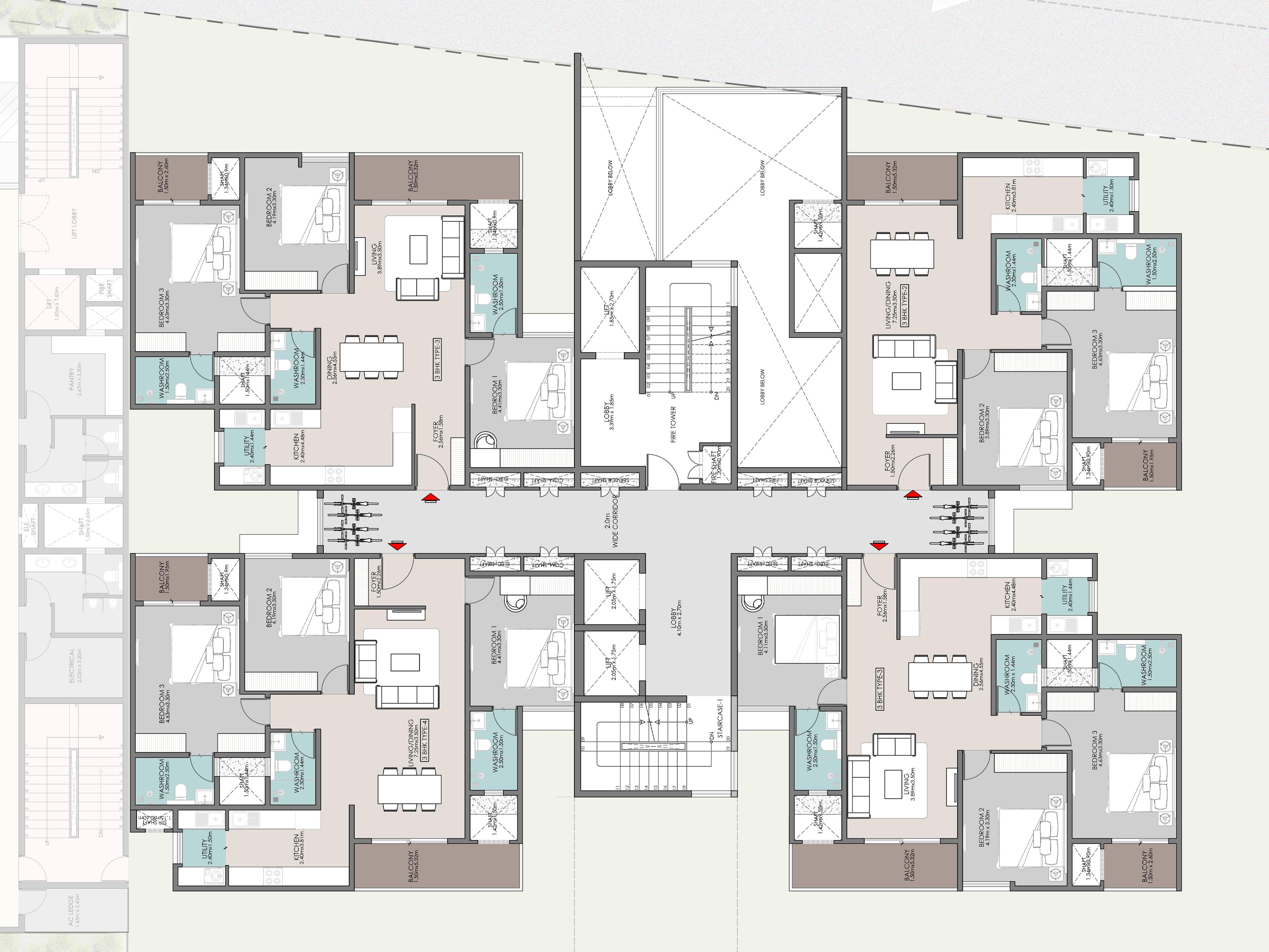

Leather Finish Granite
Colour : Black
Space : Passage Borders, Toilet Flooring, as a separator
Nexion Endless Avorio
Color : Ivory
Space : Discussion room, Dining, Cabins
Wooden flooring
Pattern : Herringbone
Space : Board Room
Wooden flooring
Pattern : Brick
Space : Waiting Lobby, Pantry
IPS Concrete flooring
Space : Reception, Passage

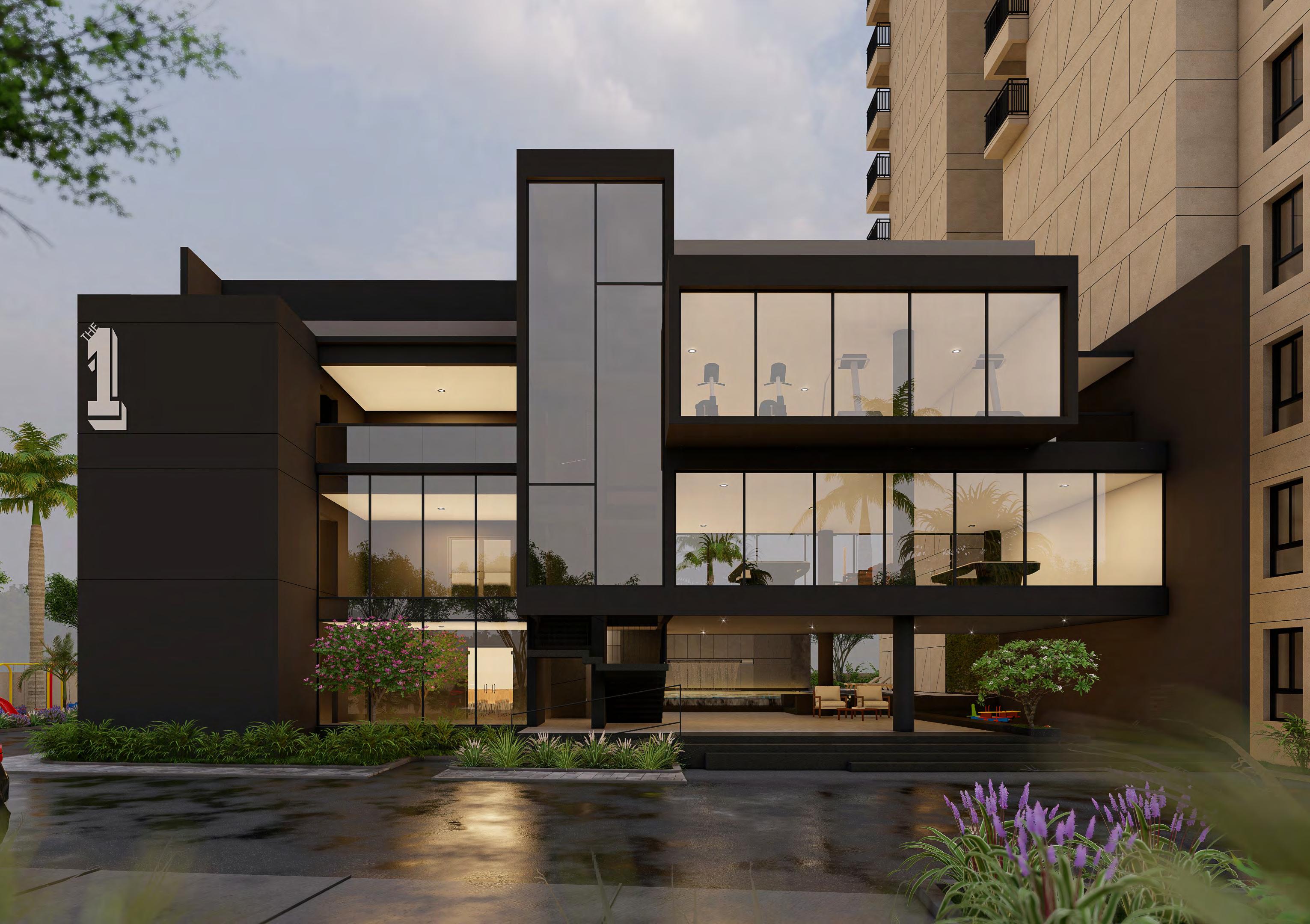

NOTE : ALL PAINT SHADES SELECTED FROM ASIAN PAINTS

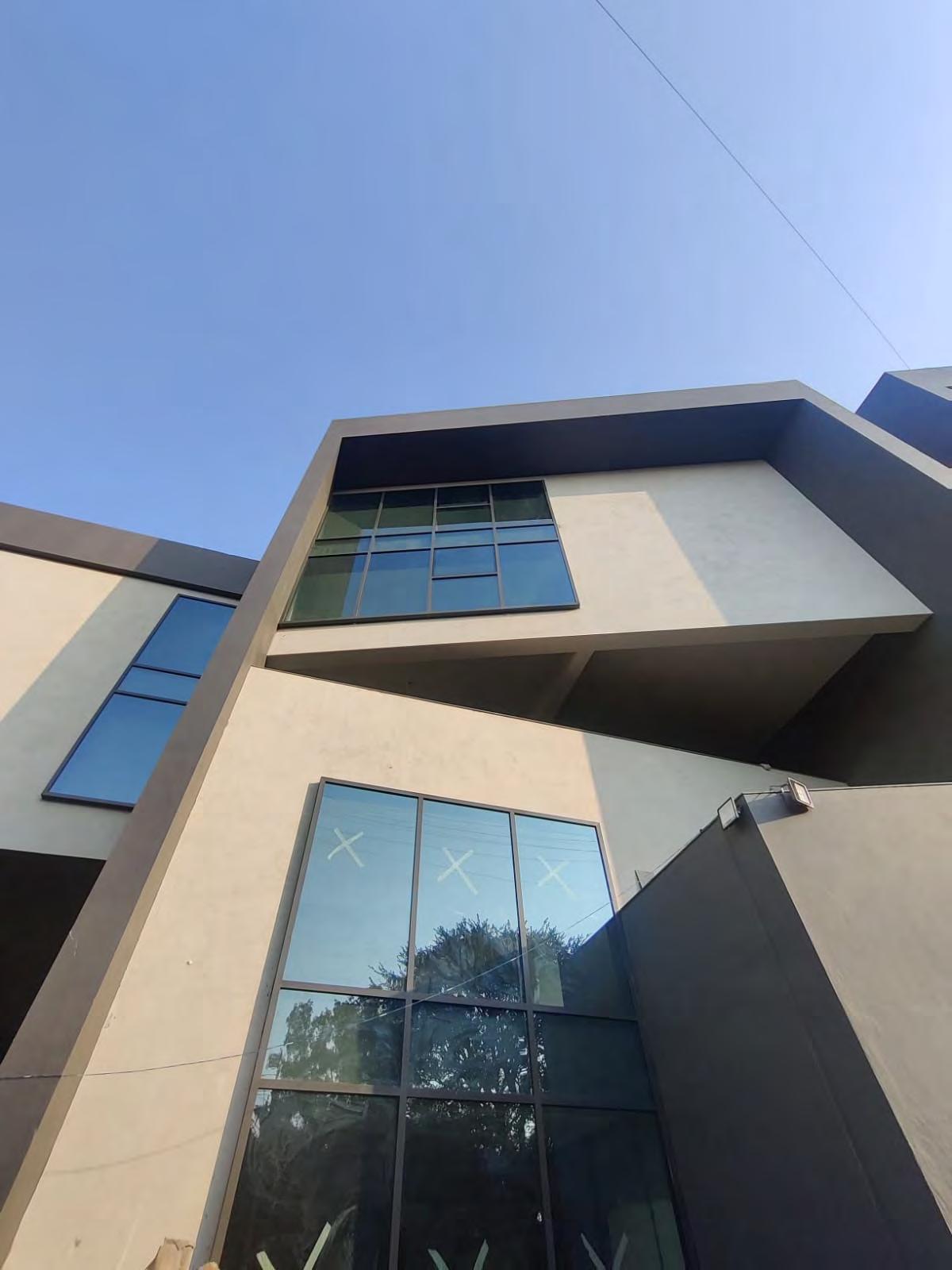

Walls - Dark Grey Paint Finish (8294 - Dark Shadow)
10x10 mm Groove
Dark Grey paint finish (8294 - Dark shadow)

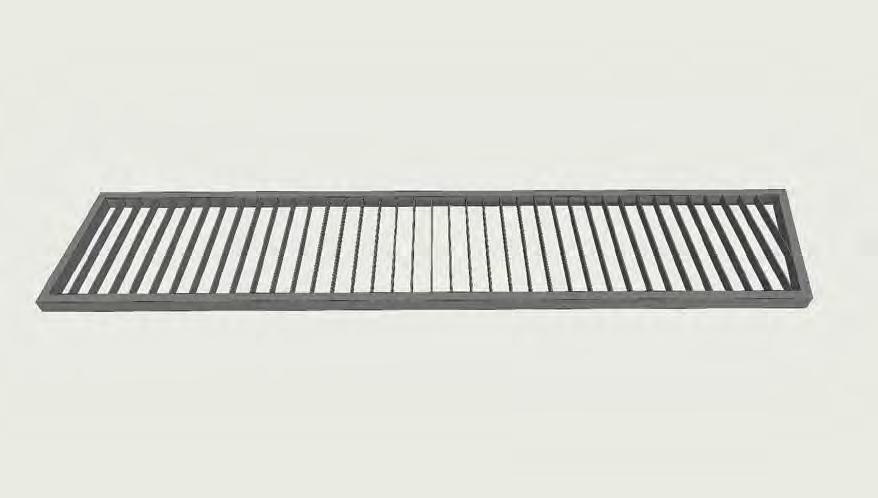

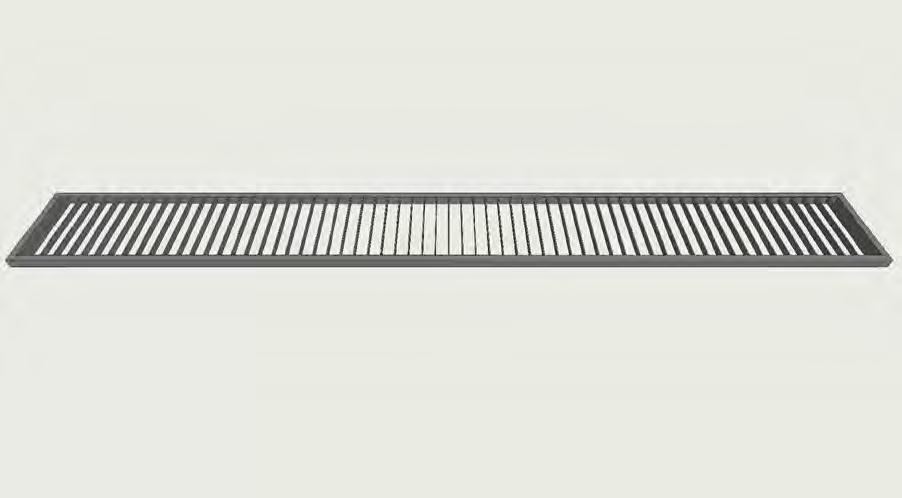

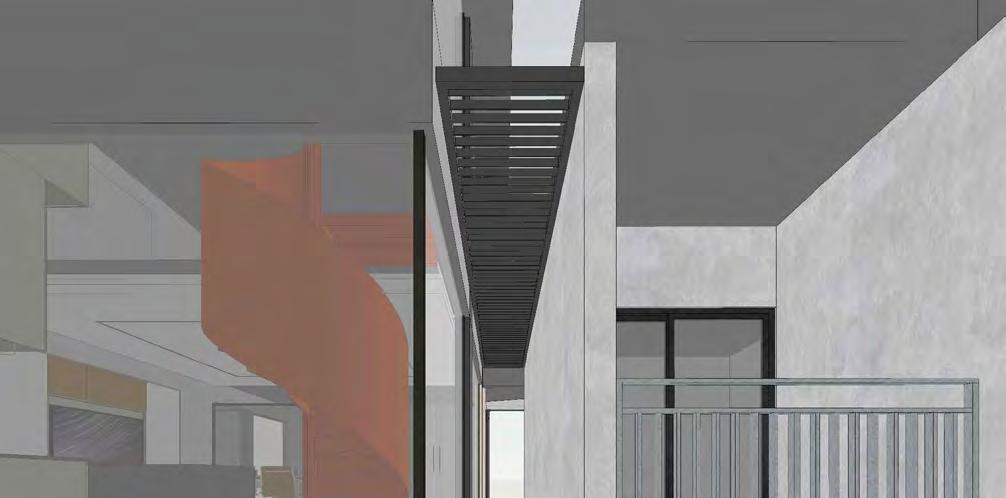

Vertical Louver screen to seperate detail
Light Grey Textured Paint (Asian paint archi concrete)
Structural glazing as per vendors specifications
Light Grey Textured Paint (Asian paint archi concrete)
Structural glazing as per vendors specifications
Beam behind the spandrel - 8294 Dark shadow
Base White
Beam behind the spandrel - 8294 Dark shadow

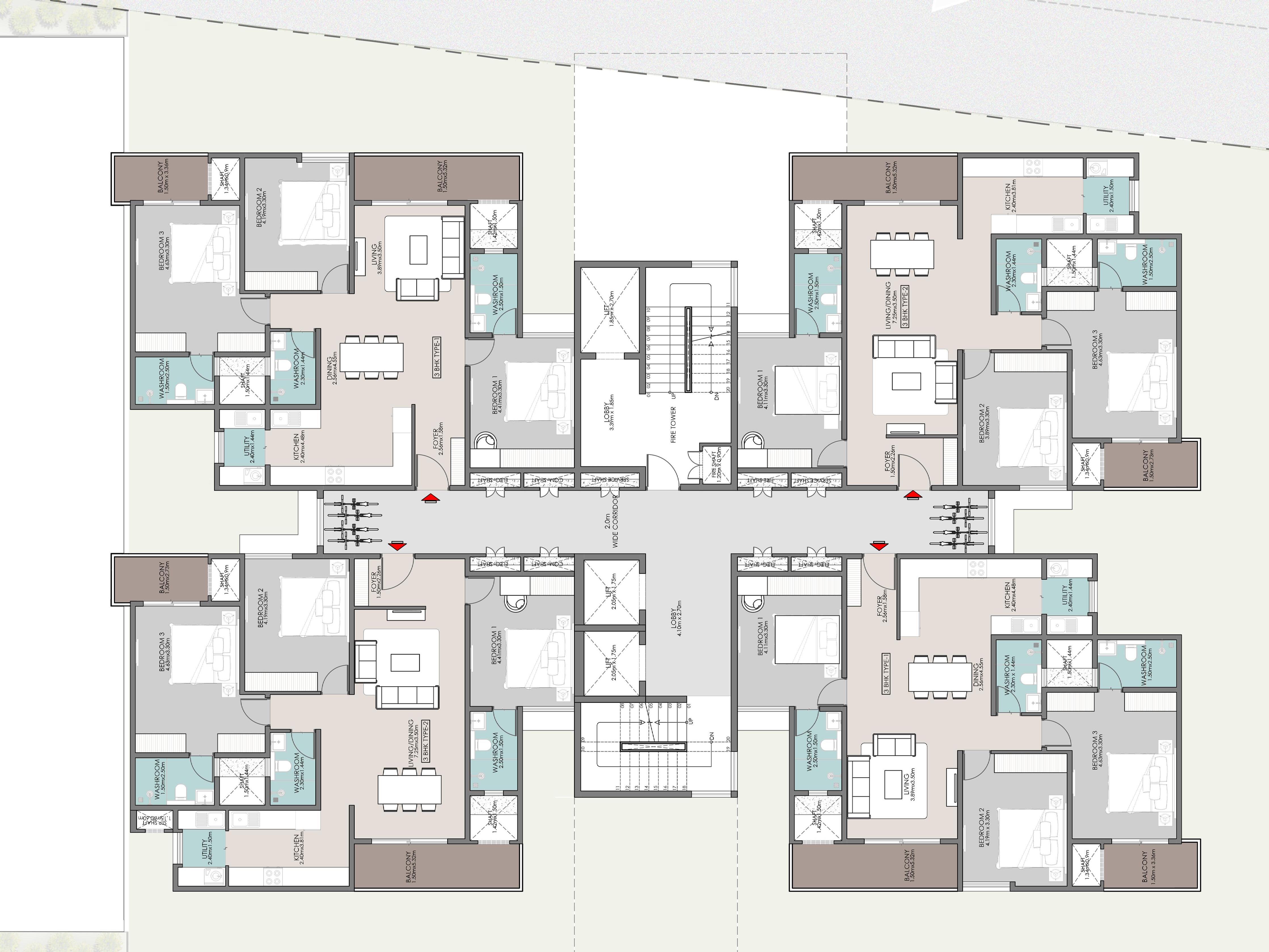

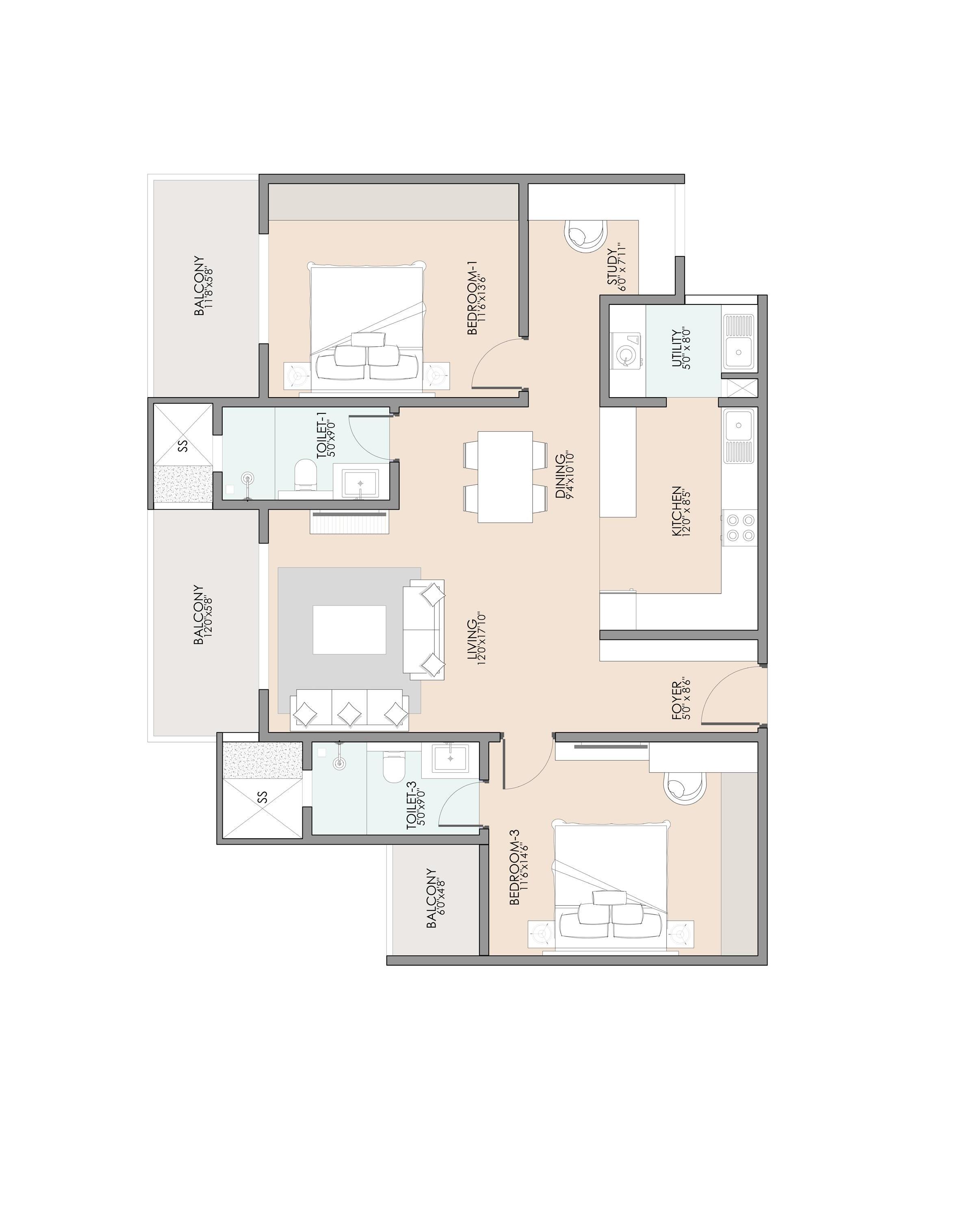

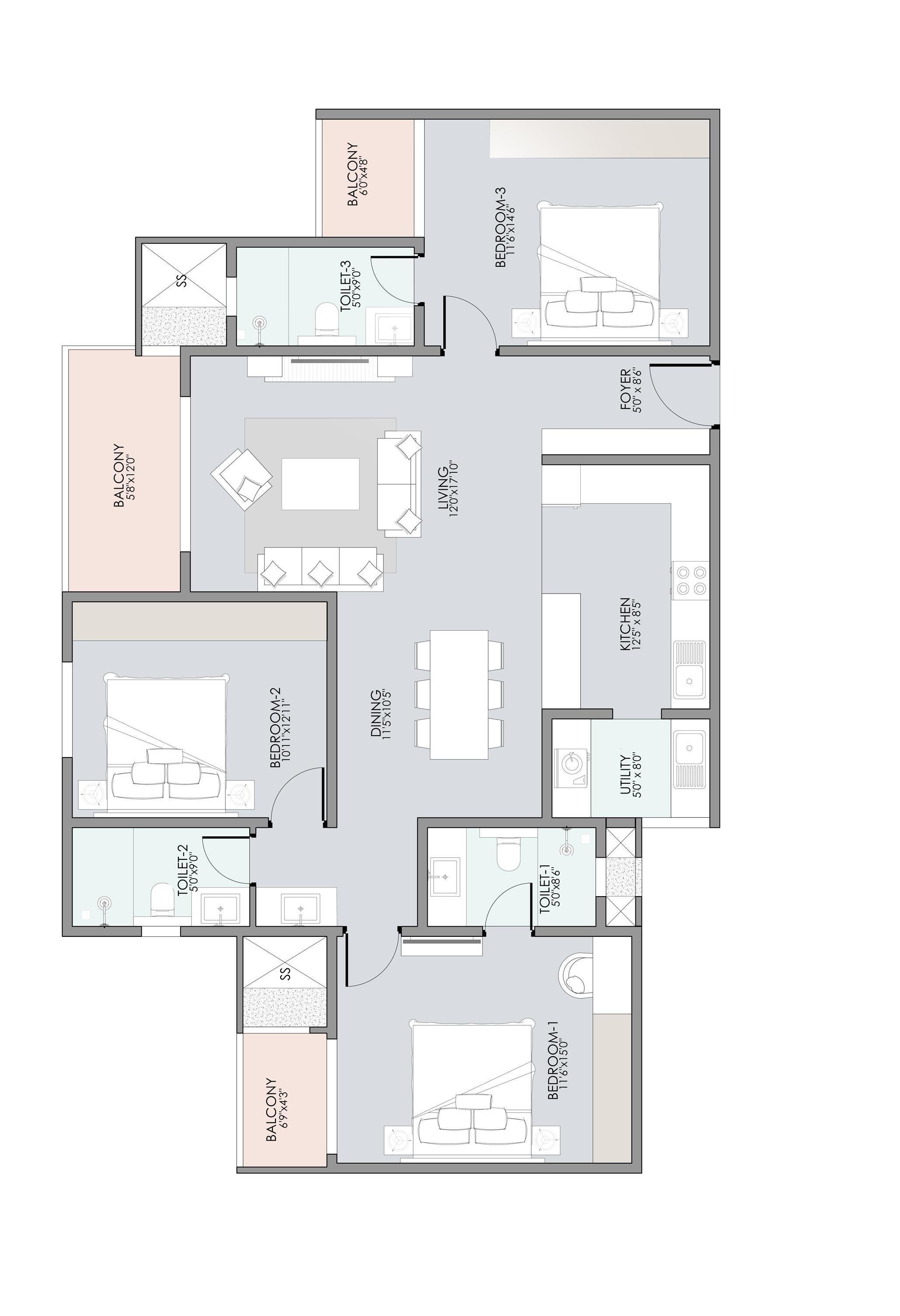

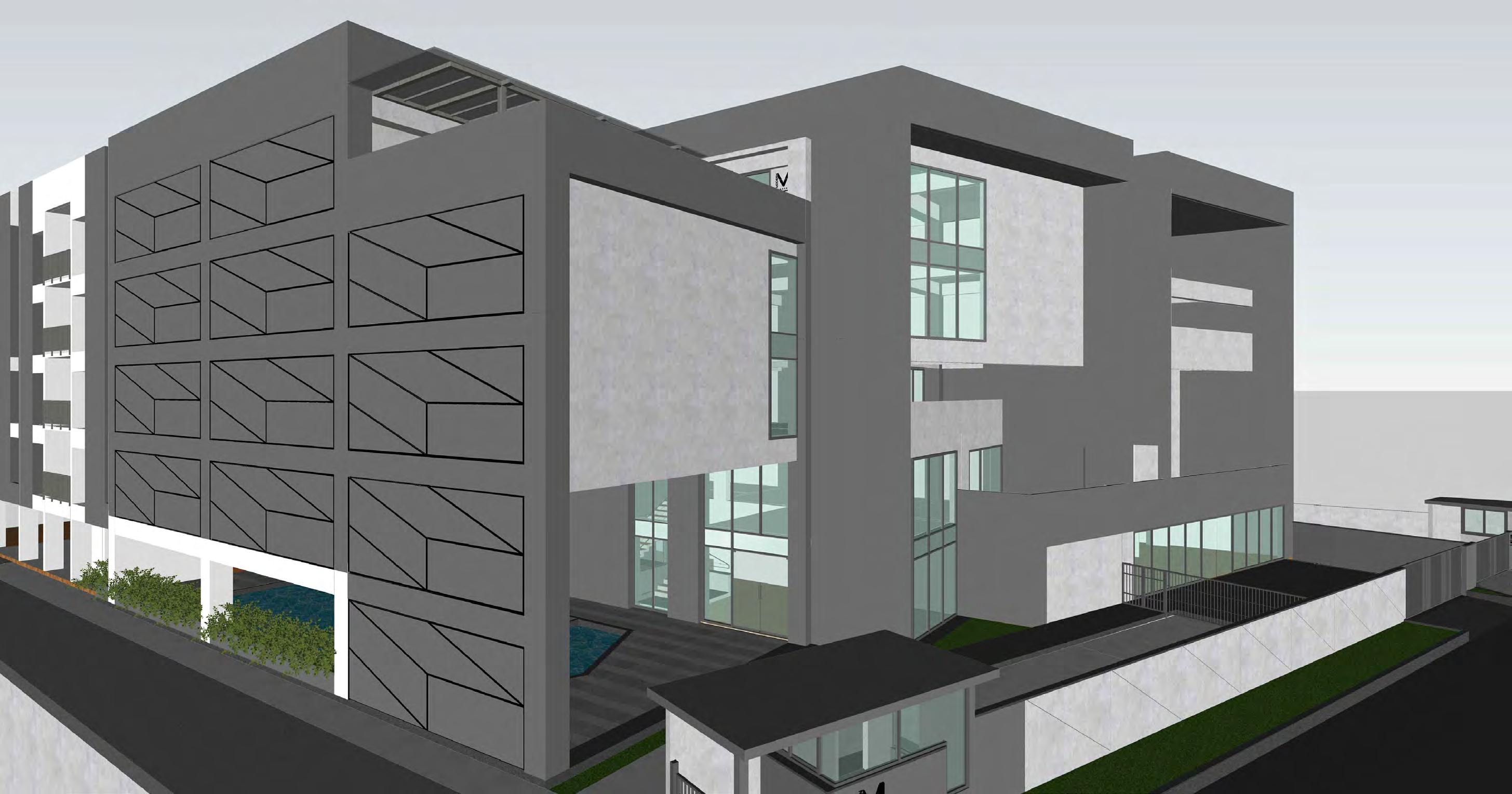

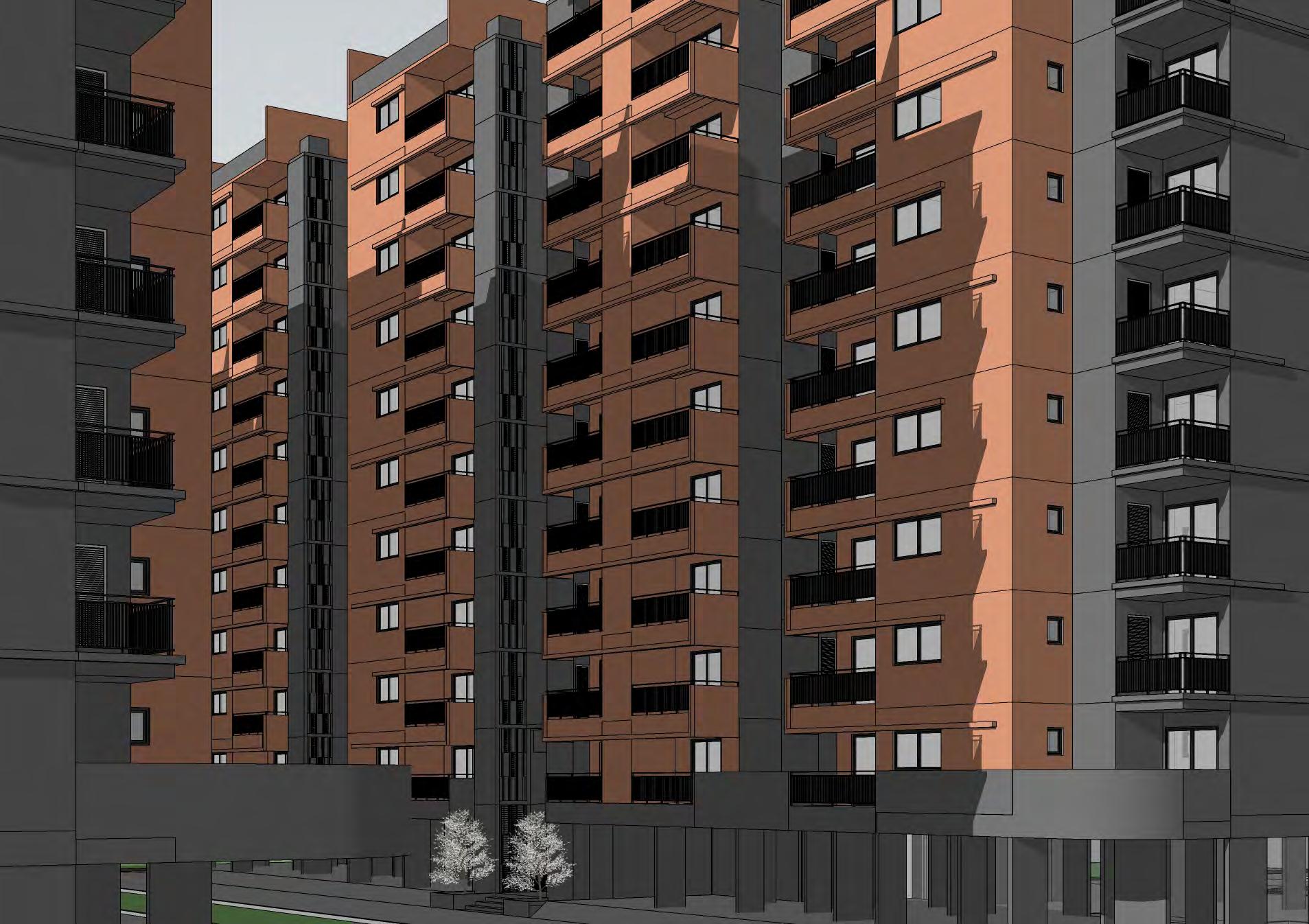

SHEKAR OAKWOODS

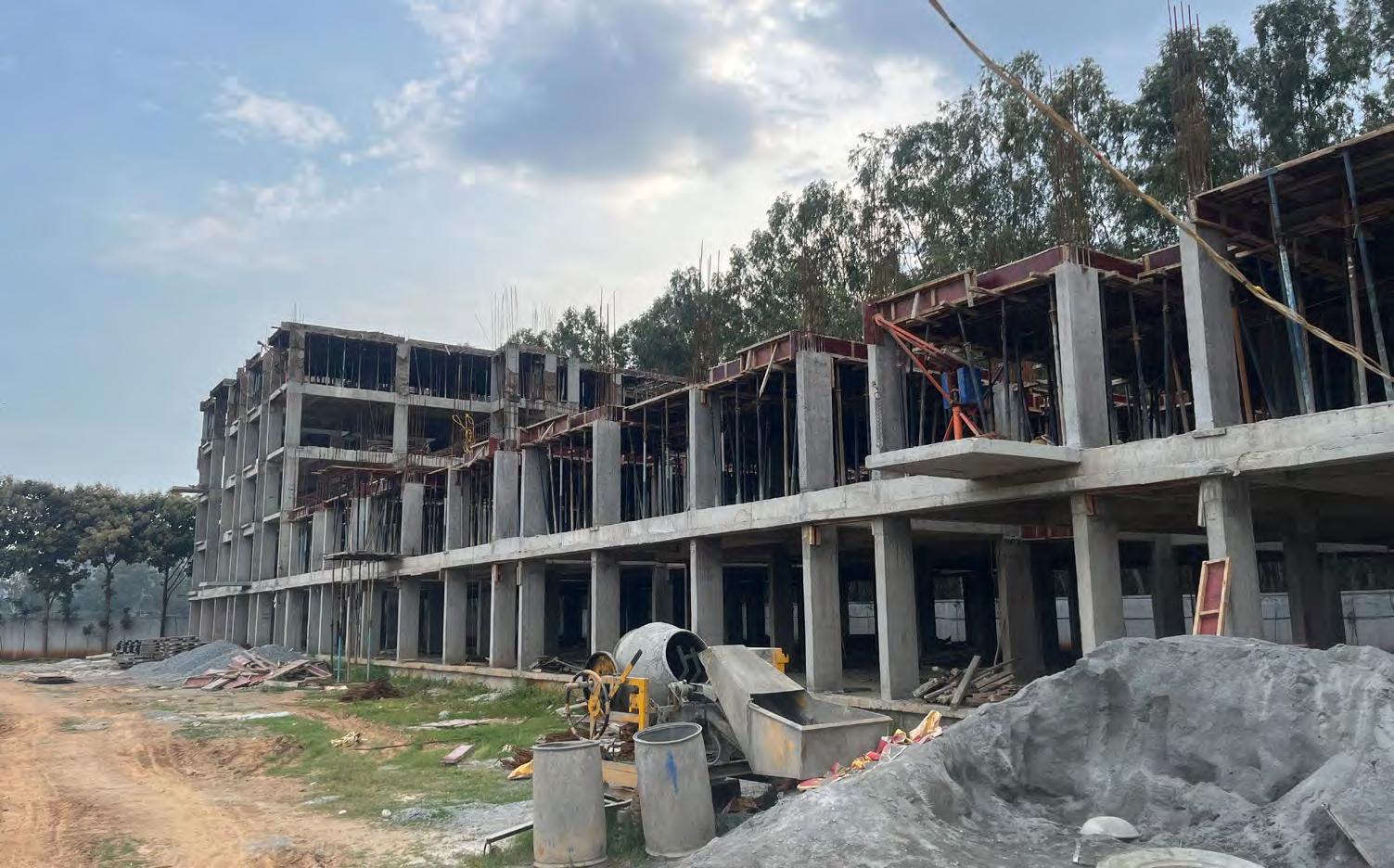

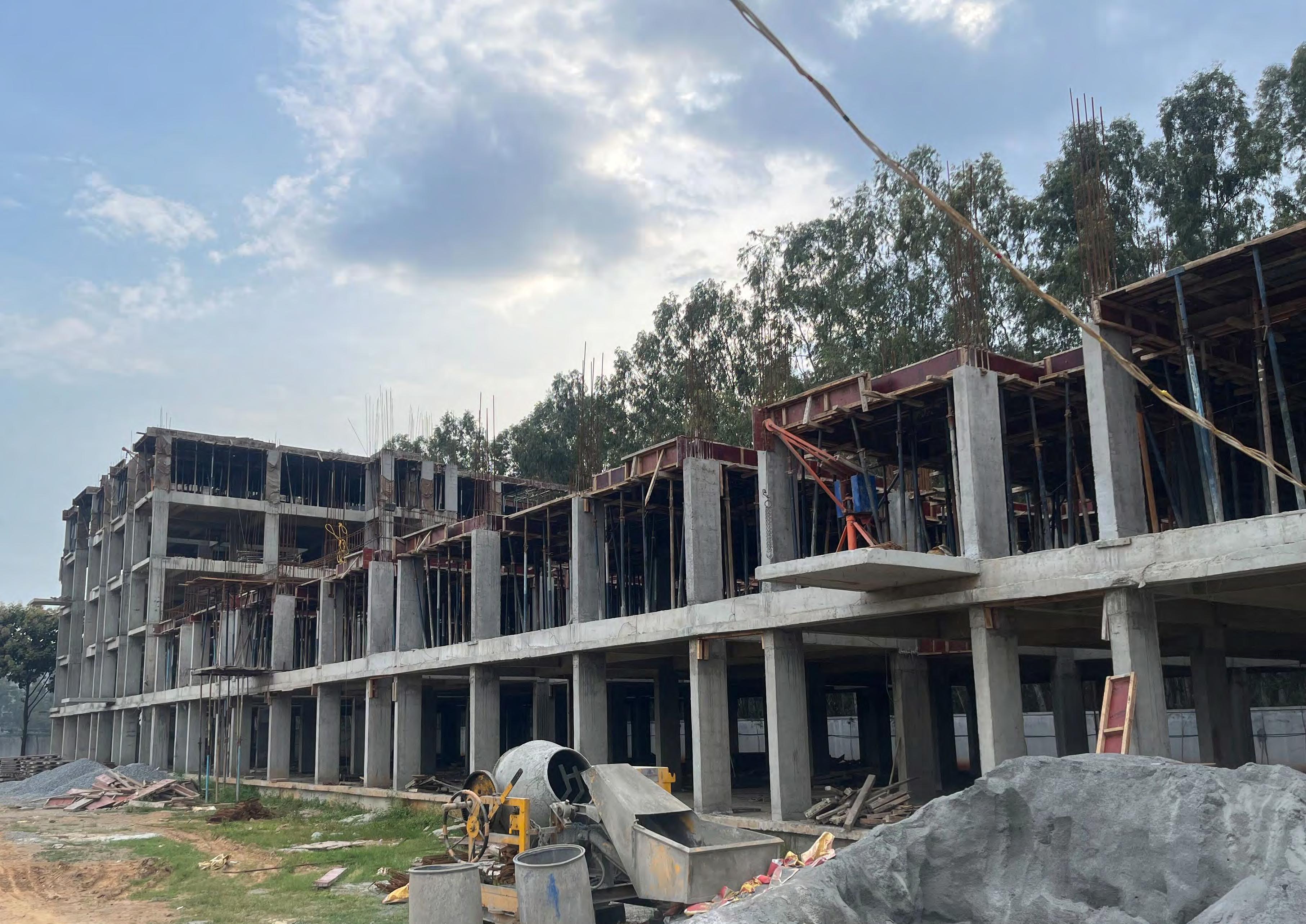

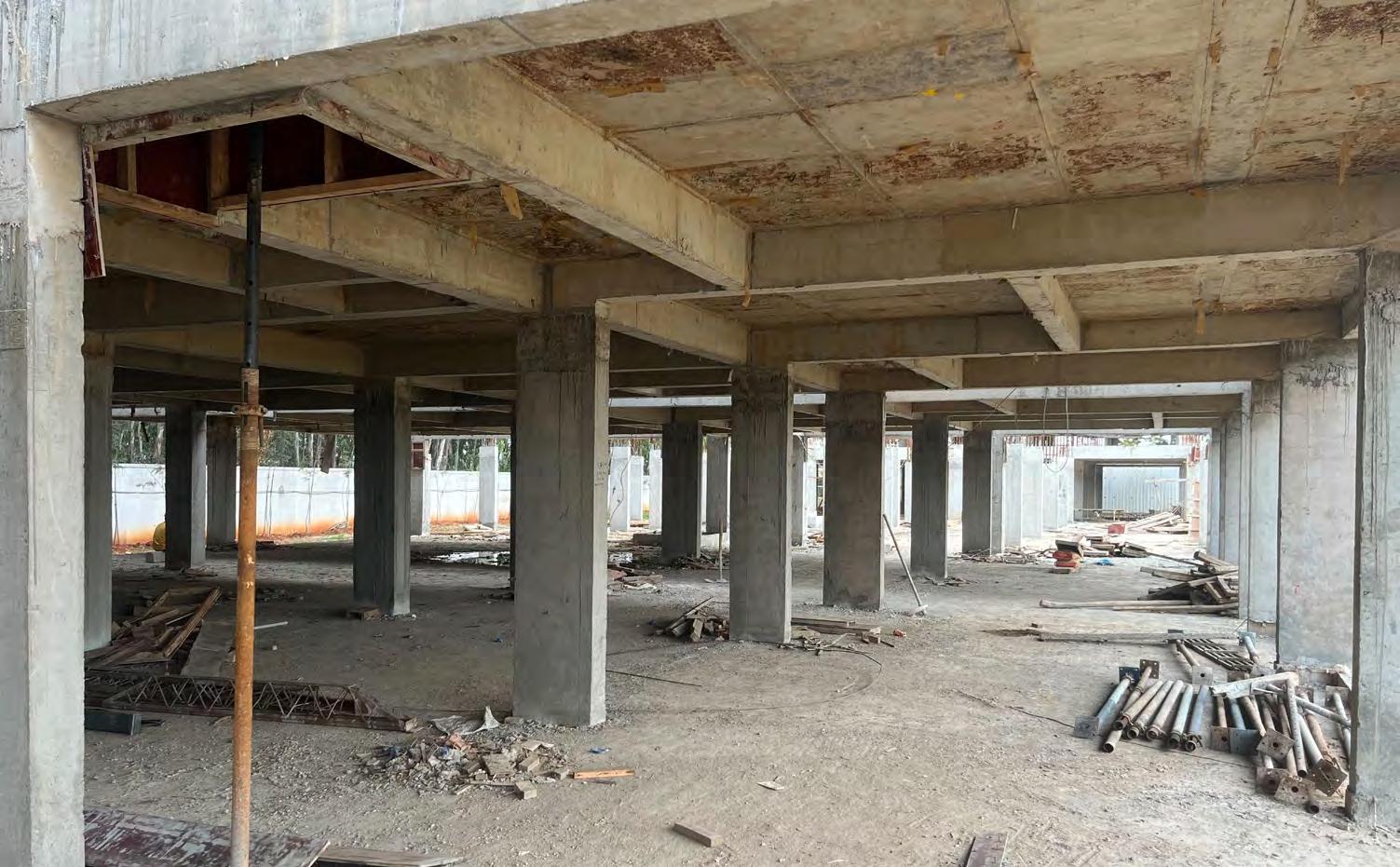

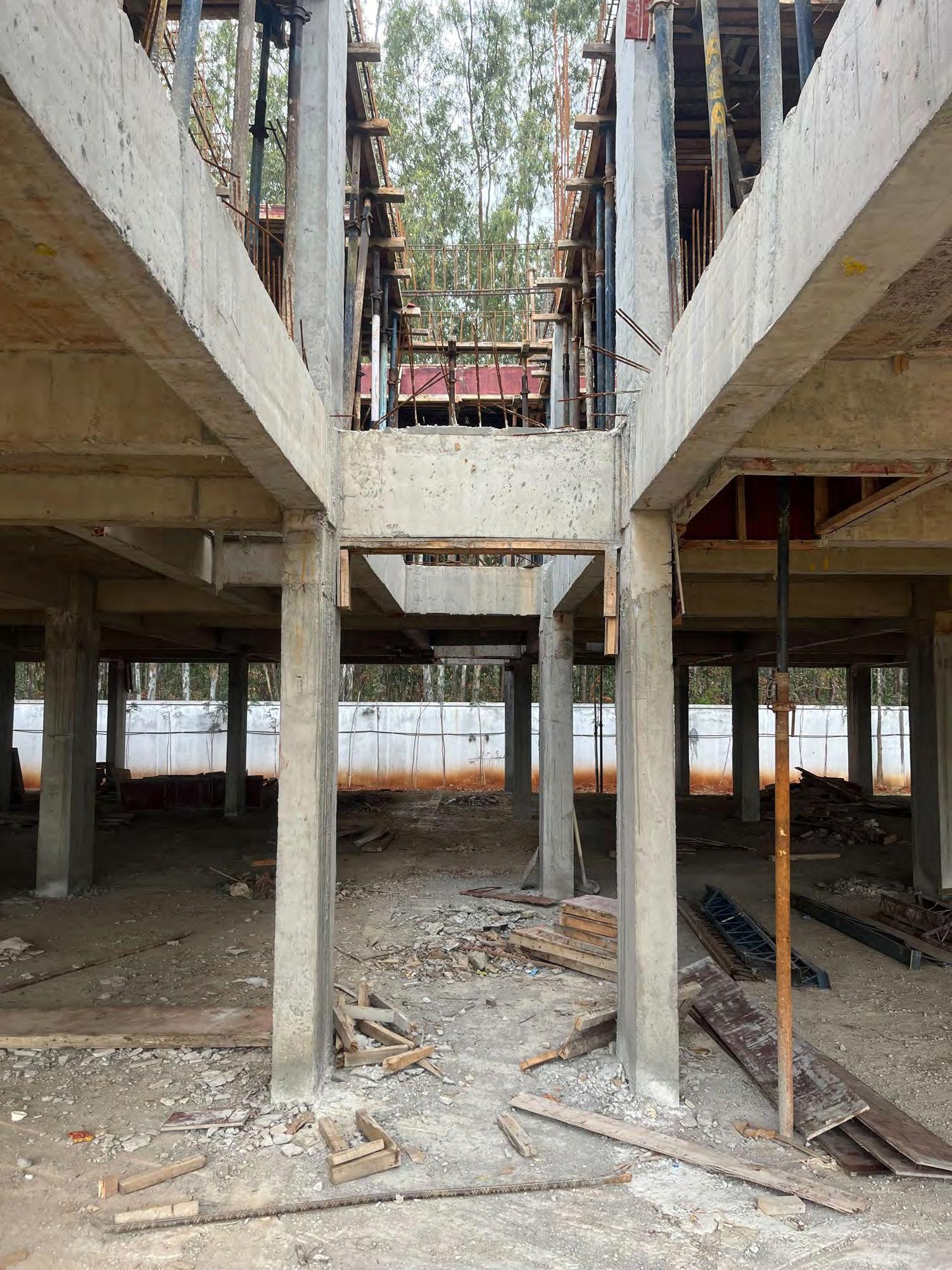

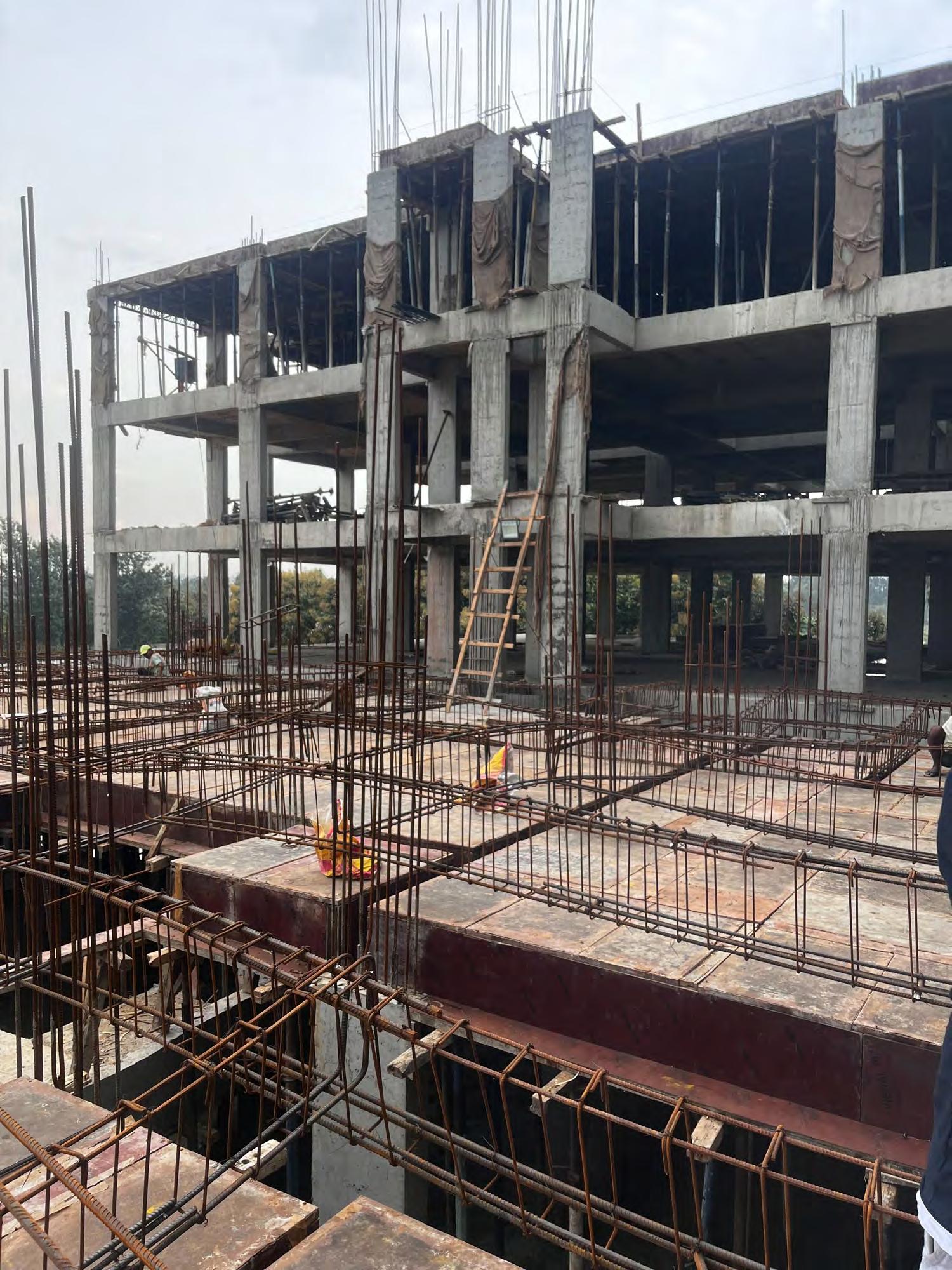

Overall view of Block
Concrete finish after De-shuttering

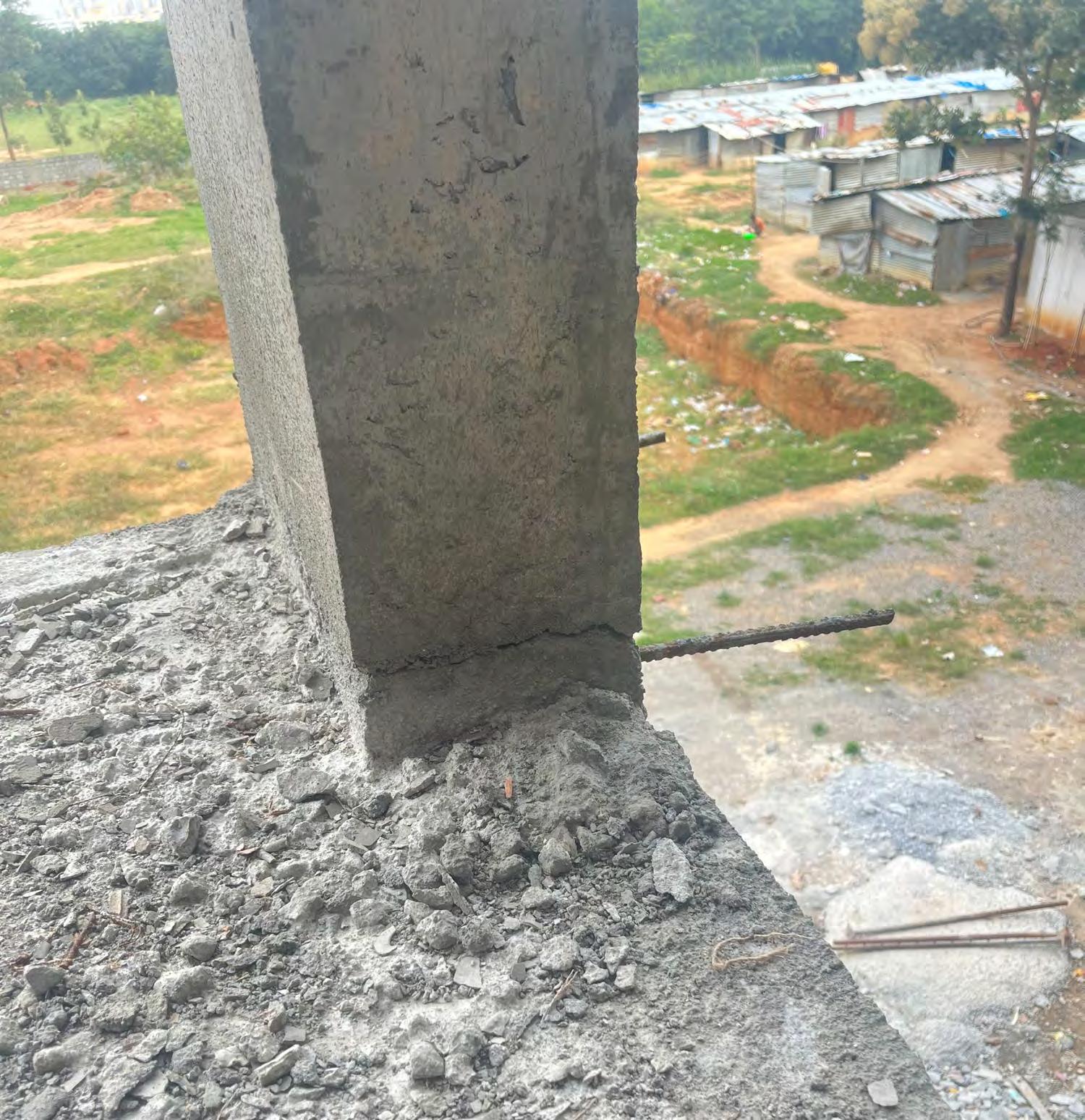

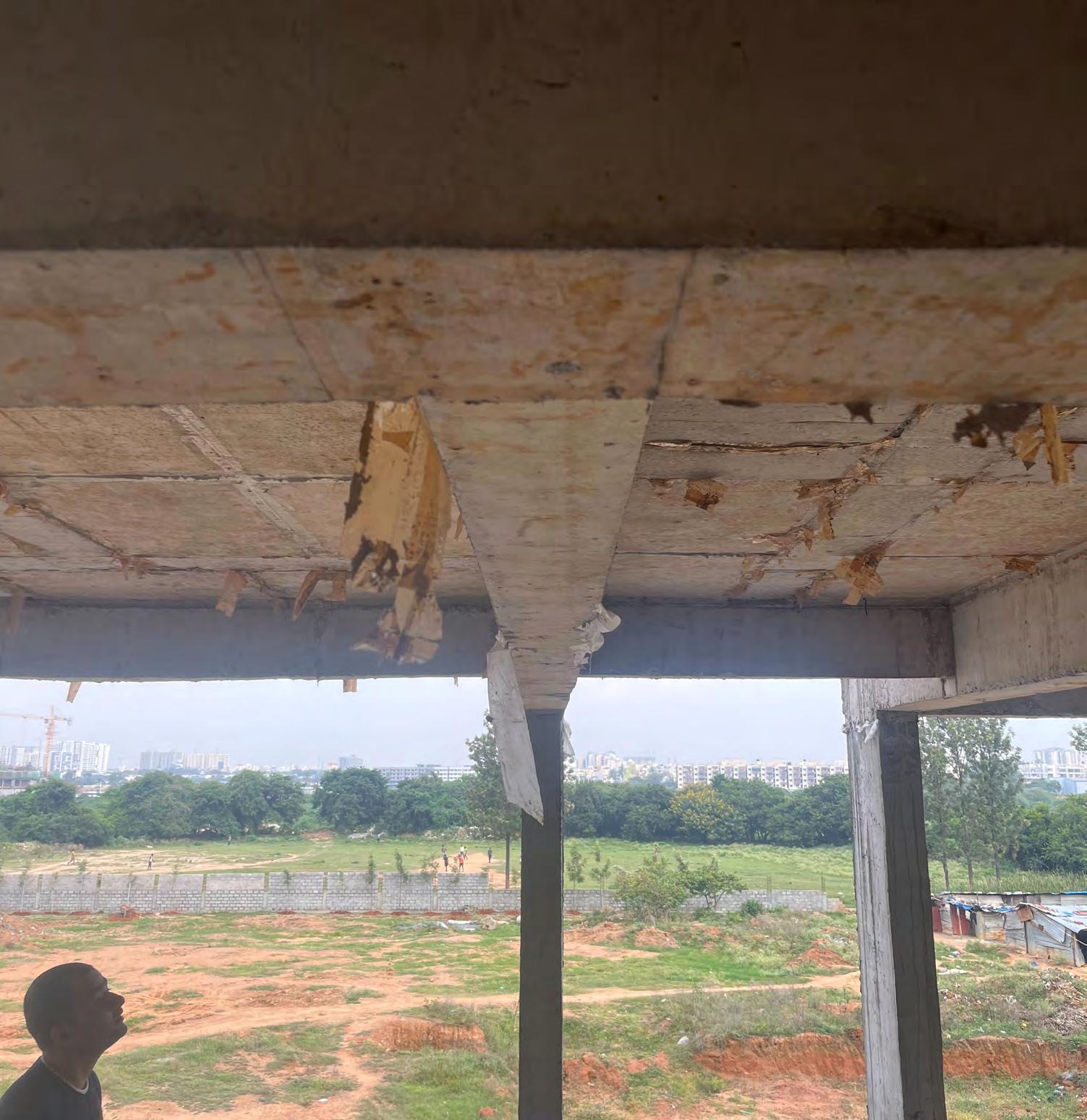

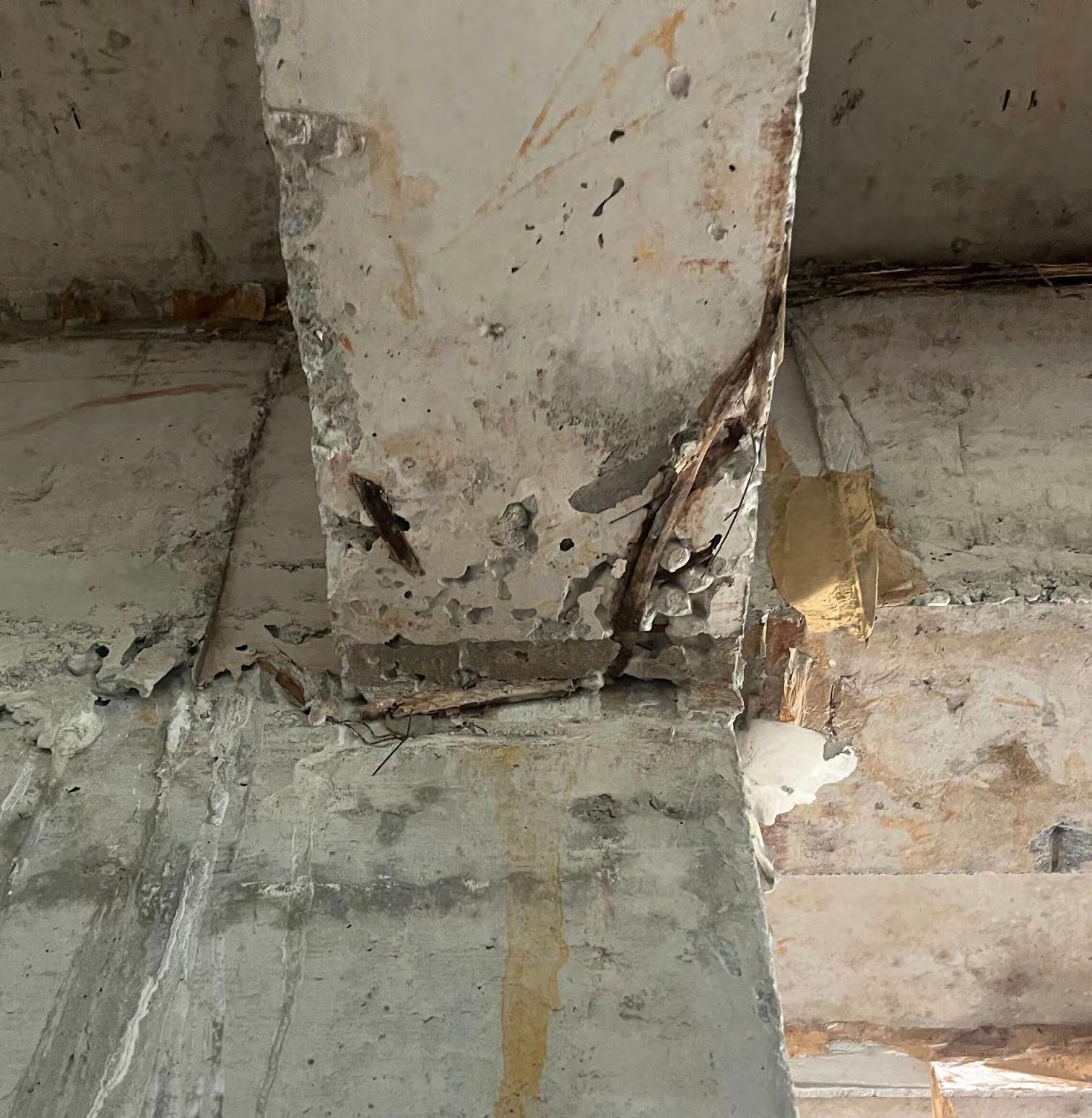

Columns have cracks at the starter joint due to poor shuttering. Beams casted are not in alignment with respect to the other respective beams on the same grid line, they seem to be curved and mis-aligned, beams are bulged at few places due to poor shuttering.

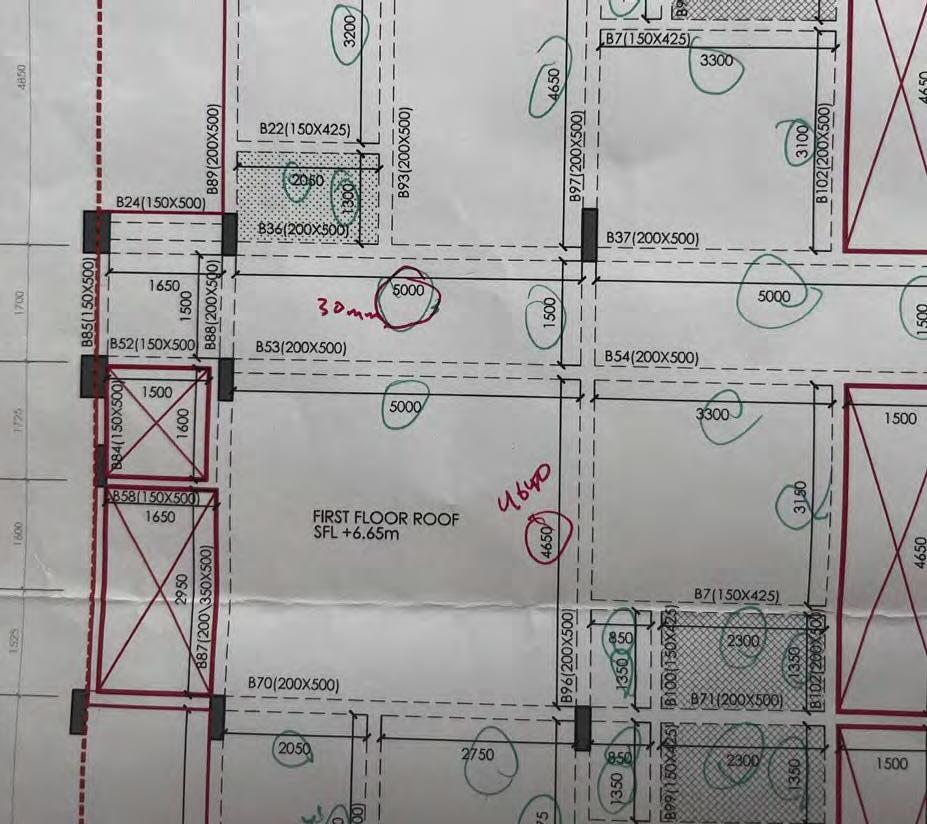

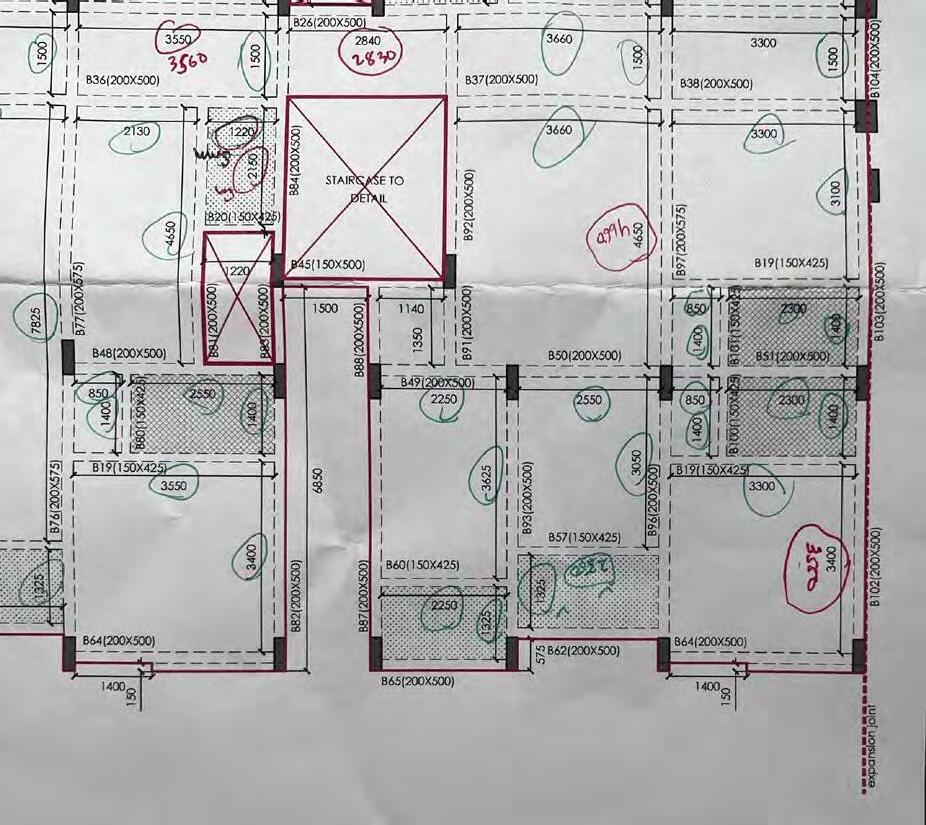

In the grid G1-J1 and 05-06: The slab has to be 5000mm long but instead it was 30mm short which has been conveyed to the site incharge

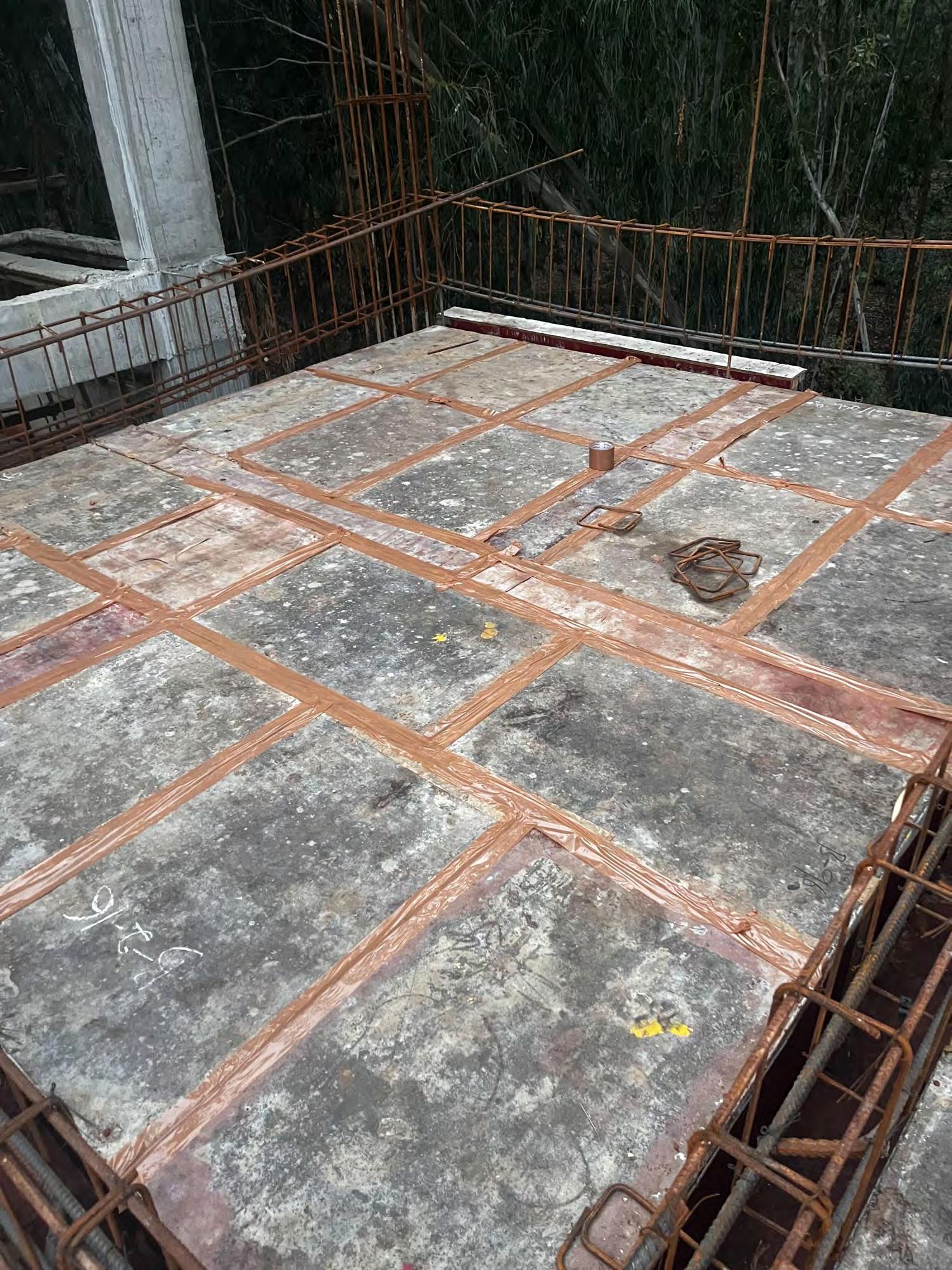

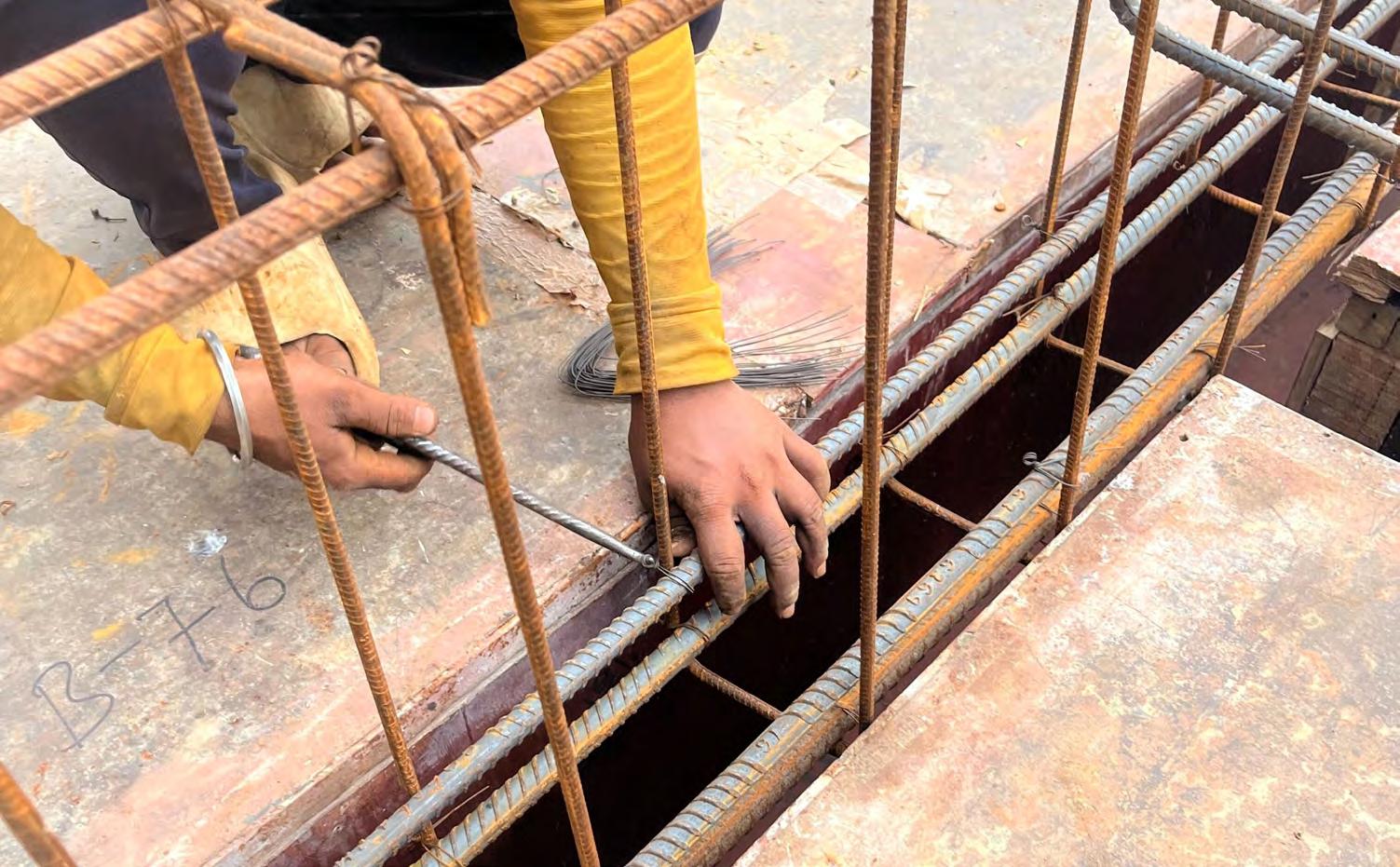

Reinforcement bars are been seen.
Slab dimensions exceeding 15mm were identified and conveyed to site team.
Grid E1-Z1: The beam is been aligned to the outer surface of the column Y1-01 and Z1-01, due to which there is an error of extra 150 mm. The beam needs to be recessed inside by 150 mm as indicated in the architectural shuttering drawing and the same was conveyed to the site incharge
