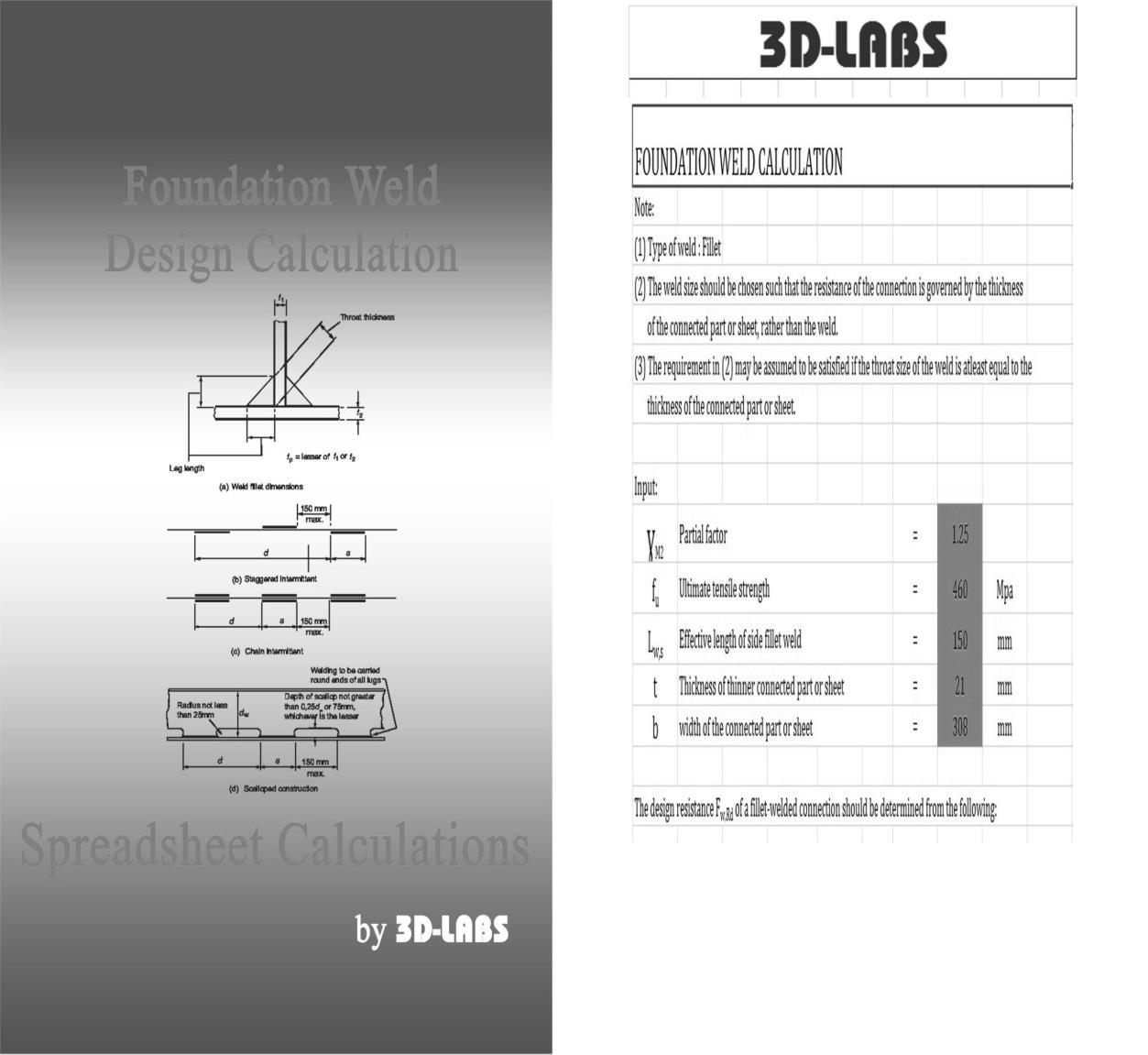

FOUNDATION WELD DESIGN

In this calculation we are going to foundation weld calculation, for that I am using following inputs

( factor = 1.25, ultimate tensile

strength=460 Mpa, effective length of side part of fillet weld=150mm, thickness of thinner connected part=21mm, width of the connected part=308mm)
