Table Of Contents Setu Kendra [ Design Studio III ]

Community Housing [ Design Studio IV ]

Janana Aarogya Kendra [ Design Studio V ]

Working Design Drawings Architecture is like writing. You have to edit it over and over so it looks effortless.

[ Design Studio VI ]

Measure Drawings Bundi , Rajasthan Vadodara , Gujarat

- Zaha Hadid

Hands On Materials Material Exploration

Miscellaneous Work Competition Betwixt

Parametric Explorations Photography *Compilation of Selected Works from 2017 - 2019

Setu Kendra [An Institution that bridges Villagers and Government ] Setu Kendra : Setu means ‘ Bridge ‘ and Kendra means ‘ Institution.

Batons

Program Intended to design a Training center that can be multipurpose along with dedicated community space for Villagers

Purlin

Rafters

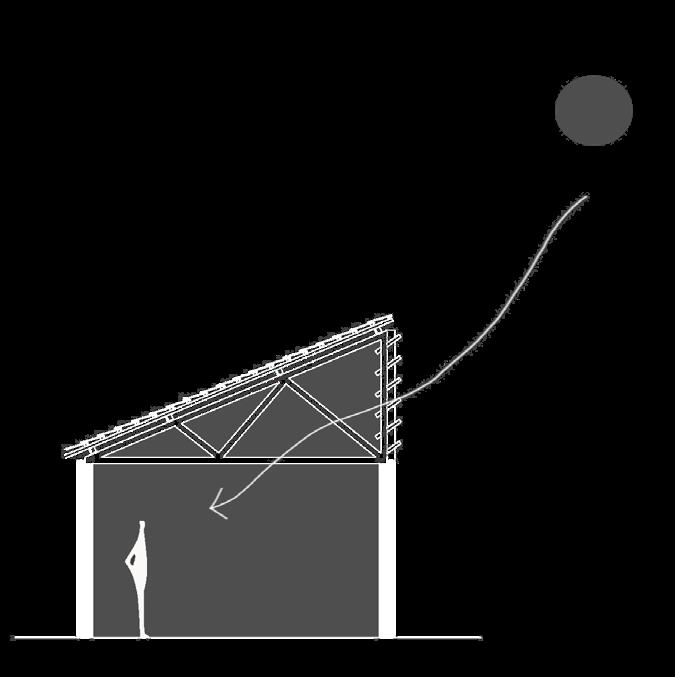

The Spaces Directly connects By the Use of Louvered Formal Zone with the village. Due to this the Monopitch truss light intensiInformal Zone presence of institution becomes ty can be controlled . subtle .

Institution is divided into Two zones : Formal zone and Informal zone

Monopitch Truss

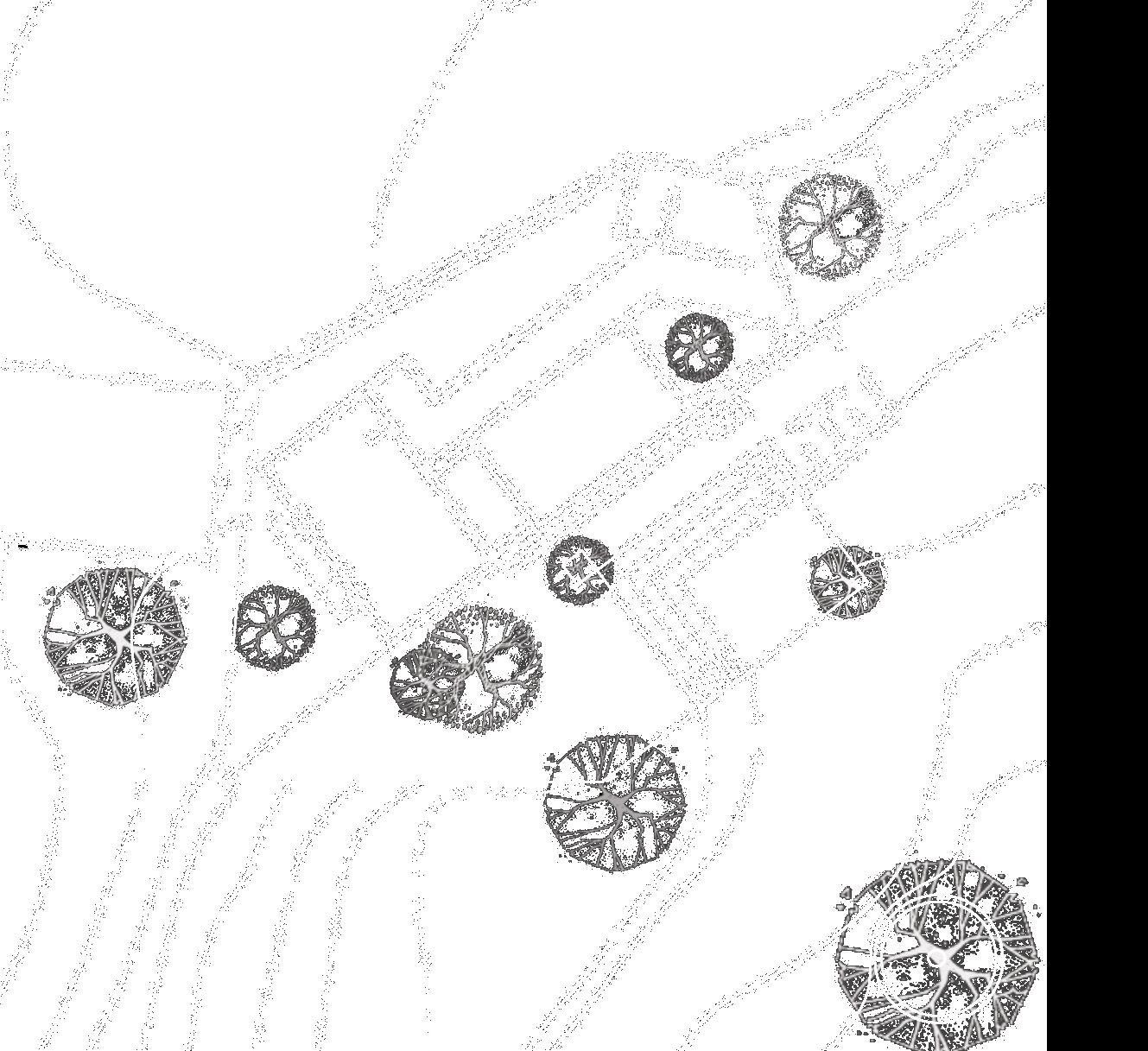

Site Area : 170sq mt The site is in Slope It works as a Edge To the road and directs to the Village side.

It also Has Public edge which is dedicated to Villagers .

Truss Exploded Detail

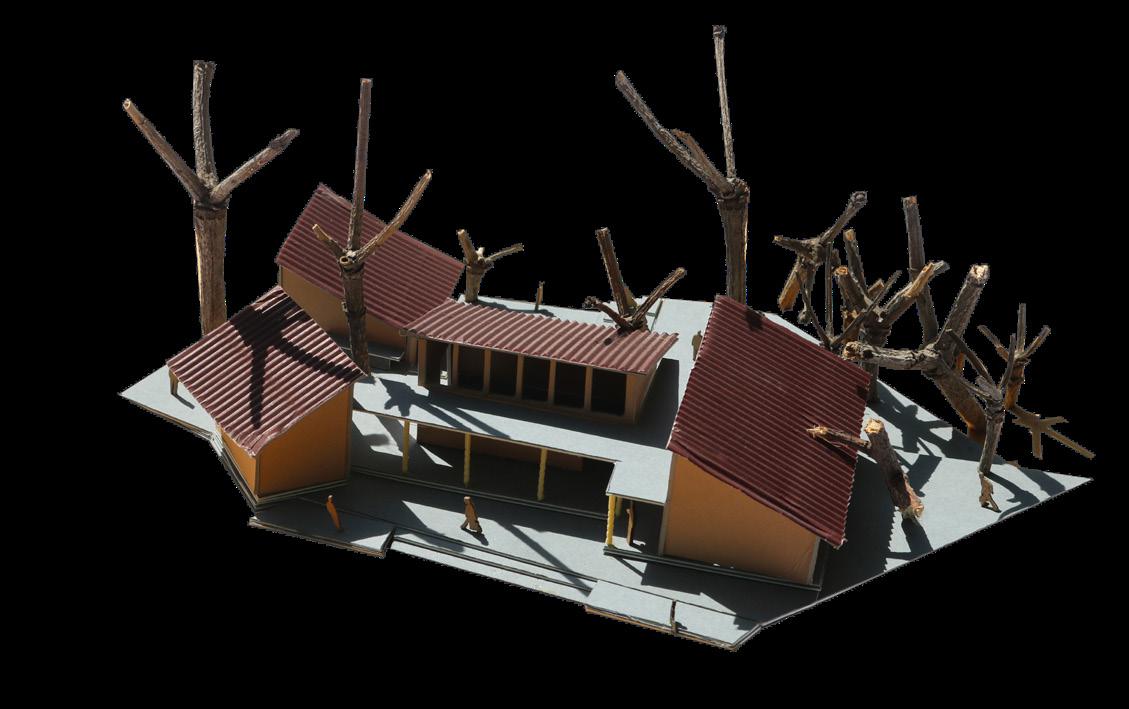

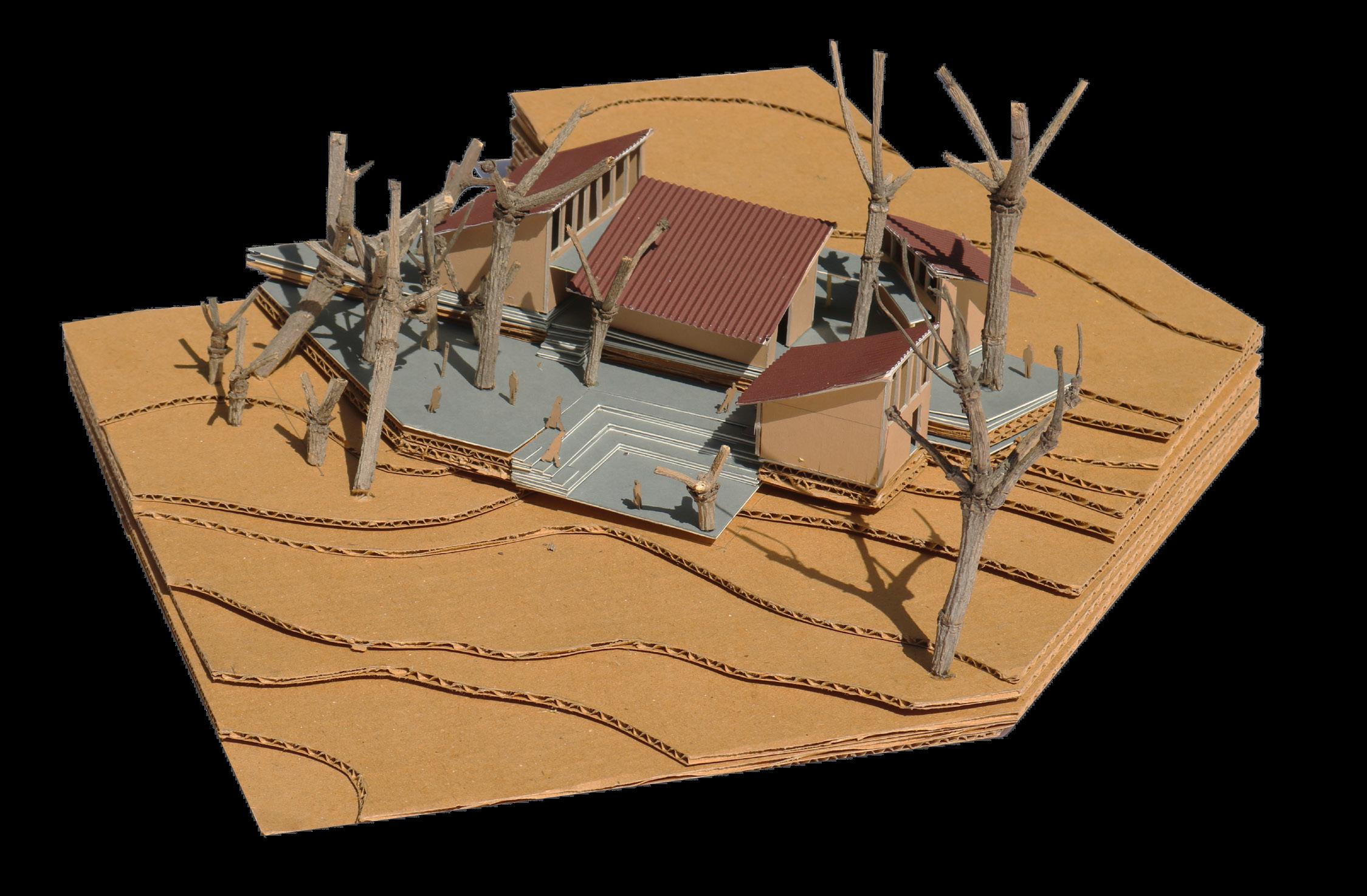

Model of the Design

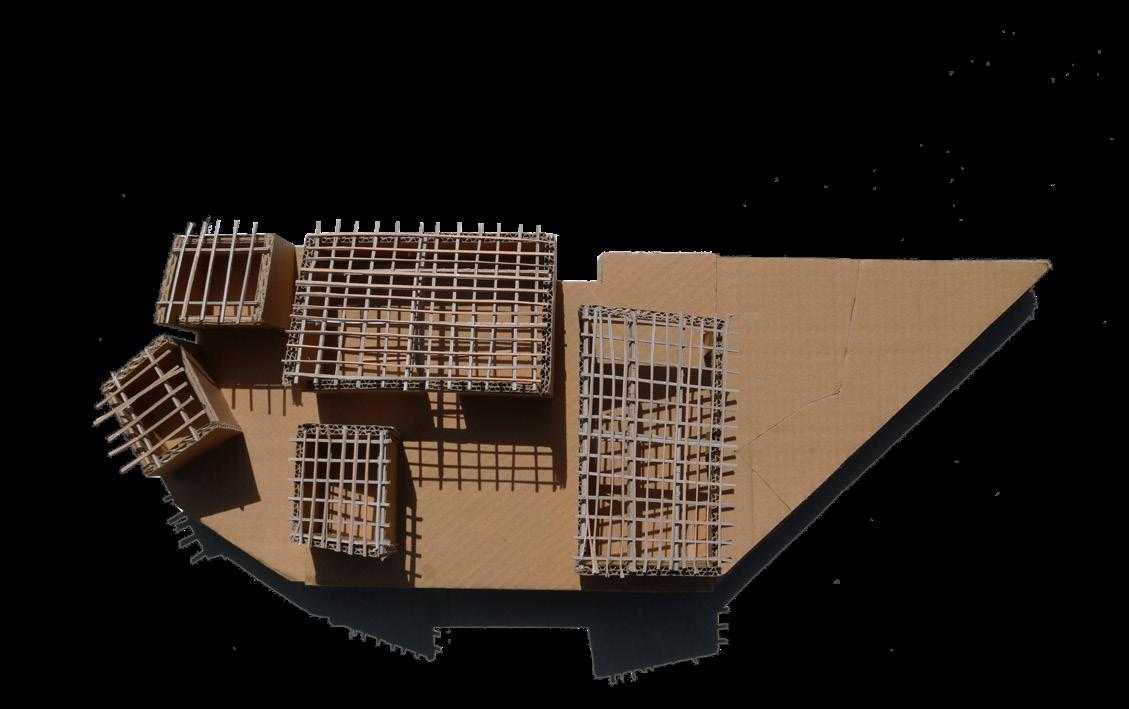

Structural Model in Plan [To Understand Roof members ]

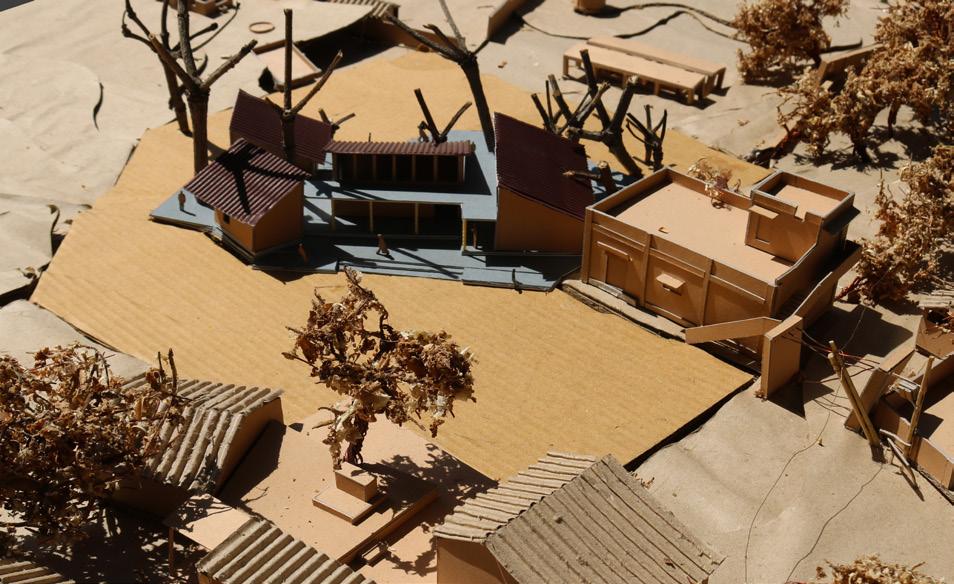

Model Along with the Site context

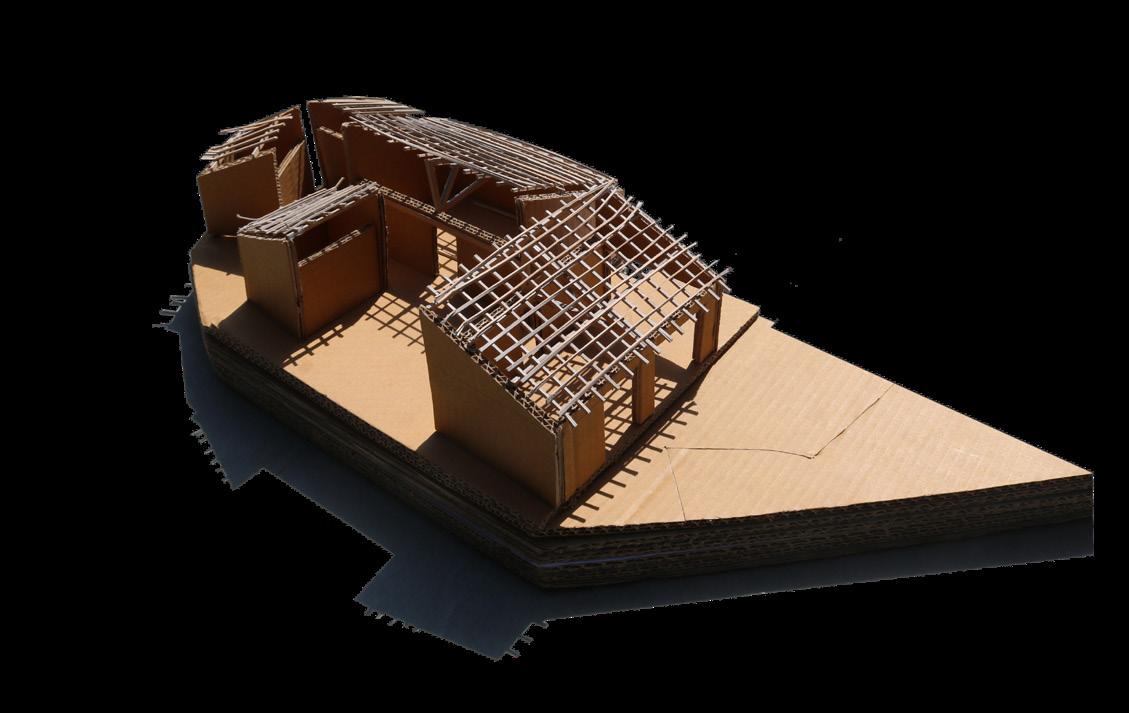

Structural Model

Plan

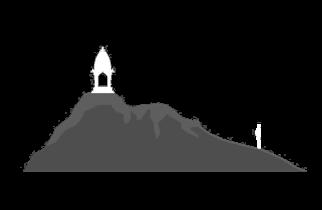

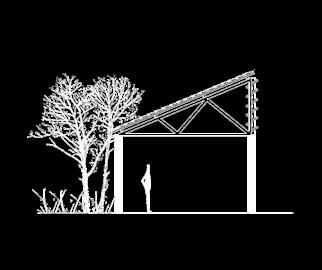

Section aa’

Design Model Section bb’

Contextual Housing Dwellings for 11 Families The Program Intended to design Dwellings for 11 families in the respect of the Macro and Micro context of the Site. The site was located in the city of Bundi, Rajasthan.

I intended to give Dwellings its own identity and yet be in balance with existing typologies of Bundi and also to provide a hierarchy of Open spaces for Immediate Neighbourhood

Closed Space Semi open Space

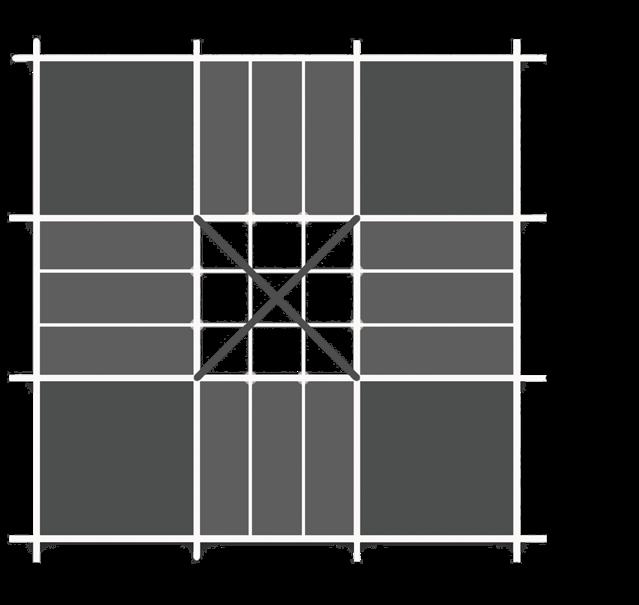

Plan Of House was derived from 9 Square Grid .

Center : Open Sides: Semiopen Corners : Closed Spaces

Module 1 : Plan for a Big Family . It Is derived from further dividing 9 square into further 9 divisions .

Module 2 : Plan for a Smaller family . As per the functional needs 6 square are taken and further modified.

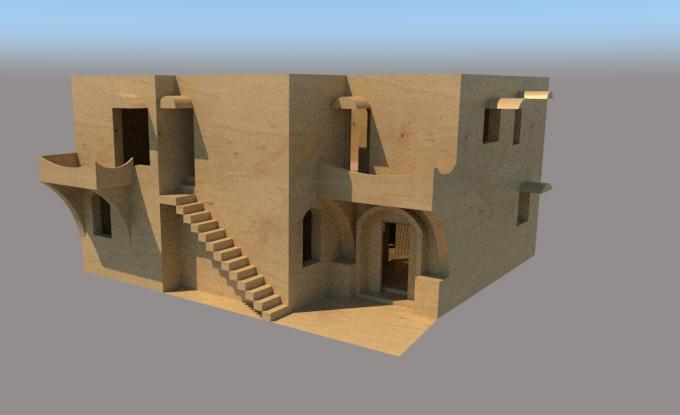

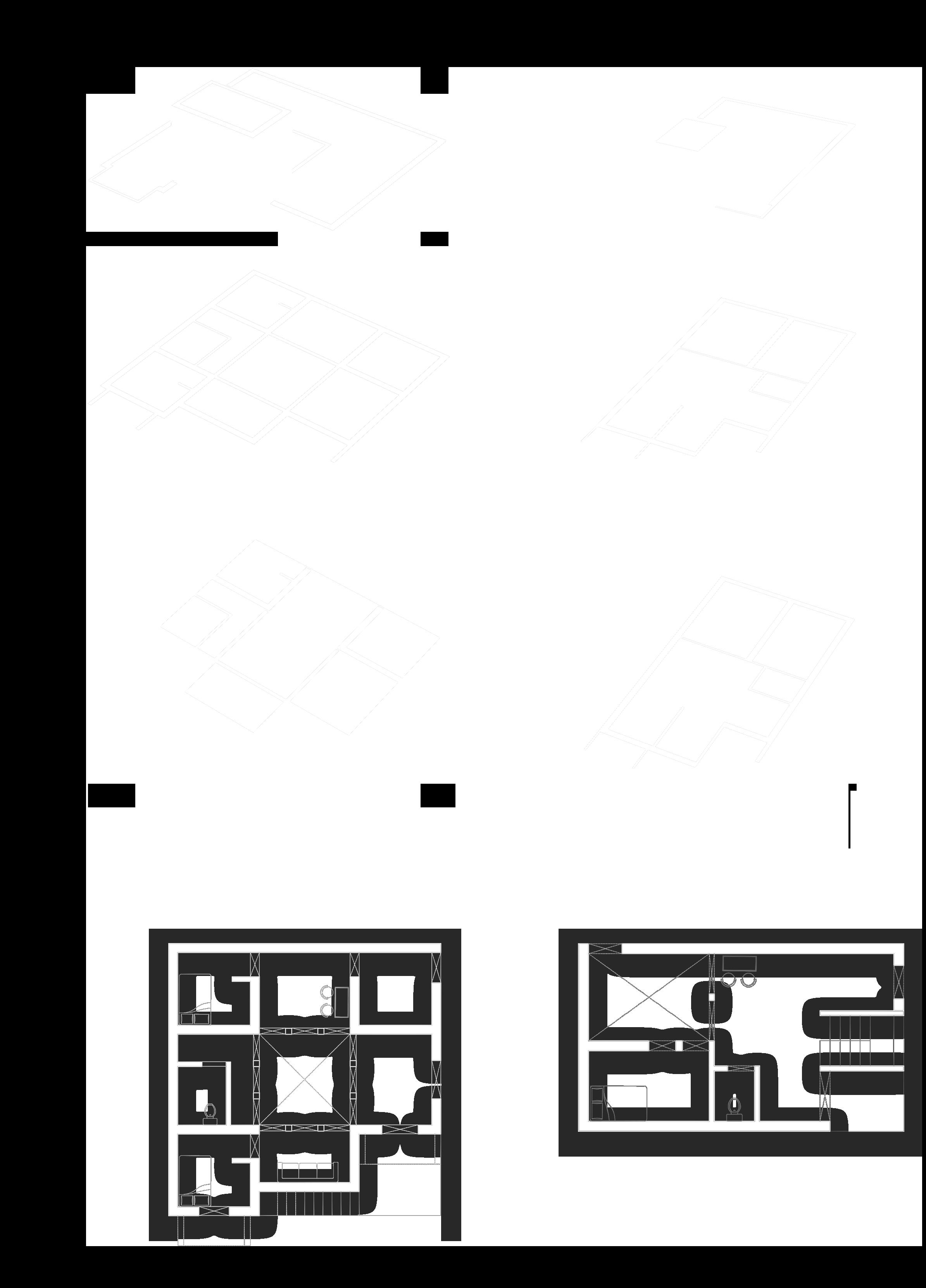

Exploded View of Type 1

Exploded View of Type 2

PLan tpe 1 : Hose for A Big family [ 2 Families are clubed ]

PLan tpe 2 : Hose for A Small family

Site Area : 1100 sq mts.

The site has contur drop of 4.75 metres.

The main concept behind the staggering of the house is that it creates an opportunity to create public spaces So due to it there is a Hierarchy of Open spaces is created which serves the neighborhood.

Unit Prototype in Plan

Unit Prototype

Unit Model

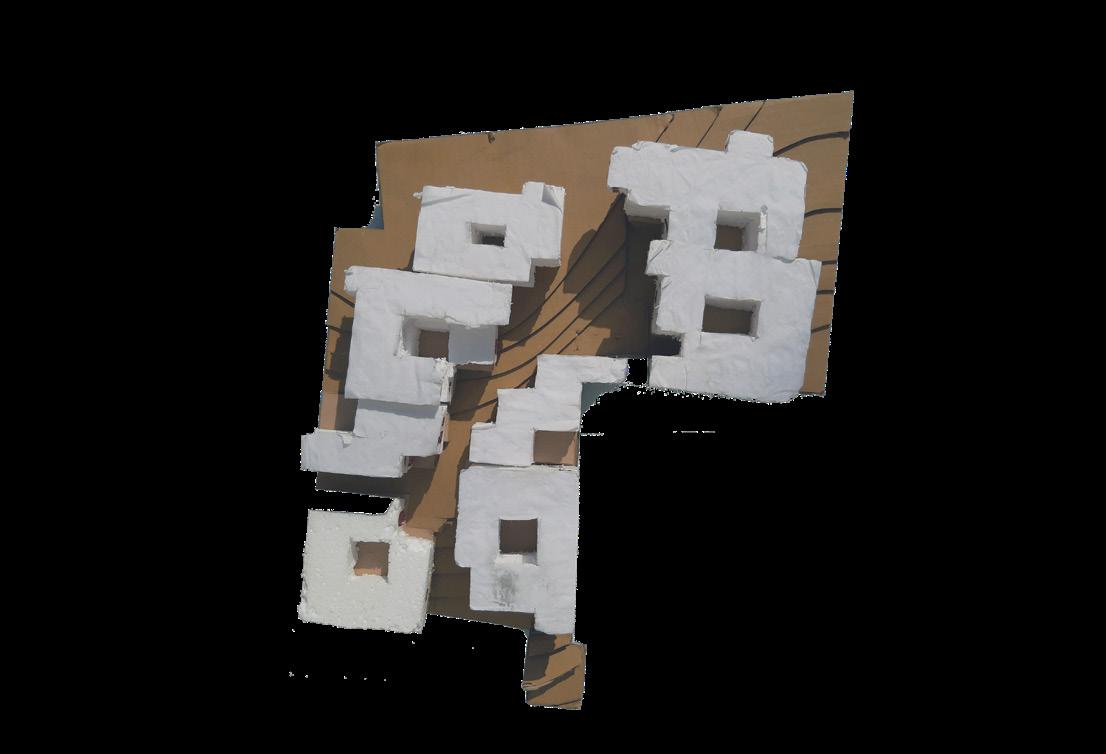

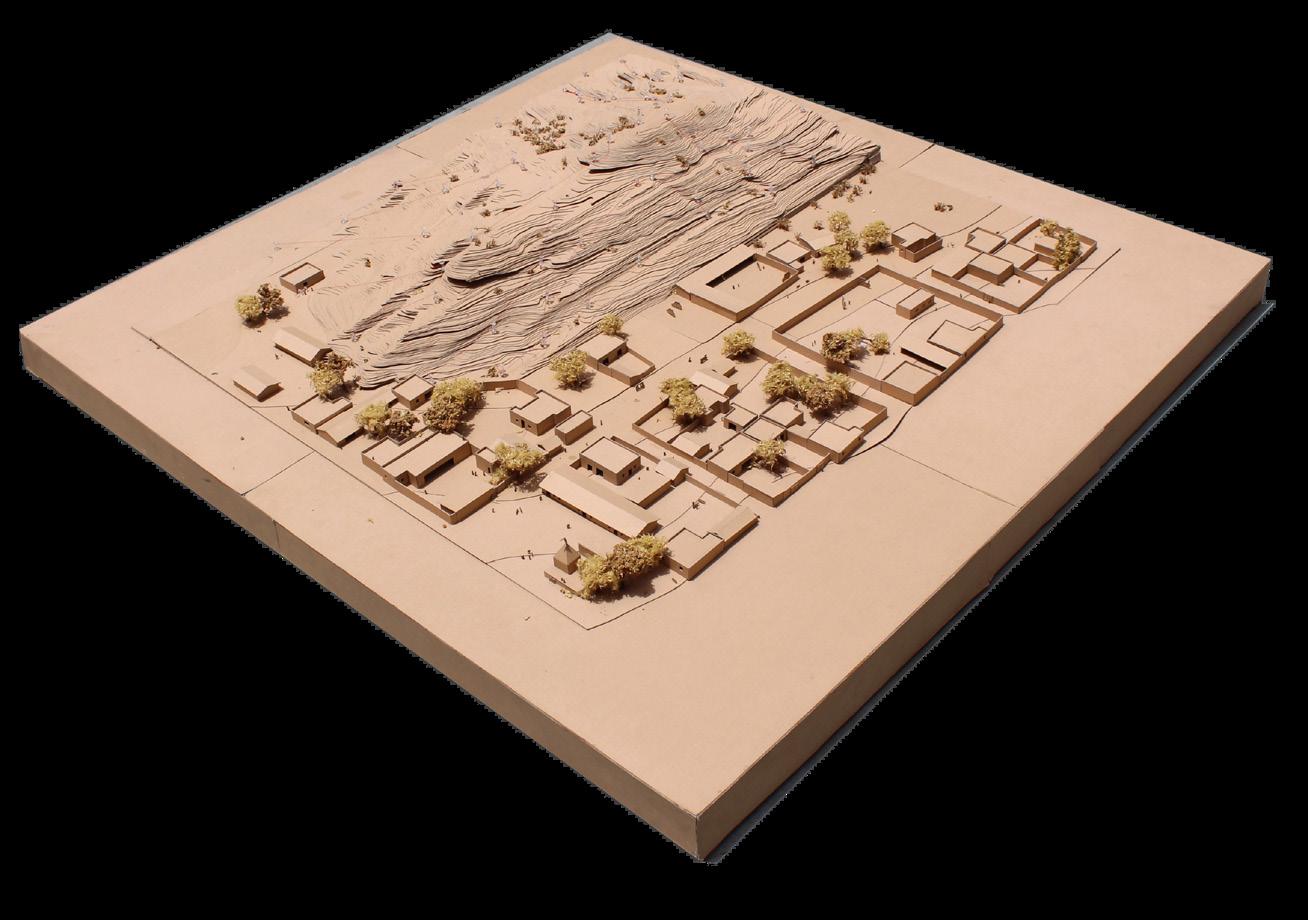

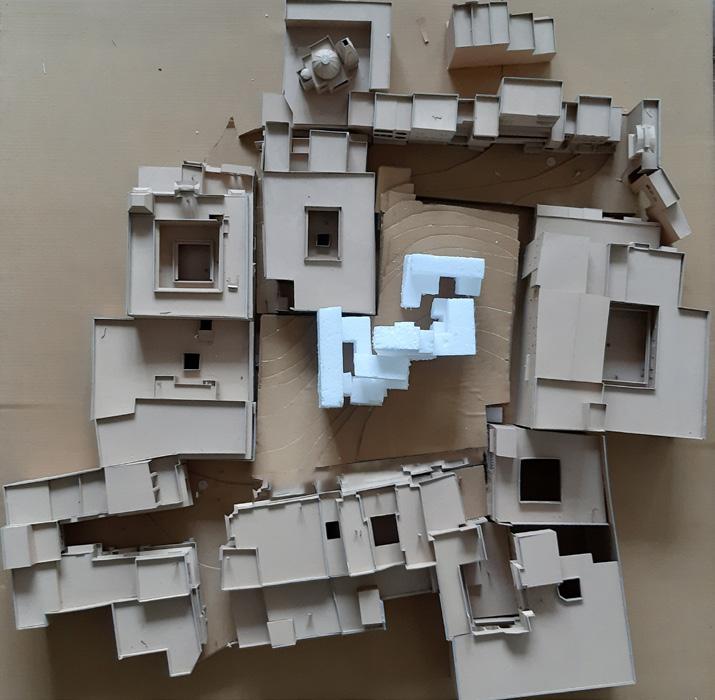

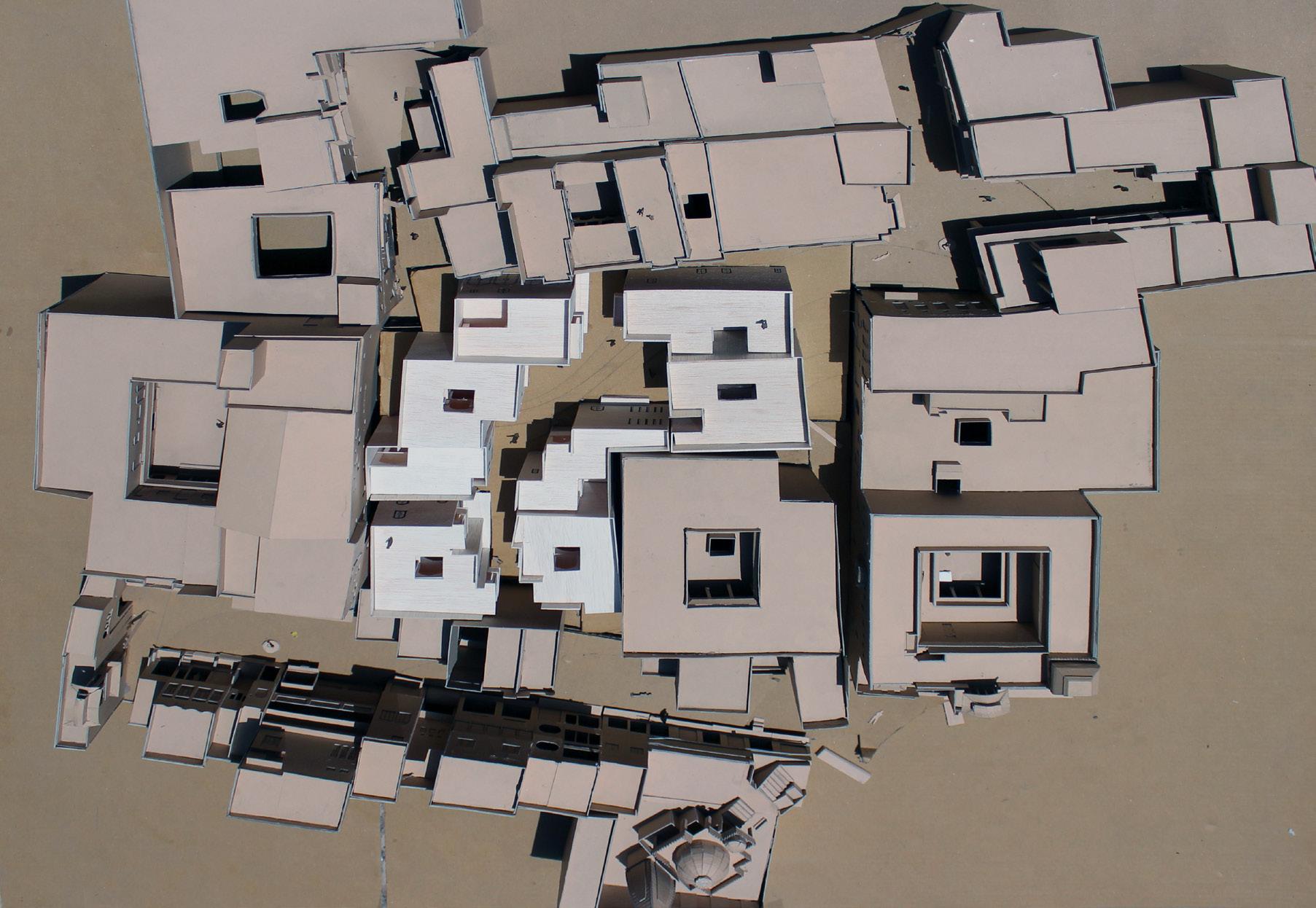

Mass model With Site

Plan

Section aa’

Design model With Site Section bb’

Janana Aarogya Kendra Pediatric Semi Special ward

Hospital For Womens And Children

Pediatric Special ward

Gynec Special ward

The Program was to design a Healthcare centre i.e. Janana Aarogya Kendra : Healthcare centre for Womens and Children . As the function of this program is critical the Spaces are being designed with utmost care and understanding the nature of function .

Gynec Semi Special ward

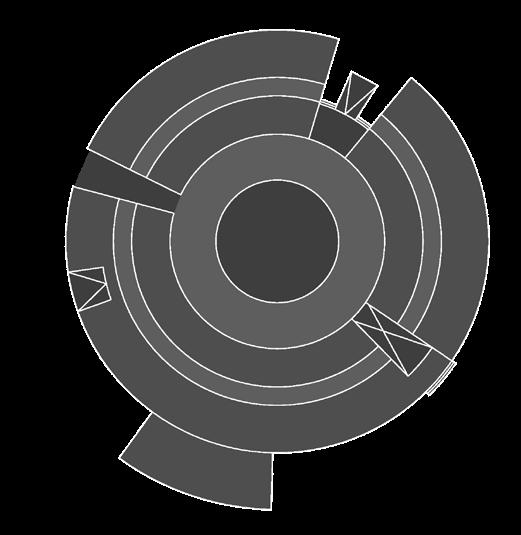

The design is functionally divided into two zone : a. Gynec b. Pediatric Further it is divided into two zones : 1. Out patient department 2. In patient Departments

Form Circle was taken to get maximum exposure of Sunlight and ventelation and Center as Courtyard .

1.

3.

Functions Circulation Function and Circulation are arrangend in way that Every Spaces is Naturally ventelated .

Pediatric General ward Labor Room

1.

Based on the functionality of Hospital Spaces for Entrances are designed.

1. Public Entrance 2. 2. Service Entrance 3. Emergency

Structure is then designed which governs the Spaces and zones were designed.

2. 1. Gynec [Outpatient] 2. Pediatric [ Outpatient] 3.Inpatient 3.

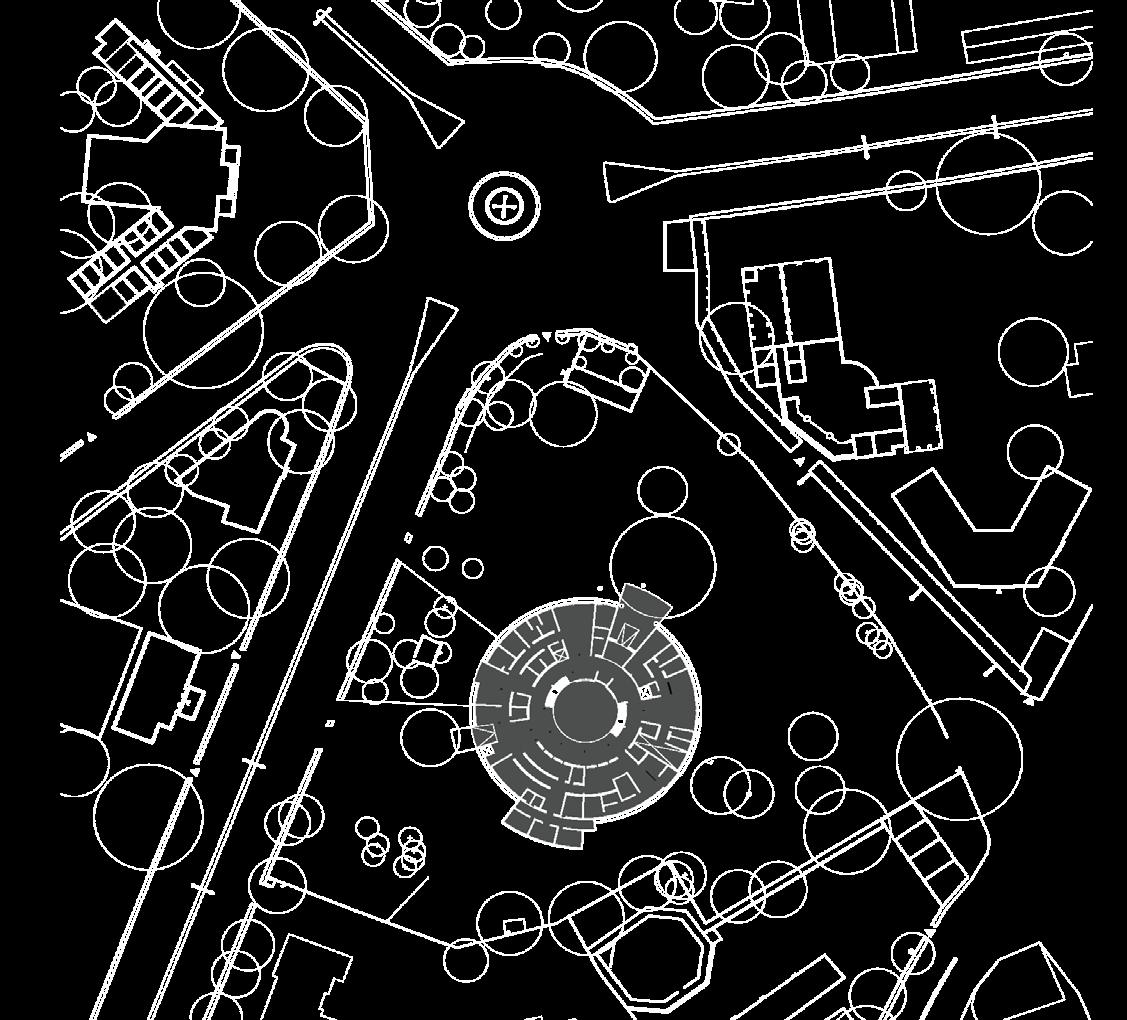

Site

Area

:

12,000

sq

First Floor Operation Theater

Pre Operartive

Gynec General ward

Post Operartive Emergency Enterance

Service Enterance

Laboratory

mts.

Site has many prominent features among which is A Huge Banyan tree These Banyan tree acts as a Pivot for the site . So My response in design is that the Main entrance of the hospital is just opposite that tree Under the Shade.

Pediatric Opd Gynec Opd

There is cental courtyard which Ventelates the Inner Sanctum of the premise.

Public Enterance Exploded View

Ground Floor

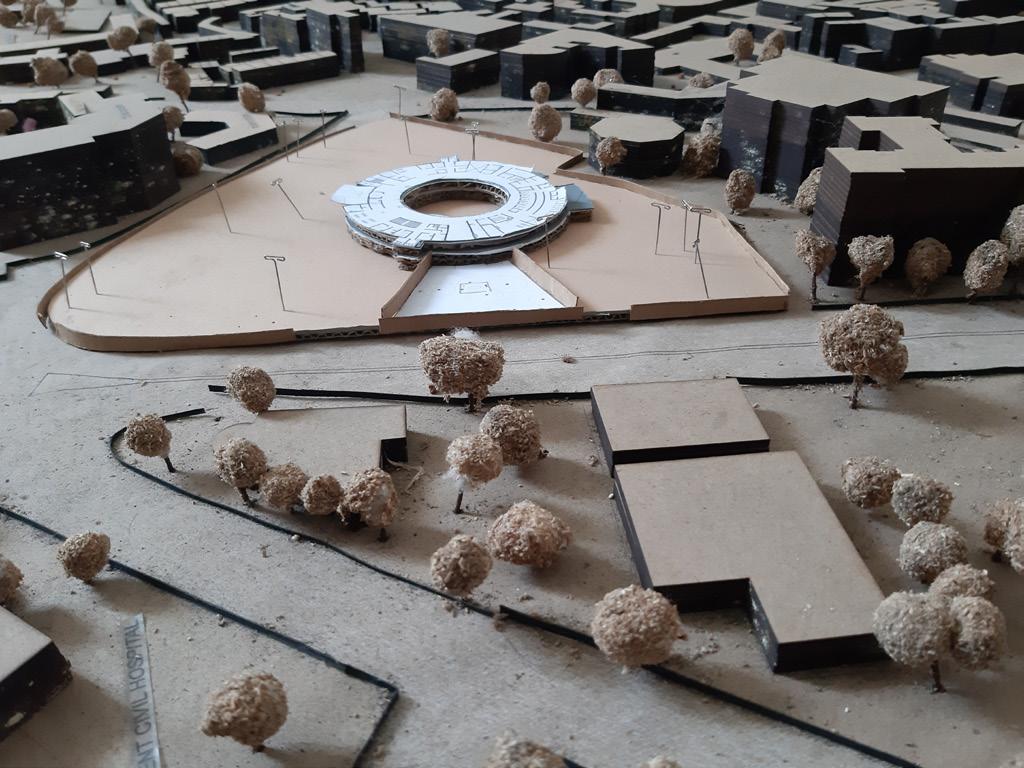

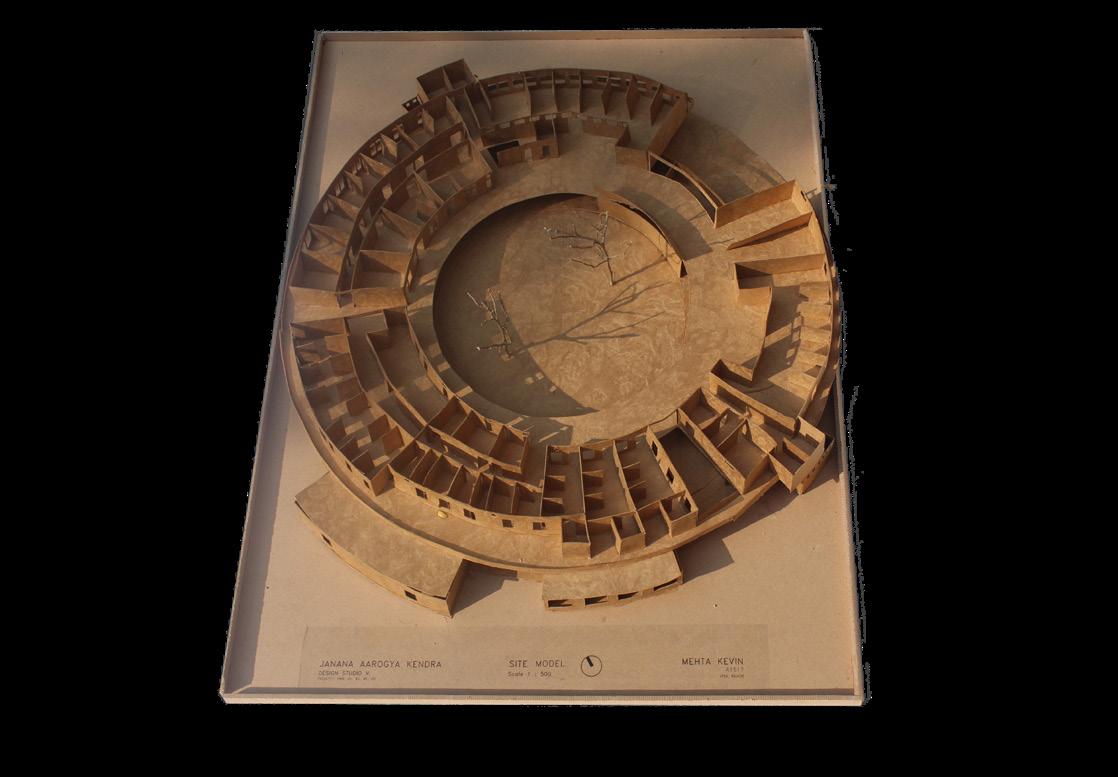

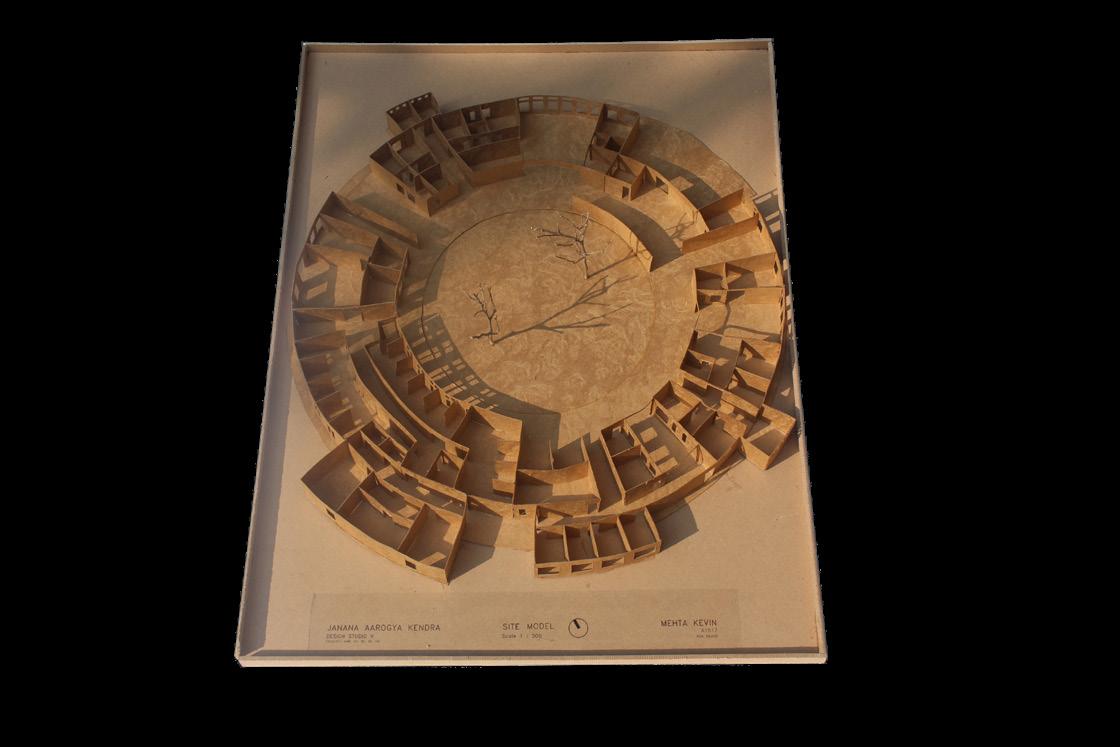

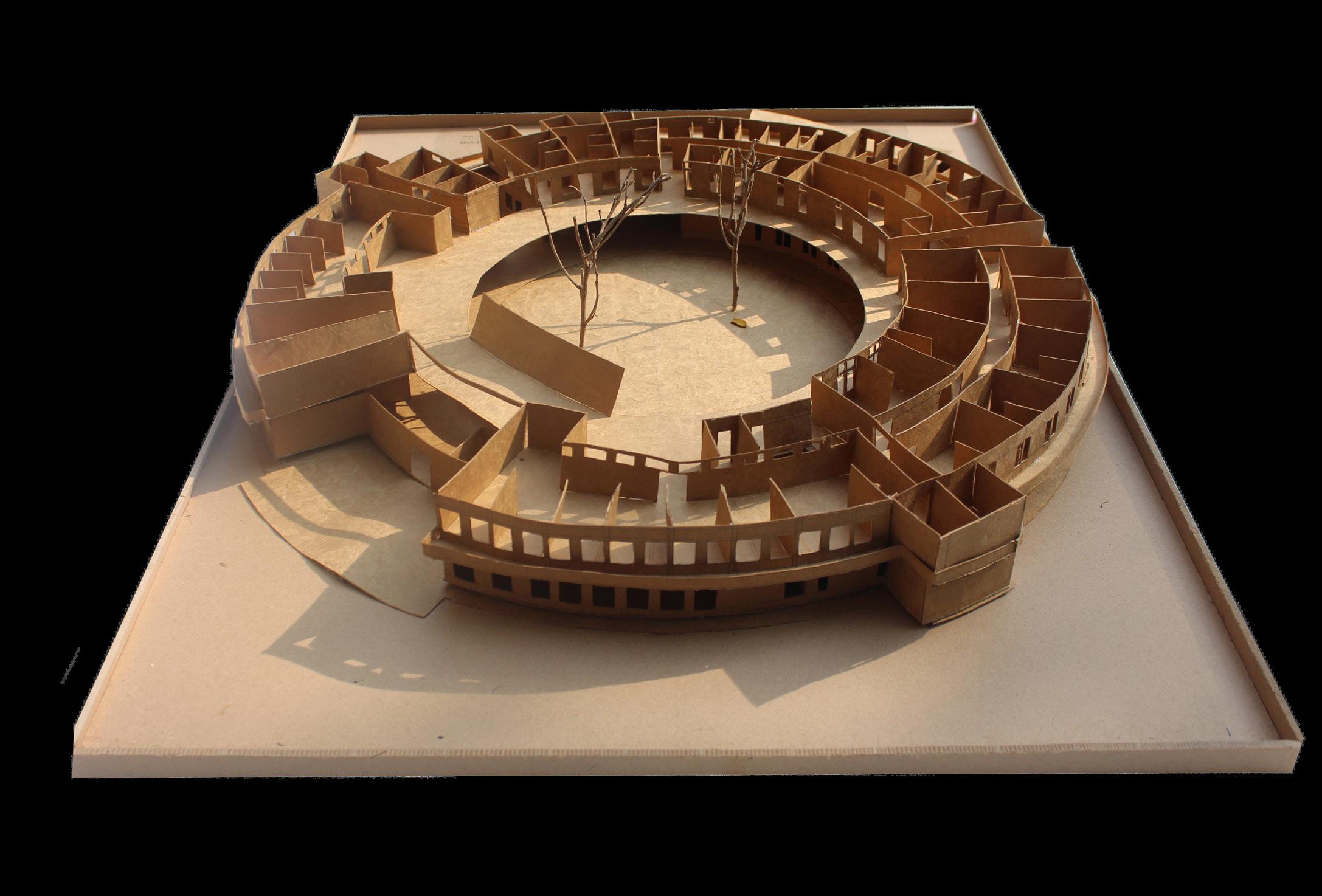

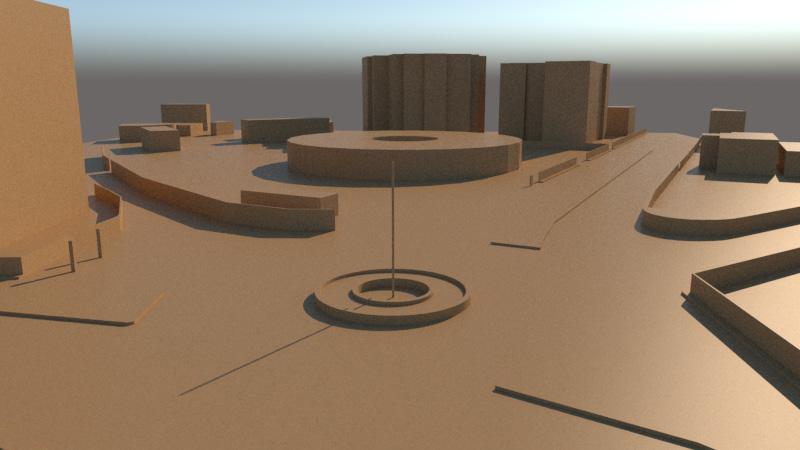

Mass model with the Site Context

Mass model with the Site Context

Ground Floor Design Model

First Floor Design Model

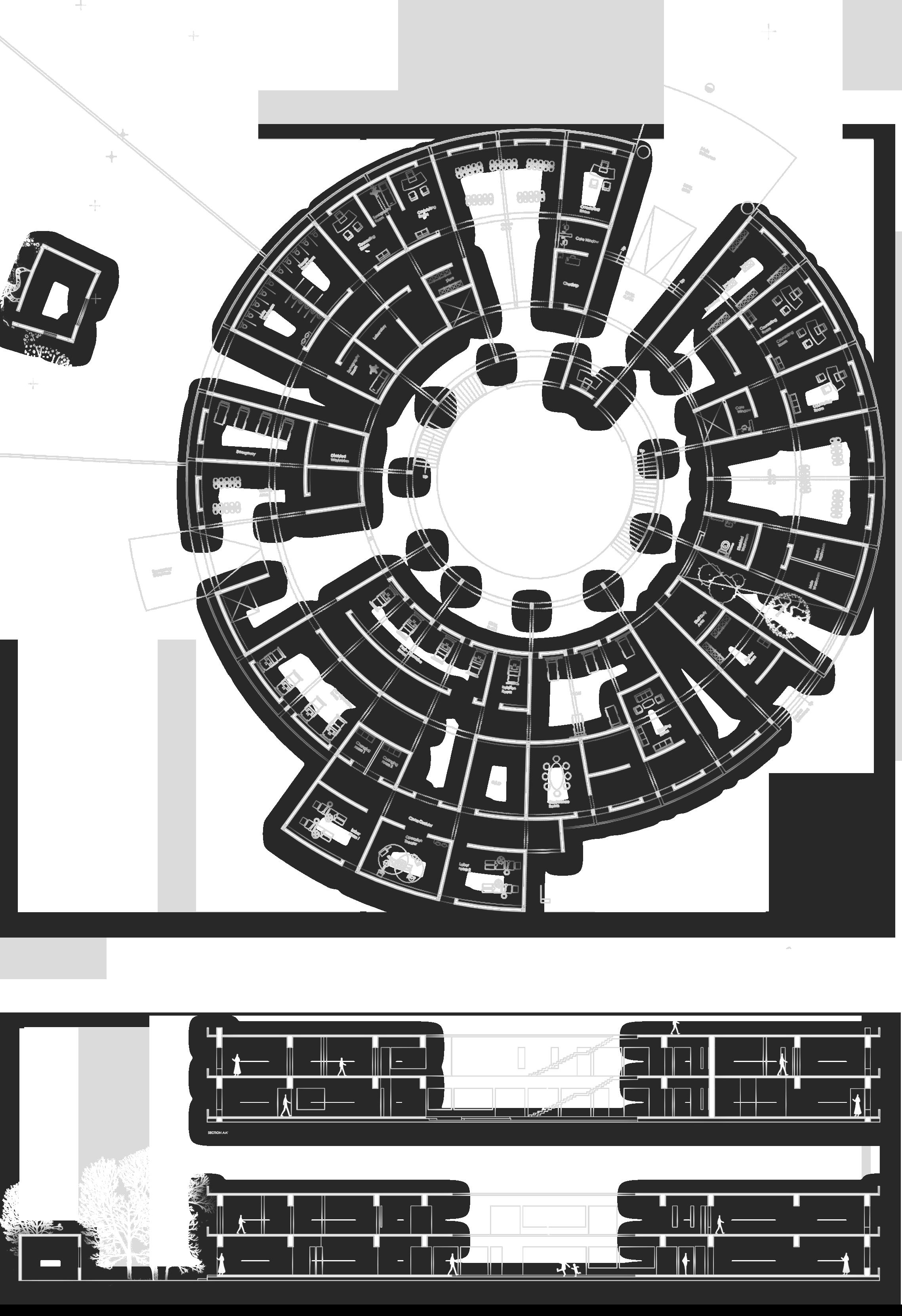

Ground Floor Plan

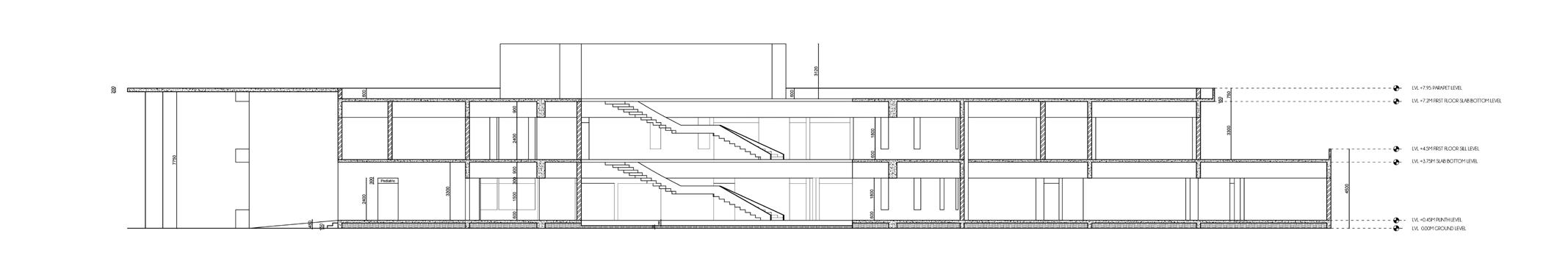

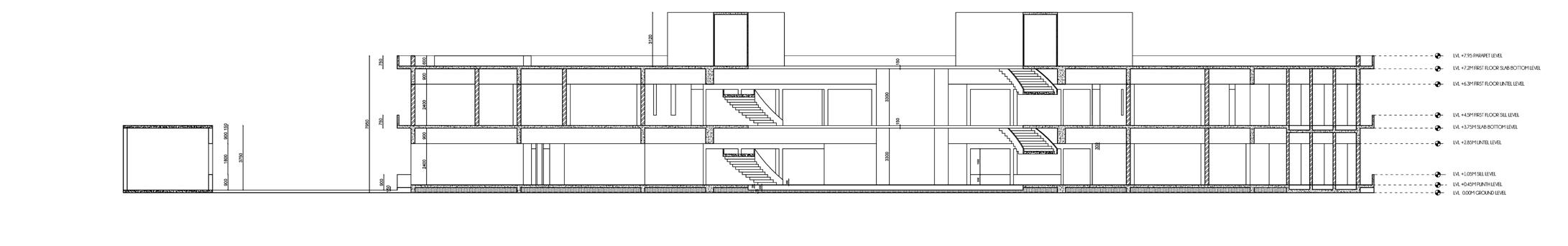

Section aa’

Design Model Section bb’

Working Design Drawings Hospital For Womens And Children

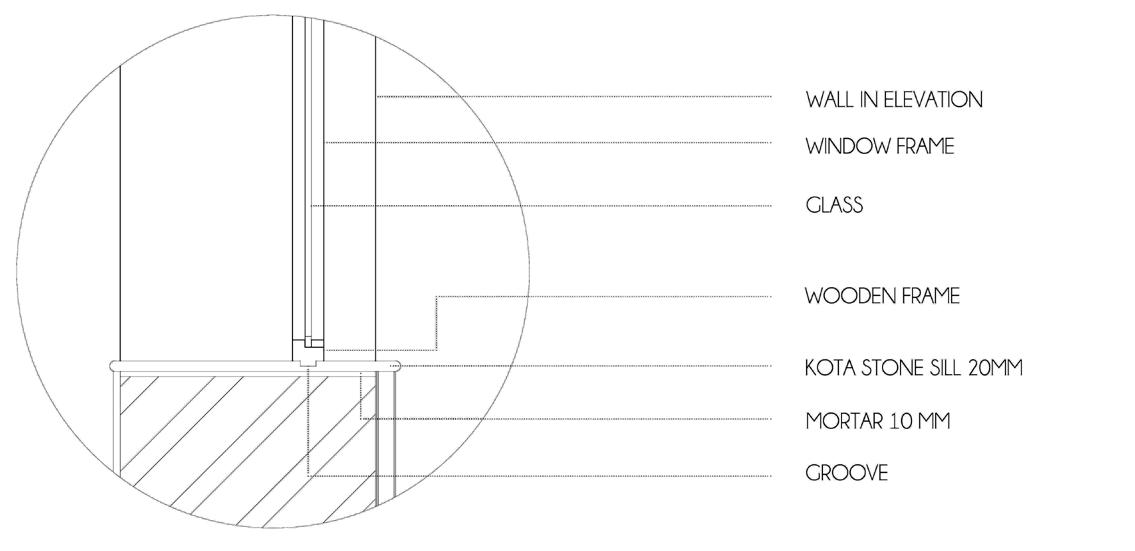

Detail A

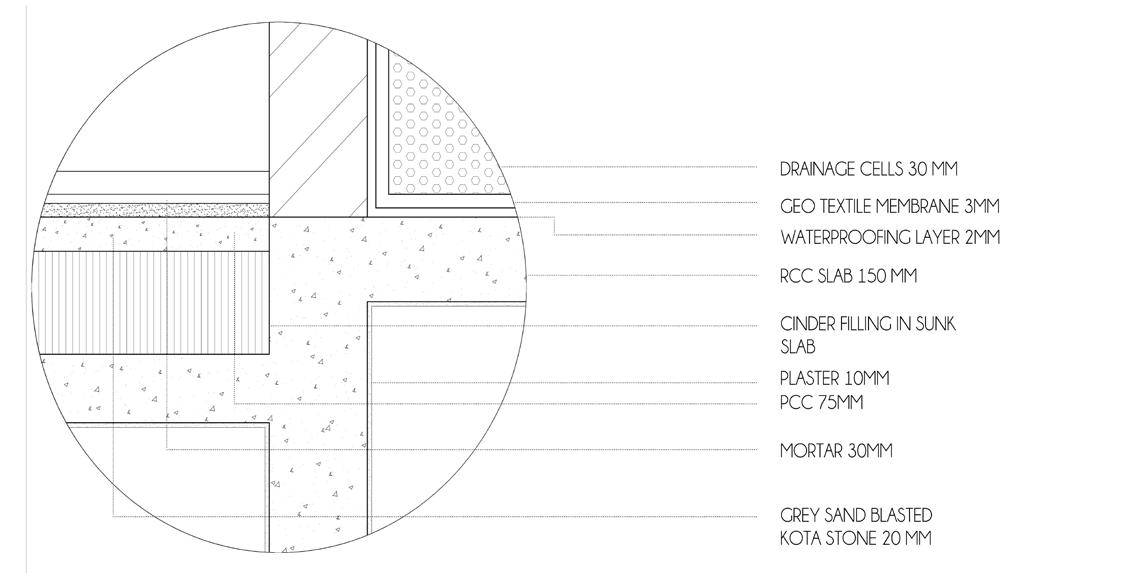

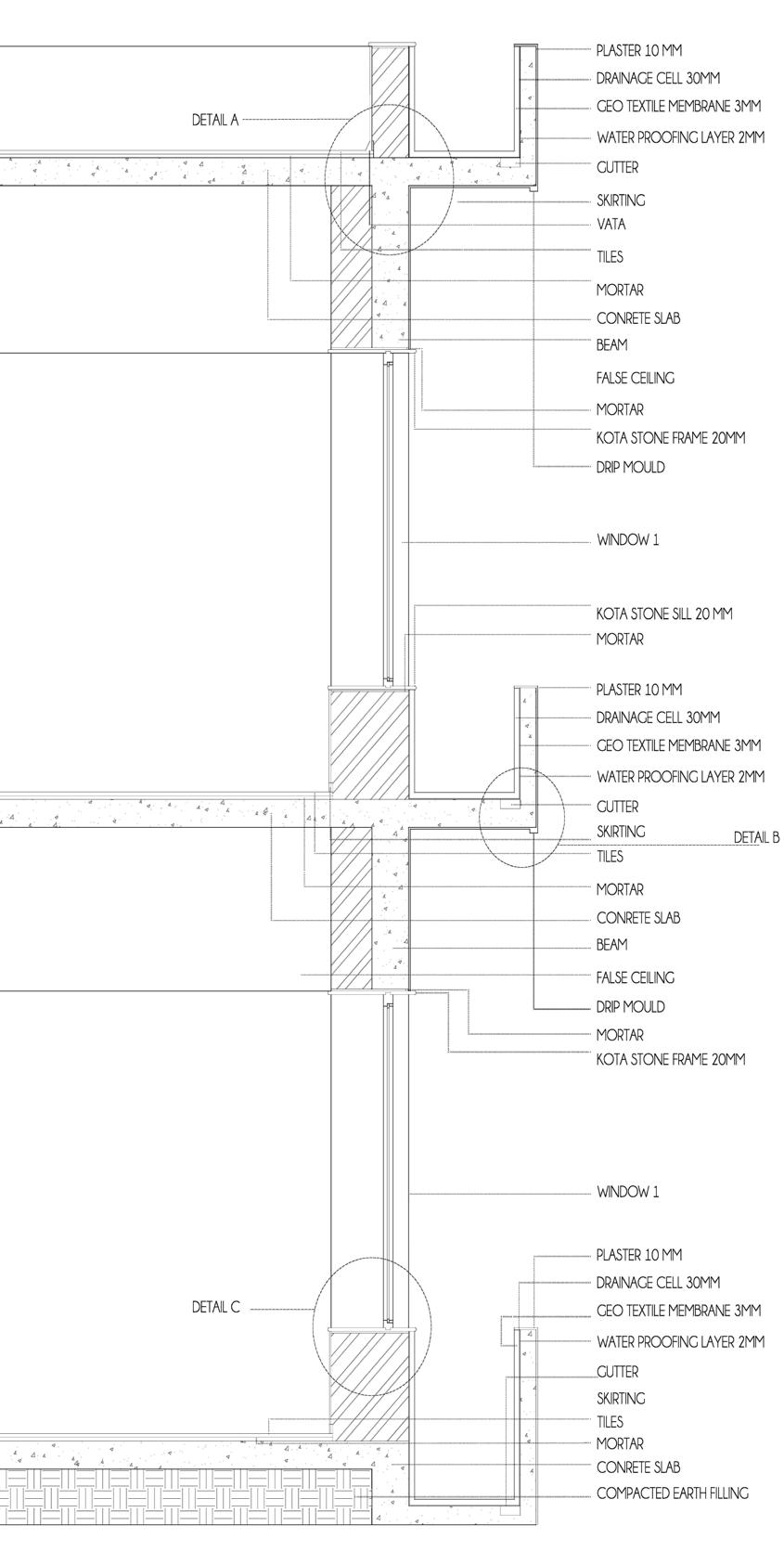

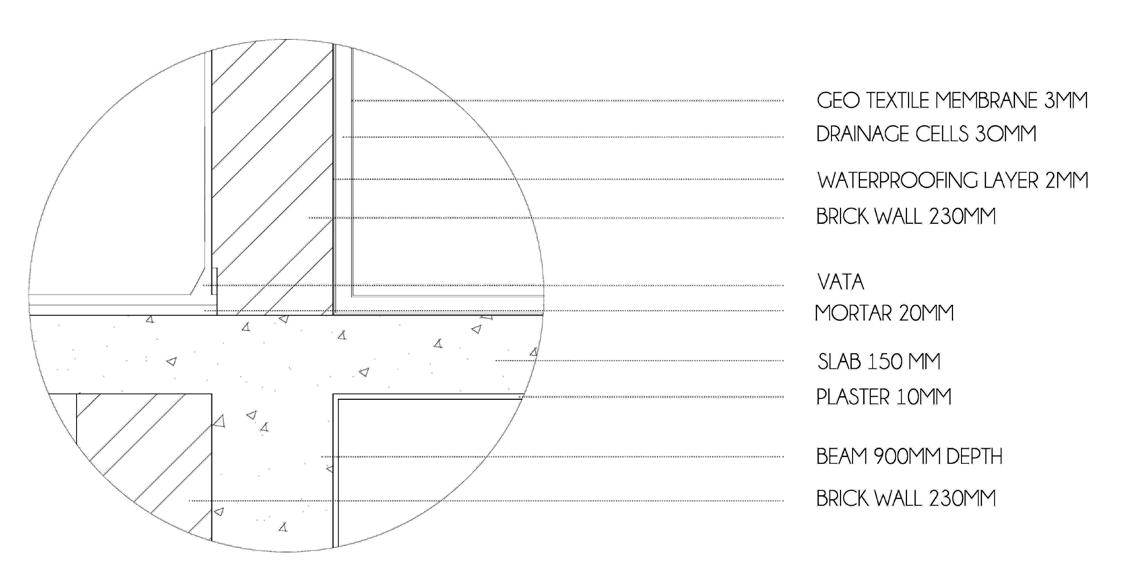

Wall Section

Detail C

Ground Floor Plan

Section AA’

Detail A

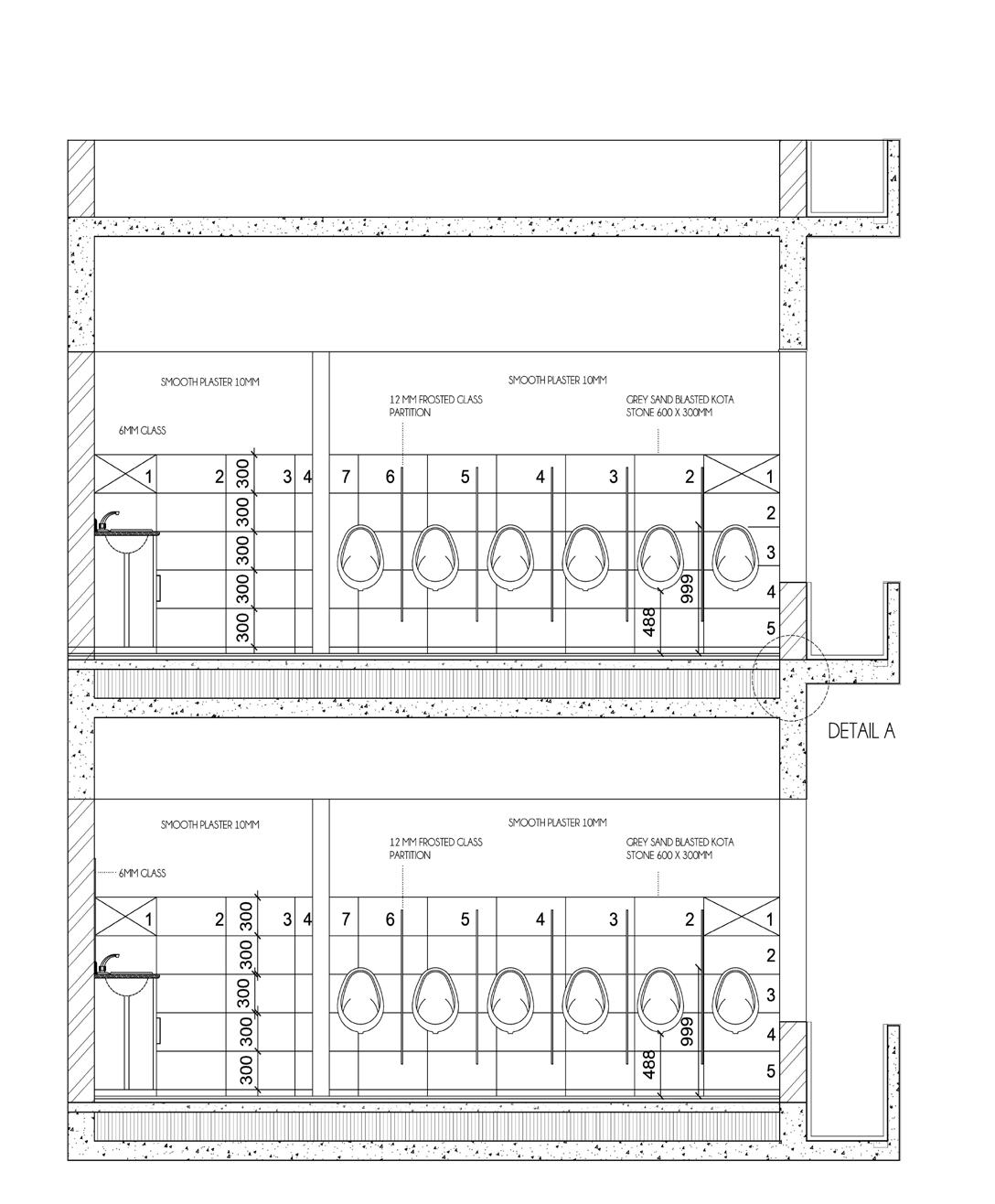

Section CC’ Washroom Wall Section

Measure Drawingss [a] Bundi , Rajasthan , India Measured drawings are a part of the Related study Program [ Rsp ]. This program intended To study the Housing typologies of a particular community or a Town. Moreover, it intended to understand the Spatial organization along with Climate, Structural and Material responses.

Bundi is located in the Valley surrounded by Hillocks of the Aravalli range and posses Hot and dry climate. Construction in this region is done with Stone Masonry. Moreover due to the warm climate streets are narrow and Most of the houses follow 9 Square Grid Plan. So due to Climate , use of Courtyard, Chajja, Jarukhas Are seen prominently.

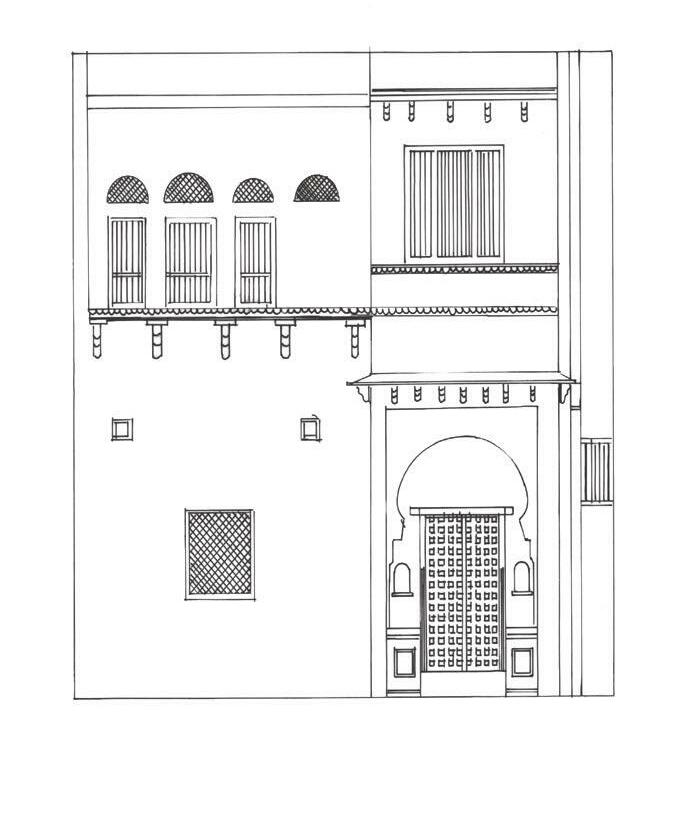

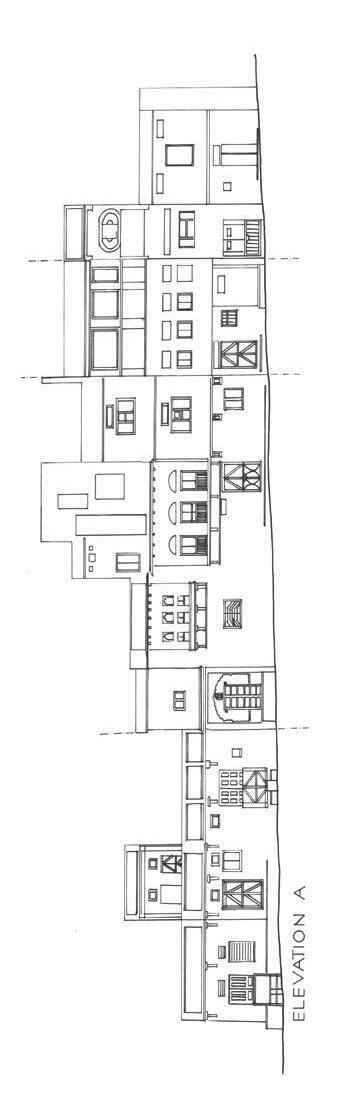

Elevation A

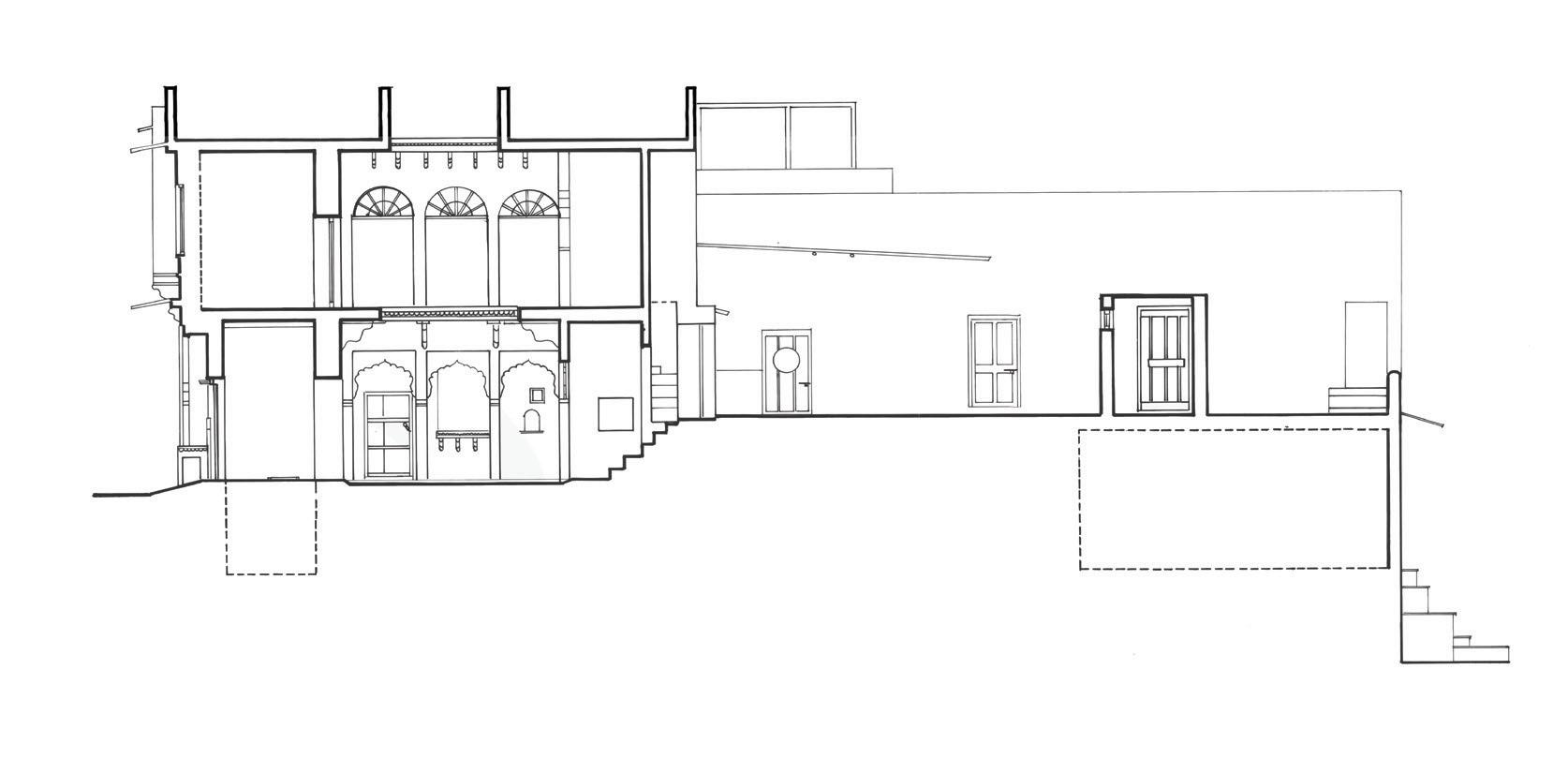

Section aa’

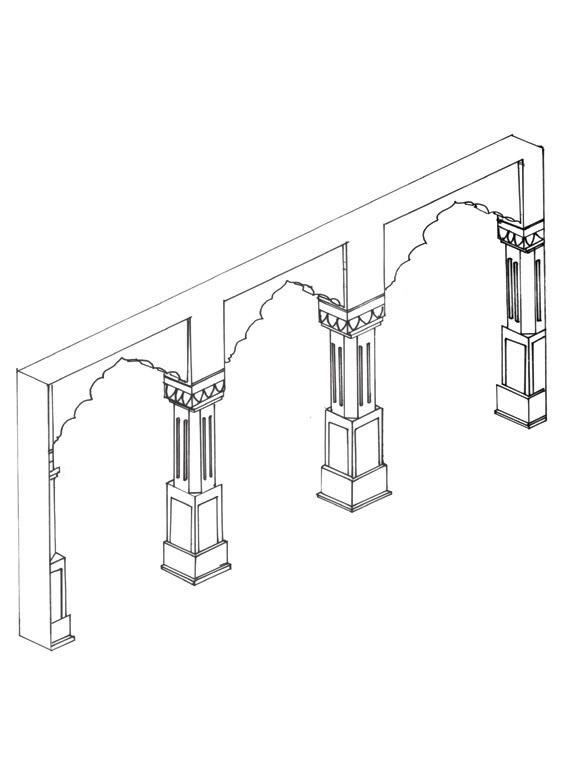

Arch Detail

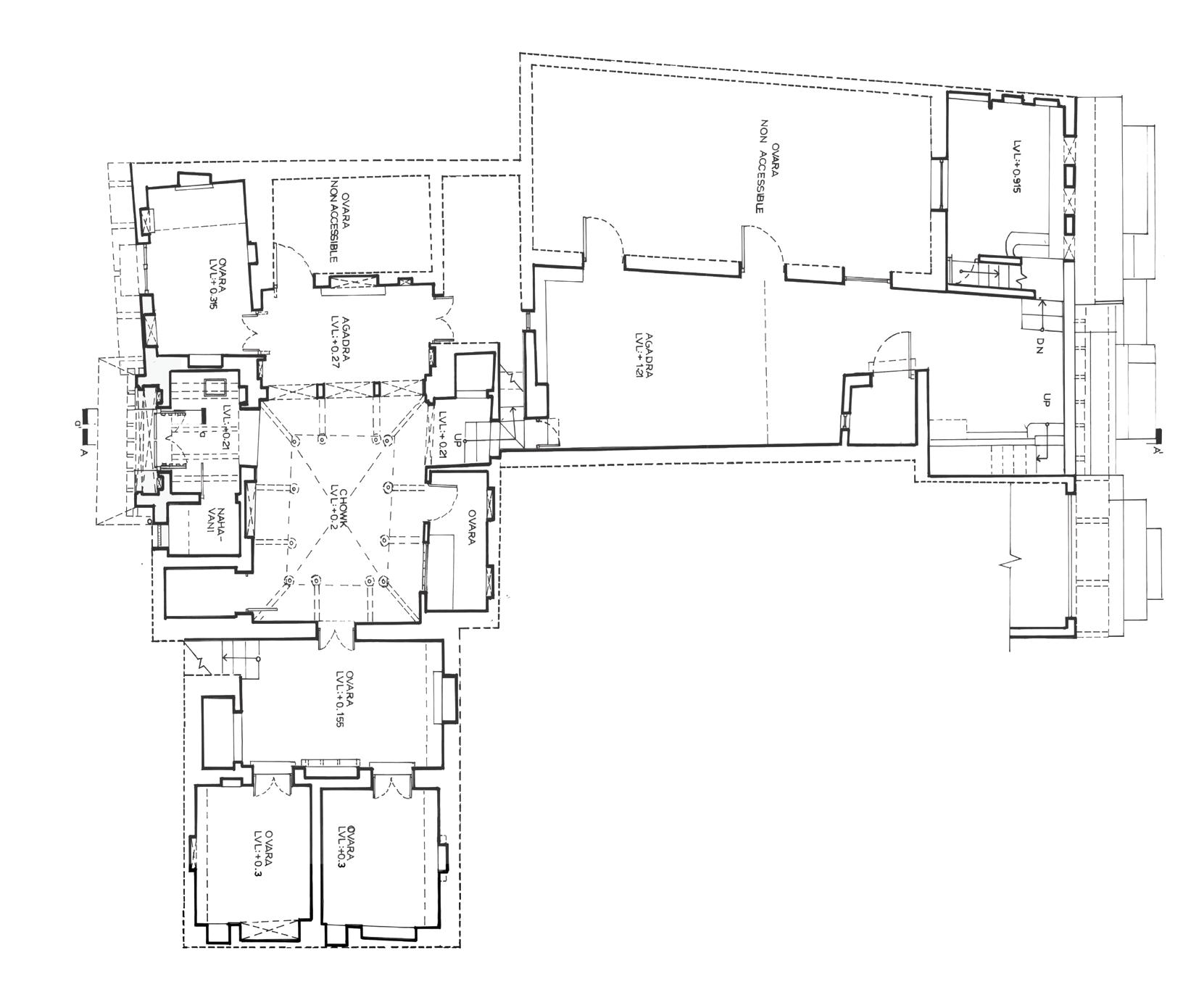

Plan

Elevation

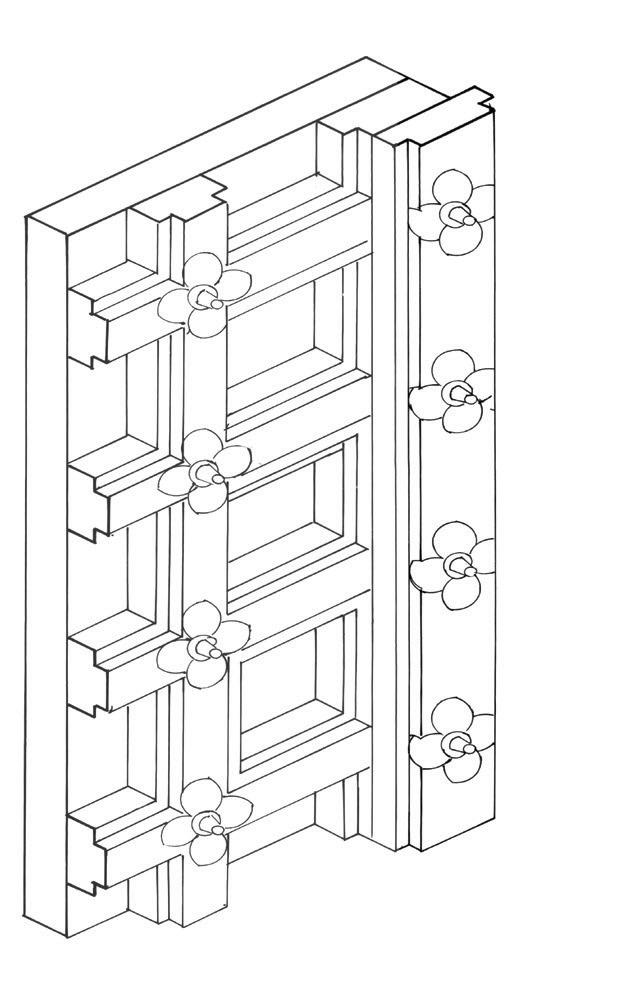

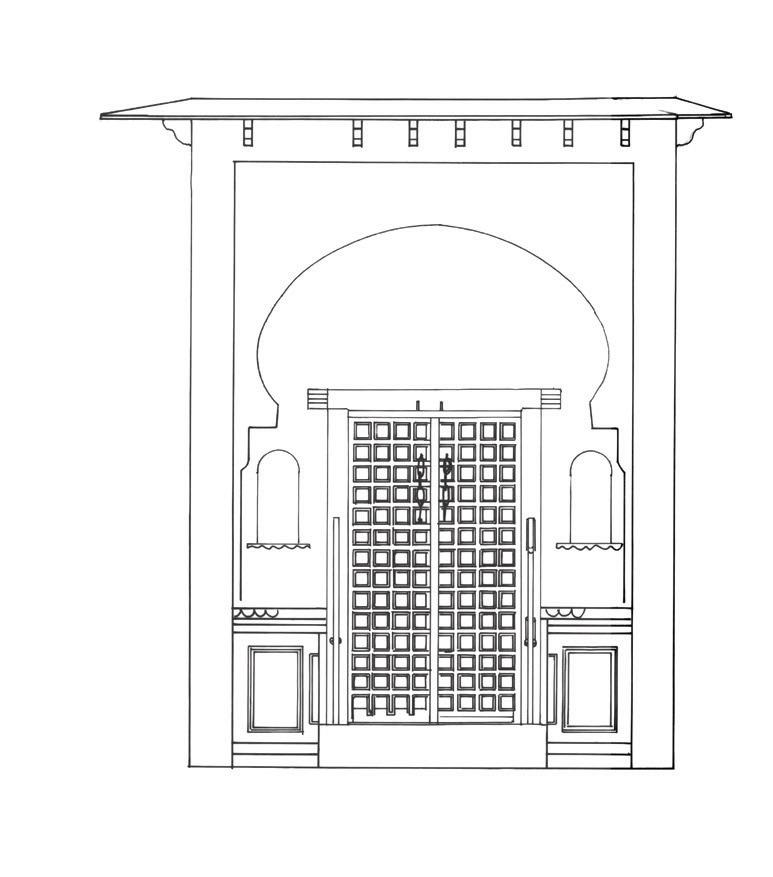

Door Shutter Detail

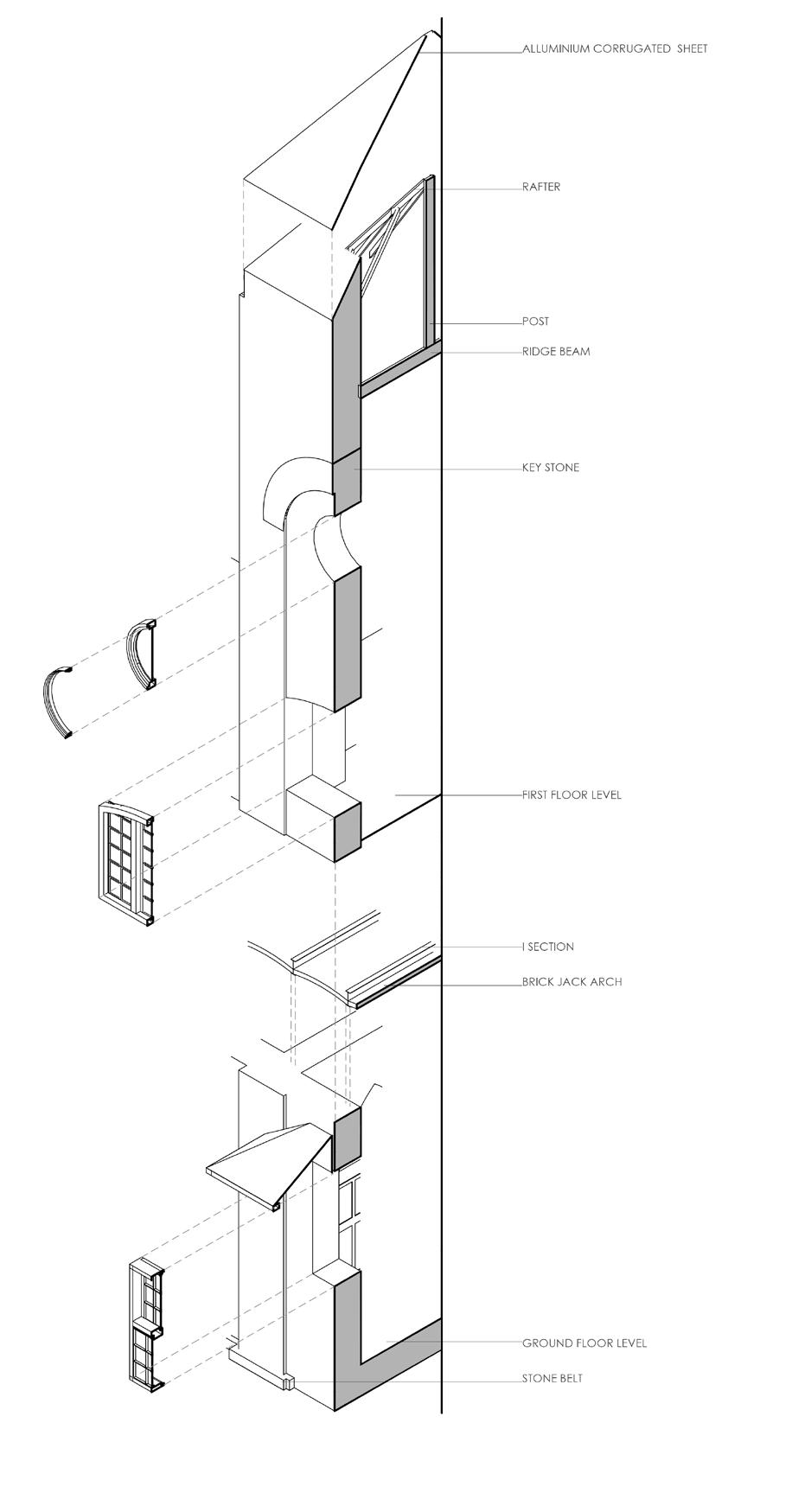

Door Shutter Exploded Detail

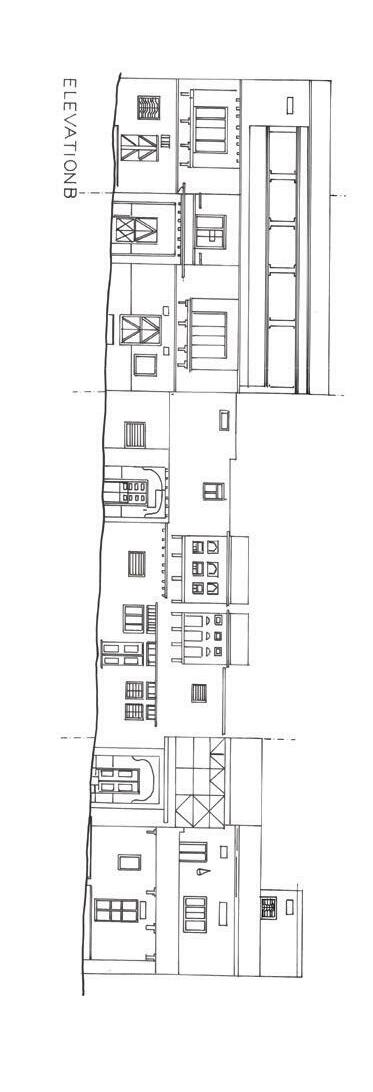

Elevation B

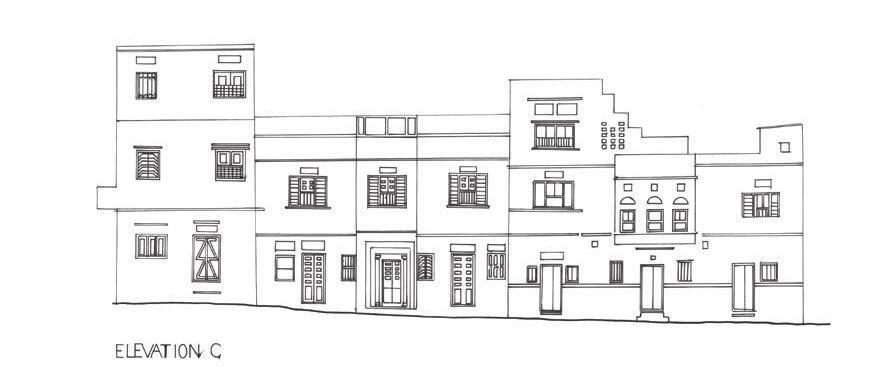

Elevation C

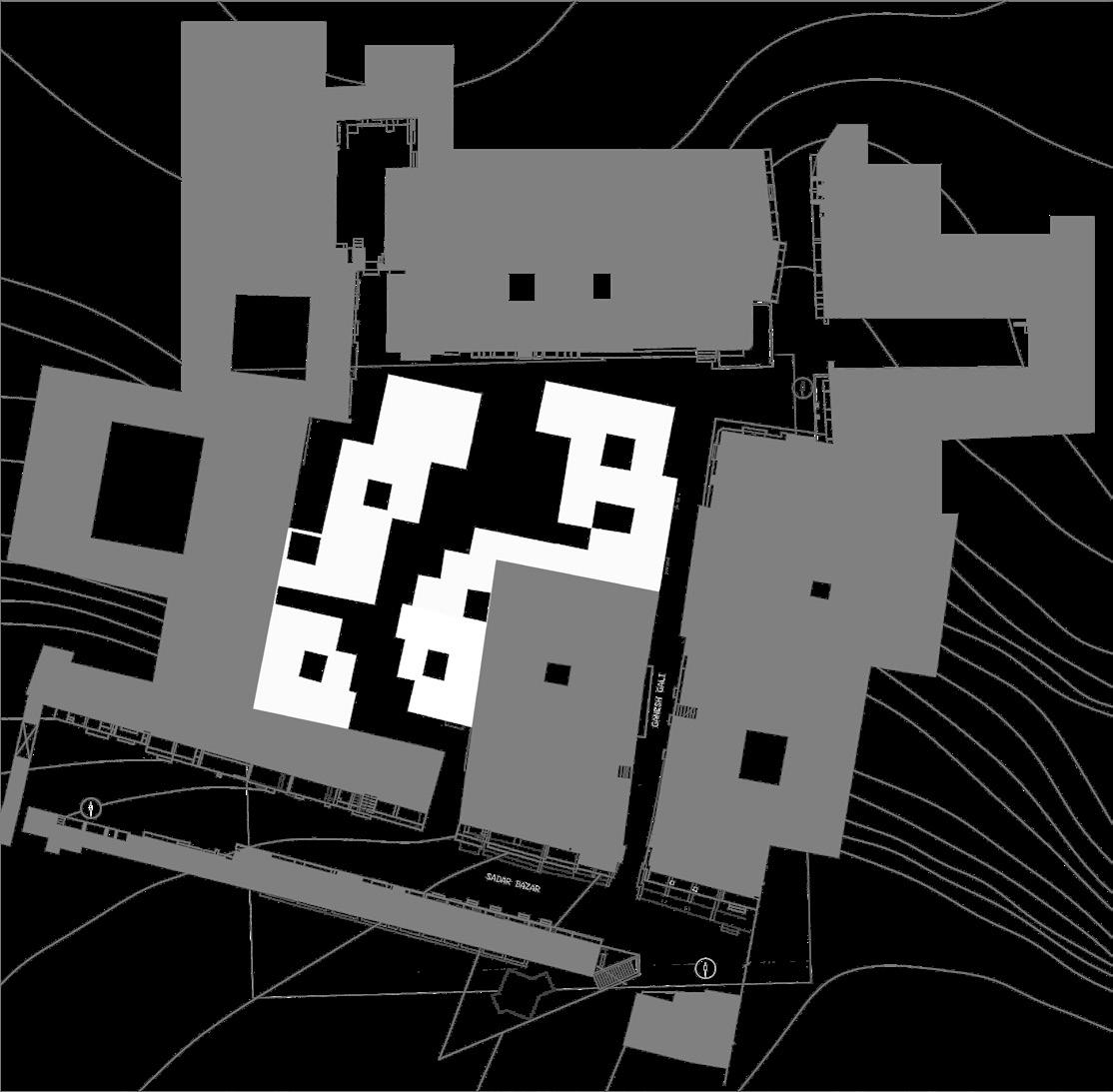

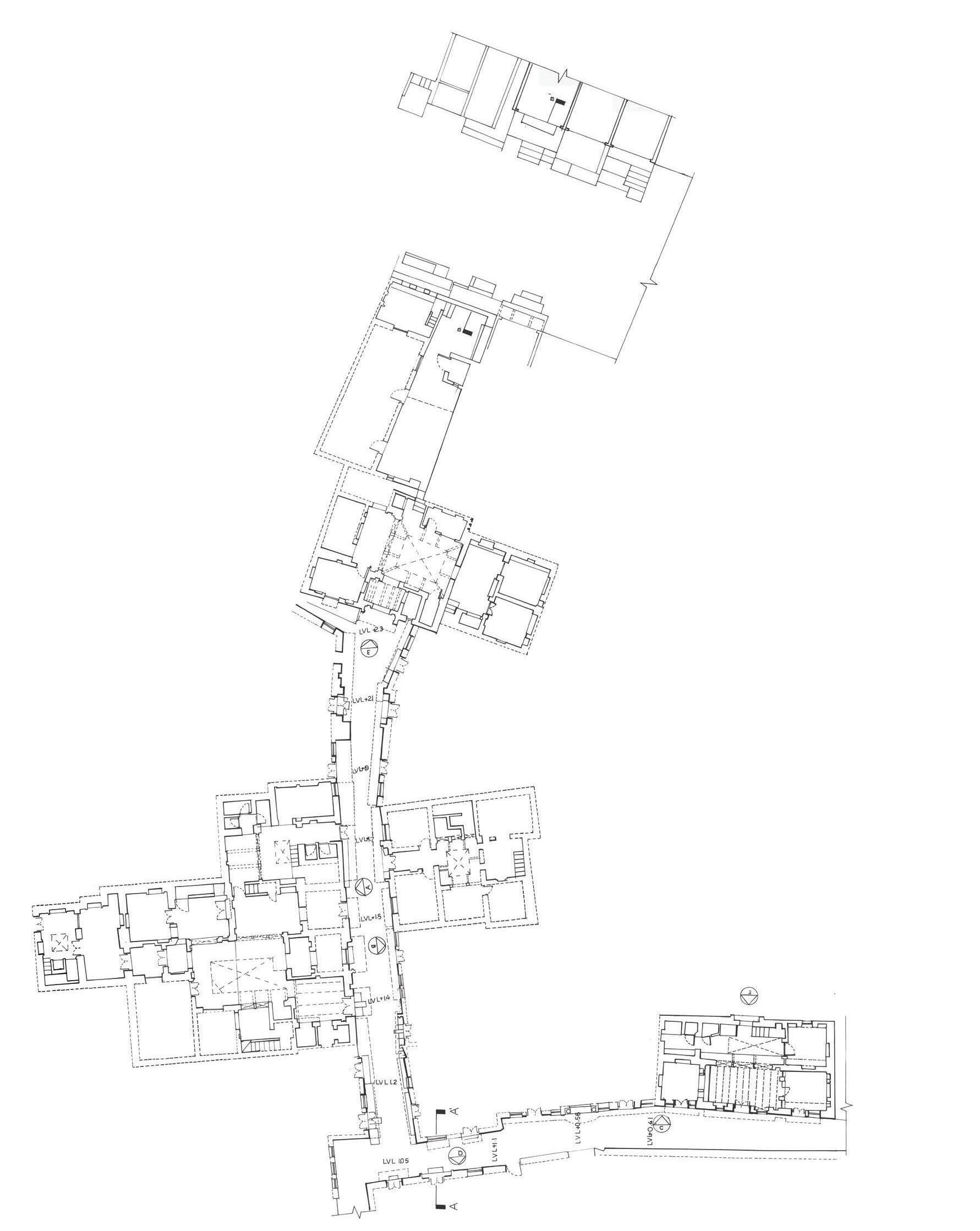

Street Plan

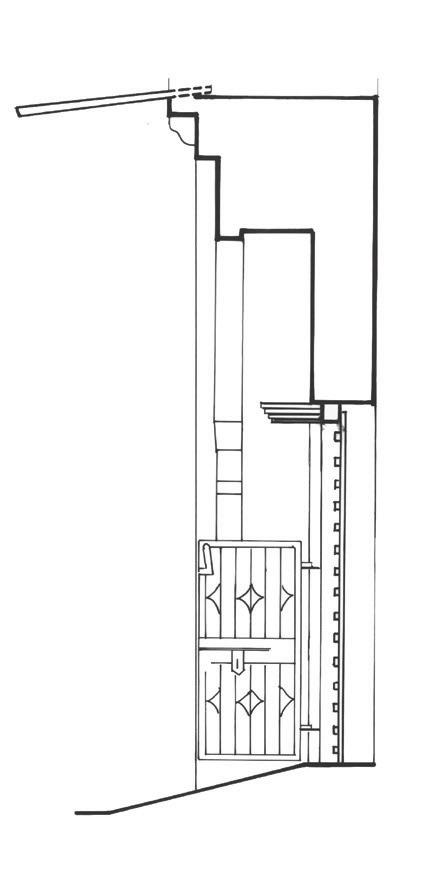

Door Detail

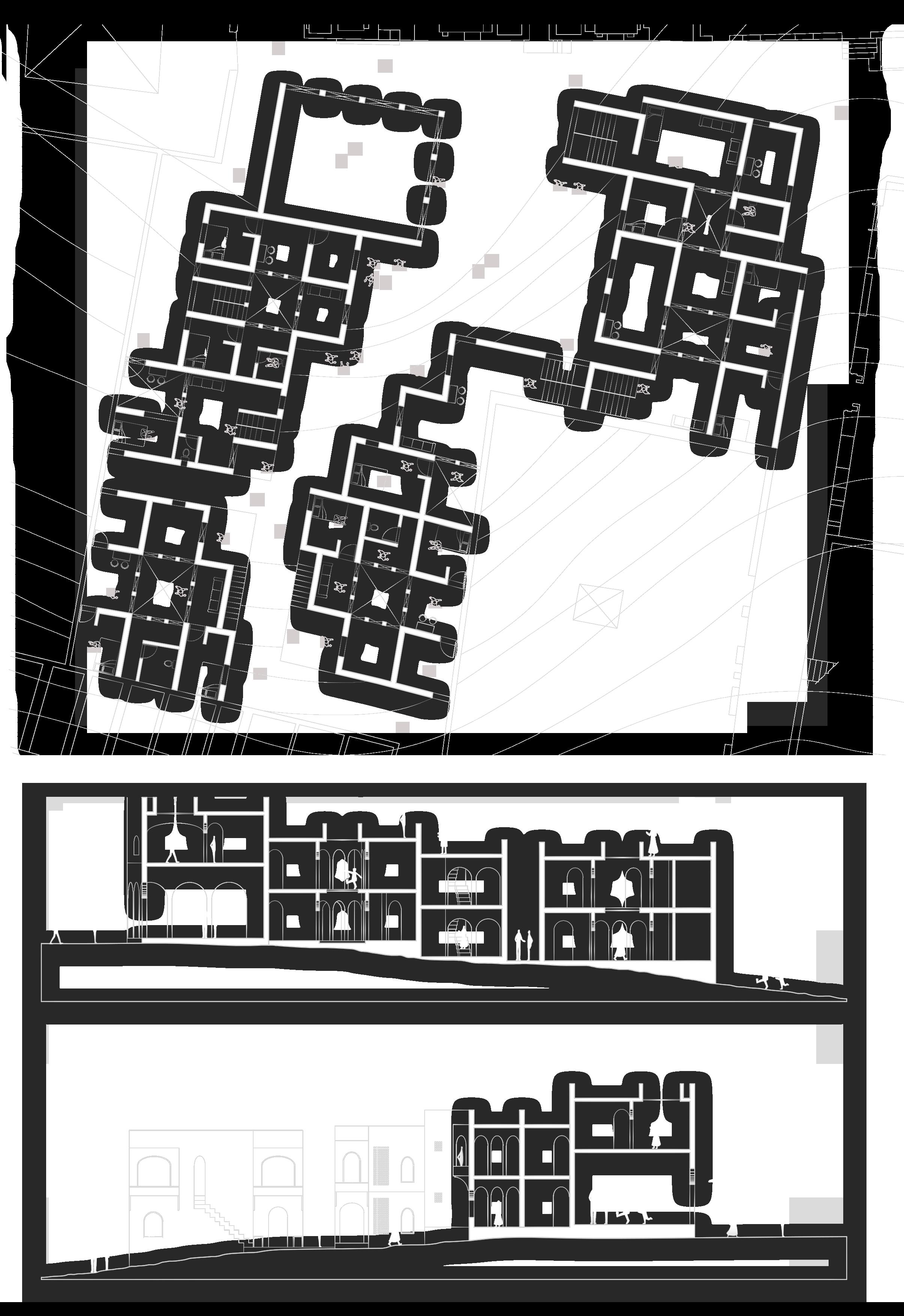

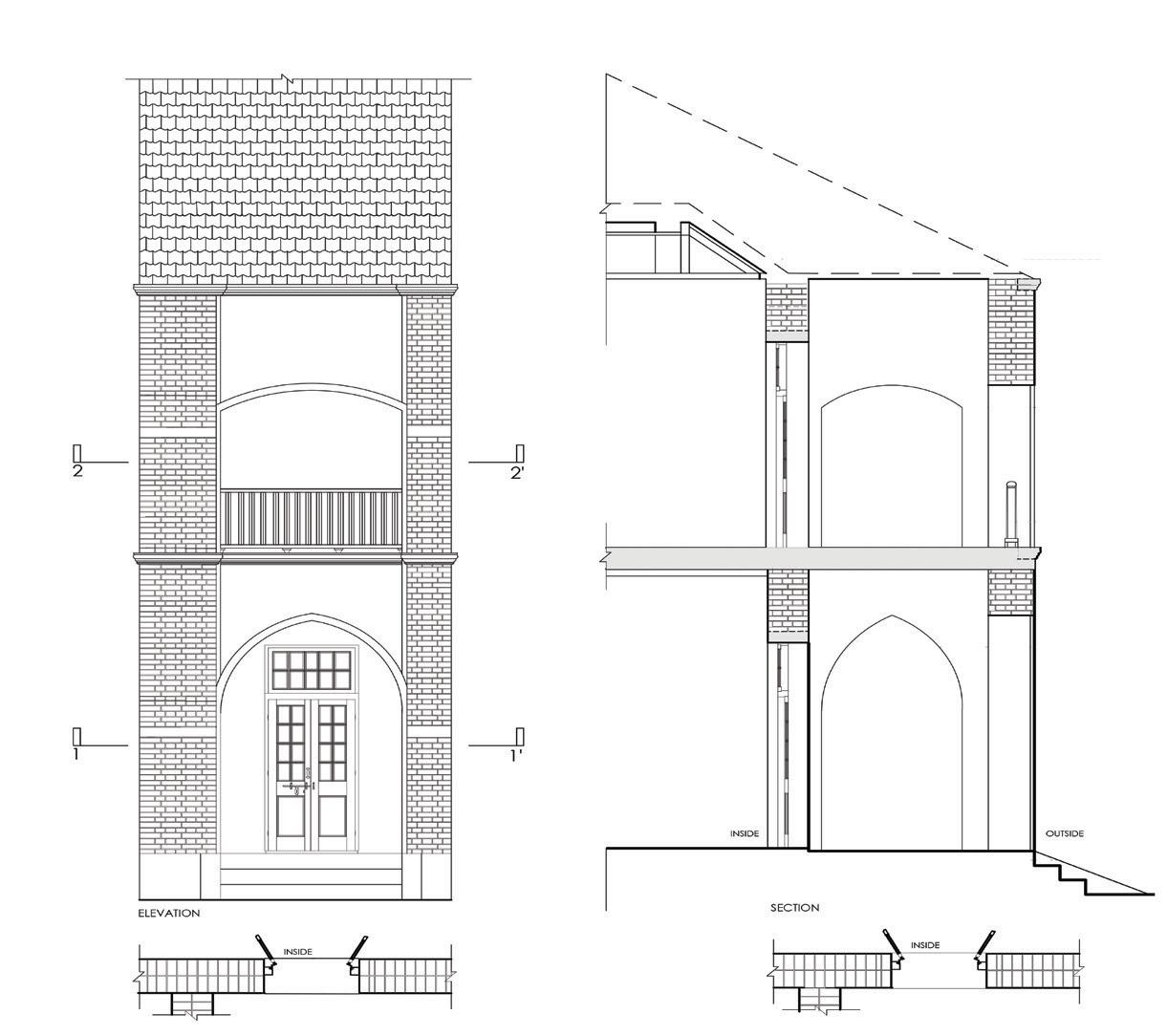

Measure Drawingss [b] Vadodara , Gujarat , India The Following Related Study Programme [ Rsp ] was Intended to measure the Institution which was made during the Colonial period . So intention was to study and understand The Spatial organisation of the Formal Institutes specially Educational Institute , Hospitals , Training Centres along with its gradual change in use of materials and elements.

This particular building is called as District Institute of Education and Training [ DIET ] office.

It was commisioned in 1914 by the King Sayajirao Gaekwad III for the Purpose of Men’s Training but now currently it is used as B.Ed college and Teacher’s training Institute under Gujarat Government .

Wall Section 1

Wall Section 2

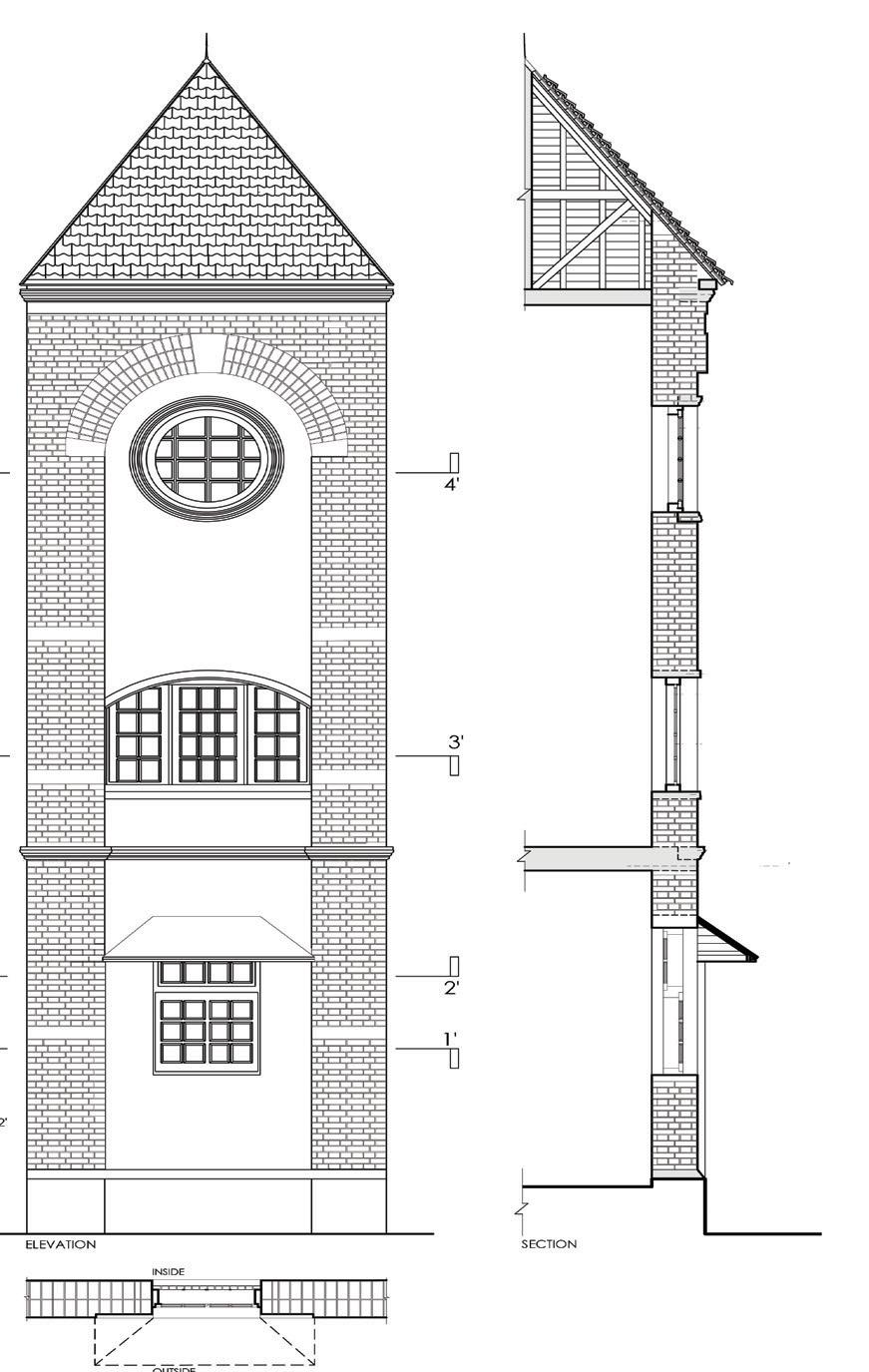

Tower Exploded

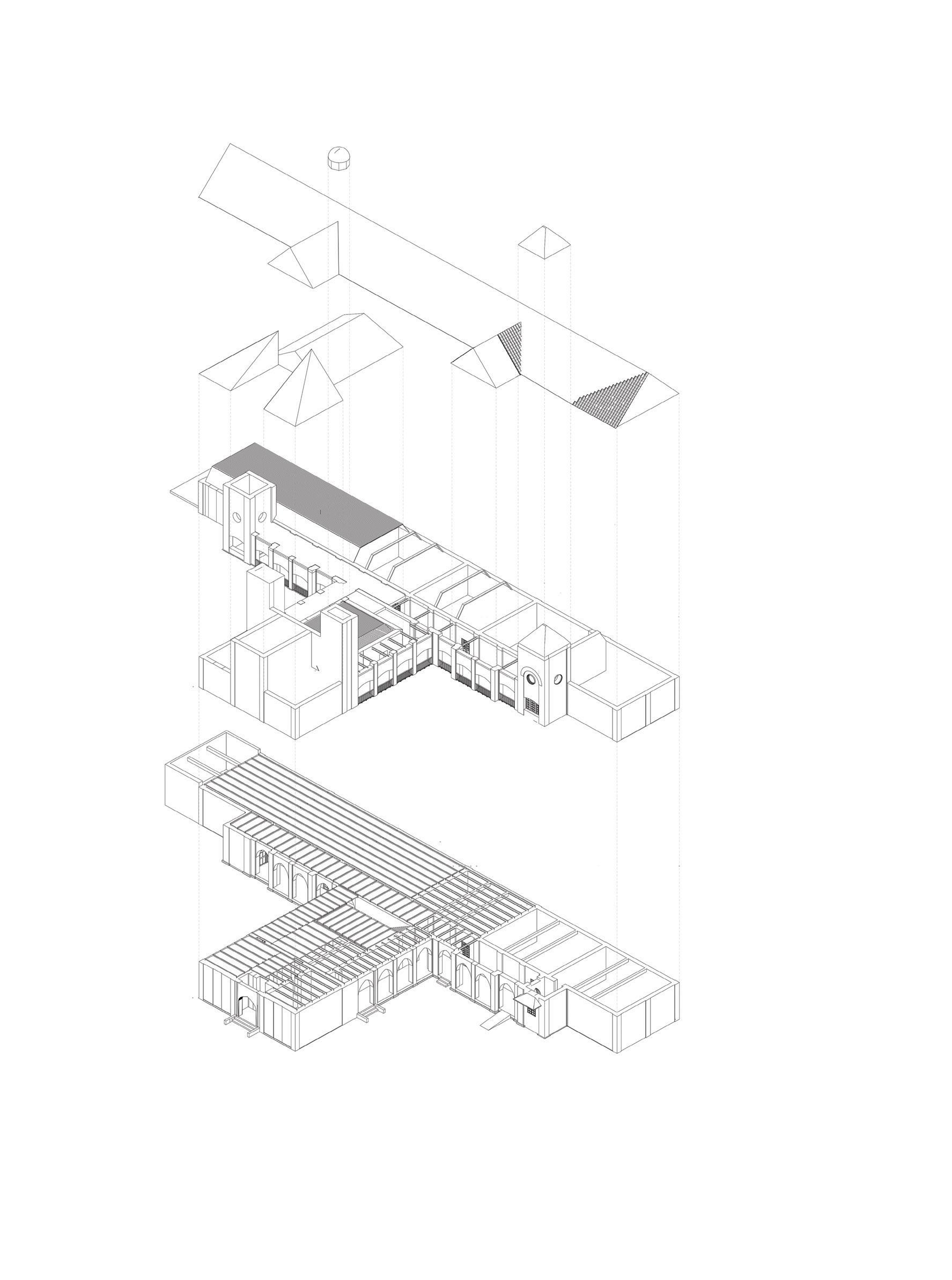

Building Exploded

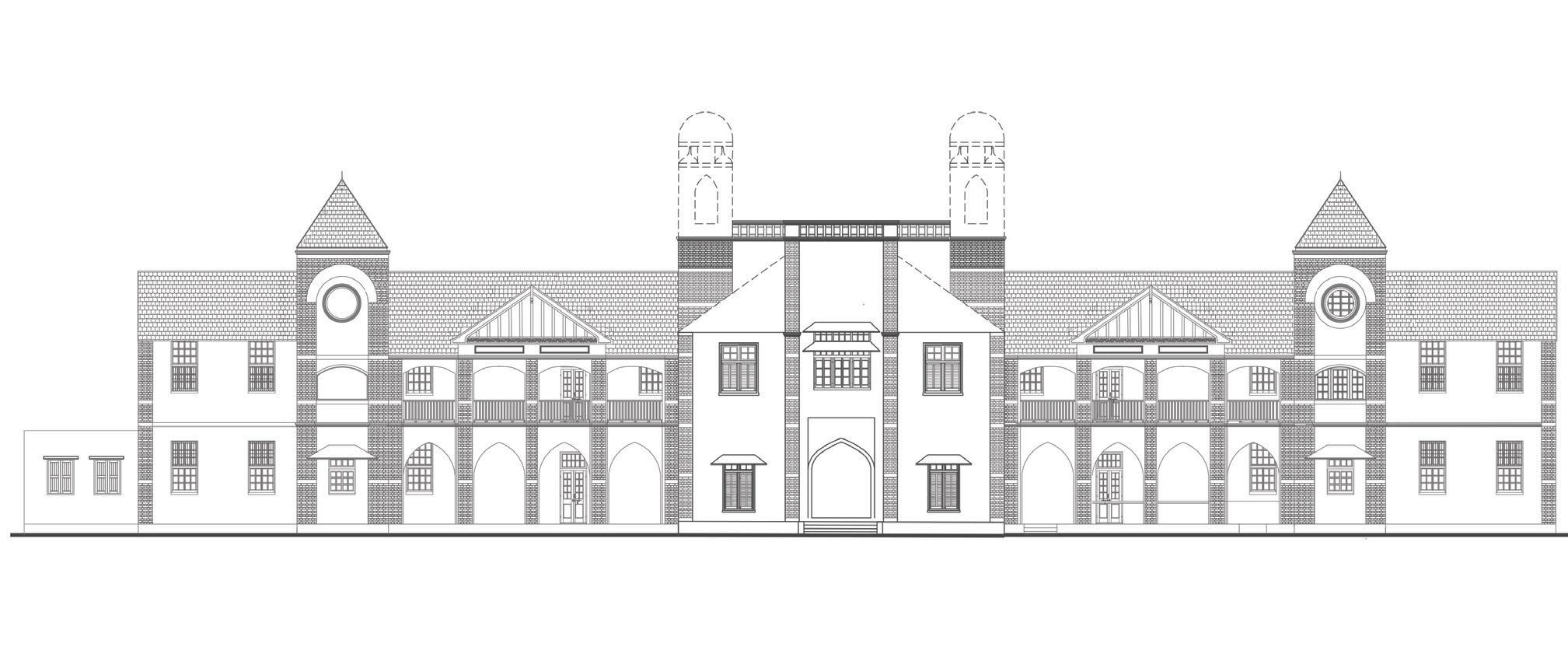

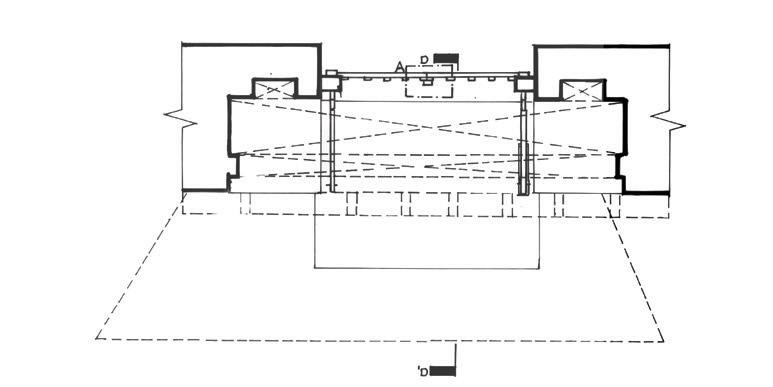

Main Elevation

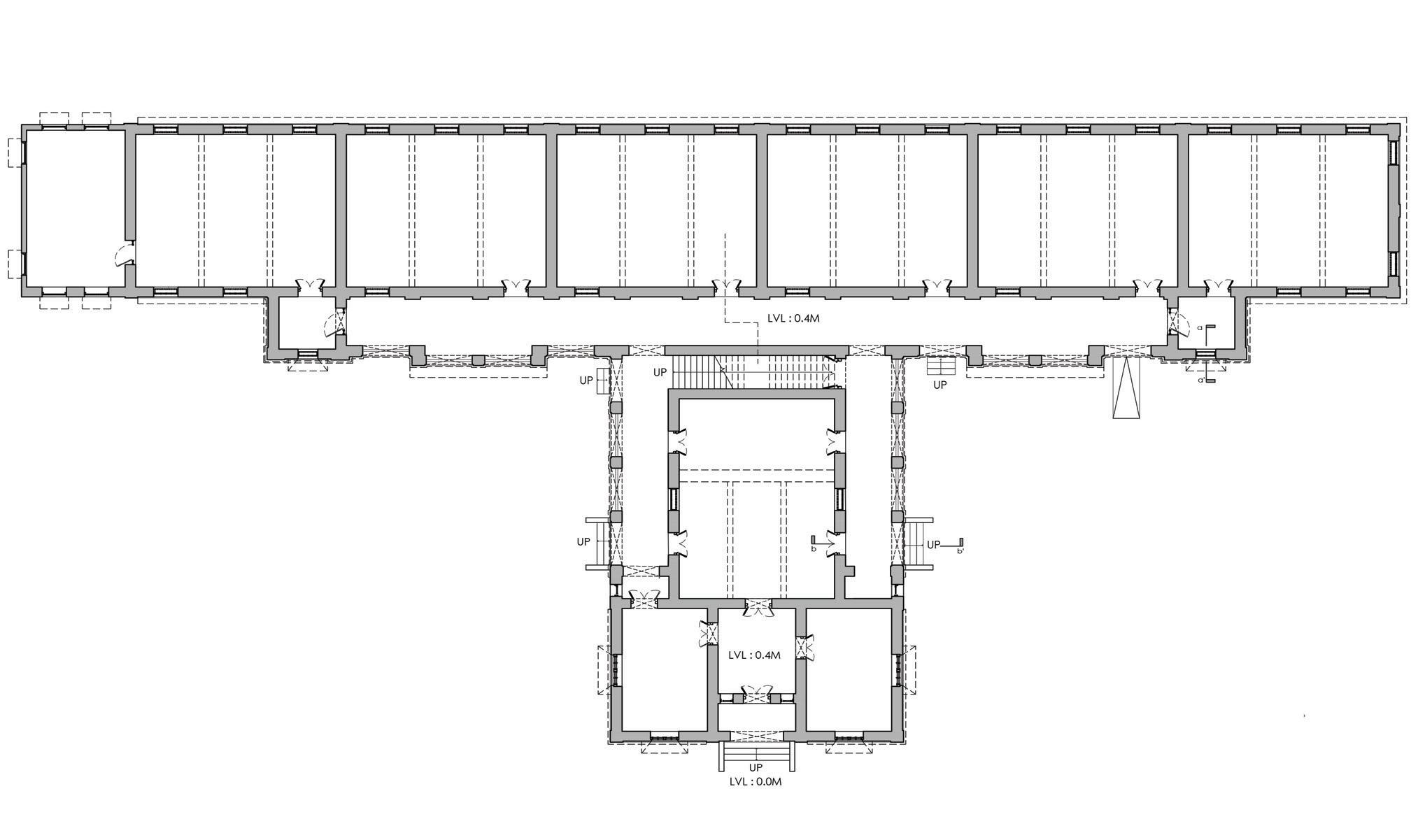

Ground Floor Plan

Hands On Materials

Ferrocement Workshop

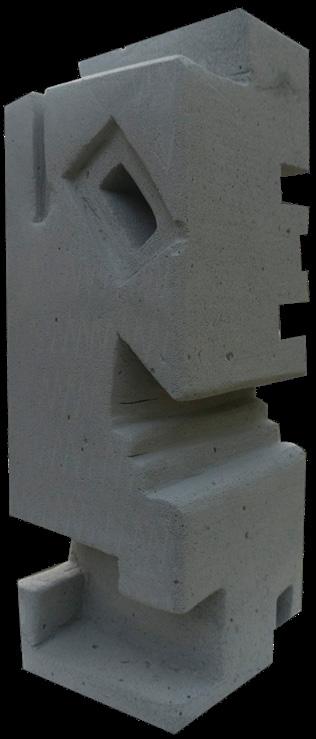

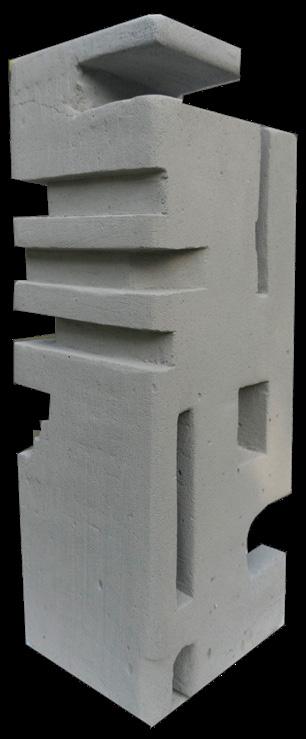

[b] Vadodara , Gujarat , India Siporex Blocks : We Carved the block as per our composition . Later These were Used as Installation for our College Campus

Cement Plates : It was casted into mould of 6” x 6 “ .

Tounge and Groove Joint

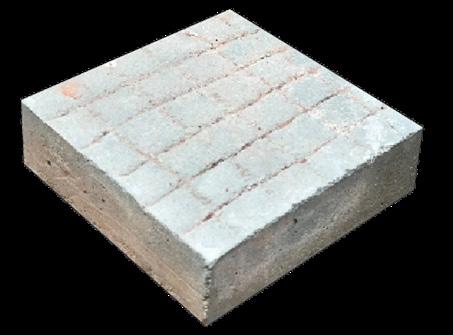

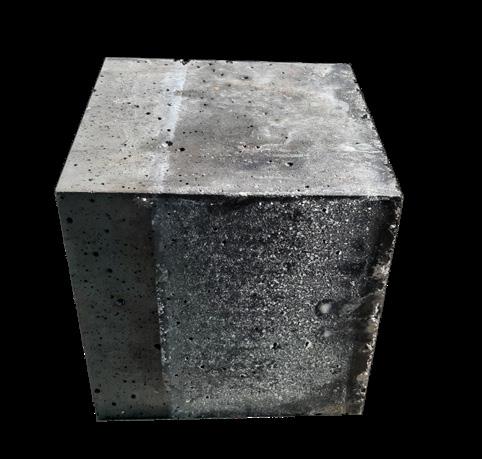

Concrete blocks : It was casted to check its compressive strength .

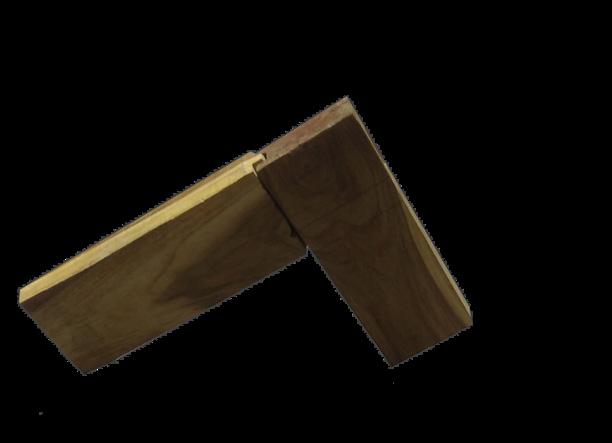

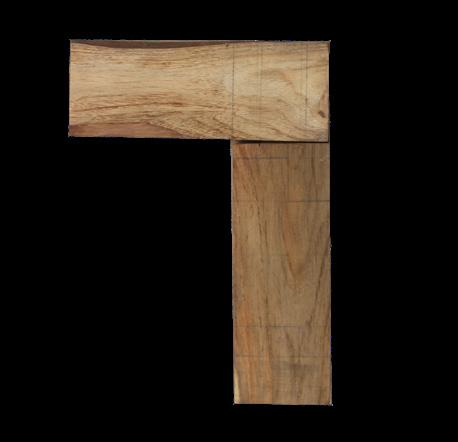

Tenon Mortise Joint

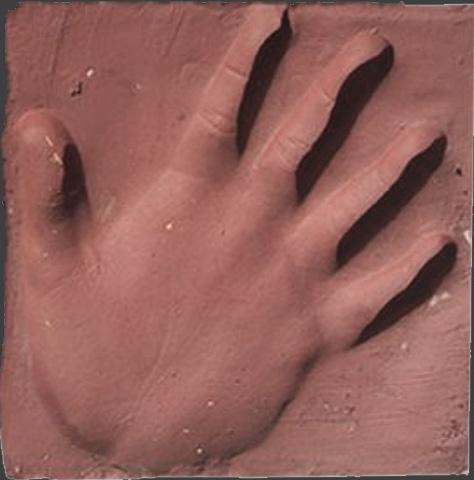

Terracota Plates : It was casted As part of Mika Workshop.

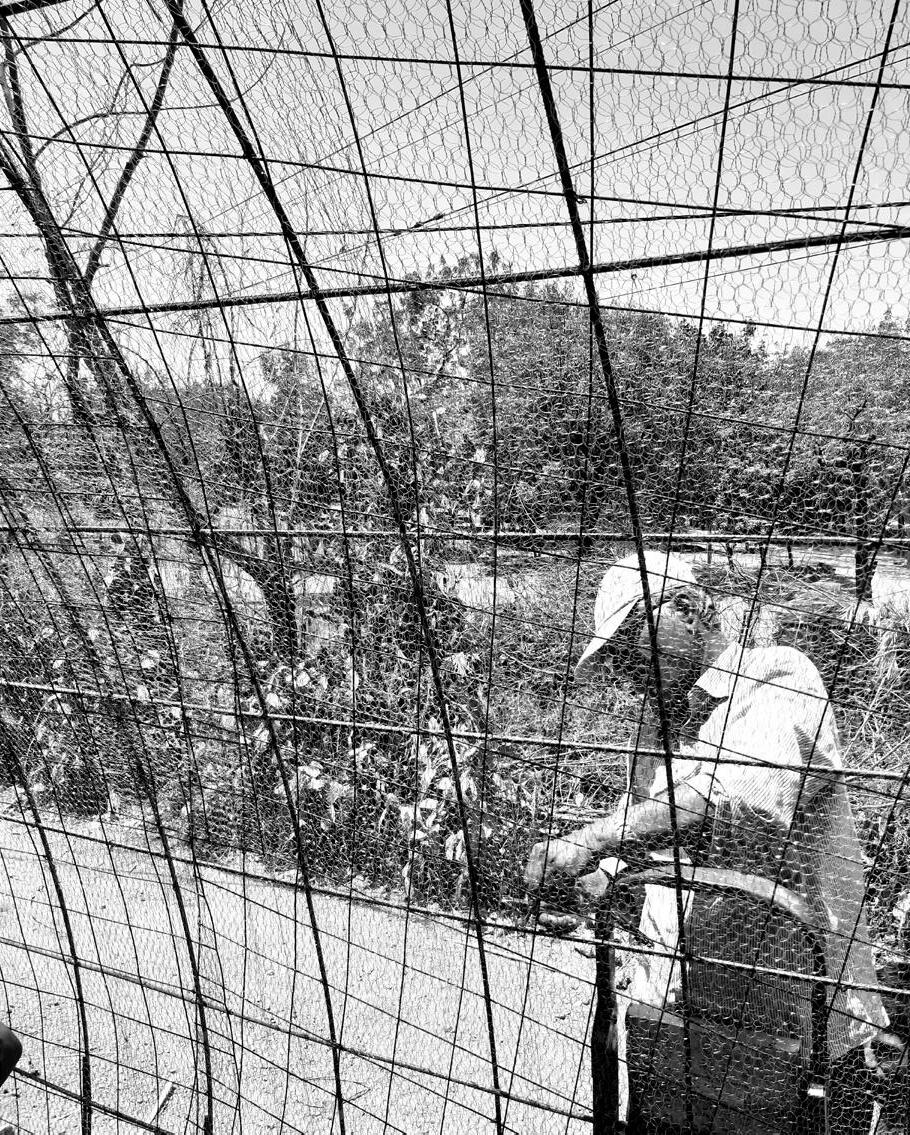

Tying the reinforcement Bars which is skelton.

Tying of Wire Mesh on reinforcement bars.

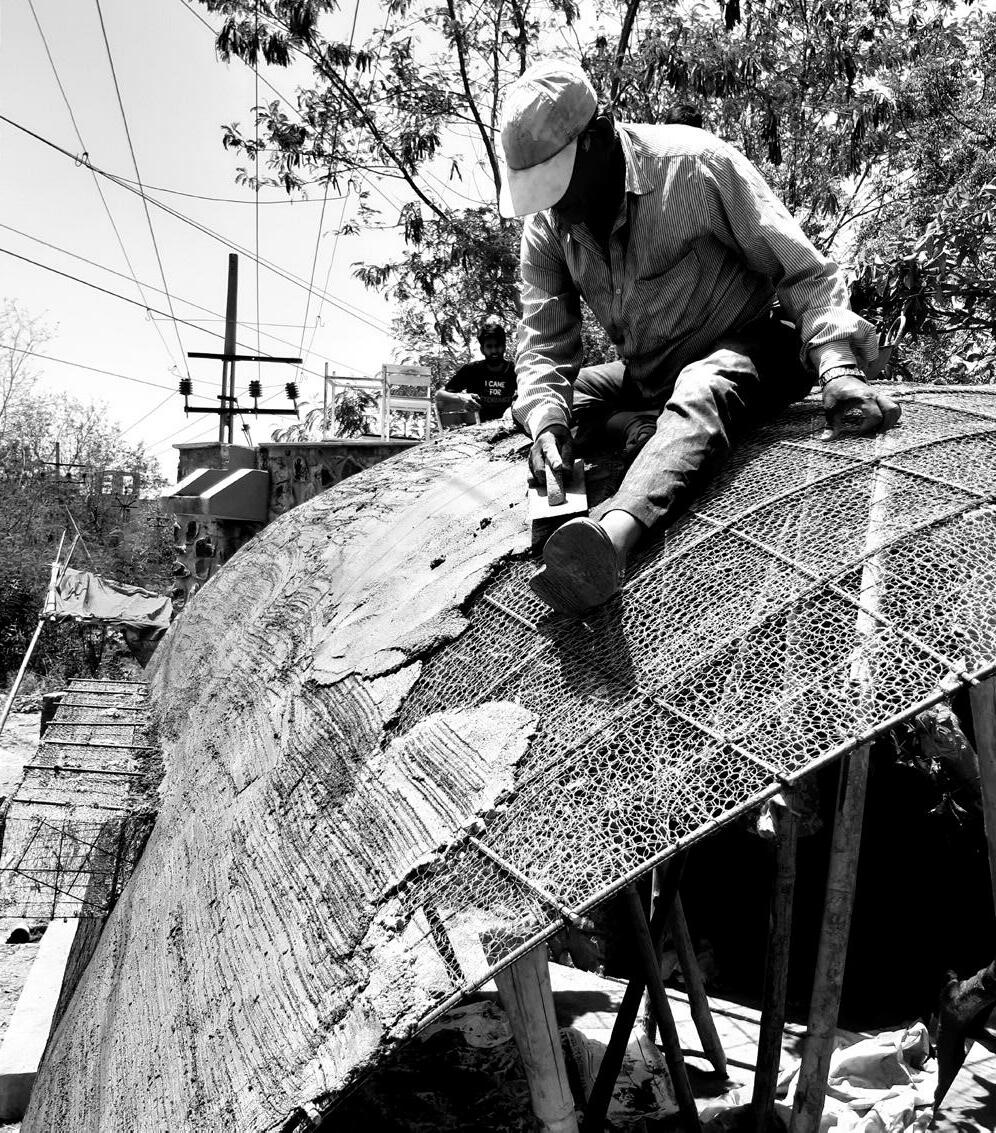

Applying the layer of Mortar

Shell

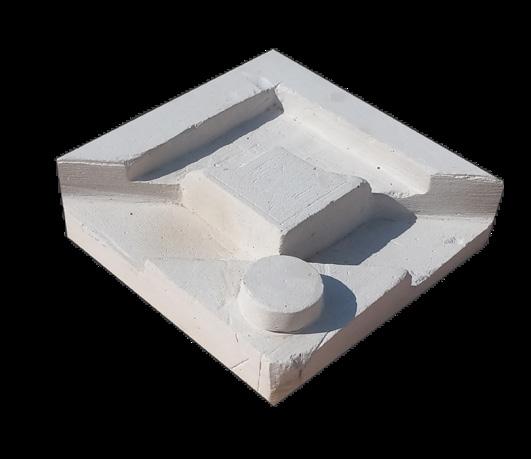

Plaster of Paris Plates : Firstly the plate was casted and later as per our design it was carved .

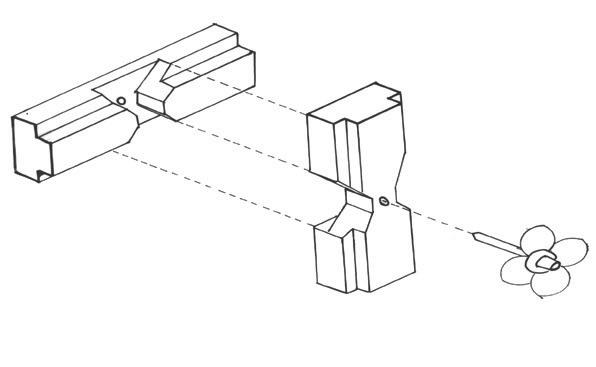

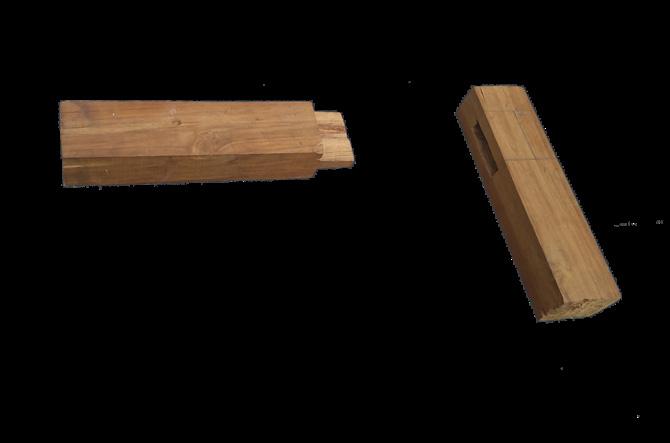

Tenon and Mortise shown seperately

Wood Workshop : The Workshop was conducted to understand the possibilites and limitations of Bio material : wood .So to Understand , varoius Joinery from wood was made without using any Adhesive.

These joint were to be carved without using any machinery so it was Carved using : Chisel , Hammer , Saw

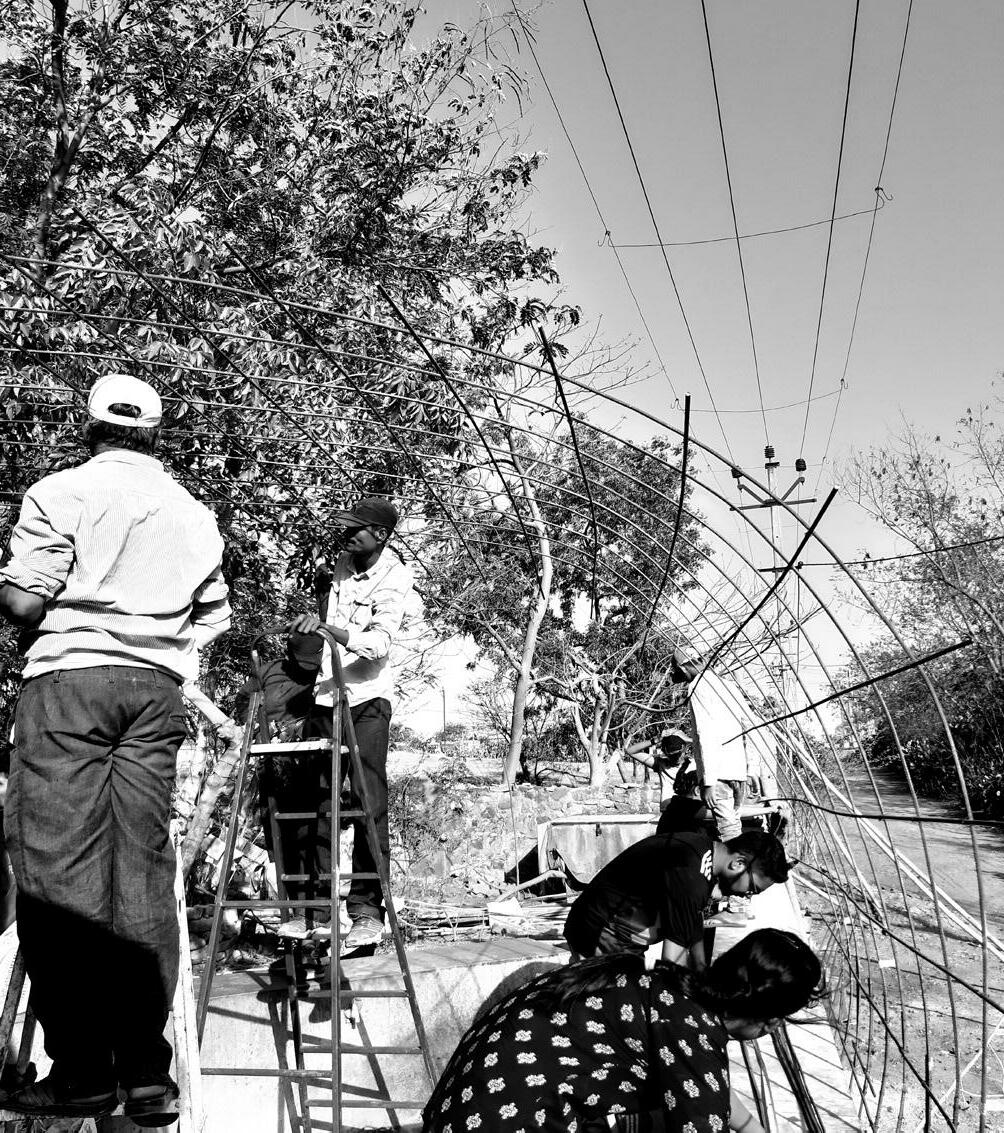

Ferrocement Workshop : It was Conducted by Ar. Arjun Doshi To understand and work with the material . Basically main content of Ferrocement were : Mesh + Cement + Sand.

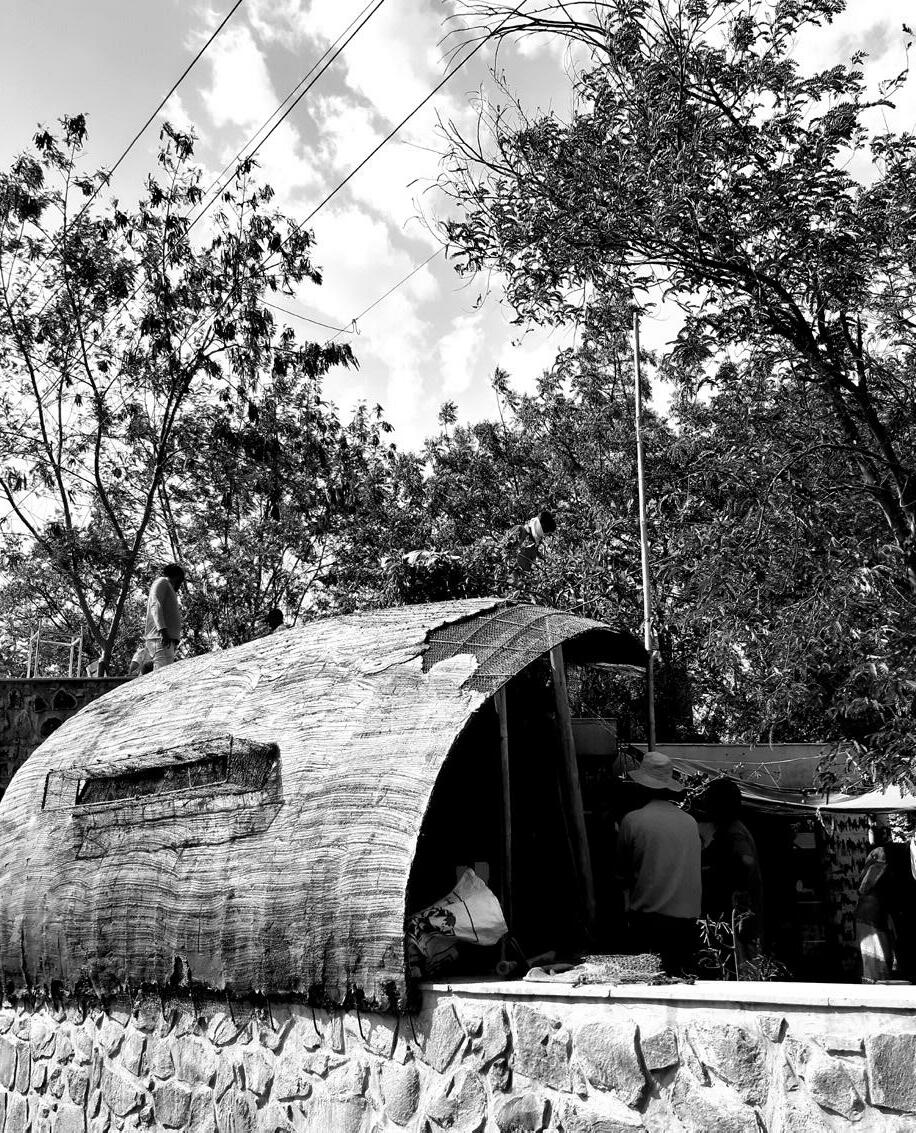

So we constrcted a Shell out of a Ferrocement which act as a roof for the Canteen wash area in our College campus

Miscellaneous works

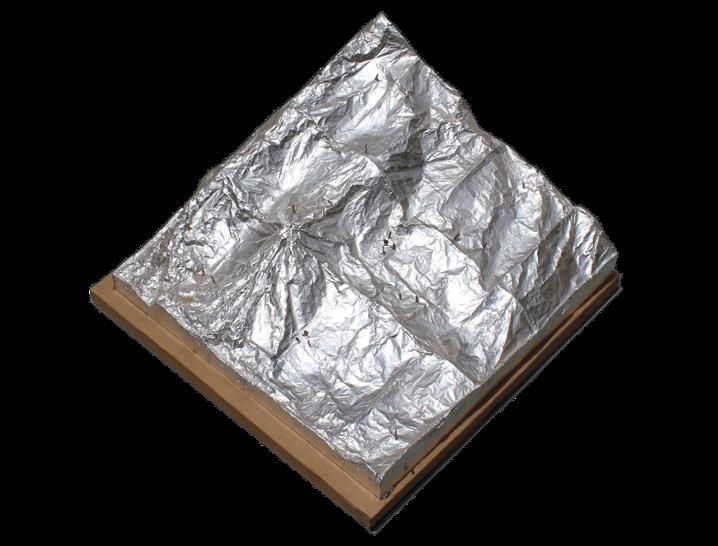

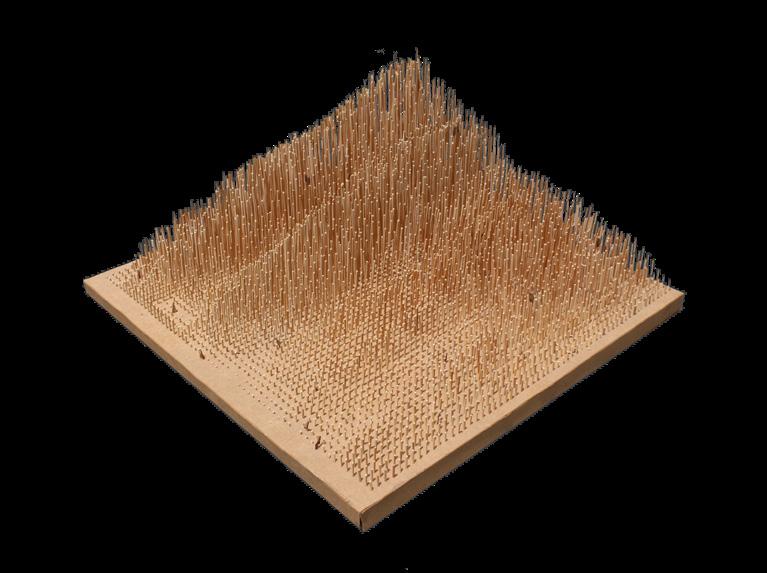

Contur Measurement and Analysis of its Form : We were assigned a Site Out of city to measure and map the Contur drop . So we mapped the whole contur by taking lateral and transverse section at every 3m . So it Forms 3m x 3m grid in plan later contur drop at every point is measured which resulted in mapping of Contur whose drop resulted is 30m. So a. Each sticks represent distance = 3m b. Transverse and Lateral Sections c. Understanding the ridge and valley

Competitions

a.

b.

A Change which changes the dimension of HOW a bypass is Designed that enhances multi-functionlity and city experinces.

- Multi-functionality - Connecting •old port •new port •city shores •railway

HYPERREAL OR IMAGINED CITIES tend to be ideal which normally doesn't manifest as we cannot control the movement of human. But, that's what we tried to be as we often like the proceess achieving it. People will become saturated if their surrounding is full-filled.

- Fishery activities are enhaced by designing separate spaces for commercial and their individual residences.

c.

INITIAL STAGE Passing through outskirts of city

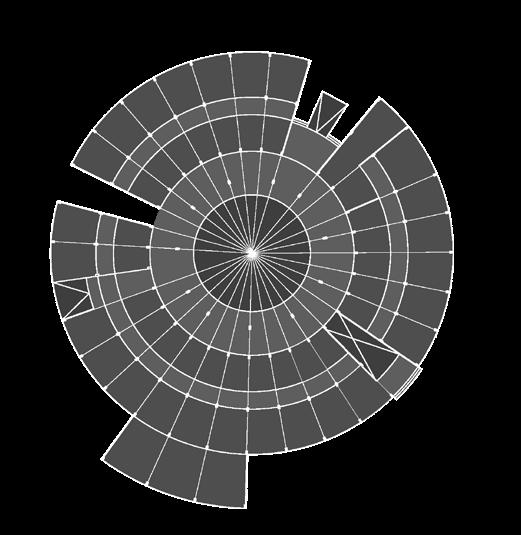

PROPOSED DESIGN FOR Hyperreal City Proportionally at primary roads new commercial lines are proposed so that intensity of commercial market gets decentrallised and gives an ease to city congestion.

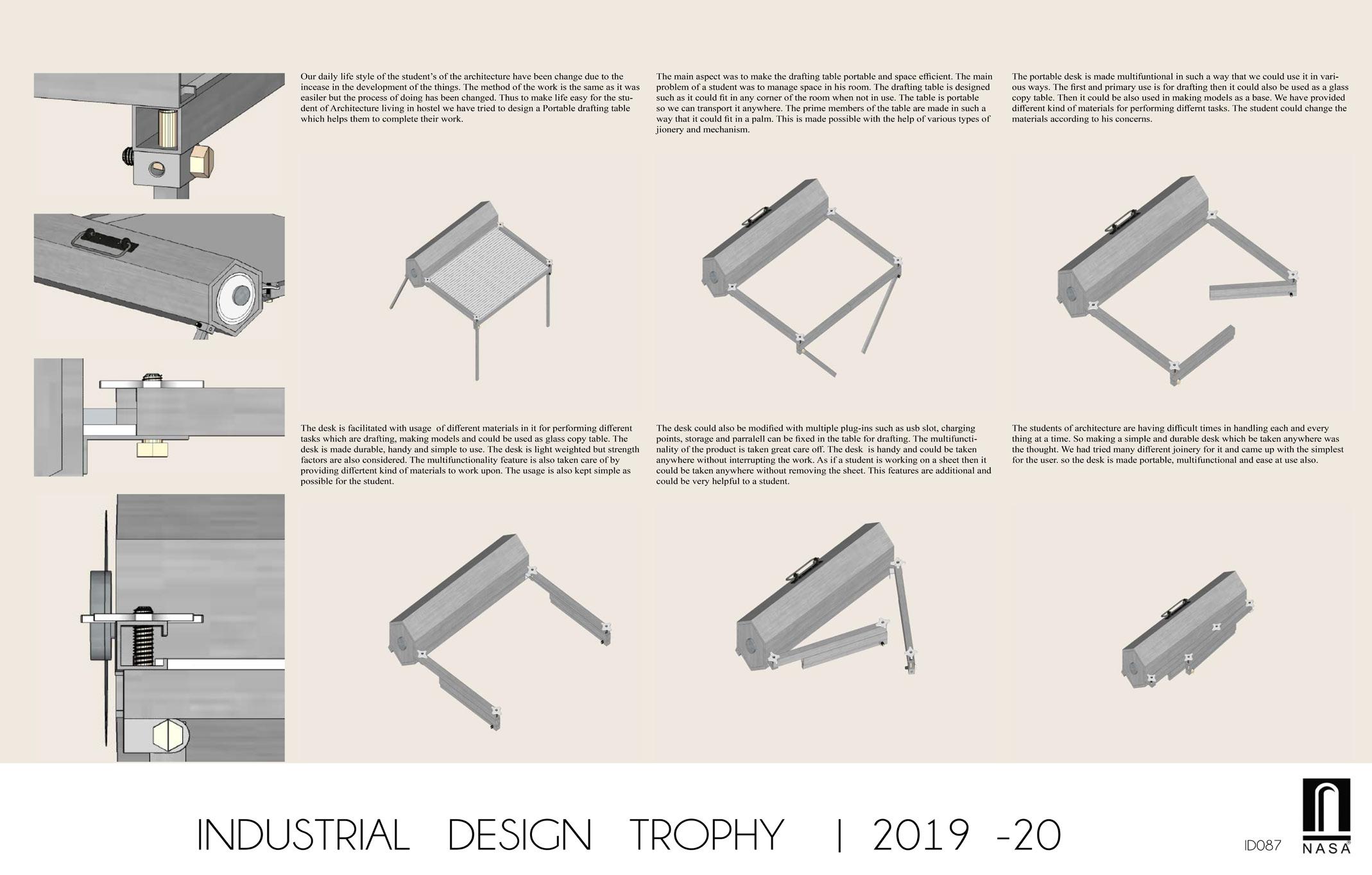

1. Industrial Design Trophy [ NASA 2019 ]

FUTURE - Facing challenge right at front and resolving it Fundamentally

PRESENT Orthodoxically formed bypass adhering to old ways

300m

400m

600m

800m 1.6km

2.0km

3,0km

Green open space

Measure of functions reach in person's locality.

Section through new proposed highway , wooden bridge and the port city

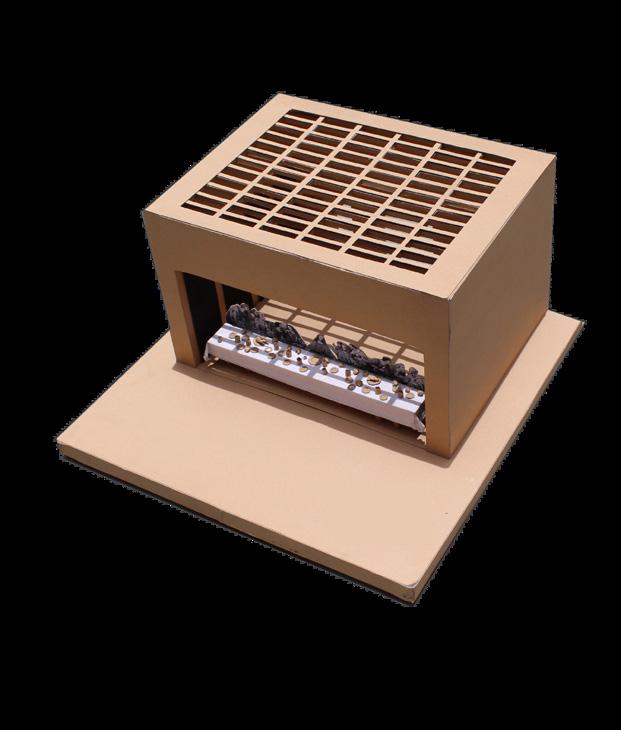

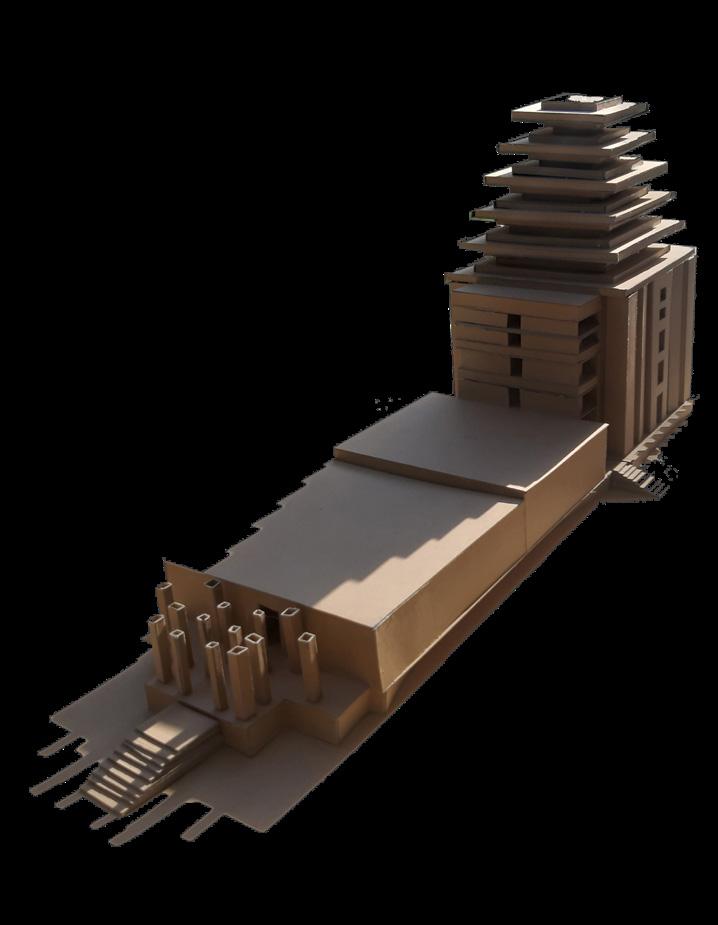

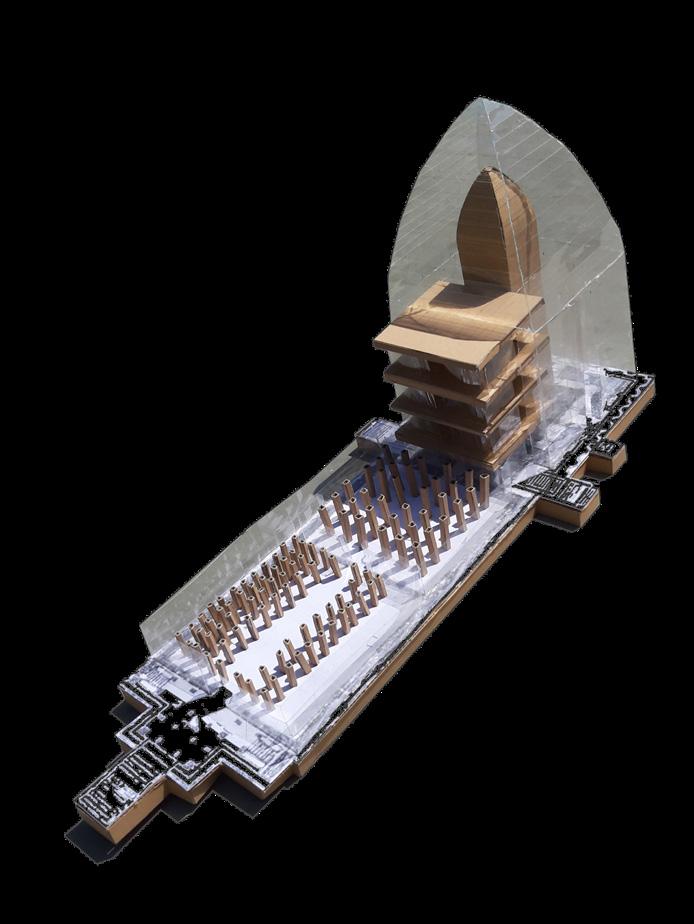

In History of Architecture as a case to Study the spatial organi- The Last Supper : Model sation of Temple Architecture : Brihadeshwara temple was taken. of the Painting By Da vinci to understand the hidden A. To study the built mass B. To study Form and porosity layers of painting

2. GSEN Trophy [ NASA 2019 ]

Betwixt Design your dream home : Archasam The competition aims at designing the house of your dreams.

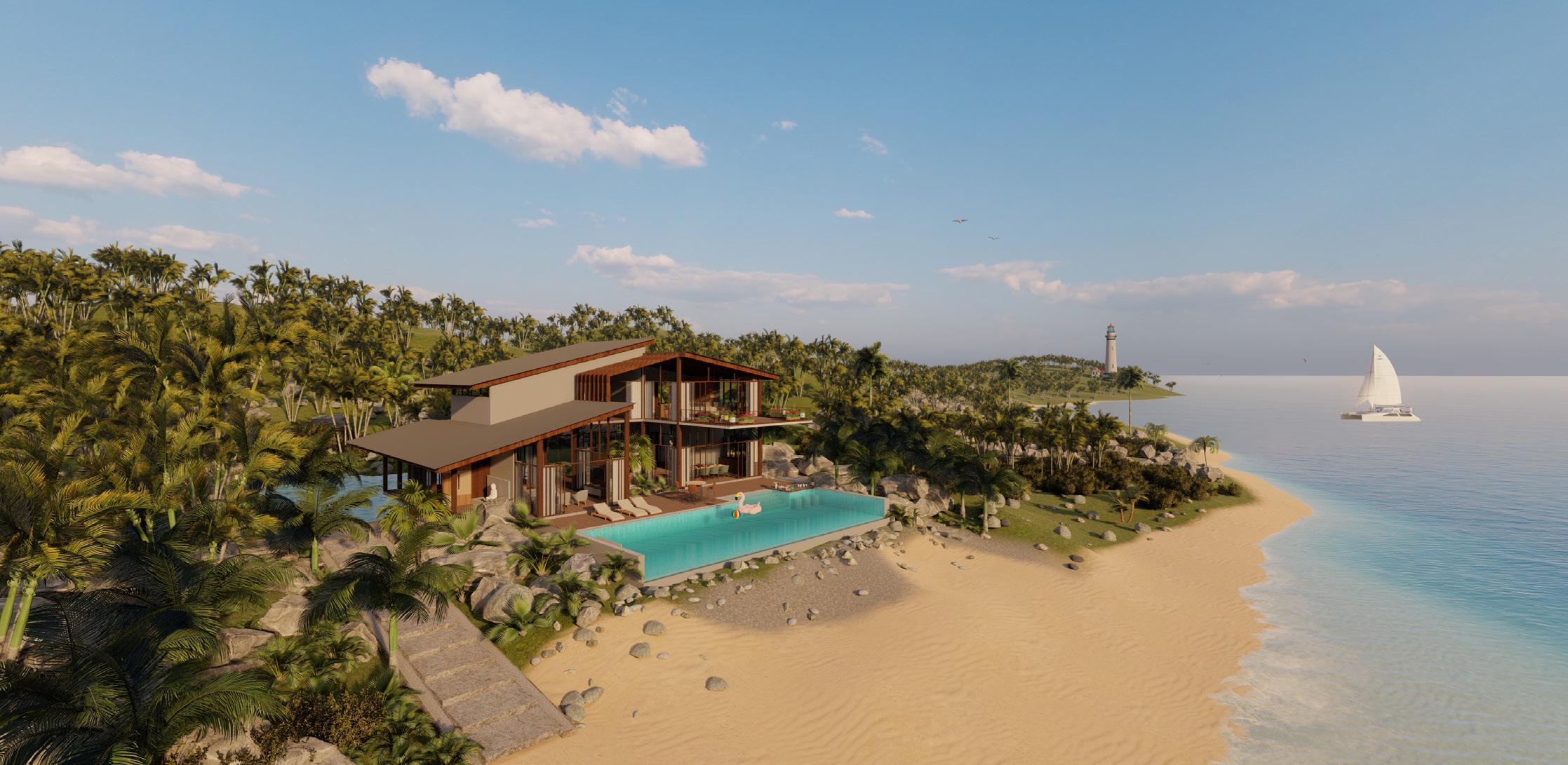

Betwixt : Where Outside meets Inside . Overlooking the Infinite Ocean, the house sits on a beautifully crafted landscape The panoramic view provides you with a feeling of harmony with nature combining inner environment with the surrounding landscape.

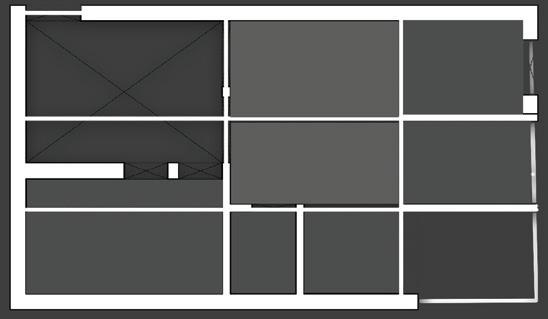

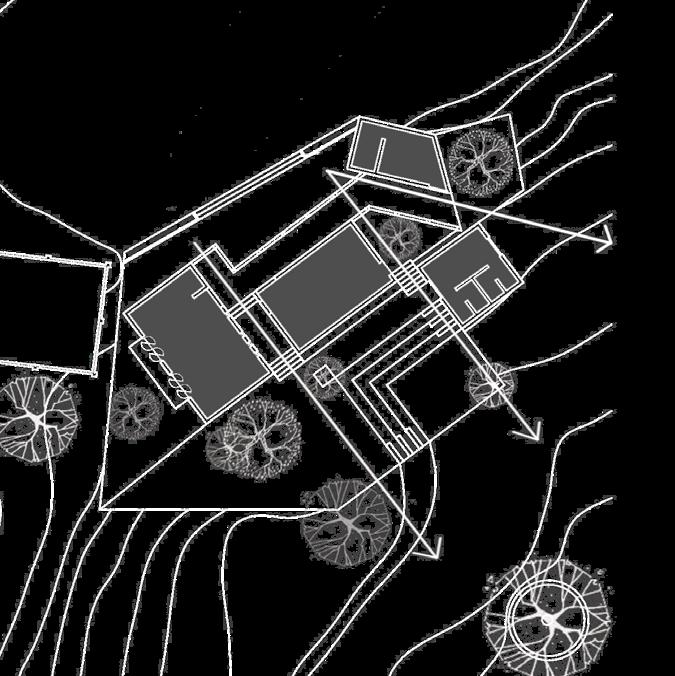

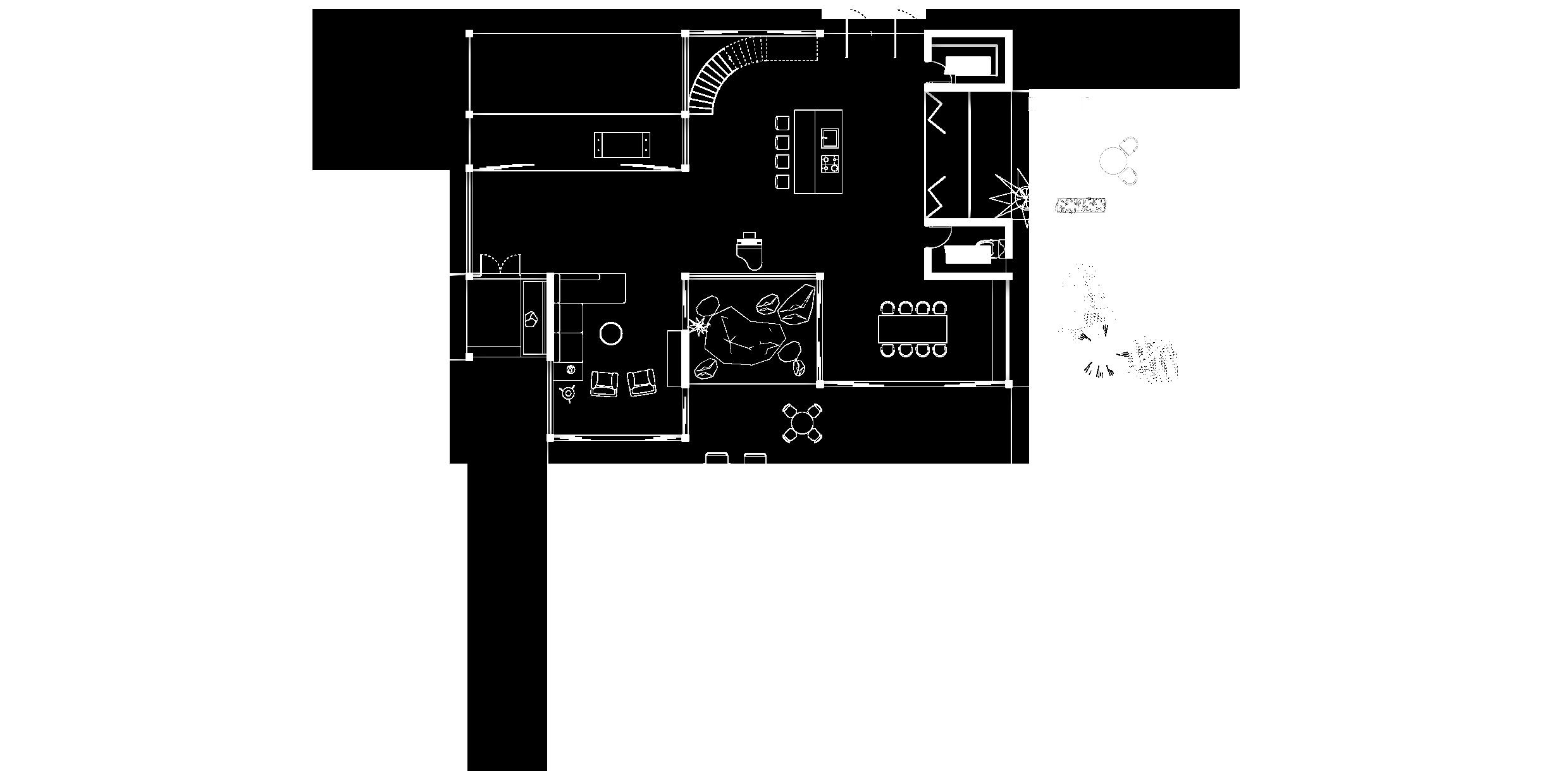

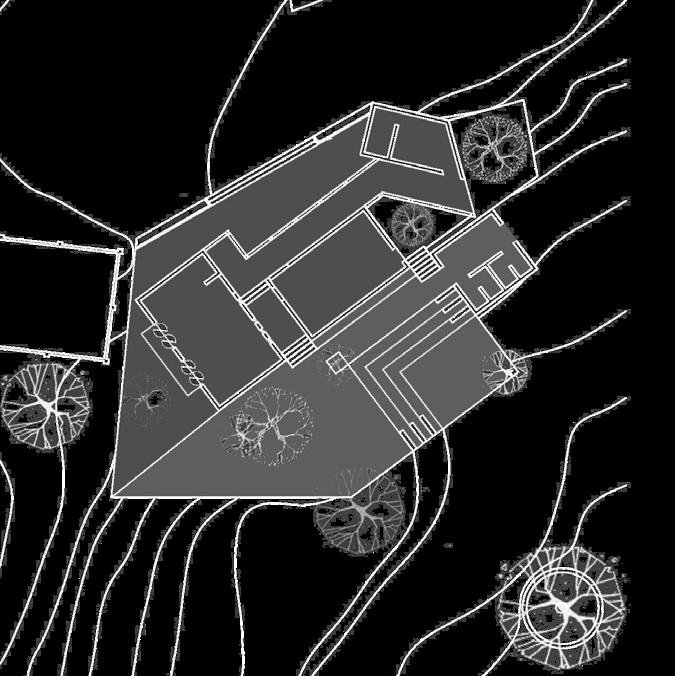

Ground Floor Plan

Transverse Section cutting across contur

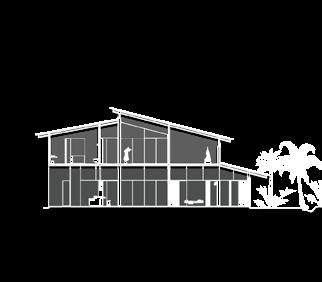

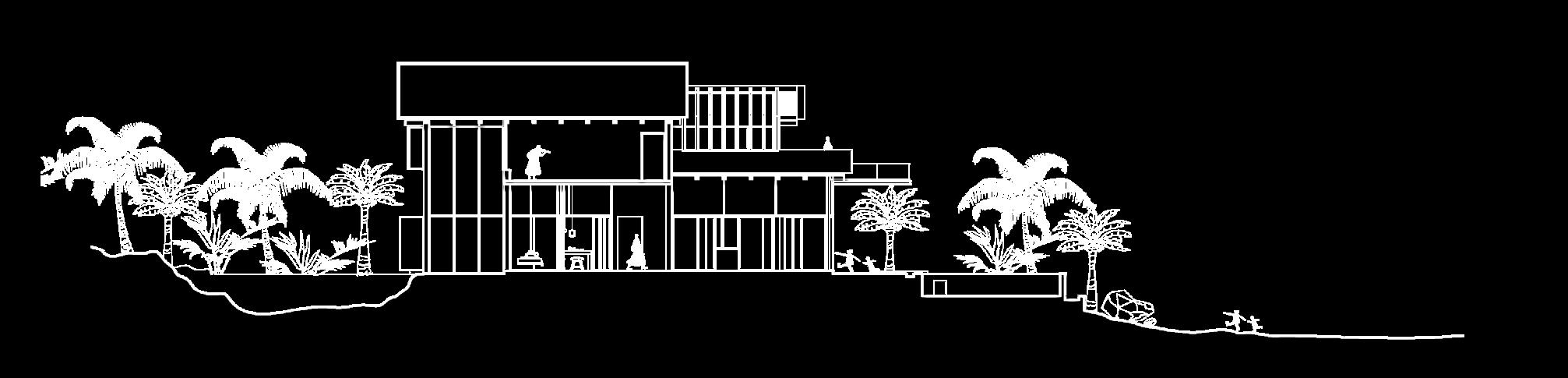

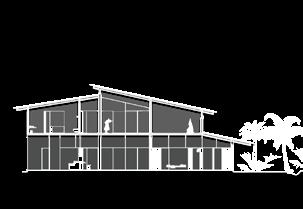

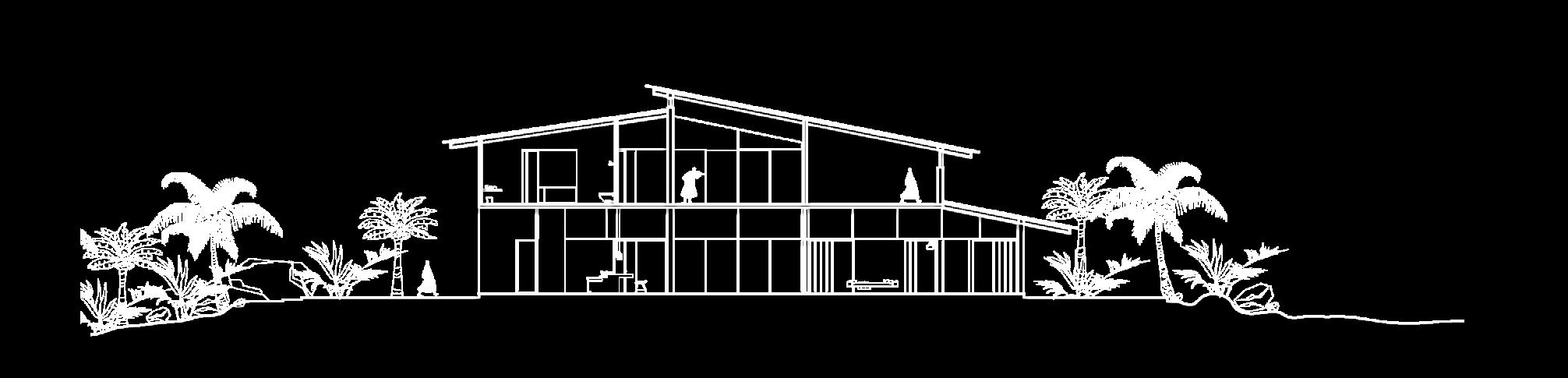

Lateral Section

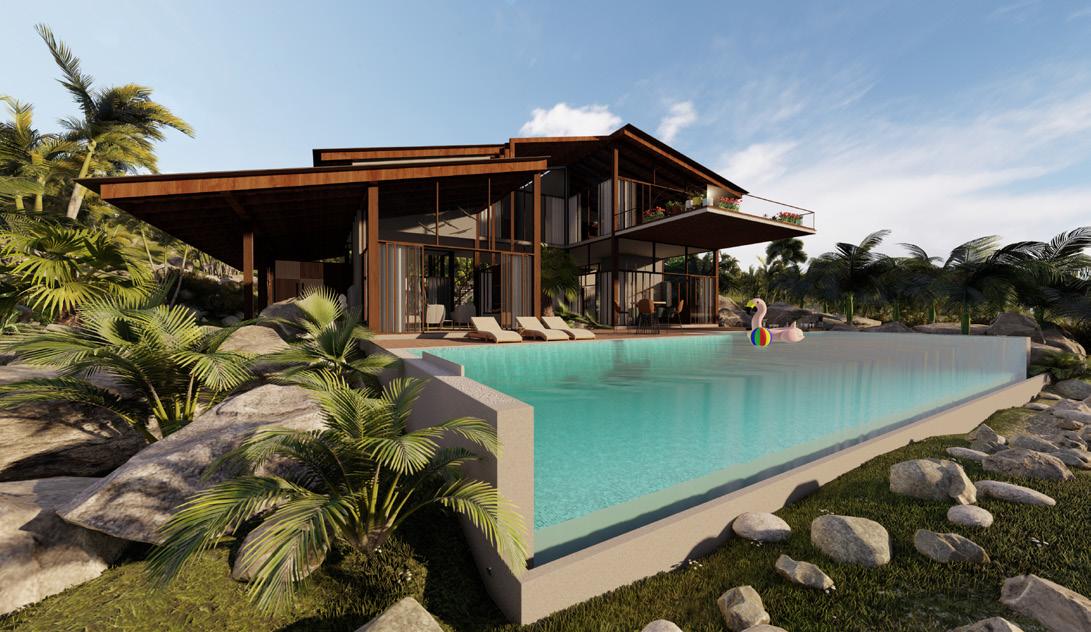

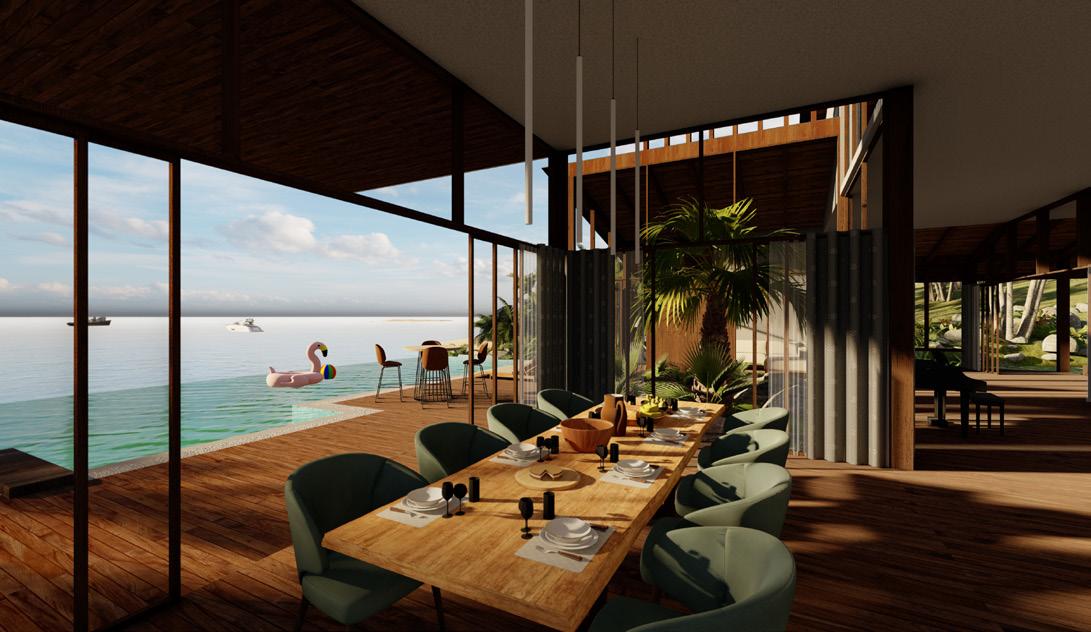

The House expands the perception of space as the infinity pool lets you wander across the horizon and make the architecture exquisite.

The House merges with Ocean in the front and jungle in the back and act as a seamless transition of Built and nature thus creating a Harmony Between Human and nature

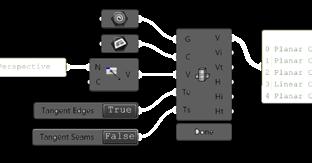

Parametric Exploration Rhino + Grasshopper

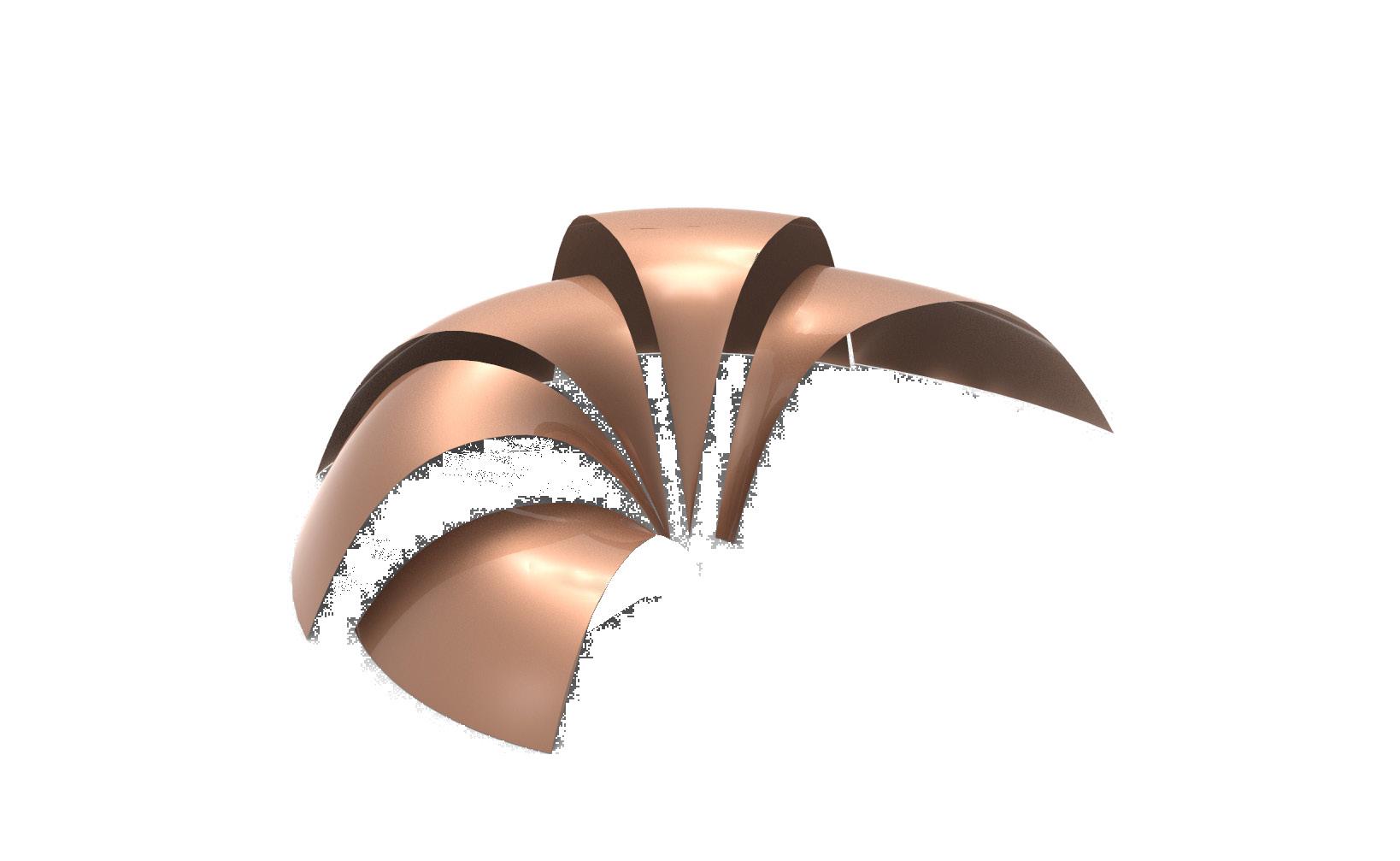

Design of Wooden Pavilion Using Grasshopper Script

Pavilion in Abu Dhabi Using Rhino

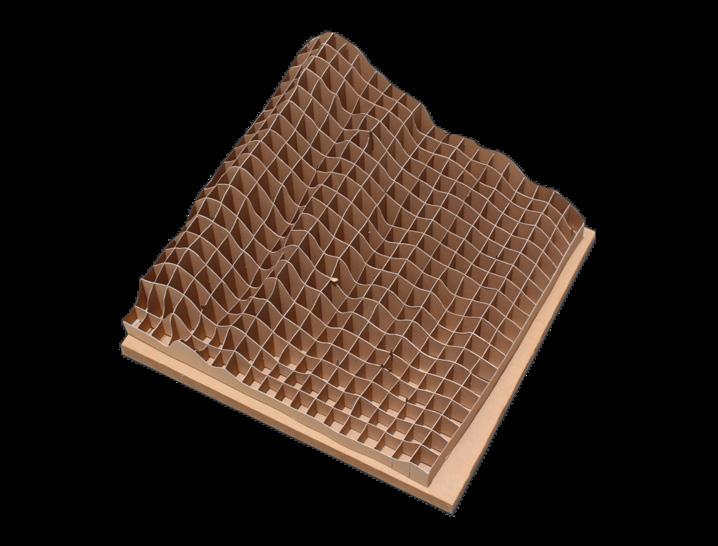

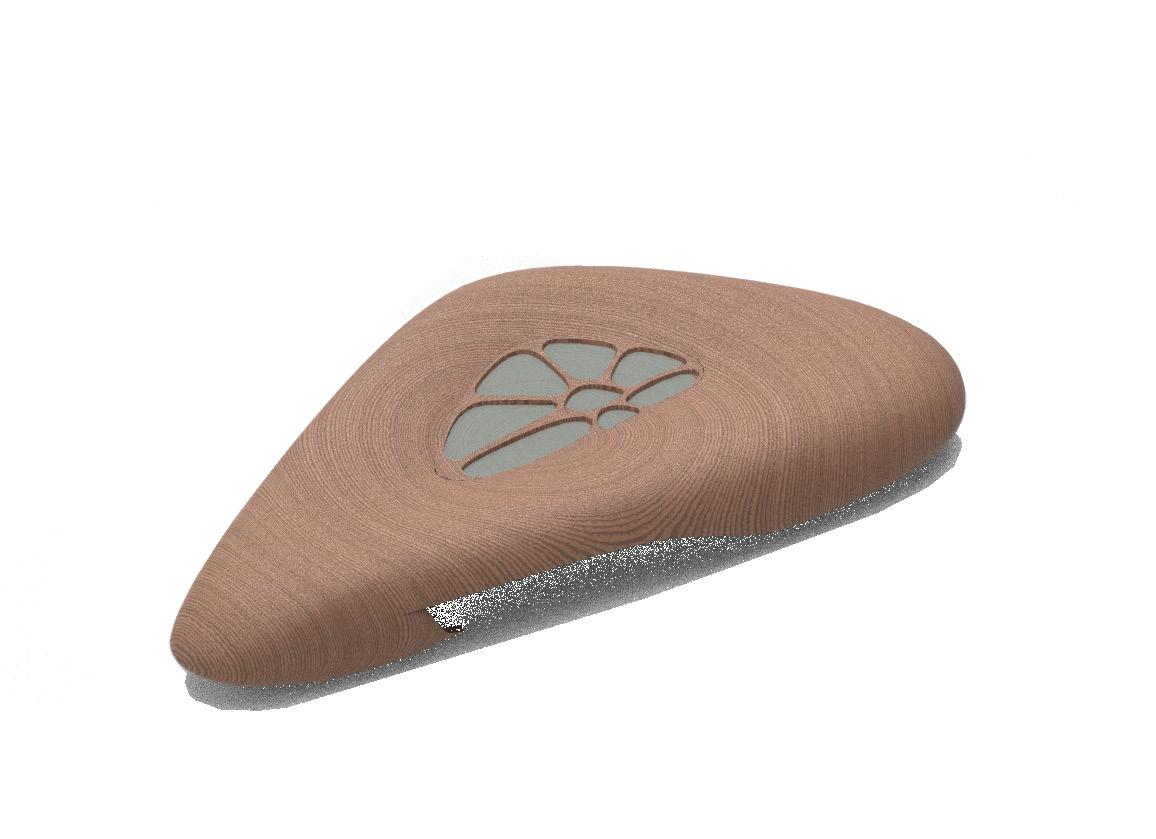

Contured Parametric Copper Sculpture

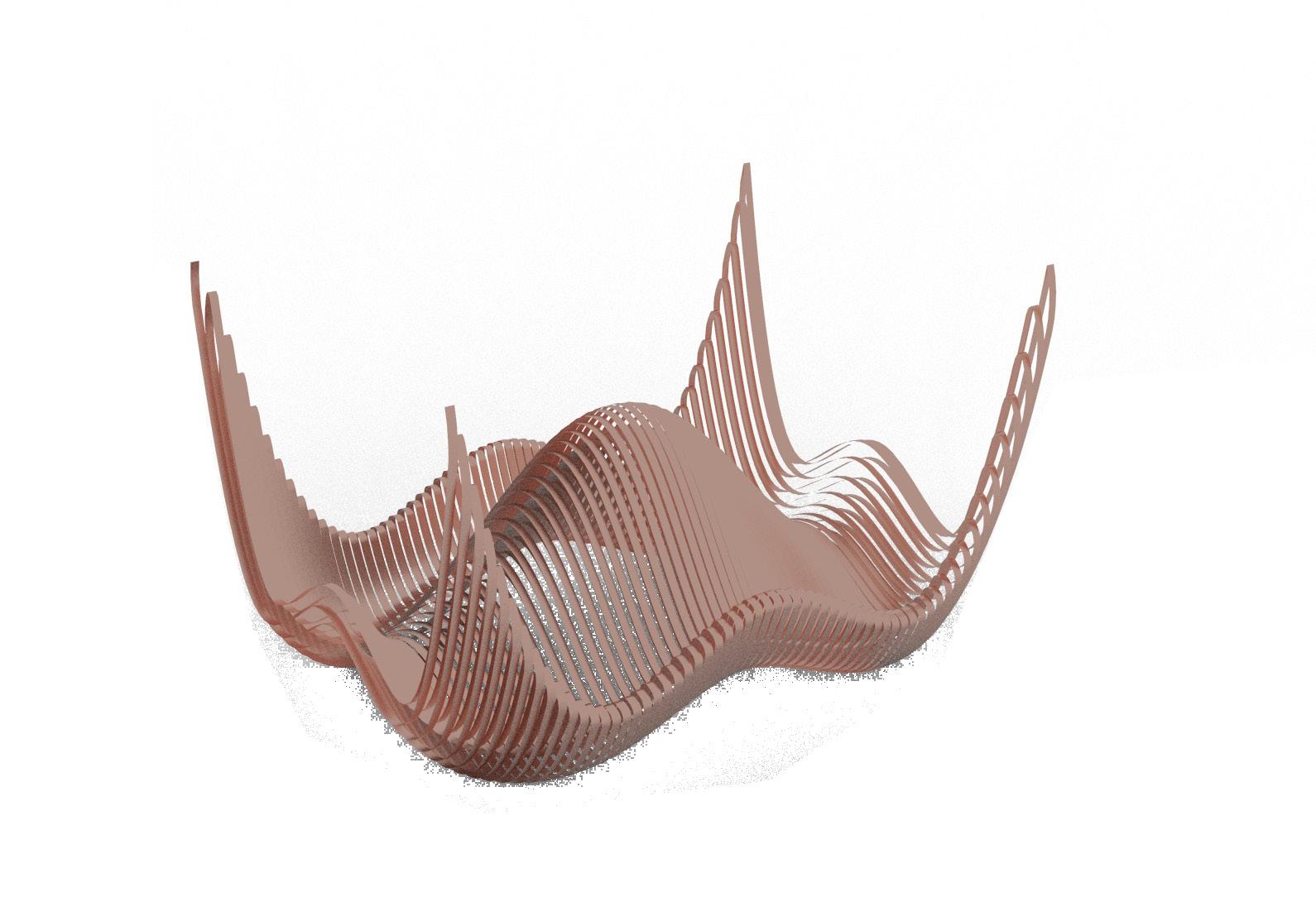

Copper Sculpture

Photography “ Just Another way of looking at the Things “
