CONERO - Modern Closet Storage by Kesseböhmer

Page 1

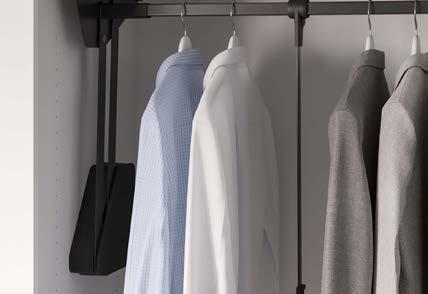

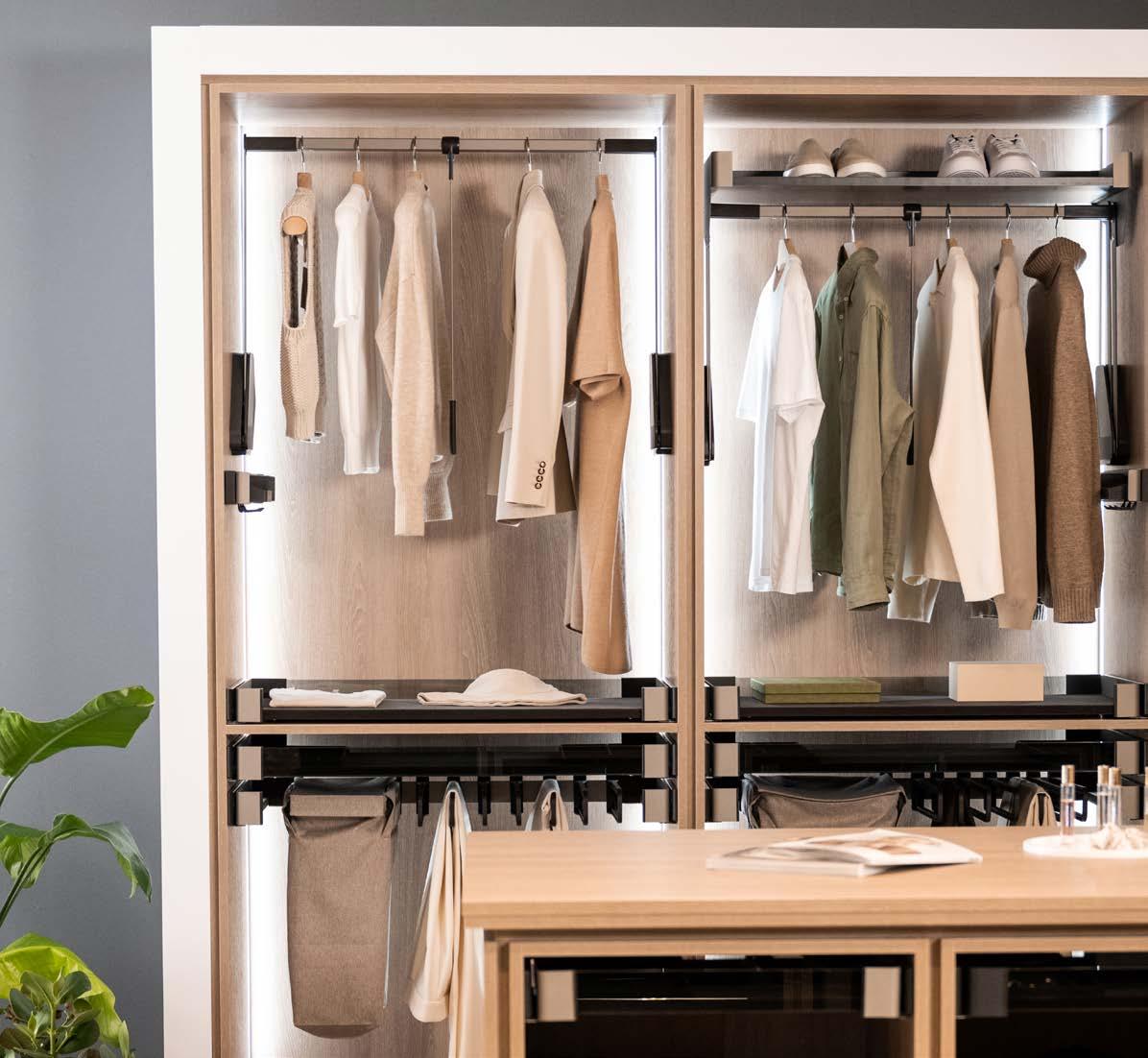

Wardrobe Lifts

The CONERO collection includes two wardrobe lifts: the Classic Lift and the industry's first TOP Wardrobe Lift.

The Classic Lift smoothly pulls the closet rod out and down, with a self-regulating system that prevents uncontrolled movement. Its advanced lift kinematics and control lever ensure effortless lifting, even with a full load.

The TOP Wardrobe Lift offers the same functionality but enhances storage with an integrated shelf above the clothes rail, providing added convenient storage.

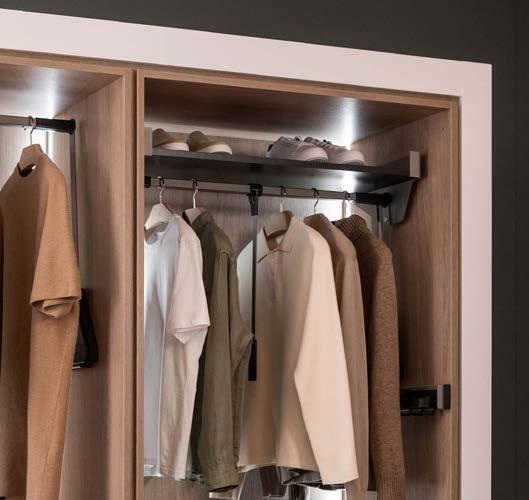

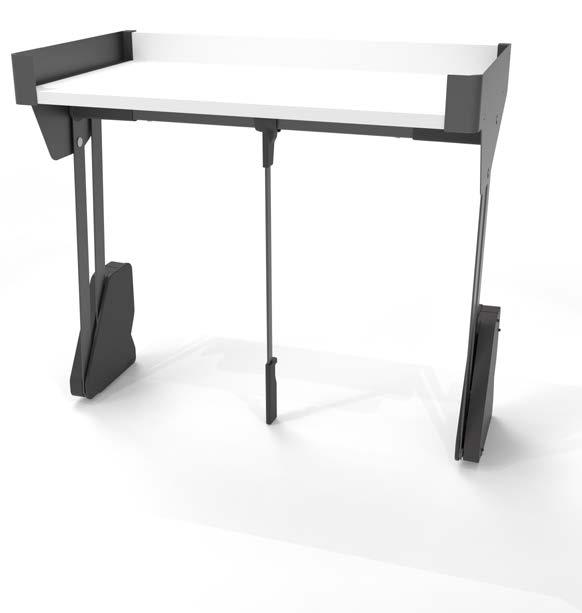

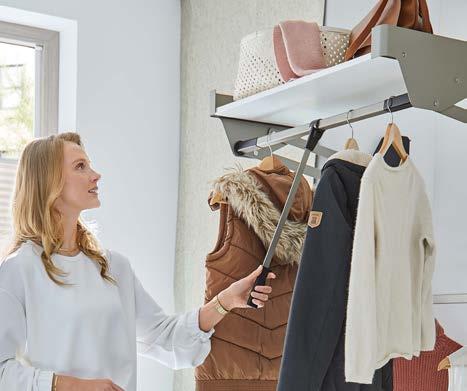

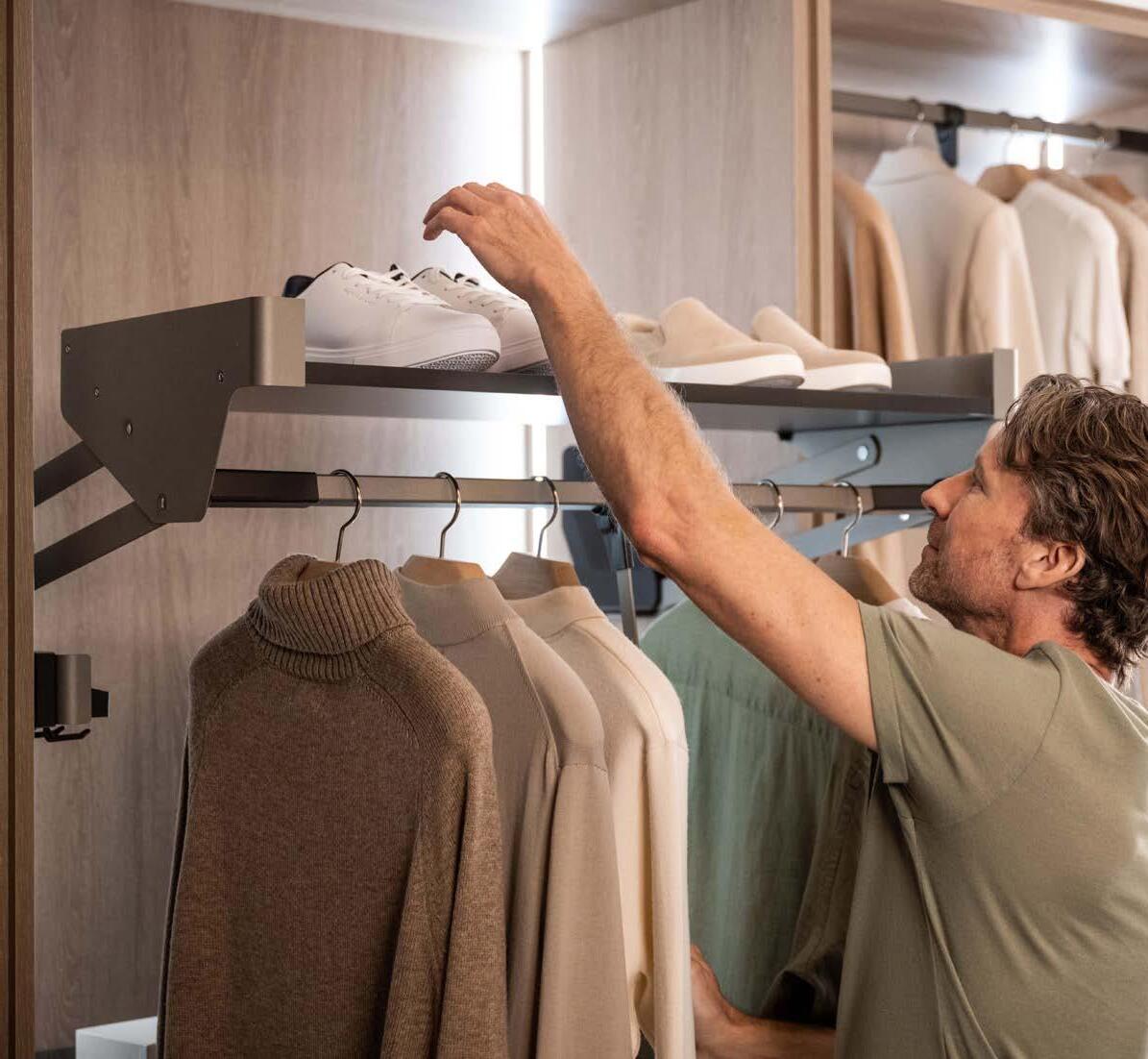

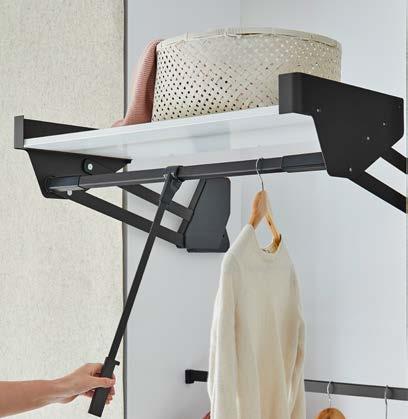

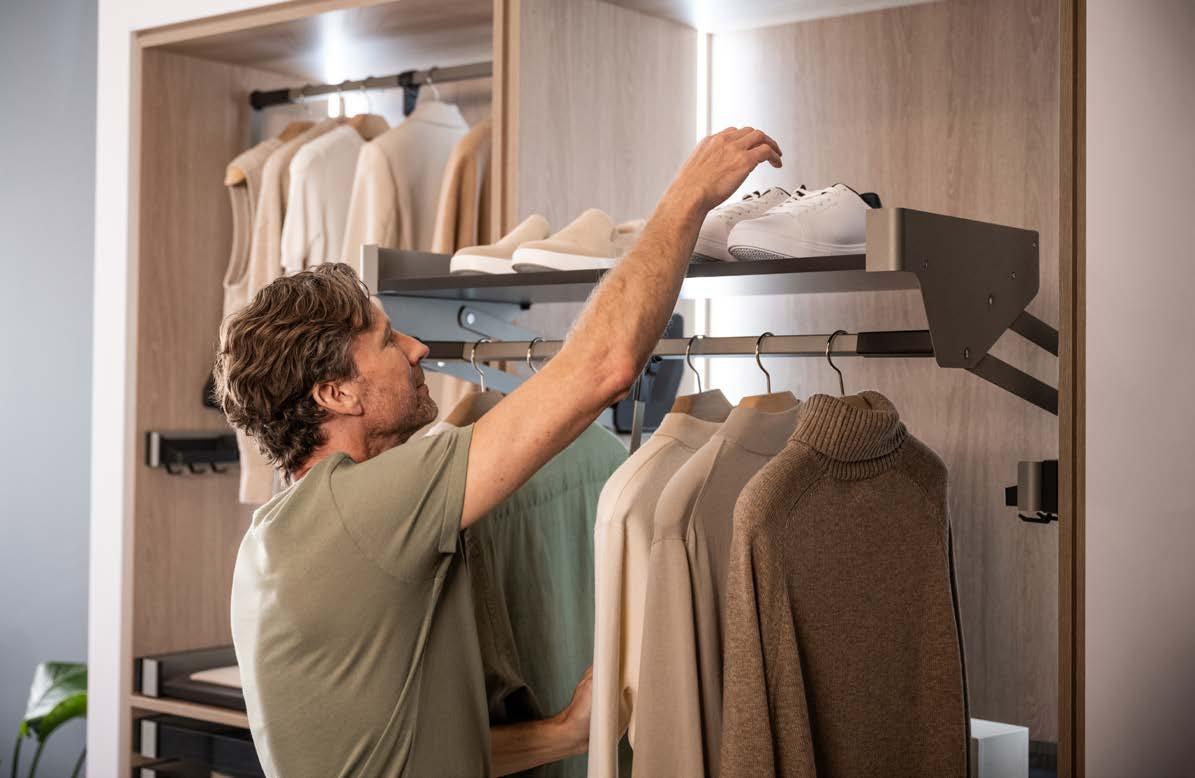

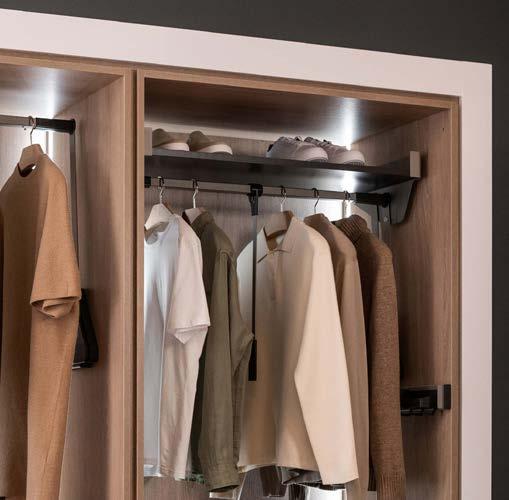

Top Wardrobe Lift

• Industry-first clothes lift with integrated top shelf

• Creates additional, easily accessible storage space above the closet rod

• Allows for the utilization of the full closet height

• 183 mm (7-¼") width adjustability

• Self-regulating power assistance allows for gentle and safe raising and lowering

• Wooden shelf not included (max. weight: 6 kg)

• Shims available, see page 11

• Extended length handles available, see page 10

The world's first clothes lift of its kind.

Kesseböhmer combines its expertise in flap lift fittings with the motion of the innovative iMove to create the TOP Wardrobe Lift— the world's first clothes lift with an integrated top shelf.

Engineered for smooth operation, its energy storage system delivers maximum force when needed. With advanced lift kinematics and a patented lever arm, the TOP Wardrobe Lift offers superior raising and lowering functionality, setting a new standard in wardrobe convenience.

Powder Black TOP Wardrobe Lift
TOP Wardobe Lift

TOP Wardrobe Lift Technical Specs

Packing Unit: 1

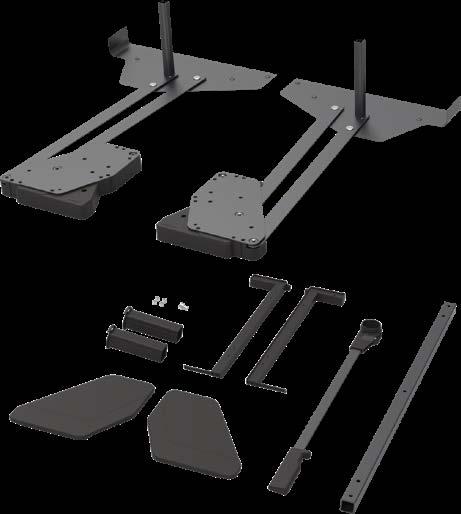

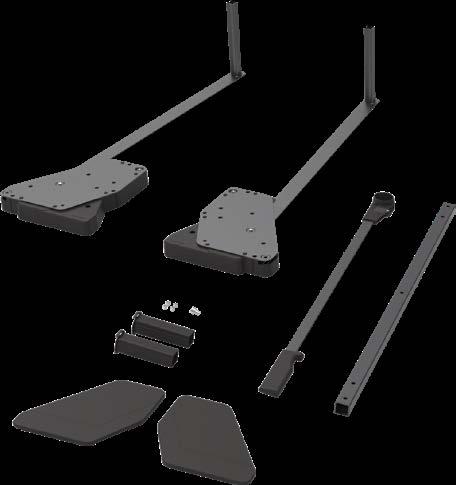

TOP Wardrobe Lift Set Contents:

• 1x Lift set

• 1x Set clothes rail holders

• 1x Set TOP shelf brackets

• 1x Clothes rail

• 1x Lift handle (580 mm)

• 1x Set cover plates

• 1x Installation manual

Resources:

Installation Instructions

Inside Cabinet Width (ICW) TOP Wardrobe Lift Front View TOP Wardrobe Lift Side View

Shelf Thickness:

– 19 mm (⅝" – ¾")

=ICW - 102 mm (4")

Wooden Shelf Dimensions

mm (15-½")

The shelf for CONERO TOP Wardobe Lift is cut-tosize and provided by the installer. See installation instructions for further details on dimensions.

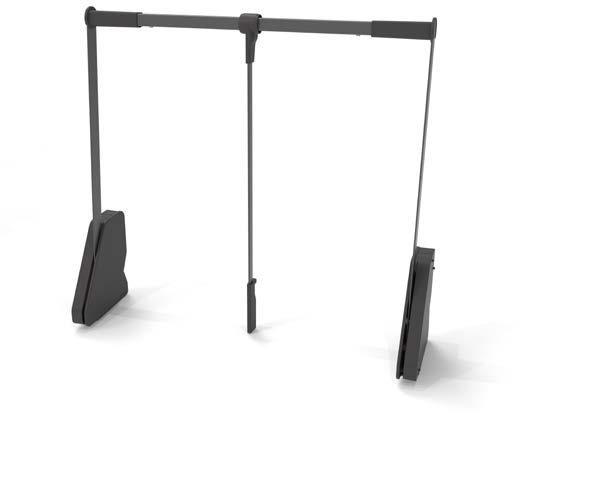

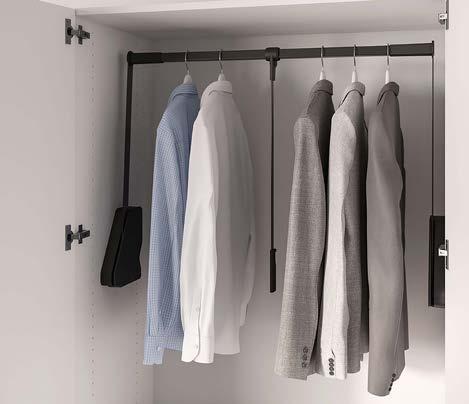

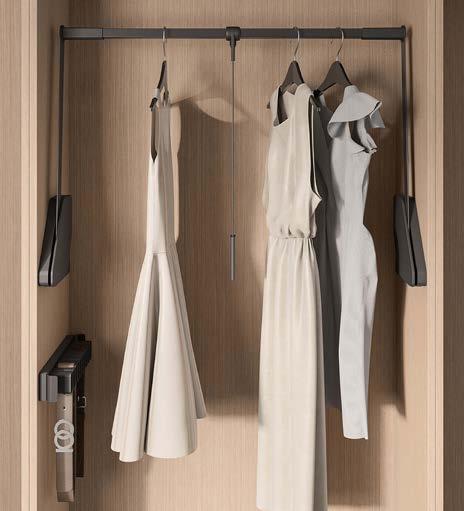

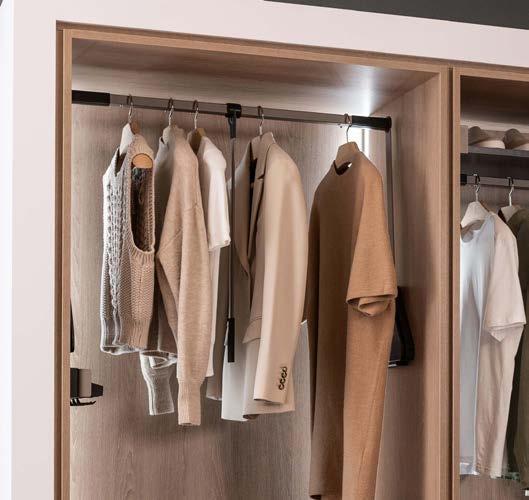

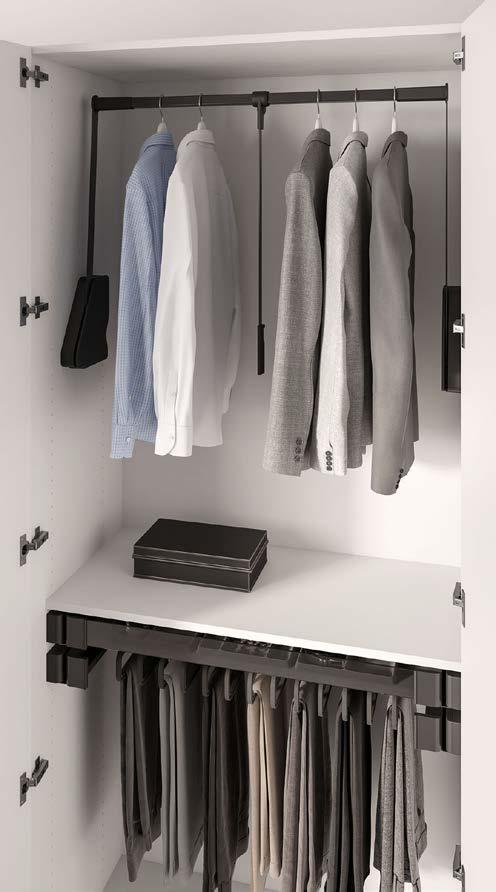

Classic Wardrobe Lift

• Easy, pull-down access to upper closet rods

• Allows for the utilization of the full closet height

• Smooth operation with low and full loads

• Self-regulating power assistance allows for gentle and safe lowering

• 183 mm (7-¼") width adjustability

• Shims available, see page 11

• Extended length handles available, see page 10

805 –

Powder Black Classic Wardrobe Lift
Classic Wardobe Lift

Classic Wardrobe Lift Technical Specs

Packing Unit: 1

Lift Set Contents:

• 1x Lift set

• 1x Set clothes rail holders

• 1x Closet rod

• 1x Lift handle (700 mm)

• 1x Set cover plates

• 1x Installation manual

Resources:

Installation

Instructions

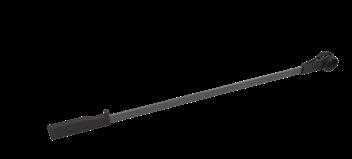

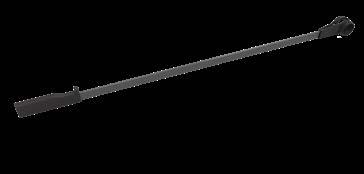

Wardrobe Lift Extended Handles

Optional longer handle for CONERO wardrobe lifts. Standard handle length: 580 mm (TOP), 700 mm (Classic).

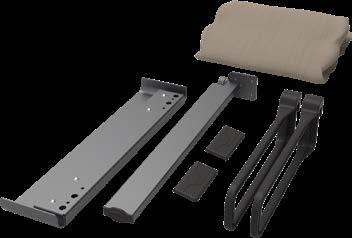

Adapter Plates & Shim

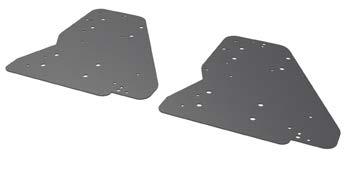

Wardrobe Lift Adapter Plate Set For mounting in lightweight cabinets.

• Adapter Plates are used to install CONERO Clothes Lifts in an existing row of holes including wardrobes with honeycomb panels (e.g. IKEA® PAX). The row of holes must be embedded in a load-bearing, torsion-resistant solid material (e.g. solid wood, chipboard).

• ATTENTION: Without the Adapter Plate, CONERO clothes lifts may only be installed in solid materials (chipboard, wood or similar).

Wardrobe Lift Shim

NOTE: The TOP Wardrobe Lift includes two 10 mm shims to be installed with each lift. This 10 mm has been included in the width measurement of the lift. For this reason, when adding the shim above to the TOP Wardrobe Lift, only add 20 mm to the width. This does not apply to the Classic Wardrobe Lift.

TOP Wardrobe Lift with Shim
Classic Wardrobe Lift with Shim

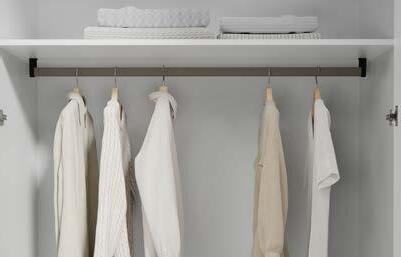

Closet Rods & Mounts

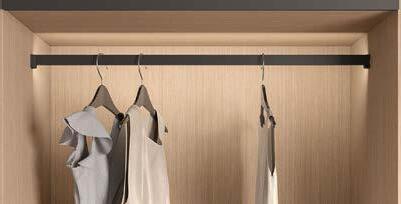

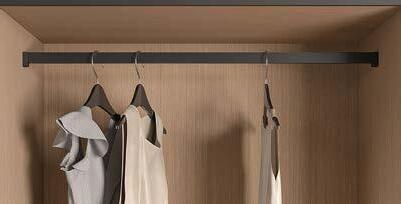

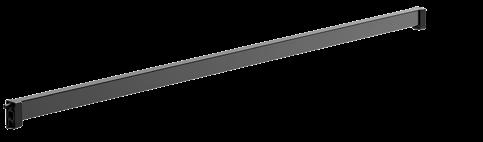

Closet Rods

• Made of high quality, powder-coated aluminum

• Variant available for LED lighting integration

• Cut-to-size

Closet Rod

Closet Rod Dimension W x D x H

920 x 15 x 30 mm (36-¼" x ⅝" x 1-⅛")

1220 x 15 x 30 mm (48" x ⅝" x 1-⅛")

920 mm (36-¼")

Individual 239865 7021 239865 9853 Bulk (Qty. 10) 238901 7021 238901 9853

1220 mm (48") Individual 239866 7021 239866 9853 Bulk (Qty. 10) 238902 7021 238902 9853

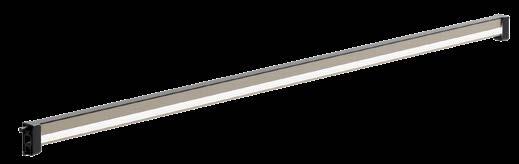

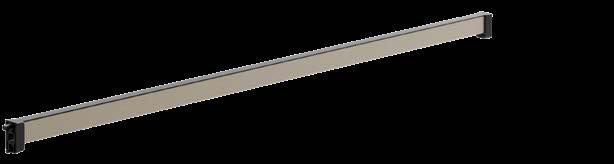

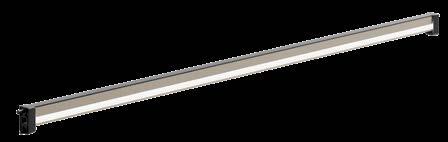

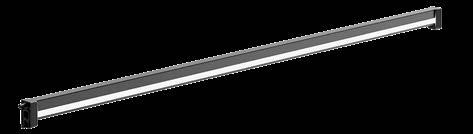

Closet Rod for LED Integration

Closet Rod

920 x 15 x 30 mm (36-¼" x ⅝" x 1-⅛")

1220 x 15 x 30 mm (48" x ⅝" x 1-⅛")

LED strip not included.

Installation Instructions

920 mm (36-¼")

1220 mm (48")

LED strip dimensions for use with LED adaptation plate

Individual 239867 7021 239867 9853 Bulk (Qty. 10) 238724 7021 238724 9853

Individual 239868 7021 239868 9853 Bulk (Qty. 10) 238725 7021 238725 9853

Installation Instructions

Champagne for LED
Powder Black for LED
Powder Black
Champagne

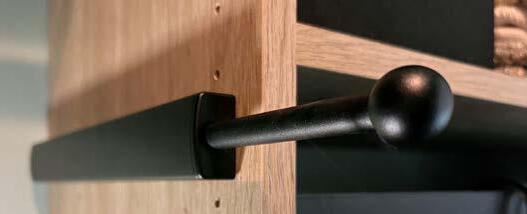

Closet Rod Mounts

• Top and wall mount options

• For use with CONERO Closet Rods

Top Mount Wall Mount

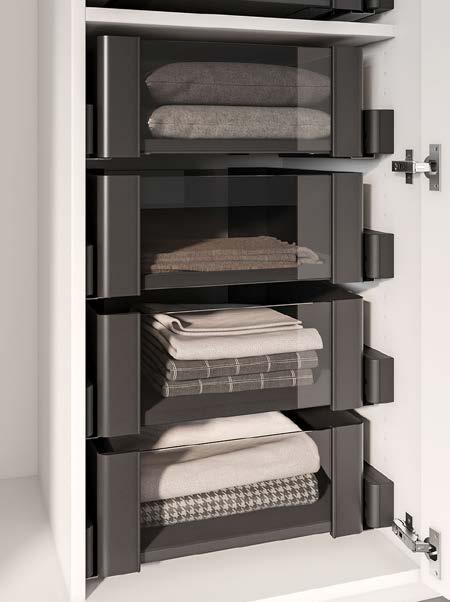

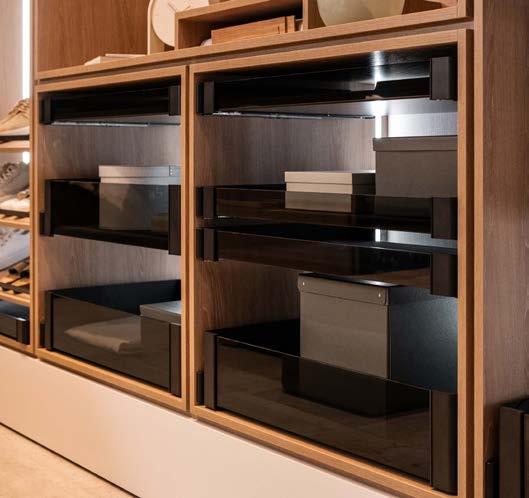

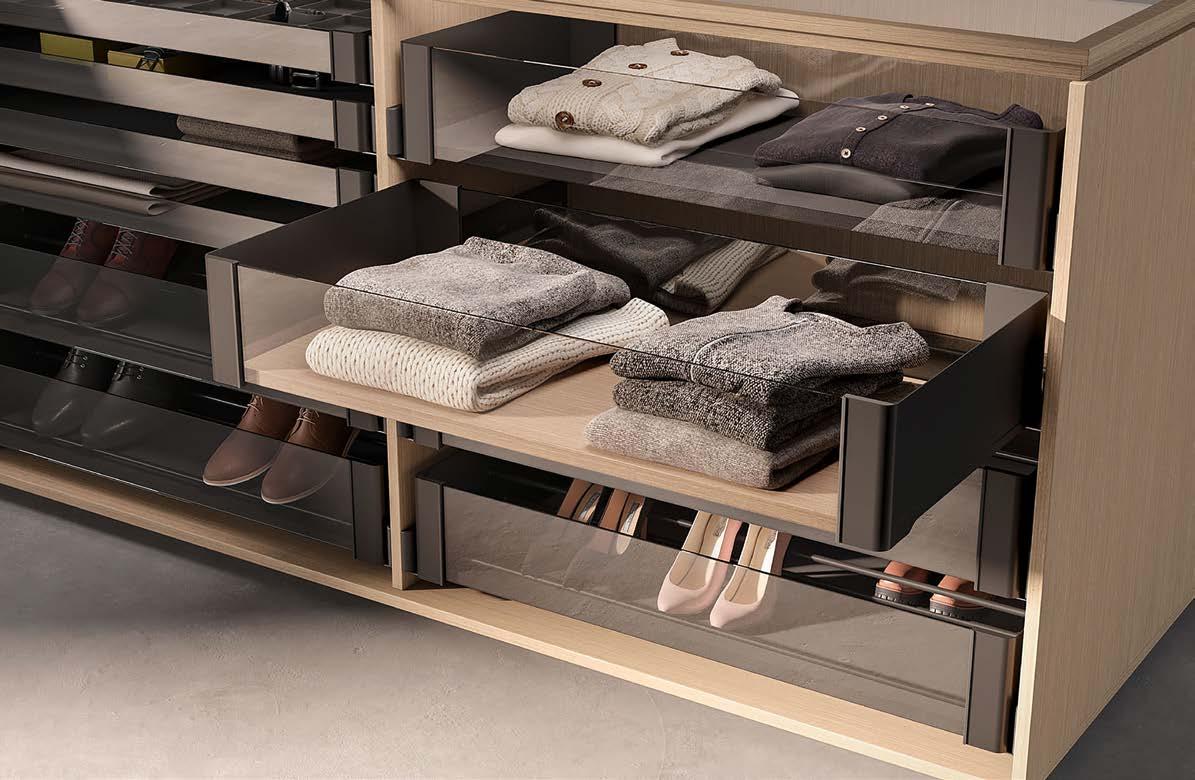

CONERO Drawers

The minimal, metal frames of the CONERO Drawers are designed with gently rounded corners and soft edges. Tinted glass front and back panels provide visibility to the interior while maintaining the sleek aesthetic of the collection. If glass is not wanted, installers can integrate another material.

The drawers full-extension runners are finished with soft, self-closing mechanisms.

CONERO Drawers are designed with 60 mm (2-⅜") of width adjustability. The drawers are available in four widths ranging from 457 to 820 mm (18" – 32-¼"), two heights of 72 mm (2-⅞") and 168 mm (6-⅝"), and two depths of 345 mm (13-⅝) and 475 (18-¾").

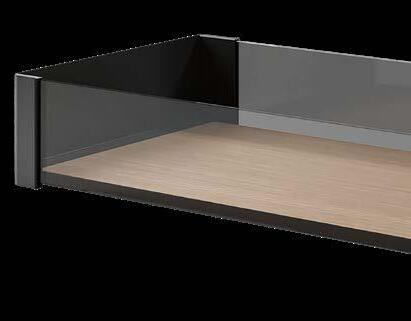

Drawer Sets

• Soft-edge design with millimeter-thin frame

• Tinted safety glass front and back panel

• Full extension runners with soft close

• 60 mm (2-⅜") width adjustability

• Shims available, see page 27

• Mats and organizers available, see page 21

• Wooden drawer bottom not included

72

168

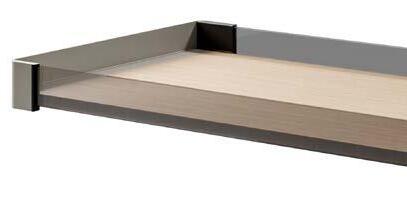

Champagne Drawer 168

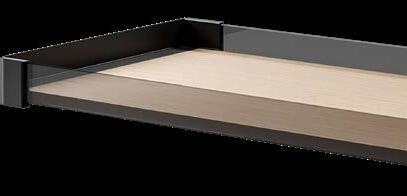

Powder Black Drawer 72
Champagne Drawer 72
Powder Black Drawer

Drawer Set Technical Specs

Packing Unit: 1

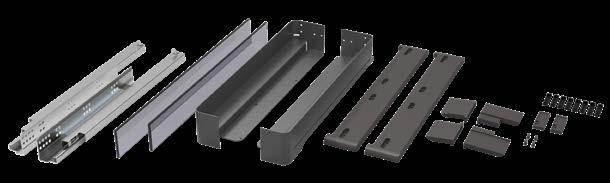

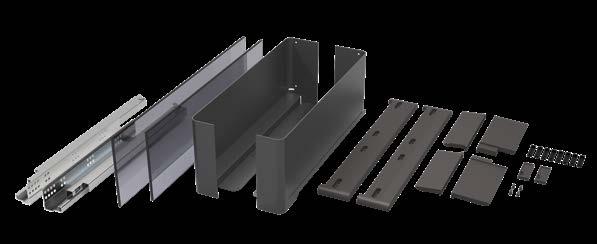

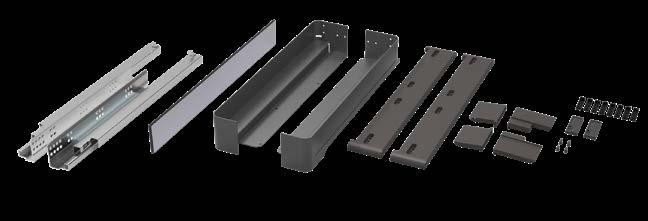

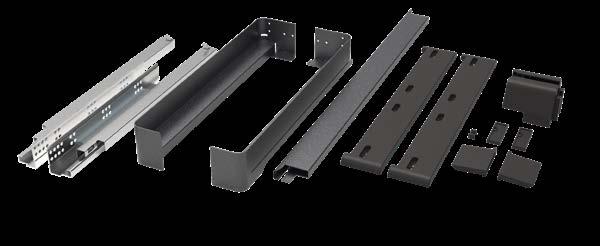

Drawer Set Contents:

• 1x Frame set

• 1x Runner cover cap set

• 1x Set front mounts

CONERO Drawer Set 72 H

• 1x Set rear mounts

• 1x Front glass panel

• 1x Rear glass panel

• 1x Runner set

• 1x Installation manual

Resources:

CONERO Drawer Set 168 H

Installation Instructions Installation Video

Drawer Front View

Inside Cabinet Width (ICW)

Inside Cabinet Width (ICW)

*To calculate bottom width, subtract 119 mm (4-⅝") from the Inside Cabinet Width (ICW). Bottom Width* Bottom Depth

The bottoms for CONERO Drawers and Trays are cut-to-size and provided by the installer. See installation instructions for further details.

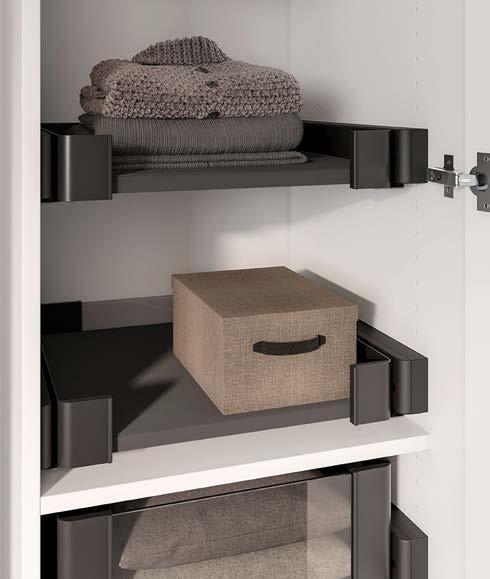

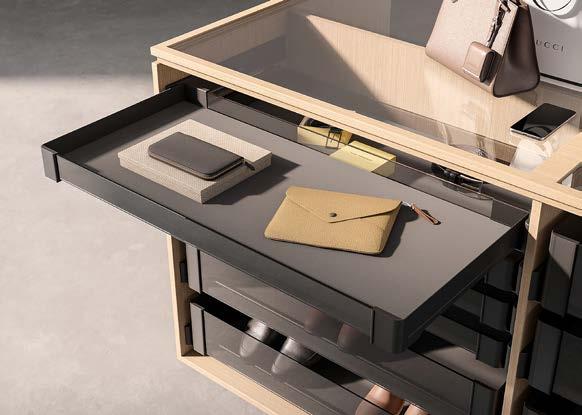

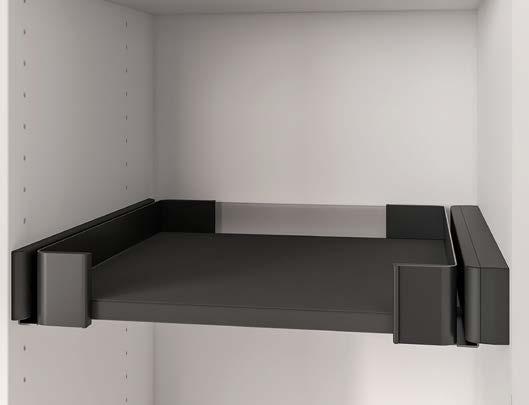

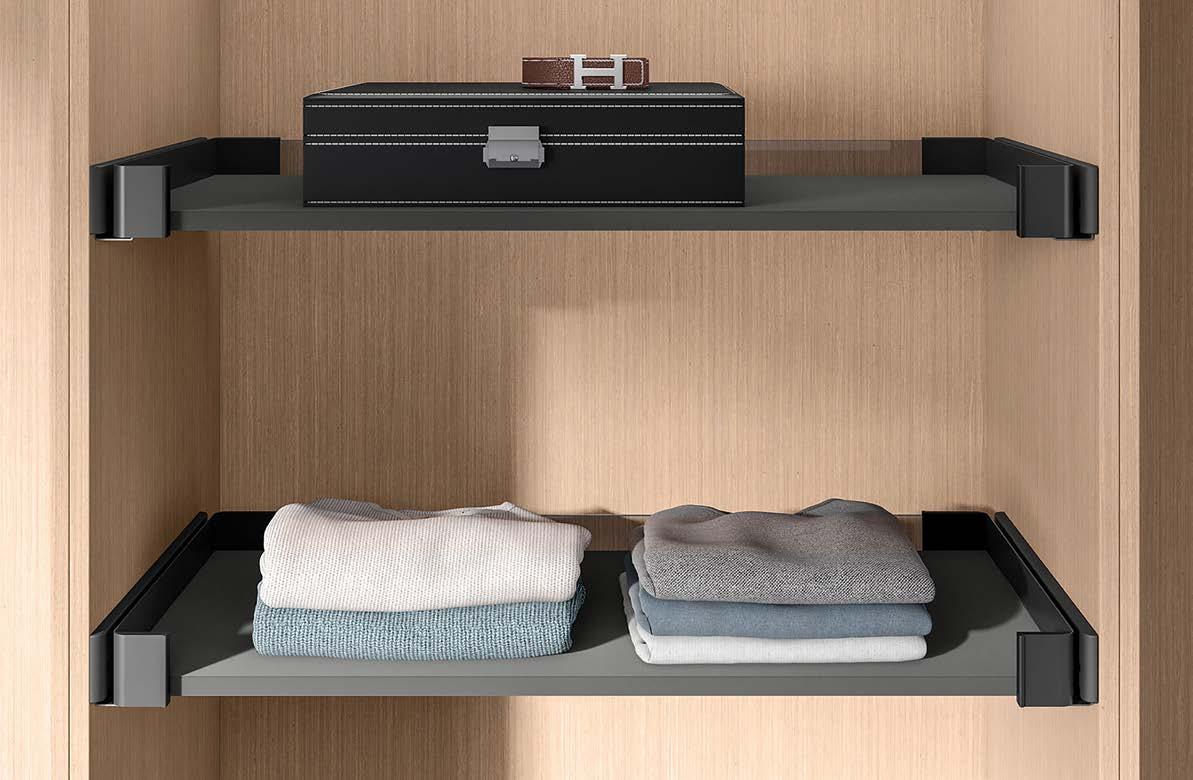

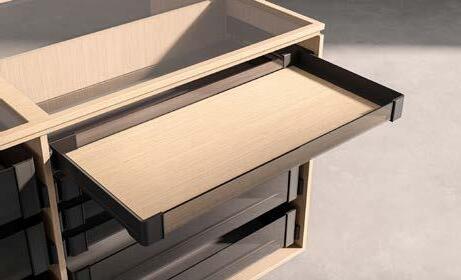

CONERO Trays

CONERO Trays are designed with a single back glass panel and an open front. This allows for easy access to the items on the tray while ensuring nothing falls off the back.

CONERO Trays are designed with 60 mm (2-⅜") of width adjustability. The trays are available in three widths that range from 457 to 820 mm (18" – 32-¼") and two depths. Full-extension runners are finished with soft, self-closing mechanisms.

A variety of flocked mats and storage trays can be added to enhance the versatility of the trays.

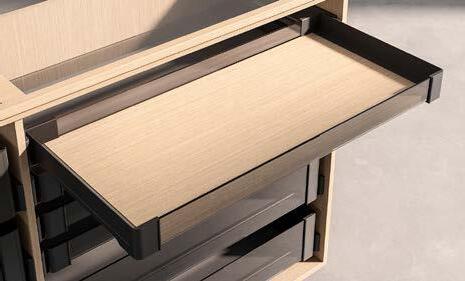

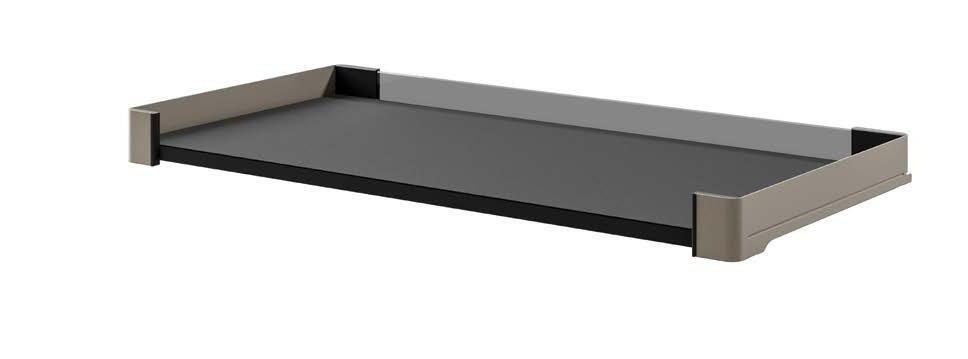

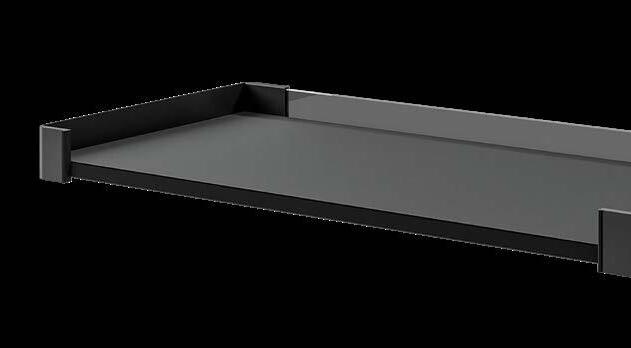

Champagne Tray with Mat
Powder Black Tray with Mat

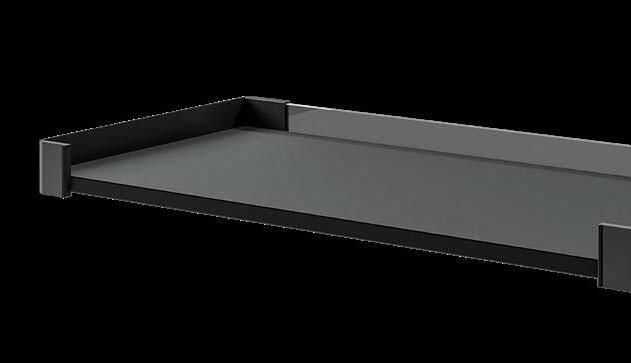

Tray Set

• Soft-edge design with millimeter-thin frame.

• Open front with safety glass back panel

• Full extension runners with soft close

• 60 mm (2-⅜") width adjustability

• Shims available, see page 27

• Mats and organizers available, see page 21

• Wooden tray bottom not included

72

(2-⅞")

72

(2-⅞")

(2-⅞")

72 mm (2-⅞")

72

(2-⅞")

72 mm (2-⅞")

Tray Set

Technical Specs

(18-¾")

Tray Front View

mm (2-⅞") Inside Cabinet Width (ICW)

Tray Bottom

Tray bottom is cut-to-size by the installer. See page 18 for bottom dimensions.

Packing Unit: 1

Tray Set Contents:

• 1x Tray sides set

• 1x Runner cover cap set

• 1x Set front mounts

• 1x Set rear mounts

• 1x Rear glass panel

• 1x Runner set

• 1x Installation manual

Resources:

Installation Instructions Installation Video

CONERO Tray Set 72 H
Powder Black Tray Set with Mat and Shim

Mats & Organizers

Flocked trays and anti-slip mats further enhance the versatility of CONERO Drawers and Trays.

The velvety surface of the mats and organizers offers a smooth storage surface for delicate items. Flocked organizers with gentle depressions form storage spaces for jewelry, sunglasses, belts or other small items.

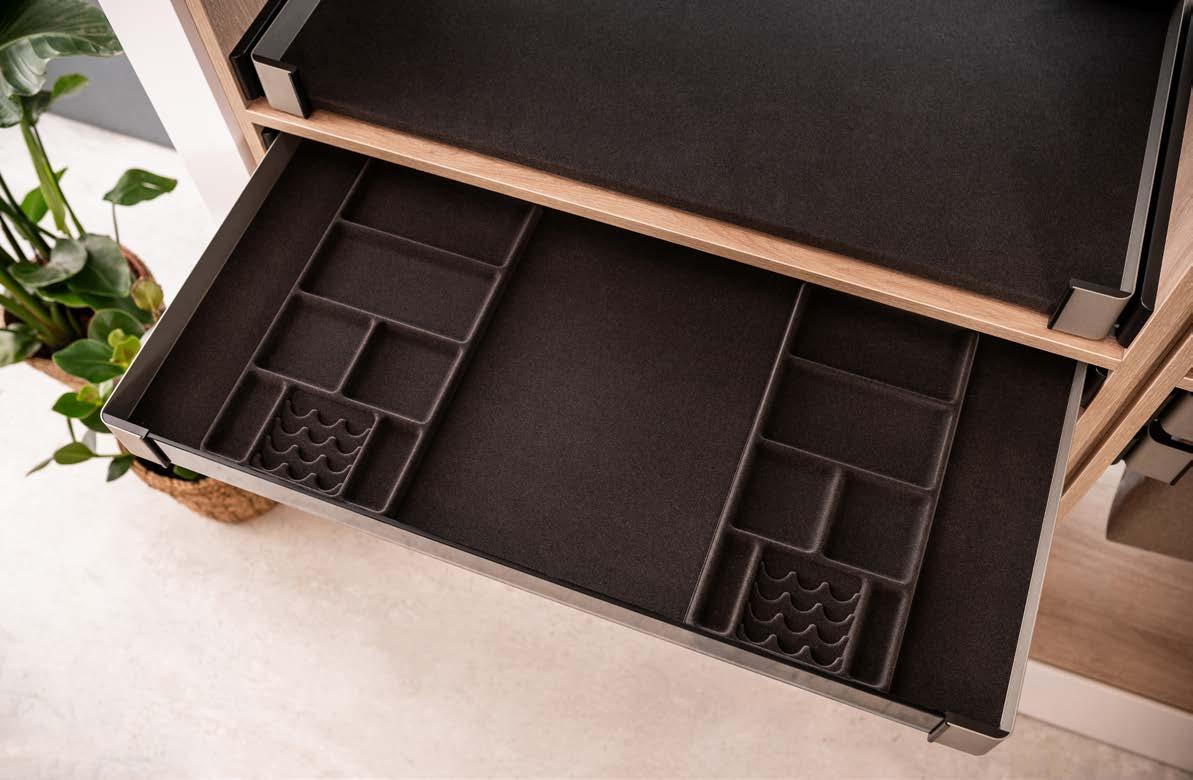

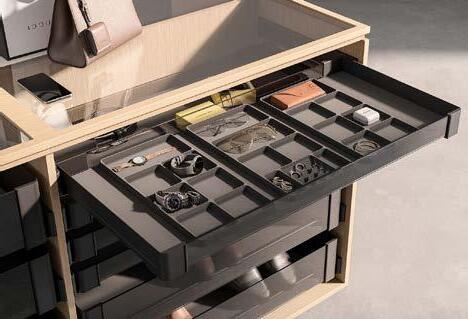

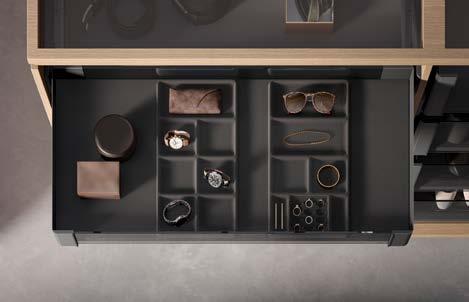

Jewelry and Ring Flock Organizers

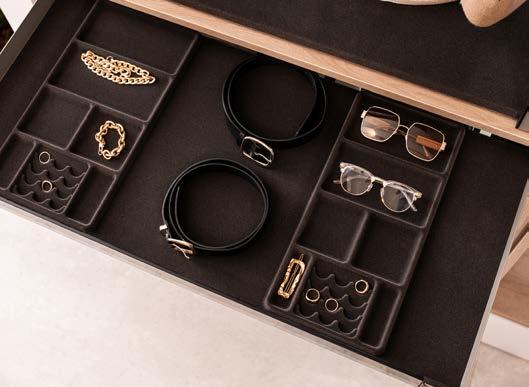

Flocked Mats & Organizers

• Soft flock, velvety surface

• Smooth storage surface for delicate clothing, accessories, and jewelry

• Provides safe and functional storage of rings, earrings and small items

• Soft-surface organization for ties and belts

• Mix and match to create versatile storage

• Layer Organizers on top of Insert Mats to keep Trays in place

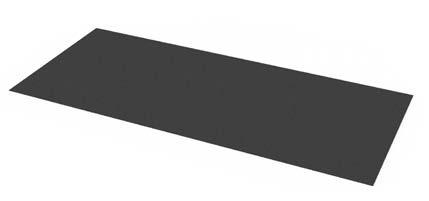

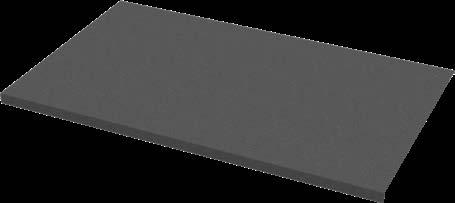

Interior Flock Mat With Front Edge

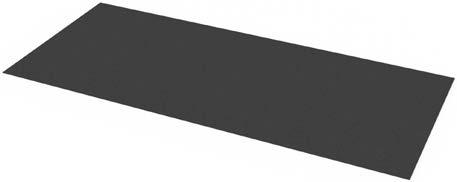

Interior Flock Mat Without Edge

Belt and Tie Flock Organizers

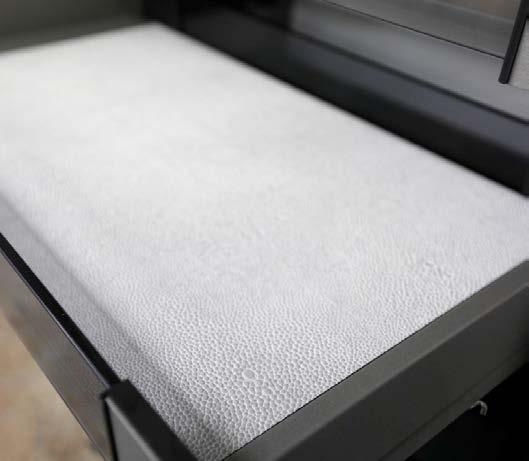

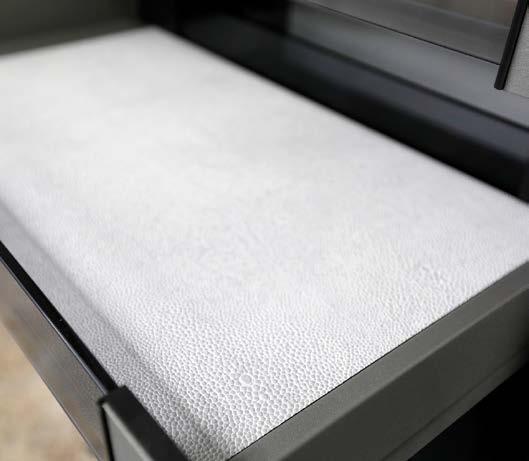

EcoDomo Mats

EcoDomo® is a sustainable, luxury leather brand that designs and manufactures eco-conscious coverings for surfaces.

EcoDomo produces a Recycled Leather Veneer (RLV™) material that can be integrated anywhere in interiors in lieu of wood veneer. The surfaces have the look and feel of leather while maintaining a highly impervious exterior.

Available in four distinct finishes, EcoDomo Mats for CONERO are designed for use inside drawers and trays. The mats are available with or without a folded front edge and are designed for two depths - 14" and 19".

Black Shagreen
Mat with Folded Edge
Mat with No Edge
Greystone Shagreen Paloma Grey
Pebble Shagreen

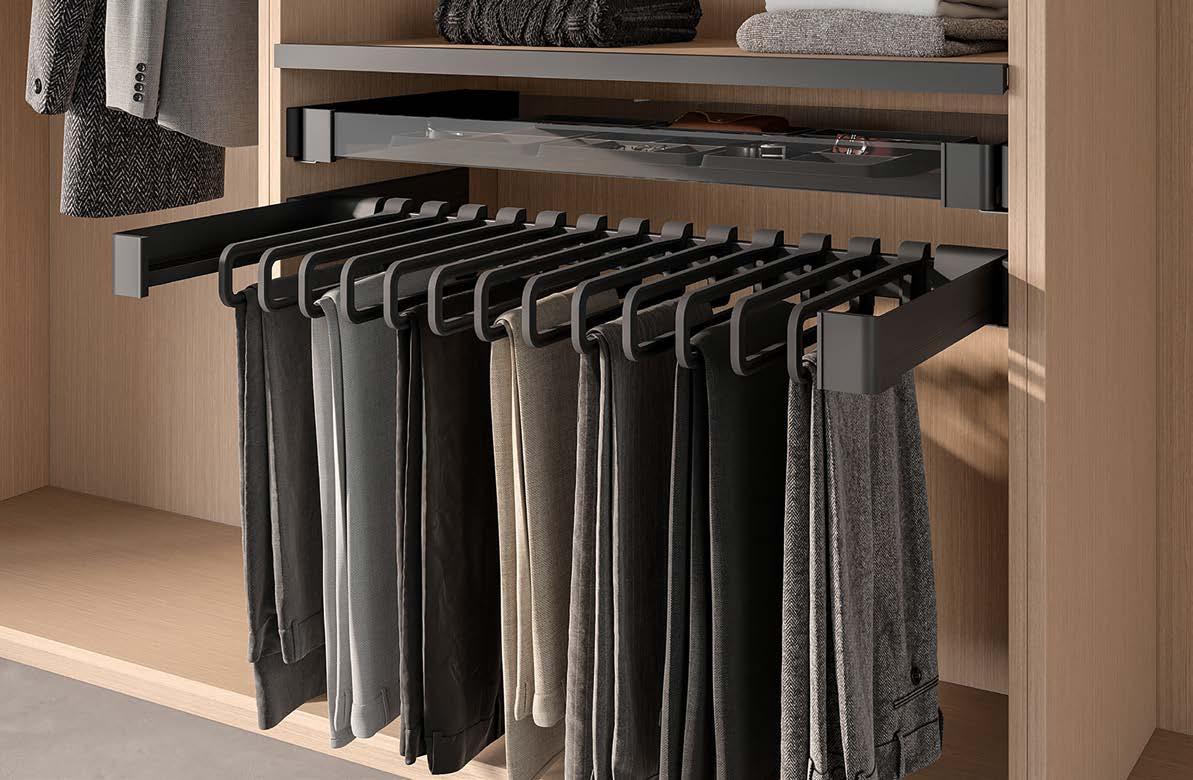

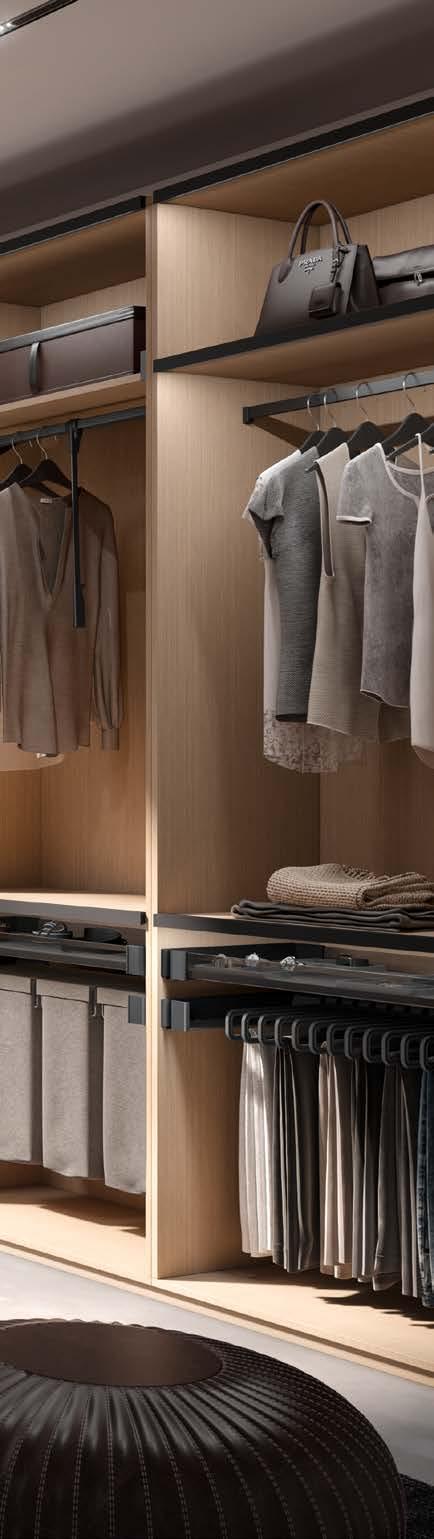

CONERO Pull-outs

CONERO Pull-outs are available as full-width or half-width components. Both versions have a fully enclosed ball bearing runner to prevent clothing from being caught in the runner or dirtied by the grease of a traditional mechanism. The Pull-outs travel smoothly and close softly.

Accessorize the Pull-outs with front-removable hangers, laundry bags, or both to create a unique storage system. CONERO's easy-to-remove hangers are designed with two hangable spaces, doubling the storage space of a traditional clothes hanger.

The Full Pull-out is available for clear installation depths of 345 mm (13-⅝") and 475 mm (18-¾").

Side Pull-outs are suitable for closets with a clear width of 455 mm (18") and a minimum depth of 475 mm (18-¾").

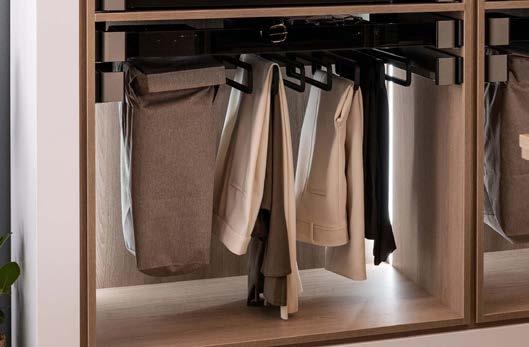

Champagne Side Pants Pull-out with Hangers
Powder Black Full Pull-out with Hangers
Powder Black Side Pants Pull-out with Hangers

Full Pull-out

• Soft-edge design with millimeter-thin frame.

• Hang pants, skirts, laundry bags or a combination

• Full extension runners with soft close mechanisms

• Front-removable hangers, laundry bags, and skirt clips available, see page 27

• 60 mm (2-⅜") width adjustability

• Available in 345 mm depth and 475 mm depths

• Shims available, see page 27

Pull-out Storage

CONERO Pull-outs are designed for versatility. Add hangers, laundry bags, or both to create a unique storage system. The charts below reflect the maximum number of Hangers or Laundry Bags for each Pull-out width. See page 29 for Hangers and Laundry Bag details.

Suggested Number of Hangers

– 515 mm (18"– 20-¼")

– 360 mm (12" – 14-¼") 5 – 6 610 – 670 mm (24" – 26-⅜")

mm

Suggested Number of Laundry Bags

455 – 515 mm (18"– 20-¼")

610 – 670 mm (24" – 26-⅜")

760 – 820 mm (30" – 32-¼")

– 360 mm (12" – 14-¼") 1 wide or 1 narrow

– 515 mm (18" – 20-¼") 2 narrow or 1 wide

Cabinet Width
Pull-out Front View

Full Pull-out Set Technical Specs

Packing Unit: 1

Pull-out Set Contents:

• 1x Runner set

• 1x Pull-out frame set

• 1x Rear crossbar

• 1x Runner cover cap set

• 1x Set front mounts

• 1x Set crossbar mounts

• 1x Installation manual

Resources:

Installation Instructions

Side Pull-outs

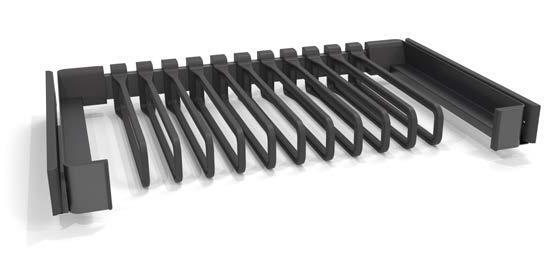

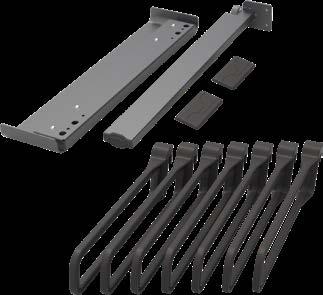

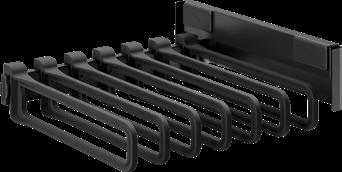

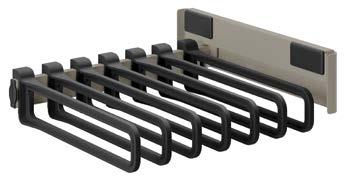

Side Pants Pull-out

Packing Unit: 1

• Front-removable hangers for easy access

Installation Instructions

• Dual mounting option for left or right side installation

• Mounts directly to closet wall - an ideal solution for retrofit installations

• Full extension runner with soft close mechanisms

• Can be used with Pull-out Shim, see page 27

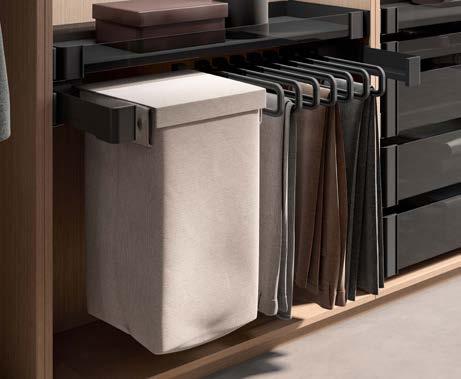

Side Laundry Pull-out

Packing Unit: 1

• Mounts directly to closet wall - An ideal solution for retrofit installations

• Laundry Bag slides on to CONERO Hangers

• Dual mounting option for left or right side installation

• Includes 2 Hangers and 1 Wide Laundry Bag

• Full extension runners with soft close mechanisms

• Can be used with Pull-out Shim, see page 29

Accessories & Shims

Hangers

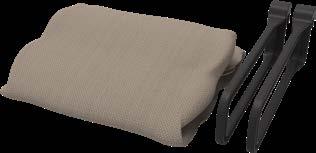

Laundry Bag

Skirt Clip 1“ Drawer & Pull-out Shims

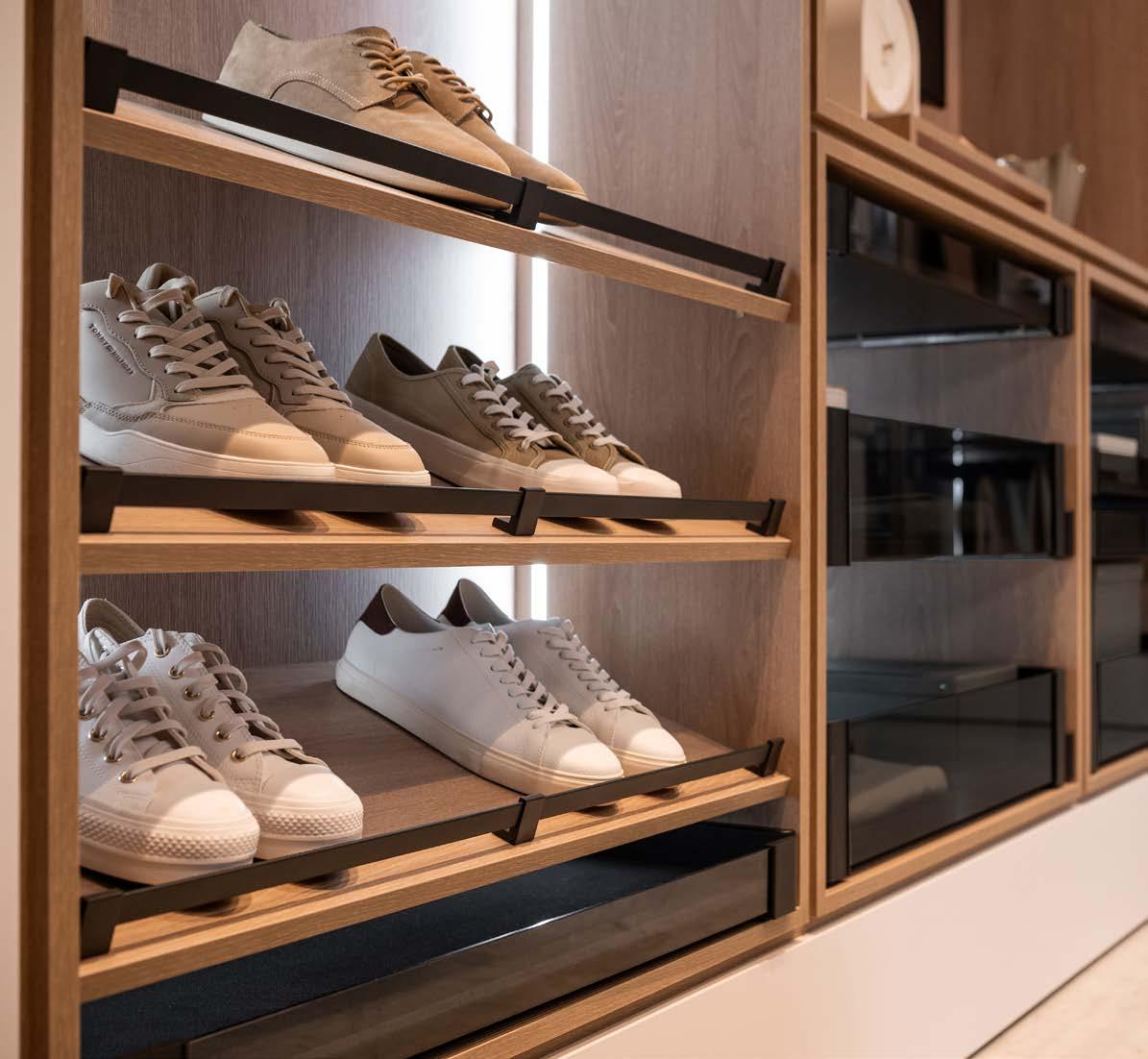

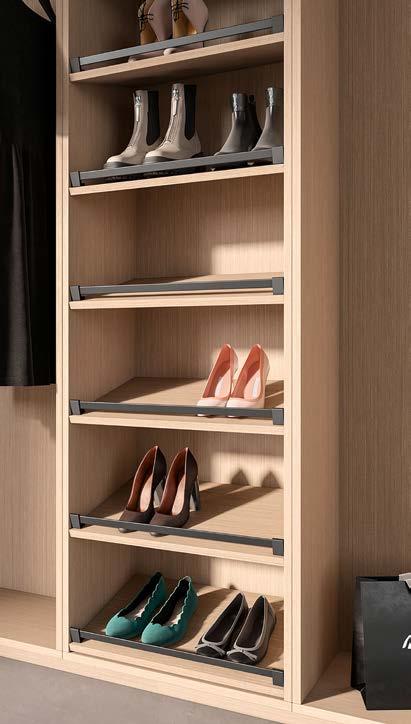

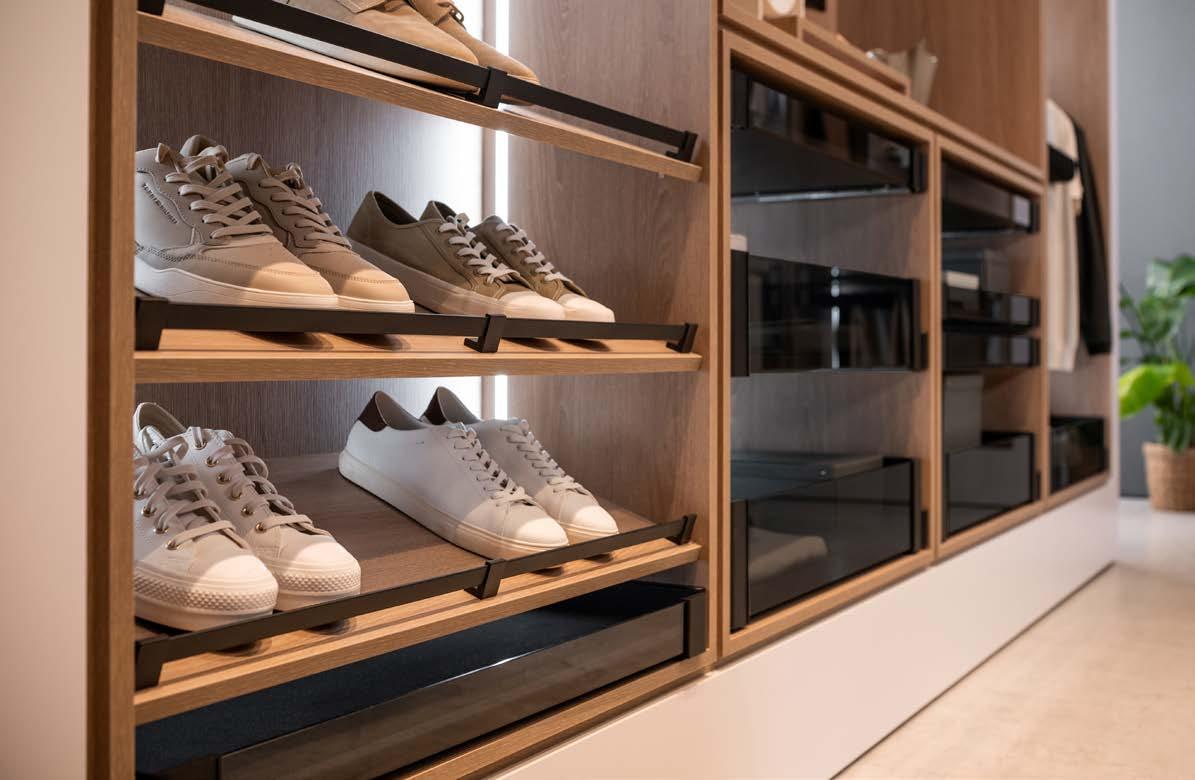

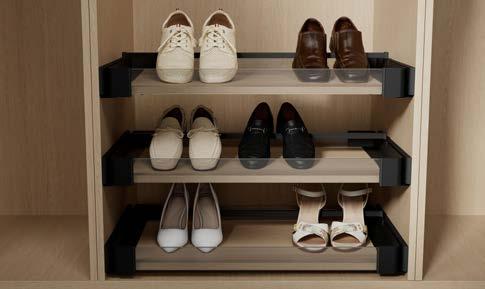

Shoe Storage

CONERO's shoe storage options allow shoes to be displayed and stored efficiently, whether on shelves or in drawers.

Kesseböhmer Shoe Fences are available in Aluminum and Steel, both offered in Powder Black and Champagne. Aluminum Shoe Fences can be cut-to-size. The CONERO Shoe Rack fits inside the 168mm Drawers.

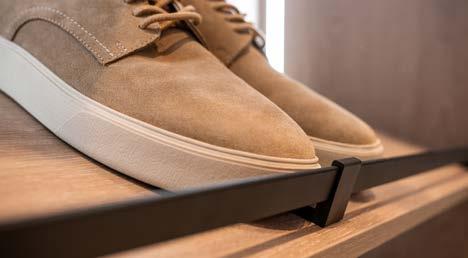

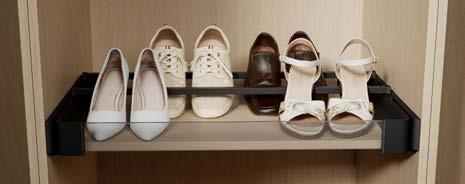

Shoe Fence

• Top-installed mounts with concealed screws

• Available in Aluminum and Steel

• Aluminum Shoe Fences can be cut-to-size

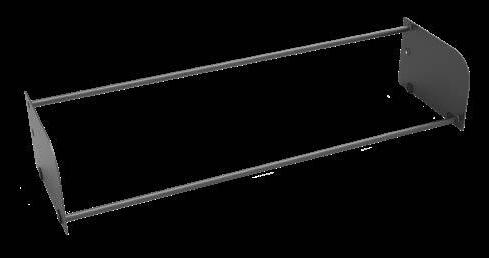

Shoe Rack

• Upright shoe organization

• Cut-to-size

• Suitable for any shoe

• Free-standing or in drawer

Installation

Instructions

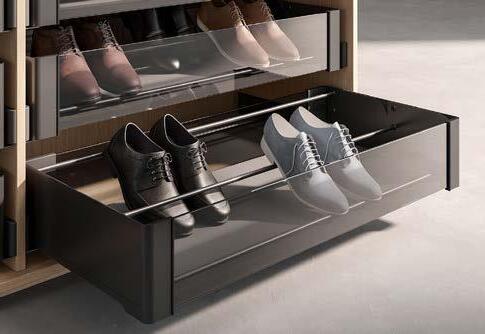

Shoe Top Rail

• For use with CONERO Drawers and Trays

• Cut-to-size

Installation

Instructions

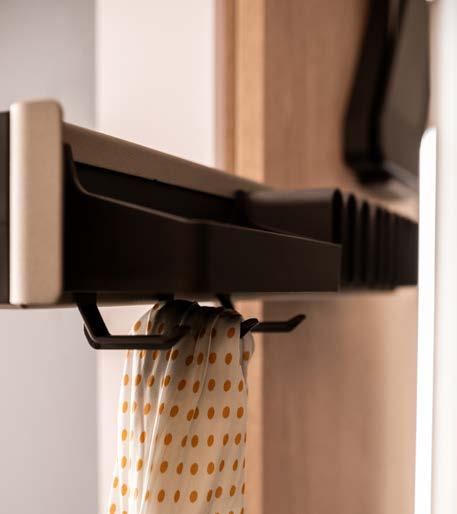

Belt & Tie Storage

CONERO has four options for belt and tie storage: the Belt & Tie Pull-out and the Belt & Tie Organizer, each are available with or without a small storage bowl. Both components have a 100% symmetrical design, for installation on a left or right side application.

The grease-free runners of the Belt & Tie Pull-out enable smooth extension and ensures that other clothing in the closet remains clean and undamaged.

The Belt & Tie Organizer, a stationary version of the Belt & Tie Pull-out, is designed for mounting on the inside of a closet door or wall.

The Belt & Tie Pull-out and the Belt & Tie Organizer are available for 345 mm (13-⅝") and 475 mm (18-¾") clear installation depths and can be installed in a typical 32 mm hole pattern.

Belt & Tie Storage

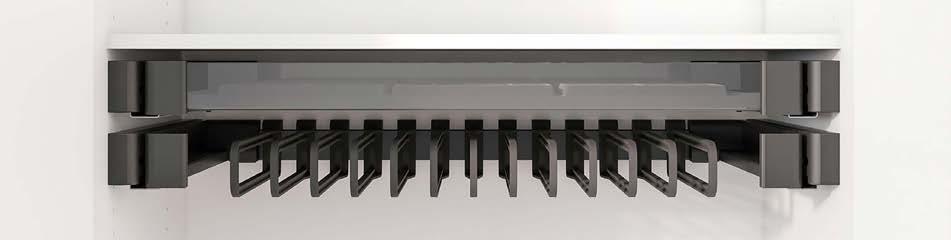

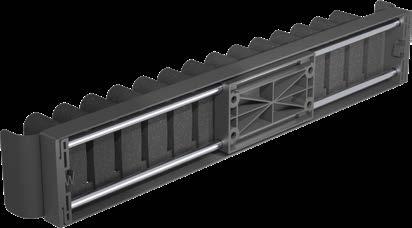

Belt & Tie Pull-out

x

67

Belt & Tie Pull-out with Bowl

Installation

Instructions

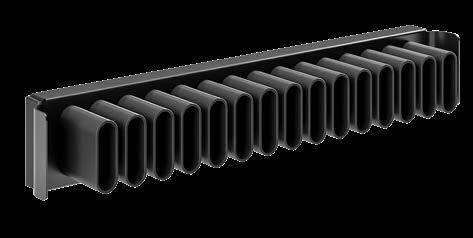

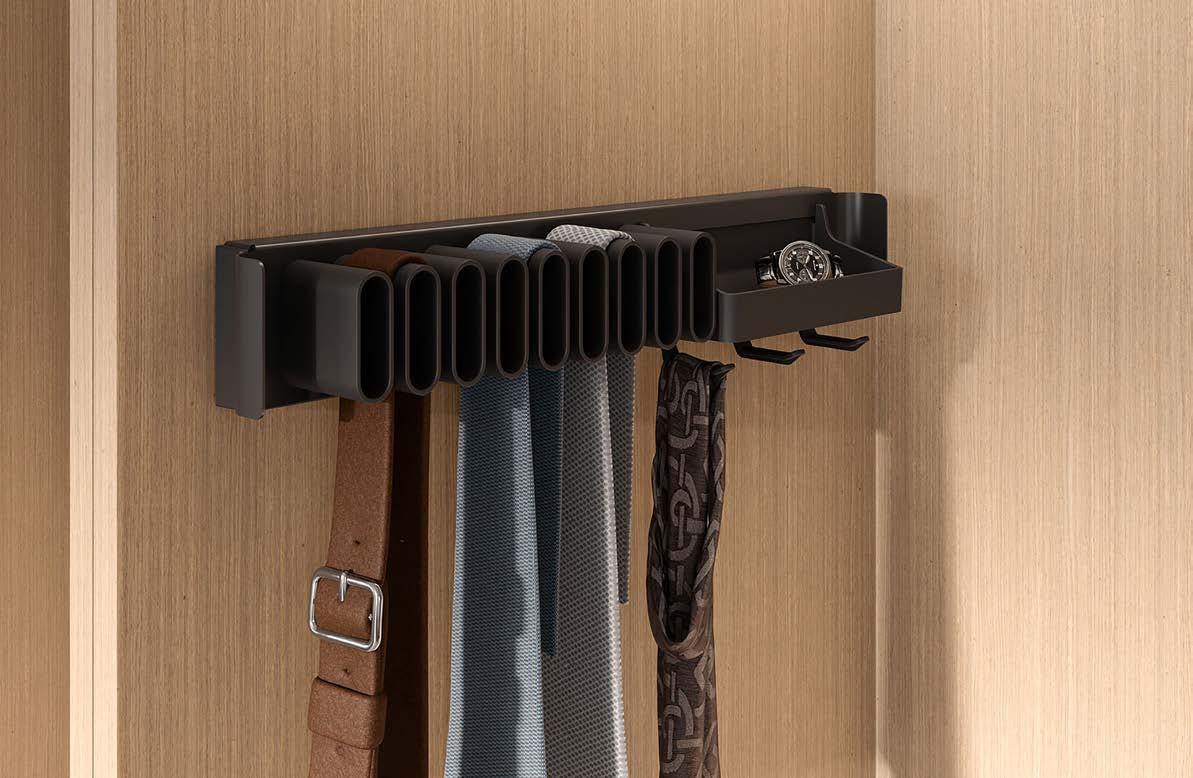

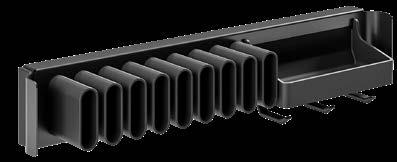

Belt & Tie Organizer

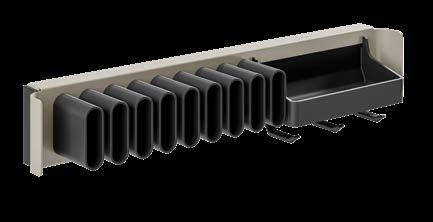

Belt & Tie Organizer with Bowl

Installation

Instructions

1“ Belt & Tie Shim

25 x 453 x 69 mm

x 17-⅞" x 2-¾")

Adding a Belt & Tie Shim will offset the component by 25mm.

WEBSITE

Scan to visit CONERO on our website.

View images of CONERO and access installation documents.

MEASUREMENT

Inside Cabinet Width should be measured from the inside of opposing walls. All measurements in this catalog have been rounded to the nearest ⅛".

CONVERSIONS

1 inch = 25.4 mm

1 pound = .454 kg

LOAD RATINGS

Load ratings should be calculated to include the weight of all materials, where applicable.

Drawers, Trays, and Pull-out runners are rated to hold up to 20kg (44lbs).

Care should be taken to ensure cabinet construction will support and maintain the stability of hardware.

DIGITAL CATALOGS

Scan to view our catalogs digitally.

WARRANTY

Kesseböhmer offers a 5 year guarantee on the function and characteristics of all Kesseböhmer products provided they are handled, installed, and used correctly.

If damage to our products is proven due to defects in design, manufacturing, or materials, we will replace the fittings free of charge.

For more information, visit: support.cleverstorage.com

CARE & CLEANING

Regularly dust CONERO components to avoid debris build-up.

NEVER add oil or grease to runners or lift systems; this could damage parts.

RESOURCES & INFORMATION

The CONERO Concept

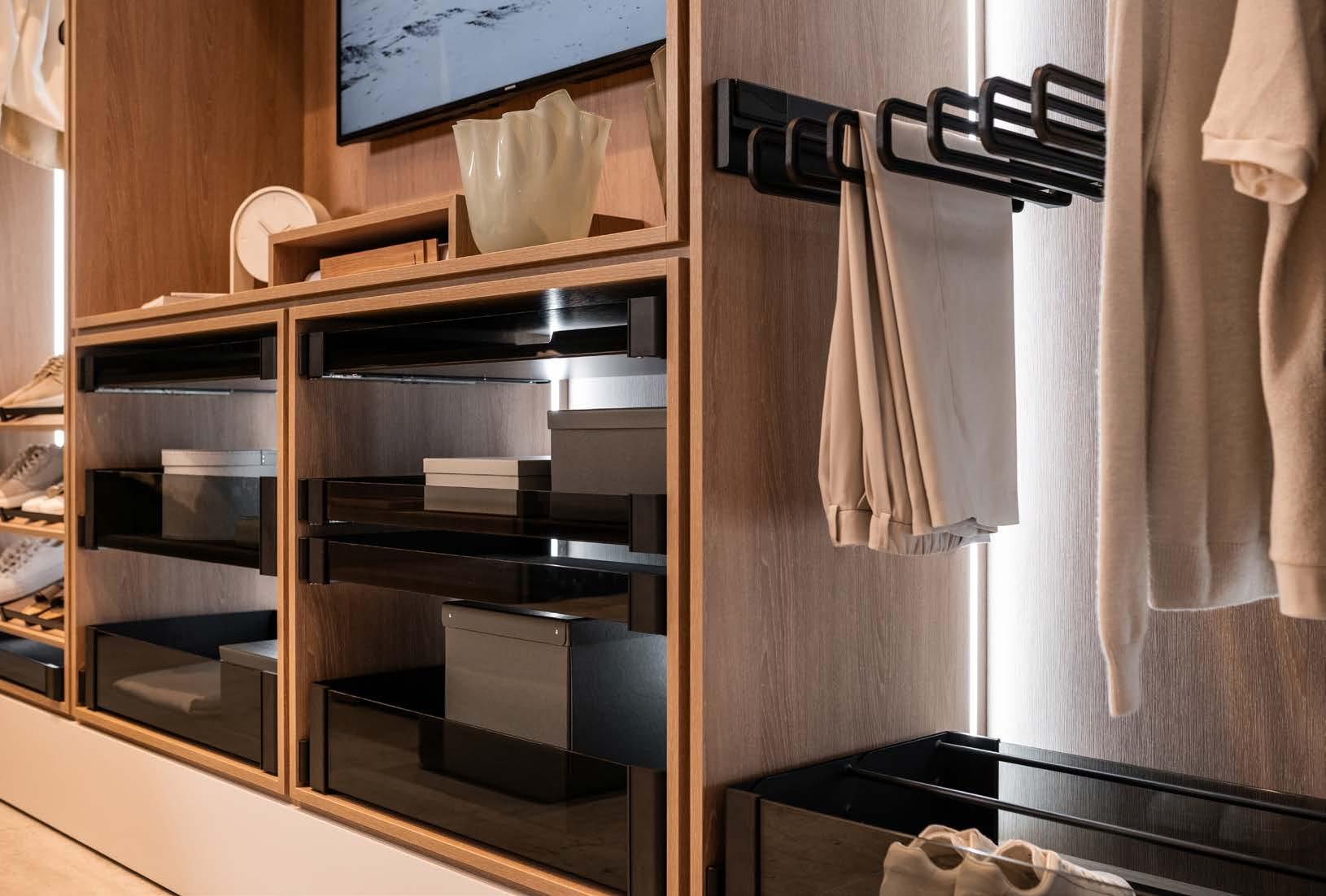

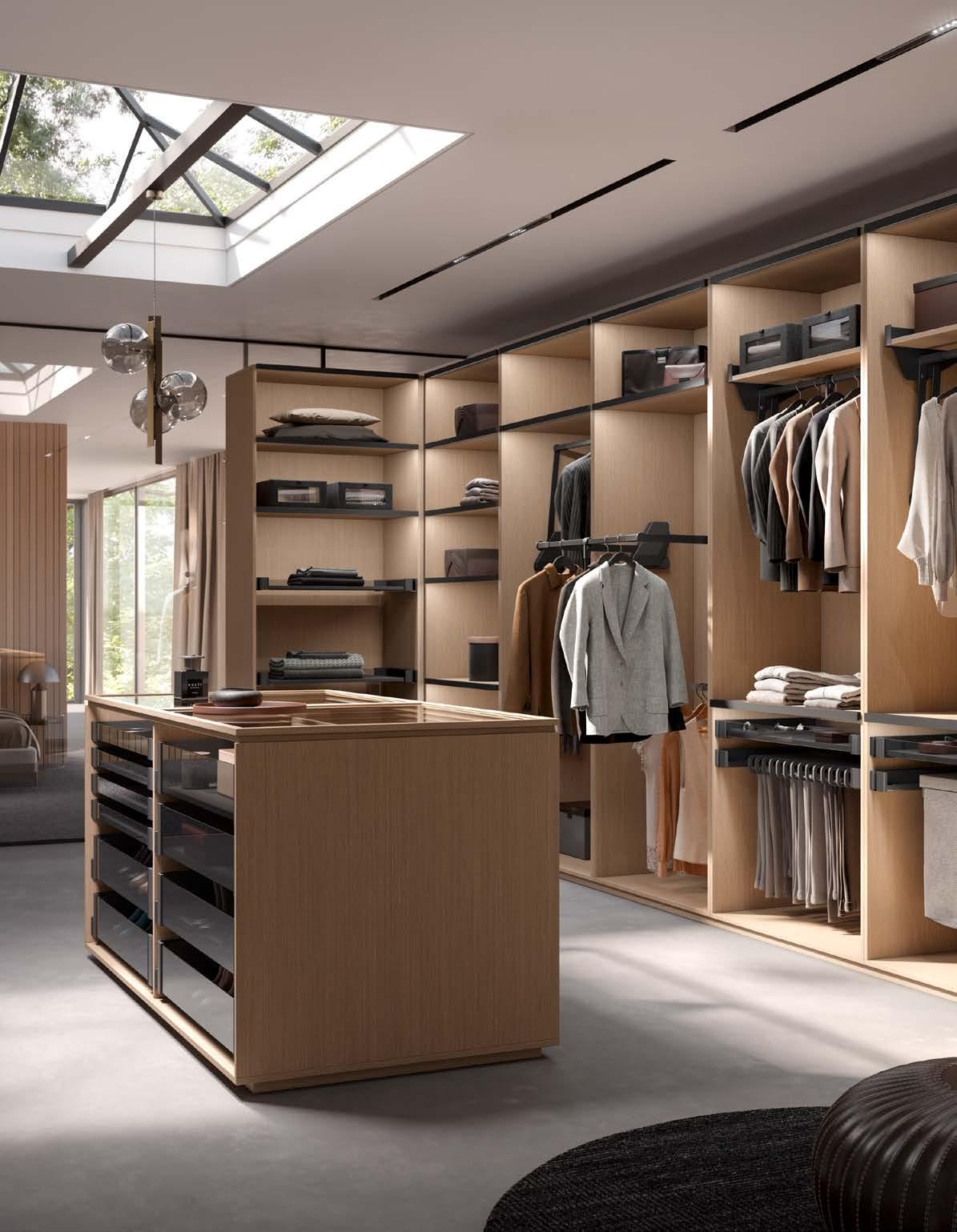

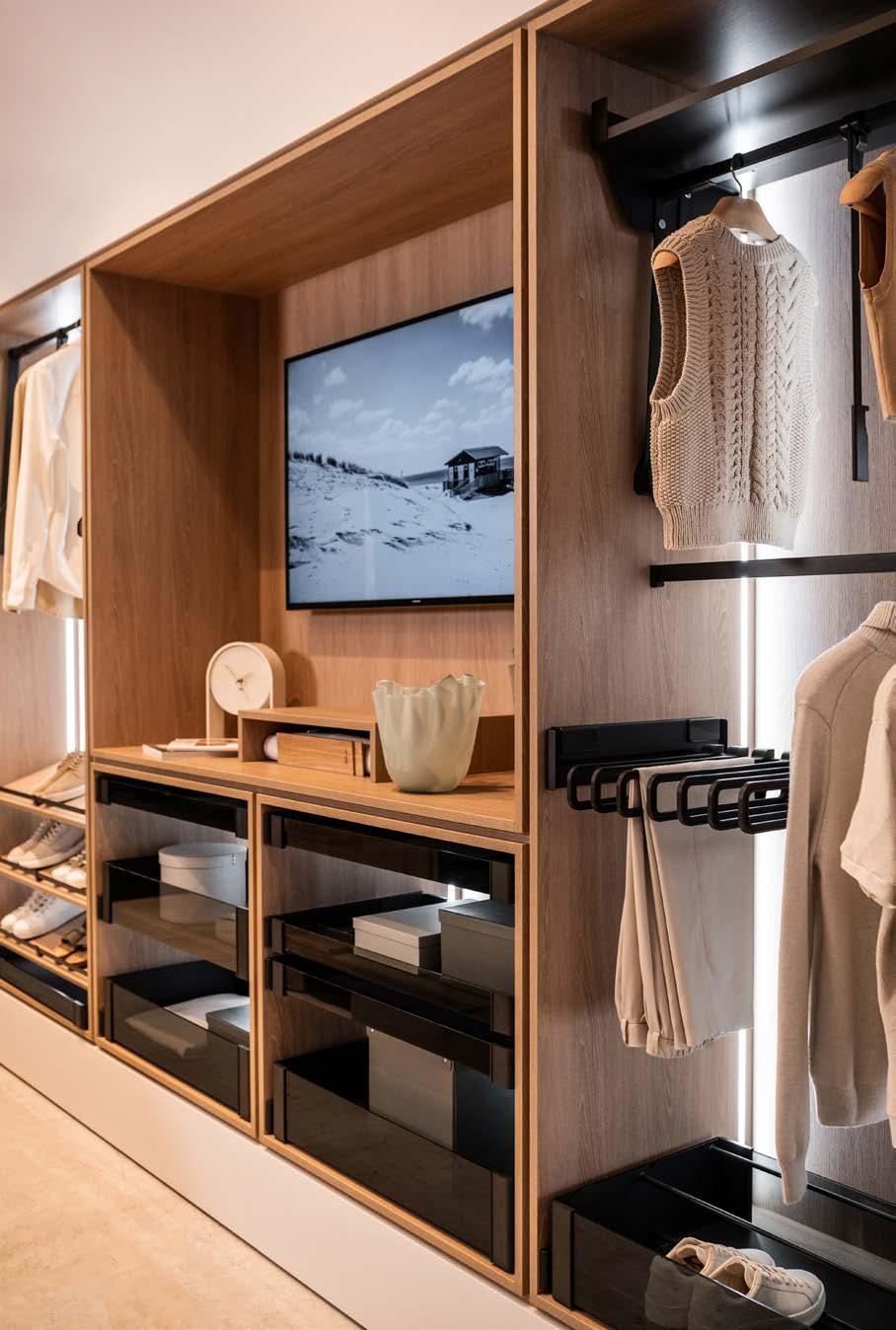

Inspired by the elegance of Italy’s Conero Riviera, CONERO by Kesseböhmer is a sleek, modern collection of storage components for residential closets.

Designed with a minimal frame structure, the CONERO collection offers a stylish alternative to traditional closet storage while maximizing functionality. With uniquely adaptable components, a refined aesthetic, and a coordinated color concept, CONERO delivers both practicality and sophisticated design for contemporary living spaces.

Turn static files into dynamic content formats.

Create a flipbook
Issuu converts static files into: digital portfolios, online yearbooks, online catalogs, digital photo albums and more. Sign up and create your flipbook.
