YOUR RESPONSIBLE PARTNER CITY Cranes

KESLA PROSTABILITY FOR MUNICIPAL CONDITIONS

Kesla has developed a stability control system for the City cranes, proSTABILITY. The system enables to control the crane by radio control or electrically from top-seat or from cabin. The system warns the driver about several factors affecting the stability of the crane, such as overload, vehicle tilt, and loss of ground contact by the stabilizer legs. In addition, it prevents torque-increasing functions in extreme situations. The system displays numerous details about the crane’s status, including its lifting capacity with various boom and stabilizer legs positions, log data, and sensor operation information. The system also offers the possibility of operating the crane within a limited lifting sector without stabilizer legs, as well as automatic target running to a predefined crane position.

KESLA proSTABILITY R

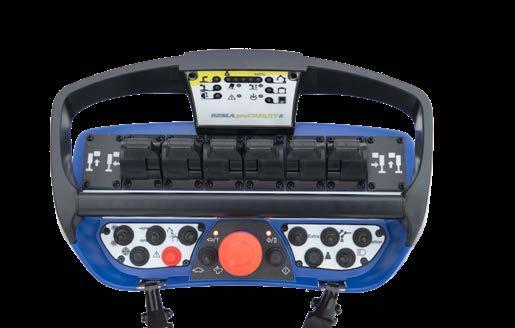

The radio controlled crane is a convenient solution for short but demanding loadings with high accuracy. The control system is a Scanreco-radio control unit. The visibility to the crane is excellent as well as the connection to the stability system.

KESLA proSTABILITY E

The system is also available with a top seat equipment and with joysticks. This alternative is especially suitable for longer work and specific demand for high output.

KESLA proSTABILITY cabin

Most of the City cranes can be equipped with Vision cabin, which offers comfortable conditions for severe weathers or when working long periods.

Bypass
limit
Right stabilizer, ground contact
stabilizer, ground contact

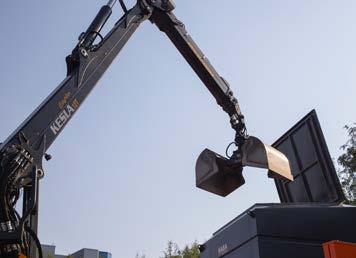

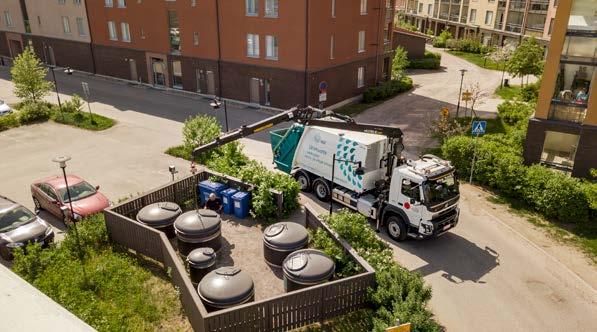

KESLA City cranes are excellent for emptying waste containers and waste tanks. For short and frequently repeated lifts, using the limited lifting sector without stabilizer legs is a convenient option.

APPLICATIONS OF THE CITY CRANES

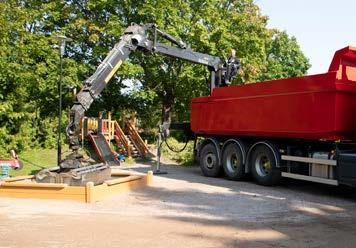

There are many ways the KESLA City cranes can be used. The crane can be used, for example, in waste management for emptying deep collection tanks, collecting recyclable materials, and distributing soil.

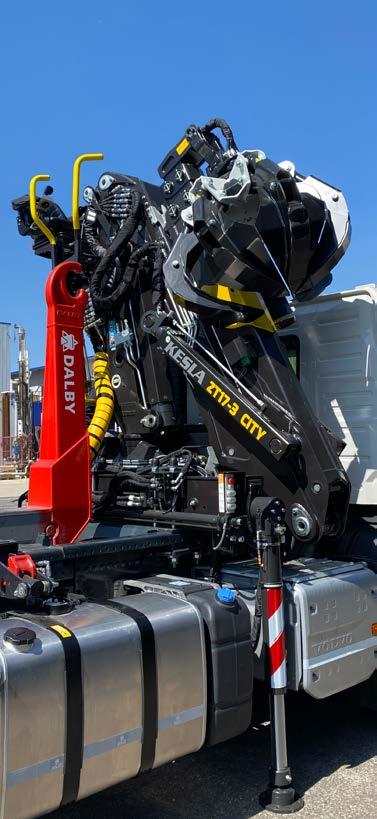

The KESLA City crane:

• Strong

• Has a long outreach

• Durable

• Faster than a traditional loader crane

• The stability control system meets the requirements of the EN 12999 standard and ensures the safety of the crane operator and the surrounding area

Waste management Grapple loader Recycling

DELIVERY CONTENT OF THE CITY CRANES

• KESLA City crane

• The KESLA proSTABILITY -stability control system can be equipped with a radio controller, open control unit, or with a cabin

• Stabilizer leg turning angle 0 o/ 60 o/ 90 o/180 o

• Stabilizer leg cylinder diameter 100 mm, length 600, 700 or 800 mm with a fixed or inclining base.

• The hose routing in the boom tip with KesLINK and suitable rotator keeps the rotator hoses well protected

• Optionally, the crane can have centralized single-point lubrication or automatic lubrication with an electric central lubrication pump

• The lifting boom can be equipped with two LED work lights, and the open control unit can have three LED work lights

• Available as 1-circuit or with the LS-system

MODELS’ TECHNICAL DATA

EQUIPMENT DESCRIPTION

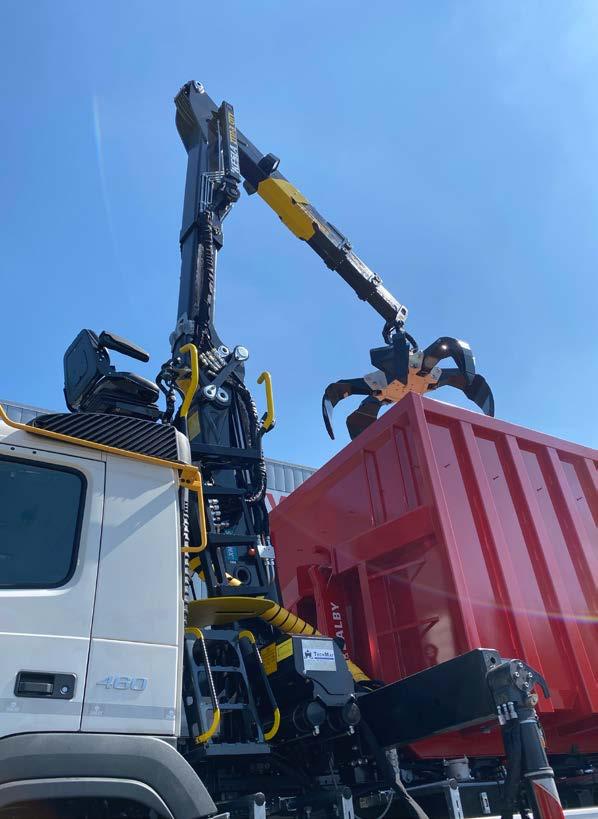

Polygrap

A City crane can be equipped with a polygrap. It is suitable especially for recycling purposes of different materials.

Manual or automatic lubrication system, which works with all kinds of grease. * Main

Target driving

With target driving,

Tapered roller hook

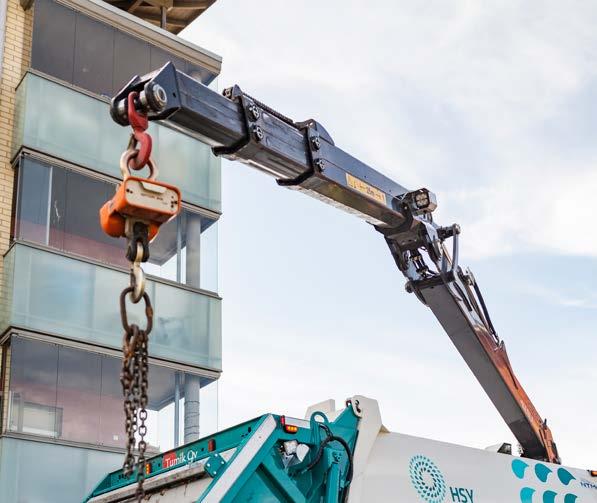

An adapter set can be installed to the boom tip for lifts with a hook (replacing KesLINK).

Central lubrication system
