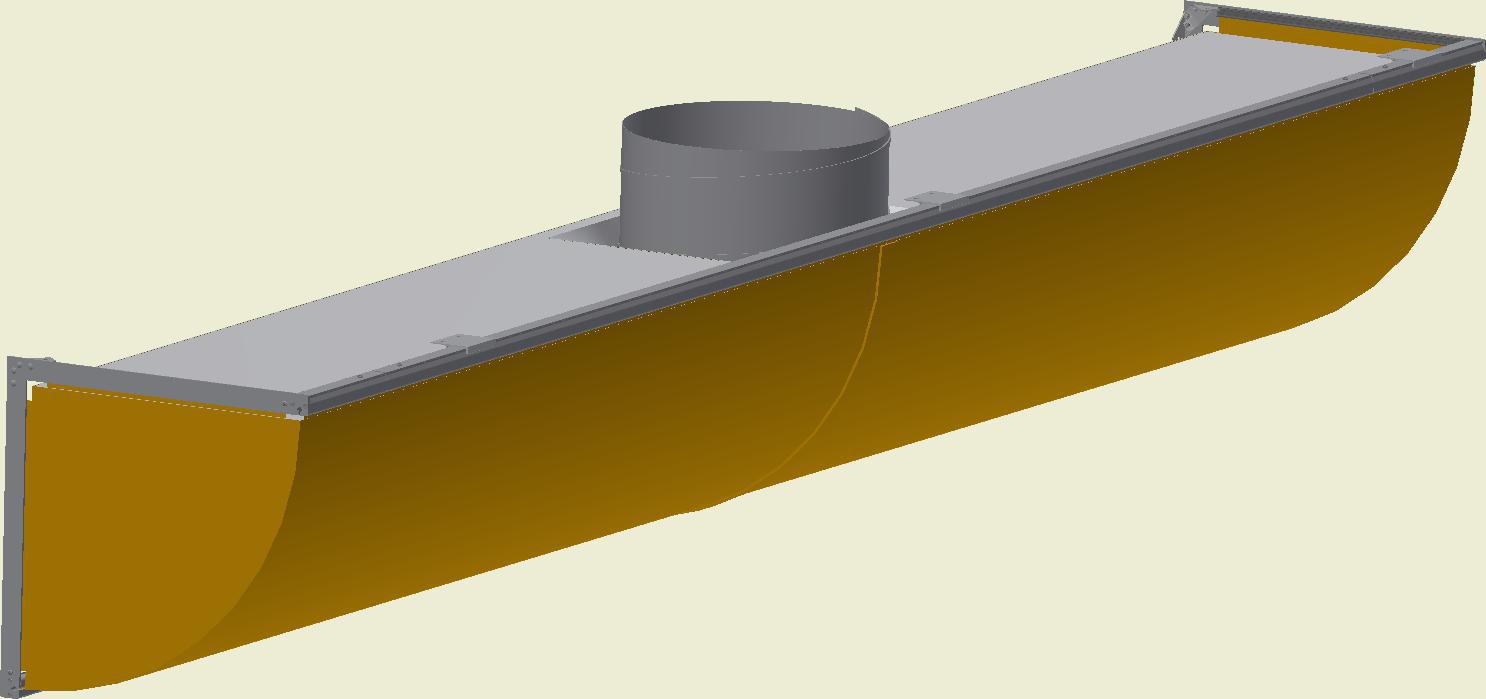

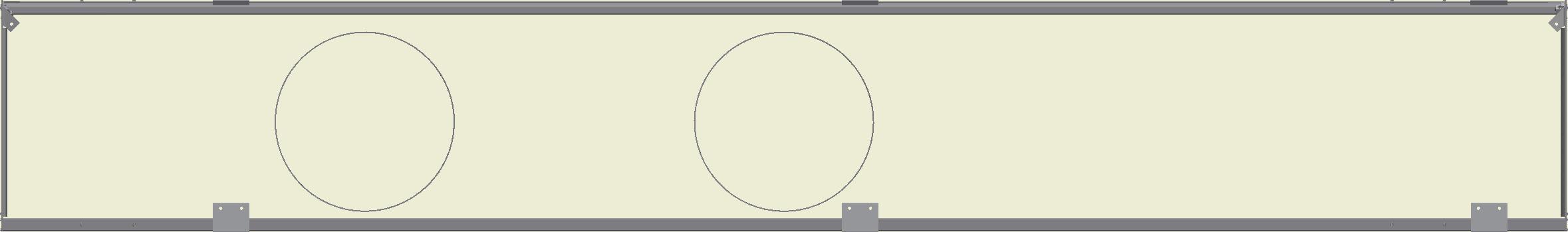

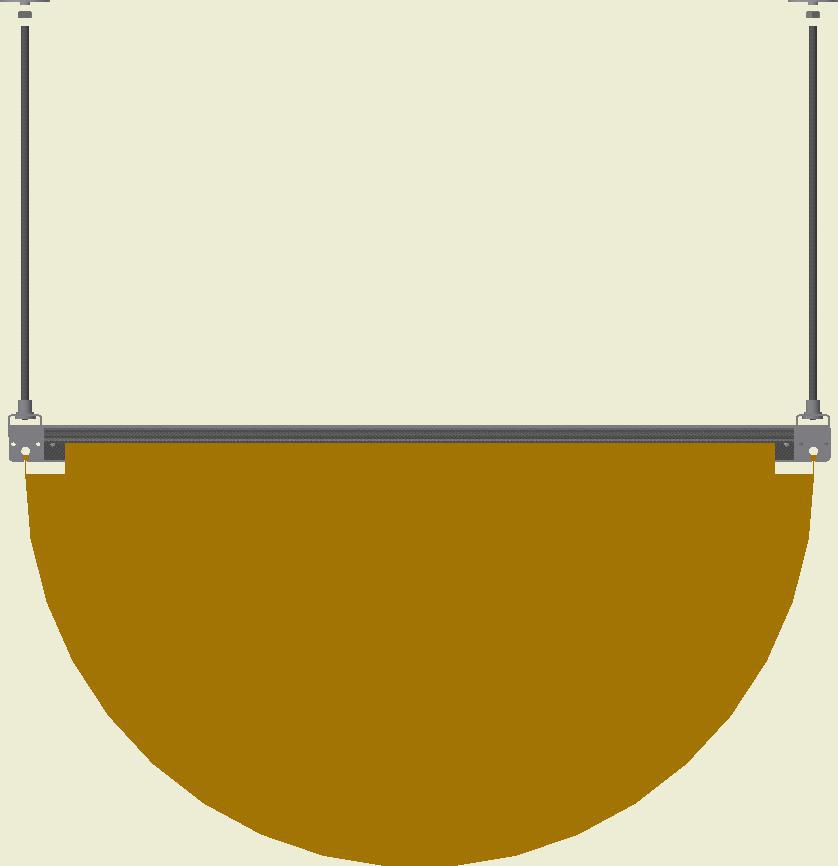

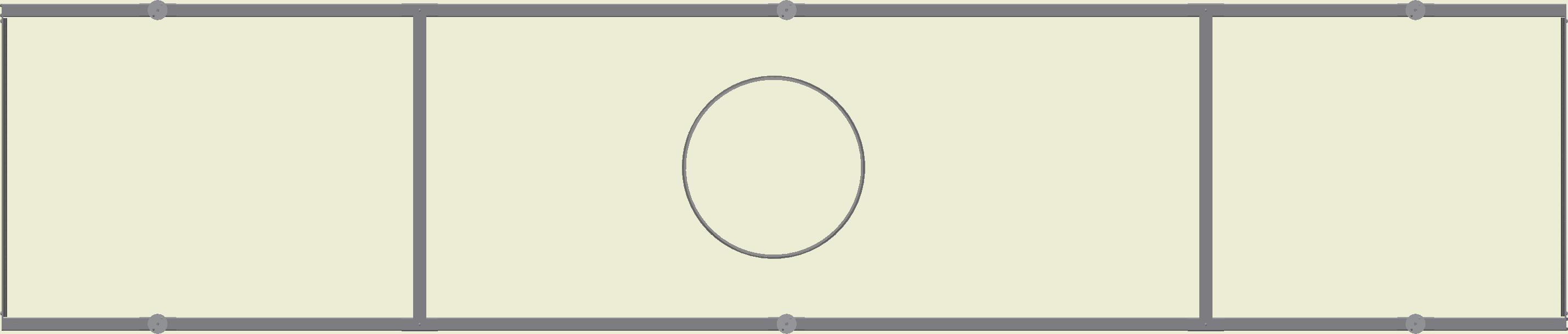

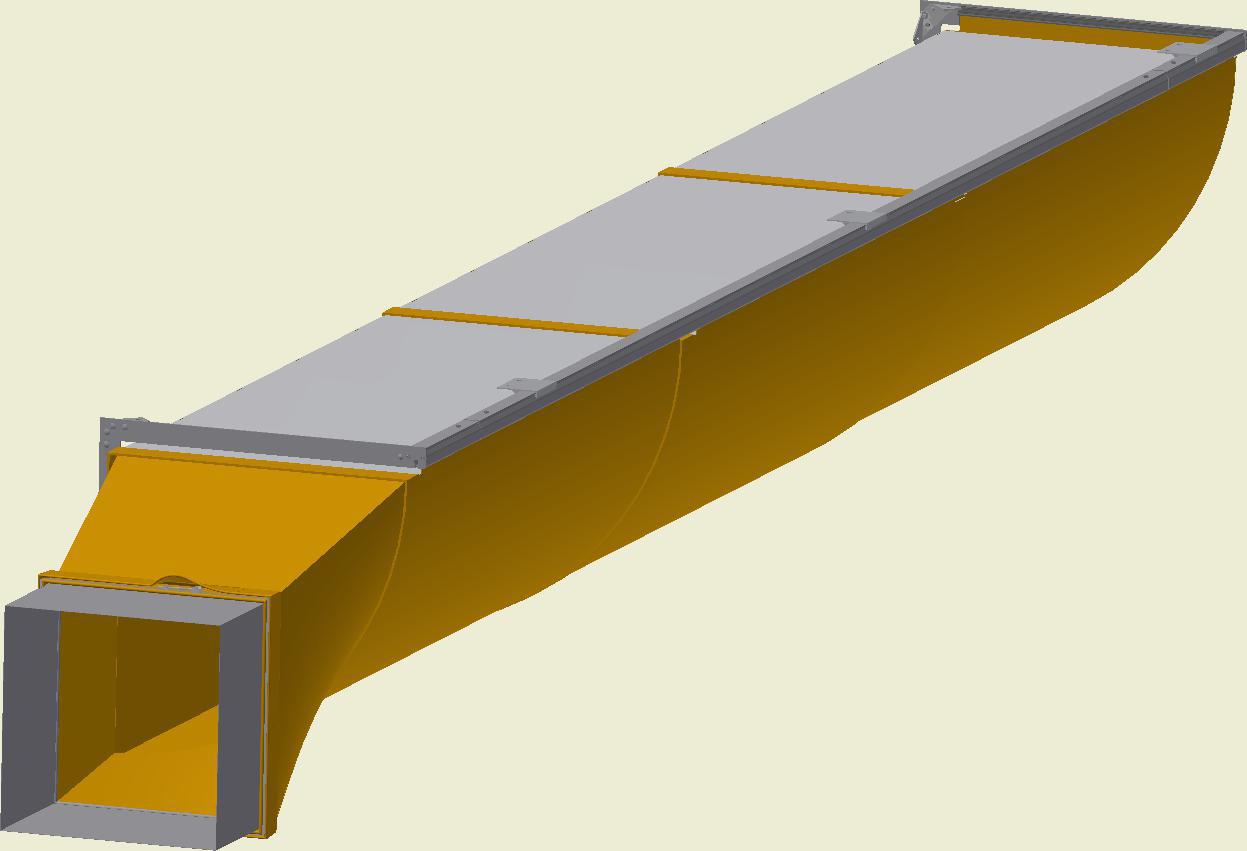

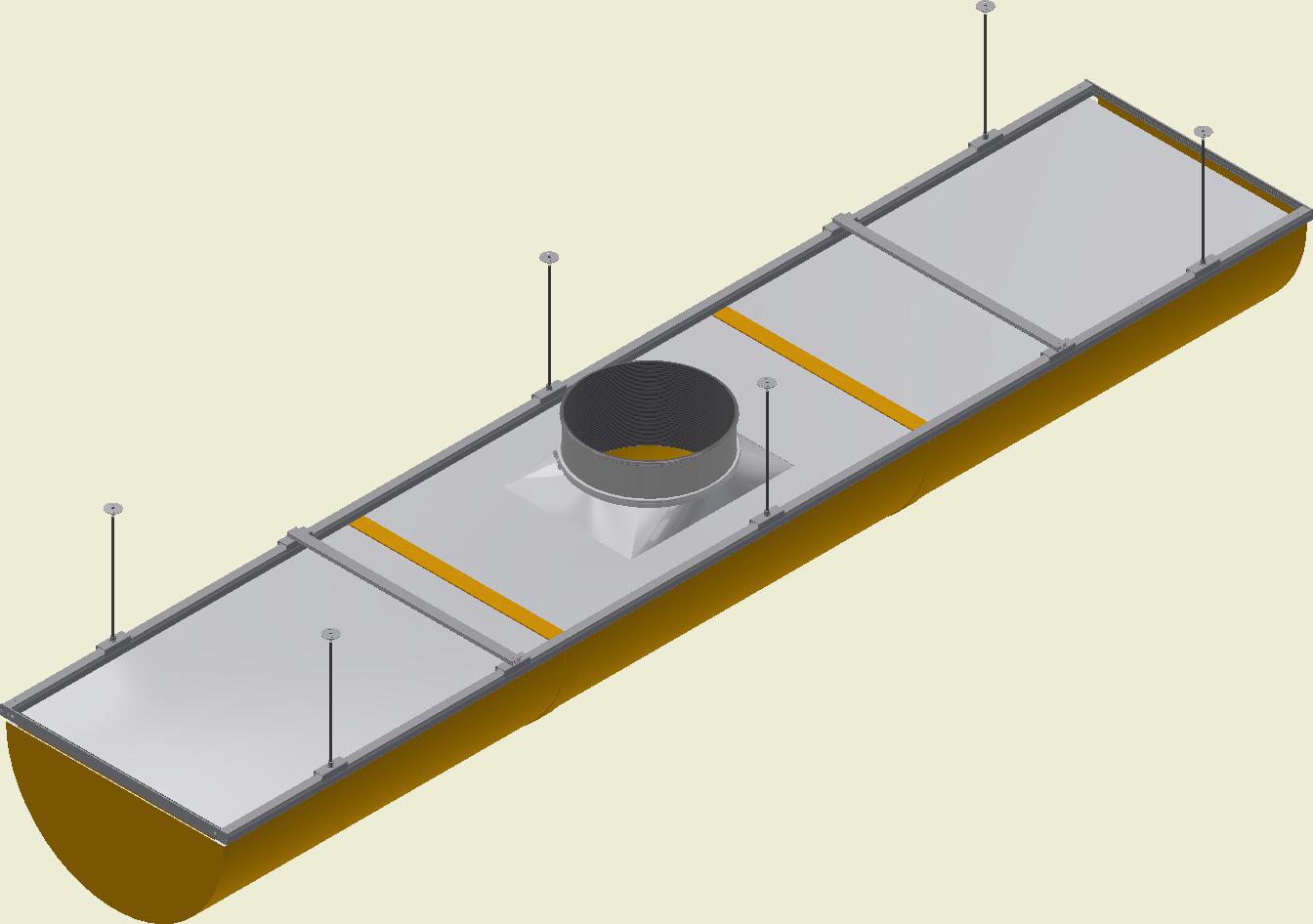

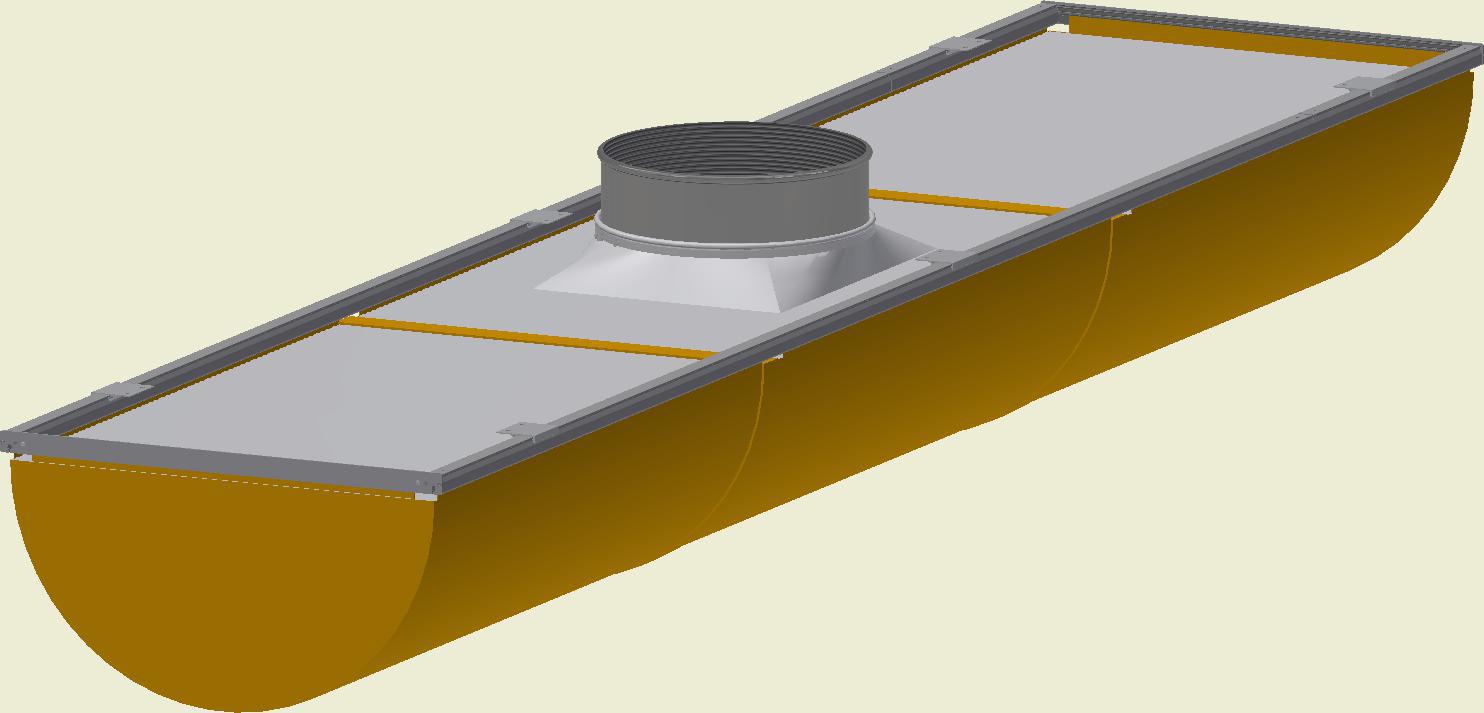

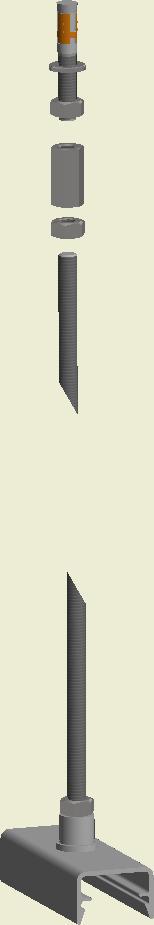

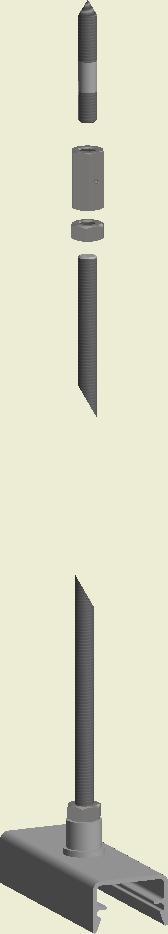

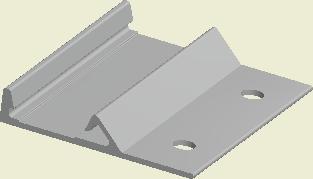

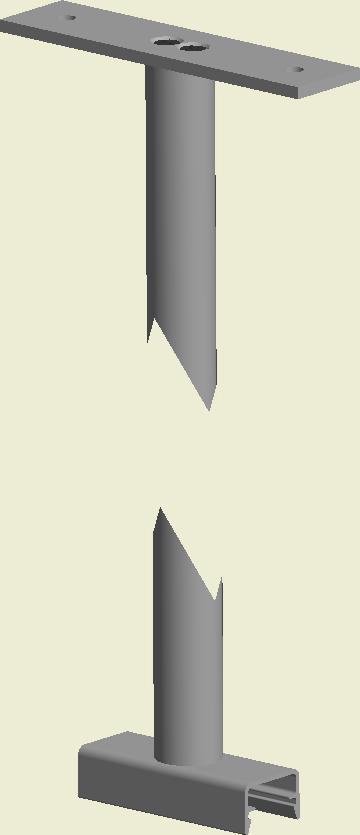

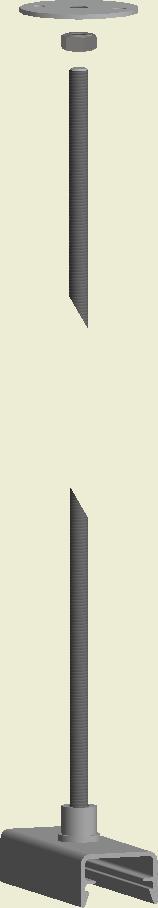

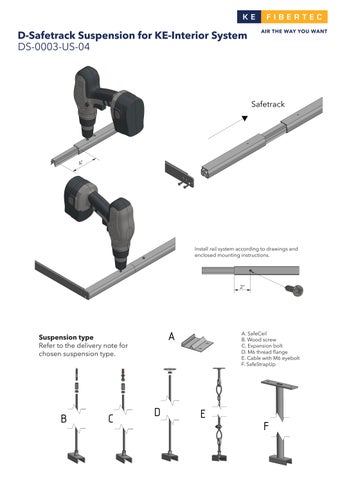

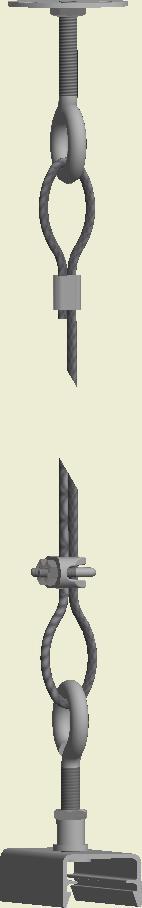

D-Safetrack for KE-Interior System (Straight Duct)
DS-0004-DK-03
DS-0004-US-03

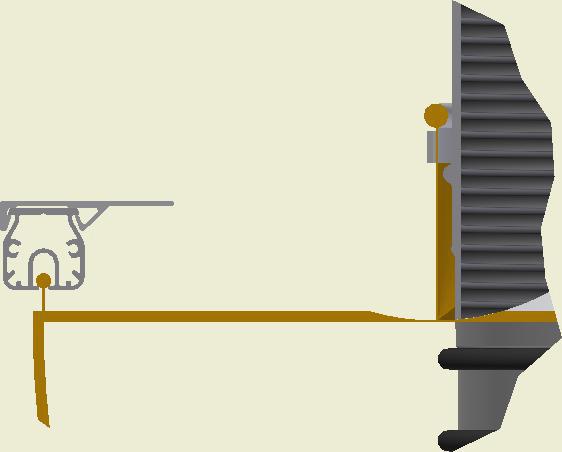

Min. Højde (LS) ombuk snor = 50mm Max.
Min. height (LS) edge/cord = 2”
Diameter (Ø) = W - 50mm
Max. diameter (Ø) = W -2”
L = Duct length
LS = Length socket
L = Pose længde LS = Længde Studs
Hvis montering af studs er mulig over loft behøves der ingen lynlås i nærheden af studs.
If it is possible to mount the socket above a false ceiling, a zipper near the socket on the duct is not necessary.
Hvis montage af studs skal ske indvendigt skal man være opmærksom på at placere mindst 1 lynlås tæt på studsen. Eller der skal laves en service Lynlås i buen.
If mounting of the socket must be done from inside the space you must place at least 1 zipper close to the socket. Otherwise a service zipper must be placed in the arc of the duct.

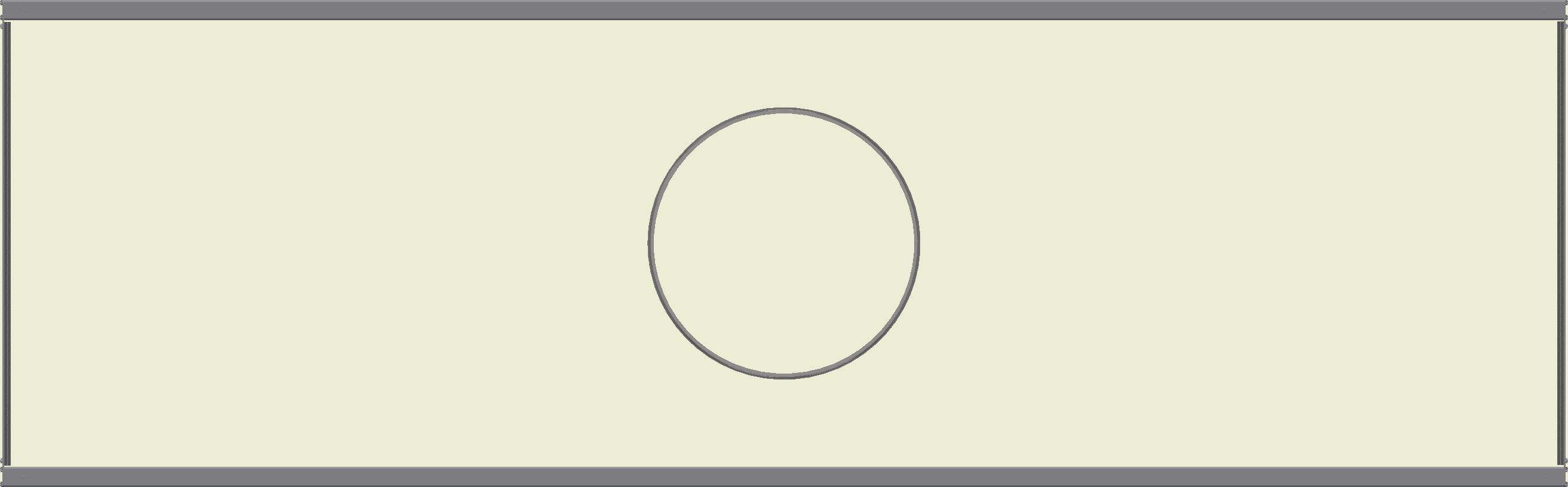

Ø = Socket diameter
H = Height
Ø = Studs Diameter H = Højde
W = Bredde
W = Width
O = Forsætning
O = Offset

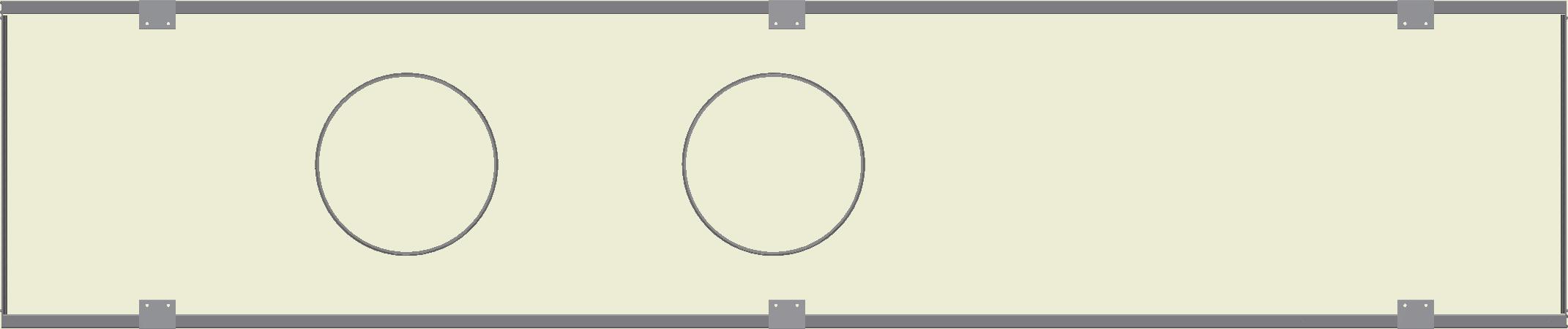

A = Distance socket 1
A = Afstand studs 1 B = Afstand studs 2
B = Distance socket 2
DS-0005-DK-03

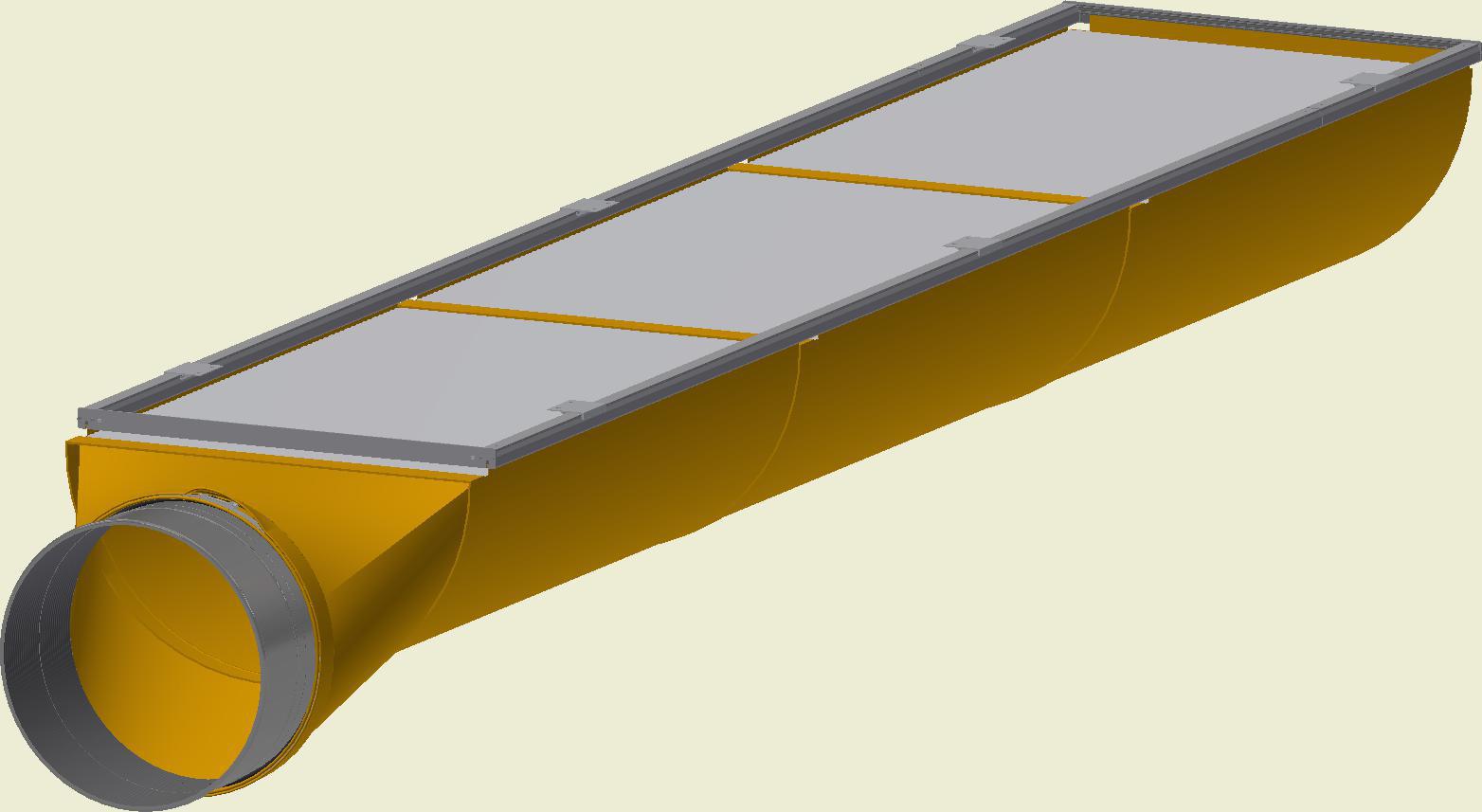

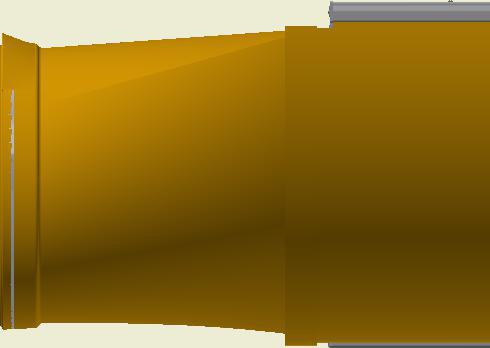

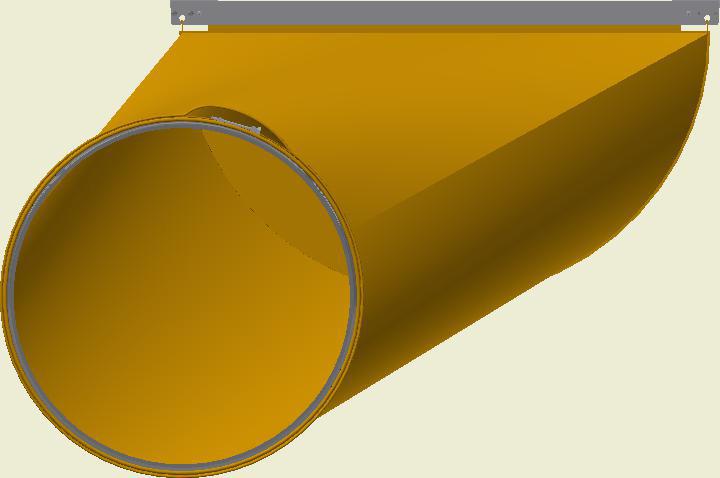

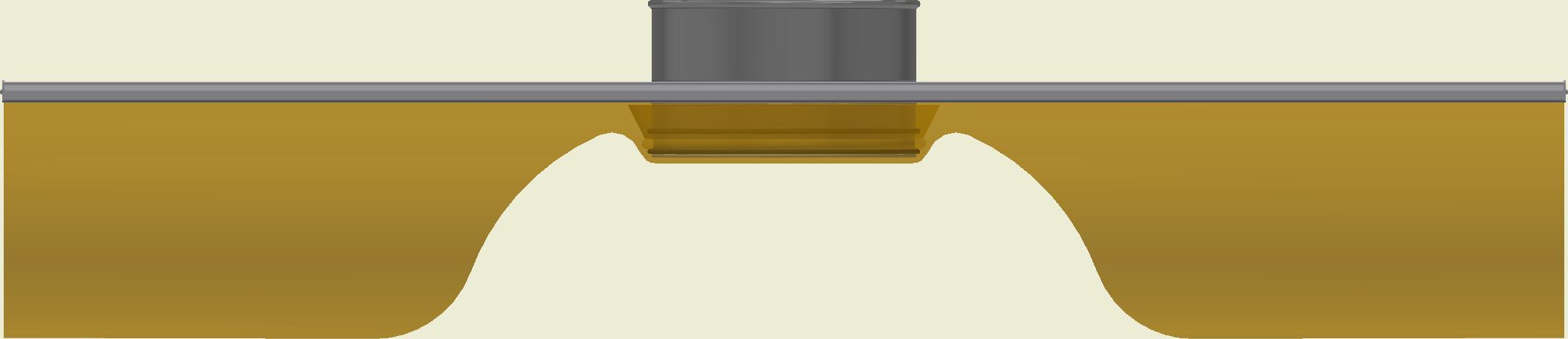

D-Safetrack for KE-Interior System (Inlet Options)
DS-0005-US-03
L = Duct length
L = Pose længde
LS = Length socket
LS = Længde Studs
Ø = Socket diameter
H = Height
Ø = Studs Diameter
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2

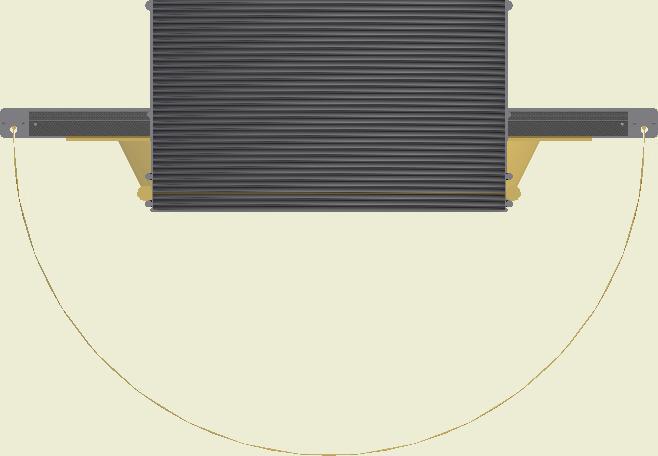

D-Safetrack for KE-Interior System (KE-SRD)
DS-0011-US-03
DS -0011-DK -03

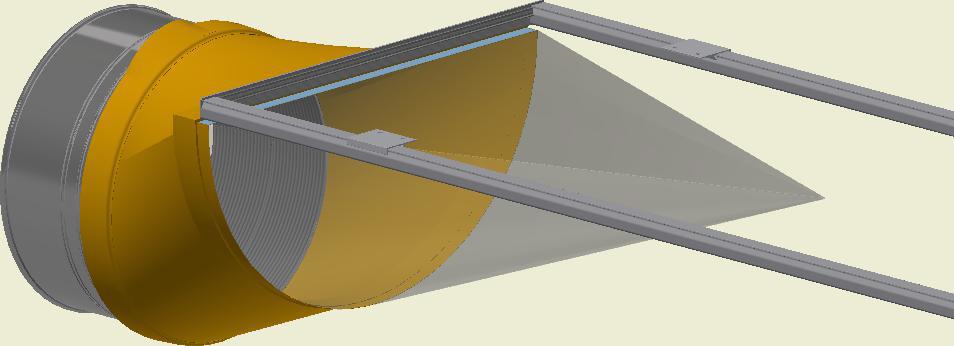

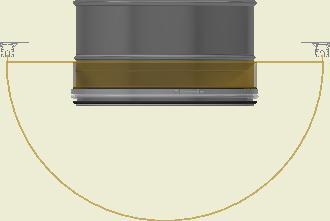

Installation of T-SRD (top inlet)
T-S RD montage .
The T-SRD is optional
T-SRD kan tilvælges
The T-SRD is fastened to the inside of the fabric duct by means of velcro
T-SRD monteres indvendigt i posen med velcro

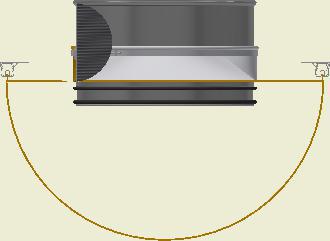

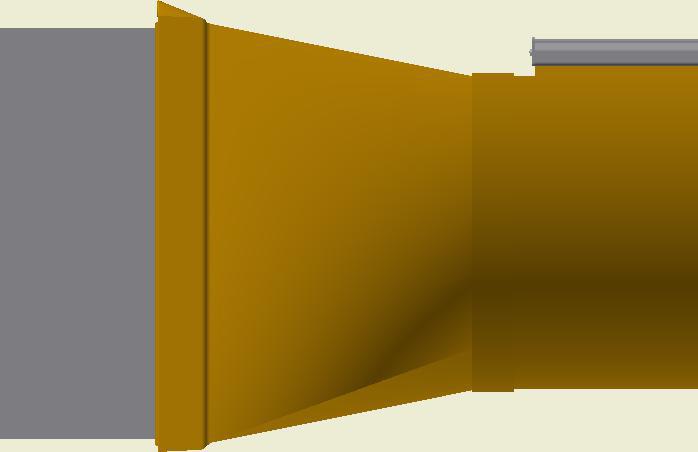

Installation of D-SRD (end inlet)
Indløbs -SRD montage .
The D-SRD is optional
Indløbs SRD kan tilvælges
The D-SRD and D duct are joined by means of zipper
Indløbs SRD lynes i ved en lynlås

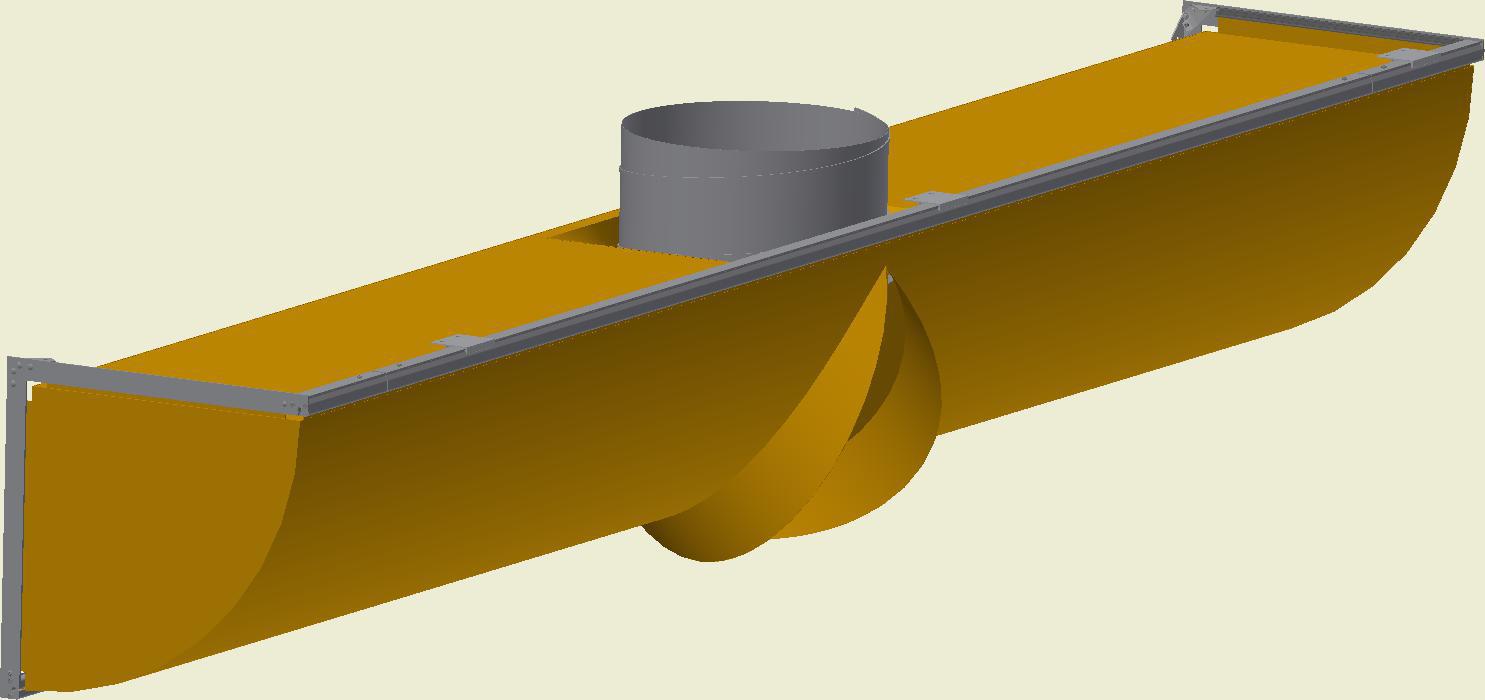

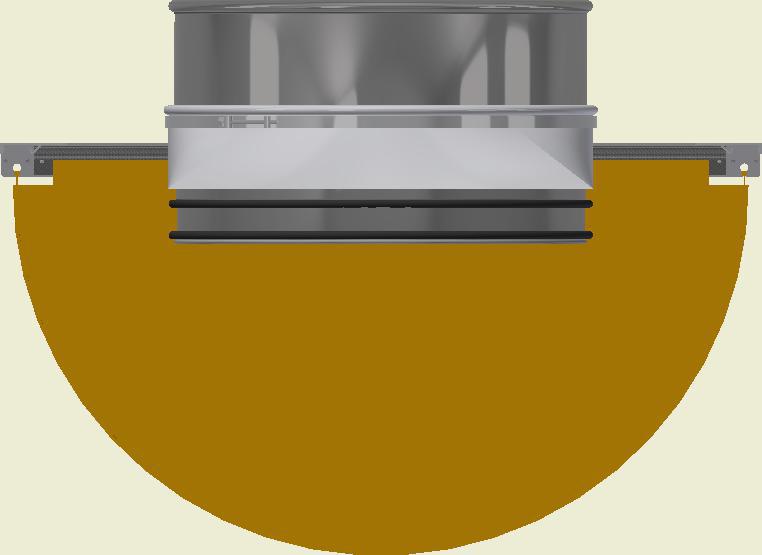

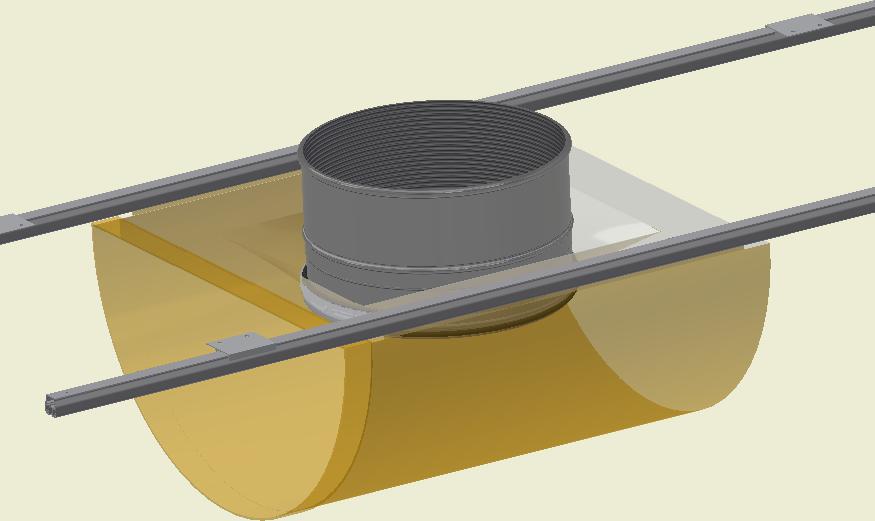

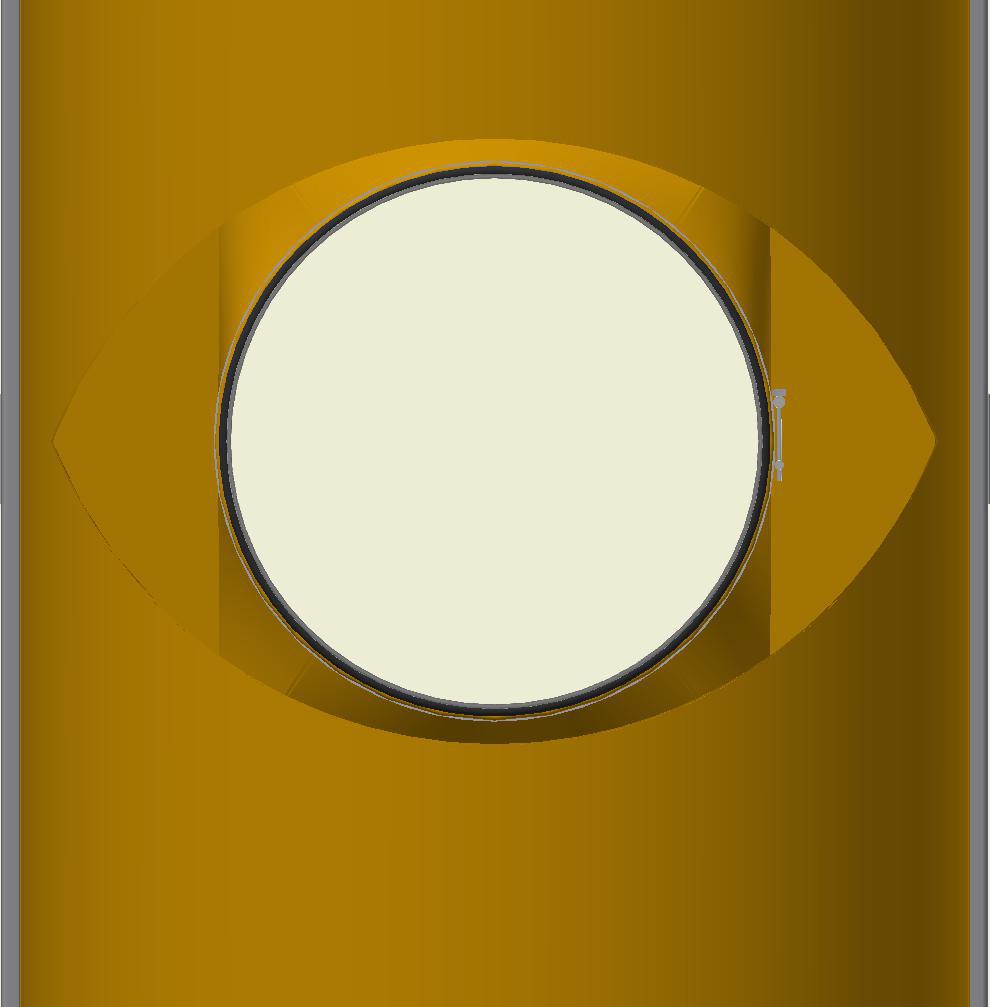

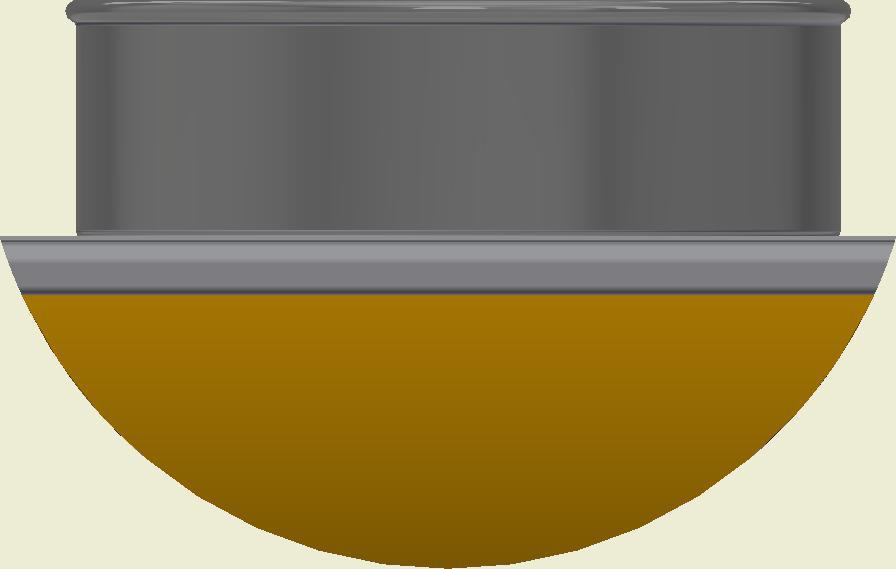

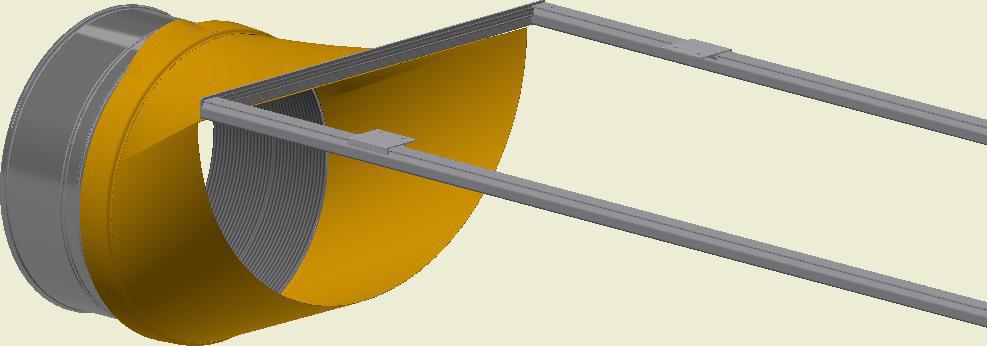

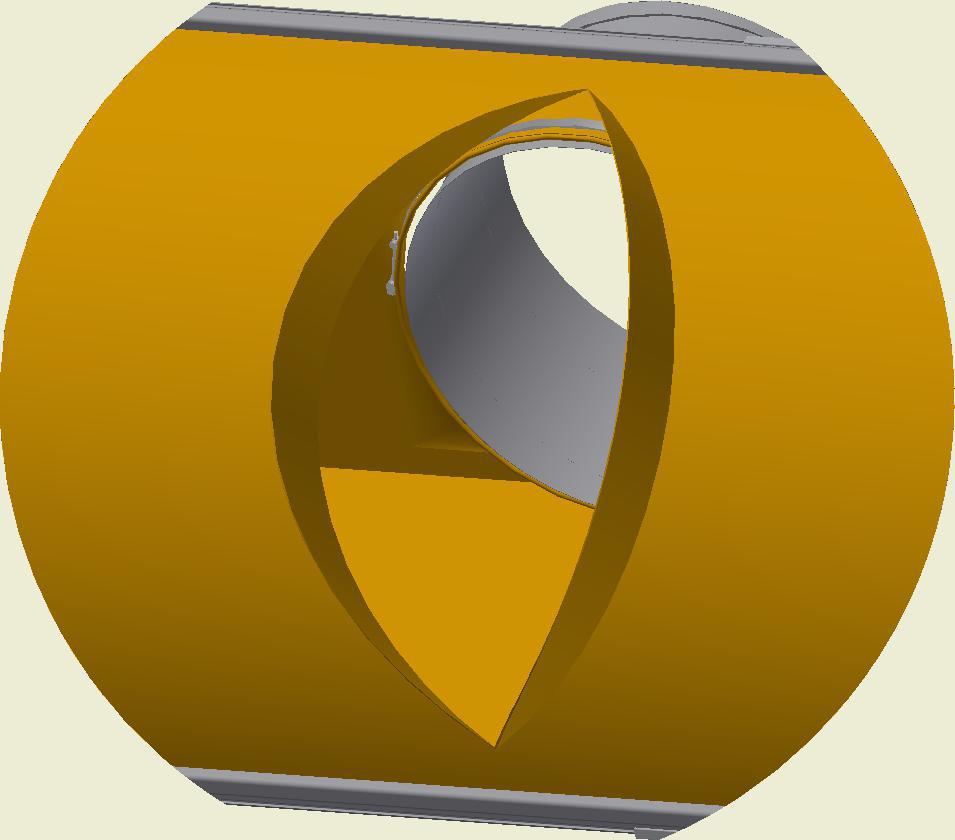

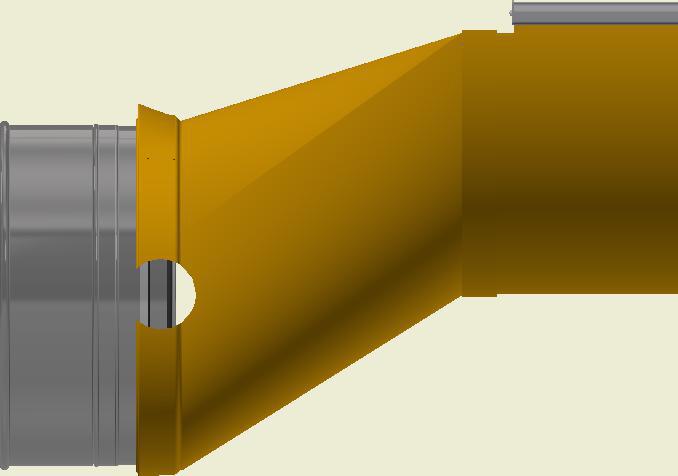

D-Safetrack for KE-Interior System (Inlet socket with spring lock)
DS-0012-US-03
DS-0012-DK-03
L = Duct length
LS = Length socket
Ø = Socket diameter
H = Height
L = Pose længde LS = Længde Studs
Ø = Studs Diameter H
W = Width
= Højde
O = Offset
W = Bredde
A = Distance socket 1
O = Forsætning
B = Distance socket 2
A = Afstand studs 1 B
= Afstand studs 2
Husk!
Marker A-målet på skinnen så du ved hvor studsen er når du har trukket posen på skinnerne.
Mark the A measurement on the rail so that it is clear where the nozzle is located after the duct has been mounted in the rails.

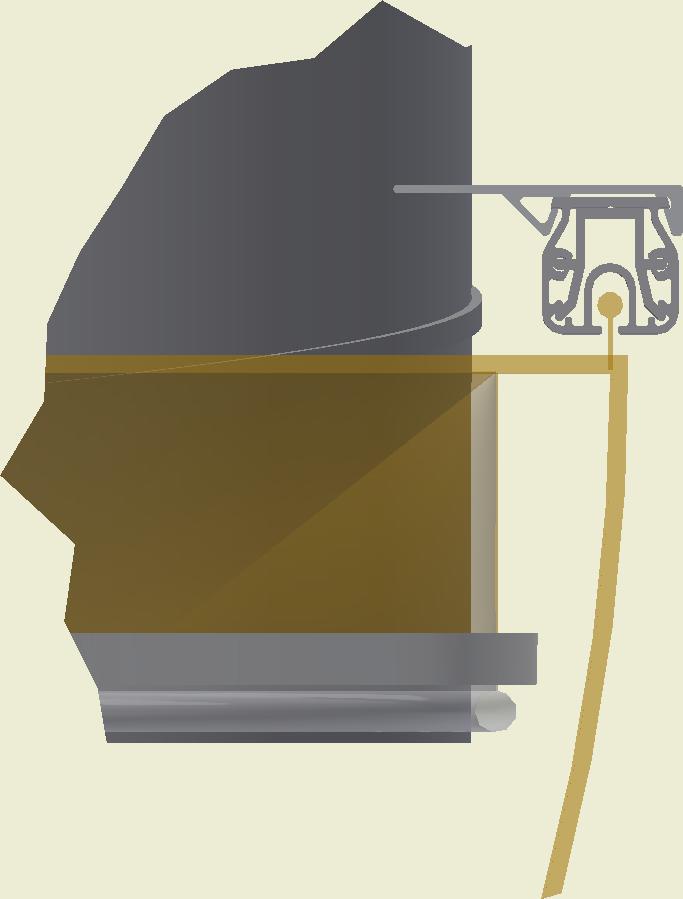

Mount the spring lock of the inlet socket onto supply spigot.
Husk!
NOTE! Remember to wear gloves or wash your hands prior to installation.
Vask hænder eller tag handsker på før montering. Fjeder trykkes over studsen.
DS-0013-DK-01

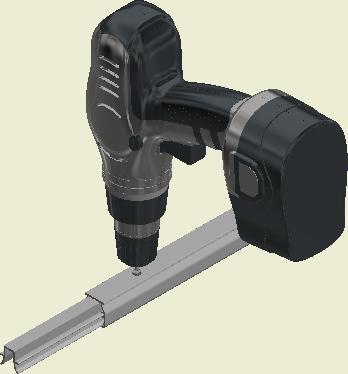

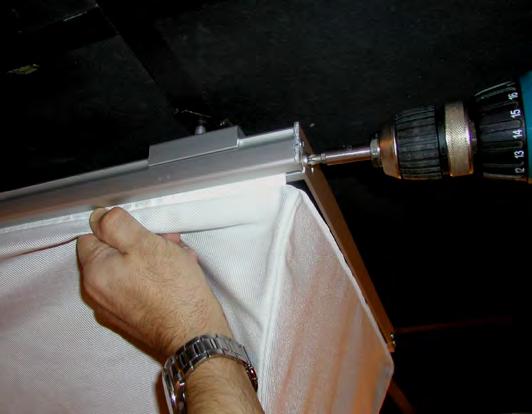

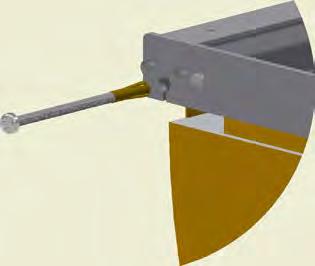

SafeLock for D-Safetrack
Safelock strammerne (4 stk) erstatter strammersnorene,
The four SafeLock expansion screws replace the former tightening cords.

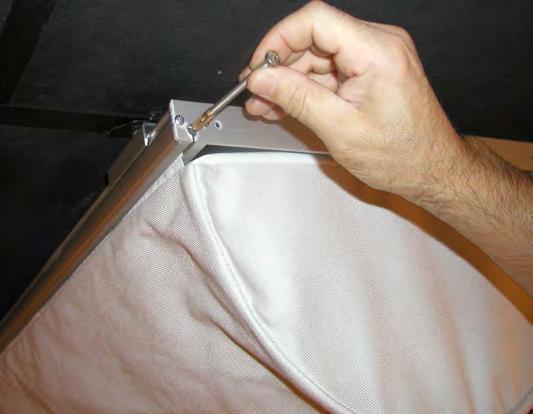

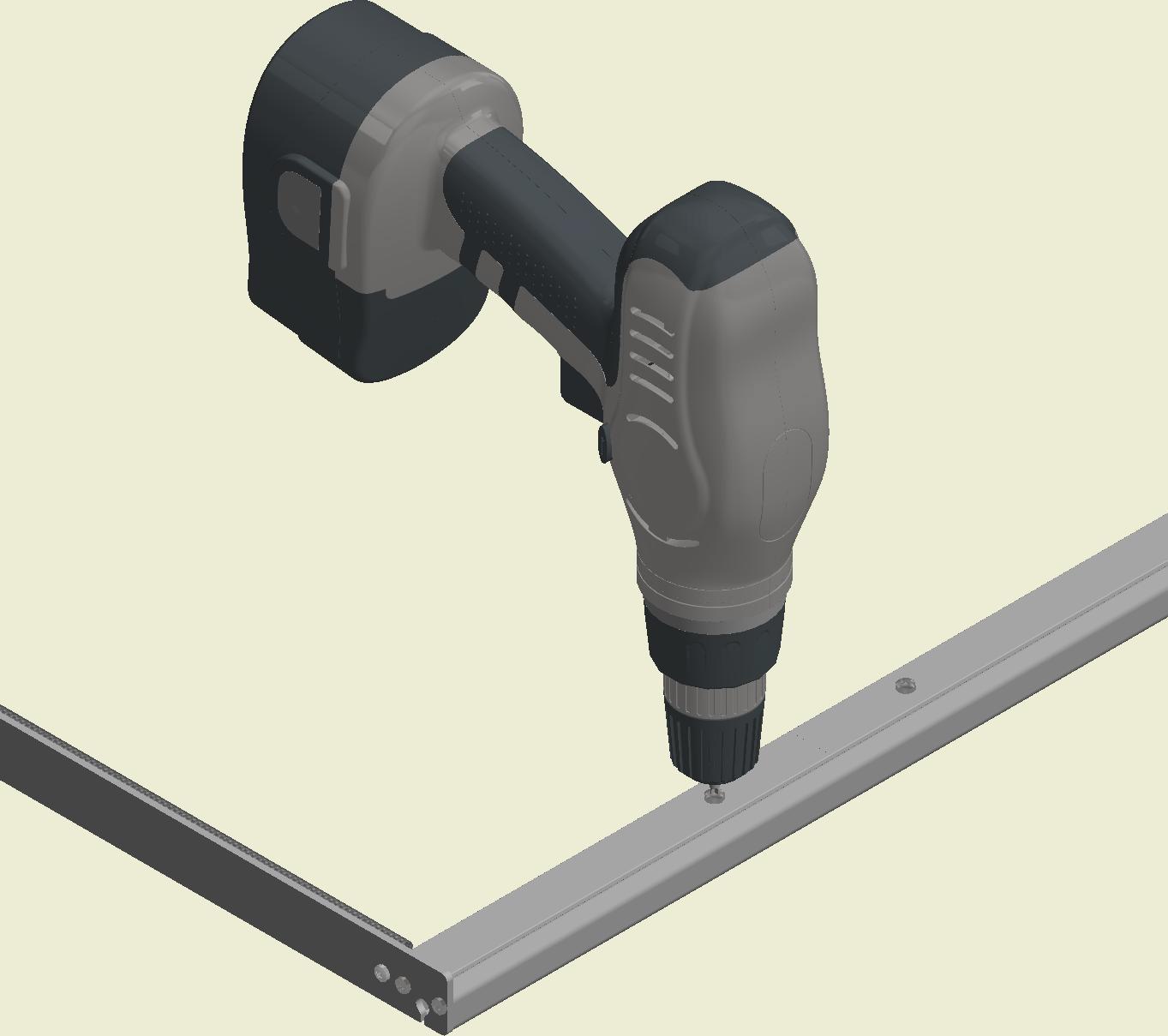

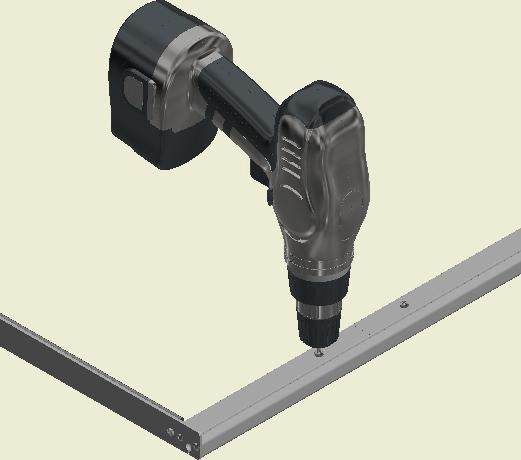

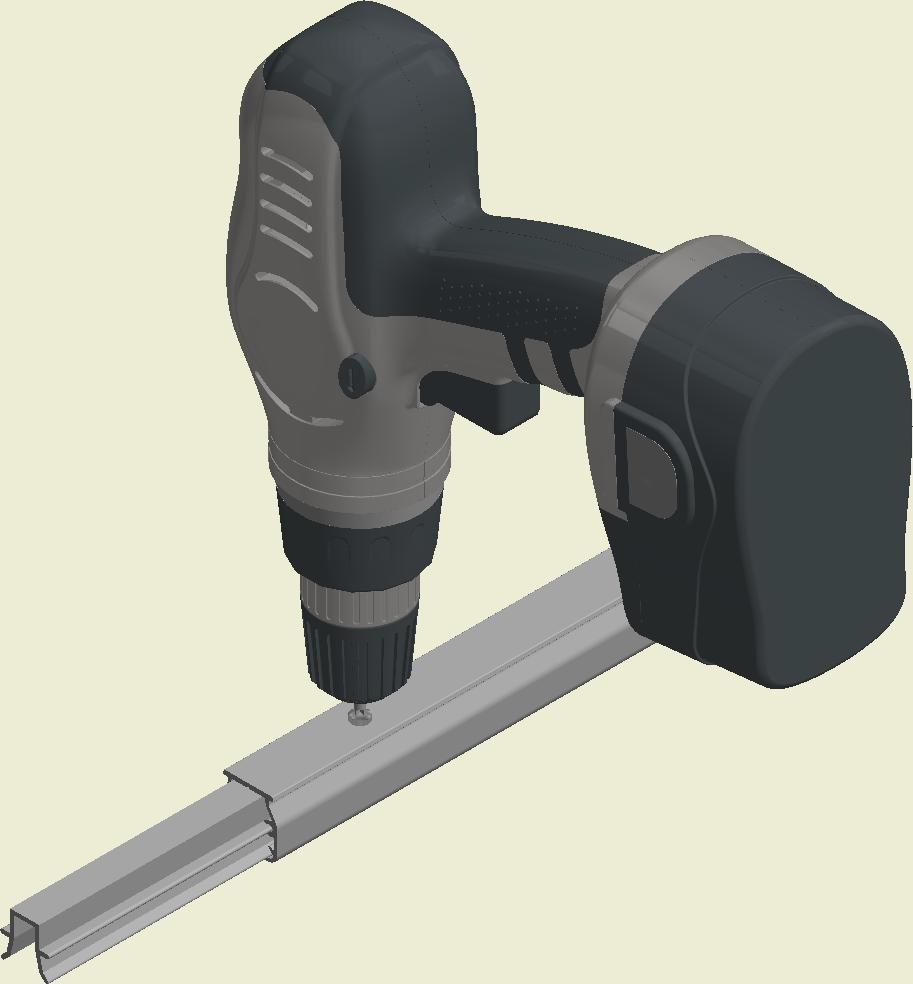

Safelock' indsættes i ”nøglehullet” i enden af Saferack skinnen. Brug en skruemaskine med bit PC2.
The SafeLock is inserted into the “keyhole” at the end of the Safetrack. Apply drill driver with bit PC2.
All four SafeLock expansion screws must be fully inserted before tightening the duct. Be careful not to over-tighten the screws.
Alle 4 Safelock ekspansionsskruer skal monteres før KE-posen er fikseret. Lad være med at overdreje skruen.

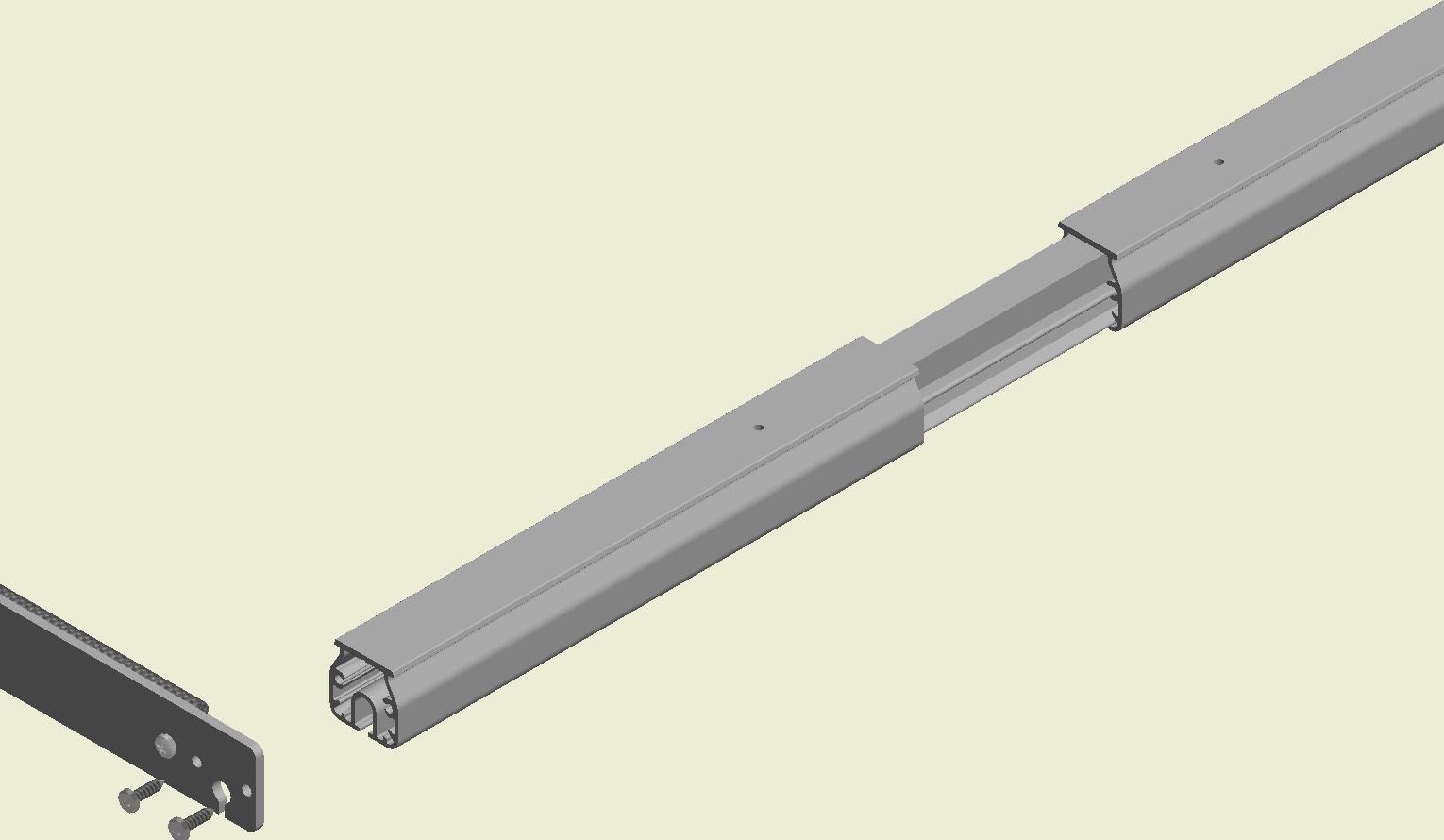

QS-0003-DK-00

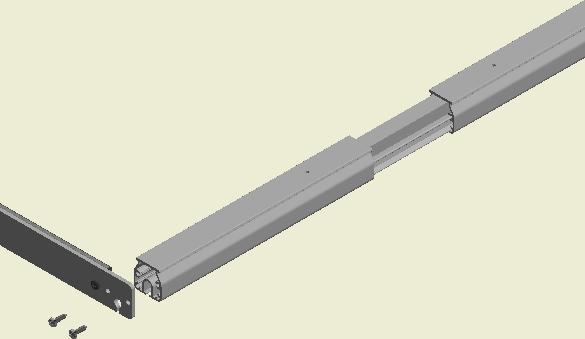

End section
Endestykke
Endeskruer

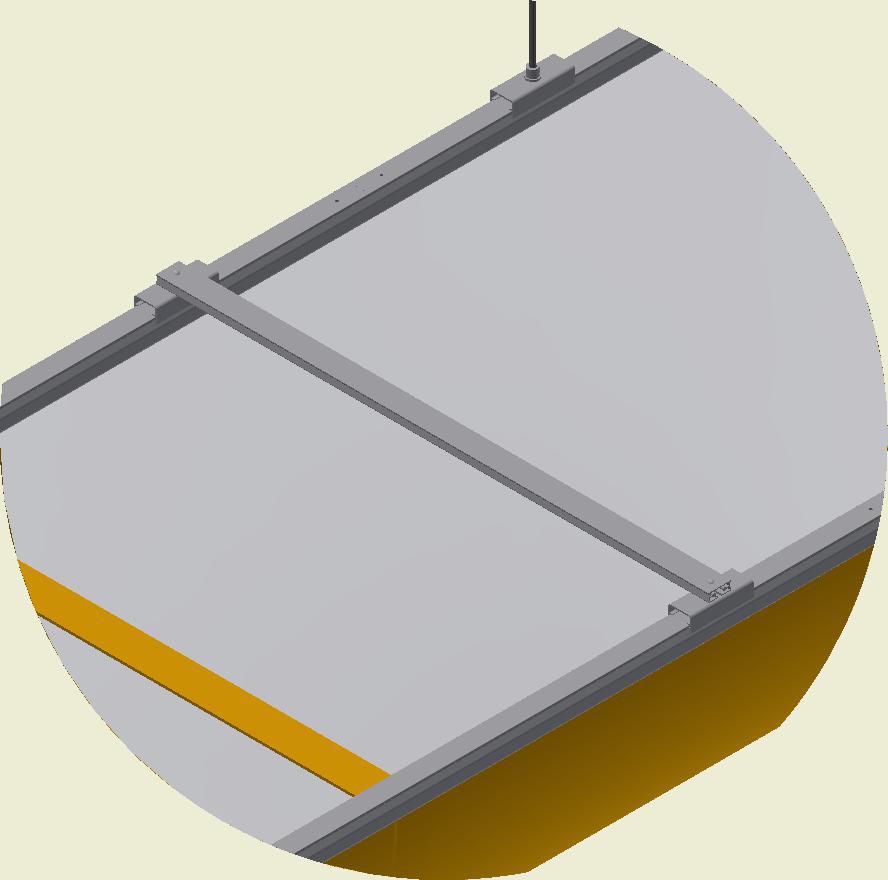

SafeCeil
SafeJoint
Safetrack
Yderligere skinner (std. 2000 mm)
Further rails (standard 6’6”)
End screws

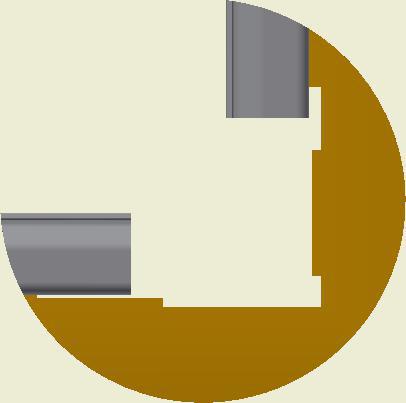

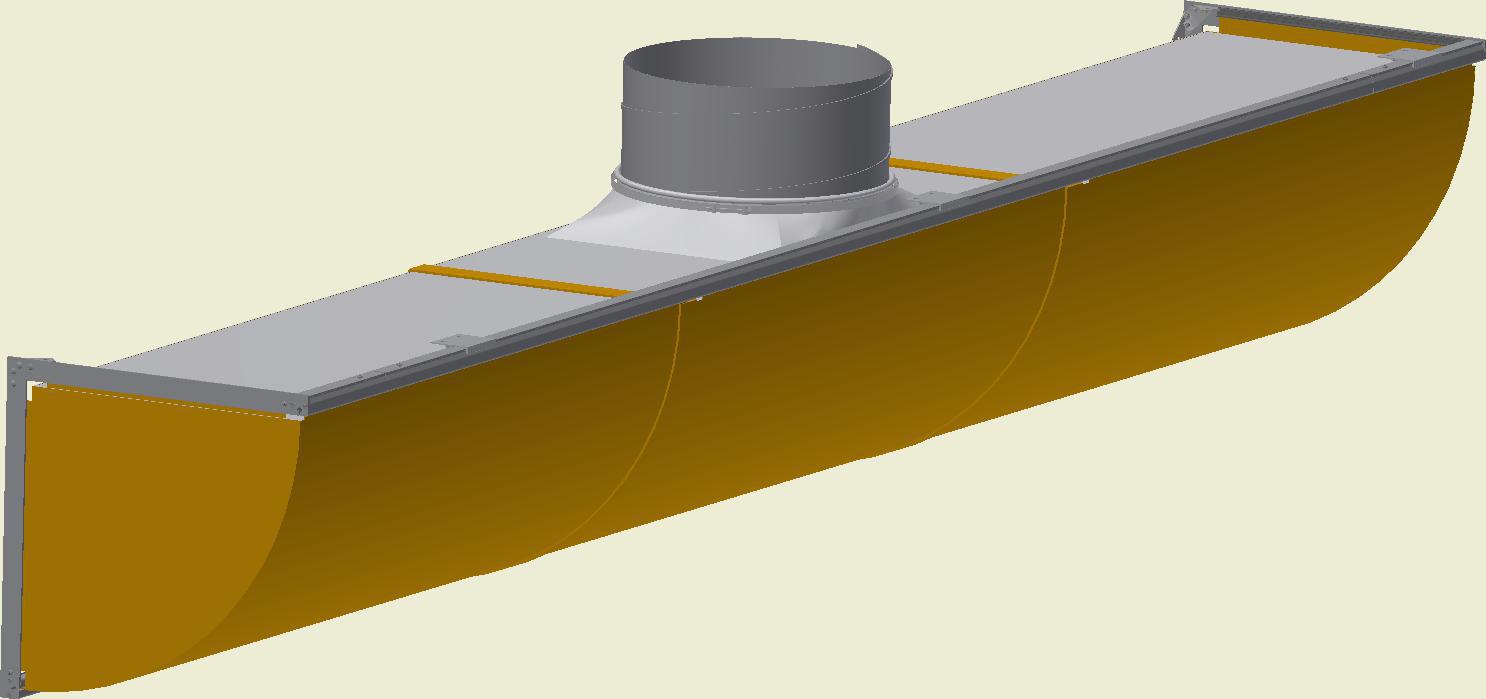

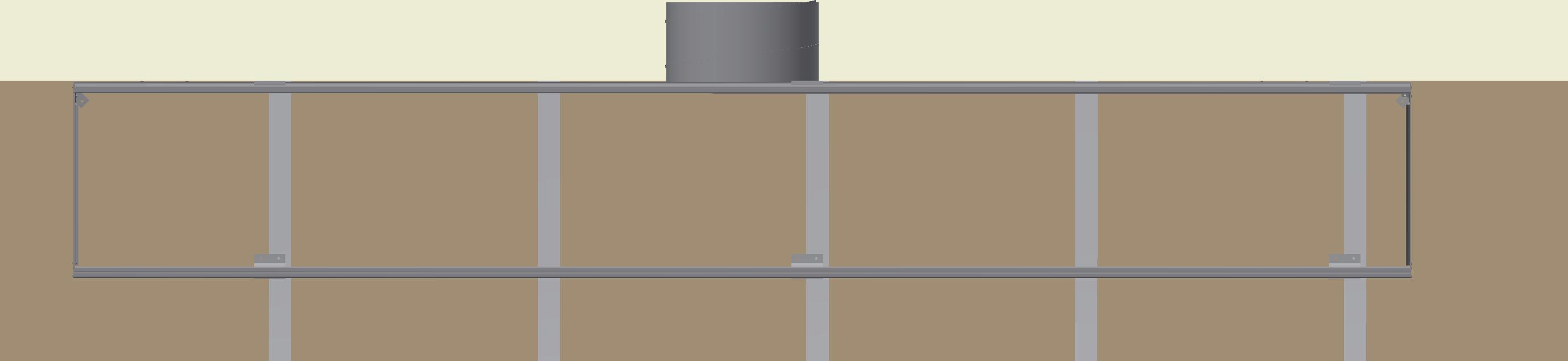

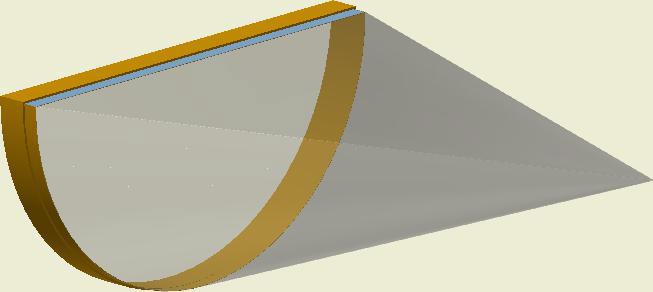

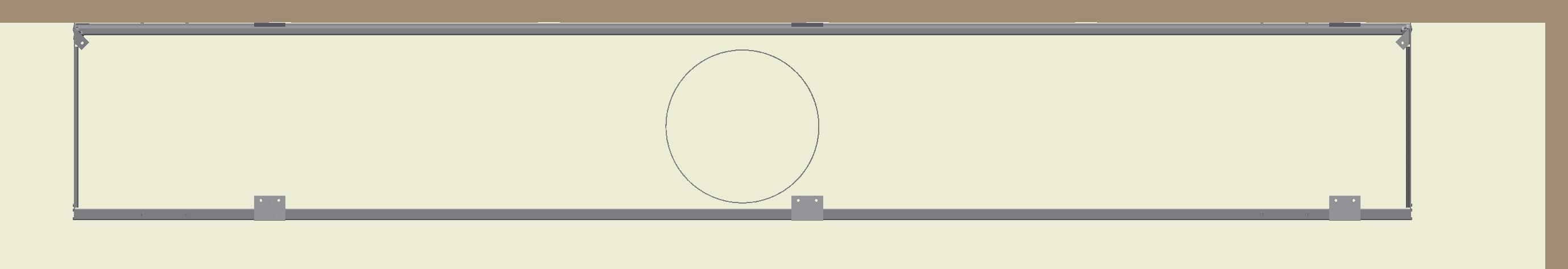

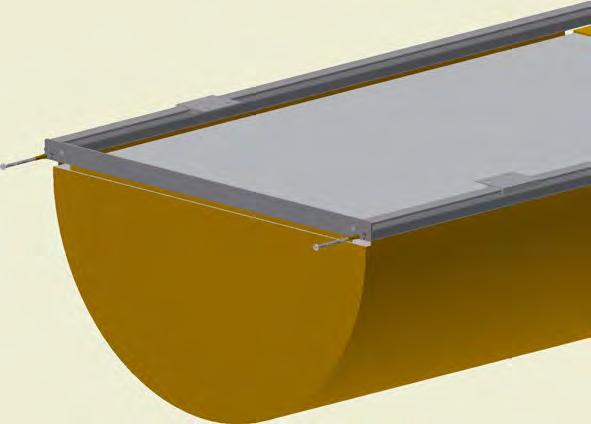

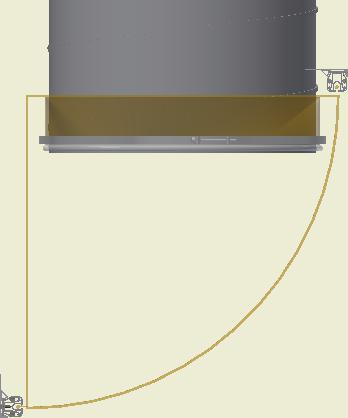

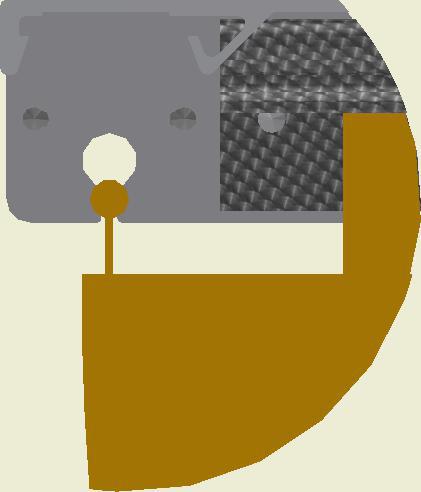

D-Safetrack for 1/4 Rd KE-Interior System (SafeCeil)
Mindst en fri ende til montering af pose.
At least one end open to make room for duct installation W +1 5/8”
+ 41
L = Duct length
LS = Length socket
L = Pose længde LS = Længde Studs
Ø = Socket diameter
H = Height
Ø = Studs Diameter H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Afstand studs 1 B = Afstand studs 2
A = Distance socket 1
B = Distance socket 2
QS-0005-DK-03

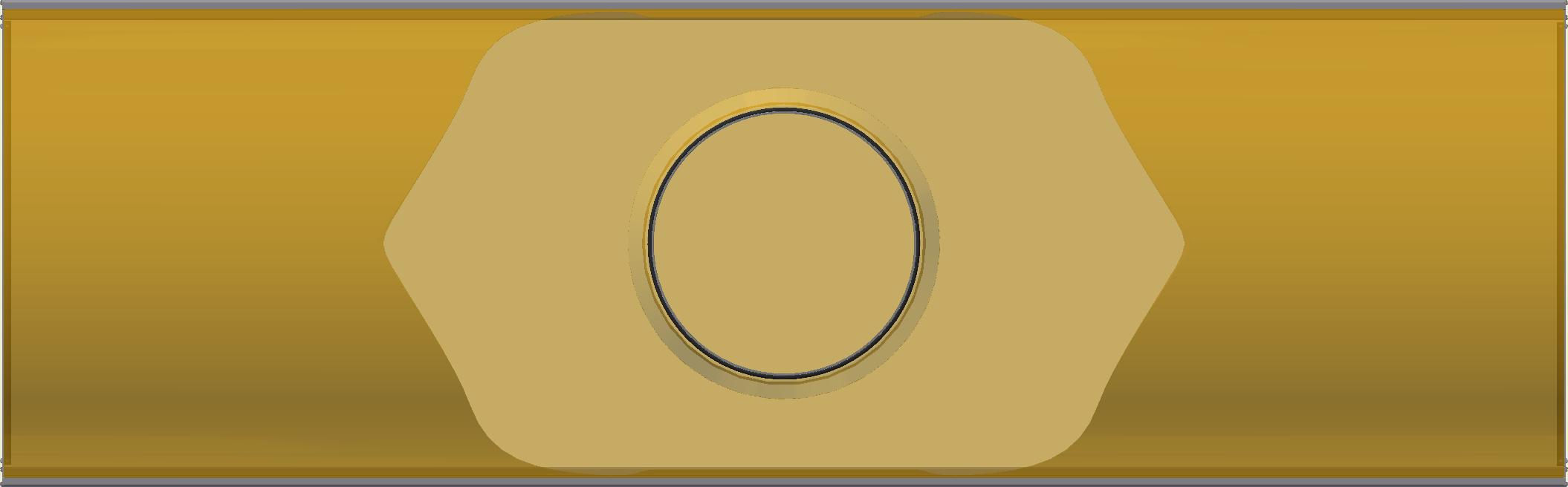

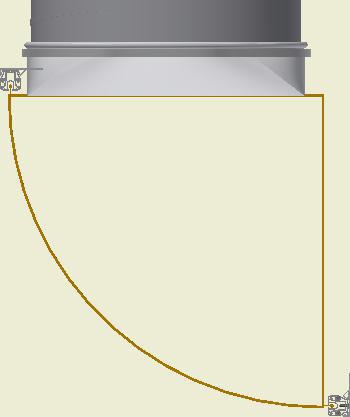

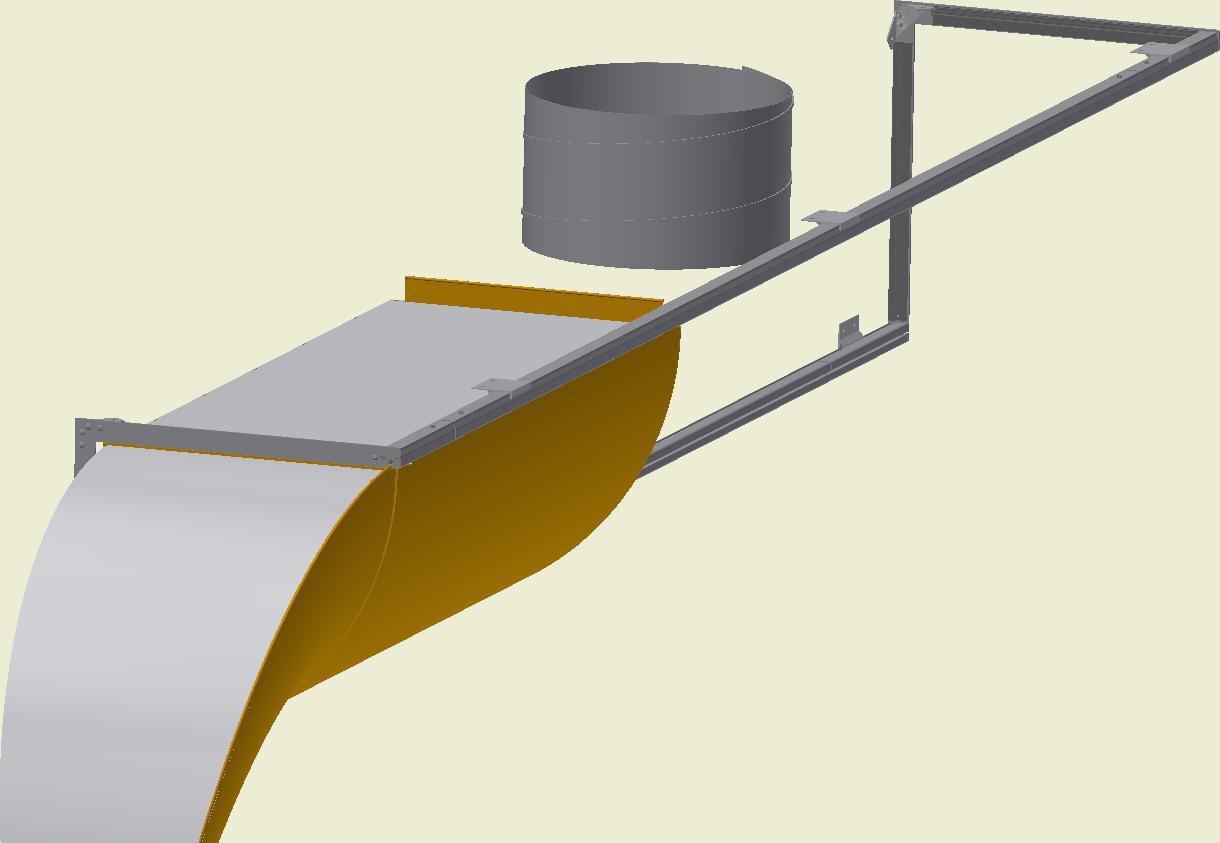

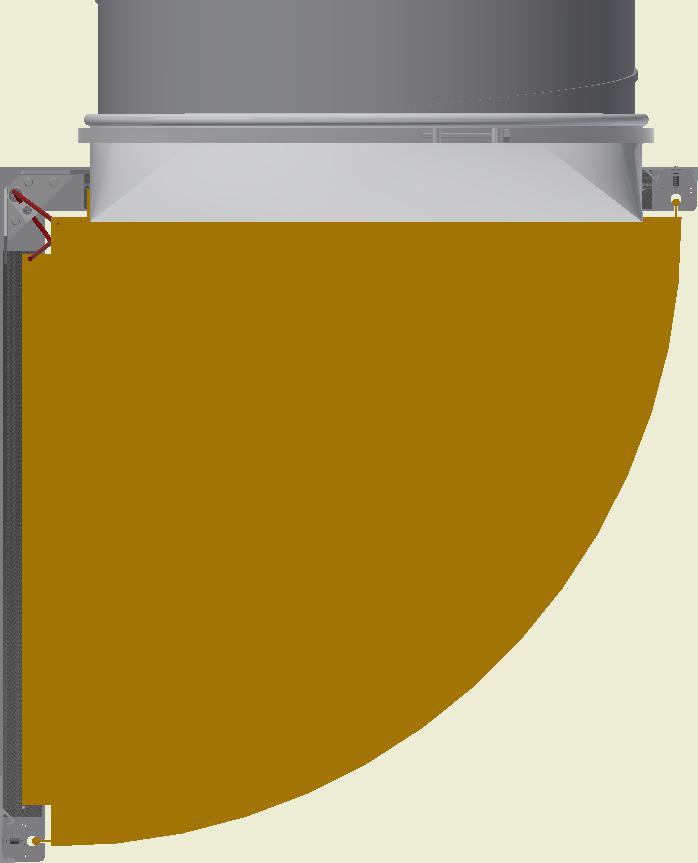

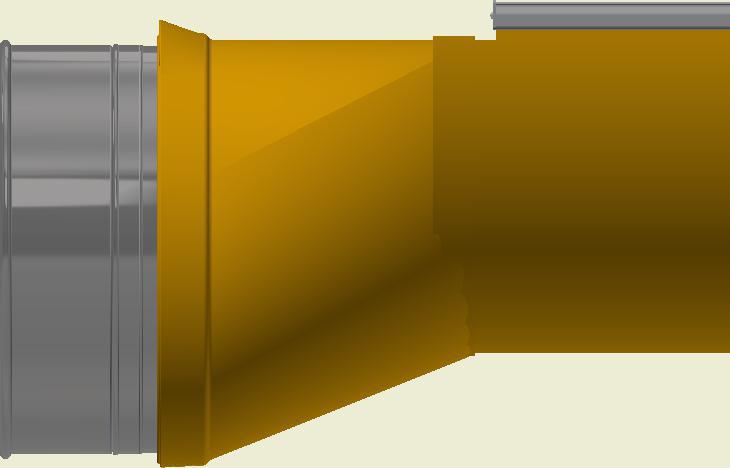

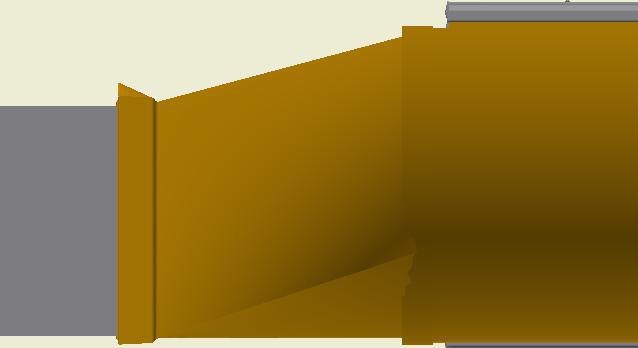

D-Safetrack for 1/4 Rd KE-Interior System (Inlet Options)
QS-0005-US-03
L = Duct length
L = Pose længde
LS = Length socket
Ø = Socket diameter
LS = Længde Studs
H = Height
Ø = Studs Diameter
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2

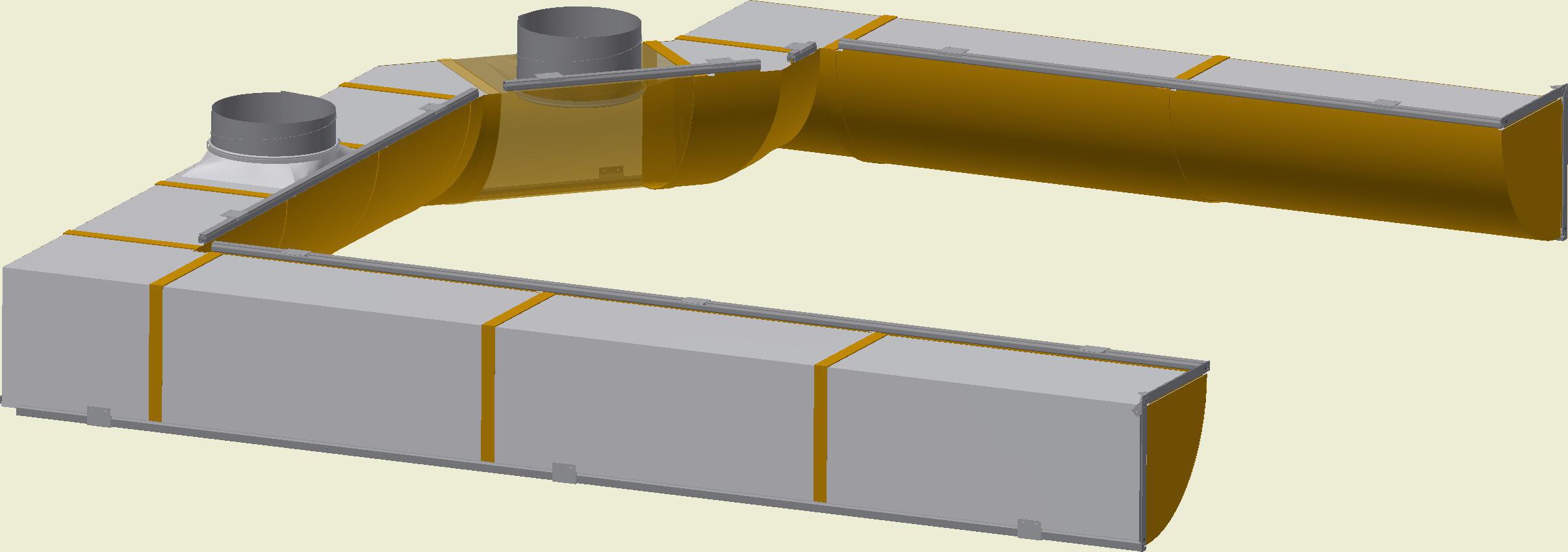

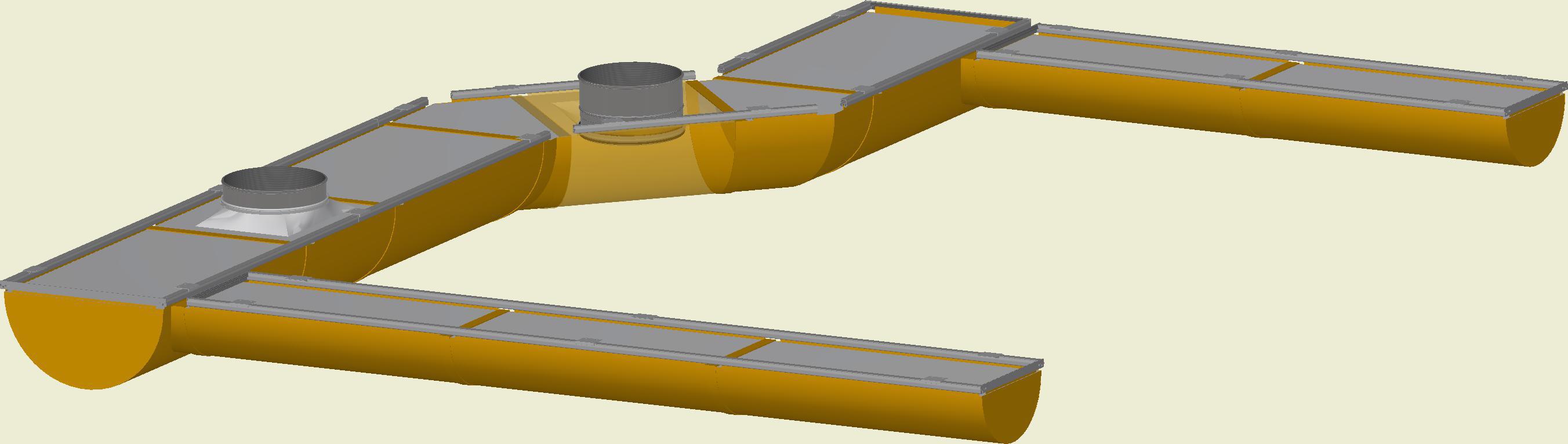

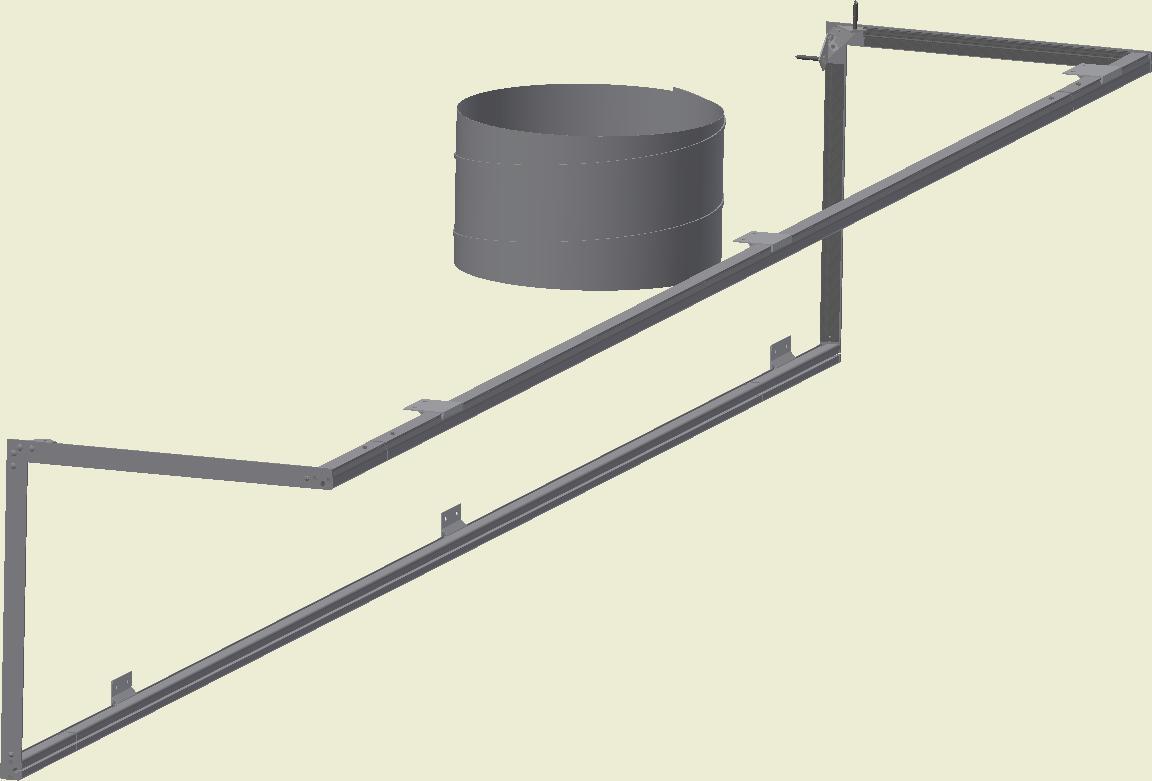

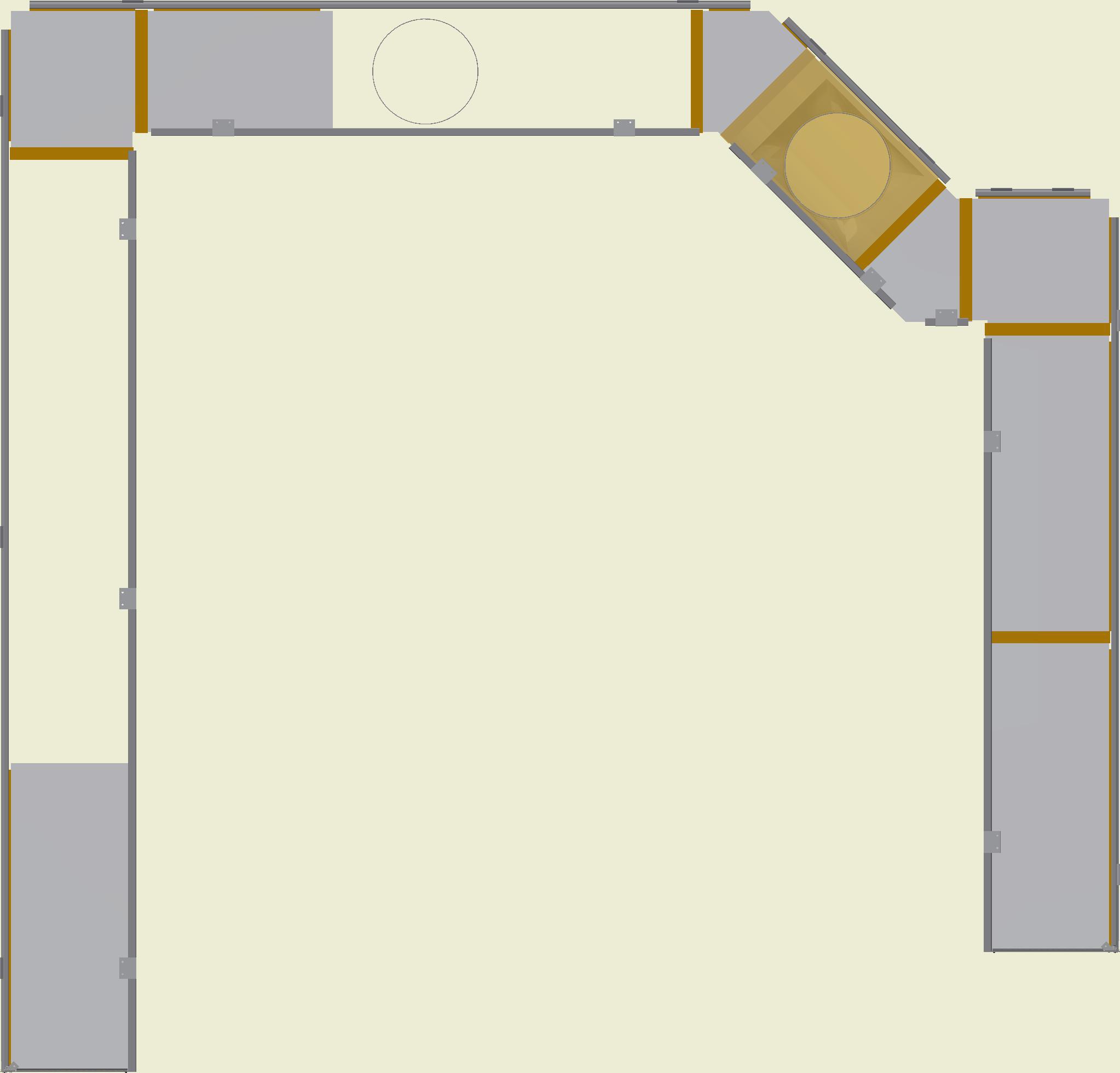

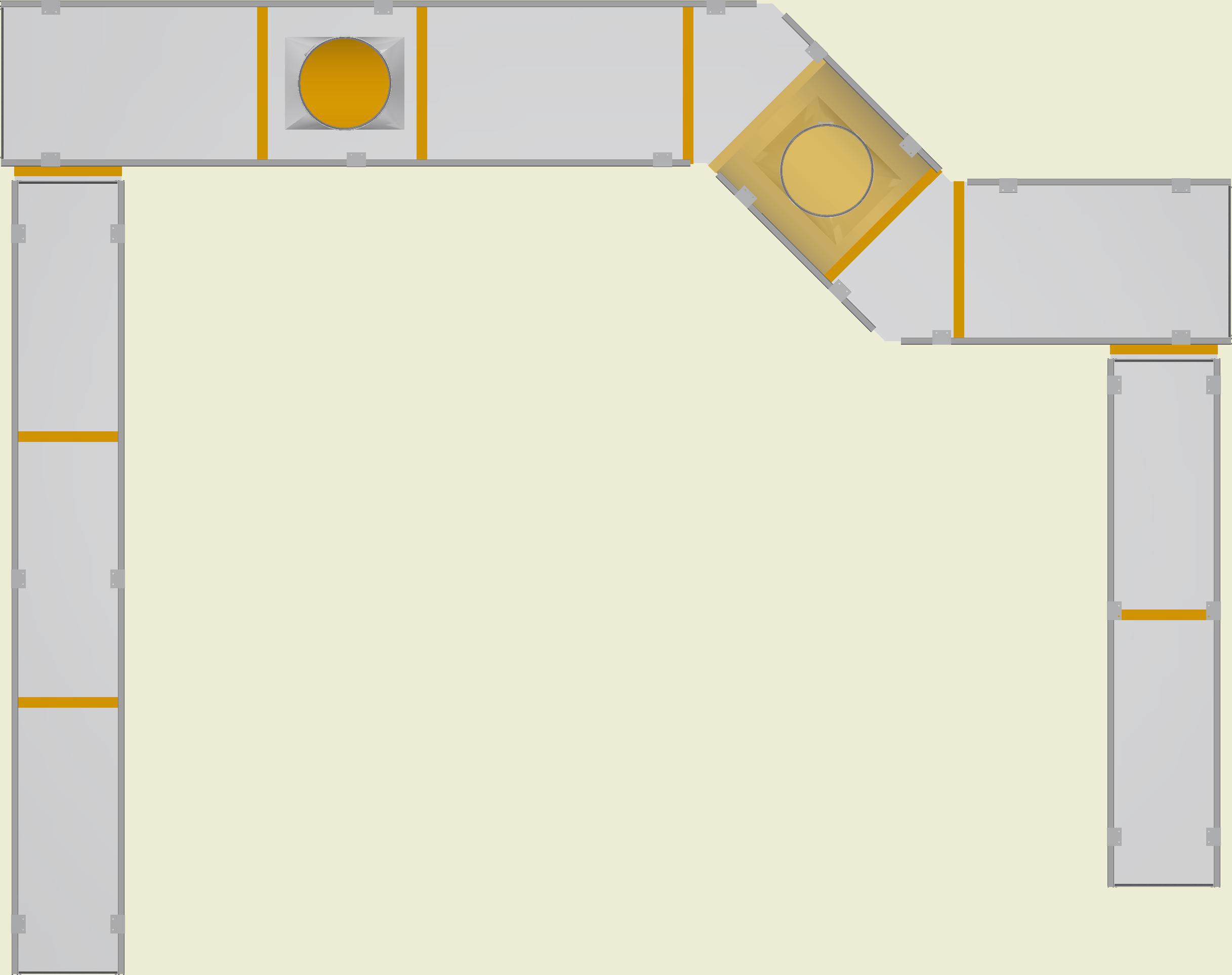

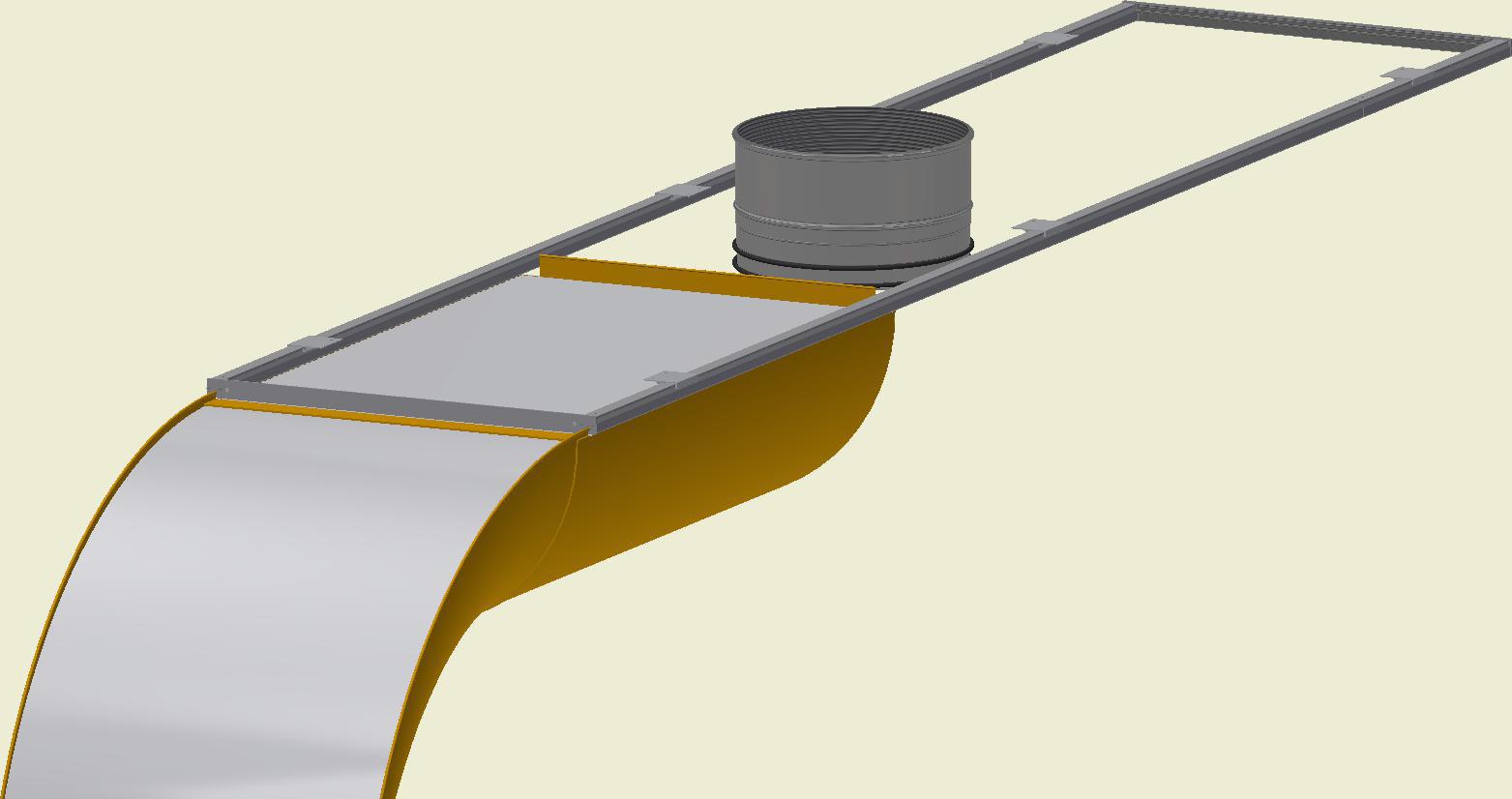

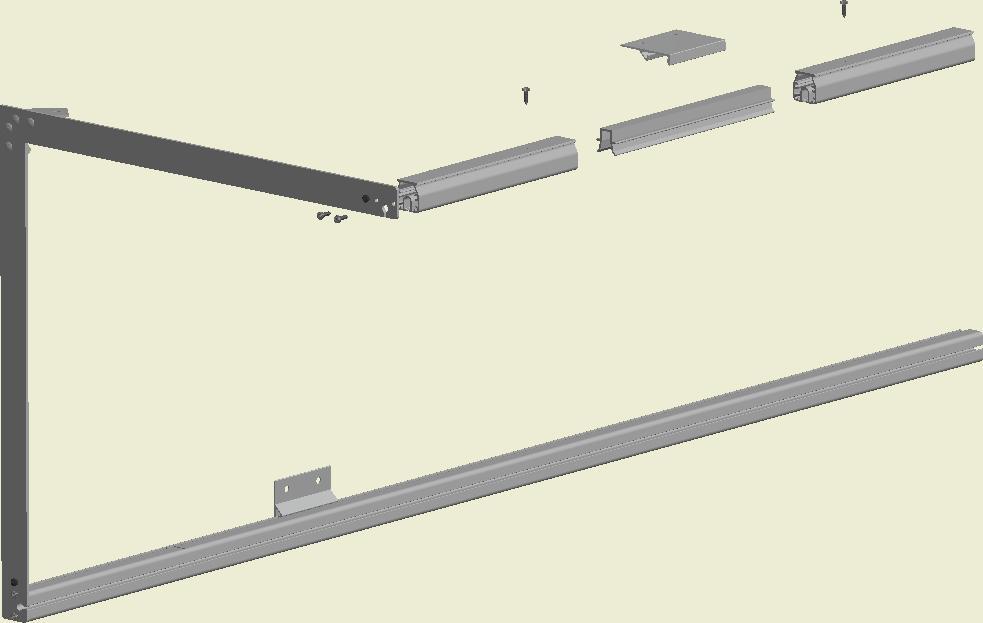

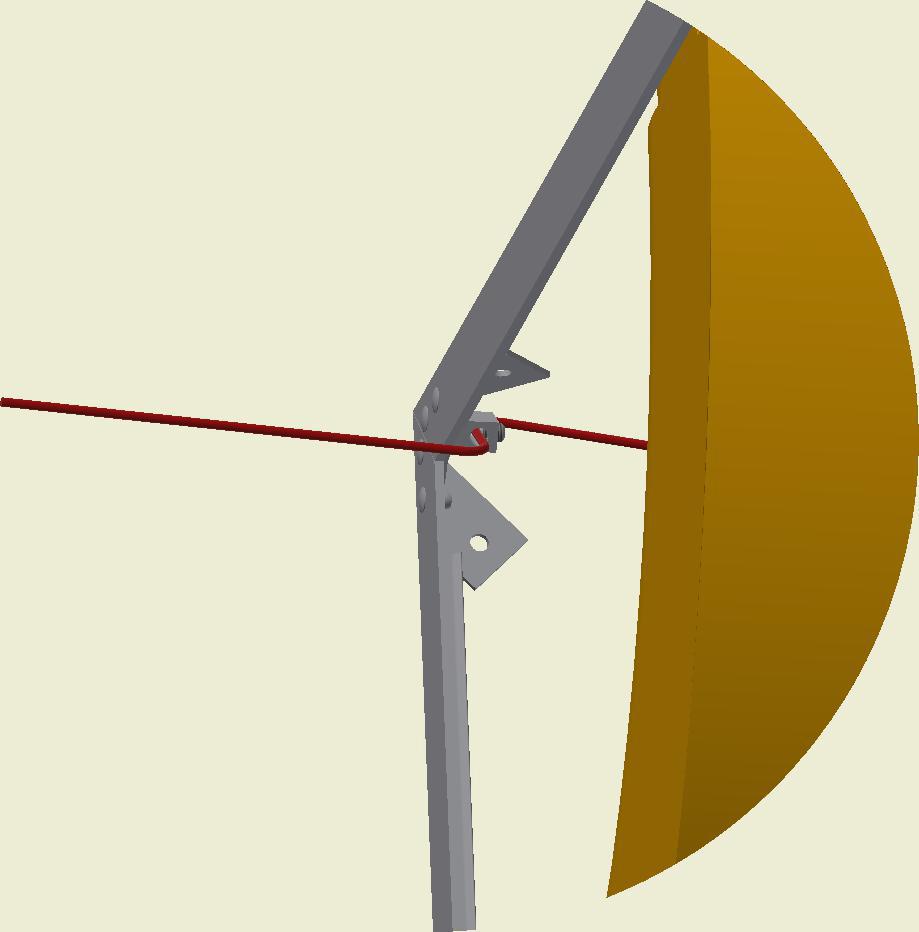

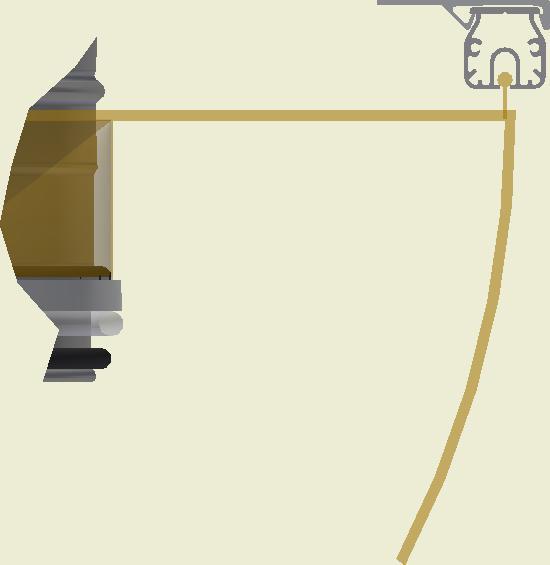

D-Safetrack for 1/4 Rd KE-Interior System (Rail Assembly)
Hvis montering af studs er mulig over loft behøves der ingen lynlås i nærheden af studs.
B A C
L = Duct length
LS = Length socket
L = Pose længde
Ø = Socket diameter
LS = Længde Studs
H = Height
Ø = Studs Diameter
W = Width
O = Offset
If it is possible to mount the socket above a false ceiling, a zipper near the socket on the duct is not necessary. If mounting of the socket must be done from inside the space you must place at least 1 zipper close to the socket. Otherwise a service zipper must be placed in the arc of the duct.
H = Højde
W = Bredde
Hvis montage af studs skal ske indvendigt skal man være opmærksom på at placere mindst 1 lynlås tæt på studsen. Eller der skal laves en service Lynlås i buen.

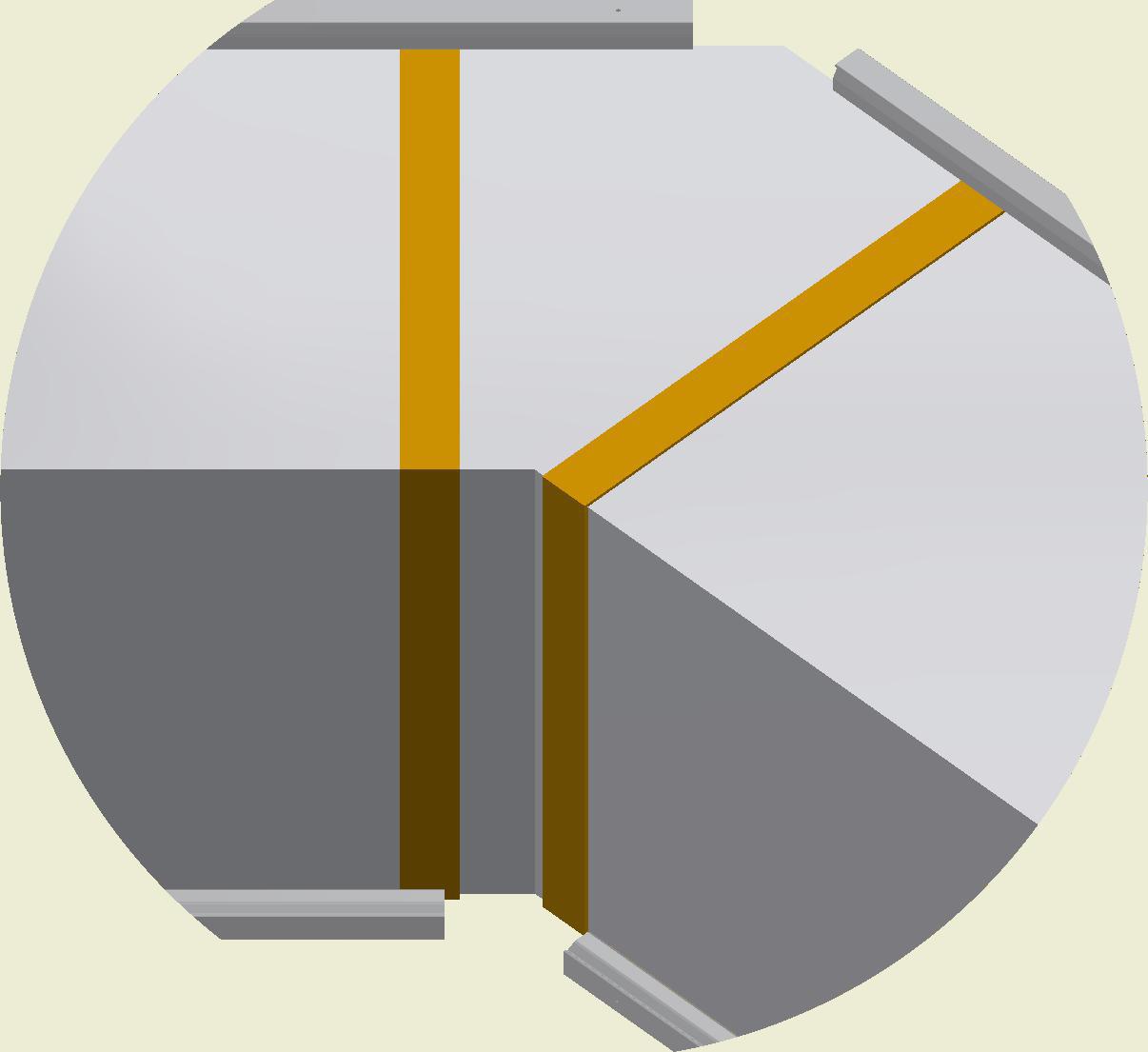

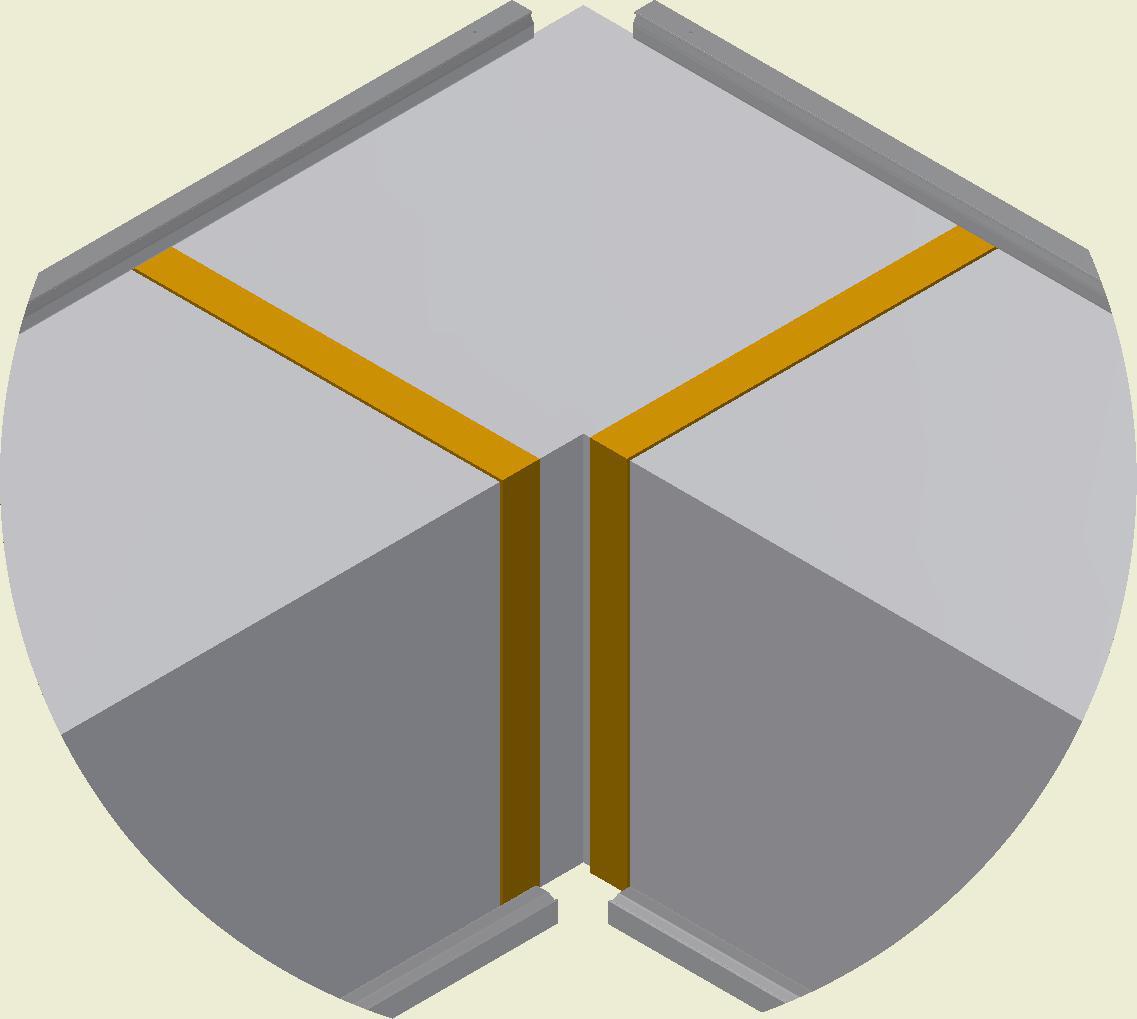

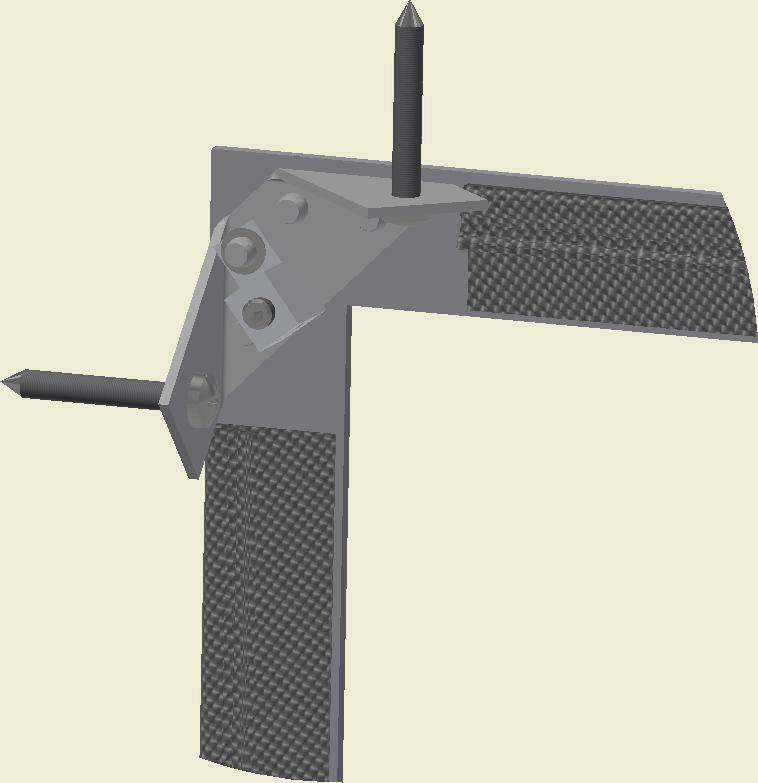

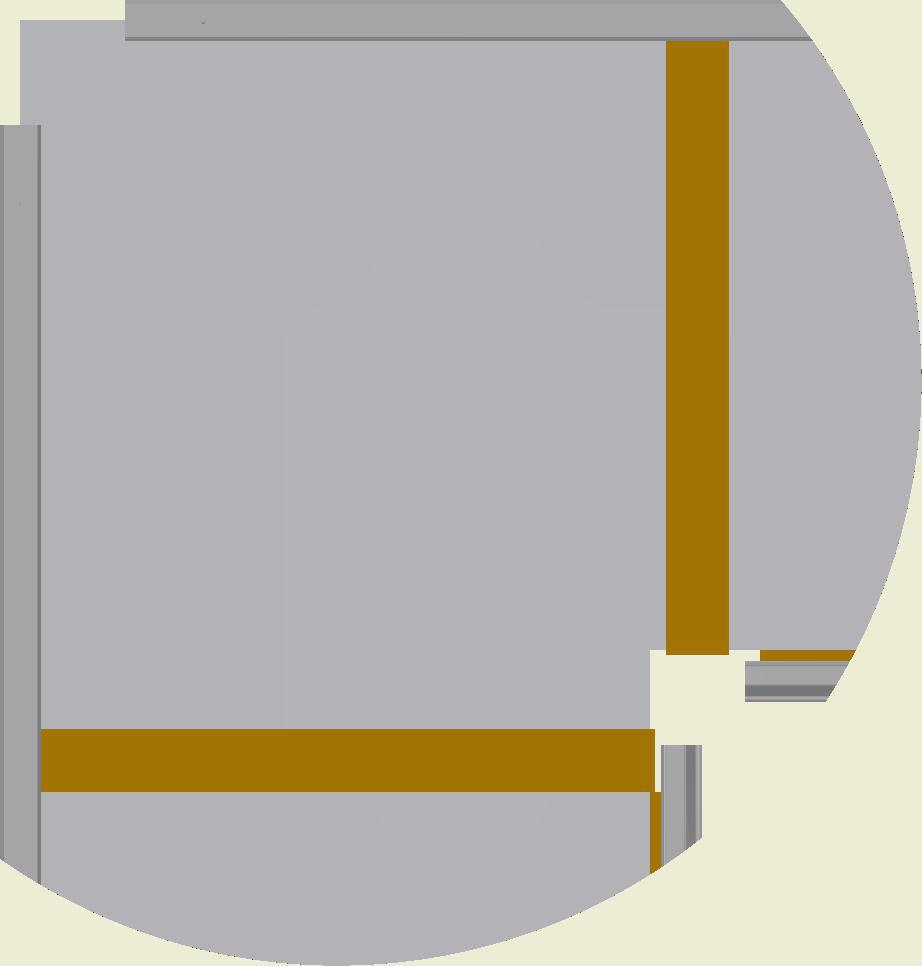

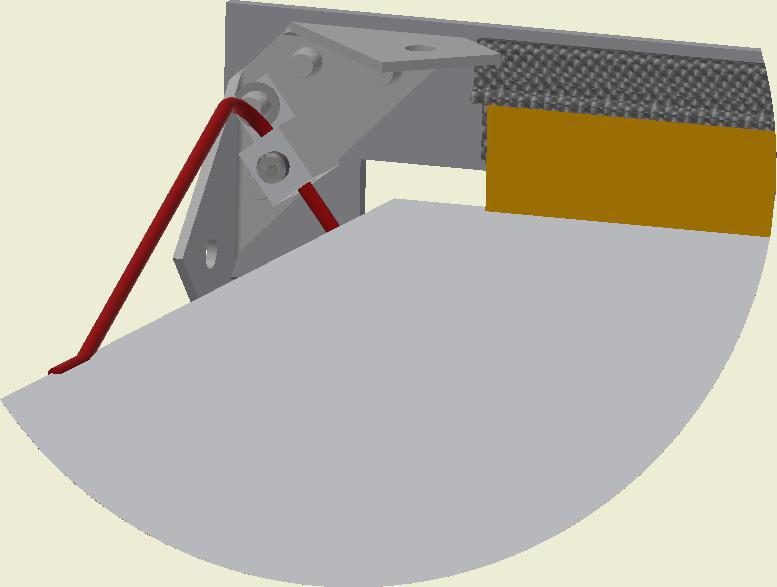

Indvendigt hjørne skal fastgøres med minimum en skrue i enten væg eller loft.
Fasten inner corner of rail to wall or ceiling with at least one screw.
O = Forsætning
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2

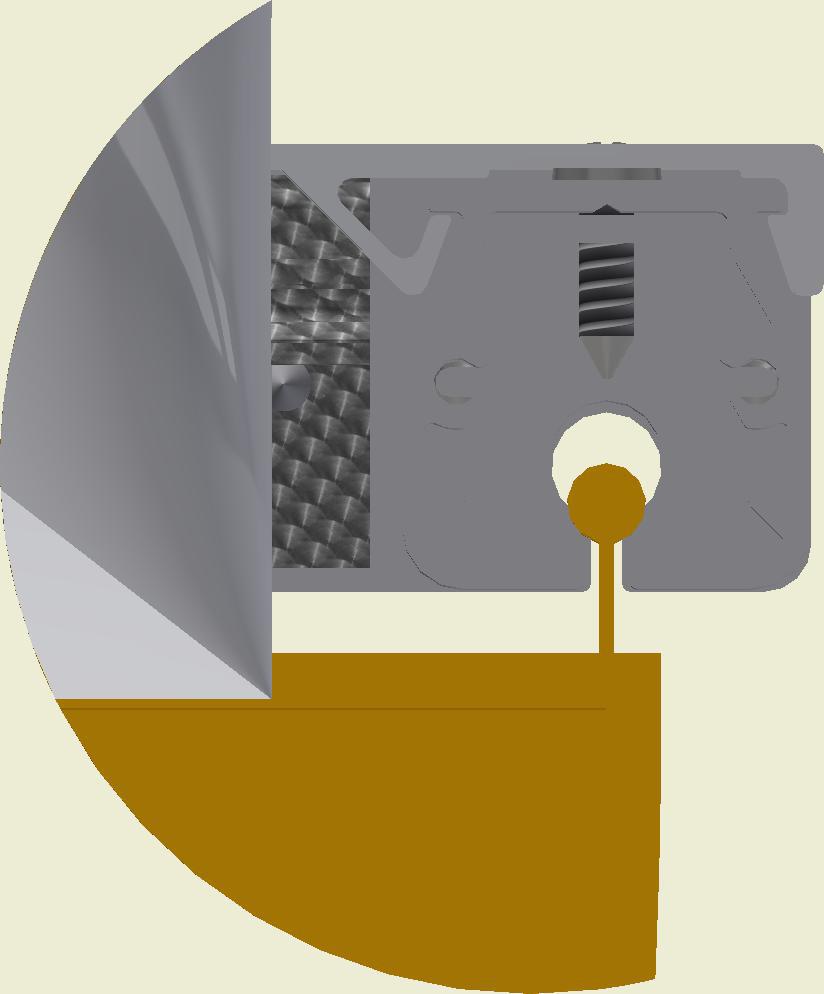

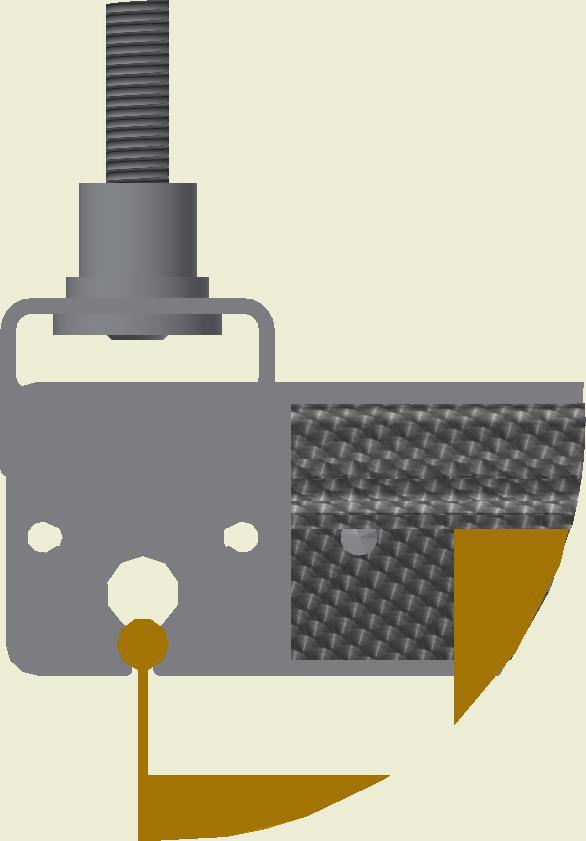

Før snoren igennem hullet. Træk posen ud til enden af skinnen spænd Pinol med 3mm Umbracho ikke incl.
Feed cord through hole. Pull/ push the duct along the rails until reaching the end section. Tighten the set screw with a hex key (not included).
QS-0007-DK-03

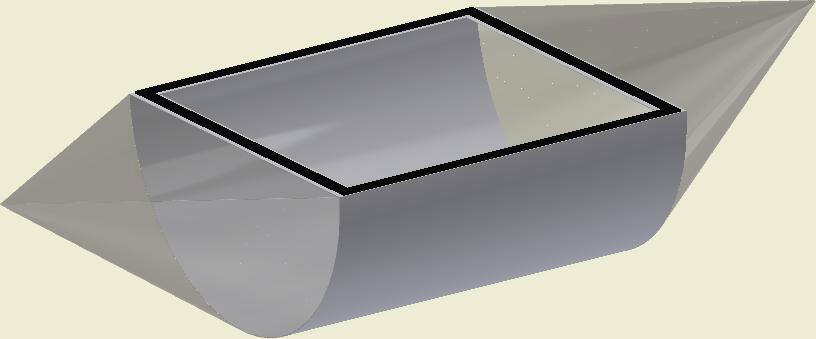

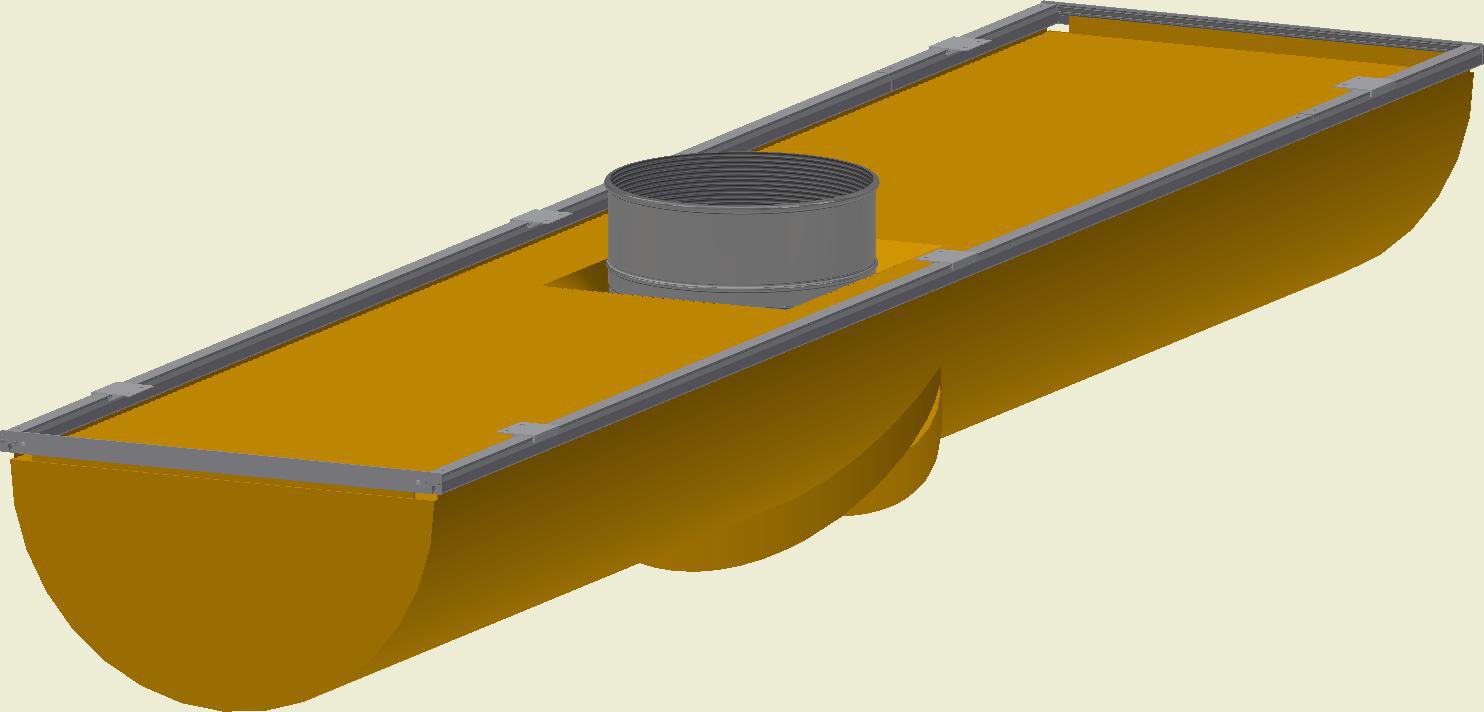

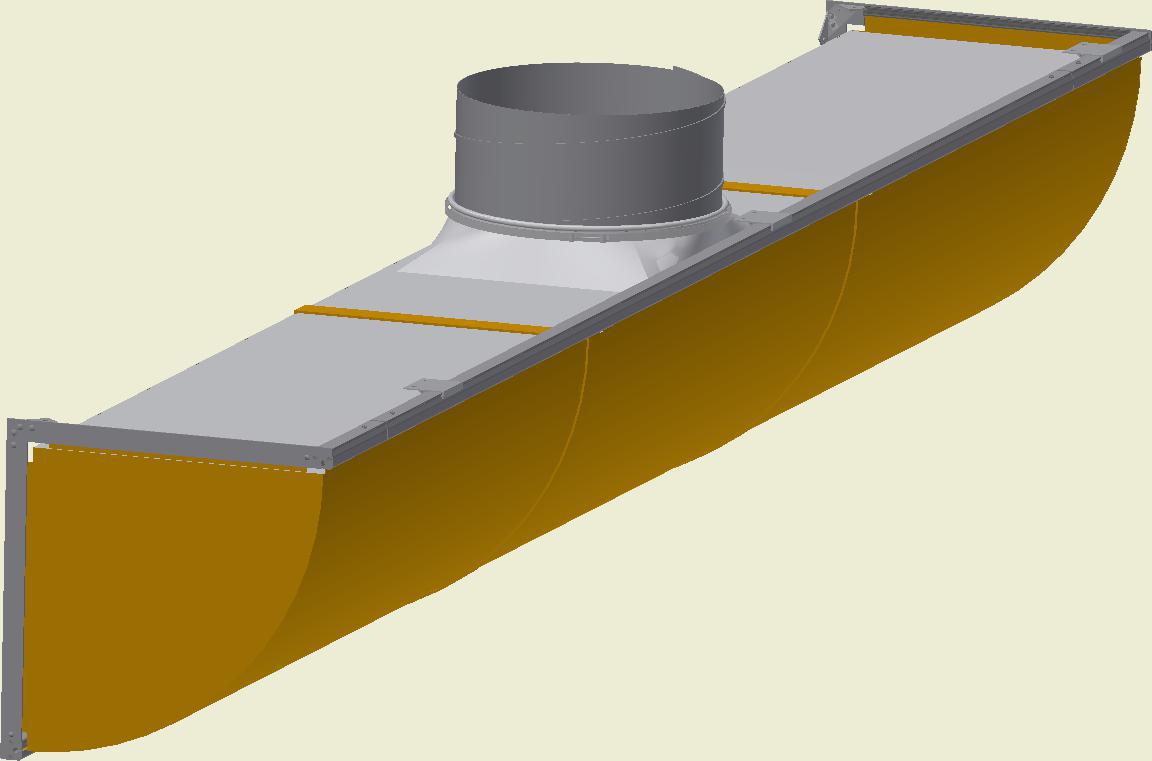

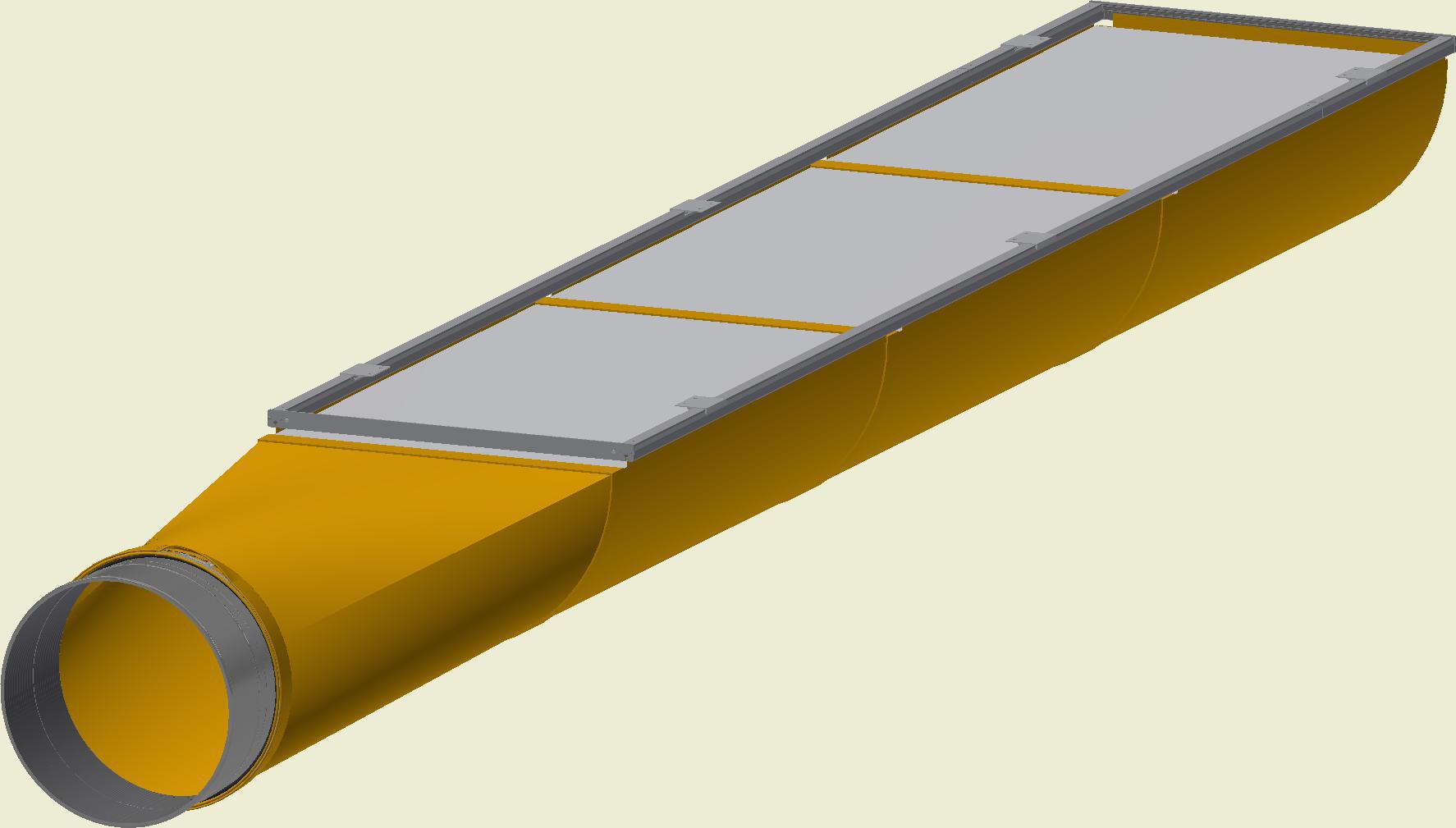

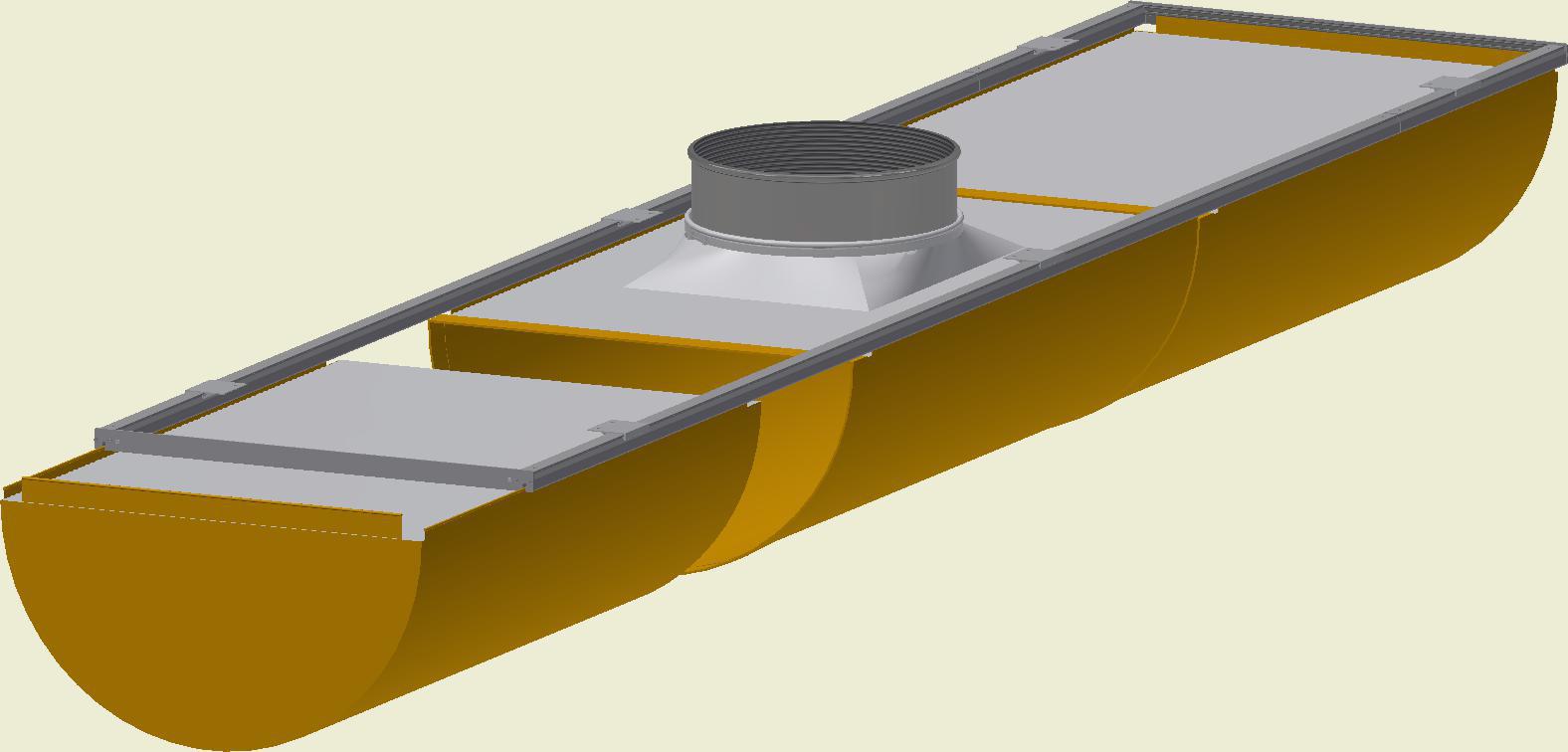

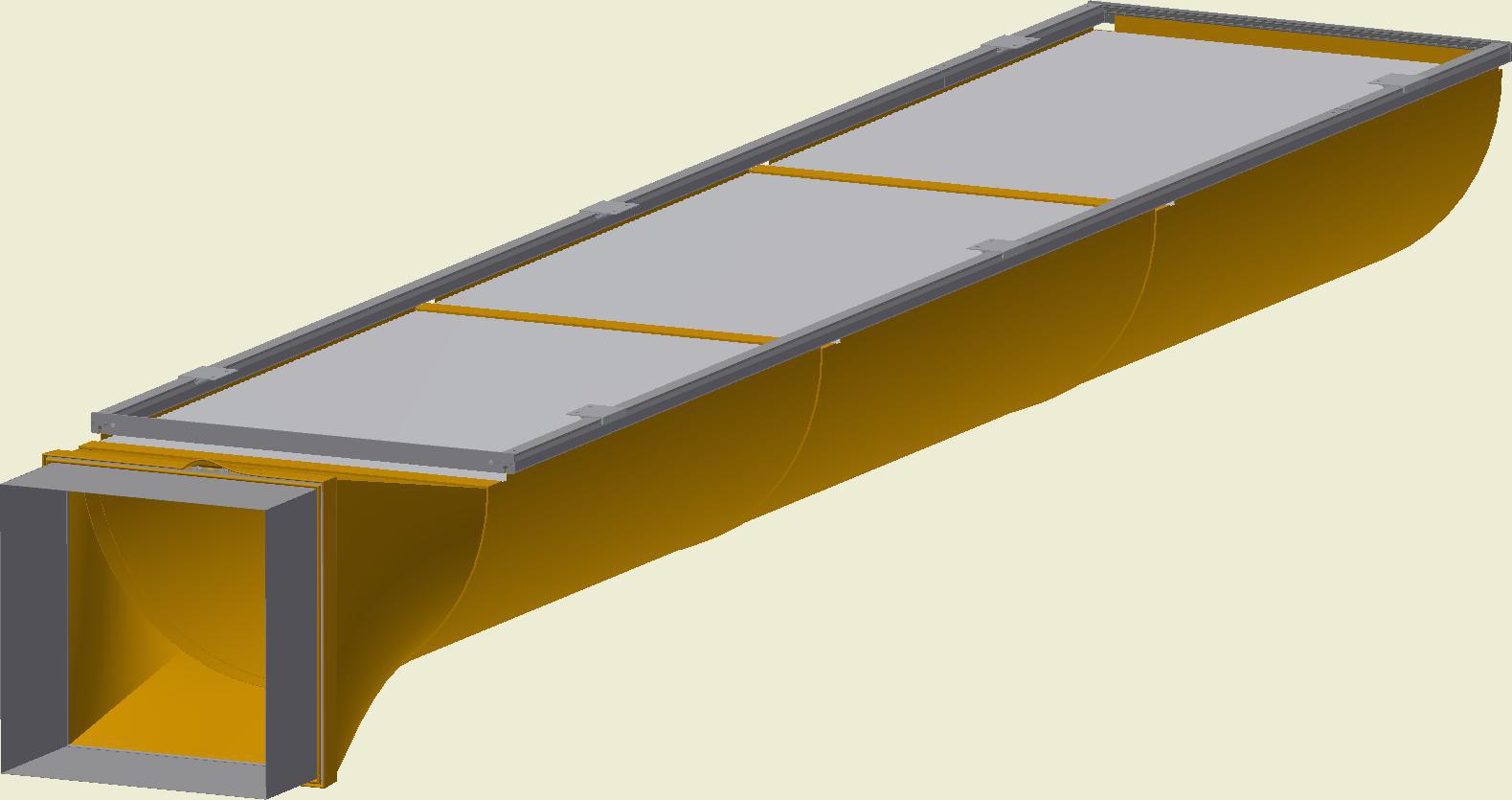

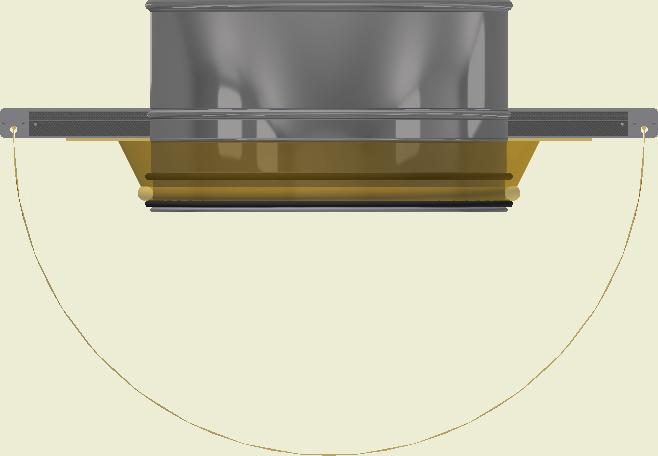

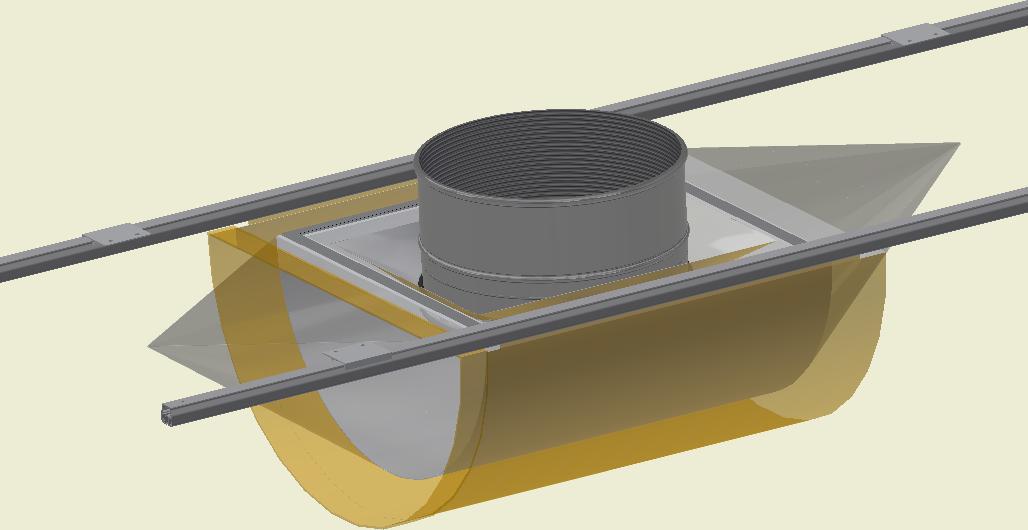

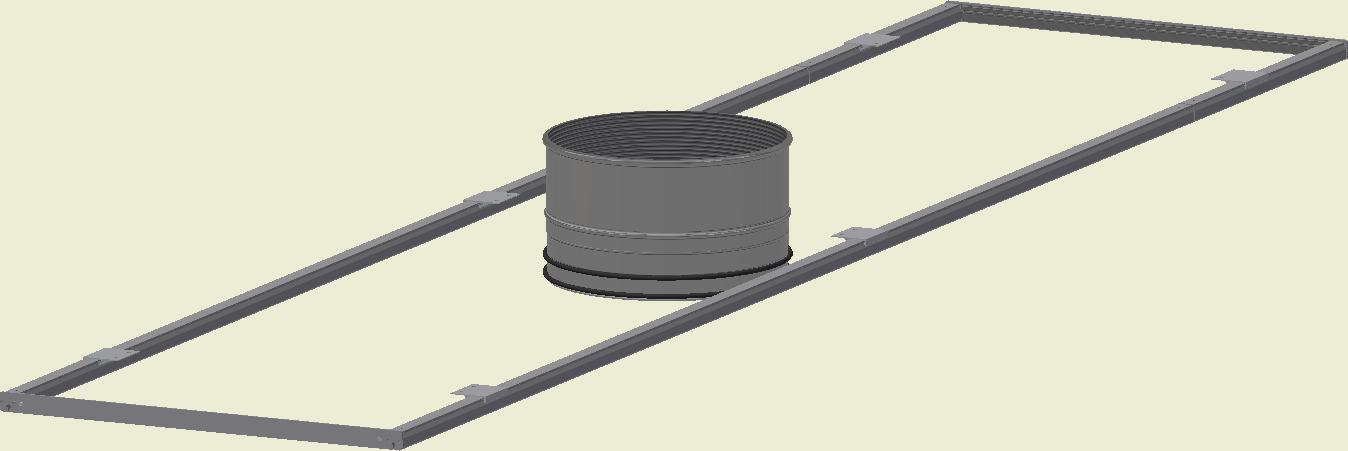

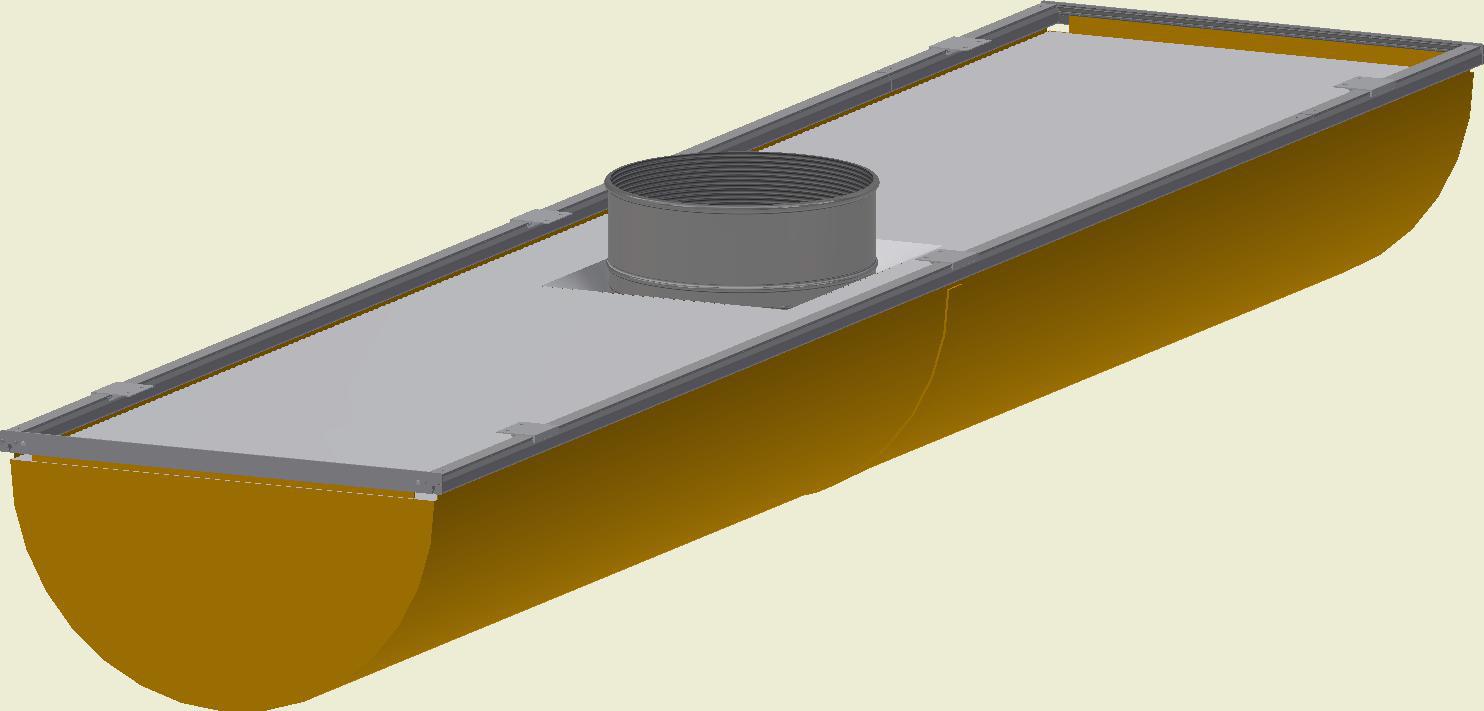

D-Safetrack for 1/4 Rd KE-Interior System (Plenum)
QS-0007-US-03
B
B
A
L = Duct length
LS = Length socket
L = Pose længde
LS = Længde Studs
Ø = Socket diameter
Ø = Studs Diameter
H = Height
H = Højde
W = Width
W = Bredde
O = Forsætning
O = Offset
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2

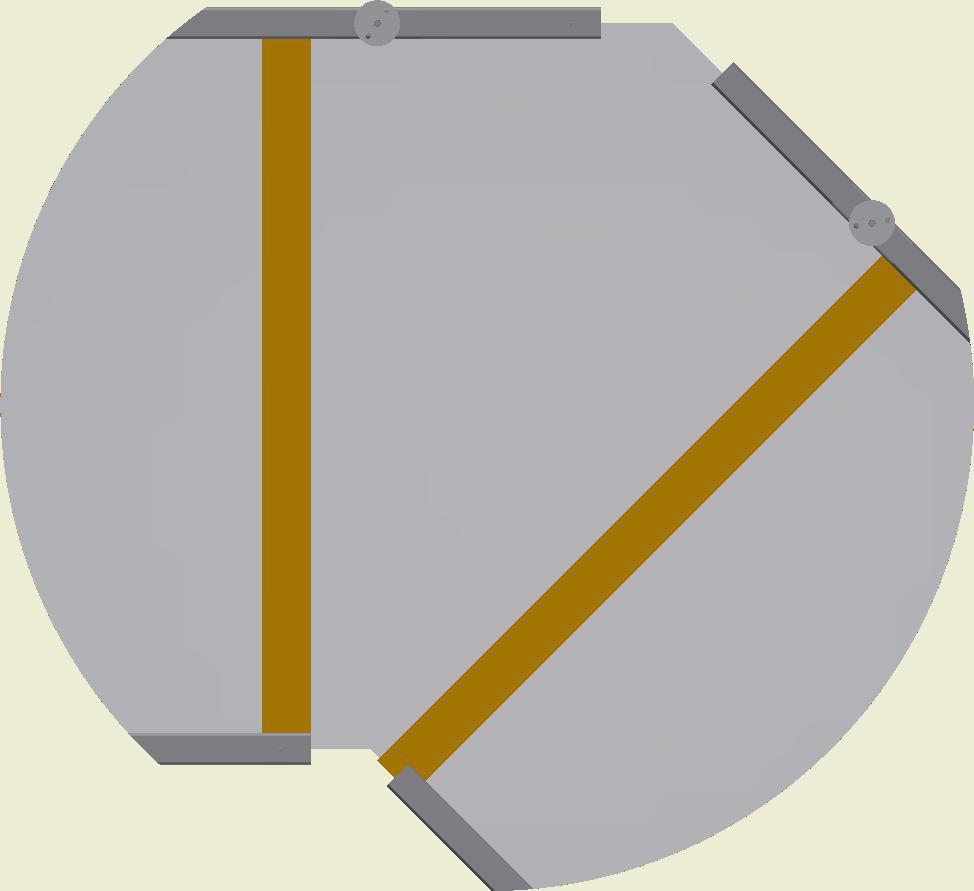

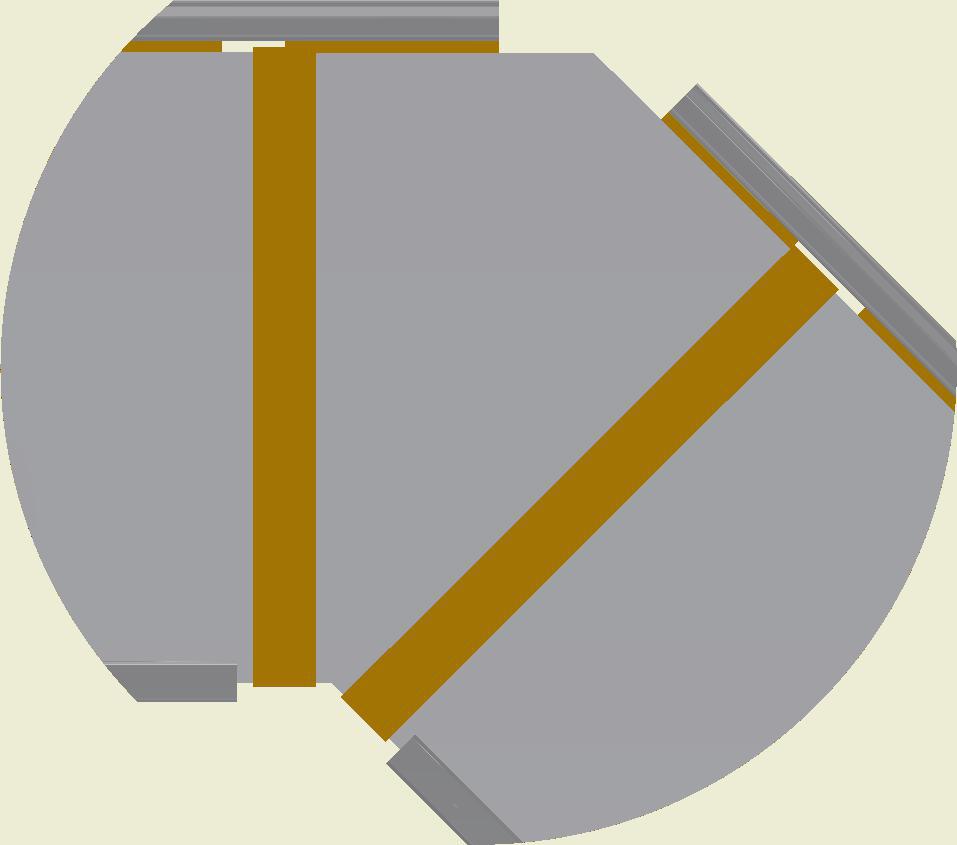

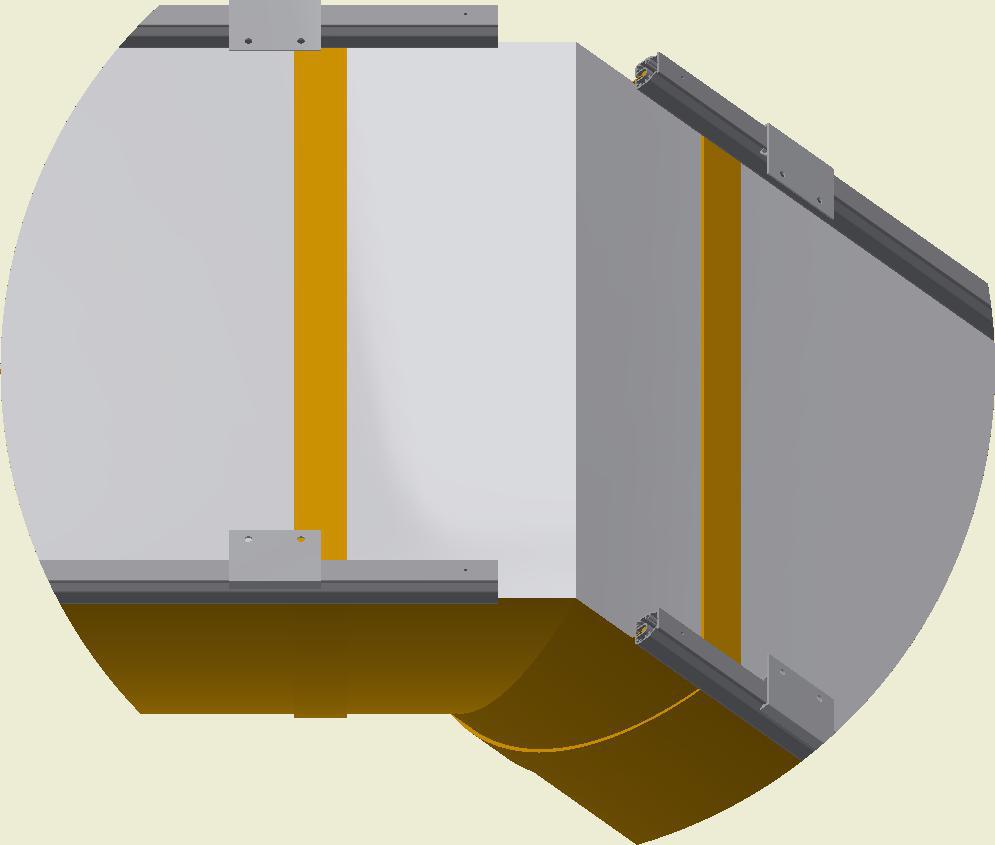

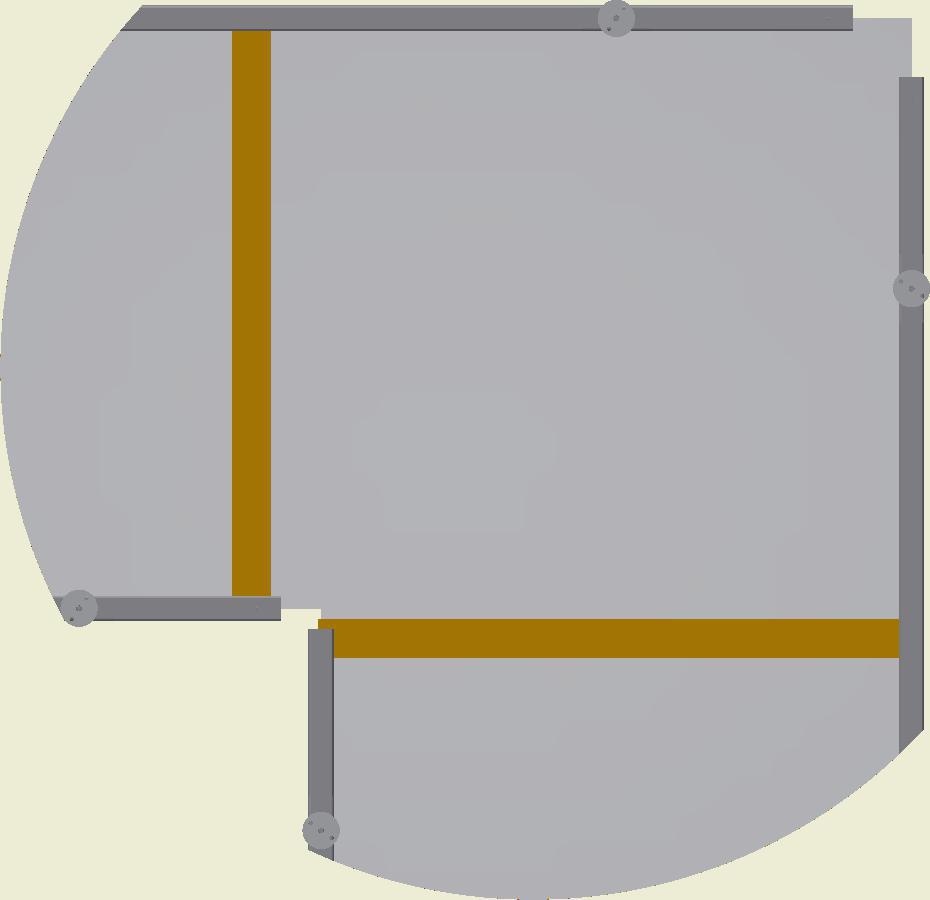

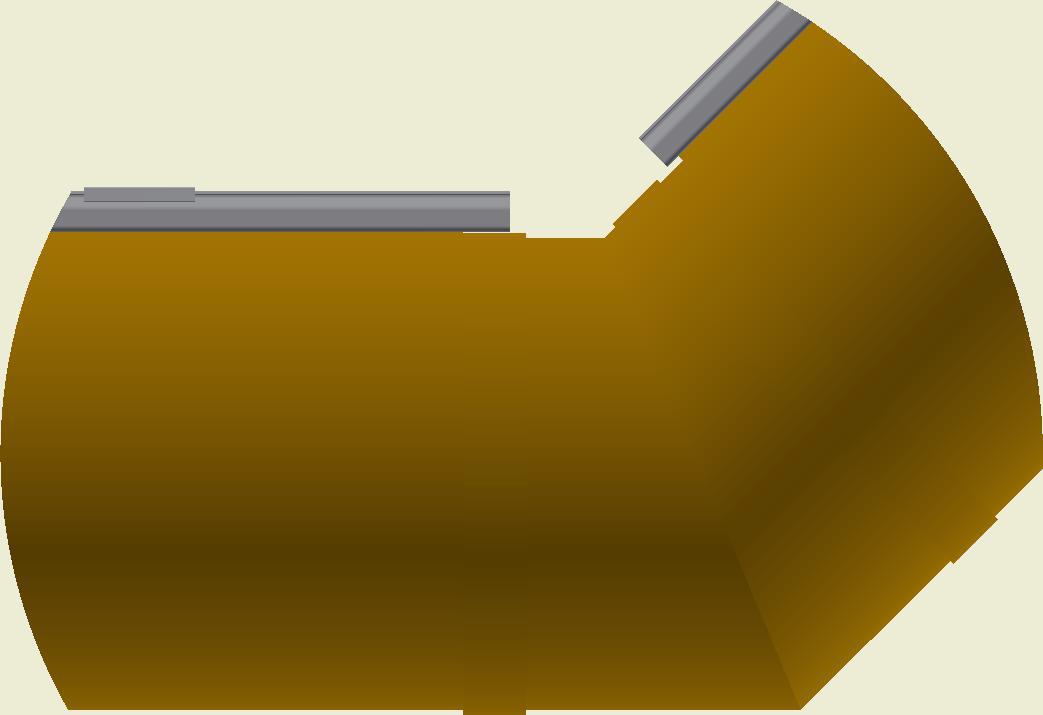

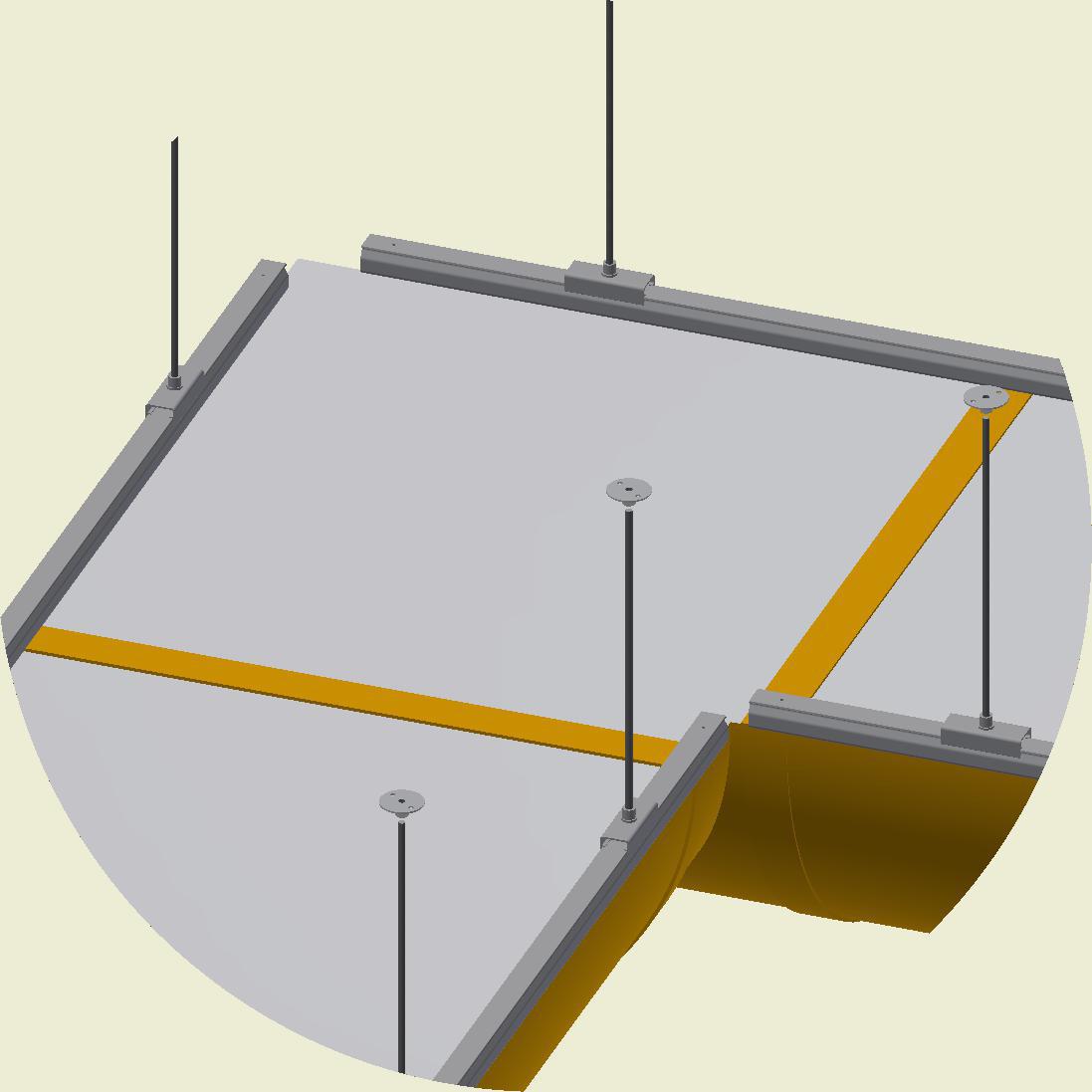

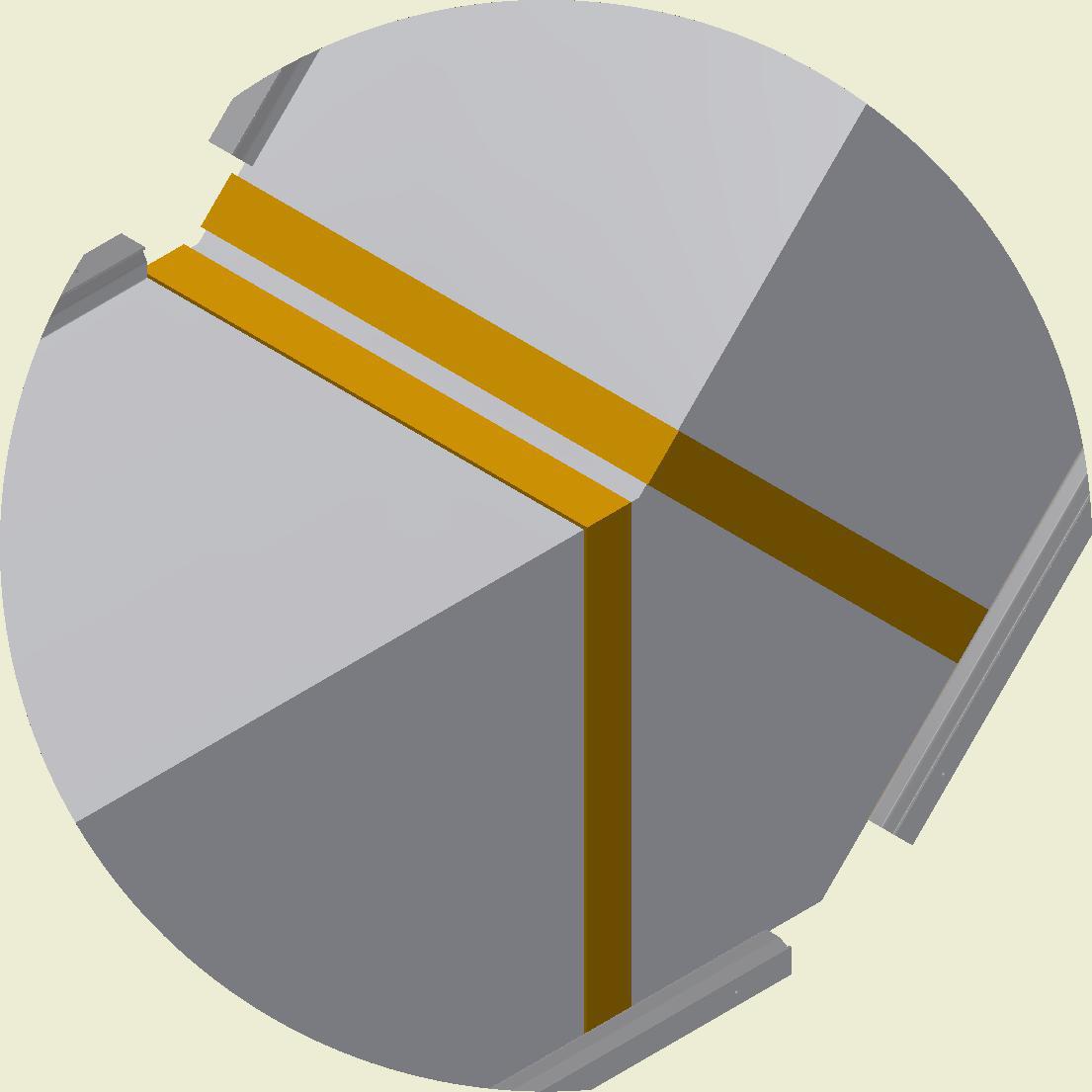

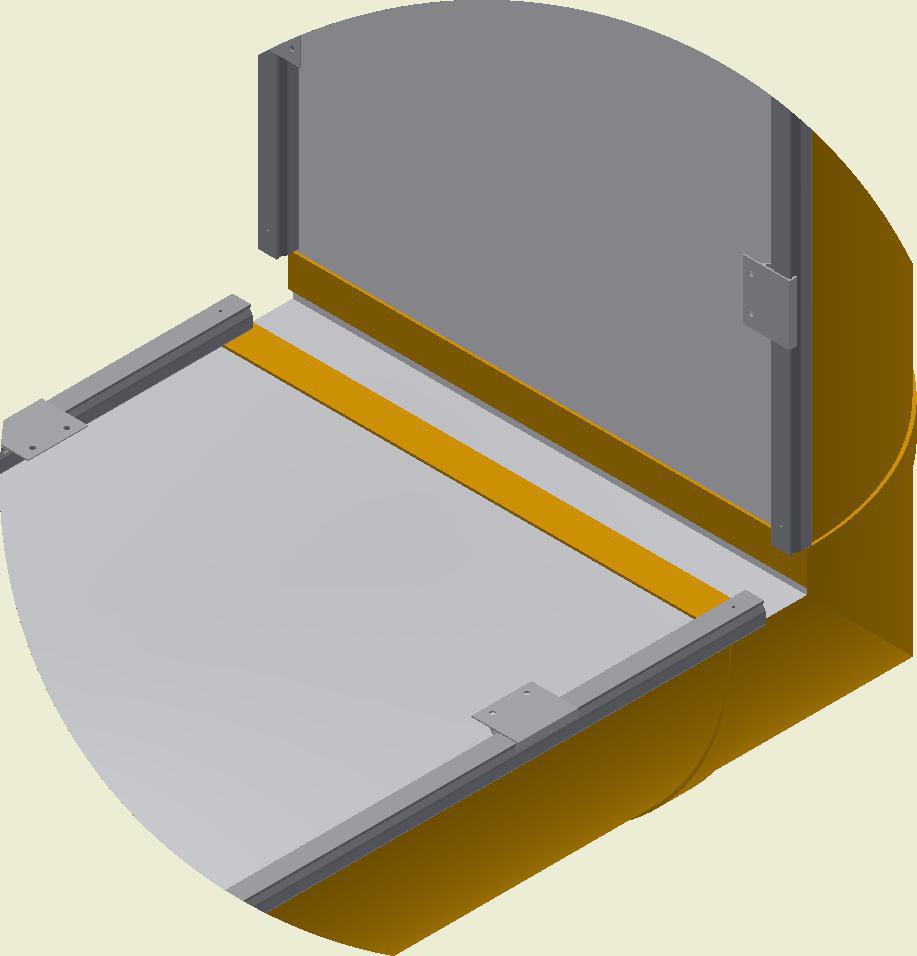

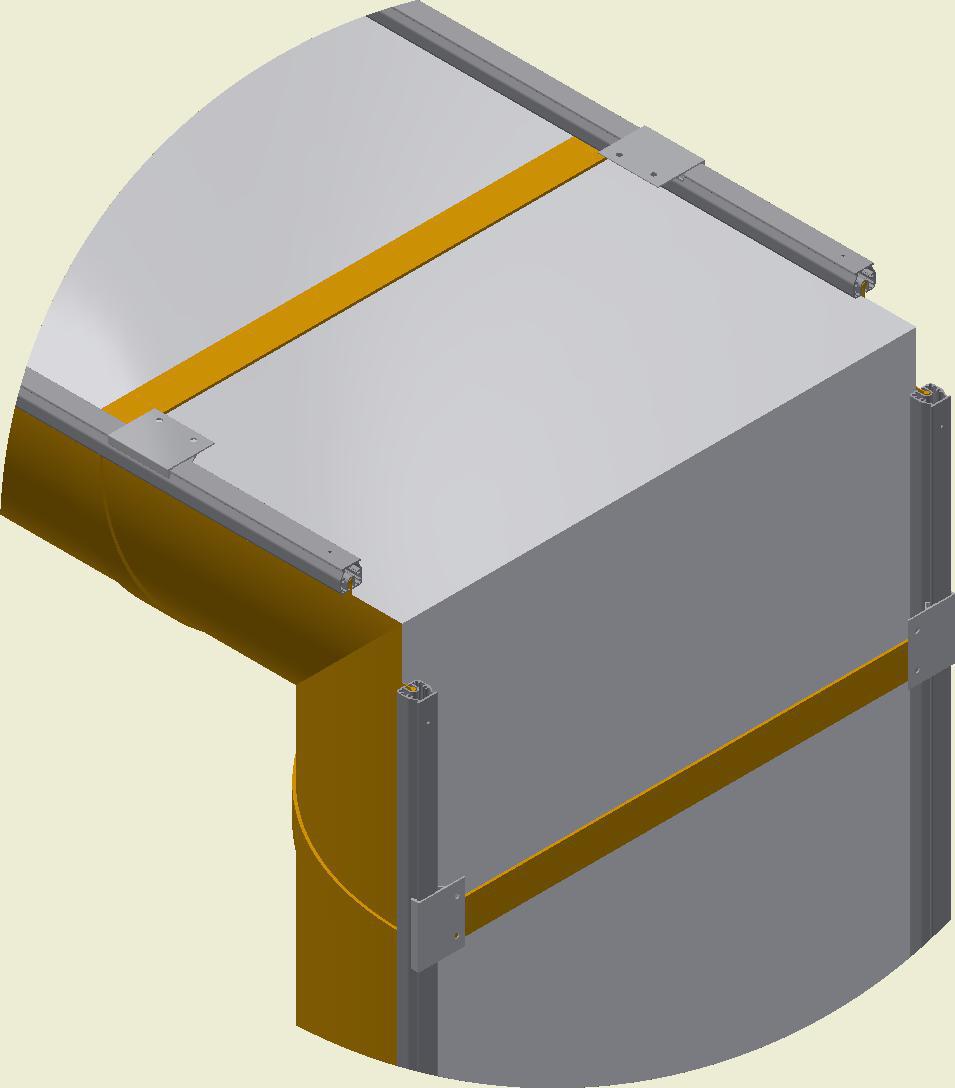

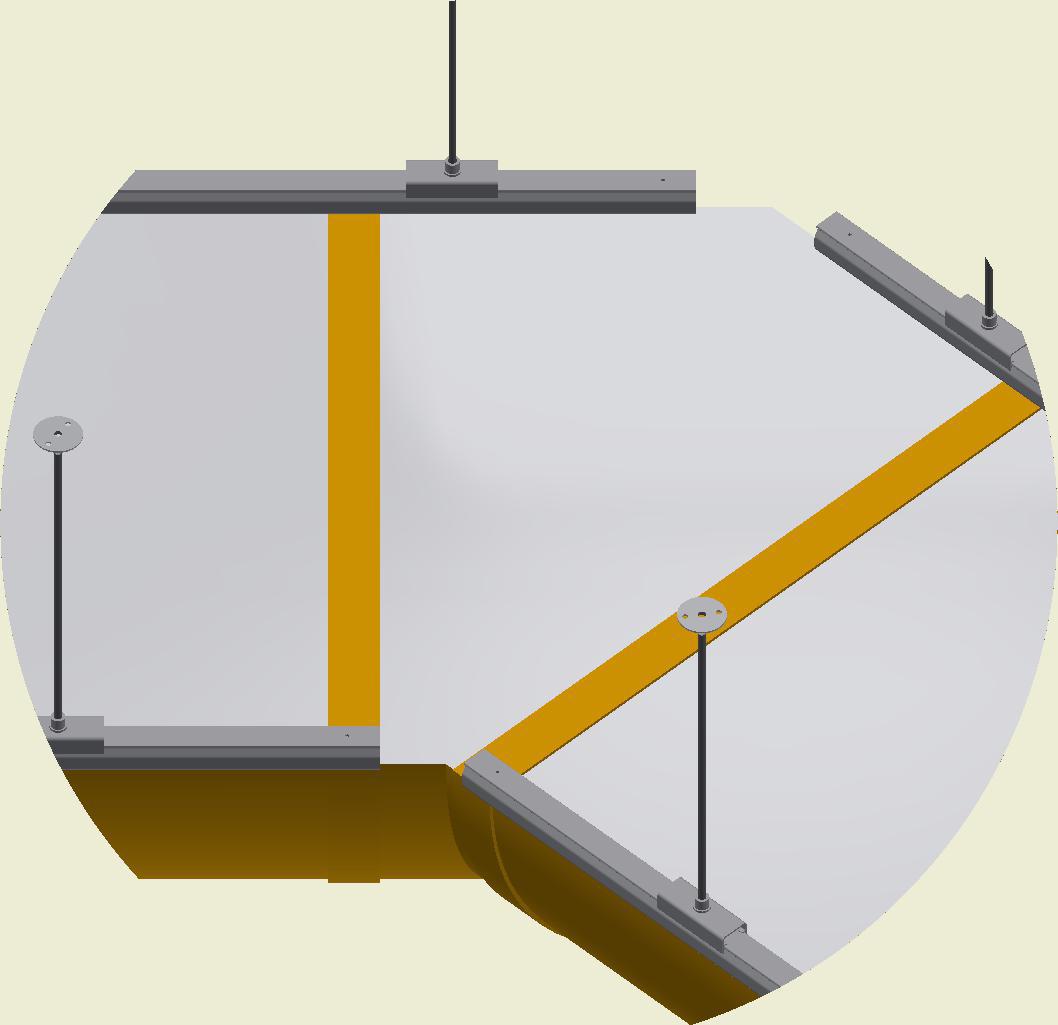

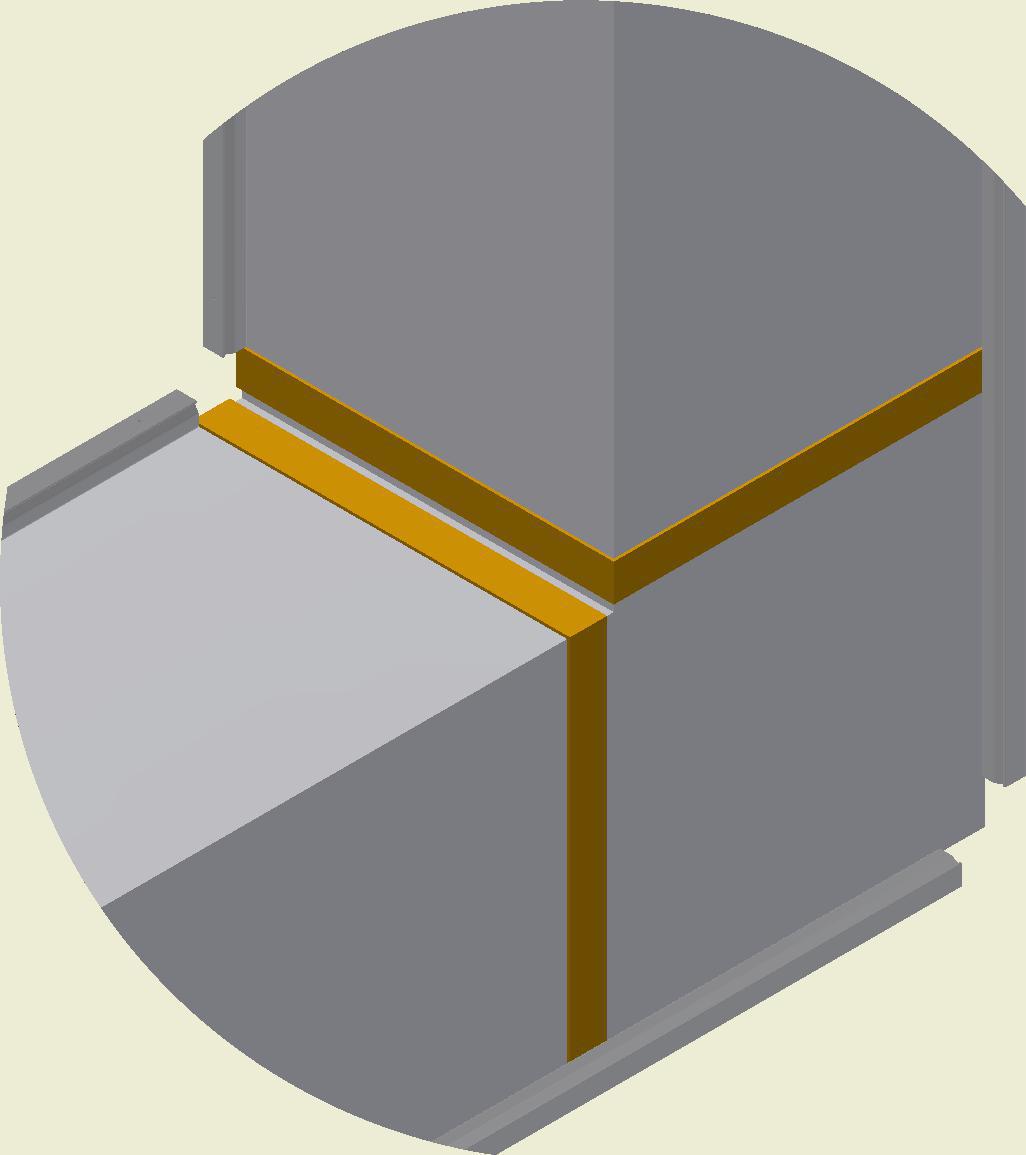

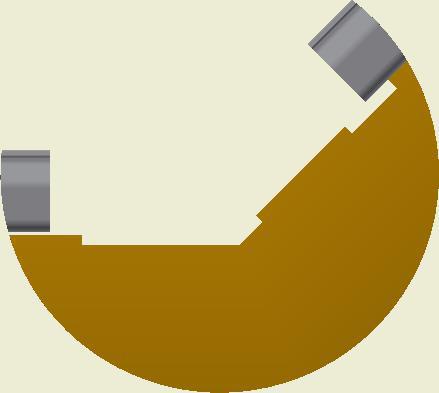

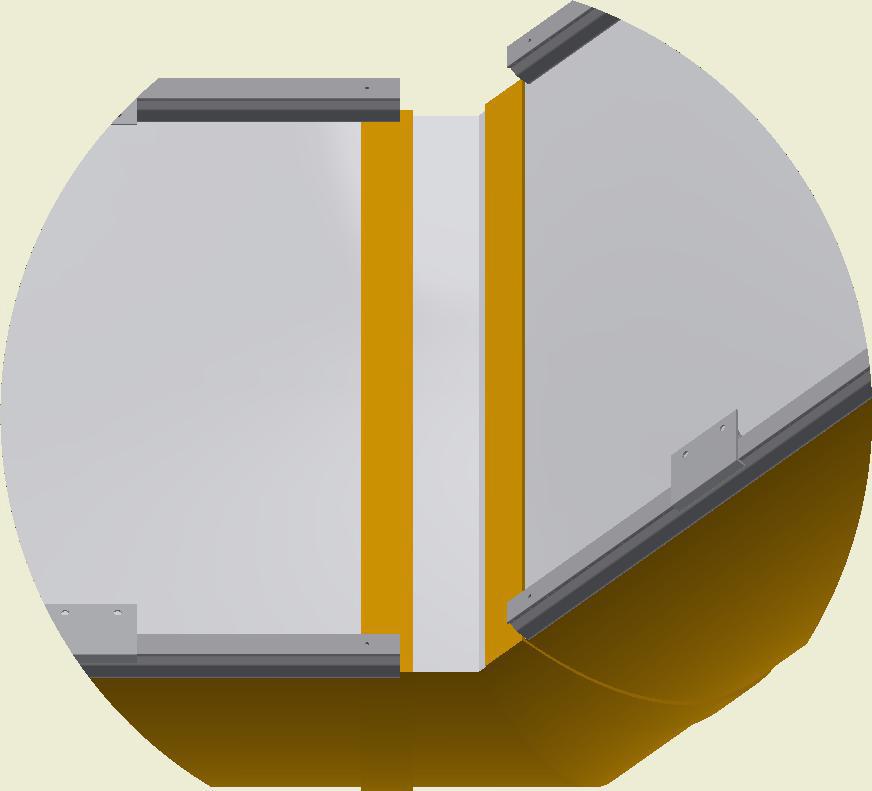

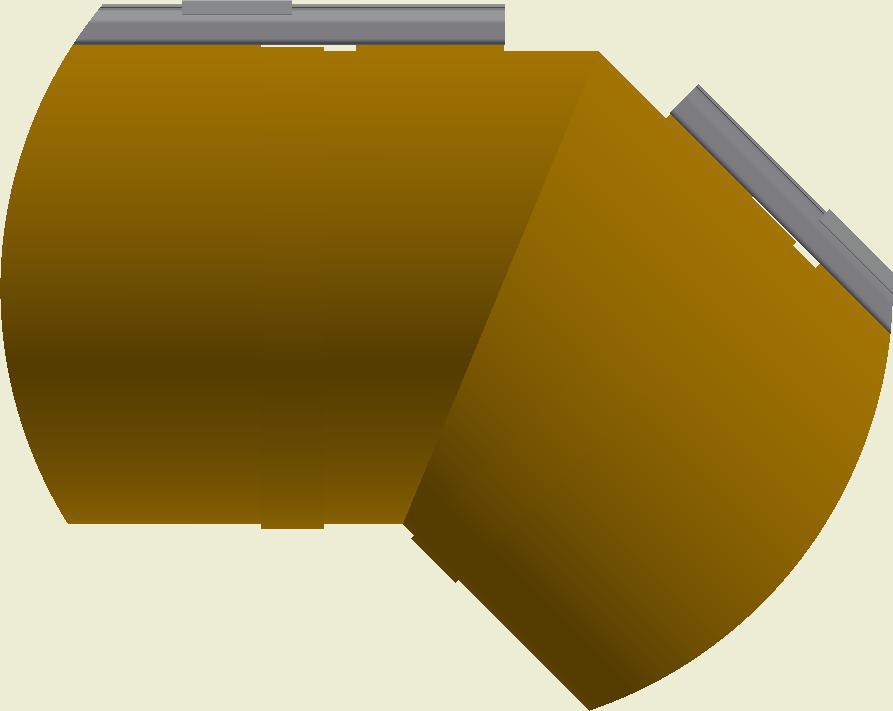

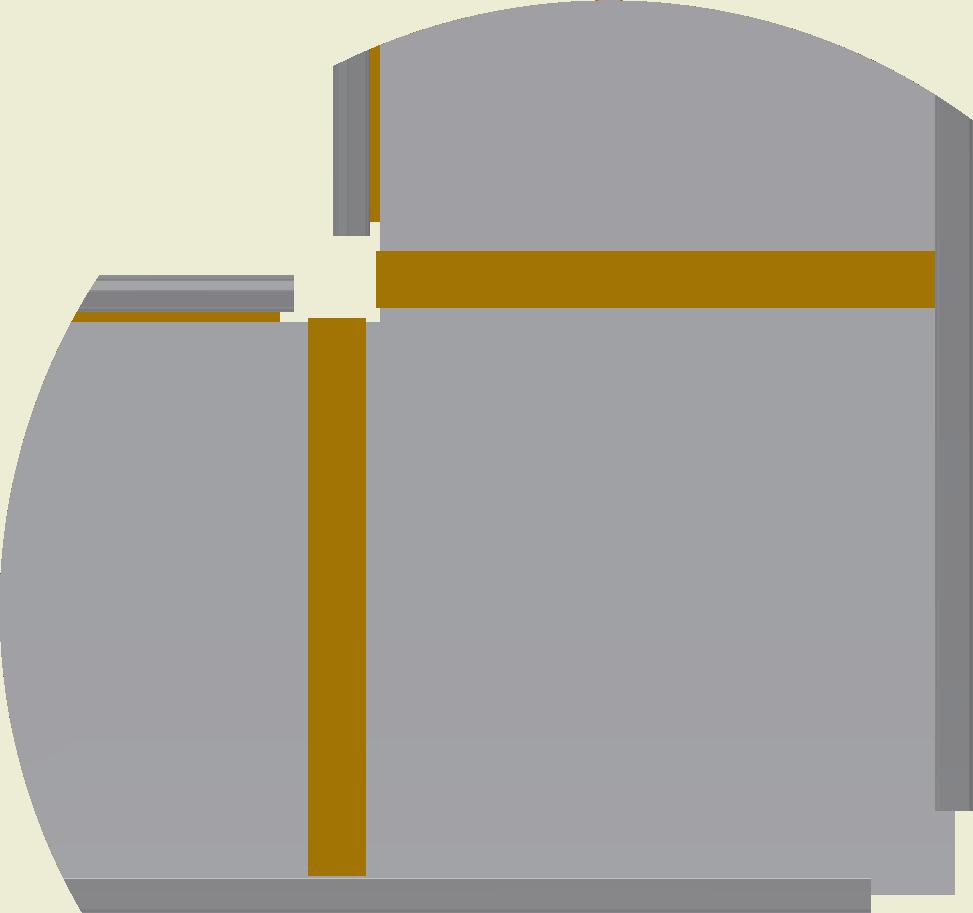

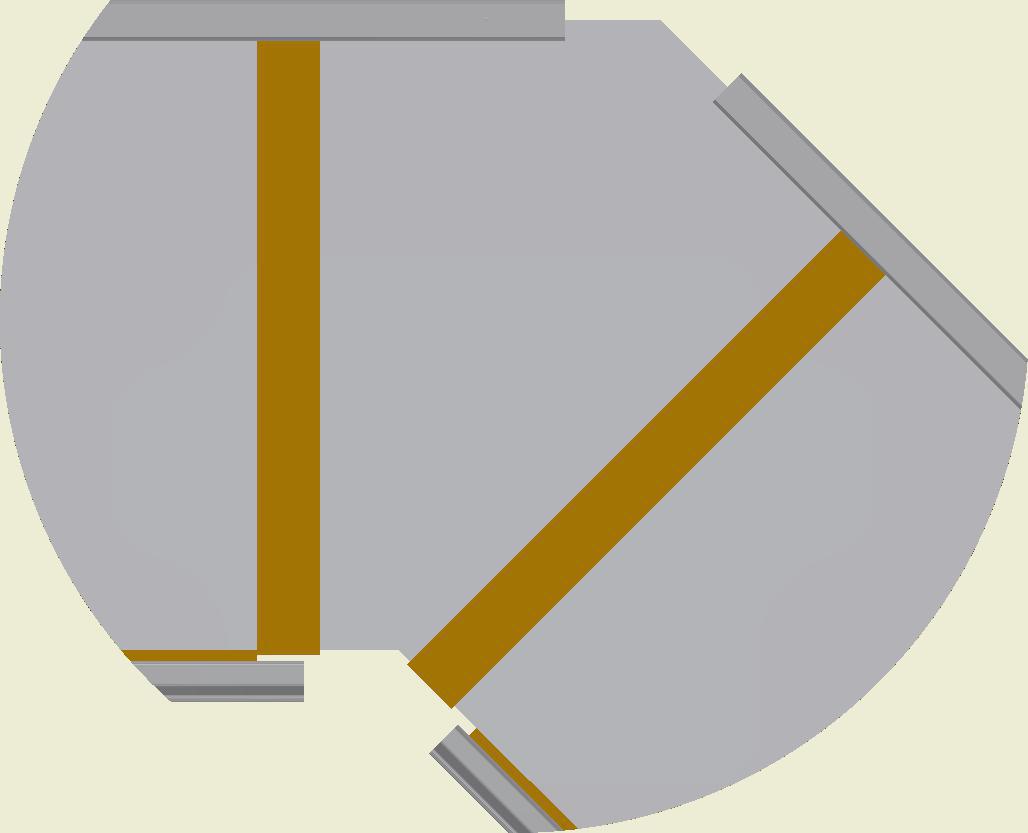

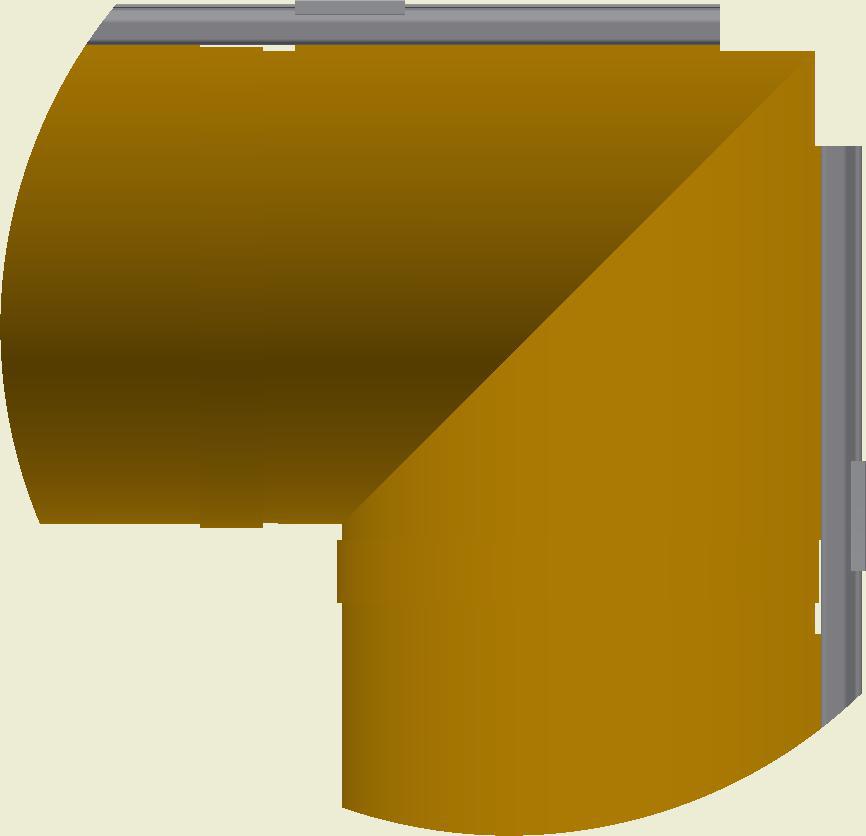

D-Safetrack for 1/4 Rd KE-Interior System (Mitered Elbow)
QS-0008-DK-03
QS-0008-US-03
QS-0009-DK-03

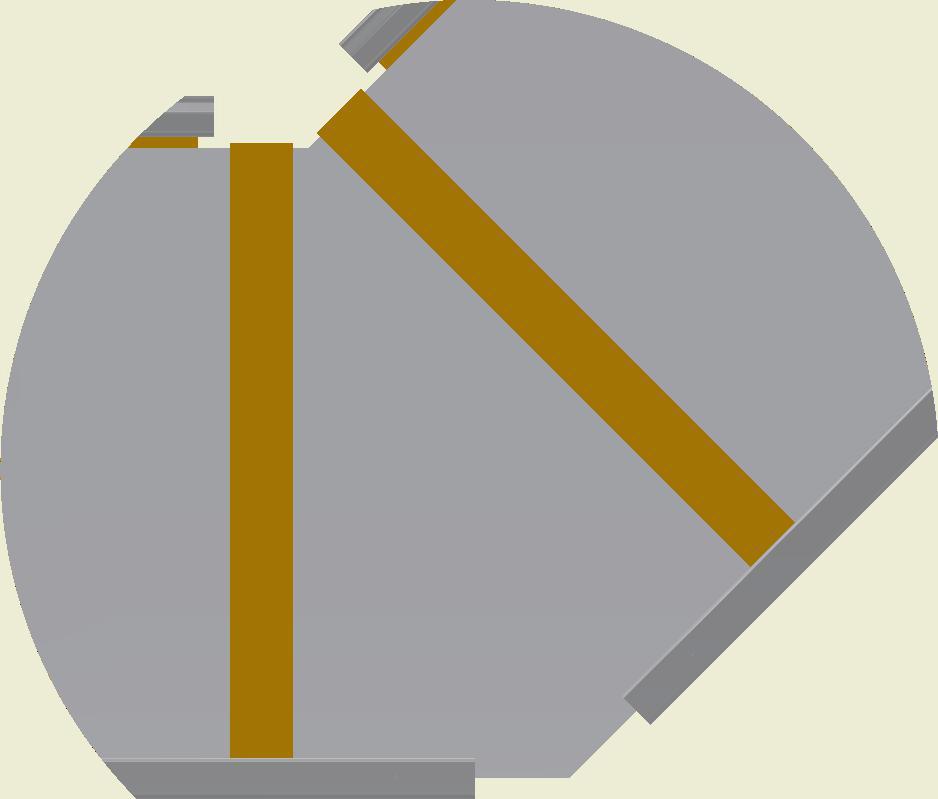

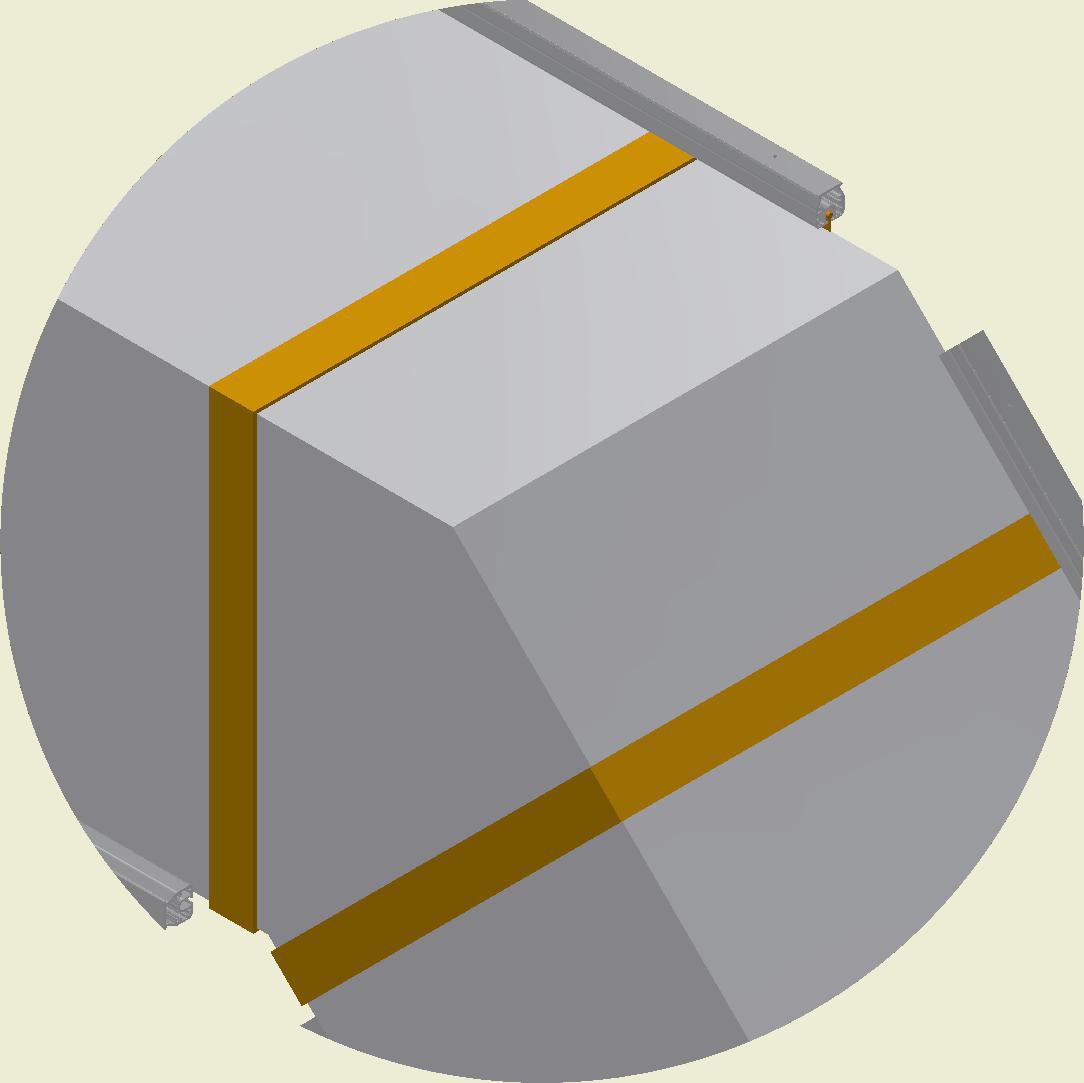

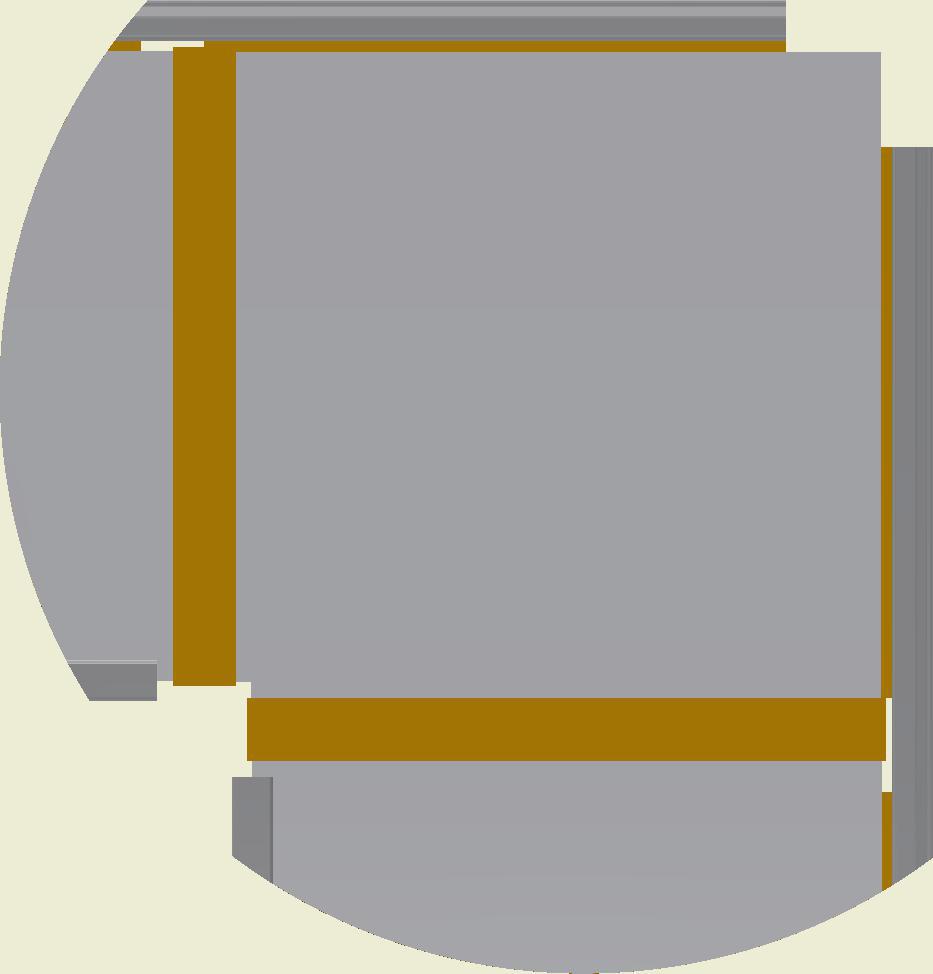

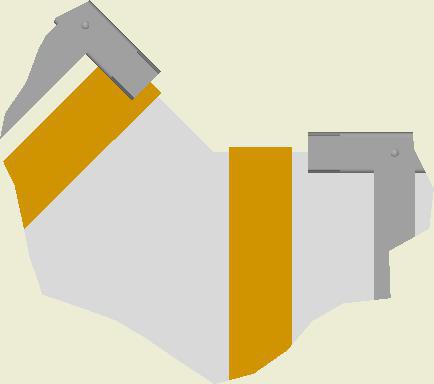

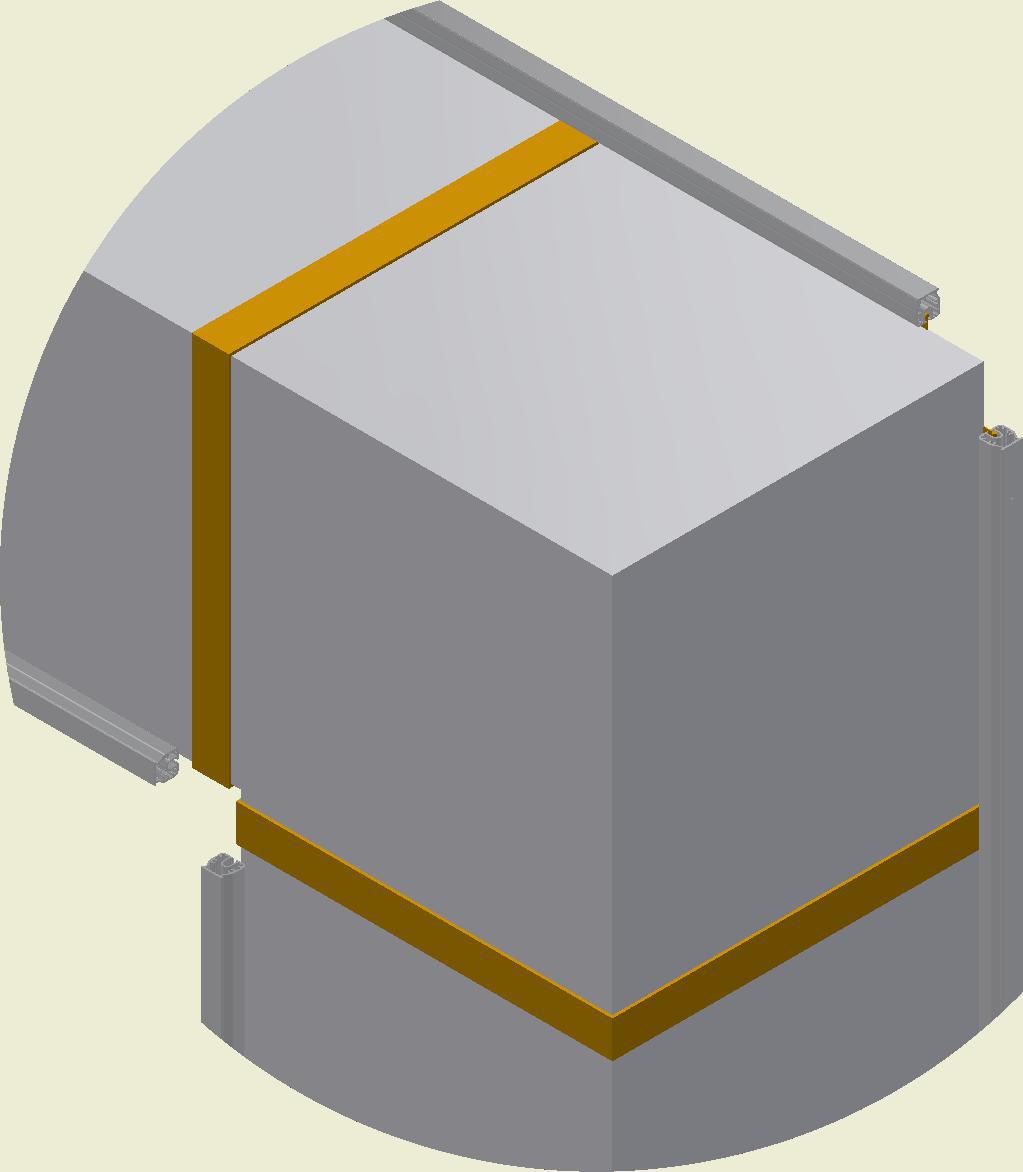

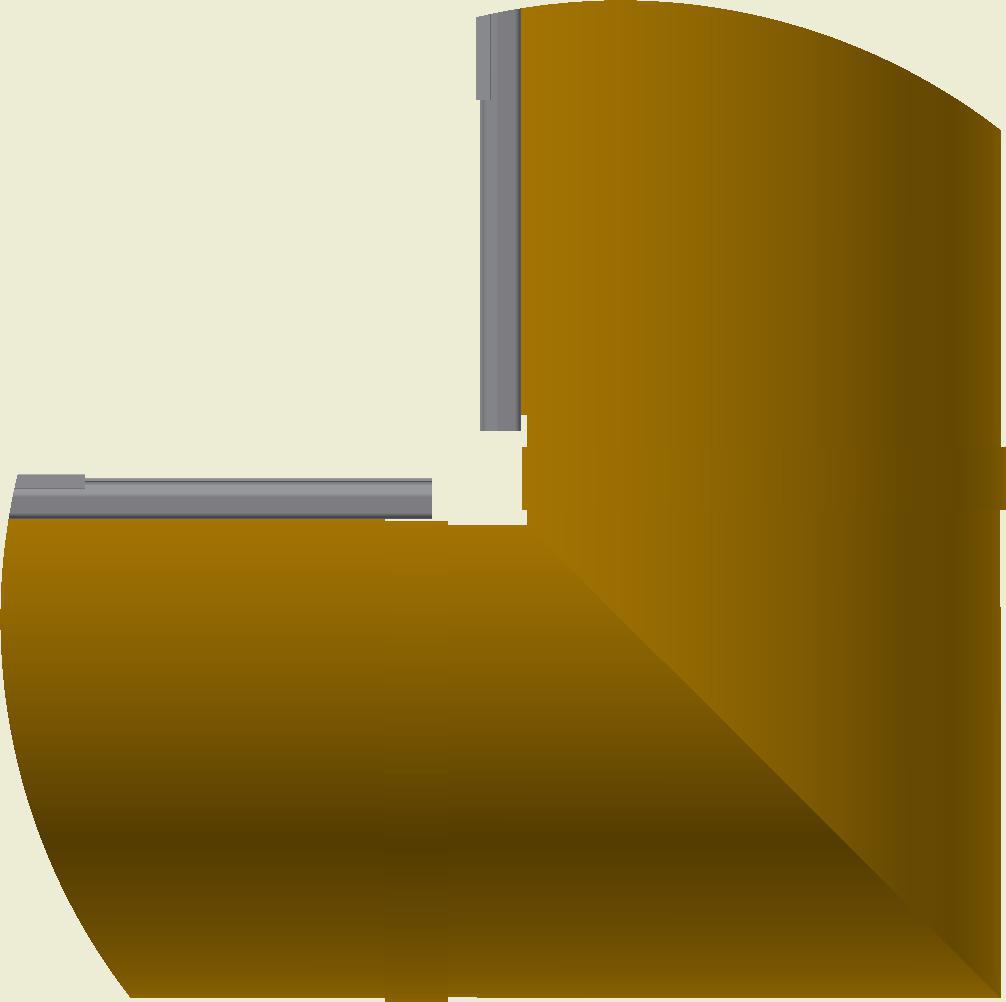

for 1/4 Rd KE-Interior System (Mitered Elbow 90°)

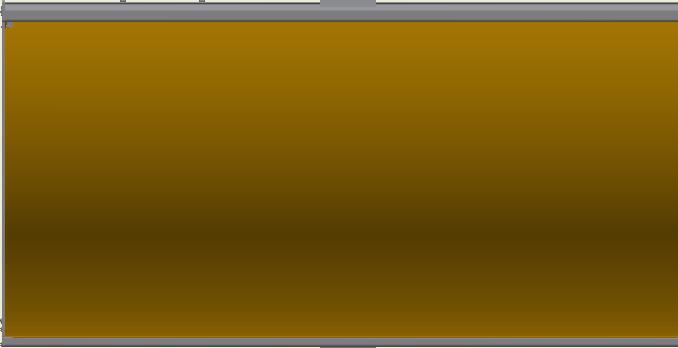

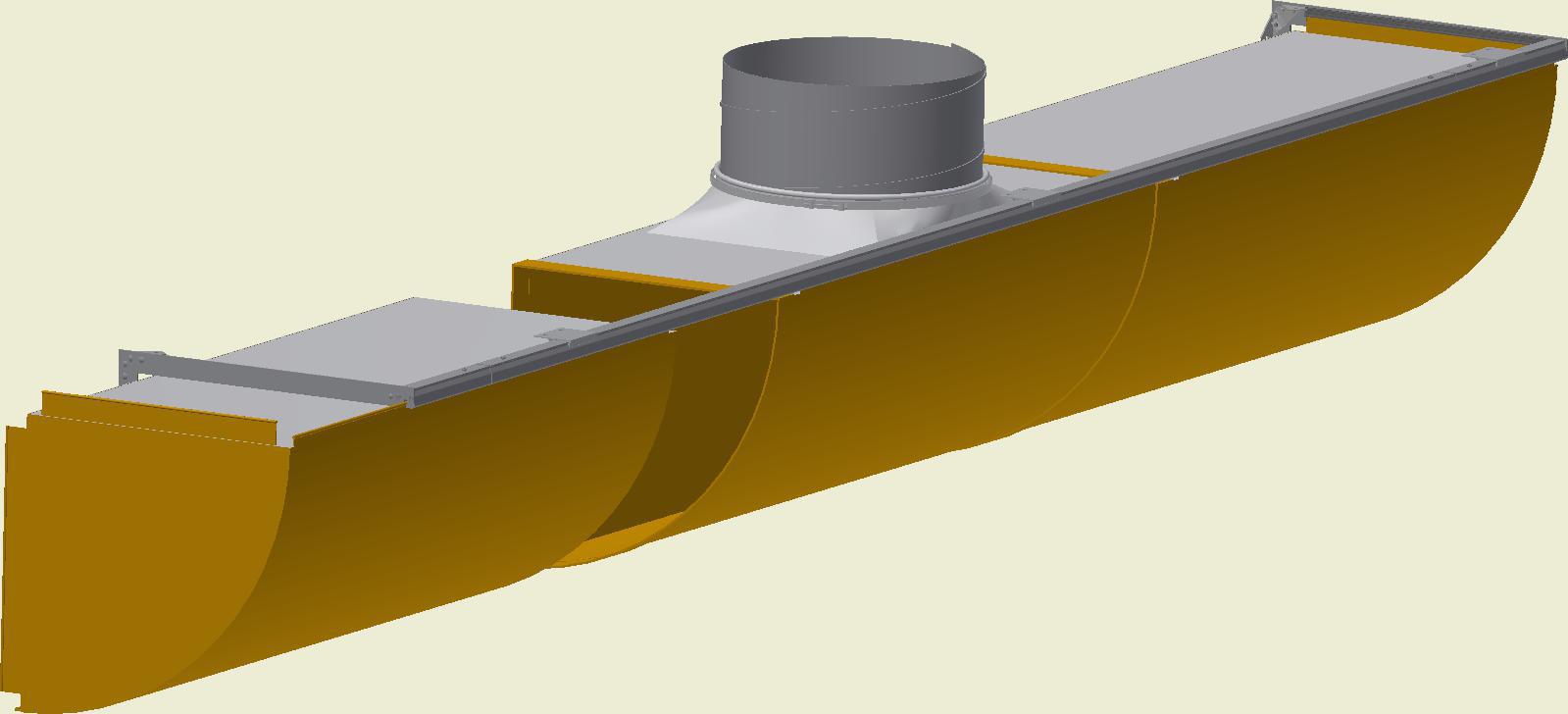

D-Safetrack for 1/4 Rd KE-Interior System (Service Zipper)
QS-0010-DK-03
QS-0010-US-03
D-Safetrack ½D-kanal med Servicelynlås
D-Safetrack 1/4 Rd Duct with Service Zipper
D-Safetrack 1/4 Rd Duct with Zipper
D-Safetrack ½D-kanal med lynlås
