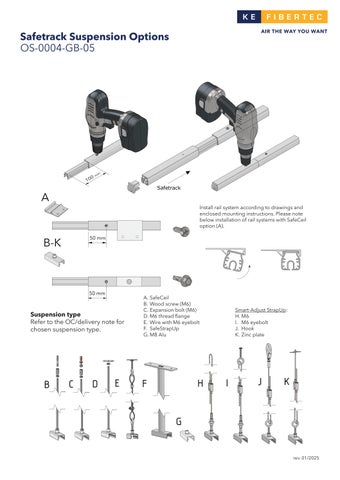

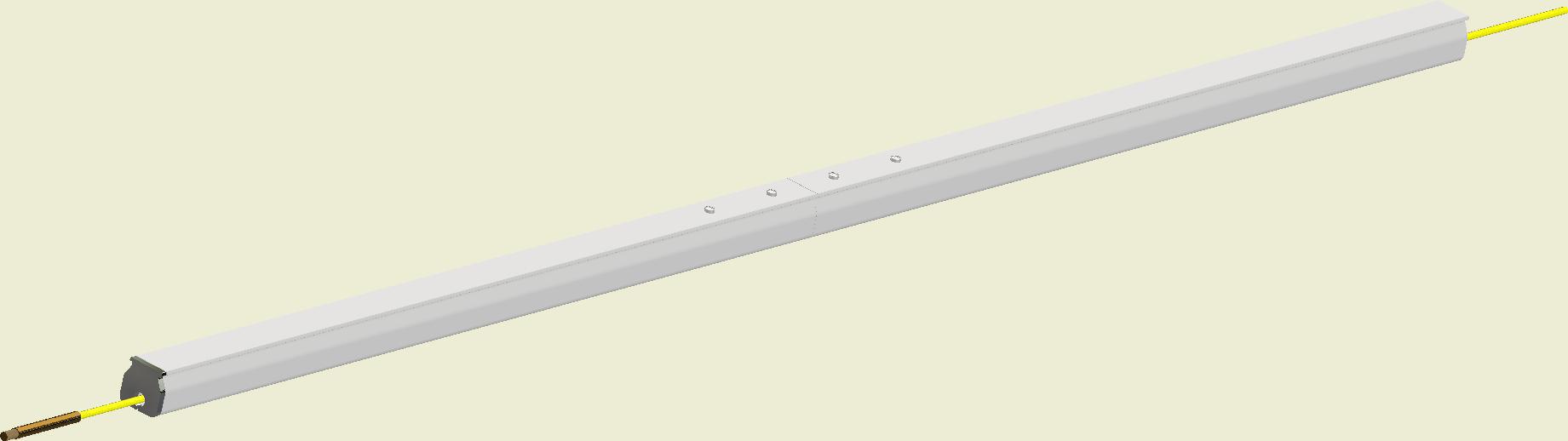

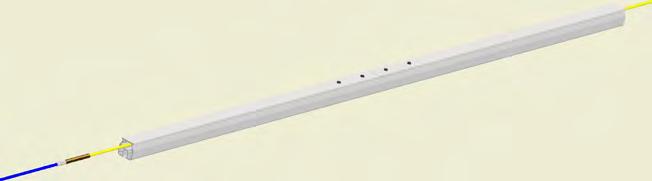

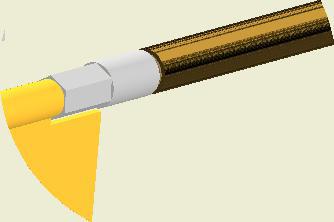

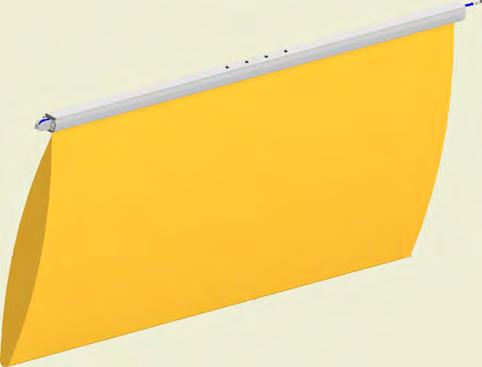

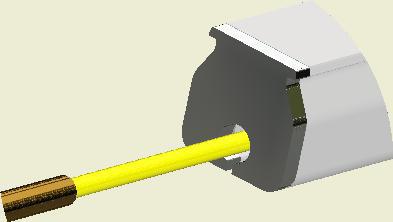

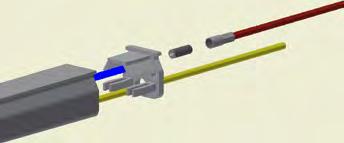

Safetrack Suspension Options
OS-0004-GB-05
OS-0004-DK-05
Monter skinnesystem efter tegninger og vedlagte montagevejledninger.

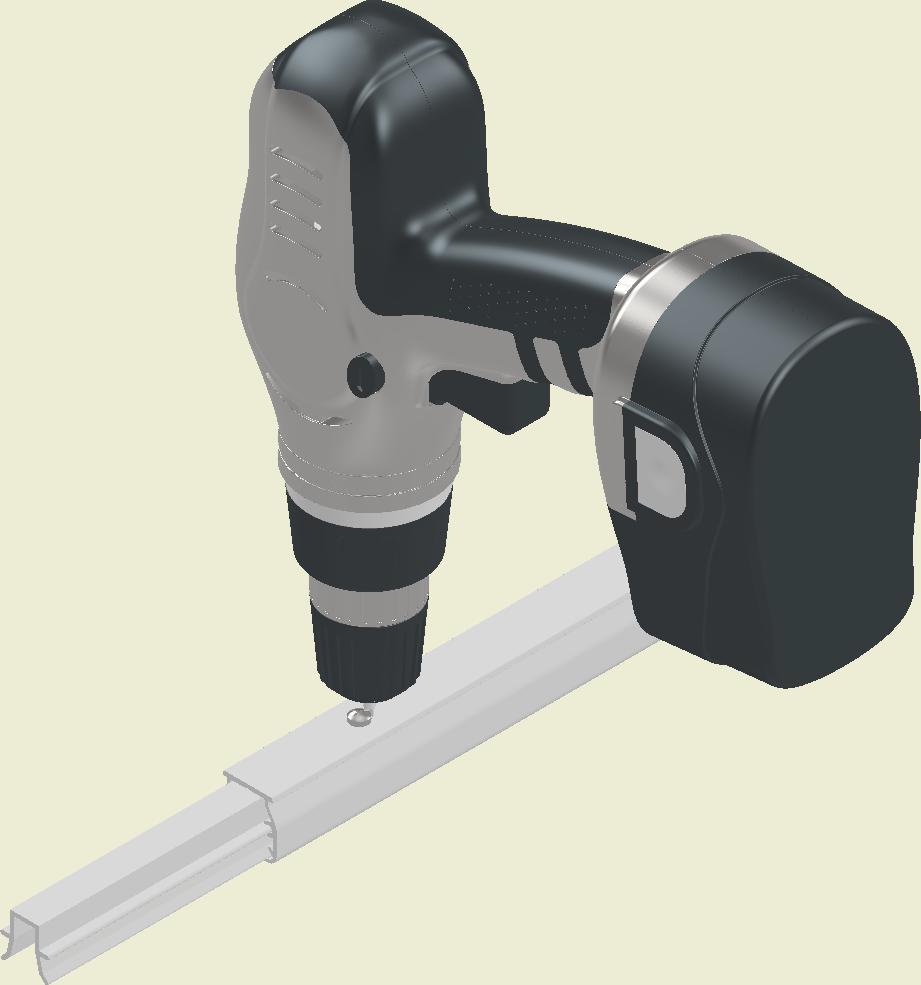

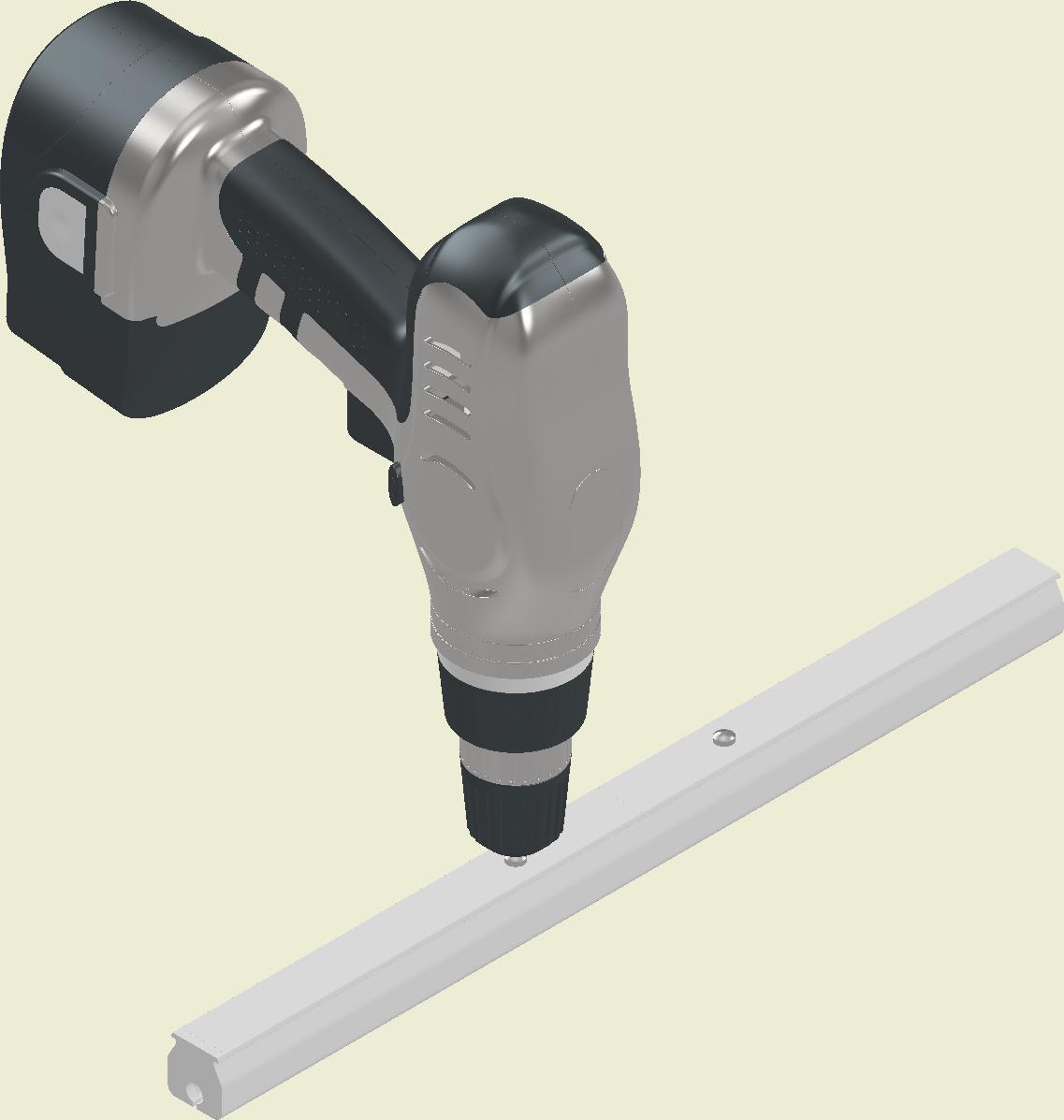

Install rail system according to drawings and enclosed mounting instructions. Please note below installation of rail systems with SafeCeil option (A).
Vær opmærksom på at hvis det er med SafeCeil(A) kan de monteres på skinne som vist herunder.

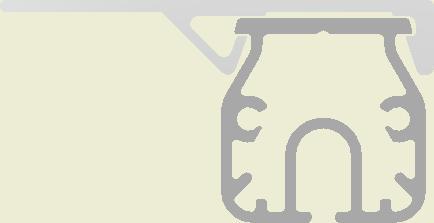

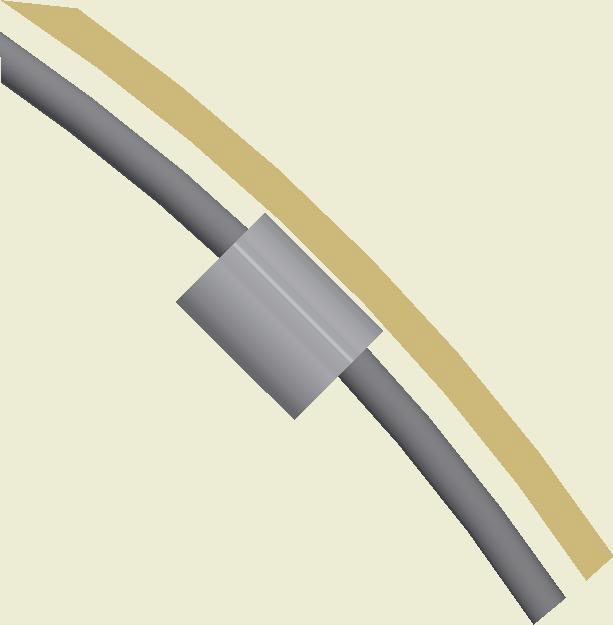

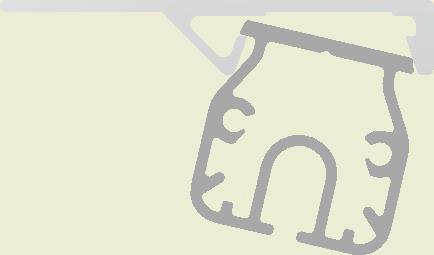

A. SafeCeil
A.SafeCeil
B. Wood screw (M6)
B.Træskrue (M6)
G.M8

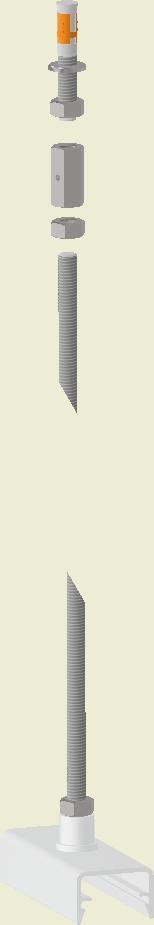

Suspension type
Ophæ ngs typer.
Refer to the OC/delivery note for chosen suspension type.
Se i odrebekræftelsen hvilken type der er valgt til ophængs systemet
C. Expansion bolt (M6)
H.M6 Strap-up
C.Expansion (M6)

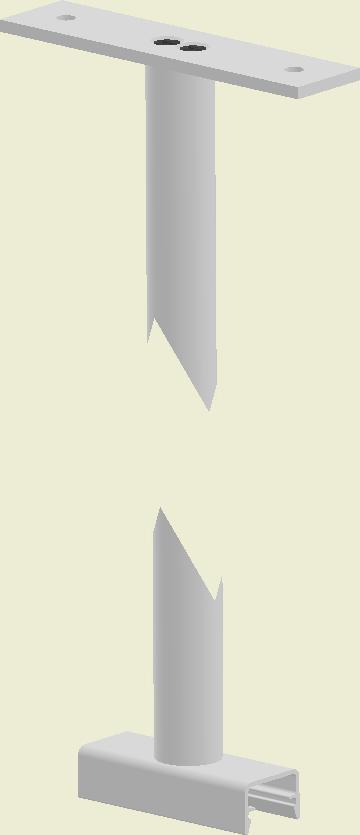

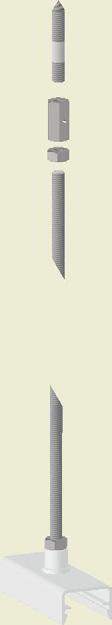

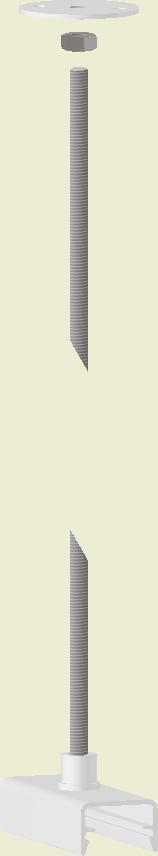

D. M6 thread flange
D.M6 Gevindflange (M6)

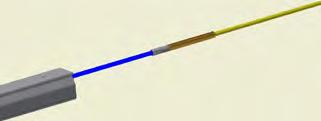

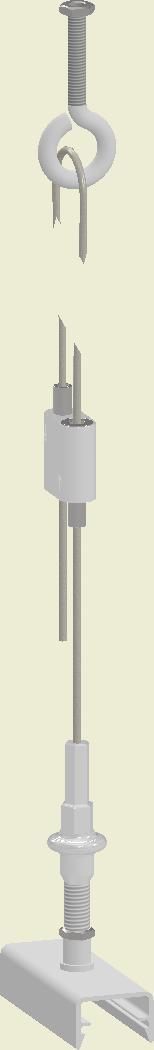

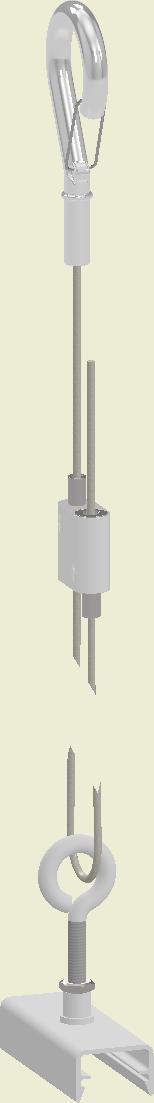

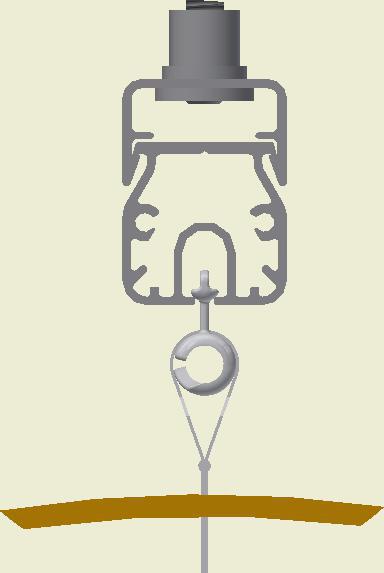

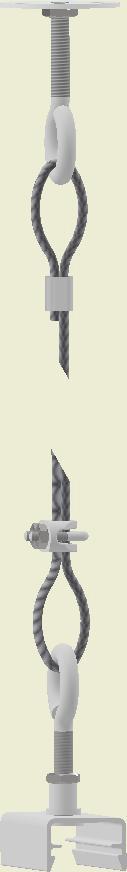

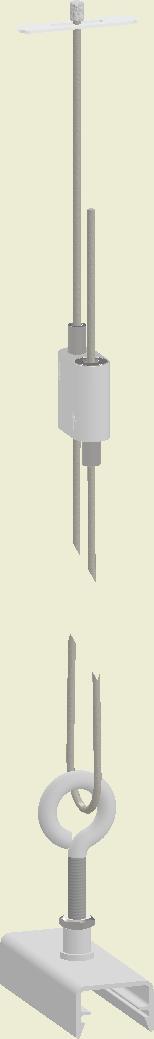

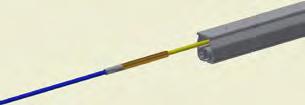

E. Wire with M6 eyebolt
E.Wire med M6 Øjebolt (M6)
F. SafeStrapUp
F.Safestrapup (M6)
G. M8 Alu
D C B E F

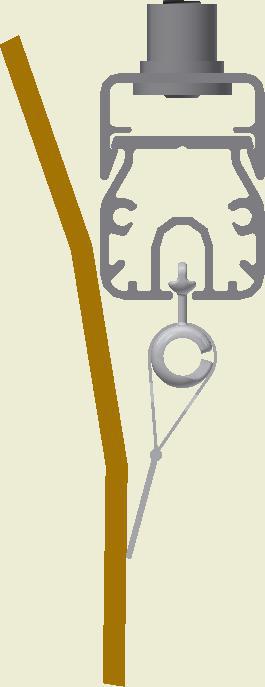

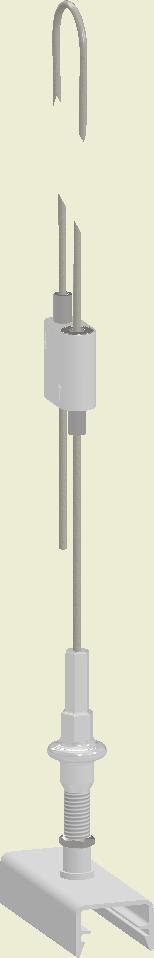

Smart-Adjust StrapUp:
I.M6/Øjebolt Strap-up
H. M6
J.Krog Strap-up
I. M6 eyebolt
K.Zinkplade Strap-up
J. Hook
K. Zinc plate
H I J K

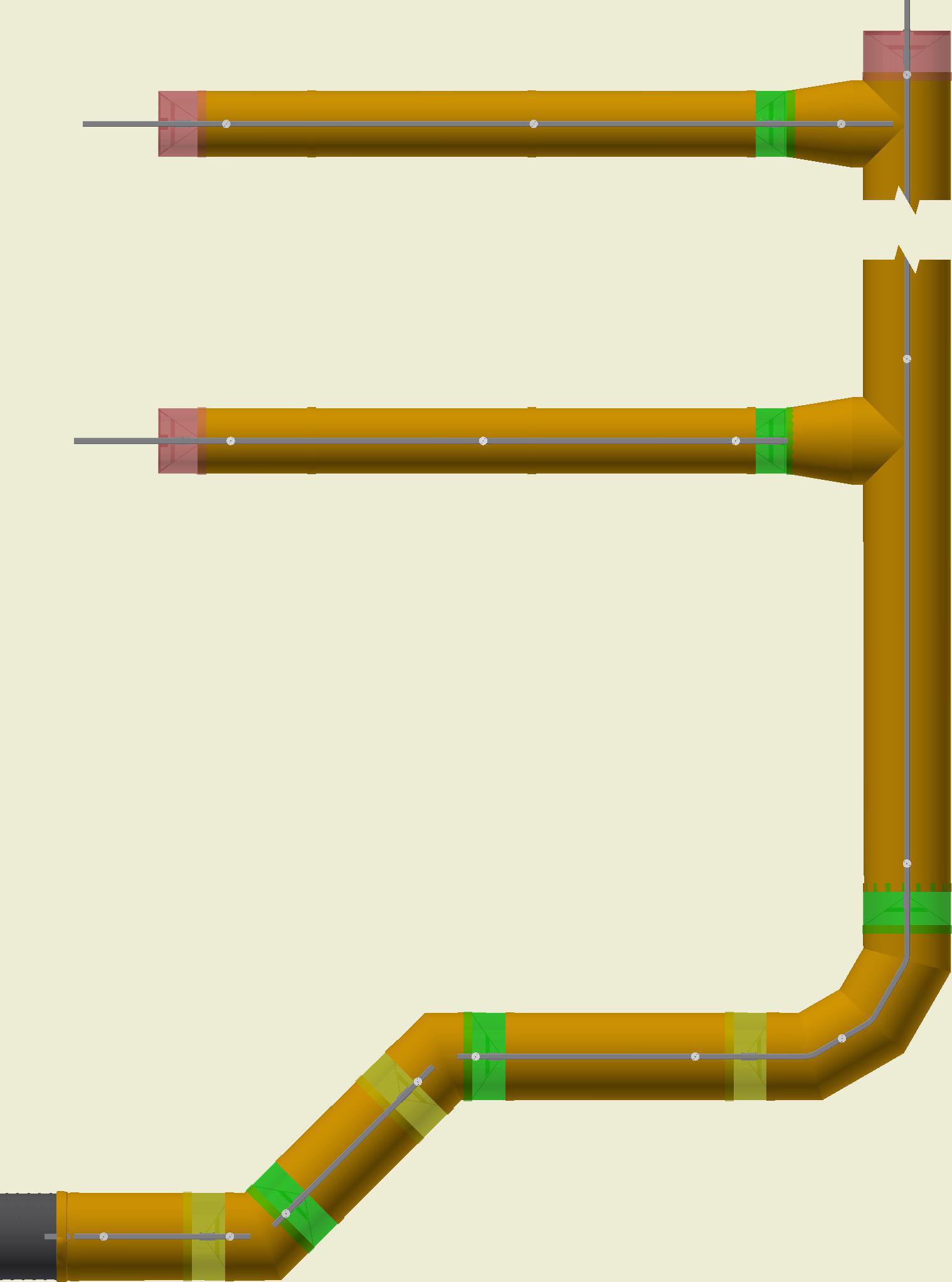

Safetrack

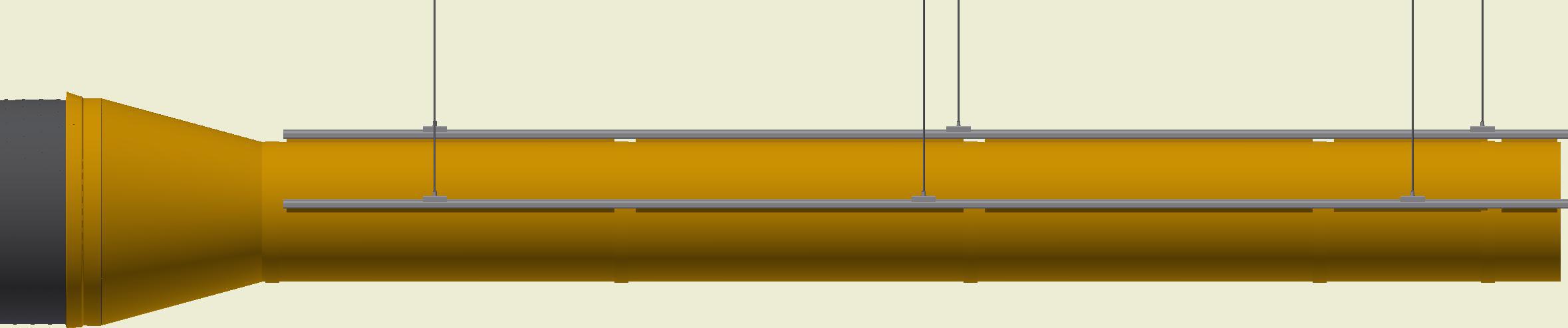

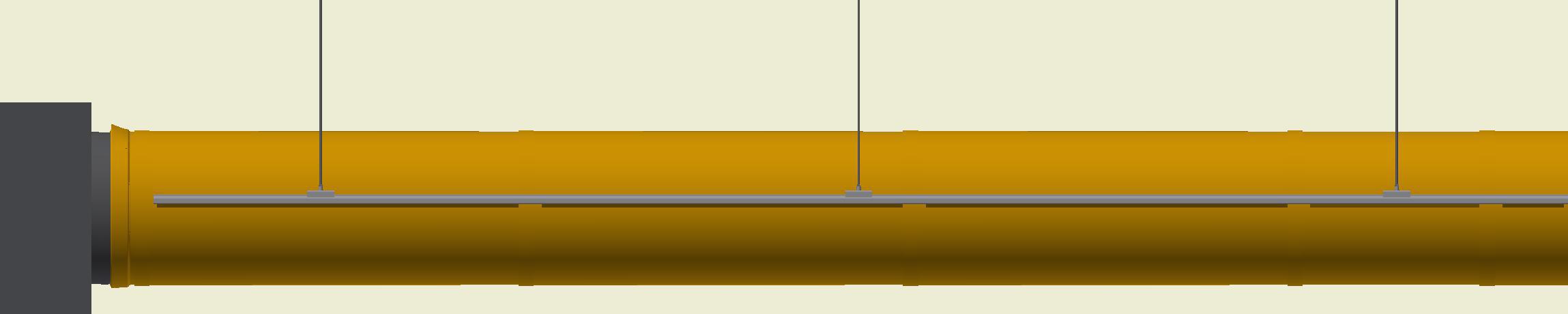

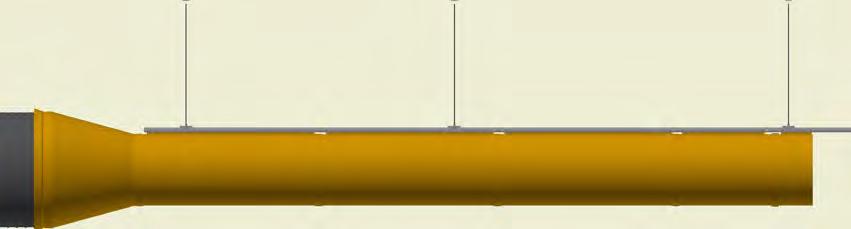

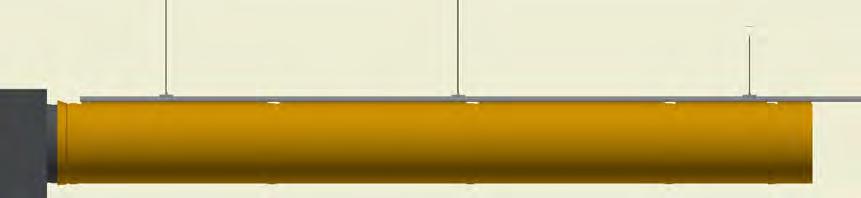

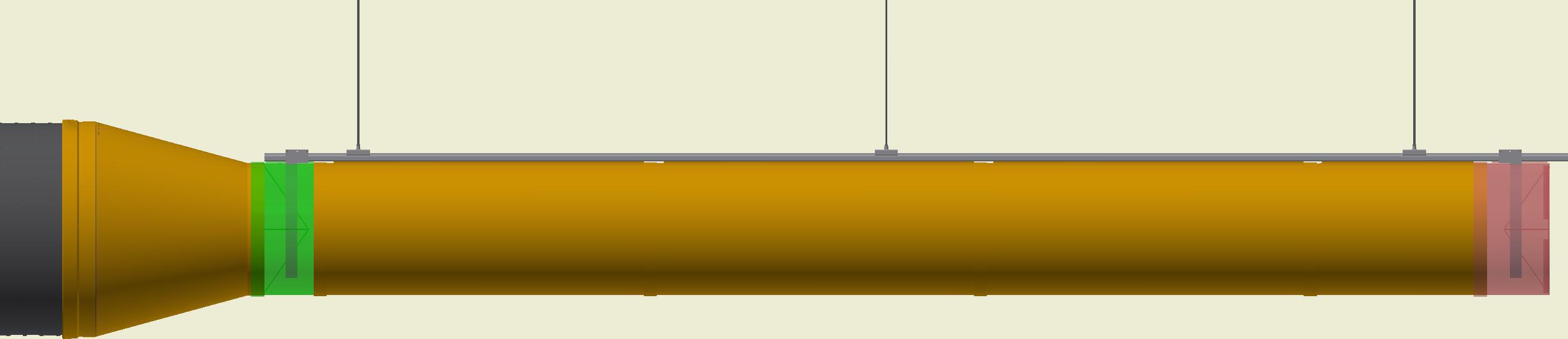

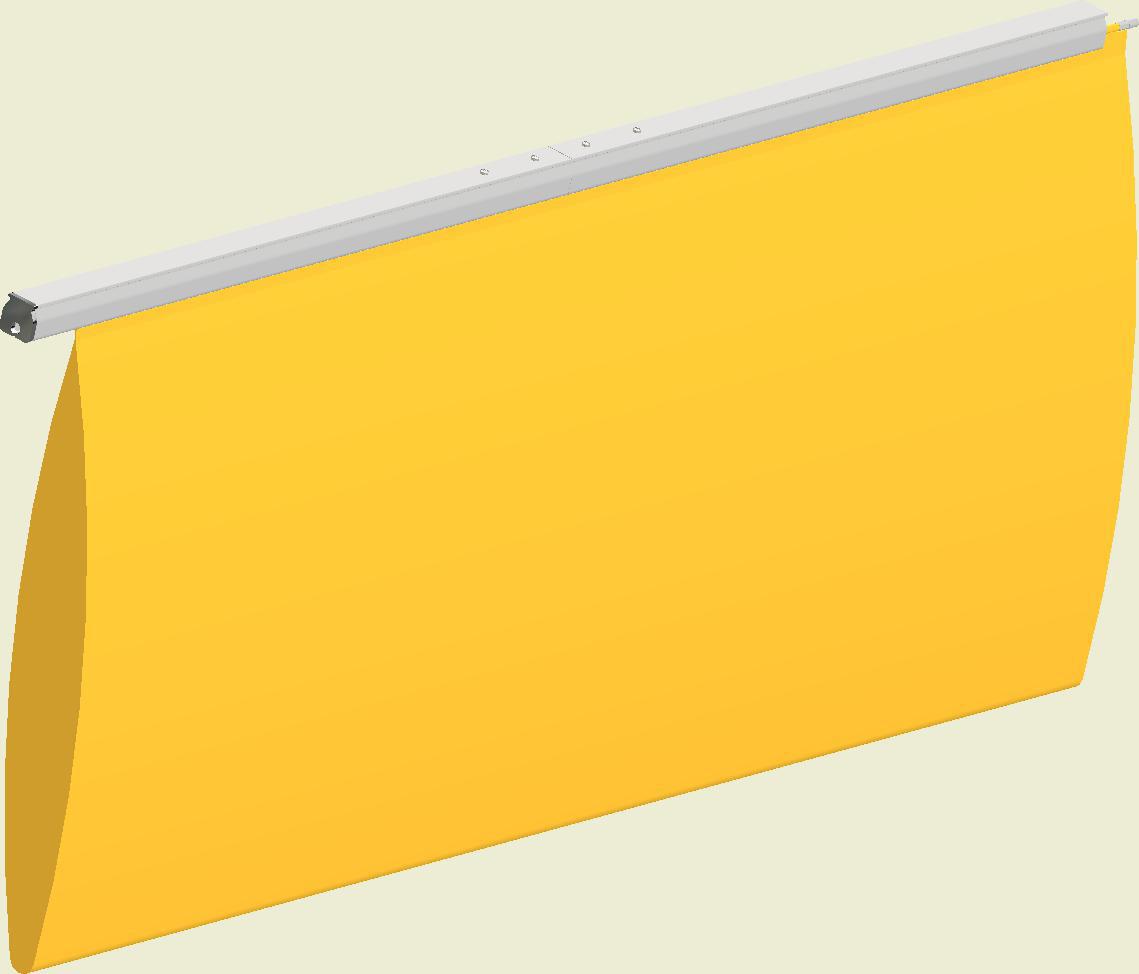

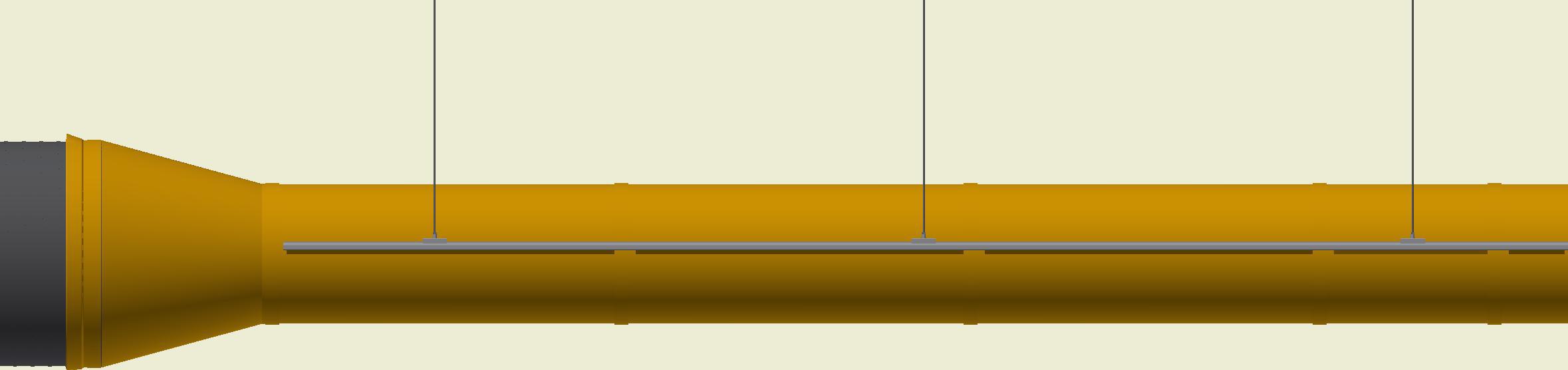

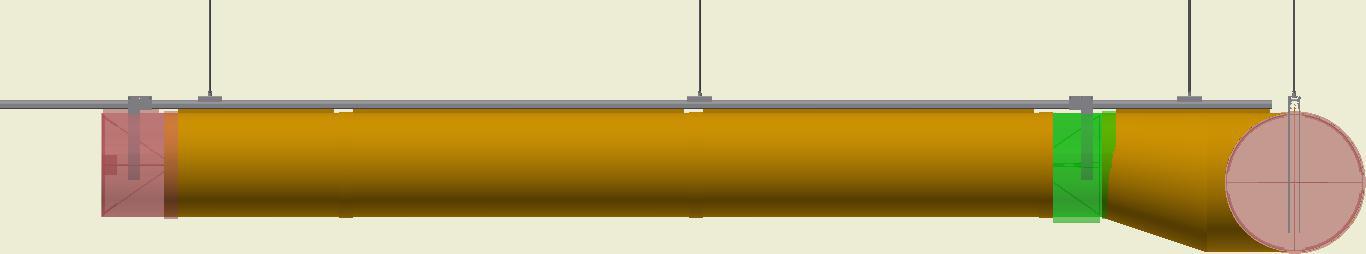

Safetrack, Single Suspension
OS-0005-DK-03
OS-0005-GB-03

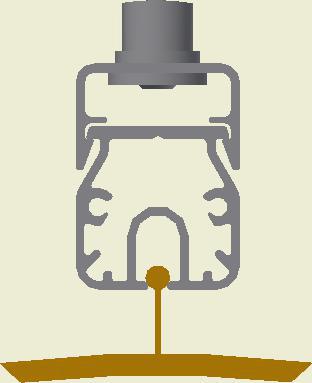

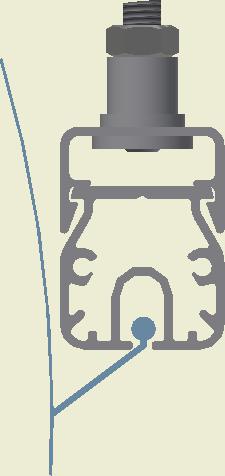

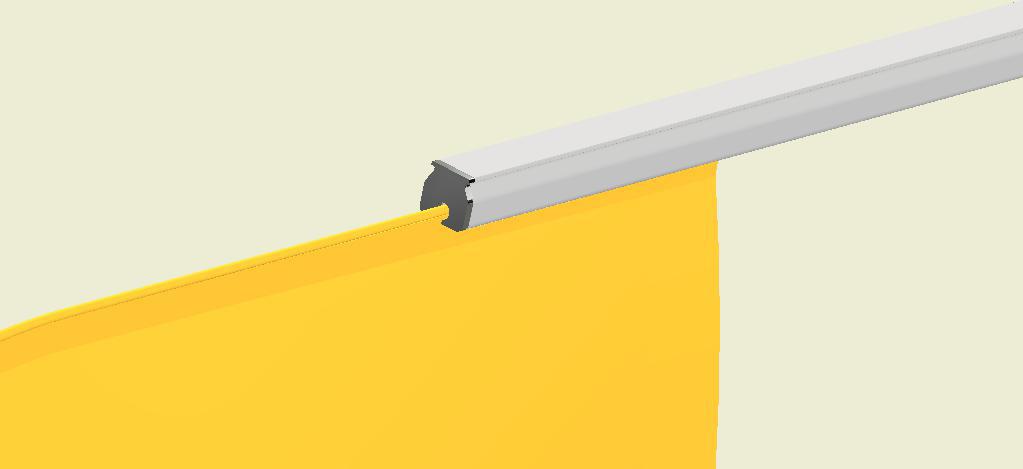

SafeVulst (kl.12) SafeSlider (kl.12)

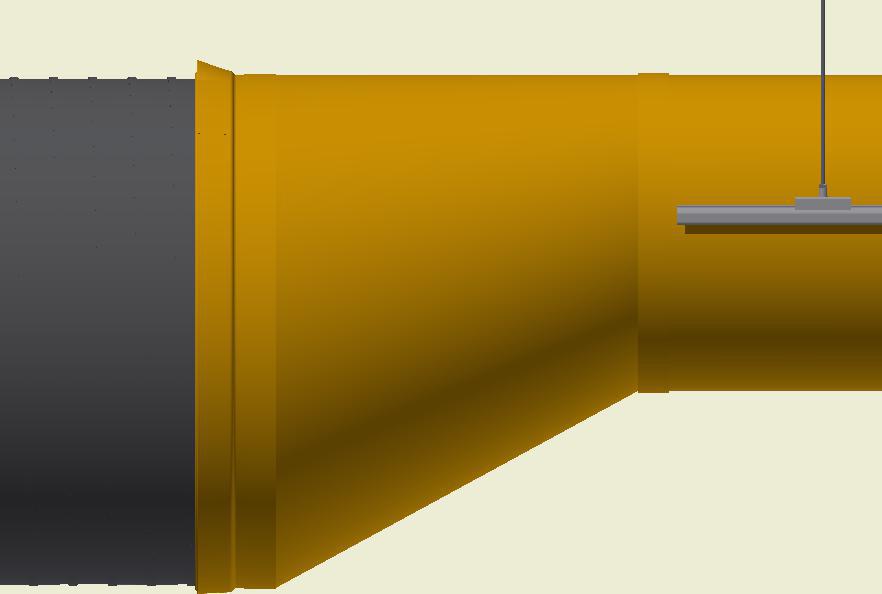

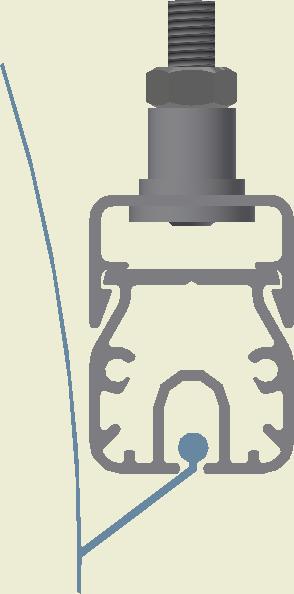

SafeBulb (12 o’clock) SafeSlider (12 o’clock) Offset (H)
1 2 3

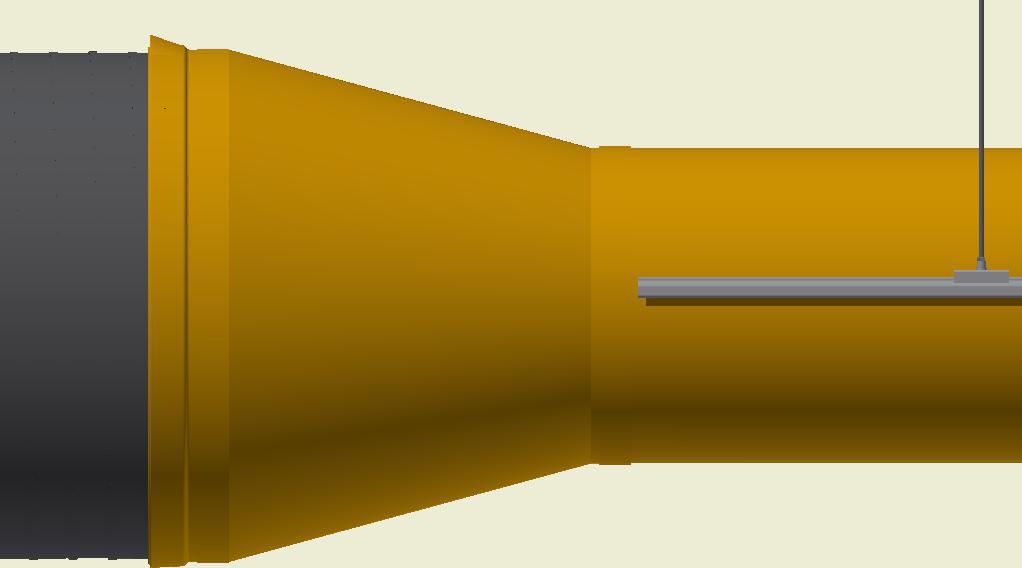

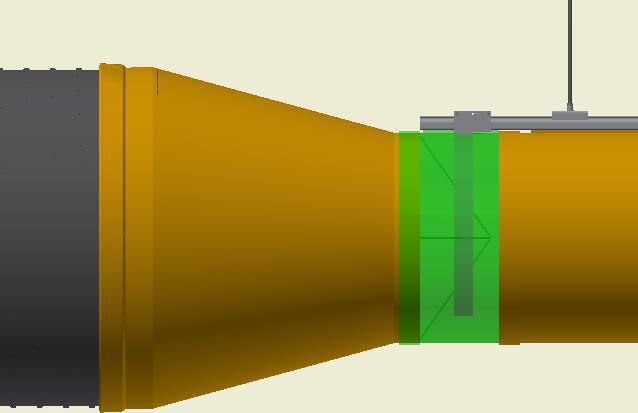

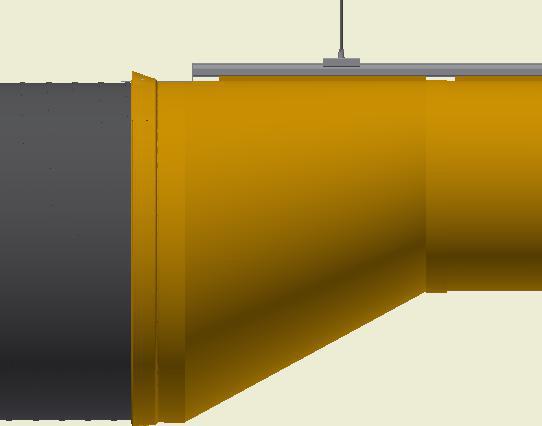

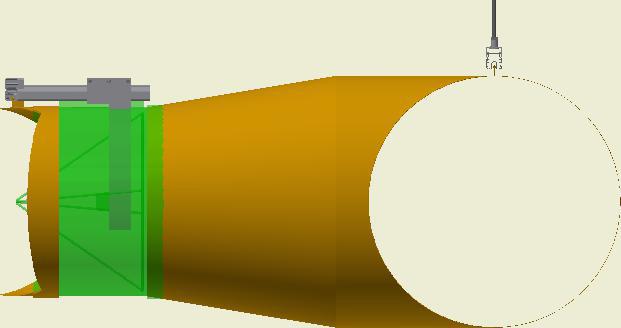

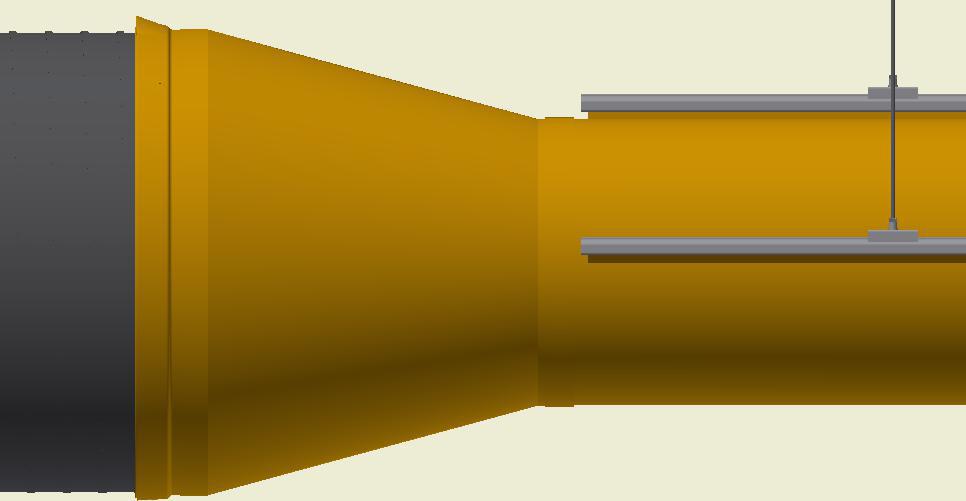

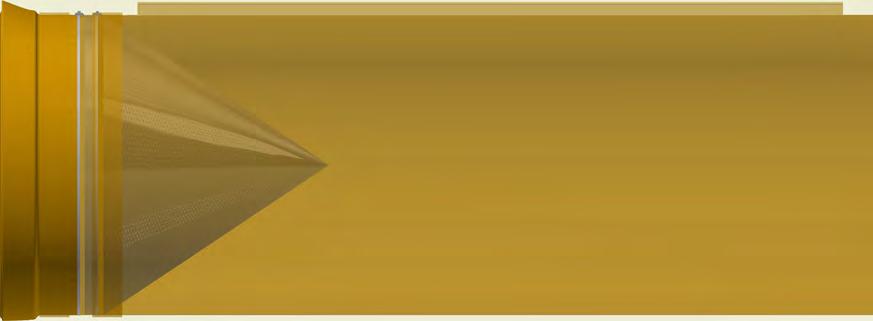

Length of cone + 20 mm
H=Ø/2-ø/2-mounting height
L = Duct length
LS = Length socket
L = Længde kanal
Ø = Diameter
Ø= Diameter
H = Height
LS = Længde Studs
W = Width
H = Højde
O = Offset
W = Bredde (Width)
A = Distance socket 1
O = Forsætning (Offset)
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2
H = Ø/2-ø/2-montagehøjde Eks. Ø650/2-ø400/2-46=79 mm
Ex.: Ø650/2-ø400/2-46=79 mm

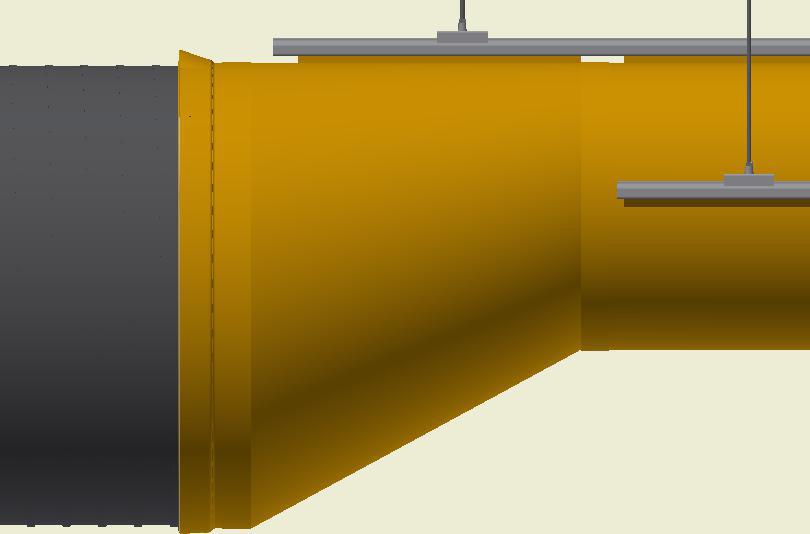

Safetrack Options, Single Suspension

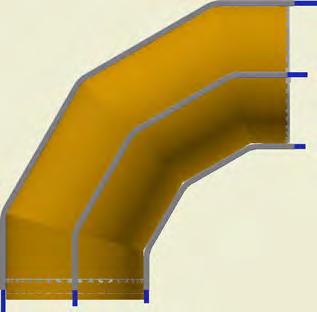

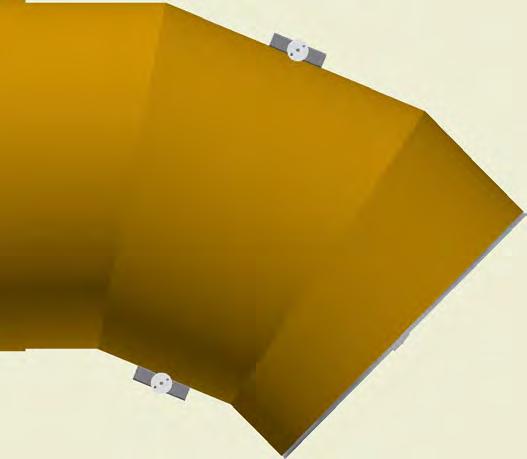

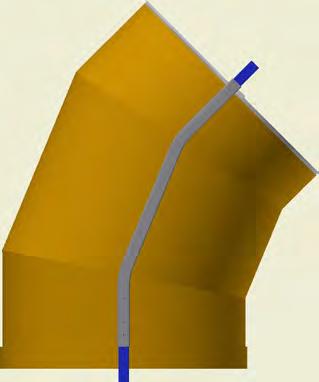

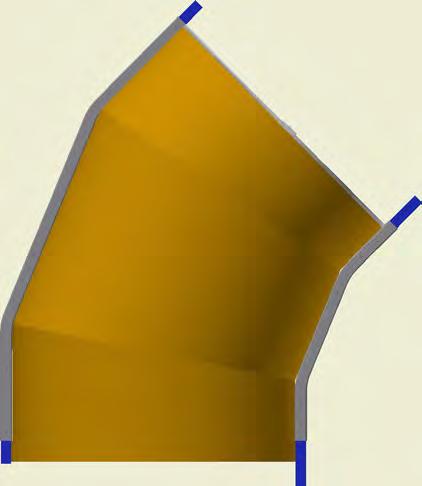

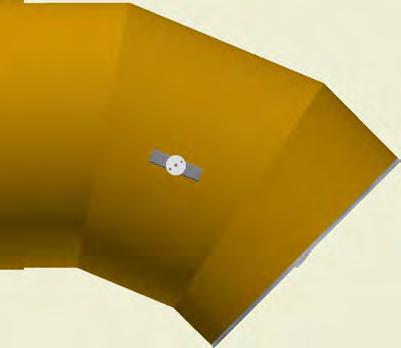

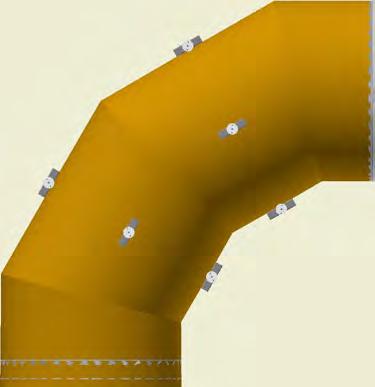

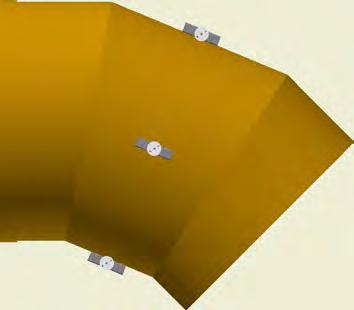

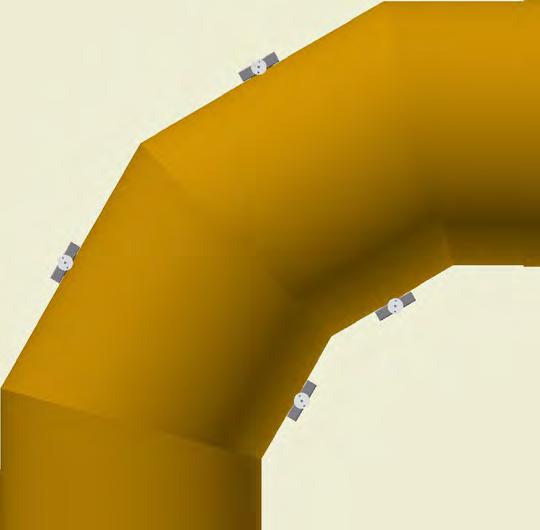

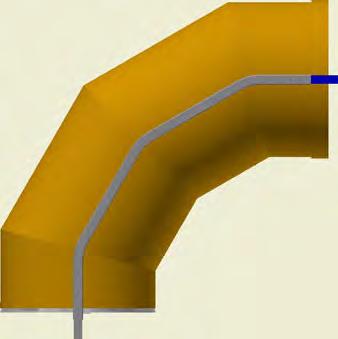

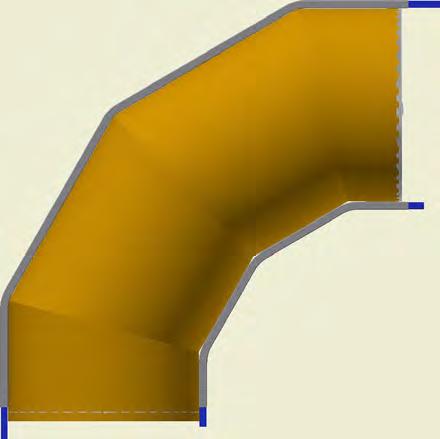

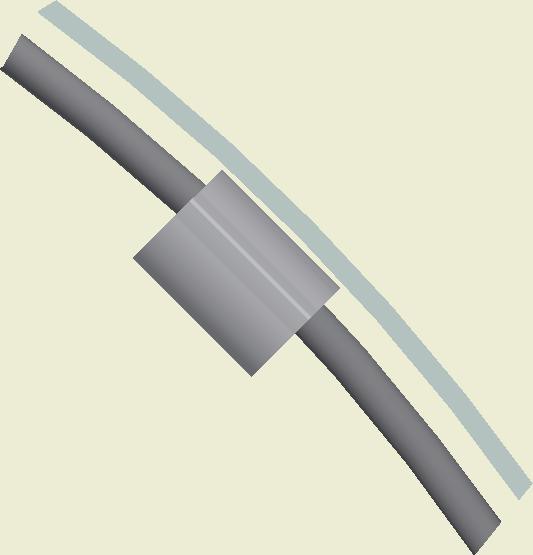

Rolled Bend 45° / Rolled Bend 90°
(OS-0007-GB)
(OS-0008-GB)

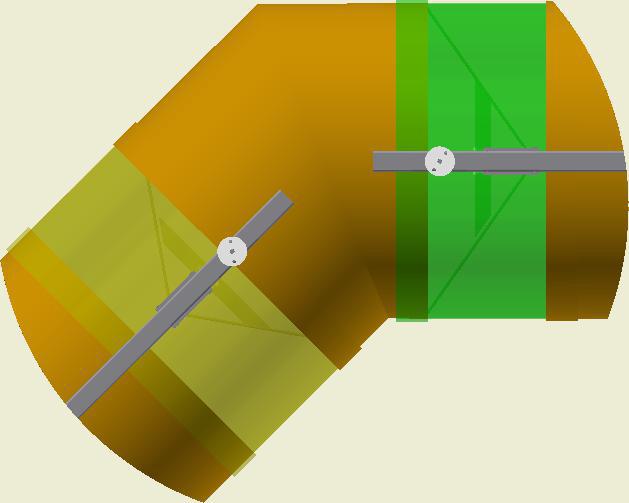

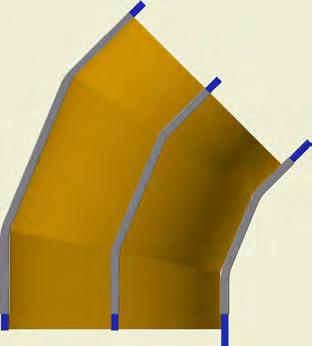

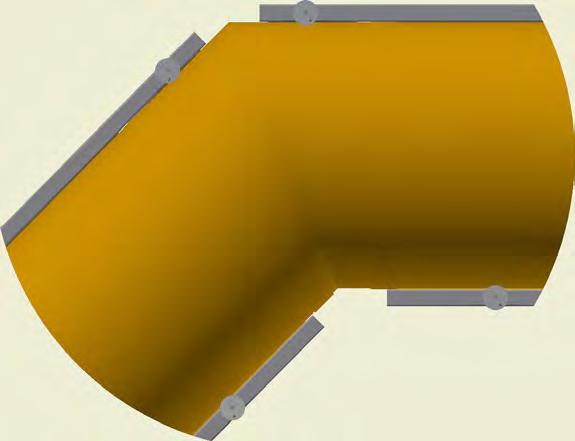

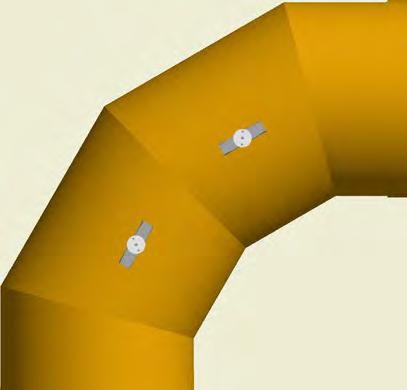

KE-Bend 45° / KE-Bend 90°
(OS-0009-GB) (OS-0010-GB)

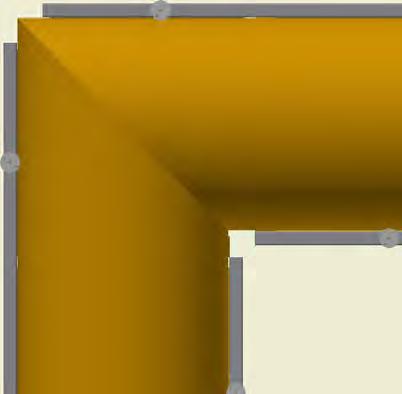

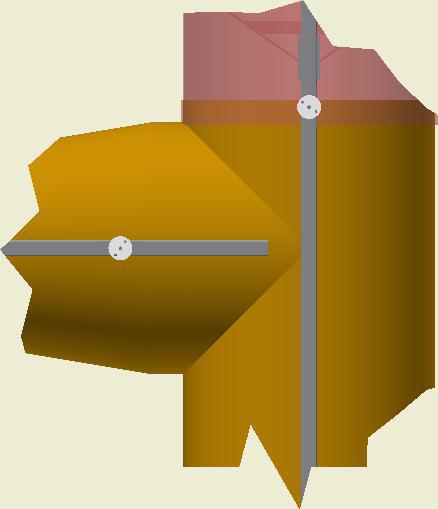

KE-Elbow (any angle) / KE-Elbow 90°

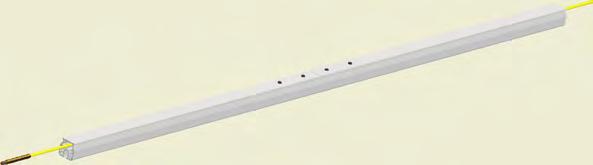

Safetrack, KE-SRD 25
OS-0013-GB-03
OS-0013-DK-02
With or without zipper

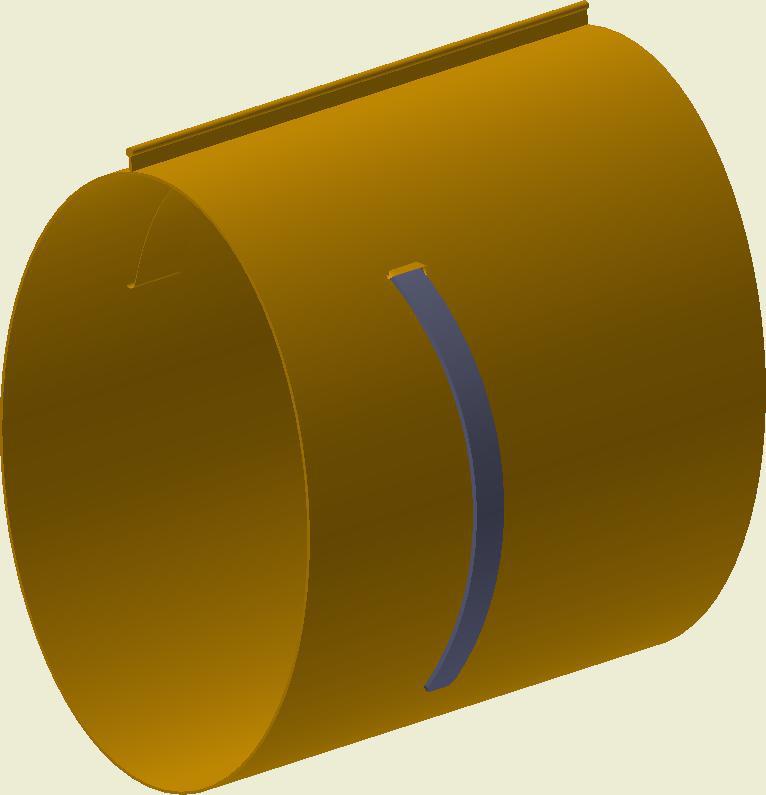

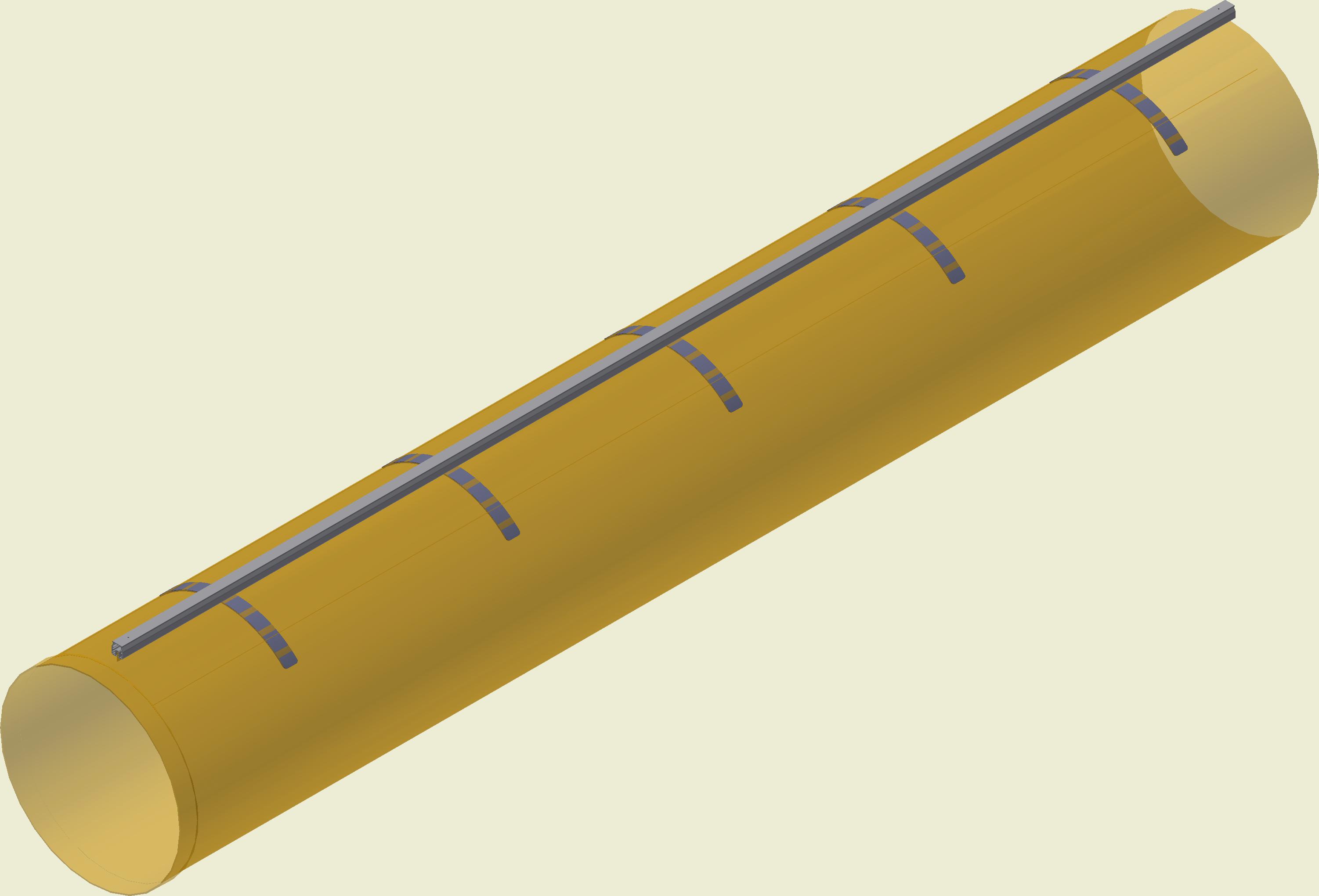

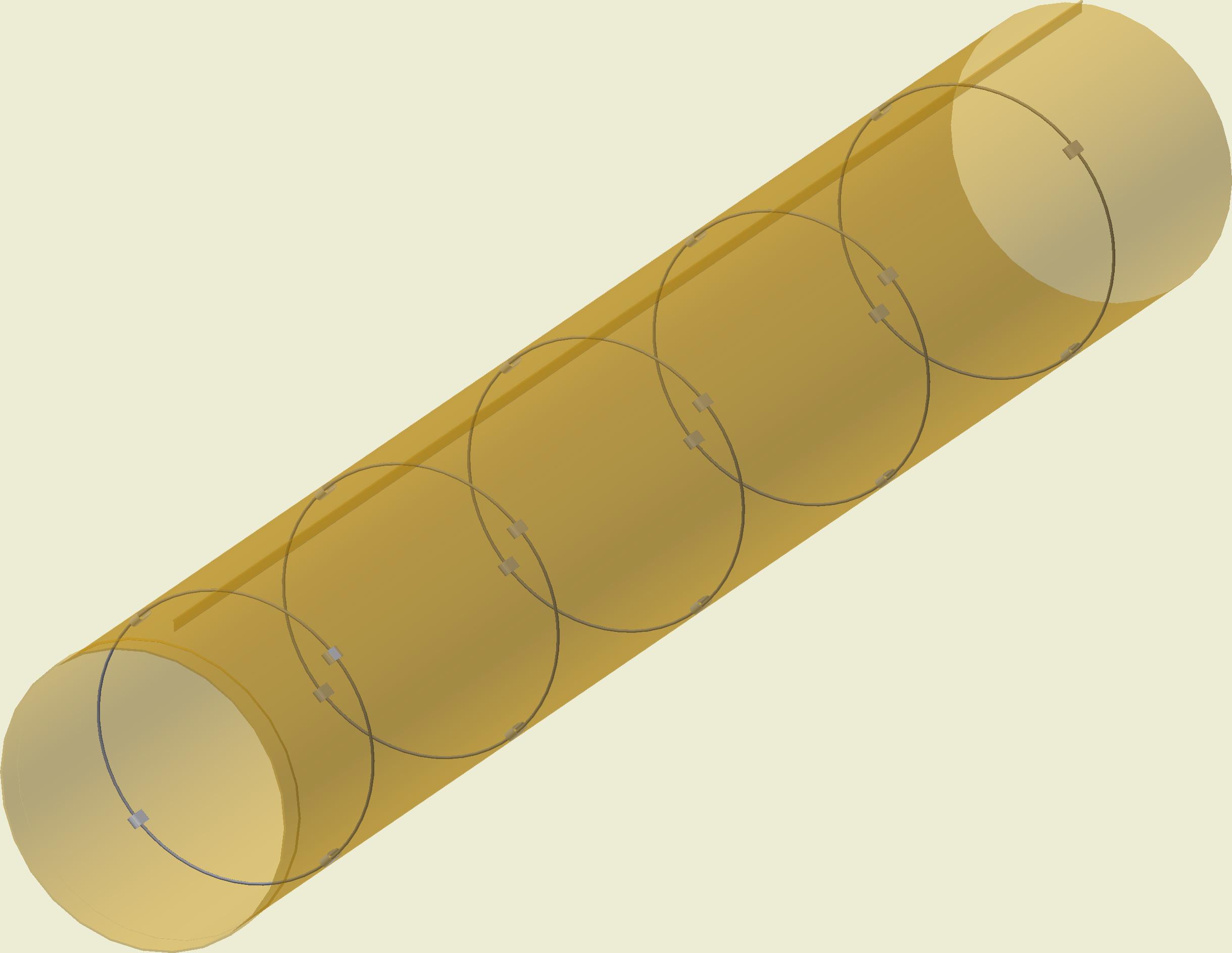

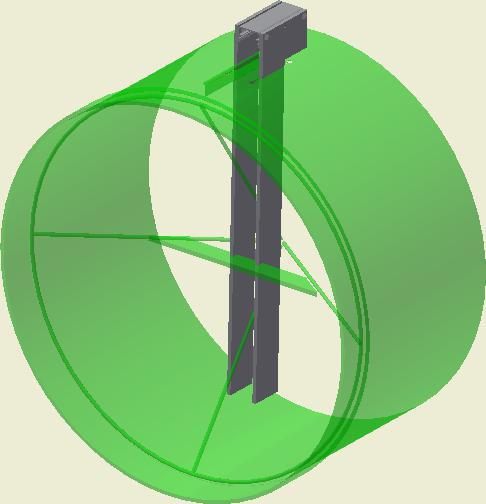

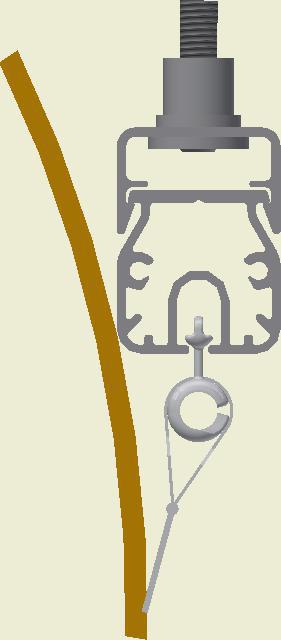

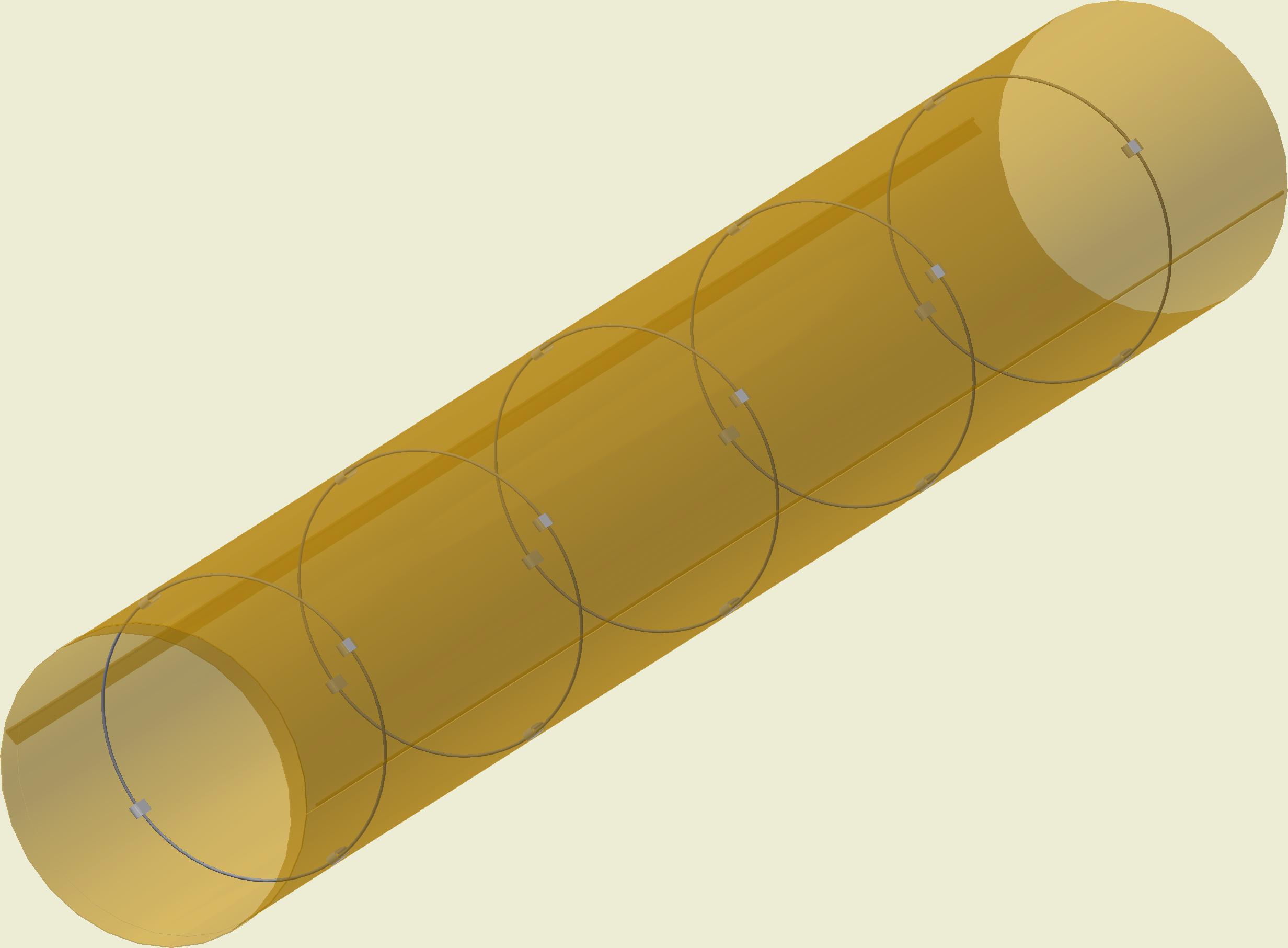

Safetrack, Safe 360, Single Suspension
OS-0014-DK-02
OS-0014-GB-02
Duct diameter

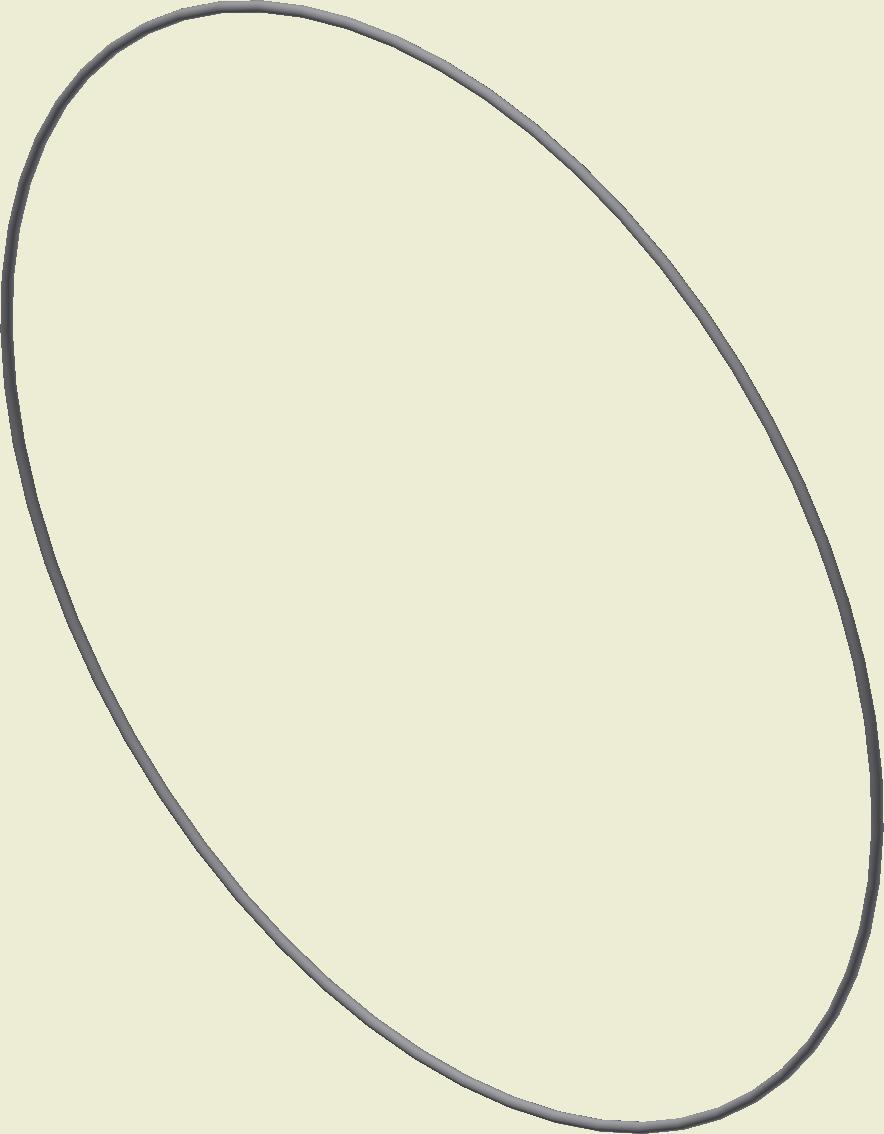

Ring Dimension:
Ring size
Ø200-Ø630 mm: 3 mm
200 - 630 = ø3
Ø631-Ø1270 mm: 4 mm
631 - 1270 = ø4
Lås ved kl 12 hvis pose over Ø399
Lock at 12 o’clock if duct diameter exceeds 399 mm
BPoser over Ø500 Medsendes ringene løst
If duct diameter exceeds 500 mm rings are included separately (to be installed on site)
1000mm

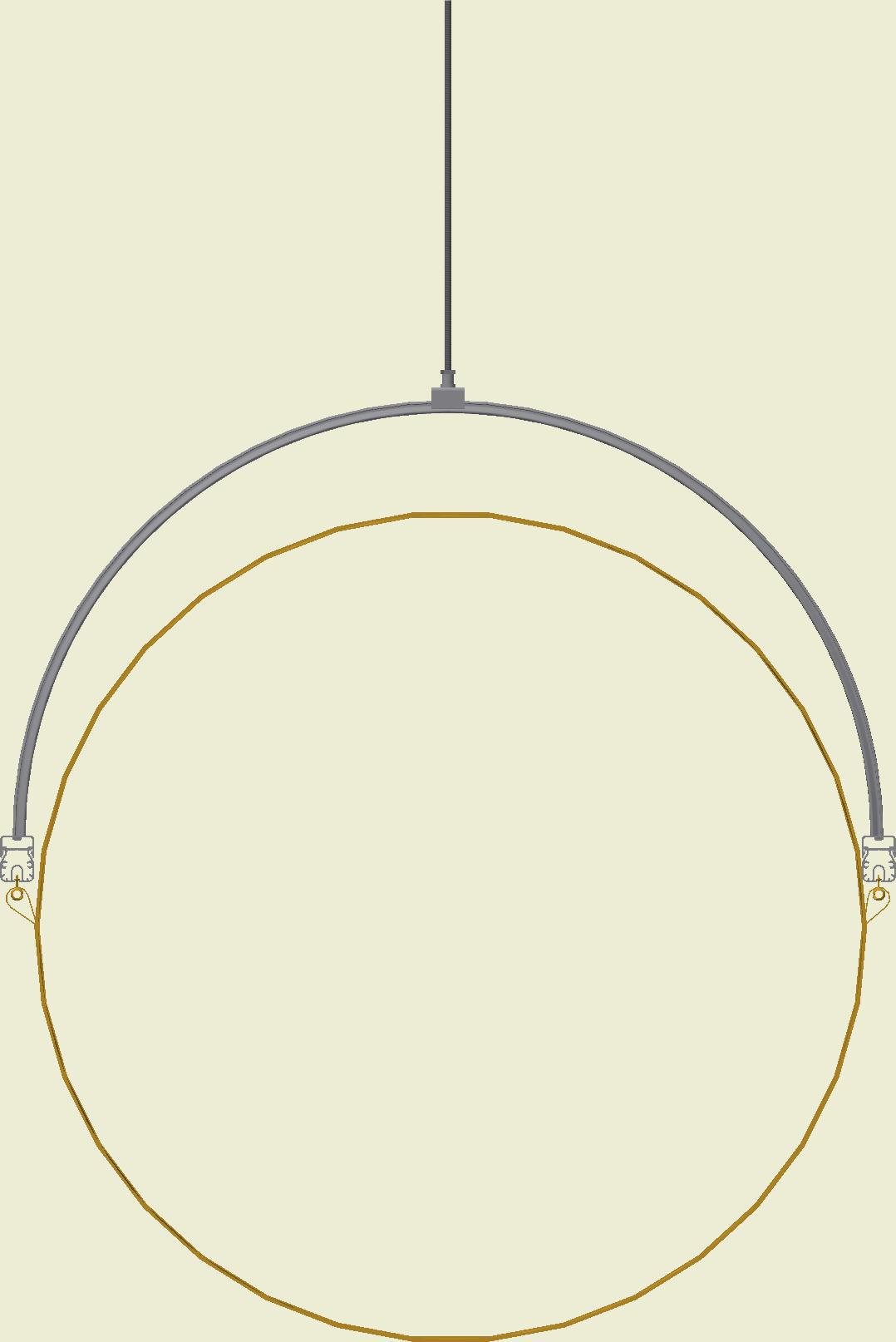

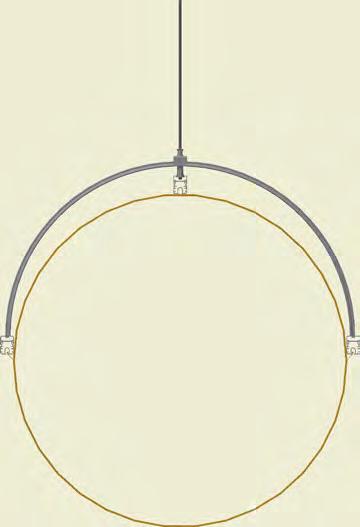

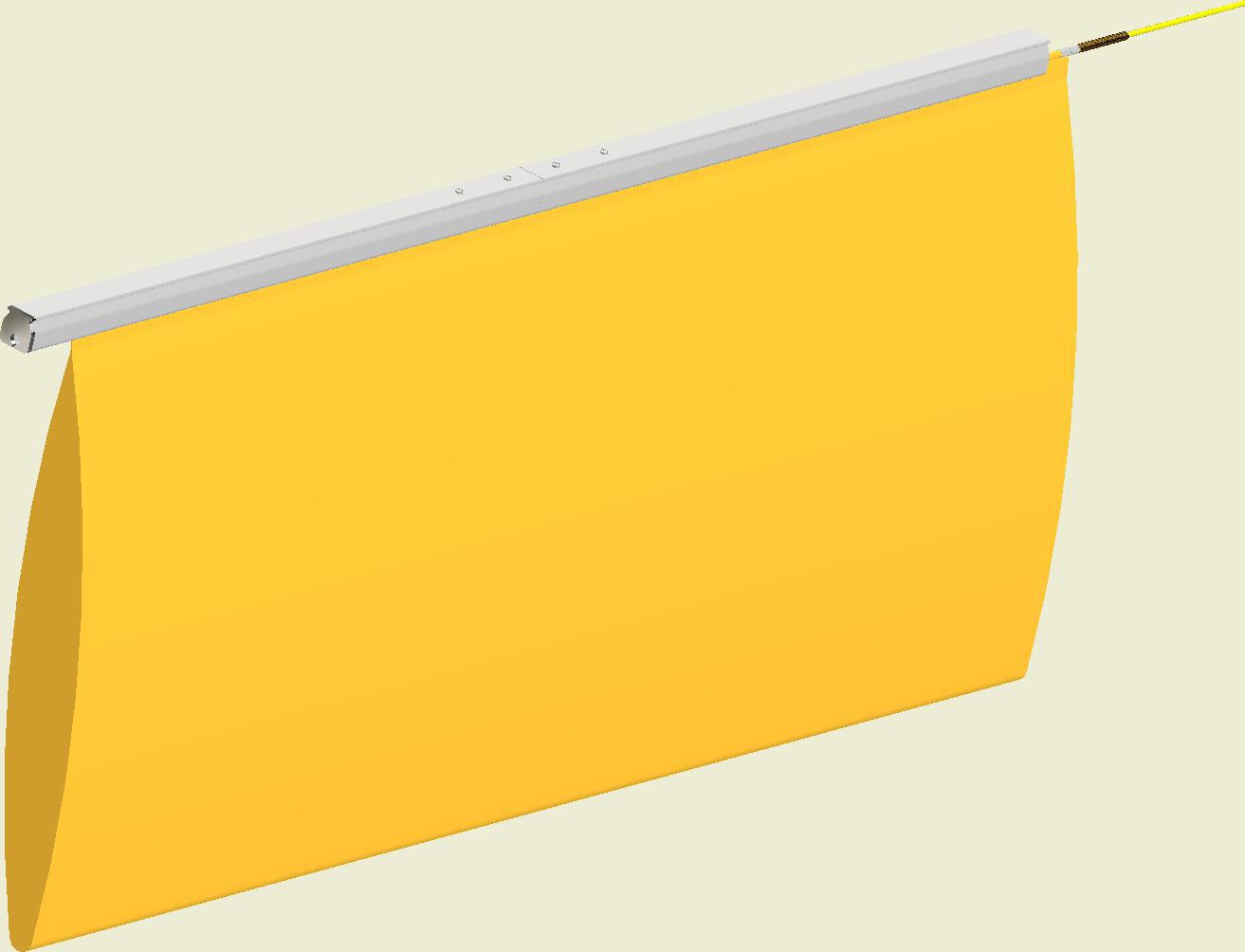

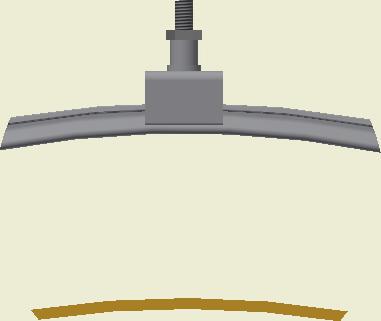

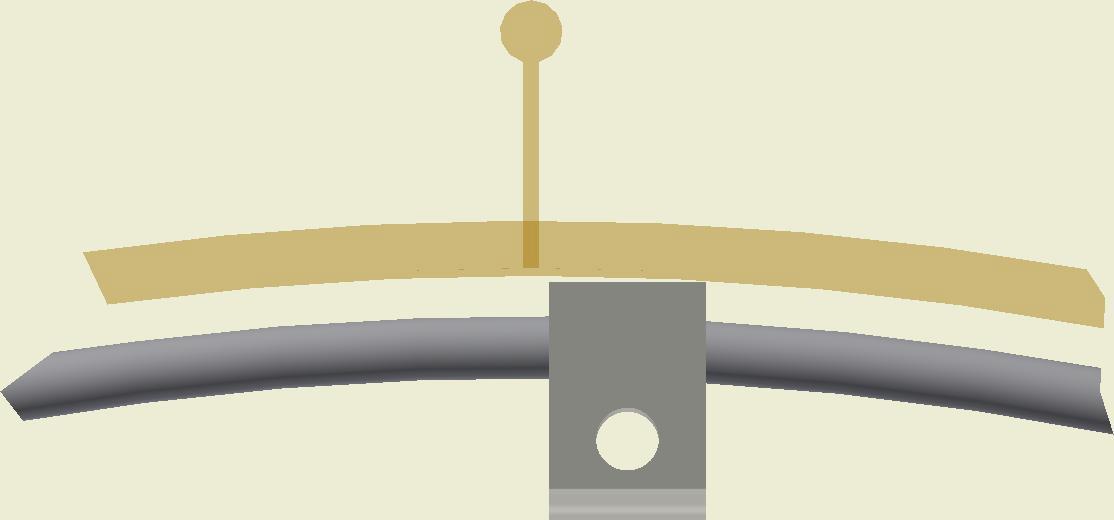

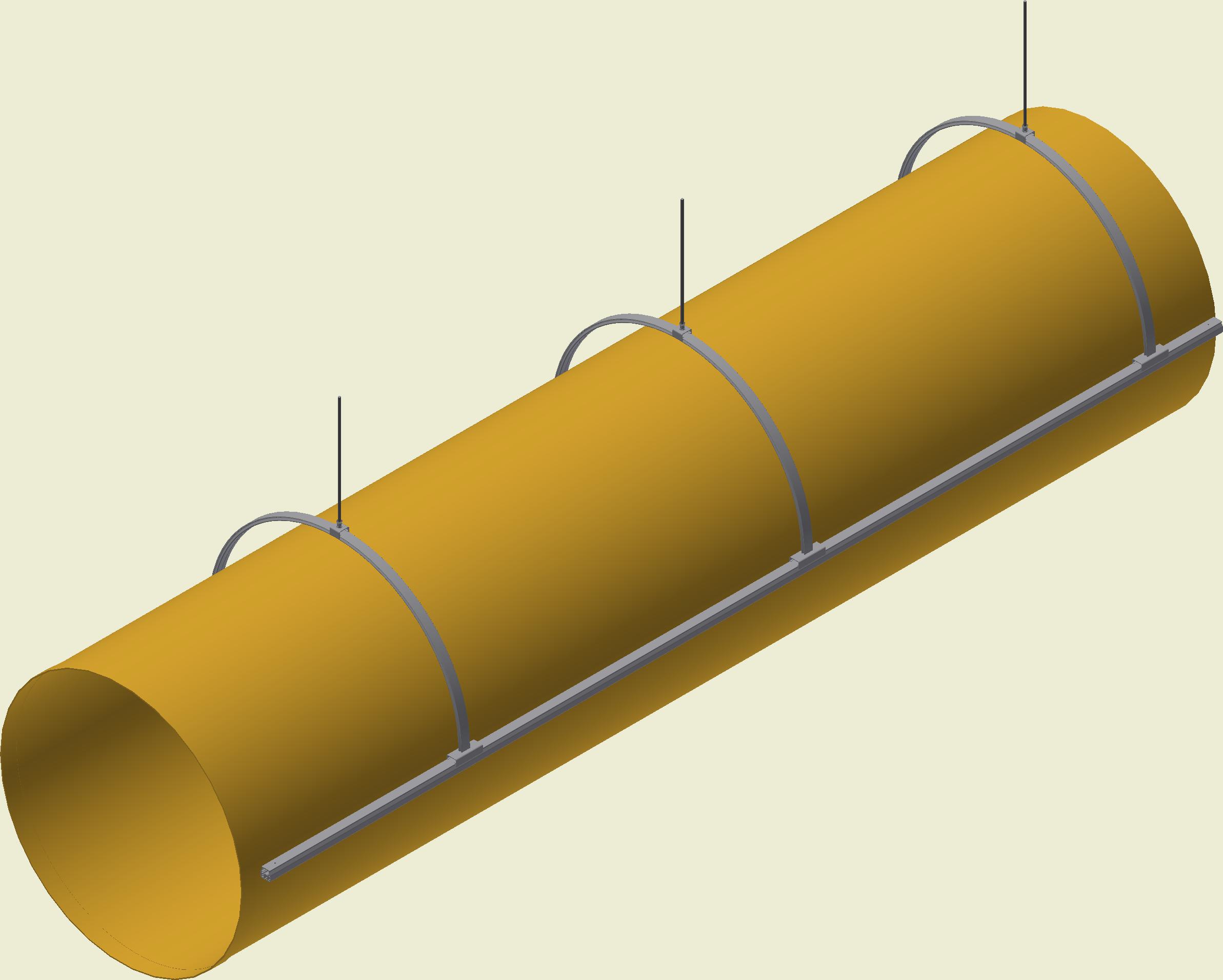

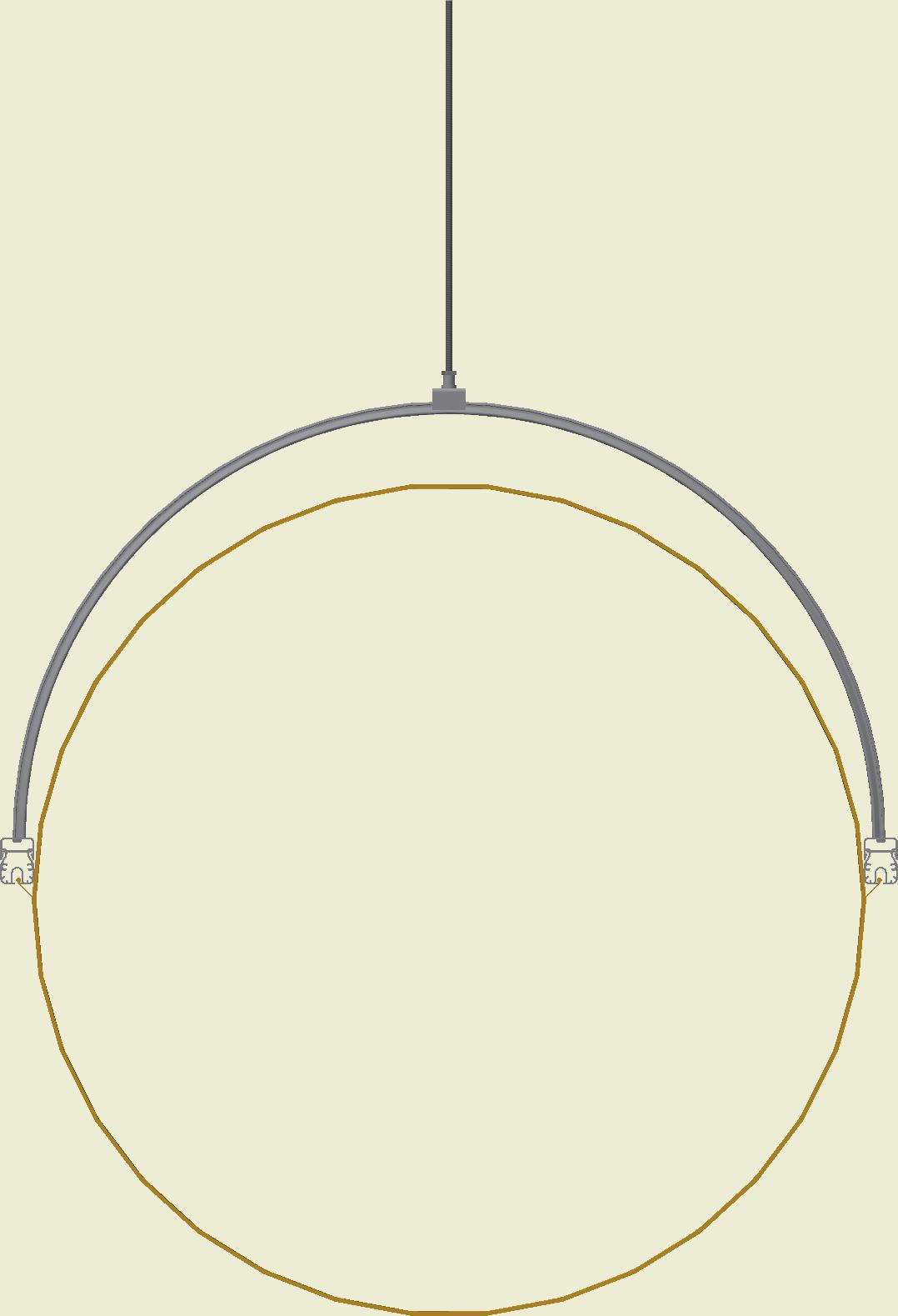

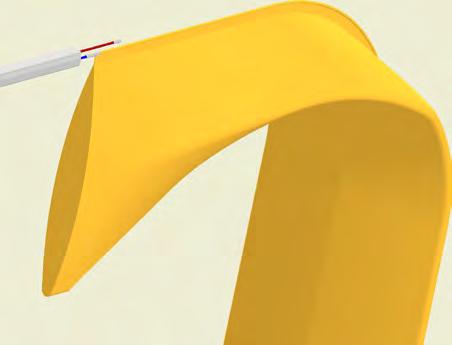

Safetrack Duct Arch, Single Suspension
OS-0016-GB-02
OS-0016-DK-02

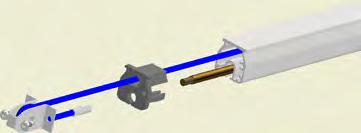

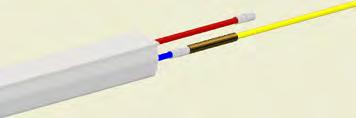

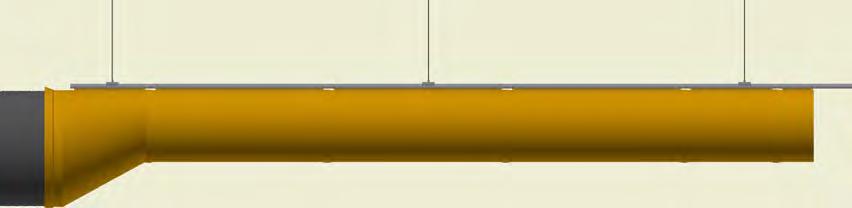

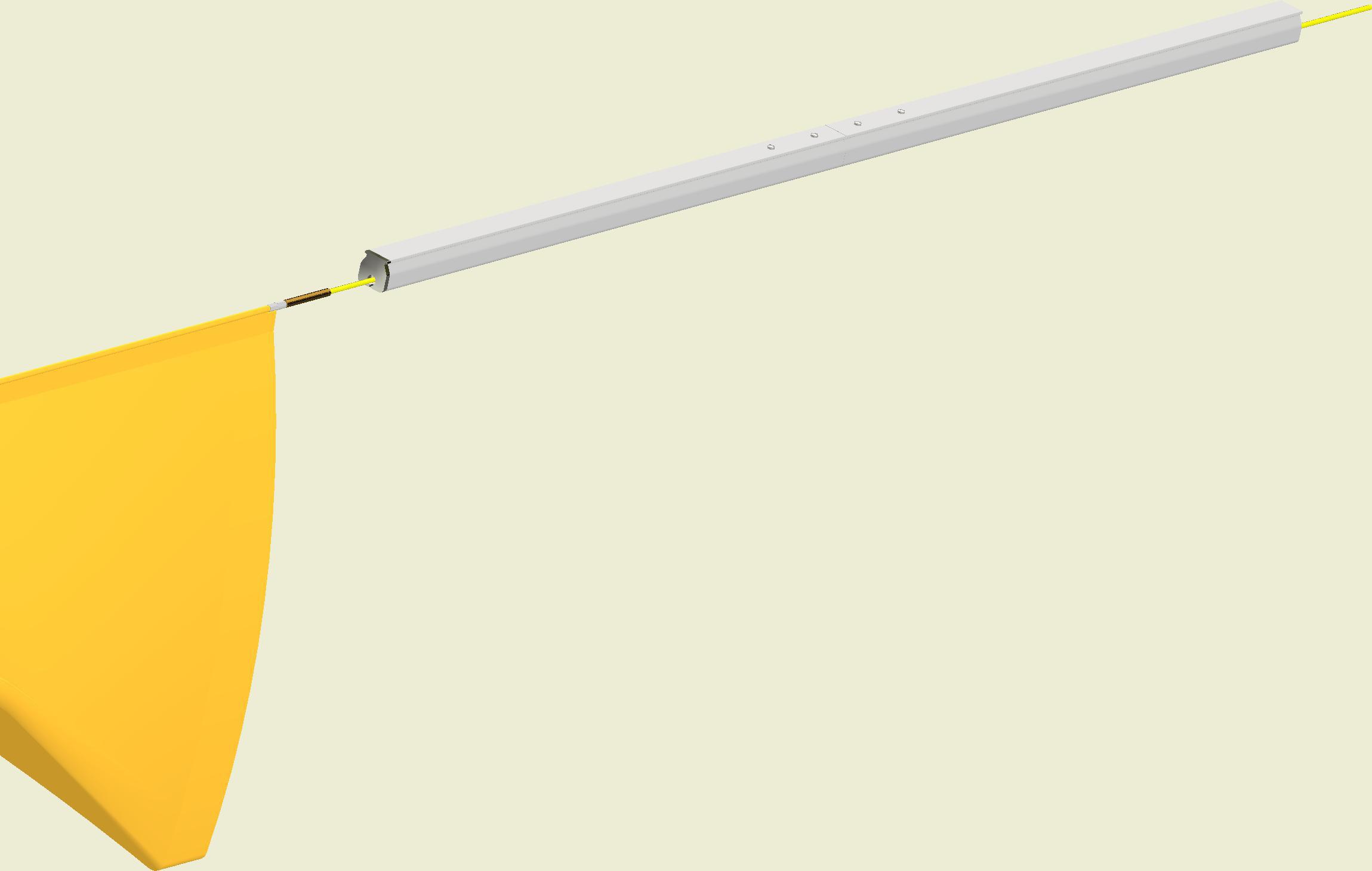

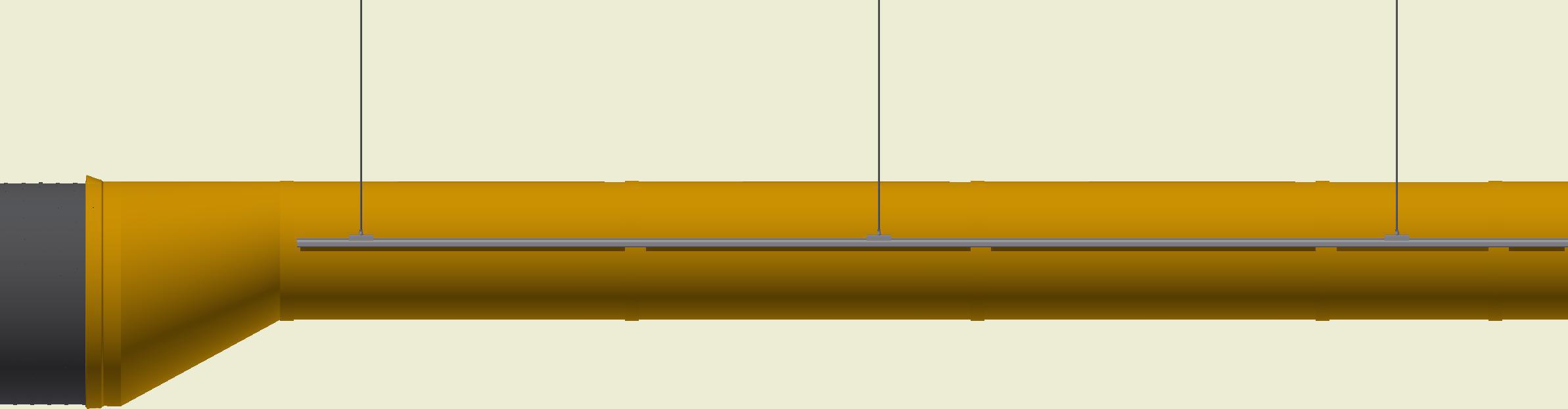

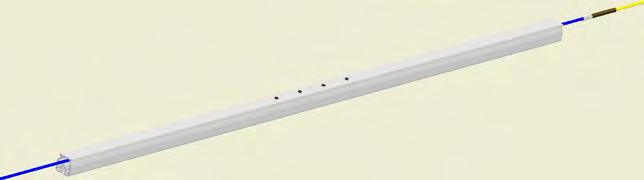

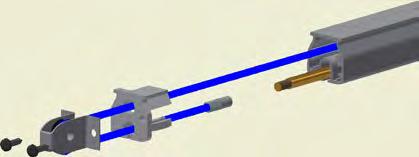

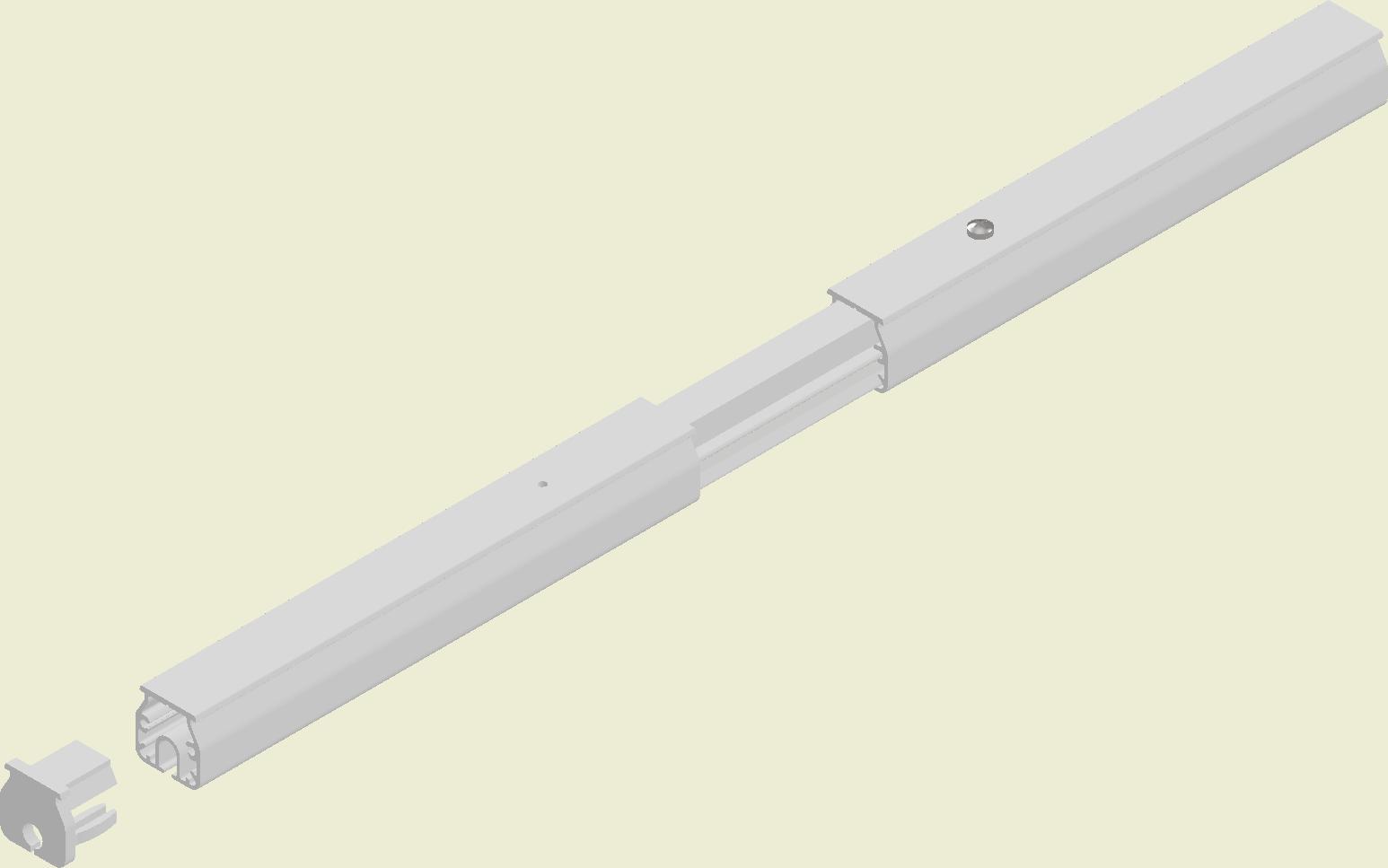

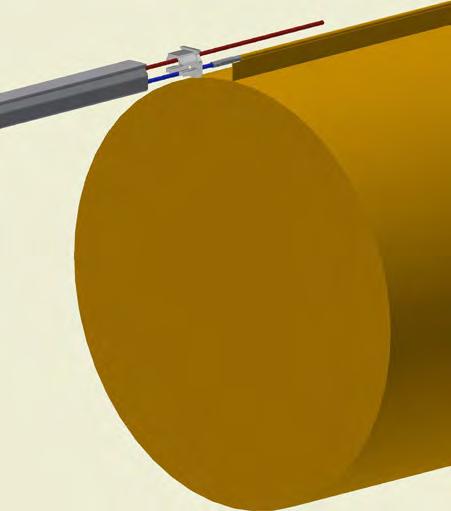

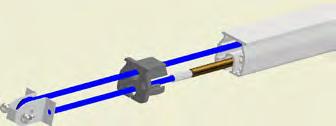

Safetrack MountEasy One End
OS-0018-GB-04
OS-0018-DK-04 4a) 4c) 5a) 5b)
SafeStretch, Single Suspension
OS-0020-EN-02
OS-0020-GB-02

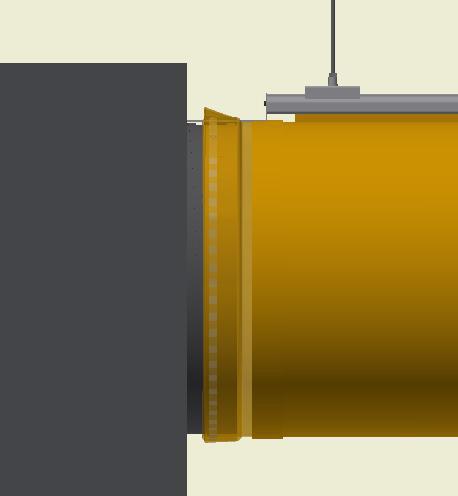

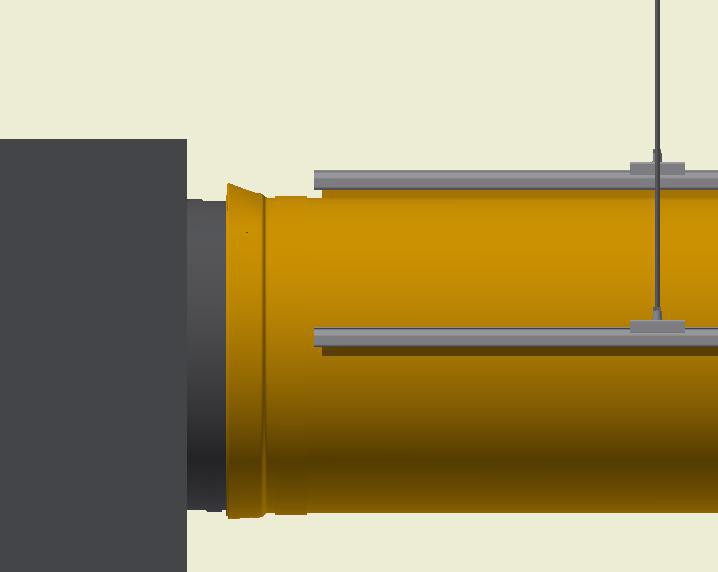

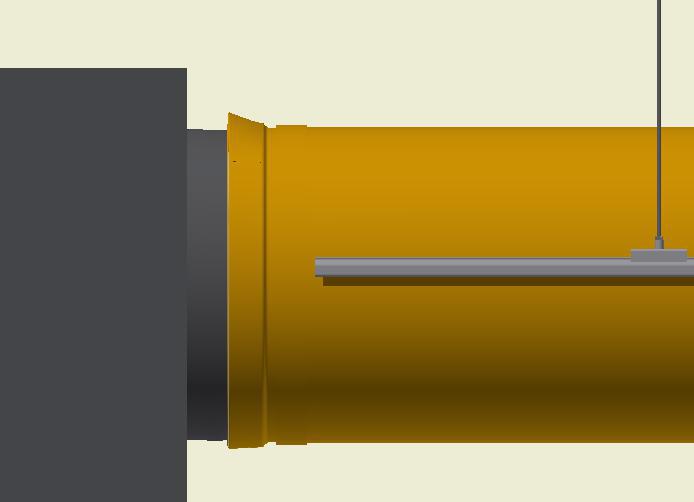

When the whole duct run has been pulled onto the track, slide the duct opening over the end of the metal duct. Fix the SafeStretch Fastener to the end of the metal duct by sliding the fastener through the slot in the textile starting sleeve and then under the worm gear clamp. Once in place tighten worm gear clamp to hold duct and fastener in place. Then fix the SafeStretch fastener with 2 screws to the
When the whole duct run has been pulled onto the track, slide the duct opening over the end of the metal duct. Fix the SafeStretch Fastener to the end of the metal duct by sliding the fastener through the slot in the fabric starting sleeve and then under the worm gear clamp. Once in place tighten worm gear clamp to hold duct and fastener in place.Then fix the SafeStretch fastener with 2 screws to the end of the track.
of the track.

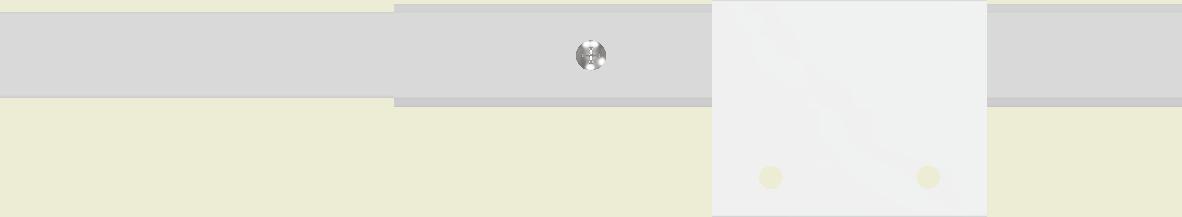

SafeStretch Fastener
Internal Safe 360 Rings to be installed onsite (see OS-0014-GB-02)
Clamp

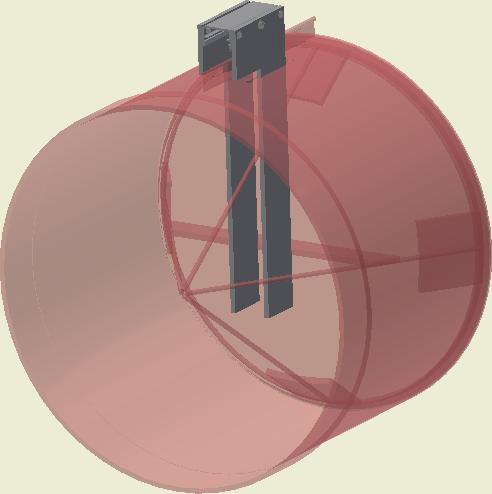

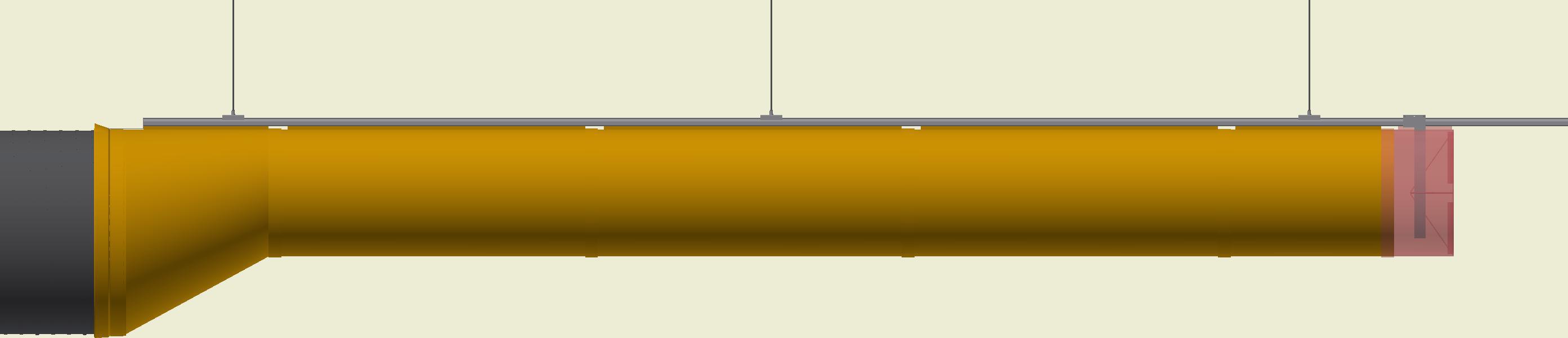

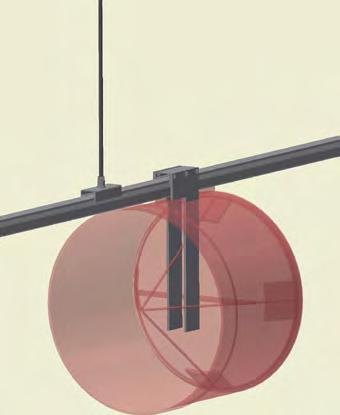

Safetrack, SafeStretch, Single Suspension (Bottom)
OS-0021-EN-02
OS-0021-GB-02
Safestretch Bracket
SafeStretch Bracket
In Zip
Internal zip
Bottom
Bottom

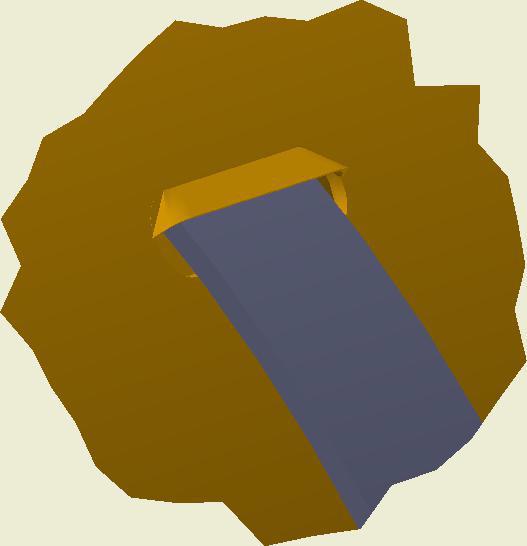

AUse the SafeStretch Bracket to stretch the fabric duct by sliding the bracket towards the end of the duct till the duct is taut. Then tighten the set screw.
Use the SafeStretch Bracket to stretch the fabric duct by sliding the bracket towards the end of the duct till the duct is taut. Then tighten the grub screw.
AFor ducts larger than 600 mm diameter a hook is supplied to stabilise the SafeStretch Ring/Bottom.
For ducts larger than 24" diameter a hook is supplied to stabilze the safestretch ring/bottom.

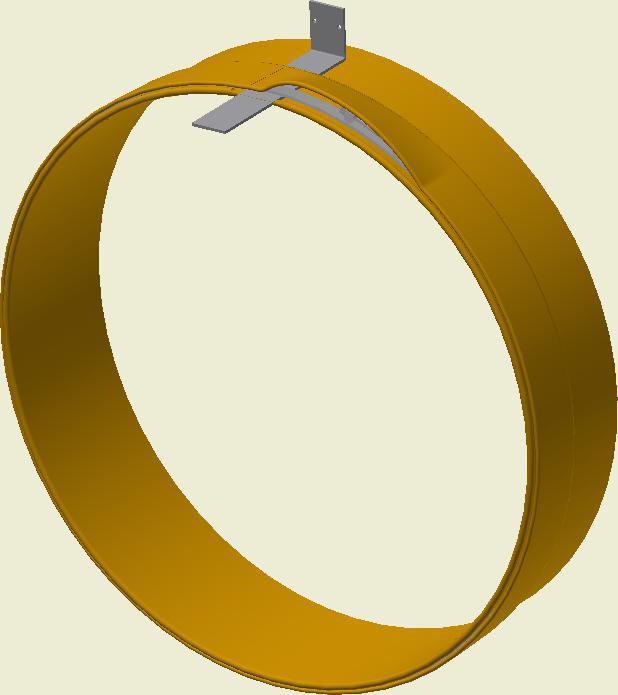

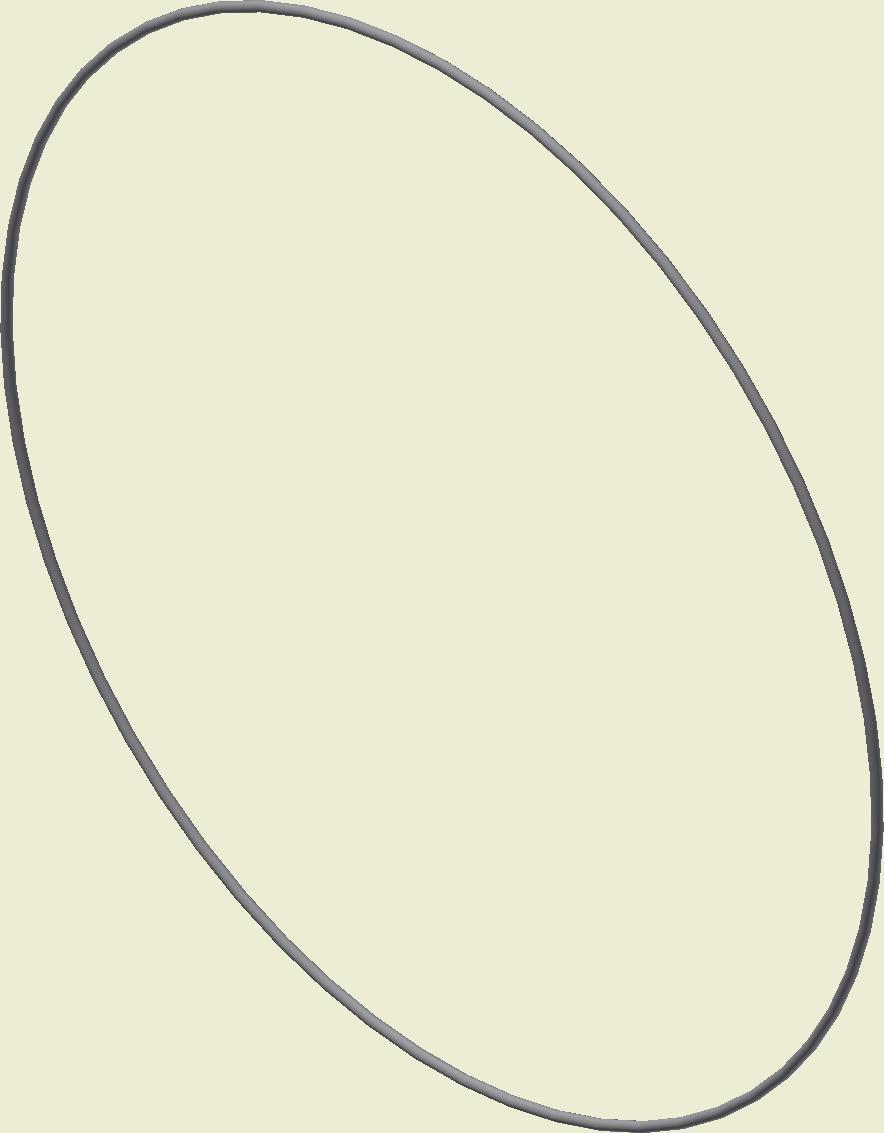

SafeStretch Ring
SafeStretch Ring
Insert the SafeStretch Ring into the SafeStretch Bottom and fix it with the push buttons (or for sizes bigger than 600 mm) the rubber ring.
Insert the SafeStretch ring into the SafeStretch bottom and fix it with the push buttons (or for sizes bigger than 24") the rubber ring.

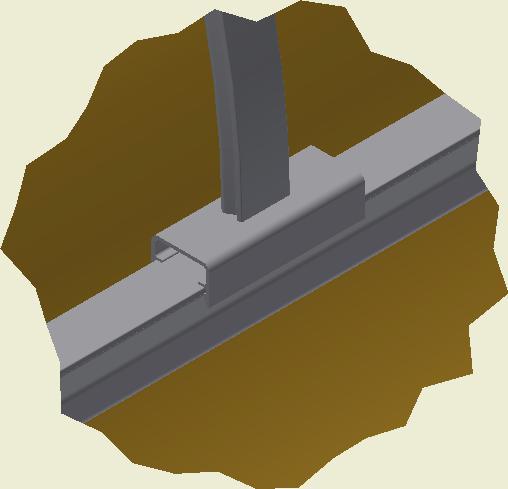

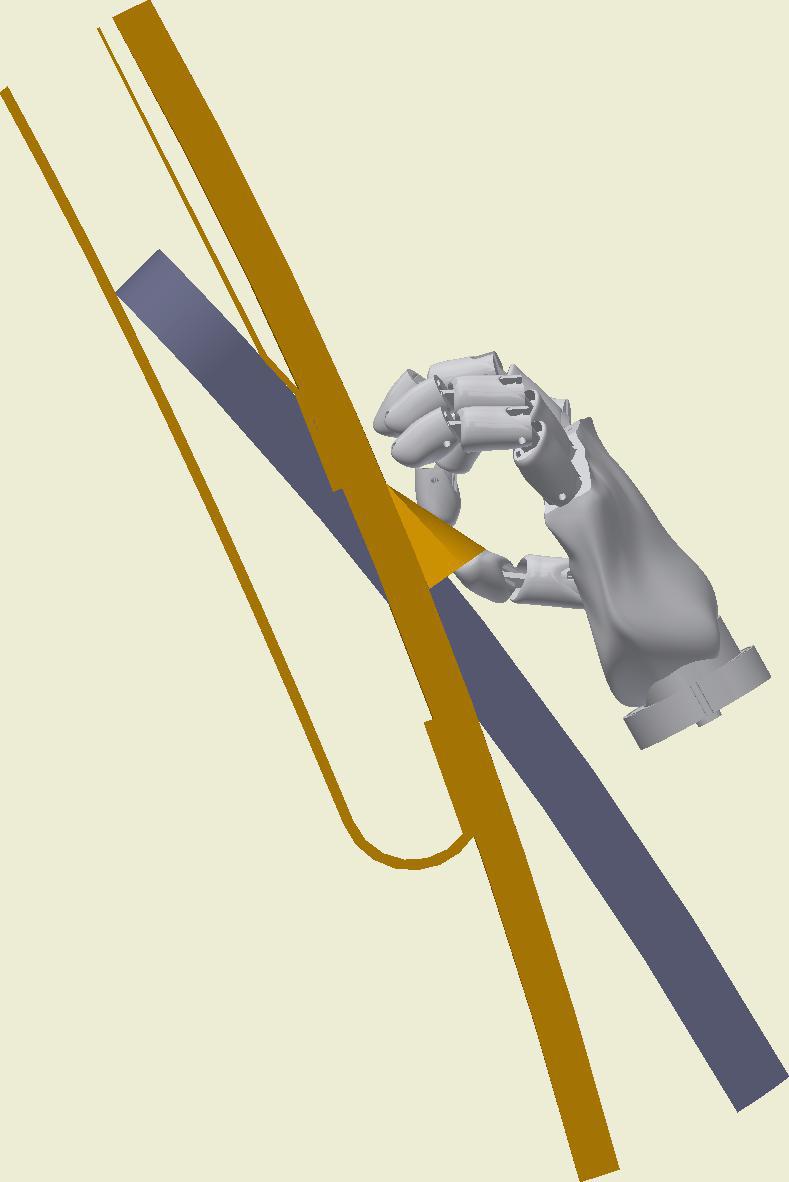

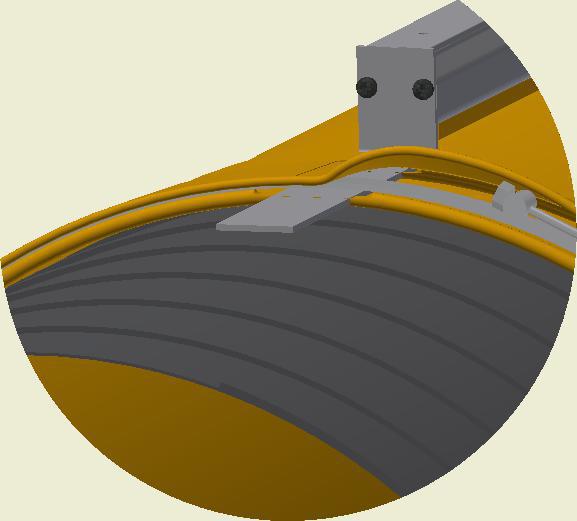

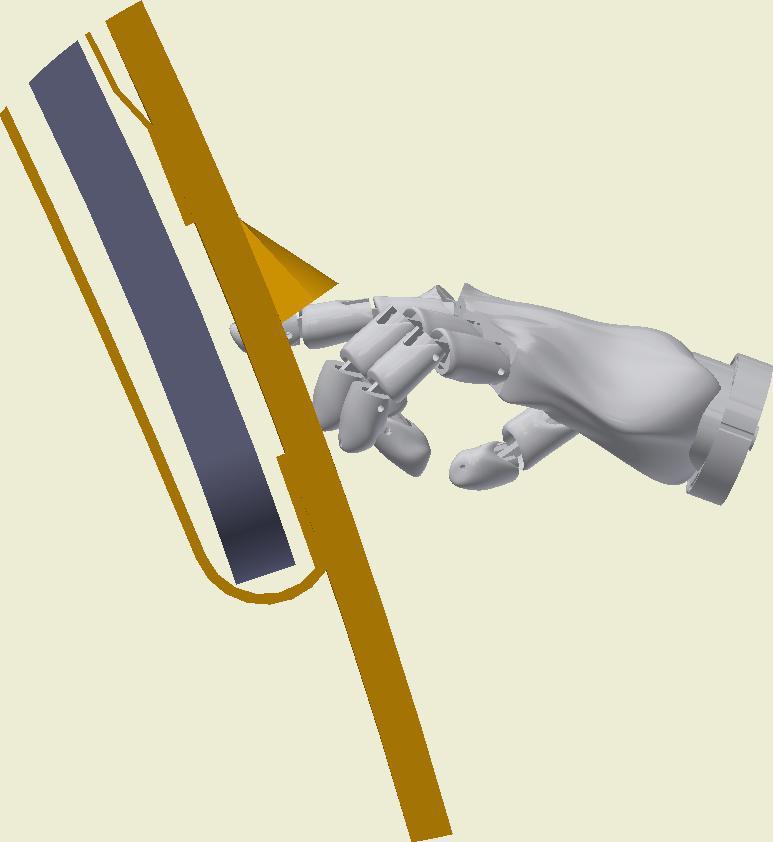

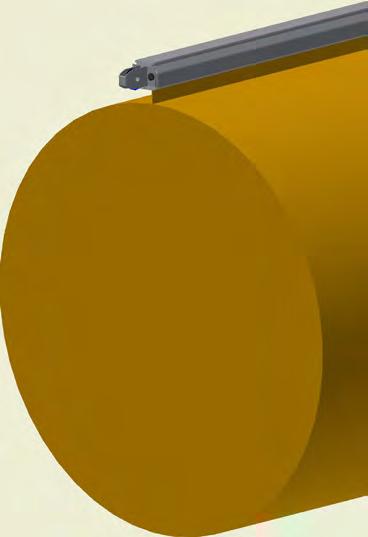

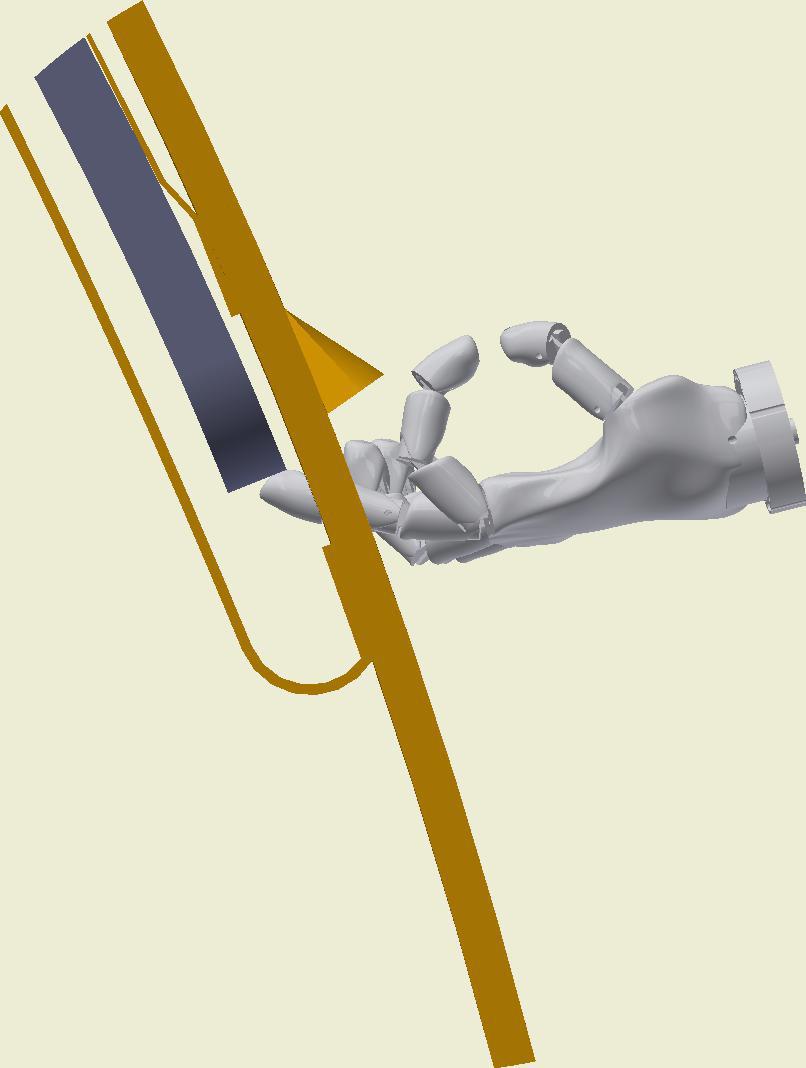

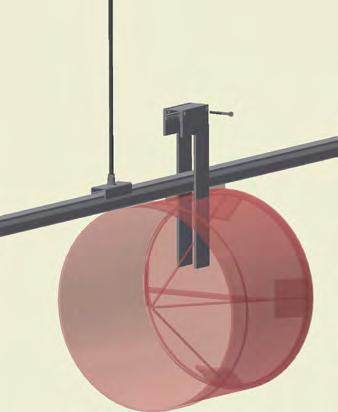

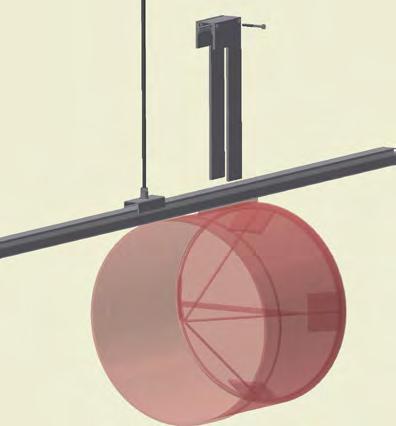

At the end of the duct, lower the SafeStretch Bracket (without the grub screw) over the track and into the duct through the 2 slots in the fabric duct section at 12 o’clock, until it ”snaps” onto the track. The bracket must be at an angle so one groove sits in place on the rail, and then it can be clicked on. Make sure it is placed so that it is in front of the horizontal strut. Insert the screw, but do not tighten it fully yet, as the bracket still has to be moveable/adjustable (for a more detailed view, see OS-0022-GB-02).
At the end of the duct, lower the SafeStretch Bracket (without the set screw) over the track and into the duct through the 2 slots in the fabric duct section at 12 o'clock, until it "snaps" onto the track. The bracket must be at an angle so one groove sits in place on the rail, and then it can be clicked on. Make sure it is placed so that it is in front of the horizontal strut. Insert the screw, but do not tighten it fully yet, as the bracket still has to be moveable/adjustable.
- For a more detailed view, see OS-0022-EN-01
Safetrack, SafeStretch, Single Suspension
OS-0022-GB-02
Safetrack Suspension Options
OS-0004-GB-05
OS-0004-DK-05
Monter skinnesystem efter tegninger og vedlagte montagevejledninger.
Install rail system according to drawings and enclosed mounting instructions. Please note below installation of rail systems with SafeCeil option (A).
Vær opmærksom på at hvis det er med SafeCeil(A) kan de monteres på skinne som vist herunder.
A. SafeCeil
A.SafeCeil
B. Wood screw (M6)
B.Træskrue (M6)
G.M8
Suspension type
Ophæ ngs typer.
Refer to the OC/delivery note for chosen suspension type.
Se i odrebekræftelsen hvilken type der er valgt til ophængs systemet
C. Expansion bolt (M6)
H.M6 Strap-up
C.Expansion (M6)
D. M6 thread flange
D.M6 Gevindflange (M6)
E. Wire with M6 eyebolt
E.Wire med M6 Øjebolt (M6)
F. SafeStrapUp
F.Safestrapup (M6)
G. M8 Alu
D C B E F
Smart-Adjust StrapUp:
I.M6/Øjebolt Strap-up
H. M6
J.Krog Strap-up
I. M6 eyebolt
K.Zinkplade Strap-up
J. Hook
K. Zinc plate
H I J K
Safetrack
OS-0005-DK-03
OS-0005-GB-03
SafeVulst (kl. 3 og 9)
SafeBulb (3 and 9 o’clock)
SafeSlider (kl. 3 og 9)
SafeSlider (3 and 9 o’clock)
H=Ø/2-mounting height Ex.: Ø630/2-46=269 mm
H= Ø/2-montagehøjde Eks. Ø630/2-46=269 mm
1 2 3 1 2 3

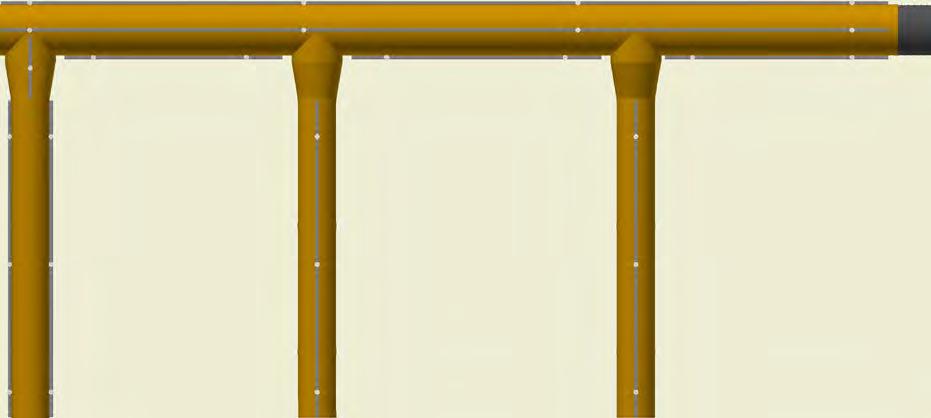

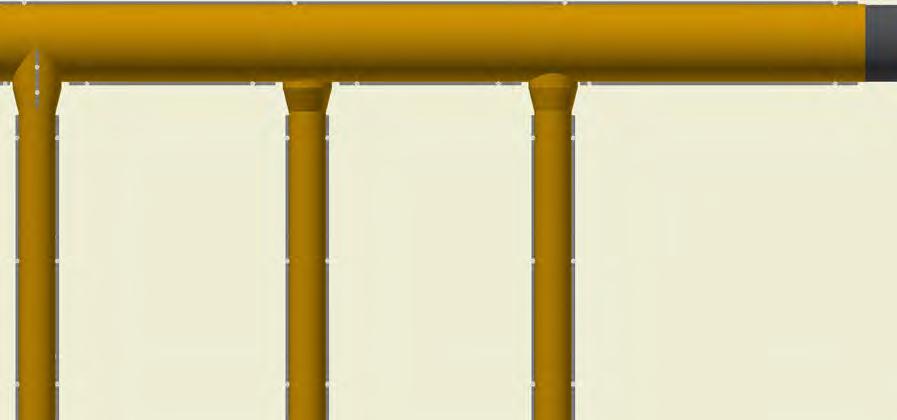

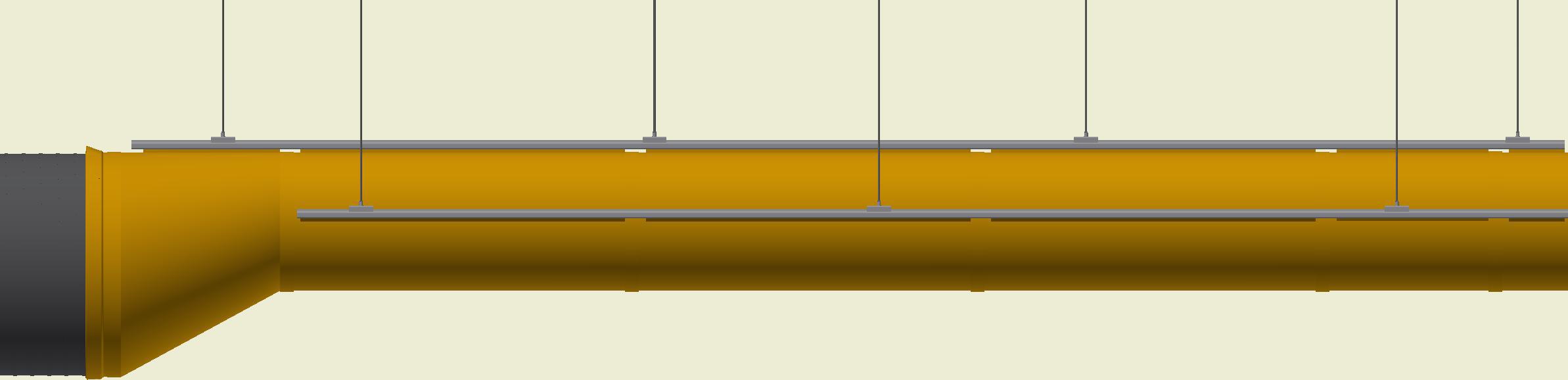

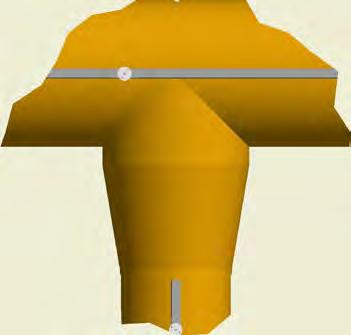

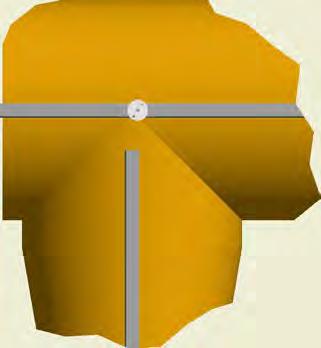

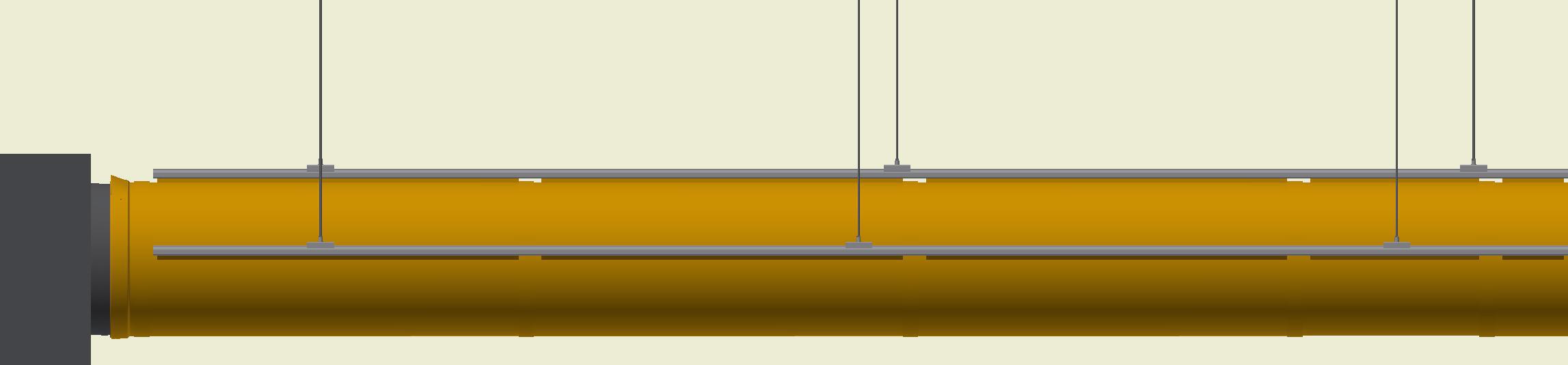

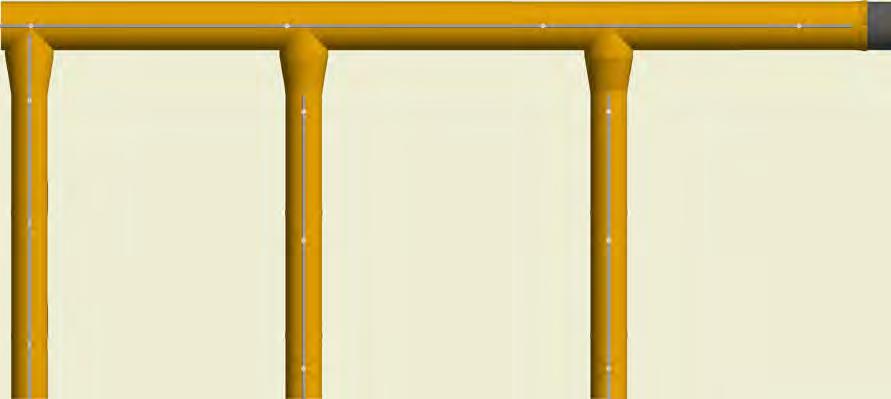

Safetrack, Plenum, Double Suspension
OS-0006-GB-03
Ved ret underkant beregnes
højdeforskellen Z1 således:
For ducts flat on bottom: Height difference Z1 is calculated as follows:
ø Fordeler/2 - Ø Forgrening/2 = Z1
(Ø plenum/2)-(Ø duct/2)=Z1
Ex.: Plenum Ø630 mm, duct Ø300 mm: (630/2)-(300/2)=165 mm
Eks: Fordeler ø630 mm - Forgrening Ø300 mm: (630/2) - (300/2) = 165 mm
B A
Note for sockets
Sockets exceeding 500 mm L and with flat top allow for 1 row of suspension
Note for studse 1 række ophæng er mulig ved studse, hvor L er over 500 mm, og studsen er placeret med Ret overkant

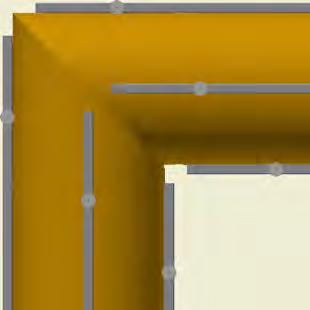

Safetrack Options, Double Suspension

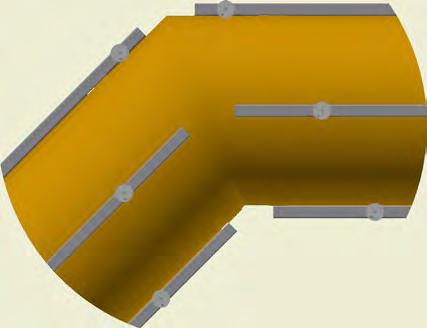

Rolled Bend 45° / Rolled Bend 90°

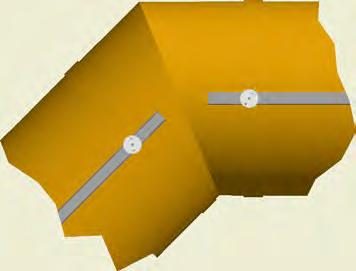

KE-Bend 45° / KE-Bend 90°
Safetrack, KE-SRD 25
OS-0013-GB-03
OS-0013-DK-02
With or without zipper

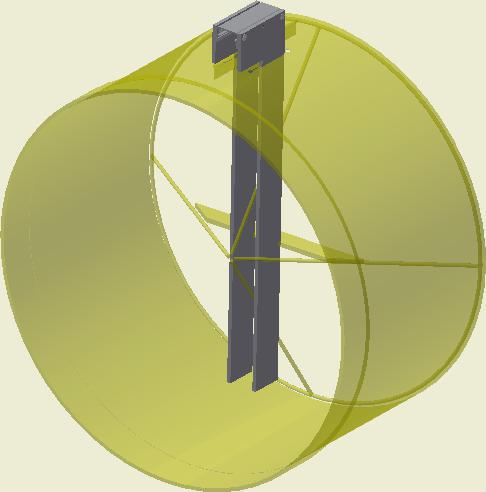

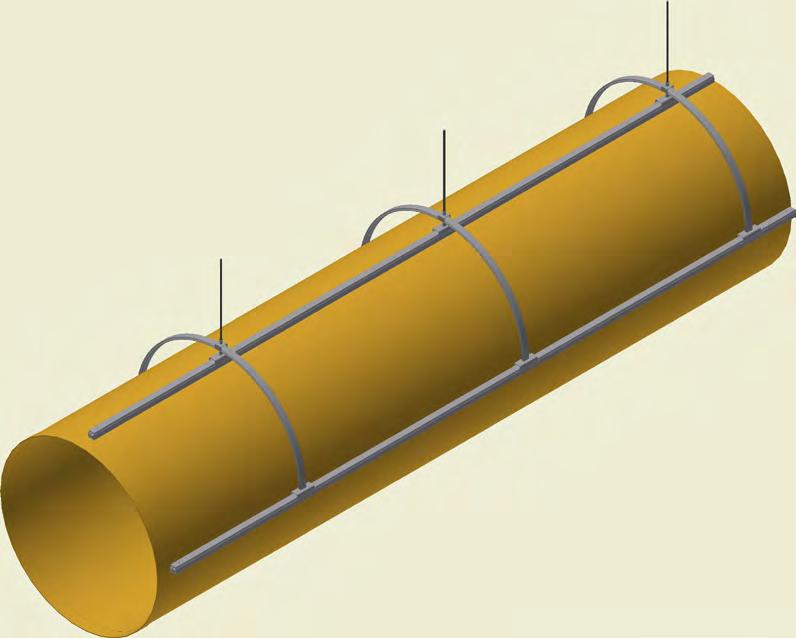

Safetrack, Safe 360, Double Suspension
OS-0015-GB-02
Duct diameter Ring size
Ø200-Ø630 mm: 3 mm
Ring Dimension:
200 - 630 = ø3
Ø631-Ø1270 mm: 4 mm
631 - 1270 = ø4
If duct diameter exceeds 500 mm rings are included separately (to be installed on site)
Poser over Ø500 Medsendes ringende løst
1000mm

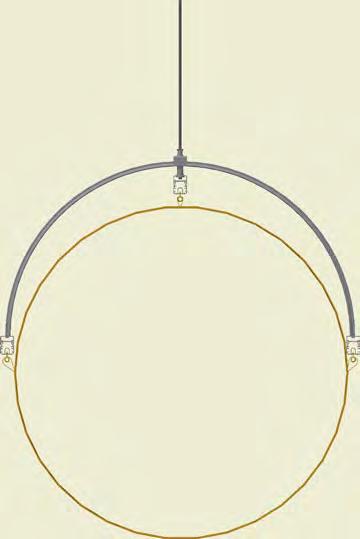

Safetrack, Dual Arch, Double Suspension
OS-0017-GB-04
OS-0017-DK-03
SafeBulb
SafeSlider 90 mm
SafeSlider 90 mm
SafeVulst 70 mm
SafeBulb 70 mm
SafeSlider
Safetrack Suspension Options
OS-0004-GB-05
OS-0004-DK-05
Monter skinnesystem efter tegninger og vedlagte montagevejledninger.
Install rail system according to drawings and enclosed mounting instructions. Please note below installation of rail systems with SafeCeil option (A).
Vær opmærksom på at hvis det er med SafeCeil(A) kan de monteres på skinne som vist herunder.
A. SafeCeil
A.SafeCeil
B. Wood screw (M6)
B.Træskrue (M6)
G.M8
Suspension type
Ophæ ngs typer.
Refer to the OC/delivery note for chosen suspension type.
Se i odrebekræftelsen hvilken type der er valgt til ophængs systemet
C. Expansion bolt (M6)
H.M6 Strap-up
C.Expansion (M6)
D. M6 thread flange
D.M6 Gevindflange (M6)
E. Wire with M6 eyebolt
E.Wire med M6 Øjebolt (M6)
F. SafeStrapUp
F.Safestrapup (M6)
G. M8 Alu
D C B E F
Smart-Adjust StrapUp:
I.M6/Øjebolt Strap-up
H. M6
J.Krog Strap-up
I. M6 eyebolt
K.Zinkplade Strap-up
J. Hook
K. Zinc plate
H I J K
Safetrack
OS-0005-GB-03 SafeBulb (12 o’clock)
Safevulst (kl.12)
(3 and 9 o’clock)
Length of cone + 20 mm
Offset (H)
Offset (H)
(kl.3,9)
Konuslængde + 20 mm
Length of cone + 20 mm
H=Ø/2-mounting height Ex.: Ø630/2-46=269 mm
H = Ø/2 - Montagehøjde Eks. Ø630/2 - 46 = 269 mm
1 2 3
Safetrack, Plenum, Triple Suspension
OS-0006-DK-03
OS-0006-GB-03
B C D E
B C D E
For ducts flat on bottom:
Ved ret underkant beregnes højdeforskellen Z1 således:
ø Fordeler/2 - Ø Forgrening/2 = Z1
Height difference Z1 is calculated as follows: (ø plenum/2) - (Ø duct/2) = Z1
Ex.: Plenum ø630 mm, duct Ø300 mm: (630/2) - (300/2) = 165 mm
Eks: Fordeler ø630 mm - Forgrening Ø300 mm: (630/2) - (300/2) = 165 mm
Note for sockets 1 row of suspension is possible if duct exceeds L 500 mm and is flat on top.
Note for studse 1 række ophæng er mulig ved studse, hvor L er over 500 mm og studsen er placeret med Ret overkant
G F A-A
G F A A
