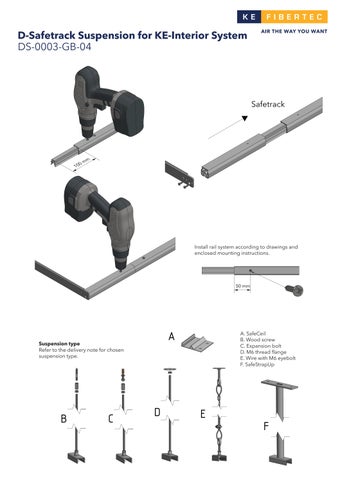

D-Safetrack Suspension for KE-Interior System
DS-0003-GB-04
DS-0003-DK-04
Safetrack

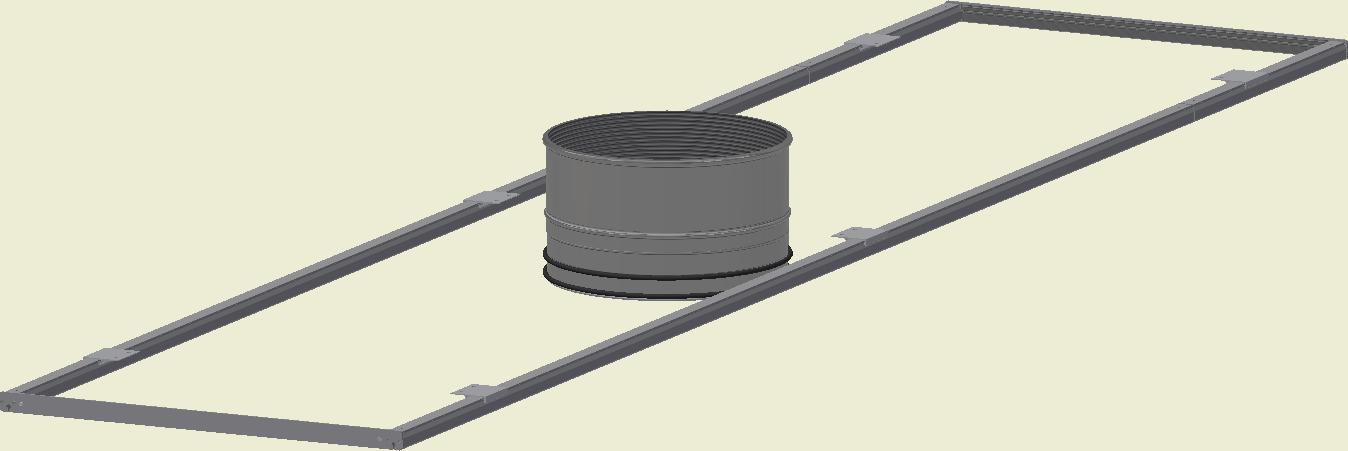

Monter skinnesystem efter tegninger og vedlagte montagevejledninger
Install rail system according to drawings and enclosed mounting instructions.

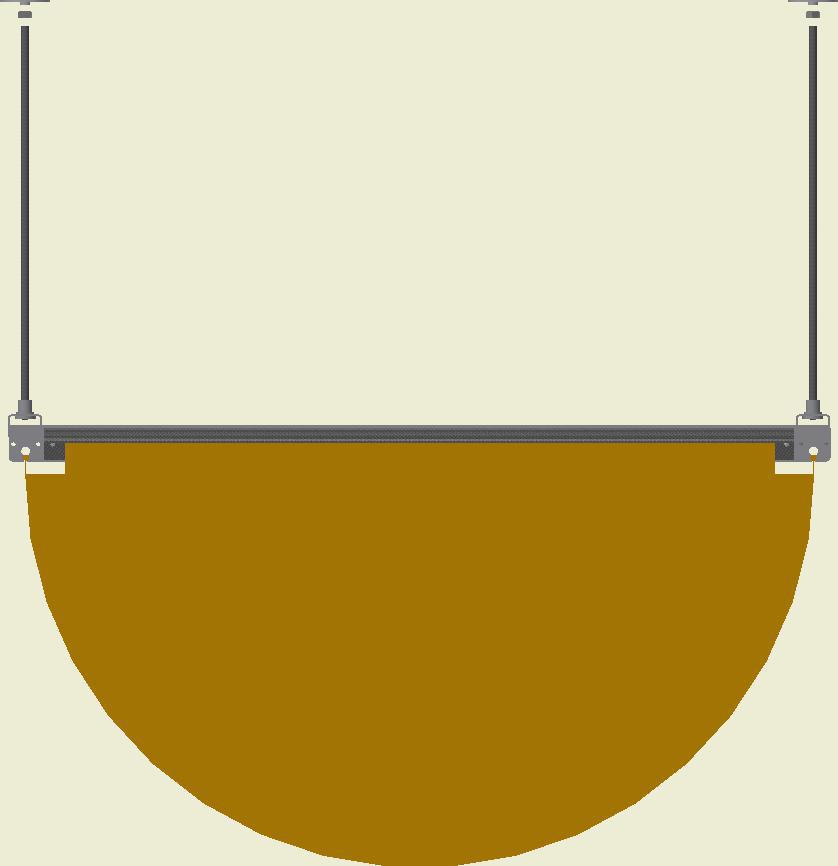

50 mm

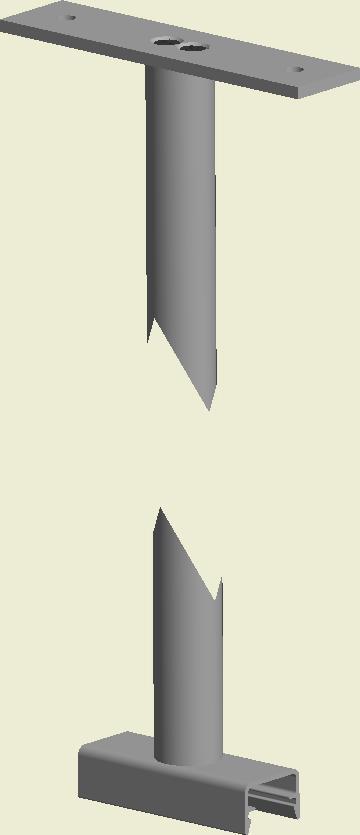

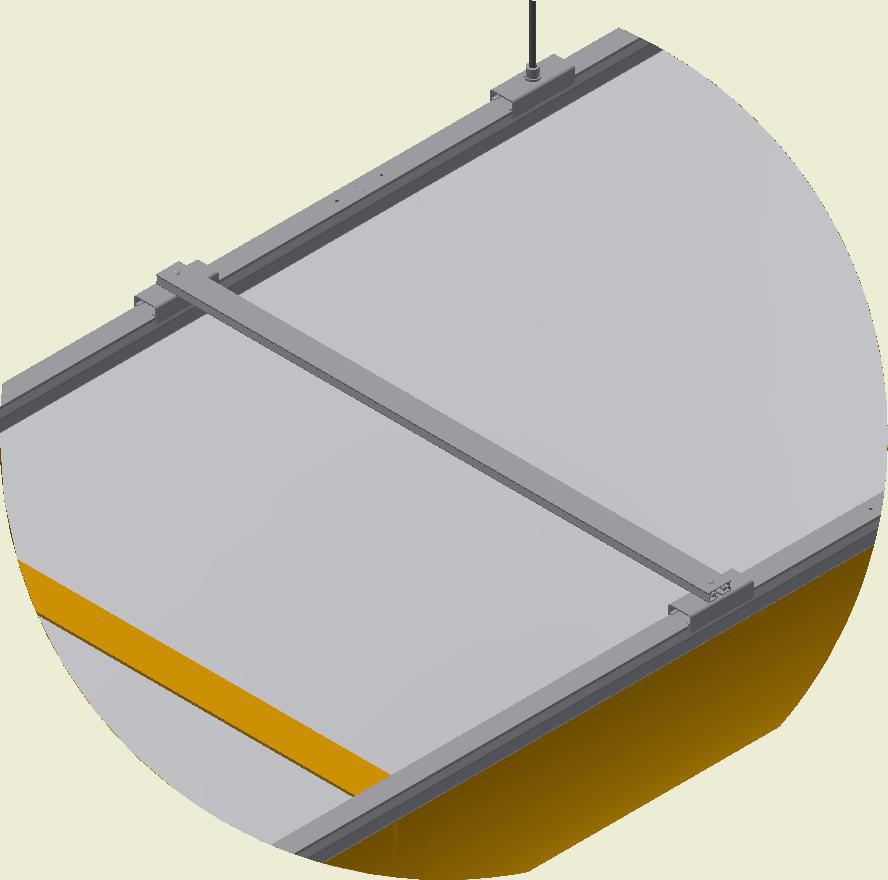

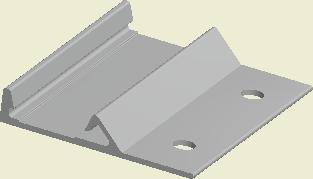

Ophæ ngs typer.
Suspension type
Se i odrebekræftelsen hvilken der er valgt til ophængs systemet A
Refer to the delivery note for chosen suspension type.
A.SafeCiel
A. SafeCeil
B.Træskrue
B. Wood screw
C.Expansion
C. Expansion bolt

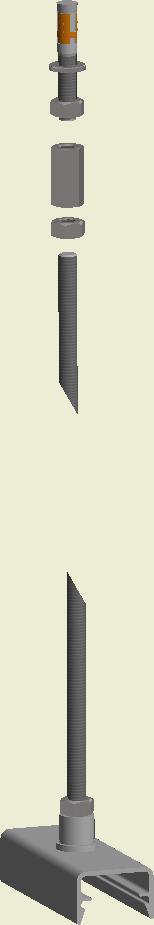

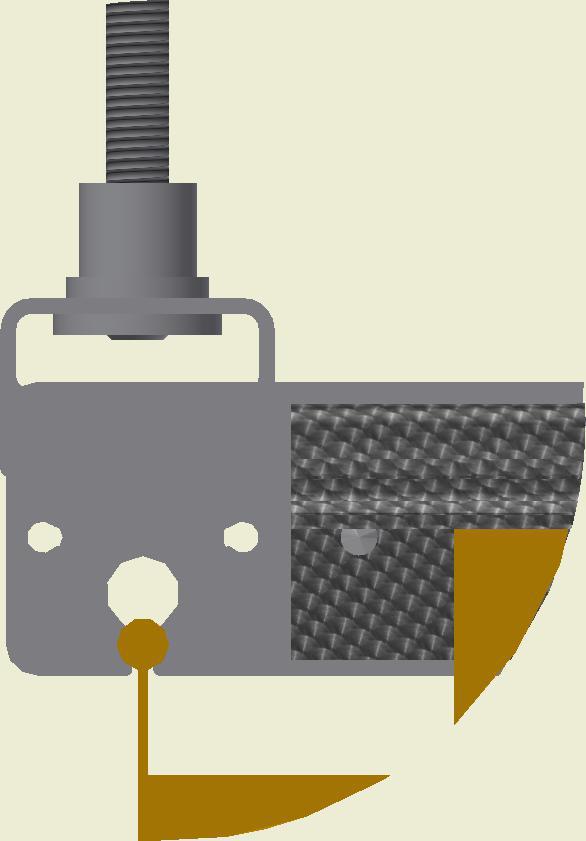

D. M6 thread flange
D.M6 Gevindflange

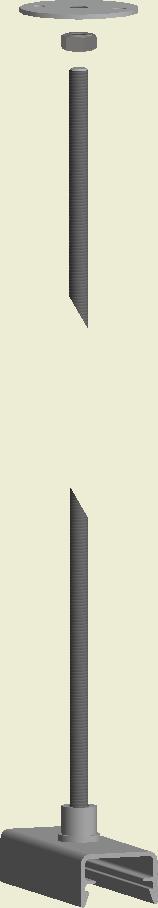

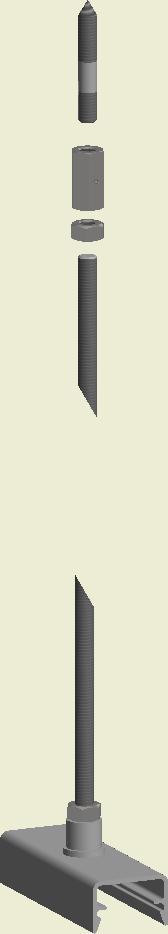

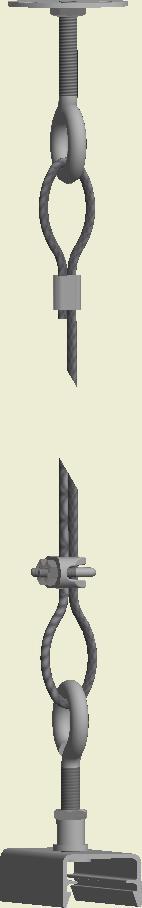

E. Wire with M6 eyebolt
E.Wire med M6 Øjebolt
F. SafeStrapUp
F.Safestrapup

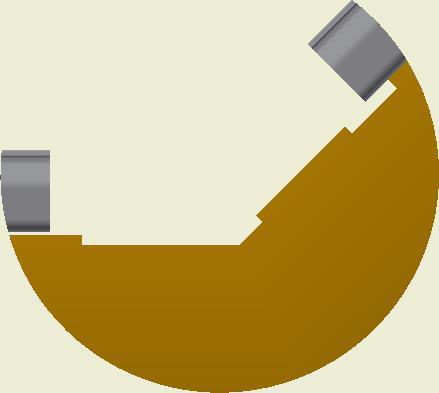

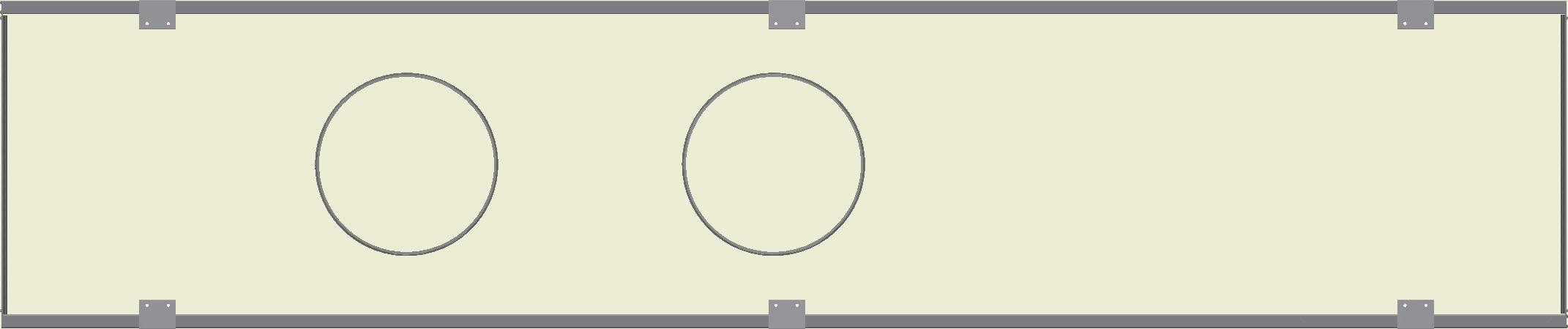

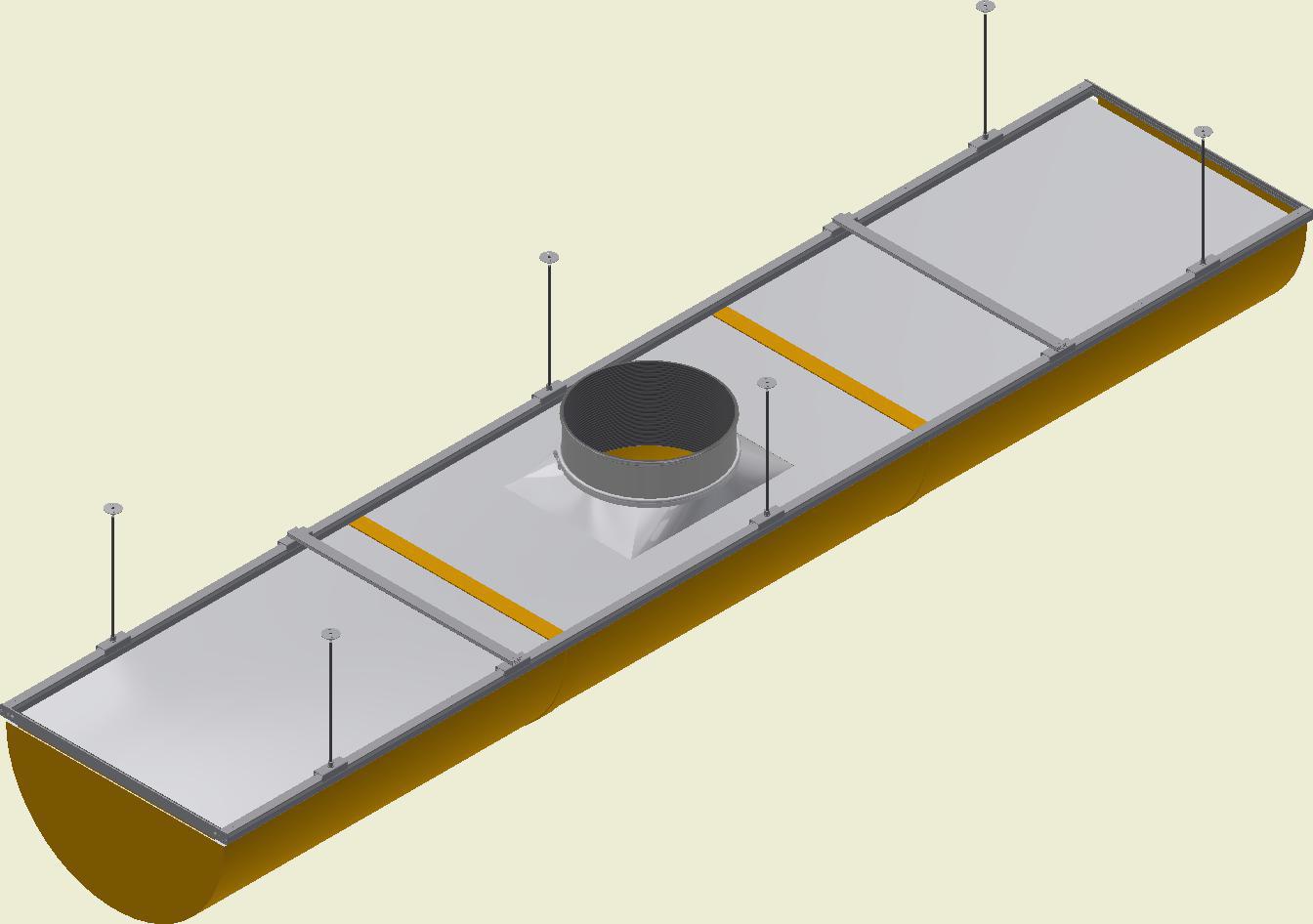

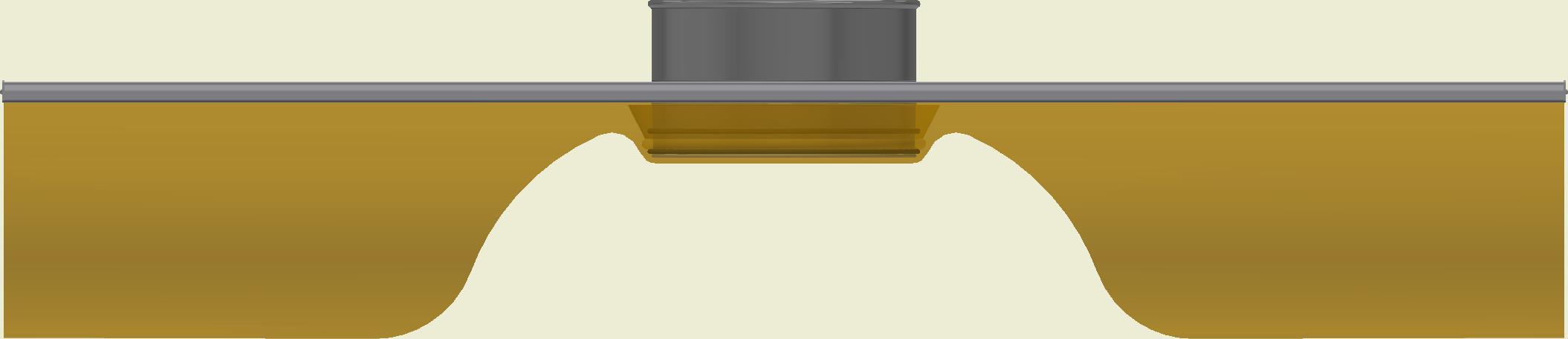

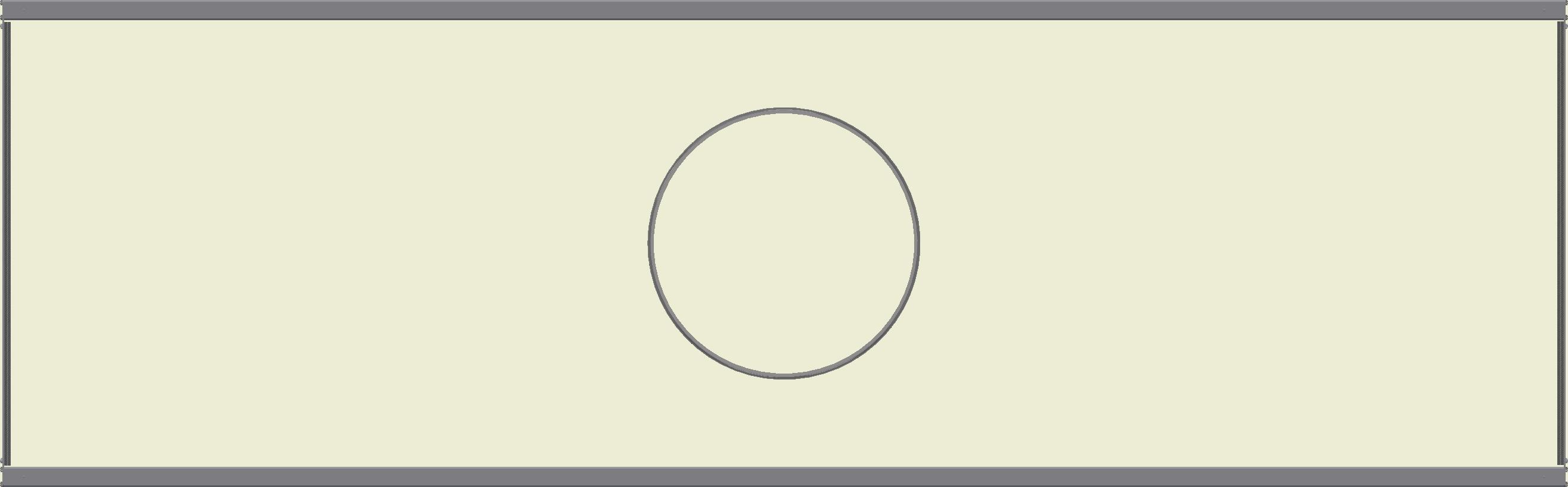

D-Safetrack for KE-Interior System (Straight Duct)
DS-0004-DK-03
DS-0004-GB-03

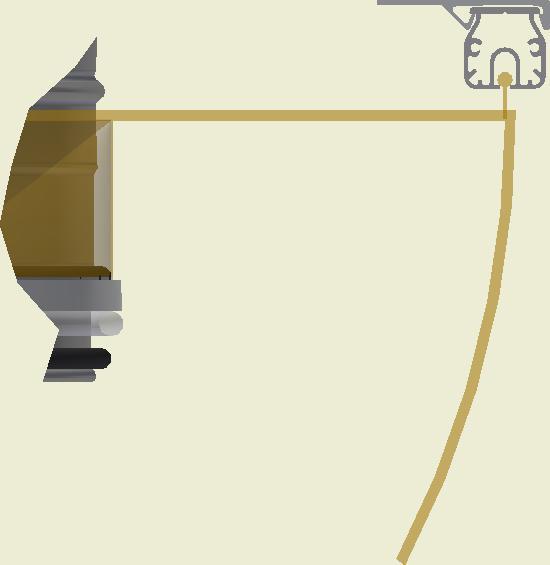

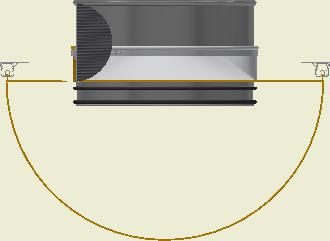

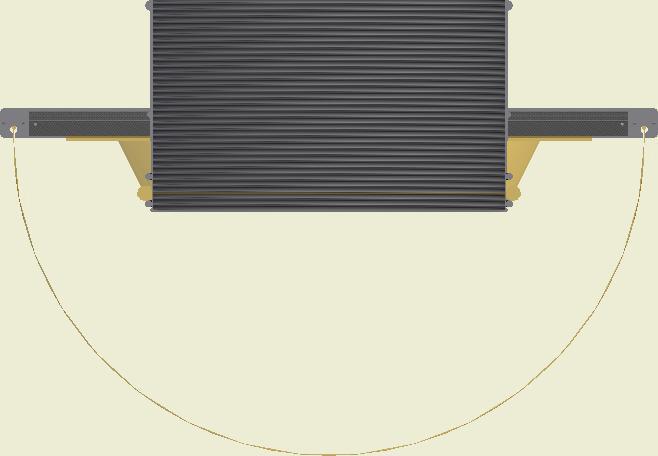

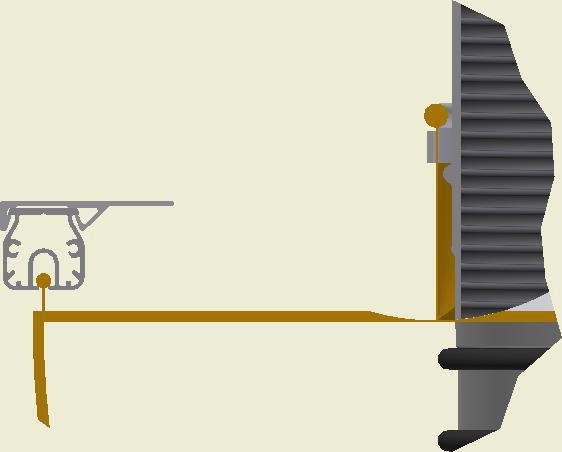

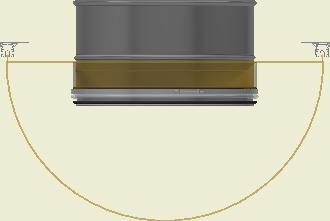

Min. Højde (LS) ombuk snor = 50mm Max.
Min. height (LS) edge/cord = 50 mm
Diameter (Ø) = W - 50mm
Max. diameter (Ø) = W -50 mm
Hvis montering af studs er mulig over loft behøves der ingen lynlås i nærheden af studs.
If it is possible to mount the socket above a false ceiling, a zipper near the socket on the duct is not necessary.
Hvis montage af studs skal ske indvendigt skal man være opmærksom på at placere mindst 1 lynlås tæt på studsen. Eller der skal laves en service Lynlås i buen.
If mounting of the socket must be done from inside the space you must place at least 1 zipper close to the socket. Otherwise a service zipper must be placed in the arc of the duct.

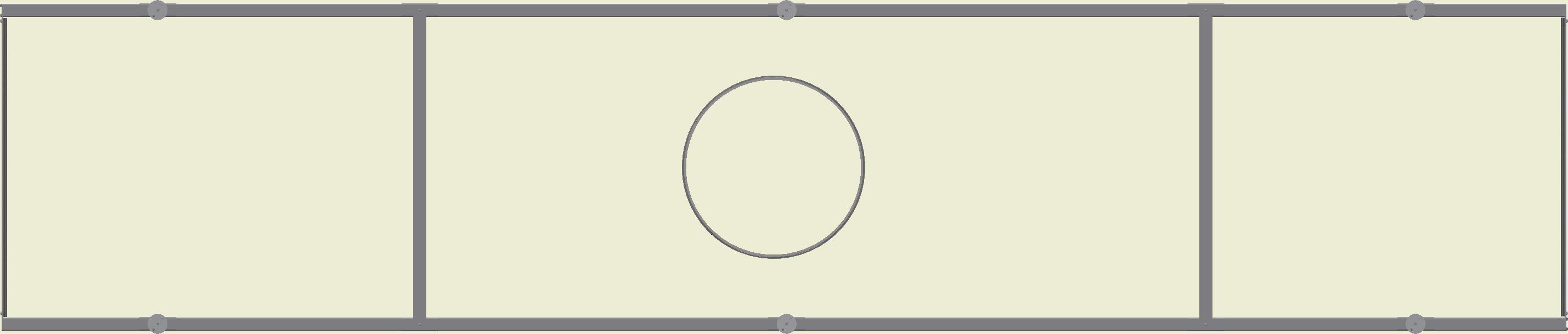

L = Duct length
LS = Length socket
L = Pose længde LS = Længde Studs
Ø = Studs Diameter H = Højde
Ø = Socket diameter
H = Height
W = Bredde
W = Width
O = Forsætning
O = Offset
A = Distance socket 1
A = Afstand studs 1 B = Afstand studs 2
B = Distance socket 2

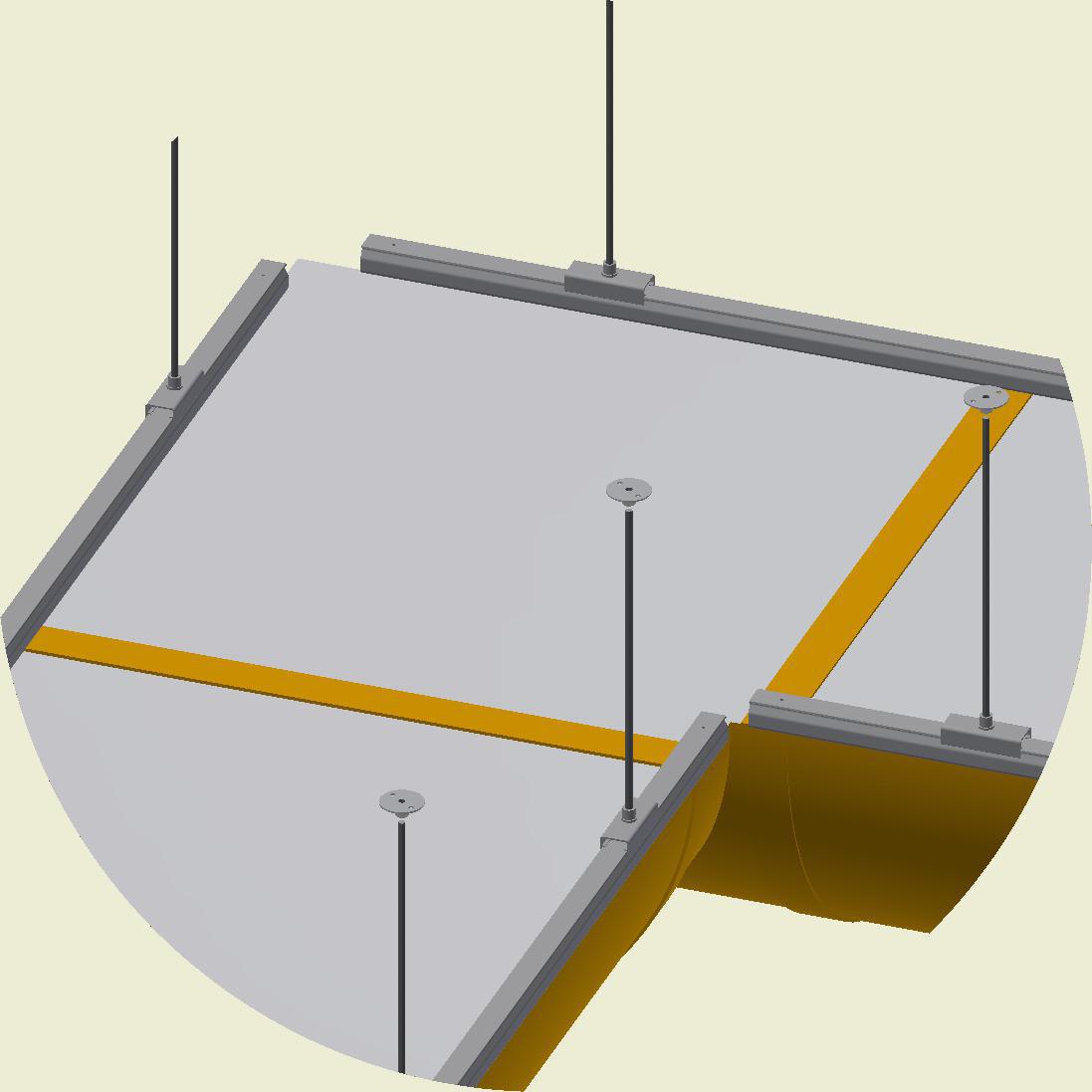

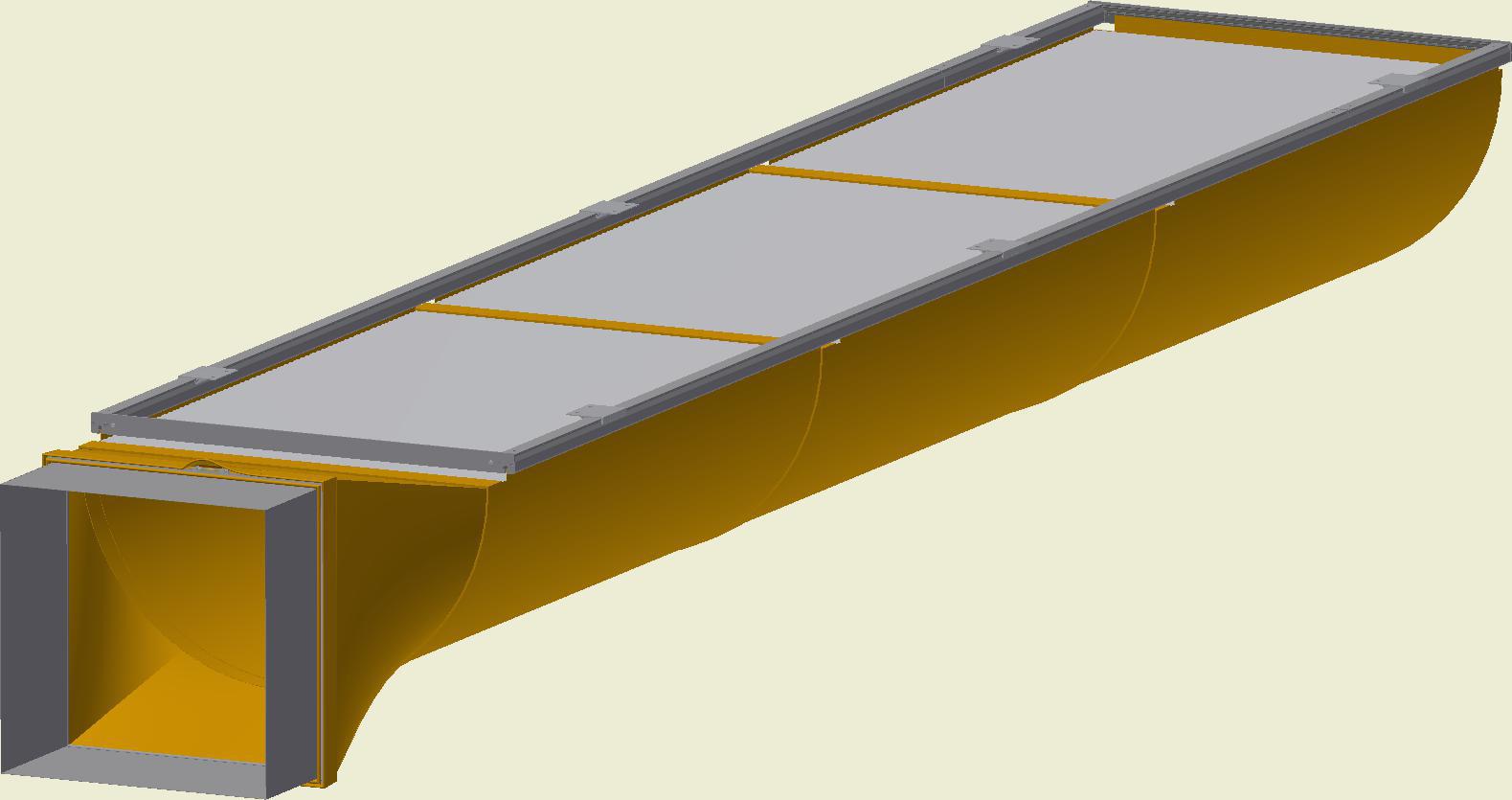

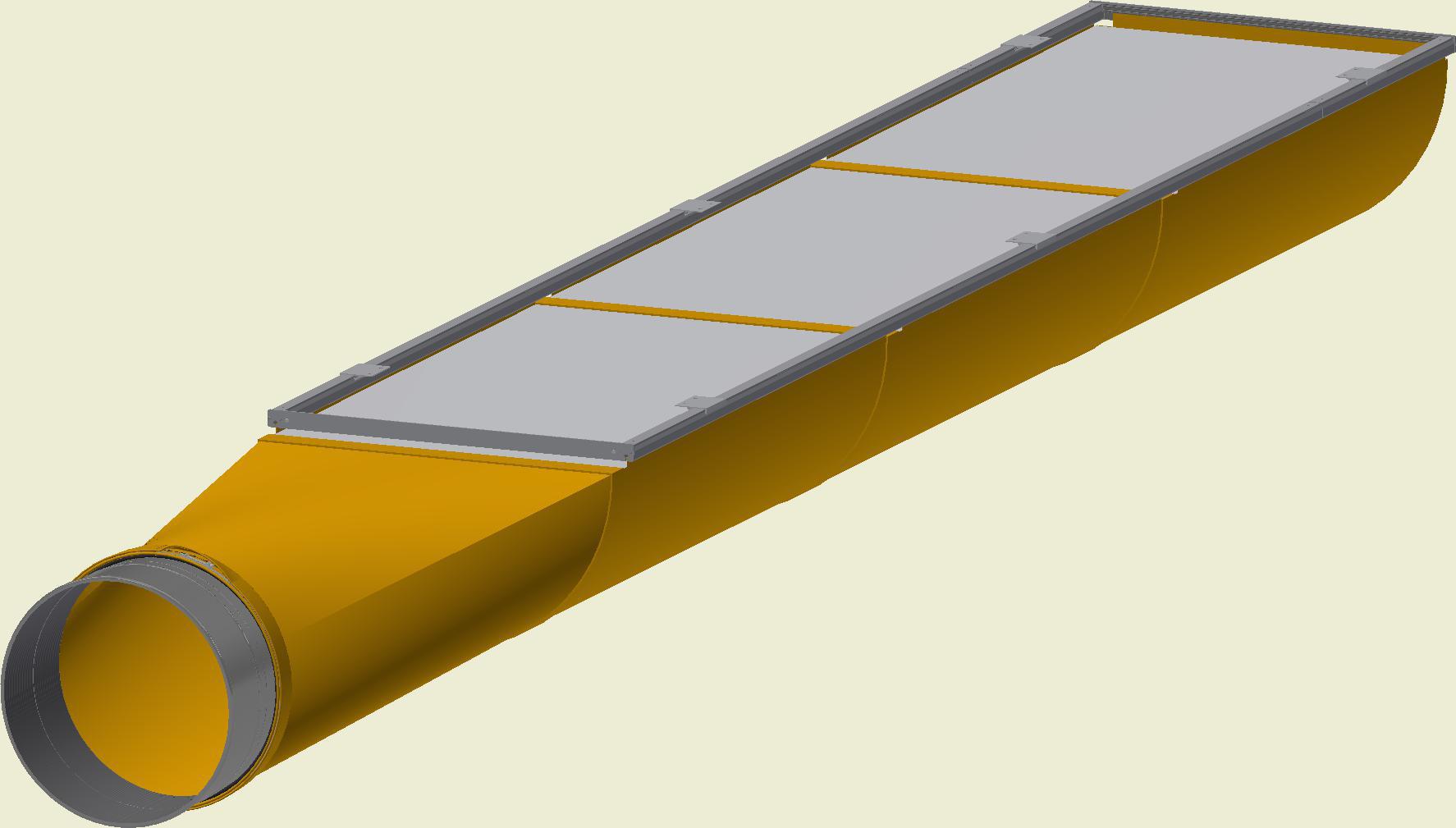

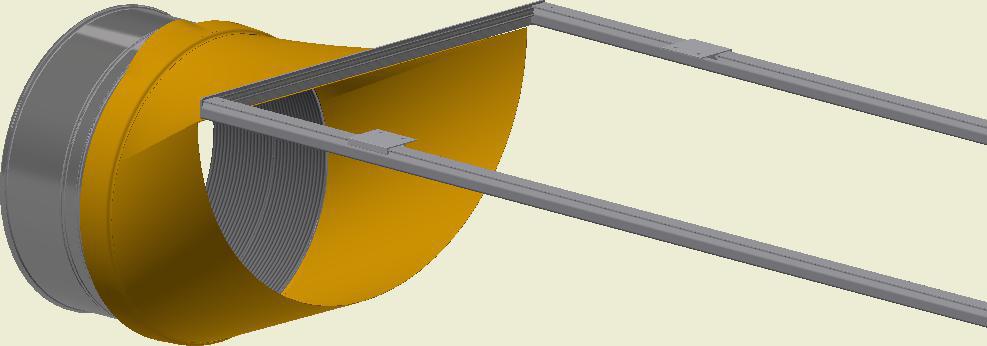

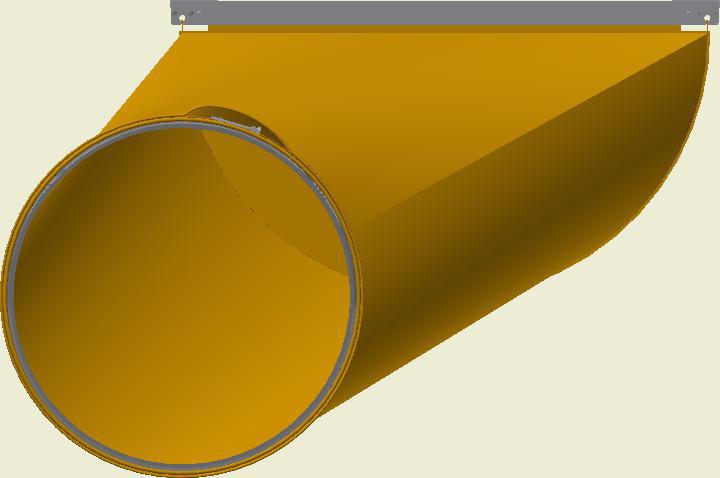

D-Safetrack for KE-Interior System (Inlet Options)
DS-0005-GB-03
L = Duct length
L = Pose længde
LS = Length socket
LS = Længde Studs
H = Height
Ø = Socket diameter
Ø = Studs Diameter
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
B = Afstand studs 2 DS-0005-DK-03
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2

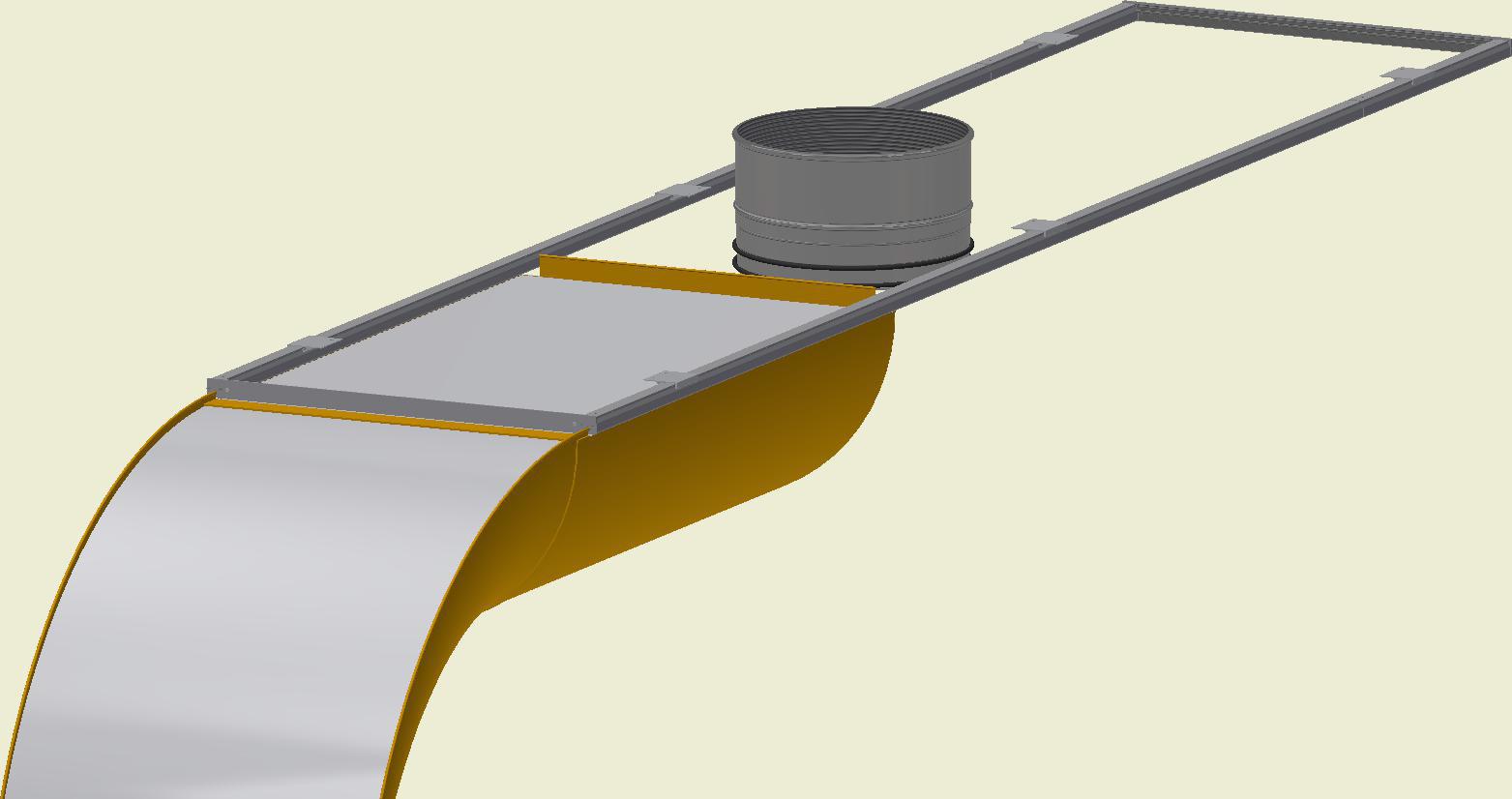

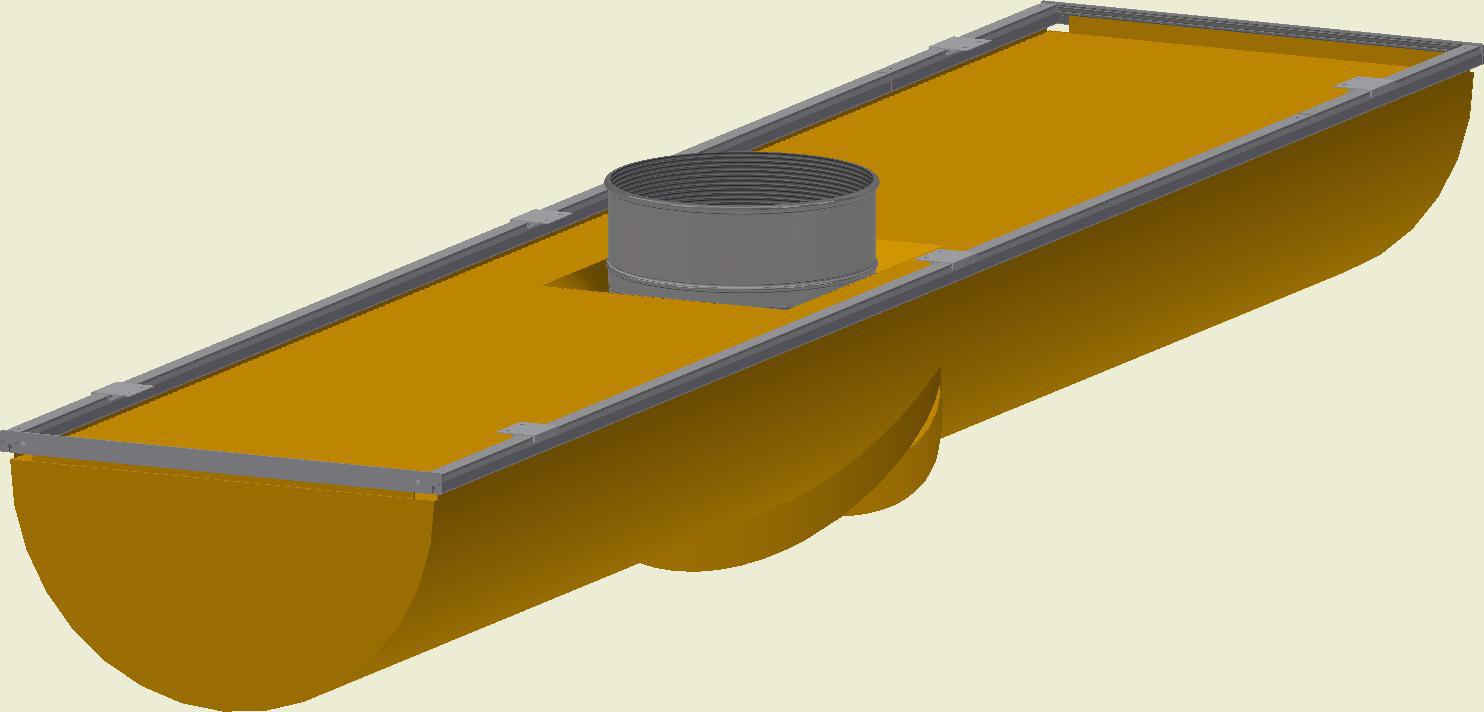

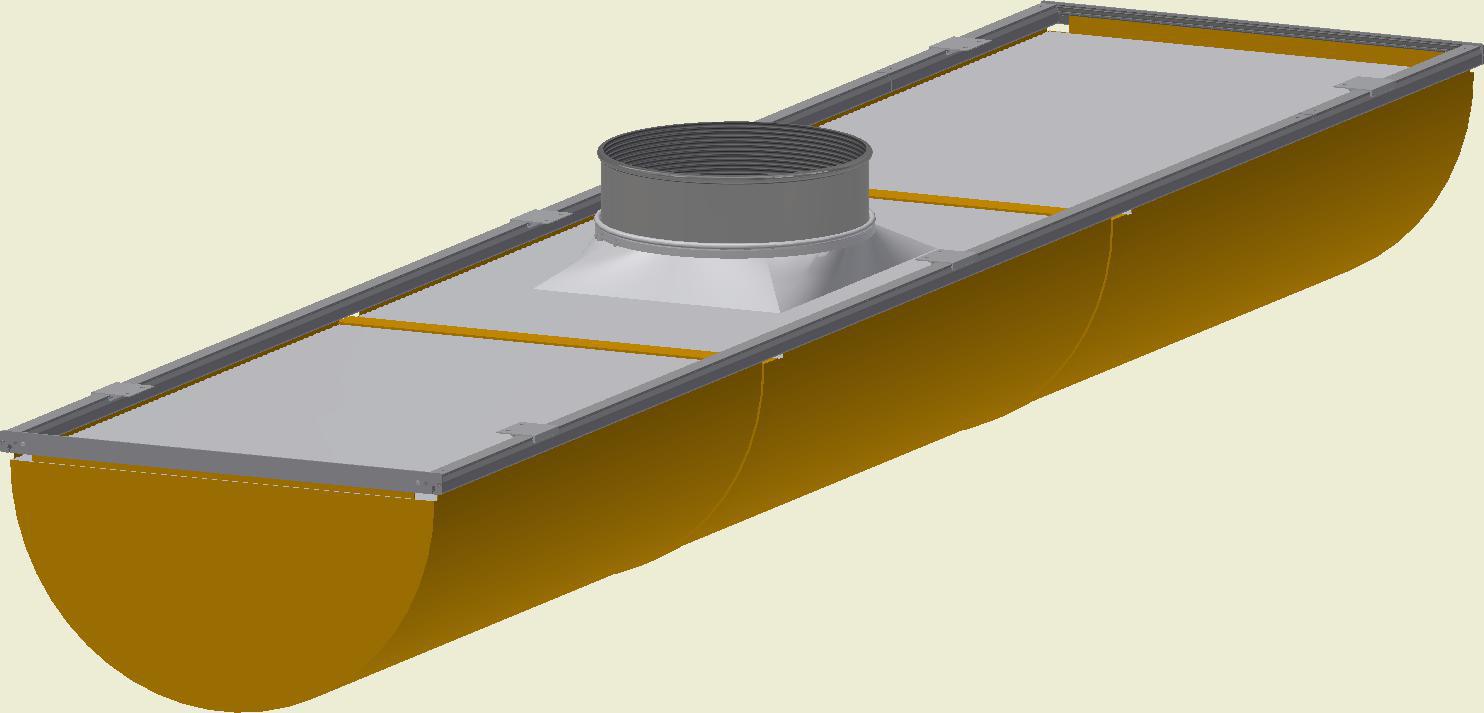

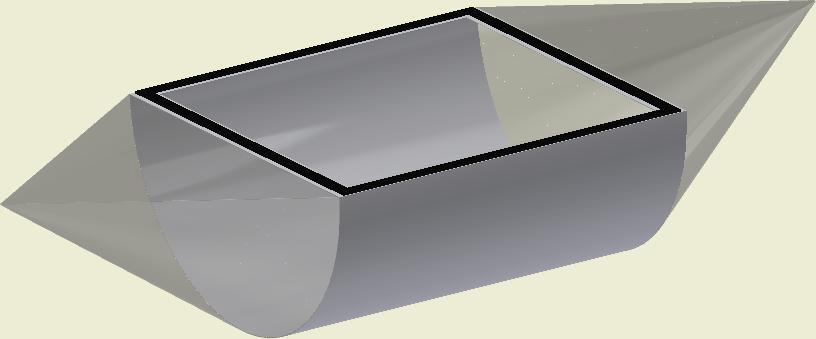

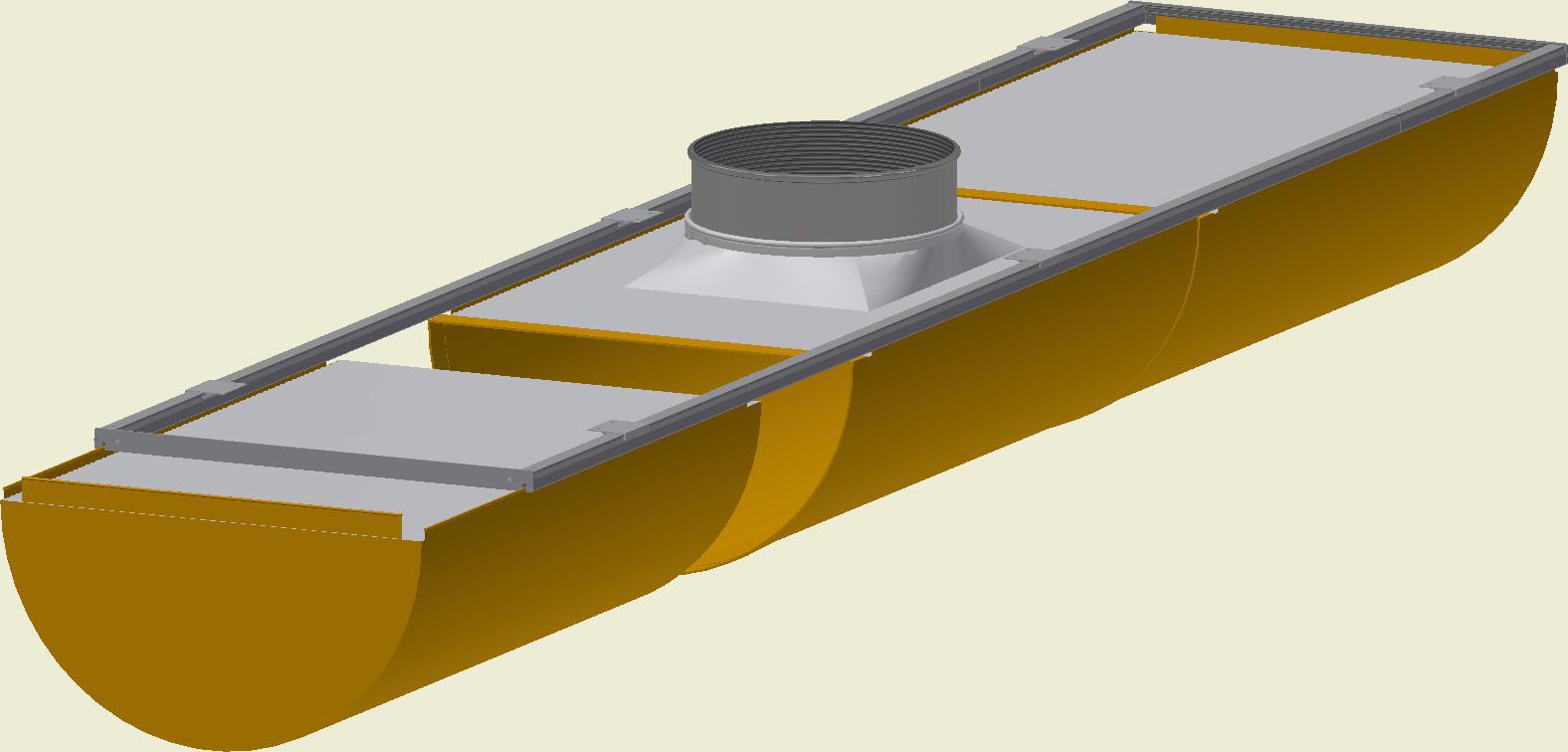

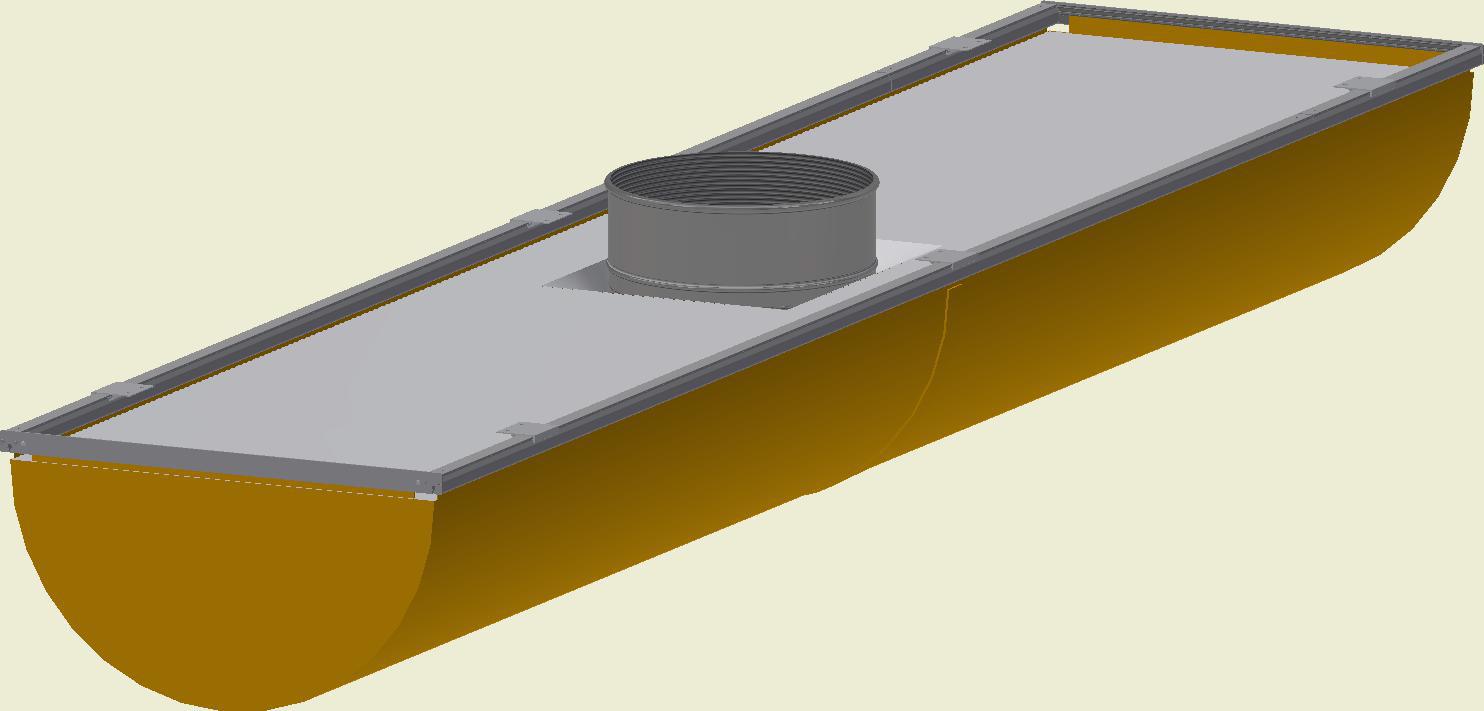

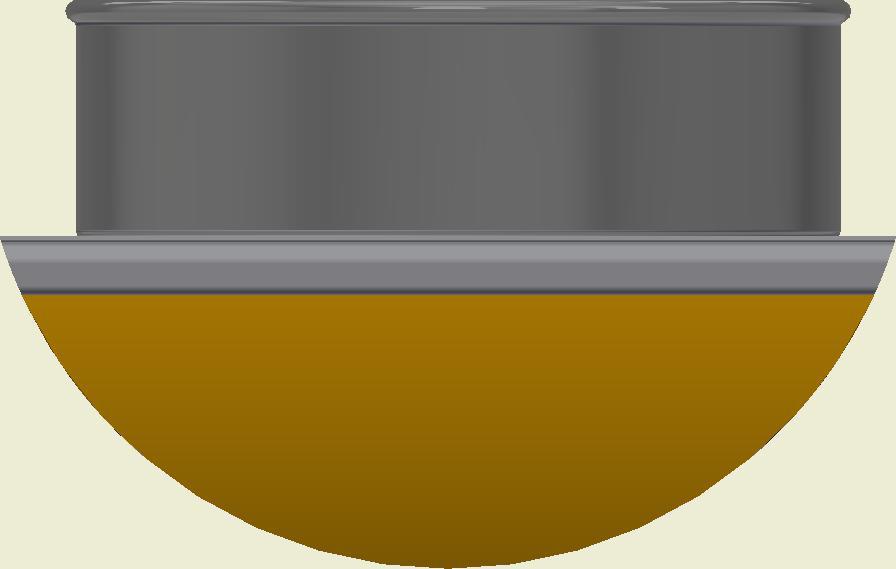

D-Safetrack for KE-Interior System (Plenum)
DS-0006-DK-03
DS-0006-GB-03
L = Duct length
LS = Length socket
L = Pose længde
Ø = Socket diameter
LS = Længde Studs
H = Height
Ø = Studs Diameter
W = Width
H = Højde
O = Offset
W = Bredde
O = Forsætning
A = Distance socket 1
A = Afstand studs 1
B = Distance socket 2
B = Afstand studs 2

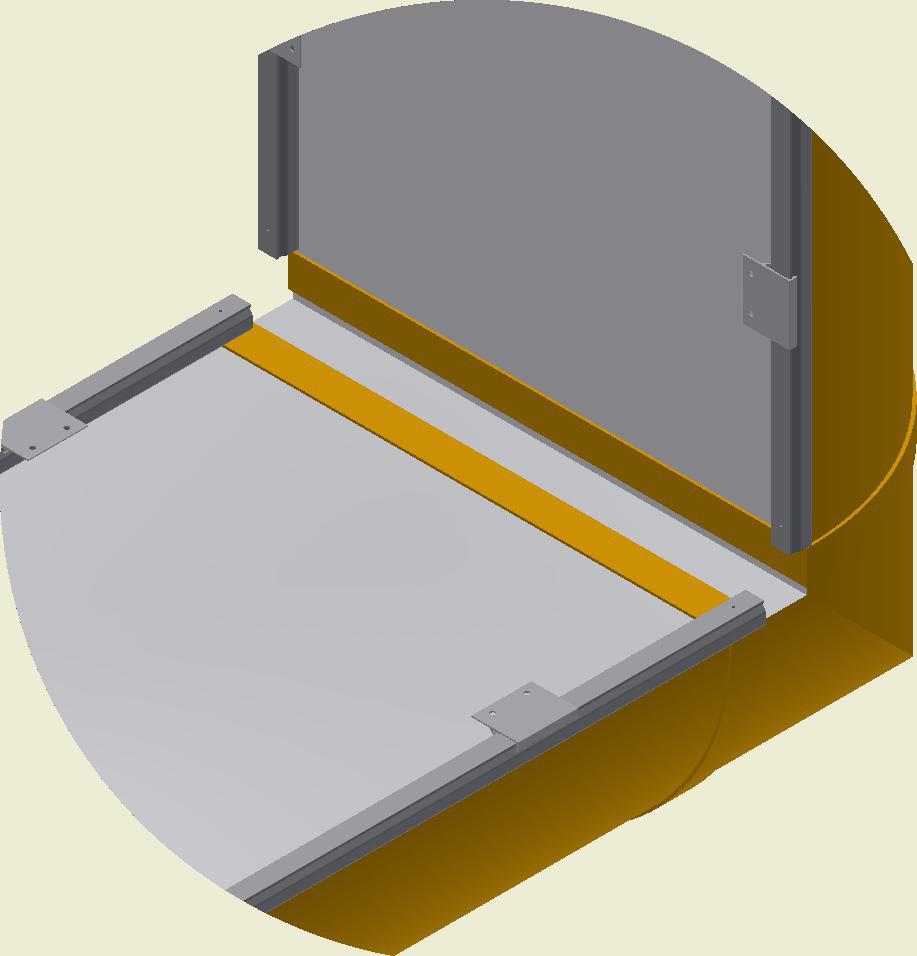

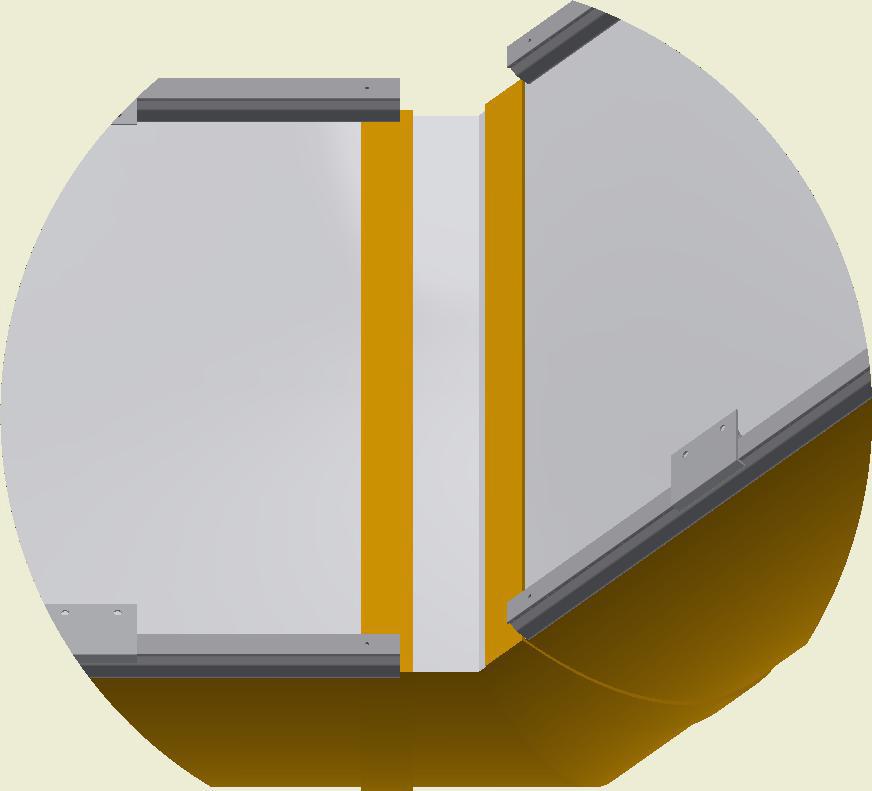

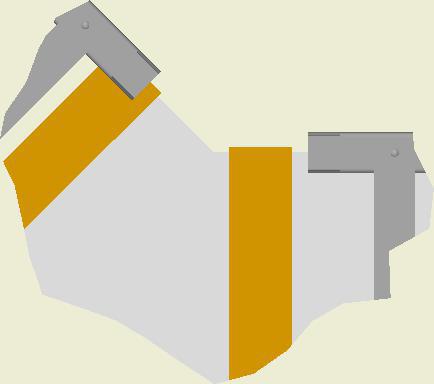

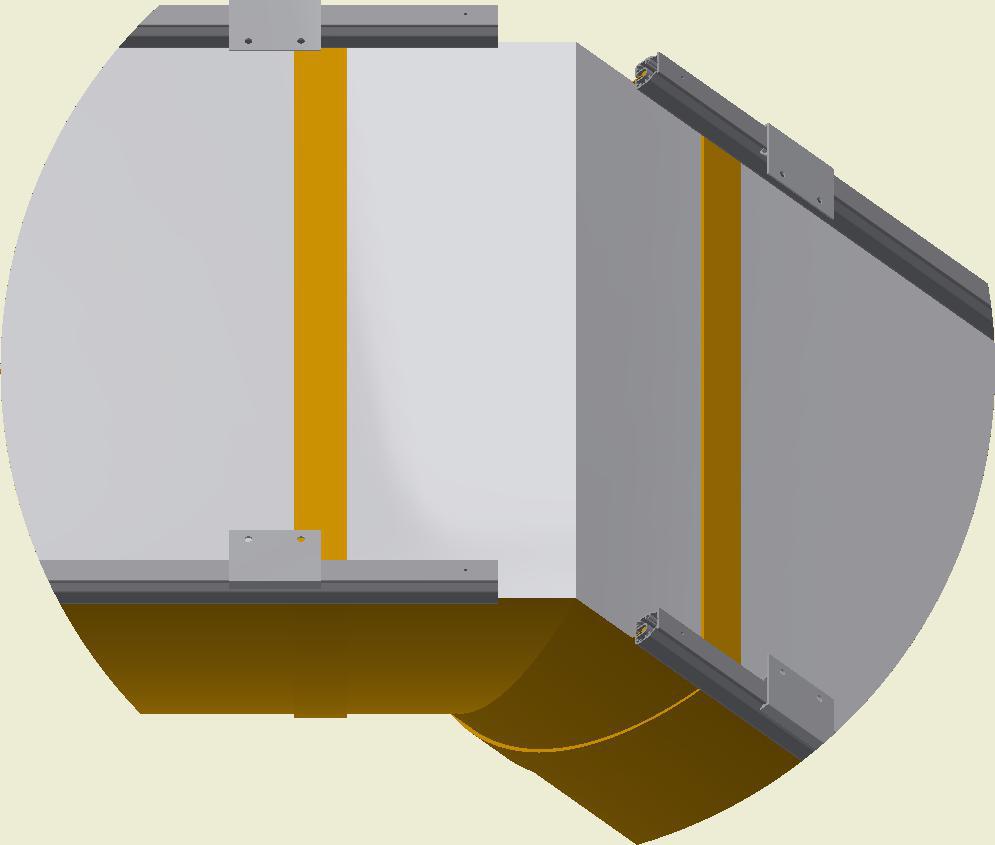

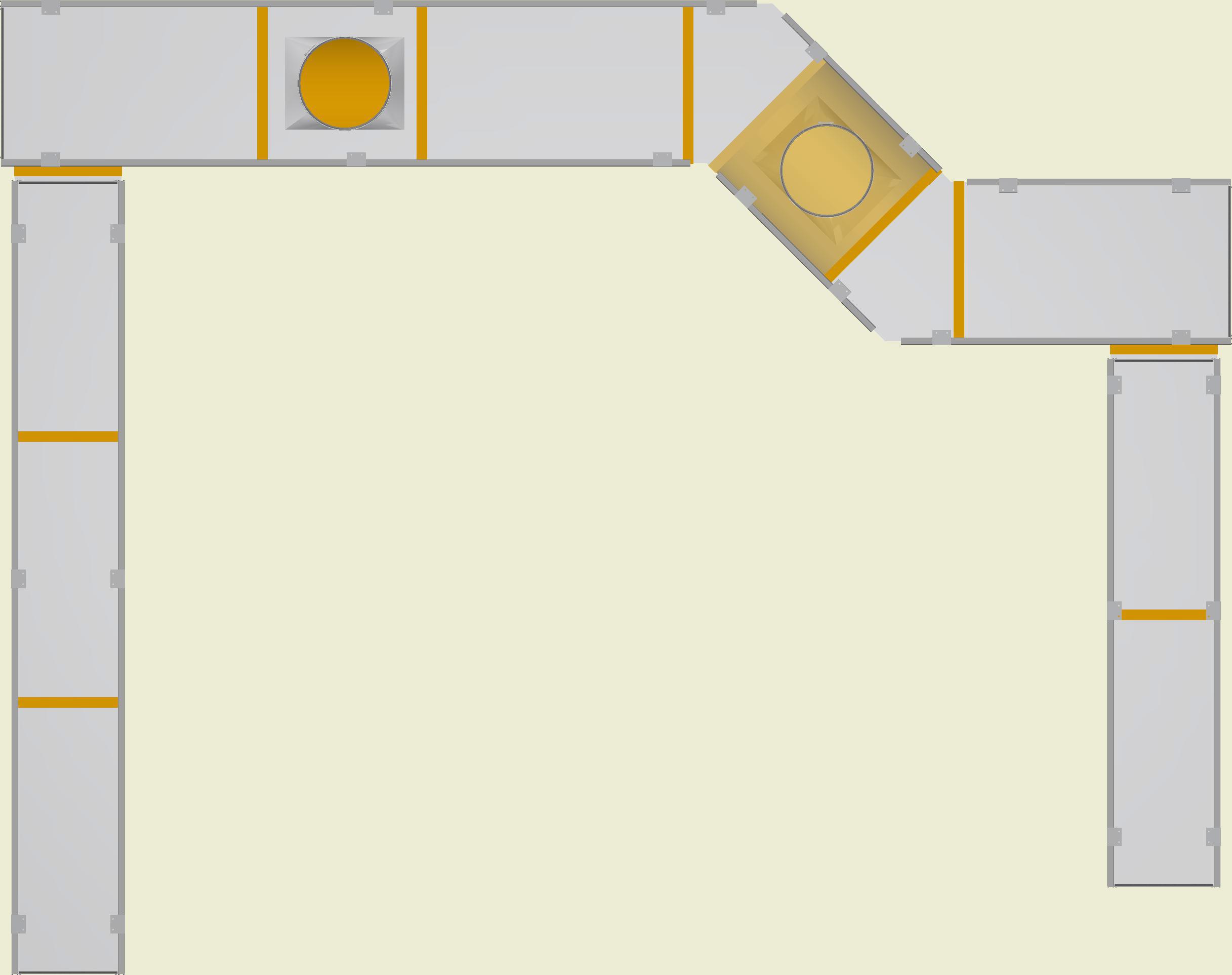

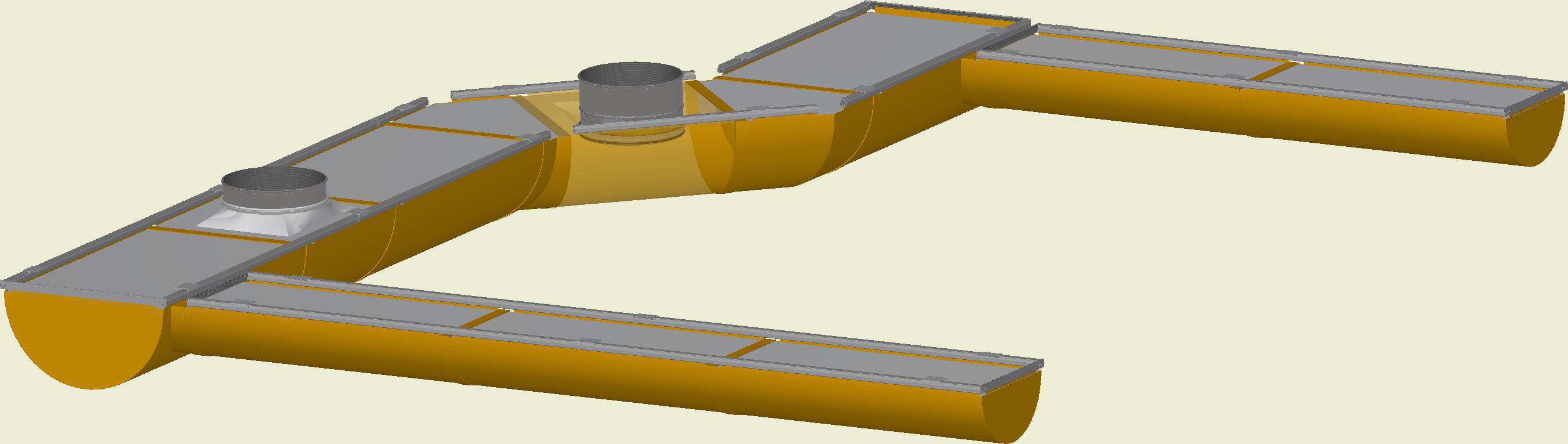

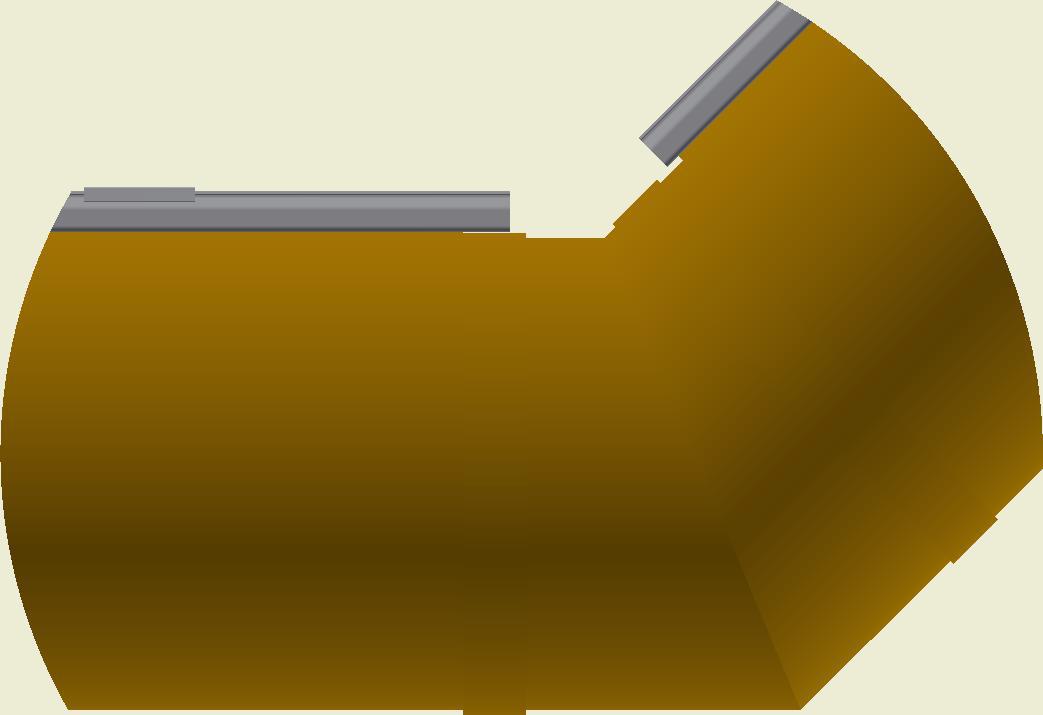

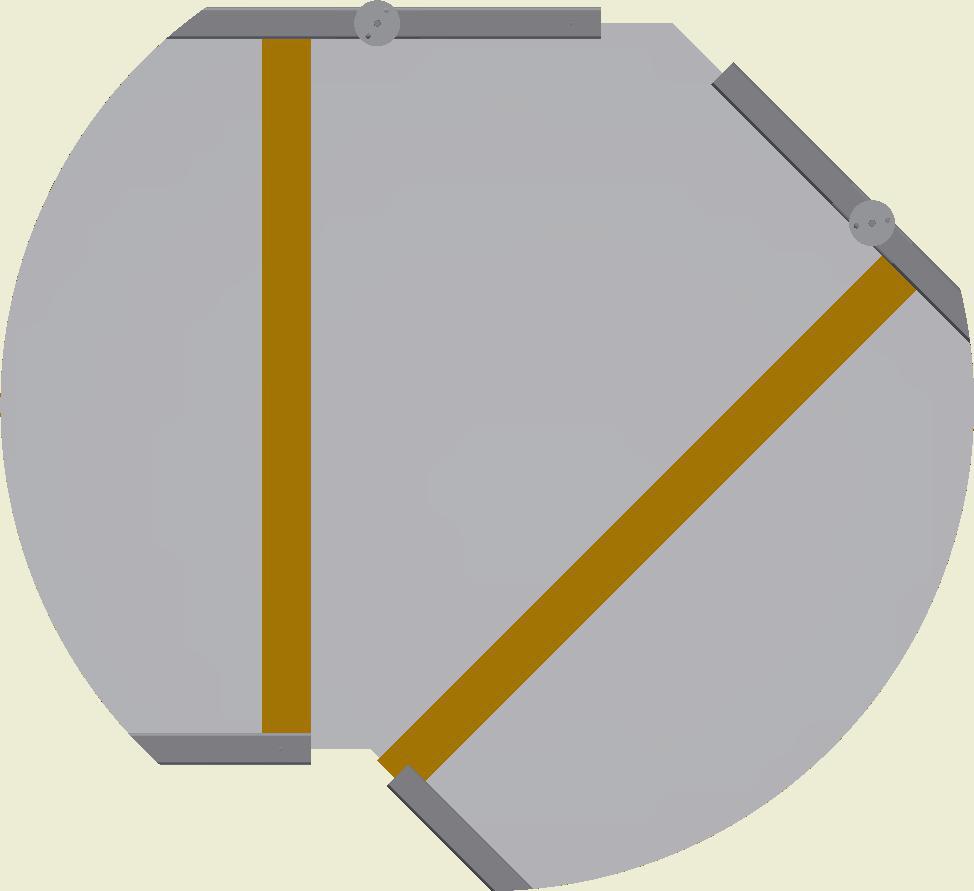

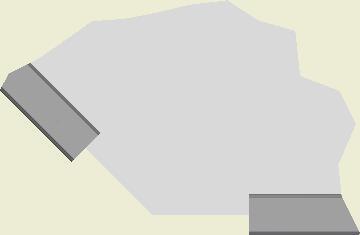

D-Safetrack for KE-Interior System (Elbow)
See

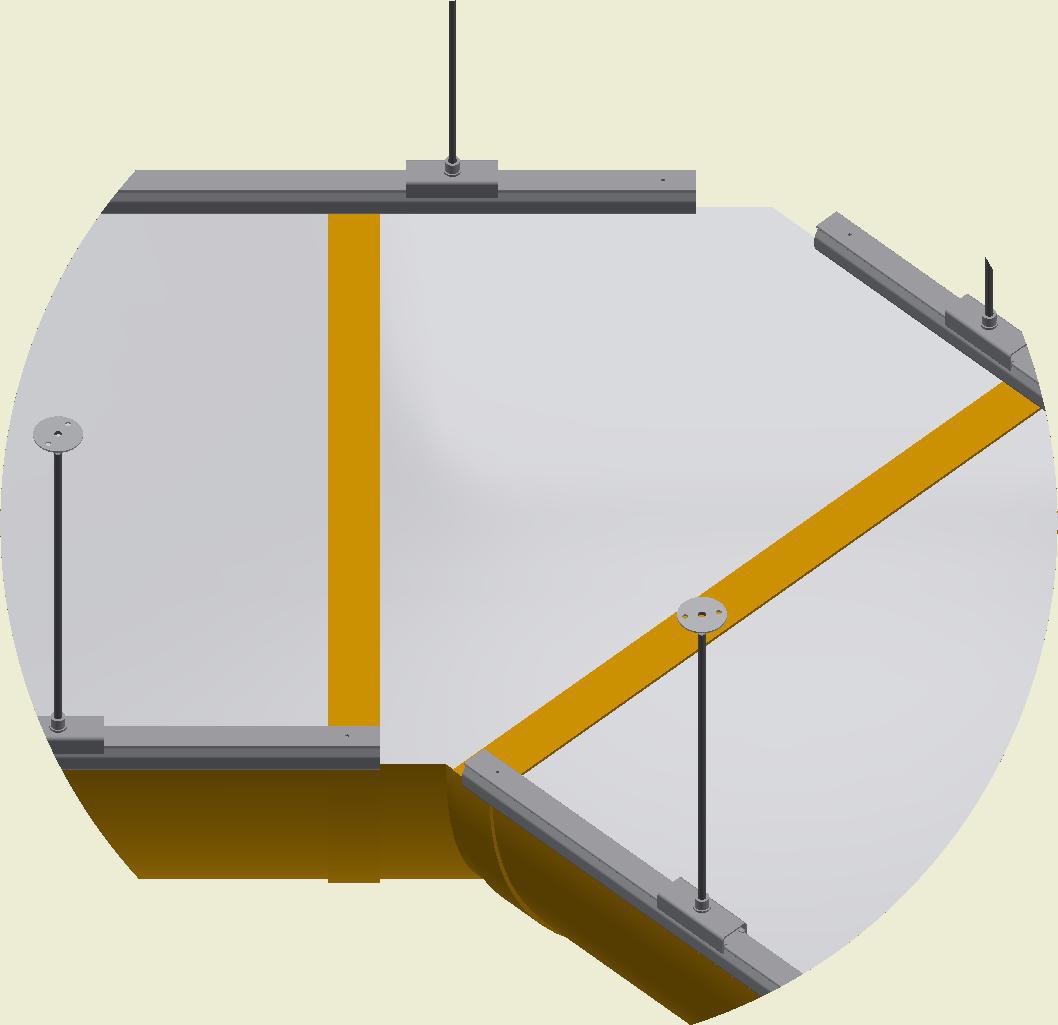

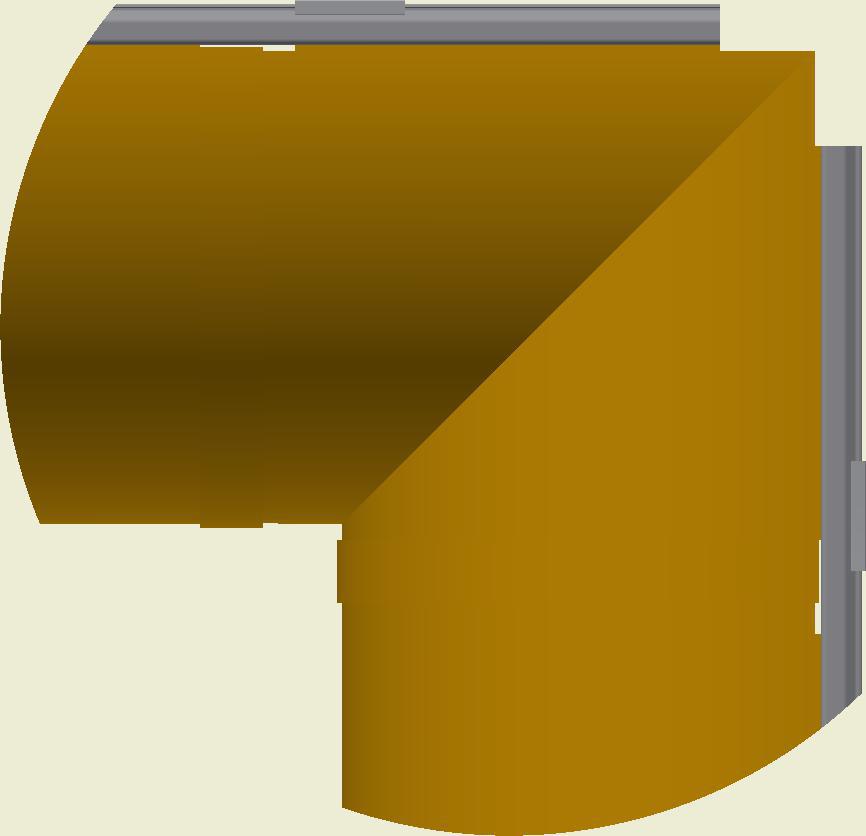

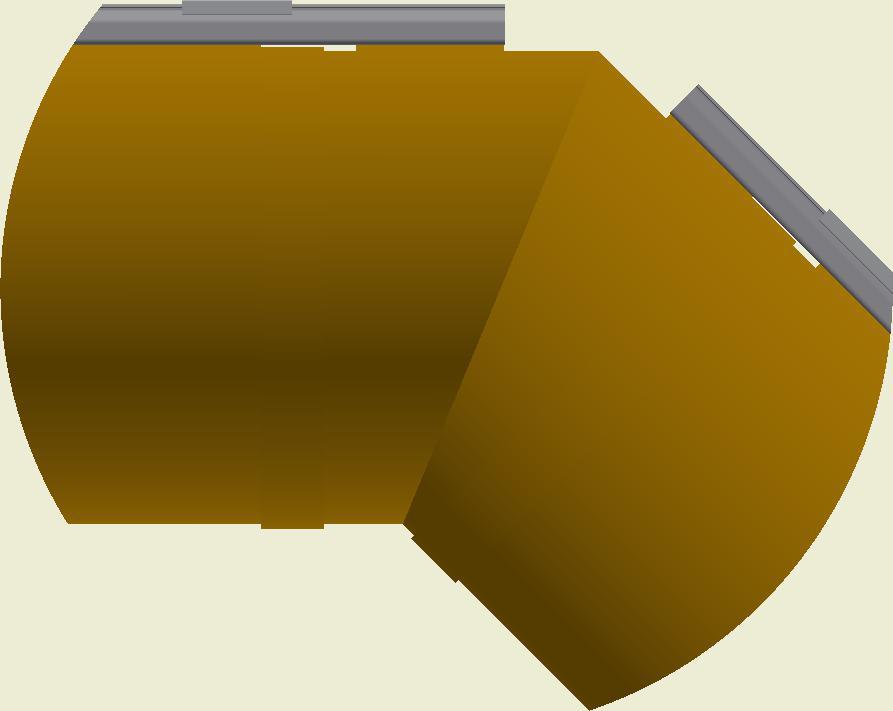

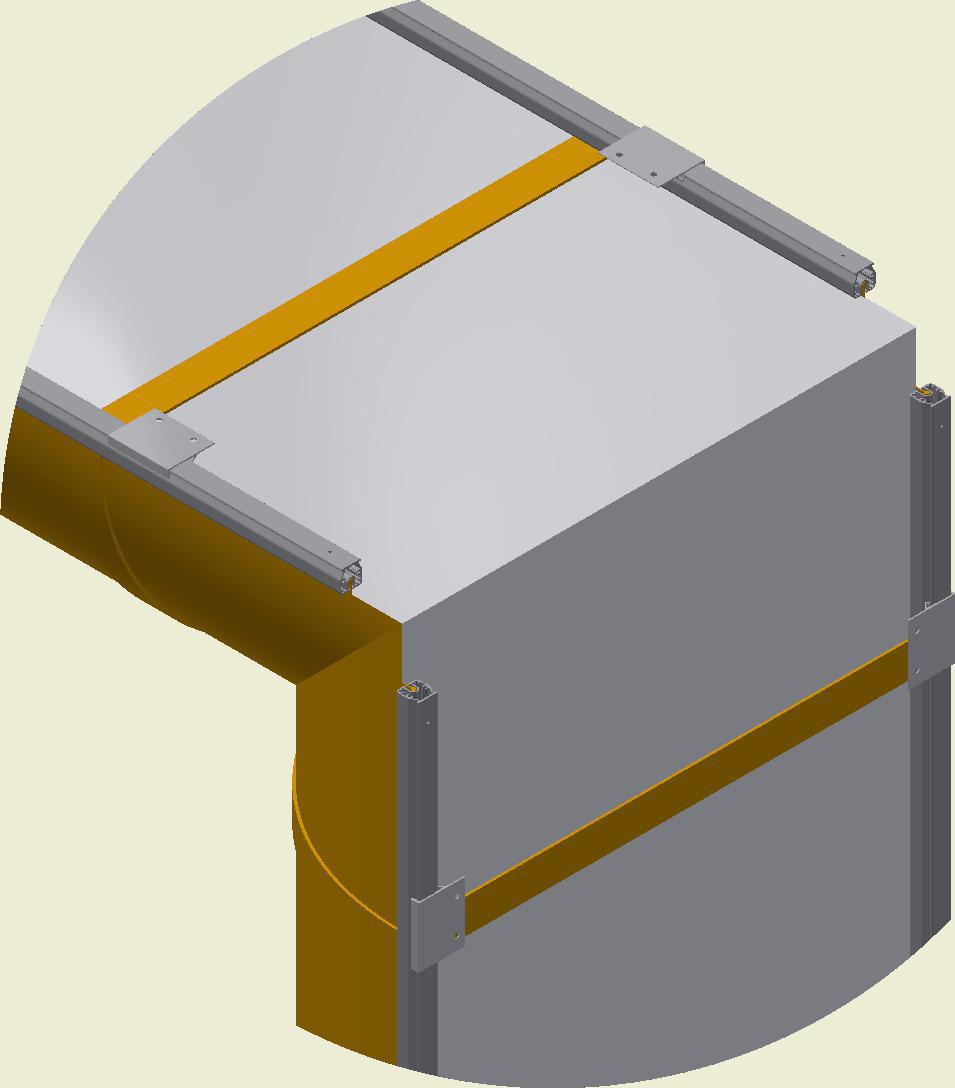

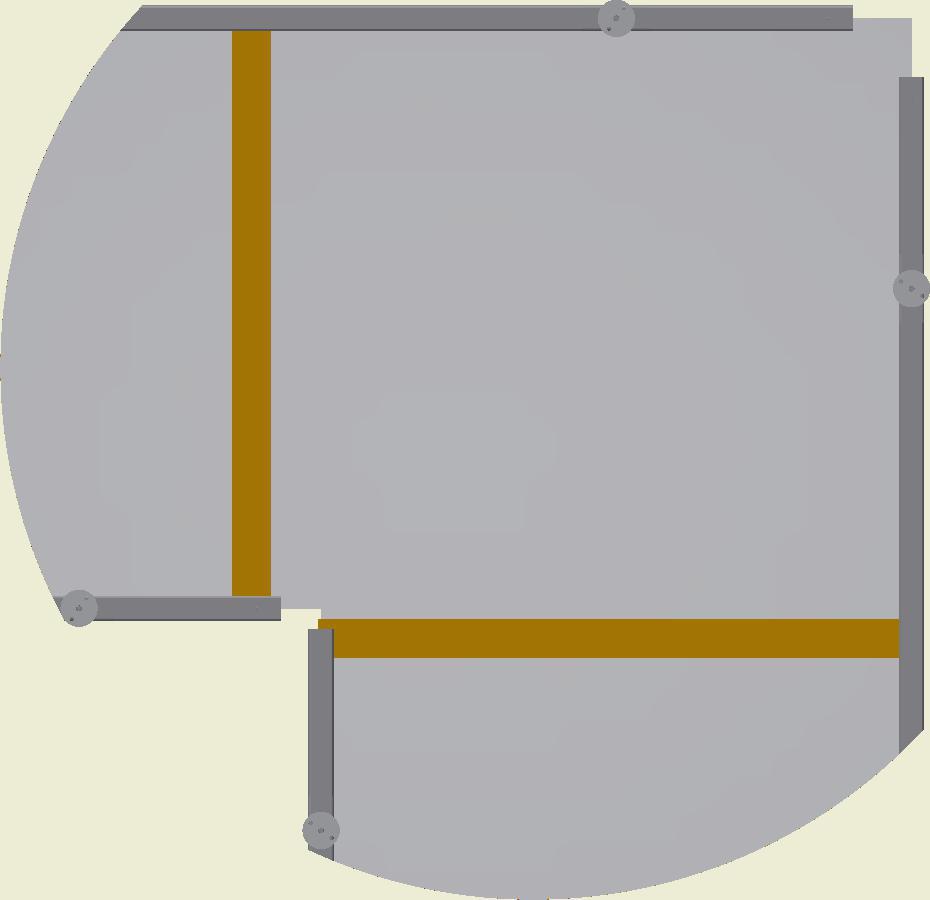

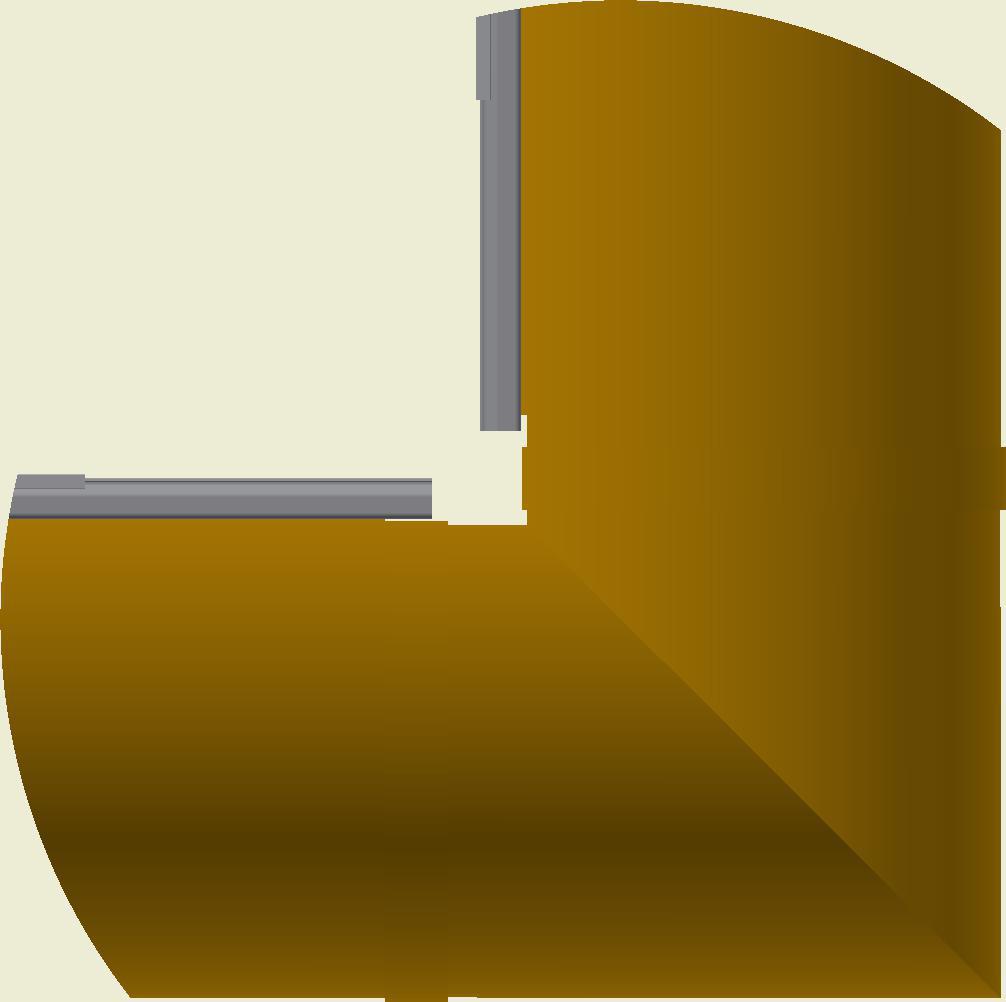

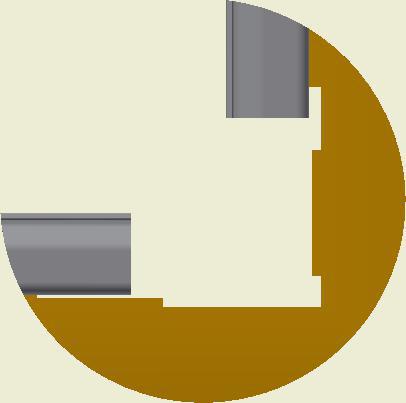

D-Safetrack for KE-Interior System (Elbow 90°) DS-0009-GB-03
DS -0010 -DK- 03
D-Safetrack for KE-Interior System (Service Zipper)
DS-0010-GB-03

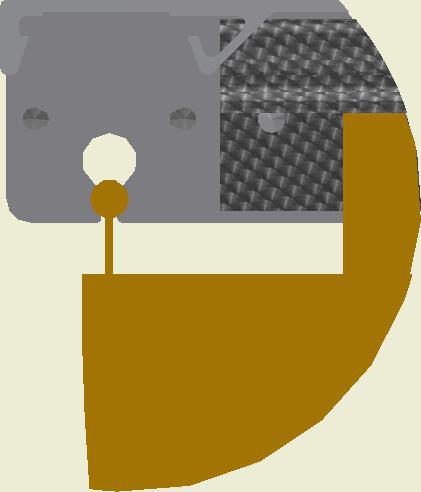

S afeTrack D-Pose Service L ynlås .
Safetrack D-Duct with Service Zipper
SafeT rack D- Pos e Lynlås.
Safetrack D-Duct with Zipper

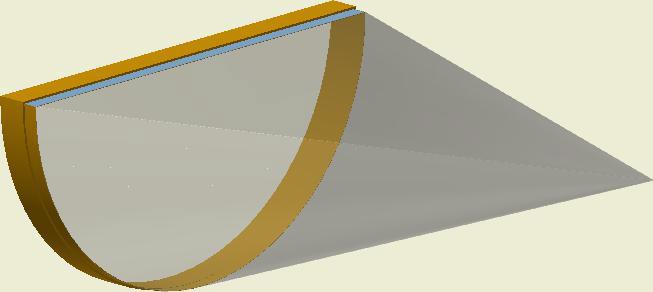

D-Safetrack for KE-Interior System (KE-SRD)
DS-0011-GB-03
DS -0011-DK -03

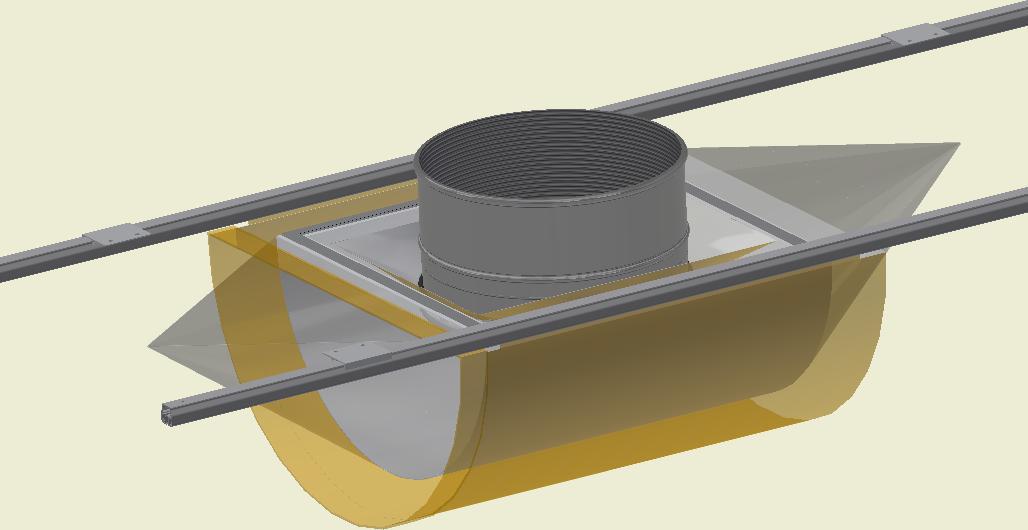

Installation of T-SRD (top inlet)
T-S RD montage .
The T-SRD is optional
T-SRD kan tilvælges
The T-SRD is fastened to the inside of the textile duct by means of velcro
T-SRD monteres indvendigt i posen med velcro

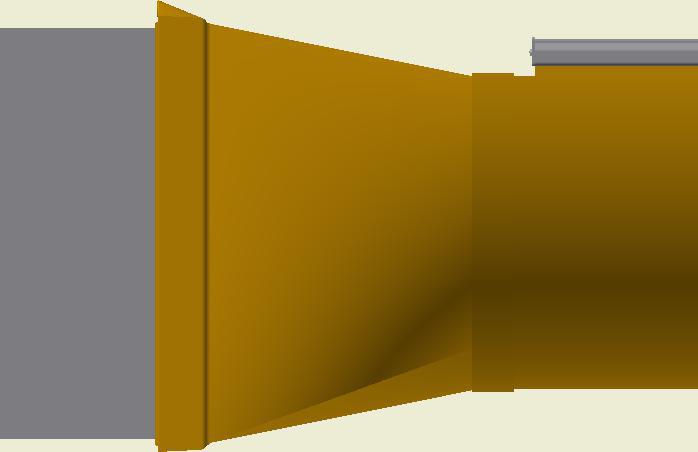

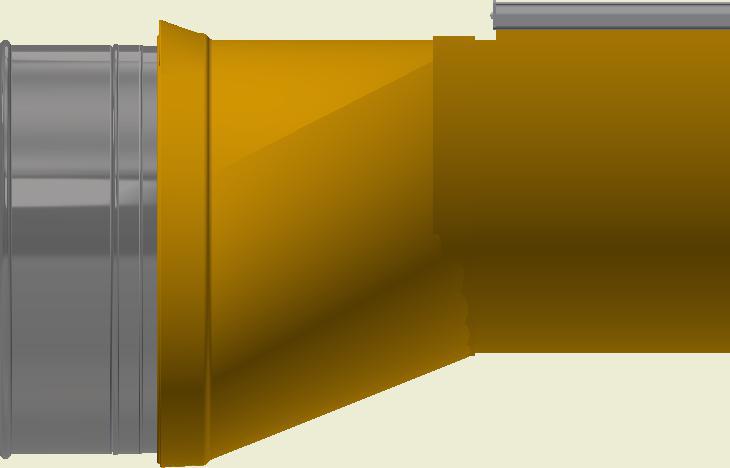

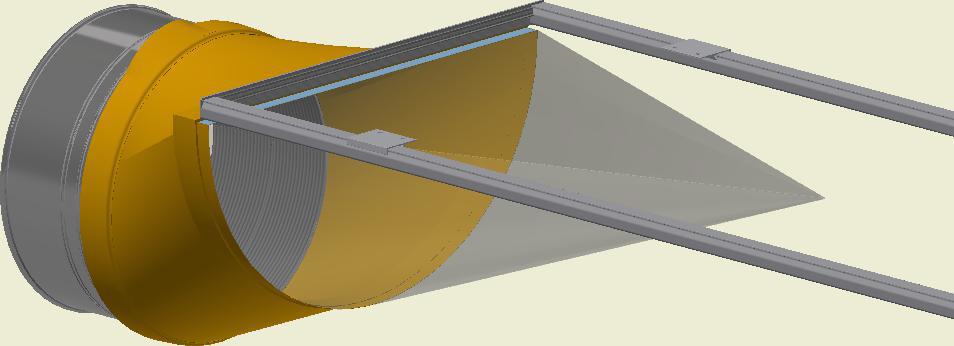

Installation of D-SRD (end inlet)
Indløbs -SRD montage .
The D-SRD is optional
Indløbs SRD kan tilvælges
The D-SRD and D duct are joined by means of zipper
Indløbs SRD lynes i ved en lynlås

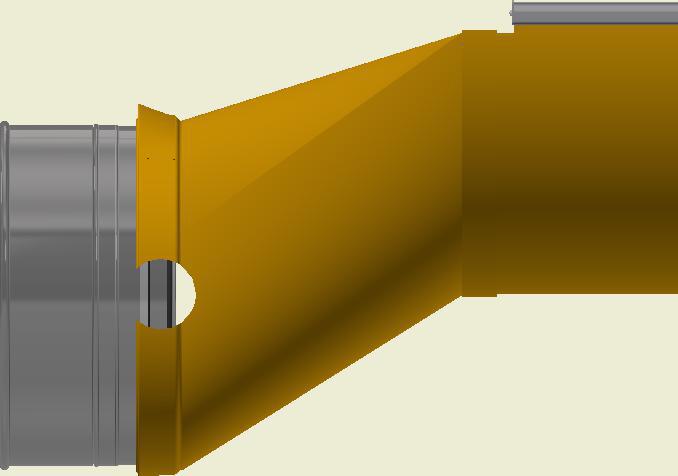

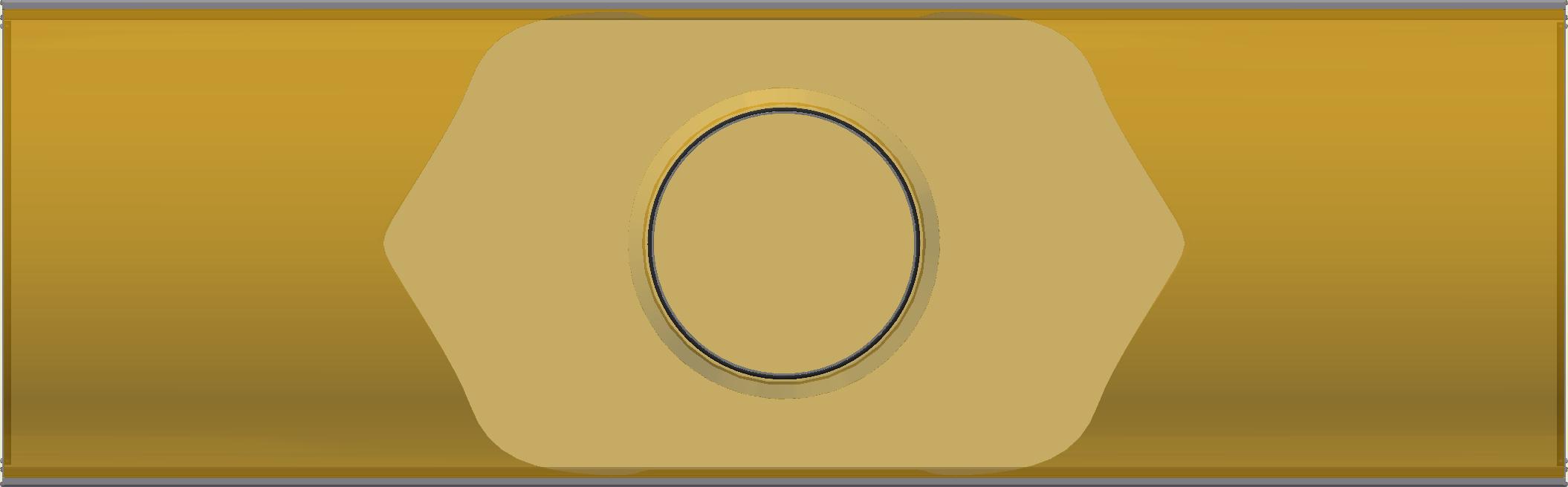

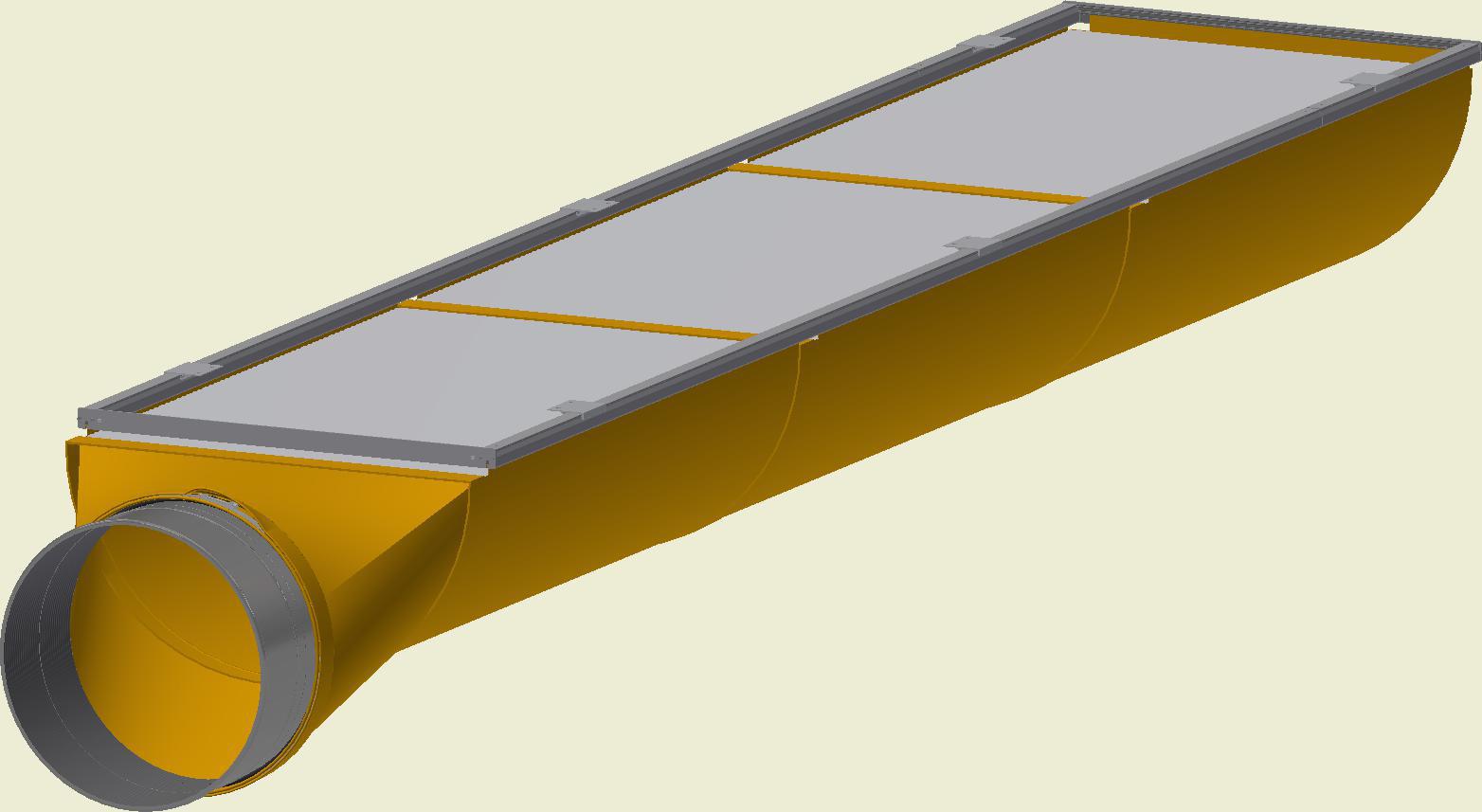

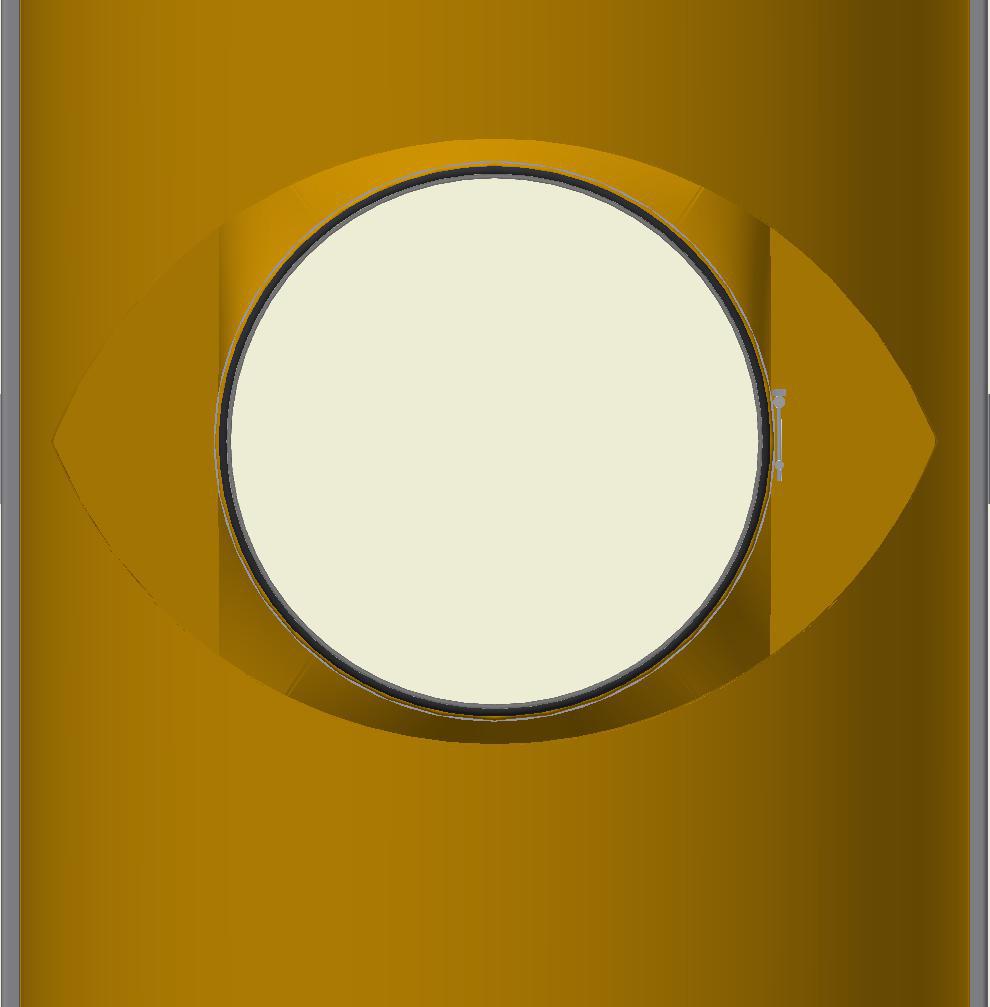

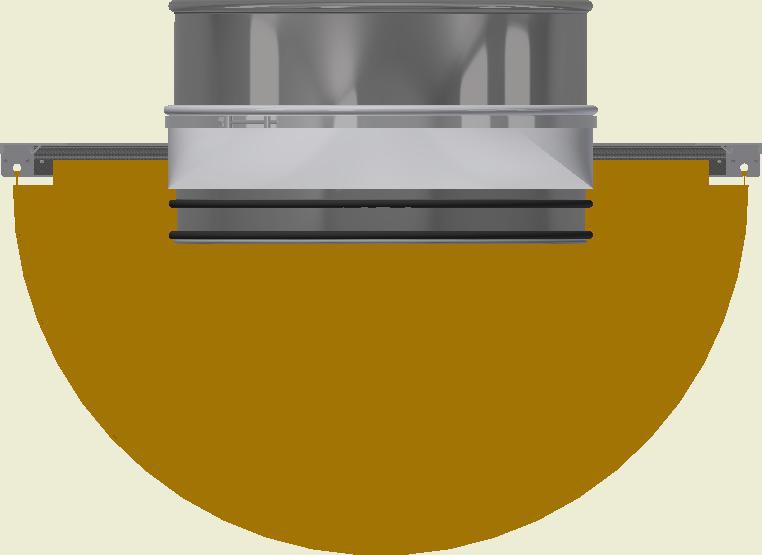

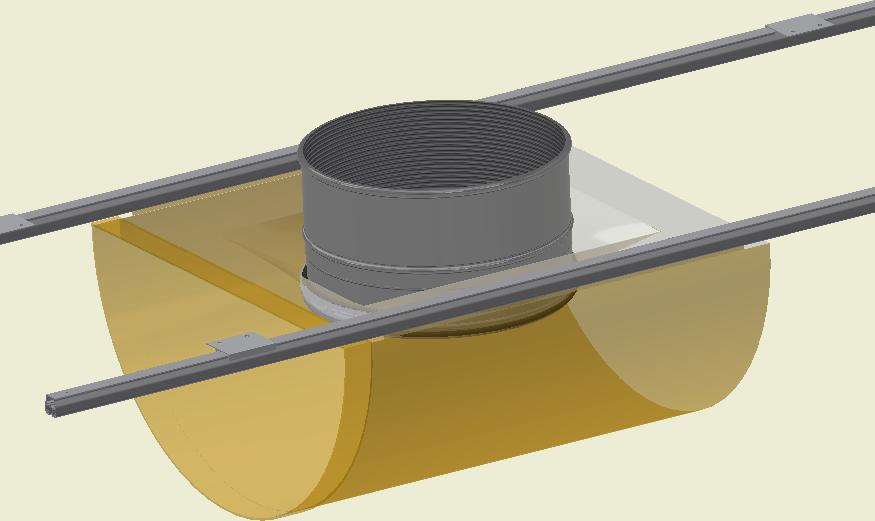

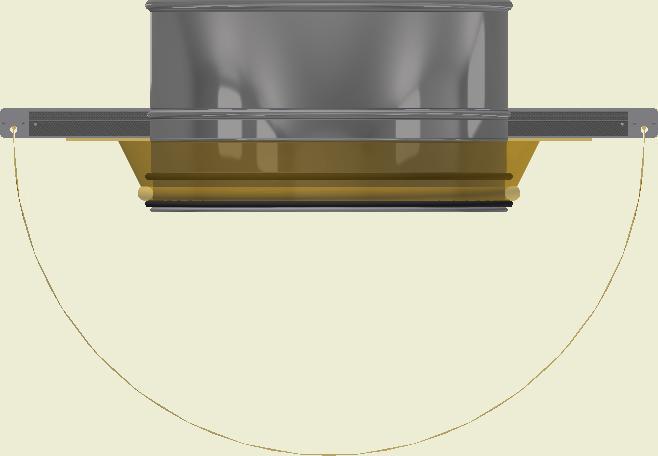

D-Safetrack for KE-Interior System (Inlet socket with spring lock)
DS-0012-GB-03
DS-0012-DK-03
L = Duct length
LS = Length socket
Ø = Socket diameter
L = Pose længde LS = Længde Studs
H = Height
Ø = Studs Diameter H
W = Width
= Højde
O = Offset
W = Bredde
A = Distance socket 1
O = Forsætning
A = Afstand studs 1 B
B = Distance socket 2
= Afstand studs 2
Husk!
Mark the A measurement on the rail so that it is clear where the nozzle is located after the duct has been mounted in the rails.
Marker A-målet på skinnen så du ved hvor studsen er når du har trukket posen på skinnerne.
Fjeder trykkes over studsen.
Mount the spring lock of the inlet socket onto supply spigot.
NOTE!
Husk!
Vask hænder eller tag handsker på før montering.
Remember to wear gloves or wash your hands prior to installation.
DS-0013-DK-01

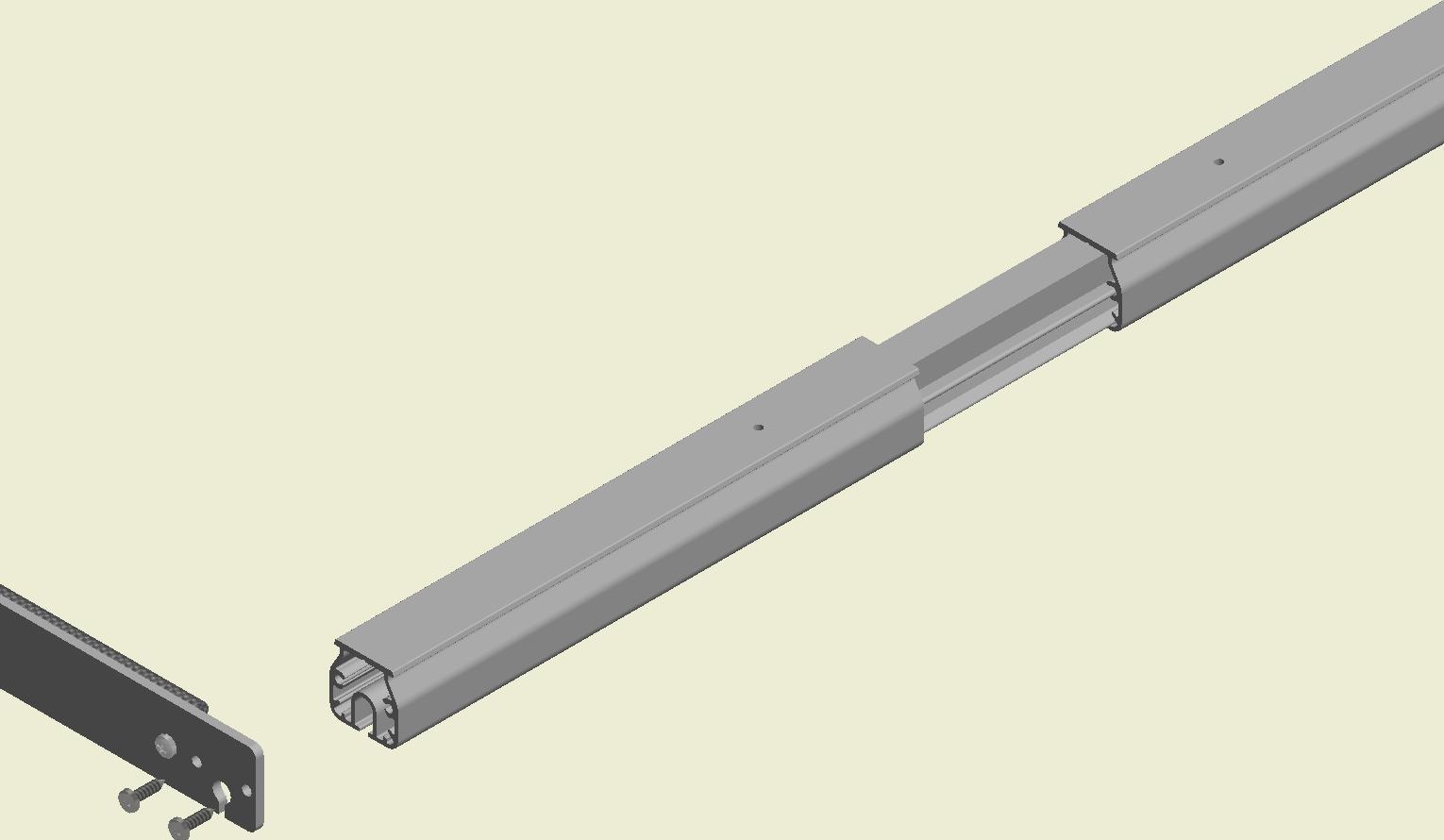

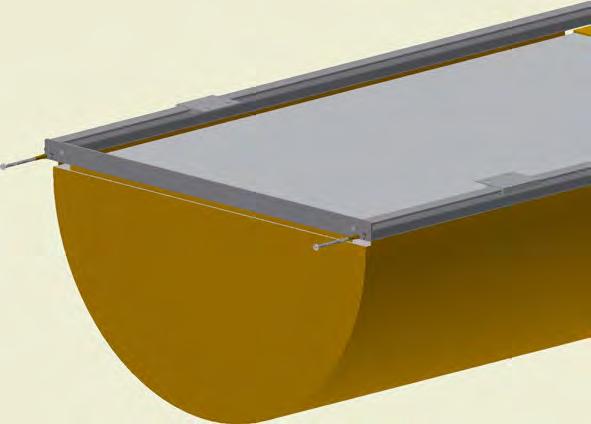

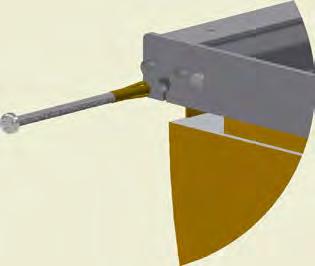

SafeLock for D-Safetrack
Safelock strammerne (4 stk) erstatter strammersnorene,
The four SafeLock expansion screws replace the former tightening cords.

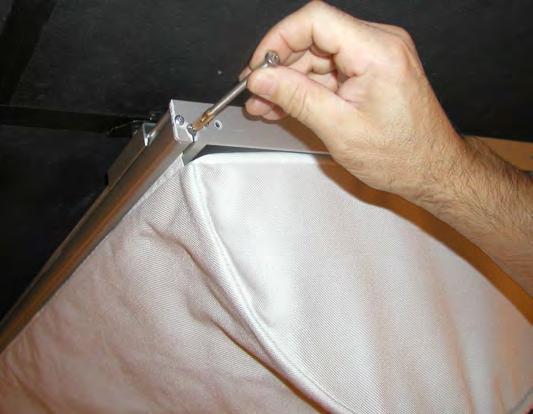

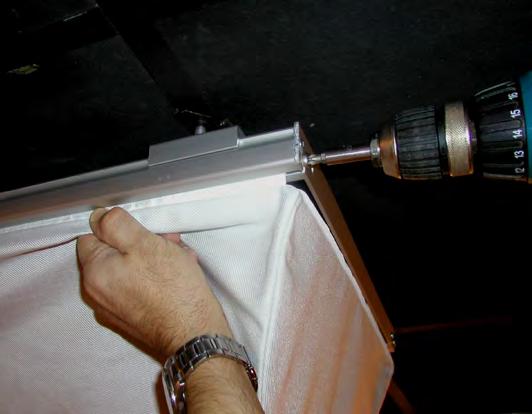

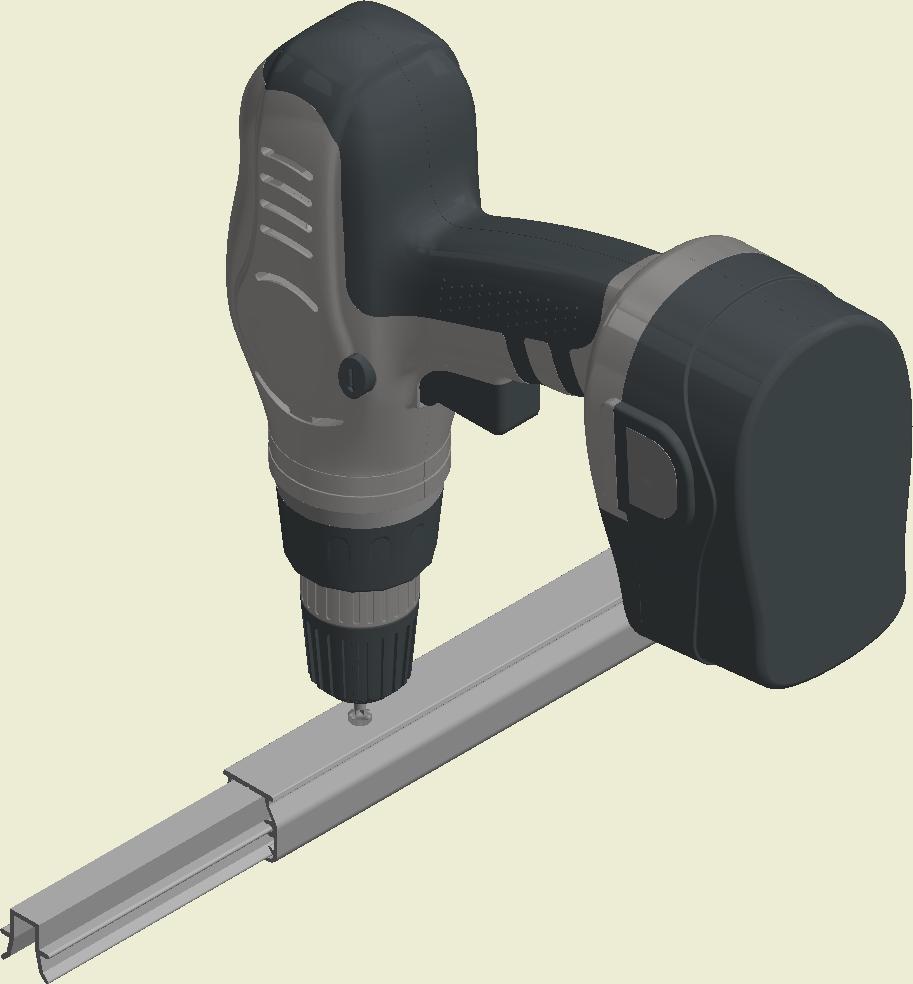

Safelock' indsættes i ”nøglehullet” i enden af Saferack skinnen. Brug en skruemaskine med bit PC2.

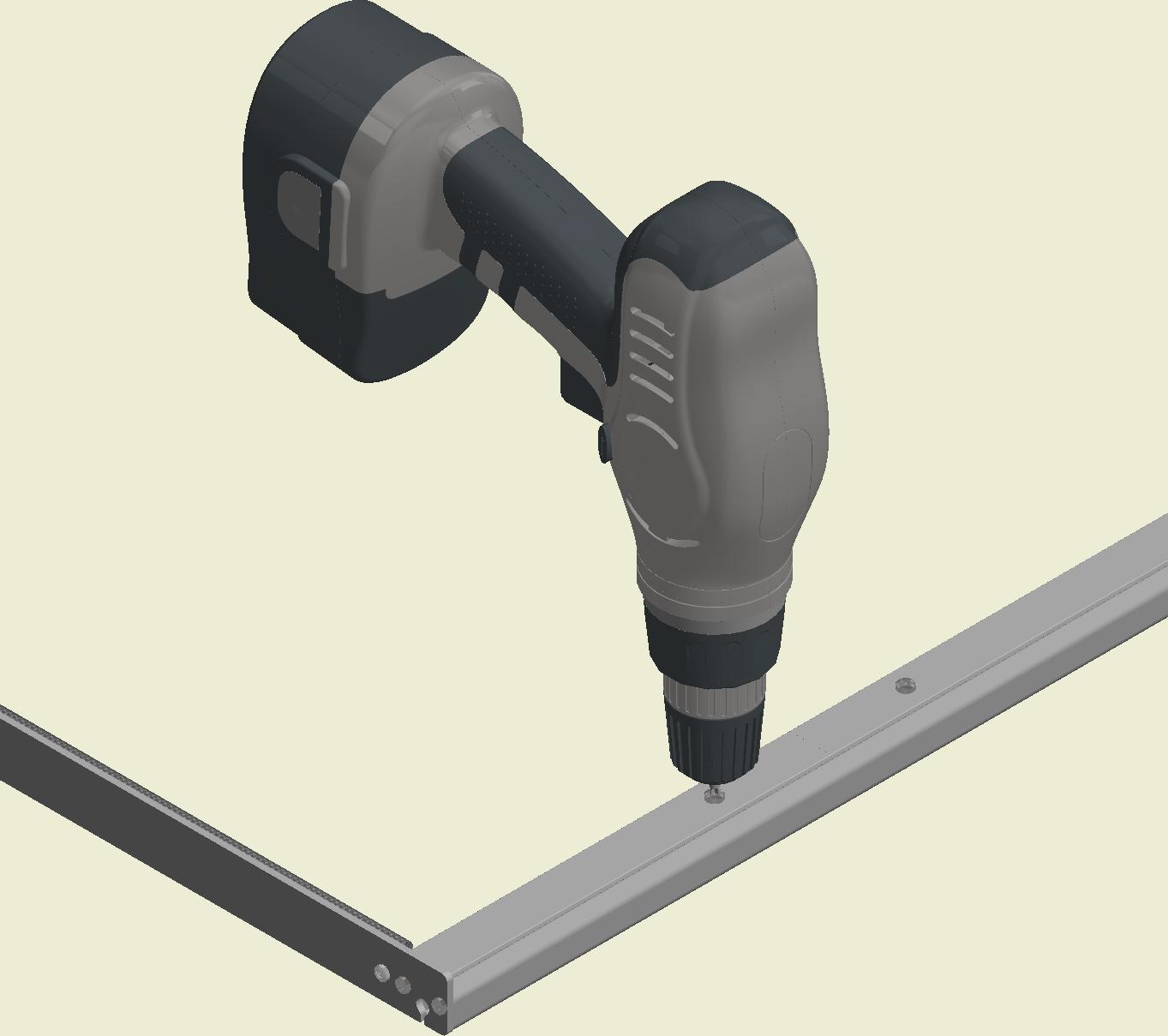

The SafeLock is inserted into the “keyhole” at the end of the Safetrack. Apply drill driver with bit PC2.
All four SafeLock expansion screws must be fully inserted before tightening the duct. Be careful not to over-tighten the screws.
Alle 4 Safelock ekspansionsskruer skal monteres før KE-posen er fikseret. Lad være med at overdreje skruen.
