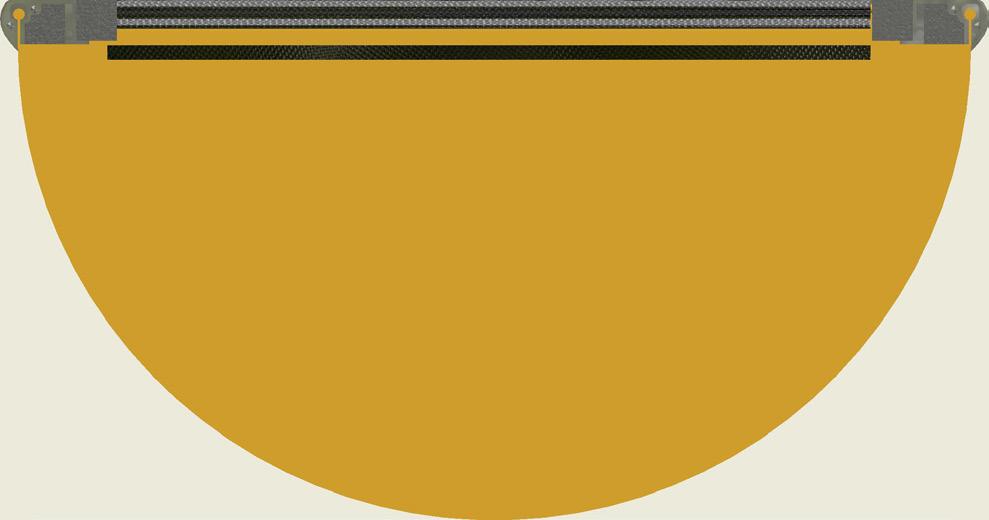

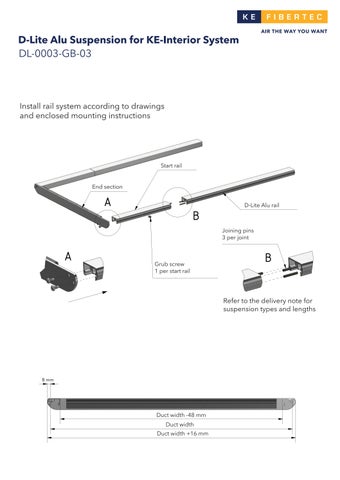

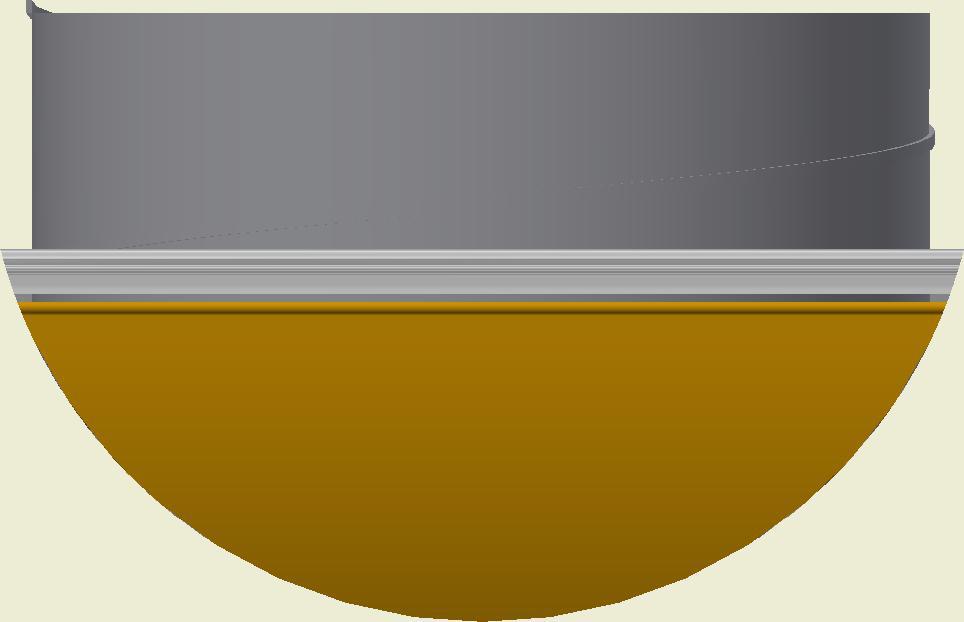

D-Lite Alu Suspension for KE-Interior System
DL-0003-GB-03
DL-0003-DK-01

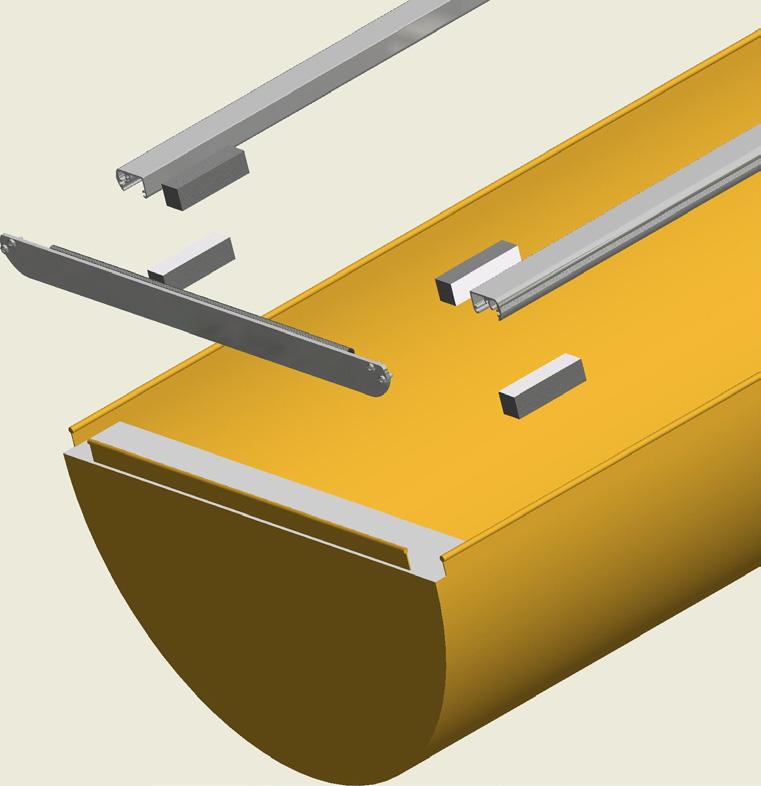

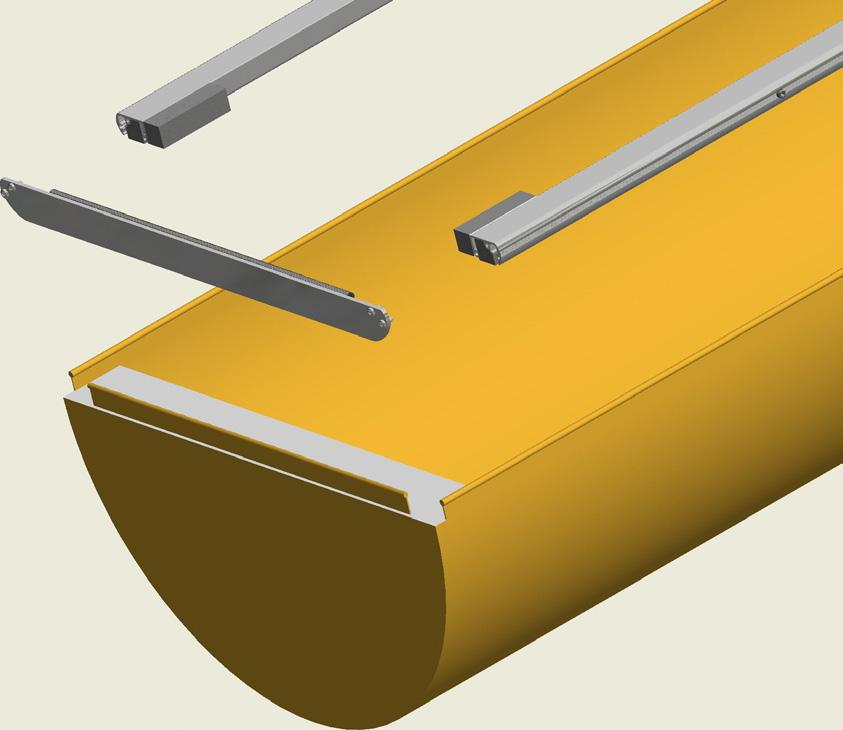

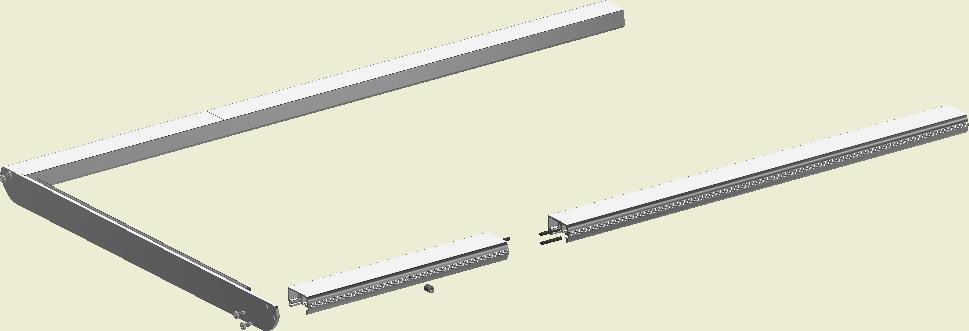

Install rail system according to drawings and enclosed mounting instructions
Install the track system according to the drawings and mounting instructions provided with the system.
End section
Ende Profil
A
A
Startskinne
Start rail
Alu rail
Alu skinne
B
Grub screw 1 per start rail
Strammeskrue 1 stk pr startskinne
Joining pins 3 per joint
Samle stift 3 Stk pr. samling
B
Refer to the delivery note for suspension types and lengths
Se i følgesedlen hvilke typer skinne og længder der skal være med til dette System.
Kanalbredde - 48 mm
Duct width -48 mm
Kanalbredde
Duct width
Kanalbredde + 16 mm
Duct width +16 mm
D-Lite
D-Lite

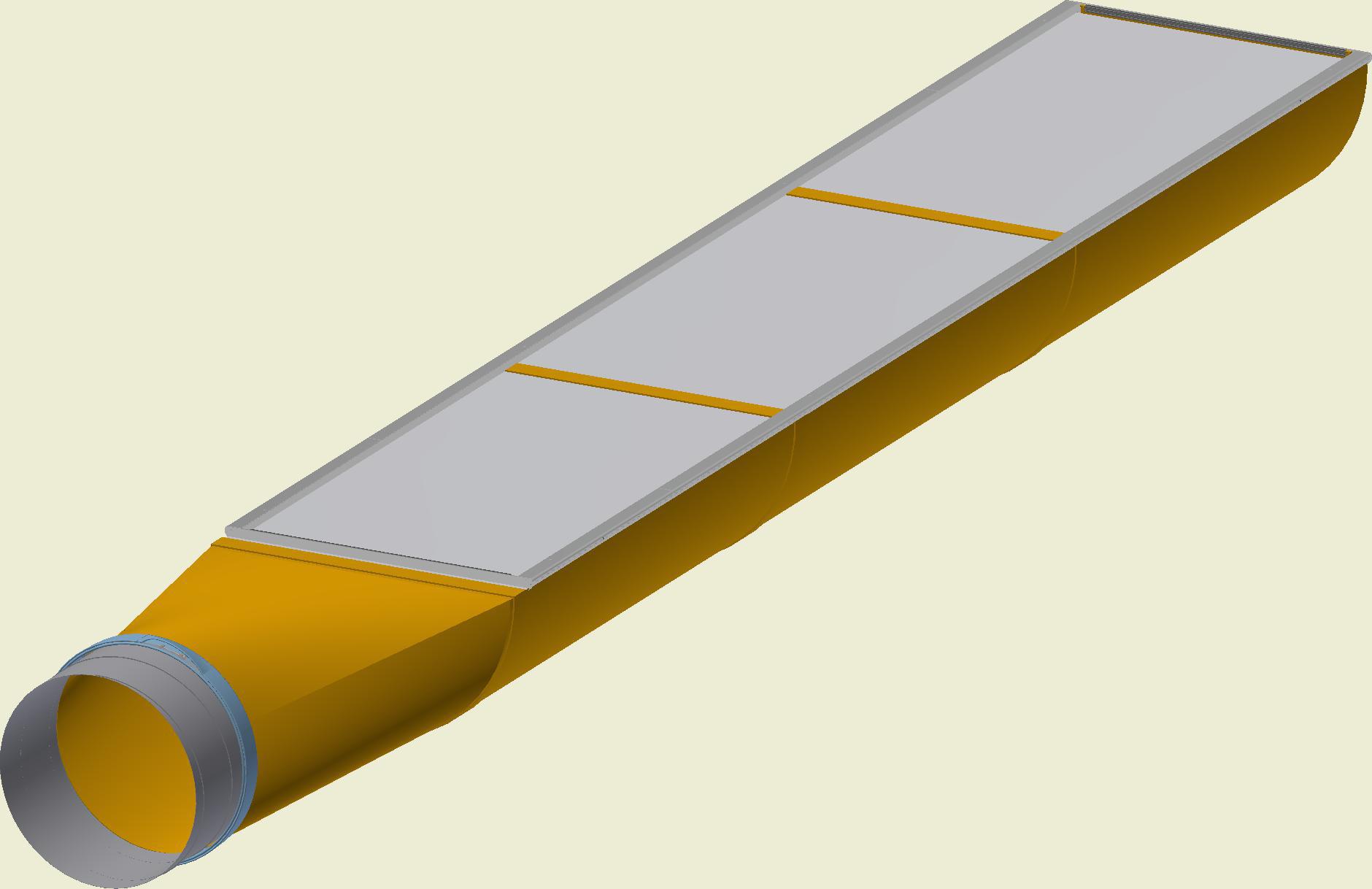

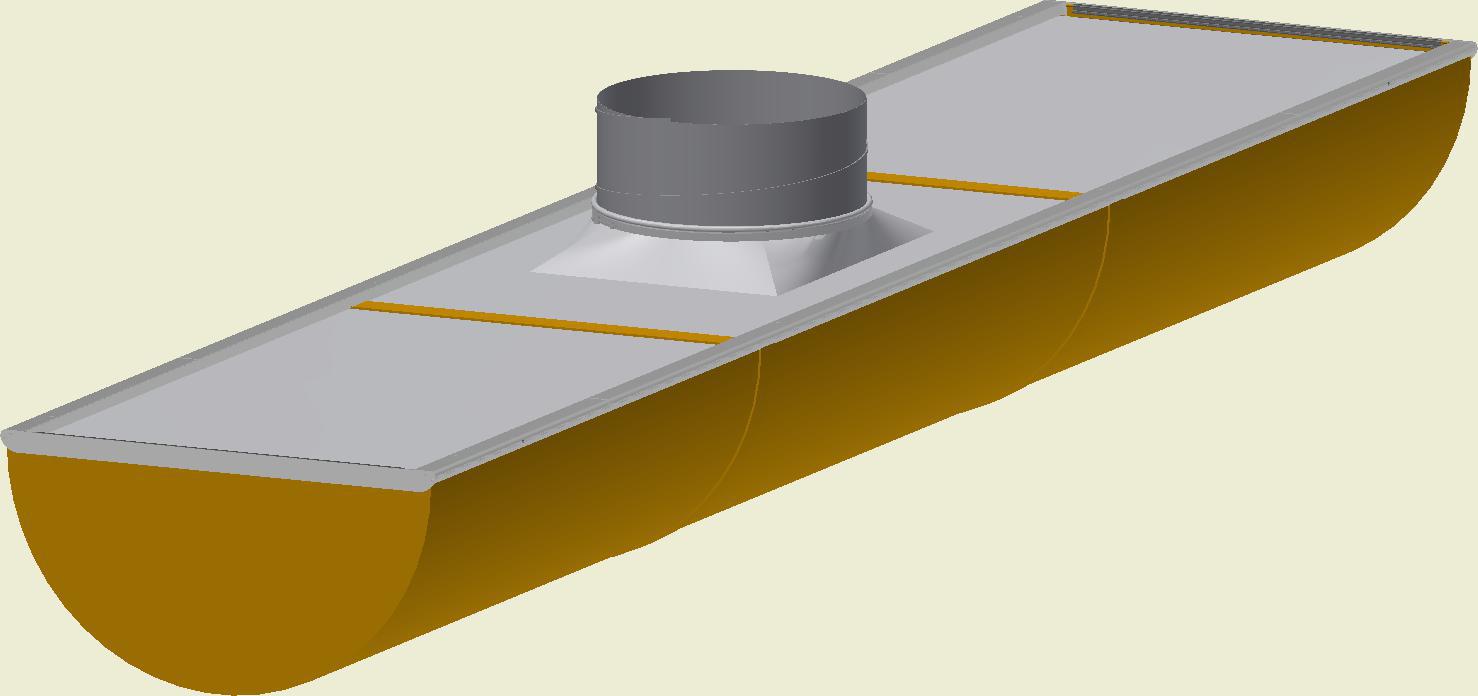

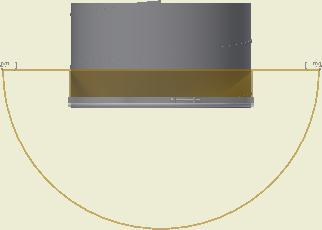

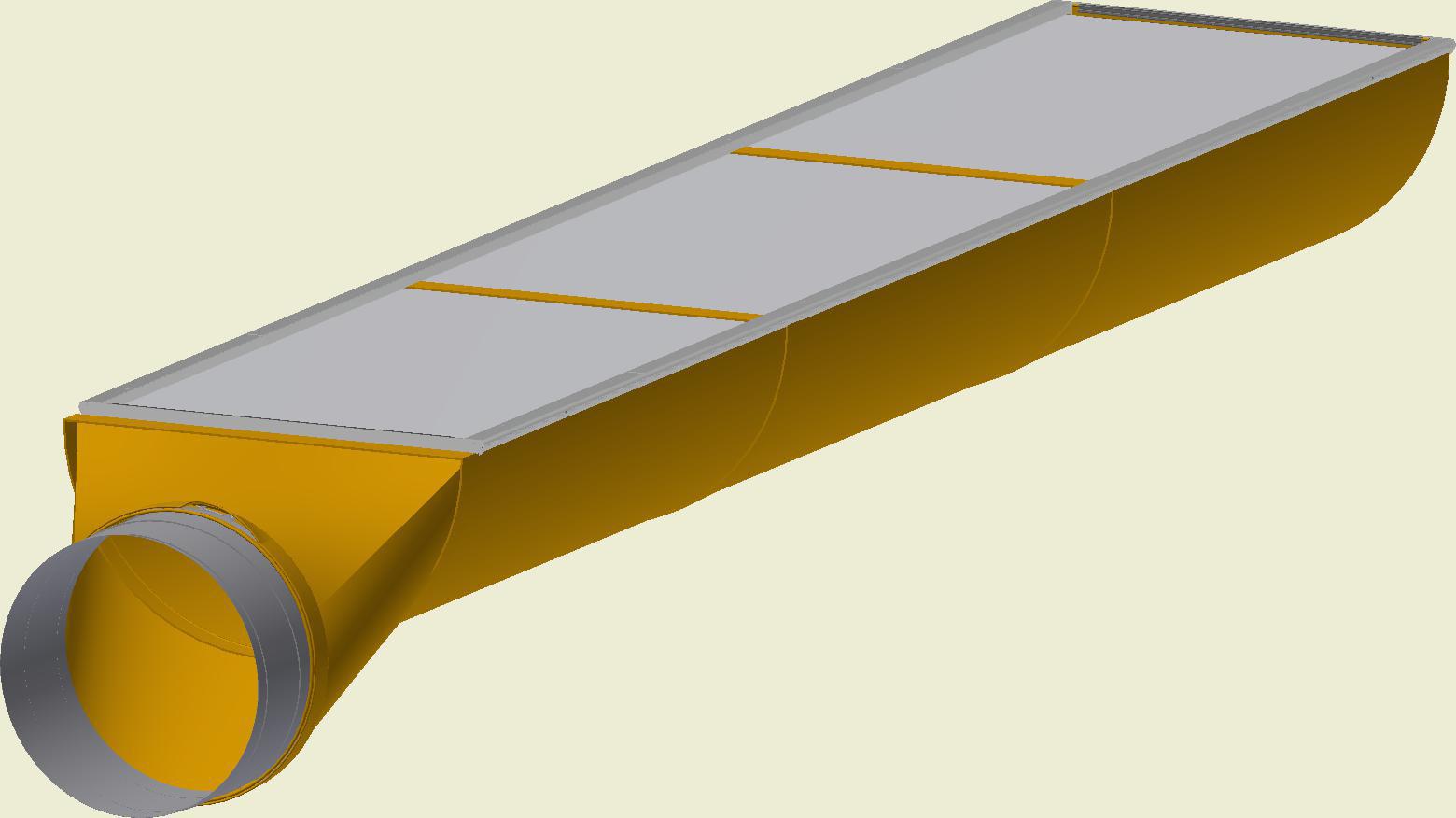

D-Lite Alu for KE-Interior System (Straight Duct)
DL-0004-GB-03

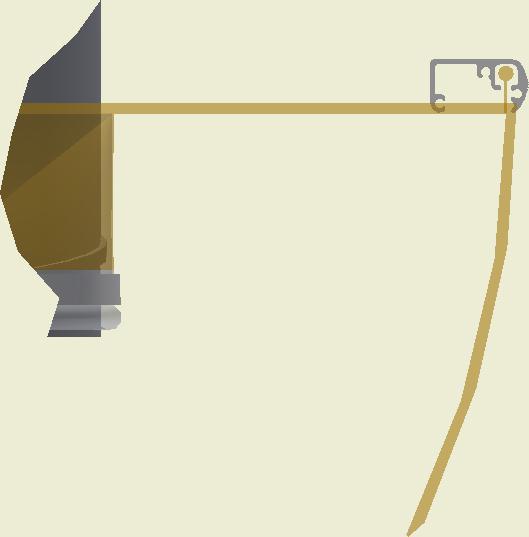

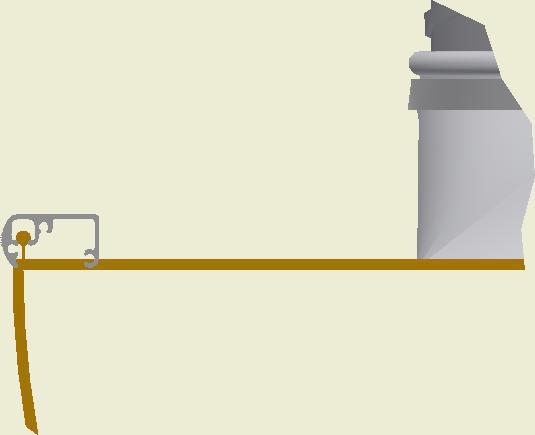

Min. højde (LS) ombuk/snor = 50 mm
Min. height (LS) edge/cord = 50 mm
Start rail
Startskinne
Startskinne
Start rail
Start rail
Startskinne
Start rail
Startskinne
Hvis montering af studs er mulig over loft behøves der ingen lynlås i nærheden af studs.
If it is possible to mount the socket above a false ceiling, a zipper near the socket on the duct is not necessary.

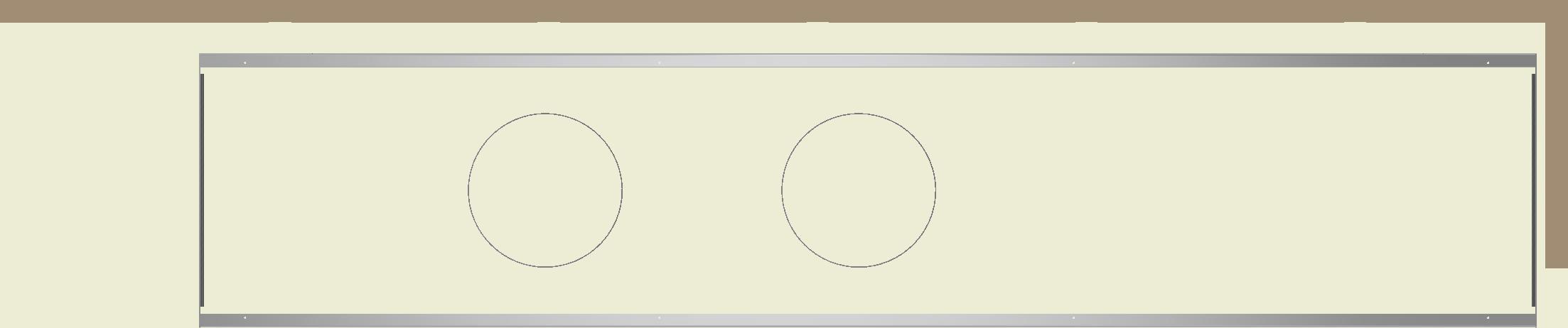

L = Duct length
L = Pose længde
LS = Length socket
LS = Længde Studs
Ø = Socket diameter
Ø = Studs Diameter
H = Height
H = Højde
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2

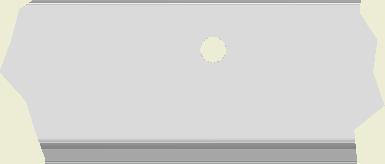

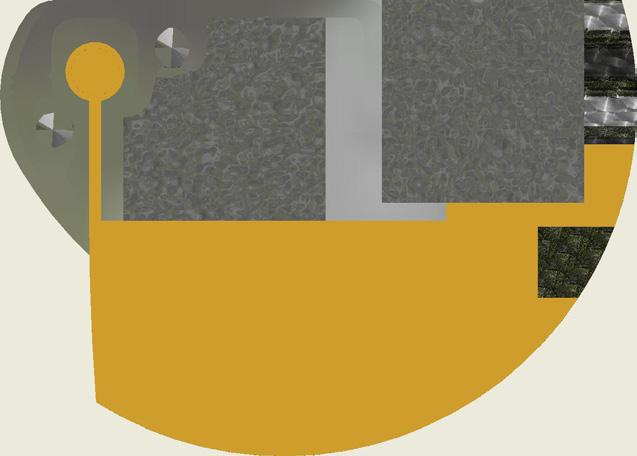

Drill hole acc. to ceiling type for installation of rail. Screws not included.
Hul laves til montage skrue for lofttype ikke incl.
If mounting of the socket must be done from inside the space you must place at least 1 zipper close to the socket. Otherwise a service zipper must be placed in the arc of the duct.
Hvis montage af studs skal ske indvendigt skal man være opmærksom på at placere mindst 1 lynlås tæt på studsen. Eller der skal laves en service Lynlås i buen.
Når posen sidder som den skal spændes Pinol med 3mm Umbracho i alle
Startskinnerne Umbracho ikke incl.

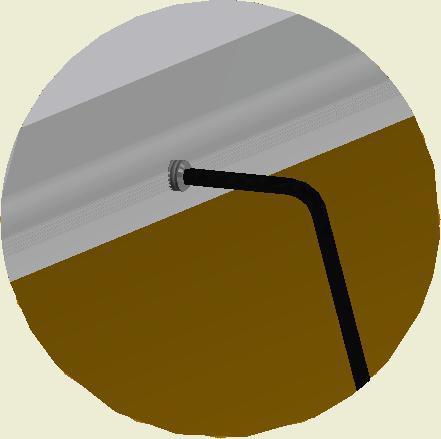

Upon properly installing the textile duct, tighten the grub screws with a 3 mm Allen key (not included).

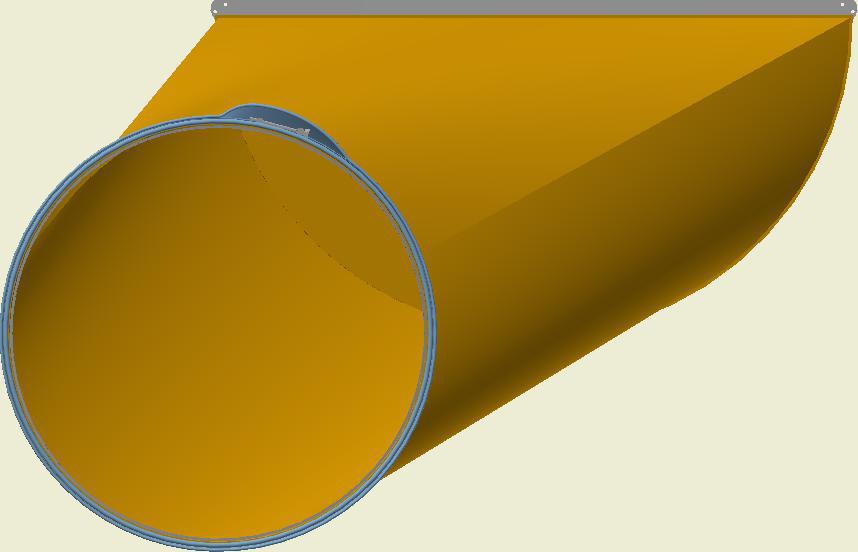

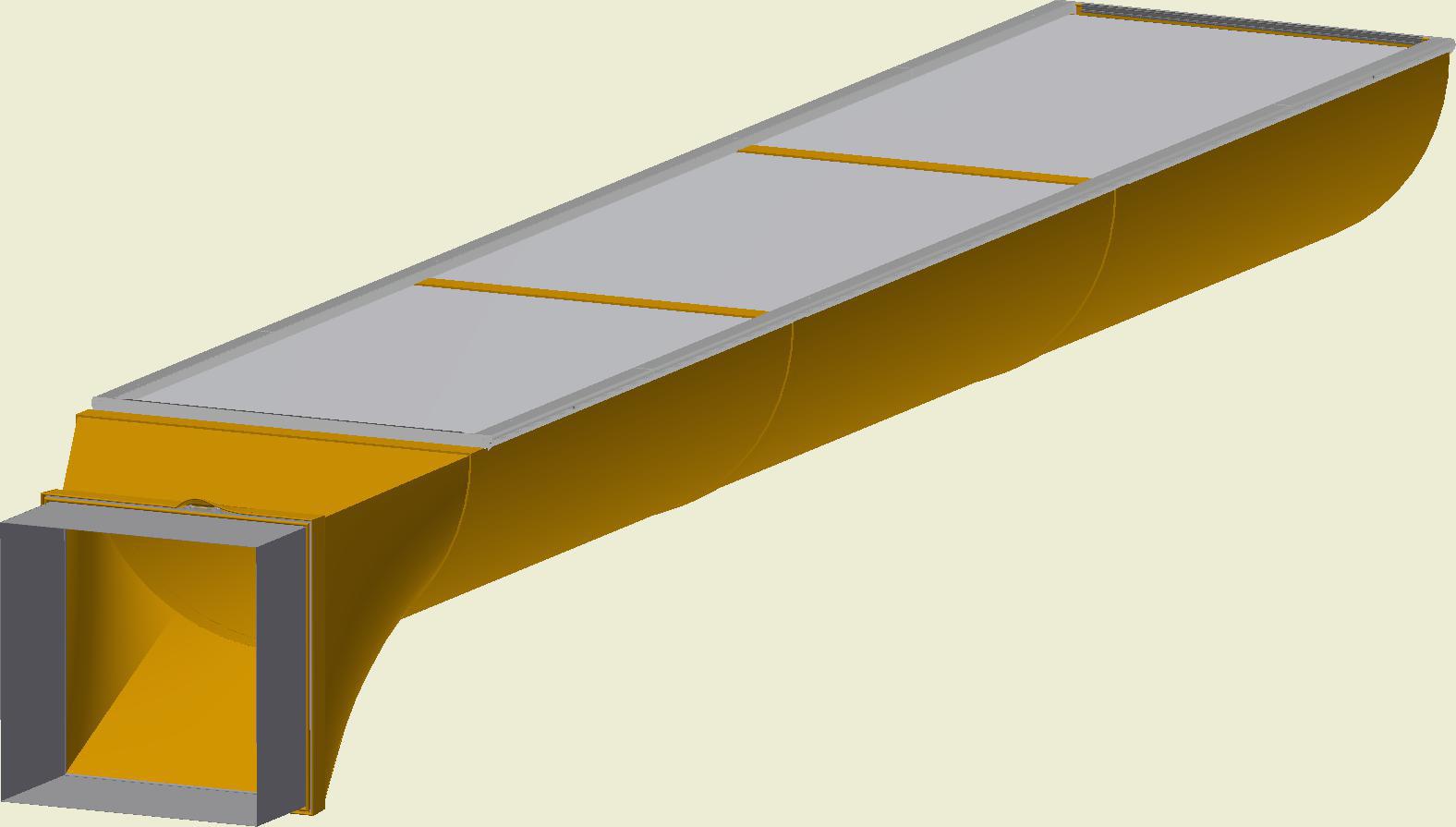

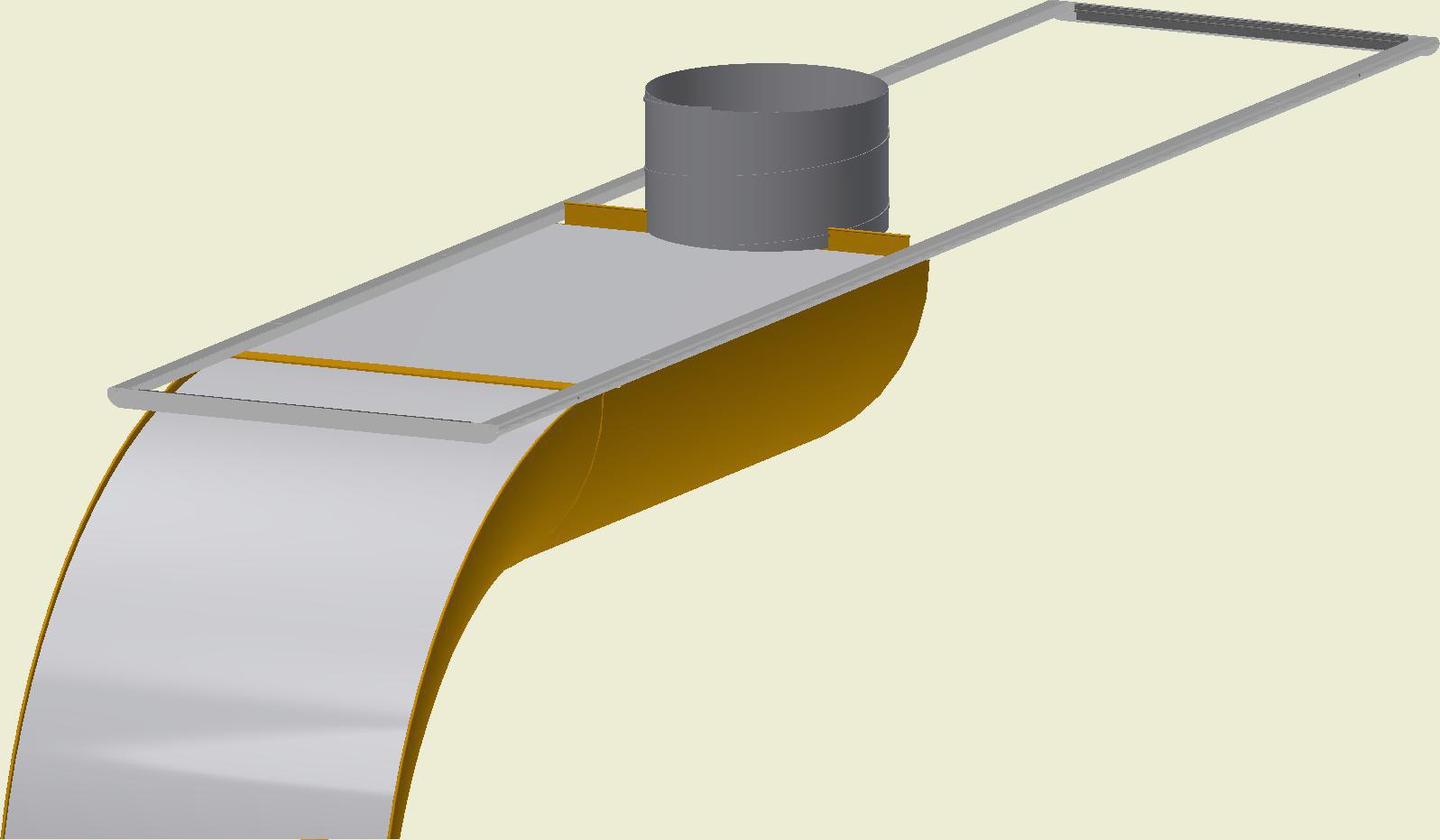

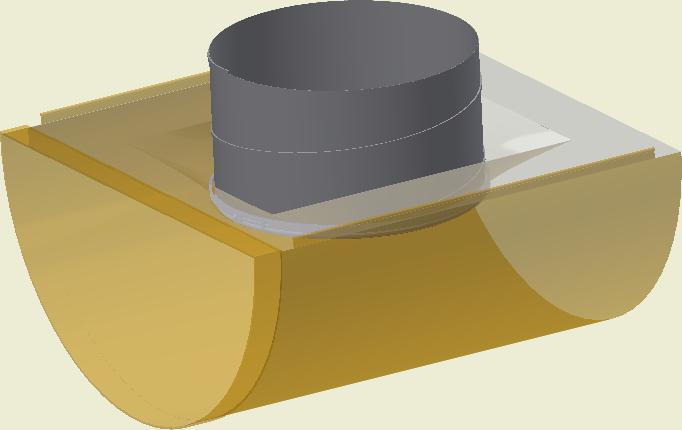

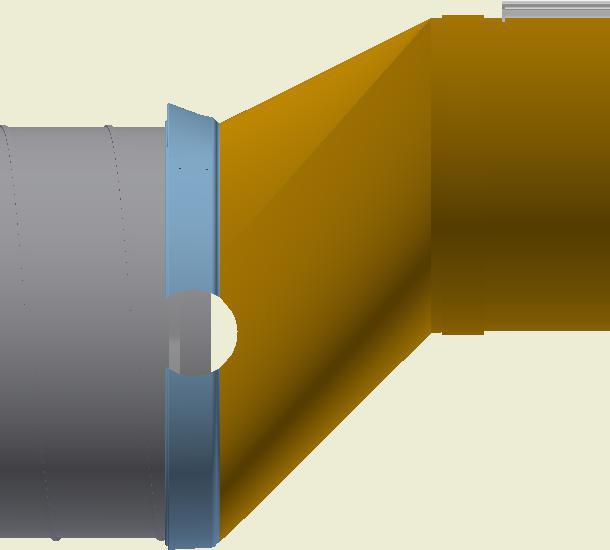

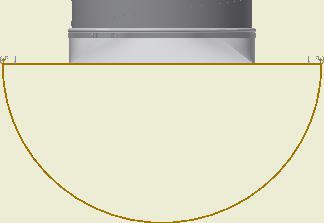

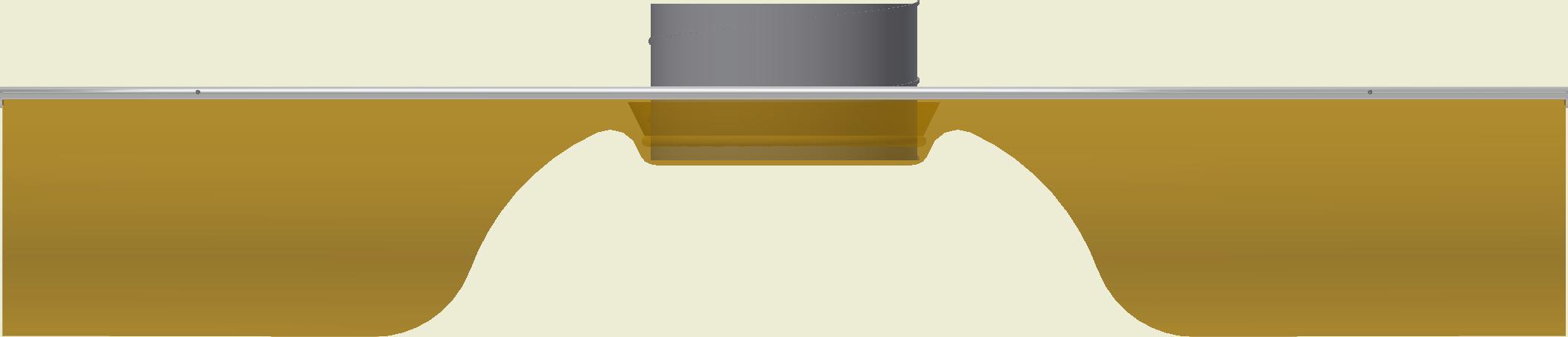

D-Lite Alu for KE-Interior System (Inlet Options)
L = Duct length
L = Pose længde
LS = Length socket
LS = Længde Studs
Ø = Studs Diameter
Ø = Socket diameter
H = Height
H = Højde
W = Bredde
W = Width
O = Forsætning
O = Offset
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2

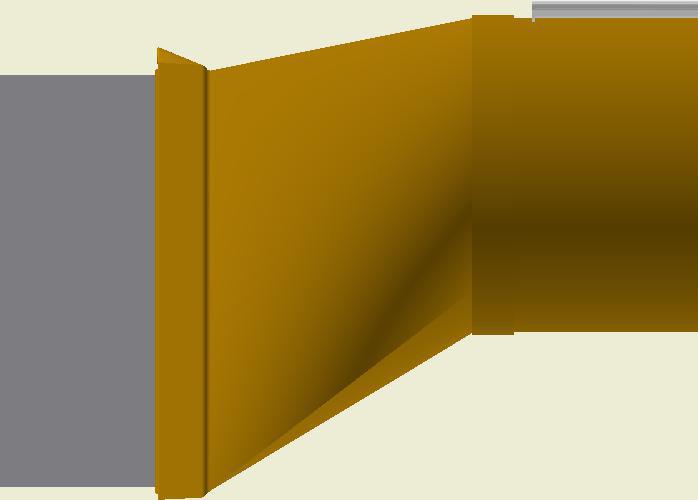

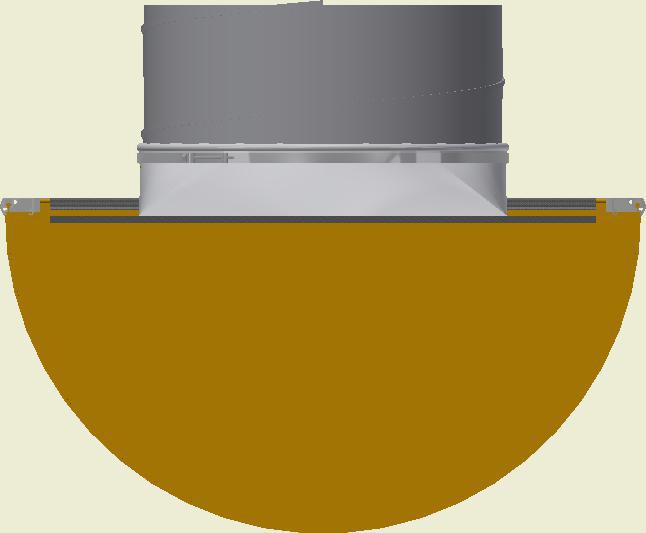

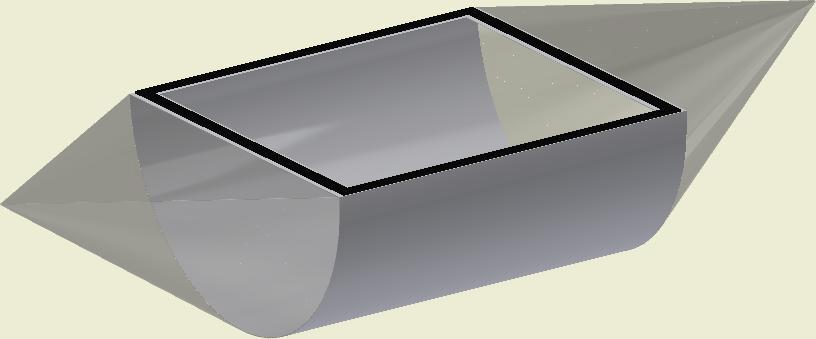

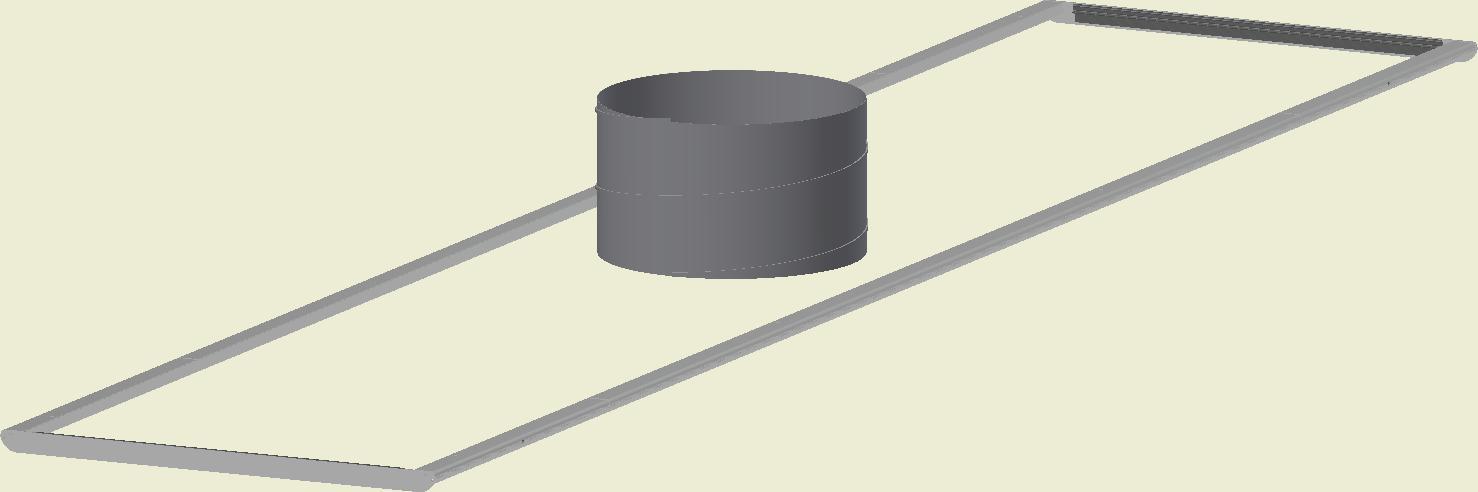

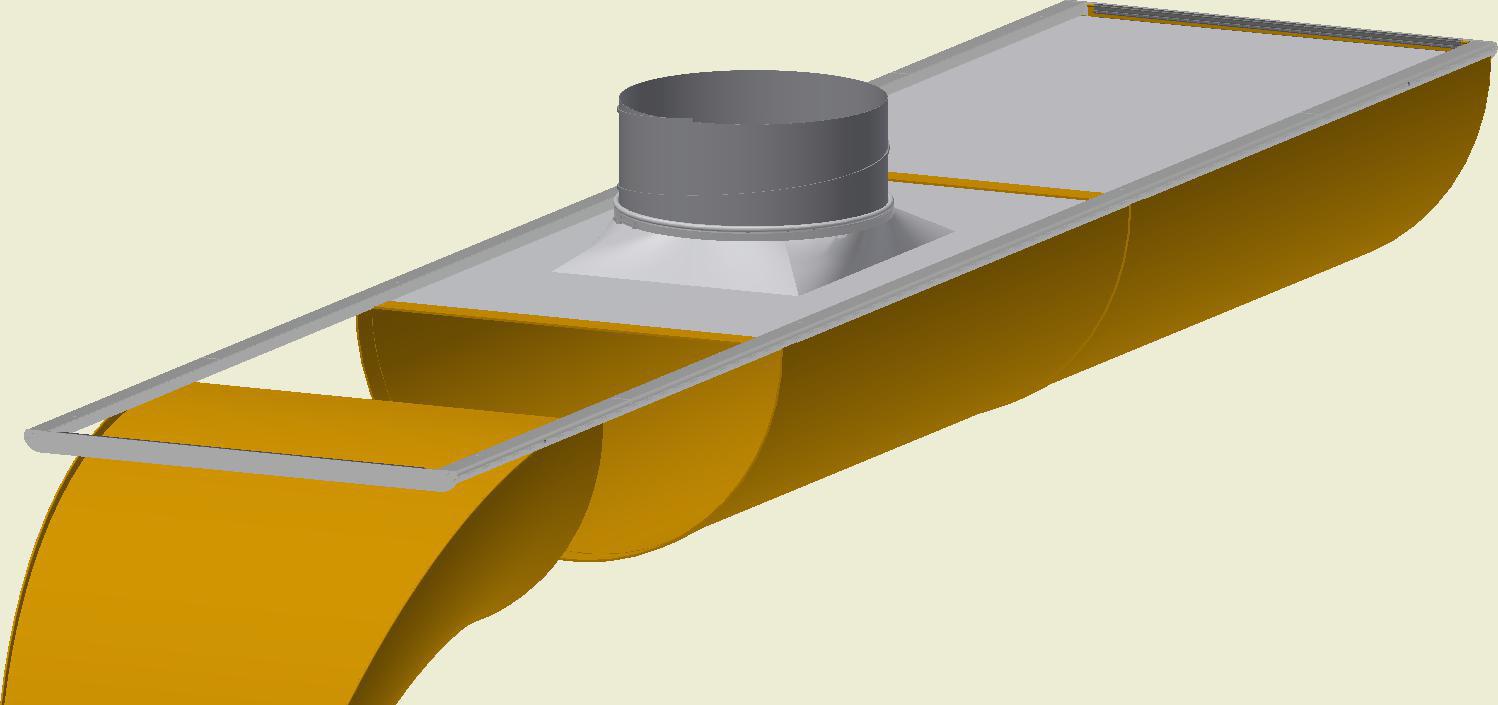

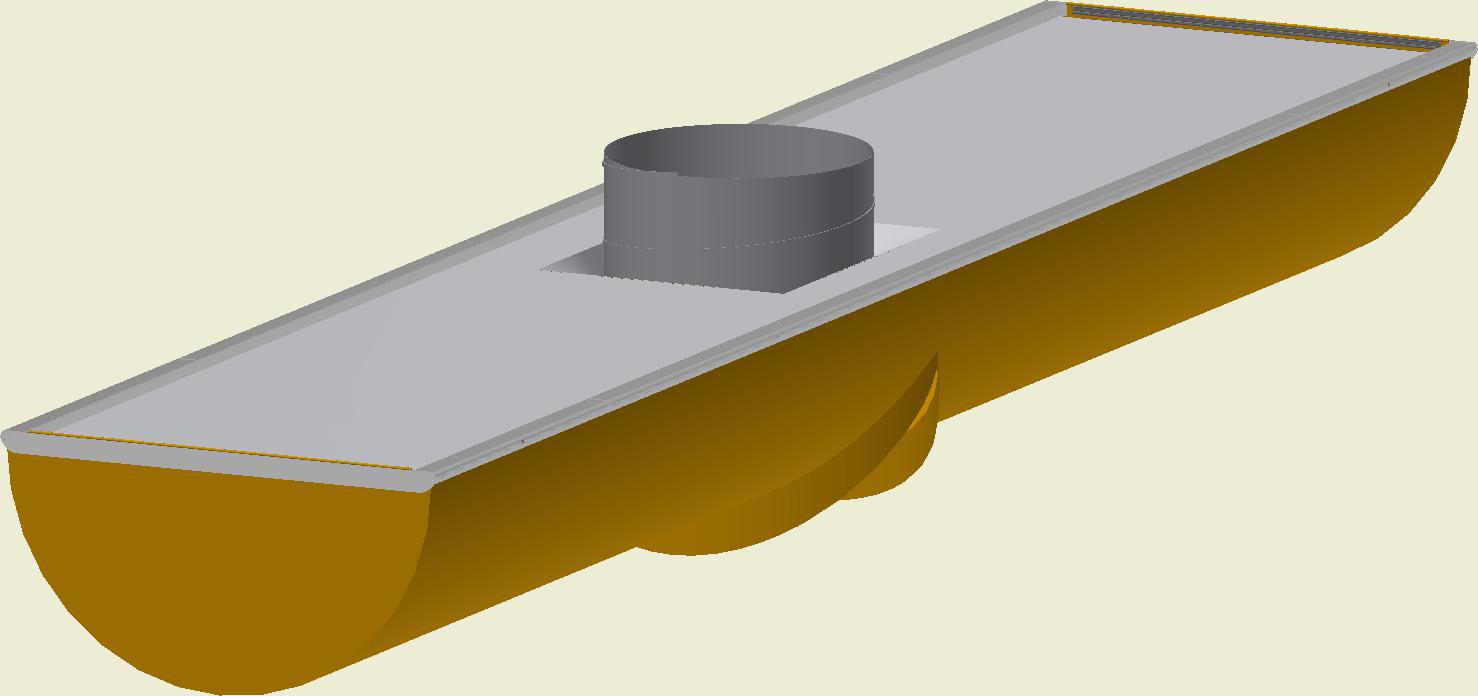

D-Lite Alu Suspension for KE-Interior System (Plenum)
L = Duct length
L = Pose længde
LS = Length socket
LS = L ængde Studs
Ø = Socket diameter
Ø = Studs Diameter

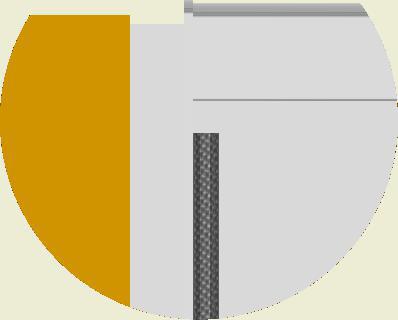

Aligning-profile only at duct bottom.
!!! Note !!! Klemprofil ved endebunde(H) ingen klemprofiler ved Lynlåse(I)
H = Højde
H = Height
W = Width
W = Bredde
O = Offset
O = Forsætning
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2

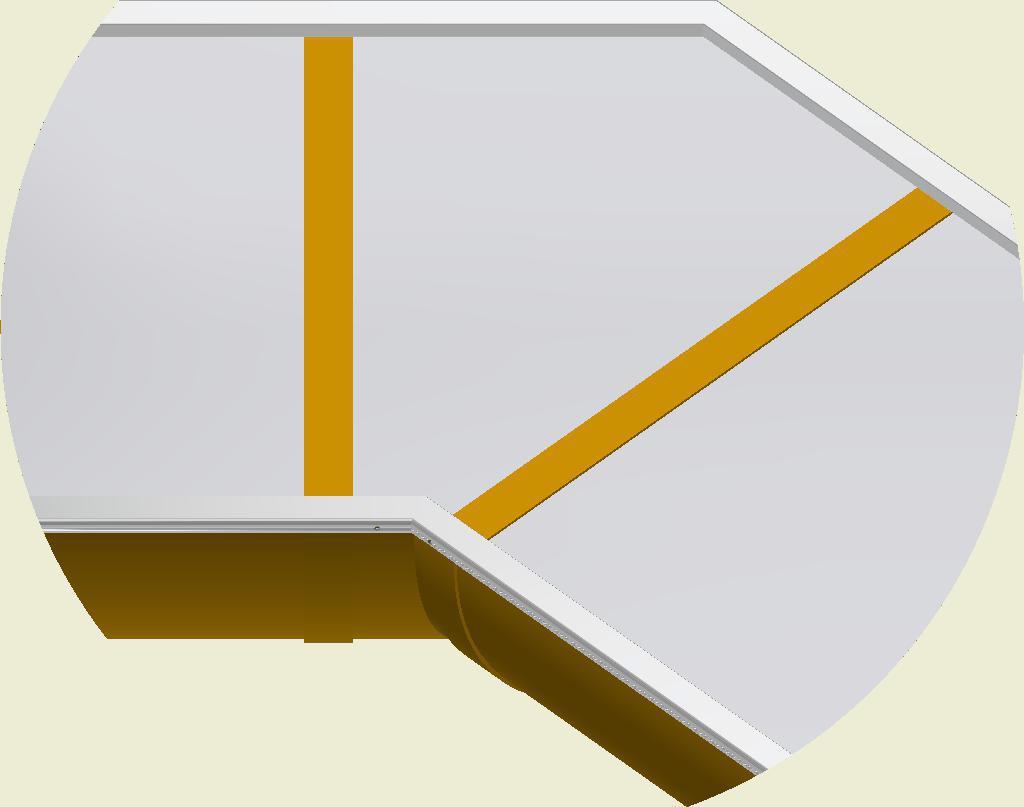

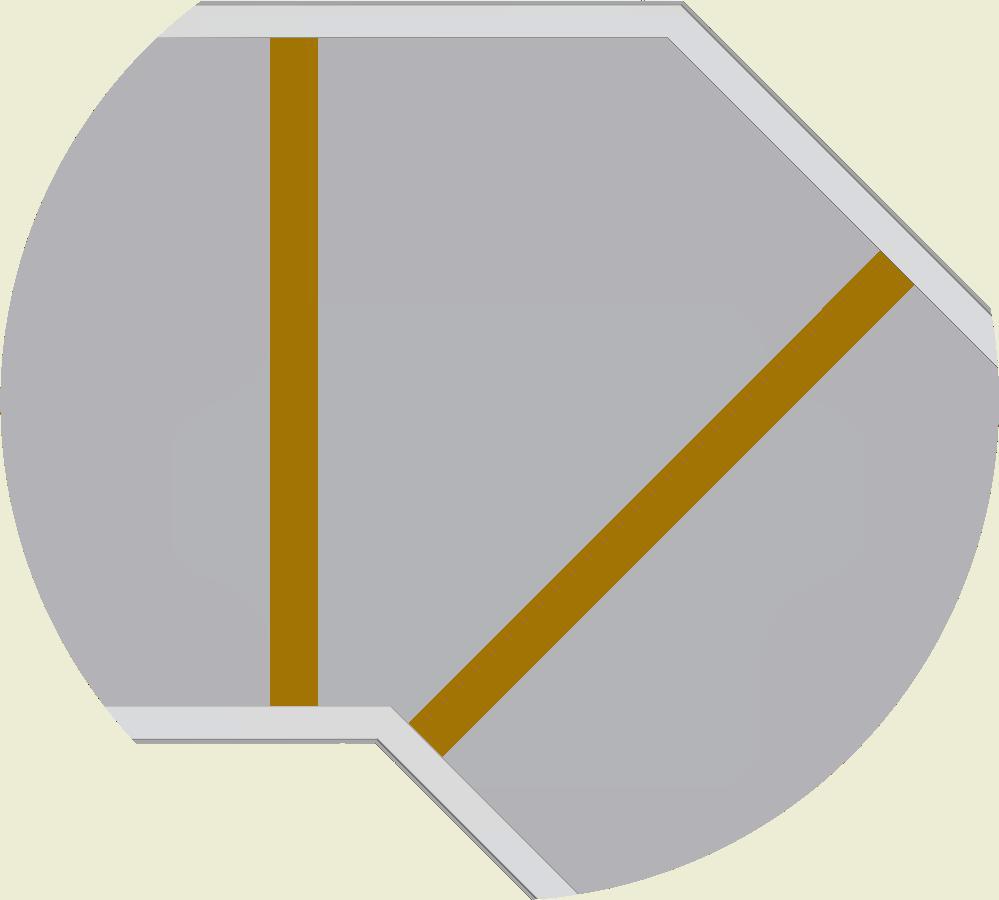

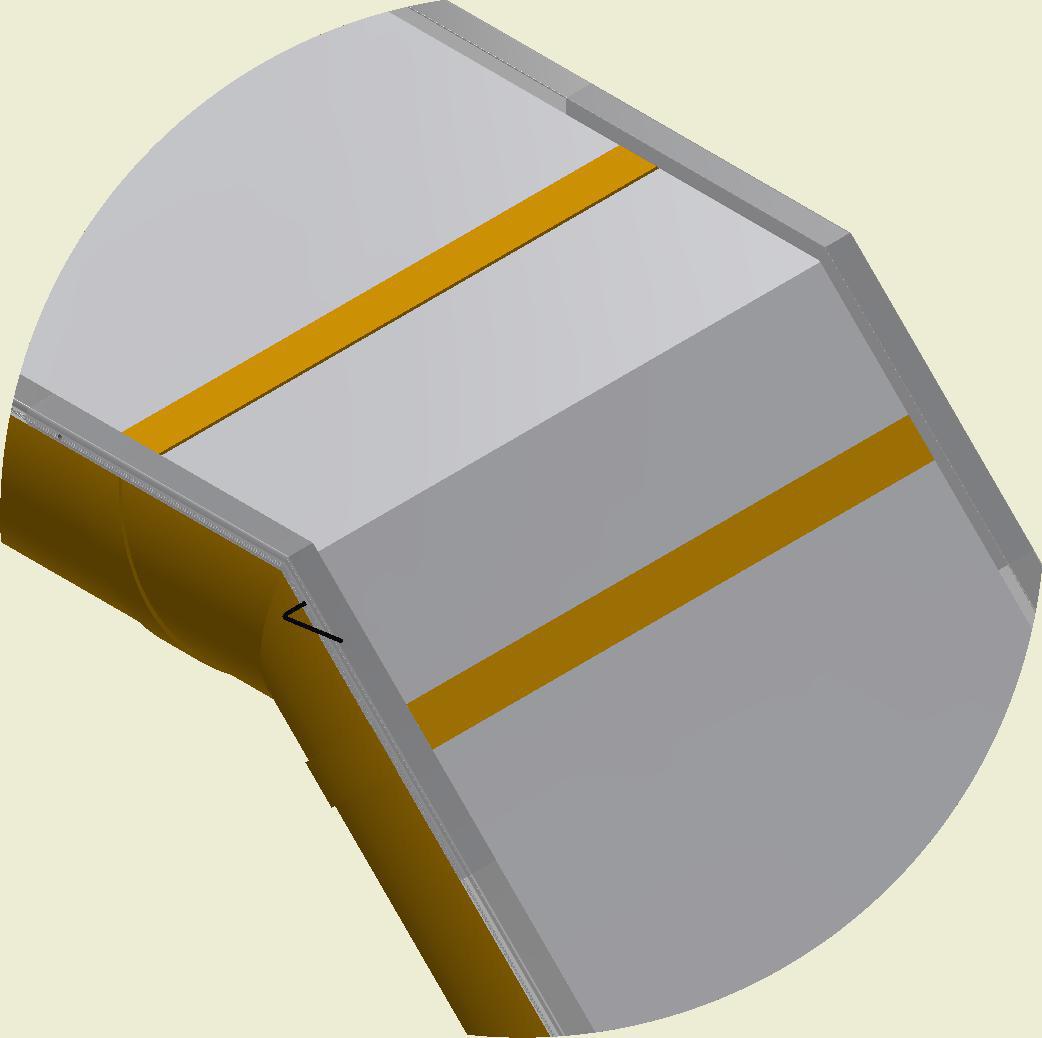

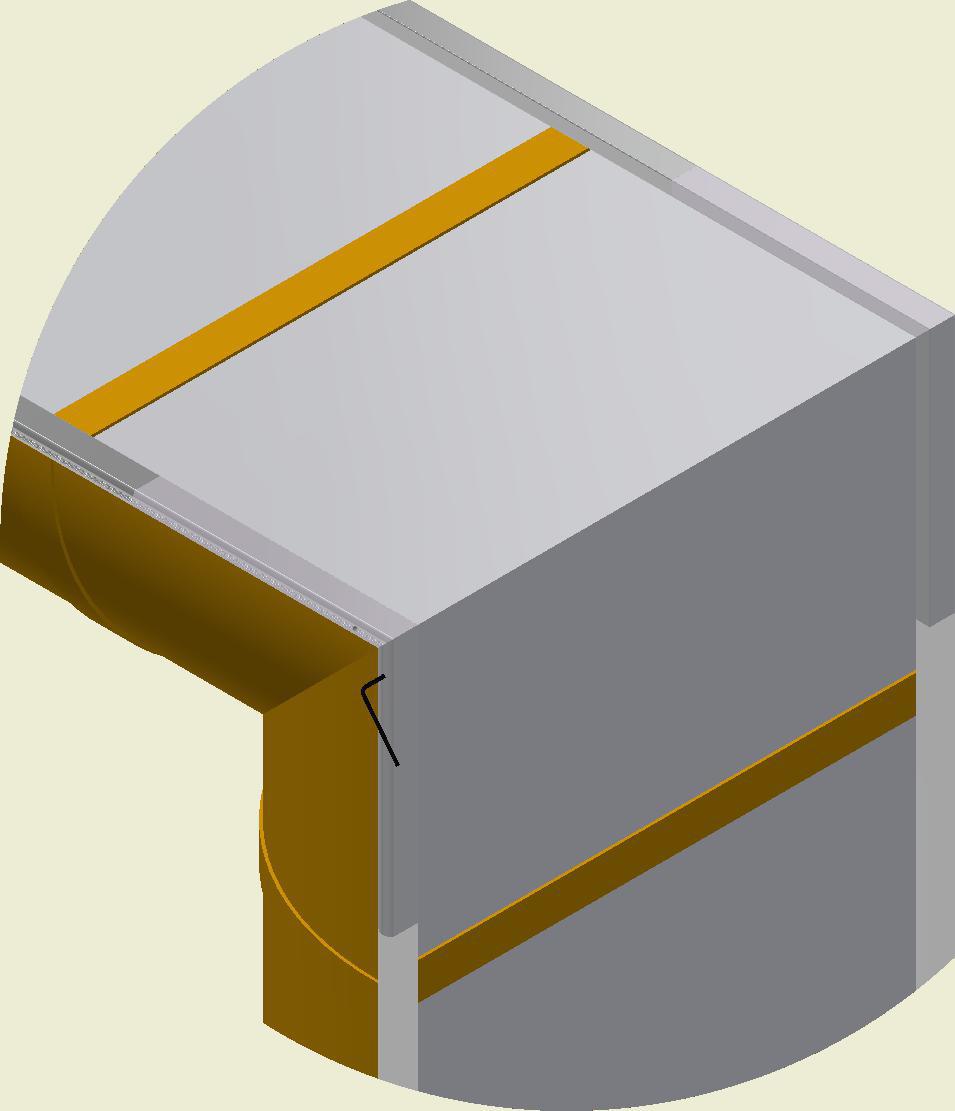

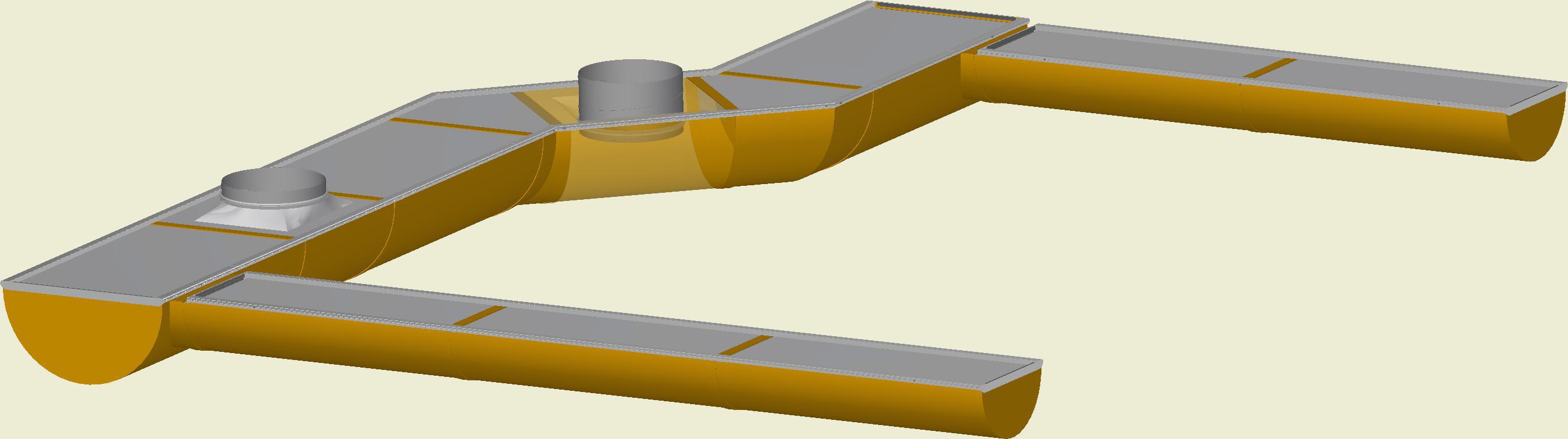

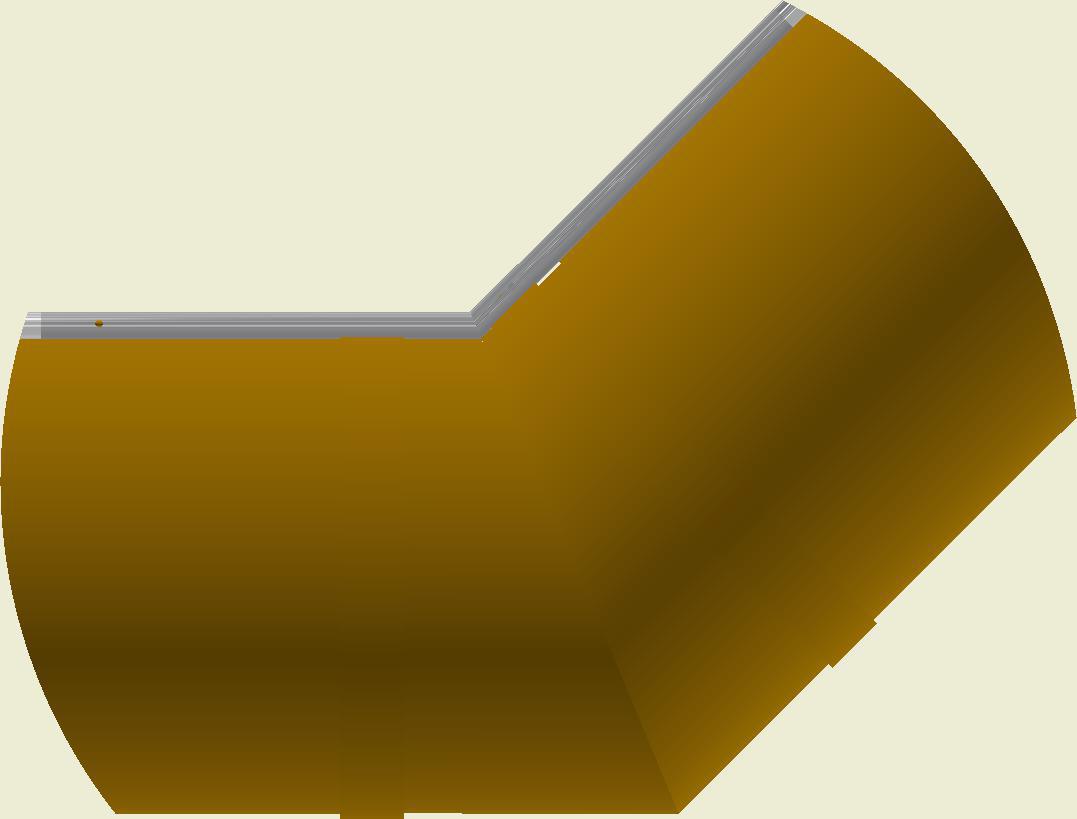

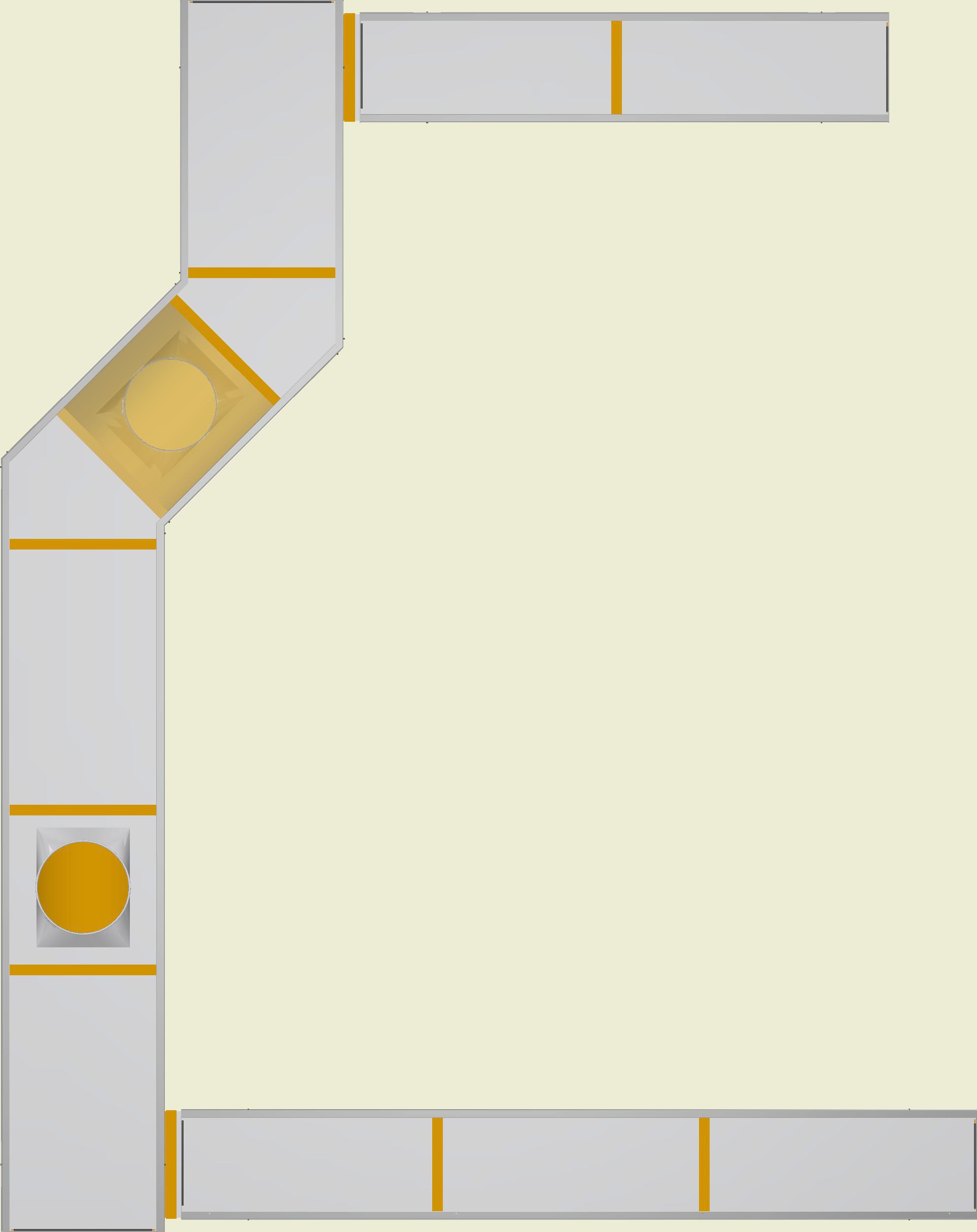

D-Lite Alu Suspension for KE-Interior System (Elbow)

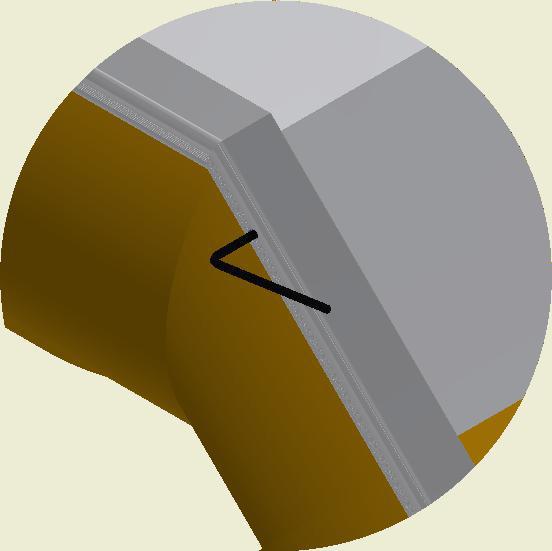

Når posen sidder som den skal spændes Pinol med 3mm Umbracho. Umbracho ikke incl.

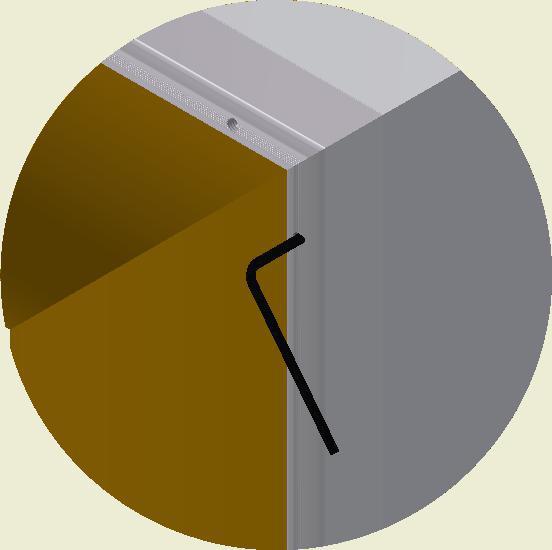

Upon properly installing the textile duct, tighten the grub screws with a 3 mm Allen key (not included).

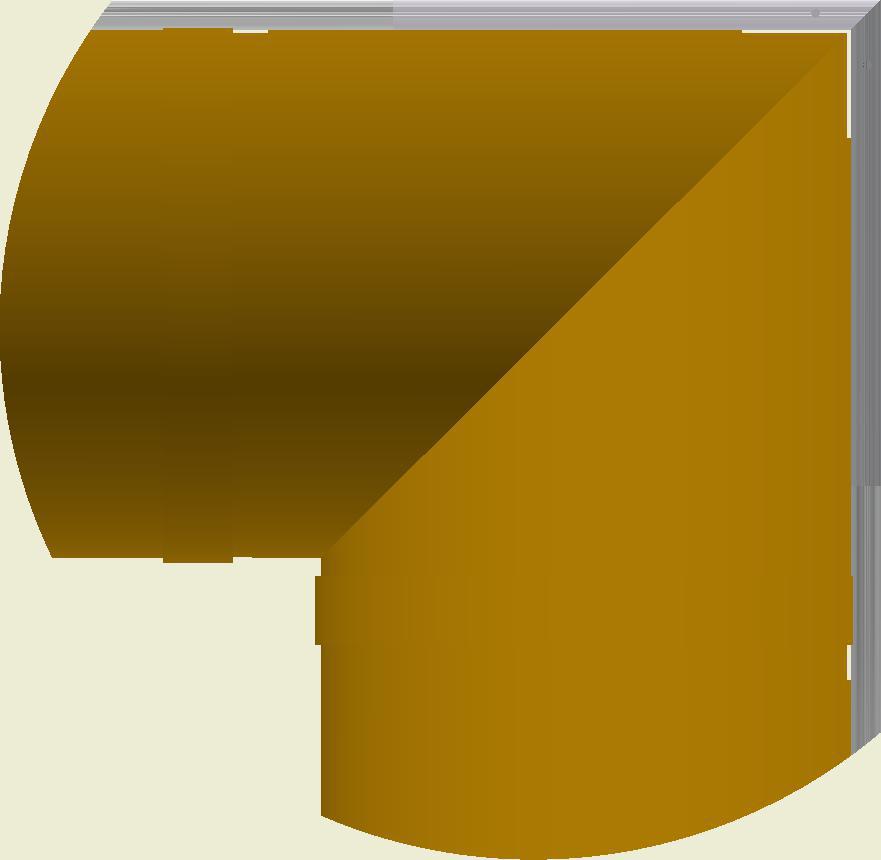

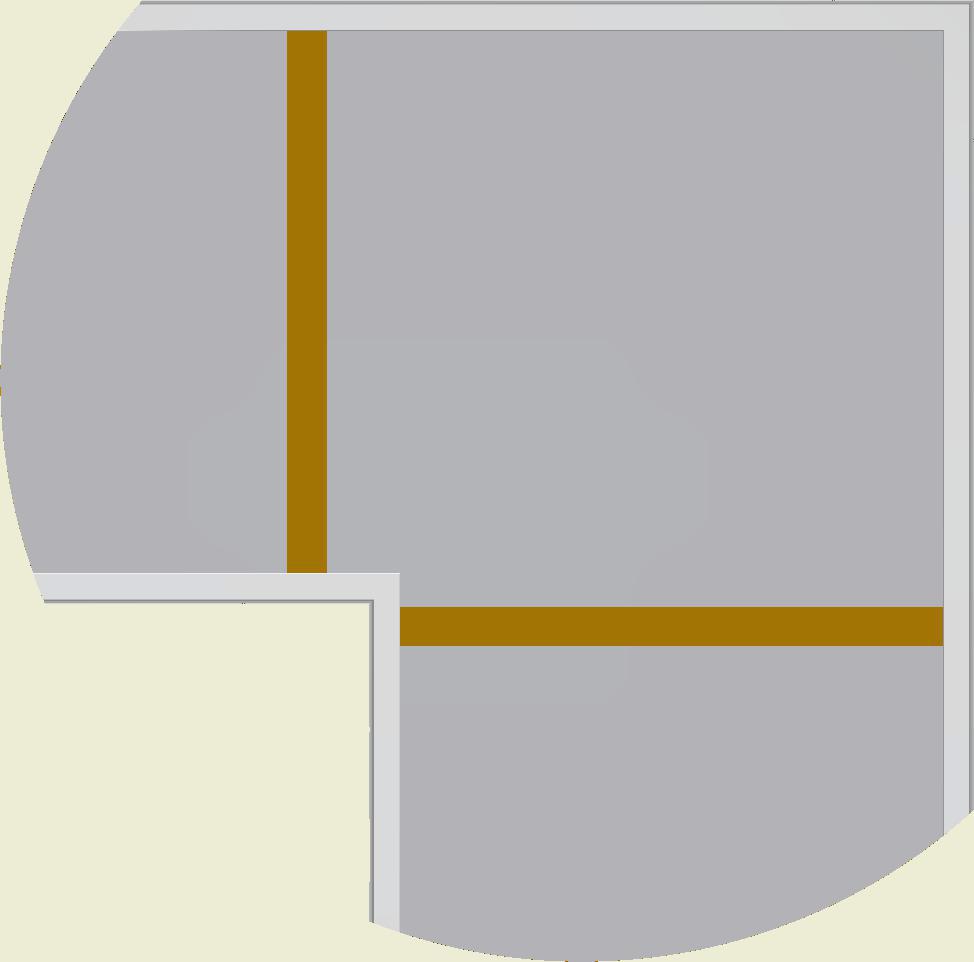

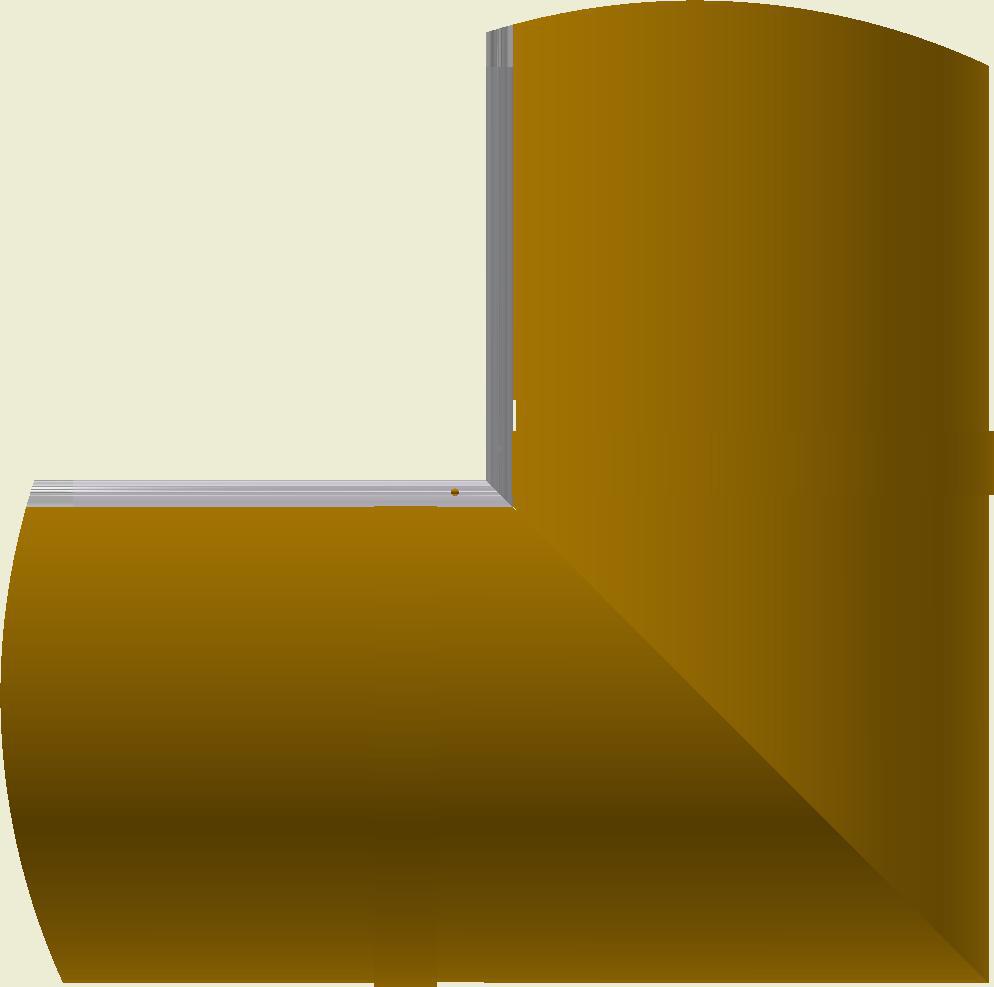

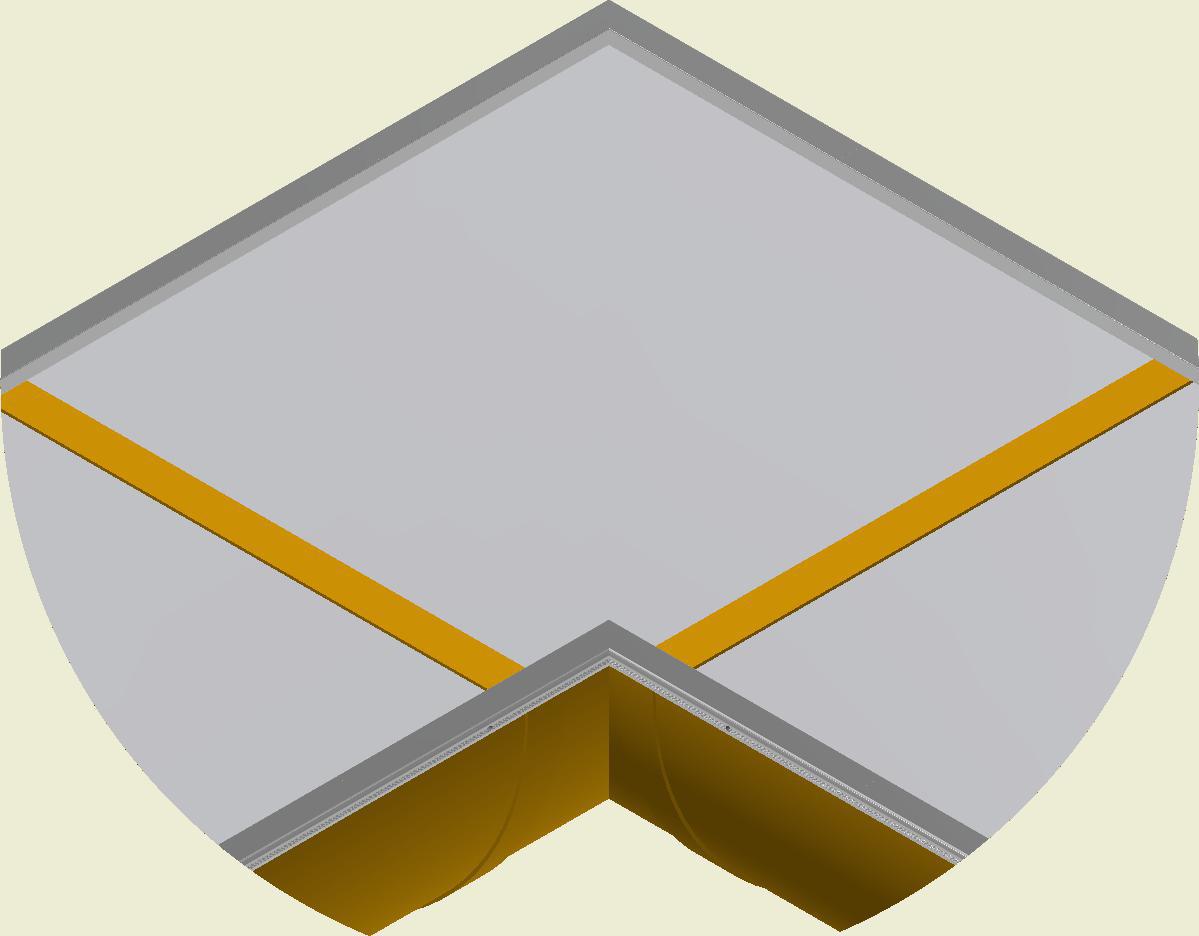

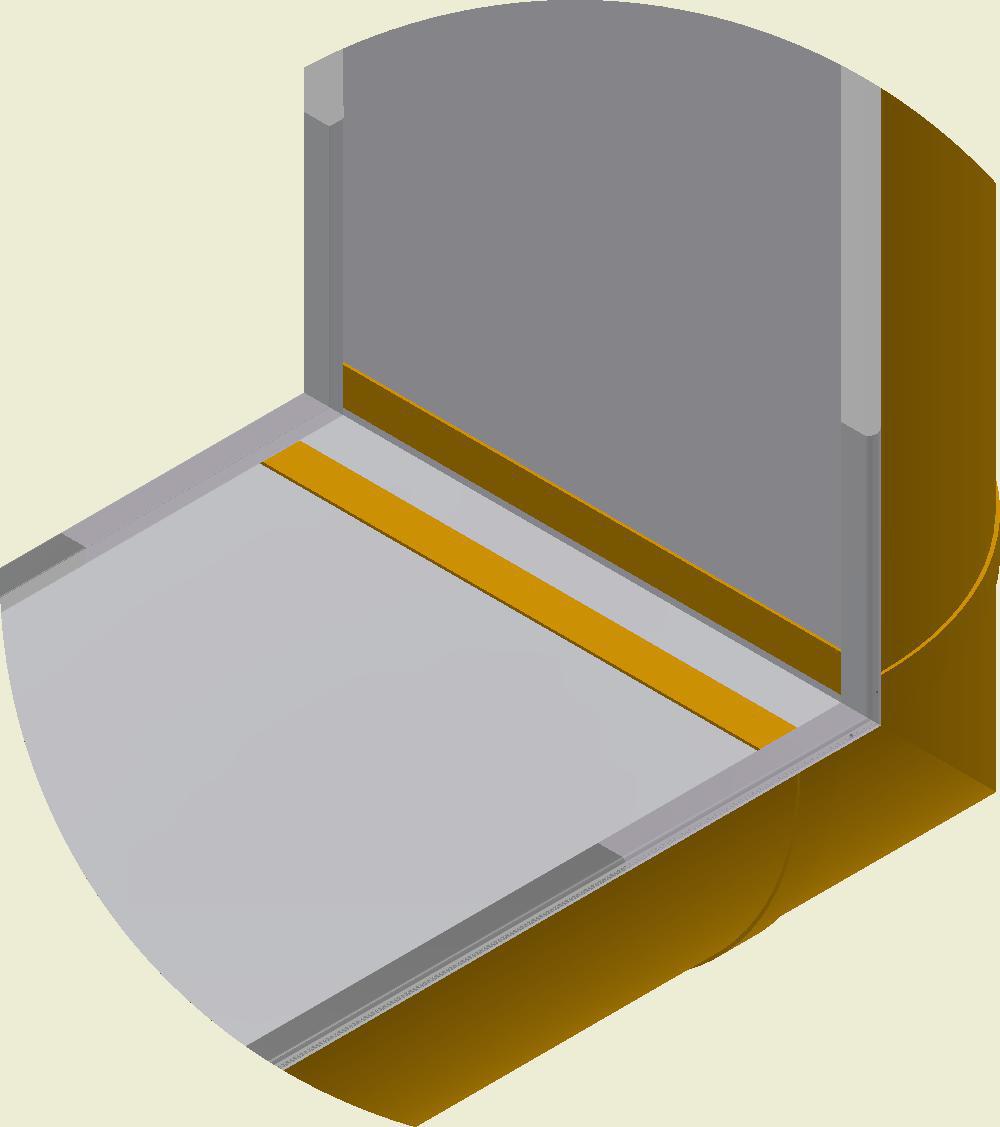

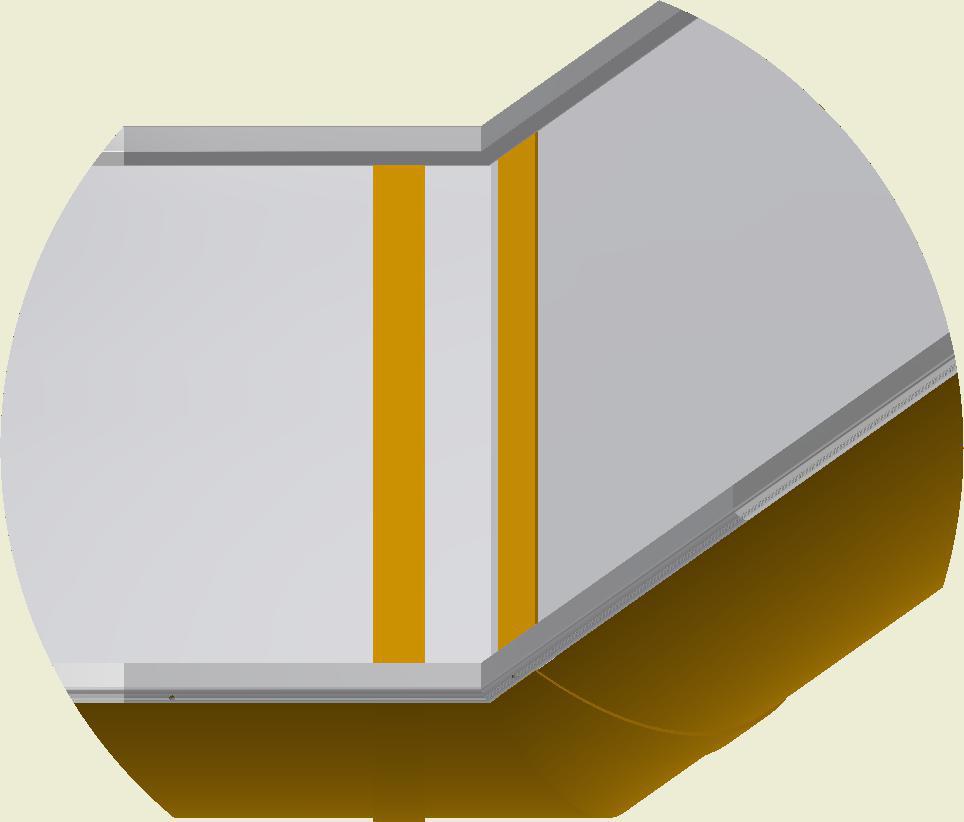

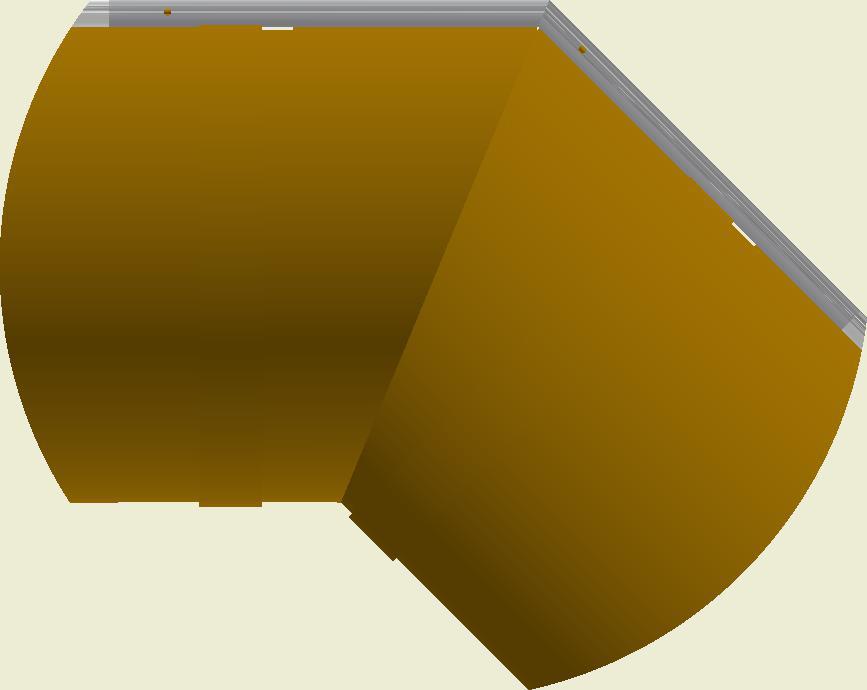

D-Lite Alu for KE-Interior System (Elbow 90°)
Upon properly installing the textile duct, tighten the grub screws with a 3 mm Allen key (not included).
Når posen sidder som den skal spændes Pinol med 3mm Umbracho. Umbracho ikke incl.
D-Lite Alu for KE-Interior System (Service Zipper)
DL- 0009-DK- 03
DL-0009-GB-03
D-Lite D-Pose Serv ice Lynlås .
D-Lite Alu D-Duct with Service Zipper
D-lite D-Pose Ly nlås.
D-Lite Alu D-Duct with Zipper
DL- 0010-DK- 03
D-Lite Alu Suspension for KE-Interior System (KE-SRD)
DL-0010-GB-03

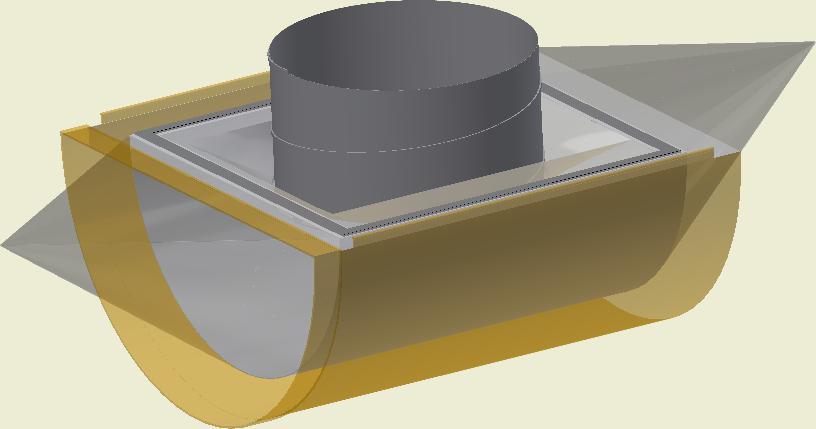

Installation of T-SRD (top inlet)
T-SRD montage .
The T-SRD is optional
T-SRD kan tilvælges

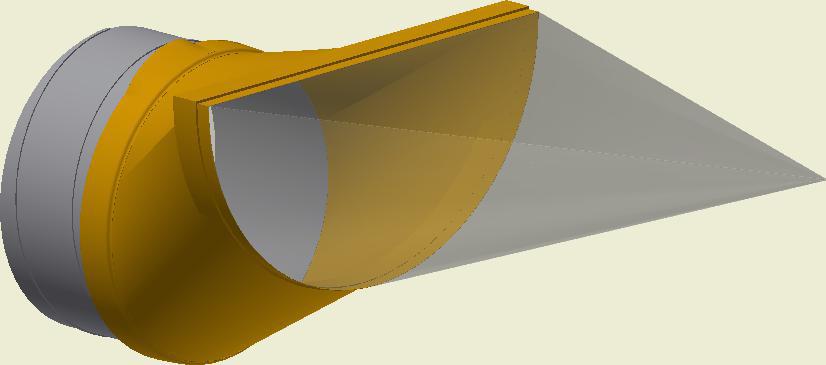

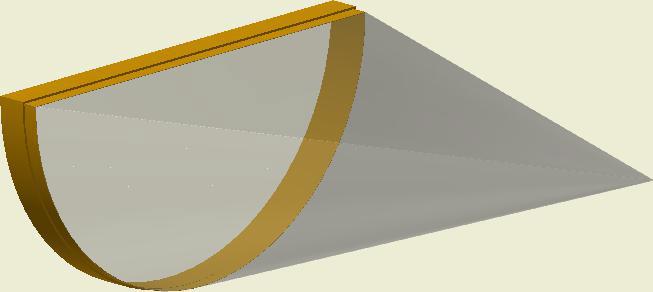

Installation of D-SRD (end inlet)
Indløbs -SRD m ontage .
Indløbs SRD kan tilvælges
The D-SRD is optional
The D-SRD and D duct are joined by means of zipper
Indløbs SRD lynes i ved en lynlås
The T-SRD is fastened to the inside of the textile duct by means of velcro
T-SRD monteres indvendigt i posen med velcro.

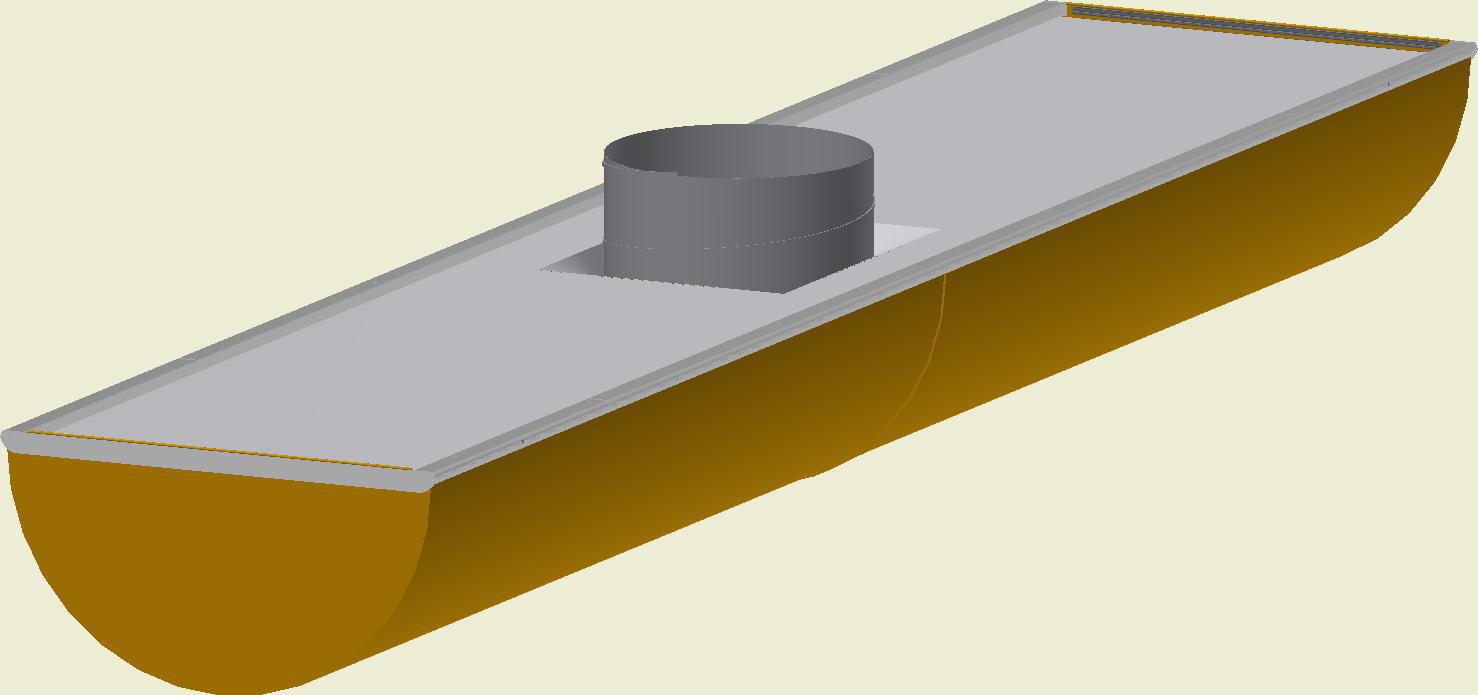

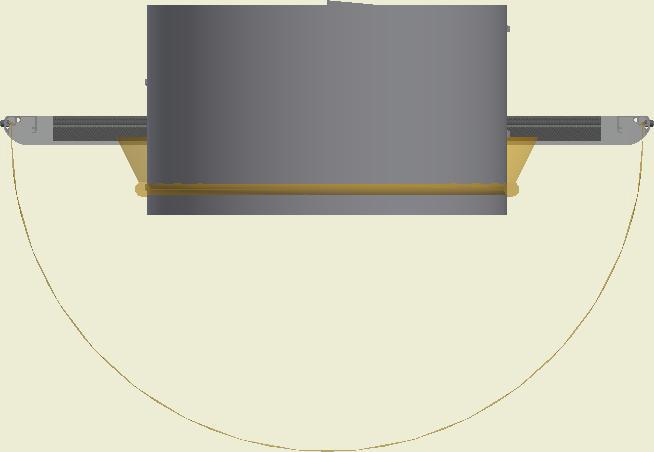

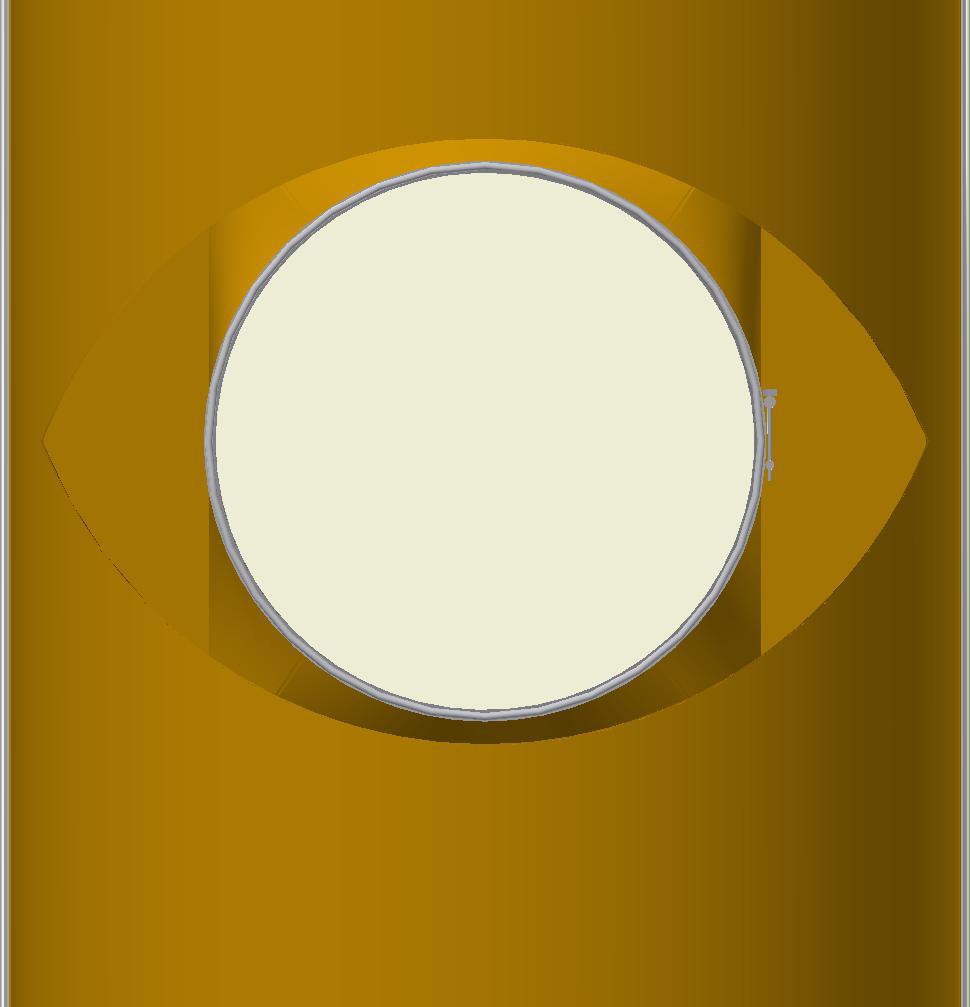

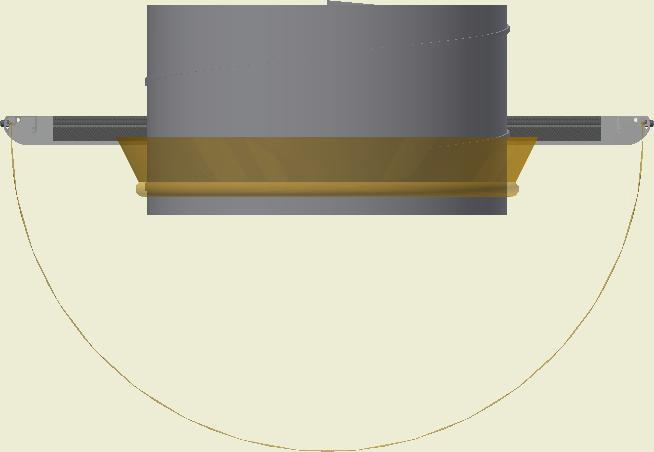

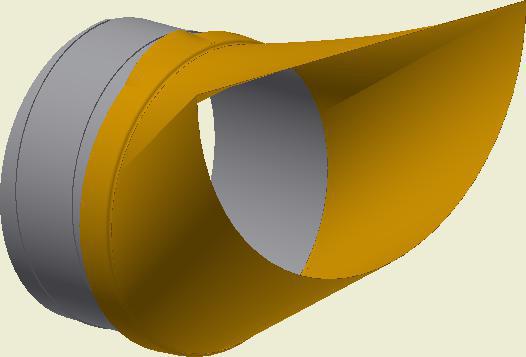

D-Lite Alu for KE-Interior System (Inlet socket with spring lock)
DL-0011-DK-03
Start rail
Startskinne
Start rail
L = Duct length
L = Pose længde
LS = Længde Studs
LS = Length socket
Ø = Socket diameter
Ø = Studs Diameter
H = Højde
H = Height
W = Width
W = Bredde
O = Forsætning
O = Offset
A = Afstand studs 1
A = Distance socket 1
B = Afstand studs 2
B = Distance socket 2
Startskinne
Start rail
Start rail
Husk!
Marker A-målet på skinnen så du ved hvor studsen er når du har trukket posen på skinnerne.
Mark the A measurement on the rail so that it is clear where the nozzle is located after the duct has been mounted in the rails.

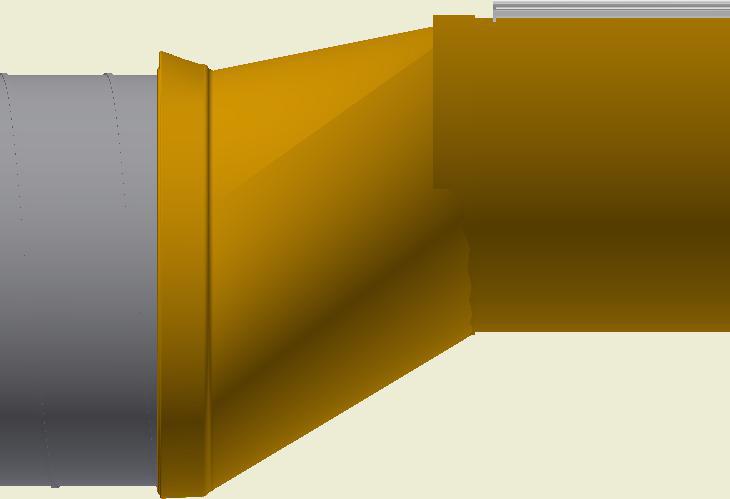

Mount the spring lock of the inlet socket onto supply spigot.
Fjeder trykkes over studsen.
NOTE!
Husk!
Vask hænder eller tag handsker på før montering.
Remember to wear gloves or wash your hands prior to installation.

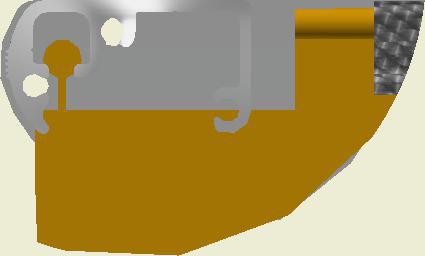

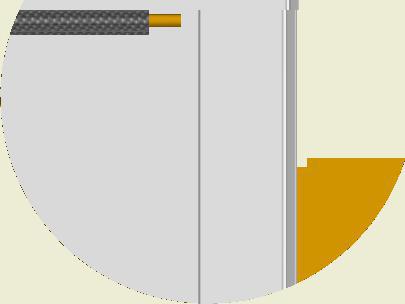

Soft Velcro on top of 50 mm roof

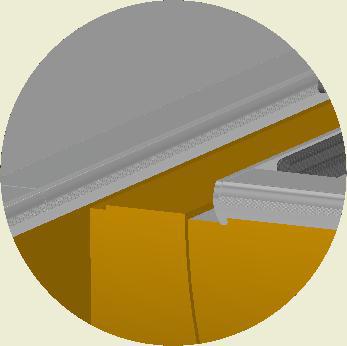

End Bulb
D-Lite Alu Bulb
D-Lite Alu Start rail
D-Lite Alu End profile

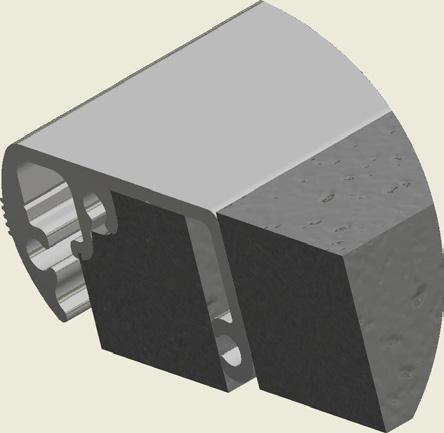

Foam Brick 17x17 mm
Foam Brick mounted
